Case Study of Interrelation between Brain-Computer Interface based

Multimodal Metric and Heart Rate Variability

V. S. Vasilyev, V. I. Borisov, A. M. Syskov and V. S. Kublanov

Research Medical and Biological Engineering Centre of High Technologies, Ural Federal University,

Mira Str., 32, Yekaterinburg, 620002, Russia

Keywords: Brain-Computer Interface, Heart Rate Variability, Multimodal Metric, Vestibular Apparatus.

Abstract: The Brain-Computer Interface (BCI) can be used for evaluation of the state of individuals during everyday

routines. As shown in previous works, there is a relationship between the BCI multimodal metric with

functional states of human. We have used power of Theta, Alpha, Beta low and Beta high

electroencephalography rhythms and head motion data signals for multimodal metric. Heart Rate Variability

(HRV) is common medical method for functional state assessment. In this paper the results of interrelation

estimation between multimodal metric and HRV are shown. We used Pearson correlation coefficient (PCC)

for estimates of interrelation between multimodal metric and HRV. It was found, the best results for estimates

of parasympathetic part of the autonomic nervous system and suprasegmental regulation HRV have value of

PCC more then critical value for Pearson correlation.

1 INTRODUCTION

Human body is a phenomenally complex system.

Interwoven with a multitude of physiological and

mental processes, that overlap and influence one

another in many different ways, it is similar in its

nature to the Indra’s net – each vertex is beaded with

many multifaceted jewels, and each jewel is reflected

in all of the other jewels (Robertson, 2014).

Given such fractal-like, interconnected structure

of our organisms, it would be fair to say that

assessment of subject’s functional state and mental

status is a non-trivial task (Kublanov et al., 2015).

Examined signals differs one from another both in

their characteristics and origins, and, more often than

not, are contaminated with unwanted noise and

artefacts. In turn, extracted signal’s features, that

contain useful insights and information, require usage

of sophisticated statistical and mathematical

apparatus in order to be properly interpreted

(Kublanov et al., 2016).

Despite such associated difficulties, there’s a

common need in assessment of mental and functional

state of a subject, in real-life conditions for healthcare

and telemedicine application (Syskov et al., 2017).

Widely accepted methodologies used for that are

electroencephalography (EEG) and electrocardio-

graphy (ECG), which, while recording signals from

different organs (brain and heart, respectively), deal

with the same underlying physiological phenomena –

electrical activity of our bodies.

Another very common modality used in that

setting is the motion activity. In the constant presence

of the gravitational force, our bodies maintain

continuous state of three-dimensional equilibrium.

This self-balancing process produces various bio-

mechanical oscillations (for example tremors,

clonuses and fasciculations) and shapes our posture –

all are indicators of subject’s state. “Movement is

life” indeed (Borisov et al., 2017). In (Borisov et al.,

2018) integrated feature space EEG and motion

activity for multimodal metric calculation are used.

Statistically significant changes in the assessment of

the athlete's functional state for the stages are shown.

In this research, we are testing the hypothesis of

existence of common factor between heart rate

variability (HRV) and multimodal metric in real-time

conditions. To test this hypothesis, we conducted a set

of small experiments, whose details, methodologies

and final results are described as follows.

532

Vasilyev, V., Borisov, V., Syskov, A. and Kublanov, V.

Case Study of Interrelation between Brain-Computer Interface based Multimodal Metric and Heart Rate Variability.

DOI: 10.5220/0007694505320538

In Proceedings of the 12th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2019), pages 532-538

ISBN: 978-989-758-353-7

2 MATERIALS AND METHODS

In this research, widespread wireless Emotiv EPOC+

headset was used for EEG and motion data

acquisition (Borisov et al., 2017). Its technical

specifications are presented in Table 1.

Table 1: Emotiv EPOC+ technical specifications.

Number of channels

14 (CMS/DRL references, P3/P4

locations

)

Channel names (International 10-

20 scheme

)

AF3, F7, F3, FC5, T7, P7, O1, O2,

P8, T8, FC6, F4, F8, AF4

Sam

lin

metho

uential sam

lin

, sin

le ADC

Sam

lin

rate 128 SPS

(

2048 Hz internal

)

Resolution

14 bits 1 LSB = 0.51 μV (16 bit ADC,

2 bits instrumental noise floor

discarded

)

Bandwidth

0.2 - 45Hz, digital notch filters at

50Hz and 60Hz

Filtering Built in digital 5th order Sinc filte

namic ran

e 8400

(pp)

EPOC+ headset provides information about the

induced electrical activity of the brain from 14

channels. This information contains the voltage value

for each electrode with a sampling frequency of 128

Hz. Electrode placement locations are shown in

Figure 1.

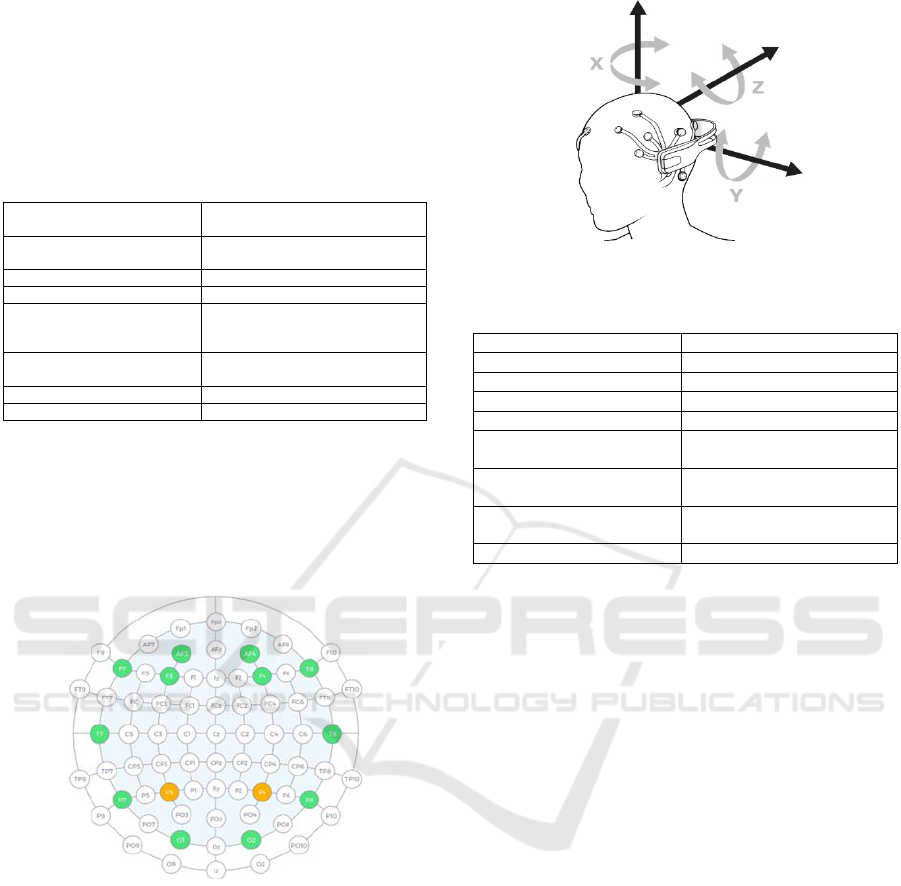

Figure 1: Emotiv EPOC+ electrode locations in standard

10-20 montage scheme.

In addition to that, headset also provides data from

a three-axis accelerometer, which allows assessment

of the movement of the headset in space during the

experiment.

Recorded signal contains the values of the

acceleration for each axis and the data recording time.

The scheme of the accelerometer axes is shown in

Figure 2.

Psycho-physiological telemetric system "Rehacor”

(made by Medicom MTD, Ltd., Russia, see technical

specifications in Table 2) with a set of cardiograph

electrode terminals was used for ECG signal

acquisition.

Figure 2: Scheme of accelerometer axes.

Table 2: “Rehacor” technical specifications.

Number of channels 4

Sampling rate 250 Hz

Resolution 24 bits

Dynamic range 5 - 8000 μV (pp)

ECG channel noise ≤ 2 μV (pp)

Low-pass filter cutoff

frequencies

30; 40; 100 Hz

High-pass filter cutoff

frequencies

0.05; 0.16; 0.5; 1.6; 5; 16 Hz

Callibration signal

5 Hz sine wave; 1 μV

amplitude

HRV calculation range 45 - 240 bp

2.1 Experiment Setup

A series of experiments with the equipment described

above was carried out on 9 healthy subjects in the age

group of 23±3 years, to study parameters which

would describe different functional and mental states

of a subject. Each experiment contained five stages as

described further.

At the stage of functional rest (RS), the subject sits

opposite the monitor of the personal computer and

looks at the black screen.

Stage of TOVA test (Test of Variables of

Attention) is an intellectual test for the variability of

attention (T1 and T2). It is a mental test to evaluate

the function of active attention and control reactions.

The Pebl software was used for the test procedure.

During the test, squares and circles appears

alternately at the top and bottom of the computer

screen. The task of the subject is to press a space on

the keyboard when a square appears at the top of the

screen.

At the stage of hyperventilation (HL), the subject

frequently breathes, imitating breathing during heavy

physical load. The final stage is aftereffect period

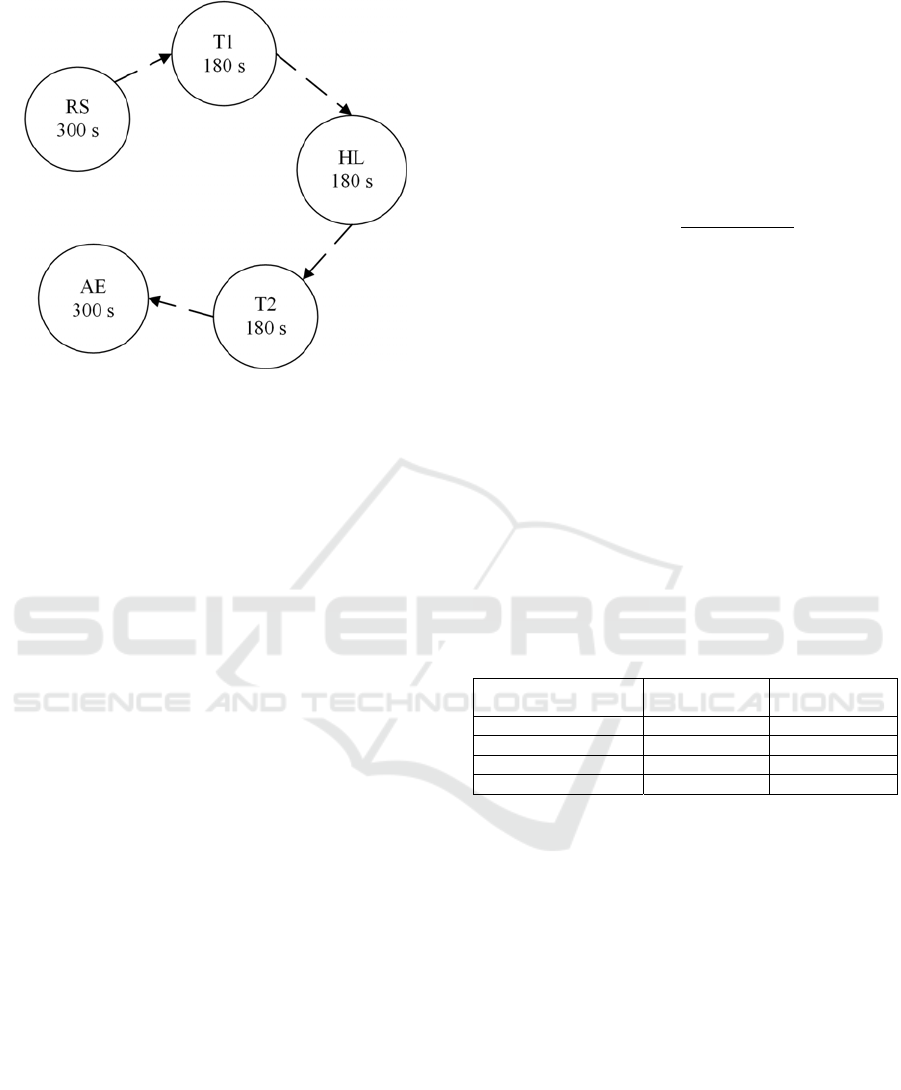

(AE). The time-line of the experiment is shown in

Figure 3.

Raw EEG, HRV and movement data were

recorded and collected during the experiments, before

being processed as described in the next sections.

Case Study of Interrelation between Brain-Computer Interface based Multimodal Metric and Heart Rate Variability

533

Figure 3: Time-line of the experiment.

2.2 Motion Data Processing

The three-axis accelerometer provides information on

the magnitude of the acting accelerations along the

three axes, respectively. The acceleration value for

each axis is registered through equal time intervals.

The signal measured by the accelerometer is a linear

sum of three components (Borisov et al., 2018):

 Body Acceleration Component (BA) is

acceleration resulting from body movement;

 Gravitation Acceleration Component (GA) is

acceleration resulting from gravity;

 Noise inherent to the measuring system.

GA provides information about the spatial orientation

of the device, and the BA provides information about

the movement of the device and subject’s head

movement.

The frequency spectrum of accelerations caused

by human motion is located in the range from 0 to 20

Hz. The gravitational component is located in the

range from 0 to 0.3 Hz. The component containing

instrumental noise is located generally in the range

above 20 Hz.

To isolate the motion component from the signal,

a second-order Butterworth window filter with

frequencies from 0.3 to 20 Hz was used.

The most relevant motion data (MD) features of

the accelerometer signal are (Borisov et al., 2018):

 Maximum and minimum values of acceleration;

 Average value of acceleration at a given time

interval;

 Standard deviation (STD);

 Zero cross rate (ZCR);

 Mean ZCR;

 Mean energy for a current stage;

 Activity (in the equation below);

 Average activity time.

Because of the discrete nature of the accelerometer

signal, ZCR was calculated as the number of sections

where the previous sign differs from the current sign.

Activity, the value characterizing the change in the

signal over time, was calculated by the following

formula (1):



 





















(1)

where 

















The average activity time is the ratio of the total

activity time, which exceeds the average level by 10%,

to the number of stages not exceeding this level.

2.3 HRV Signal Processing

Frequency-domain analysis method was applied to

ECG signal and HRV indexes were calculated.

Artifact removal was carried out using 3-sigma

rule and moving window algorithm. Mean window

value was used for value restoring. Spectral

characteristics of frequency ranges, depicted in Table

3, were used for subject's functional state assessment

(Borisov et al., 2017).

Table 3: HRV frequency ranges.

Title Abbreviation

Frequency

range (Hz)

High frequency HF 0.4

–

0.15

Low frequency LF 0.15

–

0.04

Very low frequency VLF 0.04

–

0.003

Ultra low frequency ULF < 0.003

ULF range is not used in analysis of short-term

recordings (3 - 5 minutes in our case). Total spectrum

power (TP) is defined a sum of powers in HF, LF and

VLF frequency ranges.

Normalized power values in each frequency range

(that is HF/TP, LF/TP and VLF/TP) are defined as a

percentage ratio of the total power of the spectrum to

TP value.

The activity of the parasympathetic link of the

autonomic nervous system and the activity of the

autonomous regulation loop are characterized by the

power of HF/TP index. LF/TP index characterizes the

state of the sympathetic center of vascular tone

regulation. VLF/TP index is caused by the influence

on the rhythm of the heart of the supra-segmental

regulation level since the amplitude of these waves is

closely related to the mental stress and the functional

state of the cerebral cortex.

RAIDERS 2019 - Special Session on Real-world Assessment of Individuals During Everyday Routines

534

On all stages of our experiment, sliding window

with 100 seconds size was used for assessment of

HF/TP, LF/TP and VLF/TP parameters.

2.4 EEG Signal Processing

At the first stage of EEG signal processing, all data

were transformed to the frequency domain. To

separate EEG rhythms (see Table 4) from the signal,

a second-order Butterworth bandpass filter was

applied.

Table 4: EEG frequency ranges.

Title Frequency range (Hz)

θ 4

–

α 7

–

EEG data in frequency domain is described as 56-

dimension (14 channels, 4 frequency ranges each)

feature space. This data was passed through EEG

signal processing pipeline, as depicted in Figure 4.

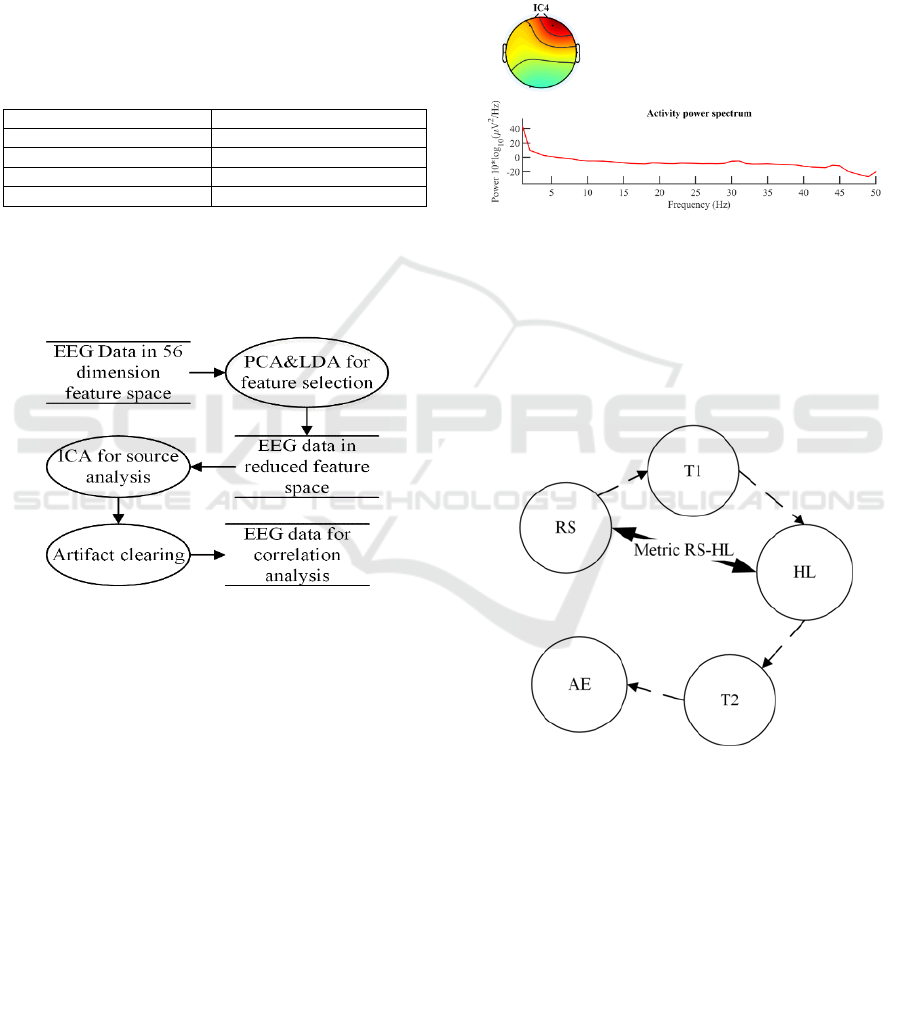

Figure 4: EEG signal processing.

Initially, Principal Component Analysis (PCA)

and Linear Discriminant Analysis (LDA) methods

were used for dimensionality reduction and extraction

of informative signal (Jolliffe, 2014) and

(McLachlan,1992) from the input data.

As a result of PCA and LDA application (covered

in more detail in (Islam, 2010)) EEG feature vector

was reduced to 10 components, namely AF3, T7, O1,

T8, AF4 channels with Theta and Alpha frequency

bands.After dimensionality reduction and feature

selection step, Independent Component Analysis

(ICA) was used for separation of EEG signal from

background and inherit system noise. EEGlab

scientific package, in addition with supplied

guidelines (SCCN: Independent Component

Labeling), was used for this task.

Based on spectral analysis of extracted

components, frequency bands most likely containing

artifacts were selected, on each stage of experiment.

All frequency spectra then were analyzed for

presence of eye-movement overshoots, with 1 second

size window using 3-sigma method. Signal was

filtered in case of overshoot presence. Example of eye

movement artifact component is shown in Figure 5.

Figure 5: Eye component of EEG.

2.5 Creation of Multimodal Metric

By “metric”, we mean a measure that gives a scalar

estimate of “human proximity” to one of the two

states, in real time. In this work metric for RS and HL

stages are calculated (as shown on Figure 6).

Figure 6: Metric RS-HL definition.

Integrated feature vector is created by

concatenation of motion modalities and bio-electrical

activity vectors. The model of integrated feature

vector is depicted in Figure 7.

After construction, 32 component vector was

weighted with coefficients of hyperplane PD

separating resting (RS) and hyperventilation stages

(HV) for calculating scalar value for each time point,

using machine learning as described in (Borisov et al.,

2018).

Case Study of Interrelation between Brain-Computer Interface based Multimodal Metric and Heart Rate Variability

535

Figure 7: Model of integrated feature vector.

3 RESULTS AND DISCUSSION

Both coefficients of multimodal metric and HRV

indexes were calculated using sliding window with

100 seconds size and 5 seconds step. As a result of

data processing pipeline, time series with the

following structure were obtained:

 3 minute stages (T1, HV and T2) –

16 data points;

 5 minute stages (RS and AE) –

40 data points;

 Total record of all stages contains 128

(40 × 2 + 16 × 3) data points;

 For each subject, a total of 8 vectors (7 HRV

indexes and 1 PD coefficient) were calculated.

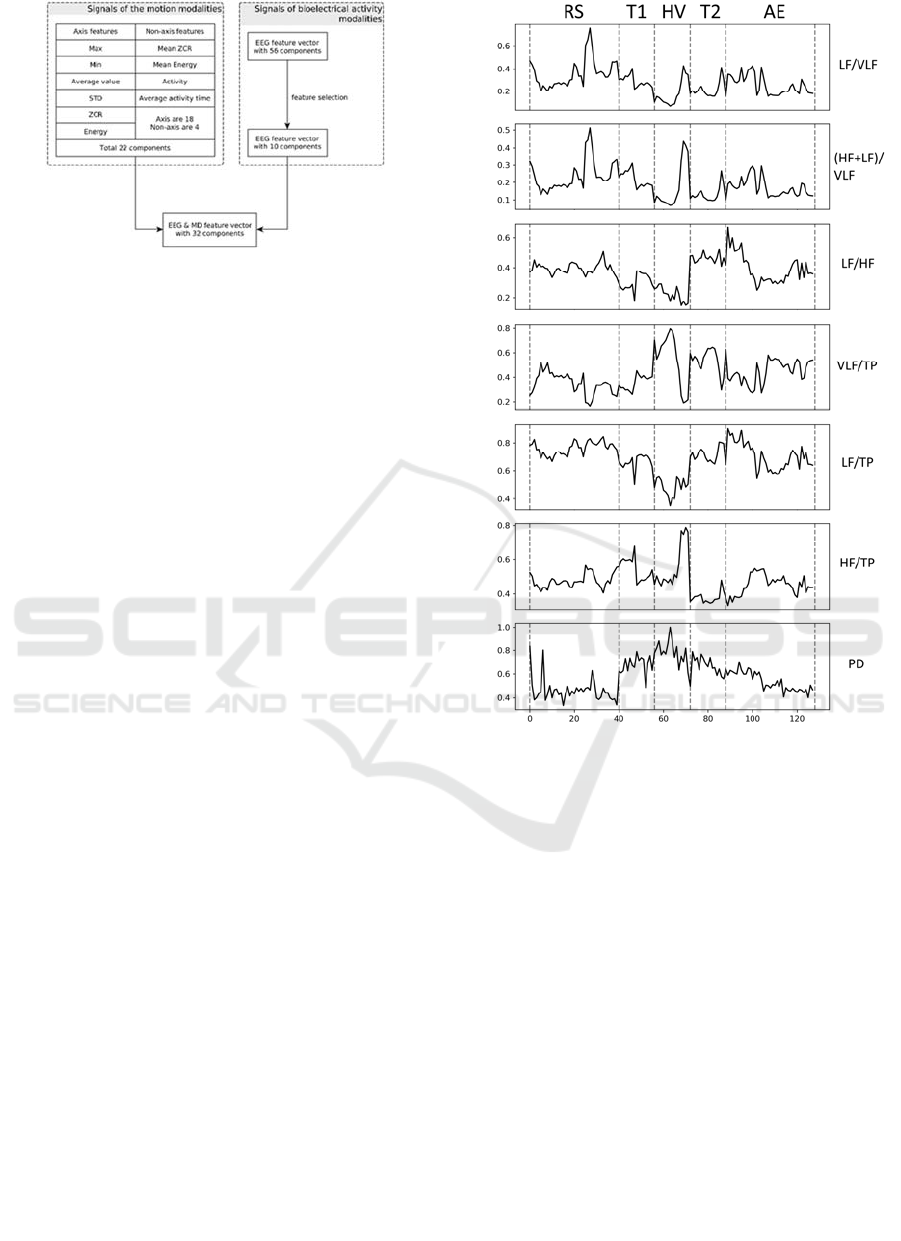

Examples of plotted HRV indexes and normalized

coefficient of multimodal metric PD are shown on

Figure 8.

Visual analysis of plotted data indicates that there

exists a dynamic that reflects changes in the

functional state of a subject during the experiment,

both in multimodal metric and in calculated HRV

indexes.

To test our initial hypothesis of existence of

common factor between heart-rate variability signal

and time-series of multi-modal metric, Pearson

correlation coefficients (PCC) were calculated for RS

and HV time-series.

Statistical significance of correlation coefficients

was evaluated. Based on table values from (Förster

and Rönz, 1979) for p=0.05:

 Sample size N is 112 (56 × 2);

 Number of degrees of freedom DF is 110

(N – 2);

 For given value of DF, critical value of correlation

coefficient is 0.2.

Figure 8: HRV indexes and multimodal metric (PD).

Upon evaluation of PCC correlation coefficients,

it was found that data series, consisted of

concatenated RS and HV intervals, has a statistically

significant Pearson’s correlation value. Results are

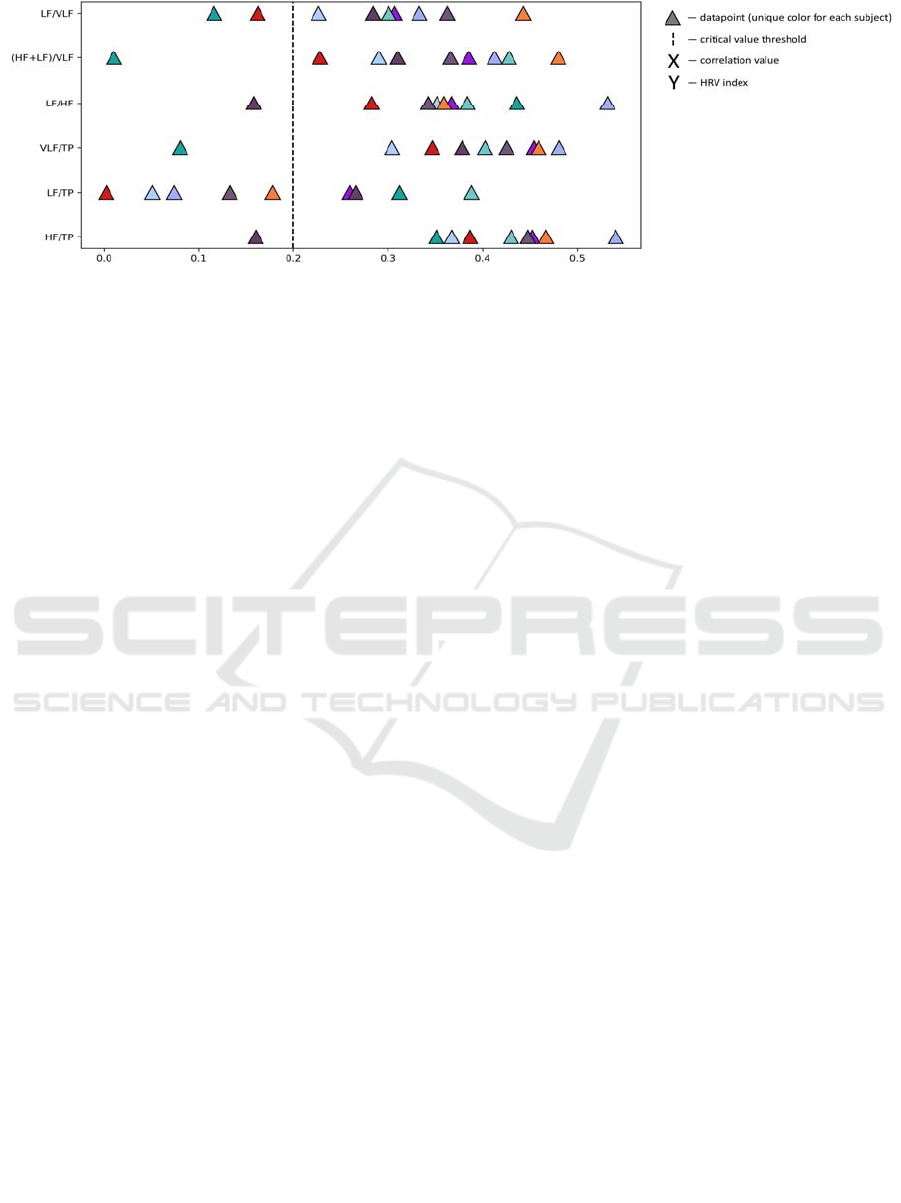

shown on the graphical plot below (see Figure 9),

with absolute correlation values on horizontal axis

and calculated HRV indexes on vertical axis; each

subject is depicted with unique color point on each

stage.

The presence of a significant correlation allows us

to formulate a hypothesis about the presence of

factors that are common to the parameters of the

functioning of the central nervous system, the

autonomic nervous system and the vestibular

apparatus, which can be identified using the proposed

multimodal metric.

The explanation of such factors may be based on

the following phenomena identified during the

research: the spectral components of the HRV signal

in the VLF frequency band changed significantly,

RAIDERS 2019 - Special Session on Real-world Assessment of Individuals During Everyday Routines

536

Figure 9: Correlation of vector of concatenated RS and HV intervals with HRV indexes.

which can be explained by the influence of the

supersegmental control of the autonomic nervous

system on the heart rate.

4 CONCLUSION

In this paper, we verified a multimodal metric of

Brain-Computer Interface. For verification, the

assessment of the functional state was carried out

using the parameters of HRV. Integrated feature

space for accelerometer and EEG allows to get more

accuracy and accessibility for different function states.

Multimodal metric based on this feature space useful

for assets “human proximity” to desired function

level during training or rehabilitation.

We used PCC for estimates of interrelation

between multimodal metric and HRV. The common

correlation factor develops itself individually in each

subject. Thus, it may serve as a diagnosis feature for

functional processes that occur in subject’s body. It’s

tightly bound to the sustenance of the homeostatic

state of individuals (Yee and Rabinstein, 2010).

Since the study was conducted on relatively

healthy people, such a factor may be the state of

human health. Further studies involving people with

different nosologies and neurophysiological states.

There are should allow for the identification of

additional of physiological patterns. For example, the

above results can be developed in the development of

methods for assessing changes in the functional state

of a person with sympathetic correction for patients

with depression and disorders of the function of the

vestibular apparatus (Kublanov et al., 2018).

Further investigations need to be carried out in

order to pinpoint the nature and origins of this factor

for real world assessment of humans.

ACKNOWLEDGMENT

The work was supported by Act 211 Government of

the Russian Federation, contract № 02.A03.21.0006.

REFERENCES

Borisov, V., Syskov, A., Kublanov, V., 2018. Functional

state assessment of an athlete by means of the brain-

computer interface multimodal metrics. In IFMBE

Proceedings, vol. 68(3), pp. 71-75.

Borisov, V., Syskov, A., Tetervak, V., Kublanov, V. 2017.

Mobile brain-computer interface application for mental

status evaluation. In Proceedings of 2017 International

Multi-Conference on Engineering, Computer and

Information Sciences, SIBIRCON, pp. 550–555.

Förster, E., Rönz, B. 1979. Methods of Correlation and

Regression Analysis, Verlag Die Wirtschaft, Berlin.

Islam, M. K., Rastegarnia, A., Yang, Z., 2016. Methods for

artifact detection and removal from scalp EEG: A

review. Neurophysiol. Clin. Neurophysiol., vol. 46, no.

4, pp. 287–305.

Jolliffe, I., 2014. Principal Component Analysis, in Wiley

StatsRef: Statistics Reference Online, John Wiley &

Sons, Ltd.

Kublanov, V.S., Babich, M.V., Petrenko, T.S., 2018. New

Principles for the Organization of Neurorehabilitation.

Biomed. Eng., vol. 52, no. 1, pp. 9–13.

Kublanov, V.S., Borisov, V.I., Dolganov, A.Y., 2015. The

interface between the brain microwave radiation and

autonomic nervous system. In 2015 7th International

IEEE/EMBS Conference on Neural Engineering (NER),

pp. 922–925.

Kublanov, V.S., Borisov, V.I., Dolganov, A.Y., 2016.

Application of Multifractal Formalism in Study of the

Role of Autonomic Regulation in Formation of Intrinsic

Electromagnetic Radiation of the Brain, Biomed. Eng.,

vol. 50, no. 1, pp. 30–34.

McLachlan, G.J., 1992. Discriminant Analysis and

Statistical Pattern Recognition: McLachlan/

Case Study of Interrelation between Brain-Computer Interface based Multimodal Metric and Heart Rate Variability

537

Discriminant Analysis & Pattern Recog. Hoboken, NJ,

USA: John Wiley & Sons, Inc.

Robertson, R., 2014. As Above, So Below. Psychol.

Perspect., vol. 57, no. 4, pp. 403–425.

SCCN: Independent Component Labeling. [Online].

Available: https://labeling.ucsd.edu/tutorial/labels.

[Accessed: 14-Oct-2018].

Syskov, A., Borisov, V., Tetervak, V., Kublanov, V, 2018.

Feature Extraction and Selection for EEG and Motion

Data in Tasks of the Mental Status Assessing. In

Proceedings of BIOSTEC 2018: 11th International

Joint Conference on Biomedical Engineering Systems

and Technologies, pp. 164–172.

Syskov, A.M., Borisov, V.I., Kublanov, V.S., 2017.

Intelligent Multimodal User Interface for Telemedicine

Application. In Proceedings of 2017 25TH

Telecommunication Forum (TELFOR), pp. 689-692.

Yee, A.H., Rabinstein, A.A., 2010. Neurologic

presentations of acid-base imbalance, electrolyte

abnormalities, and endocrine emergencies. Neur. Clin.,

vol. 28 (1) pp. 1–16.

RAIDERS 2019 - Special Session on Real-world Assessment of Individuals During Everyday Routines

538
