Creating Triggers with Trigger-By-Example in Graph Databases

Kornelije Rabuzin

and Martina

Sestak

Faculty of Organization and Informatics, University of Zagreb, Pavlinska 2, 42000 Vara

zdin, Croatia

Keywords:

Trigger-By-Example, Graph Databases, Triggers, Active Databases.

Abstract:

In recent years, NoSQL graph databases have received an increased interest in the research community. Vari-

ous query languages have been developed to enable users to interact with a graph database (e.g. Neo4j), such

as Cypher or Gremlin. Although the syntax of graph query languages can be learned, inexperienced users may

encounter learning difﬁculties regardless of their domain knowledge or level of expertise. For this reason, the

Query-By-Example approach has been used in relational databases over the years. In this paper, we demon-

strate how a variation of this approach, the Trigger-By-Example approach, can be used to deﬁne triggers in

graph databases, speciﬁcally Neo4j, as database mechanisms activated upon a given event. The proposed ap-

proach follows the Event-Condition-Action model of active databases, which represents the basis of a trigger.

To demonstrate the proposed approach, a special graphical interface has been developed, which enables users

to create triggers in a short series of steps. The proposed approach is tested on several sample scenarios.

1 INTRODUCTION

The idea of active mechanisms able to react to a spec-

iﬁed event implemented in database systems dates

from 1975, when it was ﬁrst implemented in IBM’s

System R. The idea was quite simple; it was important

to implement a mechanism that could be able to react

to different types of events that occur primarily within

the database or in its surroundings. In database theory,

such behaviour was described by the concept of active

(Event-Condition-Action, ECA) rules. ECA rules are

interpreted in the following way: if some event oc-

curs in the system, and some conditions are fulﬁlled,

then a given action (or set of actions) is automatically

executed as a system’s reaction to the event. The

events deﬁned in ECA rules can vary in their com-

plexity, ranging from simple (e.g. basic data manip-

ulation statements such as INSERT, UPDATE and/or

DELETE) to complex events, which can be deﬁned

by means of simple events, or events such as a se-

quence of events, negation, etc. In database systems,

ECA rules are most often implemented through the

trigger mechanism. A trigger represents a database

object written in a given procedural language, which

executes automatically when a given event occurs.

To avoid manually writing the trigger func-

tion code for inexperienced users, the Trigger-By-

https://orcid.org/0000-0002-0247-669X

https://orcid.org/0000-0001-7054-4925

Example approach has been introduced to simplify

the process of designing database triggers. The

approach uses the Query-By-Example (QBE) as a

graphical interface for creating triggers (Lee et al.,

2000b), and makes the entire trigger design process

more user-friendly.

Nowadays, modern database systems need to han-

dle important challenges, such as large data volume,

data integrity, scalability, variety of data sources, un-

structured data, etc. Hence, in some application do-

mains, traditional relational databases have been ”re-

placed” by their NoSQL counterparts designed to bet-

ter adapt to these challenges. Graph databases are

a category of database solutions within the NoSQL

ecosystem designed to efﬁciently store and manage

highly interconnected data (for instance, social net-

work data).

Triggers as database objects have only been re-

cently introduced in a very few Graph Database Man-

agement Systems (GDBMSs) (e.g. Neo4j and Janus-

Graph), and they still require users of different levels

of expertise to have a certain level of query language

syntax knowledge. This research is motivated by this

issue, and the aim of this paper is to make the trigger

design process in graph databases easier, faster and

more understandable for different users.

The main contribution of this paper is an ap-

proach, which describes how to easily design and im-

plement triggers in graph databases. To implement

Rabuzin, K. and Šestak, M.

Creating Triggers with Trigger-By-Example in Graph Databases.

DOI: 10.5220/0007829601370144

In Proceedings of the 8th International Conference on Data Science, Technology and Applications (DATA 2019), pages 137-144

ISBN: 978-989-758-377-3

137

the proposed Trigger-By-Example approach in graph

databases, we implemented a graphical user interface

(GUI), which enables users to deﬁne triggers stored as

ECA rules, i.e., Cypher query language statements, in

a graph database (speciﬁcally, Neo4j).

The rest of the paper is organized as follows: Sec-

tion 2 contains an overview of existing research pa-

pers related to active databases, Trigger-By-Example

approach and developed graph-based rule speciﬁca-

tion engines. In Section 3, a theoretical background is

given to help readers understand the concept of active

and graph databases and the TBE approach. In Sec-

tion 4 the proposed TBE approach in graph databases

is presented and demonstrated on simple Neo4j use

cases. Finally, we conclude this paper by describing

future research directions.

2 RELATED WORK

Over the years, there has been a number of research

papers, which introduced graph-based rule speciﬁca-

tion engines and visual interfaces. During the 90s,

Dayal, Widom and Ceri published several relevant

research papers and books related to active database

systems. In these publications, the authors discussed

active database systems in general and their possible

application domains (Widom and Ceri, 1996), using

declarative approach to specify the model for active

rules execution (Ceri, 1992), rule execution semantics

and implementation (Dayal et al., 1994), etc.

Nowak, Bak and Jedrzejek developed a graph-

based prototype implementation of a graphical inter-

face for specifying rules (Nowak et al., 2012). Apart

from rule creation, the interface is able to perform rule

reasoning in order to obtain results. The rule cre-

ation process is carried out by specifying the body

(left hand side, LHS) and the head (right hand side,

RHS) of the rule in a form of two separate graphs,

which are then used to build ”if LHS then RHS” state-

ments. Created rules are able to check if there is a

given fact with speciﬁc attribute values in the knowl-

edge base, or if there exists a relationship between two

existing facts. The ﬁrst condition type is supported

in the current state of our implementation, while the

relationship existence check will be part of our fu-

ture work. The authors used Jess rule engine for rule

creation and reasoning, which requires users to spec-

ify rule conditions by following Jess language syntax

similar to RDF. In the proposed approach, the users

can specify rules by simply following ”natural” se-

mantics, i.e., they do not need to be familiar with any

kind of syntax.

Next, Gr

uner, Weber and Epple explored the pos-

sibility of using rule-based systems for industrial au-

tomation (Gr

uner et al., 2014). Speciﬁcally, the au-

thors used Neo4j GDBMS and Cypher to build a rule-

based system, which will demonstrate the beneﬁts of

using graph concepts to specify rules. In their ap-

proach, a rule consists of a premise (Cypher query)

and a conclusion (series of operations executed based

on results of the query evaluation), and it is stored in

XML format as a statement written in a descriptive

syntax similar to RuleML. However, in this approach,

the rules are created either manually on demand or

by the system, which lowers the need for users’ en-

gagement in the rule speciﬁcation process. On the

other hand, our graphical interface for rule speciﬁca-

tion provides more ﬂexibility for the users, and it fur-

ther engages the user in the process by making it more

simple.

Furthermore, an interesting rule-based engine has

been introduced in (Rapsevicius and Juska, 2014).

The authors developed an expert system for the Com-

pact Muon Solenoid (CMS) Cathode Strip Chambers

detector at the Large Hadron Collider (LHC). One

of the system’s components is the rule-based com-

plex event processing (CEP) engine, which consists of

rules written in SQL syntax forming a decision tree.

In the context relevant for this paper, a rule presents a

named computational expression that results in a con-

clusion if expression conditions are met (Rapsevicius

and Juska, 2014). The CEP engine ensures that, for

each incoming data stream, a relevant rule is ﬁred,

which evaluates the conditions, and returns a conclu-

sion based on that evaluation. The conclusion can

then be conﬁgured to perform a certain action, such

as sending notiﬁcations, execute commands, etc. The

rules deﬁnitions are stored within tables in a relational

databases, and the authors developed a GUI interface

for rules speciﬁcation. Nevertheless, the interface re-

quires users to specify rules by using speciﬁc opera-

tors with no explicit syntax guidelines. Compared to

our proposed approach, the GUI requires users to still

have a level of syntax knowledge, whereas our ap-

proach enables users to specify rules in a completely

visual manner regardless of their level of knowledge

and experience.

The idea of active graph databases is still in its

early years of development. The most signiﬁcant con-

tribution in this ﬁeld has been made by Kankanamge

et al., who developed Graphﬂow, an active graph

database (Kankanamge et al., 2017). The system

is built on Neo4j, and uses Cypher++, a declara-

tive Cypher extension, which supports triggers as

subgraph-condition-action rules. Cypher++ support

the speciﬁcation of rules, which are triggered on ex-

ecuting MATCH, CREATE, DELETE, UPDATE and

DATA 2019 - 8th International Conference on Data Science, Technology and Applications

138

SHORTEST PATH queries, and such rules can result

in creating new versions of the underlying property

graph or writing a subgraph into a local ﬁle. The un-

derlying syntax of Cypher++ is equivalent to Cypher

query language. Moreover, Cypher++ represents one

of several implementations of the openCypher project

(Neo4j, 2018), which goal is to continually improve

Cypher query language, and make it a standardized

graph query language.

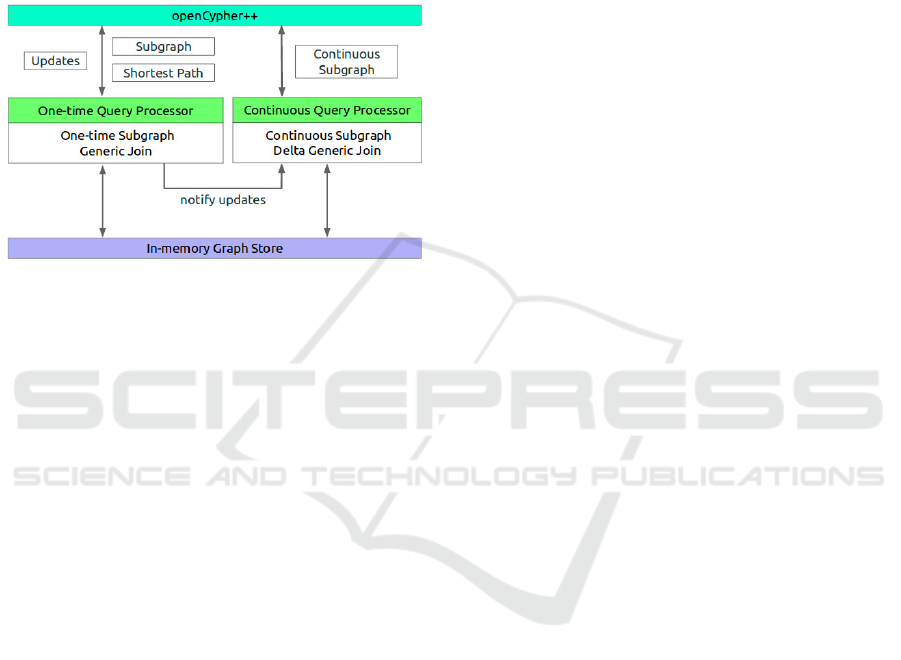

Figure 1: Graphﬂow system architecture (Kankanamge

et al., 2017).

In (DSG, 2017), the authors presented an

overview of Graphﬂow system architecture shown

in Figure 1. The system uses two query proces-

sors depending on the event type, that triggered the

rule. The one-time query processor is responsible for

handling Cypher statements (MATCH, UPDATE, IN-

SERT etc.), and perform updates on the underlying

graph store, whereas the continuous query processor

stores and evaluates subgraph-action rules in order to

perform given actions. In our case, all currently sup-

ported rules are processed by a single query processor.

3 BACKGROUND

3.1 Active Databases and Active Rules

Active databases represent database solutions, which

rely on active (ECA) rules in order to automatically

react to certain events. In the context of active rules,

an event represents some change of state that requires

an intervention. The simplest types of events are:

• Statements such as INSERT, UPDATE, and/or

DELETE,

• Time events (absolute, relative and periodic),

• User-deﬁned events,

• Transaction events (beginning/end of a transac-

tion),

• Method events (in object-oriented databases), etc.

Simple events can be joined (E1 and E2, E4 or

E3, etc.) and produce a complex event. Other types

of complex events would include:

• negation - an event did not happen within a given

time interval t,

• repeat - something repeated several times within a

given time interval t,

• sequence - several events occurred in a predeﬁned

sequence, etc.

In order to model an active system, one has to

take care of objects, events and transactions, which

transform between database states by operating on

objects (Kangsabanik et al., 1997). A good Ac-

tive Database Management System (ADBMS) usu-

ally refers to a system, which supports more and dif-

ferent event types.

The ECA rule execution process contains several

steps. Once the event has been detected, it triggers

one or more rules. The conditions for triggered rules

have to be evaluated. We say that the rule is trig-

gered, but it is not a guarantee that it will be executed

because the rules condition component needs to be

evaluated. Based on the condition evaluation, rules

actions are executed (if the condition evaluation was

successful). Actions that are being executed could

trigger other (new) rules. Additionally, in (Herbst,

1996), the concept of ECAA rules was introduced

as an extension to ECA rules. In ECAA rule model,

if the condition for an occurred event is successfully

evaluated, the ﬁrst action will be executed; otherwise,

an alternative action is executed.

3.2 Trigger-By-Example

The Trigger-By-Example (TBE) approach was ﬁrst

introduced by Lee, Mao and Chu in (Lee et al.,

2000a). Since its roots can be traced to the Query-

By-Example approach/language, the main purpose of

TBE is to help user to write trigger rules more easily

through a graphical interface. As the authors suggest,

an important beneﬁt of TBE is that, in its implementa-

tion as a layer between a visual interface and database

triggers, the TBE approach is loosely dependent on

the underlying database system used. Additionally,

database triggers written in SQL language are proce-

dural in nature, but the visual interface enables users

to specify rules in a declarative manner.

In (Lee et al., 2005), the same authors discussed

TBE properties in more detail. Each component of

the ECA rule is represented in a skeleton table differ-

entiated by their preﬁx (for instance, condition skele-

ton table is preﬁxed by C). In its early years, SQL

Creating Triggers with Trigger-By-Example in Graph Databases

139

supported only INSERT, UPDATE and DELETE trig-

ger event types. Trigger condition deﬁnitions can be

categorized as either parameter ﬁlter or general con-

straint type. Parameter ﬁlter deﬁnition type is repre-

sented in the event skeleton table, and uses transition

variables (BEFORE or AFTER) to specify the condi-

tion. The general constraint type is used to represent

general triggers regardless of event types, so they are

represented in the condition skeleton table.

TBE can also be used as an integrity constraints

enforcement mechanism. The reason for this lies in

the fact that the underlying implementation enables

rule speciﬁcation and processing necessary to main-

tain database integrity. The idea of maintaining graph

database integrity by following the TBE approach

will be implemented and discussed in the next sec-

tions.

3.3 Graph Databases

Graph databases represent a NoSQL category, in

which data is stored as nodes and relationships be-

tween nodes. This idea is appropriate for many differ-

ent scenarios, including social network analysis, fraud

detection, IT infrastructure (computer networks), rec-

ommendation engines, etc. (https://neo4j.com/use-

cases/). Unlike a relational database, where during

query execution tables need to be joined to retrieve

values from more than one table, graph databases use

physical pointers between nodes. This eliminated the

need for complex joins, and increases the graph query

execution speed, making graph databases much faster,

especially when searching whether nodes are con-

nected, or when the shortest path between two nodes

needs to be found.

Various graph query languages have been devel-

oped for graph databases; the most often used lan-

guages are Cypher and Gremlin. In this paper, we

focus on Cypher query language, because it is used

much more often than Gremlin due to its declarative

nature and syntax similar to SQL.

There are many different statements supported in

Cypher, but at this point of time there is no native

Cypher statement for creating triggers, and the level

of support for triggers as speciﬁc database objects

in modern GDBMSs is rather low. For this reason,

we implemented a GUI, which enables users to spec-

ify simple ECA(A) rules, and store them in Neo4j

database for future usage during query execution.

At the moment, in Neo4j, triggers are supported

only as TransactionEventHandler objects, which ana-

lyze submitted database transactions and perform cer-

tain actions (De Marzi, 2015). The ofﬁcial Neo4j doc-

umentation supports three hooks, i.e., states, in which

trigger evaluation can be performed: beforeCommit,

afterCommit and afterRollback. On the other hand,

in JanusGraph, triggers can be implemented by using

user transaction logs, where triggers are registered for

a certain change in data (e.g. a new edge of given

type is added), and ﬁre an external event or make ad-

ditional changes to the graph (JanusGraph, 2017).

4 METHODOLOGY

To demonstrate the proposed approach, we built an

application prototype by using Java 8 and Neo4j

graph database, which communicate via neo4j-java

driver. The prototype can be used as a graphical inter-

face to create active rules in Neo4j graph database.

There are two main approaches, which can be

used when building a system with active capabilities,

namely integrated and layered approach. The layered

approach includes extending the existing Database

Management System (DBMS) with an additional

layer, which adds the active capability to the DBMS.

This layer is responsible for event detection, rule ex-

ecution, etc. Conversely, the integrated approach

means that the DBMS core needs to be changed in

order to be able to detect events, evaluate rules and

manage transactions in a more advanced manner.

With the ADBMS implementation approaches in

mind, the following methodology has been used when

designing and implementing the Trigger-By-Example

approach:

• ECAA rules are used to gain better control of the

system’s behaviour in case when the condition is

not evaluated successfully,

• the application is built by following the layered

implementation approach, i.e., the application is

built as an extension to the Neo4j GDBMS,

• the condition component of active rules is per-

formed immediately,

• the action and alternative action execution com-

ponent of active rules is performed immediately,

• simple types of events are supported (INSERT,

UPDATE and DELETE operations).

To summarize, in the proposed TBE approach,

a graph database trigger is an ECAA rule evaluted

by the rule processing engine built on top of Neo4j

GDBMS to maintain database integrity. The engine

does not require any additional query processors, be-

cause the ECAA rule is not stored processed directly

in the database. Instead, the rule processing is carried

out on the application level, where the engine iden-

tiﬁes rules needed to be checked for a given user’s

query.

DATA 2019 - 8th International Conference on Data Science, Technology and Applications

140

At the moment, the proposed TBE approach sup-

ports the speciﬁcation of BEFORE INSERT and AF-

TER INSERT triggers. In both cases, the TBE ap-

proach includes two steps:

1. Trigger (rule) speciﬁcation, which includes deﬁn-

ing the components of the ECA(A) rule, and

2. Trigger validation, which includes inserting

nodes/relationships to activate the trigger and test

its correctness.

4.1 Prerequisites

Before demonstrating the proposed TBE approach,

we built a Neo4j graph database based on a real

dataset available at https://www.kaggle.com/new-

york-city/new-york-city-current-job-postings. The

dataset contains information about New York City job

postings retrieved from the ofﬁcial New York jobs

site. In total, there are 3.238 rows in the downloaded

CSV ﬁle. By analyzing the contents and structure of

the dataset, we developed a property graph data model

to be implemented in Neo4j, and used for validation

purposes. A sample graph database entry represented

as nodes and relationships is depicted in the property

graph model shown in Figure 2.

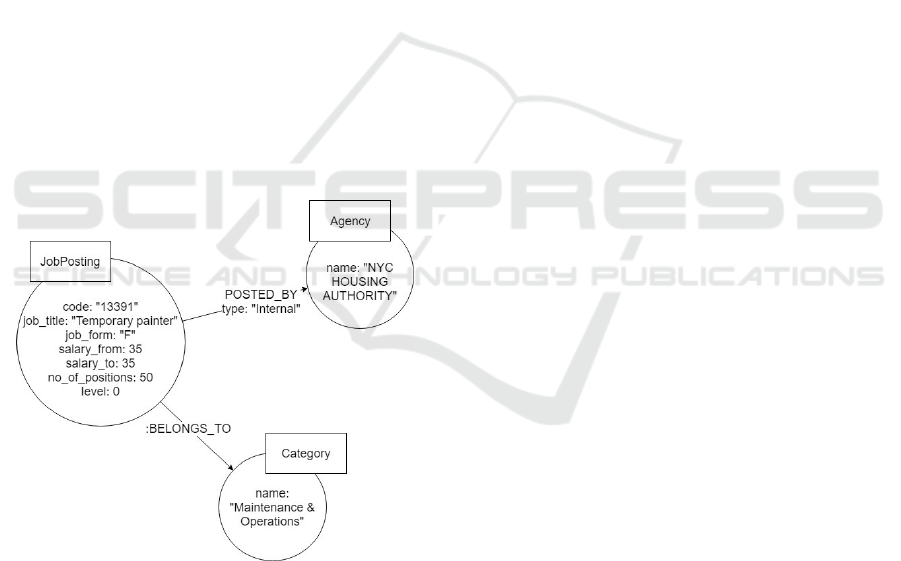

Figure 2: A sample Neo4j database entry represented

through graph data model.

4.2 BEFORE INSERT Trigger

The BEFORE INSERT trigger, which is activated

before a new node/relationship is inserted into the

database, can prevent users from inserting data incon-

sistent with business rules (e.g., the user can add a

new node only if some other node is already present

in the database).

Therefore, in the context of graph databases, to

create a new node of a speciﬁc label, it is ﬁrst nec-

essary to check if there is a node of some other label

with a given property value in the database.

As shown in Figure 3, the speciﬁcation step of a

BEFORE INSERT trigger includes selecting the la-

bel of a node, which will be monitored when in-

serting new nodes, and entering data about the node,

which needs to exist in the database with a given prop-

erty value in order to insert a node into the database.

The ECAA rule speciﬁed through a graphical inter-

face (Figure 3) can be visualized as a simple diagram

shown in Figure 4.

The rule will ensure that the user cannot add a

new job posting if there is no agency named ”NYC

HOUSING AUTHORITY”, which was mentioned on

a sample database entry shown in Figure 2. Also, note

that node labels displayed as dropdown options are re-

trieved from the database by executing the following

Cypher query:

MATCH (n) RETURN distinct labels(n)

In the underlying implementation, the created rule

(trigger) will be saved in a global list of rules, and ac-

tivated in the rule validation step, when a user tries to

create a new node labeled Node1. To check if there is

an existing node of a given label with given property

value, before committing the database transaction to

insert a node labeled Node1, the following program

code of the method will be executed:

String query="MATCH (n: " + label + ")

WHERE n." + property + "=’" + value + "’

RETURN n";

Result result = db.execute(query);

ResourceIterator<Node> resourceIterator =

result.columnAs("n");

if(resourceIterator.hasNext())

{

exists = true;

result.close();

}

In the method, the Cypher query will return the

given node if it exists as a Node object in the Resour-

ceIterator iterator object. If the iterator has an ele-

ment, i.e., the iterator is not empty, we can conclude

that the conditional node with given property value

exists. In this case, the value of variable exists indi-

cates whether the condition is fulﬁlled or not, which

affects the action component of the rule.

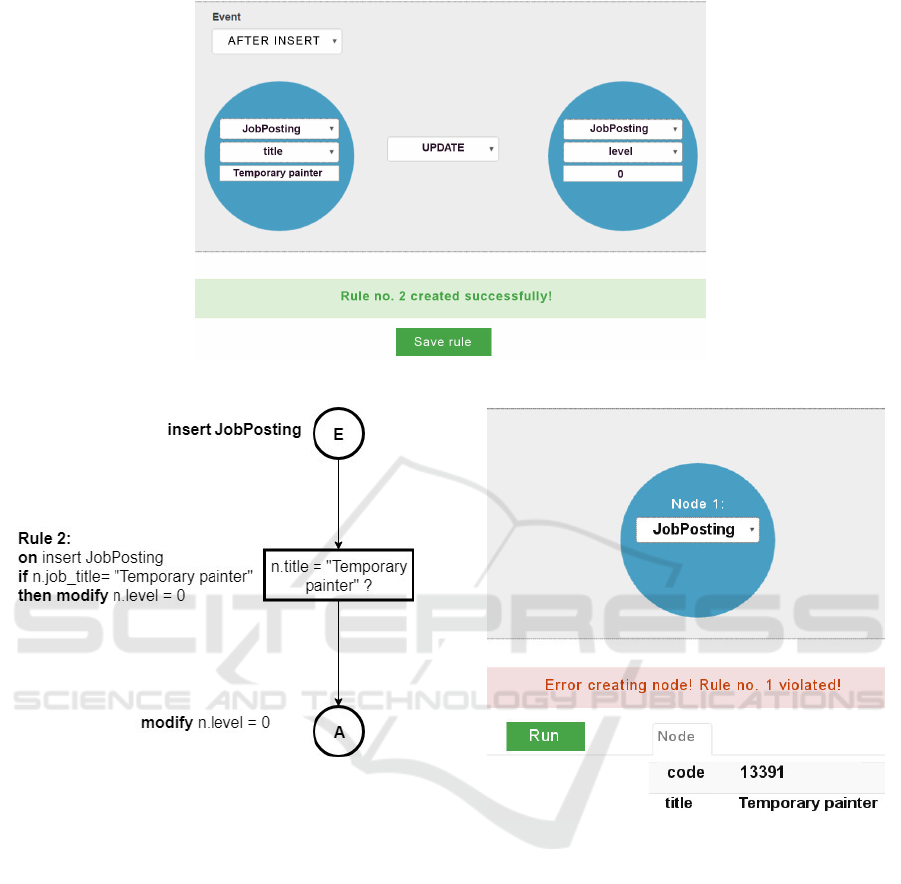

4.3 AFTER INSERT Trigger

As its name indicates, AFTER INSERT trigger is ac-

tivated after the INSERT event is detected and the

speciﬁed condition fulﬁlled. In this paper, we specify

Creating Triggers with Trigger-By-Example in Graph Databases

141

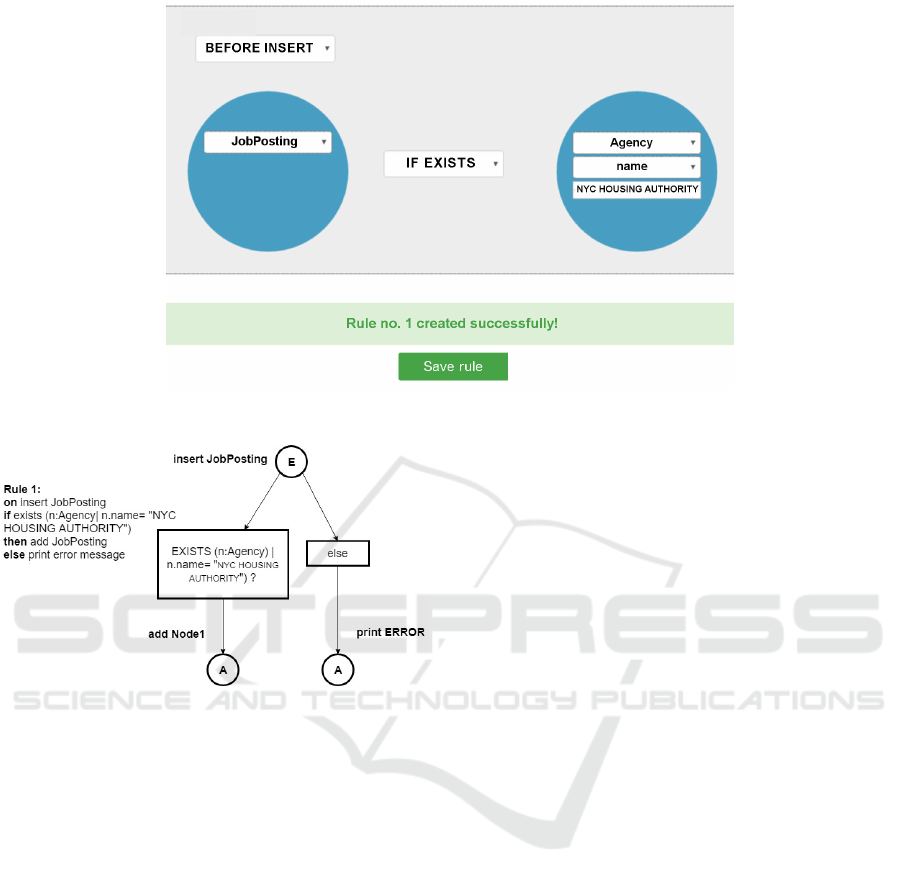

Figure 3: Creating a BEFORE INSERT trigger through graphical interface.

Figure 4: ECAA rule diagram of the BEFORE INSERT

trigger.

an AFTER INSERT trigger, which automatically up-

dates a node property value after a node with a given

label is inserted into the database.

This kind of update operation is often used for au-

tomated value insertions for given properties (in this

case, job level). Also, the AFTER INSERT trigger

can be used when performing data aggregations in

data warehouses, and help automatically maintain the

values of aggregated nodes in graph databases after

the values are aggregated by applying mathematical

functions (e.g. SUM()).

As depicted in Figure 5, the AFTER INSERT

trigger rule is speciﬁed by ﬁrst entering the prop-

erty value required for a given node label, followed

by specifying which property value of a given node

should be updated and to which value. Note that in

this example, there were no alternative actions spec-

iﬁed for this trigger, so the underlying rule model is

ECA-based.

The speciﬁed rule for the AFTER INSERT trigger

is also implemented as a method, which executes after

committing the transaction, in which a given node is

created in the database. Speciﬁcally, in this example,

the method ﬁrst retrieves the nodes speciﬁed in the

rule by executing a Cypher query, which returns all

nodes labeled JobPosting.

For each node with a given label the value of level

property will be set to 0 after a new node labeled Job-

Posting with title property value ”Temporary painter”

is inserted into the database by executing the follow-

ing Cypher query:

MATCH (n:JobPosting {job_title: "Temporary

painter"}) SET n.level = 0

RETURN n

5 RESULTS

The rule validation step of the proposed TBE ap-

proach is performed by inserting nodes through the

developed graphical interface. Given the database

structure developed based on a real dataset and cre-

ated rules (triggers) depicted in Figures 3 and 5, we

entered node data, which could violate those rules (in

case of the BEFORE INSERT trigger), or simply acti-

vate the rules (in case of the AFTER INSERT trigger).

The BEFORE INSERT trigger presented in Sec-

tion 4.2 is created to ensure that a new node la-

beled JobPosting can only be inserted if there exists a

node labeled Agency having name property value set

to ”NYC HOUSING AUTHORITY”. At the initial

database state, when a user tries to create such node,

the condition of the ECAA rule is not satisﬁed, be-

cause there is no node labeled Agency with the given

property value in the database. Hence, the alternative

action of the rule is executed, which results in an error

message displayed to the user (Figure 7).

DATA 2019 - 8th International Conference on Data Science, Technology and Applications

142

Figure 5: Creating an AFTER INSERT trigger through graphical interface.

Figure 6: ECA rule diagram of the AFTER INSERT trigger.

On the other side, the AFTER INSERT rule (trig-

ger) is validated automatically when we insert a node

labeled JobPosting with a title property value ”Tem-

porary painter”. After the node insertion process is

performed through the graphical interface, the action

speciﬁed by the ECA rule is performed, which up-

dates existing JobPosting node, and sets the node’s

level property value to 0. Hence, the AFTER INSERT

trigger will result in updated values of level property

to 0 for all job postings for ”Temporary painter” jobs.

6 DISCUSSION

As shown in the previous sections, the proposed TBE

approach in graph databases does not bring any ad-

ditional complexity to users when creating triggers in

graph databases. It has already been mentioned that

there is still no speciﬁc Cypher query language syn-

Figure 7: Error message displayed when a trigger’s rule

condition is not fulﬁlled.

tax dedicated to creating triggers. Therefore, our ap-

proach, which includes a graphical interface similar

to e.g. Microsoft Access presents a simple and under-

standable way to create ECA(A) rules. Additionally,

all queries speciﬁed through the interface executed in

short time.

In this paper, we have demonstrated how the ap-

proach can be used to implement database rules on

simple events, such as adding new nodes into the

database. Since the underlying implementation in-

cludes methods, which check each ECA(A) rule com-

ponent when the user tries to execute a database op-

eration, our approach can be easily extended to also

include complex events, such as SEQUENCE and

NEGATION.

The SEQUENCE event operator can be used to

Creating Triggers with Trigger-By-Example in Graph Databases

143

check if several events occurred in a predeﬁned se-

quence. In terms of graph databases, the SEQUENCE

operator could be used to ensure that speciﬁc ac-

tion(s) are automatically performed as a reaction to

the event when several nodes are created in a spec-

iﬁed order. For instance, if a student fails an exam

in the ﬁrst course (E1), second course (E2) and third

course (E3), this would mean that he is most likely

not going to ﬁnish the semester (A). However, such

case could be easily modeled as an ECA(A) rule for a

SEQUENCE operator and implemented by using our

TBE approach.

Furthermore, the NEGATION event operator can

also be important in graph databases because it can

prevent certain anomalies. For instance, once a user

creates two nodes, but fails to create a relationship

between these nodes, the NEGATION operator could

be used to notify the user that the relationship has not

been created between the nodes.

Our future work includes extending the proposed

TBE approach to support trigger speciﬁcation for re-

lationships and complex events, such as SEQUENCE

and NEGATION. Also, we will conduct a more de-

tailed query performance test to gain insight into how

much the TBE approach affects the query time execu-

tion with the increasing complexity of events (rules)

implemented.

7 CONCLUSIONS

In this paper, we discussed the need for building ac-

tive database systems able to automatically react to

certain events and perform different actions. Triggers

as active mechanisms still face a low level of support

in graph databases with limited features. Current re-

search approaches to build graph-based rule engines

require users with different levels of knowledge and

expertise to be familiar with query language syntax,

which may require a certain learning period from the

users. Hence, in this paper, we propose to use Trigger-

By-Example approach/language for rule speciﬁcation

in graph databases. We developed a prototype imple-

mentation of the proposed approach as a layer built on

Neo4j GDBMS, which enables users to specify trig-

gers as active rules. At the moment, our implemen-

tation supports handling simple events, such as IN-

SERT, UPDATE and DELETE, so, as part of our fu-

ture work, we plan to extend this support on complex

events, such as SEQUENCE and other. The proposed

TBE approach can be used to perform certain actions

in graph databases automatically, such as node data

aggregation or integrity enforcement mechanism.

REFERENCES

Ceri, S. (1992). A declarative approach to active databases.

In [1992] Eighth International Conference on Data

Engineering, pages 452–456. IEEE.

Dayal, U., Hanson, E., and Widom, J. (1994). Active

database systems. Technical report, Stanford InfoLab.

De Marzi, M. (2015). Triggers in neo4j. Avail-

able at https://maxdemarzi.com/2015/03/25/triggers-

in-neo4j/.

DSG, U. (2017). Graphﬂow. Available at http:// graph-

ﬂow.io/.

uner, S., Weber, P., and Epple, U. (2014). Rule-based en-

gineering using declarative graph database queries. In

2014 12th IEEE International Conference on Indus-

trial Informatics (INDIN), pages 274–279. IEEE.

Herbst, H. (1996). Business rules in systems analysis: a

meta-model and repository system. Information Sys-

tems, 21(2):147–166.

JanusGraph (2017). Transaction log. Available at

https://docs.janusgraph.org/latest/log.html.

Kangsabanik, P., Mall, R., and Majumdar, A. K. (1997). A

technique for modeling applications in active object

oriented database management systems. Information

Sciences, 102(1-4):67–103.

Kankanamge, C., Sahu, S., Mhedbhi, A., Chen, J., and

Salihoglu, S. (2017). Graphﬂow: An active graph

database. In Proceedings of the 2017 ACM Inter-

national Conference on Management of Data, pages

1695–1698. ACM.

Lee, D., Mao, W., Chiu, H., and Chu, W. W. (2000a). Tbe:

A graphical interface for writing trigger rules in active

databases. In Advances in Visual Information Man-

agement, pages 367–386. Springer.

Lee, D., Mao, W., Chiu, H., and Chu, W. W. (2005). De-

signing triggers with trigger-by-example. Knowledge

and information systems, 7(1):110–134.

Lee, D., Mao, W., and Chu, W. W. (2000b). Tbe: Trigger-

by-example. In International Conference on Concep-

tual Modeling, pages 112–125. Springer.

Neo4j, I. (2018). opencypher. Available on May 15, 2019

at https://www.opencypher.org/about.

Nowak, M., Bak, J., and Jedrzejek, C. (2012). Graph-based

rule editor. In RuleML (2).

Rapsevicius, V. and Juska, E. (2014). Expert system

for the lhc cms cathode strip chambers (csc) detec-

tor. Nuclear Instruments and Methods in Physics Re-

search Section A: Accelerators, Spectrometers, Detec-

tors and Associated Equipment, 738:126–131.

Widom, J. and Ceri, S. (1996). Active database systems:

Triggers and rules for advanced database processing.

Morgan Kaufmann.

DATA 2019 - 8th International Conference on Data Science, Technology and Applications

144
