Automation of Software Testing Process using Ontologies

Vladimir Tarasov, He Tan and Anders Adlemo

School of Engineering, J

onk

oping University, J

onk

oping, Sweden

Keywords:

Knowledge Representation, Ontologies, Inference Rules, Test Case Generation, Automated Testing.

Abstract:

Testing of a software system is a resource-consuming activity that requires high-level expert knowledge.

Methods based on knowledge representation and reasoning can alleviate this problem. This paper presents

an approach to enhance the automation of the testing process using ontologies and inference rules. The ap-

proach takes software requirements speciﬁcations written in structured text documents as input and produces

the output, i.e. test scripts. The approach makes use of ontologies to deal with the knowledge embodied in

requirements speciﬁcations and to represent the desired structure of test cases, as well as makes use of a set

of inference rules to represent strategies for deriving test cases. The implementation of the approach, in the

context of an industrial case, proves the validity of the overall approach.

1 INTRODUCTION

The software market is increasing on a yearly basis

and shows no sign of slowing down. According to

Gartner, the worldwide IT spending is predicted to

grow 3.2% in 2019, to reach a total of USD 3.8 tril-

lion (Gartner, 2018). As software products and sys-

tems permeate every aspect of our lives, we become

more and more dependent on their correct function-

ing. Consequently, quality concerns become much

more vital and critical as end-users get more depen-

dent on software products and services. As is the case

in all product development, the quality of the soft-

ware must be veriﬁed and validated through painstak-

ing test activities, such as test planning and design,

ocular reviews of requirements documents and pro-

gram code, program testing, system testing, accep-

tance testing, and so on. Despite all these efforts, er-

rors have an annoying tendency to remain undetected

in the code. Accordingly to Capgemini World Quality

Report 2018-19 (CapGemini et al., 2018), the budget

allocation for quality assurance and testing, as per-

centage of IT expenditures in the software industry,

has come down in recent years but still accounted for

26% in 2018.

One way to reduce the cost related to software

testing has been to automate as many of the aforemen-

tioned activities as possible. As far as test manage-

ment and test script execution go, this is a mature ﬁeld

where commercial products assist software testers

in their daily work, like TestingWhiz (TestingWhiz,

2018) or HPE Uniﬁed Functional Testing (HPE-UFT,

2018). Recent research results indicate that automati-

cally generated tests achieve similar code coverage as

manually created tests, but in a fraction of the time (an

average improvement of roughly 90%) (Enoiu et al.,

2017).

Despite successful achievements in automation of

script execution and white-box testing, there is still a

lack of automation of black-box testing of functional

requirements. Because such tests are mostly created

manually, which requires high-level human expertise,

modern methods from the area of knowledge engi-

neering are up to the challenge.

This paper proposes an approach to automate soft-

ware testing by modelling the testing body of knowl-

edge with formal ontologies and reasoning with in-

ference rules to generate test cases

. The main contri-

bution of this paper is to demonstrate that the use of

ontologies allows for automation of the full process of

software testing, from the capture of domain knowl-

edge in software requirements speciﬁcations (SRS) to

the generation of software test cases. The proposed

framework combines OWL ontologies, representing

the knowledge from SRS and test speciﬁcations, with

inference rules, representing the assembled knowl-

edge of expert software testers and testing documents,

and with ontological representation of generated test

cases.

The rest of this paper is structured as follows. Sec-

tion 2 describes the related work. The automated test-

ing process framework is presented in Section 3. Sec-

tion 4 presents an implementation of the framework

for a testing task in the avionics industry. It details

The study presented in this paper is part of the project

Ontology-based Software Test Case Generation (OSTAG).

Tarasov, V., Tan, H. and Adlemo, A.

Automation of Software Testing Process using Ontologies.

DOI: 10.5220/0008054000570066

In Proceedings of the 11th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2019), pages 57-66

ISBN: 978-989-758-382-7

the proposed approach and implementation for each

step in the framework, including ontologies provid-

ing the meta-data for software requirements and test

cases, inference rules capturing strategies for test case

generation, and the test scripts generation strategy.

Section 5 presents the evaluations of the implemented

approach. The conclusions of the study are given in

Section 6.

2 RELATED WORK

Until recently, the use of ontologies in software test-

ing has been one of the least explored areas of soft-

ware engineering (Ruy et al., 2016) and has thus not

been discussed as much as their use in other stages

of the software life-cycle process. In (Happel and

Seedorf, 2006), Happel and Seedorf present possi-

ble ways of utilizing ontologies for the generation of

test cases, and discuss the feasibility of reusing do-

main knowledge encoded in ontologies for testing. In

practice, however, few tangible results have been pre-

sented. Most of the research have had a focus on the

testing of web-based software and especially web ser-

vices, e.g. (Wang et al., 2007; Nguyen et al., 2008;

Sneed and Verhoef, 2013).

One mature area where ontologies have been suc-

cessfully applied is requirements engineering. There

exists a clear synergy effect between the ontological

modelling of domain knowledge and the modelling

of requirements performed by requirement engineers

(Dobson and Sawyer, 2006). Recently, a renewed in-

terest in utilizing ontologies in requirements engineer-

ing has surged due to the appearance of semantic web

technologies (Happel and Seedorf, 2006; Dobson and

Sawyer, 2006). Most of the research deals with in-

consistency and incompleteness problems in require-

ment speciﬁcations through reasoning over require-

ments ontologies.

The ontologies, presented in this paper, support an

automated testing process. First, a requirements on-

tology provides SRS’s meta data and supports extract-

ing information from requirements documents. Sec-

ond, a test case ontology describes the desired struc-

ture of test case descriptions and is used to guide the

test case generation process. In the end, the populated

test case ontology supports the test scripts generation.

3 A FRAMEWORK FOR TESTING

PROCESS AUTOMATION

USING ONTOLOGIES

A typical process of black-box testing of functional

software requirements comprises two activities. Dur-

ing the ﬁrst activity, software testers design test cases

based on SRS and their own expertise from previous

work on testing software systems. The second activ-

ity is to develop test scripts. Finally, the tests are car-

ried out, either manually or using a test execution tool,

based on the automated execution of test scripts. In

this paper we present a framework to automate such

a testing process using ontologies. The framework is

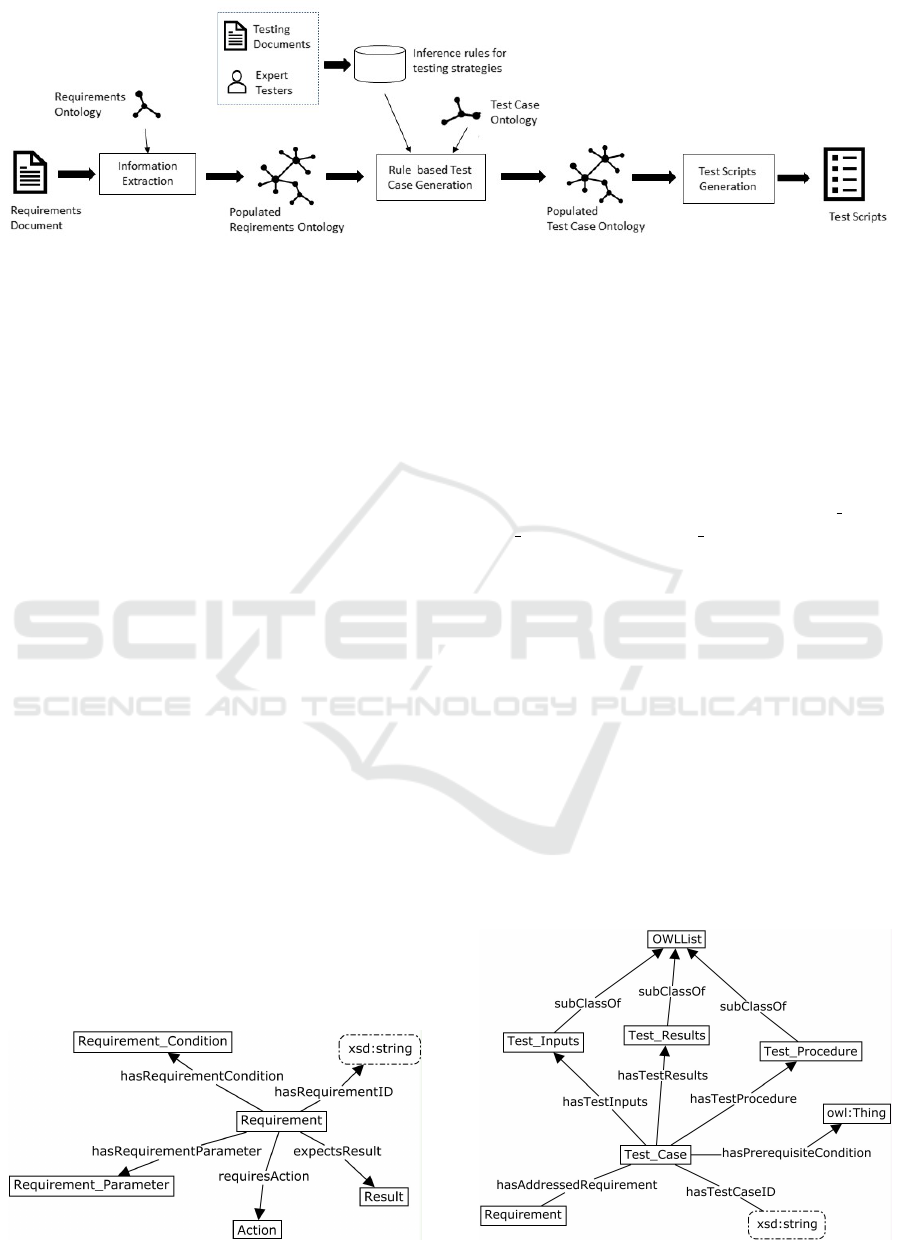

shown in Fig. 1.

The requirements are often described in well-

structured or semi-structured textual documents.

First, a requirements ontology is built to represent

the structure of software requirements. With the help

of the ontology, the requirements information is ex-

tracted from the text documents and then used to pop-

ulate the ontology. The populated ontology serves as

an input for the test case generator.

In situations where the testers’ expertise is less

structured, the information is acquired through inter-

views with experienced testers and examination of

existing software test description (STD) documents.

The acquired testing strategies are represented with

inference rules. The rules are built on top of ontolo-

gies, following the W3C recommendation on a lay-

ered infrastructure of Semantic Web. The advantage

is that the ontologies can be reused for different ap-

plications when requirements speciﬁcations and test

cases are expressed in a similar way. The rules uti-

lize the populated requirements ontology for checking

conditions and querying data to generate test cases.

Furthermore, a test case ontology is provided to

specify what should be contained in test cases and

how each test case should be structured. The test case

ontology is used in the step of test case generation.

The ontology is populated when test cases are gen-

erated. Finally, the populated test case ontology is

employed to generate test scripts.

4 IMPLEMENTATION OF THE

FRAMEWORK

In this section we demonstrate an implementation of

the framework. The implementation is to support test-

ing of the components of an embedded sub-system

within an avionic system. The case data were pro-

vided by the ﬁghter aircraft developer, Saab Avion-

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

Figure 1: A framework for automation of testing process using ontologies.

ics. In the avionics industry, many of the systems are

required to be highly safety-critical. For these sys-

tems, the software development process must comply

with several industry standards, like DO178B (RTCA,

1992). The requirements of the entire system, or units

making up the system, must be analyzed, speciﬁed

and validated before initiating the design and imple-

mentation phases. The software test cases are manu-

ally created and also have to be manually inspected.

The requirements and test cases that were used in the

framework implementation were provided in text doc-

uments and the results were manually validated by

avionic industry domain experts.

4.1 Requirements and Test Case

Ontologies

Although the requirements are written in natural lan-

guage, the requirements documents are well struc-

tured. The requirements ontology (see Fig. 2) was

built by ontology experts based on the structure of the

textual documents provided by Saab Avionics. Each

requirement has an unique ID and consists of at least:

1. Requirement parameters, which are inputs of a re-

quirement,

2. Requirement conditions,

3. Results, which are usually outputs of a require-

ment and exception messages.

Some requirements require the system to take actions.

Figure 2: The key entities in the requirements ontology.

More details about the ontology can be found in (Tan

et al., 2016).

The test case ontology (see Fig. 3) was also built

by ontology experts based on the structure of test

case descriptions created by the industrial partner.

Each test case has a unique ID, addresses one re-

quirement, and has prerequisite conditions. There is

a list of ordered steps needed to be followed in each

test case. Each step consists of input, procedure and

expected result. Therefore, the classes Test Input,

Test Procedure and Test Results are deﬁned as

the subclasses of OWLList (Drummond et al., 2006),

which is a standard representation of a sequence in

OWL-DL.

4.2 Population of the Requirements

Ontology from the Requirements

Documents

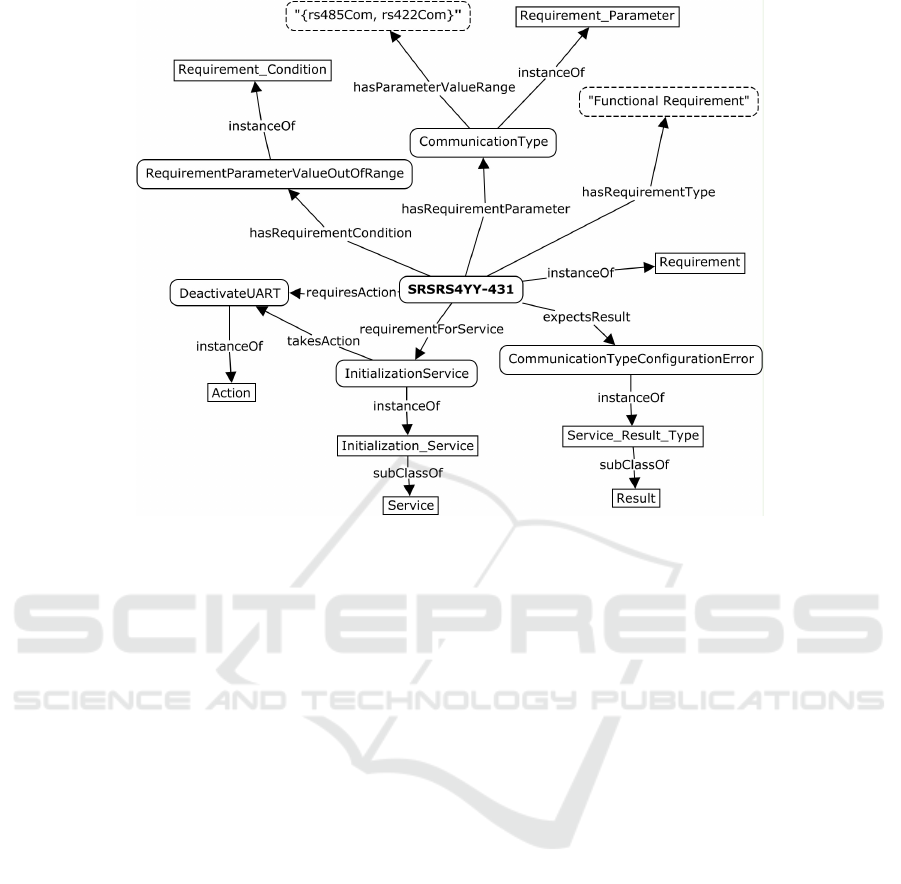

Fig. 4 shows a fragment of the populated ontology

for one particular functional requirement, SRSRS4YY-

431. The requirement states that if the communica-

tion type is out of its valid range, the initialization

service shall deactivate the UART (Universal Asyn-

chronous Receiver/Transmitter), and return the result

“comTypeCfgError”. In Fig. 4, the rectangles repre-

Figure 3: The key elements in the test case ontology.

Automation of Software Testing Process using Ontologies

Figure 4: Ontology fragment for the SRSRS4YY-431 requirement speciﬁcation.

sent the concepts of the ontology; the rounded rect-

angles represent the individuals (instances); and the

dashed rectangles provide the data values of datatype

property for individuals.

The populated ontology contains 147 individuals

in total. In the implementation presented in this pa-

per, the information was manually extracted from the

requirements document and used to populate the on-

tology. To fully automate the testing process, the pop-

ulation can be accomplished automatically using dif-

ferent methods (Gangemi et al., 2017; Petasis et al.,

2011). For the well structured requirement speci-

ﬁcations provided by Saab Avionics, we have pro-

posed an approach based on BNF grammar as the so-

lution (Ismail, 2016).

4.3 Approach to Test Case Generation

based on Inference Rules

Test cases are generated through deriving informa-

tion from the populated requirements ontology with

the help of inference rules. The Prolog programming

language (Sterling and Shapiro, 1994) was chosen for

coding of inference rules because (1) it has both built-

in inference engine and standard programming facili-

ties, (2) it has means to represent inference rules in a

natural way, and (3) it has means to access the entities

in the ontology. The popular tool for business rules,

DROOLS, was not selected as a solution because of

its ﬂaws and deﬁciencies, as reported in (Kaczor et al.,

2011) and (Ostermayer and Seipel, 2012)

The particular Prolog system used for the imple-

mentation was SWI-Prolog (Wielemaker et al., 2012).

The ﬁrst necessary task is to translate the ontology

into the Prolog syntax to prepare the ontology for the

use by the inference rules. There exist a number of

serialisation formats that can be used to save an OWL

ontology to a ﬁle: RDF/XML, Turtle, OWL/XML,

Manchester OWL syntax or functional-style syntax.

The functional-style syntax was selected as it has the

closest resemblance to the Prolog syntax.

An ontology document in the functional-style syn-

tax is a number of preﬁx and import deﬁnitions fol-

lowed by a sequence of OWL constructs enclosed in

the Ontology statement (Motik et al., 2012). In turn, a

Prolog program consists of clauses. The term clause

denotes a fact or a rule in a knowledge base. A clause

is ended with full stop (.) and different terms in a

clause are separated with commas (,). The basic terms

that are used in Prolog programs are atoms, numbers,

variable and structures (Sterling and Shapiro, 1994).

In an ontology document in the functional-style

syntax, every construct is represented by one state-

ment that resides on a single line. During the OWL-

to-Prolog translation, a Python script processes the

ontology document line by line to translate each line

into the corresponding Prolog statement. The follow-

ing steps are carried out for every OWL statement:

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

• Read an OWL statement,

• Tokenize the statement and convert each token

into lowerCamelCase notation because Prolog

atoms start with a lower case letter,

• Convert the list of tokens into a Prolog clause in

the form of a fact, encoding OWL preﬁxes as Pro-

log terms.

The translated OWL statements are annotations,

declarations, and axioms including assertions on

properties, classes, restrictions and facts. An example

of a translation of an OWL class assertion (statement

#1) into a corresponding Prolog clause (statement #2)

is given below.

1: ObjectPropertyDomain(:hasPart owl:Thing)

2: objectPropertyDomain(hasPart, owl(thing)).

The second necessary task to solve to derive test

cases from the requirements ontology is to repre-

sent testers expertise on how they use requirements

to create test cases. Such expertise embodies inher-

ent strategies for test case creation, knowledge that

can be expressed in the form of heuristics represented

as if-then rules. This kind of knowledge is acquired

from two sources. First, literature on software test-

ing contains few general guidelines, e.g. boundary

value testing. These general test strategies apply to

all domains. Second, expert testers were interviewed

to capture their expertise that is speciﬁc to particular

types of software systems and/or particular domains.

Such testing knowledge needs to be acquired for each

domain type. Additionally, existing test cases and

their corresponding requirements were examined and

analysed. The details of the test case generation with

inference rules are provided in (Tarasov et al., 2017).

Each requirement describes some functionality of

a service (function) from a driver for a hardware unit.

The latter is represented by an embedded avionic sys-

tem component. All the requirements are grouped

into services. The analysis process included the com-

parison of an original test case, previously created

manually by a software tester, with the corresponding

requirement. The analysis goal was to fully under-

stand how different parts of the original test case had

been constructed. After that, a number of discussions

with the industry software testers participating in the

project were arranged to clear any inconsistencies or

remaining doubts.

As a result, a set of inference rules were formu-

lated in plain English. The test cases provided by the

industrial partner are structured as follows: prereq-

uisite conditions, test inputs, test procedure, and ex-

pected test results. For each of the test case parts, a

group of inference rules were formulated. The exam-

ple below shows an inference rule for the test proce-

dure part of the requirement SRSRS4YY-431:

IF the requirement is for a service and

a UART controller is to be deactivated

THEN add the call to the requirement’s

service, calls to a transmission service

and reception service as well as

a recovery call to the first service.

The condition (if-part) of a heuristic rule is for-

mulated using the ontology instances (individuals)

representing the requirement and connected hardware

parts, input/output parameters for the service and the

like. The instructions for generating a test case part

are expressed in the action part (then-part) of the rule.

The acquired inference rules are implemented in

the Prolog programming language with the help of

Prolog rules (a Prolog rule is analogous to a statement

in other programming languages). After the OWL-

to-Prolog translation, the ontology can be loaded as

part of the Prolog program, and the ontology entities

can be directly accessed by the Prolog code. The in-

ference engine that is built-in into Prolog is used to

execute the coded rules to generate test cases.

An example of the inference rule written in Prolog

that implements the previous heuristic rule is given

below:

% construct TC procedure

1 tc_procedure(Requirement, [Service,

WriteService, ReadService,

recovery(Service)]) :-

%check condition for calls #2-4

2 action(Requirement, deactivateUART),

%get service individual for calls #1,4

3 service(Requirement, Service),

%get individuals of the required services

4 type(WriteService, transmission_service),

5 type(ReadService, reception_service).

%check the required action

6 action(Requirement, Action) :-

objectPropertyAssertion(requiresAction,

Requirement, Action).

%retrieve the service of a requirement

7 service(Requirement, Service) :-

objectPropertyAssertion(

requirementForService,

Requirement, Service).

%check the type of an instance

8 type(Individual, Class) :-

classAssertion(Class, Individual).

Line 1 in the example is the head of the rule con-

sisting of the name, input argument and output argu-

ment, which is the constructed procedure as a Pro-

log list. The list is constructed from the retrieved on-

tology entities and special term functors. Line 2 en-

codes the condition of the heuristic. Lines 3-5 are the

queries to retrieve the relevant entities from the ontol-

ogy. The predicates 6-8 are helper ones that perform

Automation of Software Testing Process using Ontologies

the actual retrieval of the required entities from the

Requirements Ontology.

Each test case is generated sequentially, from the

prerequisites part to the results part. The generated

parts are collected into one structure (Prolog term).

4.4 Population of the Test Case

Ontology

During the generation phase, all created test cases are

stored in the Prolog working memory as a list. When

the test case list is complete, the next phase of ontol-

ogy population starts. The test cases in the list are

processed consecutively. For each test case, an in-

stance is created with object properties relating it to

the addressed requirement and test case parts. After

that, instances with object properties are created for

the four test case parts: prerequisites, test inputs, test

procedure and expected test results. If the parts con-

tain several elements, OWL lists are used for repre-

sentation.

The main Prolog predicate, performing the on-

tology population, is shown in Fig 5. It utilizes

two predicates from the ontology population layer:

ontology comment and ontology assertion. The

former is used to insert auxiliary comments in the on-

tology. The latter asserts OWL axioms representing

test case elements in the test case ontology. The four

predicates that start with “populate w ” create OWL

statements for the test case parts by processing lists

associated with each part. Each of these predicates

is passed the name preﬁx and initial number to con-

struct instances of an OWL list representing this test

case part.

Finally, the newly asserted axioms are serialized

in the ontology source ﬁle by the ontology serializa-

tion layer. It takes care of translating the OWL asser-

tions from the Prolog syntax into the OWL functional-

style syntax with the help of a deﬁnite clause gram-

mar.

4.5 Test Scripts Generation

In order to carry out testing, test cases need to be

transformed into executable procedures. Such pro-

cedures are usually programs written in a language

like Python or C. However, our project partner, Saab

Avionics, follows a strict quality assurance process.

According to their process, all test cases have to be

thoroughly inspected as plain text by the quality as-

surance team before they are signed of for actual exe-

cution. For this reason, test cases were translated into

plain text in English in the OSTAG project. The trans-

lation into plain text is implemented by the process

of verbalization of the test case ontology. The ver-

balization starts with the test case instance and then

iterates through the OWL lists representing the four

test case parts. In a similar way, the test cases from

the test case ontology can be transformed into actual

executable procedures in a programming language.

In the OSTAG project, the 37 test cases were

translated into plain text descriptions according to

the software test description speciﬁcation provided by

Saab Avionics. An example of a test case description

is given in Table 1. In some occasions during these

translations, minor discrepancies were detected by the

experts and consequently corrected in the correspond-

ing document.

5 EVALUATION

In the following section is outlined how a populated

ontology was evaluated. The evaluation of the testing

strategies that lie behind the generation of the previ-

ously described inference rules is also described, as is

the evaluation of the test cases that were generated by

applying the inference rules on the test case ontology.

In the OSTAG project, 32 requirements (out of

38) and 37 corresponding test cases (out of 58) were

examined. The reason for not evaluating the totality

of the requirements was that the remaining 6 require-

ments were written with a different syntax. As a con-

sequence, the presented semi-automatic test case gen-

eration would need to be modiﬁed. Furthermore, the

main goal of the project was to present a proof-of-

concept only. This included the semi-automatic gen-

eration of the same test cases as the ones that had been

manually generated by test design experts. Hence, no

additional, unforeseen test cases were generated. Fur-

thermore, the completeness of the test cases was lim-

ited to this one-to-one validation between the semi-

automatically and the manually generated test cases,

only.

5.1 Ontology Evaluation

The correctness of the populated requirements ontol-

ogy was evaluated where the correctness is deﬁned as

the degree to which the information asserted in the on-

tology conforms to the information that need be rep-

resented in the ontology (Tan et al., 2017). It is the

most crucial feature when the ontology is to provide

the knowledge base to generate test cases. Ideally,

the correctness veriﬁcation is an activity realized by

a domain expert who not only grasps the details of

the represented information itself but also has sufﬁ-

cient knowledge of ontologies to be able to perform

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

populate_w_tc(Ontology, tc(description(TC, Requirement, Service),

PrerequisitesList, InputsList, ProcedureList, ResultsList)) :-

ontology_comment(Ontology, TC, Requirement, Service),

% Test case with data and object properties

ontology_assertion(Ontology, declaration(namedIndividual(TC))),

ontology_assertion(Ontology, classAssertion(test_case(TC))),

ontology_assertion(Ontology, dataPropertyAssertion(hasTestCaseID(TC))),

ontology_assertion(Ontology,

objectPropertyAssertion(hasAddressedRequirement(TC, saab(Requirement)))),

% Prerequisites

ontology_comment(Ontology, TC, ’Prerequisites’),

populate_w_prereq(Ontology, TC, PrerequisitesList),

% Test Inputs

ontology_comment(Ontology, TC, ’Test Inputs’),

format(string(InputsListElem), ’˜w_inputs’, TC),

ontology_assertion(Ontology, objectPropertyAssertion(hasTestInputs(TC, InputsListElem))),

populate_w_inputs(Ontology, InputsList, InputsListElem, 1),

% Test Procedure

ontology_comment(Ontology, TC, ’Test Procedure’),

format(string(ProcListElem), ’˜w_procedure’, TC),

ontology_assertion(Ontology, objectPropertyAssertion(hasTestProcedure(TC,ProcListElem))),

populate_w_procedure(Ontology, ProcedureList, ProcListElem, 1),

% Expected Test Results

ontology_comment(Ontology, TC, ’Expected Test Results’),

format(string(ResultsListElem), ’˜w_results’, TC),

ontology_assertion(Ontology, objectPropertyAssertion(hasTestResults(TC,ResultsListElem))),

populate_w_results(Ontology, ResultsList, ResultsListElem, 1), !.

Figure 5: The main Prolog predicate to populate the test case ontology.

the evaluation. In most situations this kind of human

evaluator, with knowledge of ontologies, is not avail-

able. During the evaluation, an ontology verbalization

tool was provided to the domain experts. The tool ﬁrst

verbalizes the ontology into a natural language text.

Thereafter, the text can be read and understood by the

domain experts, who have no knowledge of ontolo-

gies, and be compared with the information contained

in the source information that was used to construct

the ontology. The correctness of the ontology was

veriﬁed by ﬁve domain experts from Saab Avionics,

i.e. that the information asserted in the ontology was

equivalent to the information written in the require-

ments documents.

5.2 Testing Strategy Evaluation

One part in the evaluation of the generated test cases

consisted in the evaluation of the test case generation

(TCG) strategies that a test designer apply during the

creation of a test case based on explicit information

found in, e.g., an SRS document or the competence

acquired by a test designer in the software testing do-

main.

A strategy usually concerns only one element in

one test case part, like an input or expected result, but

can apply to several requirements. Each TCG strategy

gives instructions on how a certain element of a TC

can be constructed from the given requirement deﬁni-

tion, other speciﬁcations, general testing recommen-

dations and the designers competence in the testing

domain.

The evaluation of the strategies consisted in the

test designers comparing the text of already existing

test cases with the texts found in the SRS, other rele-

vant documents and their own knowledge on how to

best write a test case. The evaluation of the strategies

was thus performed by indirectly validating the qual-

ity of the inference rules through the quality of the test

cases generated by the same inference rules.

An example of a strategy that is related to the ex-

pected test results and valid for seven different re-

quirements (that resulted in seven different test cases)

is:

When a device is disabled or uninitialised,

a service call results in not-init.

The result after applying the strategy above can

be observed in the right column in Table 1 under Ex-

pected Test Results, point 2 and 3.

Another strategy example, that is also applicable

to several requirements/test cases, is:

A recovery service call is necessary as the

last call for error handling requirement.

The result after applying the strategy above can

be observed in the right column in Table 1 under Test

Procedure, point 4.

Automation of Software Testing Process using Ontologies

Table 1: Test case from the STD (left column) and the corresponding generated test case by applying inference rules to the

ontology (right column).

. . .

Test Inputs

1. According to table below.

2. <uartId> := <uartId> from the

rs4yy init call

3. <uartId> := <uartId> from the

rs4yy init call

4. <parity> := rs4yy noneParity

. . .

Test Inputs:

1. <parity> := min value - 1, <parity> := max value + 1,

<parity> := 681881

2. <uartID> := <uartID> from the initializationService call

3. <uartID> := <uartID> from the initializationService call

4. <parity> := noneParity

Test Procedure

1. Call rs4yy init

2. Call rs4yy write

3. Call rs4yy read

4. Recovery: Call rs4yy init

Test Procedure:

1. Call initializationService

2. Call writeService

3. Call readService

4. Recovery: Call initializationService

Expected Test Results

1. <result> == rs4yy parityCfgError

2. <result> == rs4yy notInitialised

3. <result> == rs4yy notInitialised,

<length> == 0

4. <result> == rs4yy ok

. . .

Expected Test Results:

1. <result> == parityConﬁgurationError

2. <result> == rs4yyNotInitialised

3. <result> == rs4yyNotInitialised, <length> == 0

4. <result> == rs4yyOk

. . .

The result of the evaluation of all of the test

strategies demonstrated a clear resemblance between

the existing and the generated test cases, thus indi-

rectly validating the quality of the test case generation

strategies represented by the previously described in-

ference rules.

5.3 Test Case Evaluation

To generate the test cases, a total of 40 inference rules

were used. Together, they generated 37 test cases

for 32 requirements. The corresponding test cases

were reproduced in plain English, approximating the

format described in the STD document (provided by

Saab Avionics). To illustrate the similarity between

the two representations, one speciﬁc requirement, the

SRSRS4YY-435, that has a strong resemblance to the

already presented SRSRS4YY-431, is described in this

section. The results from this evaluation can be ob-

served in Table 1 where the text in the left column is

a slightly modiﬁed excerpt from the STD document

while the text in the right column is the generated out-

put, after applying some of the inference rules to the

requirements ontology. SRSRS4YY-435 is a require-

ment that is evaluated in one single test case (while

other requirements sometimes need to be tested in

more than one test case), in this occasion test case

STDRS4YY-133. As can be observed in the table, there

is an almost one-to-one correspondence between the

texts in the two columns, something that was posi-

tively commented on by the people at Saab Avion-

ics. Even more so, on some occasions the generated

test case texts indicated a discrepancy to the corre-

sponding test case texts found in the STD document.

These discrepancies were presented to and evaluated

by personnel from Saab Avionics and, on occasions,

the observed discrepancies indicated a minor error in

the STD document. Hence, this evaluation of the cor-

rectness of the generated test cases helped improving

the overall quality of the STD document.

6 CONCLUSIONS

This paper has presented an ontology-based frame-

work for software test automation. The techniques

from the area of knowledge engineering underpin the

proposed framework. Knowledge representation with

formal ontologies is utilized through the whole pro-

cess chain of test automation, from the representa-

tion of software requirements to the representation of

generated test cases. The use of OWL ontologies as

logical models allows for reasoning, which was em-

ployed to generate test cases. To this end, the strate-

gies for test case creation were represented with in-

ference rules that were coded in the Prolog program-

ming language. The Prolog inference engine pow-

ered the application of the rules to the requirements

ontology to derive test cases that were used to pop-

ulate the test case ontology. The preservation of the

OWL axioms in the Prolog program allowed for meta-

reasoning over the predicate statements in the ontol-

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

ogy, e.g. SubClassOf or ClassAssertion, and thus for

the alleviation of the constraints of ﬁrst-order logic.

Test scripts can be created from the test case ontology

in the form of plain text descriptions or executable

scripts. The performed study has shown that via the

application of ontology engineering and logic pro-

gramming, the software testing process can be auto-

mated to a considerable extent.

The proposed framework has been implemented

and evaluated in the OSTAG project. The require-

ments ontology was created to represent the software

requirements speciﬁcation for hardware controlling

software in the avionics industry. The test case on-

tology was constructed based on the software test de-

scription. The inference rules represented the knowl-

edge acquired from the software testers and provided

test cases. 37 test cases were generated for 32 re-

quirements. During the evaluation, the requirements

ontology, testing strategies and generated test cases

ware veriﬁed by domain experts from Saab Avionics.

The evaluations performed on the framework demon-

strated the validity of the overall approach. In par-

ticular, it showed the correctness of the ontology and

the test cases as well as the validity of the test case

generation strategies. In future work the framework

will be evaluated for more testing tasks in different

application areas.

The requirements applied in this paper are writ-

ten in natural language but are still well structured.

That being said, preliminary studies have showed that

different levels of requirements are written in dif-

ferent ways. For example low-level requirements,

like the example presented in this paper, are usu-

ally well-structured while high-level requirements are

not. Thus, the created ontology development pro-

cess is not capable of processing these different types

of requirement in an optimal way. A preliminary

study (Zimmermann, 2017) has indicated that exploit-

ing standard ontological resources for natural lan-

guage processing, such as FrameNet (Baker et al.,

1998; Ruppenhofer et al., 2006), could be a solu-

tion when extracting and annotating the meaning of a

high-level requirement in the best possible way while

a lightweight ontology, or embedding rich meta-data

within requirements documents, could efﬁciently sup-

port test case generation methods. Yet another ap-

proach could be to limit the complexity and the ex-

pressiveness that can be found in several high-level

requirements by relying on requirement boilerplates

(on a syntactic level) or requirement patterns (on a

semantic level) when writing the requirements (Far-

feleder et al., 2011; Arora et al., 2014; B

oschen et al.,

2016).

Although the framework presented in this paper

proved to be effective for test automation, we identi-

ﬁed two bottlenecks of the approach during our work

on the industrial application. The ﬁrst relates to

manual ontology construction and the second to test

strategies acquisition. Both activities are resource in-

tensive when carried out manually. While general test

strategies need to be acquired once, there are many

domain speciﬁc strategies. Thus, our future work will

focus on overcoming these deﬁciencies. Firstly, as al-

ready mentioned in Section 4.2, the work has been

initiated on ontology learning, to semi-automatically

create requirements ontologies from semi-structured

documents. Secondly, the acquisition of inference

rules for test case generation will be investigated

by learning from examples with the help of induc-

tive logical programming and other machine learn-

ing methods. It might also be of interest to apply the

method on other, diverse applications, to prove its va-

lidity.

ACKNOWLEDGMENTS

The research reported in this paper has been ﬁnanced

by grant #20140170 from the Knowledge Foundation

(Sweden).

REFERENCES

Arora, C., Sabetzadeh, M., Briand, L. C., and Zimmer,

F. (2014). Requirement boilerplates: transition from

manually-enforced to automatically-veriﬁable natural

language patterns. In Requirements Patterns (RePa),

2014 IEEE 4th International Workshop on, pages 1–8.

IEEE.

Baker, C. F., Fillmore, C. J., and Lowe, J. B. (1998).

The Berkeley FrameNet project. In Proceedings of

36th Annual Meeting of the Association for Computa-

tional Linguistics and 17th International Conference

on Computational Linguistics-Volume 1, pages 86–90.

Association for Computational Linguistics.

oschen, M., Bogusch, R., Fraga, A., and Rudat, C. (2016).

Bridging the gap between natural language require-

ments and formal speciﬁcations. In Joint Proceedings

of REFSQ-2016 Workshops, Doctoral Symposium,

Research Method Track, and Poster Track (REFSQ-

JP 2016), CEUR Workshop Proceedings, pages 1–11.

CEUR-WS.

CapGemini, HP, and Sogeti (2018). World quality report

2018-19. 72 pages.

Dobson, G. and Sawyer, P. (2006). Revisiting ontology-

based requirements engineering in the age of the se-

mantic Web. In Proceedings of International Seminar

on Dependable Requirements Engineering of Comput-

erised Systems at NPPs, pages 27–29.

Automation of Software Testing Process using Ontologies

Drummond, N., Rector, A. L., Stevens, R., Moulton, G.,

Horridge, M., Wang, H., and Seidenberg, J. (2006).

Putting OWL in order: Patterns for sequences in

OWL. In OWLED. Citeseer.

Enoiu, E., Sundmark, D.,

Cau

sevi

c, A., and Pettersson, P.

(2017). A comparative study of manual and auto-

mated testing for industrial control software. In Soft-

ware Testing, Veriﬁcation and Validation (ICST), 2017

IEEE International Conference on, pages 412–417.

IEEE.

Farfeleder, S., Moser, T., Krall, A., St

alhane, T., Zojer, H.,

and Panis, C. (2011). DODT: increasing requirements

formalism using domain ontologies for improved em-

bedded systems development. In Design and Diagnos-

tics of Electronic Circuits & Systems (DDECS), 2011

IEEE 14th International Symposium on, pages 271–

274. IEEE.

Gangemi, A., Presutti, V., Reforgiato Recupero, D., Nuz-

zolese, A. G., Draicchio, F., and Mongiov

ı, M. (2017).

Semantic web machine reading with fred. Semantic

Web, 8(6):873–893.

Gartner (2018). Gartner global IT spending forecast

2019, 3rd quarter 2018. http://www.gartner.com/

en/newsroom/press-releases/2018-10-17-gartner-says

-global-it-spending-to-grow-3-2-percent-in-2019.

Accessed December 20th, 2018.

Happel, H. J. and Seedorf, S. (2006). Applications of on-

tologies in software engineering. In Proceedings of

Workshop on Sematic Web Enabled Software Engi-

neering (SWESE) on the ISWC, pages 5–9.

HPE-UFT (2018). HPE-UFT homepage. https://saas.hpe.

com/en-us/software/uft. Accessed: Dec. 20th, 2018.

Ismail, M. (2016). Ontology learning from software re-

quirements speciﬁcation (SRS). In European Knowl-

edge Acquisition Workshop, pages 251–255. Springer.

Kaczor, K., Nalepa, G. J., Łysik, Ł., and Kluza, K. (2011).

Visual design of Drools rule bases using the XTT2

method. In Semantic methods for knowledge manage-

ment and communication, pages 57–66. Springer.

Motik, B., Patel-Schneider, P., and Parsia, B. (2012). OWL

2 Web Ontology Language: Structural Speciﬁcation

and Functional-Style Syntax. W3C, 2nd edition.

Nguyen, C. D., Perini, A., and Tonella, P. (2008). Ontology-

based test generation for multiagent systems. In

Proceedings of the 7th international joint conference

on Autonomous agents and multiagent systems, vol-

ume 3, pages 1315–1320.

Ostermayer, L. and Seipel, D. (2012). Knowledge engineer-

ing for business rules in Prolog. In Proc. Workshop on

Logic Programming (WLP).

Petasis, G., Karkaletsis, V., Paliouras, G., Krithara, A., and

Zavitsanos, E. (2011). Ontology population and en-

richment: State of the art. In Knowledge-driven multi-

media information extraction and ontology evolution,

pages 134–166. Springer-Verlag.

RTCA (1992). Software Considerations in Airborne Sys-

tems and Equipment Certiﬁcation.

Ruppenhofer, J., Ellsworth, M., Schwarzer-Petruck, M.,

Johnson, C. R., and Scheffczyk, J. (2006). Framenet

II: Extended theory and practice.

Ruy, F. B., de Almeida Falbo, R., Barcellos, M. P., Costa,

S. D., and Guizzardi, G. (2016). SEON: a soft-

ware engineering ontology network. In Knowledge

Engineering and Knowledge Management: 20th In-

ternational Conference, EKAW 2016, Bologna, Italy,

November 19-23, 2016, Proceedings 20, pages 527–

542. Springer.

Sneed, H. M. and Verhoef, C. (2013). Natural language

requirement speciﬁcation for Web service testing. In

Web Systems Evolution (WSE), 2013 15th IEEE Inter-

national Symposium on, pages 5–14. IEEE.

Sterling, L. and Shapiro, E. Y. (1994). The art of Prolog:

advanced programming techniques. MIT press.

Tan, H., Muhammad, I., Tarasov, V., Adlemo, A., and Jo-

hansson, M. (2016). Development and evaluation of

a software requirements ontology. In 7th Interna-

tional Workshop on Software Knowledge-SKY 2016 in

conjunction with the 9th International Joint Confer-

ence on Knowledge Discovery, Knowledge Engineer-

ing and Knowledge Management-IC3K 2016.

Tan, H., Tarasov, V., Adlemo, A., and Johansson, M. (2017).

Evaluation of an application ontology. In Proceedings

of the Joint Ontology Workshops 2017 Episode 3: The

Tyrolean Autumn of Ontology Bozen-Bolzano. CEUR-

WS.

Tarasov, V., Tan, H., Ismail, M., Adlemo, A., and Johans-

son, M. (2017). Application of Inference Rules to

a Software Requirements Ontology to Generate Soft-

ware Test Cases, volume 10161 of Lecture Notes in

Computer Science, pages 82–94. Springer Interna-

tional Publishing, Cham.

TestingWhiz (2018). TestingWhiz homepage.

http://www.testing-whiz.com. Accessed: Dec.

20th, 2018.

Wang, Y., Bai, X., Li, J., and Huang, R. (2007). Ontology-

based test case generation for testing web services.

In Autonomous Decentralized Systems, ISADS’07.

Eighth International Symposium on, pages 43–50.

IEEE.

Wielemaker, J., Schrijvers, T., Triska, M., and Lager, T.

(2012). SWI-Prolog. Theory and Practice of Logic

Programming, 12(1-2):6796.

Zimmermann, O. (2017). Modelling complex software re-

quirements with ontologies. Master’s thesis, Univer-

sit

at Rostock.

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development
