Ontology Learning from Twitter Data

Saad Alajlan

1,2

, Frans Coenen

, Boris Konev

and Angrosh Mandya

Department of Computer Science, The University of Liverpool, Liverpool, U.K.

College of Computer and Information Sciences, Al Imam Mohammad Ibn Saud Islamic University, Riyadh, Saudi Arabia

Keywords:

Ontology Learning, RDF, Relation Extraction, Twitter, Name Entity Recognition, Regular Expression.

Abstract:

This paper presents and compares three mechanisms for learning an ontology describing a domain of dis-

coursed as deﬁned in a collection of tweets. The task in part involves the identiﬁcation of entities and relations

in the free text data, which can then be used to produce a set of RDF triples from which an ontology can

be generated. The ﬁrst mechanism is therefore founded on the Stanford CoreNLP Toolkit.; in particular the

Named Entity Recognition and Relation Extraction mechanisms that come with this tool kit. The second is

founded on the GATE General Architecture for Text Engineering which provides an alternative mechanism

for relation extraction from text. Both require a substantial amount of training data. To reduce the training

data requirement the third mechanism is founded on the concept of Regular Expressions extracted from a

training data “seed set”. Although the third mechanism still requires training data the amount of training data

is signiﬁcantly reduced without adversely affecting the quality of the ontologies generated.

1 INTRODUCTION

Social media data provides a wealth of information

that can be tapped to generate actionable knowledge.

There have been a number of studies where social

media data has been successfully employed for pre-

diction purposes, for example the outcomes of elec-

tions (Murthy, 2015) or ﬂu outbreaks (Aramaki et al.,

2011). However, there have been few studies directed

at facilitating the querying of social media data for

information retrieval purposes. The principal chal-

lenges arises from the unstructured nature of the data,

which makes it difﬁcult to utilise for data querying

purposes. What is required is a general purpose ontol-

ogy which can be used to impose structure on unstruc-

tured social media data. However desirable such an

ontology might be, a global ontology that covers ev-

ery “domain of discourse”, whether featured in social

media or not, is currently beyond the means of com-

puter science; although it should be acknowledged

that a great many domain speciﬁc ontologies have

been generated, especially in the context of semantic

web services (Klusch et al., 2016). What can be done

is to use domain speciﬁc ontologies; typically an en-

quirer will only be interested in some speciﬁc social

media domain of discourse. Where these ontologies

exist, well and good; however, where they do no exist

they will need to be generated. Ontology generation

is a resource intensive undertaking; the key challenge

is in identifying and deﬁning the various entities and

relations that represent the target domain and need to

be included in the desired ontology. A solution is to

automate the process by employing some form of on-

tology learning. Ontology learning, also known as

ontology extraction, ontology generation or ontology

acquisition, is concerned with the automatic or semi-

automatic creation of ontologies (Zhou, 2007).

The idea proposed in this paper is to use ontology

learning to identify the entities and corresponding re-

lations between entities, from a corpus of social me-

dia data texts, and then use this to deﬁne a domain

speciﬁc ontology. The focus for the work is Twitter

data, because: (i) it is readily available, (ii) speciﬁc

domains can be simply deﬁned using “# tags” and

(iii) the desired ontologies are limited (comprising a

small number of entities and relations). Thus, more

speciﬁcally, given a collection of tweets from within

a particular Twitter domain, the idea is to use Natu-

ral Language Processing (NLP) tools and techniques

(King and Reinold, 2014) to identify entities, and re-

lationships between entities, in the Twitter data col-

lection and then use this to deﬁne an ontology span-

ning this collection, expressed using an ontology lan-

guage that facilitates information retrieval. The paper

presents and compares three mechanisms for NLP-

based ontology learning in the context of social me-

Alajlan, S., Coenen, F., Konev, B. and Mandya, A.

Ontology Learning from Twitter Data.

DOI: 10.5220/0008067600940103

In Proceedings of the 11th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2019), pages 94-103

ISBN: 978-989-758-382-7

dia (Twitter) data querying: (i) using the Stanford

CoreNLP toolkit (Finkel et al., 2007; Chunxiao et al.,

2007), (ii) using the General Architecture for Text

Engineering (GATE) toolkit (Cunningham, 2002) and

(iii) using Regular Expressions (Sidhu and Prasanna,

2001) coupled with CoreNLP. The adopted ontology

language was the Resource Description Framework

(RDF) (Graham and Carroll, 2004) which readily sup-

ports querying.

The entity and relation extraction mechanisms

were evaluated using standard machine learning met-

rics coupled with ten-fold cross validation. The gen-

erated ontologies were evaluated by examining the

syntax of the RDF using a “validator” tool recom-

mended by the World Wide Web Consortium (W3C)

and visual inspection of the semantics. The infor-

mation extraction utility of the populated ontologies

was evaluated by directing SPARQL queries at the

populated ontologies; if the results obtained from the

SPARQL querying were correct, it could be claimed

that the proposed approaches served their purpose.

The rest of this paper is structured as follows. Sec-

tion 2 gives a brief overview of previous work on

ontology learning. Sections 3, 4 and 5 then present

the three proposed mechanisms for ontology learning

from Twitter data. An evaluation and comparison of

the three proposed techniques is presented in Section

6. Some conclusions are presented in Section 7.

2 PREVIOUS WORK

To the best knowledge of the authors there has been

no speciﬁc work on ontology learning from Twitter

data. However, there has been previous work on on-

tology learning from free text. Parallels can there-

fore be drawn between the previous work on ontology

learning from free text and Twitter data; the distinc-

tion is that Twitter records are typically shorter than

free text records and are typically less well formed.

A brief review of the previous work on free text on-

tology learning is thus presented in Sub-section 2.1.

There are a number of reports where the relation ex-

traction from text has been automated, or semi auto-

mated. Relation extraction is an important element

of the proposed approaches; automated entity and re-

lation extraction is the ﬁrst step to automate the on-

tology learning process. A review concerning previ-

ous work on automated relation extraction is therefore

presented in Sub-section 2.2.

2.1 Ontology Learning

Examples of mechanisms for ontology learning from

free text can be found in (Exner and Nugues, 2012)

and (Republic, 2003). In (Exner and Nugues, 2012), a

system was described to automatically extract triples

from unstructured data, supported by DBpedia, so as

to generate ontology classes. The system operated

using a semantic parser and a co-reference solver,

and used an ontology base-mapping system that uti-

lized DBpedia to infer relations between the entities.

DBpedia was also used to support the identiﬁcation

of ontology classes. The evaluation was conducted

manually by analysing 200 randomly selected sen-

tences, the F-score with respect to the mapped triples

was 66.3%. The limitation is that the approach is re-

stricted to the content of wikipedia.

In (Republic, 2003) a mechanism that used Text-

to-Onto to extract pairs of terms based on the TF-

IDF (Term Frequency - Inverse Document Frequency)

measure was described. After extracting pairs of

terms, a part of speech tagger was used to discover

verbs, which were considered to describe relation-

ships between the pairs of terms according to the fre-

quency of the co-occurrence of the verbs and entity

pairs. All pairs were mapped to concepts using the

TAP knowledge base, developed at Stanford. TAP is

a large repository of lexical entries, such as proper

names of places, companies, people, but also names

of sports, art styles and other less traditional named

entities. However, the approach is limited to what is

available within TAP.

2.2 Relation Extraction

Many reports present methods for automating the

relation extraction from text process using machine

learning techniques, speciﬁcally supervised learning

(Carlson et al., 2010; Riedel et al., 2010). Of par-

ticular relevance with respect to the work presented

in this paper is work where the Stanford CoreNLP

tool and GATE have been used for relation extrac-

tion (Chunxiao et al., 2007; Wang et al., 2006). In

(Chunxiao et al., 2007) a supervised information ex-

traction system was introduced, founded on the Stan-

ford CoreNLP tool, which could be customised. The

domain considered in (Chunxiao et al., 2007) was the

USA National Football League (NFL) Scoring cor-

pus. The corpus contains 110 article relating to NFL.

In (Wang et al., 2006), a Support Vector Machine

(SVM) model was used to perform multi-class rela-

tion classiﬁcation by using a sequence of SVM binary

classiﬁers (the one-against-one method). The GATE

tool was used to deﬁne the Machine Learning (ML)

Ontology Learning from Twitter Data

features by using tokenisation, sentence splitting, part

of speech tagging and noun and verb phrase chunk-

ing. The authors of (Wang et al., 2006) also used

WordNet to provide word sense disambiguation. A

particular challenge of supervised learning for rela-

tion extraction from text is the need for a training

sets which are usually manually generated (Riedel

and Mccallum, 2013; Takamatsu et al., 2012; Carlson

et al., 2010). This is a criticism that can also be di-

rected at the Stanford and GATE-based methods pre-

sented later in this paper. One solution is to use some

form of semi-supervised learning. One example can

be found in (Carlson et al., 2010) where an iterative

training method, directed at web page free text, was

presented that involved “self-supervision”. The pro-

cess presented in (Carlson et al., 2010) commences

with small amount of labeled training data to train

an initial classiﬁer which is then used to iteratively

label further training data. The third approach pre-

sented in this paper, the regular expression-based ap-

proach, also adopts a semi-supervised approach. An

interesting relation extraction approach is presented

in (Riedel et al., 2010) where a system is described

that avoids using labelling training data by using an

external knowledge base instead (namely Freebase).

However, in the case of the Twitter domain of interest

with respect to this paper it was expected that no such

knowledge-base would be available (although with re-

spect to some domains of discourse this might be the

case).

3 ONTOLOGY LEARNING USING

STANFORD CORE NLP

In this and the following two section the three mecha-

nisms for extracting ontologies from Twitter data con-

sidered in this paper are presented, commencing with

the Stanford Core NLP approach. The pipeline archi-

tecture for the Stanford ontology learning framework

is given in Figure 1. From the ﬁgure it can be seen that

the process starts with a collection of tweets T . The

twitter data is then cleaned (not shown in the Figure),

for example by deleting hyperlinks. The next stage is

the knowledge extraction stage which comprises: (i)

Named Entity Recognition (NER) and (ii) Relation

Extraction. The next stage is mapping the identiﬁed

entities to classes; for example, the class “countries”

which includes objects such as UK, USA and China.

Then the classes and identiﬁed relations are used for

ontology generation. The result is a RDF represented

ontology. More details concerning the NER and re-

lation extraction models, and the ontology generation

step, are provided in the following three sub-sections.

Figure 1: Stanford Ontology Learning Framework.

3.1 Named Entity Recognition (NER)

The primary objective of the NER model is to identify

the entities that feature within the Twitter collection

(after which they will be associated with classes). By

default the Stanford NER model will identify entities

belonging to seven different “standard” classes: (i)

Location, (ii) Person, (iii) Organisation, (iv) Money,

(v) Percent, (vi) Date and (vii) Time. Although the

Stanford NER model is reasonably good at identify-

ing entities belonging to these standard classes any

Twitter domain of discourse cannot be expected to ad-

here to these standard classes. The model therefore

needs to be retrained to take into account the other

entity classes that feature in a given domain of dis-

course. For example, given the “motor vehicle pollu-

tion” domain of discourse considered for evaluation

purposes later in this paper the generated ontology

should reﬂect the environmental hazards of vehicles

and include entities such as “petrol car” and “diesel

car”. In order to identify such entities the Stanford

NER tool provides the means whereby the model can

be retrained given an appropriately constructed train-

ing set where the entities of interest have been anno-

tated. Figure 2 shows an example training record, in

the syntactical format required by the NER tool, that

may be used to create a model to identify the enti-

ties belonging to the classes: Location, Date and Fuel

vehicles. The example given in the ﬁgure expresses

the tweet “Norway to completely ban petrol powered

cars by 2025”, where: (i) the label “Loc” indicates

that the associated word belongs to the class Loca-

tion, (ii) the label “O” indicates a wild card, (iii) the

label “FuelV” indicates a word (entity) belonging to

the class Fuel Vehicles and (iv) “Date” an entity to

be associated with the class Date. The NER model is

used twice in the Stanford ontology learning frame-

work. Firstly to associate entities with classes (as de-

scribed in this sub-section), and secondly as a part of

the relation extraction tool (described below) to iden-

tify relations between entities.

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

Figure 2: Example Stanford NER training record.

3.2 Relation Extraction

Once an appropriate NER model has been created the

Stanford relation extraction tool can be used to create

the required relation extraction model. As in the case

of the NER Model the Stanford relation extraction

tool includes the means whereby a relation exaction

model can be trained using an appropriately deﬁned

training set (Roth and Yih, 2019). This was also the

approach used in (Chunxiao et al., 2007) where Stan-

ford relation extraction was used to identify and ex-

tract relations in the domain of American football, al-

though not from Twitter data. The training data needs

to highlight entities and the relations between them.

In the proposed process the entities were identiﬁed us-

ing the generated NER model (see above). An exam-

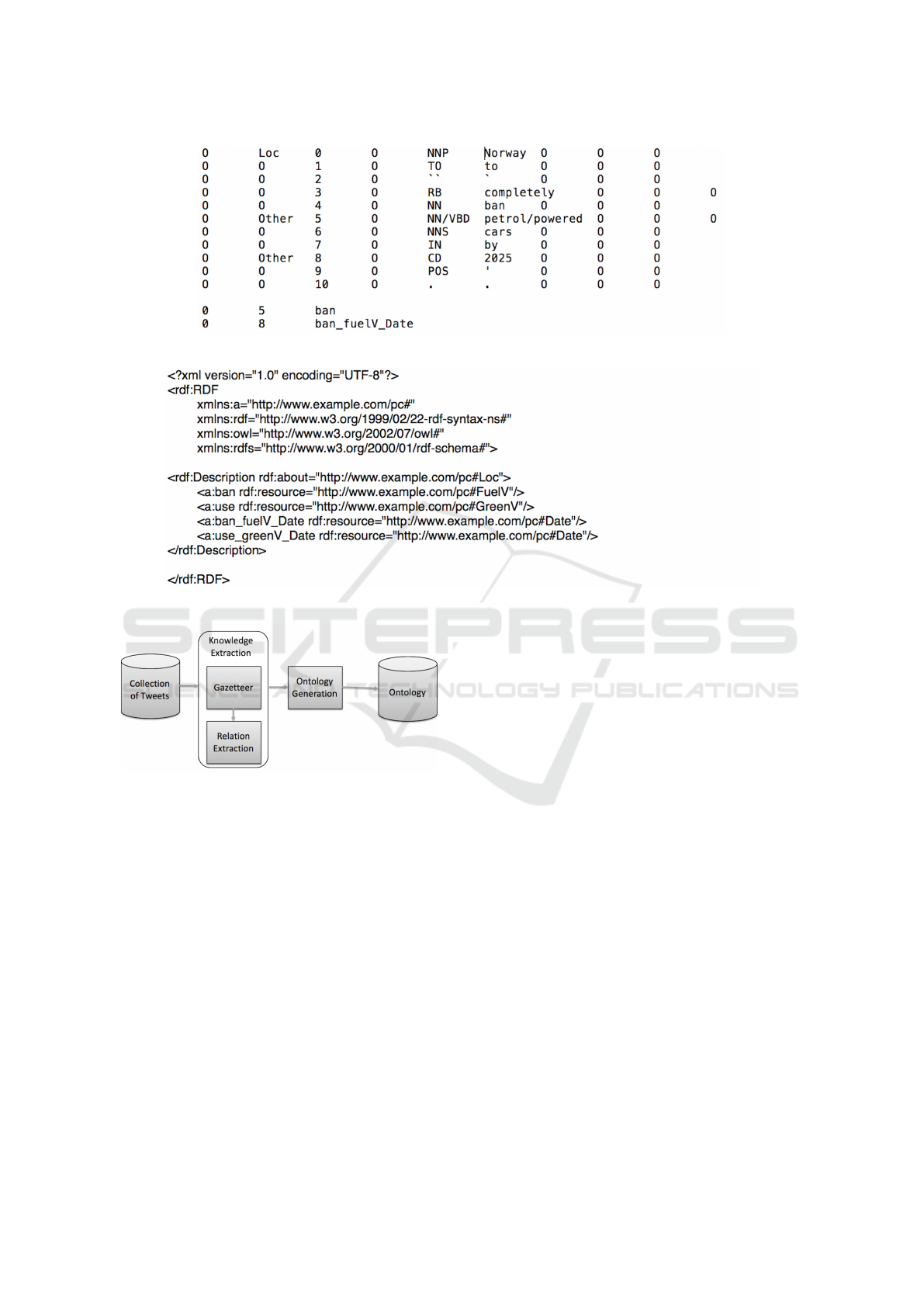

ple training record is given in Figure 3. As in the case

of the entity example given in Figure 2, the example

uses the tweet “Norway to completely ban petrol pow-

ered cars by 2025”. The Part of Speech (PoS) tag is

given in column 5 and the content of the tweet in col-

umn 6. The example expresses two relations: (i) the

relation “ban” that exists between word 0 and word 5

(entities “Norway” and “petrol powered”), and (ii) the

relation “Ban fuelV Date” that exists between words

0 and 7 (entities “Norway” and “2025”).

The relation model, once trained, was used to

extract entities and relations from a given Twitter

data set. The way that the Stanford relation ex-

traction model operates means that additional re-

lations may be identiﬁed that are not pertinent to

the domain of discourse. The results were there-

fore ﬁltered so that only the relations identiﬁed in

the training data were retained. The ﬁltered re-

sults were then stored as a set of triples of the

form hentity1, relation, entity2i. The results with

respect to the example Tweet “Norway to com-

pletely ban petrol powered cars by 2025” will there-

fore be the tripleshNorway, ban, petrol poweredi and

hNorway, ban f uelv Date, 2025i.

3.3 Ontology Generation

The ﬁnal step in the ontology learning frameworks

given in Figure 1 was the ontology generation step.

There are many tools recommended by The World

Wide Web Consortium (W3C) to convert entity-

relation-entity triples to an RDF represented ontol-

ogy depending on the nature of the data. In this re-

search LODReﬁne was used, which is the OpenReﬁne

tool with an RDF extension (Harlow, 2015). Figure 4

shows a simple example of an RDF ontology for the

motor vehicle pollution scenario.

4 GATE ONTOLOGY LEARNING

FRAMEWORK

The GATE-based approach to ontology learning is

presented in this section. An overview of the frame-

work is given in Figure 5. Inspection of Figure 5

and Figure 1 indicates that the distinction between the

two is in the Knowledge Extraction step. Note that

for this purpose Knowledge Extraction two GATE

components are used, the Gazetteer and the Relation

Extraction components. The gazetteer uses a pre-

scribed lists of words, describing entity classes, and

uses these lists of words to identify entities within

given texts. The relation extraction component is then

used to identify relations that exist between pairs of

entities. The last two steps are the same as those de-

scribed for the Stanford Framework described above.

In more detail, the Knowledge Extraction process

was as follows: (i) data preprocessing, (ii) entity ex-

traction using the gazetteer, (iii) class pairing (iv)

training set generation, (v) relation extraction model

generation and (vi) relation extraction model applica-

tion. The data preprocessing comprised the applica-

tion of a number of NLP pre-processing to the Twit-

ter data, namely word tokenisation and part of speech

tagging. This pre-processing steps was done using

ANNIE (A Nearly New Information Extraction sys-

tem) tool available within GATE. ANNIE assigns a

sequential character ID number, c

, to each character

in a a given Tweet T , T = [c

, c

, . . . ]. Each word is

therefore deﬁned by a start and end character; a word

ID is thus expressed as hc

, c

i; this is illustrated in

Figure 6 where a word annotated Tweet is given. The

next step was to use the Gazetteer to identify, and an-

notate, the words in a Twitter data collection, so as to

identify entities that exist in the data and consequently

assign class labels to those entities. GATE comes with

a number of predeﬁned gazetteer ﬁles (lists), such as

locations, organisations and dates; but for the pro-

posed ontology generation from Twitter data applica-

Ontology Learning from Twitter Data

Figure 3: Example of Stanford relation extraction training data record.

Figure 4: Example RDF ﬁle.

Figure 5: GATE Ontology Learning Framework.

tion the assumption was that appropriate ﬁles would

not be available in all cases. These must therefore be

generated. In the context of the motor vehicle pollu-

tion scenario used for evaluation purposes, as noted

above, the focus was on four speciﬁc classes: (i) Lo-

cation (“Loc”), (ii) Date (“Date”), (iii) Fuel Vehicle

(“Fuelv”) and (iv) Green Vehicle (“Greenv”). Using

the annotated tweets, JAPE (H. Cunningham D. May-

nard and V. Tablan, 2000) was used to pair the classes

together. The idea was to link every pair of classes

that feature in a Tweet. Gazetteer assigns a unique

Entity ID, e, to each identiﬁed entity which in turn

references a sequence of characters in T .

In GATE, as in the case of Stanford CoreNLP, re-

lation extraction was conducted using a supervised

learning approach. This in turn required a training set

( the motor vehicle pollution domain of discourse was

used for evaluation purposes, which will presented

later in this paper). Therefore, once all classes pair-

ings had been identiﬁed, the next step was for the user

to deﬁne a training set by manually assigning rela-

tions to each identiﬁed pair of classes. This training

set was then used to generate a GATE relation extrac-

tion model designed to predict classes and relations

between them. An example of a GATE relation ex-

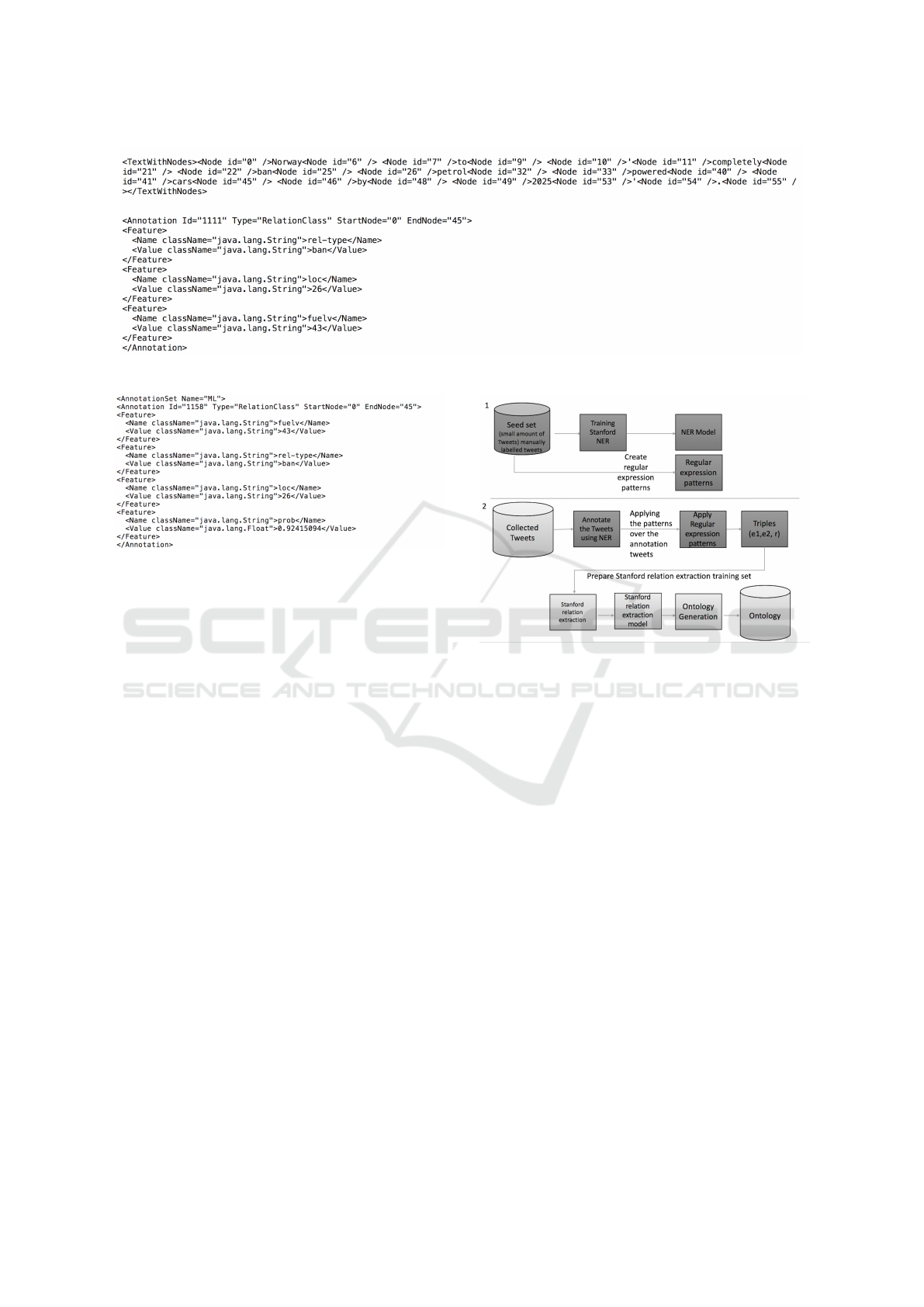

traction training record is given in Figure 6. As be-

fore, the example is derived from the Tweet “Nor-

way to completely ban petrol powered cars by 2025”.

The example deﬁnes a relation “ban” that links an an-

tecedent entity belonging to the class “Loc” to a con-

sequent entity belonging to the class “Fuelv”. In the

example, the phrase to be considered is delimited by

the charcte ID numbers 0 to 45 where 0 marks the

start of the antecedent entity and 45 marks the end

of the consequent entity. The speciﬁc entities refer-

enced in the example have the Entity ID numbers 26

and 43, which in this case identify the entities Norway

(h0, 6i) and petrol powered cars (h26, 45i) belonging

to the classes “Loc” and “Fuelv” respectively. Once

the GATE relation extraction model has been trained,

the model can be used to predict classes and their rela-

tions from tweets. The results were stored as a XML

ﬁle, hclass1, class2, relationi. Figure 7 gives a GATE

relation extraction result for the Tweet “Norway to

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

Figure 6: Example of relation extraction training data record.

Figure 7: Example of a GATE Relation Extraction Result.

completely ban petrol powered cars by 2025”; note

that an accuracy probability is given.

5 ONTOLOGY LEARNING USING

REGULAR EXPRESSIONS

(AND STANFORD CORENLP)

While the above described methods (using the Stan-

ford coreNLP and GATE frameworks) provide useful

mechanisms for supporting ontology learning, both

involve signiﬁcant end-user resource, particularly in

the preparation of training data. The entire process

is therefore time consuming and does not generalise

over all potential domains. The third mechanism con-

sidered in this paper was designed to address the train-

ing data preparation overhead by using regular ex-

pressions in order to limit the resource required with

respect to the previous two frameworks. An overview

of the ontology learning using a regular expressions

framework is given in Figure 8. Note that the frame-

work interfaces elements of Stanford CoreNLP, it

could equally well be interfaced with GATE, however

preliminary evaluation (reported on in Section 6 be-

low) indicated that Stanford was a better option.

From Figure 8, the process commences with a

collection of tweets T . The ﬁrst step is to generate

an entity annotated with class labels “Seed Set”; in

the context of the evaluation presented later in this

Figure 8: Regular expressions ontology learning frame-

work.

paper 100 tweets were selected instead of the 300

used to evaluate to Stanford and GATE frameworks.

This seed set is then used to learn a Stanford NER

model in a similar manner as described previously

in Sub-section 3.1. The seed set is used to gen-

erate a set of regular expressions (patterns). Three

catagories of regular expression were considered: (i)

two entity expressions, (ii) three entity expressions

and (iii) four entity expressions. A entity expressions

takes the form {e

, ?, r, ?, e

}, {e

, ?, e

, ?, r, ?, e

} and

, ?, e

, ?, r, ?, e

} respectively, where ? indi-

cates a random number of intervening words. In each

case there are a number of variations, 6, 24 and 120

respectively. Note that the proposed framework offers

the advantage, unlike comparable frameworks, that it

can operate with more than two entities.

The entire set of tweets T are then annotated using

Stanford NER model. Then, the regular expression

are applied to the annotated tweets and a set of triples

extracted of the form he

, e

, ri. In some cases several

such triples will be extracted from a single Tweet, in

other cases no triples will be identiﬁed.

The triples are then use to automatically generate

a training set for Relation Extraction model genera-

Ontology Learning from Twitter Data

tion as described earlier in Sub-section 3.2. The re-

maining two steps are identical to those included in

the previous two approaches.

6 EVALUATION

This section reports on the evaluation conducted to

evaluate the proposed ontology learning frameworks

presented in the foregoing three sections. For the eval-

uation a Twitter dataset, directed at the car pollution

domain, was generated. Further details of this data

set are presented in Sub-section 6.1. The objectives

of the evaluations were:

1. To determine and compare the effectiveness of

the Stanford and GATE ontology learning frame-

works.

2. To determine the effectiveness of the Regular Ex-

pression ontology learning framework.

3. To evaluate the syntactic integrity of the generated

ontologies.

4. To evaluate the utility of the generated ontologies.

Each is discussed in further detail in Sub-sections 6.2

to 6.5 below.

6.1 Evaluation Data

The section brieﬂy describes the car pollution domain

Twitter data set used for evaluation purposes. The

tweets were collected using the Twitter API. The car

pollution topic was chosen since it was easy to un-

derstand and hence any proposed mechanism using

this data could be readilly analysed. The criteria for

the collected tweets was that they should contain con-

tent related to banning fuel vehicles or using green

vehicles in a country or city. 300 tweets were col-

lected and labelled for training purposes. The data set

featured four entity classes: (i) Loc, (ii) f uelV , (iii)

greenV and (iv) Date; and four relations: (i) ban, (ii)

use, (iii) ban f uelV Date and (iv) use greenV Date.

The distribution of the entity and relation classes

across the data set is presented in Figures 9 and 10;

768, 384, 198 and 1162 for the entity classes; and 241,

125, 166 and 87 for the relations. Inspection of the

ﬁgures indicates that there were many more examples

of entities than relations. A typical tweet included

eight entities and two relations; not all entities were

paired. Note also that the number of examples per

class was very imbalanced. A further 313 tweets were

collected from the same domain; and used to create

and populate the ontologies using the learnt models.

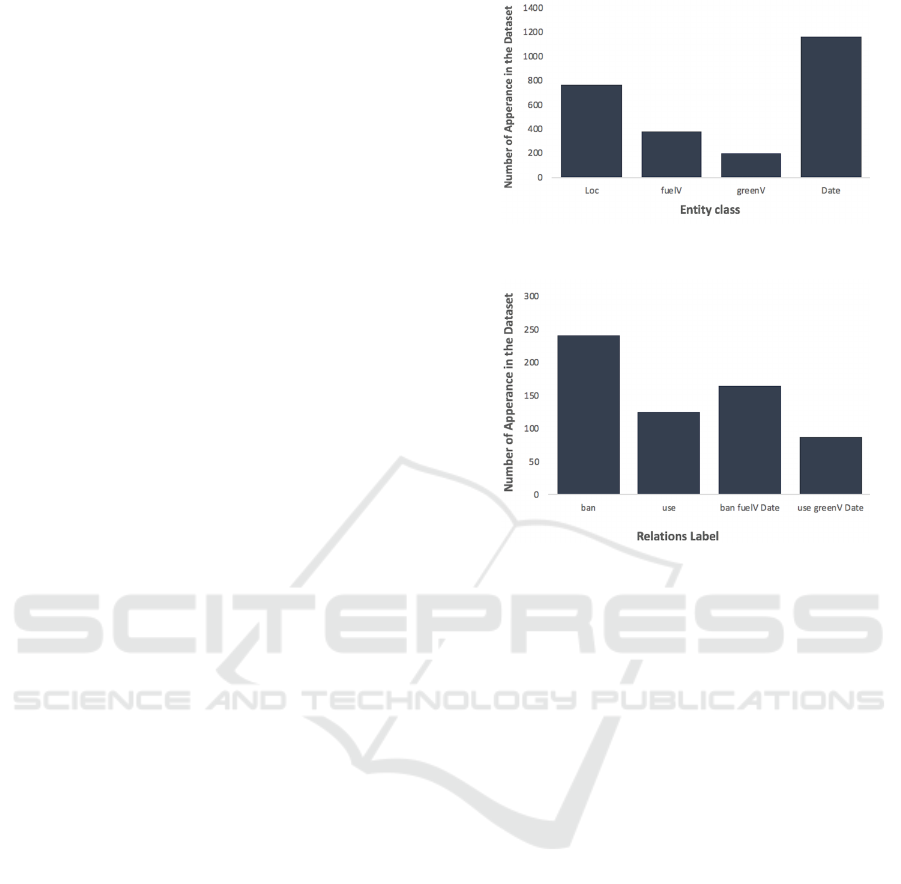

Figure 9: Distribution of the entity classes across the data

set.

Figure 10: Distribution of relations across the training

dataset.

6.2 Effectiveness of the Stanford and

Gate Ontology Learning

Frameworks

The entire initial data set of 300 tweets was used to

generate and evaluate the Stanford NER and Rela-

tion Extraction models, and the Gate Relation Extrac-

tion model, used to produce ontologies in the context

of the proposed Stanford and Gate ontology learning

frameworks. Using Stanford relation extraction, the

NER model was trained using the four entity classes

and the Relation Extraction model using the four rela-

tions listed above. Using GATE a gazetteer dictionary

was used. Ten-fold Cross Validation (TCV) was used

for the evaluation; 270 records for training and 30 for

testing. The metrics used were Precision (P), recall

(R) and F-score (F).

The results are presented in Tables 1, 2 and 3.

Table 1 presents the result obtained with respect to

the generated Stanford NER model. Tables 2 and 3

present the results obtained with respect to Stanford

and GATE generated Relation Extraction models re-

spectively. Note that precision and recall were not in-

cluded in Table1 because the Stanford NER tool does

not provide these. Inspection of Table 1 shows that a

small Standard Deviation (Stand. Dev.) was recorded.

It can thus be argued that the generated entity model

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

100

Table 1: TCV results for the Stanford NER model evalua-

tion.

Fold Num. F

1 77.3

2 77.7

3 77.2

4 79.3

5 77.2

6 78.0

7 78.0

8 78.9

9 78.4

10 78.3

Average 78.03

Stand. Dev. 0.71

Table 2: TCV results for the Stanford Relation Extraction

model evaluation.

Fold Num. P R F

1 67.6 88.5 76.7

2 81.8 88.5 85.0

3 81.6 75.5 78.4

4 94.2 98.0 96.1

5 47.2 69.0 56.1

6 85.2 74.2 79.3

7 74.3 76.4 75.3

8 70.2 75.5 72.7

9 88.6 87.3 87.9

10 86.7 89.7 88.1

Average 77.74 82.26 79.56

Stand. Dev. 13.58 9.26 10.91

Table 3: TCV results for the the GATE Relation Extraction

model evaluation.

Fold Num. P R F

1 73.8 68.2 70.6

2 85.9 77.0 79.4

3 69.2 86.7 71.1

4 50.5 70.2 57.6

5 48.6 60.5 50.8

6 75.2 93.7 82.1

7 53.9 72.2 61.4

8 69.3 75.0 70.0

9 70.7 77.8 72.0

10 86.7 68.8 64.4

Average 68.38 75.01 67.94

Stand. Dev. 13.52 9.57 9.58

was consistent and reasonably accurate and that con-

sequently the mechanism for generating it was effec-

tive.

Inspection of Tables 2 and 3 indicates a wide

spread of results (high standard deviations) in both

cases. The conjectured reason for this was the im-

balanced nature of the training data. Inspection of the

Fold 5 test data, the worst performing fold, revealed

that it included nine examples of the use greenV Date

relation class but that only two were classiﬁed cor-

rectly. From Figure 10 it can be seen that there were

only 87 examples of the use greenV Date class, ap-

proximately nine per fold. On the other hand, for the

class ban there were 241 examples. Comparing Ta-

bles 2 and 3 it can be seen that the Stanford mod-

eld produced a better average F-score than the GATE

model. This is why it was decided to interface the

Regular Expression approach with the Stanford NLP

tool as opposed to the GATE tool.

6.3 Effectiveness of the Regular

Expression Ontology Learning

Framework

For the evaluation of the Regular Expression Ontol-

ogy Learning Framework a seed training set of 100

records, a third of the data available was used. Recall

that for the evaluation of the Stanford and GATE On-

tology Learning Frameworks, training sets numbering

270 tweets were used. Once the regular expressions

had been identiﬁed they were applied to the remain-

ing 200 records. In the context of the Stanford NER

model, integral to the Regular Expression ontology

learning framework, the evaluation was conducted us-

ing three-fold Cross Validation; three because of the

size of the seed set. The results are given in Table 4.

Table 4: 3 Fold Cross Validation results for the Regular Ex-

pression Stanford NER model evaluation.

Fold Num. F

1 49.0

2 53.0

3 55.0

Average 52.33

Stand. Dev. 3.06

From the Table it can be seen that the average F-score

was less than that obtained using the Stanford “stand

alone” framework trained using all 270 records (see

Table 1), but within acceptable limits.

Table 5 gives the results obtained with respect to

the resulting Relation Extraction model. From the

table, it can be seen that the F-score values ranged

between 56.9 and 88.5, again because of the imbal-

anced nature of the training data. However what is

interesting to note is that the average Relation Ex-

traction F-score obtained using the Regular Expres-

sion approach was better than the GATE approach al-

Ontology Learning from Twitter Data

101

Figure 11: Ontology graphs.

Table 5: TCV results for the Regular Expression Stanford

Relation Extraction model evaluation.

Fold Num. P R F

1 75.9 80.4 78.1

2 89.3 87.7 88.5

3 75.9 63.8 69.3

4 73.8 77.5 75.6

5 70.0 77.8 73.7

6 68.4 72.2 70.3

7 79.6 68.3 73.5

8 75.0 82.4 78.5

9 47.5 70.7 56.9

10 87.0 75.8 81.0

Average 74.24 75.66 74.54

Stand. Dev. 11.51 7.09 8.33

though not as good at the Stanford approach; whilst

using a much smaller training set.

6.4 Generated Ontology Evaluation

The generated ontologies were of the form presented

earlier in Figure 4 using RDF notation. From in-

spection of the ﬁgure, it can be seen that the seman-

tics of the generated ontology seem correct based on

the classes and relations extracted from the tweets.

Other than visual conﬁrmation, the generated ontolo-

gies were automatically evaluated further by checking

their syntactic integrity. This validation was done us-

ing the RDF W3C Validation Tool. Figure 11 shows

the ontology graph generated using the W3C Valida-

tion Tool. Thus it can be concluded that, at least in

this simple case, the generated ontologies was seman-

tically and syntactically correct.

6.5 Evaluation of the Utility of the

Generated Ontology

To evaluate the utility of the generated ontology, the

idea was to populate the ontologies using 313 tweets

and then use SPARQL to query the data. The motiva-

tion for this was from (Prud’Hommeaux et al., 2008)

where it was noted that “SPARQL can be used to ex-

press queries across diverse data sources, whether the

data is stored natively as RDF or viewed as RDF via

middleware”. For the evaluation Apache Jena was

used to query the generated RDF, one of the recom-

mended tools from W3C. Example SPARQL queries

are given in Figure 12. The example queries are di-

rected at identifying all locations that ban any type of

car and when the UK will ban fuel vehicles. Thus,

from the SPARQL query result, it could be concluded

that the generated ontology was appropriate.

Figure 12: Examples of SPARQL query.

7 CONCLUSION

This paper has presented three mechanisms for learn-

ing ontologies from Twitter data: (i) the Stanford on-

tology learning framework, (ii) the GATE ontology

learning framework and (iii) the Regular Expression

ontology learning framework, the latter coupled with

the Stanford NLPcore toolkit. The output from all

three mechanisms was an RDF represented ontology

generated using LODReﬁne, a W3C recommended

tool. The ﬁrst two mechanisms required substantial

amounts of training data. This presented a signiﬁ-

cant disadvantage as the preparation of the required

training data required considerable end user resource.

The third mechanism was designed to address this dis-

advantage by using a much smaller “seed set” from

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

102

which a more complete training set could be gener-

ated and input to either of the two previous mecha-

nisms. All three mechanisms were compared using

a car pollution scenario comprised of 300 tweets as

the training set and 313 tweets to create the ontolo-

gies. For the ﬁrst two mechanisms the Relation Ex-

traction models were compared and Stanford Relation

Extraction found to outperform GATE relation extrac-

tion; an average F-score of 79.56 compared to 67.94.

The third mechanism, the Regular Expression mech-

anism, was therefore coupled with Stanford Relation

Extraction. For the ﬁrst two mechanisms 270 records

were used for training (30 held back for testing) while

for the third only 100 records were used fort the ini-

tial seed training set, a reduction of 65%, without ad-

versely affecting the quality of the generated ontolo-

gies. The generated ontologies were evaluated using

a W3C validation tool which focused on the syntax of

the ontology, whilst the utility of the ontologies was

evaluated by populating the ontologies and querying

them using SPARQL test queries. The results were

very encouraging and the authors are now embarking

on a large scale evaluation of the proposed mecha-

nisms directed at more sophisticated ontologies and

using larger collections of tweets.

REFERENCES

Aramaki, E., Maskawa, S., and Morita, M. (2011). Twitter

Catches The Flu: Detecting Inﬂuenza Epidemics us-

ing Twitter. In 2011 Conference on Empirical Meth-

ods in Natural Language Processing, pages 1568–

1576. Association for Computational Linguistics.

Carlson, A., Betteridge, J., Wang, R. C., Hruschka, E. R.,

and Mitchell, T. M. (2010). Coupled semi-supervised

learning for information extraction. In Proceedings of

the third ACM international conference on Web search

and data mining, page 101. ACM.

Chunxiao, W., Jingjing, L., Yire, X., Min, D., Zhaohui, W.,

Gaofu, Q., Xiangchun, S., Xuejun, W., Jie, W., and

Taiming, L. (2007). Customizing an Information Ex-

traction System to a New Domain. In Regulatory Pep-

tides, volume 141, pages 35–43. Association for Com-

putational Linguistics.

Cunningham, H. (2002). Gate, a general architecture for

text engineering. Computers and the Humanities,

36(2):223–254.

Exner, P. and Nugues, P. (2012). Entity Extraction: From

Unstructured Text to DBpedia RDF Triples. In The

Web of Linked Entities Workshop (WoLE 2012), pages

58–69. CEUR.

Finkel, J. R., Grenager, T., and Manning, C. (2007). Incor-

porating non-local information into information ex-

traction systems by Gibbs sampling. In Proceedings

of the 43rd annual meeting on association for com-

putational linguistics, pages 363–370. Association for

Computational Linguistics.

Graham, K. and Carroll, J. (2004). Resource Descrip-

tion Framework (RDF): Concepts and Abstract Syn-

tax. W3C Recommendation, 10(October):1—-20.

H. Cunningham D. Maynard and V. Tablan (2000). JAPE:

a Java Annotation Patterns Engine (Second Edi-

tion). Department of Computer Science, University

of Shefﬁeld.

Harlow, C. (2015). Data Munging Tools in Preparation for

RDF: Catmandu and LODReﬁne. The Code4Lib Jour-

nal, 30(30):1–30.

King, B. E. and Reinold, K. (2014). Natural language pro-

cessing. Finding the Concept, Not Just the Word,

pages 67–78.

Klusch, M., Kapahnke, P., Schulte, S., Lecue, F., and Bern-

stein, A. (2016). Semantic Web Service Search: A

Brief Survey. KI - K

unstliche Intelligenz, 30(2):139–

147.

Murthy, D. (2015). Twitter and elections: are tweets, pre-

dictive, reactive, or a form of buzz? Information Com-

munication and Society, 18(7):816–831.

Prud’Hommeaux, E., Seaborne, A., Prud, E., and Labora-

tories, H.-p. (2008). SPARQL Query Language for

RDF. W3C working draftd, pages 1–95.

Republic, C. (2003). A Study on Automated Relation

Labelling in Ontology Learning. Ontology Learn-

ing from Text Methods evaluation and applications,

123(123):1–15.

Riedel, S. and Mccallum, A. (2013). Relation Extraction

with Matrix Factorization. In Proceedings of the 2013

Conference of the North American Chapter of the As-

sociation for Computational Linguistics: Human Lan-

guage Technologies, pages 74–84.

Riedel, S., Yao, L., and McCallum, A. (2010). Model-

ing Relations and Their Mentions without Labeled

Text BT - Machine Learning and Knowledge Dis-

covery in Databases. In Joint European Conference

on Machine Learning and Knowledge Discovery in

Databases, pages 148–163. Springer.

Roth, D. and Yih, W.-t. (2019). Global Inference for En-

tity and Relation Identiﬁcation via a Linear Program-

ming Formulation. Introduction to Statistical Rela-

tional Learning, pages 553–580.

Sidhu, R. and Prasanna, V. K. (2001). Fast regular expres-

sion matching using fpgas. In The 9th Annual IEEE

Symposium on Field-Programmable Custom Comput-

ing Machines (FCCM’01), pages 227–238. IEEE.

Takamatsu, S., Sato, I., and Nakagawa, H. (2012). Reduc-

ing Wrong Labels in Distant Supervision for Relation

Extraction. In Acl, pages 721–729. Association for

Computational Linguistics.

Wang, T., Li, Y., Bontcheva, K., Cunningham, H., and

Wang, J. (2006). Automatic Extraction of Hierarchi-

cal Relations from Text. In European Semantic Web

Conference, pages 215–229. Springer.

Zhou, L. (2007). Ontology learning: State of the art and

open issues. Information Technology and Manage-

ment, 8(3):241–252.

Ontology Learning from Twitter Data

103
