Generation of Task Models from Observed Usage

Application to Web Browsing Assistance

Karim Sehaba

1 a

and Benoît Encelle

2 b

Université de Lyon, CNRS, Université de Lyon 2, LIRIS, UMR5205, France

Université de Lyon, CNRS, Université de Lyon 1, LIRIS, UMR5205, France

Keywords: Knowledge Extraction, Interaction Traces, Task Model, ConcurTaskTrees (CTT), Web Browsing Assistance.

Abstract: This work focuses on the extraction of knowledge from observed usage. More specifically, it aims to design

a Web browsing assistance system that helps the user in carrying out his browsing task, or the designer in

adapting or redesigning his Web application, according to real usage. The proposed approach consists of

generating task models from interaction traces, which are then used to perform assistance. The characteristics

to be supported by a task metamodel for assistance purposes are first identified and then confronted with the

characteristics of existing task metamodels. This first study led us to choose the ConcurTaskTrees (CTT)

metamodel. We then developed processes to generate CTT task models from traces. Finally, to validate our

approach, we conducted unit testing and validation based on two real web browsing scenarios.

1 INTRODUCTION

This article focuses on knowledge extraction from

data coming from observed usage. More precisely, it

is part of Web browsing assistance and redesign of

Web applications. The question under concern is how

to set up a system able to assist the user in carrying

out a web browsing task and the designer in the

adaptation and/or the redesigning of his Web

application.

In most existing assistance systems, the helps

provided, and in general the assistance knowledge,

are predefined during the design phase and

correspond to the uses envisaged by the designers.

Nevertheless, it is often difficult to apprehend for a

given system, and for a Web application more

particularly, the full spectrum of the real uses: users

can have very different profiles, the user needs can be

in constant evolution, there may have different

conditions of use, etc. If tools and methodologies

exist to predict certain uses (including requirements

analysis, rapid prototyping and assessments in

ecological situation), these will remain intended uses

and may in some cases not cover / correspond to all

real uses. This may be due to several difficulties

related to: the analysis of all the contexts of use, the

https://orcid.org/0000-0002-6541-1877

https://orcid.org/ 0000-0002-0734-6480

representativeness of the observed sample, the

achievement of truly ecological conditions in

assessments, etc. Thus, the design of an assistance

system with a complete representation of the needs of

future users and their evolution is very difficult, if not

impossible.

To remedy these difficulties, we propose to base

the assistance on the real uses, observed after the

installation of the system. More precisely, the

approach developed in this paper aims to generate

task models based on these real uses. As an input in

the task model generation process, we start from

interaction traces (i.e. logs). Here, a trace represents

the history of the actions of a given user on a Web

application. At the output, a task model represents the

different possibilities of performing a given task.

Formally, a task model is a graphical or textual

representation resulting from an analysis process,

making it possible to logically describe the activities

to be carried out by one or more users to achieve a

given objective, such as booking a flight or hotel

room.

The task models obtained by the proposed process

will then be used, in an assistance system, to guide the

users in the accomplishment of their tasks and the

Sehaba, K. and Encelle, B.

Generation of Task Models from Observed Usage Application to Web Browsing Assistance.

DOI: 10.5220/0008068300740082

In Proceedings of the 11th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2019), pages 74-82

ISBN: 978-989-758-382-7

designers in the analysis of their applications, or even

to carry out possible redesigns of them.

In this paper, we begin by identifying the

characteristics that should be supported by task

models so that they can be used for assistance

purposes. We thus identified two main properties,

namely:

1. The intelligibility of the task model for the user;

and

2. The expressiveness of the task model and its

ability to be manipulated by a computer system,

more specifically an assistance system.

In the literature, several metamodels have been

proposed to represent task models. Therefore, we

confront these metamodels with the characteristics

previously identified to determine the most suitable

for our purpose of assistance. This study leads us to

choose the ConcurTaskTrees (CTT) metamodel.

Then, we develop a process for generating task

models, representing real uses, based on interaction

traces.

In summary, the work presented in this paper aims

at three contributions:

1. The specification of the characteristics of the task

metamodels for assistance purposes;

2. The confrontation of existing metamodels

regarding the characteristics identified: the choice

of the CTT metamodel;

3. A process for generating CTT task models from

interaction traces.

This article is organized as follows. Section 2

presents a state of the art on web browsing assistance

based on traces and task models. Section 3 details the

target characteristics of a task model for assistance

purposes. Section 4 presents a comparison of existing

task models against our target characteristics, leading

in the choice of the CTT model that we present next.

Section 5 describes our approach for generating task

model from interaction traces. Section 6 is dedicated

to the validation process and results. Finally, we

conclude and state some perspectives in the last

section.

2 TASK MODELS GENERATION

The design and/or the generation of task models has

been the subject of several studies in the literature. In

this work, we are interested in generating task models

from traces. In this context, the methods proposed in

the literature can be classified into two main

approaches, namely: the generation of task models

from one task instance (1) and from multiple task

instances (2).

2.1 From an Instance to a Task Model

The first approach is to start from one instance (i.e. a

particular way of performing a task) to generate a

model. In this context, let us mention the CoScripter

system (Leshed et al., 2008) which makes it possible

to automate web tasks via a scripting language, used

among other in the Trailblazer assistant (Bigham, Lau

and Nichols, 2009).

1. goto

“http://www.mycompany.com/timecard/”

2. enter “8” into the “Hours worked”

textbox

3. click the “Submit” button

4. click the “Verify” button.

Figure 1: Example of a CoScript (from (Bigham, Lau and

Nichols, 2009)).

Figure 1 shows an example of a CoScript representing

the actions for performing a "book purchase" task on

Amazon. As this example shows, a CoScript is very

close to a trace and possibly generalizes it to a

minimum. Indeed, the scripting language integrates

only one element of generalization (with the notion of

personal database (Leshed et al., 2008)). Therefore, a

CoScript is more an instance than a task model itself.

In addition, control structures such as the condition

(e.g. if A then B else C) or iteration do not exist in

CoScripter (Leshed et al., 2008). Therefore, to

generate a task model from a CoScript, the challenges

of a generalization process from an instance remain

open as pointed out in (Allen et al., 2007).

To answer these challenges, namely the elicitation

of a task model from an instance, the approach used

in PLOW (Procedural Learning on the Web) (Allen et

al., 2007) increases the description of a task instance

by knowledge provided during its performance. This

knowledge makes it possible to represent the

conditions, the iterations, etc. This "expert"

knowledge is, within the framework of PLOW,

provided by a certain kind of user named

demonstrator. The latter teaches the system new task

models by providing this expert knowledge orally,

while he/she is performing the task. This knowledge

is then interpreted using natural language processing

technologies. This approach requires 1) that the

demonstrator keeps in mind to bring a maximum of

knowledge and 2) that the tool is able to correctly

interpret this knowledge to modify the model

accordingly. Thus, the more a demonstrator brings

knowledge and more a model can be generic. Overall,

Generation of Task Models from Observed Usage Application to Web Browsing Assistance

with respect to this knowledge, the more it is

expressed in language similar to that used by the

system to model the task, the less likely it is that it

will be misinterpreted.

2.2 From Instances to a Task Model

The second approach attempts to eliminate the need

of expert knowledge by using multiple instances to

generate a task model, as in LiveAction (Amershi et

al., 2013). The latter focuses on the identifying and

modeling of repetitive tasks, tasks represented using

CoScripter scripts. In LiveAction, a task model is

generated using a set of CoScripts and Machine

Learning techniques. With this kind of approach, task

models are represented as finite state automata (FSA)

(Amershi et al., 2013)(Mahmud et al., 2009).

However, to our knowledge, an assistant based on

such automata has not been developed yet.

With this kind of approach, the level of genericity

of the models obtained depends on the quantity of

instances as well as their quality (variability in

particular). It should be noted that, as suggested in

(Amershi et al., 2013) and with the aim of quickly

reaching satisfactory models, users should be able to

add knowledge to generated models by manipulating

them directly.

2.3 Synthesis

In summary, the first approach, from instance to

model, allows the generation of more specific than

generic task models and requires expert knowledge.

The second, from instances to model, requires a large

number of different instances to produce in

sufficiently complete / generic models.

We base our work on models that can be

generated from multiple instances to limit the amount

of expert knowledge to be provided initially and that

are necessary to obtain complete models, sufficiently

generic. Then, to minimize the constraint due to the

sufficient number and the necessary variability of

these instances, we will opt for "user-friendly" task

models, i.e. allowing users to 1) understand them

easily and 2) intuitively add knowledge by modifying

the generated models. These additions of knowledge

will have to be made directly on the models by

handling them, thus evacuating the risks of no or bad

interpretation which can lead to erroneous models

(risks existing in PLOW for example).

Therefore, reusing an approach such as the one

described in LiveAction seems interesting to us,

except that the generated models are represented by

finite state automata (FSA). These FSAs are indeed

difficult to understand and manipulated by end users:

 no decomposition, hierarchical relationships

between the tasks and their subtasks. Hierarchy

makes it easier to read and understand a model;

 large number of elements: many states and

transitions even for a simple browsing task, which

generates difficulty of reading and

comprehension.

To solve these problems, we propose to use more

user-friendly task metamodels than FSAs. To do this,

we will first identify a set of characteristics to be

supported by a metamodel dedicated to browsing

assistance. Then, we will confront the existing

metamodels with the characteristics identified in

order to choose one. The metamodels studied were

designed to be quickly understandable and

manipulable by "novice" (i.e. user-friendly).

3 METAMODEL

CHARACTERISTICS

As mentioned above, task models generated from

traces must be user-friendly, easily understandable,

and even directly manipulable by the user. In

addition, these models must also be machine-friendly

to be automatically used by an assistance system to

guide the user in performing his task. This

characteristic implies that a machine can a) be able to

identify models that do not conform to the

metamodels (i.e. models that can lead to

misinterpretations) and b) understand and interpret

these models at a certain level. This requires a certain

level of formality, a very precise semantics of the

elements constituting these metamodels.

To these two main characteristics, we add other

secondary ones. The first is related to the set of tasks

we want to model and their intrinsic properties. We

want to model web browsing tasks, essentially

sequential tasks (actions to be carried out one after

another) and single-user tasks (collective tasks are not

considered). This characteristic therefore corresponds

to the expressiveness of the metamodels and more

specifically to their ability to represent browsing

tasks. In this perspective, elements of a metamodel

must make it possible to specify the component of the

user interface to be manipulated. Another important

thing is that the metamodels must also allow the

expression of optionality (to model the fact that a sub-

task is optional to carry out a given task), for a

sufficiently generic modeling of Web browsing tasks.

For example, the modeling of a "ticket reservation"

KMIS 2019 - 11th International Conference on Knowledge Management and Information Systems

task must be able to represent optional steps, such as

the possibility of entering a discount card id.

The second secondary characteristic is related to

the adaptability and extension capabilities of

metamodels: these are initially designed to be used in

a set of software engineering phases (Balbo, Ozkan

and Paris, 2004), but they must be adaptable to meet

our assistance goal. However, these adaptations may

require complements (e.g. concepts), i.e. new

elements added to the metamodels. As a result,

metamodels have to be extensible if necessary

(extensibility characteristic).

The third is related to the plurality of devices that

can be used to browse the Web (smartphone, tablet,

computer, etc.) and their respective characteristics

(screen sizes, proposed interaction modalities, etc.).

Indeed, several variants of user interfaces or process

of accomplishing tasks may exist for the same Web

application ("responsive" aspect). These variations of

the context of use must be able to be supported by the

chosen metamodel: the same task has to be described

in several ways according to the context of use.

In summary, a "candidate" metamodel that could

integrate the assistance process we wish to develop,

must have key characteristics (user-friendly and

machine-friendly) and secondary ones (expressivity,

adaptability/ extensibility, support variations in the

context of use). The following section presents a

study comparing existing metamodels with the above

characteristics.

4 TASK MODELS FOR

ASSISTANCE

4.1 Comparison of Metamodels with

Target Characteristics

Several comparative studies of the most well-known

metamodels have been proposed in the literature

(Limbourg and Vanderdonckt, 2004) (Balbo, Ozkan

and Paris, 2004) (Jourde, Laurillau and Nigay, 2014),

including:

 HTA: Hierarchical Task Analysis,

 MAD: "Méthode Analytique de Description",

 GOMS: Goals, Operators, Methods and Selection

rules,

 CTT: Concur Task Trees.

These studies propose an analysis framework to

compare the metamodels between them and even to

guide the choice of one or more specific metamodels

for a given objective. These analyzes are based on a

set of characteristics, including those we target (see

previous section).

Concerning the user-friendly aspect, the authors

of (Balbo, Ozkan and Paris, 2004) refer to it through

the "usability axis in communication" and specify in

particular that, in relation to textual or formal

metamodels, the graphic metamodels are more

suitable. The authors of (Paternò, 2004) also approve

this position. For example, the highly textual GOMS

metamodel is moderately user-friendly (Balbo,

Ozkan and Paris, 2004). Being able to break down

tasks into sub-tasks (decomposition characteristic

(Balbo, Ozkan and Paris, 2004)), how to break down

tasks and thus describe the relationships between

tasks and sub-tasks are also important. For example,

a tree-like representation of tasks / sub-tasks appears

intuitive (Paternò, 2001), as in MAD or CTT, and

offers several levels of detail, including the ability to

unfold/fold branches of the tree. Similarly, the ability

of the metamodel to allow the reuse of elements helps

to minimize the number of elements present and

improve readability.

Concerning the machine-friendly characteristic,

the degree of formality of a metamodel is related to

what must be generated (Balbo, Ozkan and Paris,

2004): a formal metamodel can be used for the

automatic generation of code while a semi-formal

model can be used to generate user documentation for

example. The authors of (Limbourg and

Vanderdonckt, 2004) confirm the need for a certain

level of formality of the metamodels to be machine-

readable: for example, a plan in HTA described

informally (textual descriptions) the logic of

execution of the sub-tasks that make up a task, which

can lead to interpretation ambiguities. On the

contrary, CTT has a set of formal operators, based on

the LOTOS language (Bolognesi and Brinksma,

1987), to describe this same logic, which guarantees

an unambiguous automatic interpretation.

Regarding the secondary characteristics,

concerning the expressivity of the metamodels for

Web browsing tasks, in addition to sequentiality and

single-user criteria, certain models such as MAD or

GOMS do not allow the expression of the optionality

(Balbo, Ozkan and Paris, 2004), unlike CTT. In

addition, some models, such as HTA for example, are

not intended to indicate the user interface components

that must be manipulated to perform the tasks /

subtasks while others, such as CTT, allow it. We also

have to mention that the W3C Working Group

Generation of Task Models from Observed Usage Application to Web Browsing Assistance

“Model-Based User Interfaces” has chosen CTT to

model web tasks

Concerning adaptability/extensibility, graphical

metamodels are more easily extensible to express

relationships or concepts that were not initially

planned (Balbo, Ozkan and Paris, 2004). For

example, several extensions have been proposed for

models of this type, such as MAD or CTT (e.g.

MAD*, CCTT).

Regarding the characteristic "context of use

variations support", few metamodels integrate this

dimension as underlined by (Limbourg and

Vanderdonckt, 2004). Nevertheless, CTT integrates

this dimension through the platform concept (Paternò,

2004).

Table 1: Comparison of metamodels with target

characteristics.

User

-friendly

Machine friendly

Expressivity

Adaptability/

extensibility

Variations to the

con

text of use

CTT

HTA

MAD

GOMS

Table 1 gives a summary of our confrontation of

metamodels with regard to our target characteristics.

It thus appears that the CTT metamodel, among the

metamodels studied, is the only one that meets all the

characteristics previously identified. The following

section provides a short introduction to this model.

4.2 CTT metamodel

A Concur Task Tree (CTT) model exposes a

hierarchical structure of tasks as a tree. Each tree node

corresponds to a task or a subtask. The node icon

identifies the category of the task or subtask:

 cloud: abstract task, decomposable;

 user and keyboard: interaction task;

 computer: task performed by the system.

Logical or temporal relationships between tasks

are indicated by operators. For example, the operator

"[]" represents the choice and the operator "[] >>"

https://www.w3.org/TR/task-models/

represents the enabling with information operator. In

Figure 2, the room booking task can only be done if

the user has specified the type of the room he wants

to reserve (single or double). Thus, the "Make

reservation" sub-task is only activated if the "Select

room type" task has been performed.

Figure 2: CTT modeling of a room booking task (Paternò,

2004).

These operators are formally defined (mainly from

the LOTOS language (Bolognesi and Brinksma,

1987)). CTT allows to add features to tasks as needed:

iteration (indefinite or finite) and optionality. Finally,

the tasks can be correlated to the application domain

objects (the type of room for example) and to their

representation(s) on a given user interface (for the

selection of a type of room for instance, radio buttons

or other).

5 TASK MODEL GENERATION

AND ASSISTANCE

Remember that our goal is to propose a task model

generation approach based on observed usage. These

task models will assist the user in performing their

web browsing task and the designer in the adaptation

and redesign of their web application. To represent

the tasks, we propose to use CTT and, for the

observed uses, we rely on the traces / logs resulting

from the actions of the user on the Web application.

Figure 3: Task model generation process and assistance.

Figure 3 presents the general principle of our

approach. At first, the logs / traces are transformed

(T1) into finite state automata (FSAs) or, more

KMIS 2019 - 11th International Conference on Knowledge Management and Information Systems

precisely, deterministic finite state automata

(DFSAs). We already mentioned that a bunch of work

related to web browsing assistance generate FSAs

from the traces, such as LiveAction. If these automata

have the advantage of being relatively simple to

process automatically (machine-friendly), they

remain difficult to understand for the general public

given: a) the large number of states and transitions

they can contain, even for represent a simple

browsing task, and b) their linear reading as there is

no hierarchy of states to represent task / subtask

relations. Therefore, the second step of our approach

is to transform these automata into CTT models (T2).

In this section, we are interested only in 1) the

transformation T2 (FSAs-> CTT models), since T1

(Traces-> FSAs) has already been treated by other

works, notably (Amershi et al., 2013), as well as to 2)

assistance based on task models.

5.1 Task Model Generation from

Deterministic Finite State

Automata

Formally, a deterministic finite state automaton

(DFSA) is a 5-tuple (Q, Σ, R, qi, F) consisting of:

Q: a finite set of states (Web resources/pages)

Σ: an input alphabet, which in our case represents

all the events applied to web resources (e.g. button

click, typed text, etc.)

R: a part of Q × Σ× Q called the set of transitions

qi: the initial state. qi ∈ Q

F: a part of Q called the set of final states

Since the automaton is deterministic, the

relationship R is functional in the following sense:

If (p, a, q) ∈ R and (p, a, a, q') ∈ R then q = q'

In the following subsections we detail the

algorithms for converting DFSAs to CTT models,

focusing for the example only on CTT enabling and

independence operators.

5.1.1 Enabling Operator (“>>”)

The CTT enabling operator indicates that a subtask B

cannot start until a subtask A is performed. From the

DFSA point of view, if there is an endState state for

which there is only one transition from a previous

startState state, we can deduce that there is an

enabling operator (see figure 4 for an example of

conversion from DFSA to CTT).

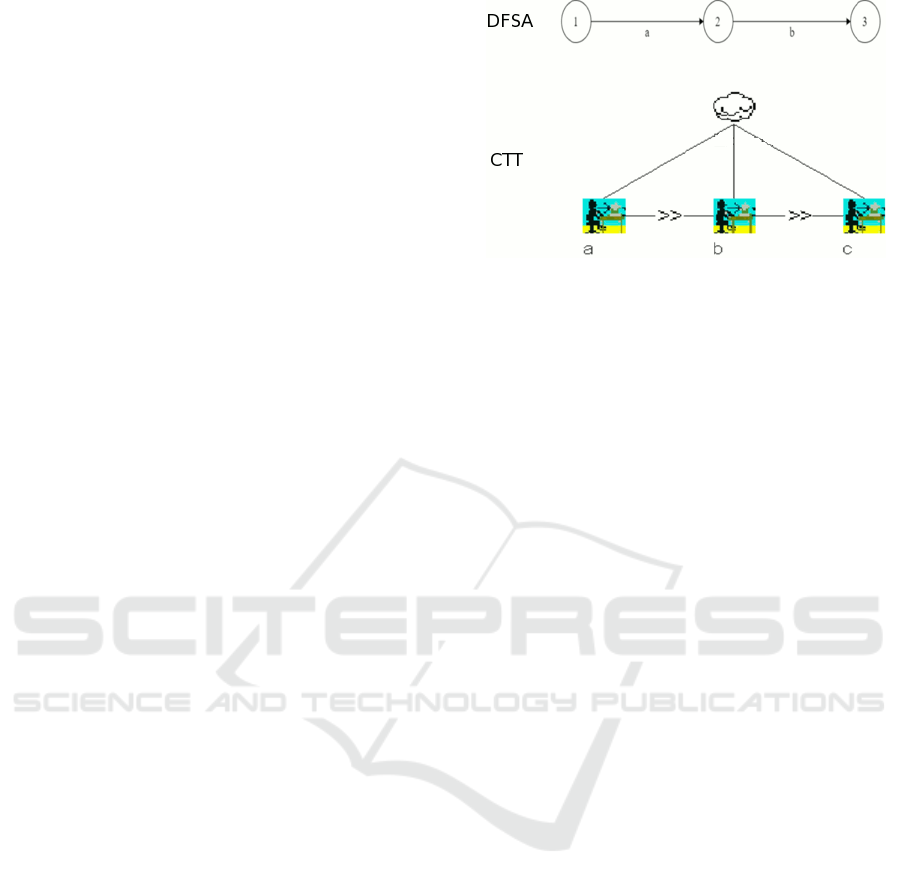

Figure 4: Example of an DFSA to CTT conversion, two

enabling operators (between states 1,2 and 2,3).

DFSA to CTT model conversion algorithm

(pseudocode) - enabling operator identification:

Input: State startState, State endState

Output: Boolean (true if enabling op.

between startState and endState, false

otherwise)

If(!existTransactionBetween(startState,

endState))

return false

EndIf

For each state s of (AEF.states -

startState) //

If (existTransactionBetween(s,

endState)

return false

EndIf

EndFor

return true

5.1.2 Order Independency Operator (“|=|”)

There is an order independency operator between two

or more subtasks if they can be performed in any

order. From the DFSA point of view, if there are two

startState and endState n paths (n>1) that link them,

each path has the same k labels (which will then be in

a different order) and k = n!, then we can conclude

that these are subtasks that can be performed in any

order, expressed in CTT using independence

operators (see Figure 5 for an example of conversion).

Generation of Task Models from Observed Usage Application to Web Browsing Assistance

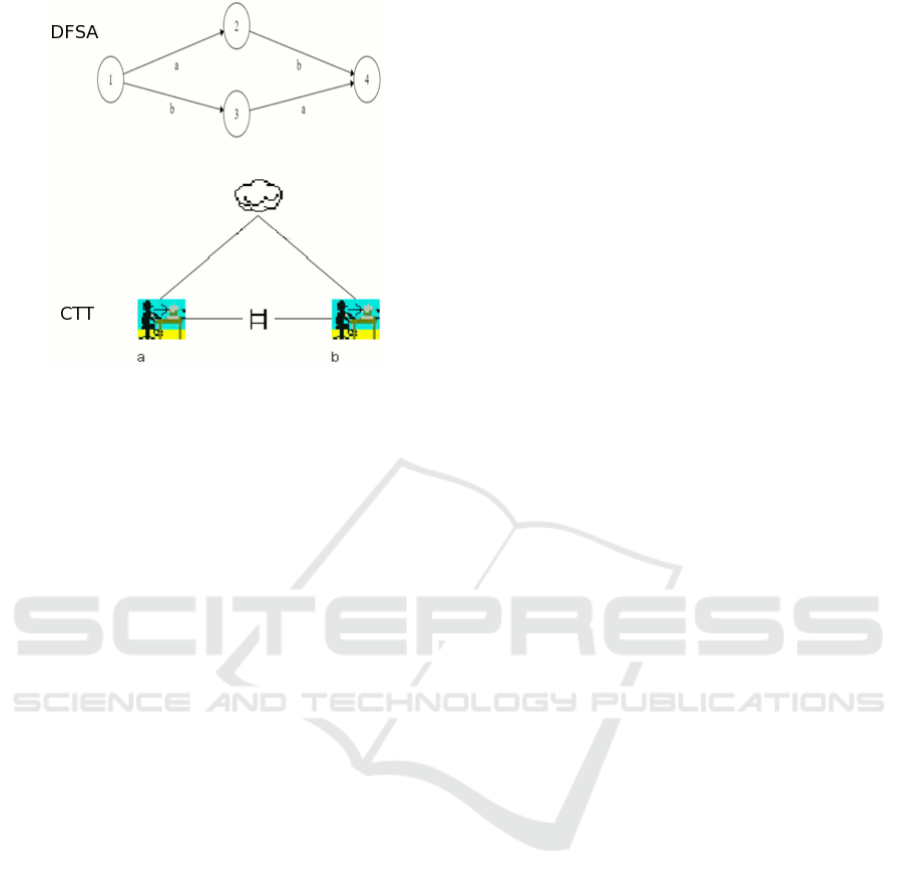

Figure 5: Example of an DFSA to CTT conversion, one

order independency operator (between states 1 and 4, two

equivalent paths (through state 2, through state 3)).

DFSA to CTT model conversion algorithm

(pseudocode) - order independency operator

identification:

Input: State startState, State endState

Output: Boolean(true if independance

op. exist, false otherwise)

paths <-

getAllPossiblePaths(startState,

endState)

If (paths.size<=1)

return false

Endif

j = paths[0]

if (factorial(j.transitions.size) !=

paths.size)

return false

Endif

For (i = 1 to paths.size-1)

If(!hasSameTransitionLabels(j,paths[i])

)

return false

Endif

EndFor

return true

5.2 Task Model-based Assistance

Once task models are generated from traces, they will

be used to assist:

 the user in his task performance by showing him

the actions that must be performed to achieve his

objective, or

 the designer in the adaptation of his Web

application by highlighting the observed uses of

his application.

In both cases, we assume that tasks are organized

by categories and that each task model is associated

with metadata specifying the name of the task, its

purpose and, possibly, the traces that generate it.

User assistance can be provided in three modes:

manual search, search through the declaration of the

purpose of the task and automatic search. In the first

mode, as a classic help, the user is supposed to select

the task by navigating in a task tree. The second mode

is a keyword search, entered by the user, specifying

his objective. It is a question of searching in the task

database those whose objective matches the user's

keywords. In automatic mode, as the user performs

his task, the assistance system displays the tasks that

match the actions performed by the user.

Re-design assistance simply consists of

displaying tasks that have emerged from usages and

that were not initially planned by the designer. This

will allow the designer to become aware of these uses

and eventually adapt his Web application to these

uses through CHI re-design for instance.

6 TESTS AND RESULTS

In order to validate our approach, we implemented

our CTT operator identification algorithms from

DFSAs, performed unit testing first and then tested

our approach on two real scenarios. The Java

language was used for coding the algorithms and the

DFSAs were stored in XML files.

Unit Testing.

We checked our algorithms for generating CTT

operators on 24 XML files, each containing a DFSA

that correspond to a particular CTT operator. The

generation of CTT operators was successful for 21

out of 24 files, that leads to an average success rate of

87.5% (see Table 2).

KMIS 2019 - 11th International Conference on Knowledge Management and Information Systems

Table 2: Results of unit testing. Each row represents a

DFSA (an XML file) that corresponds to a CTT operator.

Operator

Nb. of

states

Result

Rate

Enabling

Success

100%

Success

Disabling

Success

100%

Success

Choice

Success

100%

Success

Order

independency

Success

100%

Success

Optionality

Failure

50%

Success

Iteration

Failure

33%

Success

Failure

Finite iteration

Success

100%

Success

Real Scenarios Testing.

We have also tested our CTT task model generation

algorithms on two real scenarios that represent

respectively the booking of a flight on

"www.airfrance.fr" and the search for an itinerary on

“www.google.fr/maps”. For testing these scenarios

and thus evaluating our algorithms, we studied

algorithm capacities to correctly identify CTT

operators.

The Air France scenario DFSA is composed of 265

states and mainly contains CTT operators that are

often encountered in web browsing tasks (choice,

order independency, enabling, disabling, iteration).

We obtained an average operator identification

accuracy rate of 76.58% (see Table 3). Some

identification errors are related to each other,

especially in the case of the disabling operator which

can only take place in an iteration. Therefore, if the

identification of an iteration operator that contains a

disabling operator fails, then the disabling operator

will not be identified either.

For the Google Maps scenario, the DFSA is

composed of 64 states and the average operator

identification accuracy rate is 71.73% (see Table 4).

Most operators are correctly identified except the

optional one (i.e. optionality of tasks).

Table 3: Results of the Air France scenario CTT operator

identification.

Operator

Instances

Identified

instances

Rate

Enabling

104

76,92%

Disabling

Choice

77,55%

Order

independency

100%

Iteration

Total

158

121

76,58%

Table 4: Results of the Google maps scenario CTT operator

identification.

Operator

Instances

Identified

instances

Rate

Enabling

70%

Choice

76,92%

Order

independency

100%

Optionality

Total

71,73%

7 CONCLUSIONS

This article deals with the extraction of knowledge

from data coming from observed usage in the context

of Web browsing assistance. Our approach is based

on the generation of task models from interaction

traces (logs). A task represents all the user's actions

performed on a device to achieve a given objective. A

trace represents the history of the user's actions on the

digital environment. The aim is therefore to consider

the traces left by users as sources of knowledge that

an assistance system can use to generate user-specific

help, and thus overcome the limitations of assistance

based on intended uses during the design phase of a

system.

From a usage perspective, the task model generated

from traces could thus be used automatically or semi-

automatically to assist a user in performing his task or

a designer in adapting the digital environment to the

observed uses.

Our contributions focused on 1) specifying the

characteristics of task metamodels for user assistance,

2) comparing existing task metamodels with the

identified characteristics, this study allowed us to

choose the CTT metamodel, and 3) developing a

process for generating CTT task models from traces.

In future work, we plan, as an extension of the work

already done, to continue the study of task

metamodels - being aware that not all existing task

metamodels (and there are many) have been covered.

For instance, UML statecharts and the task modeling

Generation of Task Models from Observed Usage Application to Web Browsing Assistance

part of Web Semantics Design Method (WSDM)

(based on CTT) (De Troyer, Casteleyn and Plessers,

2008) deserve to be studied in the light of the

identified characteristics. A comparative study of the

selected, compliant metamodels, assessing their

ability to be quickly understood and manipulated by

“novice” - "first time users", could also be carried out

to consolidate the choice of a given metamodel.

Concerning Web task model’s generation using CTT,

an interesting study could be conducted to compare

our approach against another one based on the

analysis of web sites code (Paganelli and Paterno,

2003), and for investigating to what extend both of

them could be used in a complementary manner. To

do this, we also have to develop further conversion

algorithms to cover all metamodel operators and

evaluate these algorithms using Web browsing data.

Then, an assistance system using our approach has to

be developed and evaluated in an ecological situation.

REFERENCES

Allen, J., Chambers, N., Ferguson, G., Galescu, L., Jung,

H., Swift, M., & Taysom, W. (2007, July). Plow: A

collaborative task learning agent. In AAAI (Vol. 7, pp.

1514-1519).

Amershi, S., Mahmud, J., Nichols, J., Lau, T., & Ruiz, G.

A. (2013). LiveAction: Automating web task model

generation. ACM Transactions on Interactive

Intelligent Systems (TiiS), 3(3), 14.

Balbo, S., Ozkan, N., & Paris, C. (2004). Choosing the right

task-modeling notation: A taxonomy. The handbook of

task analysis for human-computer interaction, 445-465.

Bigham, J. P., Lau, T., & Nichols, J. (2009, February).

Trailblazer: enabling blind users to blaze trails through

the web. In Proceedings of the 14th international

conference on Intelligent user interfaces (pp. 177-186).

ACM.

Bolognesi, T., & Brinksma, E. (1987). Introduction to the

ISO specification language LOTOS. Computer

Networks and ISDN systems, 14(1), 25-59.

De Troyer, O., Casteleyn, S., & Plessers, P. (2008).

WSDM: Web semantics design method. In Web

engineering: Modelling and implementing web

applications (pp. 303-351). Springer, London.

Jourde, F., Laurillau, Y., & Nigay, L. (2014). Description

of tasks with multi-user multimodal interactive

systems: existing notations. Journal d’Interaction

Personne-Système (JIPS), 3(3), 1-33.

Leshed, G., Haber, E. M., Matthews, T., & Lau, T. (2008,

April). CoScripter: automating & sharing how-to

knowledge in the enterprise. In Proceedings of the

SIGCHI Conference on Human Factors in Computing

Systems (pp. 1719-1728). ACM.

Limbourg, Q., & Vanderdonckt, J. (2004). Comparing task

models for user interface design. The handbook of task

analysis for human-computer interaction, 6, 135-154.

Mahmud, J., Borodin, Y., Ramakrishnan, I. V., &

Ramakrishnan, C. R. (2009, April). Automated

construction of web accessibility models from

transaction click-streams. In Proceedings of the 18th

international conference on World wide web (pp. 871-

880). ACM.

Paganelli, L., & Paterno, F. (2003). A tool for creating

design models from web site code. International

Journal of Software Engineering and Knowledge

Engineering, 13(02), 169-189.

Paternò, F. (2001). Task models in interactive software

systems. In Handbook of Software Engineering and

Knowledge Engineering: Volume I: Fundamentals (pp.

817-836)

Paternò, F. (2004). ConcurTaskTrees: an engineered

notation for task models. The handbook of task analysis

for human-computer interaction, 483-503.

KMIS 2019 - 11th International Conference on Knowledge Management and Information Systems
