Chemical Named Entity Recognition with Deep Contextualized Neural

Embeddings

Zainab Awan

1 a

, Tim Kahlke

2 b

, Peter J. Ralph

2 c

and Paul J. Kennedy

1 d

School of Computer Science, University of Technology Sydney, Sydney, Australia

Climate Change Cluster, University of Technology Sydney, Sydney, Australia

Keywords:

Named Entity Recognition, Deep Learning, Word Representation, BiLSTM.

Abstract:

Chemical named entity recognition (ChemNER) is a preliminary step in chemical information extraction

pipelines. ChemNER has been approached using rule-based, dictionary-based, and feature-engineered based

machine learning, and more recently also deep learning based methods. Traditional word-embeddings, like

word2vec and Glove, are inherently problematic because they ignore the context in which an entity appears.

Contextualized embeddings called embedded language models (ELMo) have been recently introduced to rep-

resent contextual information of a word in its embedding space. In this work, we quantify the impact of

contextualized embeddings for ChemNER by using Bi-LSTM-CRF (bidirectional long short term memory net-

works - conditional random ﬁelds) networks. We benchmarked our approach using four well-known corpora

for chemical named entity recognition. Our results show that incorporation of ELMo results in statistically

signiﬁcant improvements in F1 score in all of the tested datasets.

1 INTRODUCTION

The volume of biomedical literature is increasing at

an exponential rate (Khare et al., 2014) which makes

manual searching and reading slow and labour inten-

sive for researchers and database curators (Jelier et al.,

2005). Text mining tools are essential for automating

the literature curation workﬂow. Named entity recog-

nition (NER) is the ﬁrst step towards literature cura-

tion which aims to locate and classify named entities

from unstructured texts into pre-deﬁned categories

such as person, location or organization. Biomedical

NER aims at identifying biomedical entities such as

chemicals, genes, proteins and diseases from biomed-

ical text. Biomedical NER is more complicated than

general domain NER because of ambiguous terms

and lexical variations (Kim et al., 2005). Biomedical

NER helps in downstream relation extraction, event

extraction, and question-answering tasks for knowl-

edge base completion.

In this work, we focus only on the recogni-

tion of the chemical entities from biomedical lit-

https://orcid.org/0000-0002-5356-4227

https://orcid.org/0000-0002-9762-6573

https://orcid.org/0000-0002-3103-7346

https://orcid.org/0000-0001-7837-3171

erature. Chemical entity recognition from the lit-

erature helps scientists working in drug develop-

ment and discovery (Eltyeb and Salim, 2014) among

other areas. Traditionally, chemical named entity

recognition (ChemNER) has been performed by rule-

based, dictionary-based and machine-learning-based

approaches, mainly conditional random ﬁelds. All of

these methods have drawbacks, such as low precision

and recall, and labour-intensive feature engineering.

With the availability of word embeddings and neu-

ral networks, efforts have been made in the recent

past to build end-to-end deep learning-based Chem-

NER systems (Habibi et al., 2017; Giorgi and Bader,

2018; Crichton et al., 2017; Corbett and Boyle, 2018).

These methods rely on pre-trained word2vec embed-

dings. However, these embeddings do not take into

account the contextual information of the named en-

tities and the entities are mapped to the same vector

space irrespective of their context, which is problem-

atic.

In this work, we examine whether Bi-LSTM-CRF

(bidirectional long short term memory networks- con-

ditional random ﬁelds) network could lead to better

performance for ChemNER when the input represen-

tation includes contextual representations ELMo in

conjunction with static representation word2vec.

In this study we quantify the impact of ELMo rep-

Awan, Z., Kahlke, T., Ralph, P. and Kennedy, P.

Chemical Named Entity Recognition with Deep Contextualized Neural Embeddings.

DOI: 10.5220/0008163501350144

In Proceedings of the 11th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2019), pages 135-144

ISBN: 978-989-758-382-7

135

resentations for ChemNER. To the best of our knowl-

edge, this is the ﬁrst application of ELMo to Chem-

NER, although it has been previously applied to gen-

eral domain English corpora (Peters et al., 2018).

The rest of this paper is organised as follows. Sub-

section 1.1 presents related work including research

gaps and motivation for this paper. Section 2 presents

network architectures used in this paper together with

the word embeddings and benchmark corpora evalu-

ated. In Section 3 we describe the experimental setup

and in Section 4 experimental results and discussion.

Finally, in Section 5 we conclude the paper.

1.1 Related Work

To validate our approach, we consider ﬁve deep

learning-based baseline methods for ChemNER.

Baselines use techniques such as transfer learning,

multi-task-learning, and ensemble-based methods. In

the following section, we will discuss each of the ap-

proaches.

1.1.1 Word2vec with Bi-LSTM-CRF

The Bi-LSTM-CRF architecture was proposed by

Lample et al. (2016) for NER for four different lan-

guages, English, German, Spanish and Dutch, with-

out relying on any language speciﬁc resources or

features. The model consists of forward and back-

ward LSTM layers and a conditional random ﬁeld

(CRF) layer for classiﬁcation. It also incorporates

word embeddings and, for out-of-vocabulary terms,

LSTM based character representations were also con-

catenated with word-embeddings for a richer repre-

sentation. This model reported state-of-the-art perfor-

mance for sequence tagging in a generic domain.

Later, this model was evaluated for biomedical

NER on 33 corpora for ﬁve biomedical entities by

Habibi et al. (2017). We believe that this was the

ﬁrst application of Bi-LSTM-CRF to sequence tag-

ging task in the biomedical domain. For biomedical

NER, word2vec pre-trained embeddings trained on

Pubmed abstracts made available by Moen and Ana-

niadou (2013) were used in this study. The perfor-

mance reported for ﬁve biomedical entities over 33

corpora was at par with the best performing feature-

engineered based systems, without relying on any

syntactic features or lexicons. Later this architecture

was evaluated for transfer learning based approach

which we will discuss in the following section.

1.1.2 Transfer Learning for ChemNER

Transfer learning for ChemNER employs transfer of

weights from a source to target dataset using a pre-

existing neural network which is used for generic

NER called NeuroNER (Dernoncourt et al., 2017).

NeuroNER employs Bi-LSTM-CRF with LSTM-

based character embeddings and word2vec word em-

beddings, similar to the model proposed by Lample

et al. (2016). We discuss the Bi-LSTM-CRF architec-

ture in detail in subsection 2.1.

In summary, this approach does not initialize

model weights randomly for a gold standard corpus.

Firstly, the model is trained on a large silver stan-

dard corpora (Rebholz-Schuhmann et al., 2010) and

then weights of the layers are transferred to train on a

gold standard corpus (Giorgi and Bader, 2018). This

transfer of weights results in improved performance

compared to the model that was trained directly on

a gold standard corpus with random initialization of

weights. This method highlights the importance of

noisy silver standard corpora (i.e., those annotated by

text mining tools) that do not require human annota-

tion and can be easily generated with existing NER

tools. This method statistically signiﬁcantly outper-

forms the method by Habibi et al. (2017).

1.1.3 Multi-task ChemNER

The multi-task ChemNER method (Crichton et al.,

2017) performs NER of biomedical entities using

three models: a single task model (Figure 1), a multi-

task multi-output model (Figure 2) and a dependant

multi-task model (Figure 3). Crichton and colleagues

show that multi-task settings do better than the single-

task model in terms of the F1-score. The single task

model is rather simple and inputs word2vec embed-

dings into a convolutional layer, whose output is then

fed into a fully-connected layer. The ﬁnal output layer

is a dense layer with a softmax activation function.

Max-pooling layer was not used in this model as it

results in loss of positional information. In the multi-

task multi-output model all tasks share the input layer

and the convolutional layer. Each task (dataset) has

its own output layer.

The dependent multi-task model makes use of the

fact that some NLP tasks (in this case NER) can be

improved if they get information from other related

NLP tasks (called auxiliary tasks). For example, NER

can beneﬁt from part-of-speech (POS) tagging. In the

dependent multi-task model, two single task models

are combined in such a way that a fully connected

layer of the main task receives input from another sin-

gle task model that performs POS tagging on the same

input. In this way, the supplementary information of

POS tags helps improve the performance of biomedi-

cal NER.

KDIR 2019 - 11th International Conference on Knowledge Discovery and Information Retrieval

136

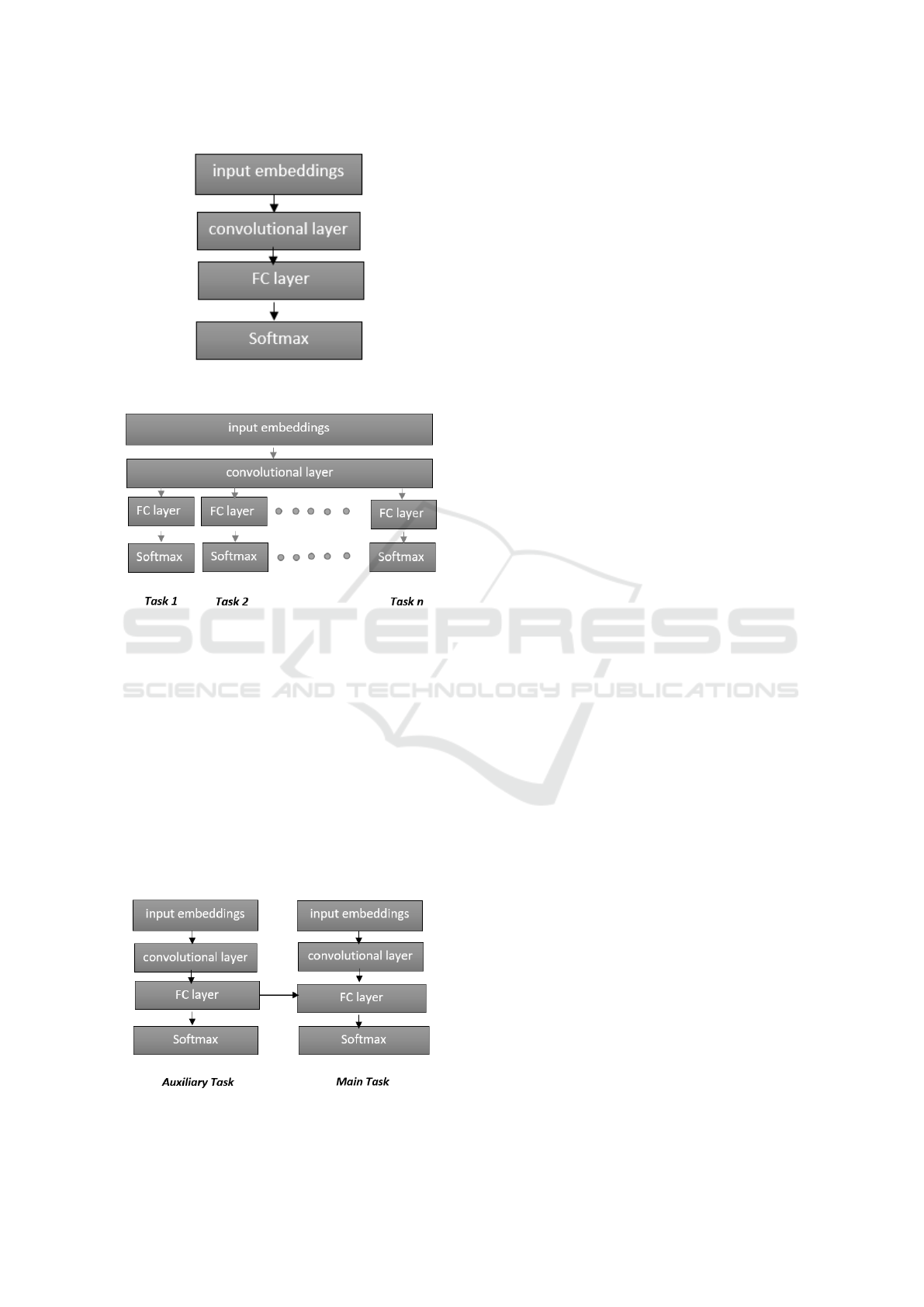

Figure 1: Single task model. FC stands for fully connected

layer.

Figure 2: Multi-task multi-output model where FC stands

for fully connected layer.

1.1.4 LSTMVoter

LSTMVoter (Hemati and Mehler, 2019) is a two-

stage method that uses ﬁve existing sequence tag-

ging tools including Stanford named entity recog-

nizer (Finkel et al., 2005), MarMot (M

uller et al.,

2013), CRF++ (Kudo, 2010), MITIE (Geyer et al.,

2016) and Glample (Lample et al., 2016) in an initial

stage to label the sequences.

The outputs from stage one are transformed into

one-hot vectors with an attention layer on top of the

vectors. These one-hot vectors are then concatenated

Figure 3: Dependent multi-task model where FC stands for

fully connected layer.

with word2vec embeddings (Moen and Ananiadou,

2013) and a character level representation. A Bi-

LSTM with attention mechanism is used to represent

characters. The ﬁnal representation is then fed into a

Bi-LSTM-CRF network for sequence tagging. This

method employs a Tree-structured Parzen Estimator

(TPE) (Bergstra et al., 2011) for hyperparameter opti-

mization.

1.1.5 Chemlistem

Chemlistem (Corbett and Boyle, 2018) is a combina-

tion of two approaches: a traditional and a minimal-

ist approach. The traditional approach uses a token-

based feature set with Glove word embeddings (Pen-

nington et al., 2014), trained on an in-house corpus of

patents, which is fed into LSTM layers.

The minimalist approach does not use any token

features and relies completely on character represen-

tations that are fed into the LSTM layers without even

using a tokeniser. The motivation behind the mini-

malist approach is that word segmentation in chemi-

cal texts is challenging and character representations

will allow a system to avoid tokenisation. Finally, the

results from the two systems are combined to get a ﬁ-

nal prediction based on a scoring mechanism given in

Corbett and Boyle (2018).

1.1.6 Summary of Research Gaps

The methods discussed above rely on static word em-

beddings, which do not address the problem of pol-

ysemy. Polysemy is the capacity of a word to have

different meanings in different contexts. To overcome

this problem, ELMo representations model polysemy

by learning task-speciﬁc representations of words, en-

abling multiple representations based on context.

For instance, a word may be a chemical entity in

one case but a different biomedical entity in another

context. Context-dependency is particularly problem-

atic for abbreviations. For example, VHL could be a

gene, disease or a chemical depending on the context

in which it is used. To our knowledge, Bi-LSTM-

CRF has only been evaluated without ELMo repre-

sentations for ChemNER. In this study, we investigate

the impact of adding contextual representations to Bi-

LSTM-CRF and evaluate the performance using four

well-known corpora.

2 METHODS AND DATASETS

In this section, we describe the network architecture,

word embeddings, ELMo and the corpora used in this

study.

Chemical Named Entity Recognition with Deep Contextualized Neural Embeddings

137

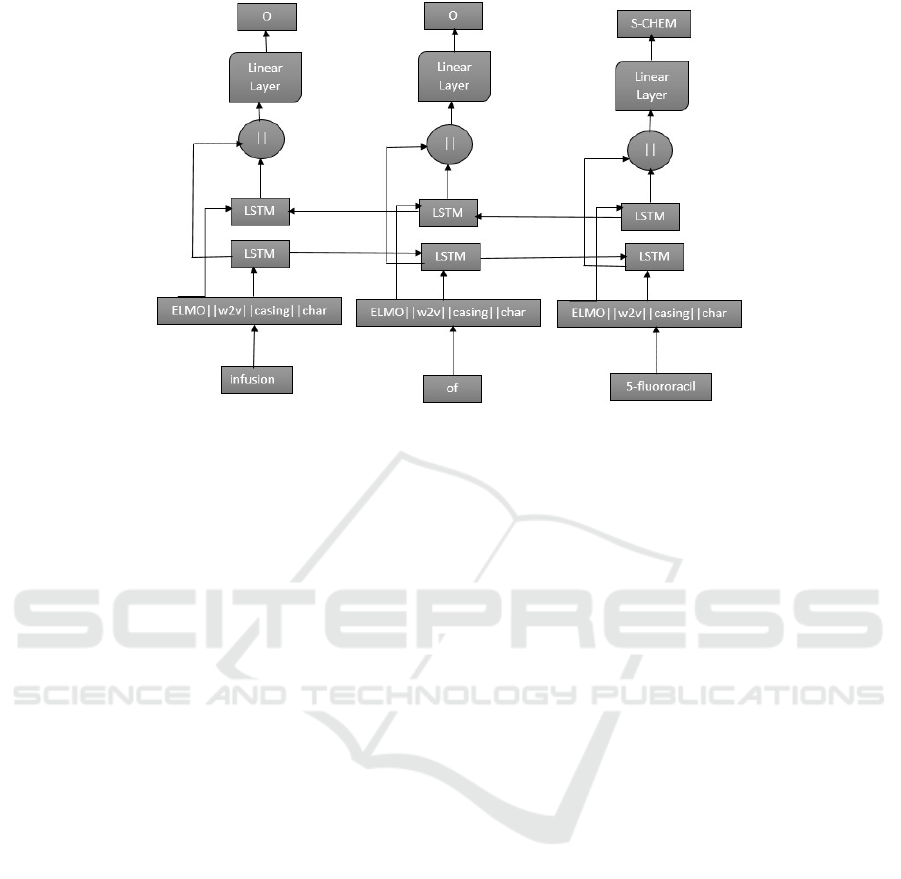

Figure 4: ELMo, word2vec, casing feature and character representations are concatenated together (k is the concatenation

operator) and fed into the Bi-LSTM-CRF network. The input sequence infusion of 5-ﬂuororacil is labelled as “O, O, S-

CHEM”, where O means not an entity and S-CHEM means a single token chemical entity.

2.1 Neural Network Architecture

The architecture chosen was published by Reimers

and Gurevych (2017) and has previously been applied

to sequence labelling tasks (Huang et al., 2015; Ma

and Hovy, 2016; Chiu and Nichols, 2016). The net-

work is implemented in Keras 2.2.0 with Tensorﬂow

1.8.0 as a backend.

2.1.1 Bi-LSTM-CRF

Recurrent neural networks (RNNs) are a class of

neural networks that take a sequence of vectors

, x

, . . . , x

) as input and return a new sequence

of vectors (h

, h

, . . . , h

). Theoretically, RNNs can

capture long-range dependencies in sequential data

but in practice they fail to do so due to the vanish-

ing gradient problem (Bengio et al., 1994; Hochre-

iter, 1998). LSTMs have been introduced to address

the issue with a memory-cell to retain long-range de-

pendencies. Memory cells in turn use several gates

to control the proportion of input kept in memory

and the proportion of input to forget (Hochreiter and

Schmidhuber, 1997). The following equations govern

LSTMs, where W and b are the weights and biases,

 and σ are element-wise dot product and element-

wise sigmoid functions respectively. i

, o

are input

gate activation and output gate activation vectors, c

is a cell-state vector, and t indexes the time step.

= σ(W

+ W

t−1

+ W

t−1

+ b

) (1)

= (1 − i

)  c

t−1

 tanh(W

+ W

t−1

+ b

) (2)

= σ(W

+ W

t−1

+ W

+ b

) (3)

= o

 tanh(c

), (4)

For a given sentence (x

, x

, . . . , x

) containing t

words, each represented as a d-dimensional vector, an

LSTM computes a representation

−→

of the left con-

text of the sentence at every word t. A right context

←−

can also be added, which computes the representation

in the reverse direction. The left context network is

called a forward layer and the right context network is

called a backward layer. Both networks can be com-

bined to form a bidirectional LSTM represented as

= [

−→

;

←−

] (Graves and Schmidhuber, 2005). The

ﬁnal representation is computed by concatenating the

forward and backward context vectors. A Bi-LSTM

runs over each sentence in a forward and backward

direction. The ﬁnal outputs are concatenated together

and serve as the input to a CRF classiﬁer.

A linear chain CRF (log-linear model) is used to

predict the probability distribution of tags of each

word in a complete sentence. Linear chain CRF can

also be referred to as a CRF. We have used a CRF

classiﬁer instead of a softmax classiﬁer because we

do not want to lose the sequential information (Laf-

ferty et al., 2001). Our ﬁnal architecture is shown in

Figure 4.

KDIR 2019 - 11th International Conference on Knowledge Discovery and Information Retrieval

138

2.2 Word Representation

In this section, we describe the word representations

word2vec, ELMo, casing feature and character repre-

sentation.

2.2.1 Word2vec

For the pre-trained word embeddings we have used

word2vec embeddings (Mikolov et al., 2013) trained

on Wikipedia-PubMed-PMC, 23 million Pubmed ab-

stracts, 700,000 full-text PMC articles and four mil-

lion Wikipedia pages. These embeddings were

trained and made publicly available by Moen and

Ananiadou (2013). We have used these embeddings

to be consistent with studies, Habibi et al. (2017)

and Giorgi and Bader (2018), that perform biomed-

ical NER using deep learning.

2.2.2 Embedded Language Models (ELMo)

ELMo is a linear combination of hidden states of Bi-

LSTM with character convolutions trained on a very

large corpus (Peters et al., 2018). In this case, we

have used the ELMo pre-trained on Pubmed and gen-

eral domain large corpora. To address the contextual

information loss in static word embeddings, ELMo

employs an approach where a word representation is

a function of the whole sentence in which it appears.

ELMo can integrate well into existing NLP applica-

tions such as question-answering, sentiment analysis

and NER (Peters et al., 2018).

ELMo has two main steps. Firstly, a three-

layer Bi-LSTM network is trained on a large unla-

belled corpus

in an unsupervised manner, which is

completely agnostic to ChemNER. Secondly, hidden

states of the network are taken, and their linear combi-

nation learned from the downstream task, in this case

ChemNER. Each task will learn its linear combina-

tion from the same weights. In this study, we have

used two pre-trained models of ELMo, one of them

pre-trained on 5.5B English words and the other pre-

trained on Pubmed articles.

2.2.3 Casing Feature

A casing feature (Reimers and Gurevych, 2017) is

a 7-bit one-hot vector that represents information

about a word. It is mainly numeric if more than

half of the characters are numeric, numeric if all

characters are numeric, all upper if all characters

are uppercase, all lower for all character if lower

case, initial upper if the ﬁrst character is capital,

https://allennlp.org/elmo

contains digit if it has a digit, and the other label

is set to one when none of the rules could be applied.

2.2.4 Character Representation

Character-based convolutions are used for deriving

character representations based on the work of Ma

and Hovy (2016). Randomly initialized character em-

beddings are input to the convolutional layer followed

by a max-pooling layer, which provides a character

representation. Before feeding embeddings into the

convolutional layer, a dropout layer is also applied.

This is the same as that of Chiu and Nichols (2016),

with the only difference being the use of character

type features. In this work, we use a 50-dimensional

character representation.

2.3 Datasets

We have used four publicly available datasets for

ChemNER experiments as outlined in Table 1 which

shows the number of sentences used in the training,

test and validation sets.

BC5CDR. The Biocreative community chal-

lenge for chemical-disease relation extraction task

(BC5CDR) corpus was made available in a Biocre-

ative workshop (Li et al., 2016). The two subtasks

of BC5CDR are identifying chemical and disease

entities from Medline abstracts. The corpus has

1500 abstracts from Pubmed and chemical entities

are annotated by a team of indexers from Medical

Subject Headings (MeSH).

Annotations were done by two groups, and the

inter-annotator agreement was 96.05% for chemical

entities. The corpus has been split into training, test

and validation sets, where each set has 500 abstracts.

We have used this corpus in BIO (Beginning, Inside,

Outside) tagging scheme for ChemNER only.

BC4CHEMDNER. This dataset has been provided

by BioCreative community challenge IV for the de-

velopment and evaluation of tools for Chemical NER

(Krallinger et al., 2015). BC4CHEMDNER was used

for the recognition of chemical compounds and drugs

from Pubmed abstracts. The inter-annotator agree-

ment between human annotators is 91%. Ten thou-

sand abstracts were annotated by expert literature cu-

rators. We have downloaded training, validation and

test sets in the IOBES tagging scheme from Github

https://github.com/cambridgeltl/MTL-Bioinformatics-

2016/tree/master/data/BC4CHEMD

Chemical Named Entity Recognition with Deep Contextualized Neural Embeddings

139

Table 1: Gold standard corpora - number of sentences in

train, test and validation sets.

Data # Train # Test # Val

BC5CDR 9578 4686 1774

BC4CHEMDNER 30682 26364 30639

BioSemantics 15557 8840 3511

BCV.5CEMP 24145 9843 4773

Chemical Entity Mentions in Patents (CEMP)

Biocreative V.5. CEMP V.5 is based on Chem-

NER from patents. Twenty-one thousand patents

from medicinal chemistry were curated by experts

for annotation of chemical entities (P

erez-P

erez et al.,

2017). Patents are different from regular research ar-

ticles in that they use rather a complex language and

could contain up to 100 pages. This is why this task

focuses on the detection of chemical entities from

patents only.

Training, development and test sets each con-

tained seven thousand patents. Gold labels of the test

set used for evaluation are not made publicly avail-

able. We therefore ﬁrst combine all fourteen thou-

sand patents and then split into the train, validation

and test sets in the ratio of 60:10:30. This setting has

been chosen to be consistent with Habibi et al. (2017).

We use this dataset with the IOBES tagging scheme.

BioSemantics. Similar to the CEMP corpus, the

Biosemantics corpus (Akhondi et al., 2014) has been

constructed from 200 patents taken from the Euro-

pean Patents Ofﬁce, the United States Patents and

Trademark Ofﬁce and the World Intellectual Property

Organization. The corpus has been downloaded from

the Biosemantics ofﬁcial webpage

. It has been split

into training, validation, and test sets in the ratio of

60:10:30. The identiﬁcation numbers of the docu-

ments that go into training, validation, and test sets

have been taken from Github

. We use this dataset

with the IOBES tagging scheme.

3 EXPERIMENTAL SETUP

In this study we used the Bi-LSTM-CRF network de-

scribed in Reimers and Gurevych (2017). The tag-

ging schemes and data split have been discussed in

section 2.3. We have padded each word to make it 50

characters for CNN based representation. An early

https://biosemantics.org/index.php/resources/chemical-

patent-corpus

https://github.com/BaderLab/Transfer-Learning-

BNER-Bioinformatics-2018/tree/master/corpora

stopping parameter of value 5 is used to prevent over-

ﬁtting. That is, if the performance does not improve

for ﬁve epochs, the network stops training. For all the

runs, the models have been trained for 30 epochs with

the variational dropout (Gal and Ghahramani, 2016)

of (0.5,0.5). Nadam optimizer is used with the default

learning rate in all the experiments.

The network has two LSTM layers with 100 re-

current units in each layer. Since the layers are Bi-

LSTM, each layer has 200 units. The mini-batch size

is 32. We have chosen these parameters after ex-

perimenting with different hyperparameter values and

these values gave us the best results.

4 RESULTS AND DISCUSSION

In this study we used Bi-LSTM-CRF networks in

combination with static and contextual embeddings.

We validated our approach by comparing it with ﬁve

previously published studies on four benchmark cor-

pora. We used the F1 metric for evaluation with the

Conference on Natural Language Learning (CoNLL)

scheme. We perform three sets of experiments: a

baseline (without ELMo), with ELMo (general do-

main pre-trained model) and ELMo (pre-trained on

Pubmed). Each experiment was repeated ﬁve times

for each dataset and we report the average F1-score

(on the test set) from the epoch that has the best vali-

dation score.

For BC5CDR (shown in Table 2) and

BC4CHEMDNER (Table 3) corpora, our model

ELMo (Pubmed) achieves the highest F1-score when

compared to the previously published methods, that

is 93.02 and 90.80. Additionally, our experiments

also show that ELMo pre-trained on Pubmed results

in better performance as compared to ELMo pre-

trained on the general domain corpus. Our method is

completely entity agnostic and does not rely on any

inductive transfer for the hidden layers as transfer

learning (Giorgi and Bader, 2018) and multi-task

learning (Crichton et al., 2017) do.

Our initial hypothesis, that concatenating ELMo

with word2vec representation will outperform the

baseline Bi-LSTM-CRF, holds for the CEMP and

Biosemantics corpora. The F1 scores for CEMP and

Biosemantics are 81.66 and 76.09 respectively for the

baseline model and improved to 82.37 and 77.70 af-

ter using ELMo. However, the model did not out-

perform the best performing competing systems over

these two corpora. Our results are not directly com-

parable with Chemlistem and LSTMVoter as their

training/validation/test sets use different proportions.

Also, LSTMVoter (Hemati and Mehler, 2019) uses

KDIR 2019 - 11th International Conference on Knowledge Discovery and Information Retrieval

140

Table 2: F1 score on BC5CDR. Best F1 score in bold and

signiﬁcantly worse than our model **. First three rows

show our results which are averaged F1 ± SD over ﬁve runs

(random seeds). The rest of the results are reported directly

from the respective papers.

Methods F1- score

ELMo (Pubmed) 9

2 ±

± 0

ELMo (General) 92.23 ± 0.39

Baseline 91.02 ± 0.42

Habibi 90.63

Giorgi TL 91.64

Crichton MTL 89.22

30,000 patents for the CEMP task, whereas the avail-

able number of patents is only 21,000 (P

erez-P

erez

et al., 2017) out of which only 14,000 are available

for training purposes. The data used for LSTMVoter

possibly have been combined another corpus with the

original CEMP corpus.

Our results can only be directly compared with the

transfer learning system (Giorgi and Bader, 2018) and

Habibi’s system (Habibi et al., 2017). Our best per-

forming model achieves F1 scores of 82.37 and 77.70

for CEMP, Table 4 and Biosemantics, Table 5. For

these two tasks, our best performing model underper-

forms the transfer learning and Habibi’s systems.

This difference in performance could be attributed

to the hyperparameter tuning or to pre-processing

done to the data. Unfortunately, Giorgi and Bader

(2018) and Habibi et al. (2017) do not make their

pre-processed data available due to the licensing re-

strictions on redistribution of the datasets, so we can-

not conclusively determine the reasons for the differ-

ence in performance. We have downloaded the data

from their respective websites

and transformed in

BIO tagging format using a tool

. Giorgi and Bader

(2018) use the corpus in brat standoff annotation for-

mat, and we use the BIO tagging scheme. Our method

detected some incorrect B-beginning and I-inside tags

during evaluation and converted them to O-outside

tags. The lower performance of our method for these

two datasets could be due to the incorrect tags af-

ter conversion from brat standoff to BIO encoding or

due to different hyperparameters used in Habibi et al.

(2017) and Giorgi and Bader (2018) systems.

Also, we perform a two-tailed t-test with α val-

ues of 0.01 and 0.05. We consider a model signif-

icantly worse than ELMo (Pubmed) when p ≤ 0.01

(represented by ** in the tables) and if p ≤ 0.05 (rep-

resented by * in the tables). Figures 5, 6, 7 and 8 show

the boxplots for evaluation of corpora on three mod-

https://biosemantics.org/index.php/resources/chemical-

patent-corpus

https://github.com/spyysalo/standoff2conll

Figure 5: F1-score on BC5CDR for baseline (B), ELMo-

general (E-G) and ELMo-Pubmed (E-P).

Table 3: F1 score on BC4CHEMDNER. Best F1-score in

bold and signiﬁcantly worse than our model **. First three

rows show our results which are averaged F1 ± SD over

ﬁve runs (random seeds). The rest of the results are reported

directly from the respective papers.

Methods F1- score

ELMo (Pubmed) 9

0 ±

± 0

ELMo (General) 88.36 ± 0.95

Baseline 88.75 ± 0.18

Habibi 86.62

LSTMVoter 90.02

Crichton MTL 82.51

Table 4: F1 score on CEMP, best F1-score in bold. First

three rows show our results which are averaged F1 ± SD

over ﬁve runs (random seeds). The rest of the results are

reported directly from the respective papers.

Methods F1- score

ELMo (Pubmed) 82.37 ±0.31

ELMo (General) 81.77 ± 0.29

Baseline 81.66 ± 0.05

Giorgi TL 86.05

Habibi 85.38

LSTMVoter 89.01

Chemlistem 90.33

els, ELMo (Pubmed), ELMo (General) and baseline.

ELMo (Pubmed) gives the highest score and the base-

line gives the lowest F1 score. These ﬁgures show

Chemical Named Entity Recognition with Deep Contextualized Neural Embeddings

141

Figure 6: F1 score on BC4CHEMDNER for baseline (B),

ELMo-general (E-G) and ELMo-Pubmed (E-P).

Figure 7: F1 score on CEMP for baseline (B), ELMo-

general (E-G) and ELMo-Pubmed (E-P).

that ELMo (Pubmed) consistently outperforms base-

line and ELMo (General) on all corpora. The perfor-

mance reported is the averaged F1 score over ﬁve runs

for the test sets from the epoch that has the highest de-

velopment/validation score.

5 CONCLUSION

In the present study we show that incorporating

ELMo embeddings into the static embeddings for a

Bi-LSTM-CRF network results in a statistically sig-

Table 5: F1 score on Biosemantics, best F1-score in bold.

First three rows show our results which are averaged F1 ±

SD over ﬁve runs (random seeds). The rest of the results are

reported directly from the respective papers.

Methods F1- score

ELMo (Pubmed) 77.7 ± 0.47

ELMo (General) 76.80 ± 0.46

Baseline 76.09 ± 0.26

Giorgi TL 86.95

Habibi 81.99

niﬁcant increase in F1 score for all the evaluated cor-

pora. Our results also show that ELMo pre-trained on

Pubmed results in better performance than ELMo pre-

trained on a general domain corpus. The higher per-

formance of ELMo (Pubmed) than ELMo (General)

also shows that transfer learning results in higher F1

score if the source dataset represents the domain of

the target dataset. We conﬁrm our ﬁndings on four

benchmark ChemNER corpora.

Figure 8: F1 score on Biosemantics for baseline (B),

ELMo-general (E-G) and ELMo-Pubmed (E-P).

For future work, character-level language mod-

els such as Flair Embeddings (Akbik et al., 2018) or

BERT (Devlin et al., 2018) could be used for the rep-

resentation to see whether they complement or sub-

sume the ELMo representation. Another potential

area of research would be to improve the hyperpa-

rameter tuning using random search, grid search or

Bayesian optimisation methods. Lastly, cross-corpus

evaluation should be performed to measure the gen-

eralizability of the models. All the relevant methods

that we have compared do not evaluate on any exter-

nal corpora. Generalizability is a concern for us as

information extraction methods need to be deployed

at Pubmed scale, and the models should not overﬁt on

the data that they were trained on. Lastly, multi-task

learning and transfer learning techniques could also

be explored for this task.

KDIR 2019 - 11th International Conference on Knowledge Discovery and Information Retrieval

142

REFERENCES

Akbik, A., Blythe, D., and Vollgraf, R. (2018). Contextual

string embeddings for sequence labeling. In Proceed-

ings of the 27th International Conference on Compu-

tational Linguistics, pages 1638–1649.

Akhondi, S. A., Klenner, A. G., Tyrchan, C., Manchala,

A. K., Boppana, K., Lowe, D., Zimmermann, M., Ja-

garlapudi, S. A., Sayle, R., Kors, J. A., et al. (2014).

Annotated chemical patent corpus: a gold standard for

text mining. PloS one, 9(9):e107477.

Bengio, Y., Simard, P., Frasconi, P., et al. (1994). Learn-

ing long-term dependencies with gradient descent is

difﬁcult. IEEE Transactions on Neural Networks,

5(2):157–166.

Bergstra, J. S., Bardenet, R., Bengio, Y., and K

egl, B.

(2011). Algorithms for hyper-parameter optimization.

In Advances in Neural Information Processing Sys-

tems, pages 2546–2554.

Chiu, J. P. and Nichols, E. (2016). Named entity recogni-

tion with bidirectional LSTM-CNNs. Transactions of

the Association for Computational Linguistics, 4:357–

370.

Corbett, P. and Boyle, J. (2018). Chemlistem: chemical

named entity recognition using recurrent neural net-

works. Journal of Cheminformatics, 10(1):59.

Crichton, G., Pyysalo, S., Chiu, B., and Korhonen, A.

(2017). A neural network multi-task learning ap-

proach to biomedical named entity recognition. BMC

Bioinformatics, 18(1):368.

Dernoncourt, F., Lee, J. Y., and Szolovits, P. (2017).

NeuroNER: an easy-to-use program for named-entity

recognition based on neural networks. arXiv preprint

arXiv:1705.05487.

Devlin, J., Chang, M.-W., Lee, K., and Toutanova, K.

(2018). Bert: Pre-training of deep bidirectional trans-

formers for language understanding. arXiv preprint

arXiv:1810.04805.

Eltyeb, S. and Salim, N. (2014). Chemical named entities

recognition: a review on approaches and applications.

Journal of Cheminformatics, 6(1):17.

Finkel, J. R., Grenager, T., and Manning, C. (2005). Incor-

porating non-local information into information ex-

traction systems by gibbs sampling. In Proceedings of

the 43rd annual meeting on Association for Compu-

tational Linguistics, pages 363–370. Association for

Computational Linguistics.

Gal, Y. and Ghahramani, Z. (2016). A theoretically

grounded application of dropout in recurrent neural

networks. In Advances in Neural Information Pro-

cessing Systems, pages 1019–1027.

Geyer, K., Greenﬁeld, K., Mensch, A., and Simek, O.

(2016). Named Entity Recognition in 140 Characters

or Less. In # Microposts, pages 78–79.

Giorgi, J. M. and Bader, G. D. (2018). Transfer learning

for biomedical named entity recognition with neural

networks. Bioinformatics, 34(23):4087–4094.

Graves, A. and Schmidhuber, J. (2005). Framewise

phoneme classiﬁcation with bidirectional LSTM and

other neural network architectures. Neural Networks,

18(5-6):602–610.

Habibi, M., Weber, L., Neves, M., Wiegandt, D. L., and

Leser, U. (2017). Deep learning with word embed-

dings improves biomedical named entity recognition.

Bioinformatics, 33(14):i37–i48.

Hemati, W. and Mehler, A. (2019). LSTMVoter: chemi-

cal named entity recognition using a conglomerate of

sequence labeling tools. Journal of Cheminformatics,

11(1):3.

Hochreiter, S. (1998). The vanishing gradient problem dur-

ing learning recurrent neural nets and problem solu-

tions. International Journal of Uncertainty, Fuzziness

and Knowledge-Based Systems, 6(2):107–116.

Hochreiter, S. and Schmidhuber, J. (1997). Long short-term

memory. Neural Computation, 9(8):1735–1780.

Huang, Z., Xu, W., and Yu, K. (2015). Bidirectional LSTM-

CRF models for sequence tagging. arXiv preprint

arXiv:1508.01991.

Jelier, R., Jenster, G., Dorssers, L. C., van der Eijk, C. C.,

van Mulligen, E. M., Mons, B., and Kors, J. A.

(2005). Co-occurrence based meta-analysis of scien-

tiﬁc texts: retrieving biological relationships between

genes. Bioinformatics, 21(9):2049–2058.

Khare, R., Leaman, R., and Lu, Z. (2014). Accessing

biomedical literature in the current information land-

scape. In Biomedical Literature Mining, pages 11–31.

Springer.

Kim, S., Yoon, J., Park, K.-M., and Rim, H.-C. (2005).

Two-phase biomedical named entity recognition using

a hybrid method. In International Conference on Nat-

ural Language Processing, pages 646–657. Springer.

Krallinger, M., Rabal, O., Leitner, F., Vazquez, M., Salgado,

D., Lu, Z., Leaman, R., Lu, Y., Ji, D., Lowe, D. M.,

et al. (2015). The CHEMDNER corpus of chemicals

and drugs and its annotation principles. Journal of

Cheminformatics, 7(1):S2.

Kudo, T. (2010). CRF++: Yet another CRF toolkit

(2005). Available under LGPL from the following

URL: http://crfpp. sourceforge. net.

Lafferty, J. D., McCallum, A., and Pereira, F. C. N. (2001).

Conditional Random Fields: Probabilistic Models for

Segmenting and Labeling Sequence Data. In Proceed-

ings of the Eighteenth International Conference on

Machine Learning, ICML ’01, pages 282–289, San

Francisco, CA, USA. Morgan Kaufmann Publishers

Inc.

Lample, G., Ballesteros, M., Subramanian, S., Kawakami,

K., and Dyer, C. (2016). Neural architectures

for named entity recognition. arXiv preprint

arXiv:1603.01360.

Li, J., Sun, Y., Johnson, R. J., Sciaky, D., Wei, C.-H., Lea-

man, R., Davis, A. P., Mattingly, C. J., Wiegers, T. C.,

and Lu, Z. (2016). BioCreative V CDR task cor-

pus: a resource for chemical disease relation extrac-

tion. Database, 2016:1–10.

Ma, X. and Hovy, E. (2016). End-to-end sequence labeling

via bi-directional LSTMS-CNNs-CRF. arXiv preprint

arXiv:1603.01354.

Chemical Named Entity Recognition with Deep Contextualized Neural Embeddings

143

Mikolov, T., Sutskever, I., Chen, K., Corrado, G. S., and

Dean, J. (2013). Distributed representations of words

and phrases and their compositionality. In Advances in

Neural Information Processing Systems, pages 3111–

3119.

Moen, S. and Ananiadou, T. S. S. (2013). Distributional se-

mantics resources for biomedical text processing. In

Proceedings of the 5th International Symposium on

Languages in Biology and Medicine, Tokyo, Japan,

pages 39–43.

uller, T., Schmid, H., and Sch

utze, H. (2013). Efﬁcient

higher-order CRFs for morphological tagging. In Pro-

ceedings of the 2013 Conference on Empirical Meth-

ods in Natural Language Processing, pages 322–332.

Pennington, J., Socher, R., and Manning, C. (2014). Glove:

Global vectors for word representation. In Proceed-

ings of the 2014 Conference on Empirical Methods in

Natural Language Processing (EMNLP), pages 1532–

1543.

erez-P

erez, M., Rabal, O., P

erez-Rodr

ıguez, G., Vazquez,

M., Fdez-Riverola, F., Oyarzabal, J., Valencia, A.,

Lourenc¸o, A., and Krallinger, M. (2017). Evalua-

tion of chemical and gene/protein entity recognition

systems at BioCreative V. 5: the CEMP and GPRO

patents tracks. Proceedings of the BioCreative V.5

Challenge Evaluation Workshop, pages 11–18.

Peters, M. E., Neumann, M., Iyyer, M., Gardner, M.,

Clark, C., Lee, K., and Zettlemoyer, L. (2018). Deep

contextualized word representations. arXiv preprint

arXiv:1802.05365.

Rebholz-Schuhmann, D., Yepes, A. J. J., Van Mulligen,

E. M., Kang, N., Kors, J., Milward, D., Corbett, P.,

Buyko, E., Beisswanger, E., and Hahn, U. (2010).

CALBC silver standard corpus. Journal of Bioinfor-

matics and Computational Biology, 8(01):163–179.

Reimers, N. and Gurevych, I. (2017). Reporting Score Dis-

tributions Makes a Difference: Performance Study of

LSTM-networks for Sequence Tagging. In Proceed-

ings of the 2017 Conference on Empirical Methods in

Natural Language Processing (EMNLP), pages 338–

348, Copenhagen, Denmark.

KDIR 2019 - 11th International Conference on Knowledge Discovery and Information Retrieval

144
