Multimodal Ranked Search over Integrated Repository of Radiology

Data Sources

Priya Deshpande

, Alexander Rasin, Fang Cao, Sriram Yarlagadda, Eli Brown,

Jacob Furst and Daniela S. Raicu

College of Computing and Digital Media, DePaul University, Chicago, U.S.A.

Keywords:

Information Retrieval, Relevance Ranking, Radiology Teaching Files Database, Medical Ontology,

Content based Image Retrieval.

Abstract:

Radiology teaching ﬁles serve as a reference in the diagnosis process and as a learning resource for radiology

residents. Many public teaching ﬁle data sources are available online and private in-house repositories are

maintained in most hospitals. However, the native interfaces for querying public repositories have limited

capabilities. The Integrated Radiology Image Search (IRIS) Engine was designed to combine public data

sources and in-house teaching ﬁles into a single resource. In this paper, we present and evaluate ranking

strategies that prioritize the most relevant teaching ﬁles for a query. We quantify query context through a

weighted text-based search and with ontology integration. We also incorporate an image-based search that

allows ﬁnding visually similar teaching ﬁles. Finally, we augment text-based search results with image-based

search – a hybrid approach that further improves search result relevance. We demonstrate that this novel

approach to searching radiology data produces promising results by evaluating it with an expert panel of

reviewers and by comparing our search performance against other publicly available search engines.

1 INTRODUCTION

Vast amounts of image and clinical report data such

as Electronic Health Records (EHRs), pathology re-

ports, and teaching ﬁles are generated in the health-

care domain. Teaching ﬁles are used by radiologists,

residents, and medical students (Dashevsky et al.,

2015) as a reference resource. A typical teaching ﬁle

contains text data categories such as (patient) history,

ﬁndings, diagnosis, discussion, references, and case

images. To ﬁnd the relevant teaching ﬁles, radiol-

ogists need a domain-aware search engine that inte-

grates diverse data sources. To ﬁnd the most relevant

material for a particular case, a search tool should

support a hybrid text and image (multimodal) search.

(Simpson et al., 2014) argued that the integration

of text-based and image-based search could improve

medical data retrieval.

Several studies highlighted the need to integrate

clinical reports and images into a database with ad-

vanced search capabilities. (Gutmark et al., 2007)

argued for building a system that reduces errors in

radiological images interpretation using teaching ﬁle

https://orcid.org/0000-0002-2631-5751

databases. (Talanow, 2009) described how critical ref-

erence radiological images are for diagnosis, teaching

needs, and research. (Pinho et al., 2017) investigated

the difﬁculties inherent to the content-based image re-

trieval (CBIR) in Picture Archiving and Communi-

cation Systems (PACS). (Russell-Rose and Chamber-

lain, 2017) performed a study of healthcare informa-

tion professionals needs, goals, and requirements for

information retrieval systems. (Li et al., 2018) pro-

posed a hybrid retrieval-generation system, where hu-

man knowledge and traditional retrieval systems are

used to generate reports. (Ling et al., 2014) designed

GEMINI, an integrative healthcare analytics system

and investigated integration of heterogeneous data.

The study concluded the healthcare needs are not met

by the current search engines. We surveyed the pub-

licly available search tools for teaching ﬁle data (see

Section 2.2.2) and found that they do not rank search

results based on query relevance. Engines that focus

on medical articles perform better; however, research

articles are not typically used for diagnosis. We evalu-

ate public search engine query results in Section 4.1.3.

Our approach is presented and evaluated in the

context of the IRIS (Deshpande et al., 2017) and

(Deshpande et al., 2018b), using a major public

372

Deshpande, P., Rasin, A., Cao, F., Yarlagadda, S., Brown, E., Furst, J. and Raicu, D.

Multimodal Ranked Search over Integrated Repository of Radiology Data Sources.

DOI: 10.5220/0008166603720383

In Proceedings of the 11th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2019), pages 372-383

ISBN: 978-989-758-382-7

teaching ﬁle data source, Medical Imaging Resource

Community (MIRC

) with two major medical on-

tologies Radiology Lexicon (RadLex

) and System-

atized Nomenclature of Medicine Clinical Terms

(SNOMED CT

). Based on feedback from radiol-

ogy domain experts, we also augmented our retrieval

mechanism to apply different weights to categories of

text in teaching ﬁles. In cases where two or more

teaching ﬁles are assigned the same relevance score,

we apply our co-occurrence algorithm to re-rank the

results from the tie point. For example, consider a

query “progeria”: “cardiomegaly” often occurs in pa-

tients with “progeria”. Thus, we increase the rele-

vance of teaching ﬁles that include “cardiomegaly”.

Our contributions presented in this paper are:

• Weighted text based search with integrated medi-

cal ontologies to provide search relevance ranking

• Image based search

• Hybrid search that augments text results based on

an image search

• An evaluation of IRIS and other search engines

In the rest of the paper Section 2 presents related

work; Section 3 discusses our system implementation

and design choices; Section 4 analyses the outcomes

of our system evaluation. Finally, Section 5 presents

our key conclusions.

2 BACKGROUND AND RELATED

WORK

Our system has been inﬂuenced by numerous public

search engines. In this section, we ﬁrst discuss the

need for a full featured radiology teaching ﬁle search

engine. We then review existing public repository

sources and medical ontologies.

2.1 Biomedical Search Engines

(Dos-Santos and Fujino, 2012) discussed the need for

the integration of proﬁles published by Integrating the

Healthcare Enterprise (IHE) and providing the access

to cases through IHE. (Pinho et al., 2017) proposed an

extensible platform for multimodal medical image re-

trieval, integrated in an open-source PACS software.

In their platform, image queries rely on a query-by-

example pattern, supporting only the images from a

pre-indexed dataset. (Simpson et al., 2014) proposed

http://mirc.rsna.org/query

http://www.radlex.org/

https://www.nlm.nih.gov/healthit/snomedct

a multimodal image retrieval system that retrieves

biomedical articles used in Open-i

(evaluated in Sec-

tion 4.1.3). (Hwang et al., 2016) shows how the use

of positron emission tomography-computed tomogra-

phy increased the need to retrieve relevant medical

images to assist image interpretation. Furthermore,

(Kansagra et al., 2016) presented the idea of a global

database that integrates multiple data sources for a

more accurate diagnoses.

Although most radiology systems have relied on

text queries, Content-based Image Retrieval (CBIR)

has also been used in the past. The survey by (Akg

et al., 2011) that outlines recent work concluded that

the lack of a common image database and differences

in the application domains makes comparative analy-

sis of CBIR approaches difﬁcult. (M

uller et al., 2001)

deﬁned a set of evaluation guidelines developed for

CBIR systems, which we considered for our CBIR

evaluation.

Both literature survey and radiologists we con-

sulted conﬁrmed the need for a domain-tailored teach-

ing ﬁle search engine. As we show in this paper,

public radiology teaching ﬁle search engines do not

provide relevance ranking. Our contributions pre-

sented in this paper are domain-speciﬁc, presenting

a use case for a reference search source in radi-

ology diagnostics. While we rely on standard co-

occurrence information retrieval techniques, we de-

signed a weighted ontology co-occurrence algorithm

and a hybrid multimodal search algorithm speciﬁcally

for the identiﬁed need within the radiology domain.

Our data integration work is presented in (Deshpande

et al., 2018a) and (Deshpande et al., 2019b). IRIS

served as a prototype for our biomedical data integra-

tion and indexing system (Deshpande et al., 2019a).

We presented IRIS at a major medical conference and

received feedback from doctors indicating that this

work would be useful for domain practitioners.

2.2 Data Sources and Search Engines

In this section, we compare available data repositories

and medical search engines (summarized in Table 1).

2.2.1 Teaching File Data Sources

RSNA MIRC. Radiology Society of North Amer-

ica Medical Imaging Resource Community is a large

repository with more than 2,500 teaching ﬁles and

more than 12,000 images as well as external refer-

ences (journal articles). Text search is done verbatim

with no processing to interpret the user’s query (e.g.,

considering term synonyms or negation).

https://openi.nlm.nih.gov/

Multimodal Ranked Search over Integrated Repository of Radiology Data Sources

373

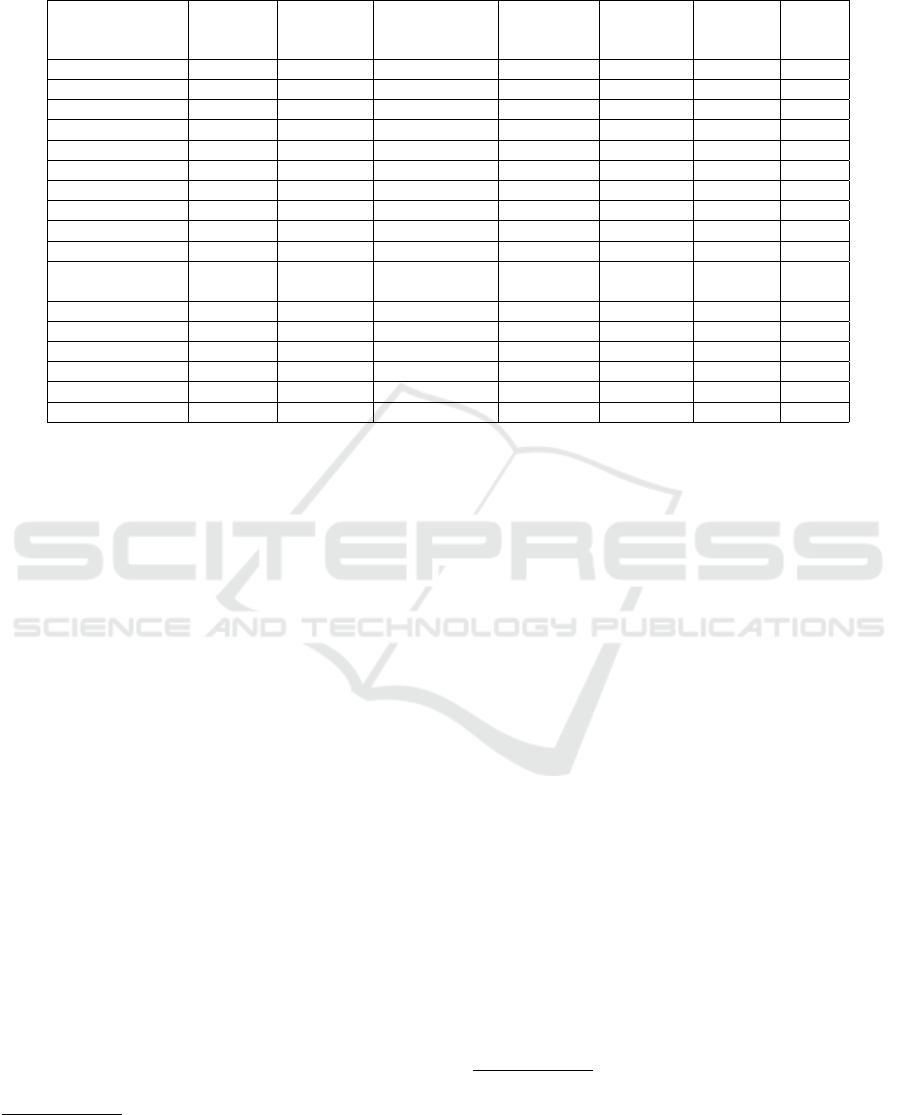

Table 1: A comparative study of available data sources and search engines NLP capabilities. Relationships between terms:

Hierarchical relation between terms (is a/has a), Spelling Error Correction: Prompt user with correct spelling, Relevance

Rank: Offers an explicit relevance ranking feature.

Engine

Keyword

Synonyms

Relationships

between terms

Spelling

Error

Correction

Relevance

Rank

publicly

available


RadTF YES YES YES NO NO NO NO

GoldMiner YES NO NO YES NO YES NO

Yottalook YES YES NO YES YES YES NO

Google YES NO NO YES YES YES YES

MIRC YES NO NO NO NO YES NO

MyPacs YES NO NO NO NO YES NO

CTisus YES NO NO YES NO YES NO

Casimage NO NO NO NO NO NO NO

RadICS NO NO NO NO NO NO NO

BIMM YES NO NO NO NO NO NO

Radiology

Teacher

YES NO NO NO NO YES NO

Medscape YES NO NO YES NO YES NO

ImageCLEFmed NO NO NO NO NO NO NO

Khresmoi YES YES NO NO NO YES NO

Openi YES YES NO YES YES NO YES

EURORAD YES NO NO NO NO YES NO

IRIS YES YES NO NO YES YES YES

Mypacs.net (Weinberger et al., 2002). A publicly

available teaching ﬁle resource, where radiologists

can upload new teaching ﬁles. More than 35,000

cases are available with 200,000 images. User can

search records based on anatomy, pathology, modal-

ity, age, gender, etc. However, the built-in search en-

gine has no consideration of synonyms, negation, or

context. No image-based search is available.

EURORAD.

European Society of Radiology is a

peer-reviewed educational tool based on teaching

cases. There are 7,000+ teaching cases – similarly

to other teaching ﬁle sources there is no support for

negation, synonyms, or image-based search.

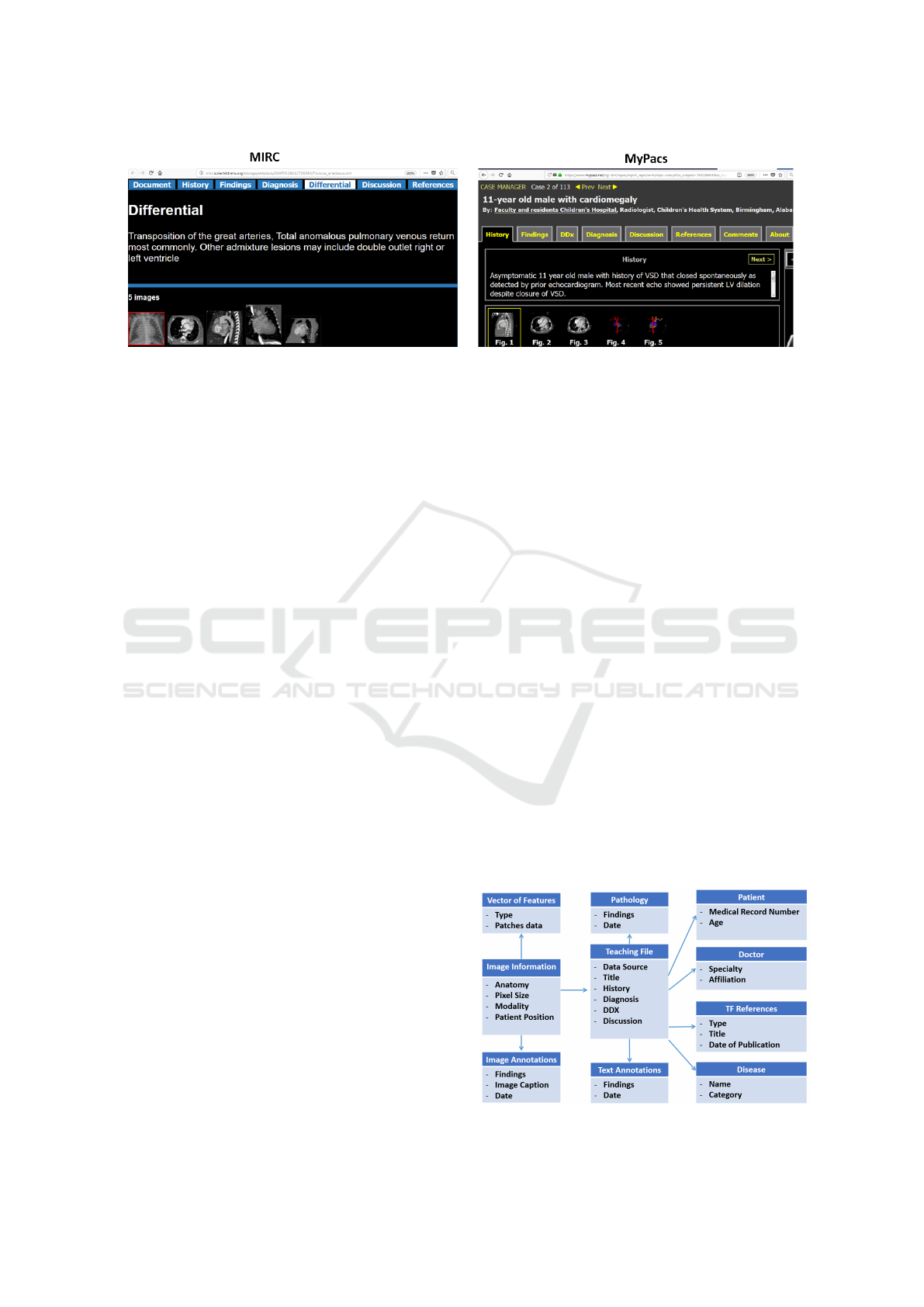

A sample teaching ﬁle from both MIRC and My-

Pacs is shown in Figure 1, illustrating the inherent het-

erogeneity of such data sources.

2.2.2 Medical Search Engines

Yottalook.

A radiologist-targeted search engine

(“powered by Google Custom Search”). Searches a

variety of different sources such as radiopaedia.org,

American Journal of Radiology, University of Michi-

gan Medical School, and MyPacs.

Khresmoi.

is a medical informatics and retrieval

system that searches online biomedical information

and documents. Typical search result is a discussion

forum about a particular diagnosis or disease.

http://www.eurorad.org/

www.yottalook.com

http://everyone.khresmoi.eu/hon-search/

However, there are no teaching ﬁle cases in the

database and the search engine supports only ba-

sic query string matching with no NLP support.

MedGIFT.

projects are developed to advance the

ﬁeld of medical visual information retrieval. All

tools are open sourced – however, these tools are

not a complete search engine. One of the projects,

ImageCLEF

, is the cross-language image retrieval

track providing benchmarks for CBIR systems.

NovaMedSearch.

is a medical search engine that

supports multimodal queries to ﬁnd articles on the

PubMed Central in Clinical Decision Support scenar-

ios. There are no teaching ﬁles in this repository and

only a basic string matching search is supported.

Open-i. Open Access Biomedical Image Search

Engine of the National Library of Medicine enables

search and retrieval of abstracts and images (e.g.,

charts, graphs, clinical images) from the open source

literature and biomedical image collections. Search-

ing may be done using text queries as well as images.

CTisus.

A repository with more than 250,000

radiological images, quizzes and CT protocols are

available. However, their search engine does support

teaching ﬁle search or image based search.

Medscape.

A data source for latest medical news

and information about drugs and diseases. No

image-based search engine is available.

http://medgift.hevs.ch/wordpress/demos/

http://www.imageclef.org/FAQ

https://medical.novasearch.org/

http://www.ctisus.com/

http://www.medscape.com

KDIR 2019 - 11th International Conference on Knowledge Discovery and Information Retrieval

374

Figure 1: Sample teaching ﬁle from MIRC and MyPacs.

Casimage database with the IRMA framework

(Thies et al., 2004) An integration of a multime-

dia teaching and reference database in a Picture

Archiving and Communication Systems (PACS)

environment. This source is not publicly available.

RADTF. (Do et al., 2010) A teaching ﬁle repository

that uses NLP to ingest radiology reports. Search en-

gine uses RadLex anatomy concept terms, stemming,

ranking of results based on negation or uncertainty

expressions. RADTF is not publicly available – the

link provided in (Do et al., 2010) is no longer active.

Server-based Digital Teaching File System

RADICS. (Kamauu et al., 2006) The RadICS server

could handle CT, MR, computed radiography, and

digital radiography images adhering to the Digital

Imaging and Communications in Medicine (DICOM)

format. The engine is not publicly available.

Biomedical Image Metadata Manager (BIMM)

(Korenblum et al., 2011). provides retrieval of

similar images using semantic features. Not available

– the link in (Korenblum et al., 2011) is inactive.

The caBIG

Annotation and Image Markup

Project (Channin et al., 2010). developed a mech-

anism for modeling, capture and serializing image

annotation, readable by both human and machine.

The link in the paper is no longer available.

Radiology Teacher (Talanow, 2009). A web-based

teaching ﬁle development system. Allows authors

to create, edit, and delete cases and images with

annotations and offers educational quizzes. Contains

only about 300 cases; no NLP support is available.

2.3 Medical Ontologies

To build an effective search engine with medical do-

main knowledge, we integrated two medical ontolo-

gies (RadLex and SNOMED CT) into IRIS.

RadLex. is an ontological system that provides a

comprehensive lexicon vocabulary for radiologists.

Developed by Radiology Society of North America

(RSNA), RadLex deﬁnes over 45,000 unique terms.

The Systematized Nomenclature of Medicine Clin-

ical Terms (SNOMED CT). ontology provides a

standardized, multilingual vocabulary of clinical ter-

minology that is used by physicians and healthcare

providers for the electronic exchange of clinical infor-

mation. The SNOMED CT ontology follows the Na-

tional Library of Medicine (NLM) Uniﬁed Medical

Language System format; it has a hierarchical struc-

ture that describes morphological term connections.

3 METHODOLOGY

3.1 IRIS Architecture and Query Flow

We designed a logical schema (a subset of the schema

is shown in Figure 2, other attributes and entities were

omitted) and extracted and loaded data from publicly

available radiology teaching ﬁles data repositories.

As part of our data loading, we performed data clean-

ing (e.g., removal of unnecessary stop-words, invalid

dates). The base entry in the center of the schema is

a teaching ﬁle record linked with a collection of im-

age entries, since teaching ﬁles are bundled with im-

ages (e.g., MRI, X-ray). The vector of features table

contains extracted patches – a user-deﬁned data type

Figure 2: Logical Schema used by IRIS.

Multimodal Ranked Search over Integrated Repository of Radiology Data Sources

375

Figure 3: IRIS Query Execution Flow.

describing a region of interest marked by radiologists.

For text-based search, we generate a matrix based

on term frequency, and term co-occurrence (see Sec-

tion 3.2.2) from the teaching ﬁle terms. To expedite

matrix creation, we pre-computed a term table that in-

dexes both single-word term and multi-word ontology

terms as they appear in teaching ﬁles. To keep the in-

tegrated datasets up-to-date we run a periodic refresh

based on “date of modiﬁcation” in source reposito-

ries, propagating the changes into the database.

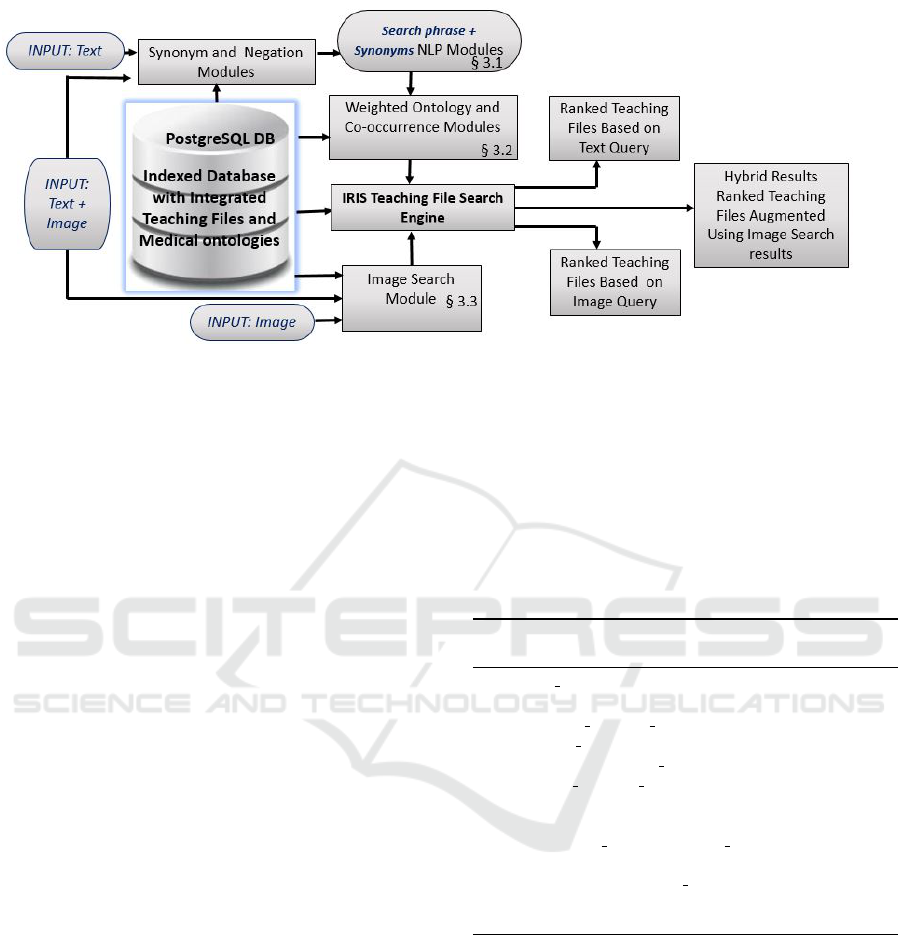

Figure 3 shows the execution ﬂow in IRIS en-

gine. IRIS uses a Natural Language Processing

(NLP) module that performs text query expansion

using integrated ontologies and substitutes negation

with antonyms. Results are ranked using an ontology

based weighted co-occurrence matrix. To perform an

image search, IRIS returns teaching ﬁles that contain

the matched images. When both text and image query

inputs are speciﬁed, text search results are ﬁltered and

re-organized using the outcome of the image search.

3.2 Text-based Search

In this section we discuss ranking features of our

search algorithm: 1) Adding weights to teaching ﬁles

categories and 2) Generating a co-occurrence matrix

to break ties. Text search is evaluated in Section 4.1.

3.2.1 Weighted Category and Ontology

Integration with NLP Support

Based on a literature survey and feedback from radi-

ologists, we chose to apply the highest relative weight

(4) to terms which belong to title, ﬁndings, and diag-

nosis categories within the teaching ﬁle. A weight

of 3 is assigned to history and differential diagnosis

categories. Finally, the lowest relative weight was as-

signed to discussion category (weight of 2) and ref-

erences category (weight of 1). We furthermore dif-

ferentiated the medical ontology from non-ontology

terms by introducing an additional weight of 1. Al-

gorithm 1 outlines the adding of weight to differ-

ent category terms when generating a teaching ﬁle

term vector. A teaching ﬁle term vector contains all

unique terms and the associated term frequency of

those terms based on the assigned weights.

Algorithm 1: Generating the matrix with weighted category

and ontology terms.

1: allterm vector ← all teaching ﬁle (TF) terms

2: Matrix = []

3: for t f in all teaching f iles do

4: Matrix row = []

5: for term in allterm vector do

6: all category count ← Term frequency by

TF category

category

7: Matrix row.append(term score)

8: end for

9: Matrix.append(Matrix row)

10: end for

11: return Matrix

As in previous work, IRIS incorporates synonym

and negation interpretation, allowing users to search

for ”with X”, or ”without X”, and similar constructs.

Our search engine automatically performs query ex-

pansion using integrated ontologies. For example, if

a user searches for “breast cancer”, we augment the

search with additional terms such as “malignant tu-

mor of breast” and “carcinoma of breast”.

3.2.2 Weighted Co-occurrence Matrix

A term-weighted search may produce a tied score.

This is particularly common when there are relatively

few matches (and thus not a lot of different teaching

KDIR 2019 - 11th International Conference on Knowledge Discovery and Information Retrieval

376

ﬁles to differentiate). We therefore extended our algo-

rithm by introducing a weighted co-occurrence ma-

trix that is used to break ties and to ﬁnd additional

results based on term co-occurrence. To build a co-

occurrence matrix, teaching ﬁle data are mapped into

a matrix T called a term frequency matrix, where T

i j

is the frequency of term j in the teaching ﬁle i with

j=1,. . . , m; i=1,. . . ,n, and m and n are the number of

terms and teaching ﬁles, respectively. A query string

q is encoded the same way as a teaching ﬁle, i.e., as a

column vector with an element corresponding to each

term from the document corpus. With this represen-

tation, a query search can be thought of as a simple

linear algebra operation, speciﬁcally the product be-

tween T and q (Equation 1). The query search result r

is represented as a vector in which each element pro-

vides a score for how well the teaching ﬁle document

matches the query string q.



















. . . T







•













(1)

For all teaching ﬁles, we denote by C

term

the co-

occurrence matrix of all m terms and C

(RS raw)

(RS:

RadLex and SNOMED CT) the co-occurrence ma-

trix of all k RadLex and SNOMED CT terms. In the

eventuality that the two co-occurrence matrices have

different sizes (as in the case of MIRC where only

18% of the terms belong to RadLex and 36% terms

belongs to SNOMED CT), the C

(RS

raw)

matrix is ex-

tended with the identity matrix I (Equation 2):



RS raw

0 I



(2)

The overall co-occurrence matrix C is then deﬁned

as the dot product of C

term

and C

in order to assign

more weight to the co-occurrence of the RadLex and

SNOMED CT ontology terms (Equation 3):







. . . C













term

. . . C

term

. . . C

term

. . . C

term







•



RS raw

0 I



(3)

The co-occurrence matrix C is then applied to the

formulation of Equation 1, effectively including co-

occurrence of terms (i.e. context) and medical ontolo-

gies in the relevance calculation as shown in Equa-

tion 4. The transformation used in Equation 4 is pre-

computed ofﬂine to improve query response time.

When multiple teaching ﬁles receive the same rel-

evance score, IRIS invokes the co-occurrence algo-

rithm to break the tie. Search results up to the tie are

kept, while the results from the tie and below are re-

ranked using the co-occurrence matrix computation

of the relevance vector r. We kept search results be-

fore tie as it is because our search engine is domain

speciﬁc and appearance of search term in particular

category (e.g., diagnosis, ﬁndings) matters a lot. If we

apply only co-occurrence top results and less relevant

than we got using our weighted category algorithm.



















. . . T







•







. . . C







•













(4)

3.3 Content based Image Retrieval

CBIR system retrieves images similar to an image

query. Typically, only the pixels of the image are used

for that purpose. Images are retrieved in the follow-

ing manner: an image feature extractor is used to ex-

tract latent features from the pixel array of all images

(both query and database images), then the features

of the query image can be compared to those of the

database images using a similarity measure. We con-

structed an image feature extractor using a convolu-

tional autoencoder. Convolutional autoencoders con-

sist of two main components - an encoder and a de-

coder. An encoder processes the original image into

an encoded image and decoder attempts to recreate

the original image from the encoded image. Since the

same autoencoder needs to work on a broad category

of images, the expectation is that the autoencoder will

likely capture the latent features that easily differenti-

ate one type of image from another.

Our convolutional autoencoder was built to accept

an image input of size 256 x 256 x 1 pixels. We

trained this network using 12,052 images obtained

from MIRC database. Prior to us inputting an image

into the network, we have ﬁrst preprocessed it. Each

input image is converted to grayscale, its pixel inten-

sities are normalized to values between 0 and 255, and

resized to a size of 256 x 256. We used a trained au-

toencoder to encode images in the database after they

were preprocessed in a similar manner to the training

images. Each encoded image is then ﬂattened into a

representative vector of length 8192. This vector is

used as the extracted features in the image retrieval

process. The search query feature vector is compared

to the feature vectors of the images from the database

through a (1-cosine) distance function and the most

similar images are retrieved, ordered by the distance

value. A (1-cosine) distance threshold of 0.12 is used

to ﬁlter what we consider false matches – any image

Multimodal Ranked Search over Integrated Repository of Radiology Data Sources

377

that is farther than 0.12 from the query image is re-

moved from consideration. This threshold is based on

the overall histogram distance distribution (top 10%

results) for all image vectors; a (1-cosine) distance

that is further than the nearest 10% of images is not

considered to be similar for our purposes.

3.4 Hybrid Search

In order to generate more relevant results, we im-

plemented a hybrid search algorithm that augments

text search with an image search. When a user is-

sues a text-and-image query, IRIS performs data fu-

sion by initially retrieving text search results, then

image search results, and then re-ranking text search

results by promoting cases that occurred in the im-

age search. Text based search, particularly when us-

ing co-occurrence matrix and ontologies, often results

in many teaching ﬁle matches. Moreover, text rele-

vance score does not consider the images in the teach-

ing ﬁle. IRIS hybrid text and image search algorithm

ﬁnds teaching ﬁles that explicitly mention the relevant

search terms (including ontology based synonyms);

image based search further prioritizes teaching ﬁles

that also have images similar to the query image.

The following example illustrates how our hybrid

search algorithm works (TC = Teaching Case) :

Text result ranking: TC5, TC7, TC2, TC9, TC11

Image search ranking: TC9, TC2, TC6

Hybrid search ranking: TC9, TC2, TC5, TC7, TC11

In hybrid search, TC9 and TC2 have increased pri-

ority due to appearing in both text and image searches,

TC6 is ignored because it did not match the text

search. TC5, TC7, and TC11 are kept but effectively

demoted because they only appear in the text search.

3.5 Evaluation Methodology

In this section we discuss the methodology for eval-

uation of IRIS search results. We used a combina-

tion of queries received from radiologists at a major

teaching hospital and other queries chosen from an

extensive literature survey (see Figure 4). We have

initially used 28 text queries, out of which we picked

a subset of 11 queries (listed in Table 2) to perform

an in depth evaluation. To choose these 11 queries,

we favored certain criteria such as: (1) queries where

the differential diagnosis and discussion categories

carry the same score for the query term (tie between

these two category cases – e.g., case with query term

“cardiomegaly” occurs in discussion category 3 times

and in diagnosis category 2 times). (2) queries with

relatively few results (to see if using co-occurrence

discovers additional results), (3) query terms which

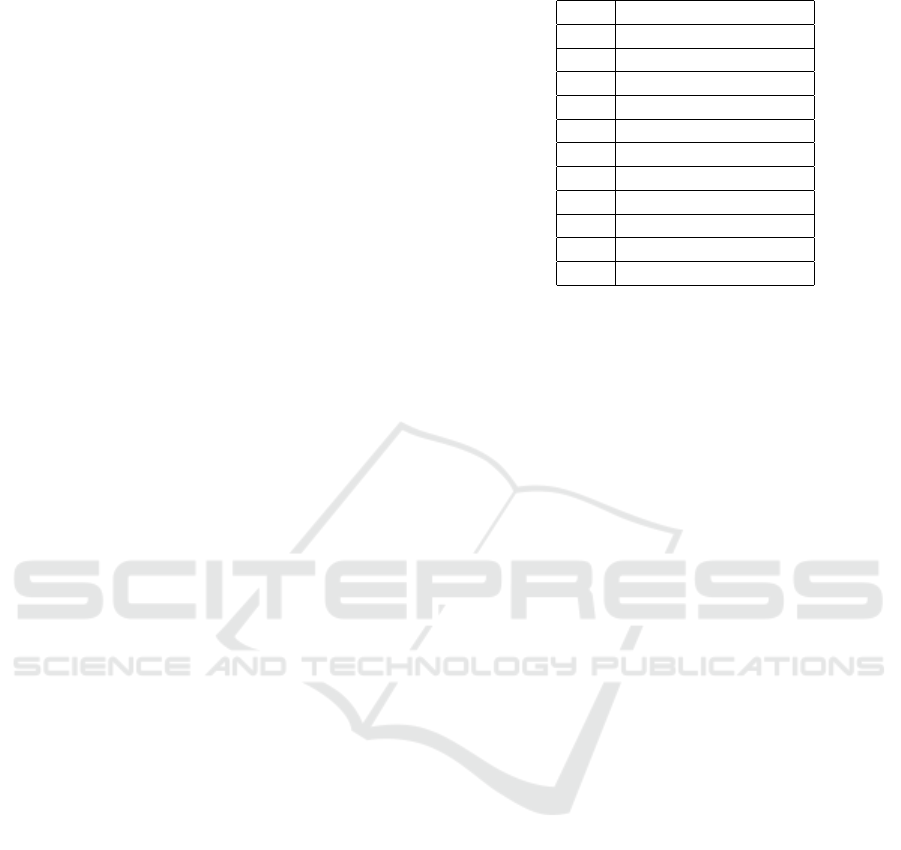

Table 2: IRIS evaluation queries.

ID Query

Q1 Cardiomegaly

Q2 ACL tear

Q3 Annular pancreas

Q4 Pseudocoxalgia

Q5 Varicocele

Q6 Angiosarcoma

Q7 Tracheal dilation

Q8 Appendicitis

Q9 Bronchus intermedius

Q10 Cystitis glandularis

Q11 No cardiomegaly

are sufﬁciently precise for evaluation (e.g., “study” or

“toxic” are too general for a meaningful evaluation)

Our hybrid search evaluation with four experts

(with expertise in information retrieval but without

medical training) used a subset of 5 queries: “car-

diomegaly”, “no cardiomegaly”, “acl tear”, “tracheal

dilation”, and “angiosarcoma”. We used ﬁve queries

because it was not possible to collect a full evaluation

of 11 queries from a group of experts. We chose ﬁve

queries such that query results were relatively easy to

interpret by evaluators with no medical training.

Our search evaluation was based on a coding

standards document that included all relevant deﬁ-

nitions (e.g,. medical term synonyms) and pertinent

information about the diseases (for evaluators with no

medical training). We deﬁned ﬁve categories to score

text search results: “not relevant” = 0 (query term

and synonyms do not appear anywhere in the results),

“relevant” = 0.5 (term or synonyms appear in any

category of a teaching ﬁle), “more relevant” = 1 (if

term or synonyms appear in the discussion category),

“very relevant” = 1.5 (if term or synonyms appears

in history or ddx category), and “most relevant” =

2 (if term or synonyms appears in title, ﬁndings, or

diagnosis categories).

Text-based Search Evaluation. Our text-based

search ranking algorithm was evaluated by con-

sidering different combinations of search features.

We used weighted and unweighted category terms

(from teaching ﬁle categories) and weighted ontol-

ogy terms to generate co-occurrence matrix com-

bined with three possible search mechanisms (TF,

TF-IDF and co-occurrence) producing six possible

combinations shown in Table 3. The resulting six

categories were C

ut f

: unweighted term frequency,

ut f id f

: unweighted term frequency inverse document

frequency, C

: unweighted co-occurrence, C

wt f

weighted term-frequency, C

wt f id f

: weighted term fre-

quency inverse document frequency, C

: weighted

KDIR 2019 - 11th International Conference on Knowledge Discovery and Information Retrieval

378

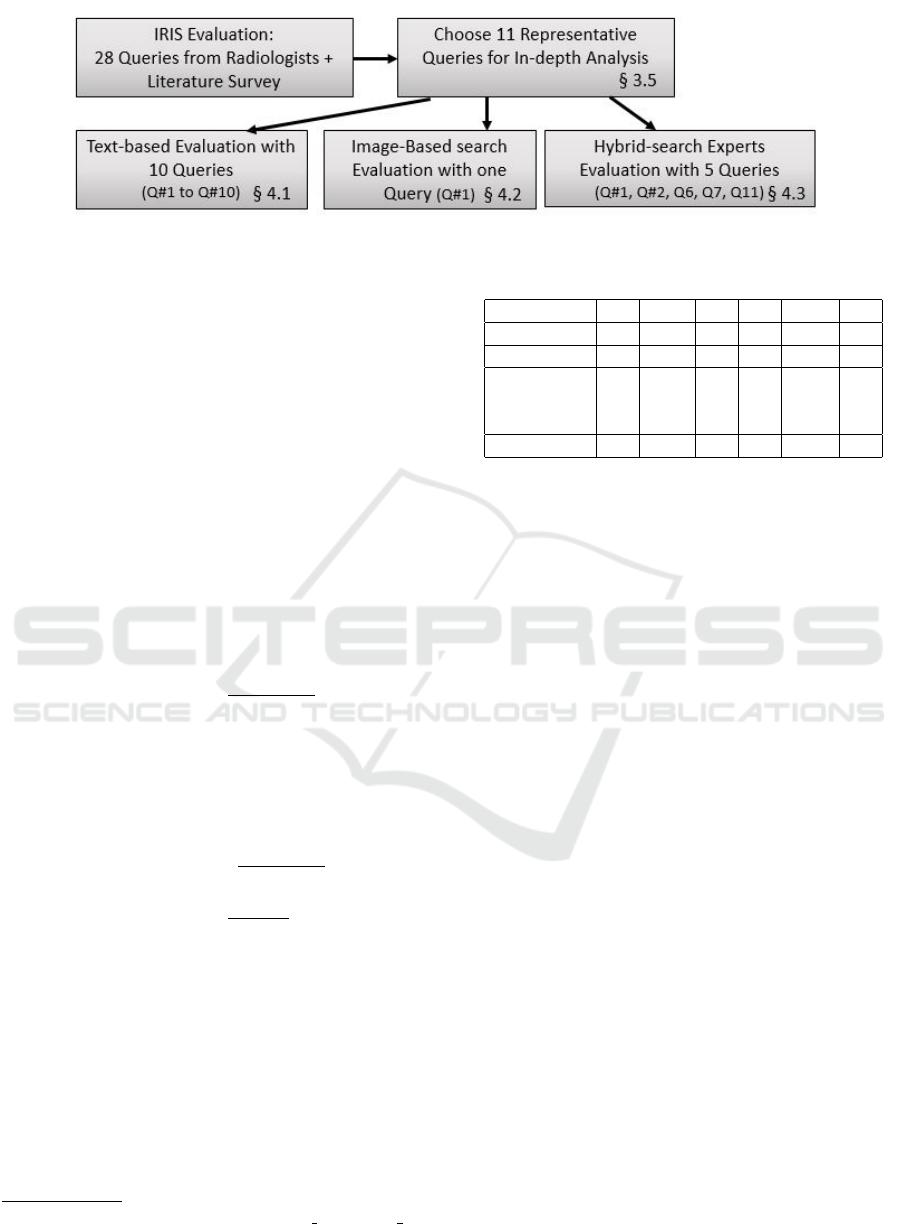

Figure 4: The outline of query evaluation of IRIS.

co-occurrence. One of the reasons for considering six

different categories was to compare TF-IDF which is

commonly used in search engines to TF (to verify that

TF-IDF is not needed in our domain). For text search

evaluation we used Normalized Discounted Cumula-

tive Gain (NDCG)

to measure the quality of search

result ranking. NDCG is based on Discounted cu-

mulative gain (DCG) – ”DCG measures the gain of

a document based on its position in the result list”.

NDCG is the normalized version of the DCG metric.

Cumulative Gain (CG) is the sum of the relevance

values of all results, as shown in Equation 5; rel

the relevance of the result at position i and p is a rank

position of the result. The deﬁnition of CG is included

here as background for the deﬁnition of DCG. We ﬁrst

computed DCG (Equation 6) for top 10 search results.

CGp = Σ

i=1

rel

(5)

DCGp = Σ

i=1

rel

− 1

log

(i + 1)

(6)

To normalize the score, we computed ideal DCG

(IDCG), shown in Equation 7. IDCG ﬁrst sorts all

known results by their relevance. |REL| represents

the ideally ordered list up to position p. We then com-

puted normalized DCG score based on Equation 8.

IDCGp = Σ

|REL|

i=1

rel

− 1

log

(i + 1)

(7)

nDCGp =

DCGp

IDCGp

(8)

Using this metric, we compared IRIS text-based

retrieval results with MIRC (which has no image-

based search). Our dataset and MIRC dataset contains

same teaching cases, making our evaluation particu-

larly consistent. We further compared IRIS to other

medical teaching ﬁle search engines.

Image-based Search Evaluation. There are no read-

ily available benchmarks against which we could

compare IRIS image-based results. We cannot com-

pare IRIS results with ImageCLEF (Tsikrika et al.,

2011) or TREC

as the data is completely differ-

https://en.wikipedia.org/wiki/Discounted cumulative

gain

http://www.trec-cds.org/2017.html

Table 3: Text-based search category abbreviations.

ut f

ut f id f

wt f

wt f id f

Weighted NO NO NO YES YES YES

Term Freq. YES NO YES YES NO YES

Term Freq. -

Inverse Doc.

Frequency

NO YES NO NO YES NO

Cooccurrence NO NO YES NO NO YES

ent. Therefore, we compared image-based results

with Google, and Open-i both of which provide im-

age search capabilities. Google is also a poor bench-

mark because it is a general purpose search engine,

while IRIS is a radiology domain-speciﬁc search en-

gine. Google and Open-i both query different image

datasets from what we were able to integrate (results

discussed in Section 4.2).

Hybrid (Text and Image) Search Evaluation There

are no public search engines that support text and im-

age radiology queries. IRIS hybrid search was eval-

uated by a survey with four computing experts with

experience in medical imaging retrieval (but without

medical training). We asked the users to indepen-

dently evaluate our results from 0 (“not relevant”) to 2

(“most relevant”) and provided them with evaluation

criteria (using the same coding standards) for text,

image, and hybrid search results. For image search

ranking, our evaluators scored results based on visual

similarity of the images (which was inherently more

subjective than text evaluation).

4 EXPERIMENTAL EVALUATION

4.1 Text Search Query Results

We performed three different types of evaluation: 1)

We compared the merits of different IRIS search fea-

tures in Section 4.1.1. 2) We compared IRIS with

MIRC native search and Google search of the MIRC

site in Section 4.1.2 (since our data comes from MIRC

repository) and 3) We evaluated several other search

engines each using their own datasets in Section 4.1.3.

Multimodal Ranked Search over Integrated Repository of Radiology Data Sources

379

4.1.1 An Evaluation of IRIS Text Search

Our ﬁrst comparison considers the difference be-

tween unweighted Term Frequency (C

ut f

) and un-

weighted Term Frequency Inverse Document Fre-

quency (C

ut f id f

) discussed in Sections 3.2.1 and 3.2.2.

Our goal is to determine whether adding TF-IDF im-

proves the search results, as TF-IDF is commonly

used in information retrieval algorithms. To compare

TF and TF-IDF we evaluated the NDCG score (on

a 0.0-1.0 scale) for top 10 query results. Figure 5

compares the quality of C

ut f

and C

ut f id f

results. The

queries exhibit minimal variation. The average score

of C

ut f

is 0.84 (standard deviation/SD 0.173) and

ut f id f

is 0.82 (SD 0.173) – therefore, using C

ut f id f

not providing any beneﬁt in ranking quality. We be-

lieve that C

ut f id f

does not offer any advantage because

domain-speciﬁc terms in radiology data do not beneﬁt

from C

ut f id f

normalization – the medical queries for

a speciﬁc condition do not need to be normalized by

how common a word is in the corpus.

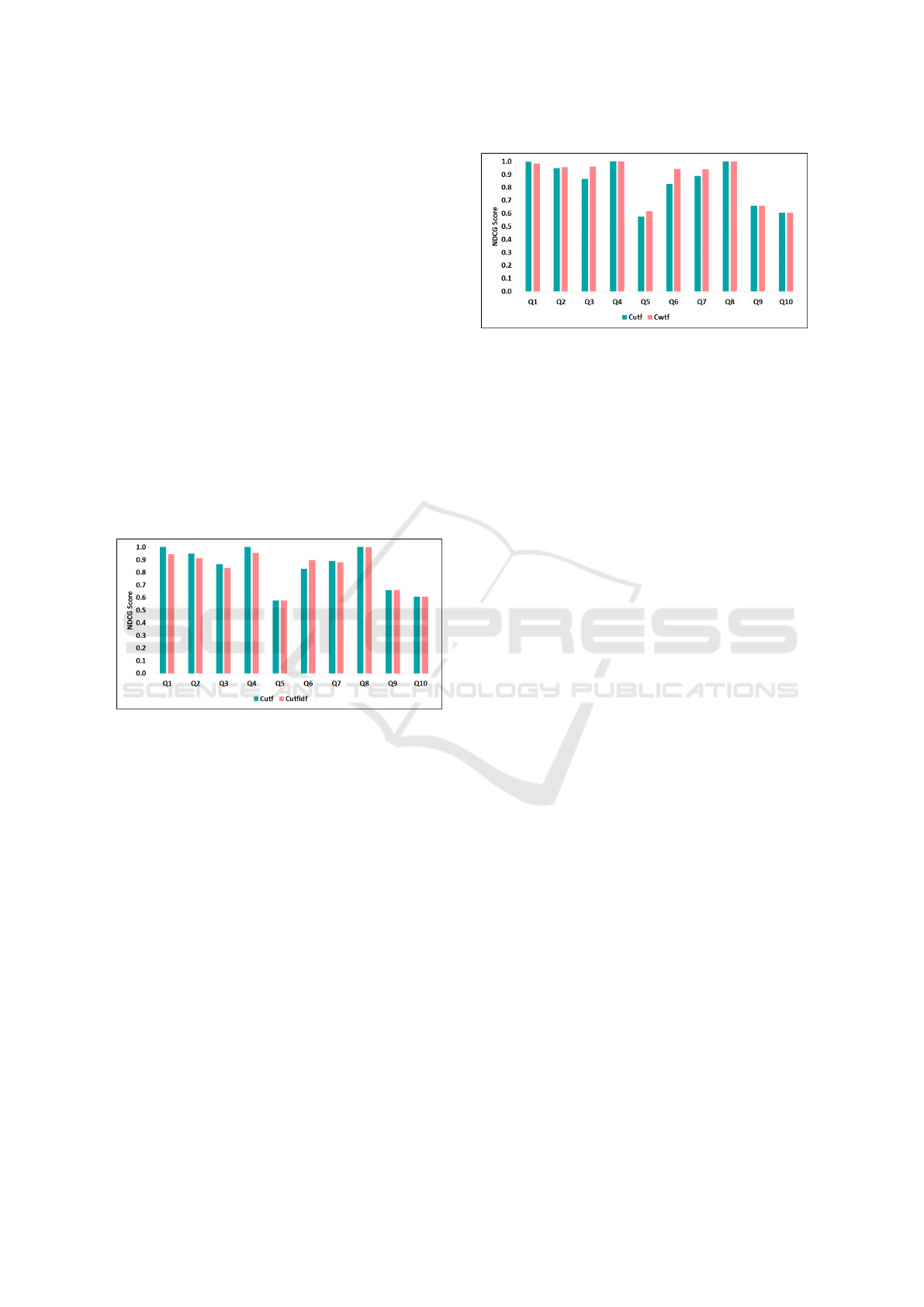

Figure 5: IRIS text-based search evaluation (NDCG based)

with C

ut f

and C

ut f id f

category.

Our next step considers the advantage of incorpo-

rating term weights (based on data category and on-

tologies) into our search algorithm. Figure 6 shows

the evaluation comparing NDCG scores with un-

weighted term frequency vs weighted term frequency.

The average score of C

ut f

is 0.84 (SD 0.173) and

wt f

is 0.87 (SD 0.173). Several query scores are im-

proved, while others remained about the same. We

note that four of the queries (Q1, Q2, Q4, and Q8)

do not have much room for improvement in C

ut f

NDCG score cannot exceed 1.

We also compared the performance of unweighted

co-occurrence and weighted TF-IDF. Due to space

constraints we do not present that evaluation. Sim-

ilarly to the comparison between C

ut f

and C

ut f id f

we concluded that unweighted co-occurrence func-

tion does not improve ranking quality of IRIS results.

Finally, we compared search relevance scores

from weighted term frequency C

wt f

and weighted

term frequency based co-occurrence C

. The result-

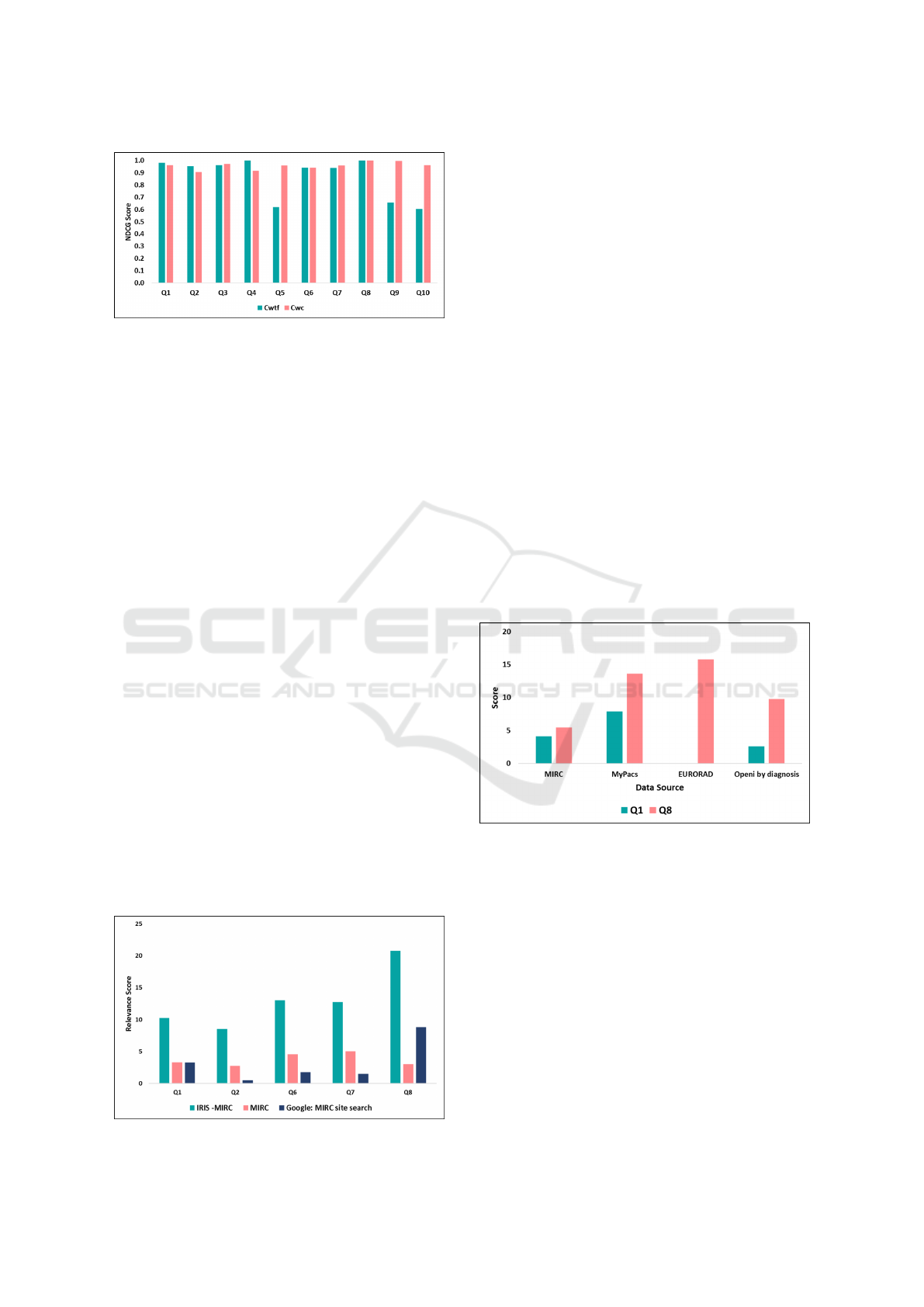

Figure 6: IRIS text-based search evaluation (NDCG based)

with C

ut f

and C

wt f

category.

ing NDCG scores are shown in Figure 7. The average

score of C

wt f

is 0.87 (SD 0.173) and the average score

for C

is 0.96 (SD 0.03). We note that several of the

queries using weighted term frequency have scores

approaching 1.0 and thus a limited scope for improve-

ment. The queries that have relatively poor results

(Q5, Q9, and Q10) have improved signiﬁcantly, while

queries with near-1 scores remain about the same.

For example, our corpus has many cases involving

explicit mention of cardiomegaly (Q1) in the Diagno-

sis category. In that case, weighted term frequency

can ﬁnd good matches. We believe that weighted term

frequency and co-occurrence approaches to be com-

plementary – when we have many matching cases,

weighted term frequency ranks results and when we

have few matching cases, co-occurrence ﬁnds addi-

tional results based on terms co-occurring with search

terms. For query #2 and #4 (“ACL Tear” and “Pseu-

docoxalgia”) the co-occurrence algorithm beneﬁts

less compared to weighted term frequency because

co-occurring terms with query term return teaching

ﬁles where query term does not belong to diagnosis

category (when a query term belongs to diagnosis cat-

egory, it gains more weight). For example, for “ACL

Tear” co-occurring terms are “tear” and “PCL-tear”.

Though our results fetch documents related to “ACL

tear”, those offer a lower relevance rank score com-

pared to weighted term frequency algorithm. How-

ever, the co-occurrence algorithm performs far better

for query (Q5, Q9, and Q10) that returns fewer re-

sults based on the weighted term frequency ranking.

Our average scores of C

wt f

and C

show relative im-

provement in ranking score (based on all 10 queries)

compared to other categories.

4.1.2 Comparison of IRIS and MIRC Search

To compare IRIS relevance rank algorithm with

MIRC, we chose 5 queries (“cardiomegaly”, “ap-

pendicitis”, “tracheal dilation”, “angiosarcoma”, and

“acl tear”). For this experiment, we replaced “no car-

diomegaly” by “appendicitis” because other search

KDIR 2019 - 11th International Conference on Knowledge Discovery and Information Retrieval

380

Figure 7: IRIS text-based search evaluation (NDCG based)

with C

wt f

and C

category.

engines do not recognize negation. We considered

top four teaching ﬁle results from IRIS, MIRC, and

Google site search. We calculated relevance score

by scoring top four teaching ﬁles from each engine,

using our weighted ranking algorithm (discussed in

Section 3.2.1). Figure 8 shows the overall analysis of

results from these search engines. Average score for

each search engine shows that IRIS ranking algorithm

performs better than the other two engines. In that

search, integration of ontologies plays a vital role. For

example, our search matches a teaching ﬁle “Ebstein

Anomaly” wherehttps://www.overleaf.com/project/

5cd4382f92a3ba5b77466ce4 cardiomegaly does not

appear in any of the categories; only the synonyms

such as “cardiac enlargement” appear in ﬁndings,

“enlarged heart” in differential diagnosis, and

“cardiac enlargement” in the discussion category.

For the “cardiomegaly” search nine teaching cases

tied for the sixth position: “Ventricular septal de-

fect (VSD)”, “Atrioventricular (AV) canal”, “Tricus-

pid atresia” (and 6 others). We used the co-occurrence

algorithm to break the tie and re-rank rest of the re-

sults using a weighted co-occurrence of search terms.

Following top match co-occurrence algorithm ranked

these results as #6. “Ventricular septal defect (VSD)”,

#7. “Tricuspid atresia”, #8.“Atrioventricular (AV)

canal” (and 6 others with lower relevance). We man-

ually veriﬁed the accuracy of this ranking based on

presence of co-occurring terms.

Figure 8: IRIS relevance comparison with MIRC.

4.1.3 Ranking Evaluation of Other Medical

Search Engines

We also considered how other public medical radi-

ology teaching ﬁle search engines rank their search

results. We used the same query set and performed

a search using MIRC, MyPacs, EURORAD, and

Open-i search engines. We discuss only two out of

ﬁve queries (“cardiomegaly” and “appedicitus”) in

detail and report scores for the top 10 search results.

Figure 9 shows a comparative analysis of ranked re-

sults from these four engines using the relevance

scores based on our metric described in Section 3.2.1.

Open-i can rank search results based on different cat-

egories (e.g., based on diagnosis or based on teaching

ﬁle date) – we used a diagnosis based search in Open-

i. MIRC ranks results based on the date of modiﬁ-

cation with no other option available. Our analysis

shows that none of the search engines return most rel-

evant results ﬁrst. Interestingly, top four to ﬁve results

are less relevant than the subsequent ﬁve results. For

example for “cardiomegaly” MyPacs fourth result is

more relevant than the top three results. EURORAD

does not retrieve any results for “cardiomegaly”; the

results for “appendicits” are also not ranked based on

the relevance of the search term.

Figure 9: Rank retrieval score results from other medical

search engines.

4.2 Image Search Analysis

To evaluate image search, we selected ﬁve images

(four images drawn from our database and one image

found using a Google search) associated with our ﬁve

chosen text queries. For “no cardiomegaly” query we

used an image from a “normal heart” Google search

(cardiomegaly is a an abnormally enlarged heart);

when we searched for “no cardiomegaly” Google re-

turned “cardiomegaly” images. We chose the other 4

images from our database from one of the top search

results returned by the text based search.

Multimodal Ranked Search over Integrated Repository of Radiology Data Sources

381

4.2.1 IRIS-CBIR Evaluation

In this section, we discuss a search for one image out

of the ﬁve we evaluate (obtained from a teaching ﬁle

with a “cardiomegaly” diagnosis). IRIS retrieved a

total of 13 results based on distance threshold (see

Section 3.3) from teaching ﬁles with similar images

like the “cardiomegaly” image. Out of these results

only 3 teaching ﬁles were not related to heart diseases;

the remaining 10 teaching cases were about heart dis-

ease diagnosis. We observed that 3 non-heart dis-

ease teaching ﬁles had visually similar images as the

search query image (as a teaching ﬁle can include im-

ages of different body parts). For example, one of the

returned teaching ﬁles contained the diagnosis “Com-

plete duplicated right renal collecting system. Upper

moiety ureter with ectopic ureterocele, Grade V reﬂux

into lower moiety collecting system.” The images of

the kidney matched the heart search because scanned

images also showed patient’s heart.

4.2.2 Comparison with Other Search Engines

We evaluated all ﬁve image queries with the help of

a panel of experts; each reviewer rated the results on

the scale of 0 (not similar) to 4 (very similar).

4.3 Hybrid Search Evaluation

For the hybrid search evaluation we used 5 queries,

although we only discuss one query (based on “car-

diomegaly”) in detail. We applied a threshold of 0.12

to image similarity measure; IRIS text results are

combined with image-based results (as described in

Section 3.4).

We performed hybrid search using “car-

diomegaly” text query and a “cardiomegaly” related

image – the same image that we previously used in

Section 4.2. For “cardiomegaly” query hybrid search

returns 50 cases where text includes “cardiomegaly”

and images are similar to “cardiomegaly” image and

results ranked on the basis of search query relevance.

Using hybrid search, IRIS augmented the text-based

results with image-based results and re-ranked

teaching ﬁles based on the latter. Evaluation of the

hybrid search using 5 queries is shown in Figure 10.

We deﬁned a relevance criteria and asked evalua-

tors to rank results on the 0-2 scale. We used 5 text

queries and 5 images as input queries, summarized in

Figure 10 (scaled down to 0-1 range for consistency

with other graphs). IRIS text-based and hybrid search

results scored an average score of 0.83 (out of 1) Im-

age search results scored only about 0.53, which fur-

ther conﬁrms our approach of using the image search

as an enhancement to the text search (rather than a

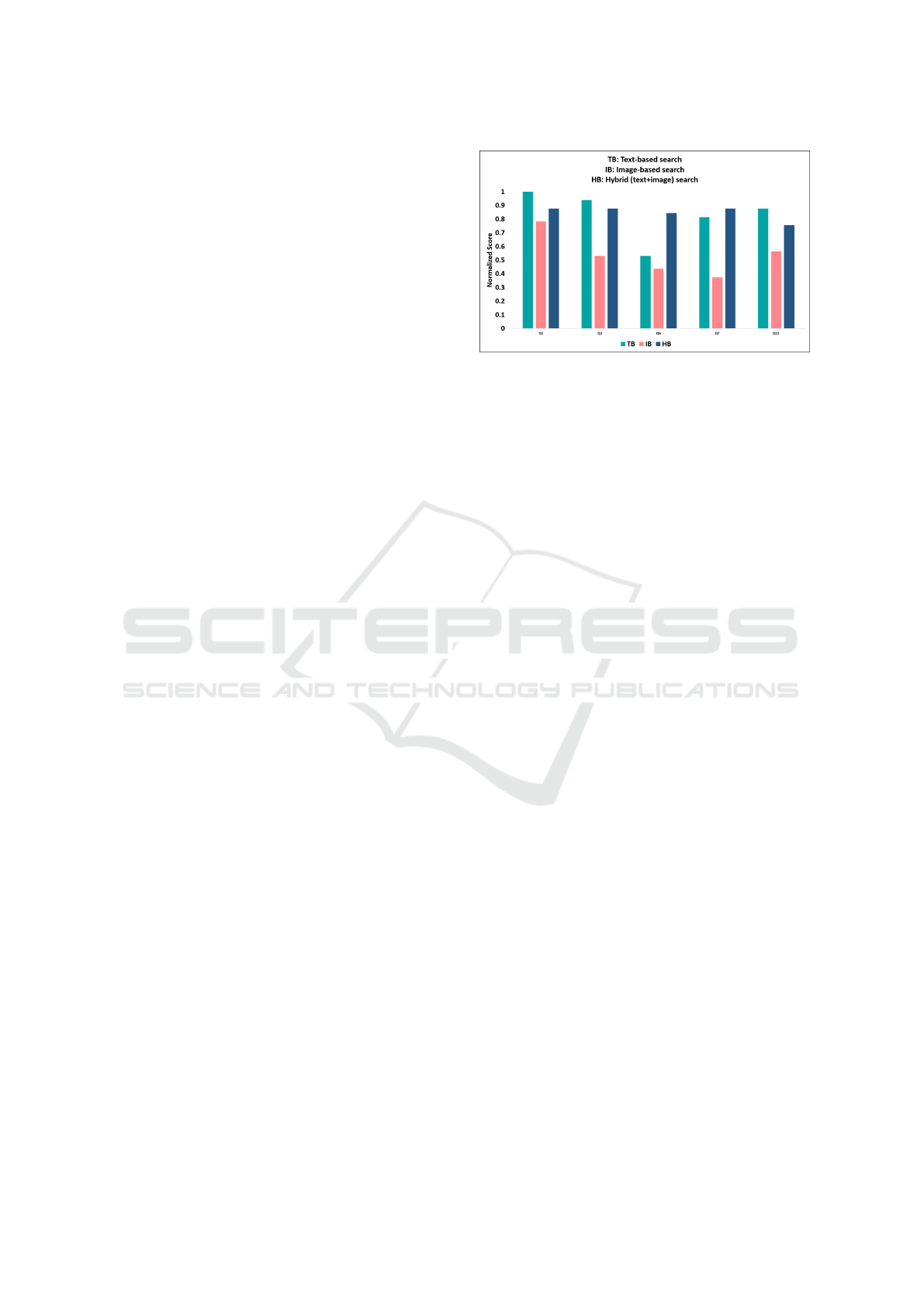

Figure 10: IRIS query evaluation: averaged text, image, and

hybrid results rating with 4 evaluators.

standalone search). Hybrid search produced an aver-

age score of 0.84. IRIS retrieves better results com-

pared to the preliminary results from our earlier work.

We performed a statistical signiﬁcance test (paired

t-test) for text-based vs image-based search, text-

based vs hybrid search, and image-based vs hybrid

search. The improvement difference was statistically

signiﬁcant with text-based vs image-based search and

hybrid search vs image-based search. However, hy-

brid search was not a statistically signiﬁcant improve-

ment over text-based search. One of the reason we

were unable to demonstrate a statistically signiﬁcant

improvement is a small dataset in this evaluation. As

shown in Figure 10, one of the queries (Q6) was sig-

niﬁcantly improved by the introduction of the hybrid

search, while other four searches hybrid results were

comparable in quality to the original text search.

5 CONCLUSIONS

The ranking approach presented in this paper is sig-

niﬁcant because it enables IRIS to present the user

with the most relevant reference cases ﬁrst. Through

incorporating term frequency, adding extra weight to

ontology terms, and considering co-occurrence of the

terms, we showed that relevance of teaching ﬁle re-

trieval can be improved. In our future work, we plan

to consider the proximity of the terms when calculat-

ing the co-occurrence matrix as well as expand the use

of RadLex and SNOMED CT ontologies from term

synonyms to concepts and categories information and

integrate additional ontologies and data sources.

IRIS will enable radiologists to perform text based

search, image based search as well as hybrid (im-

age and text) searches over integrated datasets. Ul-

timately, IRIS will allow radiologists to make faster,

more conﬁdent and accurate diagnoses by removing

the innate error caused by the limits of human mem-

ory. Based on extensive discussions with experienced

KDIR 2019 - 11th International Conference on Knowledge Discovery and Information Retrieval

382

radiologists, IRIS will be a great improvement of

existing search engines – currently radiologists use

in-house teaching ﬁle search engines with a limited

search capability.

REFERENCES

Akg

ul, C. B., Rubin, D. L., Napel, S., Beaulieu, C. F.,

Greenspan, H., and Acar, B. (2011). Content-based

image retrieval in radiology: current status and future

directions. Journal of Digital Imaging, 24(2):208–

222.

Channin, D. S., Mongkolwat, P., Kleper, V., Sepukar, K.,

and Rubin, D. L. (2010). The cabig

annotation

and image markup project. Journal of digital imag-

ing, 23(2):217–225.

Dashevsky, B., Gorovoy, M., Weadock, W. J., and Juluru,

K. (2015). Radiology teaching ﬁles: an assessment

of their role and desired features based on a national

survey. Journal of digital imaging, 28(4):389–398.

Deshpande, P., Rasin, A., Brown, E., Furst, J., Raicu, D.,

Montner, S., and Armato III, S. (2017). An integrated

database and smart search tool for medical knowledge

extraction from radiology teaching ﬁles. In Medical

Informatics and Healthcare, pages 10–18.

Deshpande, P., Rasin, A., Brown, E., Furst, J., Raicu, D. S.,

Montner, S. M., and Armato, S. G. (2018a). Big

data integration case study for radiology data sources.

In 2018 IEEE Life Sciences Conference (LSC), pages

195–198. IEEE.

Deshpande, P., Rasin, A., Brown, E. T., Furst, J., Montner,

S. M., Armato III, S. G., and Raicu, D. S. (2018b).

Augmenting medical decision making with text-based

search of teaching ﬁle repositories and medical on-

tologies: Text-based search of radiology teaching

ﬁles. International Journal of Knowledge Discovery

in Bioinformatics (IJKDB), 8(2):18–43.

Deshpande, P., Rasin, A., Furst, J., Raicu, D., and Antani,

S. (2019a). Diis: A biomedical data access framework

for aiding data driven research supporting fair princi-

ples. Data, 4(2):54.

Deshpande, P., Rasin, A., Jun, S., Sungmin, K., Brown, E.,

Furst, J., Raicu, D. S., Montner, S. M., and Armato,

S. G. (2019b). Ontology-based radiology teaching

ﬁles summarization, coverage, and integration. Jour-

nal of digital imaging, page yet to appear.

Do, B. H., Wu, A., Biswal, S., Kamaya, A., and Rubin,

D. L. (2010). Informatics in radiology: Radtf: A se-

mantic search–enabled, natural language processor–

generated radiology teaching ﬁle 1. Radiographics,

30(7):2039–2048.

Dos-Santos, M. and Fujino, A. (2012). Interactive ra-

diology teaching ﬁle system: the development of

a mirc-compliant and user-centered e-learning re-

source. In Engineering in Medicine and Biology So-

ciety (EMBC), 2012 Annual International Conference

of the IEEE, pages 5871–5874. IEEE.

Gutmark, R., Halsted, M. J., Perry, L., and Gold, G. (2007).

Use of computer databases to reduce radiograph read-

ing errors. Journal of the American College of Radi-

ology, 4(1):65–68.

Hwang, K. H., Lee, H., Koh, G., Willrett, D., and Rubin,

D. L. (2016). Building and querying rdf/owl database

of semantically annotated nuclear medicine images.

Journal of Digital Imaging, pages 1–7.

Kamauu, A. W. C., DuVall, S. L., Robison, R. J., Liimatta,

A. P., Richard H. Wiggins, I., and Avrin, D. E. (2006).

Vendor-neutral case input into a server-based digital

teaching ﬁle system. RadioGraphics, 26(6):1877–

1885. PMID: 17102058.

Kansagra, A. P., John-Paul, J. Y., Chatterjee, A. R.,

Lenchik, L., Chow, D. S., Prater, A. B., Yeh, J., Doshi,

A. M., Hawkins, C. M., Heilbrun, M. E., et al. (2016).

Big data and the future of radiology informatics. Aca-

demic radiology, 23(1):30–42.

Korenblum, D., Rubin, D., Napel, S., Rodriguez, C., and

Beaulieu, C. (2011). Managing biomedical image

metadata for search and retrieval of similar images.

Journal of digital imaging, 24(4):739–748.

Li, Y., Liang, X., Hu, Z., and Xing, E. P. (2018). Hybrid

retrieval-generation reinforced agent for medical im-

age report generation. In Advances in Neural Infor-

mation Processing Systems, pages 1537–1547.

Ling, Z. J., Tran, Q. T., Fan, J., Koh, G. C., Nguyen, T., Tan,

C. S., Yip, J. W., and Zhang, M. (2014). Gemini: an

integrative healthcare analytics system. Proceedings

of the VLDB Endowment, 7(13):1766–1771.

uller, H., M

uller, W., Squire, D. M., Marchand-Maillet,

S., and Pun, T. (2001). Performance evaluation in

content-based image retrieval: overview and propos-

als. Pattern recognition letters, 22(5):593–601.

Pinho, E., Godinho, T., Valente, F., and Costa, C. (2017). A

multimodal search engine for medical imaging stud-

ies. Journal of digital imaging, 30(1):39–48.

Russell-Rose, T. and Chamberlain, J. (2017). Expert

search strategies: The information retrieval practices

of healthcare information professionals. JMIR, 5(4).

Simpson, M. S., Demner-Fushman, D., Antani, S. K., and

Thoma, G. R. (2014). Multimodal biomedical image

indexing and retrieval using descriptive text and global

feature mapping. Information retrieval, 17(3):229–

264.

Talanow, R. (2009). Radiology teacher: a free, internet-

based radiology teaching ﬁle server. Journal of the

American College of Radiology, 6(12):871–875.

Thies, C., G

uld, M. O., Fischer, B., and Lehmann, T. M.

(2004). Content-based queries on the casimage

database within the irma framework. In Workshop of

the Cross-Language Evaluation Forum for European

Languages, pages 781–792. Springer.

Tsikrika, T., de Herrera, A. G. S., and M

uller, H. (2011).

Assessing the scholarly impact of imageclef. In

Forner, P., Gonzalo, J., Kek

ainen, J., Lalmas, M.,

and de Rijke, M., editors, Multilingual and Multi-

modal Information Access Evaluation, pages 95–106.

Springer Berlin Heidelberg.

Weinberger, E., Jakobovits, R., and Halsted, M. (2002).

Mypacs. net: a web-based teaching ﬁle authoring tool.

American Journal of Roentgenology, 179(3):579–582.

Multimodal Ranked Search over Integrated Repository of Radiology Data Sources

383
