A Framework for the Assessment and Training of

Software Refactoring Competences

Thorsten Haendler and Gustaf Neumann

Institute for Information Systems and New Media, Vienna University of Economics and Business (WU), Austria

Keywords:

Software Refactoring, Knowledge and Competence Management, Software Engineering Education and

Training

Abstract:

Long-living software systems are becoming increasingly complex and difﬁcult to maintain. Software refac-

toring is considered important to achieve maintainability and extensibility of a software system over time. In

practice, it is still often neglected, partly because of costs, the perceived risks of collateral damage and difﬁcul-

ties of individuals working on certain components of complex software. It is therefore important for software

projects that software developers have the appropriate skills and competences to efﬁciently perform software

refactoring. However, so far there is no systematization of competences in software refactoring to guide in

the assessment or training of competences, e.g., for planning or evaluating training activities and paths. In

this paper, we address this need by presenting a competence framework for software refactoring by applying

Bloom’s revised taxonomy for educational objectives. In particular, we specify competence levels by combin-

ing knowledge and cognitive-process dimensions. Via a case study with two existing training environments

(i.e. a tutoring system and a serious game), we demonstrate by example that the framework can support (1)

in analyzing the competence levels addressed by the training environments and (2) in reﬂecting training paths

for software refactoring. Finally, we discuss the limitations and the further potential of the framework.

1 INTRODUCTION

According to studies, software maintenance accounts

often to 80 % or more than 90 % of software project

costs (Schach, 2007; Erlikh, 2000). When soft-

ware systems are used in changing environments

over many years, such systems face an increas-

ing complexity, making it even more difﬁcult and

time consuming to maintain them (cf. technical debt

(Kruchten et al., 2012) and software aging (Parnas,

1994)), which can result in a delay in delivering new

software functionalities. Software refactoring aims

at improving the maintainability and extensibility of

software systems by restructuring the system’s source

code while preserving the observable system behavior

(Opdyke, 1992; Fowler et al., 1999).

Although considered useful and important, refac-

toring is often omitted in practice, which is caused

by several barriers that prevent software developers

from refactoring (Tempero et al., 2017). In addition

to missing resources (such as limited time) and other

management issues, there are barriers that indicate a

lack of competences such as the perceived risks and

difﬁculties of performing refactoring. For example,

more complex candidates for refactoring such as bad

smells on the level of software design or architecture

(Suryanarayana et al., 2014) are not directly identiﬁ-

able by reviewing the source code alone but require to

observe static and run-time code dependencies.

These challenges are addressed by several tools

for automation and decision-support in detecting

smells or in performing corresponding refactorings;

see, e.g., (Fernandes et al., 2016). Due to the objective

of improving the quality of the software code/design

maintained by humans, these activities can hardly be

fully automated, but require human expertise, e.g.

in terms of software architects that are aware of the

system’s design rationale and competent in software

refactoring. The success of strategies for repaying

technical debt via refactoring depends essentially on

the organizational capabilities in terms of the knowl-

edge and competences contributed by the individual

software developers and project managers.

However, besides textbooks (Fowler et al., 1999;

Suryanarayana et al., 2014) that are mediating a ba-

sic understanding of refactoring techniques, there are

only a few training environments to support software

developers in acquiring and improving practical com-

Haendler, T. and Neumann, G.

A Framework for the Assessment and Training of Software Refactoring Competences.

DOI: 10.5220/0008350803070316

In Proceedings of the 11th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2019), pages 307-316

ISBN: 978-989-758-382-7

307

petences in software refactoring (see Section 2.1).

Moreover, so far, there is no systematization of com-

petences in software refactoring to provide guidance

in assessment or training activities, which is impor-

tant in the context of software projects or for edu-

cation and training, e.g., for measuring the learning

progress of students or software developers, planning

training activities and paths, or applying, designing

and evaluating training environments.

In this paper, we propose a framework that aims

at supporting the assessment and training of compe-

tences in the ﬁeld of software refactoring. For this

purpose, the framework manifests the relevant con-

cepts and speciﬁes the competence levels. In particu-

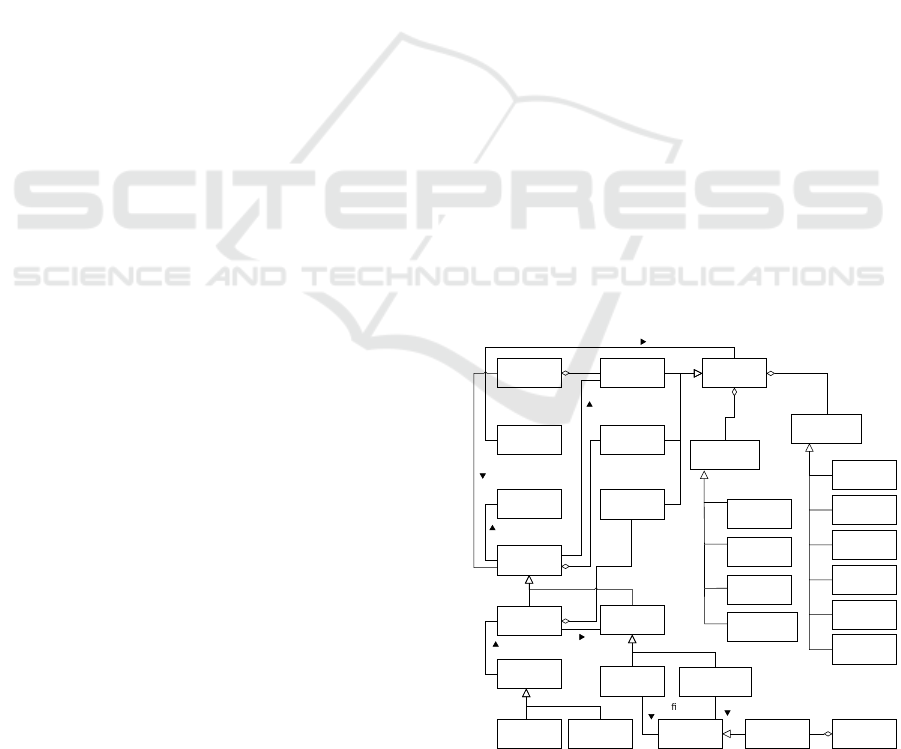

lar, the framework includes a concept map in terms of

a domain ontology structuring the relevant concepts

(and relations between them) for competences in the

ﬁeld of software refactoring. Moreover, in order to

specify competence levels in terms of knowledge and

cognitive-process dimensions, we apply Bloom’s re-

vised taxonomy for educational objectives to software

refactoring. A case study with two existing training

environments demonstrates that the framework can

support the analysis of prerequisite and target com-

petences and in planning/evaluating training paths for

software refactoring. In particular, this paper provides

the following contributions.

• We propose a competence framework for soft-

ware refactoring by specifying the knowledge and

cognitive-process dimensions for competences in

software refactoring according to Bloom’s revised

taxonomy for educational objectives.

• We investigate the applicability of the framework

via a case study with two exemplary training envi-

ronments for software refactoring (a tutoring sys-

tem and a serious game).

The remainder of this paper is structured as fol-

lows. Section 2 describes the background and related

work on software refactoring and competence frame-

works. Section 3 deals with examples and concepts

of training and assessment activities. In Section 4,

we specify knowledge and cognitive-process dimen-

sions for software refactoring by applying Bloom’s

taxonomy. Then, in Section 5, we use the framework

to evaluate two exemplary training environments. In

Section 6, we discuss limitations and further poten-

tial. Section 7 concludes the paper.

2 BACKGROUND AND RELATED

WORK

This section gives a short overview of relevant back-

ground (and related work) on software refactoring

(Section 2.1) and on frameworks for managing com-

petences (Section 2.2).

2.1 Software Refactoring and Its

Challenges

Software refactoring represents a complex activity for

improving a software system’s maintainability or ex-

tensibility (Opdyke, 1992) and for repaying technical

debt (Kruchten et al., 2012). Candidates for refac-

toring are issues (such as bad smells) in the source

code, software design or architecture, or other ar-

tifacts (Fowler et al., 1999). These smells mani-

fest via certain symptoms that can be identiﬁed and

measured by applying certain metrics (e.g., depen-

dencies between code elements). Thus, the refactor-

ing process can be roughly divided into the follow-

ing two activities; cf. (Haendler and Frysak, 2018)

of (A) identifying and assessing refactoring oppor-

tunities and (B) planning and performing refactor-

ing steps. In last years, several tools have been pro-

posed to support developers, such as smell detectors

(Tsantalis et al., 2008; Moha et al., 2010) or software-

quality analyzers and design-critique tools (Camp-

bell and Papapetrou, 2013; CoderGears, 2018). De-

spite these advances, studies indicate that tool-support

is rarely used by software developers (Murphy-Hill

et al., 2012). However, besides activities that can

be potentially automated (e.g., candidate identiﬁca-

tion or executing refactoring steps), others require hu-

man judgment and expertise. For example, the tool-

generated candidates need to be assessed to discard

false-positives (Fontana et al., 2016), or the refac-

toring activities need to be prioritized regarding the

project schedule (Ribeiro et al., 2016). However,

so far, only modest attention has been paid to soft-

ware refactoring by research in software engineer-

ing education and teaching. Besides popular text-

books such as (Fowler et al., 1999; Suryanarayana

et al., 2014) and approaches for programming lessons

(Smith et al., 2006; L

opez et al., 2014), only a few

interactive and computer-based approaches exist that

provide intelligent and immediate feedback, such as

tutoring systems (Sandalski et al., 2011; Rolim et al.,

2017; Haendler et al., 2019) or (educational) games

(Elezi et al., 2016; Haendler and Neumann, 2019b).

So far, there exists no systematization of competences

in software refactoring (see below) to support in train-

ing and assessment.

2.2 Competence Frameworks

For managing competences or skills in general, sev-

eral generic frameworks are established. For exam-

KMIS 2019 - 11th International Conference on Knowledge Management and Information Systems

308

ple, Dreyfus and Dreyfus structure skills in terms of

ﬁve hierarchical learner levels (Dreyfus and Dreyfus,

1980), from novice, via advanced beginner, compe-

tent, and proﬁcient, to expert. Bloom et al. proposed

a taxonomy for educational objectives also structured

into six hierarchical levels (Bloom et al., 1956; Krath-

wohl, 2002); also see Section 4.1. In addition, Pa-

quette introduced a competence framework (Paquette,

2007) in which he distinguishes between actual, pre-

requisite and target competences. Moreover there are

other generic frameworks for knowledge management

such as (Alavi and Leidner, 2001) that provide dif-

ferent perspectives on and categorizations of knowl-

edge. For specifying competences in software engi-

neering and information systems, the revised version

of Bloom’s taxonomy (Krathwohl, 2002) is quite pop-

ular; see, e.g., (Britto and Usman, 2015; Bork, 2019).

There are a few approaches for applying Bloom’s

framework to software refactoring (L

opez et al., 2014;

Haendler and Neumann, 2019a; Haendler and Neu-

mann, 2019b), which are not comprehensively sys-

tematized. For example, they do not reﬂect the knowl-

edge dimension for creating a two-dimensional ma-

trix. Built on these approaches, we here propose a

competence framework for training and assessment of

software-refactoring competences.

3 TRAINING AND ASSESSMENT

OF COMPETENCES IN

SOFTWARE REFACTORING

Here we describe two short scenarios for the exem-

plary training and assessment of refactoring compe-

tences (Section 3.1) and present an overview of rele-

vant basic concepts (Section 3.2).

3.1 Exemplary Scenarios for Training

and Assessment

University Course. Consider a university course on

software design and architecture located in a Mas-

ter’s study in Information Systems or Software Engi-

neering. This course includes techniques for software

refactoring of software-design issues. The course in-

structor introduces the refactoring techniques based

on the textbook (Suryanarayana et al., 2014). For

mediating practical skills for applying the techniques,

she seeks for appropriate training environments (see,

e.g., Section 5.1). In particular, for creating the train-

ing path, it is required that the complexity levels of

the activities should build on each other and ﬁnally

lead the students to the aimed learning objectives. For

this purpose, the actual competences possessed by the

students as well as the prerequisite and target compe-

tences of the training activities need to be identiﬁed.

Software Project. Also imagine a software project

confronted with technical debt (see Section 2.1).

Since the debt impedes the delivery of new features, it

is planned to repay it by software refactoring. Among

other challenges such as managing the allocation of

resources such as time and people for the refactoring

activities, the project manager has to investigate be-

forehand the organizational capabilities for perform-

ing the activities. That also includes considering the

appropriateness of the skills provided by the soft-

ware developers to efﬁciently apply the correspond-

ing refactoring techniques as well as the selection and

use of tool support. For this purpose, at ﬁrst, the com-

petences required for repaying the debt have to be

assessed and compared with the actual competences

possessed by the development team. From this delta

the need for implementing training activities can be

derived. Based on this, the prerequisite and target

competences have to be identiﬁed to ﬁnd a training

environment that can optimally support in acquiring

the aimed competences.

3.2 Conceptual Overview

In the following, we abstract from these scenarios by

describing the underlying concepts related to the tri-

angle of training/assessment, competences and soft-

ware refactoring as described in the scenarios.

Prerequisite

Competence

Actual

Competence

Target

Competence

Learner /

Engineer

Apply

Cognitive Level

Remember

Understand

Create

Evaluate

Analyze

Investigation

Code

Modiﬁcation

Refactoring

Activity

Knowledge

Category

Factual

Knowledge

Conceptual

Knowledge

Procedural

Knowledge

Meta-Cognitive

Knowledge

Competence

Training

Environment

Tutoring

System

Serious

Game

Refactoring

Candidate

Training

Activity

Task

Bad Smell

Technical

Debt

Activity

Assessment

removes

identi

measures

performs

based on

provides

demonstrates

0..1

relates to

Figure 1: Concept map (domain ontology) with concepts

relevant for assessing and training competences in software

refactoring; the map extends an excerpt from an existing

ontology (Haendler and Neumann, 2019a).

A Framework for the Assessment and Training of Software Refactoring Competences

309

The concept model depicted in Fig. 1 gives a short

overview of these basic concepts in terms of a UML

class diagram (Object Management Group, 2017). It

builds on the ontology developed in (Haendler and

Neumann, 2019a) by extending a relevant excerpt.

Basically, every Competence (see Fig. 1) can be clas-

siﬁed by the dimensions of Knowledge Category

(i.e. four categories) and Cognitive Level (i.e.

six hierarchical levels) (Krathwohl, 2002); for de-

tails, see Section 4. A Competence can express

in terms of an Actual Competence possessed, ac-

quired or improved by a Software Engineer. More-

over, a Prerequisite Competence is required for

performing a certain Activity (optionally based

on a given Task). A Target Competence can

describe a learning objective; also see (Paquette,

2007). In turn, an Activity can demonstrate the

mastery of an Actual Competence and can man-

ifest as Training Activity optionally supported

by a Training Environment (e.g., a Tutoring

System or a Serious Game; for details, see Sec-

tion 5.1) or as Refactoring Activity, e.g., as

Investigation (e.g., for identifying or assessing

Refactoring Candidates, such as Bad Smells) or

as Code Modification (refactoring step) for remov-

ing the candidates; also see (Kitchenham et al., 1999;

Avgeriou et al., 2016). The sum of Bad Smells (debt

items) constitutes a software system’s Technical

Debt (Kruchten et al., 2012).

4 REFACTORING

COMPETENCES

In this section, we specify competence levels for soft-

ware refactoring by applying Bloom’s revised taxon-

omy for educational objectives (Krathwohl, 2002).

4.1 Bloom’s Taxonomy

Bloom’s taxonomy for cognitive educational objec-

tives (Bloom et al., 1956) represents a very popular

framework for classifying and specifying objectives

for learning and training in terms of task statements

(also see Section 2.2). In the original taxonomy, these

competence deﬁnitions are structured into six cate-

gories in terms of a hierarchy with sequencing levels

(from simple/concrete to complex/abstract). In order

to overcome limitations regarding the differentiabil-

ity of knowledge applied for each level, a revised and

extended version of the taxonomy has been proposed

(Krathwohl, 2002) that includes a second dimension

for specifying the types of knowledge, orthogonal to

the cognitive levels. By correlating the cognitive-

process dimension to the knowledge dimension in a

a two-dimensional matrix, the competences can be

speciﬁed in a more precise way via. This revised

version is especially popular in the ﬁelds of informa-

tion systems and software engineering (cf. (Britto and

Usman, 2015)) and will be used for our framework.

In the following, the structure of the four categories

of the knowledge dimension and the six levels of the

cognitive-process dimension of the revised taxonomy

(Krathwohl, 2002) is shortly described.

Four Knowledge Categories.

• Factual Knowledge represents the basic elements

a student must know to be acquainted with a dis-

cipline or solve problems in it.

• Conceptual Knowledge represents the interrela-

tionships among the basic elements within a larger

structure that enable them to function together.

• Procedural Knowledge represents the how-to-do

something in terms of methods of inquiry and cri-

teria for using skills, algorithms, techniques, and

methods.

• Meta-Cognitive Knowledge represents the knowl-

edge of cognition in general as well as awareness

and knowledge of one’s own cognition.

Six Levels of Cognitive Processes.

• Remember represents the ability of retrieving rel-

evant knowledge from long-term memory.

• Understand represents the ability of determining

the meaning of instructional messages, including

oral, written, and graphic communication.

• Apply represents the ability of carrying out or us-

ing a procedure in a given situation.

• Analyze represents the ability of breaking mate-

rial into its constituent parts and detecting how the

parts relate to one another and to an overall struc-

ture or purpose.

• Evaluate represents the ability of making judg-

ments based on criteria and standards.

• Create represents the ability of putting together to

form a novel, coherent whole or make an original

product.

4.2 Knowledge and Cognitive Processes

in Software Refactoring

In the following, we investigate how the knowledge

and cognitive-process dimensions of Bloom’s revised

taxonomy (see Section 4.1) can be applied to software

refactoring. For this purpose, we take into account

key activities of the refactoring process. Oriented

KMIS 2019 - 11th International Conference on Knowledge Management and Information Systems

310

Table 1: Categories of the knowledge dimension of Bloom’s revised taxonomy (Krathwohl, 2002) applied to key activities in

software refactoring (A and B).

Knowledge Cate-

gory

Knowledge related to identifying and assessing refactoring can-

didates (A)

Knowledge related to planning and performing refactoring steps

(B)

(I) Factual Basic elements and terminology, such as:

• bad smells, smell symptoms, code and design metrics, the

metaphor of technical debt (TD) etc.

Basic elements and terminology, such as:

• code modiﬁcation, preventive maintenance, regression test-

ing, red–green–refactor, repaying technical debt etc.

(II) Conceptual Conceptual structure of and relationships between the basic ele-

ments and terms of (I), such as:

• the combination of symptoms to identify candidates (smells;

on a conceptual level).

• the classiﬁcation of refactoring candidates (bad smells) in

terms of types and categories (e.g., software design smells

(Suryanarayana et al., 2014) such as according to design

principles of ABSTRACTION or MODULARIZATION).

Conceptual structure of and relationships between the basic ele-

ments and terms of (I), such as:

• the options and combinations of code-modiﬁcation tech-

niques to realize a refactoring technique (conceptually).

• the classiﬁcation of refactoring techniques in terms of types

and categories (Fowler et al., 1999), such as moving code

elements (e.g., MOVEMETHOD, EXTRACTCLASS) or simpli-

fying interfaces (e.g., ADDPARAMETER, RENAMEMETHOD).

(III) Procedural Procedural aspects, such as:

• the techniques, algorithms and metrics of applying factual

and conceptual aspects (I and II) practically for identifying

refactoring candidates (bad smells).

• the handling of tool support (e.g., for automated smell de-

tection (Tsantalis et al., 2008), design critique (CoderGears,

2018) and/or technical-debt analysis (Campbell and Papa-

petrou, 2013)).

Procedural aspects, such as:

• the techniques and algorithms of applying factual and con-

ceptual aspects (I and II) practically for performing options

and sequences of refactoring steps (i.e. code modiﬁca-

tions).

• the handling of tool support (e.g., for automatically perform-

ing refactoring steps, for automated regression testing).

(IV) Metacognitive Strategies, contextual aspects and self-knowledge, such as:

• the strategies for identifying and assessing refactoring can-

didates; e.g., for discarding false positives (Fontana et al.,

2016).

• contextual aspects of identifying and assessing refactoring

candidates such as the availability of resources (e.g., time,

costs), the project schedule and other activities.

• the awareness of one’s own capabilities and limitations in

identifying refactoring candidates (self-knowledge), e.g., re-

garding the smells covered.

• the awareness of the capabilities and limitations of software

tools (e.g., smell coverage, availability for progr. languages,

false positives; see above).

Strategies, contextual aspects and self-knowledge, such as:

• the strategies for performing refactoring, e.g., based on

paradigms and criteria for deciding how and when to refac-

tor, see e.g. (Ribeiro et al., 2016).

• contextual aspects of performing refactorings such as the

availability of resources (e.g., time, costs), the project

schedule and activities.

• the awareness of one’s own capabilities and limitations in

performing refactorings (self-knowledge), e.g., regarding

the availability of refactoring options.

• the awareness of the capabilities and limitations of software

tools (e.g., techniques covered, availability for progr. lan-

guages).

to existing process models (Lepp

anen et al., 2015;

Haendler and Frysak, 2018)), we subdivide the refac-

toring process into the following two basic activities

(also see Sections 2.1 and 3.2):

(A) identifying and assessing refactoring candi-

dates/opportunities, and

(B) planning and performing refactoring steps.

Knowledge Categories in Refactoring. The

knowledge categories describe an increasing com-

plexity from factual knowledge (e.g., about basic

elements/terms in software refactoring), via concep-

tual knowledge (including conceptual combinations

between these elements), procedural knowledge

(on how to perform the candidate-identiﬁcation and

refactoring techniques) ﬁnally to meta-cognitive

knowledge (consisting of reﬂexive aspects about

strategies, contextual aspects and knowledge about

one’s own capabilities and limitations with regard to

refactoring activities). Table 1 reports the knowledge

categories according to Section 4.1.

Cognitive-process Levels in Refactoring. Each

knowledge category (see above) can be cognitively

processed on six different levels (see Table 2) by the

software developer or learner respectively; from re-

membering knowledge that has been previously con-

sumed, via applying it in a concrete refactoring sit-

uation and more advanced cognitive levels such as

the analysis and evaluation, to ﬁnally creating novel

products. The combination of these two dimensions

forms a two-dimensional matrix that allows for pre-

cisely specifying competence levels. For instance, a

learner demonstrating that she can analyze and dif-

ferentiate existing options for code modiﬁcations in

order to realize a certain refactoring technique can

A Framework for the Assessment and Training of Software Refactoring Competences

311

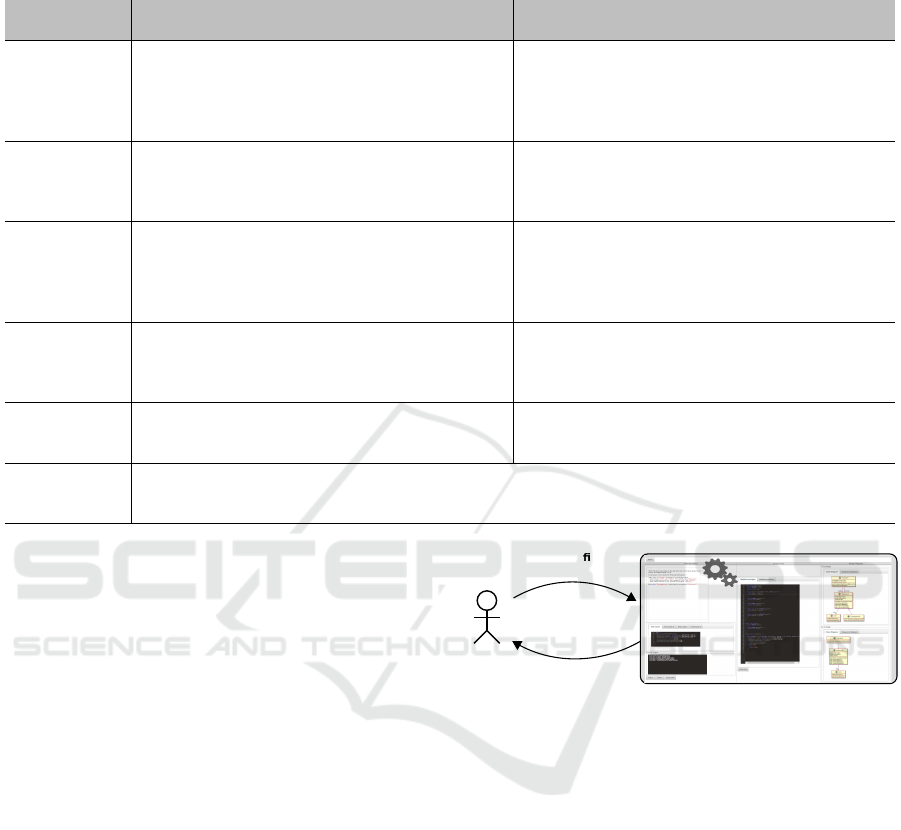

Table 2: Levels of cognitive processes of Bloom’s revised taxonomy (Bloom et al., 1956; Krathwohl, 2002) applied to key

activities in software refactoring (A and B); this table extends (Haendler and Neumann, 2019b).

Process Level Cognitive Processes related to identifying and assessing refac-

toring candidates (A)

Cognitive Processes related to planning and performing refactor-

ing steps (B)

(1) Remember Remembering the knowledge for identifying and assessing refac-

toring candidates. In a refactoring context, remembering can be

important in terms of recognizing a bad smell based on given

terms of symptoms or recalling the symptoms for certain types of

refactoring candidates.

Remembering the knowledge on planning and performing refac-

toring (steps) is important in terms of recognizing a set of given

modiﬁcations as refactoring or as recalling the rules for applying

a refactoring technique.

(2) Understand Understanding the knowledge for identifying and assessing

refactoring candidates can manifest in explaining the rules/symp-

toms for identifying certain smells or in describing examples of

smell types.

Understanding the knowledge for planning and performing refac-

toring steps can be demonstrated by interpreting or explaining

techniques or algorithms for refactoring.

(3) Apply Applying the knowledge for identifying and assessing refactoring

candidates can express as concretely executing the rules for can-

didate identiﬁcation in a (smaller) code base (procedural knowl-

edge) or by applying strategies to discard false-positives (meta-

cognitive knowledge).

Applying the knowledge for planning and performing refactor-

ing steps can be, for example, demonstrated by executing the

code modiﬁcations for a certain refactoring technique (procedural

knowledge) or by applying strategies for prioritizing refactorings.

(4) Analyze Analysis in the context of candidate identiﬁcation/assessment

can be expressed by investigating the system’s source code and

design as well as the candidate’s structural and behavioral de-

pendencies.

For performing the refactoring steps, analysis can also be

demonstrated by checking the structural and behavioral depen-

dencies of the code fragment to be modiﬁed.

(5) Evaluate Evaluating the knowledge on identifying refactoring candidates

can be expressed by comparing and prioritizing refactoring can-

didates (according to meta-cognitive aspects).

In performing refactoring, the evaluation level is, for example,

demonstrated by comparing and selecting options/paths ad-

dressing certain candidates.

(6) Create The ability of creating a novel, coherent whole can be demonstrated by developing and/or improving tools for assisting in

smell detection and refactoring, or designing and/or revising (company’s) strategies for refactoring or managing technical

debt.

be assigned the competence to analyze (cognitive-

process level 4) conceptual knowledge (knowledge

category II) for performing refactoring (activity B).

5 CASE STUDY

In order to demonstrate the applicability of the frame-

work, we use it to evaluate two exemplary training

environments for software refactoring.

5.1 Training Environments

For the case study, we focus on two training environ-

ments, i.e. a tutoring system (Haendler et al., 2019)

(as an example for instructional learning) and a seri-

ous game (Haendler and Neumann, 2019b) (as an ex-

ample for an educational game). Both environments

are implemented as browser-based development envi-

ronments where the software artifacts (source code)

can be modiﬁed by a client without the need of in-

stalling any additional software locally. The goal of

both environments is to address active learning for

accomplishing and improving practical competences

(elaborated in detail in Section 5.2).

Tutoring System. In (Haendler et al., 2019), we in-

troduced an interactive tutoring system for software

User

code modi cation

(refactoring step)

feedback on

code quality and software behavior

(e.g., as-is vs. to-be design and test result)

refacTutor

Figure 2: Exercise interaction supported by the REFACTU-

TOR tutoring system; for details, see (Haendler et al., 2019).

refactoring (called REFACTUTOR). It provides im-

mediate feedback to the users regarding the func-

tional correctness and the software-design quality of

the (modiﬁed) source code. For this purpose, the re-

sults of run-time regression tests as well as reverse-

engineered diagrams (reﬂecting the as-is design) of

the Uniﬁed Modeling Language (UML) (Object Man-

agement Group, 2017) are presented to the user and

can be compared with the intended (to-be) design

(also in UML) pre-speciﬁed by the instructor (see Fig.

2). In (Haendler et al., 2019), two exemplary exercise

scenarios are described, i.e. test-driven development

and design refactoring. For the following analysis, we

focus on the design-refactoring exercise, for which a

source-code fragment with design smells is given to

the user; in addition, run-time tests ensure the correct

behavior. The user’s task is then to remove the design

issues by restructuring the source code oriented to the

KMIS 2019 - 11th International Conference on Knowledge Management and Information Systems

312

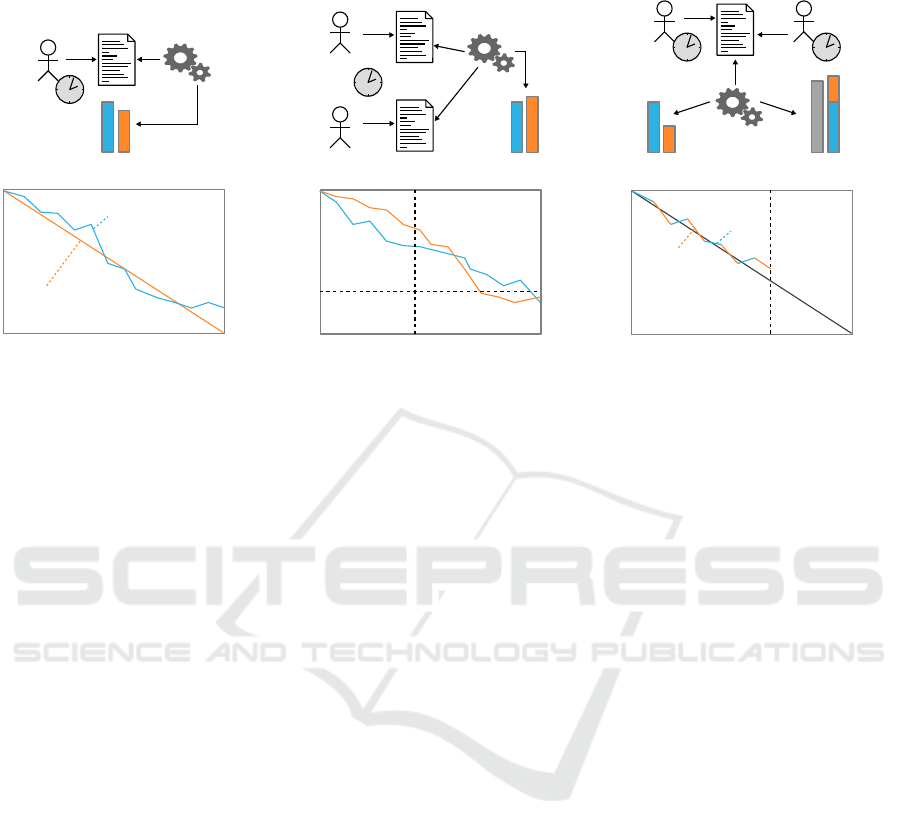

Single-Player Mode Parallel Multi-Player Mode Alternating Multi-Player Mode

time

score

time time

score score

(a) (b) (c)

Scores

Scores S

P1+P2

actual player

time/score S

tool-generated

estimated time S

given end time

given

score

threshold

Figure 3: Exemplary refactoring game modes with game constellations (top) and corresponding leader-boards with score

progression (bottom); for details, see (Haendler and Neumann, 2019b).

to-be design, while preserving the behavior (i.e. tests

ﬁnally have to pass). For further details and exem-

plary exercises, please see (Haendler et al., 2019).

Serious Game. In (Haendler and Neumann,

2019b), we investigated serious games and proposed

a game for software refactoring. After each game

move (that includes a modiﬁcation of the source

code), immediate feedback on the functional cor-

rectness (via integrated run-time tests) and on the

technical-debt score is reported to the user. For this

purpose, quality analyzers (QA) such as (Campbell

and Papapetrou, 2013) or (CoderGears, 2018) for

measuring the technical-debt score (calculated in

person hours required to repay the debt via refac-

toring) are integrated. From this basic move cycle

multiple game modes can be derived, of which three

exemplary are depicted in Fig. 3. For our analysis,

we focus on the single-player game mode; see (a)

in Fig. 3. As already elaborated in (Haendler and

Neumann, 2019b; Haendler and Neumann, 2019a),

the addressed competences depend a lot on the

provided decision support. For this case study, only

the test result and the debt score are provided to the

user. For further details on the game, please see

(Haendler and Neumann, 2019b).

5.2 Allocation of Competences

In the following, the competence levels in terms of the

addressed knowledge and cognitive-process dimen-

sions speciﬁed in Section 4.2 are allocated to selected

training activities supported by the two environments

(see above, Section 5.1). We distinguish between pre-

requisite (necessary to perform the activities) and tar-

get competences (a.k.a. learning objectives; see (Pa-

quette, 2007) and Fig. 1). In particular, the addressed

competences are allocated within a two-dimensional

matrix (see Fig. 4) correlating the knowledge cate-

gories (I–IV) and cognitive-process levels (1–6) for

the two basic refactoring activities (A and B; see Sec-

tion 4.2).

Competences Addressed by the Tutoring System.

Performing the design-refactoring exercise provided

by REFACTUTOR (Haendler et al., 2019) requires

conceptual knowledge on different cognitive levels

and aims at mediating procedural and practical com-

petences for performing refactoring (see

 and cells

colored yellow in Fig. 4).

In particular, the exercise requires the following

prerequisite competences (see PC

Tutor

in Fig. 4): the

learner should already be able to remember, under-

stand and apply (levels 2, 3, and 4) techniques for

refactoring (activity B) on a conceptual level (cate-

gory II), also including at least (conceptual) hypothe-

ses on options and combinations of code modiﬁca-

tions to realize a refactoring technique. In turn, the

training exercise aims at mediating the following tar-

get competences (see TC

Tutor

in Fig. 4): By practi-

cally refactoring the source code for improving the

underlying software design, the learners demonstrate

the ability to practically select refactoring options and

apply algorithms for performing refactoring steps for

A Framework for the Assessment and Training of Software Refactoring Competences

313

(I) Factual

(II) Conceptual

(III) Procedural

(IV) Metacognitive

(I) Factual

(II) Conceptual

(III) Procedural

(IV) Metacognitive

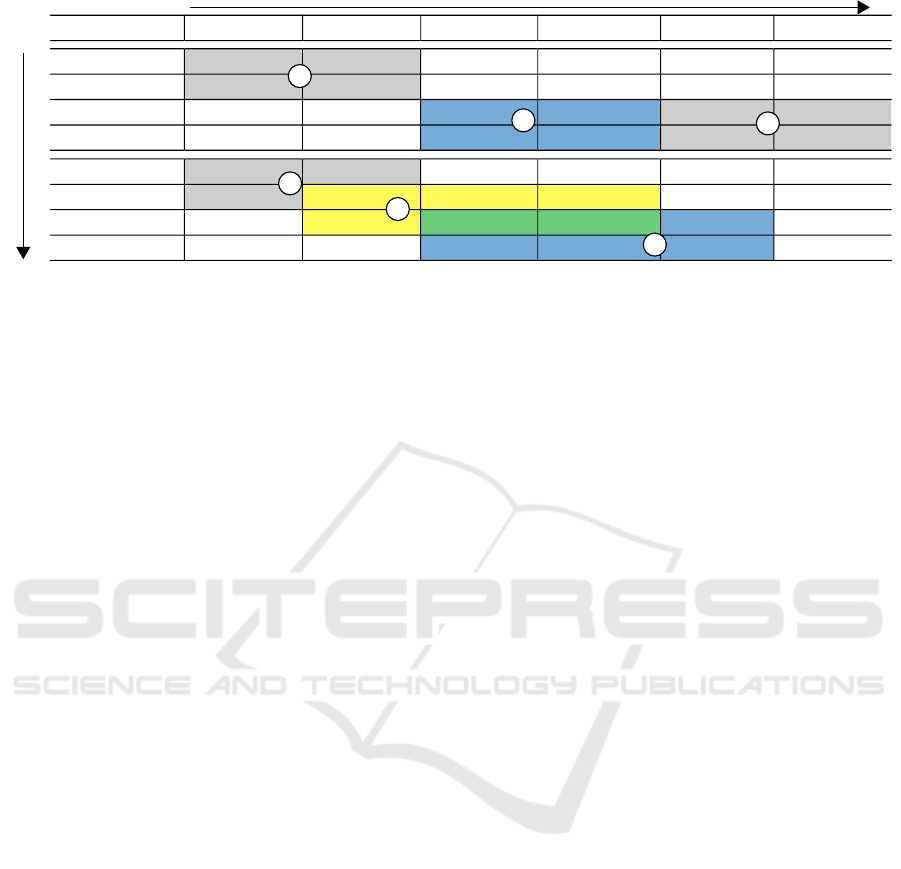

(1) Remember (2) Understand (3) Apply (4) Analyze (5) Evaluate (6) Create

Cognitive Process Dimension

Activity B

Knowledge Dimension

Activity A

Game

Tutor

,PC

Game

Tutor

,PC

Game

Figure 4: Prerequisite (PC) and target competences (TC) of selected training exercises in a tutoring system (Tutor) (Haendler

et al., 2019) and a serious game (Game) (Haendler and Neumann, 2019b) allocated to knowledge categories (I–IV; vertical)

and cognitive-process levels (1–6; horizontal) of Bloom’s revised taxonomy for educational objectives (Krathwohl, 2002)

applied to identiﬁcation and assessment of candidates (activity A; top rows) as well as to planning and performing refactoring

techniques (activity B; bottom rows).

removing a given bad smell. This represents un-

derstanding, applying and analyzing of procedural

knowledge for performing refactoring steps (i.e. cate-

gory III, levels 2, 3 and 4, and activity B).

Competences Addressed by the Serious Game.

Performing the single-player game mode in (Haendler

and Neumann, 2019b) based on the test result and the

technical-debt score as decision support only, already

requires procedural knowledge both for identifying

refactoring candidates (see

 in Fig. 4) and for per-

forming the refactoring steps (see

).

In particular, as prerequisite competences the

practical and analytic procession (i.e. levels 3 and

4) of procedural knowledge (III) for identifying and

refactoring smells are needed (activities A and B; see

cells colored blue in Fig. 4). In addition, the eval-

uation of procedures to plan/perform refactorings is

required, i.e. not only the knowledge on refactoring

options, but also on algorithms to realize them (activ-

ity B, level 5, category III). In turn, the game mode

focuses on mediating target competences in terms of

meta-cognitive knowledge (category IV) for identify-

ing candidates and planning/performing refactorings

(activities A and B). This includes the application

and analysis of strategies for selecting candidates for

refactoring (levels 3 and 4). Moreover, by competing

against the debt score, it also fosters the comparison

and critical reﬂection (i.e. evaluate, level 5) of options

and strategies for refactoring.

5.3 Exemplary Training Path

The case study has shown that the selected activ-

ities of the two training environments cover cer-

tain distinguishable competence levels. In particu-

lar, the design-refactoring exercise in the tutoring sys-

tem mainly addresses refactoring activities and al-

ready requires conceptual knowledge for performing

refactoring (see

 in Fig. 4). The serious game, in

turn, demands procedural knowledge on the practical

and analytic level, by which it represents a very ad-

vanced training environment (see

 and

 in Fig.

4). Given that developers already possess conceptual

knowledge in performing refactoring techniques (in

terms of understanding the concepts), a (short) train-

ing path can be described by combining training ac-

tivities by the tutoring system and the serious game.

However, nevertheless some competence levels

are not addressed by the activities, for which other

training activities could be applied. For example, for

training (and assessing) the remembering and under-

standing of knowledge in the lower categories (of fac-

tual and conceptual knowledge; i.e. levels 1 and 2

and categories I and II), (gamiﬁed) quizzes (e.g., with

multiple-choice questions) could be applied (see



and

 in Fig. 4). Moreover, after playing the seri-

ous game and in order to address the highest cognitive

levels, simulations in terms of project-based learning

(capstone project (Bastarrica et al., 2017)) could, for

example, be used to plan and develop a tool for the

automated smell detection. This activity focuses on

the creation of a novel product, but also includes the

analysis and evaluation of detection criteria and met-

rics (i.e. categories III and IV and levels 4, 5 and 6 of

activity A; see

 in Fig. 4).

6 DISCUSSION

The aim of the proposed framework was to struc-

ture and systematize competences for software refac-

toring in order to support assessment and training.

KMIS 2019 - 11th International Conference on Knowledge Management and Information Systems

314

To demonstrate the applicability of the framework,

we evaluated exemplary training activities of two se-

lected environments by allocating the corresponding

prerequisite and target competences.

6.1 Limitations

For our framework, we have focused on knowledge

and cognitive-process dimensions only (Krathwohl,

2002). In addition, other perspectives on competences

can be applied. For example, Bloom’s taxonomy also

deﬁnes psychomotor and affective dimensions. More-

over, technical skills in other areas of software en-

gineering (such as regarding the usage of UML dia-

grams; see Section 5) or soft skills (Sedelmaier and

Landes, 2014) (e.g., problem-solving, communica-

tion) are important for performing refactoring in soft-

ware projects. In addition, the developer’s attitude

(e.g., motivation) can have a major impact on the out-

comes, which also can be addressed by (educational)

games (Hamari et al., 2014).

6.2 Further Potential

As described in Section 5.3, the competence frame-

work also has the potential to help with the planning

and evaluation of training paths. Based on the knowl-

edge about the actual competences possessed by the

learners and the learning objectives (target compe-

tences), a training path of multiple activities can be

designed that aims at guiding a learner from basic (i.e.

simple/concrete) to proﬁcient (i.e. complex/abstract)

competences. This way, university courses for novice

developers (starting with low-level competences and

possibly with a stronger focus on conceptual aspects)

as well as training-on-the-job for experienced soft-

ware developers (starting with application-level com-

petences, possibly with a stronger focus on procedural

and meta-cognitive aspects) can be designed. In ad-

dition to analyzing training environments, the frame-

work could be used for assessing the actual compe-

tences of software engineers. By comparing these

with competences required for performing refactor-

ing activities, the need and requirements for training

environments could be identiﬁed. From a software-

project context it is also interesting to further investi-

gate the return-on-investment of training activities (by

comparing costs and beneﬁts).

7 CONCLUSION

In this paper, we have introduced a framework for

the assessment and training of competences in the

ﬁeld of software refactoring. In particular, the frame-

work provides a speciﬁcation of competence levels

according to Bloom’s revised taxonomy for educa-

tional objectives along the dimensions of knowledge

categories and cognitive-process levels. Using the

framework, prerequisite and target competence lev-

els of training environments can be speciﬁed, which

has been illustrated via a case study with two selected

training environments (i.e. a tutoring system and a se-

rious game). In this course, it has also been shown

that the allocation of competence levels can support

in reasoning about the design of training paths for

software refactoring. In addition, we believe that the

framework also has the potential to be used for other

purposes such as for assessing the actual competences

possessed by software developers.

For future work, we plan to apply the frame-

work to evaluate via a user study (including a sur-

vey) whether and to what extent our training environ-

ments (Haendler et al., 2019; Haendler and Neumann,

2019b) can actually contribute to accomplishing and

improving competences in software refactoring.

REFERENCES

Alavi, M. and Leidner, D. E. (2001). Knowledge manage-

ment and knowledge management systems: Concep-

tual foundations and research issues. MIS quarterly,

pages 107–136.

Avgeriou, P., Kruchten, P., Ozkaya, I., and Seaman, C.

(2016). Managing technical debt in software engineer-

ing (dagstuhl seminar 16162). In Dagstuhl Reports,

volume 6. Schloss Dagstuhl-Leibniz-Zentrum fuer In-

formatik.

Bastarrica, M. C., Perovich, D., and Samary, M. M. (2017).

What can students get from a software engineering

capstone course? In 2017 IEEE/ACM 39th Interna-

tional Conference on Software Engineering: Software

Engineering Education and Training Track (ICSE-

SEET), pages 137–145. IEEE.

Bloom, B. S. et al. (1956). Taxonomy of educational objec-

tives. vol. 1: Cognitive domain. New York: McKay,

pages 20–24.

Bork, D. (2019). A framework for teaching conceptual

modeling and metamodeling based on Bloom’s re-

vised taxonomy of educational objectives. In Proceed-

ings of the 52nd Hawaii International Conference on

System Sciences, pages 7701–7710.

Britto, R. and Usman, M. (2015). Bloom’s taxonomy in

software engineering education: A systematic map-

ping study. In Frontiers in Education Conference

(FIE), 2015 IEEE, pages 1–8. IEEE.

Campbell, G. and Papapetrou, P. P. (2013). SonarQube in

action. Manning Publications Co.

CoderGears (2018). JArchitect. http://www.jarchitect.com/

[July 31, 2019].

A Framework for the Assessment and Training of Software Refactoring Competences

315

Dreyfus, S. E. and Dreyfus, H. L. (1980). A ﬁve-stage

model of the mental activities involved in directed

skill acquisition. Technical report, California Univ

Berkeley Operations Research Center.

Elezi, L., Sali, S., Demeyer, S., Murgia, A., and P

erez, J.

(2016). A game of refactoring: Studying the impact

of gamiﬁcation in software refactoring. In WS Proc.

of XP2016, pages 23:1–23:6. ACM.

Erlikh, L. (2000). Leveraging legacy system dollars for e-

business. It Professional, 2:17–23.

Fernandes, E., Oliveira, J., Vale, G., Paiva, T., and

Figueiredo, E. (2016). A review-based comparative

study of bad smell detection tools. In Proc. of the 20th

International Conference on Evaluation and Assess-

ment in Software Engineering (EASE), pages 18:1–

18:12. ACM.

Fontana, F. A., Dietrich, J., Walter, B., Yamashita, A., and

Zanoni, M. (2016). Antipattern and code smell false

positives: Preliminary conceptualization and classiﬁ-

cation. In Software Analysis, Evolution, and Reengi-

neering (SANER), 2016 IEEE 23rd International Con-

ference on, volume 1, pages 609–613. IEEE.

Fowler, M., Beck, K., Brant, J., Opdyke, W., and Roberts,

D. (1999). Refactoring: improving the design of exist-

ing code. Addison-Wesley Professional.

Haendler, T. and Frysak, J. (2018). Deconstructing

the refactoring process from a problem-solving and

decision-making perspective. In Proc. of the 13th In-

ternational Conference on Software Technologies (IC-

SOFT), pages 363–372. SciTePress.

Haendler, T. and Neumann, G. (2019a). Ontology-based

analysis of game designs for software refactoring.

In Proc. of the 11th International Conference on

Computer Supported Education (CSEDU), volume 1,

pages 24–35. SciTePress.

Haendler, T. and Neumann, G. (2019b). Serious refactor-

ing games. In Proc. of the 52nd Hawaii International

Conference on System Sciences (HICSS), pages 7691–

7700.

Haendler, T., Neumann, G., and Smirnov, F. (2019). An in-

teractive tutoring system for training software refac-

toring. In Proc. of the 11th International Confer-

ence on Computer Supported Education (CSEDU),

volume 2, pages 177–188. SciTePress.

Hamari, J., Koivisto, J., and Sarsa, H. (2014). Does gami-

ﬁcation work?–a literature review of empirical studies

on gamiﬁcation. In Proc. of 47th Hawaii International

Conference on System Sciences (HICSS), pages 3025–

3034. IEEE.

Kitchenham, B. A., Travassos, G. H., Von Mayrhauser, A.,

Niessink, F., Schneidewind, N. F., Singer, J., Takada,

S., Vehvilainen, R., and Yang, H. (1999). Towards an

ontology of software maintenance. J. Software Main-

tenance: Research and Practice, 11(6):365–389.

Krathwohl, D. R. (2002). A revision of Bloom’s taxonomy:

An overview. Theory into practice, 41(4):212–218.

Kruchten, P., Nord, R. L., and Ozkaya, I. (2012). Technical

debt: From metaphor to theory and practice. IEEE

software, 29(6):18–21.

Lepp

anen, M., Lahtinen, S., Kuusinen, K., M

akinen, S.,

annist

o, T., Itkonen, J., Yli-Huumo, J., and Lehto-

nen, T. (2015). Decision-making framework for

refactoring. In Proc. of 7th International Workshop

on Managing Technical Debt (MTD), pages 61–68.

IEEE.

opez, C., Alonso, J. M., Marticorena, R., and Maudes,

J. M. (2014). Design of e-activities for the learning

of code refactoring tasks. In Computers in Education

(SIIE), 2014 International Symposium on, pages 35–

40. IEEE.

Moha, N., Gueheneuc, Y.-G., Duchien, L., and Le Meur,

A.-F. (2010). Decor: A method for the speciﬁcation

and detection of code and design smells. IEEE Trans-

actions on Software Engineering, 36(1):20–36.

Murphy-Hill, E., Parnin, C., and Black, A. P. (2012). How

we refactor, and how we know it. IEEE Transactions

on Software Engineering, 38(1):5–18.

Object Management Group (2017). Uniﬁed Mod-

eling Language (UML), Superstructure, Version

2.5.1. https://www.omg.org/spec/UML/2.5.1 [July 31,

2019].

Opdyke, W. F. (1992). Refactoring object-oriented frame-

works. University of Illinois at Urbana-Champaign

Champaign, IL, USA.

Paquette, G. (2007). An ontology and a software framework

for competency modeling and management. Educa-

tional Technology & Society, 10(3):1–21.

Parnas, D. L. (1994). Software aging. In Proc. of 16th Inter-

national Conference on Software Engineering, pages

279–287. IEEE.

Ribeiro, L. F., de Freitas Farias, M. A., Mendonc¸a, M. G.,

and Sp

ınola, R. O. (2016). Decision criteria for the

payment of technical debt in software projects: A sys-

tematic mapping study. In ICEIS (1), pages 572–579.

Rolim, R., Soares, G., D’Antoni, L., Polozov, O., Gul-

wani, S., Gheyi, R., Suzuki, R., and Hartmann, B.

(2017). Learning syntactic program transformations

from examples. In Proceedings of the 39th Inter-

national Conference on Software Engineering, pages

404–415. IEEE Press.

Sandalski, M., Stoyanova-Doycheva, A., Popchev, I., and

Stoyanov, S. (2011). Development of a refactoring

learning environment. Cybernetics and Information

Technologies (CIT), 11(2).

Schach, S. R. (2007). Object-oriented and classical soft-

ware engineering, volume 6. McGraw-Hill New York.

Sedelmaier, Y. and Landes, D. (2014). Software en-

gineering body of skills (SWEBOS). In 2014

IEEE Global Engineering Education Conference

(EDUCON), pages 395–401. IEEE.

Smith, S., Stoecklin, S., and Serino, C. (2006). An in-

novative approach to teaching refactoring. In ACM

SIGCSE Bulletin, volume 38, pages 349–353. ACM.

Suryanarayana, G., Samarthyam, G., and Sharma, T.

(2014). Refactoring for software design smells: Man-

aging technical debt. Morgan Kaufmann.

Tempero, E., Gorschek, T., and Angelis, L. (2017). Bar-

riers to refactoring. Communications of the ACM,

60(10):54–61.

Tsantalis, N., Chaikalis, T., and Chatzigeorgiou, A. (2008).

JDeodorant: Identiﬁcation and removal of type-

checking bad smells. In Proc. of 12th European Con-

ference on Software Maintenance and Reengineering

(CSMR 2008)., pages 329–331. IEEE.

KMIS 2019 - 11th International Conference on Knowledge Management and Information Systems

316
