Knowledge Management in Healthcare: Information Requirements

When Creating a Decision Support Tool in Radiology

Mary Conlon and Owen Molloy

College of Engineering and Informatics, National University of Ireland, Galway

Keywords: Business Process Modelling, Health Information Systems, Discrete Event Simulation, Workflow, Patient

Complexity, Resource Utilisation, Computed Tomography, Radiology.

Abstract: Introduction: This empirical work examines the information requirements when undertaking a process

modelling project in a Healthcare setting such as a CT (Computed Tomography) department. Using

qualitative and quantitative methods we map the process, incorporating patient, staff and process related

components so as to quantify resource utilisation and the service experienced by the patient. Method: In this

study, semi structured interviews are used to identify patient complexity factors/characteristics. Process

mapping and involvement of stakeholders are discussed as is the identification and analysis of data. A

discrete event simulation (DES) model of the process is designed and performance metrics identified.

Results: Yearly demand for Radiology services are increasing significantly. Factors determining patient

complexity and variation include patient type, infectiousness, mobility, exam type and patient care needs. A

strong correlation between age and infectiousness was observed. Conclusion: DES modelling, though data

intensive, provides decision makers with insights into resource utilisation, process capacity, delays and

disruptions and in doing so supports operations, management and the adoption of good practices in

Healthcare.

1 INTRODUCTION

Radiology departments have adopted many

strategies to continually improve aspects of

radiology workflow. Many departments are

reengineering their workflow to eliminate and

automate steps in the process and to make more

intelligent use of available resources and software.

In healthcare the shift towards evidence-based

management has been supported by the adoption and

adaptation of management methodologies. Included

amongst these philosophies are; Lean Thinking,

Queuing Theory, the Theory of Constraints, Six

Sigma and System Dynamics. (Gahan, 2010) This

empirical research, using discrete event simulation

(DES) as a decision support tool, identifies how

patient variability and the increasing demand for CT

affects resource utilisation, staff workload and the

service provided to patients.

The challenges facing radiology service

provision are many. The number of over 65 year

olds will double between 2011 and 2031 (Central

Statistics Office., 2015). The increasing prevalence

of diabetes and obesity among young people

suggests that future elderly cohorts might even be

less healthy (Lakdawalla et al, 2004; Sturm et al.,

2007). Resources are limited and the demand for

Radiology services is increasing year on year.

Simulation allows offline experimentation and

process redesign as well as the pre-emption of

unintended consequences while minimising

disruptions of the current system. Examples of the

application of modelling and simulation involving

radiology departments are many (Booker et al.,

2016; Jin et al., 2011; Lu, Li & Gisler, 2011;

Rachuba et al., 2018; Reinus et al., 2000; Shukla,

Keast & Ceglarek, 2014). One radiology model

example uses patient characteristics to determine

length of procedure time, these are where the patient

is referred from, appointment time, gender, mobility,

and body area to be studied. (Huang & Marcak,

2013).

Simulation modelling can capture undesirable

behaviours in response to work pressure, such as

staff turnover, erosion of service quality and fatigue,

all examples of unbalanced responses to increases in

workload (Oliva, 2002).

Radiology has been referred to as an “anti-care”

Conlon, M. and Molloy, O.

Knowledge Management in Healthcare: Information Requirements When Creating a Decision Support Tool in Radiology.

DOI: 10.5220/0008352703170324

In Proceedings of the 11th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2019), pages 317-324

ISBN: 978-989-758-382-7

317

area due to the short time periods spent with

patients. Radiographers see care as a wider concept

that encompasses administrative and technical

elements as well as a relational element (Brask &

Birkelund, 2014). While much has been found on

quantifying Radiologist workload (Cowan,

Macdonald & Floyd, 2013; Pitman et al., 2009;

RCSI, 2011) little literature on Radiographer

workload has been discovered. Further research into

the pressures specific to the time-pressured, task-

focussed and highly technical environment of

radiography and the impact on compassionate

patient care has been recommended (Bleiker et al.,

2018).

When high work intensity is sustained over long

periods, time per order and service standards will

gradually decrease leading to high burnout rates.

(Oliva & Sterman, 2001). Using qualitative and

quantitative methods we determined the patient

related factors and characteristics that contribute to

delays and modelled the patient journey through CT.

This virtual or digital “twin” of a CT department

allows experimentation with staffing, schedules,

additional scanners and demand levels. Metrics

monitor the effect of these changes on the staff

workload and patient experience as well as resource

utilisation and waiting lists.

This research seeks to quantify the effect of

mixing scheduled and unscheduled patient groups,

on resource utilisation, using DES. Radiology model

examples were not identified in the literature which

simultaneously capture patient complexity and

service received as well as resource utilisation and

radiographer workload. This holistic model has the

potential to support daily operations and longer term

policy making, which includes both the patient and

the staff experience in the department.

2 METHODOLOGY

Ethical approval to conduct the study and access

radiology data was obtained from the hospital Board

of Management. A mixed method approach was

taken with ongoing validation and verification with

stakeholders. The department modelled provides

24/7 acute surgery, acute medicine and critical care

along with emergency department and maternity

services. Following exploratory interviews with

decision makers the following methodology was

used:

1. Workflow mapping of CT process

2. Identification of required patient data

3. Analysis of data

4. DES model building and validation

5. Future simulations design.

Patient arrival, preparation, scanning and

observation were mapped. Expert evaluations were

made following mapping and model completion and

revisions made where necessary. Figure 1 is a

section of the model relating to patient scanning and

staff utilisation. In this section resources, such as the

staff required for manual handling, are seized and

released for the task durations.

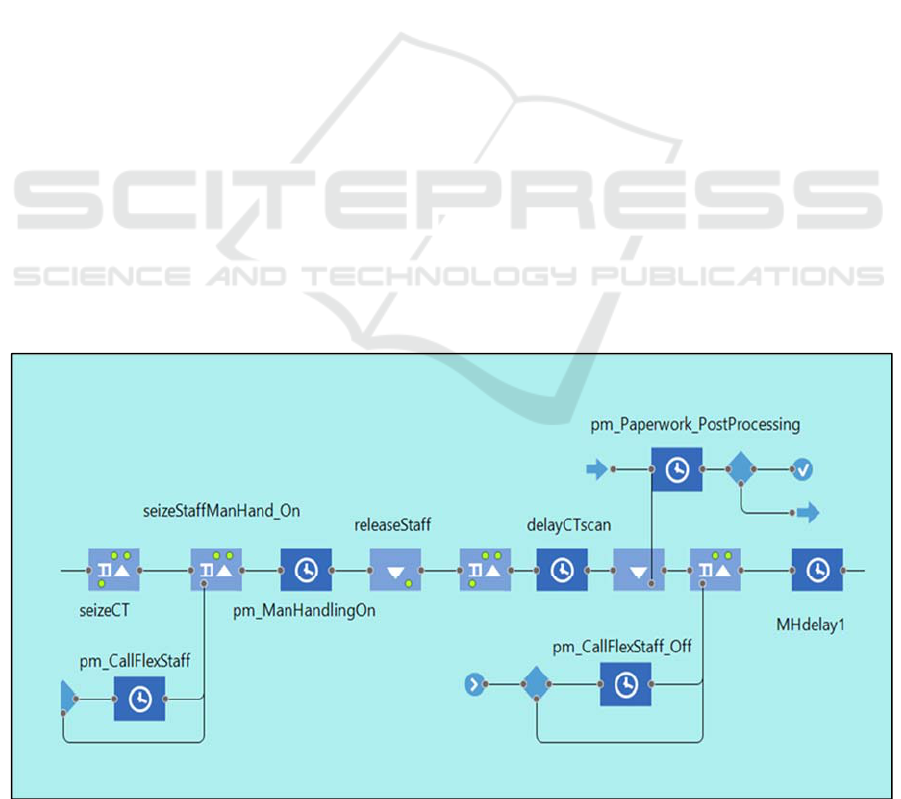

Figure 1: Model section related to patient scanning.

KMIS 2019 - 11th International Conference on Knowledge Management and Information Systems

318

Data pertaining to over 10,000 CT examinations

over a period of 2 years were analysed. Of interest

were examination types, and time stamps for

examinations being ordered, scheduled, arrived,

ended and reported. Patients were categorised as

either scheduled or unscheduled. Scheduled patients

included outpatients and general practitioner patients

and unscheduled patients included emergency

department, medical assessment unit and Inpatients.

Unscheduled patients automatically have a higher

priority and are generally scanned on the same day

as being ordered. Data was analysed to determine

Poisson arrival rates for Inpatient and Outpatient

orders. Outpatient waiting lists for CT scans and

data pertaining to patient time spent in the

department were analysed. Data was analysed in

Microsoft Excel and R Studio (R Core Team, 2013).

Interviews with stakeholders including

radiologists and radiographers were carried out to

determine if the process maps were accurate and to

discuss what factors impact patient throughput and

staff perception of workload. Staff were asked the

following questions suggested by Sterman (2000):

 Can you understand this model and its concept?

 Are the theories underlying the model correct?

 What’s missing from the model that should be

included?

Feedback from the interviews was graphically

collated in Figure 2. The patient related factors were

identified and data obtained for same. Results from

the semi structured interviews grouped the factors

affecting radiology workload into the following

categories.

1. Referring doctor requesting patterns and

expectations,

2. Staff synergy and skill mix,

3. Environmental factors, noise, disruptions,

distance

4. Poor use of Radiology information systems such

as impacting on communications with wards and

porters,

5. Patient characteristic factors.

Table 1 lists patient characteristic factors, their data

type and the data source used. These factors were

incorporated into the model. The software Any logic

was used to create a DES model of the process

(Anylogic Personal Learning Edition 8.4.0, 2019).

The model includes logic, statistics and simulation

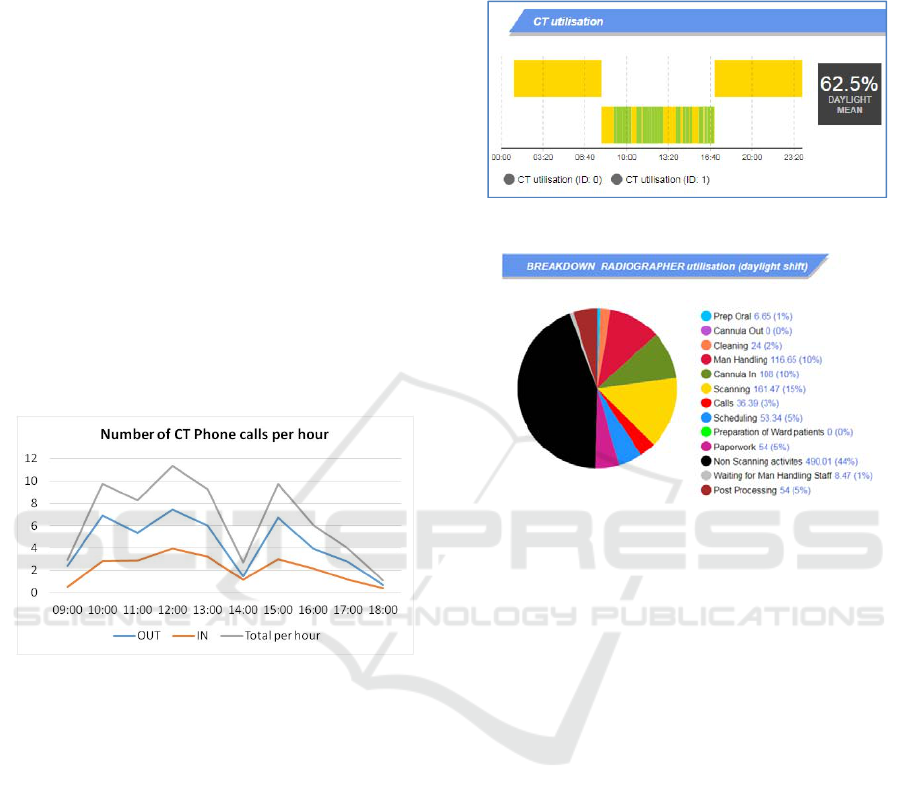

pages. The statistics page consists of a dashboard

including resource utilisation, activity breakdowns

and performance metrics. The simulation page,

provided the user with the facility to change the

following:

 The number of radiographers and HCAs

 The number of scanners

 The arrival rate of patients (demand)

 Patient mix scenario

 Alternative scheduling options

The model was designed to export data to an excel

spreadsheet on execution of the model. Patients were

stochastically generated and CT start and end times

captured. This model was developed for a specific

purpose and its validity determined with respect to

that purpose. (Sargent, 2013)

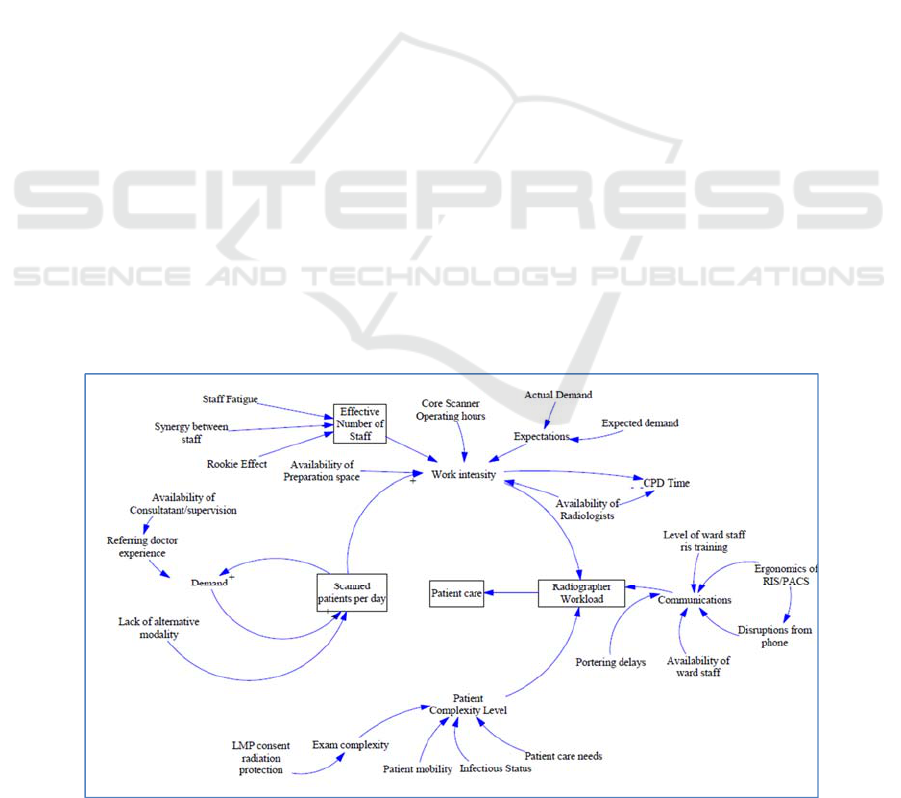

Figure 2: Graphical collaboration of results of stakeholder interviews.

Knowledge Management in Healthcare: Information Requirements When Creating a Decision Support Tool in Radiology

319

A combination of techniques was used to validate

and verify the model’s accuracy. Historical data was

compared to the model data for validation.

Comparison was made between mean length of time

in system and mean errors. Face to face validation

was used for model input parameters and

assumptions. Animation was used to verify patient

and staff flow through the department.

Based on the overall results of the validation and

the endorsement by staff, it was affirmed that the

simulation model adequately represented the

process.

Table 1: Patient complexity factors and data sources.

Patient

Factors

Data Type Data source

Patienttype

Scheduledor

Unscheduled

Radiology

Information

System

Exam

complexity

Defined by whether

contrast intravenous

contrast (IV), oral

contrast, no contrast,

IV and oral or

procedure involving

radiologis

Radiology

Information

System

Infectiousness

status

Absence or presence of

infection alert on

system

Patient

Administration

System

Patient care

needs

Administrative patient

care captured by phone

calls made to schedule

Inpatients. Face to face

patient care times

observed.

Phone records

observation

Patient mobility

Walking, Wheelchair

or trolley/bed.

Online survey

3 RESULT

An analysis of yearly demand showed significant

growth (p=1.05e-12 which equates to 430

examinations per year) for unscheduled exams with

no significant change in the number of scheduled

examinations completed p=0.907. 73% of the work

was found to be generated by unscheduled patients

and the remaining 27% by scheduled patients.

Exam complexity refers to the type of exam,

exam duration and resources required. A breakdown

of all CT exams showed non-contrast (45%), IV

contrast (20%), Oral and IV contrast (25%), Oral

only (3%) and interventional (7%). IV and Oral refer

to the types of contrast used in the scan to provide

additional information to the diagnostic test. Each

type of contrast has different preparation steps and

requiring different resources and durations. When

further broken down into scheduled and unscheduled

64% of unscheduled exams are non-contrast

compared to 33% of scheduled, Figure 3.

Figure 3: Inpatient/Outpatient breakdown by exam type.

Data on patient infectiousness was obtained from

the PAS (patient administration system). Where

patients identified as infectious an “alert” with the

name of the infection appeared in their records.

8.8% of inpatients were documented as infectious

(p-value: 0.965) thus requiring more staff time with

scheduling constraints. Using logistic regression we

conclude that infection rate increases with age

(Figure 4), base infection rate of 1.5% and a ceiling

of 36.6% with p<2e-16. Polynomial regression was

used to determine the relationship between patient

length of stay and likelihood of infection. As length

of stay increases, the likelihood of infection is seen

to increase, p-value: 1.268e-07, Adjusted R-squared:

0.9683.

Figure 4: Age and infectiousness relationship using

logistical regression.

A survey carried out as part of this work,

reported that 26% of inpatients were estimated to

have mobility issues, thus requiring a wheelchair or

trolley/bed. This data was used to populate the DES

model and incorporate time delays for patients with

mobility issues. Additional staff are required to

KMIS 2019 - 11th International Conference on Knowledge Management and Information Systems

320

assist with manual handling (transfer of patient onto

the CT bed). These additional staff are called

flexible staff and the time taken to call these staff

and wait for their arrival as well as the time taken to

carry out manual handling tasks are included in the

model. From observation it was determined that a

minimum of 4 staff are required for the manual

handling transfer of a trolley patient, 2 for a

wheelchair bound patient and 1 staff member is

required to assist where the patient can walk.

Figure 5 graphs the phone traffic data to and

from CT. 33% of calls were made to the CT control

area and 67% of calls were made from the CT

control area. On average CT staff make 2 calls to

arrange preparation and transportation for patients

and 1 call per patient from ward staff and referrers.

Observational data was obtained for the more

traditional face to face patient care that patients

receive while in the CT department. Again inpatients

were seen to require more time and had greater

patient care needs.

Figure 5: Phone activity related to inpatient scheduling.

These general findings demonstrate the ability of the

model to capture the following:Scanner utilisation levels.

 Staff utilisation levels

 Detailed task breakdown

 Number of flexible staff required

 Number of tasks completed per hour

 Average delays caused by patient type

 Average experienced by patient type

In the example provided (Figure 6), scanner

utilisation was 62.5% between 9am to 5pm. 27

patients were scanned. Activities taking place in the

room include patient scanning, room cleaning and

patient preparation.

Similar charts show radiographer utilisation of

54.1% and health care assistant utilisation levels of

37%. Figure 7 provides a breakdown of staff

utilisation by task type for each radiographers and a

health care assistant on the same day. The pie charts

were designed to include all administrative, clinical

and non-clinical tasks associated with scanning.

Radiographer’s staff spent 1 hour 29 minutes

scheduling and answering calls.

Figure 6: Scanner utilisation captured on DES model.

Figure 7: Staff utilisation by task.

The model captured the number of staff (36) that

were required to assist with manual handling and the

combined personnel time taken to do so (126

minutes). The average work perturbation (delays,

disruptions, complications) for scheduled and

unscheduled patients shows that inpatients caused on

average 8 minutes more delays per exam (Figure 8).

This is due to their manual handling needs, phone

calls associated with their scheduling, patient care

needs and transportation delays. The model allows

the delays for each patient to be examined. In this

way delays can be attributed to the patient’s mobility

or other characteristics and the process modified and

staffed accordingly.

4 DISCUSSION

Outpatients are scheduled by administrative staff in

advance of arrival. Using phone records we

demonstrate the extra radiographer resources and

patient care required to schedule an inpatient and

Emergency Room CT examination. The increased

administrative duties associated with unscheduled

patients means that patient type is an important

factor affecting radiology workload.

Knowledge Management in Healthcare: Information Requirements When Creating a Decision Support Tool in Radiology

321

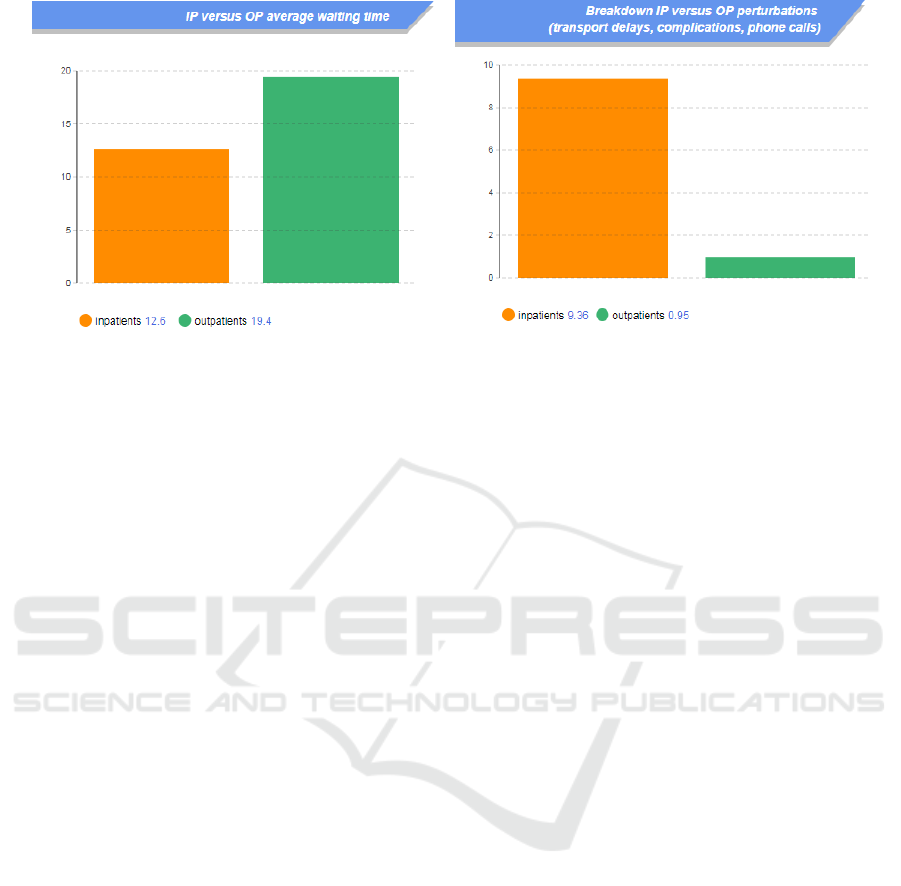

Figure 8: Average waiting times and average causes of delays by patient type.

There were 3 phone calls identified per inpatient

exam completed. The information system, if used as

intended, could potentially reduce this to 1 phone

call or less per exam. An analysis of phone records

indicates a suboptimal use of the information

system. Some ward staff and referring doctors

reported that they do not use the system to track

patient requests and routinely place calls to verify a

request has been received and that a time has been

allocated. Peak arrival times for phone calls coincide

with peak scanning time (Figure 5) so interruptions

while scanning are common and represent a

potential safety hazard as these occur at critical

times such as when injections are being carried out.

(Kansagra, Liu & Yu, 2016)

Infectiousness applies only to inpatient and

emergency patients in this study as the infection

status of outpatients is generally unknown, though

universal precautions are taken for all patients.

When a patient is determined to be infectious extra

time is required to use personal protective equipment

(PPE), isolate patients from healthy patients, and to

allow for cleaning and drying time. A regression

analysis shows a relationship between age and

length of stay on the likelihood of infection. Exams,

on which patient discharge depends, should

therefore be expedited.

Patient immobility is seen to contribute to staff

workload and results in delays. A patient transfer

from trolley to scanner requires up to 6 staff. It takes

time to transfer patients and extra delays occur

where staff members are not immediately available

to assist. Reliance on flexible staff to assist with

manual handling incurs time delays in sourcing them

and the DES model allowed this to be quantified.

The extensive data analysis of the service and

patient characteristics created a new appreciation for

tasks previously underestimated, in particular the

time taken for the scheduling of inpatient exams and

time spent waiting for manual handling assistance

from flexible staff. This model creates metrics not

previously available to managers such as the time

spent scheduling and answering calls (1hr 29 mins).

The model outputs provide decisions makers

with detailed data on how staff are utilised

throughout the day and how work intensity varies

throughout the day. Radiographer’s utilisation was

54.1% and scanner utilisation was 62.5%, on this

day where 27 patients were scanned. Each

radiographer was scanning on average 15% of the

time. Where a decision is required as to whether a

new CT scanner should be purchased, this

information can be used to support such a decision

or to reengineer the current workflow. Separation of

tasks as demonstrated in figure 7 can allow

managers to decide how a radiographer’s time is

spent. Tasks can be identified as value adding or

non-value adding and a lean approach taken (Liker,

2003). Lean manufacturing principles could be used

to improve the flow of patients through CT, resulting

in a reduction in time delays (Ng et al., 2010).

A metric was created for delays and disruptions

which Reinus et al described as “schedule busters”

resulting in workflow perturbations. Inpatients are

seen to have higher work perturbation times than

outpatients (8 minutes versus 1 minute) (2000).

Currently a maximum of ten outpatients are scanned

per day. The high variation in inpatient demand and

associated work perturbations is cited as a reason for

limiting how many are booked. Where outpatient

lists are growing efforts can be made to block book

outpatients thus reducing variability.

The model allows simulation of “what-if”

scenarios such as:

KMIS 2019 - 11th International Conference on Knowledge Management and Information Systems

322

• How block scheduling of similar outpatient

examinations can increase standardisation of

work and improve throughput.

• How pooling of resources between multiple

scanners can improve staff utilisation and

counteract work perturbations

Future work on optimisation of radiographer to

health `care assistant ratios and exam type

scheduling using constraints such as acceptable

patient time delays will be carried out.

5 CONCLUSION

Using qualitative and quantitative methods we

determined the patient characteristics that contribute

to process delays and efficiency while quantifying

the growth in demand for Radiology services. The

use of information garnered from the DES model

described here, allowed a more informed breakdown

of process capacity, which included patient mix and

resulting inherent stochastic delays. As a decision

support tool, it allows manipulation of parameters

such as the number of staff, the patient mix and the

number of scanners. Decision makers can use this

model to experiment with “what if scenarios” and

make evidence based decision in the best interest of

the department.

Patient parameters such as mobility and infection

and patient care are common amongst patients so the

findings can be applied to other allied health

services and in other healthcare simulation projects.

Future work will use discrete event simulation to

model the radiology service and simulate alternative

service delivery models.

Inpatient demand is increasing while the

outpatient service is stagnant. The demand for

inpatients examinations is affecting the ability of

departments to meet the demand for the outpatient

and general practitioner services.

In the short term radiographers and other health

care professionals have the capacity to absorb extra

work without increase staffing levels, but modelling

can allow us to assess workflow and workload, and

staff accordingly so as to avoid unintended

consequences, such as burnout, fatigue, staff attrition

and poor patient care. The key challenges facing

healthcare providers in future years may be more

organisational and logistical than medical and

scientific (Brailsford & Vissers, 2011). The model is

intended to inform how patient complexity,

interruptions, complications and the staff mix

(radiographers and assistants) affect the capacity of a

CT process, so as to provide a detailed overview and

understanding of the process.

DES provides a graphic tool for managers and

models the patient the staff, the process and the

information systems. DES requires high stakeholder

involvement at each step of the way from conceptual

model building to validation and simulation design.

Simulation has been described as the main way we

can discover for ourselves how complex systems

work, what the impact of different policies might be,

and thus integrate science into decision making

(Sterman, 2011).

ACKNOWLEDGEMENTS

The authors would like to acknowledge the insights

and support provided by the Radiology Staff of

Portiuncula Hospital, Ballinasloe, County Galway.

The views expressed are those of the author and not

those of the Health Service Executive. This work

was supported by the National University of Ireland,

Galway Hardiman PhD Scholarship.

REFERENCES

Anylogic Personal Learning Edition 8.4.0. 2019.

Anylogic. Oakbrook Terrace Tower: AnyLogic North

America. Retrieved from https://www.anylogic.com/

Bleiker, J., Knapp, K. M., Morgan-Trimmer, S., &

Hopkins, S. J. 2018. “It’s what’s behind the mask”:

Psychological diversity in compassionate patient care.

Radiography, 24, S28–S32. https://doi.org/

10.1016/J.RADI.2018.06.004

Booker, M. T., O’Connell, R. J., Desai, B., & Duddalwar,

V. A. 2016. Quality Improvement with Discrete Event

Simulation: A Primer for Radiologists. Journal of the

American College of Radiology, 13(4), 417–423.

https://doi.org/10.1016/j.jacr.2015.11.028

Brailsford, S., & Vissers, J. 2011. OR in healthcare: A

European perspective. European Journal of

Operational Research, 212(2), 223–234.

https://doi.org/10.1016/j.ejor.2010.10.026

Brask, K. B., & Birkelund, R. 2014. “patient care in

radiology” - The staff’s perspective. Journal of

Radiology Nursing, 33(1), 23–29.

https://doi.org/10.1016/j.jradnu.2013.12.001

Central Statistics Office. 2015. Regional Population

Projections 2016 - 2031 - CSO - Central Statistics

Office. Retrieved from http://www.cso.ie/en/

releasesandpublications/er/rpp/regionalpopulationproje

ctions2016-2031/

Cowan, I. A., Macdonald, S. L. S., & Floyd, R. A. 2013.

Measuring and managing radiologist workload:

measuring radiologist reporting times using data from

Knowledge Management in Healthcare: Information Requirements When Creating a Decision Support Tool in Radiology

323

a Radiology Information System. Journal of Medical

Imaging and Radiation Oncology, 57(5), 558.

https://doi.org/10.1111/1754-9485.12092

Fung Kon Jin, P. H. P., Dijkgraaf, M. G. W., Alons, C. L.,

Van Kuijk, C., Beenen, L. F. M., Koole, G. M., &

Goslings, J. C. 2011. Improving CT scan capabilities

with a new trauma workflow concept: Simulation of

hospital logistics using different CT scanner scenarios.

European Journal of Radiology, 80(2), 504–509.

https://doi.org/10.1016/j.ejrad.2009.11.026

Gahan, J. 2010. Observational study of the capacity and

demand of plain-film workflow in a radiology

department. Radiography, 16(3), 182–188.

https://doi.org/10.1016/j.radi.2010.01.004

Huang, Y.-L., & Marcak, J. 2013. Radiology scheduling

with consideration of patient characteristics to improve

patient access to care and medical resource utilization.

Health Systems, 2(2), 93–102.

https://doi.org/10.1057/hs.2013.1

Kansagra, A. P., Liu, K., & Yu, J.-P. J. 2016. Disruption

of Radiologist Workflow.

https://doi.org/10.1067/j.cpradiol.2015.05.006

Lakdawalla, D. N., Bhattacharya, J., & Goldman, D. P.

2004. Are The Young Becoming More Disabled?

Health Affairs, 23(1), 168–176. https://doi.org/

10.1377/hlthaff.23.1.168

Liker, J. K. 2003. The 14 Principles of the Toyota Way :

An Executive Summary of the. The 14 Principles of

the Toyota Way : An Executive Summary of The, 35–

41.

Lu, L., Li, J., & Gisler, P. 2011. Improving financial

performance by modeling and analysis of radiology

procedure scheduling at a large community hospital.

Journal of Medical Systems, 35(3), 299–307.

https://doi.org/10.1007/s10916-009-9366-6

Ng, D., Vail, G., Thomas, S., & Schmidt, N. 2010.

Applying the Lean principles of the Toyota Production

System to reduce wait times in the emergency

department. Canadian Journal of Emergency

Medicine. https://doi.org/1623 [pii]

Oliva, R. 2002. Tradeoffs in responses to work pressure in

the service industry. IEEE Engineering Management

Review, 30(1), 53–62. https://doi.org/10.1109/

EMR.2002.1022405

Oliva, R., & Sterman, J. D. 2001. Cutting Corners and

Working Overtime: Quality Erosion in the Service

Industry. Management Science. https://doi.org/

10.1287/mnsc.47.7.894.9807

Pitman, A., Jones, D. N., Stuart, D., Lloydhope, K.,

Mallitt, K., & O’Rourke, P. 2009. The Royal

Australian and New Zealand College of Radiologists

(RANZCR) relative value unit workload model, its

limitations and the evolution to a safety, quality and

performance framework. Journal of Medical Imaging

and Radiation Oncology

, 53(5), 450–458.

https://doi.org/10.1111/j.1754-9485.2009.02094.x

R Core Team 2014. R: A language and environment for

statistical computing. R Foundation for Statistical

Computing, Vienna, Austria. URL http://www.R-

project.org/

Rachuba, S., Knapp, K., Ashton, L., & Pitt, M. 2018.

Streamlining pathways for minor injuries in

emergency departments through radiographer-led

discharge. Operations Research for Health Care, 19,

44–56. https://doi.org/10.1016/j.orhc.2018.03.001

RCSI. 2011. Measuring Consultant Radiologist workload

in Ireland : (March).

Reinus, W. R., Enyan, A, Flanagan, P., Pim, B., Sallee, D.

S., & Segrist, J. 2000. A proposed scheduling model to

improve use of computed tomography facilities.

Journal of Medical Systems, 24(2), 61–76. Retrieved

from http://www.ncbi.nlm.nih.gov/pubmed/10895421

Sargent, R. G. 2013. Verification and validation of

simulation models. Journal of Simulation, 7(1), 12–24.

https://doi.org/10.1057/jos.2012.20

Shukla, N., Keast, J. E., & Ceglarek, D. 2014. Improved

workflow modelling using role activity diagram-based

modelling with application to a radiology service case

study. Computer Methods and Programs in

Biomedicine, 116(3), 274–298.

https://doi.org/10.1016/j.cmpb.2014.05.005

Sterman, J. D. 2000. Business dynamics. System thinking

and modeling for a complex world. McGraw-Hill

Education. Boston: , (January 2000), 982 pp.

https://doi.org/10.1016/S0022-3913(12)00047-9

Sterman, J. D. 2011. Communicating climate change risks

in a skeptical world. Climatic Change, 108(4), 811–

826. https://doi.org/10.1007/s10584-011-0189-3

Sturm, R., Ringel, J., Lakdawalla, D., Bhattacharya, J.,

Goldman, D., Hurd, M., … Andreyeva, T. 2007.

Obesity and Disability: The Shape of Things to Come.

RAND Corporation. https://doi.org/10.7249/RB9043-1

KMIS 2019 - 11th International Conference on Knowledge Management and Information Systems

324
