D7-R4: Software Development Life-Cycle for Intelligent Vision Systems

J. I. Olszewska

School of Computing and Engineering, University of West Scotland, U.K.

Keywords:

Expert Systems, Intelligent Vision Systems, Intelligent Agents, Intelligent Robotics, Autonomous Systems,

Machine Vision, Human-machine Cooperation, Cybernetics, Software Engineering, Software-hardware

Design, Software Development Life-Cycle.

Abstract:

Intelligent Vision Systems (IVS) are omnipresent in our daily life from social media apps to m-health services,

from street surveillance cameras to airport e-gates, from drones to companion robots. Hence, IVS encompass

any software which has a visual input processed by means of algorithm(s) involving Artiﬁcial Intelligence (AI)

methods. The design and development of these IVS softwares has become an increasingly complex task, since

vision-based systems have evolved into (semi-)autonomous AI systems, usually requiring effective and ethical

data processing along with efﬁcient signal processing and real-time hardware/software integration as well as

User Experience (UX) and (cyber)security features. Consequently, IVS system development necessitates an

adapted software development life-cycle (SDLC) addressing these multi-domain needs, whilst being developer

friendly. Hence, we propose in this paper a new SDLC we called D7-R4 which allows developers to produce

quality, new-generation IVS to be deployed in real-time and in real-world, unstructured environments.

1 INTRODUCTION

Intelligent vision systems (IVS) provide information

resulting from the processing of visual inputs such as

still images, online databases, or live video streams

captured by camera(s) (Forsyth and Ponce, 2012).

Nowadays, IVS are present everywhere in our So-

ciety, ranging from autonomous vehicles (Winﬁeld,

2012) to assisted-living devices (Kaaz et al., 2017),

from rescue operations (Olszewska, 2017) to video

surveillance (Bhat and Olszewska, 2014) like illus-

trated in Fig. 1.

Hence, the new-generation of IVS allows systems

to get higher autonomy as well as further levels of au-

tomated reasoning based on visual input and involves

softwares integrating AI-based algorithms and/or Ap-

plication Programming Interfaces (APIs) (Warrier,

2018). Such IVS softwares need to be not only de-

pendable (Meyer, 2006), but also explainable (Samek

et al., 2017) and interoperable (Ciccozzi et al., 2017),

leading to new challenges for software developers

(Olszewska, 2019).

In the past, most of the IVS softwares were de-

veloped as research projects outside the framework

of any particular Software Development Life-Cycle

(SLDC) (Rezazadegan et al., 2017).

More recently, the development of IVS softwares

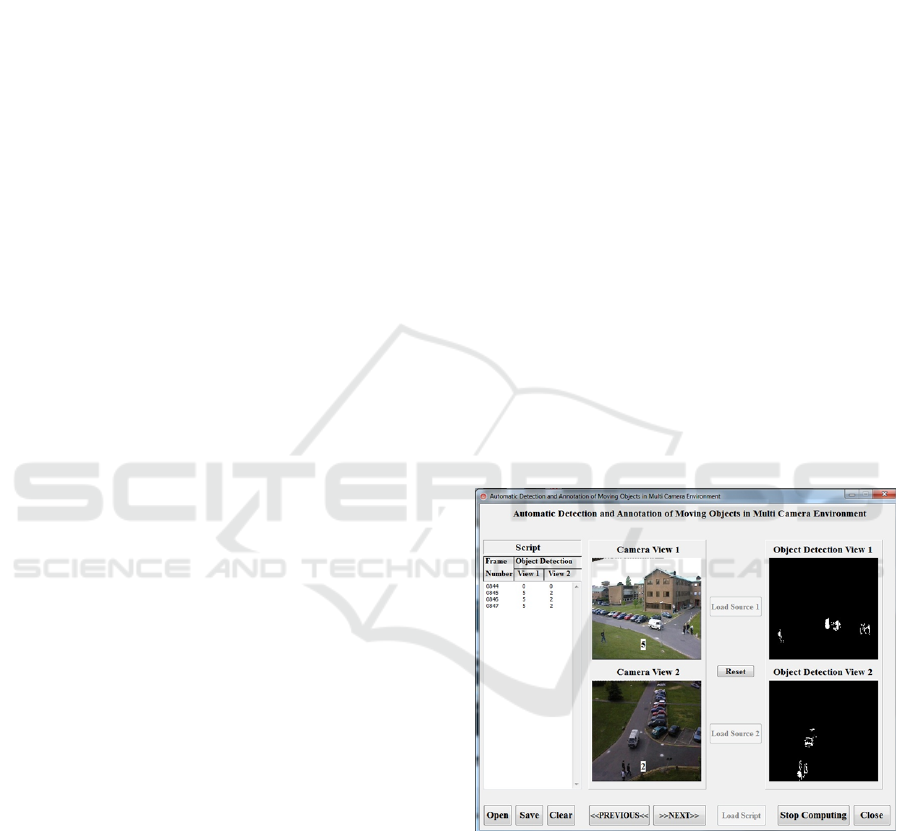

Figure 1: Snapshot of an Intelligent Vision System (IVS)

software (Bhat and Olszewska, 2014).

has followed plan-driven methodologies (Som-

merville, 2015) or Agile approach (Abrahamsson

et al., 2003). Hence, the use of SDLCs like Waterfall

(Royce, 1970) assists in a systematic planning of

project tasks, but does not incorporate actions such as

the adaptation or tuning of a particular AI algorithm.

The V-model mainly consists in the production of

the requirement documentation and the integration of

relevant software units as well as on their associate,

thorough, level-by-level testing, rather than on any re-

Olszewska, J.

D7-R4: Software Development Life-Cycle for Intelligent Vision Systems.

DOI: 10.5220/0008354804350441

In Proceedings of the 11th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2019), pages 435-441

ISBN: 978-989-758-382-7

435

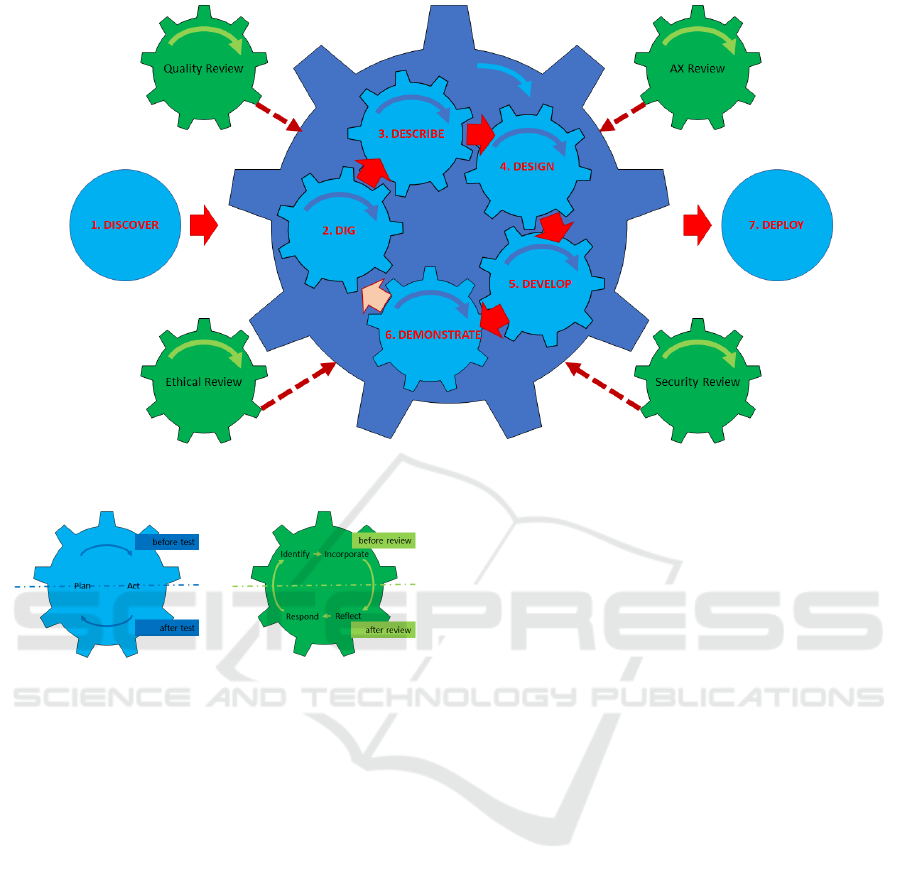

Figure 2: Overview of the D7-R4 Software Development Life Cycle.

(a) (b)

Figure 3: Mechanism details for the following processes

within the D7-R4 SDLC: (a) Test iterative process; (b) Re-

view iterative process.

quirement or solution reﬁnement. The prototyping

model allows to iteratively reﬁne the requirements,

whereas it does not present a mechanism to incorpo-

rate user’s feedback, e.g. during the User Interface

(UI) design. The spiral model (Boehm, 1986) dis-

plays an iterative approach to develop software ver-

sion(s), whilst necessitates the entire product to be

produced before getting any user’s feedback about it.

On the other hand, the Agile-based Rapid Ap-

plication Development Model (RAD) (Martin, 1991)

has been quite popular to develop effective and user-

friendly intelligent systems in short-time frameworks,

but the methodology does not permit an in-depth anal-

ysis of the data, e.g. to design/manage visual in-

puts and to consider their ethical implications. The

Dynamic System Development Method (DSDM) en-

ables to iteratively determine the software functional

design and its development, while it involves a busi-

ness study not always available in case of new re-

search softwares. Extreme Programming (XP) (Beck,

1999) is an effective methodology to elucidate the re-

quirements and to develop the software by continu-

ously incorporating the user’s stories and feedbacks.

However, this approach must deal with a client and

implies extensive reviewing by this client/user, rather

than the reﬁnements of AI algorithms/methods by the

developer. The Scrum approach manages the project

time in an efﬁcient way by organizing sprints of two to

four weeks. During each sprint, the developers create

a product increment. Though, the full Scrum method-

ology is intrinsically not adapted for lone developers

such as individual researchers.

As none of the existing SLDCs covers the increas-

ingly complex needs and the multi-disciplinary spec-

iﬁcations of the new generation of IVS softwares, we

propose a new SDLC called D7-R4 in order to de-

velop such IVS softwares.

This SDLC (Fig. 2) is an Agile, iterative, and test-

driven development (TDD) approach (Fig. 3), which

could be used by either a lone developer, by a group of

software developers, or by an artiﬁcial agent-human

team.

The D7-R4 software engineering model provides

a systematic and ethical way to develop IVS soft-

wares. Indeed, IVS are alloying together informa-

tion systems, computer vision systems, expert sys-

tems, and embedded systems, as well as blend-

ing autonomous systems (AS) (Fiorini et al., 2017),

user experience (UX) (Ferre and Medinilla, 2007),

and cybersecurity (Peruma and Krutz, 2018) capa-

bilities, requiring among others actions such as im-

age/video signal processing (Zendel et al., 2017),

visual database management/processing (Ammirato

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

436

et al., 2017), AI/Machine Learning algorithms/API

implementation/integration (Warrier, 2018), UI de-

sign (Dix et al., 2004); all these actions implying ex-

plainable AI and ethical considerations.

Thus, the contributions of this paper are manifold.

On one hand, we present a new SDLC called D7-

R4 to address the new challenges raised by the use

of technologies relying on Artiﬁcial Intelligence and

Machine Vision. On the other hand, we provide a new

SLDC which (i) includes an ethical review in the pro-

cess itself, (ii) is cybersecurity-driven, (iii) inherently

incorporates quality in its process, (iv) allows interop-

erability. Moreover, we introduce the agent-friendly

concept along the Agent Experience (AX), extending

the user-friendly and UX notions, respectively.

The paper is structured as follows. Section 2 de-

scribes the new IVS software development life-cycle

called D7-R4. Experiments are described in Section

3, while conclusions are drawn up in Section 4.

2 PROPOSED SDLC

2.1 D7-R4 SDLC Overview

The D7-R4 SDLC provides designers and developers

with a framework to build reliable, ethical, quality,

and secure IVS. It consists in seven stages and four

reviews described in Section 2.2 and Section 2.3, re-

spectively. The ﬁrst stage (i.e. discover) is the in-

put of the project or kick-off point, while the ﬁnal

stage (i.e. deploy) is the ﬁnal product consisting of

all the project outputs which have been successively

produced in the different runs of the ﬁve core stages,

i.e. dig, describe, design, develop, and demonstrate

(Fig. 2). These ﬁve core components could be itera-

tively repeated in sprints, and each of these ﬁve core

steps could be carried out in loops; the number of the

sprints and loops being variable and adjustable con-

sidering the requirements, size, and progress of the

project/product. Indeed, D7-R4 is a ﬂexible process,

and its components are modular, i.e. they could be

followed entirely or partially, depending of the project

scope and/or product development needs. It is worth

noting that IVS projects could start from scratch or

build upon a previous project and/or reuse existing

components such as algorithms, libraries, API, etc.

Figures 3(a)-3(b) show the different mechanism ap-

plied to the iterative processes of testing and review-

ing, respectively, as described in the next section.

2.2 D7-R4 SDLC Stages

2.2.1 Discover Stage

This phase is the ﬁrst stage of the SDLC and consists

in a brief context study, as well as in the quick capture

of the project scope and aims.

2.2.2 Dig Stage

This step focuses on the research and feasibility study.

This could include actions such as the project do-

main study (e.g. identiﬁcation of the speciﬁc techni-

cal challenges, identiﬁcation/selection of the pertinent

state-of-the-art methods, existing tools, appropriate

research methods), the project planning (in terms of

time and resources), the risk analysis, a business study

(in terms of foreseen costs/available budget/potential

market), and the quality planning. As the initial con-

ditions of the project (e.g., on one hand, the allocated

budget, the market opportunities, and on the other

hand, the available tools, the state-of-the art meth-

ods, etc.) could evolve during the project, even within

short period of time, this stage could be subject to fur-

ther iterations, if need be.

2.2.3 Describe Stage

This phase consists in the requirement gathering,

e.g. the expression of the IVS software functional-

ities (by means of the MoSCoW analysis), the cap-

ture of the business/system/user requirements as well

as the database requirements (persistence) and the

Human-Computer Interactions (HCI)/User Interface

(UI)/ User Experience (UX) needs. This task also in-

cludes a reﬂection on the associated professional, so-

cial, environmental and legal (PSEL) considerations

as well as on the safety and quality assurance and rel-

evant norms and standards (Olszewska et al., 2018). It

is worth noting that based on the user/client/developer

feedback during the design and development process,

the requirements may be amended.

2.2.4 Design Stage

This stage contains three components, namely, the

software design, the database design, and the algo-

rithm design. The software design itself involves

the software analysis using e.g. the Uniﬁed Model-

ing Language (UML), the software architecture/data

ﬂow modeling e.g. by means of Data Flow Dia-

grams (DFDs), including aspects of software modu-

larity and extendibility, and the choice of the soft-

ware language(s), Integrated Development Environ-

ment (IDE), design pattern(s), including reﬂections

D7-R4: Software Development Life-Cycle for Intelligent Vision Systems

437

on software portability, accessibility, and adaptabil-

ity. The database design implies the visual input

data analysis, including the determination of the data

ground truth, training/testing datasets, etc. The algo-

rithm design is an iterative process in itself and con-

sists of the establishment of the algorithm speciﬁca-

tions, the algorithm formalization, the algorithm im-

plementation and debugging, as well as the algorithm

performance review based on metrics to assess, in par-

ticular, its accuracy, computational efﬁciency, com-

plexity, and reliability (Olszewska, 2019). After that,

the algorithm could undergo the training and testing

processes, which can also been carried out iteratively.

2.2.5 Develop Stage

This stage is dedicated to the software development

and integration. The software development includes

the software implementation along of the integration

of previously developed algorithm. This phase is cou-

pled with software unit testing (using both white box

and black box testing techniques, test plans, code in-

spection, etc.). The software integration consists in

the integration of all the software units and of the

hardware/software integration, if appropriate, as well

as of the integration testing and system testing. Sys-

tem performance testing and capability testing could

also been performed at this stage, in an iterative way.

2.2.6 Demonstrate Stage

This step aims to assess the UX of the IVS. It can in-

corporate tests such as further robustness testing, user

acceptance testing, interactivity testing, software us-

ability, learnability as well as interoperability testing.

2.2.7 Deploy Stage

This is the ﬁnal stage which ends in the IVS software

release. This action could require an internal approval

by the developer/manager/client and an external ap-

proval by relevant professional bodies, if appropriate.

2.3 D7-R4 SDLC Reviews

2.3.1 Quality Review

The quality management (Futong and Tingting, 2013)

review could be performed at different stages in the

described process, e.g. at stages 2, 4, and 6 (Fig.

2). It is worth noting that, in this approach, the

project/product boundaries are blurred to accommo-

date situations where products such as autonomous

systems can be required to do by themselves or by

teaming with human(s) a series of stages to accom-

plish a project aiming their own reconﬁguration, in

order e.g. to ﬁx their softwares’ errors or to change

requirements, modify plans, etc. to adapt to new situ-

ations.

2.3.2 AX Review

This review aims to provide an up-to-standard Agent

Experience (AX) (Olszewska and Allison, 2018). It

includes usability tests, while it extends User Expe-

rience (UX) concept, since the review is not only

user-focused but tends to be ‘agent-friendly’ for

any intelligent agent, i.e. a human agent such as

user/designer/expert, or an artiﬁcial agent such as ex-

pert systems, robots, etc. getting to interact with that

interoperable system. The AX review could be car-

ried out at stages 3, 4, 5, and 6 (Fig. 2).

2.3.3 Ethical Review

Integrating ethical considerations in the cycle is of

prime importance for intelligent systems (Wallach

and Allen, 2009) such as IVS. The review could ad-

dress various questions, as follows: is the database

compliant with the General Data Protection Regula-

tion (GDPR), where the data does come from, how

they are kept, is there a bias in collecting the data

(Fang et al., 2013), is there a bias in the algorithm

when processing them, what are the true positive (TP)

rate and the true negative (TN) rate of the training

dataset, etc. The review could also reﬂect on aspects

such as the safety of the ﬁnal behaviour of the system,

the evolution of the IVS system behaviour over time,

its dual applications and possible misuses, etc. This

review could be done at stages 2, 3, 4, and 6 (Fig. 2).

2.3.4 Security Review

The process allows a system security review (Peruma

and Krutz, 2018) which should be adapted to the spe-

ciﬁc project requirements and run periodically. In

particular, this review should identify any transmit-

ted and/or stored data, especially if containing sen-

sitive information and ensure it is encrypted accord-

ingly. This review could be integrated at stages 2, 3,

4, and 6 (Fig. 2).

3 EXPERIMENTS

Experiments have consisted in collecting primary

data from the available documentation of 84 super-

vised/led projects aiming to develop intelligent sys-

tems, in order to identify the main advantages and

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

438

Figure 4: Sample results of the adopted SDLC models in successful AI-based projects.

Figure 5: Sample results of the adopted SDLC types in successful AI-based projects.

drawbacks of the existing SDLC models as reported

in Section 1. The typical duration of these projects

was between 2 to 12 months. Projects were carried

over the ﬁve past years and were all tested success-

fully as per standards (Beller et al., 2018a), (Beller

et al., 2018b).

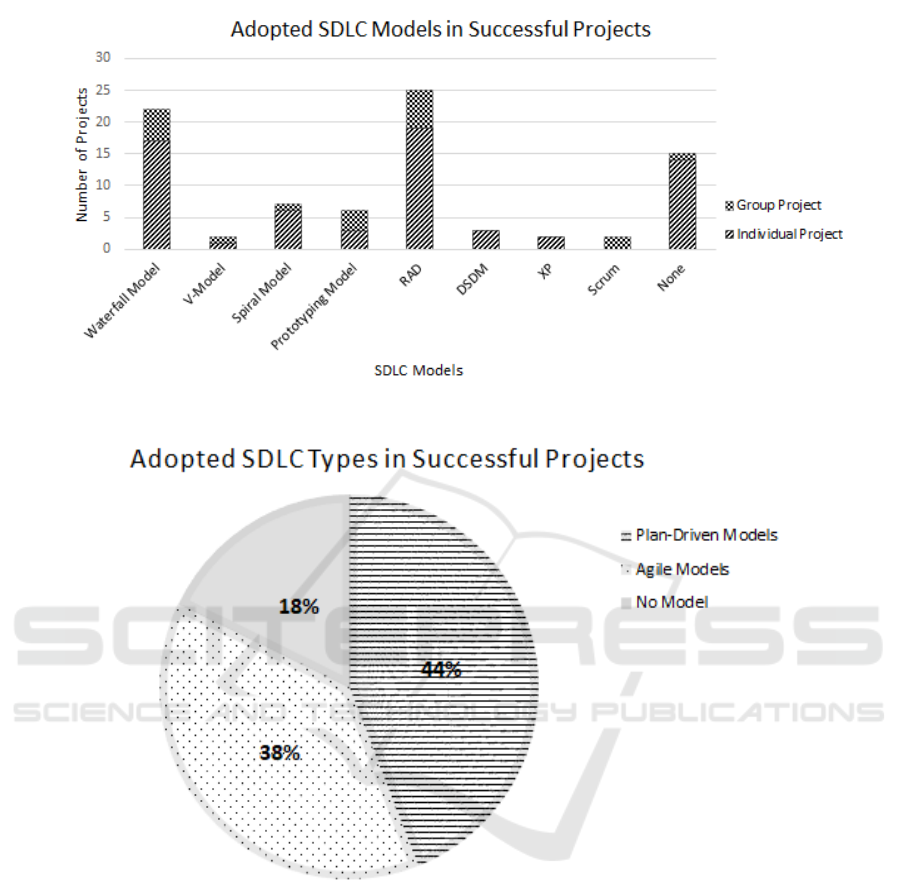

Results displayed in Fig. 4 show that the most

popular SDLCs were the Waterfall model and the

RAD model, one due to its clear sequence of tasks and

the other one for the ease of feedback incorporation

and the possibility of iterative reﬁnement. The further

analysis of the software documentations shows that,

in the past, one developer over ﬁve did not ﬁnd an ad-

equate SDLC among the existing ones to develop an

IVS system (Fig. 5), whereas, recently, a pilot group

of 5 software developers has unanimously adopted the

new SDLC named D7-R4, which has thus been tested

on all their 5 projects; the IVS outputs being very suc-

cessfully delivered as per internal and external, rele-

vant assessments.

4 CONCLUSIONS

In order to develop intelligent vision systems (IVS)

with an increasing degree of sophistication, we

propose a new Software Development Life-Cycle

(SDLC) we called D7-R4. The presented SDLC is

D7-R4: Software Development Life-Cycle for Intelligent Vision Systems

439

an Agile, iterative approach which is inherently test

driven and which consists of seven stages, namely,

discover, dig, describe, design, develop, demonstrate,

and deploy, as well as four reviews from different per-

spective such as quality, user/agent experience, ethics,

and security. This D7-R4 methodology has been suc-

cessfully applied to develop recent as well as cur-

rent IVS projects and shows promising results for

IVS ranging from computer-vision systems to vision

agents.

REFERENCES

Abrahamsson, P., Warsta, J., Siponen, M. T., and

Ronkainen, J. (2003). New directions on Agile meth-

ods: A comparative analysis. In Proceedings of the

IEEE International Conference on Software Engineer-

ing (ICSE), pages 244–254.

Ammirato, P., Poirson, P., Park, E., Kosecka, J., and Berg,

A. C. (2017). A dataset for developing and bench-

marking active vision. In Proceedings of IEEE Con-

ference on Robotics and Automation (ICRA), pages

1378–1385.

Beck, K. (1999). Extreme Programming Explained: Em-

brace Change. Addison-Wesley.

Beller, M., Georgios, G., Panichella, A., Proksch, S.,

Amann, S., and Zaidman, A. (2018a). Developer Test-

ing in The IDE: Patterns, Beliefs, And Behavior. IEEE

Transactions on Software Engineering.

Beller, M., Spruit, N., Spinellis, D., and Zaidman, A.

(2018b). On the dichotomy of debugging behavior

among programmers. In Proceedings of IEEE/ACM

International Conference on Software Engineering

(ICSE), pages 572–583.

Bhat, M. and Olszewska, J. I. (2014). DALES: Automated

tool for detection, annotation, labelling and seg-

mentation of multiple objects in multi-camera video

streams. In Proceedings of the ACL International

Conference on Computational Linguistics Workshop

(COLING).

Boehm, B. W. (1986). A spiral model of software develop-

ment and enhancement. In ACM SIGSOFT Engineer-

ing Notes, pages 14–24.

Ciccozzi, F., Ruscio, D. D., Malavolta, I., Pelliccione, P.,

and Tumova, J. (2017). Engineering the software of

robotic systems. In Proceedings of the IEEE/ACM

International Conference on Software Engineering

(ICSE), pages 507–508.

Dix, A., Finlay, J., Abowd, G. D., and Beale, R. (2004).

Human Computer Interaction. Pearson, 3rd edition.

Fang, C., Xu, Y., and Rockmore, D. N. (2013). Unbiased

metric learning: On the utilization of multiple datasets

and web images for softening bias. In Proceedings of

IEEE Conference on Computer Vision (ICCV), pages

1657–1664.

Ferre, X. and Medinilla, N. (2007). How a human-centered

approach impacts software development. In Pro-

ceedings of the International Conference on Human-

Computer Interaction (HCI), pages I.68–I.77.

Fiorini, S. R., Bermejo-Alonso, J., Goncalves, P., de Fre-

itas, E. P., Alarcos, A. O., Olszewska, J. I., Prestes, E.,

Schlenoff, C., Ragavan, S. V., Redﬁeld, S., Spencer,

B., and Li, H. (2017). A suite of ontologies for

robotics and automation. IEEE Robotics and Automa-

tion Magazine, 24(1):8–11.

Forsyth, D. A. and Ponce, J. (2012). Computer Vision: A

Modern Approach. Pearson.

Futong, H. and Tingting, S. (2013). Software project

metrics and quality management. In Proceedings of

IEEE Conference on Intelligent Information Hiding

and Multimedia Signal Processing, pages 615–618.

Kaaz, K. J., Hoffer, A., Saeidi, M., Sarma, A., and Bobba,

R. B. (2017). Understanding user perceptions of pri-

vacy, and conﬁguration challenges in home automa-

tion. In Proceedings of IEEE Symposium on Visual

Languages and Human-Centric Computing, pages

297–301.

Martin, J. (1991). Rapid Application Development.

Macmillan.

Meyer, B. (2006). Dependable Software, pages 1–33.

Springer.

Olszewska, J. I. (2017). Clock-model-assisted agent’s

spatial navigation. In Proceedings of the Interna-

tional Conference on Agents and Artiﬁcial Intelli-

gence (ICAART), pages 687–692.

Olszewska, J. I. (2019). Designing transparent and au-

tonomous intelligent vision systems. In Proceedings

of the International Conference on Agents and Artiﬁ-

cial Intelligence (ICAART), pages 850–856.

Olszewska, J. I. and Allison, I. K. (2018). ODYSSEY: Soft-

ware Development Life Cycle Ontology. In Proceed-

ings of the International Conference on Knowledge

Engineering and Ontology Development (KEOD),

pages 303–311.

Olszewska, J. I., Houghtaling, M., Goncalves, P., Haideg-

ger, T., Fabiano, N., Carbonera, J. L., Fiorini, S. R.,

and Prestes, E. (2018). Robotic ontological standard

development life cycle. In IEEE International Confer-

ence on Robotics and Automation (ICRA), pages 1–6.

Peruma, A. and Krutz, D. (2018). Understanding the

relationship between quality and security: A large-

scale analysis of android applications. In Proceed-

ings of IEEE/ACM International Workshop on Secu-

rity Awareness from Design to Deployment, pages 19–

25.

Rezazadegan, F., Shirazi, S., Upcroﬁt, B., and Milford, M.

(2017). Action recognition: From static datasets to

moving robots. In Proceedings of IEEE Conference on

Robotics and Automation (ICRA), pages 3185–3191.

Royce, W. W. (1970). Managing the development of large

software systems. In Proceedings of IEEE Conference

of Western Electronic Show and Convention, pages

205–210.

Samek, W., Wiegand, T., and Muller, K.-R. (2017). Ex-

plainable artiﬁcial intelligence: Understanding, visu-

alizing and interpreting deep learning models. ITU

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

440

Journal: ICT Discoveries - Special Issue 1 - The Im-

pact of Artiﬁcial Intelligence (AI) on Communication

Networks and Services, 1:1–10.

Sommerville, I. (2015). Software Engineering. Pearson,

10th edition.

Wallach, W. and Allen, C. (2009). Moral Machines: Teach-

ing Robots Right from Wrong. Oxford University

Press.

Warrier, G. (2018). Breaking The Common Myths Around

Artiﬁcial Intelligence. In DDD Scotland.

Winﬁeld, A. (2012). Robotics: A Very Short Introduction.

Oxford University Press.

Zendel, O., Honauer, K., Murschitz, M., Humenberger, M.,

and Dominguez, G. F. (2017). Analyzing computer

vision data - the good, the bad and the ugly. In Pro-

ceedings of IEEE Conference on Computer Vision and

Pattern Recognition (CVPR), pages 6670–6680.

D7-R4: Software Development Life-Cycle for Intelligent Vision Systems

441
