Discovering the Geometry of Narratives and their Embedded Storylines

Eduard Hoenkamp

1,2

Science and Engineering Faculty, Queensland University of Technology (QUT), Brisbane, Australia

Institute for Computing and Information Sciences, Radboud University, Nijmegen, The Netherlands

Keywords:

Storyline, Topic Models, Document Space, Foreground/Background Separation, Robust PCA, Sparse

Recovery, Subspace Tracking, Geometric Optimization, Grassman Manifolds.

Abstract:

Many of us struggle to keep up with fast evolving news stories, viral tweets, or e-mails demanding our at-

tention. Previous studies have tried to contain such overload by reducing the amount of information reaching

us, make it easier to cope with the information that does reach us, or help us decide what to do with the

information once delivered. Instead, the approach presented here is to mitigate the overload by uncovering

and presenting only the information that is worth looking at. We posit that the latter is encapsulated as an

underlying storyline that obeys several intuitive cognitive constraints. The paper assesses the efﬁcacy of the

two main paradigms of Information Retrieval, the document space model and language modeling, in how well

each captures the intuitive idea of a storyline, seen as a stream of topics. The paper formally deﬁnes topics

as high-dimensional but sparse elements of a (Grassmann) manifold, and storyline as a trajectory connecting

these elements. We show how geometric optimization can isolate the storyline from a stationary low dimen-

sional story background. The approach is effective and efﬁcient in producing a compact representation of the

information stream, to be subsequently conveyed to the end-user.

1 INTRODUCTION

In today’s world, news feeds may become obsolete in

minutes, e-mails stack up, and fresh tweets may arrive

before we have digested the current one. Just back

from a vacation, or after having been away from the

internet for some time, we have to rely on our friendly

neighbor or colleague for a summary of events, in

order to resume absorbing those information feeds.

Absent such human helper, good algorithms for sum-

marization and topic tracking are called for to keep

abreast of all those events.

In this paper we like to investigate which, if any,

traditional IR techniques can be used for this task.

But ﬁrst we want to distinguish techniques whose

value lie in detecting and tracking topics in real-time,

hence under time pressure, from the more fundamen-

tal question of what exactly it is that we would like to

track. To this end we will study a case far away from

the maddening internet. The case where people have

control over the pace at which they process the stream

of topics they encounter: reading a book at leisure.

As illustration we will use Hemingway’s The Old

Man And The Sea for which he was awarded a Nobel

prize. The story is short, simple, and likely familiar

to many readers. Note that we won’t give a formal

deﬁnition of ‘storyline’ because we have none, and

deﬁning it as a ‘plot’ would only beg the question.

But the reader will probably agree that for The Old

Man and the Sea it will be somewhere between “a

man catches a big ﬁsh” which has too little detail, and

the book itself which has too much.

Furthermore, while reading the literature, we did

not come across any a priori constraints on the con-

cept of a storyline. So let us mention some cognitive

constraints on the model that seem so self-evident that

we might otherwise forget to incorporate them in the

model

. While reading a book, we can see ourselves:

CC1: Skim a page without losing the storyline

CC2: Recount the storyline after one read

CC3: Ignore frequent words without loosing track

CC4: Recount the storyline thus far

CC5: Encounter generally more words than topics

We invite the reader who disagrees with some of these

items to check at the end of the paper if they would

have consequences for the model. Elsewhere we already

demonstrated the use of other cognitive constraints on im-

proving existing models, e.g. in the area of informa-

tion overload (Hoenkamp, 2012) and language modeling

(Hoenkamp and Bruza, 2015)

Hoenkamp, E.

Discovering the Geometry of Narratives and their Embedded Storylines.

DOI: 10.5220/0008356004830490

In Proceedings of the 11th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2019), pages 483-490

ISBN: 978-989-758-382-7

483

Table 1: LDA topic representation for The Old Man and the Sea where the narrative is treated as corpus with the pages as

documents. (a) the top ten topics, with words in order of probability (b) pages best described by the topics on the left (c) the

ﬁrst topic as a ‘word cloud’, where the size of a word is relative to its probability in the distribution.

Topics Pages described by this topic A ‘word cloud’ for the ﬁrst topic

shark hit bring club close pain drove

took course know inside set beat live

ask mast basebal father high today eighty

think aloud knife meat seen blade sorry

dark ﬁsh wood purple cut soon cord

head let felt turn side put feel

watch light ﬂy night stern dolphin left

eat left hour cramp steady open arm

boy remember carry strong road bed tell

water thought fast circle bow yellow rope

28, 30, 32, 31, 33, 10, 8

20, 4, 28, 29, 6, 21, 12

5, 3, 19, 2, 29, 4, 10

31, 29, 30, 32, 5, 15, 28

20, 22, 7, 18, 15, 17, 9

26, 24, 11, 30, 25, 32, 33

7, 8, 20, 21, 33, 10, 22

16, 11, 12, 15, 17, 22, 21

6, 3, 4, 35, 1, 34, 2

9, 28, 8, 25, 17, 27, 26

(a) (b) (c)

To make headway we introduce our working deﬁni-

tion of a storyline as the sequence of topics in the

narrative. And in the terminology of traditional Infor-

mation Retrieval (IR), we use the book as corpus, and

the pages in the book as documents. So doing, they

are amenable to the same techniques when needed

both of the main paradigms of IR. We will ﬁrst look

at probabilistic language models, and then turn our at-

tention to the document space approach. (One moti-

vation to elaborate both was to avoid someone asking

why we did not study the other other paradigm.)

2 LANGUAGE MODELING

With the substitution of pages and book for docu-

ments and corpus, we will ﬁrst follow the IR model

of Latent Dirichlet Allocation (LDA) but applied to

pages in a book. In this model, a topic is deﬁned as a

probability distribution over words. Recall that LDA

postulates the probability distribution over topics θ,

topic vectors z, and word vectors w as follows:

p(θ, z,w|α, β) = p(θ|α)

∏

i=1

p(z

|θ)p(w

, β) (1)

where the probability right after the equal sign is a

Dirichlet distribution and the next two are multinomi-

Instead of pages one can think of other units, such as chap-

ters, sections, and paragraphs, as we will see.

als. We ran the LDA model on The Old Man and the

Sea, resulting in the summary of Table 1. At ﬁrst sight

this looks good. The ﬁrst topic has, among others, to

do with ‘shark’, and in the the middle column we see

what pages it applies to. This can be checked with the

book in hand. The topic is indeed important in the sto-

ryline at the end of the book (pages 28 to 33 as found

by LDA). It is also signiﬁcant that some pages where

the word ‘shark’ occurs are not mentioned (pages 2,

7, 9 and 14), and that these pages are indeed without

import for the storyline. Unfortunately, what works

for ‘shark’ is very difﬁcult to replicate for other top-

ics. Another problem is that the outcome seems to be

the luck of the draw: when we changed the number

of topics anticipated in LDA from 25 to 10, we got as

ﬁrst topic {sea fast water turn eye bird circle bait},

the ‘shark’ topic became less prominent and changed

to {shark head skiff kill aloud hit oar saw}, and the

other topic distributions became even more unintelli-

gible as a storyline. (Note that by the same token, this

makes it hard to check the cognitive constraints CC1

and CC3 we set out in the introduction. The others

seem to hold.) But it was already well-known in the

LDA literature that topics as a list of words are hard

to interpret. This is akin to the situation with unin-

terpreted latent factors in LSA (C.Deerwester et al.,

1989). And like the latter, it does not prevent LDA

from being successfully applied in classifying docu-

ments correctly, assigning authors, or analyzing shift

KDIR 2019 - 11th International Conference on Knowledge Discovery and Information Retrieval

484

in topic (Grifﬁths and Steyvers, 2004).

Not only did we vary the LDA parameters in our

study, we also experimented with amending the def-

inition for the LDA probability distribution in equa-

tion 1. After all, in the current form it does not incor-

porate the story’s continuity over subsequent pages.

The generative process starts anew for each docu-

ment, selecting a topic distribution irrespective of

the document chosen previously. Hence each page

is also generated anew without regard of the previ-

ous page, i.e. ignoring the continuity of the story.

However, amending the distribution did not help. It

seemed to usher us back in the direction of pLSA

(Hofmann, 1999) which LDA so successfully super-

seded. Then we experimented with proposals in the

literature about on-line LDA, for example using ‘em-

pirical Bayes’ techniques (AlSumait et al., 2008) or

approaches to detect topic drift by identifying change

in Z-score for central tendency (Wilson and Robin-

son, 2011). Perhaps these approaches require larger

samples from independent distributions, which does

not apply to book pages. In brief, our attempts to use

Language Modeling to discover a storyline seems to

have reached a dead end. But we are not alone in

this conclusion. The NIST sponsored topic detection

and tracking (TDT) initiative “has ended and will not

be restarted in the near future” (Allan et al., 1998).

Therefore, and for the time being, we decided to give

up on the language modeling approach, report our re-

sults here

, and move on to the other important IR

paradigm, the vector space model for documents. Or

rather, we will use a more abstract topological exten-

sion of it.

3 THE DOCUMENT SPACE

We will now continue with the standard represen-

tation of the document space, namely the term-

by-document matrix. Recall that the rows are in-

dexed by words and the columns by documents.

The entries are numbers usually weighted according

to term frequency and inverse document frequency.

The columns can be viewed as vectors in a high-

dimensional space with the words as basis vectors.

Although it is usually difﬁcult to get negative results pub-

lished, it is important to try nonetheless. It is necessary to

prevent other researchers from wasting time doing the re-

search all over, and it is crucial to counterbalance positive

results that others published and which might be statisti-

cally signiﬁcant only in isolation.

3.1 Revisiting Luhn 1957 and 1958

In his groundbreaking work at the end of the 1950’s,

Luhn (Luhn, 1957) described a number of document

preparation steps, such as term frequency normaliza-

tion, stop-list removal, stemming, and the use of the-

sauri. These steps have persisted in IR over these six

decades. Lesser known seems his work on the Auto-

matic Creation of Literature Abstracts (Luhn, 1958),

of which the objective was “to save a prospective

reader time and effort in ﬁnding useful information”

especially as the ”widespread problem is being aggra-

vated by the ever-increasing output” (p. 159). This

is a similar objective as given in recent IR proposals

for storyline extraction, namely to reduce information

overload. Several of the recent proposals even contain

some of Luhn’s mechanisms. Oddly, as the reader can

verify, references to this work are glaringly absent in

those proposals.

In order to recover a storyline or produce a sum-

mary, two steps must be taken (1) detect topics and (2)

output a representation for each topic. In so-called

extractive summarization, the ﬁrst step locates sen-

tences in a document which are concatenated into a

summary (see (Saggion and Poibeau, 2013) for an

overview).

Luhn (Luhn, 1958) proposes a method he calls

‘auto-abstract’ which ﬁrst computes a signiﬁcance

value for sentences based on word frequencies and

word proximities. The signiﬁcant sentences that rank

highest are then output to form an abstract (i.e. extrac-

tive summarization). If one adds an extra step, namely

notice when the vocabulary changes substantially

over signiﬁcant sentences, this can be used to lo-

cate topic boundaries. This is essentially the method

Table 2: A “movie after the book” (a) Depiction of a word-

by-page matrix. (b) Each column (page vector) is folded

into a frame with entries normalized to values of gray scale

pixels. This metaphor helped to experiment with algorithms

developed for surveillance videos as a way to divide text on

a page into background and foreground; the latter to repre-

sent topics that occur on the page.

01 21 etc. —

02 22 — —

03 23 — —

04 24 — —

05 25 — —

06 26 — —

07 27 — —

08 28 — —

09 29 — —

10 30 — —

11 31 — —

12 32 — —

=⇒

01 02 03 04

05 06 07 08

09 10 11 12

21 22 23 24

25 26 27 28

29 30 31 32

etc. . . . . . . . . .

. . . . . . . . . . . .

(a) (b)

Discovering the Geometry of Narratives and their Embedded Storylines

485

used for the much more recent technique of TextTil-

ing (Hearst, 1997). Other algorithms do not just no-

tice vocabulary changes, but changes in vocabulary

distribution to delineate topic boundaries (Mao et al.,

2007). The approach in this paper is in spirit akin to

Luhn’s. However topics are located based on the ge-

ometry of the document space, as we will see, where

the documents will be the pages in the book.

3.2 A Foreground/Background Analogy

The techniques in the remainder of this paper are best

introduced by way of their analogy to video process-

ing for surveillance cameras. The task there is to sep-

arate foreground from background, e.g., to discover

an intruder against the background of a lobby. Now

imagine we equate storyline with foreground, and the

uninteresting part of a page with background. Just as

videoprocessing lets the intruder stand out from the

lobby, we can explore similar techniques to let the

storyline stand out from the rest of the story. (Readers

should recall this metaphor when they would get lost

in technicalities later in this paper.) Given the success

of such algorithms for video surveillance, we adapted

a number of such algorithms to bring the storyline to

the fore, as we will explain in a moment. To explore

if there were algorithms suitable for our purpose (i.e.

applied in the linguistic domain) we transformed a

book into a video as follows: Start with a word-by-

page matrix and normalize the entries to grey-scale

pixels. Next, factor the number of words in two num-

bers, say l and w and make a rectangle of hight l by

width w. Now ﬁll the rectangle from top to bottom

with the ﬁrst column of the word-by-page matrix and

repeat this for all columns, see table 2. This way, we

can view the sequence of rectangles as the frames of

a movie and, presto, all well-known algorithms devel-

oped for video are available to process the word-by-

page representation as a sequence of video frames. So

next we will explain the foundations of a class of suc-

cessful video algorithms for foreground/background

separation and show that these indeed fare well in the

analogical case for storyline discovery

Of course analogies and metaphors are often helpful in re-

search. Many years ago, at the time that Latent Seman-

tic Analysis (LSA) was studied intensively, the main tech-

nique for dimension reduction was Singular Value Decom-

position (SVD). At that time I proposed to represent the

word-by-document matrix as a picture, hence making it

amenable to a plethora of image processing techniques.

For LSA this resulted in many efﬁcient alternatives for

SVD, most notably JPEG 2000 (Hoenkamp, 2003).

4 GEOMETRIC OPTIMIZATION

The remainder of this paper assumes familiarity with

dimension reduction, and the reader familiar with that

concept can skip ahead to section 4.2. First we will

brieﬂy take a step back, from processing the high di-

mensional document space to the mundane example

of linear regression. Suppose we have a collection

of data that we plot as points in a 2-D graph. Infor-

mally, linear regression is a way to draw a straight

line through the data points such that it best ﬁts the

data. Formally it is a way to reduce a two dimen-

sional space (the points in the 2-D graph) to a one-

dimensional space (the straight line) that is nearest

to it in terms of Euclidian distance. (Hence also the

name ‘least-squares’ method.) In higher dimensions,

such dimension reduction is usually achieved through

Principle Component Analysis or PCA, which is also

a least-squares method. Given a measurement matrix

M the data model is M = L

+ N

where L

is low

rank and N

a small perturbation matrix representing

noise. PCA estimates L

by a k-dimensional approx-

imation L in the sense of least-squares, i.e. the Eu-

clidean norm ||.||

is minimized as follows:

minimize ||M − L||

subject to rank(L) 6 k

The approach is known to be very sensitive to outliers.

Outliers therefore usually receive special treatment in

data analysis, sometimes by explaining them away, or

by removing them from consideration.

Whatever the treatment, outliers are usually to be

avoided. But this requires a method to locate the

pesky outliers in the ﬁrst place. In a graphical rep-

resentation one can rely on visual inspection, but in

higher dimensions this is not so straightforward. Not

long ago, an effective approach to the problem of lo-

cating outliers has been proposed in the form of Ro-

bust PCA, which has been developed in the area of

Compressed Sensing (CS). To our knowledge, and

consulting recent literature, ours is the ﬁrst time that

CS is applied to language processing. Compare the

comprehensive overview of (Bouwmans et al., 2018)

where this approach is not to be found among the

large number of application areas.

4.1 The Storyline as a Sparse Subspace

Continuing the surveillance video metaphor, unless

something eventful happens, such as a burglar enter-

ing the premises, each frame consists of thousands of

pixels highly correlated with the next frame. Conse-

quently, these data form a very low dimensional sub-

space of the high dimensional space of all possible

KDIR 2019 - 11th International Conference on Knowledge Discovery and Information Retrieval

486

pixel combinations. Similarly, imagine it were possi-

ble to leave out the storyline in a narrative, not much

would remain other than a boring list of words, highly

correlated from one page to the next. In other words,

in the case of the storyline the outliers are the objects

of interest, representing the topics. So instead of try-

ing to remove the outliers from the data as noise, we

want to keep them in.

Formally, we want to split the word-by-page ma-

trix M from the narrative as the sum of a low dimen-

sional matrix L

, and a high dimensional but sparse

matrix S

of topics (the spikes as it were in the other-

wise boring story):

M = L

+ S

In signal analysis, as with many statistical problems,

one is interested in ﬁnding L

from the measurements

M, where S

forms the noise that one wants to get rid

off.

So the focus is on isolating and possibly remov-

ing such outliers. But again, in our case the outliers

are the objects of interest. In other words, we want

to recover S

from the data M. This, however, is a

severely under-constrained problem, as there is a po-

tentially inﬁnite number of ways to split the matrix M

such that M = L + S. So how can this ever be accom-

plished? For this we will turn to a curious result in

the blossoming ﬁeld of compressed sensing, see e.g.

(Baraniuk, 2007) for an introduction to the ﬁeld.

4.2 Robust PCA

Again, what we are trying to do, is solving the seem-

ingly impossible problem of recovering S

from the

under-constrained equation M = L

+ S

. But a truly

remarkable theorem was proven by Cand

es and col-

leagues (Cand

es et al., 2011) namely that under some

(precisely deﬁned) assumptions, it is indeed possible

to recover both the low-rank and the sparse compo-

nents exactly. The algorithm they propose is a convex

program called Principal Component Pursuit which

solves the problem (Cand

es et al., 2011):

minimize ||L||

∗

+ λ||S||

subject to M = L + S

with trace norm ||.||

∗

and l

norm ||.||

. How do we

know that there is a solution to this optimization prob-

lem in the case of storyline discovery?

Recall that the computation requires two steps:

1. Dimension reduction, and

2. Locating the outliers

Regarding the ﬁrst item: There are many ways

to accomplish this, traditionally through PCA and the

related SVD (singular value decomposition), founded

on basis transformations. In our work we use the more

recent technique of random projections (Vu et al.,

2018; Bingham and Mannila, 2001). A problem could

arise if dimension reduction resulted in basis trans-

formations that destroy the constellation of the story-

line in the manifold. For example, it could change

the order of events in the story, and that is not what

we want. Fortunately we can rely on the following

lemma (Johnson and Lindenstrauss, 1984):

Lemma. For 0 < ε < 1, any n, and k ≥

3ε

−2ε

logn then

for any set A of n points ∈ R

there exists a map f : R

→ R

such that for all x

, x

∈ A

(1 − ε)||x

− x

≤ || f (x

) − f (x

)||

≤ (1 + ε)||x

− x

This, in other words, guarantees that there exists a lin-

ear operator that leaves the distances between pairs of

points approximately in tact. Since the lemma is in-

dependent of the dimension of the original space, in

the present application it does not depend on the size

of the lexicon. But knowing there exists a solution is

different from ﬁnding one.

Regarding the second item: Once the dimension

reduction has been performed, the outliers are to be

found in the space orthogonal to the low dimensional

space. That is, once the storyline has been separated

from the background noise, the remaining part of the

manifold contains the uninteresting part, the glue be-

tween the sequence of interesting events.

If we represent the book in its entirety as a man-

ifold of dimension n, then the algorithms reconstruct

a sequence of sub-manifolds S of dimension say m,

forming the Grassmann manifold Gras(m, n)

, which

the physicist reader may recognize from String theory

(Schwarz, 1999). Given that the sequence of solutions

S represents the storyline, one could express discov-

ering a storyline as tracking the m-dimensional topics

in an n dimensional Grassmann manifold representing

the book

After so much theory it is time to see how this

works out in practice.

4.3 Checking Cognitive Constraints

In section 2 we found it hard to see how the Language

Modeling paradigm could comply with the cognitive

Gras(m, n) is the collection of manifolds of dimension m

contained in a manifold of dimension n, which is not nec-

essarily a Hilbert space as is IR’s traditional document

space.

For the reader who could use a more concrete mental pic-

ture of this approach, we refer to an application in the area

of emotion detection (Alashkar et al., 2018) mainly be-

cause it contains illustrations that may help envisage the

technique.

Discovering the Geometry of Narratives and their Embedded Storylines

487

page 18

fish

page 19

fish

negro

night

hand

page 20

fish

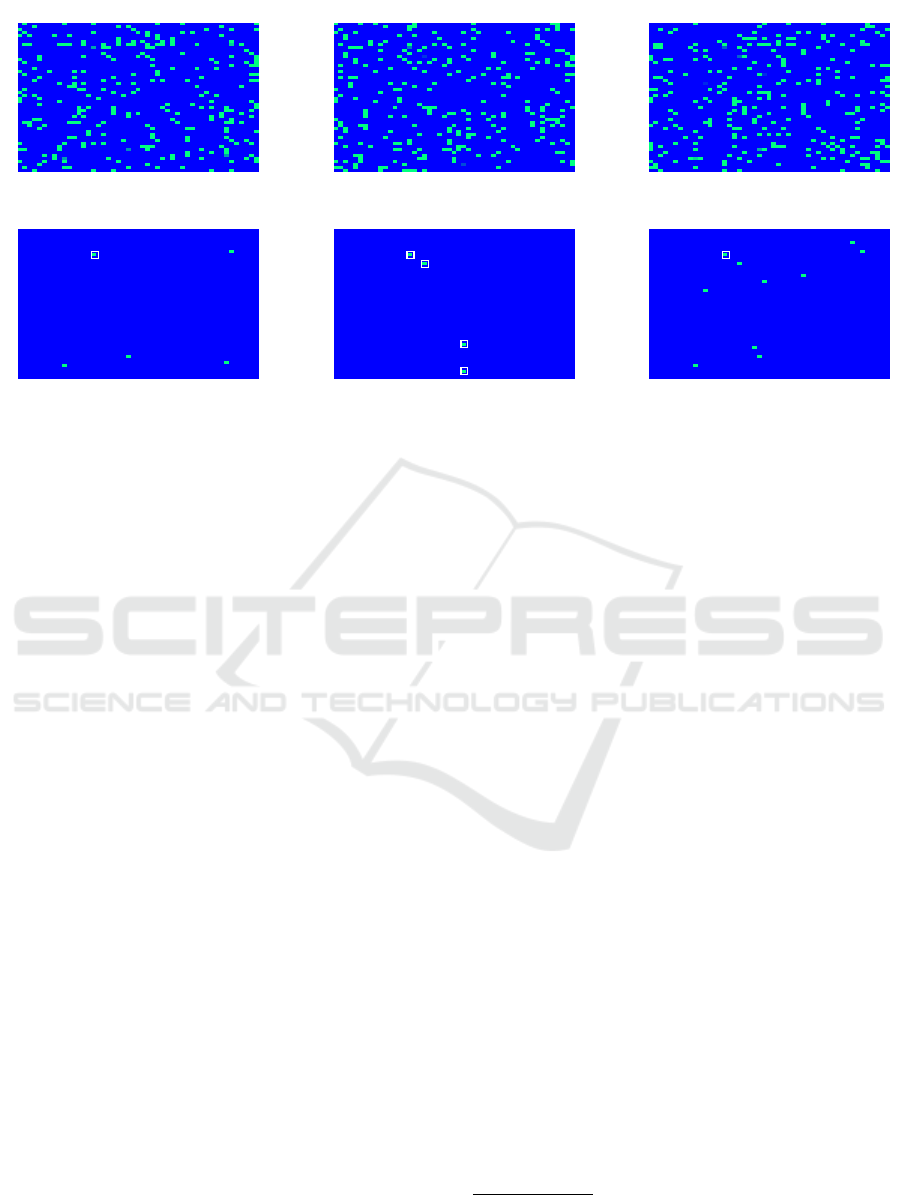

Figure 1: Topics appearing and disappearing in subsequent pages halfway The Old Man and the Sea (pages 18, 19, 20). Top:

Page vectors folded into ‘video frames.’ Bottom: the same folded pages after Robust PCA. Some topics persist over several

pages, such as ‘ﬁsh’ in the upper left. Others are short-lived, such as the topic {hand, negro, night} of page 19, where the

old man recounts how he “had played the hand game with the great negro from Cienfuegos who was the strongest man on the

docks. They had gone one day and one night with their elbows on a chalk line on the table and their forearms straight up and

their hands gripped tight. Each one was trying to force the other’s hand down onto the table”.

constraints set out in the introduction. Hence we need

to check if the Document Space paradigm fares any

better in this respect.

Applications of compressed sensing resulted in a

variety of algorithms to isolate sparse subspaces. An-

other result is that a matrix of type L, i.e. low rank and

dense, can be reconstructed even if data M is highly

corrupted or when there are many missing data. This

is precisely the case for cognitive constraint CC1. So

the good news is that even if many words are ignored,

that is, when there are missing data in M, Principal

Component Pursuit can still reconstruct both L

and

. So when CC2 is satisﬁed, say when a speed reader

can recall a storyline, the algorithm can reconstruct

the storyline as well. This also applies to CC3, which

means that the narrative can be processed as is custom

in IR and the topics can still be discovered. Finally,

for algorithms as RPCA it is known what degree of

sparsity is needed for it to ﬁnd a solution to the objec-

tive function to be optimized. The degree of sparsity

in the language domain depends on the proportion of

topics to words. And that the number of topics is usu-

ally much smaller than the number of words used to

convey these topics is an instance of CC5. That con-

straint guarantees that there must exist a sparse sub-

space for the storyline and the Johnson Lindenstrauss

lemma even deﬁnes the degree of sparsity attainable.

4.4 Results

Our transformation of a story to a video sequence al-

lowed us to experiment with a plethora of algorithms

for foreground/background separation. So new algo-

rithms from the video processing ﬁeld using geomet-

ric optimization, can be incorporated as well. These

fall largely in two categories: some researchers op-

timize for M = L + S (Hage and Kleinsteuber, 2013;

Seidel et al., 2014), others optimize for M = L+S +D

with error term D (Zhou and Tao, 2011). The techni-

cal details of these algorithms are beyond the scope

of this paper. For a comprehensive overview of these

techniques we refer to (Bouwmans et al., 2018) and

for Newton methods to solve the equations to (Edel-

man et al., 1998). But we do not want to leave

the more application oriented reader empty-handed.

Therefore we include as example the application of

‘bilateral random projections’ proposed in (Zhou and

Tao, 2011) to The Old Man and the Sea. The result is

depicted in Figure 1 for pages halfway the book

. We

used several other books for our evaluation, namely

The Da Vinci Code and the ﬁrst volume of The Lord

of the Rings. To compare the various methods, we ob-

tained code (mostly Matlab) from the authors (see ref-

erence list), who were extremely helpful. Of course

we needed to rewrite code that was written for the

Note well that the frames are not word by document vec-

tors, but each frame represents one document vector, rolled

up as in Table 2

KDIR 2019 - 11th International Conference on Knowledge Discovery and Information Retrieval

488

video domain and adapt it to the language domain.

The resulting sparse S matrices were then (1) pro-

jected back into the word space (compare ﬁgure 1),

(2) verbalized using extraction summarization (i.e.

with their surrounding sentences) and placed one af-

ter another to form the storyline, (3) we asked col-

leagues to evaluate the storylines (e.g. (Janaszkiewicz

et al., 2018)). In this informal evaluation the method

of (Zhou and Tao, 2011) gave the best results.

5 CONCLUSION

To stem the information deluge, many researchers

have proposed algorithms and techniques to mitigate

the often overwhelming stream of information. These

approaches are most often tailored to speciﬁc users,

kinds of information, or circumstances, see the very

comprehensive overview of (Strother et al., 2012).

We take the view that different kinds of informa-

tion streams, from news feeds, to mail exchanges,

to twitterstorms, all keep the reader in suspense of

the developing storyline. This allows us the unify-

ing approach of studying how to capture such sto-

rylines. We presented the analogy of book pages

to video frames, hence borrowed heavily from tech-

niques from the processing of surveillance videos. We

used the mathematics developed in the area of com-

pressed sensing and showed how it can be applied in

the linguistic domain for the discovery of storylines.

We have not extensively experimented to validate the

approach, but we showed that the sound underlying

mathematics, the cognitive plausibility, and the infor-

mal experiments are promising and warrant further in-

vestigation.

REFERENCES

Alashkar, T., Amor, B. B., Daoudi, M., and Berretti, S.

(2018). Spontaneous expression detection from 3D

dynamic sequences by analyzing trajectories on grass-

mann manifolds. IEEE Trans. Affective Computing,

9(2):271–284.

Allan, J., Carbonell, J., and Doddington, G. (1998). Topic

detection and tracking pilot study ﬁnal report. In

Proc. DARPA Broadcast News Transcription and Un-

derstanding Workshop, pages 194–218.

AlSumait, L., Barbar

a, D., and Domeniconi, C. (2008).

On-line LDA: Adaptive topic models for mining text

streams with applications to topic detection and track-

ing. In Proc. 2008 Eighth IEEE International Confer-

ence on Data Mining, ICDM ’08, pages 3–12, Wash-

ington, DC, USA. IEEE Computer Society.

Baraniuk, R. G. (2007). Compressive Sensing. IEEE Signal

Processing Magazine, 24(118-120,124).

Bingham, E. and Mannila, H. (2001). Random projec-

tion in dimensionality reduction: Applications to im-

age and text data. In Proceedings of the Seventh

ACM SIGKDD International Conference on Knowl-

edge Discovery and Data Mining, KDD ’01, pages

245–250, New York, NY, USA. ACM.

Bouwmans, T., Javed, S., Zhang, H., Lin, Z., and Otazo,

R. (2018). On the applications of robust pca in im-

age and video processing. Proceedings of the IEEE,

106(8):1427–1457.

Cand

es, E. J., Li, X., Ma, Y., and Wright, J. (2011). Robust

principal component analysis? J. ACM, 58(3):11:1–

11:37.

C.Deerwester, S., Dumais, S. T., W.Furnas, G., Harshman,

R. A., Landauer, T. K., Lochbaum, K. E., and Streeter,

L. A. (1989). U.S. Patent No. 4,839,853. Washington,

DC: U.S. Patent and Trademark Ofﬁce.

Edelman, A., Arias, T. A., and Smith, S. T. (1998). The ge-

ometry of algorithms with orthogonality constraints.

Siam J. Matrix Anal. Appl, 20(2):303–353.

Grifﬁths, T. L. and Steyvers, M. (2004). Finding scien-

tiﬁc topics. Proc. National Academy of Sciences,

101(5):5228–523.

Hage, C. and Kleinsteuber, M. (2013). Robust PCA and

subspace tracking from incomplete observations using

-surrogates. Computational Statistics, 29(3):467–

487.

Hearst, M. A. (1997). Texttiling: Segmenting text into

multi-paragraph subtopic passages. Comput. Lin-

guist., 23(1):33–64.

Hoenkamp, E. (2003). Unitary operators on the document

space. Journal of the American Society for Informa-

tion Science and Technology, 54(4):314–320.

Hoenkamp, E. (2012). Taming the terabytes: a human-

centered approach to surviving the information-

deluge. In Strother, J., Ulijn, J., and Fazal, Z., editors,

Information Overload : A Challenge to Professional

Engineers and Technical Communicators, IEEE PCS

professional engineering communication series, pages

147–170. John Wiley & Sons, Ltd, Hoboken, New Jer-

sey.

Hoenkamp, E. and Bruza, P. (2015). How everyday lan-

guage can and will boost effective information re-

trieval. Journal of the Association for Information Sci-

ence and Technology, 66(8):1546–1558.

Hofmann, T. (1999). Probabilistic latent semantic indexing.

In Proc. 22Nd Annual International ACM SIGIR Con-

ference on Research and Development in Information

Retrieval, SIGIR ’99, pages 50–57, New York, NY,

USA. ACM.

Janaszkiewicz, P., Krysi

nska, J., Prys, M., Kieruzel, M.,

Lipczy

nski, T., and R

zewski, P. (2018). Text Sum-

marization For Storytelling: Formal Document Case,

volume 126, pages 1154 – 1161. Elsevier.

Johnson, W. B. and Lindenstrauss, J. (1984). Extensions of

lipschitz mappings into a hilbert space. In Conference

in modern analysis and probability, volume 26, pages

189–206. Amer. Math. Soc.

Luhn, H. P. (1957). A statistical approach to mechanized

Discovering the Geometry of Narratives and their Embedded Storylines

489

encoding and searching of literary information. IBM

J. Res. Dev., 1(4):309–317.

Luhn, H. P. (1958). The automatic creation of literature

abstracts. IBM J. Res. Dev., 2(2):159–165.

Mao, Y., Dillon, J., and Lebanon, G. (2007). Sequential

document visualization. IEEE Transactions on Visu-

alization and Computer Graphics, 13(6):1208–1215.

Saggion, H. and Poibeau, T. (2013). Automatic text sum-

marization: Past, present and future. In Poibeau, T.,

Saggion, H., Piskorski, J., and Yangarber, R., edi-

tors, Multi-source, Multilingual Information Extrac-

tion and Summarization, pages 3–21, Berlin, Heidel-

berg. Springer.

Schwarz, A. (1999). Grassmannian and string theory. Com-

munications in Mathematical Physics, 199(1):1–24.

Seidel, F., Hage, C., and Kleinsteuber, M. (2014). prost:

A smoothed l

-norm robust online subspace tracking

method for background subtraction in video. Mach.

Vision Appl., 25(5):1227–1240.

Strother, J. B., Ulijn, J. M., and Fazal, Z. (2012). Informa-

tion Overload: An International Challenge for Pro-

fessional Engineers and Technical Communicators.

Wiley-IEEE Press, 1st edition.

Vu, K., Poirion, P., and L., L. (2018). Random projections

for linear programming. Mathematics of Operations

Research, 43(4):1051–1071.

Wilson, A. T. and Robinson, D. G. (2011). Tracking topic

birth and death in LDA. Technical report, Sandia Na-

tional Laboratories.

Zhou, T. and Tao, D. (2011). Godec: Randomized low-

rank & sparse matrix decomposition in noisy case. In

Getoor, L. and Scheffer, T., editors, Proc. 28th Int.

Conf. on Machine Learning (ICML-11), ICML ’11,

pages 33–40, New York, NY, USA. ACM.

KDIR 2019 - 11th International Conference on Knowledge Discovery and Information Retrieval

490
