Process Profiling based Synthetic Event Log Generation

Eren Esgin

1,2

and Pinar Karagoz

MBIS R&D Center, AI Research, Istanbul, Turkey

Middle East Technical University, Informatics Institute, Ankara, Turkey

Middle East Technical University, Computer Engineering Department, Ankara, Turkey

Keywords: Case Identifier, Process Mining, Process Profile, Synthetic Log Generator (SynLogGen), Unlabeled Event

Log.

Abstract: The goal of process mining is to discover the process behavior from the runtime information of process

executions. Having labeled process logs is crucial for process mining research. However, real life event logs

at process-aware information systems are mostly partially assigned to case identifiers, known as unlabeled

event log problem. As a remedy to labeled data need in process mining research, we propose an approach to

generate synthetic event logs according to the provided process profile, which outlines the activity

vocabulary and structure of the corresponding business process. We evaluate the performance of our

prototypical implementation in term of compatible log generation under varying parameter setting

complexities.

1 INTRODUCTION

The impact of process-aware information systems is

limited by the difficulties encountered at process

design phase (Weijters & van der Aalst, 2003).

Respectively, reference process models are normative

in the sense that they reflect what should be done

rather than the actual process execution (van der Aalst

et al., 2003). Instead of manually designing the

corresponding process, it is proposed to reverse this

traditional design procedure by a more objective and

automated technique called process mining. Process

mining collects the process knowledge and distills the

process patterns from the low-level process history.

The major assumption about process mining is the

existence of event log, which contains a sequence of

process trails in the form <caseID, taskID> where

caseID identifies the process instance and taskID

specifies the activity that has been performed

(Walicki & Ferreira, 2011). A case identifier is

important to correlate different events recorded in the

event log and this orchestration of process instances is

called labeled event log (Bayomie et al., 2016).

In capability maturity levels at software

development process, providing event logs with

automatically assigned case identifiers is classified as

maturity level-4 or higher at logging (van der Aalst,

2011; Dustdar & Gombortz, 2006). However, the

process may execute in an environment of lower

logging maturity level. As stated in (van der Aalst,

2006), the event logs of most enterprise resource

planning (ERP) vendors are unable to monitor unique

and individual process cycles. Instead, they only log

the execution of transactions without referring the

corresponding case. This is due to the fact that, these

systems are mostly data centric such that the event

logs are staggered at the application tables with the

lack of case relations. Such kind of logs is called as

unlabeled event log (van der Aalst et al., 2006;

Gunther & van der Aalst, 2006). Limitations in

obtaining labeled data constitutes an important

drawback for process mining research, especially for

supervised learning-based approaches, which call for

labeled training data set.

In this paper, we address the challenge of

extracting and preparing event logs for analysis.

Rather than correlating the process instances with

case identifiers, we propose a synthetic log generator

namely synLogGen, that simulates the event log for a

given process profile according to Petri net firing rule.

Process profile composes activity vocabulary and

Petri net. While activity vocabulary holds all valid

activity labels in terms of activity type and occurrence

priority, Petri net converts the graphed-based

reference process model into tabular format.

Additionally, unexpected process terminations and

516

Esgin, E. and Karagoz, P.

Process Proﬁling based Synthetic Event Log Generation.

DOI: 10.5220/0008363805160524

In Proceedings of the 11th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2019), pages 516-524

ISBN: 978-989-758-382-7

noise effect that deteriorate the business rules are

considered as parameters at proposed synthetic event

log generation.

The remainder of this paper is organized as

follows: The literature review is given in Section 2. In

Section 3, we present the details of proposed

approach for process log generation, synLogGen. In

the following section, experimental analysis and

validation with respect to related approaches, i.e.

deducing case identifiers (DCI) in (Bayomie et al.,

2016) and expectation maximization (E-Max) in

(Ferreira & Gillblad, 2009), are analyzed for

benchmark business processes given in (Bayomie et

al., 2016). Finally, we conclude the paper in Section 5

with a discussion and an outlook on future work.

2 LITERATURE REVIEW

In this section, we summarize the previous efforts on

dealing with incomplete labeling in the process event

logs. In general, process-aware information systems

record a vast array of events without being able to

assign them to specific process instances. In such

environment, the case identifier attribute is mostly

absent and the event log becomes an unlabeled stream

of events. In (Bayomie et al., 2016), Bayomie et al.

propose an approach to automate the preprocessing

step by deducing the case identifiers (DCI) for the

unlabeled event log. In addition to the execution log,

DCI requires as input the reference process model and

heuristic data about the execution timestamp. As a

limitation, DCI does not support cyclic processes and

inaccurate heuristic data affects the number of

possible labeling.

The handling of unlabeled event log is also

addressed in (Walicki & Ferreira, 2011) and (Ferreira

& Gillblad, 2009). In (Ferreira & Gillblad, 2009), an

Expectation-Maximization approach (E-Max) is

introduced to estimate a Markov model from an

unlabeled event log. It is a greedy heuristic that finds

mostly a local maximum of the likelihood function.

The main limitation of the corresponding approach is

erroneous handling of loops and parallelism in the

unlabeled log.

Alternatively, a sequence partitioning approach is

presented to produce a set of partitions that represent

the minimum cover of the unlabeled log in (Walicki

& Ferreira, 2011). Respectively, the underlying

approach aims to traverse the complete search space

to enumerate all possible solutions within the concept

of minimum description length (MDL) stated in

(Rissanen, 1978). Similar limitation about handling

loops and parallelism is valid for (Walicki & Ferreira,

2011).

There are also other efforts to monitor, and

visualize logs, and to map low-level logs to higher-

level process tasks. The studies in (Doganata, 2011)

and (Doganata & Curbera, 2009) are based on

business provenance graph model to generate an

automated auditing tool. The main problems are to

create internal control points and business artifacts to

visualize the process progress. In (Rogge-Solti, 2014)

and (Rogge-Solti et al., 2013), a stochastic model is

proposed to recommend missing events in the log.

They apply path probabilities and Bayesian network

to reflect initial beliefs given at reference process

model at computing the most probable timestamp. In

(Burrett & Gent, 2008), Burrett and Geng propose an

iterative workflow mining approach that implements

expectation-maximization approach to associate low-

level events with high-level tasks.

The proposed work differs from these previous

studies such that, rather than handling the labeling

problems in the corresponding data set, we propose to

generate the event log according to the provided

process profile. We especially use the log generation

efforts in (Bayomie et al., 2016), (Ferreira & Gillblad,

2009) and (Esgin, Senkul & Cimenbicer, 2010) for

comparison.

3 PROPOSED APPROACH

When process mining techniques are applied to the

process-aware information systems, we confront the

problem about collecting the transactional data, i.e.

event log at the source systems. The transactional log

at process-aware information systems is not

appropriate to monitor the individual business cases.

Instead, these systems only monitor the execution log

of specific transactions without any relations within a

case identifier (van der Aalst, 2006). Indeed, process-

aware information systems are strongly data centric:

the transactional data is staggered through header and

line-item database tables with a many-to-many (M:N)

cardinality. Although SAP tools like Reverse

Business Engineering (RBE) log the transaction

frequencies, these transactions are linked to event

process chain (EPC) format reference process models

without any assignment to individual business cases

(van der Aalst, 2006).

According to these limitations at correlating the

process instances with case identifiers, we propose a

synthetic event log generator (synLogGen) that

simulates the event log from scratch according to

Process Proﬁling based Synthetic Event Log Generation

517

process profile and Petri net firing rule for a given

business process.

3.1 Preliminaries on Petri Net

This section introduces the basic Petri net

terminology and notation given in (Desel & Esparza,

1995) and (Reisig & Rozenberg, 1998). The classical

Petri net is a directed bidirectional graph with two

node types: places and transitions. The nodes are

connected via directed arcs and connections between

two nodes of the same type are restricted (Desel &

Esparza, 1995; Reisig & Rozenberg, 1998).

Definition (Petri net). A Petri net is a triple (P, T, F):

 P is a finite set of places. A place p is called an

input place of a transition t, i.e. denoted as •t or

p•, if and only if there exists a directed arc from p

to t otherwise it is called an output place of

transition t if and only if there exists a directed

arc from t to p, i.e. denoted as t• or •p.

 T is a finite set of transitions (P ∩ T = ∅).

 F ⊆ (P × T) ∪ (T × P) is a set of arcs.

At any time, a place contains any tokens that are

denoted as dots (van der Aalst et al., 2003). The state,

called as marking, holds the current distribution of

these tokens over places and the number of existing

tokens varies according to the process structure and

successors of the corresponding activity. The marking

procedure of Petri net is defined as firing rule as

follows (van der Aalst et al., 2003; van der Aalst,

2006):

 A transition t is said to be enabled if and only if

each input place contains at least one token.

 An enabled transition may fire. If a transition t is

fired, then t consumes one token from each input

place p and produces one token from each output

place p of t (van der Aalst et al., 2003; van der

Aalst, 2006).

3.2 Synthetic Log Generator

Synthetic log generator has a main input which

defines the process profile. Process profile composes

two data lists: activity vocabulary and Petri net.

Activity vocabulary holds all valid activities in terms

of activity type (i.e. I-initiator, O-ordinary, S-sink)

and the activity occurrence priority. This priority

represents the path probability of corresponding

activity occurrence changing at [0, 100] interval and

this factor is determined by the domain experts. Petri

net converts the graph-based reference process model

into tabular format, at which each transition ti

listed in terms of predecessor, successor and

transition type (i.e. AND/OR/XOR join/split-type

gateway or direct succession). Table 1 exemplifies

the activity vocabulary and Petri net for the

combined xor-and process given in Figure 1.

Table 1: Activity Vocabulary and Petri net for combined

xor-and Process.

According to Petri net firing rule adaptation and

input requirements, synthetic event logs are

generated as the following steps. Terms in

parenthesis refer to the variables and constants

addressed in the pseudo-codes Algorithm 1 and 2

respectively.

(1) As the starting point, the initiator (I-typed)

activity of the corresponding process (e.g. activity

A for combined xor-and process) is tokenized

first. Since token list holds just this initiator, the

corresponding activity is selected

(selectedActivity) and fired at fire next activity

step. Then a new event log line is created with

respect to newly set time stamp, current process

instance (proIns) and the originator randomly

obtained from originator list.

Afterwards, the successors of initiator activity

(e.g. activity B and D for the initiator A) are

tokenized and added to the token list. According

to transition type, and-list and xor-list are also

updated.

(2) At the next iteration of fire next activity step,

firstly the occupancy of and-list is checked to

give priority to any tokenized successors with

AND-split transition type. In the case of XOR-

split, unfired successors are suppressed at the

current process instance (proIns). On the other

hand, OR-split successors are conditionally fired

according to the OR-threshold determined by the

domain experts.

(3) If and-list is initial, one of tokenized activities is

randomly selected from token list and fired with

respect to activity occurrence priority and then a

new event log line is created with respect to

newly set time stamp, current process instance

(proIns) and the originator randomly obtained

KDIR 2019 - 11th International Conference on Knowledge Discovery and Information Retrieval

518

from originator list. Due to this firing, the

successors of fired activity are tokenized.

(4) If any successive activity with AND-join

transition type is selected, it is checked whether

all predecessors of the corresponding activity are

priorly fired and untokenized at fire next activity

step (at lines 10-24 at Algorithm 2). According to

the tokenized flag, it propagates tokenization to

subsequent successors. This tokenization and

firing iteration continue up to a sink (S-type)

activity is fired (sinkActivityFired) or process

instance limit (maxProsIns) is reached.

In addition to the firing rule, various parameters are

used for handling exceptional cases:

 Surprise parameter (SURPRISE_PROB) is used

to evoke unexpected process terminations. For

instance, bankruptcy is a niche business case in a

banking financial process and this relatively least

probable case is held by the surprise effect. The

default value for surprise probability threshold is

5%.

 Noise parameter (NOISE_FACTOR) is used to

generate noisy event log that deteriorates the

business rules given in process profile. The default

value for noise factor threshold is 5%.

 OR-split gateway specifies that one or more

tokenized successors will be fired in the case of

OR-split. OR-threshold reflects this conditional

firing.

Pseudo-codes for event log generation and fire next

activity steps are given in Algorithm 1 and Algorithm

2, respectively.

Algorithm 1: Generate Logs(actListFile, pnFile,

maxProIns).

activityList  Read Activity List(actListFile)

petriNet  Read Petri Net(pnFile)

proIns  1

fireCount  0

5: while proIns ≤ maxProIns do

surprise  SURPRISE_PROB

7: Set sinkActivityFired as FALSE

currActivity  Get Initiator Activity(activityList)

9: Set tokenized attribute of currActivity as TRUE

10: Add currActivity to tokenList

11:

while surprise ≥ SURPRISE_PROB AND

!sinkActivityFired do

12: Fire Next Activity(proIns) // Algorithm 2

13: Random Generate surprise from [0, 100]

14: if surprise < SURPRISE_PROB then

15: Reset Lists(andList, xorList, tokenList)

16:

Reset Attributes(tokenized, fired) of all activity at

activityList

17:

endif

18:

endwhile

19: proIns++

20:

endwhile

Algorithm 2: Fire Next Activity( proIns).

1: Set getFired as FALSE

2: while !getFired do

3: if andList IS NOT INITIAL then

selectedActivity



Random Select Activity wrt

priority attribute from andList

else

selectedActivity



Random Select Activity wrt

priority attribute from tokenList

endif

8: Get originator from originatorList

if predecessorList of selectedActivity IS NOT

INITIAL then

10:

tokenized



Check Tokenization at predecessorList

of selectedActivity

11: Random Generate noise from [0, 100]

12: if !tokenized AND noise < NOISE_FACTOR then

13: fireCount++

14: Set timestamp wrt fireCount

15:

Generate newEventLog wrt {timestamp,

originator, selectedActivity, proIns}

16:

Set tokenized attribute of selectedActivity as

FALSE

17: Set fired attribute of selectedActivity as TRUE

18:

Refresh Lists(andList, xorList, tokenList) wrt

selectedActivity and its successorList

19: Set getFired as TRUE

20: if selectedActivity IS SINK then

21: Set sinkActivityFired as TRUE

22: Reset Lists(andList, xorList, tokenList)

23:

Reset Attributes(tokenized, fired) of all activity

at activityList

24:

endif

25:

endif

26:

else

27:

fireCount++

28: Set timestamp wrt fireCount

29:

Generate newEventLog wrt {timestamp,

originator, selectedActivity, processInstance}

30:

Set tokenized attribute of selectedActivity as

FALSE

31: Set fired attribute of selectedActivity as TRUE

32:

Refresh Lists(andList, xorList, tokenList) wrt

selectedActivity and its successorList

33: Set getFired as TRUE

34: if selectedActivity IS SINK then

35: Set sinkActivityFired as TRUE

36: Reset Lists(andList, xorList, tokenList)

37:

Reset Attributes(tokenized, fired) of all activity

at activityList

38:

endif

39:

endif

40:

endwhile

4 EXPERIMENTAL ANALYSIS

AND DISCUSSION

As benchmark process models, we use the xor, and,

combined xor-and, and nested xor-and processes,

which are also referenced in (Bayomie et al., 2016).

According to the process models given in Figure 1,

process profiles are prepared and synthetic event log

Process Proﬁling based Synthetic Event Log Generation

519

Figure 1: Benchmark Processes for Evaluation as referenced in (Bayomie et al., 2016).

are generated according to given number of cases

(maxProIns) as given in Table 2.

Table 2: Benchmark Process Characteristics according to

Candidate (DCI and E-Max) and Proposed Approach

synLogGen.

As given in Section 4.2, we use two previous

studies, DCI (Bayomie et al., 2016) and E-Max

(Ferreira & Gillblad, 2009) that priorly worked on

the benchmark processes in (Bayomie et al., 2016),

for performance comparison. For this reason, we

present the process log generation parameters of

these works in Table 2. The basics of these two

studies are as follows:

 DCI (deducing case identifiers) generates a set of

labeled event log by considering all labeling

possibilities for each activity in the event log

(Bayomie et al., 2016). Additionally, a ranking

score that indicates the degree of trust in labeling

of events within each log is assigned (Bayomie et

al., 2016).

 E-Max (Expectation-Maximization) is a greedy

algorithm that mines the unlabeled event log

(Ferreira & Gillblad, 2009). It takes the local

maximum to generate one labeled event log.

4.1 Analysis on Compatibility of Event

Logs with Intended Process Model

After the event logs are generated by our solution, in

order to analyze the compatibility of the generated

logs with the target model, we extract the process

back from the generated logs and compare with the

target model. We used the process mining approach

given in (Esgin, Senkul & Cimenbicer, 2010). The

underlying process discovery approach is composed

of two components: from-to chart and process flow

branch discovery. From-to chart is an analytical tool,

which is basically used in monitoring material

handling routes between operations, machines,

departments or work centers on the production floor

(Esgin & Senkul, 2009). It is adapted to monitor

transitions among activities occurred in process

instances and to figure out if there exists any

specific order of the occurrences for representing in

process model (Esgin, Senkul & Cimenbicer, 2010).

We aim to compare the quality of mined process

models by completeness and soundness metrics,

which are defined as follows:

 Completeness of the process model is the ratio of

the traces in the event log that may be the result

of some enactment at the corresponding process

model (van Dongen, Dijkman & Mendling,

2008). The completeness metric is similar to

fitness defined in (Jagadeesh Chandra Bose &

van der Aalst, 2012), (Rozinat & van der Aalst,

2008) and recall defined in (Becker & Laue,

2012) and (Gerke, Cardoso & Claus, 2008).

 Soundness measures the ratio of the activity

enactments within the corresponding process

model that find some correspondence in the

event logs (van Dongen, Dijkman & Mendling,

2008). The soundness metric is similar to

minimality or behavioral appropriateness defined

in (Maruster, Weijters & van der Bosch, 2006)

and precision defined in (Jagadeesh Chandra

Bose & van der Aalst, 2012), (Becker & Laue,

2012) and (Gerke, Cardoso & Claus, 2008).

KDIR 2019 - 11th International Conference on Knowledge Discovery and Information Retrieval

520

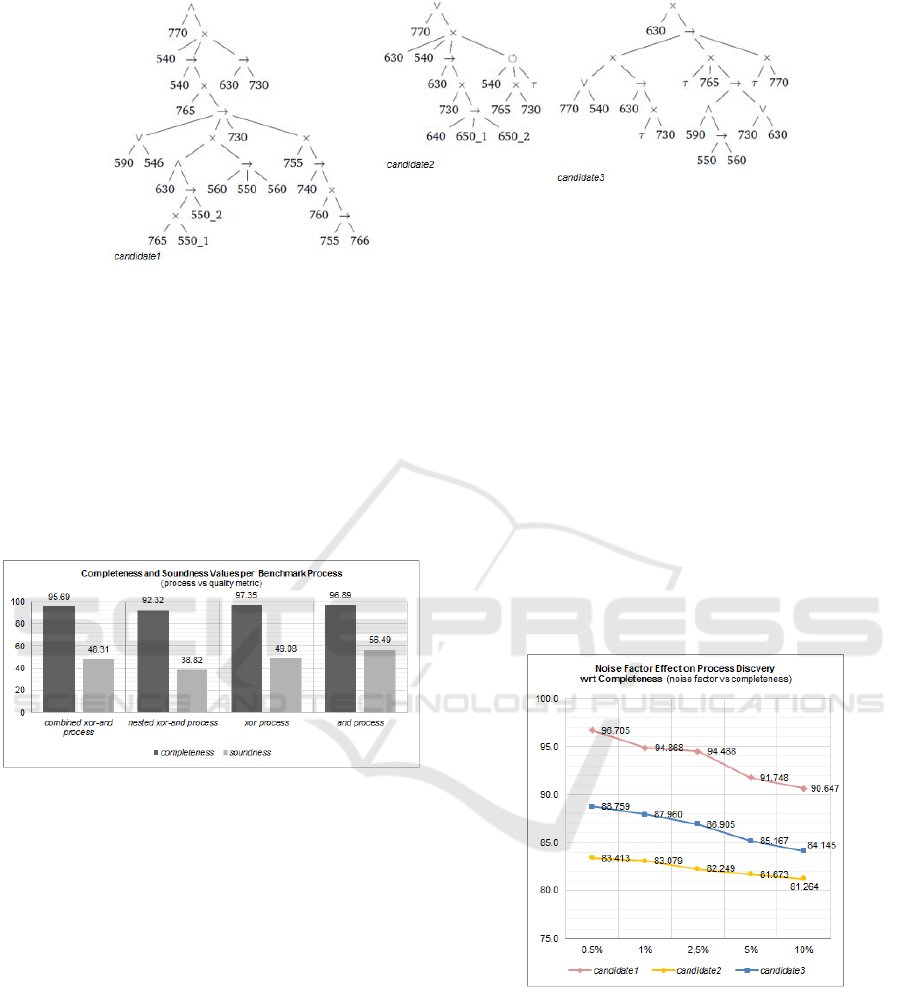

Figure 3: Process Maps per Candidate Process Variant (candidate

) as referenced in (Yilmaz & Karagoz, 2015), (Buijs &

Reijers, 2014) and (van der Aalst, 2011).

As shown in Figure 2, the combination of

proposed approach synLogGen with the process

discovery approach introduced in (Esgin, Senkul &

Cimenbicer, 2010) captures the process behavior at a

high accuracy degree, having an average

completeness value over 95%. Respectively, XOR

gateways at nested xor-and process results in a more

spaghetti-like process model with a 38.8%

soundness value.

Figure 2: Completeness and Soundness Values per

Benchmark Process (according to proposed approach

synLogGen).

In addition to the benchmark process models

referenced in (Bayomie et al., 2016), we aim to

analyze the performance of proposed approach at

handling relatively complex business processes.

Hence the proposed approach synLogGen is applied

and evaluated on the Environmental Permit

Application business process in Configurable

Services for Local Governments (CoSeLoG) project,

which investigates the similarities and deviations

between processes of different municipalities in

Netherlands (Yilmaz & Karagoz, 2015; Buijs &

Reijers, 2014; van der Aalst, 2011).

According to the process maps of candidate

process variants given in Figure 3, process profiles

are designated, and event logs are generated

according to varying noise factor, i.e. noise in [%0.5,

%10] value range. Then process discovery is

performed for each noisy event log dataset.

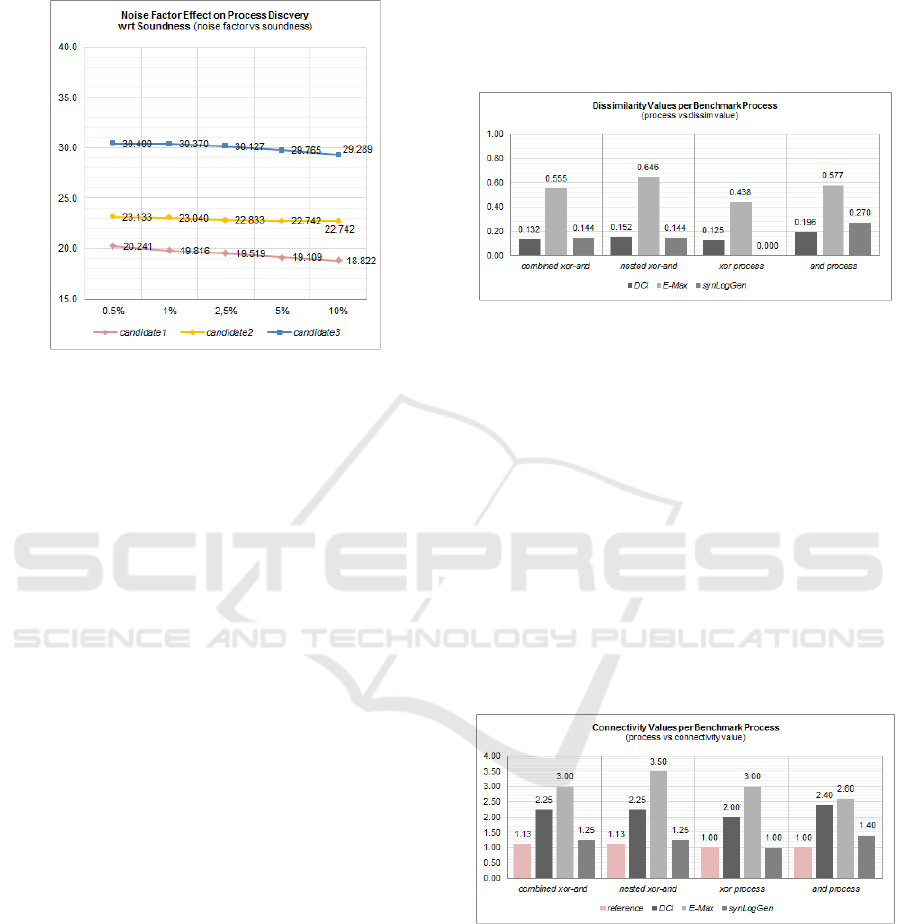

As shown in Figure 4 and 5, the combination of

proposed approach synLogGen with the process

mining algorithm introduced in (Esgin, Senkul &

Cimenbicer, 2010) is robust to the noise factor effect

at event log generation and process discovery.

According to completeness metric, complex

candidate process variants with relatively deeper

process maps (i.e. candidate1 figured within 10-level

and candidate3 within 7-level process map) have a

%1.46 average loss per noise factor increment, while

candidate2 figured within a lasagna-like structured

process map has a %0.65 average loss.

Figure 4: Noise Factor Effect on Process Discovery with

respect to Completeness. Although spaghetti-like complex

process variants with deeper process maps are potentially

more vulnerable to the increments at noise factor in the

first glance, a %1.46 average loss at completeness values

implies a relatively robust approach that appropriately

extracts relatively dominant process behaviors at a noisy

process history.

Similar outcomes are valid for soundness metric

such that, while candidate1 and candidate3 have a

%1.36 average loss per noise factor increment,

Process Proﬁling based Synthetic Event Log Generation

521

candidate2 performs a mitigated average loss of

%0.43.

Figure 5: Noise Factor Effect on Process Discovery with

respect to Soundness.

4.2 Log Generation Analysis in

Comparison to the Literature on

Compatibility of Event Logs with

Intended Process Model

Since the process event logs generated by DCI and

E-Max in (Bayomie et al., 2016) are not available,

we follow an indirect way of performance

comparison. Therefore, process discovery

performance is evaluated according to mined Petri

nets given in (Bayomie et al., 2016). Although the

accuracy of the discovered process depends on both

log generation and process discovery method used, it

gives a hint as to the quality of the generated logs.

As the accuracy metric, dissimilarity metric

(dissim) introduced in (Esgin & Senkul, 2011) is

applied to measure the graph-based structural

deviance between reference process models and

mined process behaviors. Underlying dissimilarity

metric is built on a vector model from information

retrieval and an abstraction of process behavior

called process triple. Process triple is a set that covers

activity existence and interactions in terms of

successors and predecessors among activities (Esgin

& Senkul, 2011).

According to dissimilarity values given in Figure

6, DCI and the combination of proposed approach

synLogGen with the process discovery approach in

(Esgin, Senkul & Cimenbicer, 2010) are respectively

more accurate in distilling the process behavior given

in the reference process models than E-Max. While

average dissimilarity value of E-Max is

approximately 0.554, the average values of both DCI

and proposed approach synLogGen highlight less

discrepancies between the intended process

behaviors given at reference process model and

discovered behaviors (i.e. 0.151 and 0.14

respectively).

Figure 6: Dissimilarity Values per Benchmark Process.

Higher dissimilarity value implies a strong distinction

between reference and mined process model (i.e. 0:

exactly the same, 1: quite distinct).

In addition to dissimilarity metric, we aim to

analyze the understandability of mined process

models in terms of connectivity. Connectivity is the

average number of transitions (|T|) per activity (|A|)

at the corresponding process model (|T|/|A|). As

shown in Figure 7, candidate approaches, i.e. DCI

and E-Max, discover more spaghetti-like Petri nets

with higher connectivity values. Alternatively,

proposed approach synLogGen discovers more

structured and lasagna-like process models

according to less deviation with reference process

model.

Figure 7: Connectivity Values per Benchmark Process.

While higher connectivity values of candidate approaches,

DCI and E-Max, imply spaghetti-like process model

discovery, less deviance between reference and proposed

apparoach synLogGen emphasizes more structured

process models.

KDIR 2019 - 11th International Conference on Knowledge Discovery and Information Retrieval

522

5 CONCLUSION AND FUTURE

WORK

Process-aware information systems record detailed

process execution information concerning the

processes they support. Typically, the assignment of

case identifiers to the process instances is missing,

due to data centric architecture of the underlying

information systems (van der Aalst, 2006). In this

paper, we introduce an approach to simulate

synthetic event log from scratch rather than repairing

incomplete unlabeled event log. We use as input the

process profile that defines the activity vocabulary,

i.e. a list of valid activity labels, types and occurrence

priority, and Petri net in tabular form. Proposed

approach synLogGen also takes both noise and

surprise effects into account at applying Petri net

firing rule. According to completeness and soundness

outcomes obtained at the experimental runs with

varying noise factor values, the combination of

proposed approach synLogGen with the process

discovery approach introduced in (Esgin, Senkul &

Cimenbicer, 2010) is robust to the corresponding

noise effect at distilling the process behaviors in a

relatively noisy process execution environment.

In the evaluation step, four process models that

are referenced in (Bayomie et al., 2016) are

determined as benchmark processes. Two prior

approaches, i.e. DCI given in (Bayomie et al., 2016)

and E-Max given in (Ferreira & Gillblad, 2009),

which priorly handled the corresponding benchmark

processes, are selected as candidate. According to the

accuracy aspect, DCI and the combination of

proposed approach synLogGen with the process

discovery approach introduced in (Esgin, Senkul &

Cimenbicer, 2010) are respectively more accurate

than E-Max in terms of dissimilarity metric (Esgin &

Senkul, 2011), which measures the discrepancies

between reference process model and mined process

behaviors on a graph-based structural similarity

measurement. Additionally, proposed approach

synLogGen generates more structured and lasagna-

like process models with respect to moderate

connectivity values and less variance with reference

process model.

As the future work, we intend to implement an

integer-programming (IP) based synthetic log

generation, in which the process behaviors at

reference process model and the activity frequencies

at the unlabeled event log act as the main constraints.

The corresponding IP-based approach will simulate

maximal process traces without any relaxations at

these constraints.

REFERENCES

Bayomie, D., Helal, I. M. A., Awad, A., Ezat, E., &

Elbastawissi, A. (2016). Deducing Case IDs for

Unlabeled Event Logs. International Conference on

Business Process Management, vol. 256, 242-254.

Becker, M., & Laue, R. (2012). A Comparative Survey of

Business Process Similarity Measures. Computers in

Industry, vol. 63(2), 148-167.

Buijs, J.C., & Reijers, H.A. (2014). Comparing Business

Process Variants Using Models and Event Logs.

Enterprise, Business-Process and Information Systems

Modeling, 154-168.

Burrett, S., & Geng, L. (2008). Bayesian Classification of

Events for Task Labeling Using Work-Flow Models.

Proceedings of the 4th Workshop on Business Process

Intelligence.

Desel, J. & Esparza, J. (1995). Free Choice Petri Nets.

Cambridge Tracts in Theoretical Computer Science,

vol. 40, Cambridge University Press, Cambridge, UK.

Doganata, Y. N. (2011). Designing Internal Control Points

in Partially Managed Processes by Using Business

Vocabulary. ICDE Workshops. 267–272.

Doganata, Y. N., & Curbera, F. (2009). Effect of Using

Automated Auditing Tools on Detecting Compliance

Failures in Unmanaged Processes. BPM. LNCS, vol.

5701, 310-326.

Dustdar, S., & Gombotz, R. (2006). Discovering Web

Service Workflows Using Web Services Interaction

Mining. International Journal of Business Process

Integration and Management, vol. 1(4), 256.

Esgin, E., & Senkul, P. (2009). Hybrid Approach to

Process Mining: Finding Immediate Successors of a

Process by Using From-to Chart. International

Conference on Machine Learning and Applications,

664-668.

Esgin, E., & Senkul, P. (2011). Delta Analysis: A Hybrid

Quantitative Approach for Measuring Discrepancies

between Business Process Models. 6th International

Conference, Hybrid Artificial Intelligence Systems

(HAIS), vol. 6678, 296-304.

Esgin, E., Senkul, P., & Cimenbicer, C. (2010). A Hybrid

Approach for Process Mining: Using From-to Chart

Arranged by Genetic Algorithms. 5th International

Conference, Hybrid Artificial Intelligence Systems

(HAIS), vol. 6076, 178-186.

Ferreira, D. R., & Gillblad, D. (2009). Discovering

Process Models from Unlabelled Event Logs. BPM

LNCS, vol. 5701, 143–158.

Gerke, K., Cardoso, J., & Claus, A. (2009). Measuring the

Compliance of Processes with Reference Models. On

the Move to Meaningful Internet Systems: OTM 2009,

Confederated International Conferences: CoopIS, IS,

DOA and ODBASE, vol. 5870, 76-93.

Gunther, C. W., & van der Aalst, W. M. P. (2006).

Process Mining in Case Handling Systems.

Multikonferenz Wirtschaftsinformatik 2006.

Jagadeesh Chandra Bose, R. P., & van der Aalst, W. M. P.

(2012). When Process Mining Meets Bioinformatics.

Process Proﬁling based Synthetic Event Log Generation

523

CAISE Forum, IS Olympics: Information Systems in a

Diverse World, vol. 107, 202-217.

Maruster, L., Weijters, T., & van der Bosch, A. (2006). A

Rule-Based Approach for Process Discovery. Data

Mining and Knowledge Discovery, vol. 13(1), 67-87.

Reisig, W. & Rozenberg, G. (1998). Lectures on Petri

Nets I: Basic Models, vol. 1491 LNCS.

Rissanen. J. (1978). Modeling by Shortest Data

Description. Automatica, vol. 14 (5), 465–471.

Rogge-Solti, A. (2014). Probabilistic Estimation of

Unobservered Process Events. Phd, University of

Potsdam.

Rogge-Solti, A., Mans, R., van der Aalst, W. M. P. &

Weske, M. (2013). Repairing Event Logs Using

Timed Process Models. OTM Workshops. LNCS, vol.

8186, 705–708.

Rozinat, A., & van der Aalst, W. M. P. (2008)

Conformance Checking of Processes Based on

Monitoring Real Behavior. Information Systems, vol.

33(1), 64-95.

van der Aalst, W. M. P. (2006). Matching Observed

Behavior and Modeled Behavior: An Approach Based

on Petri nets and Integer Programming. Decision

Support Systems, vol. 42(3), 1843-1859.

van der Aalst W. M. P. (2011). Process Mining Manifesto.

BPM Workshops. LNBIP, vol. 99, 169–194.

van der Aalst, W. M. P. (2011). Intra and Inter-

Organizational Process Mining: Discovering Processes

within and between Organizations. IFIP Working

Conference on the Practice of Enterprise Modeling,

vol. 92, 1-11.

van der Aalst, W. M. P., Dongen, B. F., Herbst, J., L., M.,

Schimm, G., & Weijters, T. A. J. M. M. (2003).

Workflow Mining: A Survey of Issues and

Approaches. Data & Knowledge Engineering, vol.

47(2), 237-267.

van der Aalst, W. M. P., Gunther, C., Recker, J., &

Reichert, M. (2006). Using Process Mining to Analyze

and Improve Process Flexibility. BPMDS 2006.

van Dongen, B., Dijkman, R., & Mendling, J. (2008).

Measuring Similarity between Business Process

Models. Advanced Information Systems Engineering,

20th International Conference, CAISE, vol. 5074, 450-

464.

Walicki, M. & Ferreira, D. R. (2011). Sequence

Partitioning for Process Mining with Unlabeled Event

Logs. Data & Knowledge Engineering, vol. 70(10),

821–841.

Weijters, T. A. J. M. M., & van der Aalst, W. M. P.

(2003). Rediscovering Workflow Models from Event-

Based Data Using Little Thumb. Integrated Computer-

Aided Engineering, vol. 10(2), 151-162.

Yilmaz, O., & Karagoz, P. (2015). Generating

Performance Improvement Suggestions by using

Cross-Organizational Process Mining. 5th

International Symposium on Data-Driven Process

Discovery and Analysis, 3-17.

KDIR 2019 - 11th International Conference on Knowledge Discovery and Information Retrieval

524
