Speeding Up Evaluation of Structures for the Angry Birds Game

Laura Calle

, Juan-Juli

an Merelo-Guerv

2 a

, Mario Garc

ıa-Valdez

3 b

and Antonio Mora-Garc

ıa

2 c

Universidad de M

alaga, Spain

Universidad de Granada, Spain

Instituto Tecnol

ogico de Tijuana, Mexico

Keywords:

Search-based Procedural Content Generator, Evolutionary Algorithm, Game Development, Angry Birds,

Level Generation.

Abstract:

In this work, we present an original method based on evolutionary algorithms for generating basic structures

for the physics-based game Angry Birds, with the ultimate objective of creating Angry Birds levels with the

minimum number of constraints. We set out to evolve free-form structures, and this means searching in a

larger space. In this paper, we test how using a physics engine enables us to evaluate much more levels than

a game engine simulation. In order to do this, we compare the results of experiments using both types of

simulators and propose ﬁtness functions accordingly. Results show the execution time drastically drops from

5 hours to less than 20 minutes on average.

1 INTRODUCTION

Angry Birds is a multiplatform video game created in

2009 by the Rovio Entertainment Corporation. Each

level of the game consists of a collection of structures

made out of blocks in which comic pig characters are

hiding; the player has to ﬁre from a slingshot differ-

ent bird characters, each having different abilities and

moods. The objective of the game is to destroy all the

pigs by knocking down the structures or just hitting

them directly. The game relies on gravity to create

interesting puzzles by closely resembling the dynam-

ics of real-world structures. It has been approached

in different ways from the computational intelligence

community; in this paper we are interested in gen-

erating levels that are playable and interesting. This

has been proposed as a competition in several game-

related conferences (Stephenson et al., 2018; Khalifa,

2018), but could be also interesting from the perspec-

tive of generating levels to train or evaluate game-

playing bots, as was done by Zafar et al. in (Zafar

et al., 2019).

Search-based Procedural Content Generation

(SBPCG) is a type of a generate-and-test approach

to PCG which is usually tackled with Evolutionary

https://orcid.org/0000-0001-8956-5304

https://orcid.org/0000-0002-2593-1114

https://orcid.org/0000-0003-1603-9105

Algorithms(EA) (Togelius et al., 2010). The chal-

lenges faced by SBPCG are not far from those found

in EAs; since they are search methods, they can be

a good option to implement this kind of systems. In

our case, as a ﬁrst step to generate Angry Birds lev-

els, we will generate free-form self-standing struc-

tures using the Angry Birds basic blocks. The main

intention with this approach is to eventually generate

structures that can host pigs and that achieve aesthetic

quality mainly through variability and the fact that

they are not cookie-cutter repetitions of the same ba-

sic structure with some small variations; at the same

time, it becomes an interesting and challenging prob-

lem from the optimization point of view: using some

basic building blocks and a simulated gravity, to be

able to generate structures that do not collapse. That

is the main objective of this line of work.

The primary objective of this paper, however, is to

use a ﬁtness function that is able to evaluate structures

without needing the simulator, advancing the state of

the art with respect to our previous paper (Calle et al.,

2019), where we needed to use the simulator itself to

check gravity, which incurred in much overhead, up

to several seconds.

In this paper, we will use what (Togelius et al.,

2010) calls direct ﬁtness function, this function com-

putes a score from measurable features of the gener-

ated content. However, this ﬁtness function is a time-

consuming task since it involves the generation of a

Calle, L., Merelo-Guervós, J., García-Valdez, M. and Mora-García, A.

Speeding Up Evaluation of Structures for the Angry Birds Game.

DOI: 10.5220/0008365502370244

In Proceedings of the 11th International Joint Conference on Computational Intelligence (IJCCI 2019), pages 237-244

ISBN: 978-989-758-384-1

237

graphic representation of the structure and the simu-

lation of the falling motion. If we have to evaluate

every single individual in the population, we will not

be able to cover enough of the free-form search space

to ﬁnd a good enough solution. So we must minimize

the actual number of structures that are simulated by

applying heuristics to the data structure and assigning

it a ﬁtness even before the simulation. Additionally,

we will try to improve the design of the ﬁtness func-

tion so that it does not focus only on creating stable

structures, but also structures that have a better ap-

pearance and aesthetics.

This paper is organized as follows: in the next sec-

tion, we present the state of the art in this type of

level generation, as well as its relation to the prob-

lem of generating structurally sound structures. Our

proposed method for generating Angry Birds levels

is described next in Section 3. The new experiments

performed for this paper and its results are presented

next in section 4. We present our conclusions in 5.

2 BACKGROUND AND STATE OF

THE ART

PCG used for video game levels is relevant in inter-

national artiﬁcial intelligence competitions, such as

Super Mario Level Generation (Shaker et al., 2012),

General Video Games (Khalifa, 2018; Khalifa et al.,

2016), or recently, for Angry Birds (Stephenson et al.,

2018). This work is related to works presented in pre-

vious editions of the competition. The focus of the

latest edition (Stephenson et al., 2018) was on ﬁnd-

ing entertaining levels. Fun was the main factor in

the evaluation of proposals; secondary factors were

creativity and difﬁculty. Six entries participated, of

which J. Yuxuan et al., were able to generate random

quotations with different components of a level; J. Xu

et al. generated levels that look like pixel images. A

third approach (by C. Kocaogullar) translated music

patterns to generate structures. The winner was Iratus

Aves, a new iteration of the work by M. Stephenson

and J. Renz (Stephenson and Renz, 2017; Stephen-

son and Renz, 2016), which follows a constructive

method. In this work, the likelihood of selecting a

certain block is given by a probability table, which

was tuned using an optimization method. Blocks are

then stacked following a tree structure.

A constructive method ensures local stability, but

not global stability, which must be evaluated once the

whole structure is completed. One problem with this

and other constructive approaches is that the variety

of structures created is going to be relatively small;

monotony leads to boredom, decreasing playability.

On the other hand, generated structures are guaran-

teed to be structurally sound, and constructive ap-

proaches are generally faster than search-based pro-

cedures.

An alternative to deal with these limitations is to

follow a Search-based approach. Thus, Lucas Fer-

reira and Claudio Toledo (Ferreira and Toledo, 2014a;

Ferreira and Toledo, 2014b) presented a solution us-

ing a Genetic Algorithm (GA) and a clone of Angry

Birds named Science Birds developed to evaluate the

levels. In this GA, levels correspond to individuals in

a population, each individual has a chromosome rep-

resented by an array of lists. Each list is a sequence

of blocks, pigs and predeﬁned compound blocks, us-

ing an identiﬁcation number. Each list is then placed

as a stack of elements in the game. A level has sev-

eral such stacks. This representation also includes the

distances between stacks. The population is initial-

ized randomly following a probability table deﬁning

the likelihood of a certain element being placed in a

certain position within a stack. This implies that a col-

umn or stack shape is chosen beforehand, once again

ensuring stability, but decreasing playability by gen-

erating structures whose only differences are which

blocks are placed on top of which.

Levels are evaluated executing them in the sim-

ulator and checking their average stability, consider-

ing the speed of every block when erected – which

must tend to be zero when having a stable structure –.

The authors designed specialized crossover and muta-

tion operators, aiming to maintain the consistency of

newly generated solutions.

The approach proposed by Stephenson et al.

(Stephenson and Renz, 2019) is based on agents, and

is focused on offering custom experience for speciﬁc

players. This approach builds on the previous paper

(Stephenson and Renz, 2018), which tries to create

deceptive levels that are able to minimize damages to

the structure in sequences of shots. Although the fo-

cus of this paper is in another different direction, our

constructive approach to design levels could be com-

plemented with different ﬁtness scores, such as the

ones presented in Stephenson’s papers.

However, this work proposes a different approach:

free-form evolution. If we look outside the domain of

game development and focus on structural optimiza-

tion in architecture, there are several proposals using

search-based algorithms. We can ﬁnd a metaheuristic

called Cuckoo Search (Gandomi et al., 2013) which

performance was tested with structural optimization.

However, this optimization is heavily parametrized

and we are looking for the evolution of structures that

do not follow a predeﬁned pattern. Another approach

for structure design is using Generative Grammati-

ECTA 2019 - 11th International Conference on Evolutionary Computation Theory and Applications

238

cal Encodings (Hornby and Pollack, 2001) where L-

system and its production rules are considered indi-

viduals. This method increases the number of gener-

ated patterns, but still restrains the formation of dis-

joint structures, for instance, a defensive tower before

a simple pigsty in our context.

We aim at following a realistic structure genera-

tion approach, without constraining it to a ﬁxed form,

thus advancing the state of the art by allowing the cre-

ation of Angry Birds levels having any arrangement.

The next section will describe how we characterize

this problem and our approach to it. In our previ-

ous paper (Thors, 2019) we explored this approach

and found as one of its shortcomings the fact that the

evaluation of generated structures through the simula-

tor was lengthy and didn’t leave the algorithm enough

time to explore the search space. In this paper, we try

to tackle that problem, as well as take additional steps

to increase the complexity of generated structures.

3 PROBLEM DESCRIPTION

In a previous work, we used Science Birds (Ferreira

and Toledo, 2014a) as a starting point. Developed

by Lucas Ferreira and Claudio Toledo, Science Birds

has become the main open source Angry Birds sim-

ulator. However, we needed to modify the code in

order to produce an output with the additional data

needed to automate that work. The code is available

in the GitHub repository https://github.com/Laucalle/

ScienceBirds. The additional data contains the po-

sition and the average magnitude of the velocity of

each block that remains after the simulation. One ad-

vantage is that the whole experiment can run with-

out user intervention. Another advantage is that the

amount of time spent on the simulation of each level

is minimized to some extent. Reducing the simulation

time not only increases the number of evaluations by a

certain range of time, but it is also a factor in competi-

tions, where there is a ﬁxed time limit for participants.

To further decrease simulation time, in this paper,

we use the Box2D (https://box2d.org) physics engine.

This engine, written in C++, was initially used for the

actual Angry Birds game. By just simulating the posi-

tioning of objects in memory, we can avoid launching

the whole game, using bitmaps and screen rendering,

which adds overhead to the process of ﬁtness evalu-

ation. Even if in this Box2D simulation we do not

have the resistance of the blocks implemented, we can

test the stability of level much more efﬁciently, since

there is no overhead in computing things unrelated to

Physics, such as the GUI. If we do not have block re-

sistance in a simulation, blocks will not be destroyed

when they hit each other; in that case, the ﬁtness func-

tion should not take into account before and remain-

ing blocks.

Once we chose the simulator that is going to be

used to evaluate the ﬁtness of a level, we must design

the ﬁtness function. As obvious as it might seem, the

main feature of a sound level is that it is not in mo-

tion, so it seems reasonable to evaluate its complete

stillness as opposed to its speed. We must consider

every single block in doing this.

f itness

ind

|V |

∑

i=0

+ P

broken

· (b − |V |)

When using Science Birds, the average magnitude

of velocity is provided for each block. We note this

as V , with |V | being the cardinality of the set. The

number of blocks in an individual is b, and it can dif-

fer from the cardinality of V since we do not track

collapsed blocks. The number of broken blocks is

b − |V |, and it is multiplied by a penalization factor

since a level whose blocks break without user inter-

action would not be considered valid. Blocks can be

broken when they fall from a certain height or col-

lide with another object. We set the penalization fac-

tor P

broken

to 100 since objects in a level do not usu-

ally reach that velocity. The goal of this evaluation

is then to separate non-valid levels from potentially

good ones.

In the experiment, presented we changed this ﬁt-

ness function to the function shown below, after ob-

serving the results for the previous experiments 4:

f itness

indV 2

= max(V )

As we said before, simulating a level is a highly

time-consuming task, much more when we simulate

the whole game, it is in the order of seconds, which

makes it almost unfeasible for our purpose. Next, we

propose a method for evaluation, in which not all lev-

els need are simulated.

Some situations can indicate that a level has a very

slim probability of being valid. For instance, a block

begins suspended in a position to far from the ground,

or there are blocks with an overlapping position. If

this is the case, then we skipped the simulation of the

level.

When having a structure where the object closest

to the ground is far above, it will likely collapse from

the impact along with all the other blocks above. For

this reason, we will not be simulating levels that have

all their blocks higher than a certain threshold. The

threshold used is 0.1 in-game units, and the penalty

applied to the distance is 10:

Speeding Up Evaluation of Structures for the Angry Birds Game

239

distance

(

distance

· D

lowest

, if D

lowest

> threshold

0, otherwise

The other factor is the number of overlapping

blocks. To determine if two convex shapes inter-

sect, we can use the separating axis theorem (Ericson,

2004) used in game development for collision detec-

tion. A level with blocks that occupy the same space

is not likely to be stable, as the Unity Engine under-

lying the simulator will solve the issue moving the

blocks until there is no collision. Unity implements

this behavior, and as it is proprietary software, it is

not possible to know or change what it does. So, a

penalty is also applied and the level is not simulated

either.

For this case it is f

overlapping

= P

overlapping

where the ﬁrst factor is a penalty set to 10

and the second is the number of blocks overlapping

with each other.

In some of the late experiments, we will substi-

tute the f

distance

with the gap in the Y-axis. We then

project all blocks on the Y-axis and calculate the range

of values in the Y coordinate that are not inside the

feasible range. This gap is treated the same way as

distance

(same penalization and threshold) so we call

it f

Y −axis

(

distance

· Pr

Y −axis

, if Pr

Y −axis

> threshold

0, otherwise

If both f

distance

and f

overlapping

are 0 then the level

is suitable for simulation and ﬁtness is calculated as

f itness

ind

. We could consider this approach as an

overpenalization but exploring unfeasible regions en-

tails a serious overhead that we need to minimize

(Runarsson and Yao, 2003). On the other hand, lev-

els with multiple or even all blocks broken during the

simulation are not feasible either but in this case, run-

ning the simulation is necessary. In this last case, pe-

nalization does not prevent the algorithm from explor-

ing that region.

Since one of the perceived beneﬁts of SBPCG is

the expressiveness and variability, it seems reasonable

to use a ﬂexible representation. We will design the

GA to allow a less directed search than previous pro-

posals while keeping the representation simple.

Individuals are composed of a list of blocks; we do

not consider, TNT boxes, or pigs in this paper since

we are focused only on the generation of structures.

These building blocks have the following attributes:

• Type: there are only eight basic blocks that can be

placed in the level with different shapes and sizes;

they are represented by an integer between 0 and

• Position: x and y coordinates from the centre of

the block. Values are in game units and are repre-

sented as ﬂoating point numbers.

• Rotation: rotation of the basic block in degrees.

Only four different rotation angles are considered:

0, 45, 90 or 135 degrees represented as integers

between 0 and 3.

• Material: there are three types wood, metal and

glass, which determine the durability of the block.

However, this does not affect their stability, so we

only use wood material for now.

Using this representation a gene representing a

single block will be formed by two integers (type and

position) and two ﬂoating point numbers (x and y co-

ordinates).

Individuals are a collection of genes, in the same

way a level is a collection of building blocks. The

number of blocks is variable and the order in which

they are listed is not important.

We store the ﬁtness of the worst individual that has

been tested in-game so that the value of not tested lev-

els is always above —it is a minimization problem—

the in-game tested levels; the starting point for ﬁtness

of such individuals is the worst in-game score.

This penalization is calculated using the distance

of the lowest block to the ground, which can be easily

obtained, and the number of blocks that overlap. This

requires a bit more of computation, so it will be stored

and set in the initialization of the individual. When a

gene is modiﬁed, the number of overlapping blocks is

recalculated for that speciﬁc change.

Considering all of the above, the chromosome ob-

ject is composed by:

• A non-ﬁxed list of genes.

• A ﬁtness value.

• A penalty (set to False for in-game evaluated lev-

els).

• The number of overlapping blocks (calculated).

Initialization is done randomly, with each individ-

ual having a random number of genes, which are ini-

tialized by several methods:

• Random: selects a random number for each at-

tribute of the gene.

• Non-overlapping: also selects a random number

but the gene is only added to the chromosome if it

does not overlap with an already existing gene.

• Discrete: selects a random number for type and

rotation, but the position must be multiple of the

dimensions of the smallest block (blocks will be

aligned).

ECTA 2019 - 11th International Conference on Evolutionary Computation Theory and Applications

240

• Discrete non-overlapping: it combines the second

and third initialization methods.

• Discrete with a set of pre-conﬁgured blocks: ﬁrst

it includes a set of blocks, and then adds blocks

following the third method until it reaches the de-

sired number of blocks. The conﬁgurations used

are the compound blocks found in (Ferreira and

Toledo, 2014a).

Candidates for reproduction are selected using

tournaments. Two individuals are chosen from the

population and the best will be a parent in this gen-

eration. This is repeated until a certain percentage of

pairs have been reached. It is important to note that

individuals chosen are not removed from the popula-

tion and therefore they can appear several times in the

list of parents.

Once the parents have been selected, we chose

from two different methods of combination:

• Sample Crossover: gives a single individual per

parent pair. It takes all genes from both parents—

excluding genes that are repeated—and randomly

takes a number of them to create the new individ-

ual. The number of blocks is the minimum be-

tween the maximum number of blocks allowed,

the mean of the two parent individuals and the

number of distinct genes.

• Common Blocks: produces two individuals. The

common genes to both parents are passed on to

both children. The remaining genes are randomly

distributed to each child, half to one and half to

the other.

There are four different types of mutation:

• Rotation: rotation is represented as an integer (it

is discretized), so it adds or subtracts one to the

current value.

• Type: similarly to rotation mutation.

• Position X: a real value between 0 and 1—

excluding 0—is added or subtracted from the

value of the position X.

• Position Y: same as position X mutation, for posi-

tion Y.

They are all applied to random members of the

population.

The new generation is produced following an eli-

tist strategy. Best individuals in both the old popula-

tion and their offspring pass on to the next generation,

maintaining the size of the population.

The information that describes a level can be

too complex to have a binary representation as pure

genetic algorithms suggest, so the framework used

should be ﬂexible enough to support complex data

structures. This prevented us from using other frame-

works and therefore a new framework was imple-

mented. The source code is open source and can be

found again in GitHub at https://github.com/Laucalle/

AngryBirdsLevelGenerator.

In order to assess the proposed methods and verify

if they meet our objective, we performed a series of

experiments presented in the next.

4 EXPERIMENTS AND RESULTS

We set out to evolve free-form structures, and this

means searching in a larger space. In this experi-

ment, we test how using a Physics engine enables us

to evaluate much more levels than a game engine sim-

ulation. In order to do this, we compare the results

of experiments with both simulators. Tables 1 and 2

show an overview of the results, including former and

present experiments. Experiments E1 to E4 were im-

plemented using a game engine simulator while E5

and E6 a physics engine. The results of experiments

1 to 4 were presented in (Thors, 2019); the need to

speed up evaluation prompted us to move the evalu-

ation of the physics of the structure to the program

itself, thus avoiding the overhead incurred in entering

the simulator.

4.1 Removing Game and Penalizing

Gaps in Y-axis

The main problem with the previous experiments

(E1-E4) was the time needed to load the Science

Birds simulation environment so that levels could be

actually run, which needed several seconds for load-

ing and obtaining results. So the main objective of

this experiment was to ﬁnd a way to get rid of the in-

game simulation. In order to do that, we will use the

Box2D (Catto, 2011) Physics engine we mentioned

earlier.

Since game physics do not usually resemble real

world physics we adjusted the parameters so this sim-

ulation and the game behave in the same way. As we

can see in table 1 the execution time drastically drops

from 5 hours (in experiment 4) to around 6 minutes

on average, even when running more generations in

the process. This achieves our ﬁrst objective, which

was to speed up execution so that we could perform

a more thorough exploration of the space of Angry

Birds structures.

This opened the way for performing more oper-

ations on the individuals. In this case we chose to

penalize not only the distance to the ground but also

the gaps in the Y-axis, which will make objects drop

Speeding Up Evaluation of Structures for the Angry Birds Game

241

Table 1: Summary of the execution of the last generation in 15-20 runs for each experiment. 40 runs for E5 and E6. G:

number of generations, E: experiment number.

Time(h) σ G σ

E1 0.89 (0.59) 100.0 (0)

E2 1.002 (1,97) 155.087 (240.56)

E3 1.76 (0.6) 76.625 (42.3)

E4 5.03 (1.46) 365.929 (158.09)

E5 0.099 (0.1) 121.2 (96.89)

E6 0.788 (0.124) 1000.0 (0)

Table 2: Summary of the results of the last generation in 15-20 runs for experiments 1 to 4, 40 runs for E5 and E6.

Best σ Avg σ Worst σ

E1 61.334 (133.02) 383.701 (106.14) 510.515 (133.04)

E2 110.66 (142.21) 327.547 (238.33) 367.895 (260.83)

E3 0.0015 (0.003) 0.54 (0.24) 0.828 (0.34)

E4 0.0018 (0.003) 0.203 (0.068) 0.2997 (0.1)

E5 1.249 (1.257) 1.276 (1.231) 1.288 (1.219)

E6 1.031 (0.853) 1.27 (0.834) 1.328 (0.819)

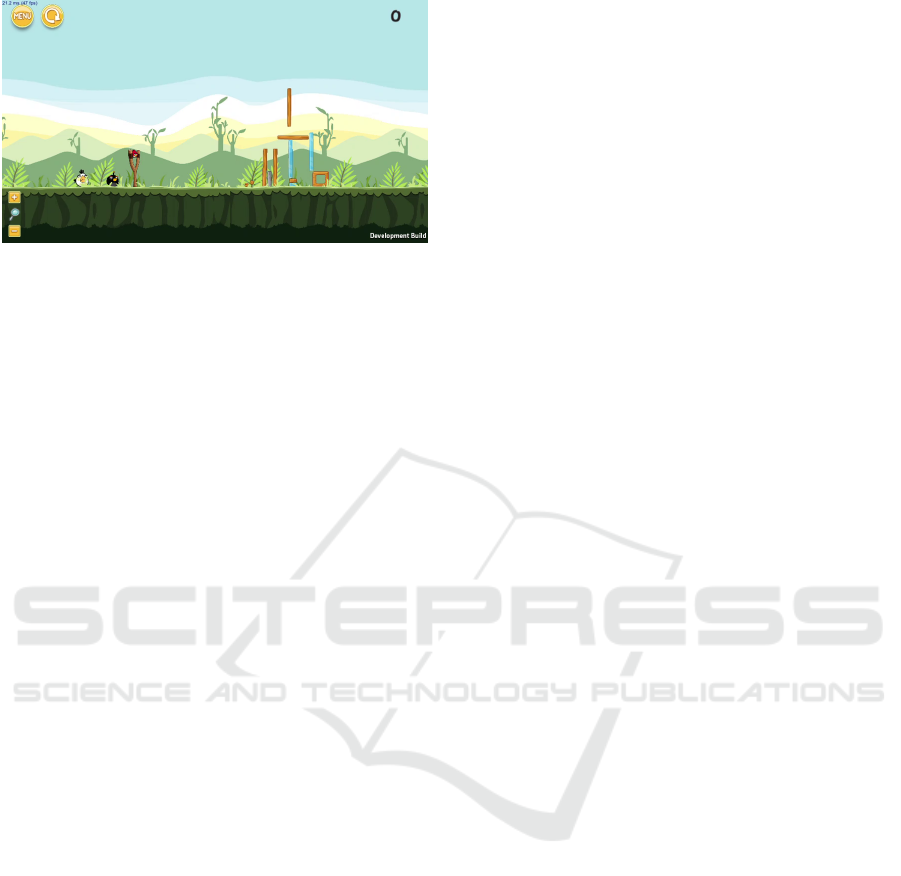

Figure 1: One of the solutions from 4.1.

and maybe break. This will encourage individuals to

grow vertically by giving a better score to those with

contiguous vertical blocks and not only horizontally

like in previous experiments. This changes the ﬁtness

function, so we will have to compare by the actual

obtained structure, one of which is shown in Figure 1.

In general, this penalization of gaps creates a

faster path to stable structures. Still, this path leads to

mostly ﬂat structures with some block placed higher,

but still in unstable positions, which are structurally

solid, but not interesting.

4.2 Changing the Evaluation Function

Observing results from the previous experiment we

realized that what evolution found was that laying

many blocks on the ground was enough to get a high

ﬁtness: the average speed, which was minimized dur-

ing evolution, was then obviously low and it will place

unstable blocks to cover gaps in Y-axis. In order to

correct this behaviour we changed the ﬁtness function

Figure 2: One of the solutions from 4.2. Blue blocks are

composed of ice, while brownish blocks and poles are com-

posed of wood. In Angry Birds, blocks differ in ﬂexibility,

weight but also fragility.

to take into account the fastest moving object instead

of the average:

f itness

indV 2

= max(V )

Additionally, we initialized levels including one of a

list of pre-conﬁgured blocks in addition to the random

initialization used until now.

This makes the ﬁtness value depends on just one

gene, although it can be a different one each time,

since the fastest moving element might vary with mu-

tation. The improvement of solutions to ﬁnd accept-

able ones slowed down again, with a different ﬁtness

function we cannot compare the ﬁtness value with the

rest of the experiments.

Table 1 shows that this again increases the time

needed to carry out the simulation. It also changes

the ﬁtness landscape. Looking at Table 2, what we

can compare mainly is the σ and difference between

best, average and worst; ﬁtness scores are not directly

comparable since they introduce a new term. What

ECTA 2019 - 11th International Conference on Evolutionary Computation Theory and Applications

242

Figure 3: Another solution for E64.2. Despite some initial

movement, this eventually stood still.

we see is that the variability of solutions is decreased

with respect to the previous experiment, showing that

this change increases the robustness of the algorithm,

but also its exploration capability, since the difference

between the best, worst and average is bigger than in

the previous experiment. Figures 2 and labelf:e6:2

also shows how this ﬁtness generates structures that

are stable but also have some interesting appearance,

including space that could be occupied by pigs below

the tables. At the same time, this also shows some

limitations of this approach, including the fact that

three tables are stacked one on top of each other, that

there are maybe too many poles supporting them, and

that there are small blocks scattered here and there.

The results here show that evolution is able to gen-

erate structures that do not collapse and also have

some appearance that could be interesting. However,

constraining evolution in particular ways might lead

to non-interesting structures or a local minimum in

the evolutionary landscape. Also, generated struc-

tures might be sub-optimal in the sense that they

might contain too many elements that do not really

contribute to the structure. It would be complicated

to codify this into a constraint, but it could be taken

into account in a post-processing of the structure us-

ing some greedy algorithm.

On the other hand, this last experiment fulﬁlls, at

least partially, the objectives of this paper: being able

to ﬁnd diverse, aesthetically pleasing structures fast,

without compromising, in advance, with a speciﬁc

building pattern.

5 CONCLUSIONS AND FUTURE

WORK

This paper was developed with the main objective of

speeding up the implementation of a system for gener-

ating free form Angry Birds levels; previously, we im-

plemented an EA that optimized stability of generated

structures, an objective that was achieved in a pre-

vious paper. However, there were several problems

with these structures generated initially: since their

main optimization criterion was stability, they were

mostly blocks lying on the ﬂoor; this was a local min-

imum and it was difﬁcult to escape for that; addition-

ally we needed to submit the structure to the simulator

and obtain information (such as block speed) from it

in order to evaluate those structures that couldn’t be

eliminated due to constraints. In this paper we tried

to move in two different directions: incorporating a

Physics engine to the main evolutionary algorithm to

minimize the need to use the Science Birds simulator,

and also try and incorporate better criteria of structure

evaluation so that they build up the kind of structures

we are used to in Angry Birds.

That is why, besides incorporating the Physics en-

gine, which sped up evaluation considerable and al-

lowed us to explore a bigger space, we took height

into account in ﬁtness, so that higher structures were

more varied and also more aesthetically pleasing.

The main challenges ahead lie in the inherent

multi-objective nature of this problem. The fact that

the structures need to be varied can be taken into

account by the very nature of the generation prob-

lem and need not be included into ﬁtness; this ﬁt-

ness should, however, consider aesthetics. Aesthet-

ics is part constraint (for instance, symmetry could

considered as such constraint), but also a score that

we would need to maximize. What this score could

be applied to a structure is not, a priori, straightfor-

ward. Adding to this requisite, the level should be

challenging to the user, so that it should include a cer-

tain amount of protection for the hosted pigs, which

would make it, as hinted, a multi-objective problem.

A multi-objective problem multiplies the size of the

search space, so additional speeding up techniques

should probably have to be taken into account.

If we pay attention at the stages of evolution in

this work, there is also room for improvement in the

genetic operators. For example, the initialization pro-

duces a small amount of valid individuals which sug-

gested that an elitist strategy for selection would work

best. However, new experiments will help to better

balance exploration and exploitation. An interesting

addition would be to add building operators that pile

blocks on structures that are already stable.

ACKNOWLEDGEMENTS

This paper has been supported in part by Deep-

Bio (TIN2017-85727-C4-2-P) from the Ministerio de

Econom

ıa y Competitividad in Spain.

Speeding Up Evaluation of Structures for the Angry Birds Game

243

REFERENCES

Calle, L., Merelo Guerv

os, J. J., Garc

ıa, A. M., and Garc

ıa

Valdez, J. M. (2019). Free form evolution for angry

birds level generation. In Kaufmann, P. and Castillo,

P. A., editors, Applications of Evolutionary Compu-

tation - 22nd International Conference, EvoApplica-

tions 2019, Held as Part of EvoStar 2019, Leipzig,

Germany, April 24-26, 2019, Proceedings, volume

11454 of Lecture Notes in Computer Science, pages

125–140. Springer.

Catto, E. (2011). Box2D: A 2D Physics engine for games.

Ericson, C. (2004). Real-time collision detection. CRC

Press.

Ferreira, L. and Toledo, C. (2014a). A search-based ap-

proach for generating angry birds levels. In Computa-

tional intelligence and games (cig), 2014 ieee confer-

ence on, pages 1–8. IEEE.

Ferreira, L. N. and Toledo, C. F. M. (2014b). A search-

based approach for generating angry birds levels.

2014 IEEE Conference on Computational Intelligence

and Games, pages 1–8.

Gandomi, A. H., Yang, X.-S., and Alavi, A. H. (2013).

Cuckoo search algorithm: a metaheuristic approach

to solve structural optimization problems. Engineer-

ing with computers, 29(1):17–35.

Hornby, G. S. and Pollack, J. B. (2001). The advantages

of generative grammatical encodings for physical de-

sign. In Evolutionary Computation, 2001. Proceed-

ings of the 2001 Congress on, volume 1, pages 600–

607. IEEE.

Khalifa, A. (2018). The general videogame ai

competition - level generation track. https:

//github.com/GAIGResearch/gvgai/wiki/Tracks-

Description\#level-generation-track. Accessed:

2018-11-05.

Khalifa, A., Perez-Liebana, D., Lucas, S. M., and Togelius,

J. (2016). General video game level generation. In

Proceedings of the Genetic and Evolutionary Compu-

tation Conference 2016, GECCO ’16, pages 253–259,

New York, NY, USA. ACM.

Runarsson, T. P. and Yao, X. (2003). Evolutionary search

and constraint violations. In Evolutionary Computa-

tion, 2003. CEC’03. The 2003 Congress on, volume 2,

pages 1414–1419. IEEE.

Shaker, N., Togelius, J., and Yannakakis, G. (2012). Mario

ai championship - level generation track. http://www.

marioai.org/LevelGeneration. Accessed: 2018-11-05.

Stephenson, M. and Renz, J. (2016). Procedural generation

of complex stable structures for angry birds levels. In

Computational Intelligence and Games (CIG), 2016

IEEE Conference on, pages 1–8. IEEE.

Stephenson, M. and Renz, J. (2017). Generating varied, sta-

ble and solvable levels for angry birds style physics

games. In Computational Intelligence and Games

(CIG), 2017 IEEE Conference on, pages 288–295.

IEEE.

Stephenson, M. and Renz, J. (2018). Deceptive angry birds:

towards smarter game-playing agents. In FDG.

Stephenson, M. and Renz, J. (2019). Agent-based adaptive

level generation for dynamic difﬁculty adjustment in

angry birds. arXiv preprint arXiv:1902.02518.

Stephenson, M., Renz, J., Ferreira, L., and Togelius,

J. (2018). 3rd angry birds level generation com-

petition. https://project.dke.maastrichtuniversity.nl/

cig2018/competitions/\#angrybirds. Accessed: 2018-

11-05.

Thors, A. U. (2019). A real title. In Real Proceedings, pages

125–140.

Togelius, J., Yannakakis, G. N., Stanley, K. O., and Browne,

C. (2010). Search-based procedural content genera-

tion. In European Conference on the Applications of

Evolutionary Computation, pages 141–150. Springer.

Zafar, A., Hassan, S., et al. (2019). Corpus for angry birds

level generation. In 2019 2nd International Confer-

ence on Computing, Mathematics and Engineering

Technologies (iCoMET), pages 1–4. IEEE.

ECTA 2019 - 11th International Conference on Evolutionary Computation Theory and Applications

244
