Active Recall Networks for Multiperspectivity Learning through Shared

Latent Space Optimization

Theus H. Aspiras, Ruixu Liu and Vijayan K. Asari

Electrical and Computer Engineering, University of Dayton, 300 College Park, Dayton, U.S.A.

Keywords:

Generative Adversarial Networks, Convolutional Neural Networks, Variational Autoencoders, Unsupervised

Learning, Semi-Supervised Learning.

Abstract:

Given that there are numerous amounts of unlabeled data available for usage in training neural networks, it

is desirable to implement a neural network architecture and training paradigm to maximize the ability of the

latent space representation. Through multiple perspectives of the latent space using adversarial learning and

autoencoding, data requirements can be reduced, which improves learning ability across domains. The entire

goal of the proposed work is not to train exhaustively, but to train with multiperspectivity. We propose a new

neural network architecture called Active Recall Network (ARN) for learning with less labels by optimizing

the latent space. This neural network architecture learns latent space features of unlabeled data by using

a fusion framework of an autoencoder and a generative adversarial network. Variations in the latent space

representations will be captured and modeled by generation, discrimination, and reconstruction strategies in

the network using both unlabeled and labeled data. Performance evaluations conducted on the proposed ARN

architectures with two popular datasets demonstrated promising results in terms of generative capabilities and

latent space effectiveness. Through the multiple perspectives that are embedded in ARN, we envision that this

architecture will be incredibly versatile in every application that requires learning with less labels.

1 INTRODUCTION

With limited labeled data, an unsupervised training

strategy must be developed to determine the latent

space representations of the data, which learns the

available features of the data without any labeled in-

formation. Data must be encoded into a latent space

and decoded for replicating the input, which creates

a nonlinear dimensionality reduction mapping from

input space to latent space. The ability of the net-

work to faithfully recreate the input from the latent

space representation means that the network has al-

ready learned all of the necessary features of the data

embedded in the latent space for any task, includ-

ing detection, classiﬁcation, and recognition capabil-

ities. The features extracted in an unsupervised fash-

ion become extendable for supervised tasks, through

which the neural network training manipulates the la-

tent space for the supervised data. From only a small

amount of labeled data, the entire latent space repre-

sentation can be partitioned into respective classes.

Within the shared latent space lies the ability to

both discriminate and generate information. Using

multiple training criteria would bias the latent space

representations for reinforcing different associations

and features, which have been shown to be effective

in human psychology. It is therefore valuable to uti-

lize a multi-cost optimization of the latent space using

these various criteria. Previous approaches separate

cost functions and derive other architectures in order

to optimize a speciﬁc application, but new research

points to multi-cost and competing cost optimization,

which works incredibly well among different datasets

for detection, recognition, generation, and other tasks.

The incorporation of multiperspectivity allows the use

of different spaces of the network: image space, latent

space, and task space. Figure 1 shows an example of

this multiperspectivity architecture.

The contribution of this paper is to present a neu-

ral network architecture with a shared optimized la-

tent space. The active recall network’s (ARN) latent

space is trained with adversarial examples through the

generative capabilities of the network. By combining

the encoding of data to a lower dimensional space and

discriminating between real samples and adversarial

examples, the interpolation of data points within the

real distribution will be more indicative of relative im-

age features rather than just encoding.

For example, an interpolation between two real

data points for an unsupervised variational autoen-

434

Aspiras, T., Liu, R. and Asari, V.

Active Recall Networks for Multiperspectivity Learning through Shared Latent Space Optimization.

DOI: 10.5220/0008369304340443

In Proceedings of the 11th International Joint Conference on Computational Intelligence (IJCCI 2019), pages 434-443

ISBN: 978-989-758-384-1

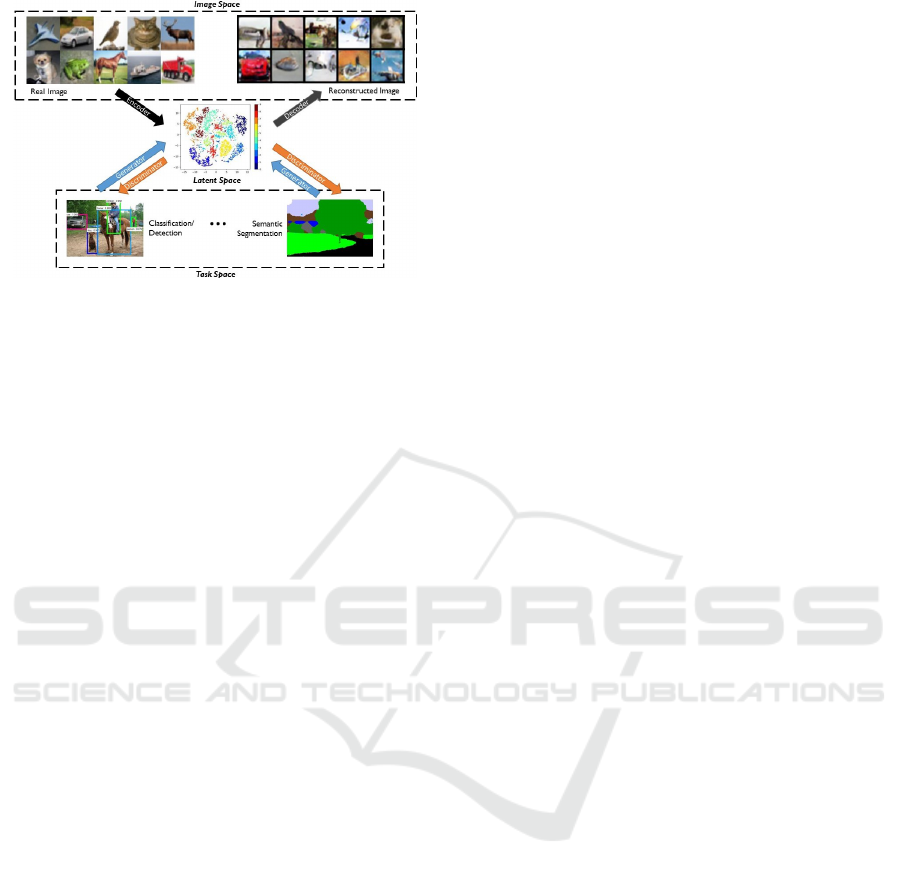

Figure 1: Architecture for multiperspectivity learning. La-

tent space representations become richer and more gener-

alizable through the unsupervised/supervised training and

discriminative/generative abilities of the network.

coder (VAE) is naturally a mean image between these

datapoints, which is due to modeling each data pro-

jected in the latent space as a Gaussian distribution

in the dataset and the loss function of the autoen-

coder. Unsupervised adversarial autoencoders (AAE)

for developing the latent space only regularizes the

entire distribution towards a conﬁgured distribution,

but does not address the interpolation between data-

points (AAE incorporates variational autoencoders as

well).

The ARN addresses this interpolation by training

the encoding portion adversarially. Through the gen-

eration of these interpolations within the latent space,

the network train both the encoder and the simple dis-

criminator (combined to mimic the discriminator net-

work of GAN architectures) to maximize the image-

level features being encoded into the latent space.

Therefore, the encoding of the images to the ARN

latent space takes into account the deﬁning features

of the real distribution from the training of the en-

coder/discriminator. Our approach aims to optimize

the feature extraction of the network using multiple

loss functions.

2 RELATED WORK

For developing a suitable architecture for shared la-

tent space optimization, we must consider various hu-

man perspectives that facilitate learning capabilities.

Psychologically, the retention of memory is

through the creation of associations. Gobet (Gobet

and Simon, 1998) created an experiment to determine

the ability to memorize information from various skill

levels. When chess pieces were arranged from previ-

ously played games, expert chess players were able

to memorize most chess piece locations based on as-

sociations of games they have played, but novice and

intermediate chess players had much less ability for

memorization. In neural networks, it is the develop-

ment of the latent space that creates the ability for as-

sociation. Effective memorization is not just the abil-

ity to develop various associations, but also to retrieve

these associations. The generative ability of the brain

to retrieve images is impressive. Several studies (Bi-

han et al., 1993), (Ogawa et al., 1992) have consid-

ered the human ability to recall various images and

determined that the same cortex activations during

these cognitive processes are similar to activations in-

volved in visual perception. O’Craven and Kanwisher

(O’Craven and Kanwisher, 2000) demonstrated that

the occipito-temporal cortex activates during both vi-

sual face stimuli and imagining faces. This strength-

ens the consideration for generative models, which

are necessary for visualization of previous trained in-

formation.

2.1 Active Recall

Active recall (Karpicke and Roediger, 2008) is the

learning methodology which claims that memory

should be stimulated during the learning process.

This learning process is different from passive review,

in which memories are processed passively through

just input alone. Several studies have been conducted

that support the improvement of learning in humans

through active recall in contrast to passive learning.

Karpicke and Blunt (Karpicke and Blunt, 2011) eval-

uated the effectiveness of two studying methodolo-

gies, elaborative studying with concept mapping or

retrieval-heavy studying. It was found that students

that applied more retrieval techniques did 50% bet-

ter on tests than others who applied more concept

mapping techniques, even being tested on the cre-

ation of concept maps. Standard training protocols

for neural networks utilize passive review (concept-

mapping) for training weight structures. Through

continuous inputs and reiteration, neural networks are

optimized for the speciﬁc applications. Autoencoders

develop a latent space similar to the creation of con-

cept maps. Generative adversarial networks train in

a fashion similar to active recall (retrieval-heavy),

which necessitates the generation of the answer with

the psychological testing effects of the discriminator.

Therefore, it is vital to develop a uniﬁed neural net-

work architecture that embraces both passive review

and active recall. This inspired the creation of the pro-

posed network, active recall network (ARN), that en-

compasses encoder/decoder based review and gener-

ator/discriminator based recall.

Active Recall Networks for Multiperspectivity Learning through Shared Latent Space Optimization

435

2.2 Current Neural Network

Methodologies

Autoencoders: Autoencoders(Rumelhart and Zipser,

1985) have two parameterized functions: an encoder

function which allows a transformation from the im-

age space to the latent space and a decoder func-

tion which transforms the latent space back to the

image space through training on the cross-entropy

reconstruction loss. Much research has been con-

ducted on improving autoencoder methodologies like

restricted Boltzmann machines for pre-training Deep

Belief Networks (Bengio et al., ) and variational au-

toencoders (Kingma and Welling, 2013), which have

been popular with the deep learning community. Vari-

ational autoencoders utilize the assumption that sam-

ples can be modeled as a Gaussian distribution, which

will aid the generative qualities of the autoencoder.

Variational autoencoders have several variants like

disentangled VAE (Li et al., 2017) which improve the

encoding scheme of the autoencoder through categor-

ical information.

Generative Adversarial Networks: Generative ad-

versarial networks (Goodfellow et al., 2014) aim to

model samples from a real distribution by utilizing a

generator to produce an approximate distribution. For

generative adversarial networks, there are two func-

tions that are utilized for training: a generator for cre-

ating data from a latent space with a noise sample onto

the image space, and a discriminator for transforming

the image space for discriminating real and fake sam-

ples from real and generated data respectively. This

training strategy uses a min-max optimization to up-

date both the generator and discriminator to deter-

mine differences between real and fake information.

Several GAN variants have been proposed such as

Bidirectional GAN (Donahue et al., 2016) for learn-

ing the inverse mapping of the latent space, InfoGAN

(Chen et al., 2016) to learn disentangled representa-

tions, CycleGAN (Zhu et al., 2017) for domain adap-

tation, and deep convolutional GAN (Radford et al.,

2015) for high ﬁdelity mapping. VAE-GAN (Larsen

et al., 2015) utilizes a shared latent space between the

generator and the decoder of the VAE in a combined

network.

Adversarial Autoencoders: Adversarial autoen-

coders (Makhzani et al., 2015) are similar to GAN

architectures, which utilize a discriminator to train

the generator network. These networks adversarially

train the encoder of the network (which is the gener-

ator) to match a speciﬁc distribution as described by

the user using a trained discriminator function. Ad-

versarially regularized autoencoders (ARAE) (Zhao

et al., 2017), an extension of adversarial autoencoders

proposed by Zhao et al., minimize the reconstruction

loss with the minimization of the Wasserstein dis-

tance between the distribution from the encoder and

a prior distribution, which is trained with coordinated

descent across three cost functions. The adversarial

generator encoder (AGE) (Ulyanov et al., 2017) net-

work combines both adversarial and reconstruction

losses into a single unifying architecture. Since this

network is similar to our intended goal, we will utilize

this architecture as a basis for our proposed network.

Training Cost Functions: Several cost/loss func-

tions have been proposed for generative networks.

AEs utilize reconstruction loss to train the encod-

ing/decoding weights of the network. GANs are

based on classiﬁcation of real/fake samples, thus re-

quire min/max loss function to train the network.

Vanilla GANs use Binary Cross Entropy, while other

GAN methodologies use Wasserstein distance for loss

with weight clipping or gradient penalty. Recent

trends in cost/loss functions are placed in relativistic

GANs (Jolicoeur-Martineau, 2018), which places em-

phasis on the difference between real and fake sam-

ples. Other cost functions, like triplet loss, utilize an

anchor to quantify distance between positive and neg-

ative samples.

2.2.1 Discussion

AE - Blurry Imagery: AE networks used for nonlin-

ear dimensionality reduction of imagery provide an

encoding to generate imagery, given the same input

image. Therefore, by providing the right values in

the low dimensional space, the proper reconstruction

can be displayed. Any deviation from the encoded

value using normal AE networks provide noisy out-

puts due to a lack of required interpolation between

images. Variational AEs try to alleviate this prob-

lem by modeling the projection of the data as a spe-

ciﬁc noise variable (usually Gaussian), thus providing

connections between datapoints to generate viable in-

terpolations and generations between datapoints. As

currently found with VAEs, these reconstructions of

the interpolations are blurred images due to the Gaus-

sian noise, but this interpolation is not based on the

entire sampled space. It should be noted that only

the interpolations between images are blurred, not the

end-to-end reconstruction of the real image.

GANs by nature are interpolations of the image

space. Through the constraining of the entire ran-

domly sampled space towards the real data, the in-

terpolations will generate closer towards the actual

distribution. To utilize this, we can provide a dis-

criminative/generative space within the AE to prop-

erly interpolate points of the randomly sampled la-

tent space and generate images closer to the real dis-

NCTA 2019 - 11th International Conference on Neural Computation Theory and Applications

436

Figure 2: The interpolation of the latent space using VAEs

(black line) and GANs (blue line).

tribution. Figure 2 shows the interpolation possible

through VAEs and GANs.

This blurriness is also due to the reconstruction

loss usually used for autoencoder networks. This

reconstruction loss is based on pixel-wise L1-loss,

which works well in converging pixel information to-

wards a given output, but does not work well in con-

sidering losses in features. Deep Feature Consistent

Variational Autoencoders (Hou et al., 2016) utilize

a feature-based reconstruction loss from a pretrained

deep neural network. The pixel-wise information in

the deep features of the network provide better re-

construction loss for the network, which translates to

feature reconstruction rather than purely pixel-wise

reconstruction. AGE network also include this re-

construction within the loss functions as encoder-

generator reciprocity. We will utilize the encoder-

generator reciprocity training paradigm for our pro-

posed network.

GAN - Mode Collapse: GAN networks are noto-

rious for mode collapse, where the generator of the

GAN that is unable to produce the full range of sam-

ples across the distribution, only focusing on a spe-

ciﬁc subset for generation. This is due to two vi-

tal prospects: The discriminator works too well dis-

criminating between some real and fake images and

the generator has a one-sided gradient. It has been

found that regular GAN cost functions collapse to

speciﬁc modes because the generator has insufﬁcient

gradient to move towards the real distribution. Even

through initialization, partial mode collapse has al-

ready started due to the generator not being con-

strained to generate all of the distribution samples,

though partial mode collapse is ideal for quality gen-

eration. The generator is only constrained to have its

distribution within the discriminator distribution.

To alleviate mode collapse, the discriminator can

utilize Wasserstein distance to promote the learning

of the generator through restored gradients. The gen-

erator can utilize the AE reconstruction loss to con-

strain its generation to recreate all of the real distribu-

tion samples. Figure 3 demonstrates this concept of

alleviating mode collapse through AE reconstruction.

Given an initial generative distribution (3a), samples

that are generated by GAN will only be similar to

real samples it has contained within its distribution

(3b). Samples that are not generated by the gener-

ator will be pushed towards the real sample through

reconstruction loss.

Multiperspectivity Learning: The combination of

reconstruction loss and adversarial loss must be prop-

erly conﬁgured to converge correctly. Given three

datapoints on a shared latent space (real data, recon-

structed data, and generate/fake data), a harmonious

relationships should be established. Reconstruction

loss is usually conﬁgured as the minimization be-

tween the reconstructed loss and the real data. Ad-

versarial loss, on the other hand, can be conﬁgured

in many ways. Typical adversarial loss is deﬁned as a

min/max loss of real and generated data classiﬁcation.

As discussed earlier, a generator has the ability to gen-

erate reconstructed data, thus can be assumed that all

reconstructed data lies within the generator distribu-

tion. A generator may not be able to generate real

data. Therefore, if the discriminator is too powerful

in discriminating between real and generated data, the

reconstructed points will also be discriminated from

the real data, which may still provide a potential for

mode collapse. Triplet loss can be used for this pur-

pose through minimizing real and reconstructed data

distance and maximizing real and generated data dis-

tance, but this loss will not create the same kind of

convergence as vanilla GANs.

The best conﬁguration for adversarial loss is to

make sure that all samples lie within both the dis-

criminator and generator distributions, which will ﬁne

tune the distribution towards the samples. In this case,

all reconstructed points should lie within the genera-

tor/discriminator distributions. Therefore, if these re-

constructed points are known, it is best provide an ad-

versarial loss between the reconstructed data and the

generated data. All of the reconstructed samples will

minimize their distance between their real samples

and the generated samples will be trained adversari-

ally towards the reconstruction samples, as shown in

Figure 3c. With the discrimination of reconstruction

points (which are always within the generator’s distri-

bution), it then becomes not necessary to implement

different loss variants, like Wasserstein distance, due

to the gradient always being present. This methodol-

ogy sufﬁciently alleviates mode collapse that is inher-

ent in GANs.

3 ACTIVE RECALL NETWORK

We propose an active recall network (ARN), which

combines the cost functions of an autoencoder with a

GAN in a fused network architecture. Figure 4 shows

Active Recall Networks for Multiperspectivity Learning through Shared Latent Space Optimization

437

(a) Initial (b) GAN (c) Proposed

Figure 3: Active Recall Network Architecture. Both AE

and GAN architectures share encoder, decoder, and latent

space weights for unsupervised training.

Figure 4: Active Recall Network Architecture. Both AE

and GAN architectures share encoder, decoder, and latent

space weights for unsupervised training.

the framework of the proposed neural network archi-

tecture.

It should be noted that the shared latent space

is not created by the combination of the encoder

and generator together, but rather projects onto the

latent space exclusively. The ARN uses the AE

loss function to minimize the reconstruction error

and the GAN loss function to minimize and maxi-

mize the Kullback-Leibler divergence of the genera-

tor and discriminator respectively. The ARN is fash-

ioned to share latent space representations and en-

coder/decoder architectures to optimize a latent space

for both regression and classiﬁcation. The ARN

model is trained across three cost functions, L

dis

, and L

gen

, representing autoencoder, discrimina-

tor, and generator respectively:

min

φ,ψ

(φ, ψ) = E

x∼P

∗

[−log p

(x|enc

(x))] (1)

max

φ,w

dis

(φ, w) = E

x∼P

∗

[ f

(enc

( ˜x))]

−E

˜z∼P

◦

[ f

(˜z)]

(2)

min

ψ,θ

gen

(ψ, θ) = −E

˜z∼P

◦

[ f

(˜z)] (3)

Where enc

(x) is latent space sample z from a

real distribution P

∗

, p

is the reconstruction prob-

ability, ˜x is the reconstructed sample from the real

image, g

(s) is a generator which creates data onto

Table 1: Active Recall Network training paradigm.

Algorithm for ARN Training

for each training iteration do

(1) Train the enc./dec. for reconstruction (φ, ψ)

Sample {x

(i)

}

i=1

∼ P

∗

Compute z

(i)

= enc

(i)

)

Backprop loss,

∑

i=1

log p

(i)

)

(2) Train the encoder/discriminator (φ, w)

Sample {s

(i)

}

i=1

∼ N(0, 1)

Compute ˜z

(i)

= enc

(dec

(i)

)))

Backprop loss,

∑

i=1

(enc

( ˜x

(i)

))

−

∑

i=1

(˜z

(i)

)

(3) Train the generator/decoder adversarially (ψ, θ)

Backprop loss,

∑

i=1

(˜z

(i)

)

end for

a latent space from a noise sample s, dec

(z) is a

reconstruction of the image x from the latent space

sample z, f

(z) is a discriminator in the latent space,

and ˜z = enc

(dec

(s))) is a latent space sample

from the generated distribution P

◦

. Generally, it is

more optimal to generate and discriminate from ﬁxed

distributions like a Gaussian distribution, which are

embedded within the training of the ARN. Adversar-

ially regularized autoencoders generate a parameter-

ized distribution, which is more complex for obtain-

ing a better solution. The ARN can utilize any type of

prior distribution, but will speciﬁcally aim to create a

parameterized solution from within the latent space.

Through the optimization of the network, the optimal

solution for the generator should become projecting

samples only from the discriminative region of the la-

tent space. Table 1 shows the training paradigm of the

unsupervised ARN network.

It is found that the GAN architecture utilizes a

min-max criteria to optimize the generator and dis-

criminator, but with the combination of cost functions

with the autoencoder, there is also another min-max

criteria inherent in the architecture that is not explic-

itly described. Linear discriminant analysis (LDA)

(McLachlan, 2004) aims to maximize interclass dif-

ferences, which in the case of GAN networks aims

to maximize real/fake class differences. A symptom

of this maximization is the minimization of intraclass

differences, which is more explicitly described in Fis-

cher’s linear discriminants (Fisher, 1936). As dis-

cussed earlier, an autoencoder aims to minimize the

reconstruction error of the network. A symptom of

this minimization is the maximization of intraclass

variations to reconstruct the information. Principal

component analysis (PCA) (F.R.S, 1901) is a maxi-

mization of variation to improve encoding ability of

the network, which is somewhat similar to autoen-

coders. These competing cost functions will allow the

NCTA 2019 - 11th International Conference on Neural Computation Theory and Applications

438

best representation learning for both regression and

classiﬁcation. According to Martinez et al. (Martinez

and Kak, 2001), it has been found that discriminant

analysis works better for generalizing larger datasets

while PCA works better in smaller datasets. There-

fore, ARN utilizes the strengths of both types of data

associations.

3.1 ARN Variants

ARNs are easily extendable to variational and convo-

lutional variants. The reparameterization trick applied

to ARNs will have a better ability to generalize the

distribution through the modeling of the data points

in the latent space as a Gaussian distribution. By uti-

lizing this, the modeled distribution will be more con-

nected, which may aid in the generation of the data.

The convolutional variation will create a latent space

as a receptive ﬁeld, which allows for generation as

a receptive ﬁeld rather than as the entire image. For

more complex datasets, we will utilize the convolu-

tional variants in a combined architecture called deep

convolutional ARN (DCARN).

3.2 ARN Strengths

ARN encodes into a discriminative latent space as op-

posed to AE and VAE. AAE performs discrimination

by modeling a priori distribution. It performs encod-

ing into a latent space then discriminates the latent

space into a priori distribution. On the other hand,

ARN performs discrimination in the latent space by

modeling a learned distribution from adversarial ex-

amples. That is, it performs a discriminative encod-

ing to generate a distributed latent space. This process

of discriminative encoding will generate an accurate

distributed latent space when compared to the latent

space generated by AAE. The discriminative encod-

ing is performed by employing the reconstruction and

adversarial loss functions. In ARN, the distributed en-

coding will encode not only the actual data points but

also the virtual data points that may occur between

the actual data points through a distribution manifold.

This manifold of visual perception is created by a set

of virtual data formed by the image features extracted

during the distributed encoding process.

The main difference between the ARN and the AE

variants is the modeling strategy of the virtual data.

For AE variants, the virtual data points are modeled

from a Gaussian Mixture Model (GMM), which joins

the real data points through the overlapping of the

Gaussian functions within the latent space to create

the distributed manifold. The ARN is able to model

these virtual data points based on the extraction of im-

age features from adversarial examples by discrimi-

native encoding, thus creating a distribution manifold

which more accurately models image features.

With the strengths of the AE and GAN architec-

tures being combined in ARN into a single neural net-

work, it is envisaged to be used for several different

extensions, like domain adaptation (due to distribu-

tion learning) and automatic model conﬁguration (due

to better trainability of the network), which will be

easier for implementation than other neural network

architectures.

3.3 Supervised Learning using ARNs

With classiﬁcation through labeled information, the

discriminator will be extended to compute the prob-

abilities of all classes along with the determination

of real/fake data. In this case, the classiﬁer has three

areas of information to train the network: (1) real im-

ages with labels, which can be trained like in any reg-

ular supervised classiﬁcation problem, (2) real images

without labels, which can be trained as unsupervised,

and (3) images from the generator, which the discrim-

inator learns to classify as fake. In essence, the active

recall network trained in an unsupervised fashion is

able to discriminate and generate the real data distri-

bution. Therefore, it is only needed to train the class

discriminator for only the labeled data and to train the

generator with the given class. Given the shared latent

space, it is expected that discriminating only the la-

beled data provides sufﬁcient information to discrim-

inate the entire unlabeled dataset, which provides val-

ues for labels of all information. The shared latent

space provides a way to remove overﬁtting the spe-

ciﬁc labeled information so that class discrimination

can be generalized to the entire distribution. The gen-

erator of the network can also be trained by constrain-

ing one of the random components of the distribution

for creating the class. This allows generation of the

data within the speciﬁc class distribution.

Therefore, the discriminator must calculate both

unsupervised loss and supervised loss based on the

data. Labeled information accounts for both loss

types while unlabeled only accounts for unsupervised

loss. Many neural network architectures utilize the

supervised methodology, which can be tested and

evaluated using many different datasets. For creating

a supervised ARN, another cost function is added to

reduce the classiﬁcation error of the data and includes

the ability to generate samples of a speciﬁc class us-

ing a random sample. We deﬁne several supervised

variants for the ARN network. Equation 4 trains only

the class discriminator.

Active Recall Networks for Multiperspectivity Learning through Shared Latent Space Optimization

439

max

dis

(t) = E

x∼P

∗

[log(h

(enc

)))] (4)

Where c is the class labels and h

is the class dis-

criminator. If the necessity of the network is to gener-

alize the class information over the entire distribution,

only the class discriminator should be used for updat-

ing. Equation 5 trains both the class discriminator and

the encoder portion of the network.

max

φ,t

dis

(φ, t) = E

x∼P

∗

[log(h

(enc

)))] (5)

If the purpose is to focus the class discriminator to

correctly classify the given labels, the class discrim-

inator and the encoder of the network should be up-

dated. Equations 6 and 7 trains the entire network to

adversarially train class information.

max

φ,t

dis

(φ, t) = E

x∼P

∗

[log(h

(enc

)))]

˜z∼P

◦

[log(1 − h

(˜z))]

(6)

min

ψ,τ

gen

(ψ, τ) = E

˜z∼P

◦

[log(1 − h

(˜z))] (7)

Where τ is the class generator. If the network

should be constrained to only include given labels,

the class information can be used to generate and

discriminate classes to adversarially training the net-

work. Depending on the purpose of the class discrim-

inator, various training scenarios are possible.

4 RESULTS

We have trained the active recall network on two

different datasets, CIFAR-10 (Krizhevsky, 2009) and

MNIST (Lecun et al., 1998), for evaluating the gen-

erative and latent space encoding performance of the

proposed architecture.

4.1 Generative Characteristics Results

We have implemented different conﬁgurations of the

active recall networks to determine the generative

characteristics of the network for unsupervised learn-

ing. The ﬁrst is the unsupervised ARN implemented

for learning the MNIST handwritten digit database.

The generative capability of the ARN in reproducing

the MNIST dataset is presented in Figure 5a. It is ev-

ident that the visual quality of the reproduced images

is comparable to the results produced by other gener-

ative architectures.

We have also implemented the DCARN for unsu-

pervised learning of the CIFAR-10 tiny color image

database. The generative capabilities of the DCARN

in reproducing the CIFAR-10 dataset is presented in

Figure 5b. The visual quality is observed to be better

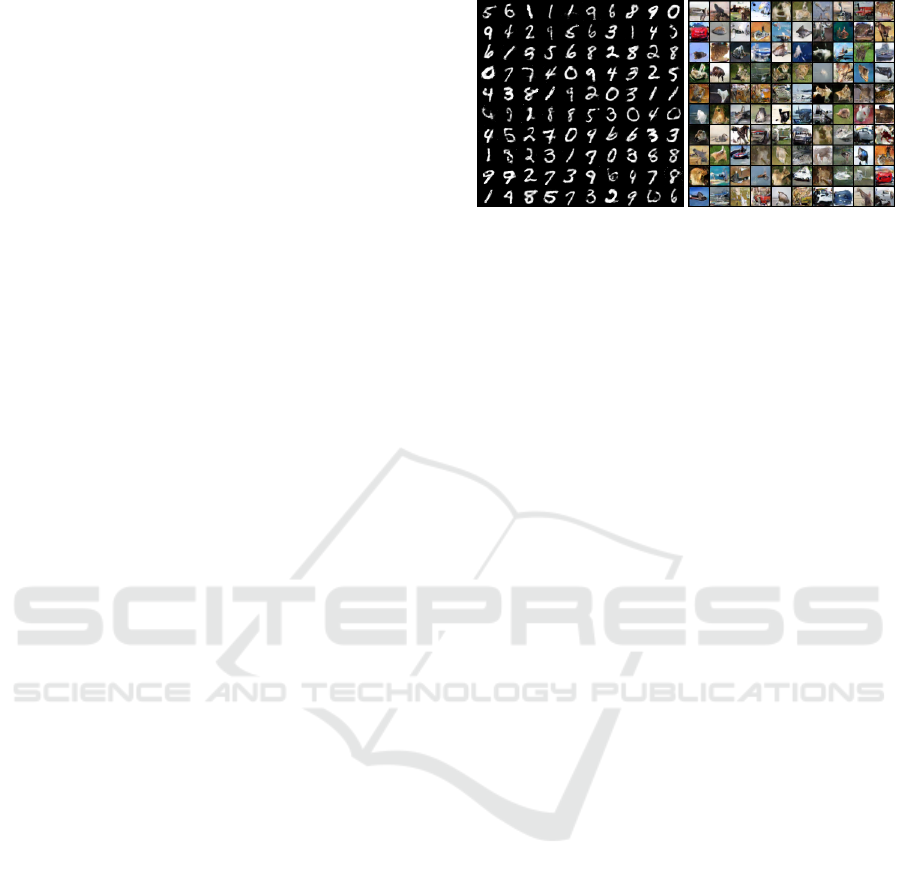

(a) MNIST (b) CIFAR10-DCARN

Figure 5: MNIST and CIFAR-10 results using the ARN and

DCARN architecture respectively.

than AE architectures and comparable to GAN mod-

els.

Tables 2 and 3 shows the metrics for the DCARN

network against other generative neural networks.

The inception score presented in Table 2 for the

DCARN network is shown to perform slightly worse,

but considering recent research on inception score

for evaluating GAN architectures (Lucic et al., 2017;

Heusel et al., 2017), the Fr

echet Inception Distance

(FID) score provides a better measure of generative

performance. The FID metrics of the DCARN pre-

sented in Table 3 show good performance compared

to generative adversarial architectures. The DCARN

performs better than the DCGAN, but not as well as

the WGAN (Arjovsky et al., 2017) architecture. The

ability of the network to create quality generations is

still limited, as discussed using VAE-GAN hybrid ar-

chitectures, but with the ARN architecture, ﬂexibility

in learning rate between the adversarial loss and the

reconstruction loss can be tuned to provide better per-

formance in different areas. Furthermore, the gener-

ative capabilities of the ARN network are still very

good, but are more useful for the next evaluation: la-

tent space encoding.

We utilized the DCARN for unsupervised gener-

ation on CelebA Face dataset (Liu et al., 2015) and

horses from ImageNet (Deng et al., 2009), as shown

in Figure 6. The DCARN network has the ability to

provide good convergence of adversarial loss func-

tions using the reconstructed datapoints.

4.2 Latent Space Encoding

Characteristics Results

To determine the ability of the proposed architecture

to learn with less labels, only a small subset of labeled

information need to be given with the rest of the in-

formation given as unlabeled, thus requiring both su-

pervised and unsupervised training respectively. We

utilize the MNIST dataset due to the availability of

labeled data. To evaluate the generalization capabil-

NCTA 2019 - 11th International Conference on Neural Computation Theory and Applications

440

Table 2: Inception score of unsupervised DCARN for gen-

erating the CIFAR-10 dataset.

Algorithm Inception

ALI (Dumoulin et al., 2016) 5.34 ± .05

BEGAN (Berthelot et al., 2017) 5.62

DCGAN (Radford et al., 2015) 6.16 ± .07

WGAN (Arjovsky et al., 2017) 7.86 ± .07

DCARN 4.70 ± 0.02

Real Data (Makhzani et al., 2015) 11.24 ± 0.12

Table 3: Fr

echet Inception Distance (FID) score of the un-

supervised DCARN for generating the CIFAR-10 dataset.

The DCARN architecture provides better image ﬁdelity and

diversity as compared to other generative architectures.

Algorithm FID

LSGAN (Mao et al., 2016) 87.1 ± 47.5

WGAN (Arjovsky et al., 2017) 55.2 ± 2.3

BEGAN (Berthelot et al., 2017) 71.4 ± 1.6

VAE (Kingma and Welling, 2013) 155.7 ± 11.6

DCARN 67.4 ± 1.14

(a) CelebA (b) ImageNet Horses

Figure 6: Random generations from CelebA and Ima-

geNetHorses using the DCARN architecture.

ity of the ARN, we only used 100 labeled data and

the remaining unlabeled training dataset of MNIST

for training the ARN network. Table 4 shows the ac-

curacy of the ARN network against other encoding

neural networks, such as AAE and VAE, using class

discriminator and encoder update for different latent

space dimensions. It can be observed that the ARN

outperforms the AAE and VAE for latent space di-

mension of 20. For lower latent space dimensions,

the ARN utilizes the discriminator to distinguish the

real and fake samples and can only encode in the real

part of the latent space and hence the reduced perfor-

mance of the network. Table 5 shows the accuracy

of the ARN model using only class discriminator up-

dates for latent space dimension of 10. It can be ob-

served that the ARN architecture provides more than

5% improvement in latent space generalization for the

MNIST dataset.

4.2.1 Discussions

As discussed in many papers, the generative abili-

ties of the AE networks are not as effective as nor-

mal GAN-based architectures due to the AE recon-

struction loss. The decoupling of discriminator and

generator portions of the network allows focus on the

generative details of the dataset, as the discriminator

behaves as a strong classiﬁer which strictly models

the data distribution. As shown with semantic seg-

mentation, fully convolutional networks and variants

like SegNet (Badrinarayanan et al., 2015) are unable

to truly create detailed boundary information from in-

ner projections in the encoder-decoder structure. With

the ARN architecture, the autoencoder reconstruction

loss limits the ability to recreate strong details, but can

create better data representations due to the encoding

of the latent space from reconstruction and adversarial

loss. The current implementation allows for weight-

ing the learning rate between the reconstruction loss

and the adversarial loss, which provides ﬂexibility for

generation and latent space creation.

One thing to note about the generative capabilities

of the ARN is the shared latent space. The entire la-

tent space is usually given for generation, as used in

normal VAEs. As the ARN develops the shared latent

space, using the discriminator to determine real and

fake data, the generator should project within the real

data distribution on the latent space, thus affecting the

capacity of the network.

Current state-of-the-art AE architectures utilize

reconstruction loss to encode the information on the

latent space, which are based on pattern associations.

On the other hand, ARN trains using both reconstruc-

tion and adversarial losses, which encompasses pat-

tern association and data characteristics. The latent

space of ARN becomes better generalized due to the

exploration of the latent space through its generations.

Distribution modeling of adversarial training ARN is

considered much better than their AE counterparts,

though not entirely interpretable. By modeling a bet-

ter unsupervised latent space in ARN, the use of la-

beled information becomes easily extendable.

5 CONCLUSION

The active recall network presented in this paper

is a promising new neural network architecture that

is able to create an optimized shared latent space

through reconstruction loss and adversarial training.

The ARN architecture is observed to be effective in

providing good generative characteristics when com-

pared to various state-of-the-art generative networks

Active Recall Networks for Multiperspectivity Learning through Shared Latent Space Optimization

441

Table 4: Supervised ARN results on MNIST using updates for both the encoder and class discriminator.

Algorithm LS 5 LS 10 LS 20

Adversarial Autoencoder (Makhzani et al., 2015) 42.9 61.8 57.5

Variational Autoencoder (Kingma and Welling, 2013) 61.9 66.2 69.1

ARN 59.0 68.4 73.5

Table 5: Supervised ARN results on MNIST using only class discriminator updates.

Algorithm LS 10

Adversarial Autoencoder (Makhzani et al., 2015) 57.2

Variational Autoencoder (Kingma and Welling, 2013) 68.0

ARN 73.5

and provides even better latent space generalization

amongst encoder-based methodologies. It is envis-

aged that the ARN can be effectively used in applica-

tions such as detection, classiﬁcation, activity recog-

nition, and machine translation with less labeled data.

With the ﬂexibility of the ARN architecture with

the shared latent space, it has natural extensions to

different applications. Different loss functions can be

used, like Wasserstein distance loss, to optimize the

learning capabilities of the ARN. For active learning,

the network should be updated using new labeled data

through different real data and even generated data.

For domain adaptation, the network can be adversar-

ially regularized using the discriminators and be pro-

cessed using CycleGAN concepts. For lifelong learn-

ing, elastic weight consolidation (EWC) and gener-

ative memory replay can be used to incrementally

learn new information. Finally for multitask learning,

the shared latent space allows common sense between

tasks to optimize all.

REFERENCES

Arjovsky, M., Chintala, S., and Bottou, L. (2017). Wasser-

stein GAN.

Badrinarayanan, V., Kendall, A., and Cipolla, R. (2015).

SegNet: A Deep Convolutional Encoder-Decoder Ar-

chitecture for Image Segmentation. arXiv:1511.00561

[cs]. arXiv: 1511.00561.

Bengio, Y., Lamblin, P., Popovici, D., and Larochelle,

H. Greedy Layer-Wise Training of Deep Networks.

page 8.

Berthelot, D., Schumm, T., and Metz, L. (2017). BE-

GAN: Boundary Equilibrium Generative Adversarial

Networks.

Bihan, D. L., Turner, R., Zefﬁro, T. A., Cu

enod, C. A., Jez-

zard, P., and Bonnerot, V. (1993). Activation of human

primary visual cortex during visual recall: a magnetic

resonance imaging study. Proceedings of the National

Academy of Sciences, 90(24):11802–11805.

Chen, X., Duan, Y., Houthooft, R., Schulman, J., Sutskever,

I., and Abbeel, P. (2016). InfoGAN: Interpretable

Representation Learning by Information Maximizing

Generative Adversarial Nets. arXiv:1606.03657 [cs,

stat]. arXiv: 1606.03657.

Deng, J., Dong, W., Socher, R., Li, L.-J., Li, K., and Fei-

Fei, L. (2009). ImageNet: A Large-Scale Hierarchical

Image Database. In CVPR09.

Donahue, J., Kr

ahenb

uhl, P., and Darrell, T. (2016). Adver-

sarial Feature Learning. arXiv:1605.09782 [cs, stat].

arXiv: 1605.09782.

Dumoulin, V., Belghazi, I., Poole, B., Mastropietro, O.,

Lamb, A., Arjovsky, M., and Courville, A. (2016).

Adversarially Learned Inference.

Fisher, R. A. (1936). The Use of Multiple Measurements in

Taxonomic Problems. Annals of Eugenics, 7(2):179–

188.

F.R.S, K. P. (1901). LIII. On lines and planes of closest ﬁt to

systems of points in space. The London, Edinburgh,

and Dublin Philosophical Magazine and Journal of

Science, 2(11):559–572.

Gobet, F. and Simon, H. A. (1998). Expert Chess Mem-

ory: Revisiting the Chunking Hypothesis. Memory,

6(3):225–255.

Goodfellow, I., Pouget-Abadie, J., Mirza, M., Xu, B.,

Warde-Farley, D., Ozair, S., Courville, A., and Ben-

gio, Y. (2014). Generative Adversarial Nets. In

Ghahramani, Z., Welling, M., Cortes, C., Lawrence,

N. D., and Weinberger, K. Q., editors, Advances

in Neural Information Processing Systems 27, pages

2672–2680. Curran Associates, Inc.

Heusel, M., Ramsauer, H., Unterthiner, T., Nessler, B.,

and Hochreiter, S. (2017). GANs Trained by a Two

Time-Scale Update Rule Converge to a Local Nash

Equilibrium. arXiv:1706.08500 [cs, stat]. arXiv:

1706.08500.

Hou, X., Shen, L., Sun, K., and Qiu, G. (2016). Deep Fea-

ture Consistent Variational Autoencoder.

Jolicoeur-Martineau, A. (2018). The relativistic discrim-

inator: a key element missing from standard GAN.

arXiv:1807.00734 [cs, stat]. arXiv: 1807.00734.

Karpicke, J. D. and Blunt, J. R. (2011). Retrieval Prac-

tice Produces More Learning than Elaborative Study-

ing with Concept Mapping. Science, 331(6018):772–

775.

Karpicke, J. D. and Roediger, H. L. (2008). The Criti-

cal Importance of Retrieval for Learning. Science,

319(5865):966–968.

Kingma, D. P. and Welling, M. (2013). Auto-Encoding

Variational Bayes.

NCTA 2019 - 11th International Conference on Neural Computation Theory and Applications

442

Krizhevsky, A. (2009). Learning Multiple Layers of Fea-

tures from Tiny Images.

Larsen, A. B. L., Sønderby, S. K., Larochelle, H., and

Winther, O. (2015). Autoencoding beyond pixels us-

ing a learned similarity metric. arXiv:1512.09300 [cs,

stat]. arXiv: 1512.09300.

Lecun, Y., Bottou, L., Bengio, Y., and Haffner, P. (1998).

Gradient-based learning applied to document recogni-

tion. Proceedings of the IEEE, 86(11):2278–2324.

Li, Y., Pan, Q., Wang, S., Peng, H., Yang, T., and Cambria,

E. (2017). Disentangled Variational Auto-Encoder for

Semi-supervised Learning. arXiv:1709.05047 [cs].

arXiv: 1709.05047.

Liu, Z., Luo, P., Wang, X., and Tang, X. (2015). Deep learn-

ing face attributes in the wild. In Proceedings of In-

ternational Conference on Computer Vision (ICCV).

Lucic, M., Kurach, K., Michalski, M., Gelly, S., and Bous-

quet, O. (2017). Are GANs Created Equal? A Large-

Scale Study. arXiv:1711.10337 [cs, stat]. arXiv:

1711.10337.

Makhzani, A., Shlens, J., Jaitly, N., Goodfellow, I.,

and Frey, B. (2015). Adversarial Autoencoders.

arXiv:1511.05644 [cs]. arXiv: 1511.05644.

Mao, X., Li, Q., Xie, H., Lau, R. Y. K., Wang, Z., and Smol-

ley, S. P. (2016). Least Squares Generative Adversar-

ial Networks.

Martinez, A. M. and Kak, A. C. (2001). PCA versus LDA.

IEEE Transactions on Pattern Analysis and Machine

Intelligence, 23(2):228–233.

McLachlan, G. (2004). Discriminant Analysis and Statisti-

cal Pattern Recognition. John Wiley & Sons. Google-

Books-ID: O qHDLaWpDUC.

O’Craven, K. M. and Kanwisher, N. (2000). Mental

imagery of faces and places activates corresponding

stimulus-speciﬁc brain regions. Journal of Cognitive

Neuroscience, 12(6):1013–1023.

Ogawa, S., Tank, D. W., Menon, R., Ellermann, J. M.,

Kim, S. G., Merkle, H., and Ugurbil, K. (1992). In-

trinsic signal changes accompanying sensory stimu-

lation: functional brain mapping with magnetic reso-

nance imaging. Proceedings of the National Academy

of Sciences, 89(13):5951–5955.

Radford, A., Metz, L., and Chintala, S. (2015).

Unsupervised Representation Learning with Deep

Convolutional Generative Adversarial Networks.

arXiv:1511.06434 [cs]. arXiv: 1511.06434.

Rumelhart, D. E. and Zipser, D. (1985). Feature Discov-

ery by Competitive Learning*. Cognitive Science,

9(1):75–112.

Ulyanov, D., Vedaldi, A., and Lempitsky, V. (2017). It

Takes (Only) Two: Adversarial Generator-Encoder

Networks.

Zhao, J., Kim, Y., Zhang, K., Rush, A. M., and LeCun,

Y. (2017). Adversarially Regularized Autoencoders.

arXiv:1706.04223 [cs]. arXiv: 1706.04223.

Zhu, J.-Y., Park, T., Isola, P., and Efros, A. A. (2017).

Unpaired Image-to-Image Translation using Cycle-

Consistent Adversarial Networks. arXiv:1703.10593

[cs]. arXiv: 1703.10593.

Active Recall Networks for Multiperspectivity Learning through Shared Latent Space Optimization

443
