CupQ: A New Clinical Literature Search Engine

Jesse Wang

1 a

and Henry Kautz

2 b

Department of Translational Biomedical Science, University of Rochester Medical Center, Rochester, NY, U.S.A.

Department of Computer Science, University of Rochester, Rochester, NY, U.S.A.

Keywords:

Applied Computing, Life and Medical Sciences, Health Care Information Systems.

Abstract:

A new clinical literature search engine, called CupQ, is presented. It aims to help clinicians stay updated with

medical knowledge. Although PubMed is currently one of the most widely used digital libraries for biomedi-

cal information, it frequently does not return clinically relevant results. CupQ utilizes a ranking algorithm that

ﬁlters non-medical journals, compares semantic similarity between queries, and incorporates journal impact

factor and publication date. It organizes search results into useful categories for medical practitioners: re-

views, guidelines, and studies. Qualitative comparisons suggest that CupQ may return more clinically relevant

information than PubMed. CupQ is available at https://cupq.io/.

1 INTRODUCTION

The task of staying updated with advances in

medicine remains a challenging aspect of clinical

practice. An average of about two biomedical doc-

uments is added to the literature every minute (Fiorini

et al., 2018). The widely used PubMed digital library

often does not deliver clinically relevant results within

a reasonable time frame (Agoritsas et al., 2014; Ho

et al., 2016; Davies, 2011). Other resources, such as

UpToDate, NEJM Journal Watch, and ACP Journal

Club, rely on the expensive and time-consuming pro-

cess of using human curators to manually comb the

literature for clinical information. The current util-

ities for medical information retrieval may be inad-

equate for continuing medical education and conse-

quently may be hindering efforts to improve patient

care.

PubMed is a biomedical digital library built and

maintained by the United States National Center for

Biotechnology Information. It often requires users

to select ﬁlters, identify MeSH terms, and gener-

ate boolean entries to distill relevant clinical results

(Russell-Rose and Chamberlain, 2017; Lindsey and

Olin, 2013). The complexity of PubMed may con-

tribute to low search satisfaction among healthcare

professionals (Agoritsas et al., 2014; Ho et al., 2016;

Davies, 2011). Moreover, the newly released Best

https://orcid.org/0000-0001-8269-1930

https://orcid.org/0000-0001-5219-2970

Match relevance algorithm does not incorporate im-

portant metrics such as journal rank and semantic

similarity (Fiorini et al., 2018). These ranking sig-

nals also appear to be missing in the related search

tool, PubMed Clinical Queries. To better fulﬁll the

information needs of medical practice, PubMed may

require further improvements.

This paper discusses the development of a new

medical literature search engine called CupQ. The

system uses Word2Vec to generate word embeddings

for comparing semantic similarity between queries

and documents (Mikolov et al., 2013; White et al.,

2015). It also considers journal impact factor (JIF)

and publication date. Results are organized by re-

views, guidelines, and clinical studies. Documents

written in English and published in journals listed in

the medicine subject area of ScimagoJR are returned.

Example search results suggest that CupQ may be

more effective than PubMed for returning relevant

clinical information. This publication aims to encour-

age utilization of CupQ for staying updated with med-

ical literature.

2 RELATED WORK

Lu provides a survey of search tools for biomedical

literature, including Quertle, MEDIE, and Semantic

MEDLINE (Lu, 2011).

Quertle is a semantic search engine utilizing over

250 million subject-verb-object (SVO) associations

Wang, J. and Kautz, H.

CupQ: A New Clinical Literature Search Engine.

DOI: 10.5220/0008385202250232

In Proceedings of the 11th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2019), pages 225-232

ISBN: 978-989-758-382-7

225

to provide relevant publications (Rindﬂesch et al.,

2011). It also features ”Power Terms” that allow users

to search topics. Example terms, denoted by a dollar

sign ($) preﬁx, include ”$Amino Acids,” ”$Biomark-

ers,” and ”$Chemicals.” In addition, Quertle differen-

tiates capitalizations, such as the ”WHO” abbrevia-

tion for the World Health Organization and the ”who”

pronoun. Search results are presented in two tabs.

One tab lists results derived from its semantic-based

algorithm. Another tab lists results obtained from a

standard PubMed search. Quertle was developed and

is currently maintained by a for-proﬁt private enter-

prise. The exact details of its search process are con-

sequently unavailable to the public.

MEDIE also aims to incorporate grammatical

meaning into its search algorithm (Ohta et al., 2006).

It returns documents that match the user’s desired

SVO relations. For example, the query ”what does

p53 activate” would produce results that contain sen-

tences matching ”activate” and ”p53” as the verb and

object, respectively. Queries in MEDIE are ﬁrst anno-

tated with part-of-speech tags through the Enju head-

driven phrase structure grammar parser. Genes and

diseases are also annotated through a dictionary com-

parison approach. After annotation, results returned

from a standard keyword search are ﬁltered based on

the predicate structure of their sentences. Users are

shown the results with sentences matching the speci-

ﬁed semantic relations.

Semantic MEDLINE, similar to Quertle and ME-

DIE, utilizes linguistic information (Rindﬂesch et al.,

2011). In particular, it extracts normalized represen-

tations of semantic relations. For example, the phrase

”Genes AFFECTS Circadian Rhythms” was parsed

from the title ”Clock genes are the genes that control

circadian rhythms in physiology and behavior.” The

extraction process was developed using the SemRep

natural language processing platform, which depends

on the National Library of Medicine’s Uniﬁed Medi-

cal Language System. Semantic categories and rela-

tionships are derived from this collection. The pro-

cess was conducted on about 25 million MEDLINE

abstracts and produced more than 26 million seman-

tic relations.

3 METHODS AND MATERIALS

3.1 Server Architecture

An instance of CupQ uses two networked servers. A

dedicated storage server is used to maintain persistent

information, including a MySQL database, a Mon-

goDB database, and other ﬁles. The storage server

also performs operations relating to data download

and extraction. Another server containing high mem-

ory capacity is used for tokenization, embedding, in-

dexing, searching, and website hosting. The storage

server contains an Intel Core i7-4790K 4.0 GHz pro-

cessor, Ballistix Sport 32 GB DDR3 RAM, and a

Samsung 850 Evo 1 TB SSD. The memory server is a

Dell R710 with dual Intel Xeon X5687 3.6 GHz pro-

cessors, 288 GB PC3-10600R RAM, and a Samsung

850 Evo 256 GB SSD.

3.2 Data Download and Extraction

MEDLINE/PubMed data is downloaded via FTP as a

directory of compressed XML ﬁles. MD5 checksums

are compared to ensure ﬁle integrity. Speciﬁc XML

elements related to title, abstract, journal, authors, and

publication date are parsed and inserted into a Mon-

goDB collection. The most recent journal informa-

tion from ScimagoJR and Journal Citation Reports is

also downloaded. Documents published in journals

listed in the medicine subject area of ScimagoJR are

labeled. Each document in this subset is assigned the

JIF of its publishing journal. Subsequent operations

are performed only on this document subset.

3.3 Tokenization and Embedding

Tokens are extracted from titles and abstracts by

splitting text on space and hyphen characters. The

LuiNorm API is used for token normalization. Stop-

words, except for those fully capitalized, are removed.

Then, the Genism library is used to run Word2Vec,

generating a vector representation for each token

(

Reh

rek and Sojka, 2010). Vectors of 100 elements

are produced using skip-gram and a window size of

100 without sentence boundaries for 10 epochs. Em-

beddings for document titles are computed as the sum

of each token embedding multiplied by the log ratio

of the corpus size to the number of documents con-

taining the token.

3.4 Inverted Indexing

A Java hash map with keys as integers and values as

integer array lists is instantiated. Keys represent nu-

meric token identiﬁers (TIDs). Values represent doc-

ument PubMed identiﬁers (PMIDs). For each docu-

ment, a hash set of title and abstract TIDs is created.

The document PMID is added to the array list for each

TID. Key-value pairs are stored in a MySQL table

comprised of two integer columns, the ﬁrst for TIDs

and the second for PMIDs, with the primary key set

KDIR 2019 - 11th International Conference on Knowledge Discovery and Information Retrieval

226

over both columns. New MEDLINE/PubMed docu-

ments are automatically downloaded, processed, and

indexed on a weekly basis.

3.5 Document Retrieval

A Java search server tokenizes the search string and

computes a weighted sum vector representation. The

token contained in the fewest documents is passed to

the inverted index, which returns a list of PMIDs.

Only results written in English and containing all

search tokens are retained. Errata, retracted docu-

ments, and documents published before the year 1990

are removed. Document information, including pub-

lication date, publication type, title embedding, and

TIDs are stored in an object array. Results are orga-

nized by publication type into array lists for reviews,

guidelines, and studies.

After assigning documents into publication cate-

gories, a relevance score is computed for each doc-

ument. A different relevance calculation is used for

each publication category. Document lists are then

sorted by relevance in descending order. The top 500

results are retained and cached into a MySQL table.

A sublist containing results to be displayed for the

user’s requested page number is obtained. Display

information including title, abstract, author abbrevi-

ations, journal ISO abbreviation, and publication year

is retrieved from disk. Search results are returned to

the web server as a JSON payload for HTML render-

ing.

The document relevance score is the sum of sev-

eral min-max normalized subscores multiplied by em-

pirically conﬁgured boosting factors. A semantic

score is computed as the cosine similarity between the

query vector and the title vector. A title count score

is set to one if a title contains all search tokens and

zero otherwise. A date score is computed as an esti-

mated number of days. A journal score is set to the

JIF. If a document is published over twenty years ago,

the relevance score is fractioned by a tenth. If any

of the subscores are zero, then the relevance score is

zero. Different sets of boosting factors are used for

each category (Table 1).

4 RESULTS

4.1 User Interface

CupQ provides a simple user interface that includes a

search bar for entering queries and a tab bar for se-

lecting publication categories (Figures 1–2).

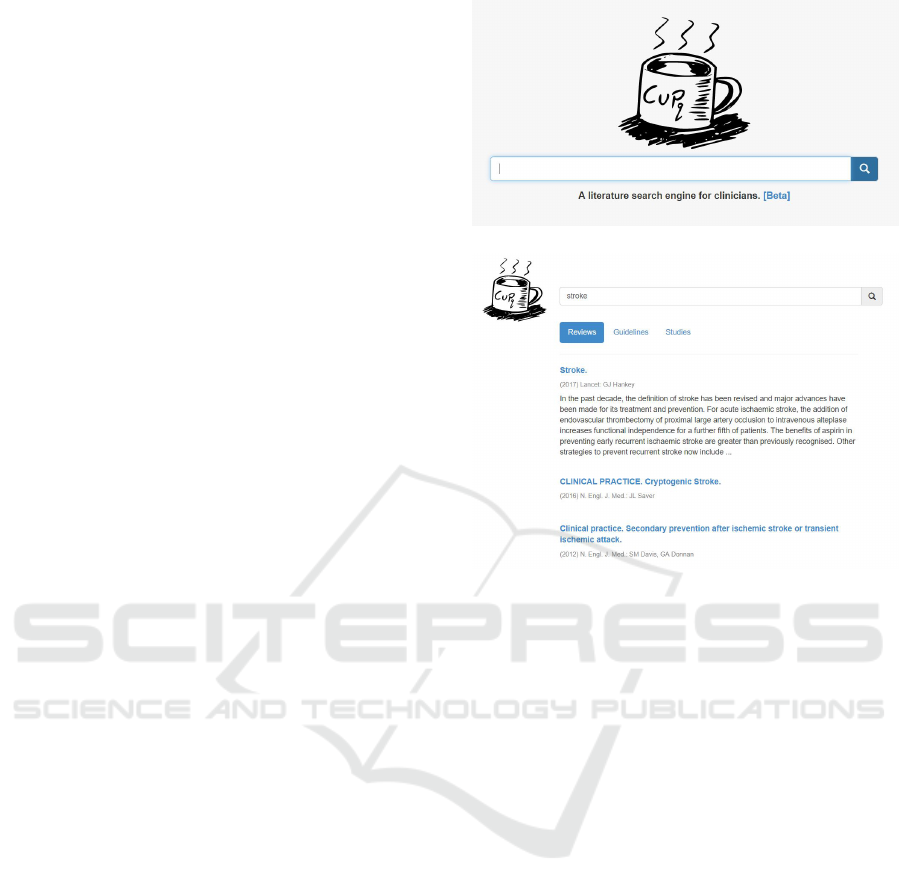

Figure 1: CupQ home page.

Figure 2: CupQ results page showing the top three results

for the query ”stroke.”

4.2 Search Results

The top ten results for several queries and ﬁlters were

compared between CupQ and PubMed. Note that the

PubMed sidebar does not allow for selection of doc-

ument types to be excluded. For example, it does not

allow inclusion of documents that are reviews but not

systematic reviews. Deﬁning document types using

advanced search strings in PubMed returns different

results than selecting document types in the sidebar,

perhaps because the Best Match ranking algorithm

weighs document types in the search string whereas

the sidebar selection behaves as a simple binary ﬁl-

ter. Search result comparisons were made with the

PubMed sidebar because its interface is more simi-

lar to the CupQ tab bar. Searches were performed on

January 28, 2019.

4.2.1 Myocardial Infarction (Reviews)

For the query ”myocardial infarction,” CupQ returned

review results from high impact factor journals, in-

cluding New England Journal of Medicine (JIF =

79.26), Lancet (JIF = 53.254), and BMJ (JIF =

23.562) (Table 2). The titles of the ﬁrst two results,

”Acute myocardial infarction,” were highly relevant

to the query with a cosine similarity of 0.986. Both

CupQ: A New Clinical Literature Search Engine

227

Table 1: Publication Category Boosting Factors.

Category Title Cosine Title Count Date Journal

Reviews 4 3 1 2

Guidelines 6 8 1 4

Studies 3 5 1 1

documents were published in 2017 issues of New

England Journal of Medicine and Lancet. Other re-

sults referenced common concepts related to myocar-

dial infarction, including coronary reperfusion strate-

gies, percutaneous coronary intervention, electrocar-

diogram, and ST-segment elevation. Incorporation of

JIF and Word2Vec query-title cosine similarity may

explain the effective prioritization of high impact fac-

tor journals and titles containing semantically related

concepts to myocardial infarction.

PubMed contrastingly returned no results from

New England Journal of Medicine, Lancet, or BMJ

(Table 3). The title of the ﬁrst result was less rele-

vant to the query with a cosine similarity of 0.832.

Moreover, the ﬁrst result was published in an un-

ranked journal by JIF. Although there was a document

with the highly relevant title ”Acute myocardial in-

farction,” it was published in a 2013 issue of Disease-

A-Month, a relatively low impact factor journal (JIF =

0.891). PubMed did not return the newer documents

with the same title from New England Journal of

Medicine and Lancet. In addition, only one PubMed

title referenced an aforementioned common topic re-

lated to myocardial infarction, percutaneous coronary

intervention. PubMed and CupQ shared no common

results. These observations suggest that PubMed may

not effectively incorporate JIF in the context of query-

title semantic similarity.

4.2.2 Depression (Guidelines)

There were more similarities between CupQ and

PubMed for the query ”depression” when searching

for guidelines (Tables 4–5). The same document

published in a 2016 issue of JAMA (JIF = 47.661)

appeared as the top result for both search engines.

However, PubMed lacked the result ”Screening for

Depression in Children and Adolescents: U.S. Pre-

ventive Services Task Force Recommendation State-

ment,” published in a 2016 issue of Annals of Internal

Medicine (JIF = 19.384). This was unusual behavior

because PubMed was able to return a document with

the same title and year, albeit from a lower impact fac-

tor journal, Pediatrics (JIF = 5.515). Unlike PubMed,

CupQ may return relevant results by estimating im-

portance via JIF.

All result titles in CupQ contained the query ”de-

pression.” A problem with PubMed was that the ti-

tle of the fourth result did not contain the query.

Although this result was published within the last

two years in a high impact factor journal, CA: A

Cancer Journal for Clinicians (JIF = 244.585), it

did not speciﬁcally focus on depression. This doc-

ument encompassed strategies for addressing multi-

ple conditions in patients with breast cancer, includ-

ing chemotherapy-induced nausea, vomiting, and pe-

ripheral neuropathy. Although this document may be

more appropriate as a top ten result for the query ”de-

pression breast cancer,” it addresses too many topics

other than depression to be a top ten result for the

query ”depression.”

4.2.3 Stroke (Studies)

When searching for studies about stroke, all result

titles from CupQ and PubMed contained the query

(Tables 6–7). CupQ only returned results from New

England Journal of Medicine whereas PubMed re-

turned no results from this journal. The ﬁrst result

returned by PubMed was published in Clinical Neu-

rology and Neurosurgery (JIF = 1.736). The high-

est impact factor journal returned by PubMed was

Lancet Neurology (JIF = 27.144). The ﬁrst result from

CupQ was published in 2018 whereas the ﬁrst result

from PubMed was published 2017. Moreover, CupQ

results were published from 2017 to 2018 whereas

PubMed results were published from 2007 to 2018.

CupQ may prioritize recent, high impact factor results

whose titles contain the query.

5 DISCUSSION AND

CONCLUSION

Search engine performance can be assessed through

a variety of approaches. Precision and recall can be

measured, assuming a binary relevance model and an

existing standard for relevance (Hawking et al., 2001).

User task studies may demonstrate performance with

respect to speciﬁc search objectives but may require

statistical adjustment for prior user experience with

comparative search tools (Taksa et al., 2008). Click-

through rates may provide another indication of per-

formance given a high volume of web trafﬁc (Fiorini

et al., 2018). This paper qualitatively compared re-

KDIR 2019 - 11th International Conference on Knowledge Discovery and Information Retrieval

228

Table 2: Reviews returned by CupQ for the query ”myocardial infarction.”

No Title Journal Year

1 Acute Myocardial Infarction. New England Journal of Medicine 2017

2 Acute myocardial infarction. Lancet 2017

3 Myocardial infarction due to percutaneous coronary in-

tervention.

New England Journal of Medicine 2011

4 Primary PCI for myocardial infarction with ST-segment

elevation.

New England Journal of Medicine 2007

5 Acute myocardial infarction. Lancet 2008

6 Use of the electrocardiogram in acute myocardial in-

farction.

New England Journal of Medicine 2003

7 Future treatment strategies in ST-segment elevation my-

ocardial infarction.

Lancet 2013

8 Reperfusion strategies in acute myocardial infarction

and multivessel disease.

Nature Reviews Cardiology 2017

9 Coronary microvascular obstruction in acute myocar-

dial infarction.

European Heart Journal 2016

10 Management of patients after primary percutaneous

coronary intervention for myocardial infarction.

BMJ 2017

Table 3: Reviews returned by PubMed for the query ”myocardial infarction.”

No Title Journal Year

1 Myocardial infarction with non obstructive coronary ar-

teries (MINOCA): a whole new ball game.

Expert Review of Cardiovascular

Therapy

2017

2 Type 2 myocardial infarction due to supply-demand

mismatch.

Trends in Cardiovascular Medicine 2017

3 Assessment and classiﬁcation of patients with myocar-

dial injury and infarction in clinical practice.

Heart 2017

4 Multivessel versus culprit lesion only percutaneous

coronary intervention in cardiogenic shock complicat-

ing acute myocardial infarction: A systematic review

and meta-analysis.

European Heart Journal: Acute

Cardiovascular Care

2018

5 Exosomes and cardiac repair after myocardial infarc-

tion.

Circulation Research 2014

6 Acute myocardial infarction. Disease-A-Month 2013

7 Perioperative myocardial infarction/injury after noncar-

diac surgery.

Swiss Medical Weekly 2015

8 MicroRNAs in myocardial infarction. Nature Reviews Cardiology 2015

9 Galectin-3 and post-myocardial infarction cardiac re-

modeling.

European Journal of Pharmacology 2015

10 Type 2 myocardial infarction: the chimaera of cardiol-

ogy?

Heart 2015

sults between CupQ and PubMed for speciﬁc queries

and publication categories. Because CupQ was re-

cently launched in January 2019, future work will in-

clude analyses of click-through rates when there is

signiﬁcant trafﬁc.

The CupQ ranking algorithm prioritizes title rele-

vance, JIF, and publication date. It assumes that users

place the most emphasis on title content when deter-

mining the relevance of a result. It also assumes that

users weigh the reliability and importance of informa-

tion, represented by JIF, either greater than or equal to

the recency of information. Although JIF is not neces-

sarily representative of individual articles in a journal,

it may serve as a useful approximation for physicians

who may have limited time to search for information

(Garﬁeld, 2006; Seglen, 1997; Saha et al., 2003). In

addition, CupQ only returns information published in

journals that are listed in the medicine subject area of

ScimagoJR. This unique implementation of title rele-

vance, JIF, publication date, and journal category may

enable CupQ to return relevant clinical information.

CupQ: A New Clinical Literature Search Engine

229

Table 4: Guidelines returned by CupQ for the query ”depression.”

No Title Journal Year

1 Screening for Depression in Adults: US Preventive Ser-

vices Task Force Recommendation Statement.

JAMA 2016

2 Confronting depression and suicide in physicians: a

consensus statement.

JAMA 2003

3 Screening for Depression in Children and Adolescents:

U.S. Preventive Services Task Force Recommendation

Statement.

Annals of Internal Medicine 2016

4 Screening for depression in adults: U.S. preventive ser-

vices task force recommendation statement.

Annals of Internal Medicine 2009

5 Screening for Depression in Children and Adolescents:

US Preventive Services Task Force Recommendation

Statement.

Pediatrics 2016

6 European Psychiatric Association Guidance on psy-

chotherapy in chronic depression across Europe.

European Psychiatry 2016

7 Management of Depression in Patients With Cancer: A

Clinical Practice Guideline.

Journal of Oncology Practice 2016

8 Screening for Depression in Adults: Recommendation

Statement.

American Family Physician 2016

9 Evidence-based interventions to improve the palliative

care of pain, dyspnea, and depression at the end of life:

a clinical practice guideline from the American College

of Physicians.

Annals of Internal Medicine 2008

10 Clinical pathway for the screening, assessment and

management of anxiety and depression in adult cancer

patients: Australian guidelines.

Psycho-oncology 2015

Table 5: Guidelines returned by PubMed for the query ”depression.”

No Title Journal Year

1 Screening for Depression in Adults: US Preventive Ser-

vices Task Force Recommendation Statement.

JAMA 2016

2 Consensus Recommendations for the Clinical Appli-

cation of Repetitive Transcranial Magnetic Stimulation

(rTMS) in the Treatment of Depression.

Journal of Clinical Psychiatry 2018

3 European Psychiatric Association Guidance on psy-

chotherapy in chronic depression across Europe.

European Psychiatry 2016

4 Clinical practice guidelines on the evidence-based use

of integrative therapies during and after breast cancer

treatment.

CA: A Cancer Journal for Clini-

cians

2017

5 Depression: The Treatment and Management of De-

pression in Adults (Updated Edition).

National Collaborating Centre for

Mental Health (UK)

2010

6 ACG Clinical Guideline: Preventive Care in Inﬂamma-

tory Bowel Disease.

American Journal of Gastoenterol-

ogy

2017

7 Screening for Depression in Children and Adolescents:

US Preventive Services Task Force Recommendation

Statement.

Pediatrics 2016

8 Management of Depression in Patients With Cancer: A

Clinical Practice Guideline.

Journal of Oncology Practice 2016

9 Confronting depression and suicide in physicians: a

consensus statement.

JAMA 2003

10 Screening for Depression in Adults: Recommendation

Statement.

American Family Physician 2016

KDIR 2019 - 11th International Conference on Knowledge Discovery and Information Retrieval

230

Table 6: Studies returned by CupQ for the query ”stroke.”

No Title Journal Year

1 MRI-Guided Thrombolysis for Stroke with Unknown

Time of Onset.
