RDF Doctor: A Holistic Approach for Syntax Error Detection and

Correction of RDF Data

Ahmad Hemid

, Lavdim Halilaj

, Abderrahmane Khiat

and Steffen Lohmann

Fraunhofer IAIS, Sankt Augustin, Germany

Robert Bosch Corporate Research, Stuttgart, Germany

Keywords:

RDF, Error Detection, Error Correction, Syntax Validation.

Abstract:

Over the years, the demand for interoperability support between diverse applications has signiﬁcantly in-

creased. The Resource Deﬁnition Framework (RDF), among other solutions, is utilized as a data modeling

language which allows for encoding the knowledge from various domains in a uniﬁed representation. More-

over, a vast amount of data from heterogeneous data sources are continuously published in documents using

the RDF format. Therefore, these RDF documents should be syntactically correct in order to enable software

agents performing further processing. Albeit, a number of approaches have been proposed for ensuring error-

free RDF documents, commonly they are not able to identify all syntax errors at once by failing on the ﬁrst

encountered error. In this paper, we tackle the problem of simultaneous error identiﬁcation, and propose RDF-

Doctor, a holistic approach for detecting and resolving syntactic errors in a semi-automatic fashion. First,

we deﬁne a comprehensive list of errors that can be detected along with customized error messages to allow

users for a better understanding of the actual errors. Next, a subset of syntactic errors is corrected automat-

ically based on matching them with predeﬁned error messages. Finally, for a particular number of errors,

customized and meaningful messages are delivered to users to facilitate the manual corrections process. The

results from empirical evaluations provide evidence that the presented approach is able to effectively detect a

wide range of syntax errors and automatically correct a large subset of them.

1 INTRODUCTION

The growing size of data represented in RDF (Zeng

et al., 2013) requires scalable and efﬁcient tools to

ensure the correct processing of RDF documents with

respect to syntax. Ontologies, as a one of the cases

where RDF is used as a modeling language, usu-

ally are built in a collaborative environment with the

involvement of several stakeholders. When trying

to comprehend the concrete encoding or perform a

bunch of modiﬁcations or insertions at the same time,

ontology engineers often use plain text editors (Pe-

tersen et al., 2016) where they can easily introduce a

number of syntax errors after each modiﬁcation.

One fundamental pre-condition to consume on-

tologies encoded in RDF documents by different

stakeholders is that they are syntactically correct. Ex-

isting tools used for syntax checking assert that the

input is error-free. If a particular ontology has one

or more errors, these tools naturally stop parsing and

report only the ﬁrst error to the user with some ad-

ditional information about the error, such as an error

message, row and column number, and where the er-

ror occurred. This process becomes tedious for engi-

neers if not all of the errors are detected at once: each

time the tool detects an error, the engineer has to cor-

rect it and reprocess the corrected ontology version.

Next, the used tool checks again for syntax errors and

reports when any other errors encountered. Moreover,

it might happen that, during the correction phase, en-

gineers introduce new errors. Therefore, this proce-

dure is time-consuming, error-prone, and tedious to

all engineers involved in the ontology development

process.

Over the years, several approaches have been pre-

sented for parsing RDF documents and ﬁnding syn-

tactic errors. Well-known tools, such as the Jena

API (McBride, 2002), the RDF4J API (RDF, ), or the

N3 Parser (Verborgh, ), implemented as Java-based

toolkits or as a Javascript-based parser, respectively,

are used to process RDF in N-Triple and Turtle for-

mats (or in other serialization formats). Commonly,

these tools utilize an exception handling mechanism

to catch any potential syntax error, and are able to rec-

508

Hemid, A., Halilaj, L., Khiat, A. and Lohmann, S.

RDF Doctor: A Holistic Approach for Syntax Error Detection and Correction of RDF Data.

DOI: 10.5220/0008493205080516

In Proceedings of the 11th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2019), pages 508-516

ISBN: 978-989-758-382-7

ognize only one error at a time.

In this paper, we present RDF-Doctor, a compre-

hensive approach for error detection and correction in

RDF documents. The motivation of this work was

mainly encouraged by the tremendous RDF data gen-

eration and usage in both Turtle and N-Triples serial-

ization formats, respectively. RDF-Doctor is capable

of detecting an exhaustive number of syntactic errors

and automatically correct a subset of them. Although

those two formats are used as study cases in this re-

search, the approach can be easily extended for sup-

porting other serialization formats by specifying the

respective grammar.

RDF-Doctor is fully operational and is currently

integrated within the VoCol platform

. VoCol (Halilaj

et al., 2016b) leverages the fundamental principles

of Git as a version control system to support on-

tology development in distributed scenarios. RDF-

Doctor can be used a standalone tool as well, and the

source code is openly available at https://github.com/

ahemaid/RDF-Doctor.

The main contributions of this work are: 1) deﬁ-

nition of a set of grammar rules with the objective of

covering an exhaustive list of syntactic errors; 2) en-

abling the continuation of the parsing procedure after

errors occurrence; 3) identifying multiple errors in the

same line or subsequent statements; 4) automatic cor-

rection of a subset of errors; and 5) improving conﬂict

resolution via user-friendly messages.

This paper is organized into the following sec-

tions: Section 2 presents related work summarizing

relevant approaches for syntax checking. Section 3

provides a detailed description of our approach. Sec-

tion 4 describes a scenario for error detection and cor-

rection by RDF-Doctor. The approach is evaluated in

various scenarios in Section 5. Section 6 concludes

our work and provide an outlook for potential exten-

sions.

2 RELATED WORK

In this section, we discuss the related work to our

problem, i.e., research that has been realized in the

ﬁeld of RDF syntax parsing and checking. During our

literature review, we focused on the following three

aspects: 1) parsing tools for different RDF serializa-

tions; 2) types of error messages generated after error

encountering; and 3) the error recovery.

https://github.com/vocol/vocol

Table 1: Comparison between RDF-Doctor and other RDF

syntax checking tools.

Feature Jena ShEx.js VRP IDLab RDF

(McBride, (Tolle, (Prud’hommeaux Validator Doctor

2002) 2000) et al, 2014) IDLab, 2019

Multiple error

7 7 X 7 X

detection per scan

Error correction 7 7 7 7 X

User-friendly

X 7 X X X

error messages

Grammar based

X X X X X

approach

2.1 Parsing Tools

Several tools for validating RDF documents use

the Another RDF Parser (ARP) parser of Jena

(McBride, 2002) such as W3C RDF validation

tool (Prud’hommeaux, ), Jena RDF toolkit.

These tools can commonly detect only the ﬁrst er-

ror while consecutively parsing input from the start

point to the end. Therefore, ontology engineers are

struggling whilst debugging their RDF documents,

and need alternative tools that could be more help-

ful. To the best of our knowledge, only the Validating

RDF Parser (VRP) (Tolle, 2000) proposed by K. Tolle

can detect multiple errors at the same time. How-

ever, this work is limited only to RDF/XML serializa-

tion. Other tools such as ShEx.js (Prud’hommeaux

et al., 2014), Jena API (McBride, 2002), RDF Val-

idator (Myb, ), N3Parser (Verborgh, ), IDLab Valida-

tor (IDL, ), and TurtleEditor (Petersen et al., 2016)

are fault-intolerant, therefore not able to detect multi-

ple errors simultaneously.

2.2 Types of Error Messages

Releasing user-friendly and meaningful error mes-

sages is of a great beneﬁt to help the user to eas-

ily identify and correct the errors. Practically, pars-

ing tools under the Shape Expressions approach, like

ShEx.js (Prud’hommeaux et al., 2014), show less ex-

pressive and unfriendly error messages. On other

hand, tools which utilize an ARP-parser-dependable

approach like Jena API (McBride, 2002), RDF Val-

idator (Myb, ) or an N3-parser-dependable approach,

like N3Parser (Verborgh, ), IDLab Turtle Valida-

tor (IDL, ) and TurtleEditor (Petersen et al., 2016)

present more expressive and user-friendly error mes-

sages including its location.

2.3 Error Recovery Approaches

Automatic error recovery is a crucial feature in on-

tology development process as well as for RDF data

reuse (Halilaj et al., 2016a). Our survey of research

RDF Doctor: A Holistic Approach for Syntax Error Detection and Correction of RDF Data

509

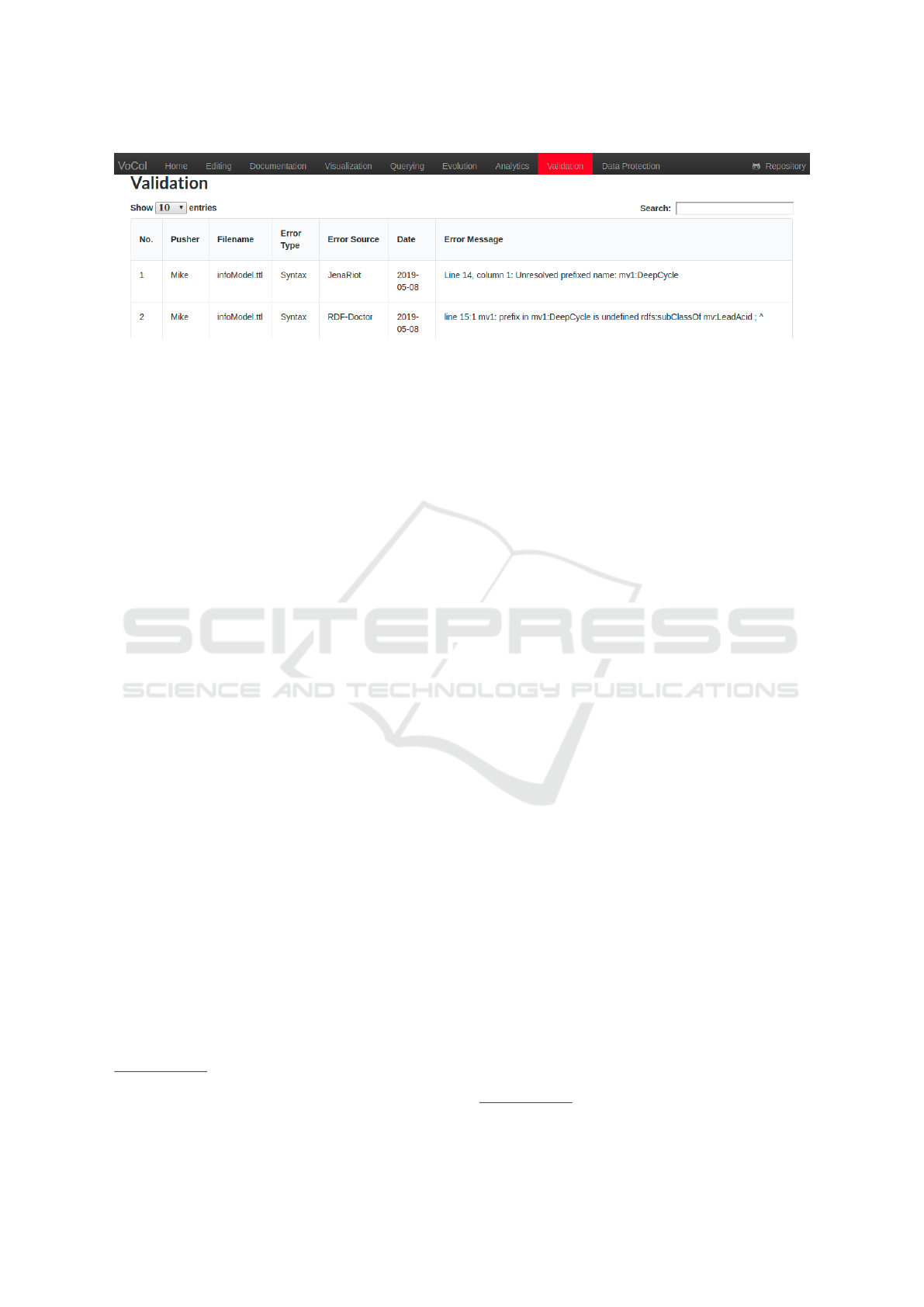

Figure 1: Example of a generated report for Turtle syntax validation by RDF-Doctor as an integrated component within VoCol

platform (Halilaj et al., 2016b).

papers and tools related to auto-correction of RDF

syntax errors shows that such a feature does not exist

either theoretically or practically. Several approaches

already exist in software development to help on au-

tomatic error correction. Balachandran reports about

a Review Bot tool (Balachandran, 2013) that can au-

tomatically review a source code using static analy-

sis output and correct encountered syntax errors us-

ing the parse tree. This approach is applicable in our

case. However, RDF-Doctor corrects a common sub-

set of syntax errors by matching these errors with pre-

deﬁned error messages.

2.4 RDF-Doctor vs. Other Tools

Table 1 summarizes this section by providing a com-

parison of RDF syntax checking tools including RDF-

Doctor. Obviously, it can be seen that RDF-Doctor is

the sole tool that provides an error correction for RDF

syntax errors, whereas others are not. Additionally,

both RDF-Doctor and VRP (Tolle, 2000) are support-

ing multiple error detection while the former currently

supports Turtle and N-Triples and is willing to support

more serializations in the future work; meanwhile, the

latter is designed to handle only RDF/XML serializa-

tion and no further development to extend the tool

can be identiﬁed. In common with other tools, RDF-

Doctor rises user-friendly error messages and has a

grammar based approach upon which its parser was

auto-generated.

3 RDF-Doctor

In this section, we present RDF-Doctor

, an approach

with the objective of the realization of a comprehen-

sive parser for syntax validation and recovery.

All study material of RDF-Doctor as well as as stan-

dalone version including grammar rules, can be found at

https://github.com/ahemaid/RDF-Doctor.

RDF-Doctor is able to identify more than one syn-

tax error at the same time and correct a subset of

them. In addition, it provides meaningful and cus-

tomisable error messages to facilitate the manual cor-

rection. Currently, RDF-Doctor is integrated within

the VoCol platform (see Figure 1), an integrated en-

vironment that supports the development of vocabu-

laries using Version Control Systems

(Halilaj et al.,

2016b). In the following, we describe the main com-

ponents of RDF-Doctor.

3.1 ANTLR for Parser Generation

The core component inside RDF-Doctor is the

ANTLR framework. It is used to automatically gen-

erate a parser based on our developed grammar, in-

cluding predeﬁned error production rules to match se-

quences of tokens that contains RDF syntax errors.

Due to lack of availability of grammar that deﬁnes

error production rules, we created RDF-Doctor gram-

mar based on Turtle serialization. Thus, RDF-Doctor

can parse both Turtle and N-Triple since the latter can

be considered as a special case of the former.

The ANTLR framework has several important

features: 1) a given grammar can be equipped with

error production rules and when a sequence of tokens

match such rules, the parser will ﬁre a notiﬁcation er-

ror; 2) it uses a parse tree to parse input tokens and

the view of this parse tree can be delivered as one of

the outputs to the user at the end of the parsing pro-

cess; and 3) it supports the auto-generation of parsers

in different programming languages.

3.2 Errors Detection and Recovery

Figure 2 illustrates the main steps of a typical work-

ﬂow to detect and recover syntax errors of RDF doc-

uments. These steps are described in the following:

https://github.com/vocol/vocol

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

510

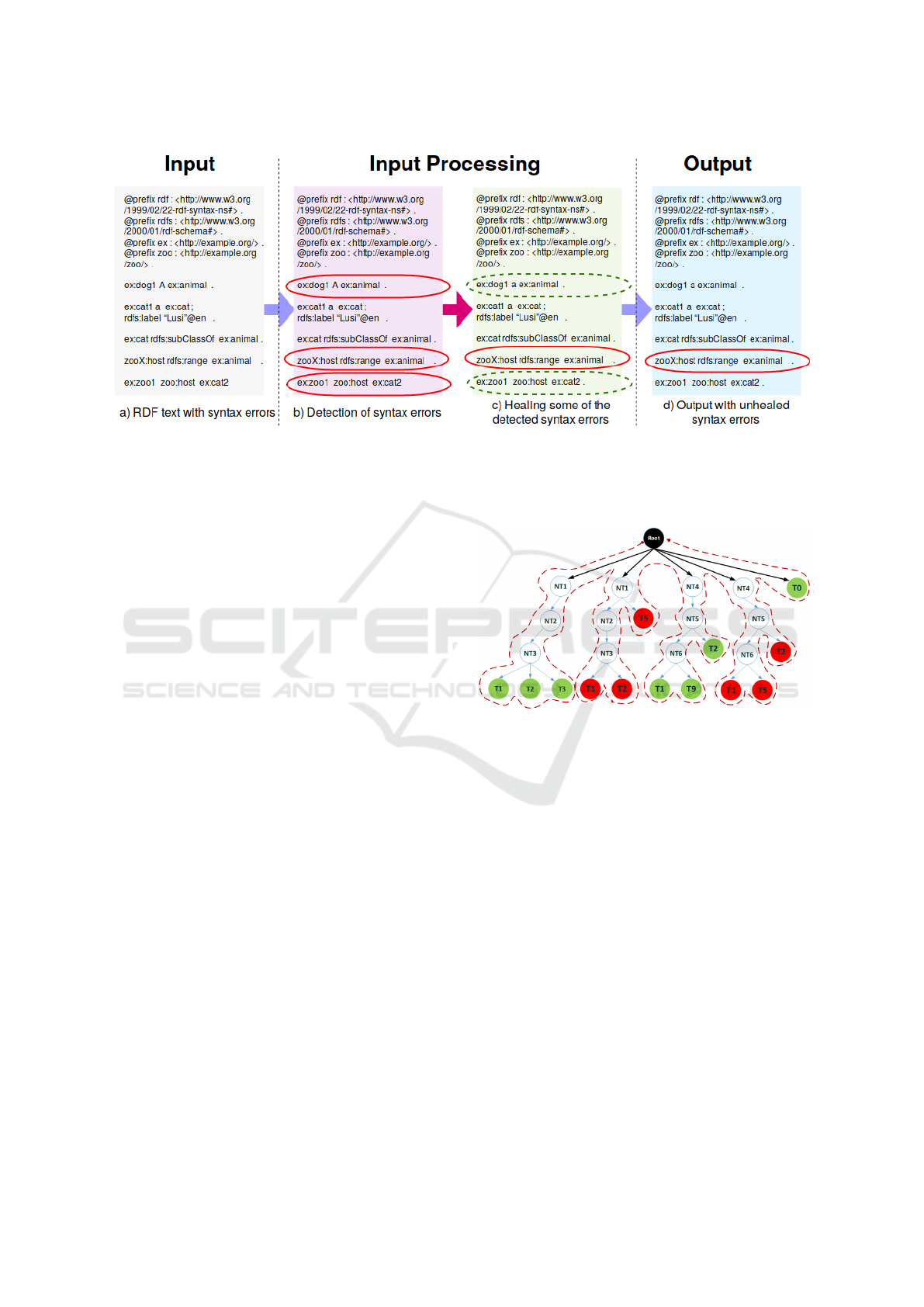

Figure 2: RDF-Doctor workﬂow. The user modiﬁes an RDF ﬁle, then sends it to RDF-Doctor for parsing. RDF-Doctor

receives the ﬁle as input however, if the ﬁle is large, RDF-Doctor splits it into multiple chunks. Next, each chunk or the

original ﬁle is parsed individually. In case of encountering any syntax error, RDF-Doctor tries to recover a subset of detected

errors, whenever the automatic error recovery feature is enabled. Finally, RDF-Doctor outputs a parse tree, an error report, a

correction report, and the RDF ﬁle after error recovery.

3.2.1 Reading RDF File

During this step, RDF-Doctor receives an RDF ﬁle

as input. In case that the ﬁle is too large (e.g., more

than 1 million triples), then it is segmented into two

or more chunks based on the number of triples. Each

chunk is parsed and processed separately from others.

3.2.2 Detecting of Syntax Errors

Next, RDF-Doctor parses a given RDF ﬁle based on

predeﬁned rules of syntax errors. Once a rule is

matched with a sequence of input tokens, it sends a

notiﬁcation error to the Error Listener module, where

a list of all encountered errors is stored. Reading of

input tokens continues until the end of the ﬁle (or

chunk) while searching for any match in order to iden-

tify potential syntax errors. We used a parse tree to

represent how the RDF-Doctor process with detecting

syntax errors. Figure 3 shows how each sub-tree of

the root node (acts as the global rule) is the main rule

containing all other rules which represent either cor-

rect or incorrect syntactic forms. Each of these rules

initiates either a sub-tree of non-terminals (grammar

rules) and terminals (lexical forms of input tokens)

nodes. Each sub-tree of non-terminals can either have

zero, one or more nodes. On the other hand, a sub-tree

of terminals can only have one or more nodes.

A sub-tree produces a syntax error, if all of its ter-

minals (cf. Figure 3) formulate an error production

rule based on the predeﬁned grammar. Hence, both

second and fourth sub-trees from left-to-right in Fig-

ure 3 with terminals in red color are rules with a se-

Figure 3: Detection of syntax errors while traversing the

parse tree. The root node is the head of the ﬁrst rule in

the grammar and the head of the parse tree. All the chil-

dren of the root are either non-terminal nodes represented

by “NT” followed by a number of terminal ones shown by

“T” succeeded. An error is detected on a non-terminal node

when all of its terminals represent a sequence of tokens for a

statement which includes a syntax error. Red terminals rep-

resent error-inclusive statements and green ones represent

error-free statements.

quence of tokens producing syntax errors. Meanwhile

other sub-trees: ﬁrst, third, and ﬁfth with terminals in

green color contain correct syntactic forms.

3.2.3 Healing a Subset of Syntax Errors

The syntax error recovery currently focuses on a cer-

tain type of errors which has a predeﬁned solution for

each error in order to be recovered. Examples of such

errors are: missing a dot at the end of a triple, miss-

ing a semi-colon after multiple predicates sharing the

same subject, or missing a comma after multiple ob-

jects having the same subject and predicate.

RDF Doctor: A Holistic Approach for Syntax Error Detection and Correction of RDF Data

511

Algorithm 1: The pseudo-code of RDF-Doctor.

Data: inputText, correctSyntaxRules, incorrectSyntaxRules,

CorrectionIsSelected

Result: foundSyntaxErrors and recoveredSyntaxErrors

1 foundSyntaxErrors = [ ];

2 recoveredSyntaxErrors = [ ];

3 syntaxRules ← correctSyntaxRules+ incorrectSyntaxRules;

4 while token in inputText && inputText 6= EOF do

5 currentTokens += inputText[token];

6 ruleToBeMatched = getLexicalForm(currentTokens);

7 if syntaxRules contains ruleToBeMatched then

8 if incorrectSyntaxRules contains ruleToBeMatched then

9 foundSyntaxErrors.push(currentTokens);

10 if isCorrectionSyntaxErrorSelected then

11 if canErrorBeRecovered(ruleToBeMatched) then

12 if recoverSyntaxError(currentTokens) then

13 recoveredSyntaxErrors.push(currentTokens);

14 foundSyntaxErrors.pop(currentTokens);

15 currentTokens ← ””;

16 ruleToBeMatched ← ””;

17 end

18 return foundSyntaxErrors, recoveredSyntaxErrors;

3.2.4 Producing of the Output

During this step, RDF-Doctor returns as output a ﬁle

containing information about errors already recovered

as well as those ones which are not corrected along

with a user-friendly description. Commonly, errors

that are not recovered by RDF-Doctor without a user

intervention are those errors with several solutions.

For example, a literal with multiple language tags like

”me”@en@de which shows a string with two lan-

guage tags where one solution might be a removal of

one of them but the intention of the user is unknown

in these cases. In addition, there exist errors with un-

deﬁned or unknown recovery solution, e.g. missing

a user-deﬁned preﬁx declaration for a certain local

namespace which cannot be guessed since it is only

known by the user.

Algorithm 1 presents the abstract behaviour of

RDF-Doctor. It initializes with the syntaxRules vari-

able which combines both correct syntax rules and

incorrect ones. The main while loop carries on until

reaching the end of the current ﬁle or chunk. The rule-

ToBeMatched variable encloses one rule from either

correct or incorrect production rules formed by the

supplied tokens whereas the currentTokens variable

stores a sequence of given tokens to check to which

rule they belong to. Since a crucial step is to identify

syntax errors, ruleToBeMatched is evaluated to check

if its content matches with the incorrectSyntaxRules.

In case of matching, the content of currentTokens is

considered as a syntax error, and the parser sends a

notiﬁcation error to any method subscribed to Error

Listener module, in order to further process the col-

lected errors. The algorithm continues with the auto-

matic correction in case it is activated where the Error

Correction Module traverses the entire list of identi-

ﬁed errors and based on the error message, it assesses

if a particular error can be corrected or needs user in-

tervention. At the end of the correction phase, a report

containing the corrected errors will be delivered to the

user.

3.3 Categories of RDF Syntax Errors

A signiﬁcant part of this work is the ability to identify

syntax errors which should be known in advance in

order to be deﬁned.

We divide types of syntax errors into multiple cat-

egories as shown in Appendix Table

. These cate-

gories are taken from (Tur, 2013) with some modiﬁ-

cation to become more expressive. The table shows

each category with one error sample and an error po-

sition where the actual syntax error is located. This

facilitated the deﬁnition of the grammar rules as well

as the investigation of which of them can be automat-

ically corrected.

4 APPLICATION SCENARIO

In this section, we present an application scenario that

illustrates the detection and correction of a syntax er-

ror with RDF-Doctor. The scenario starts with a Tur-

tle example which has no syntax errors. Then, a syn-

tax error is introduced to show the process of handling

it with RDF-Doctor.

Listing 1: RDF example in Turtle serialization format.

@preﬁx rdf : <http://www.w3.org/1999/02/22-rdf-syntax-ns#> .

@preﬁx rdfs : <http://www.w3.org/2000/01/rdf-schema#> .

@preﬁx ex : <http://example.org/> .

@preﬁx zoo : <http://example.org/zoo/> .

ex : dog1 rdf : t y p e ex : a nim a l .

ex : c a t 1 rdf : t y p e ex : c a t ;

rdfs : l a b e l “Lusi”@en .

ex : c a t rdfs : s u b C las s O f ex : a n i m al .

zoo : h o s t rdfs : r a n g e ex : a n i m al .

ex : zo o1 zoo : h o s t ex : c a t 2 .

Listing 1 shows a Turtle example without syn-

tax errors. The ﬁrst four lines are Preﬁx declarations

whereas the following are a couple of triples. For that

reason, our grammar is initialized with the topmost

node start which describes the coming rules by zero

or more statement(s). In addition, each statement

is either a directive or a triple as it is represented in

Listing 2.

Listing 2: Starting rules in the grammar ﬁle.

start

: statement

EOF

;

statement

https://github.com/ahemaid/RDF-Doctor/blob/master/

List of Errors.pdf

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

512

Figure 4: A view of parse tree for listing 1. is illustrated. It

shows the sub-trees of the parent node start in the parse

tree. Those nodes written in black are non-terminals or

heads of the grammar rules. The remaining nodes are ter-

minals or matched patterns of input tokens.

: directive

| triples ‘.’

;

To shed light on the generated parse tree for List-

ing 1, Figure 4 demonstrates a view of the parse tree

for the ﬁrst 3 lines after preﬁxes: lines 5, 6, and 7, as

well as EndOfFile (EOF) sequence. Line 5 matches

triple with only one subject ex:dog1, but lines 6, and

7 match triple with multiple predicates and objects

and share the same subject ex:cat1, same is applied

on the parse tree.

After showing a part of the grammar rules and

views of the parse tree, a real use case is presented in

the following. The use case shows an error production

rule that matches a syntax error pattern for detecting

and resolving it.

Missing a Dot at the End of a Triple: In the Turtle

syntax, a triple must end with a dot. In Listing 3, the

head rule, i.e., a statement, can either be a directive

or a triple both ending with a dot. Equally important,

the last line which shows that triples without a dot

can also be a sub-goal of this rule. This sub-goal is

considered as a normal path in a parse tree, but once

the parser detects it, a notiﬁcation is sent to the Error

Listener module with an error message “Missing a ’.’

at the end of a directive preﬁx and/or triple”.

Once such an error is saved by the Error Listener

module, the role of Error Detection module is ﬁn-

ished. The next phase starts in the Error Correction

module to correct the error. Since the list of syntax

errors is shared with Error Correction module, it it-

erates all of these errors messages. If one of these

messages in the error list matches, then it applies a

predeﬁned function to recover the error. For instance,

the function addDot(lineNumber, columnNumber) is

applied, since it matches the same error message and

similarly, in the case of “Missing ’.’ at the end of

Preﬁx directive” message. The task of this function

Table 2: Evaluation summary of RDF-Doctor for both cor-

rect and incorrect syntactic forms. “Detected” for “Correct

Syntax” means that RDF-Doctor recognizes them as cor-

rect syntactic forms, whereas not correctly recognized ones

are classiﬁed as “Undetected”. Similarly, “Detected” for

“Incorrect/Bad Syntax” refers to recognized syntactic forms

as incorrect forms with releasing corresponding error mes-

sages, meanwhile “Undetected” speciﬁes incorrect syntac-

tic forms which are not recognized and might generate false

positives.

File Content Detected Undetected Total

Correct Syntax 185 25 210

Incorrect Syntax 53 12 65

Total 238 37 275

is to reach the line which misses the dot, identify the

line number and column number, then ﬁnally auto-

matically correct the error by adding a dot at the end

of the given triple.

Listing 3: Grammar rules for detecting of syntax error of

missing dot at the end of a triple.

statement

: directive

| triples

| triples {notifyErrorListeners("Missing ‘.’

at the end of a triple")} ;

5 EXPERIMENTAL STUDY

Three different experiments were conducted to check

for effectiveness and efﬁciency of RDF-Doctor.

5.1 Experiment I

The target of this experiment is to measure the ef-

ﬁciency of RDF-Doctor while testing with the W3C

Turtle Test Suite.

5.1.1 Procedure and Measure

We used the Test Suite recommended by W3 Consor-

tium (W3C) in (Tur, 2013). The total number of ﬁles

of the given suite is 275, which we divided into two

parts: 1) ﬁles that are syntactically correct; and 2) ﬁles

that are syntactically incorrect. The ﬁrst subset con-

tains 210 ﬁles, whereas the second one contains 65

ﬁles. We computed Precision, Recall, and Accuracy

values using equations (1), (2), and (3), accordingly.

Precision =

+ f

;

= number of true positives

= number of false positives

(1)

Recall =

+ f

;

= number of true positives

= number of false negatives

(2)

RDF Doctor: A Holistic Approach for Syntax Error Detection and Correction of RDF Data

513

Table 3: Evaluation of RDF-Doctor for detection of incor-

rect syntactic forms in the Turtle Test Suite (Tur, 2013).

Classiﬁcation of Error Types Detected Undetected Total

Bad String Escape 0 4 4

Bad Keywords 5 0 5

Bad Language Tag 2 0 2

Bad Local Namespace in Preﬁxed IRI 2 3 5

Bad Preﬁx Label in Preﬁxed IRI 2 0 2

Bad Syntax from N3 Notation 11 1 12

Bad Preﬁx Label in Directives 2 0 2

Bad Number as a Literal 5 0 5

Bad Directive 4 0 4

Bad String 6 1 7

Bad Structure 12 0 12

Bad IRI 2 3 5

Total 53 12 65

Accuracy =

+ t

+ f

;

= number of true positives

= number of true negatives

= number of false positives

= number of false negatives

(3)

5.1.2 Result and Discussion

As we can observe from results given in Table 2, the

majority of syntactically correct ﬁles i.e. 88% are cat-

egorized correctly (as free of errors) while the remain-

ing 12% is considered syntactically incorrect. On the

other hand, when dealing with incorrect syntax, re-

sults show that 81.5% of ﬁles which include incorrect

syntax are detected and the appropriate error message

is given, whereas the rest 18.5%, are not recognized as

errors, thus no error message is given. In terms of Pre-

cision, Recall, and F-measure, RDF-Doctor reaches a

Precision of 0.82, Recall equals to 0.68, and Accuracy

equals to 0.78.

Table 3 shows evaluation results with respect to

the above-mentioned input. In order to evaluate the

automatic error correction feature of RDF-Doctor, we

used the results of this experiment. The outcome

shows that 5 types of errors can be faultlessly cor-

rected: 1) using of ‘A’ as a predicate instead of ‘a’;

2) missing a colon in preﬁx or base declarations; 3)

missing a dot at the end of a triple; 4) adding more

than one dot at the end of the triple; and 5) ending a

triple with a semi-colon instead of a dot, correspond-

ingly.

5.2 Experiment II

The objective of this experiment is to simulate a sce-

nario where an ontology engineer develops an ontol-

ogy for a particular domain using a plain text editor.

The engineer may introduce a number of syntactic

errors, which he/she has to identify and correct be-

Figure 5: Distribution of syntax errors. The number and

types of syntax errors between brackets for an interval of

eight instances of time. A Poisson Distribution and a Uni-

form Distribution generate a number of errors per instance

of time and types of errors as listed in Appendix Table, re-

spectively. For example, at the 5

instance, three error of

different types are introduced, i.e., [3,15,25].

Figure 6: Error detection when syntax errors are randomly

distributed. For each instance of time, a number of er-

rors which are detected or not detected by RDF-Doctor are

shown.

fore being able to share his/her contribution with other

team members.

5.2.1 Procedure

In this experiment, we assume that the ontology en-

gineer contributing to the DBpedia ontology by per-

forming several modiﬁcations, e.g. insert, edit or

delete during a period of eight instances of time, i.e.,

each hour. The Poisson and Uniform Distribution are

used to simulate the number and the type of errors

occurred in each instance of time, respectively. The

average number of syntax errors per instance of time

is represented by λ parameter. For example, λ = 5,

means that an average number of ﬁve syntax errors

occur per hour. The Uniform Distribution is used to

randomly select the error types from a comprehensive

list of errors given in Appendix Table

. Moreover, the

exact location for injecting syntax errors within the

RDF ﬁle is realized using the Uniform Distribution

where a random line number is generated. The error

https://github.com/ahemaid/RDF-Doctor/blob/master/

List of Errors.pdf

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

514

is successfully applied if the randomly selected loca-

tion is appropriate for the error type; otherwise, one

of the lines from its neighborhood are selected. If the

error is related to the header (the top of the ﬁle where

directives are normally located), then the injection is

applied in the header of the ﬁle.

5.2.2 Result and Discussion

Experimental results illustrated in Figure 5 show that

RDF-Doctor in a majority of the cases is able to cor-

rectly recognize syntax errors. More speciﬁcally, Fig-

ure 6 shows that in half of the time instances, apart

from one syntax error which is not recognized, all of

them are identiﬁed. In time instance number 5, all

errors are detected. However, there are cases where

more than one error is not recognized, such as time

instance number 7 with ﬁve undetected syntax errors.

The reason behind this, is that most the of randomly

inserted errors are those known as unrecognized er-

rors by RDF-Doctor during that time instance. A so-

lution for such an issue can be achieved by developing

additional mechanisms that detect nested and conﬂict-

ing rules.

5.3 Experiment III

In this experiment, we checked the effect on the be-

haviour and the performance of our approach when-

ever the number of errors increases and the size of the

ontologies is changed, to simulate real-world scenar-

ios where ontologies continue growing over the time.

5.3.1 Procedure

We used two types of ontologies; small and medium-

sized. The Friend of a Friend Vocabulary (FOAF) is

used as a small ontology with a total number of 631

triples. As a medium-size ontology, we used the DB-

pedia version 2016-10 with a total number of 30,790

triples. In both ontologies, three different numbers of

syntax errors are introduced i.e., 10, 30, 61. These

syntax errors are randomly injected using the same

way as in the previous experiment where the Uniform

Distribution is utilized. Additionally, to avoid any im-

pact on the current overload of the processor during

the execution time, we ran our experiment ﬁve times

for each case and calculated the average processing

time.

5.3.2 Result and Discussion

Figure 7 illustrates the performance with respect to

the number of errors and the ontology size. After in-

troducing 10 syntax errors, 9 out of 10 are detected

and one is not detected for both FOAF and DBpedia

ontology, respectively. In the second case, 25 out of

30 injected errors are detected in FOAF whereas in

DBpedia 26 out of 30. Finally, from a total number

of 61 injected errors, 6 in FOAF and 11 in DBpedia

are not detected. In all the cases, for each error that is

detected, an expressive message is given to facilitate

resolving procedure.

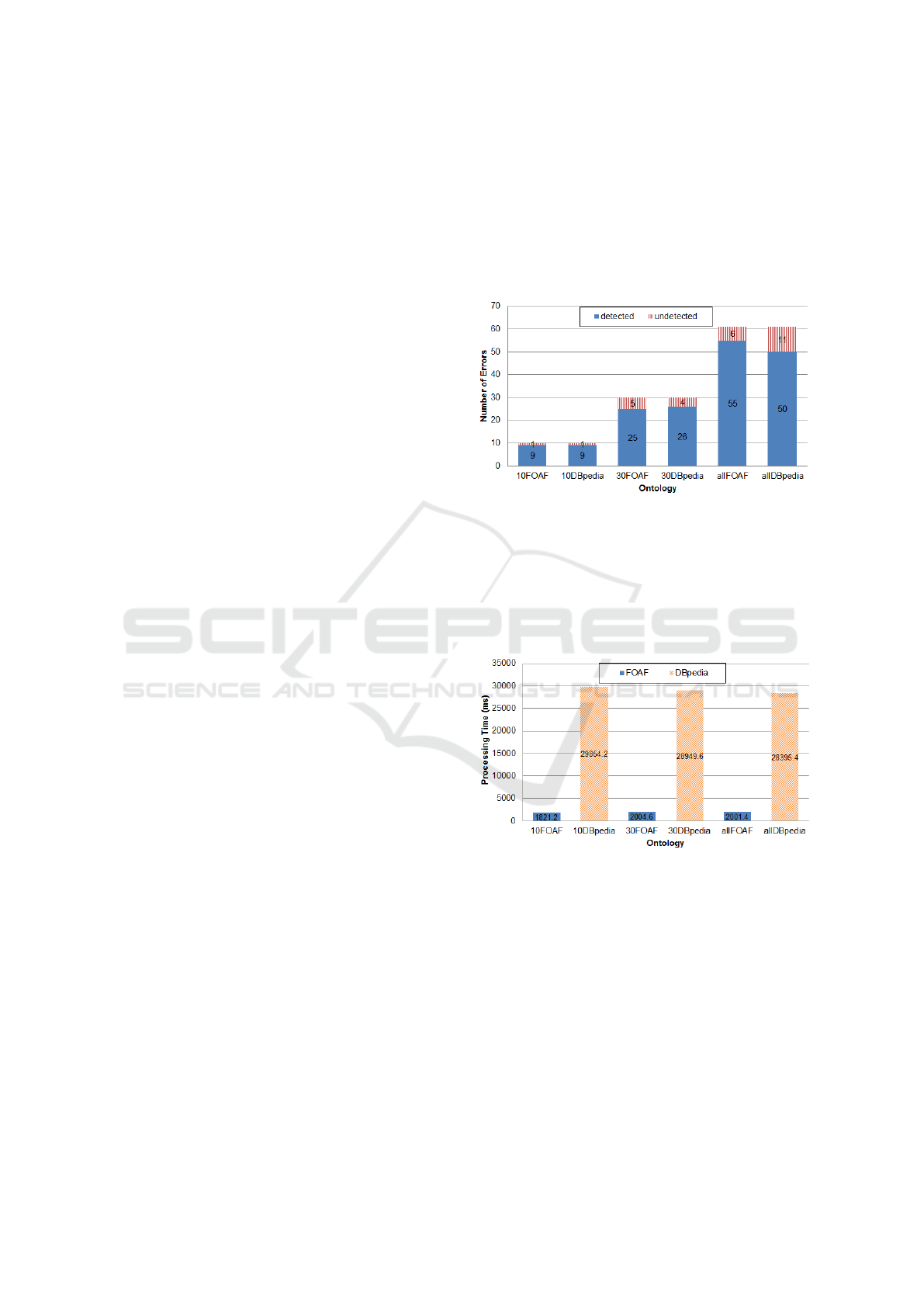

Figure 7: Impact of the number of errors and the size on

RDF-Doctor. FOAF and DBpedia ontologies are used to

evaluate RDF-Doctor, 10foaf, 30foaf, allfoaf are modes of

FOAF ontology, including with 10, 30, 61 random syntax

errors, respectively; same is applicable for DBpedia. De-

tected errors are the errors which were properly identiﬁed

by RDF-Doctor matched error messages released, while un-

detected errors are those which were not correctly recog-

nized.

Figure 8: Performance evaluation when a number of errors

and ontology size is changed, individually. Performance is

calculated with respect to the required processing time, i.e.,

in milliseconds (ms) in both cases: 1) 10, 30, and 61 in-

jected syntax errors; 2) FOAF ontology with 631 triples and

DBpedia ontology, with 30,790 triples.

The performance of RDF-Doctor is reported in

Figure 8. It summarizes the impact of both, the num-

ber of errors and the ontology size. As we can ob-

serve, the numbers of errors has a limited inﬂuence

on the performance, i.e., the processing time is similar

in either FOAF or DBpedia while changing the num-

ber of errors. Additionally, the increasing number of

syntax errors has a slightly oscillatory effect on the

processing time. This is due to the different system

RDF Doctor: A Holistic Approach for Syntax Error Detection and Correction of RDF Data

515

behavior when dealing with false positive errors since

RDF-Doctor needs to recover until it ﬁnds a matched

grammar rule formed from input tokens which their

number frequently varies. On the other hand, the size

of ontologies has a high impact on the overall per-

formance, i.e, processing DBpedia consumes about

29000ms on average; whereas, FOAF is parsed in

about 2000ms. In conclusion, approximately more

than 90% of injected syntax errors are detected, as

shown in Figure 7.

6 CONCLUSION

This paper presents RDF-Doctor, an approach for

fault-tolerant error detection and automatic error re-

covery for RDF data. To enable a comprehensive er-

ror detection, a set of grammar rules covering an ex-

haustive list of syntactic errors occurring commonly

in RDF data are predeﬁned. The ANTLR framework

is used to generate the parser based on the given gram-

mar. For each detected error, RDF-Doctor provides a

friendly and precise error message helping users to

easily locate and correct them. Furthermore, using

an internal mechanism for automatic error correction,

RDF-Doctor is able to recover a subset of syntax er-

rors without user intervention. We performed three

different empirical evaluations to asses the effective-

ness and efﬁciency of RDF-Doctor in various scenar-

ios. The achieved results provide evidence that the

effectiveness of RDF-Doctor is higher for each error

already deﬁned in the grammar. On the other hand,

the efﬁciency is not impacted by the number and the

type of errors, but from the size of the ontology, which

is expended since an increasing number of triples to

be parsed RDF-Doctor consumes more time.

As future work, we aim to improve syntax error

detection of RDF data by extending the rules to cover

a wide range of different tokens. We plan also to

evaluate the scalability of RDF-Doctor by increasing

number of errors. Furthermore, a rule-based approach

must be deﬁned to handle conﬂicts of syntax error

rules. Finally, a comprehensive error recovery can be

achieved by employing supervised learning methods

allowing RDF-Doctor to learn from training data and

be more effective and precise in the error correction.

ACKNOWLEDGEMENTS

This work has been supported by the German Fed-

eral Ministry of Education and Research (BMBF)

in the context of the projects “LUCID” (grant no.

01IS14019C) and “Industrial Data Space Plus” (grant

no. 01IS17031). It has also been supported by the

Fraunhofer Cluster of Excellence “Cognitive Internet

Technologies” (CCIT).

REFERENCES

IDLab Turtle Validator .

Programming with RDF4J.

RDF Validator and Converter .

(2013). Turtle Test Suite. W3c test suite, World Wide Web

Consortium (W3C).

Balachandran, V. (2013). Fix-it: An extensible code auto-

ﬁx component in review bot. pages 167–172.

Halilaj, L., Grangel-Gonz

alez, I., Coskun, G., Lohmann, S.,

and Auer, S. (2016a). Git4voc: Collaborative vocabu-

lary development based on git. International Journal

of Semantic Computing, 10(02):167–191.

Halilaj, L., Petersen, N., Grangel-Gonz

alez, I., Lange, C.,

Auer, S., Coskun, G., and Lohmann, S. (2016b). Vo-

Col: An Integrated Environment to Support Version-

Controlled Vocabulary Development, pages 303–319.

Springer International Publishing, Cham.

McBride, B. (2002). Jena: A semantic web toolkit. IEEE

Internet Computing, 6(6):55–59.

Petersen, N., Coskun, G., and Lange, C. (2016). Turtleedi-

tor: An ontology-aware web-editor for collaborative

ontology development. In 2016 IEEE Tenth Inter-

national Conference on Semantic Computing (ICSC),

pages 183–186.

Prud’hommeaux, E. RDF Validation Service.

Prud’hommeaux, E., Labra Gayo, J. E., and Solbrig, H.

(2014). Shape expressions: an rdf validation and

transformation language. In Proceedings of the 10th

International Conference on Semantic Systems, pages

32–40. ACM.

Tolle, K. (2000). Analyzing and Parsing RDF. Master’s

thesis.

Verborgh, R. Lightning-fast rdf in JavaScript. Blog post.

Zeng, K., Yang, J., Wang, H., Shao, B., and Wang, Z.

(2013). A distributed graph engine for web scale rdf

data. Proc. VLDB Endow., 6(4):265–276.

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

516
