Sampling Frequency Evaluation on Recurrent Neural Networks

Architectures for IoT Real-time Fall Detection Devices

F. Luna-Perejon

, J. Civit-Masot

, L. Mu

noz-Saavedra, L. Duran-Lopez,

I. Amaya-Rodriguez, J. P. Dominguez-Morales

, S. Vicente-Diaz

, A. Linares-Barranco

A. Civit-Balcells

and M. J. Dominguez-Morales

Robotics and Computer Technology Lab., University of Seville, Seville 41012, Spain

Keywords:

Fall Detection, Recurrent Neural Network, Deep Learning, Internet of Things.

Abstract:

Falls are one of the most frequent causes of injuries in elderly people. Wearable Fall Detection Systems

provided a ubiquitous tool for monitoring and alert when these events happen. Recurrent Neural Networks

(RNN) are algorithms that demonstrates a great accuracy in some problems analyzing sequential inputs, such

as temporal signal values. However, their computational complexity are an obstacle for the implementation

in IoT devices. This work shows a performance analysis of a set of RNN architectures when trained with

data obtained using different sampling frequencies. These architectures were trained to detect both fall and

fall hazards by using accelerometers and were tested with 10-fold cross validation, using the F1-score metric.

The results obtained show that sampling with a frequency of 25Hz does not affect the effectiveness, based

on the F1-score, which implies a substantial increase in the performance in terms of computational cost. The

architectures with two RNN layers and without a ﬁrst dense layer had slightly better results than the smallest

architectures. In future works, the best architectures obtained will be integrated in an IoT solution to determine

the effectiveness empirically.

1 INTRODUCTION

Approximately 28%-35% of elderly people, over 65

years old, suffer at least one unintentional fall per year

(Organization et al., 2008). Major injuries can pro-

voke temporal o permanent disabilities, even death.

Regarding to this risk, the early assistant is consid-

ered a relevant factor (Noury et al., 2007). Due to

the increase in the population of the affected cohort

(Werner, 2011), this issue is increasingly relevant.

For an early assistance, Fall Detection Systems

(FDS) can be a crucial tool as they allow us to mon-

itor the user and quickly alert health centers which

they are connected with, when a fall or some risk

events are detected. Among all the different FDS

types, wearable devices allow a continuous monitor-

https://orcid.org/0000-0002-4352-8759

https://orcid.org/0000-0003-3306-3537

https://orcid.org/0000-0002-5474-107X

https://orcid.org/0000-0001-9466-485X

https://orcid.org/0000-0002-6056-740X

https://orcid.org/0000-0001-8733-1811

https://orcid.org/0000-0001-5669-9111

ing without dependence to the environment. Due to

the need to be portable and with great autonomy, these

systems not only should be effective distinguishing

between falls and activity of daily living, but also

have low computational cost in order to be imple-

mented in IoT devices with low-power consumption

requirements. Recurrent Neural Networks (RNN)

have shown to be very effective algorithms to ana-

lyze sequences of values (Lipton et al., 2015; Aceto

et al., 2019; de Jes

us Rubio, 2009). Due to previ-

ous studies(Musci et al., 2018; Luna-Perejon et al.,

2019), these RNN architectures has demonstrated to

detect falls with acceptable results. However, such

Deep Learning algorithms are computationally com-

plex, which affects energy consumption and execu-

tion time, disadvantages that can make its implemen-

tation in IoT devices not viable (Torti et al., 2018).

In this context, the present work shows the per-

formance results obtained when the best architectures

from (Luna-Perejon et al., 2019) are trained with a

smaller width of input data, by reducing the sampling

frequency down to 25Hz.

The rest of the paper is structured as follows: Sec-

tion 2 presents the basics of RNN layers used, the

536

Luna-Perejon, F., Civit-Masot, J., Muñoz-Saavedra, L., Duran-Lopez, L., Amaya-Rodriguez, I., Dominguez-Morales, J., Vicente-Diaz, S., Linares-Barranco, A., Civit-Balcells, A. and

Dominguez-Morales, M.

Sampling Frequency Evaluation on Recurrent Neural Networks Architectures for IoT Real-time Fall Detection Devices.

DOI: 10.5220/0008494805360541

In Proceedings of the 11th International Joint Conference on Computational Intelligence (IJCCI 2019), pages 536-541

ISBN: 978-989-758-384-1

dataset structure, the RNN architectures tested in this

study and the evaluation metrics. Then, Section 3

presents the results and discussion over the obtained

values. Finally, Section 4 shows the conclusions.

2 MATERIAL AND METHODS

The tests carried out in this study aim to analyze

the performance of different RNN architectures when

working with a lower output width, that is, less

amount of samples per classiﬁcation.

2.1 Gated Recurrent Neural Networks

The original RNN model emerged as an ANN-based

way to attack classiﬁcation problems related with se-

quential data with a strong dependence on the order

of values. This made them suitable for temporal sig-

nals. However, its application ﬁeld was very limited

due to the inﬂuence of the vanishing gradient problem

(Hochreiter, 1998). This effect means that the gradi-

ent that is propagated back through the network either

decays or grows exponentially. As a consequence, tra-

ditional RNNs are hard to train using backpropagation

through time (Williams and Zipser, 1995). Gated Re-

current Neural Networks have been one of the most

effective solutions to this problem to date. They intro-

duce some memory-like cells in the architecture that

hold information separated from the rest of the neu-

ral network. The information is managed through a

set of gates. During the training of the network, the

cells learn to close or open their gates according to the

relevance of the information that comes from the se-

quence and the information currently stored. This in-

formation is used in the learning process of the RNN.

Long Short-Term Memory (LSTM) units

(Hochreiter and Schmidhuber, 1997) were the ﬁrst

proposed Gated RNN. They contain three gates,

two of which evaluate the update of the information

stored, and the last gate controls what information is

provided to the RNN in each step. Gated Recurrent

Units (GRU) (Cho et al., 2014) are more recent cells

similar to LSTM, that lack of the last gate mentioned

so that the whole information stored is used during

the entire execution. Both alternatives have shown to

be similarly effective (Chung et al., 2014), although

GRUs are slightly more economical in terms of

computation cost.

2.2 Dataset

We used the SisFall dataset (Sucerquia et al., 2017),

consisting of a set of activities performed by users and

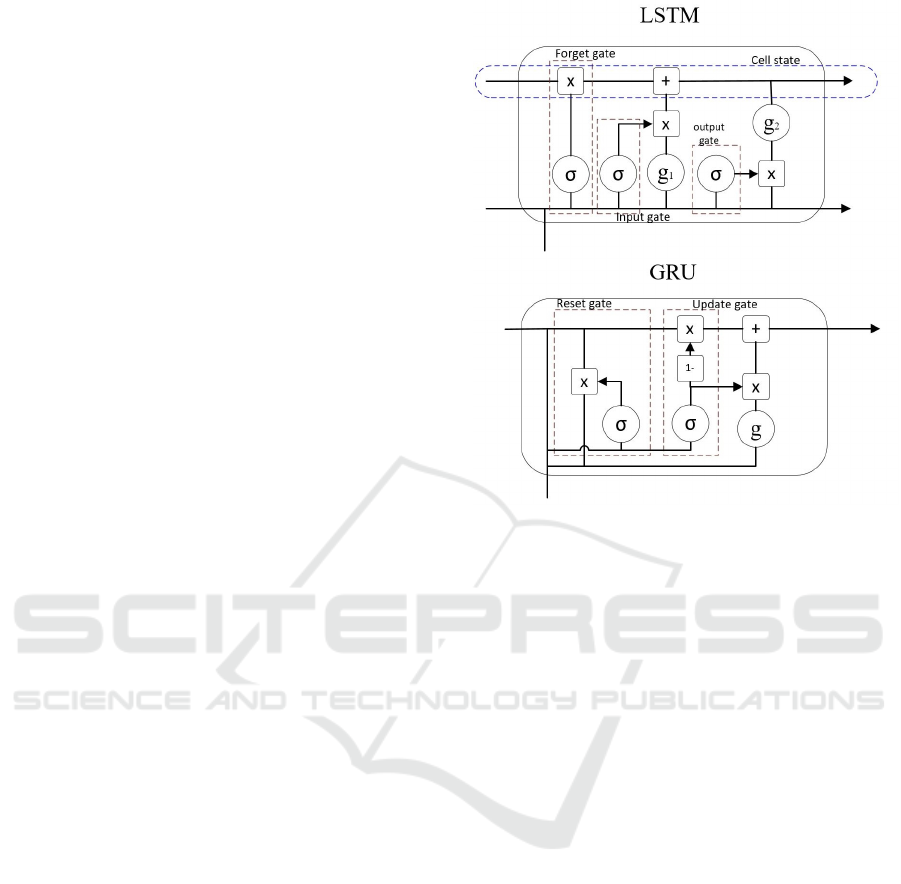

Figure 1: LSTM and GRU cells. First contains three gates,

while the second have only two.

registered using a device with accelerometers, ﬁxed to

their waist. This set includes activities of daily living

(ADL) and falls, acquired at 200 Hertzs. To adapt

the dataset to this kind of algorithms, each recording

was segmented with a ﬁxed number of samples, called

”width” from now on. They were classiﬁed using the

criteria proposed by (Musci et al., 2018) and consider-

ing three classes: Fall, Alert and Background (BKG),

that is, a fall event, a fall hazard status and the rest (an

ADL or inactivity after the fall). Each recording was

segmented with a width of 256 and a stride of 128.

2.3 Methodology

For a more robust result, a 10-fold cross validation

was carried out. The subsets were created randomly

by users, so that the data of each user was contained in

a unique fold. Additionally, the distribution of adult

and elderly users in each subset was done in such a

way that a balance was obtained looking for an equi-

table distribution.

2.3.1 RNN Architectures

The RNN architectures considered in this work were

the ones proposed in a previous study (Luna-Perejon

et al., 2019) but only those that have batch normal-

ization 3, due to the great improvement in the effec-

tiveness with almost no repercussion on the compu-

tational complexity. The smallest architecture consist

Sampling Frequency Evaluation on Recurrent Neural Networks Architectures for IoT Real-time Fall Detection Devices

537

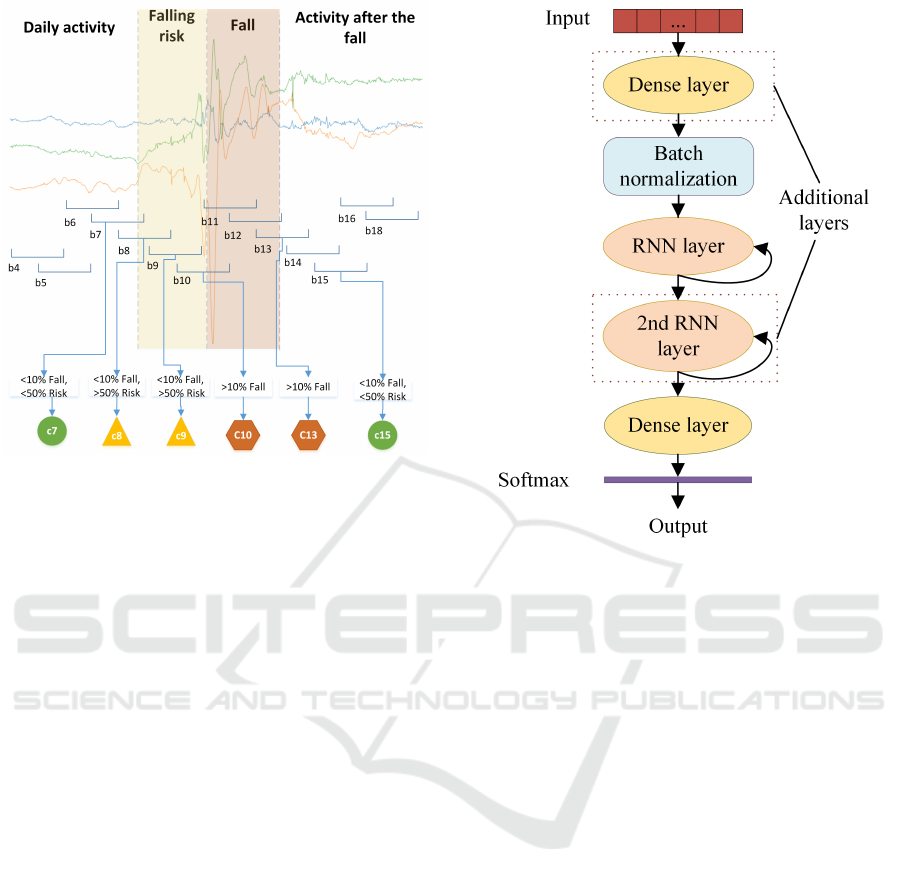

Figure 2: Recording segmentation and labeling process.

of batch normalization, a RNN layer and dense layer

as output. The other architectures contain addition-

ally a ﬁrst dense layer, a second RNN layer previous

to the ﬁnal layer, or both. We tested all the architec-

tures with the two types of RNN layers introduced in

2.1, that is, LSTM and GRU. It should be noted that

the RNN used are non-bidirectional.

To analyze the performance of these architectures

with a lower width, the sampling frequency of the

dataset was reduced. This was done artiﬁcially by

subtracting the even elements of each sample. In this

way, we obtain the dataset equivalent to 100Hz from

that at 200Hz, we get that one at 50Hz from 100Hz,

and same to get it at 25Hz. The widths of the inputs

were 256, 128, 64 and 32 samples, respectively. Each

architecture was trained and validated with all the out-

put widths.

The hyperparameters used to train all the models

were a learning rate of 0.001 and a batch size of 32.

Dropout were not applied. We used Adam as opti-

mizer, hyperbolic tangent as activation function and

sigmoid as recurrent activation in RNN layers. Fi-

nally, we used the weighted loss function proposed

by (Musci et al., 2018).

2.3.2 Metrics

The dataset used is highly unbalanced, therefore the

overall classiﬁcation accuracy is not an appropri-

ate way to measure the effectiveness of the system.

We compared the effectiveness employing the macro

and micro F1-scores (Sokolova and Lapalme, 2009)

for each class and average, that measures the rela-

Figure 3: Scheme representing all architectures trained in

the study, differentiated between them by having none, one

or both of the highlighted layers.

tions between data’s positive labels and those given

by a classiﬁer through a combination of (micro or

macro, respectively) precision and recall. The com-

putational complexity were estimated with the num-

ber of parameters that has each architecture and the

averaged execution time during the training. We used

a graphic processor unit NVIDIA GTX 1080 Ti and

the CuDNN versions of this RNN layers provided

implemented in the framework Keras, so the results

were substantially lower that expected in IoT devices.

Therefore, we show a comparison of the acceleration

with respect to the trained architecture with greater

execution time.

3 RESULTS AND DISCUSSION

The resulting dataset was unbalanced due to the short

duration of fall and risk events. Table 1 shows the

distribution for each fold in cross validation.

The results showed similar F1-score (macro) re-

sults (Figure 4), for both mean and standard devia-

tion. The aspect of greater relevance is that with a

lower sampling rate and with a lower number of in-

puts, the effectiveness of the algorithm does not seem

to decrease; in fact, it seems to grow. These re-

sults suggests that it is possible to reduce substantially

NCTA 2019 - 11th International Conference on Neural Computation Theory and Applications

538

Table 1: Dataset distribution in each fold for cross valida-

tion.

Total BKG ALERT FALL

fold 1 9485 9010 151 324

fold 2 9485 9057 90 338

fold 3 9485 9074 92 319

fold 4 9485 9025 85 375

fold 5 9330 8887 123 320

fold 6 9441 9011 94 336

fold 7 9892 9424 144 324

fold 8 9485 9044 93 348

fold 9 9486 9067 102 317

fold 10 9093 8574 198 321

the computational cost of running this architectures

without reducing the effectiveness, and facilitating the

task of monitoring in real time using microcontrollers

for IoT systems.

Figure 4: Macro f1-score results for each architecture and

different frequency sampling. These values consist of the

mean with the 10 folds for cross validation together the stan-

dard deviation.

Certain trained models had slightly better results

in F1-score. Overall, the architectures without a ﬁrst

dense layer showed a best effectiveness. This is an

indicator that the relationship of the values over time

is a much more relevant that between the three axes

of the accelerometer. The architectures with a sec-

ond recurrent layer showed a slightly higher effective-

ness. However, the number of parameters that these

versions contain makes the computational complexity

much greater in relation to architectures without this

layer. This can make its implementation in IoT de-

vices not viable for a real time monitorization. The

architecture with highest execution time contained a

ﬁrst dense layer and two LSTM layers, and output

width of 256. It was 0.78 milliseconds. The ﬁgure

5 shows the acceleration of the different architectures

in relation with the slowest. Reducing the frequency

to 25Hz, the execution times are reduced by 4.

Table 2: Number of parameters of each architecture.

LSTM GRU

Without additional layers 4847 3663

With a second RNN layer 13295 9999

With a ﬁrst dense layer 8803 6691

With both additional layers 17251 13027

Figure 5: Acceleration in relation with the slowest architec-

ture.

The Figure 6 shows high values for macro recall.

This metric is also called sensitivity and, in multi-

class problems, is equivalent to the weighted accu-

racy, that is, the average, over all the classes, of the

fraction of correct predictions in this class. That indi-

cates these algorithms have a very good ratio of true

positives with respect of true positives plus false neg-

atives for each class. The low value in F1-score is,

therefore, due to the low precision of the algorithm,

speciﬁcally in the class ALERT, below to 0.30. This

is probably caused by the scarcity of the data and the

variety of values for this class. However, we consider

the study of this kind of events interesting in order to

detect falling risk and prevent falls. For this, it will be

necessary to record and label more data.

The values of these metrics seem not to be affected

by the reduction in the number of samples over time.

These results are promising, since it implies that a

high sampling frequency is not necessary to maintain

the effectiveness of these models. Therefore, the de-

vice where the trained model was integrated would

require fewer microcontroller performance, in terms

of sampling and processing speed. In addition, en-

ergy consumption would also be reduced, increasing

the hours of portable use.

Micro F1-score (Figure 7) are much greater in

comparison to macro score. This fact is due to micro

precision and accuracy are calculated by combining

the absolute successes and failures of all the classes

so that the large number of hits in the BKG class hide

the results for the other two classes.

Sampling Frequency Evaluation on Recurrent Neural Networks Architectures for IoT Real-time Fall Detection Devices

539

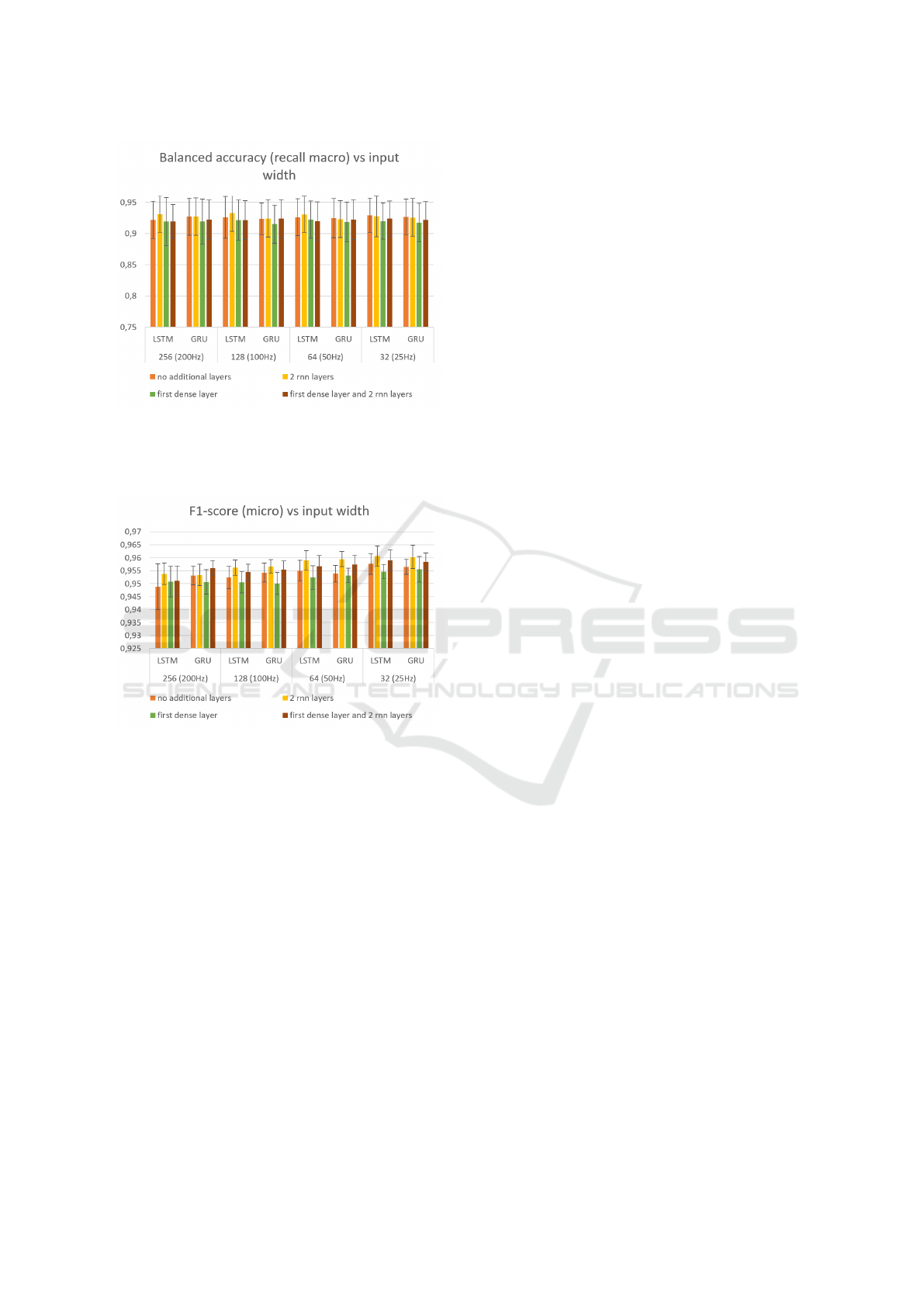

Figure 6: F1-score results for each architecture and differ-

ent frequency sampling. These values consist of the mean

with the 10 folds for cross validation together the standard

deviation. In multi-class problems, this metric is equivalent

to the weighted accuracy.

Figure 7: Micro F1-score results for each architecture and

different frequency sampling. These values consist of the

mean with the 10 folds for cross validation together the stan-

dard deviation. Although the results for this metric is very

high, it is not representative of the reality of the problem,

while the proportion of samples for the background class is

much greater than that of the other classes.

4 CONCLUSIONS

The RNN architectures assessed seems to be effective

to detect falls even with a small sample rate, without

need of increment the acquisition time to obtain more

samples as outputs. These results provide a ray of

light to the possibility of executing these algorithms

in microcontrollers. In future works we will carry out

the integration of the best architectures in an IoT solu-

tion. The use of RNN architectures to the detection of

such events is still recent. Other avenues of research

may involve using additional biometric signals, such

as heartbeat or galvanic skin response. The location

of the device in other parts of the body, such as the

wrist, must also be studied with these algorithms. In

the same way, the adjustment of the training and ac-

tivation parameters of each layer can also be investi-

gated to increase the effectiveness.

ACKNOWLEDGEMENTS

This work is supported by the Spanish government

grant (with support from the European Regional De-

velopment Fund) COFNET (TEC2016-77785-P). F.

Luna and I. Amaya are supported by the Empleo Ju-

venil with support from EU.

REFERENCES

Aceto, G., Ciuonzo, D., Montieri, A., and Pescap

e, A.

(2019). Mobile encrypted trafﬁc classiﬁcation us-

ing deep learning: Experimental evaluation, lessons

learned, and challenges. IEEE Transactions on Net-

work and Service Management.

Cho, K., Van Merri

enboer, B., Bahdanau, D., and Bengio,

Y. (2014). On the properties of neural machine trans-

lation: Encoder-decoder approaches. arXiv preprint

arXiv:1409.1259.

Chung, J., Gulcehre, C., Cho, K., and Bengio, Y.

(2014). Empirical evaluation of gated recurrent neu-

ral networks on sequence modeling. arXiv preprint

arXiv:1412.3555.

de Jes

us Rubio, J. (2009). Sofmls: online self-organizing

fuzzy modiﬁed least-squares network. IEEE Transac-

tions on Fuzzy Systems, 17(6):1296–1309.

Hochreiter, S. (1998). The vanishing gradient problem dur-

ing learning recurrent neural nets and problem solu-

tions. International Journal of Uncertainty, Fuzziness

and Knowledge-Based Systems, 6(02):107–116.

Hochreiter, S. and Schmidhuber, J. (1997). Long short-term

memory. Neural computation, 9(8):1735–1780.

Lipton, Z. C., Berkowitz, J., and Elkan, C. (2015). A crit-

ical review of recurrent neural networks for sequence

learning. arXiv preprint arXiv:1506.00019.

Luna-Perejon, F., Civit-Masot, J., Amaya-Rodriguez, I.,

Duran-Lopez, L., Dominguez-Morales, J. P., Civit-

Balcells, A., and Linares-Barranco, A. (2019). An

automated fall detection system using recurrent neu-

ral networks. In Conference on Artiﬁcial Intelligence

in Medicine in Europe, pages 36–41. Springer.

Musci, M., De Martini, D., Blago, N., Facchinetti,

T., and Piastra, M. (2018). Online fall detection

using recurrent neural networks. arXiv preprint

arXiv:1804.04976.

Noury, N., Fleury, A., Rumeau, P., Bourke, A., Laighin,

G., Rialle, V., and Lundy, J. (2007). Fall detection-

principles and methods. In Engineering in Medicine

and Biology Society, 2007. EMBS 2007. 29th Annual

NCTA 2019 - 11th International Conference on Neural Computation Theory and Applications

540

International Conference of the IEEE, pages 1663–

1666. IEEE.

Organization, W. H. et al. (2008). Ageing; life course unit.

who global report on falls prevention in older age.

World Health Organization.

Sokolova, M. and Lapalme, G. (2009). A systematic analy-

sis of performance measures for classiﬁcation tasks.

Information Processing & Management, 45(4):427–

437.

Sucerquia, A., L

opez, J. D., and Vargas-Bonilla, J. F.

(2017). Sisfall: A fall and movement dataset. Sen-

sors, 17(1):198.

Torti, E., Fontanella, A., Musci, M., Blago, N., Pau, D.,

Leporati, F., and Piastra, M. (2018). Embedded real-

time fall detection with deep learning on wearable de-

vices. In 2018 21st Euromicro Conference on Digital

System Design (DSD), pages 405–412. IEEE.

Werner, C. (2011). The older population: 2010. us census

bureau.

Williams, R. J. and Zipser, D. (1995). Gradient-based learn-

ing algorithms for recurrent networks and their com-

putational complexity. Backpropagation: Theory, ar-

chitectures, and applications, 1:433–486.

Sampling Frequency Evaluation on Recurrent Neural Networks Architectures for IoT Real-time Fall Detection Devices

541
