A Web-based Model-driven Platform for Web Augmentation

Matias Urbieta

1,2

, Franco Mahl

, Gustavo Rossi

1,2

and Gabriela Bosetti

Facultad de Inform

atica, Universidad Nacional de La Plata, calle 50 y 120,1900, La Plata, Buenos Aires, Argentina

CONICET, La Plata, Argentina

Keywords:

Model-driven Web Engineering, Augmentation, End-user Development, Separation of Concern.

Abstract:

The emergence of Web personalization allowed introducing improvements to an application that runs as

a black box just considering those perceivable behaviors by the end-user. In spite of which mechanisms

(personalization, customization, etc.) that a particular application supports; it is not realistic to state that

any application, being idealized by few people (e.g., its owners), covers every single user’s needs. In this

sense, users may have unsatisﬁed requirements. Nowadays available Web augmentations are making full use

of server-side capabilities for meeting requirements. We present a Web Augmentation modeling approach

contemplating a client-server application that hides the back-end complexity to users. In this work we present

a Web CASE tool to model server-side behavior for Web augmentation. This tool provides a full web-based

experience for designing and running Web augmentations that requires client and server-side components.

1 INTRODUCTION

The emergence of Web personalization allowed

introducing improvements to an application that runs

as a black box just considering those perceivable

behaviors by the end-user. In spite of which

mechanisms (personalization, customization, etc.)

that a particular application supports; it is not realistic

to state that any application, being idealized by

few people (e.g., its owners), covers every single

user’s needs. In this sense, users may have

unsatisﬁed requirements. To tackle this problem a

mechanism, widespread used nowadays, is to alter

Web page once these are loaded on the client-side.

By manipulating the Web site’s Document Object

Model (DOM), the user would perceive a variation

of the Website that may add, remove or change

both contents and functionalities. This technique,

called Web Augmentation, is widely adopted and is

commonly deployed as Web browser extensions that

package software artifacts able to access these DOMs

and altering it by using its interface. Nowadays

available Web augmentations are making full use of

server-side capabilities for meeting requirements that

demand high-performance computing (i.e. Similar

Sites

), collaborative features –nowadays a de-facto

Similar Sites, https://chrome.google.

com/webstore/detail/similar-sites-discover-re/

requirement– (i.e. Evernote

), persistence (i.e. Last

Pass

), data synchronization between devices. For

the purpose of clariﬁcation, let’s consider again

the Grammarly extension; at the server-side end,

the sentences are processed using Natural Language

Processing which demands CPU resources, and

storage for the text under processing. The reader must

note that companies are using Web augmentations

technique for enhancing their solutions which aim

at providing an improved experience to the user

and this increasing its adoption among users. Web

augmentation has an interesting combination of real

use from part of the users crowd of Web applications

and some research works aiming at conducting

this activity promoting good software development

practices, such as reuse (Garrido et al., 2013),

robustness (D

ıaz et al., 2010), etc.. Most of these

approaches rely on client-side, i.e. without the

need of a back-end application for performing the

augmentation effect. However, since this architecture

limits the power of the augmentation because it does

necpbmbhhdiplmfhmjicabdeighkndkn

Evernote,https://chrome.google.com/webstore/detail/

evernote-web-clipper/pioclpoplcdbaeﬁhamjohnefbikjilc?

hl=es-419

Last Pass, https://chrome.google.com/

webstore/detail/lastpass-free-password-ma/

hdokiejnpimakedhajhdlcegeplioahd?hl=es-419

Urbieta, M., Mahl, F., Rossi, G. and Bosetti, G.

A Web-based Model-driven Platform for Web Augmentation.

DOI: 10.5220/0008559304770486

In Proceedings of the 15th International Conference on Web Information Systems and Technologies (WEBIST 2019), pages 477-486

ISBN: 978-989-758-386-5

477

not proﬁt from collaborative features (nowadays a de

facto requirement) and the limited resources provided

by the browser (i.e. processing power, storage

alternatives, etc.), other approaches have a traditional

client-server architecture, allowing, for instance, the

synchronization of devices to support distributed user

interfaces , the use of complex services that cannot

be deployed only on client-side (such as the use

of a recommender system, and social Web content

management tools, such as Diigo (Diigo, 2017). The

reader must note that all these back-end counterparts

are dedicated applications speciﬁcally designed and

deployed for the particular kind of augmentation,

but, to our knowledge, there are not approaches

considering both client and server-sides in a more

generic way. That is, the end-user only contribute

designing client-side improvements keeping him-self

excluded from contributing complex behavior at

server-side because the lack of coding skills that let

him face technical challenges (e.g. Database access,

complex algorithms design and coding, and User

Interfaces component deﬁnition).

This paper relies on our previous work (Urbieta

et al., 2017) that presents a Web Augmentation

modeling approach contemplating a client-server

application that hides the back-end complexity to

users. One manner to reduce the associated

complexity to this task is to rise up the level of

abstraction required to specify this logic. With this in

mind, we present a novel domain speciﬁc modeling

languages that may be used in a dedicated server

to create Web augmentation back-end counterparts

extending our previous work (Urbieta et al., 2017).

On client-side, we propose a specialized end-user

development tool that allows them to recreate an

object model of the target application (the one being

augmented) by abstracting Web contents. As we

will discuss later, applications owners could use

our ideas and supporting tools also to weave new

functionalities without the need of modifying the

application’s core. In (Urbieta et al., 2017) we

relied on IFML for designing server-side artifacts,

and Web Object Ambient (WOA) modeling pages

enhancements. Regarding the former, WebRatio

(WebRatio, 2017) is the ofﬁcial tool for IFML which

aids engineers to design and generates the running

application meeting the designs. While the WOA tool

is a Chrome plugin providing a natural ambient for

extending the Web. The combination of tools results

in a hybrid web-desktop environment. The experience

feels awkward to the engineers as they must jump

from one realm (Web) to other (desktop) and the

other way around when developing an augmentation.

The usage of Desktop-based tools like Webratio

introduces additional effort than a Web-based one

because it requires local resources to run the platform,

and time to install the tool. Finally, IFML presents

the beneﬁt of modeling broad domain spaces but it

also leaks the speciﬁcity for certain domain speciﬁc

problems. This results in investing time to learn

language elements that hardly ever will be used to

develop an extension.

In this work we present a Web CASE tool to model

server-side behavior for Web augmentation (Urbieta

et al., 2017). This tool complements the current

WOA tool providing a full web-based experience

for designing and running Web augmentations that

requires client and server-side components. The

tooling will provide the following functionalities:

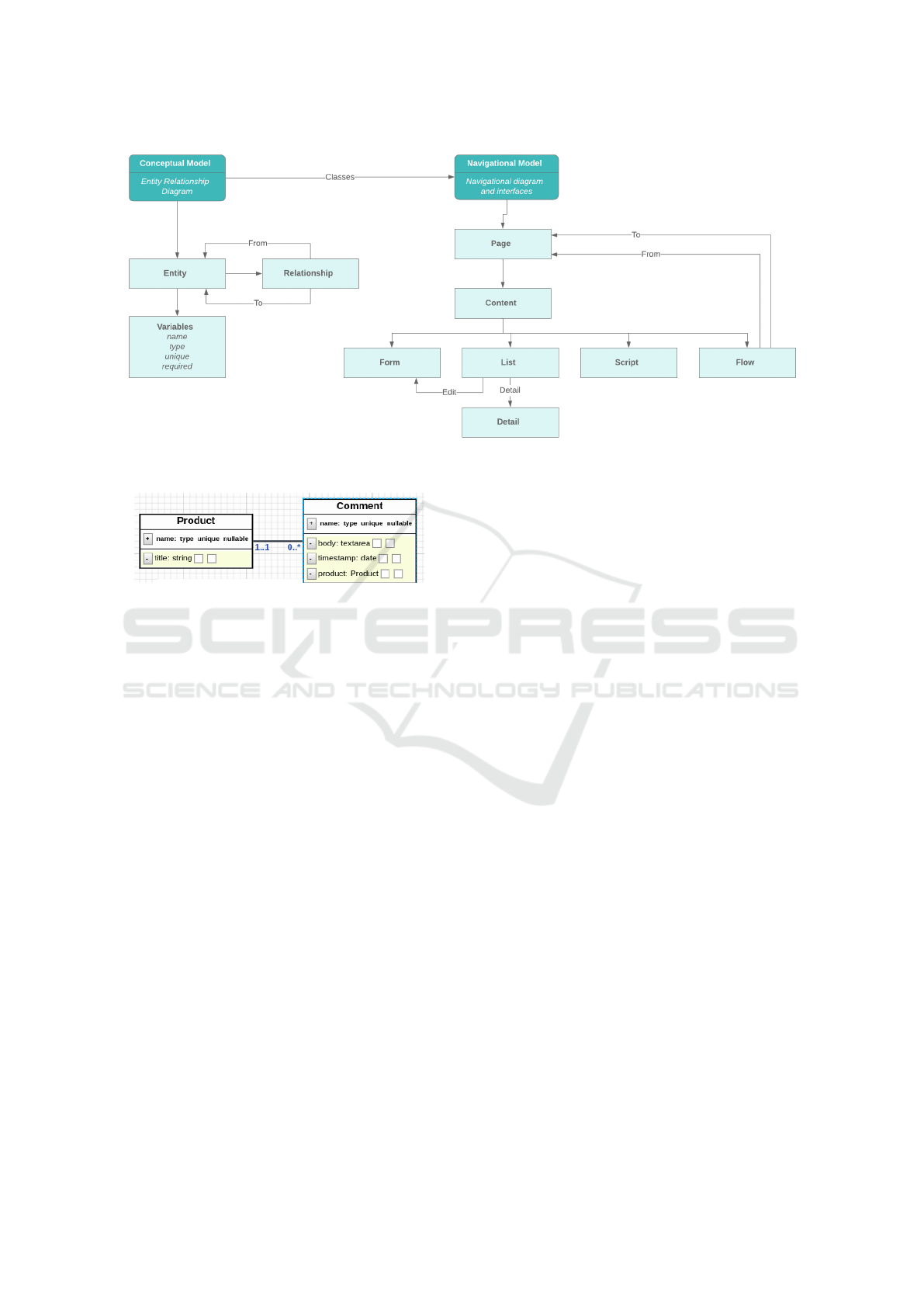

• Conceptual model design: Deﬁnition of the

Entities and Relations diagram (domain model).

• Creation of the Database and tables derived from

the Entity-Relationship conceptual model where

entities are mapped to tables and relations to

foreign keys (in the cases of relations one to one or

one to many) or intermediate tables (in the cases

of relations many to many).

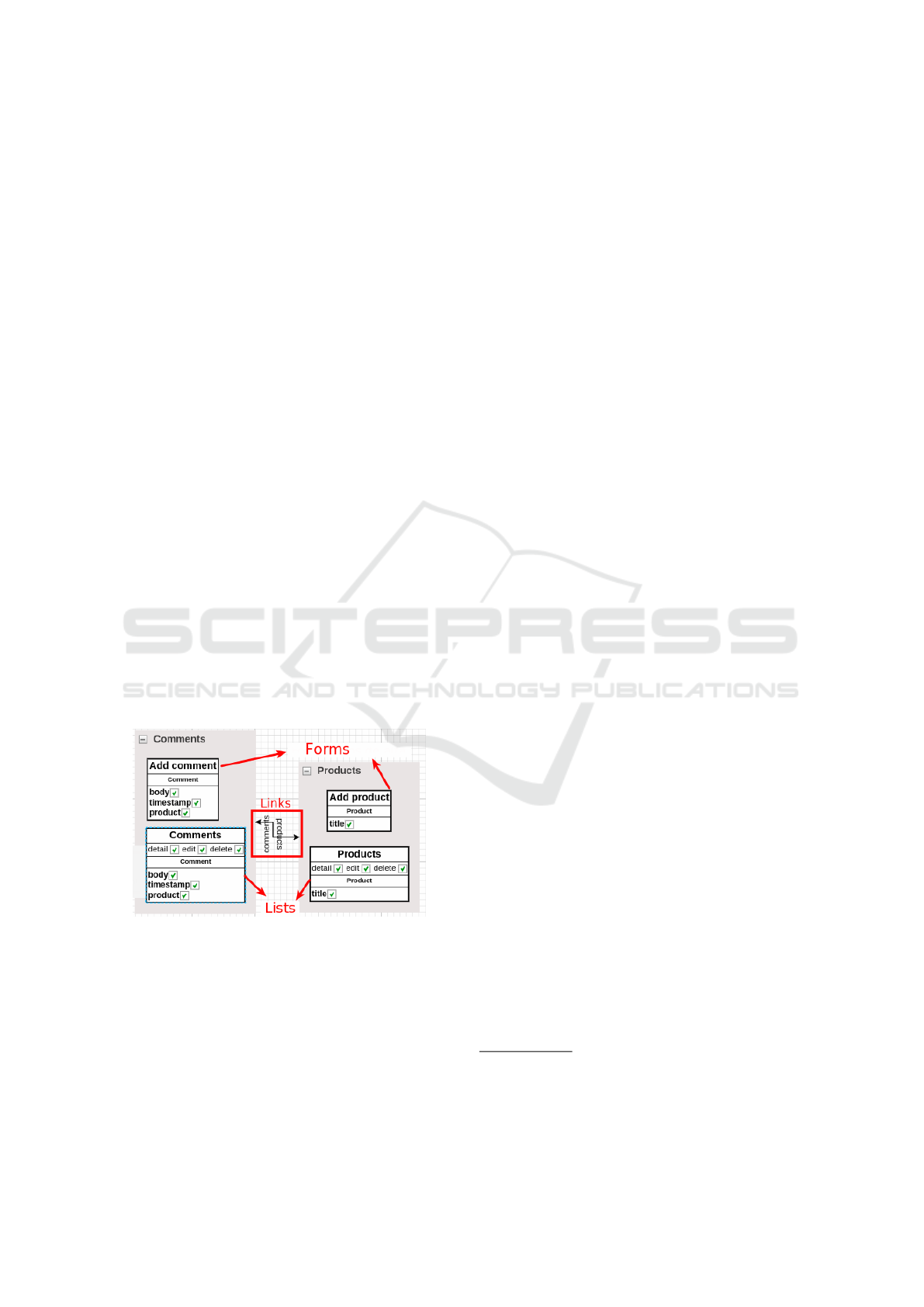

• Navigation model. A domain speciﬁc design

model to describe who Web augmentation are

browsed as well as the actions that the user can

perform. It is inspired in mature Web modeling

languages such as IFML or OOHDM (Rossi et al.,

2008) so the augmentation navigation is speciﬁed

using Node/Link (frontend).

• The server-side component generation that allows

rendering the navigation model by creating the

pages with the elements contained in them: Lists,

Forms and Scripts that will be described later in

this article. The links between the pages will be

rendered as hyperlinks between them.

• API REST generation that exposes endpoints

dynamically created based on the navigation

model. This will also let developers, with

basic experience in JavaScript and API

REST developments, create their own custom

endpoints and thus send and consume server-side

information from the client-side.

As described in the previous points, once the

diagrams are obtained, it will be possible to create

the database derived from the conceptual model, and

create and render the modeled pages with their links

and detailed functionalities for each one.

The main contributions of this work are: (1)

a web based Model-driven platform for modeling

augmentation (2) comprehensive examples . The

paper is organized as follows. Section 2 describes

the background. Then, the Section 3 introduces

APMDWE 2019 - 4th International Special Session on Advanced practices in Model-Driven Web Engineering

478

the related works. Section 4 is an overview of

the approach. Section 5 shows a comprehensive

example. And Section 6 concludes and talks about

future works.

2 BACKGROUND

As we mentioned before, Web augmentation is

actually used by the users crowd. Besides of

Web browser stores, where thousands of extensions

for adapting existing Web content may be found,

there are some of these tools supported by

communities where end-users and other stakeholders

with programming skills interact in the creation,

sharing and improvement of artifacts. For instance, in

the userstyles community (http://userstyles.org) users

share artifacts that augment Web sites by adding

further CSS designs that may change any aspect

of Web sites content presentation. Similarly, in

repositories behind userscripts communities (such as

greasyfork - https://greasyfork.org/) artifacts written

in JavaScript may be found. In these cases beyond

simple content presentation (such as the achieved

with userstyles), Web sites may be augmented with

new functionalities, given the power of JavaScript.

In these communities, in spite of the artifact kind,

there is a dependency between users with and without

programming skills. Then, some research works

proposed End-User Development (EUD) approaches

to let users specify their own augmentation artifacts,

these are discussed in the related work section.

In most mature Web design approaches (Rossi

et al., 2008) , such as UWE, WebML, UWA,

Hera, OOWS or OOHDM, a Web application is

designed with an iterative process comprising at least

conceptual and navigational modeling. According to

the state-of-the-art of model-driven Web engineering

techniques (Arag

on et al., 2013), these methods

produce an implementation-independent model that

can be later mapped to different run time platforms.

For the sake of clarity, we will concentrate on the

conceptual, navigational and interface models as they

are rather similar in different design approaches.

3 RELATED WORKS

3.1 Web Application Augmentation

End-User Development (EUD) was explored in the

ﬁeld of Web Augmentation in order to let users

without advanced programming skills to specify their

own augmentation artifacts (D

ıaz and Arellano, 2012;

Bosetti et al., 2017). In previous work we presented

some WOA (Web Object Ambient) tool that allows

users to recreate an object model of Web sites on the

client-side (Firmenich et al., 2016b), however, since

we are focused on supporting complex augmentation

applications that could not be work just on the

client-side, at the same time that with some modeling

skills, they can create the back-end counter-part

of these augmentations. This generic back-end

support will empower augmentation artifacts, given

that further features could be contemplated such

as more complex business logic, storage, social

aspects. Although several aspects about augmentation

have been addressed through modeling activities,

such as requirement speciﬁcation (Firmenich et al.,

2016a), these usually aim to model the presentation

layer, something that is not enough to represent the

back-end logic of the application. In this sense, this

paper propose an integration between our tool for

extracting a model object from existing Web pages

(Firmenich et al., 2016b) with an application that

is modeled using existing Web modeling languages.

Web Augmentation could be considered a foreign

client-side application mechanism, i.e. adapting

existing and third-party Web sites on the client-side.

However, Client-Side adaptation could be also be

considered as a core concern during application

design. An interesting approach that considers this

aspect was presented before (Ceri et al., 2004),

focusing the use of this mechanism in an e-learning

system. Although this work also proposes a modeling

layer for the client-side adaptation layer, it is not

used from the augmentation point of view, but that

is deﬁned by application owners, and one more time,

this could be part of what end-users would like to

change.

3.2 Separation of Concern in MDWE

Several existing Model-Driven Web Engineering

(MDWE) allows to seamlessly compose Web

applications’ concerns such as our previous work to

tackle Volatile Functionalities in Web Applications

(Urbieta et al., 2012; Frajberg et al., 2016).

Additionally, other approaches support evolutive

requirements such as WebComposition Process

Model (Gaedke and Gr

af, 2001), Distributed Concern

Delivery (Cerny et al., 2015) or, more general

principles, such as refactoring (Fowler et al., 1999)

and patterns (Gamma et al., 1995). However, all of

these approaches are focused to compose concerns

at server-side only when the developer has access to

the core application which is not the case of Web

A Web-based Model-driven Platform for Web Augmentation

479

augmentation’s purpose.

4 OUR APPROACH IN A

NUTSHELL

Our approach is based on the idea that even

the simplest functionality (e.g., a new community

comment feature) should be considered as a ﬁrst-class

functionality and, as such, designed accordingly. At

the same time, their design and implementation have

to be taken separated from the host site (from now on

core application) and as much as possible decoupled

from that of core and stable functionalities which

the augmentations can not be introduced because

the augmenter analyst is not part of the Application

Webmaster team. We decouple the augmentation

from core application by introducing a design layer

(called Augmentation Layer), which comprises a

conceptual model, a navigational model, and an

interface model.

Building on the above ideas, our approach can

be summarized with the following design guidelines,

which are shown schematically in Figure 1:

1. We decouple the augmentation from core

application by introducing a design layer (called

Augmentation Layer), which comprises a

conceptual model, a navigational model, and an

interface model.

2. We capture the basic conceptual model by tagging

data in host application pages using (Firmenich

et al., 2016b). The lack of access to the

host application’s underlying models requires the

perceivable conceptual model extraction. In

this process, data elements in the page are

tagged and grouped into an entity deﬁnition

by an Augmentation analyst in such a way a

simpliﬁed conceptual model is obtained. The

augmentation analyst is a skilled end-user with

advance knowledge of Web Application who

has the goal to improve the core application.

In further steps, the model instantiation in

a particular user session will be used for

giving contextual information to the augmentation

engine by providing model instances information

when triggering the augmentation.

3. Augmentation requirements are modeled using

Web engineering notations (e.g., use cases, user

interaction diagrams, etc.) and separately mapped

onto the following models using the heuristics

deﬁned by the design approach (See for example

(Popovici et al., 2002)). Notice that, as shown

in Figure 1, augmentation requirements are not

integrated into the core requirements model,

therefore leaving their integration to further

design activities. New behaviors, i.e. those

which belong to the Augmentation layer, are

modeled as ﬁrst-class objects in the Augmentation

conceptual model. It deﬁnes all the objects and

behavior corresponding to the new requirements.

Nodes and links belonging to the augmentation

navigational model may or may not have links

to the core navigational model. The core

navigational model is also oblivious to the

augmentation navigational classes, i.e., there are

no links or other references from the core to the

augmentation layer. We design (and implement)

the interfaces corresponding to each concern

(core and augmentation) separately; the interface

design of the core classes are oblivious with

respect to the interface of augmentation concerns.

4. Core and augmentation interfaces are woven by

executing an integration speciﬁcation, which is

realized using DOM transformations. Again, the

idea of model weaving is generic and therefore the

same result can be obtained using other technical

solution.

Once the augmentation requirements are modeled in

Step 3, the augmentation of another site will be quite

straightforward requiring to ﬁnd and map the virtual

classes (Step 2) and to specify how to wave the

augmentation UI artifacts (Step 4).

We next explain how these principles have been

put into practice in the OOHDM approach.

5 INSTRUMENTING WEB

AUGMENTATIONS

In this section, we present how to design a

Web augmentation comprising the client-side and

server-side behavior. As an example, we will use

a Web augmentation that improves a website in the

domain of agriculture that sells different types of

seeds.

5.1 Core Application Conceptual Model

Extraction (Step 2)

Our approach is based on the creation of objects

that are speciﬁed by abstracting Web pages contents

(Firmenich et al., 2016a).

In order to do it, we developed a visual

programming tool that allows users to select a DOM

element from which the abstraction process starts. For

this DOM element, the user must deﬁne which is

APMDWE 2019 - 4th International Special Session on Advanced practices in Model-Driven Web Engineering

480

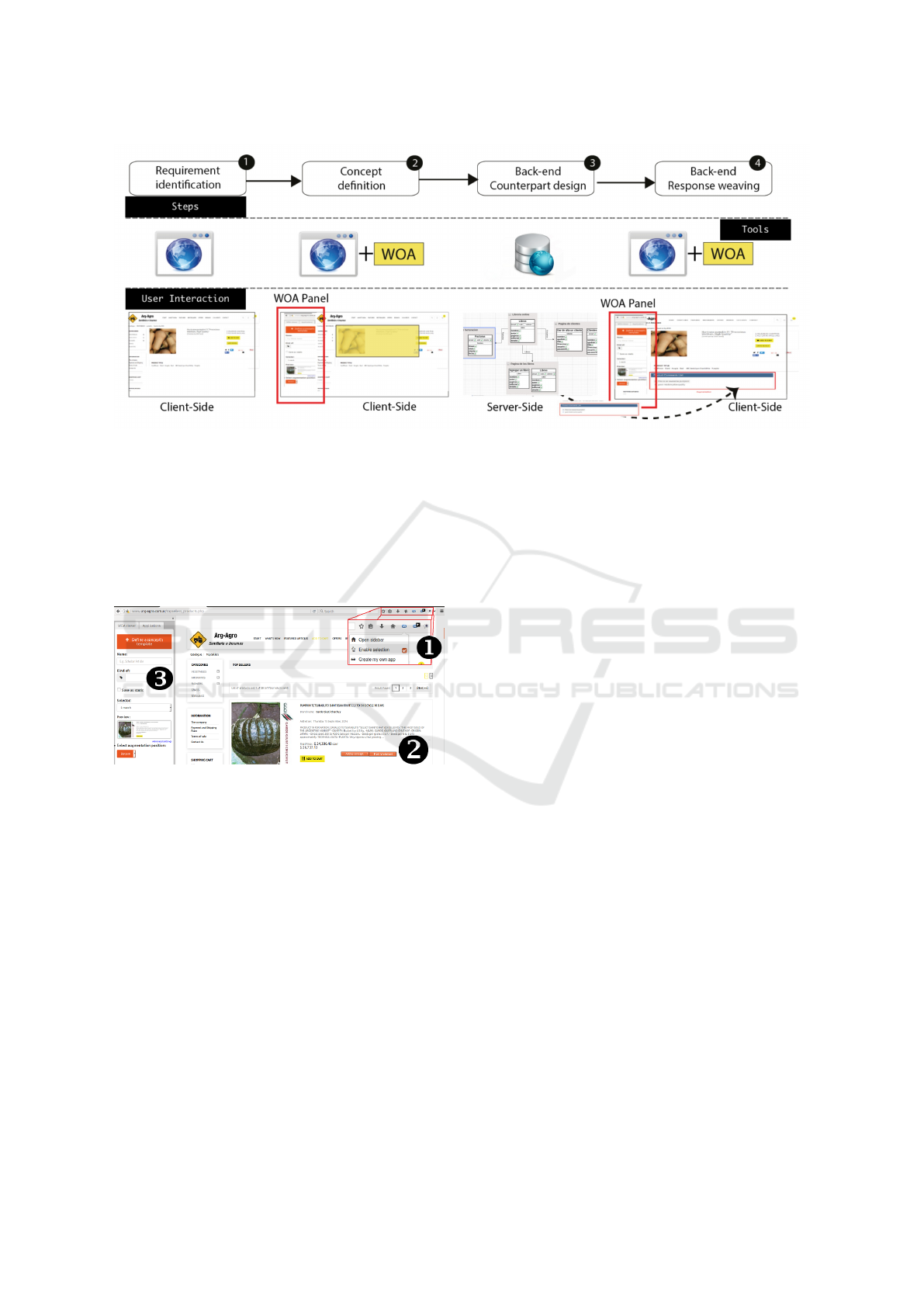

Figure 1: Approach schema.

the conceptual class, which are the properties of that

class and also to select from which children DOM

elements are the values for these properties taken

from. This process is shown in Figure 2, our tool adds

the necessary controls that let users creating objects,

no matter what Web resource has been loaded in the

browser.

Figure 2: Concept deﬁnition.

The ﬁrst step is enabling the DOM selection (Step

1). By clicking this option, every DOM element

is highlighted on a mouse-over event, so the user

can appreciate what is the current target element to

collect. Then, as shown in step 2, he can access

via a context menu to the options for extracting an

element in the current DOM. Once the DOM element

is selected, a UI form is opened at the sidebar, which

lets the user selecting a name for the concept, a

semantic tag, etc. Concerning the different instances

that could be extracted from a single Class, a combo is

ﬁlled with different XPaths applicable to the selected

element and allows to unequivocally reference it or

to reference a set of similar elements instead. Then,

the user may choose one or more elements, according

to his needs. Then to select one of the possible

selectors in the DOM, so, e.g. he can choose multiple

DOM elements by changing the selector. Properties

can be added in the same way; the only difference

is the addition of a combo for linking such property

to an existing concept. The result of this process is

the deﬁnition of a set of classes speciﬁcations which

allow obtaining one or multiple instances according to

the selector the user has chosen during the authoring

process: if it refers to a single element in the DOM

or several of them. In the Figure 3 the extraction of

the conceptual model is presented which highlights

a speciﬁc part of the DOM containing information

about an instance of the class Product. Such class

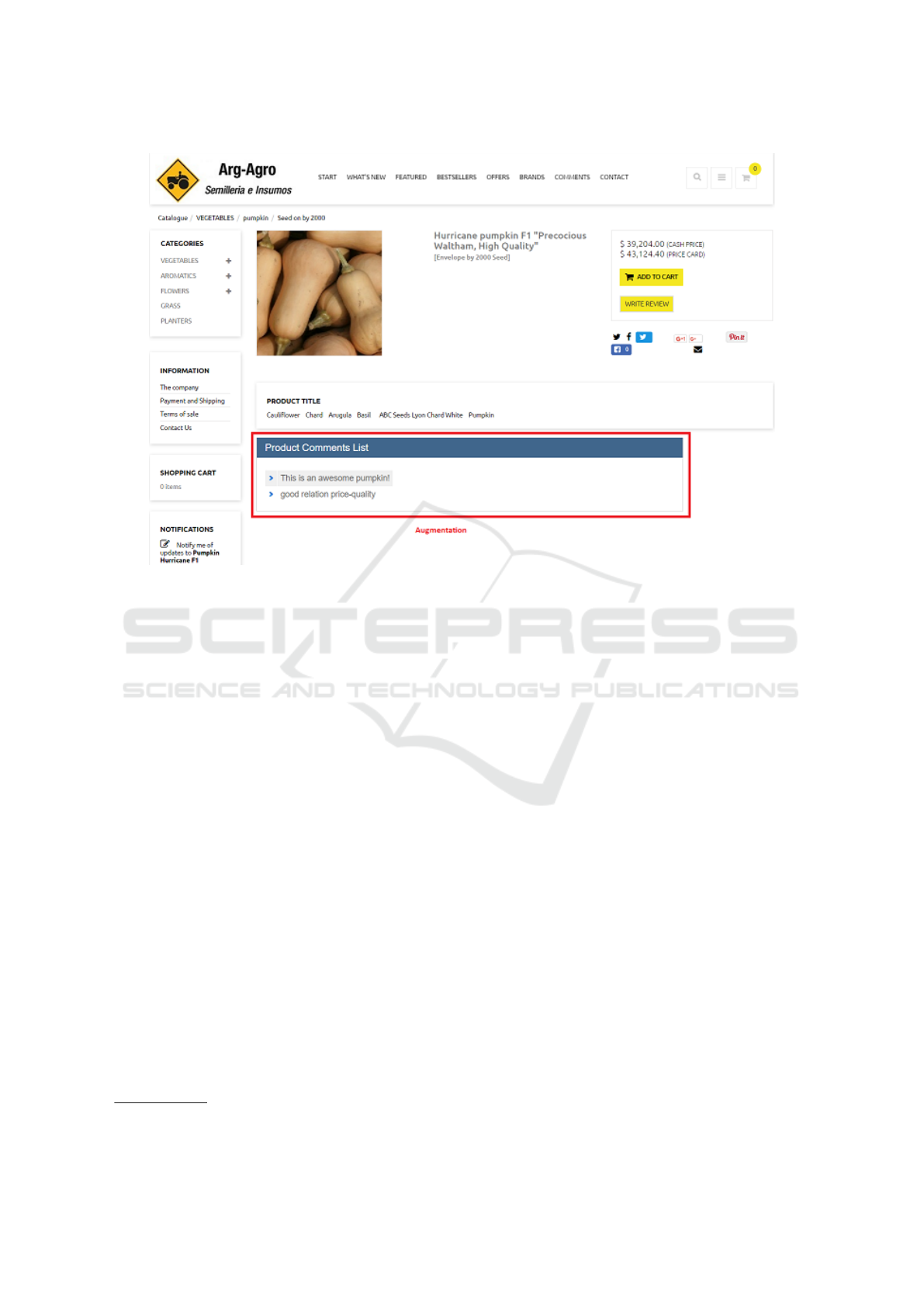

will be augmented allowing to record comments of

the users of the site which will require to add a

new relationship between Product and a new class

Comment. Once ﬁnished the abstraction process, users

may see the collected classes and instances viewer

panel, from where the user may also export the

speciﬁcations in JSON format. Further aspects of the

abstraction of Web contents as domain object may be

found in previous work (Firmenich et al., 2016b).

5.2 Modelling the Augmentation Layer

using WeModelAug

The WeModelAug tool was designed with the speciﬁc

objective of providing server-side support for Web

Augmentations, i.e. development of conceptual and

navigation diagrams. Prior to this tool, developers of

enhancements used WebRatio (WebRatio, 2017) that

presented several difﬁculties: it is a desktop tool that

requires local resources and software requirements

to run ( a speciﬁc version of Java); it is a

general-purpose solution that takes time to learn by

software engineers. Finally it is a proprietary solution

that does not allow to access the source code and thus

it is not possible to customize the transformations.

A Web-based Model-driven Platform for Web Augmentation

481

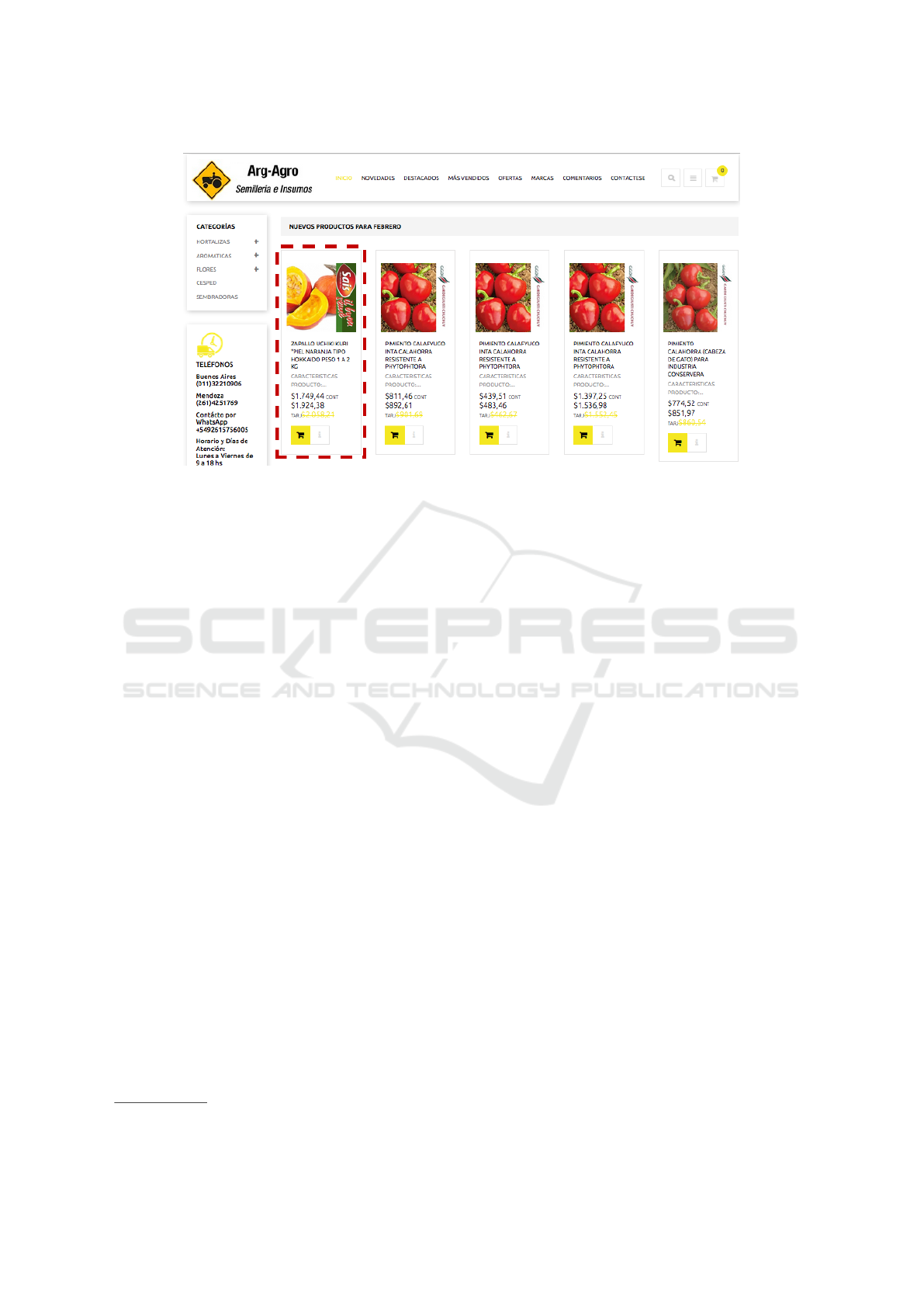

Figure 3: Identifying objects in Web pages required for an augmentation.

To counteract these difﬁculties, WeModelAug was

designed over the Web platform. That is to said, the

WOA tool is built on top of the web browser and the

server-side component designer is a Web app. So the

Web Augmentation can be completely designed using

a browser. This avoids the need for setting up locally

the tools. On the other hand, it presents other beneﬁts:

it is inspired on IFML and UML, so it is easy to

learn and start using by software engineers; it is also

accompanied by a simple and user-friendly interface;

it is open source so any developer can clone the

repository

and create their version of WeModelAug.

To tackle the augmentation design, the web

augmentation platform is divided into two sections:

conceptual modeling to specify the entities

manipulated by the augmentation server-side,

and navigational or navigation modeling. In Figure 4

the metamodel for the augmentation speciﬁcation is

shown.

5.3 Business Domain Modelling

The tool assists in designing Entity-Relationship

diagram that describes the business domain. If we

recall our example, we have extracted the classes

Product and Comment shown in the Figure 5.

The tool implements the Object-Relational Mapping

(ORM) feature so that the instances of the model are

persisted transparently.

An entity attribute has a type (numeric, text, date

and other types allowed by the underlying Database).

The attribute ﬂag unique determines that there cannot

be two records with the same value in this attribute,

https://github.com/francomahl/sswmfa

and, if it is marked as required, a new class instance

must provide value to such ﬁeld. Otherwise, the

instance will not be persisted prompting an error

message.

In addition to the entities speciﬁcation, it is

possible to model, if necessary, the relations between

entities. The relations between two entities can be one

to one (1..1 - 1..1), one to many (1..1 - 1..*), or many

to many (1..* - 1..*). In case of being optional, it is

represented with a 0 instead of 1.

Once the conceptual diagram is ﬁnished, the

creation of the corresponding database is allowed,

where each entity will be mapped to a table and its

attributes will be ﬁelds in that table. In addition, the

relationships between entities will be represented as

foreign keys between the tables or, in the case of many

to many relationships, as an intermediate table. In

our example the tables Product and Comment will be

created where the Comment table will have a foreign

key of Product.

5.4 Navigation Modelling

Once ﬁnished the conceptual model design and

having speciﬁed the entities with their attributes and

relations, it is possible to model the navigation of

the Web application using pages and Links, the

hyperlinks between them.

The pages are individual elements (nodes)

containing other elements. A page can contain three

different types of elements: forms, lists and scripts,

in addition to the links to other pages.

APMDWE 2019 - 4th International Special Session on Advanced practices in Model-Driven Web Engineering

482

Figure 4: Metamodel for server-side artifacts.

Figure 5: Entity-Relatinship diagram.

5.4.1 Forms

The Forms must be related to an (only one) entity in

the conceptual diagram and are used to create or edit

records that are persisted in the database.

The record creation forms are explicitly shown

in the diagram within a page, whereas the record

editing forms are created as a result of the ability

to edit records in lists, as described in the following

section. For example, we modeled in Figure 6 a node

Page Comments that contains a comment form and a

node Page Product with a product form. .

When using the relationship of the form element

with the entity Comment of the conceptual model, the

attributes of the entity will be automatically listed,

allowing you to choose those that will be included as

form ﬁelds.

Once the page Comments is rendered, you will

get a page with the form Add comment that will be

used to create new comments to be shown in the

augmented site; the form ﬁelds will be the attributes

speciﬁed in the model. The same will happen with the

page Products that contains the Form Add product.

Please note that the ﬁelds marked as required in

the conceptual model will always be included in the

form, otherwise the insertion or update of records

in the database will fail. The required ﬁelds will

have a special style in the view. In the example they

appear with a * after the name and they will have the

validation in the browser that provides HTML5.

5.4.2 Lists

Like forms, lists should relate to one, and only one,

entity of the conceptual diagram by checking the

attributes that will be shown as ﬁelds in the list. In

our example you can see in the Figure 6 that the

node Page Comments and Products have, besides

the forms, two elements list Comments and Products

respectively. These elements will be shown as lists

containing the objects stored in the database when

rendered. Products will show the products selected

from the site as products to be augmented.

A List element must be placed within a page and

has the following functionalities over the records of

the related entity:

• List the records in HTML list form

• Delete records (optional). A button is shown for

each record in the list that calls the backend by

removing it from the database.

• Edit records (optional). This functionality is

provided through a link for each record that

redirects to a page that contains a record editing

form with the current values preloaded in the form

ﬁelds. This allows you to edit them and save

the changes. Additionally when links are clicked,

they trigger an action in the backend that updates

the record in the database.

• Show record detail (optional). Enabling this

feature displays a link for each record that

redirects to a detail page listing all record ﬁelds

with their values. This can be used if only some

A Web-based Model-driven Platform for Web Augmentation

483

ﬁelds are shown in the list and the rest of the

record information is available in the detail page.

For the example we modeled a page that contains

a form (creation) of comments and a list of the

comments created, when rendering this page we

obtain the form for insertions and the list modeled.

5.4.3 Scripts

The tool will provide the possibility of inserting

a Script type element containing JavaScript code

which, when rendering the model, will be executed

when accessing the page that contains it.

5.4.4 Links

In the diagram, the pages (nodes) can be linked to

each other with links (addressed links) specifying the

source and destination pages. A link from one page

to another is rendered as a link or hyperlink on the

source page.

5.5 Rendering

Rendering is the last step in server-side web

augmentation modeling. What is shown in Figure 6

will be rendered into HTML content. You can see

in the Figure 7 the node page Comments rendered

to HTML content showing the Form and the List

with comments of the product to augment. Then,

going back to the augmented site you can see that the

comments are in the product.

Figure 6: Navigation model.

Once the navigation has been modelled, the web

pages can be rendered with the elements described

in the previous section. The rendering process

transforms models into HTML code of the pages.

Having rendered the navigation model, it will be

possible to navigate through the pages and interact

with the database by creating (persisting), listing,

editing and deleting records.

6 TECHNICAL DISCUSSION

At the time of devising a tool to assist Web

augmentation design, it was thought as a web-based

solution to abstract the developers from the operating

system and achieve better portability of the artifacts.

The language chosen to develop WeModelAug

was JavaScript with the framework NodeJS

and

ORM Sequelize

. The library chosen for the

development of the diagrams was GoJS

JavaScript was chosen as the development

language because it has several frameworks and a

very large community of developers around the world

and a very large documentation.

About the ORM we know that the database must

be dynamically created and modiﬁed at runtime, so

it must be possible to destroy it and generate it

again quickly and securely. Moreover. it must

also be able to support various database engines

such as Mysql, Sqlite or PostgreSQL. Sequelize

was the ORM chosen for its simplicity, its easy

integration into a NodeJS project, dynamic query

generation, and for the possibility of generating the

Data Deﬁnition Language sentences to destroy and

generate a database on the ﬂy.

For modeling, there are several open source

JavaScript libraries that can be used to make

Entity-Relationship and Navigation diagrams .

GoJS is a JavaScript library that allows you

to develop interactive diagrams and complex

visualizations across different Web browsers and

platforms. This library offers many functionalities

for user interaction such as drag-and-drop, copy and

paste, on-site text editing, tooltips, templates, data

related models, palettes, preview, event handlers, the

ability to represent diagrams in JSON format, among

others.

GoJs is a pure JavaScript library, so users can

interact with it without the need for the application

to connect to a server or install additional plugins to

the browser. It runs completely in the web browser

and renders HTML5 Canvas or SVG images without

the need for server-side requirements.

The fact that this library does not require a

back-end and is easy to implement in any framework

(even without one) made it the one chosen to develop

WeModelAug.

Finally, it was decided to include Docker

Compose

to achieve a higher level of abstraction

for developers. Docker provides the possibility to

https://nodejs.org/es/

http://docs.sequelizejs.com/

https://gojs.net/latest/index.html

https://docs.docker.com/compose/

APMDWE 2019 - 4th International Special Session on Advanced practices in Model-Driven Web Engineering

484

Figure 7: Site augmented.

run the WeModelAug code locally or in the cloud

without the need to have the corresponding versions

of JavaScript, Node, and other necessary packages

since the required installations are done in a Docker

container and the tool code runs there.

Once the development of WeModelAug was

completed the code was uploaded to GitHub

with

instructions on how to create the environment locally

and how to run the application.

7 CONCLUSIONS

In this work we have presented a web-based

platform supporting approach for designing Web

Augmentation coping with client-side and server-side

behaviors. The augmentations are modeled using

a custom domain-speciﬁc language designed to

abstract Web augmentations. We used as a

comprehensive example instantiated illustrate the

approach instantiation and how the tool support the

study case. We plan to perform an assessment of the

language usability.

https://github.com/francomahl/sswmfa

REFERENCES

Arag

on, G., Escalona, M. J., Lang, M., and Hilera, J. R.

(2013). An analysis of model-driven web engineering

methodologies.

Bosetti, G., Firmenich, S., Gordillo, S. E., Rossi, G., and

Winckler, M. (2017). An End User Development

Approach for Mobile Web Augmentation. Mobile

Information Systems, 2017:1–28.

Ceri, S., Dolog, P., Matera, M., and Nejdl, W. (2004).

Model-Driven Design of Web Applications with

Client-Side Adaptation. In Koch, N., Fraternali,

P., and Wirsing, M., editors, Web Engineering: 4th

International Conference, ICWE 2004, Munich,

Germany, July 26-30, 2004. Proceedings, pages

201–214. Springer Berlin Heidelberg, Berlin,

Heidelberg.

Cerny, T., Macik, M., Donahoo, M. J., and Janousek,

J. (2015). On distributed concern delivery in user

interface design. Computer Science and Information

Systems, 12(2):655–681.

ıaz, O. and Arellano, C. (2012). Sticklet: An End-User

Client-Side Augmentation-Based Mashup Tool. In

Web Engineering - 12th International Conference,

{ICWE} 2012, Berlin, Germany, July 23-27, 2012.

Proceedings, pages 465–468.

ıaz, O., Arellano, C., and Iturrioz, J. (2010). Interfaces for

Scripting: Making Greasemonkey Scripts Resilient

to Website Upgrades. In Web Engineering, 10th

International Conference, {ICWE} 2010, Vienna,

Austria, July 5-9, 2010. Proceedings, pages 233–247.

A Web-based Model-driven Platform for Web Augmentation

485

Diigo (2017). Diigo.

Firmenich, D., Firmenich, S., Rivero, J. M., Antonelli,

L., and Rossi, G. (2016a). CrowdMock: an

approach for deﬁning and evolving web augmentation

requirements. Requirements Engineering, pages 1–29.

Firmenich, S., Bosetti, G. A., Rossi, G., Winckler, M., and

Barbieri, T. (2016b). Abstracting and Structuring Web

Contents for Supporting Personal Web Experiences.

In Web Engineering - 16th International Conference,

{ICWE} 2016, Lugano, Switzerland, June 6-9, 2016.

Proceedings, pages 77–95.

Fowler, M., Beck, K., Brant, J., Opdyke, W., and Roberts,

D. (1999). Refactoring: Improving the Design of

Existing Code. Addison-Wesley Professional, Boston,

MA, USA.

Frajberg, D., Urbieta, M., Rossi, G., and Schwinger,

W. (2016). Volatile Functionality in Action:

Methods, Techniques and Assessment. In Bozzon,

A., Cudre-Maroux, P., and Pautasso, C., editors,

Web Engineering: 16th International Conference,

ICWE 2016, Lugano, Switzerland, June 6-9, 2016.

Proceedings, pages 59–76. Springer International

Publishing, Cham.

Gaedke, M. and Gr

af, G. (2001). Development

and Evolution of Web-Applications Using

the WebComposition Process Model. In Web

Engineering, volume 2016, pages 58–76.

Gamma, E., Helm, R., Johnson, R., and Vlissides, J. (1995).

Design patterns: elements of reusable object-oriented

software. Addison-Wesley Longman Publishing Co.,

Inc., Boston, MA, USA.

Garrido, A., Firmenich, S., Rossi, G., Grigera, J.,

Medina-Medina, N., and Harari, I. (2013).

Personalized Web Accessibility using Client-Side

Refactoring. {IEEE} Internet Computing,

17(4):58–66.

Popovici, A., Gross, T., and Alonso, G. (2002). Dynamic

Weaving for Aspect-oriented Programming. In

Proceedings of the 1st International Conference on

Aspect-oriented Software Development, AOSD ’02,

pages 141–147, New York, NY, USA. ACM.

Rossi, G., Pastor, s., Schwabe, D., and Olsina, L. (2008).

Web Engineering: Modelling and Implementing Web

Applications, volume 12. Springer-Verlag London.

Urbieta, M., Firmenich, S., Maglione, P., Rossi, G., and

Olivero, M. A. (2017). A Model-driven Approach

for Empowering Advance Web Augmentation - From

Client-side to Server-side Support. In APMDWE.

INSTICC, ScitePress.

Urbieta, M., Rossi, G., Distante, D., and Ginzburg, J.

(2012). Modeling, Deploying, and Controlling

Volatile Functionalities in Web Applications.

International Journal of Software Engineering and

Knowledge Engineering, 22:129–155.

WebRatio (2017). WebRatio Platform.

APMDWE 2019 - 4th International Special Session on Advanced practices in Model-Driven Web Engineering

486
