Designing System Integration Testing to Test Reduction and Migration

Payment Transaction Data at PT Telekomunikasi Indonesia, Tbk

Labbaika Putri Tiovani

, Warih Puspitasari

and Umar Yunan K. S. Hediyanto

Information Systems, Telkom University, Jl. Telekomunikasi Jl. Terusan Buah Batu No.01, Bandung, Indonesia

Keywords:

ERP, SAP, Data Reduction, Data Migration, SIT.

Abstract:

To run transactions and operational activities, PT Telekomunikasi Indonesia, Tbk as one of the biggest

telecommunication service providers in Indonesia requires an Enterprise Resource Planning (ERP) applica-

tion that can integrate all business processes in real-time, namely SAP. Telkom Indonesia has been providing

home telephone service since they established. By the time, POTS customers are increasing every year, hence

data that is managed and stored in a database is increasing as well. Due to that problem, Telkom Indonesia

experienced several issues such as failure during data backup, data restoration that took a long time that it

interferes system performance. Because of that, Telkom Indonesia will migrate and reduce data. To ensure the

consistency, completeness, and accuracy of data before and after the migration and reduction process, a test is

needed with System Integration Testing (SIT) methodology. This study aims to design SIT on POTS customer

payment transactions at PT. Telekomunikasi Indonesia, Tbk.

1 INTRODUCTION

ERP (Enterprise Resource Planning) is a system that

is used to integrate all business processes in a com-

pany, especially an enterprise scale. ERP systems will

collect transactional data on a company from a variety

of different sources, then save, manage and analyse to

help eliminate data redundancy and duplication, and

can help companies make data-driven decisions (Rao

and Kudtarkar, 2018).

Telkom Indonesia is a State-Owned Enterprise

(BUMN) that is engaged in information and commu-

nication technology (ICT) services and telecommu-

nications networks in Indonesia participating in the

collaboration with other state-owned companies (Sa-

putra, 2018) by implementing an ERP system. From

several available ERP software, Telkom Indonesia

chose SAP R / 3 which can integrate business units

such as logistics, Human Resources, and Finance.

To transform into a digital telecommunication

company, Telkom Indonesia offers six customer-

oriented portfolio products, namely ﬁxed, mobile,

network infrastructure, wholesale, enterprise digital,

and consumer digital. One of the main services is

ﬁxed-line telephone which is included in the ﬁxed

portfolio on ﬁxed telephone segmentation (POTS).

Recorded in the annual report of Telkom Indonesia

in the year of 2017, POTS customers are increasing

every year shown in the following Figure 1:

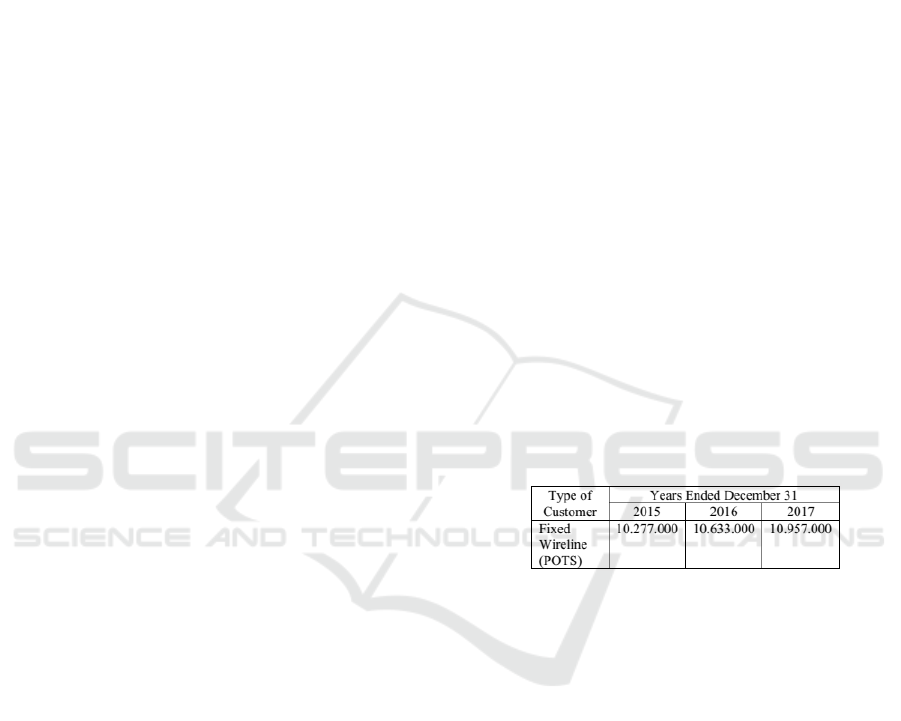

Figure 1: Number Of Fixed Phone Customers.

Based on Figure 1 number of ﬁxed phone cus-

tomers, it can be seen that with the increase in the

number of customers in the POTS segment each

year, the amount of data managed and stored in one

database server will increase as well. This can cause

system performance to decrease, restoration and data

backup takes longer and the possibility of failing

data backup is the main issue now. Currently, the

data stored on Telkom Indonesia’s database server

is 34TB, to be able to maximize storage capacity,

they need to reduce the capacity of database to 4TB,

therefore, it can improve system performance. The

reduction cannot be performed directly on produc-

tion server due to the payment data keep increasing,

backup all data and restored to simulation server. To

ensure data consistency, accuracy and completeness,

a test is needed using the system integration testing

(SIT) method by conducting validation using quality

assessment data. SIT will help to know if defects oc-

cur and give a solution to them before users try out

the system (Ganesh et al., 2014). Therefore this study

Tiovani, L., Puspitasari, W. and Hediyanto, U.

Designing System Integration Testing to Test Reduction and Migration Payment Transaction Data at PT Telekomunikasi Indonesia, Tbk.

DOI: 10.5220/0009865701150120

In Proceedings of the International Conference on Creative Economics, Tourism and Information Management (ICCETIM 2019) - Creativity and Innovation Developments for Global

Competitiveness and Sustainability, pages 115-120

ISBN: 978-989-758-451-0

115

aims to design SIT to ensure data migration and re-

duction for POTS customer payment transactions at

PT Telekomunikasi Indonesia, Tbk so that it will help

them to make decisions whether the reduced data is

ready to be implemented or not.

2 LITERATURE STUDY

Literature studies are conducted to support research

by seeking and reading information and material in

relevant books and journals.

2.1 ERP

Enterprise Resource Planning (ERP) is an informa-

tion system used by companies to help integrate and

optimize all existing business processes such as fac-

tories, logistics, accounting, distribution, ﬁnance, and

human resources (Al Aziz et al., 2018). Whereas

according to (Tsai et al., 2010) Enterprise Resource

Planning (ERP) is a software package that can pro-

vide the required data in full and accurate informa-

tion where data and information can be generated at

any time the user needs it.

ERP systems can help companies integrate all

their operations that have function as computing envi-

ronments throughout the company they have such as

using a centralized database where stored and trans-

mitted data is always consistent in real-time on all

business functions (Monk and Wagner, 2012).

2.2 SAP

System Applications and Products in data process-

ing or commonly called SAP is an application created

by ﬁve former IBM employees namely Hans-Werner

Hector, Klaus Tschira, Claus Wellenreuther, Dietmar

Hopp, and Hasso Platter in 1972. This application

was made to integrate all departments that is on the

company on a centralized computer database (Ovidiu

and Dascalu, 2010).

2.3 Types of Testing

There are three types of testing, namely Unit Test-

ing, System Integration Testing, and User Acceptance

Testing. The following is the explanation of all types

of testing:

2.3.1 Unit Testing

Unit testing is the lowest level of system testing on

SAP transactional level applications that are carried

out by developers. Negative and positive tests will be

conducted on this testing phase. The main focus of

this test is the master data, negative-positive testing,

functional transaction conditions, and security roles

and proﬁles (Ganesh et al., 2014).

2.3.2 System Integration Testing (SIT)

System Integration Testing (SIT) is a series of SAP

transaction testing to check whether all integrated

components are running according to the required

speciﬁcations (Helfen and Trauthwein, 2010). The

testing process begins with deﬁning the needs and

testing strategies (Ganesh, et al., 2014). This test is

conducted by end-to-end for a number of related mod-

ules such as order-to-cash, purchase-to-pay, and hire-

to-retire by using some input data that is done with

several iterations (Helfen and Trauthwein, 2011).

2.3.3 User Acceptance Testing (UAT)

UAT is done by end-user of the system. The end-user

will do the test based on test case so that will know

how the end-user uses the system on production en-

vironment. Conﬁguration and testing team are also

involved to help when defects occur. This test will

bring out a document as proof that the system that has

been developed is accepted and ﬁt to user’s require-

ments (Ganesh et al., 2014).

2.4 Life Cycle Testing Phase

Life cycle testing is divided into four main phases

namely preparation test, test design, execution test,

and test evaluation. The following is an explanation

of the testing phase (Dalal and Chhillar, 2012) (Hooda

and Chhillar, 2015):

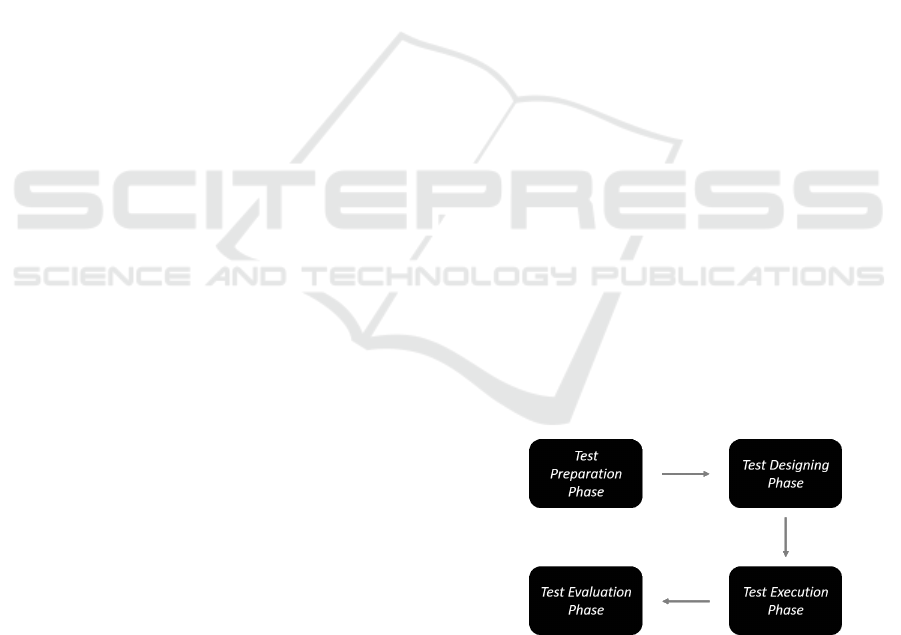

Figure 2: Life Cycle Testing Phase.

2.4.1 Test Preparation Phase

In the ﬁrst phase, the test preparation explains how

testing will be achieved. In this phase things will be

done, such as deﬁnes the scope and objective of test-

ing, identiﬁes strategies or testing approaches, deﬁnes

ICCETIM 2019 - International Conference on Creative Economics, Tourism Information Management

116

risk, allocates resources, schedules testing, makes a

data test (Dalal and Chhillar, 2012).

2.4.2 Test Designing Phase

In the second phase of the test design, which included

the making of a test case and preparation of data tests

Standard templates must be used to prepare test cases

(Dalal and Chhillar, 2012). The test case speciﬁes test

inputs or data, execution conditions, and expected re-

sults. The test case is made by the QA team manually

or automatically generated (Jamil et al., 2016).

2.4.3 Test Execution Phase

Tests will be conducted by the tester with the main

purpose of ﬁnding defects. In this phase, the test case

will be executed and the result will be an information

pass / fail in the test script. When a tester ﬁnds de-

fects, it has to give a solution to the defects found.

The results of this phase are test status reporting and

defects handling (Dalal and Chhillar, 2012).

2.4.4 Test Evaluation Phase

This phase will ensure test all system testing, inte-

gration, and user acceptance have passed the test and

the decision of the evaluation results is taken if all

requirements have been tested. At this stage, it also

analyses defects and ensures documentation of each

testing process (Hooda and Chhillar, 2015).

2.5 Test Scenario

The test scenario describes speciﬁcally the detailed

instructions for testing. The test scenario is owned by

the conﬁguration team but there is also participation

from members of the testing team and the develop-

ment team (Namjoshi et al., 2011).

2.6 Test Case

A test case is a set of test inputs, execution condi-

tions, and the expected result can be developed for a

particular purpose so that it can validate speciﬁc func-

tions in an application that will be tested. The test

case forms the foundation for designing and develop-

ing test scripts (Lewis, 2017).

2.7 Test Script

Test script is a series of test cases arranged in a single

ﬂow of execution testing to test the functionality of a

particular business. The test script contains what con-

ditions will be tested, the number of test cases tested

on the script, prerequisites, test data needed for test-

ing, and instructions to verify the test results. Test

scripts are needed for testers so that they can still run

tests not only limited to certain people who make test

scripts (Lewis, 2017).

2.8 Data Quality

Data quality is a data level that states that the data

is accurate, complete, timely updated, and consis-

tent with business needs (Mosley and Mosley, 2008).

In the real world, determining the quality of data

is very possible to check whether each data in the

database is correct, from where the data originates,

and the cause of the error (Maydanchik, 2007). Qual-

ity data is very important due to several reasons,

such as increased self-conﬁdence when making deci-

sions, reducing the risk of wrong decisions, avoiding

the effects of complications from contaminated data

(Mosley and Mosley, 2008).

3 METHODOLOGY

The research methodology in this study is shown on

Figure 3. There are four phases to design SIT on this

study that are review, collect, analysis, and interpre-

tation. There will be four deliverables, which are test

scenario, test case, test data, and test script. All deliv-

erables will help to conduct the test.

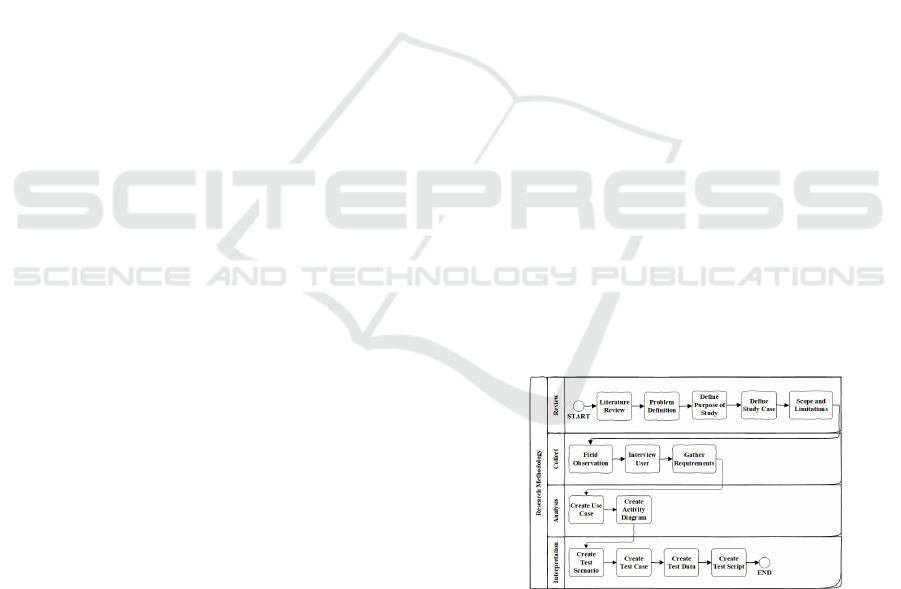

Figure 3: Research Methodology.

3.1 Limitations

The main focus of this study is designing a test there-

fore there are two phase namely test designing phase

to design system integration testing for data reduction

and migration test.

Designing System Integration Testing to Test Reduction and Migration Payment Transaction Data at PT Telekomunikasi Indonesia, Tbk

117

4 ANALYSIS AND RESULT

4.1 Test Designing Phase

4.1.1 Use Case

To be able to create a test script template, we need to

analyse use case and activity diagram of the system.

The results of the analysis will be a reference in mak-

ing test scenarios, test cases, data tests so that we can

make a template for test script to test the system.

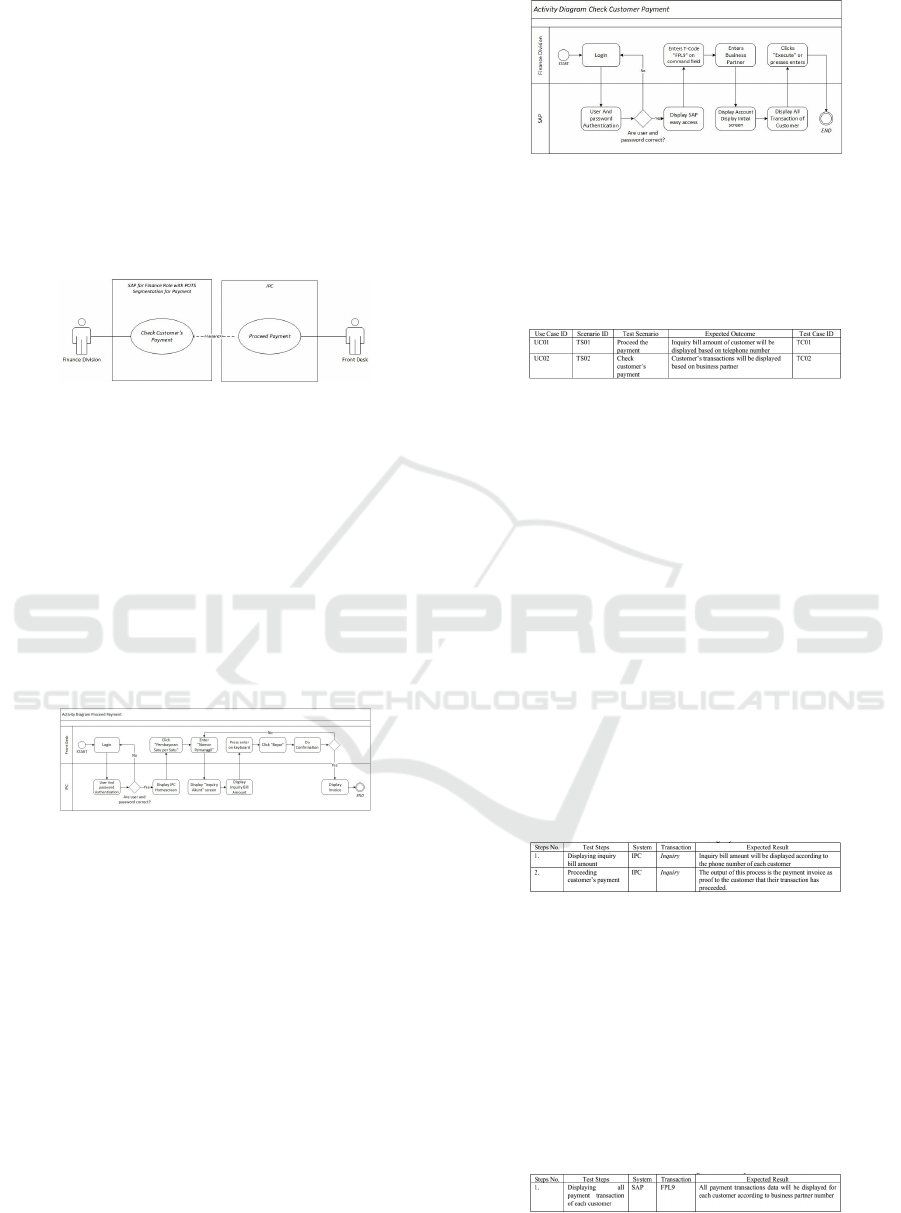

Figure 4: Use Case Diagram of SAP and IPC on POTS Seg-

mentation for Payments.

Figure 4 is a use case diagram of the SAP appli-

cation and IPC (Integrated Payment Center) of the Fi-

nance user role division with POTS segmentation for

payments at Telkom Indonesia. Use case diagram il-

lustrates how the system works. According to Figure

4, the ﬁnance division can check customer payments

using SAP applications and the front desk processes

POTS customer payments with the IPC system.

4.1.2 Activity Diagram of Proceeding Payment

Figure 5: Activity Diagram of Proceeding Payment.

Figure 5 is an activity diagram for proceeding pay-

ment. The Activity diagram shows how workﬂows

when processing customer payments using the IPC

system. The output of this activity is payment invoice

as proof that customers have completed their transac-

tion.

4.1.3 Activity Diagram of Checking Customer’s

Payment

Figure 6 is an activity diagram to check customer pay-

ment. It shows how the system works to display all

payment transaction of a particular customer.

4.2 Create Test Scenario

After analyzing the use case and activity diagram, the

test scenario will be made as shown in Figure 7. Test

Figure 6: Activity Diagram of Checking Customer’s Pay-

ment.

scenario is a ﬂow of how the test will be executed.

There are 2 scenarios, proceed payment and check

customer’s payment.

Figure 7: Test Scenario.

4.3 Create Test Case

Figure 8 and Figure 9 are test cases for proceeding

payments and checking customer payments. The test

case is used as a condition that must be tested in this

study. There are 2 systems on this study, they are Inte-

grated Payment Centre (IPC) and SAP. Each case has

different expected results.

4.3.1 Test Case for Proceeding Payment

Test Case ID : TC01

Test Title : Proceed payment

Preconditions : User wants to check cus-

tomer’s payment and proceed it.

Figure 8: Test Case for Proceeding Payment.

4.3.2 Test Case for Checking Customer’s

Payment

Test Case ID : TC02

Test Title : Check customer’s pay-

ment

Preconditions : User wants to check cus-

tomer’s payment

Figure 9: Test Case for Checking Customer’s Payment.

ICCETIM 2019 - International Conference on Creative Economics, Tourism Information Management

118

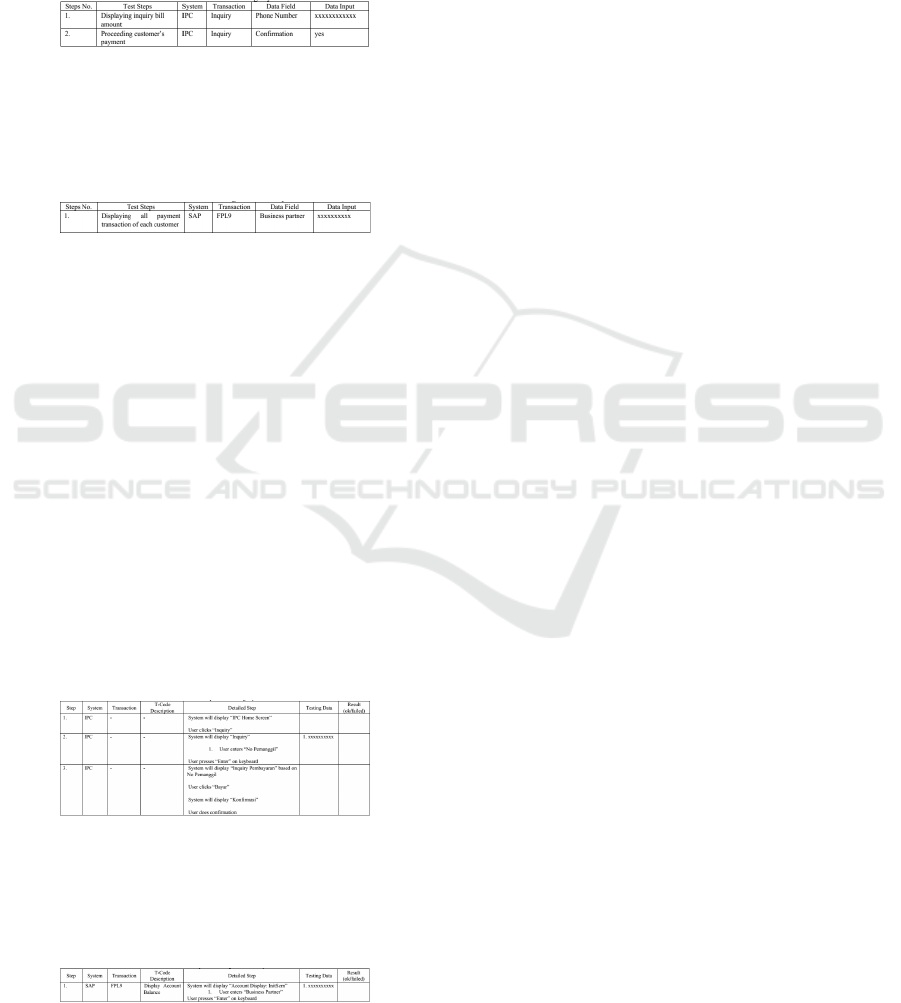

4.4 Create Test Data

After the test case is made, a data test will be made

to perform the test. Figure 10 and Figure 11 are input

data that has been adjusted to the test conditions.

4.4.1 Test Data for Proceeding Payment

Figure 10: Test Case for Proceeding Payment.

4.4.2 Test Case for Checking Customer’s

Payment

Figure 11: Test Data for Checking Customer’s Payment.

4.5 Create Test Script

After designing test scenario, test case, and test data,

then test script is created as a standard template to

perform the test. Test script template contains sys-

tem, transaction, description of transaction, detailed

step on how to run the test, testing data. The result of

the test will be recorded on the script as for the docu-

mentation to help future development.

There are two test script templates in this study to

perform a test, the test script for proceeding payment

and a test script for checking customer payment. Fol-

lowing is the test script:

4.5.1 Test Script for Proceeding Payment

Figure 12: Test Data for Checking Customer’s Payment.

4.5.2 Test Script for Checking Customer’s

Payment

Figure 13: Test Data for Checking Customer’s Payment.

5 CONCLUSIONS

Integration testing to test the data consistency be-

tween transactions on two integrated systems. Test

designing occurs on the second phase of lifecycle test-

ing phase which is test designing phase where test

scenarios, test cases, and data tests are created. This

test is designed to validate the quality of the data by

looking at those four data quality dimensions. Hence,

the design of the test is focused on master data and

row data on transaction table payments.

Test script payment transaction design is prepared

and created according to use case, activity diagrams

for payment transaction, test scenario for payment,

and test data for payment. Therefore, this test script

can be used in the next phase of testing. The output of

this study are test scenario, test case, test data and test

script which are the design of integration testing of

POTS customer payment transactions at PT Teleko-

munikasi Indonesia which focused on data validation.

The result of the test will ensure whether data that

has been migrated and reduced in the new server is

consistent, complete, and accurate by comparing the

expected result of the test and the output the test, an-

alyzing the defects and create solution for them. So

that the ﬁnal result will be a successful data reduc-

tion that is ready to be implemented to the production

server and will be used on daily operation.

For further development of this research, this

study can be as a guide by adjusting the purpose of

research and case studies for each research and also

developing this research to the last phase which is the

evaluation phase of testing. Data testing can be done

with several iterations to assess consistency, accuracy,

and completeness of data.

Designing System Integration Testing to Test Reduction and Migration Payment Transaction Data at PT Telekomunikasi Indonesia, Tbk

119

REFERENCES

Al Aziz, R., Amalia, F., and Brata, A. H. (2018). Pemban-

gunan sistem enterprise resource planning pada griya

laundry. Jurnal Pengembangan Teknologi Informasi

dan Ilmu Komputer e-ISSN, 2548:964X.

Dalal, S. and Chhillar, R. S. (2012). Software testing-three

p’s paradigm and limitations. International Journal of

Computer Applications, 54(12).

Ganesh, K., Mohapatra, S., Anbuudayasankar, S., and

Sivakumar, P. (2014). Enterprise resource planning:

fundamentals of design and implementation. Springer.

Helfen, M. and Trauthwein, H. M. (2010). Testing SAP so-

lutions. SAP PRESS.

Hooda, I. and Chhillar, R. S. (2015). Software test process,

testing types and techniques. International Journal of

Computer Applications, 111(13).

Jamil, M. A., Arif, M., Abubakar, N. S. A., and Ahmad, A.

(2016). Software testing techniques: A literature re-

view. In 2016 6th International Conference on Infor-

mation and Communication Technology for The Mus-

lim World (ICT4M), pages 177–182. IEEE.

Lewis, W. E. (2017). Software testing and continuous qual-

ity improvement. Auerbach publications.

Maydanchik, A. (2007). Data quality assessment. Technics

publications.

Monk, E. and Wagner, B. (2012). Concepts in enterprise

resource planning. Cengage Learning.

Mosley, M. and Mosley, M. (2008). The DAMA dictionary

of data management. Technics Publications, LLC.

Namjoshi, K., Zeller, A., and Ziv, A. (2011). Hardware and

software: Veriﬁcation and testing. Lecture Notes in

Computer Science, 6405.

Ovidiu, S. and Dascalu, C. (2010). The advantages and

risks of using an erp system in the context globaliza-

tion. International Journal of Modern Manufacturing

Technologies, 2(2):83–88.

Rao, S. and Kudtarkar, K. (2018). Implementation of odoo

erp for business applications. IOSR Journal of Com-

puter Engineering, pages 32–39.

Saputra, E. (2018). Jaringan pemberitaan pemerintah (jpp).

Tsai, W.-H., Chen, S.-P., Hwang, E. T., and Hsu, J.-L.

(2010). A study of the impact of business process on

the erp system effectiveness. International Journal of

Business and Management, 5(9):26.

ICCETIM 2019 - International Conference on Creative Economics, Tourism Information Management

120
