Measuring Design Complexity of Cultural Heritage Ontologies

Bilal Ben Mahria, Ilham Chaker and Azeddine Zahi

Dept. of Computer Science, Faculty of Science and Technology, BP.2202 Imouzzer Street, Fez, Morocco

Keywords: Cultural Heritage, Size of Vocabulary, Tree Impurity, Coupling, Maintenance, Ontology Evaluation.

Abstract: Nowadays, Ontologies have become widely used to design formalism for knowledge representation, and are

considered as the foundation for the Semantic Web. However, with their widespread usage, a question of their

complexity evaluation increased even more, especially in some domains that currently know a cruise number

of ontologies like Cultural Heritage. In this paper, we present an analysis of the advanced metrics for

measuring the design complexity of existing cultural heritage ontologies (CH). In this context, the main goals

of this study are to (i) present advanced metrics such as the size of vocabulary, the tree impurity, coupling,

average number of path per concept, and average path length, in order to analyze the advanced complexity

features of the CH ontologies and their impact on the reuse and evolution of the CH ontologies; (ii) Help

developers to decide whether the ontology is over complex that it needs some simplification or re-building;

(iii) Make developers clearly realize the impact of the size and scale of ontology. In order to reach these goals,

a set of twenty CH ontologies are gathered from the web to measure and analyze their advanced complexity

metrics. By analyzing the size of vocabulary, the average number of paths per concept, and average path

length, the evaluation results exhibit that the CH ontologies studied are highly complex. In addition, the CH

ontologies cannot be easily maintained due to the findings reached through the analysis of the tree impurity

and coupling.

1 INTRODUCTION

An ontology has been previously defined as a formal,

explicit specification of a shared conceptualization

where the conceptualization in this context refers to

the abstraction of a domain of knowledge(Guarino &

Poli, 1993). This abstraction is increasingly used in

various fields such as data exchange, data integration,

and the biggest of which is the semantic

web(Maedche & Staab, 2001). This apparent increase

in the use of ontologies has procured an increase in

the number of ontologies in existence which in turn

has promoted the need for evaluating the ontologies.

Ontology evaluation is an important issue that

must be addressed in many situations. For instance,

during the process of developing an ontology, the

evaluation is important to guarantee that what is built

meets the application requirements. Generally, the

ontology evaluation is defined as the process of

measuring the quality of an ontology with regard to a

set of criteria that consist of determining which in a

collection of ontologies would suit a particular

purpose(Brank et al., 2005). In addition, an important

definition of ontology evaluation has been suggested

by (Gómez-Pérez, 2004) and later echoed by

(Vrandečić, 2009). In these works, the evaluation

process is categorized into two major areas:

Verification and Validation. The former is concerned

with building an ontology correctly by measuring the

accuracy, completeness, conciseness and consistency

metrics, etc. The latter, on the other hand, is about

building the correct ontology by checking the quality

of the ontology design. The ontology design is

commonly referred to as the ontology complexity.

Generally Speaking, measuring the complexity of

an ontology gives some insight for developers to help

them better understand, reuse, reduce maintenance

requirements and integrate ontologies, as well as help

users to select the ontology that meets their needs

best. In fact, the complexity of ontology increases as

the ontology grows in size and as ontology evolves,

the management of the complexity and the

maintenance increases. Therefore, as ontologies grow

in size and numbers, it is important to measure their

complexity quantitatively. It is well known that “you

cannot control what you cannot measure”(DeMarco,

1982). Quantitative measurement of complexity can

help ontology developers and maintainers better

Ben Mahria, B., Chaker, I. and Zahi, A.

Measuring Design Complexity of Cultural Heritage Ontologies.

DOI: 10.5220/0010016501330140

In Proceedings of the 12th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2020) - Volume 2: KEOD, pages 133-140

ISBN: 978-989-758-474-9

133

understand the current status of the ontology, better

evaluate its design and control its development

process. Nowadays, one of the active areas of the

ontology development is the cultural heritage domain

where a large number of ontologies are being

developed to study memory organizations that

includes libraries, archives, and museums of different

kinds specializing in particular areas of CH, such as

museums, archaeological museums, cultural history

museums, and science museums, etc (Doerr, 2009;

Hyvönen, 2009).

In brief, Cultural Heritage (CH) refers to the

legacy of physical objects, environment, traditions,

and knowledge of a society that are inherited from the

past, maintained and developed further in the present,

and preserved (conserved) for the benefit of future

generations. The vital importance of preserving

cultural heritage for the populations, has led to an

increased number of ontologies in this domain. Thus,

these ontologies can be grouped into six categories:

General Concept Ontologies, Actor Ontologies, Place

Ontologies, Time and period ontologies, Event

Ontologies and Domain Nomenclatures or

terminologies (Hyvönen, 2012). In this context, the

evaluation of the existing CH ontologies becomes a

necessity.

Although few studies have been conducted on the

assessment of this cultural content (Nafis et al., 2019;

Orme et al., 2006; Zhe et al., 2006), there are still

many issues that have not been sufficiently addressed.

In this regard, the main goals of this paper are to: (i)

Present advanced metrics such as the size of

vocabulary, the tree impurity, coupling, average

number of path per concept, and average path length

in order to discuss the advanced complexity features

of the CH ontologies and their impact on the reuse

and evolution of these ontologies. (ii) Help

developers to decide whether the ontology is over

complex that it needs some simplification or re-

building. (iii) Make developers clearly realize the

impact of the size and scale of ontology.

To the best of our knowledge, there is a shortage

of studies which focus on the analysis of the quality

of CH ontologies to consolidate their reuse,

maintenance and evolution. In fact, this work

attempts to fill this gap by identifying and evaluating

existing CH ontologies on the web. A set of 20

ontologies of the CH domain are downloaded on the

web and a set of quantitative quality metrics adopted

and combined from different works (Orme et al.,

2006; Ouyang et al., 2011; Tartir et al., 2010; Zhang

et al., 2010; Zhe et al., 2006) are applied to evaluate

the ontology based on the complexity features. The

experimental results show that the majority of the CH

ontologies are highly complex and cannot be easily

maintained.

The outline of this paper is demonstrated as

follows. In Sect. 2, we present the related work, which

describes the most popular works that studied the

assessment of the cultural heritage ontologies. In

Sect. 3, we detail some challenges and limitations of

the cultural heritage domain. In Sect. 4, we outline

some common Formal notations. In section 5, we

describe the advanced features metrics to analyze the

complexity of the cultural heritage ontologies.

Section 6 is devoted to introducing the experiment

studies and discussions. Finally, Sect. 7 concludes the

paper and suggests directions for future works.

2 RELATED WORKS

Considerable amounts of studies have been

conducted on measuring the ontologies complexity.

With regard to the CH domain, there is a lack of

studies that are addressed to measure the complexity

of the Cultural heritage ontologies(Nafis et al., 2019;

Orme et al., 2006; Zhe et al., 2006). (Nafis et al.,

2019) did a study to enable users to select suitable CH

ontologies for use when building applications that

integrate Cultural heritage content. (Orme et al.,

2006) measure the ontology complexity using a single

metric that is coupling. Inspired from the principles

of the object oriented class diagram (Nikiforova et al.,

2011), (Zhe et al., 2006) used three metrics called the

number of root classes, the number of leaf class, and

the average depth of inheritance tree to measure the

CH ontology complexity. However, these studies

suffer from one of the following limitations. First,

they confused the validation of the ontology with its

verification (Nafis et al., 2019). Second, they relied

on primitive metrics (such as number of classes,

number of properties, instances, root and leaf classes,

etc.) in order to study the design of the ontology(Nafis

et al., 2019; Zhe et al., 2006). Indeed, it is

meaningless to measure the design of the ontology by

using only primitive metrics as we will argue in this

work. Third, they consider ontology complexity as a

one-dimensional construct, which is based on class-

level metrics, while the complexity cannot be

measured directly using single level metrics (Nafis et

al., 2019; Orme et al., 2006; Zhe et al., 2006). Finally,

(Nafis et al., 2019)take into consideration the

extensional (Number of instances) level of the

ontology to study the complexity while the

complexity must be measured based on the

intentional level of the ontology and the extensional

level must be ignored .

KEOD 2020 - 12th International Conference on Knowledge Engineering and Ontology Development

134

Based on our knowledge, this work represents the

first study of the evaluation design complexity of

ontologies in the Cultural Heritage domain. This

evolution is based on some Advanced Complexity

Metrics.

3 CULTURAL HERITAGE (CH)

DOMAIN CHALLENGES

3.1 Cultural Heritage Domain

In a narrower sense, we may regard the cultural

heritage as the things protected by the memory

institutions such as museums, sites and monuments

records (“SMR”), archives and libraries. Their

international umbrella organizations are: the

International Council of Museums (ICOM

) the

International Federation of Library Associations

(IFLA

) and the International Council of Archives

(ICA

). They maintain their specific documentation

policies and standards. CH can be divided into three

subareas(Hyvönen, 2012):

Tangible Cultural Heritage consists of concrete

cultural objects, such as artifacts, works of art,

buildings, and books(Vecco, 2010).

Intangible Cultural Heritage includes phenomena

such as traditions, language, handicraft skills,

folklore, and knowledge (Vecco, 2010).

Natural Cultural Heritage consists of culturally

significant landscapes, biodiversity, and geodiversity

(Harrison, 2015).

3.2 CH Ontologies Types by Major

Domains

Major ontology types needed in CH applications can

be classified by their domain of discourse as

follows.

General Concept Ontologies. These ontologies

include general concepts, such as object types

(chair, painting, book, etc.) or materials (steel, wool,

wood, etc.). Concepts in keyword thesauri

typically fall in this category, excluding free

keywords, such as place and person names (Hyvönen,

2012).

Actor Ontologies. These ontologies encompass a set

of individual persons, organizations, and

groups. In libraries, actor ontologies are called

authority files(Hyvönen, 2012).

http://www.icom.org

http://www.ifla.org

Place Ontologies. These ontologies contain lists of

individual places. In land surveying, place

ontologies are called gazetteers(Hyvönen, 2012).

Time and Period Ontologies. Time ontologies

identify the way in which time is exemplified,

and may list particular periods of time for shared

reference, such as “18th century,” “‘Iron

Age,” “Almohad Period,” etc(Hyvönen, 2012).

Event Ontologies Events are the semantic key that

associates actors, objects, places, and time

together. Event ontologies are repositories for listing

references to individual’s events, such

as “Battle of Rio Salado” or “Independence of

Morocco,” so that they can be referred to in different

metadata records for interoperability (Hyvönen,

2012).

Domain Nomenclatures or Terminologies. Various

areas use particular nomenclatures, which roughly

match to free keywords of thesauri. For example,

there are name lists and taxonomies for plants and

animals, minerals, chemical compounds, diseases,

medicines, trademarks, etc(Hyvönen, 2012).

3.3 CH Domain Challenges

CH collection data has many specific characteristic

features, such as the following (Koch et al., 2019).

Multi-format. The contents are provided in different

forms, such as text documents, images,

audio tracks, videos, collection items, and learning

objects.

Multi-topical. The contents are attached to various

topics, such as art, history, artifacts, and traditions.

Multi-lingual. The content is available in different

languages.

Multi-cultural. The content is linked and explained

in terms of different cultures, such as

religions or national traditions in the West and East.

Multi-targeted. The contents are often addressed to

both laymen and experts, young and old.

The fundamental problem area in dealing with CH

data is to make the content mutually interoperable so

that it can be searched, linked, and presented in a

harmonized way across the outlines of the datasets

and data silos. In fact, the major reason for

interoperability problems in CH content publishing is

the Multi-Organizational nature in which CH content

is collected, maintained, and published. The content

with their own established standards and best

practices, by media organizations, and cultural

associations. In fact, ontologies provide a perfect

http://www.ica.org

Measuring Design Complexity of Cultural Heritage Ontologies

135

mechanism to bypass all these limitations(Hyvönen,

2012).

4 FORMAL NOTATION AND

THE GRAPH-CENTRIC

REPRESENTATION OF

ONTOLOGIES

4.1 Graph-Centric Representation of

Ontologies.

In order to present the ontology complexity metrics,

we provide a graph-centric view for OWL

ontologies(Zhe et al., 2006). More precisely, an

ontology can be seen as a directed labelled graph 𝐺 

〈

𝑁,𝑃,𝐸

〉

where 𝑁 a set of nodes representing classes

and individuals; 𝑃 is a set of nodes representing

properties; and 𝐸 is a set of edges representing

property instances and other relationships between

nodes in the graph 𝐺. 𝐸⊆𝑁𝑃𝑁. 𝑁 includes

both 𝑁



(Named Classes and Individuals) and

𝑁



(Anonymous classes and individuals). 𝑃 contains

𝑃



(user defined Properties) and 𝑃



(OWL/RDFS

properties such as rdfs:subClassOf and

owl:disjointWith ).

The inheritance hierarchy of an ontology can be

described as 𝐺





〈

𝑁



,𝑃



,𝐸



〉

, where 𝑁



is the set of

nodes representing classes

𝑃



is the RDF property

rdfs:subClassOf

and 𝐸



is the set of edges

representing the inheritance relationship

(rdfs:subClassOf) among classes (Zhang et al., 2010).

4.2 Common Formal Notation

We use the following formal notation to represent

some terms that we will need for discussing the

complexity metrics. Small letters are used to identify

the notations related to concepts and relations, while

capital letters are used to identify the terminology

related to ontology and some metrics(Zhe et al.,

2006).

𝐶



𝑐



,𝑐



,𝑐



,…,𝑐





: The set of 𝑚 classes

defined in the ontology.

𝑅



𝑟



,𝑟



,𝑟



…,𝑟





: The set of relations each

class has.

𝑃



𝑝



,𝑝



,𝑝



,…,𝑝





: The set of paths each

class has. In fact, a different path has its own length,

thus the path length is defined as the sum of relations

on the path.

𝑝𝑙



𝑝𝑙

,

,𝑝𝑙

,

,…,𝑝𝑙

,



: represent the set of

path length of class 𝑐



. Path length of a particular

class states that the semantic distance between the

class and the general class. Therefore, the set of path

length of all classes in ontology is presented as: 𝑃𝐿 

𝑝𝑙

,

,…,𝑝𝑙

,



,…,𝑝𝑙

,

,…,𝑝𝑙

,



.

5 ADVANCED COMPLEXITY

METRICS OF ONTOLOGY

The advanced complexity metrics used in this work

includes: size of Vocabulary (SOV), Tree impurity,

the average number of paths per concept, the average

path length of ontology and coupling(Zhang et al.,

2010).

5.1 The Size of Vocabulary (SOV)

SOV measures the size of the vocabulary using

primitive metrics such as number of class. Given a

graph 𝐺

〈

𝑁,𝑃,𝐸

〉

of an ontology, 𝑆𝑂𝑉 is defined

as the sum of the named classes and named

individuals (𝑁



) and user defined properties (𝑃



𝑆𝑂𝑉 

𝑁



|𝑃



(1)

A higher 𝑆𝑂𝑉 implies that the ontology is big in

size and would require a lot of time and effort to build

and maintain it.

5.2 Tree Impurity (TIP)

This metric is used to measure how far an ontology

inheritance hierarchy 𝐺





〈

𝑁



,𝑃



,𝐸



〉

deviates from

a tree (Zhang et al., 2010). It is defined as:

𝑇𝐼𝑃 

𝐸





𝑁



1

(2)

Where 𝐸



is the number of rdfs:subClassOf edges

and 𝑁



is the number of nodes (including both named

and anonymous) in an ontology’s inheritance

hierarchy. The greater the TIP, the more an

ontology’s inheritance hierarchy deviates from a pure

tree structure, and the greater the complexity of an

ontology. A 𝑇𝐼𝑃  0 means that the inheritance

hierarchy is a tree.

5.3 Average Number of Paths per

Concept

The average number of paths per concept ( 𝜌 ) -

indicates the average connectivity degree of a concept

to the root concept in the ontology inheritance

hierarchy(Lourdusamy & John, 2018). It is defined as

KEOD 2020 - 12th International Conference on Knowledge Engineering and Ontology Development

136

ratio of the total number of path on the total number

of classes (𝑚):

𝜌

∑

𝑝







𝑚

)

For any ontology,𝜌 must be greater than or equal

to 1 (each concept must have a parent except for the

general concept). If 𝜌  1, then the ontology is a tree

(each concept has a single parent, and thus a single

path to the most general concept). An ontology with

a higher 𝜌 states that changes in a class would have a

large impact on its subclasses (each concept has

multiple parents, and thus multiple paths to the most

general concept).

5.4 The Average Path Length

The average path length (Λ



) indicates the average

number of concepts in a path in the ontology(Zhe et

al., 2006). It is defined as:





∑∑

𝑝𝑙

,











∑

𝑝









)

This metric is obtained from the ratio of the sum

of the path lengths (𝑝𝑙

,

) of each of the 𝑚 concepts

in the ontology over the sum of the number of paths

( 𝑝



) of concepts. An ontology with a bigger Λ



indicates that there are too many inheritance

relationships in the ontology; as a consequence, the

management and manipulation of concepts in such

ontology could be a complex task.

5.5 Coupling

Coupling reflects the number of external classes from

imported ontologies that are referenced in the intern

(local) ontology. Similar to measuring the software

modules coupling metrics, coupling of ontologies

measures the relatedness of the local ontology with

other existing ontologies or vocabularies that are used

for building this ontology(Ouyang et al., 2011). It is

defined as:

𝐶𝑜𝑢𝑝



𝑂







𝑅𝑒𝑓𝑂





𝑁𝐸𝐶𝑂





)

Where 𝑅𝑒𝑓𝑂



the number of external classes is

referenced and 𝑁𝐸𝐶𝑂



 represents the number of

external classes. The stronger coupling in ontologies,

the more difficult to understand, maintain, and more

complex the systems that use these ontologies.

6 EXPERIMENTS SETUP

A set of appropriate experiments have been arranged

in order to study the complexity of the well-known

selected Cultural Heritage ontologies. The detailed

information of these datasets is summarized in Table

1. As proof of concept, the advanced complexity

metrics are computed using Java OWL API (Horridge

& Bechhofer, 2011). Finally, it is important to note

that all the experimental simulations were conducted

on a personal computer under Windows 10, with intel

core i7 2.70 GHZ processor and 16 GB RAM.

6.1 Datasets

The dataset is composed of 20 ontologies of the CH

domain. Each ontology in the dataset is assigned an

index 𝑂



, 1  𝑖  20 to facilitate its reference in

the discussion. Table 1 shows the list of ontologies in

the dataset with their names and web links. The XML

files are web documents that include the RDF/OWL

files of the corresponding ontologies.

Table 1: The studied CH ontologies.

Index Ontology Category Web Link

𝑂



FRBR Actor https://vocab.org/frbr/core

𝑂



Hico Event http://hico.sourceforge.net/

𝑂



Bio Actor https://vocab.org/bio/

𝑂



Cito Event https://w3id.org/spar/cito/

𝑂



Pro Event https://w3id.org/spar/pro/

𝑂



bibo Actor http://bibliontology.com/

𝑂



Fabio Actor https://lov.linkeddata.es/dataset

𝑂



Cidoc Event+Actor+Palce http://www.cidoc-crm.org/

𝑂



Cultur Event https://lov.linkeddata.es/dataset/

𝑂



CulturalOn Event https://lov.linkeddata.es/dataset/

𝑂



Event Event https://lov.linkeddata.es/dataset/

𝑂



SEAS Event https://lov.linkeddata.es/dataset/l

𝑂



SEM Event https://lov.linkeddata.es/dataset/l

𝑂



Tp Place https://lov.linkeddata.es/dataset/l

𝑂



DOLCE Event http://www.ontologydesignpatter

𝑂



GVP Event+Place https://lov.linkeddata.es/dataset/l

𝑂



Ctlog Event https://lov.linkeddata.es/dataset/l

𝑂



Cdesc Event+Place+Actor https://lov.linkeddata.es/dataset/l

𝑂



Drammar Event+Actor+Place https://lov.linkeddata.es/dataset/l

𝑂



ddesc Event+Place+Actor https://lov.linkeddata.es/dataset/l

6.2 Primitive Metrics

In order to calculate the advanced complexity metrics

for all the ontologies in the dataset, it was

necessary to specify the basic semantic characteristics

of these ontologies such as the number of classes,

properties(Datatype Properties and Object Properties)

and instances. Overall, Figure 1 shows that the

Measuring Design Complexity of Cultural Heritage Ontologies

137

majority of selected ontologies for this study had a

high number of primitive metrics.

6.3 Experimental Result and

Discussions

The main goal of this work is to analyze the advanced

complexity features of the CH ontologies and their

impact on the ontology evolution and reuse. In this

context, each one of the advanced complexity metrics

is calculated and discussed in the following sections.

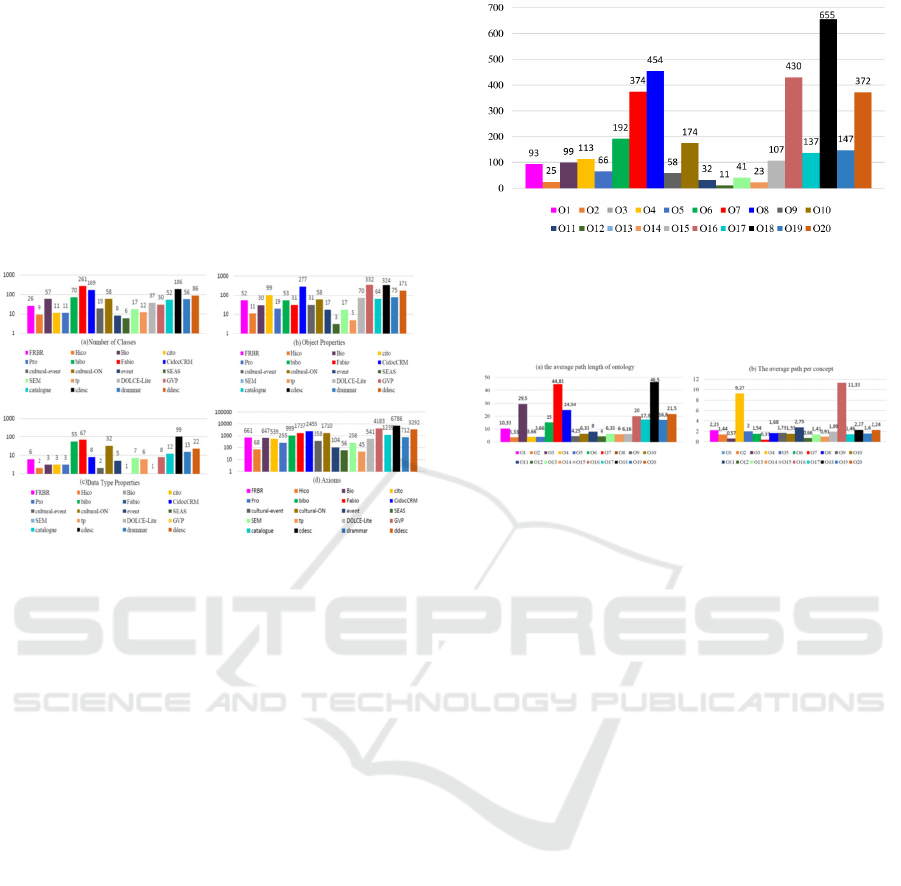

Figure 1: The primitive metrics of the studied CH

ontologies.

6.3.1 Size of the Vocabulary (SOV)

Figure 2 presents the results of the SOV the

measurement for all ontologies in the dataset. The

SOV ranges from 11 to 655, showing different

amounts of vocabulary used. The majority of

ontologies have a SOV between 50 and 700, followed

by those with a SOV between 20 and 40. These results

indicate that it would be beneficial for semantic web

developers in the CH domain to consider the reuse of

these ontologies (bibliographic ontology ( 𝑂



SOV=374), Event ontology (𝑂



, SOV=454), Place

ontology ( 𝑂



and 𝑂



, SOV=430 and 372) and

General ontology (𝑂



, SOV=655)) rather than trying

to build new related ontologies de novo. SOV of these

ontologies also states that they would require a larger

amount of time and effort to re-build and

maintain(Zhang et al., 2010).

Figure 2: The Size of Vocabulary of the studied ontologies.

6.3.2 Average Path Length (𝚲



), and Average

Number of Paths per Concept (𝝆)

Figure 3: the average path length and number of Paths per

concepts.

Figure 3 presents a joint analysis of the average path

length of the ontology and the average number path

per concept. These two metrics for all ontologies are

grouped into 2 ranges. The two ranges for Λ



are: 0



10 and 10  Λ



50. Figure 3(a) depicts that

the majority of ontologies have Λ



in the range 0 



50, while others in the first range. This indicates

that the ontologies have a high Λ



. Therefore, a greater



shows that the class resides deeper in the

inheritance hierarchy and reuse more information

from its ancestors such as

𝑂



𝑂



, etc. A high Λ



also states that the class is more difficult to maintain

as it is likely to be affected by changes in any of its

ancestors. In the same context, the two ranges for 𝜌

are: 𝜌1 and 𝜌  1. From the analysis of the value

of the 𝜌 (Figure 3 (b)), one can confirm that the most

of ontologies in the datasets have multiple path from

the root class to a given class, which indicates that

nearly all ontologies relies on the network (graph)

model type rather than hierarchical model type

(Tree)(Baliyan & Kumar, 2016). More precisely,

ontologies with small 𝜌 (𝜌1) indicate that changes

in a class would have a less impact on its

subclasses(Zhe et al., 2006).

6.3.3 Tree Impurity (TIP)

Figure 4 presents results of computing TIP for all the

ontologies in the dataset. It is noticed that an

important number of ontologies have TIP between

KEOD 2020 - 12th International Conference on Knowledge Engineering and Ontology Development

138

100 and 2500 followed by those with TIP below 40.

This empirical result shows that the most of

ontologies adopt multiple inheritance (TIP>>0) and

their inheritance hierarchy deviates heavily from a

pure tree structure (

𝑂



=1377,

𝑂



𝑂



=2295,

𝑂



=2446, etc.). Specifically, this indicate that this

ontologies cannot be easily maintained except

𝑂



𝑂



𝑂



which have TIP 42,21,20,29 respectively.

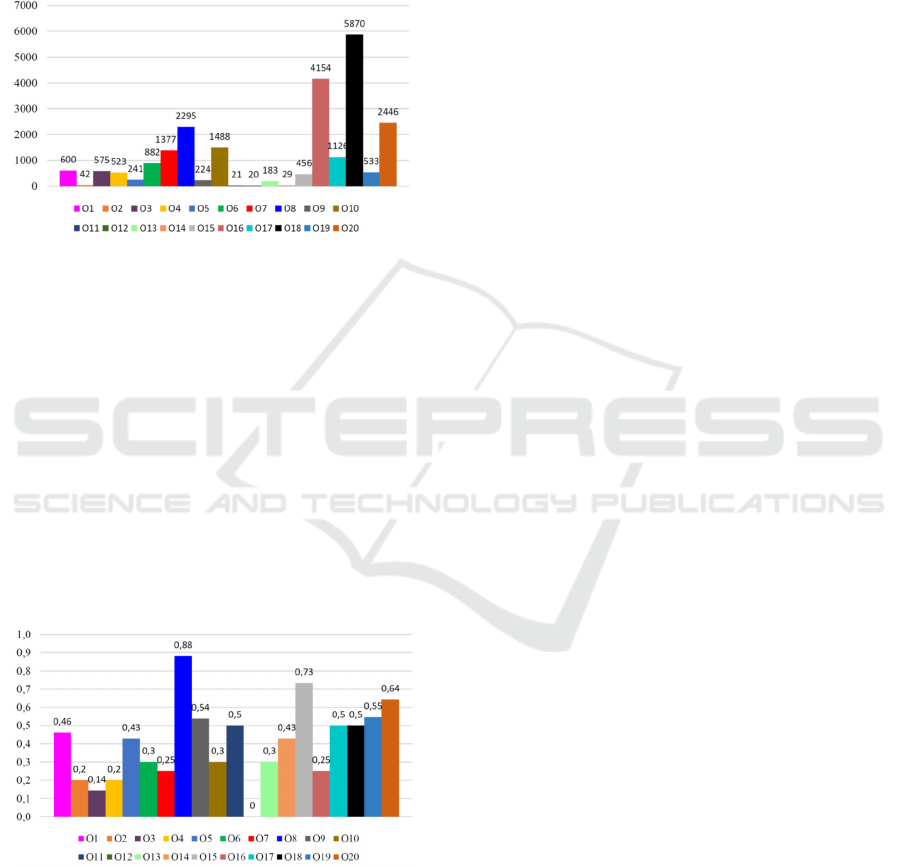

Figure 4: The Tree Impurity of the studied ontologies.

6.3.4 Coupling

Considering the result presented in Figure 5, It is

clearly seen that the coupling of the following

ontologies:

𝑂



𝑂



𝑂



𝑂



𝑂



𝑂



𝑂



𝑂



greater than 0.5 which indicates that all these

ontologies are related with other existing

vocabularies and contain a high number of external

classes and references to external classes. For

instance the coupling of CIDOC-CRM is 0.88, this

value states that the

𝑂



has a strong coupling.

Therefore, the ontologies with a strong coupling are

the more difficult to understand and maintain(Orme

et al., 2006).

Figure 5: The coupling measure of the studied ontologies.

Broadly speaking, by using these metrics, we find that

the large size of vocabulary, bigger average Number

of Paths per concept (𝜌) and average path length (Λ



)

indicate that CH ontologies in the dataset are highly

complex. Therefore, it would be advised to consider

the reuse and sharing of these ontologies rather than

trying to build similar ontologies from scratch. By

means of the TIP metric, the ontology engineer can

check if the design of the ontology follows good

classification principles. Through the coupling

metric, the ontology engineer can check the

relatedness of the local ontology with external

ontologies. Therefore, the analysis of the TIP and

coupling revealed that the majority of studied CH

ontologies can be difficult to maintain.

One may perceive that the larger the number of

classes, properties, and axioms is a strong point to

study the ontology complexity and they consider that

the larger number of primitive metrics, the more

complex an ontology is. However, we will argue that

it is very difficult to measure ontology complexity

with primitive metrics. Take the Fabio ontology as an

example. It is one of the largest ontologies with 261

classes. Another ontology, the CIDOC-CRM (169

classes) that contains a number of classes less than

Fabio ontology. However, the empirical result shows

that CIDOC-CRM has a large TIP compared to Fabio

ontology TIP (CIDOC-CRM TIP = 2295, Fabio TIP

=1377. In addition, the coupling metric exhibits that

CIDOC-CRM has a stronger coupling (Coupling =

0.87) than FABIO ontology (Coupling = 0.37). In

other words, we cannot use the primitive metrics to

measure the ontology complexity aspect in order to

achieve more complete understanding of these

ontologies.

7 CONCLUSION

In this paper, we have provided an analysis of some

advanced complexity metrics of 20 cultural heritage

ontologies. These metrics encompass the size of

vocabulary (SOV), the tree impurity (TIP), coupling,

average path length (Λ



), and average Number of Paths

per Concept (𝜌). This empirical evaluation shows that

the provided metrics can differentiate ontologies with

distinct degree of complexity. The metrics could

serve as ‘‘indicators” of the ontology complexity,

helping ontologist to understand the development

status, gain an overall picture of ontology complexity,

and identify potential problematic areas. The

evaluation result portrays that the majority of these

ontologies have large SOV, bigger average path

length and average number of paths per concept.

These findings indicate that the CH ontologies in the

dataset are highly complex. In this context, it is better

to consider the reuse and sharing of these ontologies

in the CH domain rather than trying to build similar

ontologies from scratch. Furthermore, the analysis of

TIP and coupling reveals that the studied CH

Measuring Design Complexity of Cultural Heritage Ontologies

139

ontologies cannot be easily maintained. In the future,

we plan to develop a system for distinguishing the

ontologies based on their level of complexity. We will

then further study the correlation between the

ontology validation (Complexity) and the ontology

verification (Correctness).

REFERENCES

Baliyan, N., & Kumar, S. (2016). A behavioral metrics suite

for modular ontologies. Proceedings of the Second

International Conference on Information and

Communication Technology for Competitive

Strategies, 1–4.

Brank, J., Grobelnik, M., & Mladenic, D. (2005). A survey

of ontology evaluation techniques. Proceedings of the

conference on data mining and data warehouses

(SiKDD 2005), 166–170.

DeMarco, T. (1982). Controlling software projects :

Management, measurement & estimation (Vol. 1133).

Yourdon Press New York.

Doerr, M. (2009). Ontologies for cultural heritage. In

Handbook on ontologies (p. 463–486). Springer.

Gómez-Pérez, A. (2004). Ontology evaluation. In

Handbook on ontologies (p. 251–273). Springer.

Guarino, N., & Poli, R. (1993). Toward principles for the

design of ontologies used for knowledge sharing. In

Formal Ontology in Conceptual Analysis and

Knowledge Representation, Kluwer Academic

Publishers, in press. Substantial revision of paper

presented at the International Workshop on Formal

Ontology.

Harrison, R. (2015). Beyond “natural” and “cultural”

heritage : Toward an ontological politics of heritage in

the age of Anthropocene. Heritage & Society, 8(1), 24–

42.

Horridge, M., & Bechhofer, S. (2011). The owl api : A java

api for owl ontologies. Semantic web, 2(1), 11–21.

Hyvönen, E. (2009). Semantic portals for cultural heritage.

In Handbook on ontologies (p. 757–778). Springer.

Hyvönen, E. (2012). Publishing and using cultural heritage

linked data on the semantic web (Vol. 3). Morgan &

Claypool Publishers.

Koch, I., Freitas, N., Ribeiro, C., Lopes, C. T., & da Silva,

J. R. (2019). Knowledge Graph Implementation of

Archival Descriptions Through CIDOC-CRM.

International Conference on Theory and Practice of

Digital Libraries, 99–106.

Lourdusamy, R., & John, A. (2018). A review on metrics

for ontology evaluation. 2018 2nd International

Conference on Inventive Systems and Control (ICISC),

1415–1421.

Maedche, A., & Staab, S. (2001). Ontology learning for the

semantic web. IEEE Intelligent systems, 16(2), 72–79.

Nafis, F., Yahyaouy, A., & Aghoutane, B. (2019).

Ontologies for the classification of cultural heritage

data. 2019 International Conference on Wireless

Technologies, Embedded and Intelligent Systems

(WITS), 1–7.

Nikiforova, O., Sejans, J., & Cernickins, A. (2011). Role of

UML class diagram in object-oriented software

development. Applied Computer Systems, 44(1), 65–74.

Orme, A. M., Tao, H., & Etzkorn, L. H. (2006). Coupling

metrics for ontology-based system. IEEE software,

23(2), 102–108.

Ouyang, L., Zou, B., Qu, M., & Zhang, C. (2011). A method

of ontology evaluation based on coverage, cohesion and

coupling. 2011 Eighth International Conference on

Fuzzy Systems and Knowledge Discovery (FSKD), 4,

2451–2455.

Tartir, S., Arpinar, I. B., & Sheth, A. P. (2010). Ontological

evaluation and validation. In Theory and applications

of ontology : Computer applications (p. 115–130).

Springer.

Vecco, M. (2010). A definition of cultural heritage : From

the tangible to the intangible. Journal of Cultural

Heritage, 11(3), 321–324.

Vrandečić, D. (2009). Ontology evaluation. In Handbook

on ontologies (p. 293–313). Springer.

Zhang, H., Li, Y.-F., & Tan, H. B. K. (2010). Measuring

design complexity of semantic web ontologies. Journal

of Systems and Software, 83(5), 803–814.

Zhe, Y., Zhang, D., & Chuan, Y. E. (2006). Evaluation

metrics for ontology complexity and evolution analysis.

2006 IEEE International Conference on e-Business

Engineering (ICEBE’06), 162–170.

KEOD 2020 - 12th International Conference on Knowledge Engineering and Ontology Development

140
