Evaluation of Cities’ Smartness through Multidimensional Platform

of Performance Indicators

Dessislava Petrova-Antonova

and Martin Minkov

GATE Institute, Sofia University, 125 Tsarigradsko shose Blvd., Sofia, Bulgaria

Faculty of Mathematics and Informatics, Sofia University, 5 James Bourchier Blvd., Sofia, Bulgaria

Keywords: Architecture of Platform, Conceptual Data Model, Performance Indicators, Smart City.

Abstract: A lot of cities are working on their digital transformation in order to deliver better living environment for their

citizens. There are many research efforts focused on measuring the performance of such transformation

through specific methodologies and indicators covering variety city dimensions. The complexity of cities as

well as the heterogeneity of data that they produced bring challenges to development of platforms for

multidimensional evaluation and smart level assessment of a city. In order to address such challenges, this

paper proposes a conceptual data model and an architecture of a plat-form for performance assessment of

smart cities. For assessment of economic performance, 4 indicators are considered to be implemented and are

presented in the paper: Gross Domestic Product, New Business Registered, Median Disposable Income and

Human Development Index. The proposed platform is designed to be integrated – continuously supplied with

city data, scalable – open-ended for implementation of new indicators, multidimensional – designed to cover

all city dimensions and agile – evolve in step with the changing requirements.

1 INTRODUCTION

A fast-growing percentage of the population lives in

urban areas. The United Nations reported that 55% of

the world’s population lives in urban areas and is

expected to increase to 68% by 2050 (UN, 2018).

Realizing the trends in urbanization is a key factor for

successful development. The pace of urbanization is

projected to be the fastest in the low-income and

lower-middle-income country. Cities face challenges

in meeting the needs of their growing population,

including but not limited to the energy, transportation,

housing, healthcare and education. This requires

informed decisions to be taken in a timely manner.

City managers and communities are open to adopt

new solutions that can bring more efficient

management of resources, availability of relevant

services, and long-term sustainable behaviour.

A lot of management systems have already

incorporated the continuous inspec-tion of the effects

of actions and process improvement. The

management of the productivity through performance

measurement receives a wider adoption. The city

authorities and policy makers are aware with this

https://orcid.org/0000-0002-9920-8877

idea, but its adoption brings a lot of challenges

(Neumann et al., 2015):

 Monitoring and evaluation frameworks for

cities have to be created;

 Lack of consistent policies implemented

towards the smart city objectives;

 Vendor and technology locking of some

solutions;

 Data privacy and security;

 Difficulties to identify solutions that offer

benefits for all aspects of a city;

 Measuring "smart services" impact,

performance and effectiveness.

It is acknowledged that adequate and sustained

decisions need an accurate perception of the

processes and environment. At the same time,

examination of whether the expected effects match

the actual results also need a way to explore the

current situation, or at least some of its

characteristics, and to assess the changes. However,

the city is a complex system and capturing all its

dimensions is a time and cost consuming process.

Therefore, it is more effective to evaluate certain

dimensions and give them quantified and qualitative

140

Petrova-Antonova, D. and Minkov, M.

Evaluation of Cities’ Smartness through Multidimensional Platform of Performance Indicators.

DOI: 10.5220/0010024401400146

In Proceedings of the 12th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2020) - Volume 3: KMIS, pages 140-146

ISBN: 978-989-758-474-9

expression through performance indicators. The

indicators enable easier comprehension without

losing representability.

In the context of smart cities, performance

indicators are considered as a tool to check whether

and to what extent the intended consequence of an

action or policy is realized. There are two major

groups of indicators – project indicators and city

indicators. This work is focused on the latter,

although many of the concepts might be valid for the

former as well. Additionally, the indicators can be

used not only for assessment of the city performance

itself, but to compare the cities, especially when the

effect of replicated solution should be measured.

Thus, there are four cases of indicators’ application:

(1) assessment of performance of a single city in the

present, (2) assessment of performance of a single

city in the future, after some actions are completed or

solutions are implemented, (3) comparison of the

cities in the present, and (4) comparison of the cities

in the future.

This paper proposes a conceptual data model and

an architecture of a platform for flexible performance

assessment of smart cities through a range of

indicators covering all city dimensions such as living,

people, transport, etc. The indicators give a valuable

insight into the extent to which the city is becoming

“smarter” and outline the driving factors for

sustainable development.

The rest of the paper is structured as follows.

Section 2 is devoted on the state of the art. Section 3

presents the conceptual data model, while Section 4

defines the indicators currently considered for

implementation and validation of the platform.

Section 5 describes the platform’s architecture.

Finally, Section 6 summarizes the paper and provides

directions for future work.

2 STATE OF THE ART

An increasing number of smart city initiatives exist

all over the world aiming to deliver better planned,

more connected and more liveable cities. Amsterdam

in the Netherlands, Barcelona in Spain and

Stockholm in Sweden are remarkable examples for

implementation of smart city vision. A significant

number of events such as conferences and exhibitions

dedicated on smart cities are held every year. In 2011,

a global event Smart City Expo World Congress was

launched in Barcelona (Smart City Expo World

Congress, 2011). Annual country-specific events,

such as, the Smart Cities Week in Washington DC

(2018), the Telegraph Britain’s Smart Cities

Conference (2018) and Conference for South-East

Europe in Sofia, Bulgaria (2018) are also organized.

There are a lot of FP7 and Horizon 2020 projects

and research initiatives related to smart cities, such

EIP-SCC Market Place, SMARTIE, EU CIP Open

Cities, FIWARE, FINESCE, etc. All current activities

are mainly focused on improving the current living

conditions in cities and are often related to specific

city dimensions such as e-ticketing, smart street

lights, pollution reduction, etc. But what is beyond the

smart city is the information-rich city presented with

intelligent models that support planning, design and

analysis of all city dimensions.

As was reported in our previous work, there are

huge number of key performance indicators (KPIs)

defined as well as several available tools and

platforms to analyse and evaluate smart city’s

performance (Petrova-Antonova and Ilieva, 2018).

Benchmarking procedures have been proposed for

comparative analysis and ranking of cities (Garau et

al., 2005; Giffinger, 2007, Shields and Langer, 2009;

Afonso et al., 2015; O’Neill and MacHugh, 2015). On

the other hand, there is a number of assessment

procedures based of multidimensional approach for

measuring effects of smart city initiatives (UN, 2007,

Minx et al., 2010; Rosales, 2010; Priano and Guerra,

2014; Orlowski et al., 2016; Bosch et al., 2017; Tanda

et al., 2017; Marijuan et al., 2017). To the best of our

knowledge, most of proposed smart city evaluation

approaches and instruments only allows to assess the

current situation of a city without connecting it with

a technological solution allowing for continuous

monitoring and evaluation of city’s digital

transformation using urban data from stakeholders

and physical objects.

3 CONCEPTUAL DATA MODEL

The analysis of a straightforward case of

implementation – one which simply transmits already

available values – is not applicable. Thus, let’s

examine a situation where data needs to be obtained

from multiple sources in terms of different levels of

distance from the primary data origin, as well as

different level of transformation of the data.

Furthermore, some sources may have already

calculated indicators’ values for other purposes and

reduce the role of the platform as simple transmitter.

Others might simply be a plain access point for raw

sensor data and make the platform a primary

processor. Finally, there are indicators’ values that

provide already pro-cessed data, which might serve a

dual purpose – both as direct output and used in

Evaluation of Cities’ Smartness through Multidimensional Platform of Performance Indicators

141

intermediary calculations within the platform (see

Fig. 1).

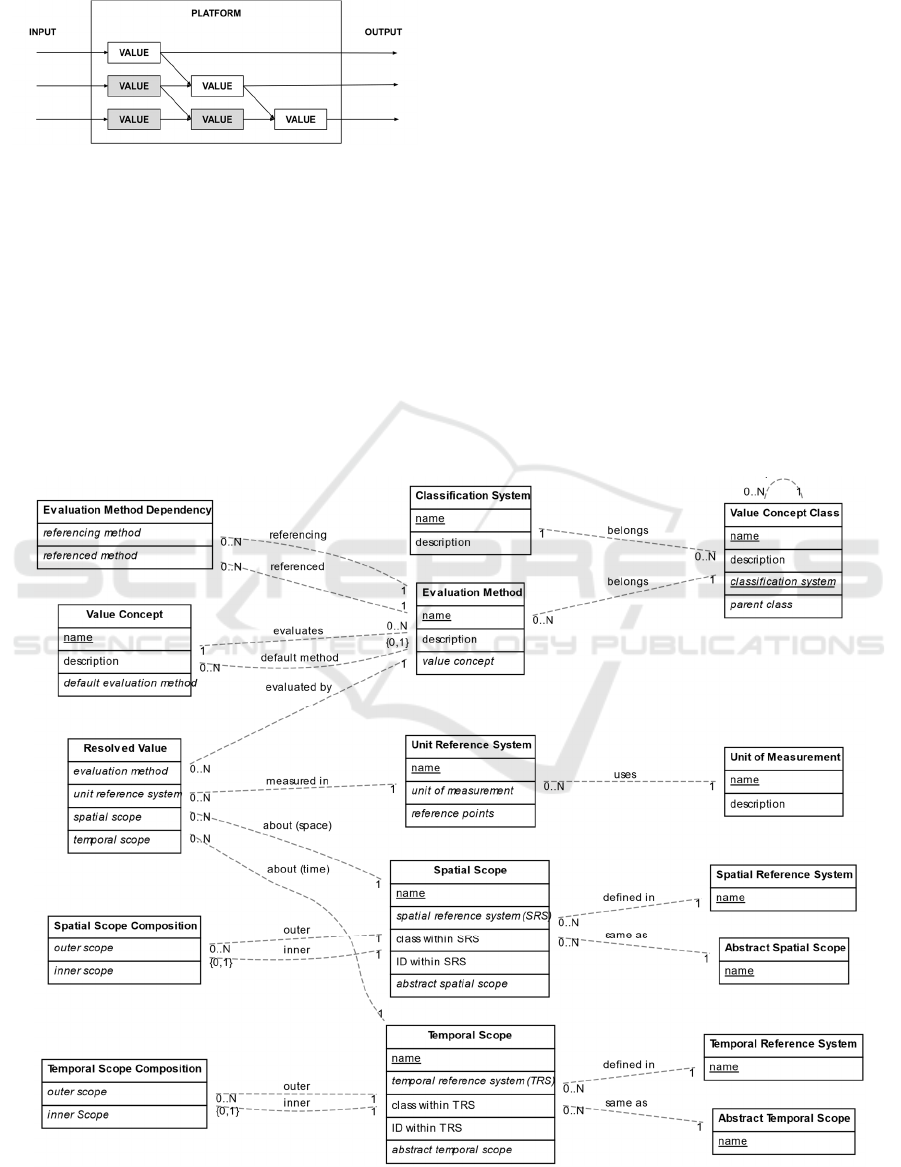

Figure 1: Different levels of processing within the platform.

Not all data incoming into the platform is raw

data. There are two kinds of values calculated within

the platform – intermediary ones and final indicators.

And then, there those that have dual purpose – both

as intermediary and final. Considering all of the

above, it is proposed that data should be modelled

within the platform in a general sense, suspending the

existing distinctions between initial measurements,

primary data, intermediary values and final indicator

values. As a result, the conceptual model, shown in

Fig. 2, is proposed.

The data becomes information only once it's been

linked to a context (a meaning). For example, the

percentage “56%” on its own does not indicate any

usable resource. Attaching it to a label of "portion of

the green areas that have tree plantations" al-lows us

to know the fields to forests ratio. When the smallest

piece of datum is considered it can be posed that this

quantum of data cannot and should not be modelled

for the purposes of smart city indicators. A first step

is to combine it with a label (meaning) and end up

with a "concept"–"value" pair. The “label” will be

referred in the model as Value Concept (VC) –

representing what are the semantics of the datum –

while the datum itself is designated as a Resolved

Value (RV). From this starting position there are four

directions for further consideration:

 Situational reference – What the value is about?

 Resolution – How the value is arrived at?

 Origin – What is the lineage of the data that was

transformed to the eventual resolved value?

 Classification of the concept with a scheme or

framework.

Figure 2: Conceptual Data Model.

KMIS 2020 - 12th International Conference on Knowledge Management and Information Systems

142

On its own a named value remains sufficiently

abstract to be actionable in practice as it lacks

reference to the real world. An open question is what

part of space and time does it apply to. Thus, the

"concept" is what the value is, while the scope is

where the value is valid. That is why a four-

dimensional model is adopted, where a Spatial Scope

(SS) and Temporal Scope (TS) are added to the value

(Bosch et al., 2016).

There are several geographic reference systems,

which not necessarily match or reference one another.

A scope must be aware of which reference system it

refers to, along with a specification of the object.

Thus, a scope needs to refer to a scope reference

system, a type within that reference system and an

identifier (or specification) of an element of that type

within that reference system. Due to possibility the

same objects existing in different data sources to

follow different reference systems, an Abstract

Spatial Scope (ASS), which creates relations between

them, is introduced.

The choice of unit reference system influences the

compatibility of indicators. It is recommended that

indicators should avoid being in absolute units and

instead be either in ratios or be without a unit at all

(Bosch et al., 2017). Suggested techniques for

improving the comparability of values include

normalization (mapping to a fixed scale, e.g., 0 to 10)

and standardization, e.g., by using z-transformation

(Giffinger et al., 2007). The Likert scale also allows

for a unified representation of values, but the

boundaries of the scale should be preliminary known.

Therefore, the conceptual model requires an

intermediary – Unit Reference System (URS) – which

should specify both the unit as well as those

boundaries as “reference points”.

From the perspective of the platform’s users when

they request the value of a concept (for a specific

spatial and temporal scopes) and receive it, they don’t

necessarily care whether it was calculated within the

platform or it was taken from external source. When

the indicator’s value is calculated by the platform, a

calculation method should be available. If the value is

obtained form an external source, then it can be

externally calculated or simply measured. The

proposed conceptual model considers both

calculation and measured (sensing) methods and

describes them as an Evaluation Method (EM). Since

a value concept might change the method for its

evaluation while keeping the name, it is appropriate

to link a resolved value with an evaluation method,

and to define a second level reference to a value

concept. Thus, the evaluation method reduces the

value concept to an alias, a named pointer to a method

or a resolved value’s semantics. When the calculation

of a value depends on other values, that relationship

is represented in an Evaluation Method Dependency

(EMD). The dependency complies the spatial and

temporal scopes.

The general algorithm for resolution is presented

in Fig. 3.

Figure 3: General Resolution Algorithm.

Another open question is the origin of the

indicator’s value. When the value is calculated within

the platform the answer is straightforward. However,

if a value is obtained from an external system, there

are 2 possible situations: (1) if the value is directly

obtained from the external system, then the latter can

be seen as its origin and (2) if the value is calculated

by the external system, but is obtained from a third-

party system (e.g. by sensing), than the third-party

system can be seen as its origin. Since the origin of a

value does not affect the calculation process of the

platform the origin of values will not influence the

current design.

There are variety classification schemes that can

be used for grouping of indicators and/or classifying

them in hierarchical categories. For example, in our

previous work the indicators are classified in six

exists?

Has

EMDs?

Has SS? Has TS?

Resolve RVs of

dependent EMs

Get related spatial

scopes

Get related temporal

scopes

Get RVs for related

spatial scopes

Get RVs for related

temporal scopes

Use spatial

transition function

over RVs

Use temporal

transition function

over RVs

Calculate over

dependent RVs

RV no RV

Return

yes

yes yes

yes

no no

Evaluation of Cities’ Smartness through Multidimensional Platform of Performance Indicators

143

thematic areas, namely Smart Nature, Smart Living,

Smart Mobility, Smart Governance, Smart People

and Smart Economy (Petrova-Antonova and Ilieva,

2018). That is why the conceptual data model allows

specification of indicator’s classification schemes by

introducing a Classification System. Using the Value

Concept Class, a hierarchy of classes can be defined.

4 PERFORMANCE INDICATORS

OF THE PLATFORM

The current implementation of the platform considers

3 indicators for economic performance, described in

CITYkeys project (Bosch, et al., 2017) and Human

Development Index, proposed by the United Nations

Development Programme (UN, 2019):

 Gross Domestic Product (GDP) – gross

domestic product per capita;

 New Business Registered (NBR) – number of

new businesses per 100,000 population;

 Median Disposable Income (MDI) – median

disposable annual household income;

 Human Development Index (HDI) –

assessment of average achievement in the most

important dimensions of human development,

measured by 3 separate indexes: Life

Expectancy Index (LEI), Education Index (EI)

and Gross National Income Index (II), based on

GNI Index.

The GDP is a widely accepted measure for

economic performance, which provides an aggregate

measure of production. The indicator is calculated

according to the following equation:

ercapit

opulatio

(1)

The NBR assesses the overall business climate

and entrepreneurship attitude. It is calculated

according the following equation:

er100000capit

opulation×10000

(2)

The MDI is related to economic wealth related to

improve access to quality education, housing and

healthcare. The total disposable household income is

computed as total household gross income, reduced

to regular taxes on wealth, regular inter-household

cash transfer paid, tax on income and social insurance

contributions (Eurostat, 2011). The median is the

middle value, i.e. 50% of all observations are below

the median value and 50% above it (Bosch et al.,

2017), and is calculated as follows:

MDI

household

Income

household

(3)

The HDI is a geometric mean of normalized

indices for each of the three dimensions of human

development, described so far, as follows:

HDI

√

LEI×EI×I

(4)

The life expectancy at birth is defined as “the

number of years a new-born infant could expect to

live if prevailing patterns of age-specific mortality

rates at the time of birth were to stay the same

throughout the child’s life” (UN, 2010). The LEI is

based on a minimum value of 20 years and a

maximum value of 85 years. The II is calculated using

the natural logarithm of GNI per capita adjusted by

PPP, which minimum value is $100 and maximum

value is $75,000 (UN, 2015). The EI is composed by

two indicators, namely the Mean Years of Schooling

(MYS) for adults aged 25 years and older, and the

Expected Years of Schooling for children of school

entering age. It is defined as follows:

 =

 + 

(5)

The LEI, II, MYS and EYS indexes are calculated

as follows:

Index

actualvalu

-minimumvalu

maximumvalue=minimumvalu

(6)

5 PLATFORM ARCHITECTURE

The high-level architecture of the platform is shown

in Fig. 4. The Data Store is implemented as a

relational database. Each concept from the conceptual

model has a corresponding table in the database. The

data can be collected automatically via APIs or

manually imported by the users. The automatic data

acquisition supports both pull and push methods. The

push method requires the data to be transmitted in

real-time and typically it belongs to a single primary

source. The pull method allows data to be batch

processed at different intervals (e.g. via a schedule).

It supports cross system integration, since data can be

integrated from many sources. Thus, the automatic

data acquisition supports both batch and real-time

dataflows through pull and push APIs.

KMIS 2020 - 12th International Conference on Knowledge Management and Information Systems

144

Figure 4: Architecture of the Platform.

One of main features of the platform is data

collection from multiple sources. Since the raw data

cannot be used directly for calculation of the

indicators, different techniques should be applied to

provide a semantic interoperability, as follows:

 Data profiling – process raw data to collect

statistics and define rules and constrains;

 Data tokenization – replace sensitive data with

tokens (random strings of characters) that keep

the essential information about the data without

compromising security.

 Data filtering – remove records, which are not

compliant with data rules and constraints

(duplicate rows, incorrect information, etc.);

 Data transformation – transform data according

to the rules and constrains, including

normalization of values;

 Data standardization – convert the structure of

a dataset into a uniform format;

 Outliers detection – find outliers with extreme

values that deviate from other observations on

data.

Data enrichment is an additional step towards

producing high quality datasets. The data from a

given dataset are merged with third-party data from

external authoritative source to produce more deep

insight. Along with data quality, the management of

metadata are the second important feature of the Data

Store. The metadata make it easy to find and process

particular instances of data. In order to increase the

discoverability of datasets and data services the Data

Store relies on the Data Cata-log Vocabulary (DCAT)

proposed by W3C. DCAT enables datasets and data

services to be described in a catalogue using a

standard model and vocabulary facilitating the

consumption and aggregation of metadata (W3C,

2020). The data quality and metadata are closely

connected. The metadata put the data in a context, and

thus turn facts into actionable information. Both data

and metadata are parts of the data catalogue, which

acts as an inventory of data assets in the Data Store.

In addition, it provides secure access to the data assets

based on preliminary defined policies.

6 CONCLUSIONS

The cities are centres for people and economic

activities and therefore the main drivers of the

sustainable and inclusive growth. According to the

globally accepted United Nations Sustainable

Development Goals, they play a crucial role well-

being of the citizens by providing an access to the

employment, health and educations opportunities as

well as to civic and social engagement. The greater

opportunities in cities bring in turn a greater risk. That

is why their performance should be continuously

monitored and assessed based on clearly defined

indicators. For example, differences in GDP growth

by distance to large cities provide insight about their

impact on the economy. The rising of the population

density requires new solutions to be found. In such

context, a platform for flexible performance

assessment of smart cities is proposed. It is able to

handle a range of indicators covering all city aspects

such as living, people, transport, etc. The indicators

give a valuable insight into the extent to which the

city is becoming “smarter” and outline the driving

factors for sustainable development. The conceptual

data model of the platform and its architecture are

presented. Sample indicators for economic

performance that are considered to be implemented in

the platform are also described.

ACKNOWLEDGEMENTS

This research work has been supported by GATE

project, funded by the Horizon 2020 Widespread-

2018-2020 Teaming Phase 2 programme under grant

agreement no. 857155 and Big4Smart project, funded

by the Bulgarian national science fund, under

agreement no. DN12/9.

DATA SOURCES

File Data

Databases

SRM, CMS

Data Streaming

APIs

DATA AQUISITION

RAW DATA

CLEANED DATA

TRUSTED DATA

Transformation

Standardization

Filtering

Outlier detection

Data Discovery

Data Enrichment

Data processing

Reference

Data

Maste

Data

DATA STORE

Data

Profiling

Data

Tokenization

Pull

DISCOVERY SANBOX

Metadata

Quality Data

Data Catalogue

Security

Push

Evaluation of Cities’ Smartness through Multidimensional Platform of Performance Indicators

145

REFERENCES

Afonso R., dos Santos Brito K., Alvaro A., 2015. Brazilian

Smart Cities: Using a Maturity Model to Measure and

Compare Inequality in Cities. 16th Annual International

Conference on Digital Government Research, pp. 231-

238.

Bosch P., Jongeneel S., Rovers V., Neumann H., Vielguth

S., Huovila A., Seppä I. P., Penttinen T., van der

Heijden R., Kotakorpi E., Pangerl E., Neralić A. M.,

Funes D. S., 2016. Definition of data sets. CITYKeys

project 2.1 Deliverable.

Bosch P., Jongeneel S., Rovers V., Neumann H.,

Airaksinen M., Huovila A., 2017. CITYkeys list of city

indicators. CITYKeys project.

Bosch P., Jongeneel S., Rovers V., Neumann H.,

Airaksinen M., Huovila A., 2017. CITYkeys indicators

for smart city projects and smart cities: Deliverable

D1.4.

Eurostat, 2011. EU-SILC Description Target Variables,

https://ec.europa.eu/eurostat/documents/1012329/6070

906/Household+data+-+income.pdf.

Exhibition & Conference for South-East Europe in Sofia,

2018, https://www.clustercollaboration.eu/profile-

events/6th-exhibition-conference-south-east-europe-

sofia-bulgaria.

Garau Ch., Masala F., Pinna F., 2015. Benchmarking Smart

Urban Mobility: A Study on Italian Cities. ICCSA

2015, Part II, LNCS 9156, pp. 612-623.

Giffinger R., Fertner Ch., Kramar H., Kalasek R., Pichler-

Milanović N., Meijers E., 2007. Ranking of European

medium-sized cities. Centre of Regional Science,

Vienna University of Technology.

Marijuan A., Etminan G., Möller S., 2017. Smart cities

information system: Key performance indicator guide.

Minx J., Creutzig F., Medinger V., Ziegler T, Owen A.,

Baiocchi G., 2010. Development a pragmatic approach

to assess urban metabolism in Europe. European

environment agency.

Neumann H. et al., 2015. Overview of the Current State of

the Art. CITYKeys project 1.2 Deliverable.

O’Neill K. MacHugh I., 2015. Urban environment good

practice & benchmarking report. RPS Group, Ireland.

Orlowski C., Ziolkowski1 A., Orlowski A., 2016. High-

Level Model for the Design of KPIs for Smart Cities

Systems. TCCI XXV, LNCS 9990, pp. 1-14.

Petrova-Antonova D., Ilieva S., 2018. Smart cities

evaluation – А survey of performance and sustainability

indicators. 44th EUROMICRO Conference on

Software Engineering and Advanced Applications

(SEAA), Prague, Czech Republic, pp.486-493.

Priano F., Guerra C., 2014. A framework for measuring

smart cities. 15th Int. Conf. on Digital Government

Research, pp. 44-54.

Rosales N., 2010. Towards a design of sustainable cities:

incorporating sustainability indicators in urban

planning. 46th ISOCARP Congress, pp. 1-11.

Shields K., Langer H., 2009. European Green City Index.

Siemens AG.

Smart Cities Week in Washington DC, 2018.

https://www.smartcitiesweek.com/2018-washington/.

Telegraph Britain’s Smart Cities Conference,

2018.https://www.telegraph.co.uk/business/britains-

smart-cities/.

Smart City Expo World Congress, 2011. http://www.

smartcityexpo.com/en/the-event/past-editions-2011.

Tanda A., De Marco A., Rosso M., 2017. Evaluating the

Impact of Smart City Initiatives. In: 6th International

Conference on Smart Cities and Green ICT Systems,

pp. 281-28.

United Nations, 2019. Human Development Index,

http://hdr.undp.org/en/content/human-development-

index-hdi.

United Nations, 2007. Indicators of Sustainable

Development: Guidelines and Methodologies., 3rd

Edition.

United Nations, 2018. Revision of World Urbanization

Prospects,

https://www.un.org/development/desa/publications/20

18-revision-of-world-urbanization-prospects.html.

United Nations, 2010. The Real Wealth of Nations:

Pathways to Human Development, Human

Development Report, http://hdr.undp.org/sites/default/

files/reports/270/hdr_2010_en_complete_reprint.pdf.

United Nations, 2015. Training Material for Producing

National Human Development Reports,

http://hdr.undp.org/sites/default/files/hdi_training.pdf.

W3C, 2020. Data Catalog Vocabulary (DCAT) - Version 2,

https://www.w3.org/TR/vocab-dcat/.

KMIS 2020 - 12th International Conference on Knowledge Management and Information Systems

146
