Grammar-based Fuzzy Pattern Trees for Classiﬁcation Problems

Aidan Murphy

1 a

, Muhammad Sarmad Ali

1 b

, Douglas Mota Dias

1,2 c

, Jorge Amaral

2 d

Enrique Naredo

1 e

and Conor Ryan

1 f

University of Limerick, Limerick, Ireland

Rio de Janeiro State University, Rio de Janeiro, Brazil

Keywords:

Grammatical Evolution, Pattern Trees, Fuzzy Logic.

Abstract:

This paper introduces a novel approach to induce Fuzzy Pattern Trees (FPT) using Grammatical Evolution

(GE), FGE, and applies to a set of benchmark classiﬁcation problems. While conventionally a set of FPTs

are needed for classiﬁers, one for each class, FGE needs just a single tree. This is the case for both binary

and multi-classiﬁcation problems. Experimental results show that FGE achieves competitive and frequently

better results against state of the art FPT related methods, such as FPTs evolved using Cartesian Genetic

Programming (FCGP), on a set of benchmark problems. While FCGP produces smaller trees, FGE reaches

a better classiﬁcation performance. FGE also beneﬁts from a reduction in the number of necessary user-

selectable parameters. Furthermore, in order to tackle bloat or solutions growing too large, another version

of FGE using parsimony pressure was tested. The experimental results show that FGE with this addition

is able to produce smaller trees than those using FCGP, frequently without compromising the classiﬁcation

performance.

1 INTRODUCTION

Machine learning (ML) has great potential to solve

real-world problems and to contribute to the improve-

ment of processes, products, and research. In the

last two decades, the number of applications of ma-

chine learning has been increasing due to the avail-

ability of vast collections of data and massive com-

puter power thanks to the development of new train-

ing algorithms, the emergence of new hardware plat-

forms based on graphics cards with GPUs and the

availability of open-source libraries (Do

silovi

c et al.,

2018). Such conditions provide ML systems with the

ability to solve highly complex problems with per-

formance superior to those obtained by techniques

that, until then, represented state of the art. More-

over, in some speciﬁc ﬁelds of application, such as

image classiﬁcation, ML systems have surpassed hu-

man performance (He et al., 2015).

https://orcid.org/0000-0002-6209-4642

https://orcid.org/0000-0002-7223-5322

https://orcid.org/0000-0002-1783-6352

https://orcid.org/0000-0001-6580-5668

https://orcid.org/0000-0001-9818-911X

https://orcid.org/0000-0002-7002-5815

Although ML algorithms are successful in terms

of results and predictions, they have their short-

comings. The most compelling is the absence of

transparency, which identiﬁes the so-called black-box

models. In such models, it is very difﬁcult or even

impossible to understand how the ML system makes

its decision or to extract the knowledge of how the de-

cision is made. As a result, it does not allow a human

being, expert, or not to check, interpret, and under-

stand how the model reaches its conclusions.

In order to address these issues, Explainable Ar-

tiﬁcial Intelligence (XAI) (Adadi and Berrada, 2018;

Arrieta et al., 2020) has appeared as a ﬁeld of research

focused on the interpretability of ML. The main pur-

pose is to create a set of models and interpretable

methods that are more explainable while preserving

high levels of predictive performance (Carvalho et al.,

2019).

Fuzzy Set theory has provided a framework to

develop interpretable models (Cord

on, 2011) (Her-

rera, 2008) because it allows the knowledge acquired

from data to be expressed in a comprehensible form,

close to natural language, which gives the model a

higher degree of interpretability (H

ullermeier, 2005).

Most developed fuzzy models are rule-based fuzzy

systems (FBRS) that can represent both classiﬁcation

Murphy, A., Ali, M., Dias, D., Amaral, J., Naredo, E. and Ryan, C.

Grammar-based Fuzzy Pattern Trees for Classiﬁcation Problems.

DOI: 10.5220/0010111900710080

In Proceedings of the 12th International Joint Conference on Computational Intelligence (IJCCI 2020), pages 71-80

ISBN: 978-989-758-475-6

and regression functions and for which there are many

strategies developed for the synthesis of these models

(Cord

on, 2011). Obtaining fuzzy models based on

easily interpretable rules may not be an easy task, be-

cause depending on the application, many rules may

be necessary with many antecedents that make it dif-

ﬁcult to understand the model.

On the other hand, a system with relatively few

rules can be easily interpreted, but have its predic-

tive accuracy compromised. In this work, a novel

approach to automatically induce models applied

on classiﬁcation problems is introduced. It uses a

method based on the theory of fuzzy sets, Fuzzy Pat-

tern Trees (FPT), which is not based on rules, but on

a hierarchical method. This work replaces the FPT

learning method with Grammatical Evolution (GE).

GE is ﬂexible enough to derive feasible models

such as FPTs, and it can efﬁciently address different

problems by changing the grammar and the evaluation

function. As a result, it is possible to obtain models

that can solve a classiﬁcation problem and to get ex-

plainable solutions at the same time. Moreover, the

combination of GE and Fuzzy Logic gives a valuable

opportunity to address the new research lines in XAI.

Experimental results show that GE can evolve fuzzy

pattern trees to solve benchmark classiﬁcation prob-

lems with competitive results against state of the art

methods with better results in three of them.

The remainder of this paper is organized as fol-

lows: Section 2 reviews the main background con-

cepts, including FPTs, Genetic Programming (GP),

Cartesian GP (CGP) and GE. Section 3 explains the

proposal and contributions of this work in more de-

tail. Next, Section 4 presents the experimental set-

up, outlining all of the considered variants and perfor-

mance measures. Section 5 presents and discusses the

main experimental results of the described research.

Finally, Section 6 presents the conclusions and future

work derived from this research.

2 BACKGROUND

2.1 Fuzzy Pattern Trees

FPTs have independently been introduced by Huang

et al. (Huang et al., 2008), and Yi et al. (Yi et al.,

2009) who called this type of model Fuzzy Opera-

tor Trees. The FPT model class is related to several

other model classes including fuzzy rule-based sys-

tems (FRBS), and fuzzy decision trees (FDT).

A FPT is a hierarchical, tree-like structure, whose

inner nodes are marked with generalized (fuzzy) logi-

cal and arithmetic operators, and whose leaf nodes are

associated with fuzzy predicates on input variables. It

propagates information from the bottom to the top: A

node takes the values of its descendants as input, ag-

gregates them using the respective operator, and sub-

mits the result to its predecessor. Thus, an FPT im-

plements a recursive mapping producing outputs in

the [0,1] interval.

The following operators are used, where a and b

are the inputs to the operator:

W TA = IF{}()..ElSE() (1)

MAX = max(a, b) (2)

MIN = min(a, b) (3)

WA(k) = ka + (1 − k)b (4)

OWA(k) = k · max(a,b)+ (1 − k)min(a,b) (5)

CONCENT RAT E = a

(6)

DILATE = a

(7)

COMPLEMENT = 1 − a (8)

where W TA, WA & OWA denote Winner takes

all, Weighted Average and Ordered Weighted Aver-

age, respectivly.

Figure 1 shows an example of an FPT, which was

trained from a (wine) quality dataset. It represents the

fuzzy concept – a fuzzy criterion for – wine with a

high quality.

WA(0.58)

Med_Alcohol

Med_SO2

Med_Sulf

Med_Acid

Low_Alcohol

Figure 1: Tree representing the interpretable class ”Good

Quality Wine”, showing each variable with different color.

The node labels of the tree illustrate their inter-

pretation and not yet their implementation. In order

to interpret the whole tree and grasp the fuzzy pattern

it depicts, we start at the root node. It represents the

ﬁnal aggregation (a simple average in this case) and

outputs the overall evaluation of the tree for a given

instance (a wine). Then, we proceed to its children

and so forth. The interpretation could be like this:

A high quality wine fulﬁlls two criteria. We call

these two criteria – the left and right subtrees of the

root node – criterion I and criterion II. Criterion I

is fulﬁlled if the alcohol concentration of the wine is

high or its density is high. Criterion II is fulﬁlled,

if the wine has a high concentration of sulfates or a

ECTA 2020 - 12th International Conference on Evolutionary Computation Theory and Applications

third criterion (III) is met. This is the case, if both

alcohol concentration and the wines acidity is low.

The FPTs were created focusing on the represen-

tation of knowledge through a tree-shaped expression

rather than representing it in the form of rules. The

ﬁrst FPT induction method was created by Huang,

Gedeon and Nikravesh (Huang et al., 2008), and re-

ﬁned in (Senge and H

ullermeier, 2011).

Hierarchical representation minimizes existing

problems in rule-based systems, such as exponential

increase in the number of rules with increasing entries

and loss of interpretability when a large number of

rules are required to achieve accuracy requirements.

The tree is represented as a graph, favoring the hu-

man ability to recognize visual patterns, allowing the

discovery of connections between the input variables

and a class. These connections can be complicated to

make when using models with a ﬁxed set of rules.

To obtain a classiﬁer one tree is created for each

class, the classiﬁer decision occurs in favor of the tree

(class) that has the highest output value. Also, since

each tree is considered a “logical description” of the

class, it allows a more speciﬁc interpretation of the

learning problem (Senge and H

ullermeier, 2011).

The FPT provides an alternative for the construc-

tion of accurate and interpretable fuzzy models.

2.2 Cartesian GP

GP concerns the automatic generation of programs in-

spired on the evolution theory. John Koza pioneered

a tree-based GP form to represent computer programs

using at that time LISP, an artiﬁcial intelligence com-

puter language (Koza, 1992). CGP (Miller, 1999) is

a ﬂavor of GP with approximately 20 years of inter-

esting and varied research works addressing a wide

range of problem domains.

CGP uses graphs to represent solutions, and its

key feature is the ability to encoding computational

structures as directed graphs using redundant genes.

This redundancy serves CGP to get a very adaptable

representation by allowing the outputs nodes to either

connect or disconnect to nodes from previous nodes

in the directed graph.

The synthesis of FPTs by CGP was proposed in

(dos Santos and do Amaral, 2015). The authors re-

placed the learning strategy proposed in (Senge and

ullermeier, 2011) called Beam Search by CGP. The

former learning strategy has a “greedy” characteris-

tic which prevents a better exploration of the search

space, increasing the possibility of the algorithm of

being trapped in a sub-optimal solution. Also it suf-

fered from the “curse of dimensionality”. If the num-

ber of input features and the width of the beam are

large, the algorithm will take a long time to evalu-

ate all the possibilities; as a result, there will be an

explosion in the number of possible combinations.

The results reported in (dos Santos and do Ama-

ral, 2015) indicated that FPTs synthesized by CGP

are competitive with other classiﬁer algorithms, and

they are smaller than those obtained in (Senge and

ullermeier, 2011).

Another example of the synthesis of FPTs by CGP

can be found in (dos Santos et al., 2018). In that pa-

per, the authors implement the improvements in CGP

suggested by (Goldman and Punch, 2014) and imple-

mented an NSGA-II strategy to deal with two con-

ﬂicting objectives: the accuracy and the size of the

tree.

Authors in (Wilson and Banzhaf, 2008) investi-

gated the fundamental difference between traditional

forms of Linear GP (LGP) and CGP, and their restric-

tions in connectivity.

The difference between graph-based LGP and

CGP is the means with which they restrict the feed-

forward connectivity of their directed acyclic graphs.

In particular, CGP restricts connectivity based on the

levels-back parameter while LGP’s connectivity is

implicit and is under evolutionary control as a com-

ponent of the genotype.

Experimental results show that CGP does not ex-

hibit program bloat (Turner and Miller, 2014). How-

ever, using CGP to evolve programs in an arbitrary

language can be tricky.

2.3 Grammatical Evolution

GE is a variant of GP, which differs in that the

space of legal programs it can explore is described

by a Backus-Naur Form (BNF) grammar (Ryan et al.,

1998; O’Neill and Ryan, 2001) or Attribute Gram-

mar (AG) (Patten and Ryan, 2015; Karim and Ryan,

2014; Karim and Ryan, 2011b; Karim and Ryan,

2011a), and it can evolve computer programs or ar-

bitrary structures that can be deﬁned in this way.

engine

LANGUAGE

speci

cation

PROBLEM

speci

cation

SOLUTION

speci

cation

system

Figure 2: The GE system uses a search engine (typically a

GA) to generate solutions for a given problem, by recom-

bining the genetic material (genotype) and mapped onto

programs (phenotype) according to a language speciﬁcation

(interpreter/compiler).

Grammar-based Fuzzy Pattern Trees for Classiﬁcation Problems

The modular design behind GE, as shown in Fig-

ure 2, means that any search engine can be used, al-

though typically a variable-length Genetic Algorithm

(GA) is employed to evolve a population of binary

strings. After mapping each individual onto a pro-

gram using GE, any program/algorithm can be used

to evaluate those individuals.

T r a n s c r i p t i o n

T r a n s l a t i o n

Genotype

Phenotype

220

189

00101110

10111101

01001111

00111010

00001111

00100000

<exp> ::= max(<exp>,<exp>) [0]

| min(<exp>,<exp>) [1]

| WA(<const>,<exp>,<exp>) [2]

| OWA(<const>,<exp>,<exp>) [3]

| concentrate(<exp>) [4]

| dilation(<exp>) [5]

| complement(<exp>) [6]

| x[<digit>] [7]

<const> ::= 0.<digit><digit><digit> [0]

<exp>

concentrate(<exp>)

concentrate(min(<exp>,<exp>))

concentrate(min(complement(<exp>),<exp>))

concentrate(min(complement(dilation(<exp>)),<exp>))

concentrate(min(complement(dilation(x[<digit>])),<exp>]))

concentrate(min(complement(dilation(x[2])),<exp>]))

concentrate(min(complement(dilation(x[2])),x[<digit>]))

concentrate(min(complement(dilation(x[2])),x[8]))

<digit> ::= 0 [0]

| 1 [1]

| 2 [2]

| 3 [3]

| 4 [4]

| 5 [5]

| 6 [6]

| 7 [7]

| 8 [8]

| 9 [9]

11011100

01010001

Start -->

Figure 3: Example of a GE genotype-phenotype mapping

process for the Iris dataset, where the binary genotype is

grouped into codons (e.g. 8 bits; red & blue), transcribed

into an integer string, then used to select production rules

from a predeﬁned grammar (BNF-Grammar), and ﬁnally

translated into a sequence of rules to build a classiﬁer (phe-

notype).

The linear representation of the genome allows

the application of genetic operators such as crossover

and mutation in the manner of a typical GA, unlike

tree-based GP. Starting with the start symbol of the

grammar, each individual’s chromosome contains in

its codons (typically groups of 8 bits) the information

necessary to select and apply the grammar production

rules, in this way constructing the ﬁnal program. The

mapping process is illustrated with an example in Fig-

ure 3.

Production rules for each non-terminal are in-

dexed starting from 0 and, when selecting a produc-

tion rule (starting with the left-most non-terminal of

the developing program) the next codon value in the

genome is read and interpreted using the formula:

p = c % r, where c represents the current codon value,

% represents the modulus operator, and r is the num-

ber of production rules for the left-most non-terminal.

If, while reading codons, the algorithm reaches the

end of the genome, a wrapping operator is invoked

and the process continues reading from the beginning

of the genome. The process stops when all of the non-

terminal symbols have been replaced, resulting in a

valid program. If it fails to replace all of the non-

terminal symbols after a maximum number of itera-

tions, it is considered invalid and penalized with the

lowest possible ﬁtness.

3 FUZZY GE

This section introduces Fuzzy GE, an evolutionary

approach to generate classiﬁers with linguistic labels.

The aim is to create meaningful models applied to

multi-classiﬁcation problems.

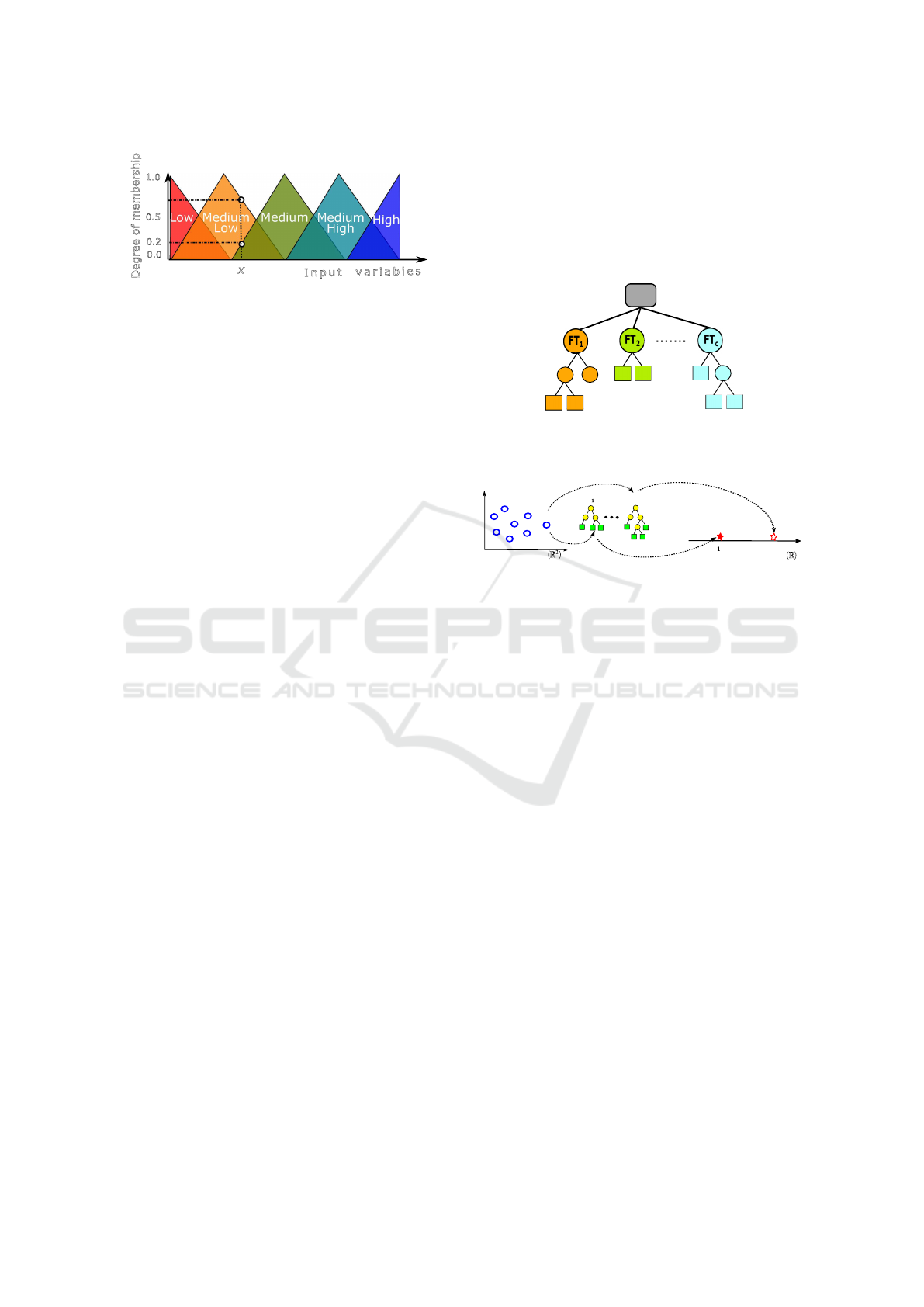

The schematic of a fuzzy system is shown in Fig-

ure 4. The acquisition of a fuzzy rule base and

the associated fuzzy set parameters from a set of in-

put/output data is important in the development of

fuzzy expert systems (Zadeh, 1965) with or without

the aid of human expertise. Several automated tech-

niques have been proposed for the solution of this

knowledge acquisition problem. An advantage of us-

ing GE in the context of evolving structures for fuzzy

rule base is the ﬂexibility it gives in deﬁning different

partitioning geometries based on a chosen grammar

(Wilson and Kaur, 2006).

Fuzzifier

Defuzzifier

Fuzzy Inference

Engine

Fuzzy Rule base

Input

Variables

Output

Variables

Figure 4: Fuzzy system.

3.1 Fuzzy Classiﬁcation

There are many approaches to using evolve GP to

classiﬁers (Espejo et al., 2009) and GE has been

shown to be well suited for such a task (Nyathi and

Pillay, 2018). One of the most popular methods for

evolving a GP binary classiﬁer is Static Range Selec-

tion, described by Zhang and Smart, who later pro-

posed Centred Dynamic Class Boundary Determina-

tion (CDCBD) for multi-class classiﬁcation (Zhang

and Smart, 2004).

In binary classiﬁcation, an input x ∈ ℜ

has to be

classiﬁed as belonging to one of the either two classes,

or ω

. In this method, the goal is to evolve a map-

ping g(x) : ℜ

→ ℜ. The classiﬁcation rule R states

that pattern x is labelled as belonging to class ω

g(x) > r, and belongs to ω

otherwise, where r is the

decision boundary value.

ECTA 2020 - 12th International Conference on Evolutionary Computation Theory and Applications

1.0

0.0

0.5

0.2

Figure 5: Fuzzy sets.

The ﬁtness function is deﬁned to maximize the to-

tal classiﬁcation accuracy after R is applied, normally

setting the decision boundary to r = 0. A data sam-

ple is passed to the tree which yields a score. If the

score is below the boundary it is labelled a particu-

lar class, and likewise it is labelled the other class if

it is above the boundary. The process for CDCBD is

similar, with n-1 boundaries existing, which can dy-

namically change to class each individual.

Both approaches only evolve one tree (or map-

ping) regardless of the number of classes and attempt

to classify the individual based on its output from that

tree. There are drawbacks to this approach as much

effort need to be expended into designing or hand

crafting class boundaries or creating systems to op-

timise them for each individual (Fitzgerald and Ryan,

2012), which becomes increasingly more difﬁcult as

the number of classes increases.

A FPT classiﬁer requires that one FPT be evolved

per class in the problem. Evolving multiple trees si-

multaneously adds a great deal of complexity to the

problem. In general, care must be taken and special

operators, particularly when using crossover, must be

created (Ain et al., 2018; Lee et al., 2015). However,

due to the separation between the search space and

program space in GE, it is not necessary to create any

special operators in FGE.

The novel method involves evolving only one

large solution. This solution comprises of FPTs, with

each class having its own FPT, and a decision node

at its root. Each FPT can therefore be thought of as

a subtree of a larger classiﬁer tree, as seen in Figure

6, with the root node assigning the label to each indi-

vidual. More formally, i mappings f

(x) : ℜ

→ [0,1],

where i is the number of classes in the problem are

evolved. The FPT, or subtree, ( f

(x)... f

(x)) which

confers the largest score to the individual is deemed

the winner and the individual is labeled with the class

that FPT represents.

For example, if f

(x) yielded the largest score

the individual would be assigned to class 1. This is

highlighted further in Figure 7, where the second tree

yields the better score, S

, the hollow star. The indi-

vidual is therefore assigned class c. This is in contrast

to the methods described above which only produce 1

score per individual and assign it a label based on the

scores position relative to a boundary(s).

FGE does not require the use of any protected

operators when evolving multiple trees due to the

unique separation between genotype and phenotype

and only needs grammar augmentation to address dif-

ferent problem types.

WTA

Figure 6: Pictorial representation of a multi-classiﬁer

evolved by FGE, where FT

is the fuzzy tree for each avail-

able class, and at the root the winner take all (WTA).

Feature space 1-dimensional space ([0,1])

Figure 7: Graphical depiction of the mapping process from

the feature space to a 1-dimensional space [0,1] using a set

of fuzzy trees FT

to FT

3.2 Fuzzy Representation

In order to give a better interpretability to the evolved

models, fuzzy logic is used to build more meaningful

trees. To this end it uses the following ﬁve linguistic

terms for fuzzy labels: low, medium-low, medium,

medium-high, and high (see Figure 5). An uniform

distribution of the input variables was considered for

these fuzzy terms to have partitioning of the space.

The Fuzzy operators used are described in Section

2.1. The values of the inputs of the operated nodes

are a and b. In the case of the Weighted Average

(WA) and Ordered Weighted Average (OWA) oper-

ators, k will be a value created randomly within the

range [0,1]. Only one input will be provided in the

case of the concentration, dilation, and complement.

Winner Takes All (WTA) will be the root node of ev-

ery fuzzy tree. This function receives the score from

each FPT and labels the individual corresponding to

the highest scoring tree.

The genotype represents all the operators and

fuzzy terms and different trees can be obtained de-

pending on the grammar used on GE.

Grammar-based Fuzzy Pattern Trees for Classiﬁcation Problems

3.3 Lexicographic Parsimony Pressure

Accuracy, efﬁciency in training, and interpretability

are often the dominant considerations when evolving

a classiﬁer. Maximising accuracy, or similarly min-

imising error, has traditionally been the main focus

of research but interpretability has continued to grow

in signiﬁcance, with many papers and conferences

now dedicated to the area (Adadi and Berrada, 2018).

For a FPT to be interpretable or comprehensible, and

therefore serve as a class descriptor, it is important

the evolved solutions remain as small as possible and

bloat is mitigated (Espejo et al., 2009). While GP’s

ability to ﬁnd high-dimensional, non-linear solutions

is lauded, it can result in a signiﬁcant loss of inter-

pretability. Indeed, one of CGPs main advantages

over standard GP and GP variants is its inherent lack

of bloat (Turner and Miller, 2014).

Parsimony pressure is not GP-speciﬁc and has

been used whenever arbitrarily-sized representations

tended to get out of control. Such usage to date can

be divided into two broad categories: parametric and

Pareto parsimony pressure.

Parametric parsimony pressure uses size has a di-

rect numerical factor in ﬁtness, while pareto parsi-

mony pressure, uses size as a separate objective in a

pareto-optimization procedure.

In this work two sets of experiments were run. The

ﬁrst uses standard GE and the second is identical to

the ﬁrst, but implements a slightly modiﬁed lexico-

graphic parsimony pressure (Luke and Panait, 2002)

to bias the selection to prefer smaller solution size.

The size is deﬁned as the maximum depth of any of

the n FPTs GE evolves for a particular solution.

4 EXPERIMENTAL SETUP

This section presents the experimental setup used.

The approach is compared with several state of the

art classiﬁcation algorithms and one other FPT related

method, FPT evolved using CGP (FCGP) (dos Santos

et al., 2018; dos Santos, 2014). The same benchmark

classiﬁcation problems are used as previous for a fair

comparison between the two approaches. The full ex-

perimental setup for CGP and each of the other bench-

mark classiﬁcation techniques which FGE is com-

pared against can be found in (dos Santos et al., 2018).

The results are seen in Table 3

4.1 Datasets

The experiments are run on eight benchmark datasets,

all of which can be found online in the UCI and

CMU repositories (Dua and Graff, 2017; StatLib,

2020). They include six binary classiﬁcation prob-

lems and two multi-class problems. The size of the

eight datasets, in addition to the number of classes

and variables for each, are shown in Table 1.

Table 1: Benchmark datasets for binary and multiclass clas-

siﬁcation problems, taken from the UCI repository

†

and and

the CMU repository

Datasets Short Class Vars Instances

Binary

Lupus

Lupus 2 3 87

Haberman

†

Haber 2 3 306

Lawsuit

Law 2 4 264

Transfusion

†

Transf 2 4 748

Pima

†

Pima 2 8 768

Australian

†

Austr 2 14 690

Multiclass

Iris

†

Iris 3 4 150

Wine

†

Wine 3 13 178

4.2 GE Parameters

The experiments were run for 50 generations with a

population size of 500. Sensible Initialisation and ef-

fective crossover were used (Ryan and Azad, 2003).

5-fold cross-validation was used. This was repeated 5

times for a total of 25 runs.

Table 2: List of the main parameters used to run GE.

Parameter Value

Folds 5

Runs 25 (5 per fold)

Total Generations 50

Population 500

Replacement Tournament

Crossover 0.9 (Effective)

Mutation 0.01

Initialisation Sensible

These values result in a higher computational

cost than those of the CGP experiments (dos Santos,

2014). The full experimental setup can be seen in Ta-

ble 2.

The grammar used for binary classiﬁcation can

be seen in Figure 8. The W TA node contains two

< exp > non-terminals which need to be expanded.

When fully expanded, these will be the FPT for

each class. For binary classiﬁcation two FPTs are

required. For multi-class classiﬁcation the gram-

mar simply needs to be augmented by adding more

< exp > symbols in the expression. Three classes re-

ECTA 2020 - 12th International Conference on Evolutionary Computation Theory and Applications

quire three < exp > symbols and so on. Constants

were created using the standard GE approach of digit

concatenation (Azad and Ryan, 2014).

< start >::=W TA(< exp >, < exp >)

< exp >::=max(< exp > , < exp >) |

min(< exp > , < exp >) |

WA(< const > , < exp > , < exp >) |

OWA(< const > , < exp > , < exp >) |

concentrate(< exp >) |

dilation(< exp >) |

complement(< exp >) |

| x

|...

< const >::=0. < digit >< digit >< digit >

< digit >::=0 | 1 | 2 |....

Figure 8: Grammar used to evolve a Fuzzy Pattern Tree

for a binary dataset. The WTA node can be augmented by

adding extra < exp > to include as many subtrees as neces-

sary, making it a multi-class grammar.

4.3 Fitness Function

The ﬁtness function used for FGE, shown in Eq. 10,

seeks to minimise the RMSE for each individual. The

benchmark datasets used are reasonably balanced and

therefore a non standard ﬁtness function, such as cross

entropy, was deemed not to be needed. However, fu-

ture experiments run on very unbalanced data may

need to modify this.

RMSE =

∑

i=1

( ˆy

− y

)

(9)

F = 1 − RMSE (10)

The ﬁtness function for FGE with lexicographic

parsimony pressure, seeking interpretability in solu-

tions, is calculated by penalising the solution by its

size. It is computed as follows;

= 1 − RMSE ×0.99 − MaxDepth × 0.01 (11)

Experiments using ﬁtness function F are denoted

as FGE in the results section, while experiments us-

ing F

are identiﬁed by FGE − L

The mean depth of a solution is the average max

depth of each FPT evolved. For a binary classiﬁer C

with FPT

and FPT

, the mean depth would be:

MeanDepth(C) =

MaxDepth(FPT

) + MaxDepth(FPT

)

(12)

5 RESULTS

The experimental results are summarized in Table 3

showing the best performance from 25 runs of FGE.

Other methods performances are taken from (dos San-

tos et al., 2018). The best result across each prob-

lem are highlighted in bold. Datasets are sorted to

ﬁrst show the binary problems (1-6), followed by the

multi-classiﬁcation problems (7-8).

The ﬁrst two columns show the results for FGE

and FGE with lexicographic pressure applied, re-

spectively. The third column shows the results for

CGP, the fourth Support Vector Machine with Linear

Kernel (SVM-L) and ﬁfth Random Forest (RF). The

sixth column shows Support Vector Machine with Ra-

dial Basis Function Kernel (SVM-R) and lastly col-

umn seven shows the Pattern Tree Top-Down Epsilon

(PTTDE), the original technique for creating FPTs

(Senge and H

ullermeier, 2011). In this paper epsilon

is set to 0.25%, where epsilon controls the amount of

improvement required to continue to grow the tree.

A Friedman test was carried out on the data to

compare the performance of the classiﬁers. This test

showed no evidence there was one classiﬁer that was

statistically signiﬁcantly better than all others.

FGE achieves very competitive results with the

previous experiments, only being glaringly outper-

formed in one benchmark, Wine, in which it was the

worst performing classiﬁer. FGE attained best perfor-

mance of 83% on this benchmark, compared to 98%

found by SVM, RF and PTTDE. It was also notice-

ably worse than the result achieved by CGP, which

reached 90%.

FGE accomplished the best performance in 3

problems: (i) Haberman - FGE achieves 74%, outper-

forming all and equalling PTTDE as the best result;

(ii) Australian - FGE and FGE-L score 86% for a tie

in best performing classiﬁer; and (iii) Iris - FGE and

FGE-L again match the best performing classiﬁer at-

taining 96%. Interestingly, FGE-L achieves best in

class performance, 77%, on the Transfusion problem.

As well as these results, FGE and FGE-L attain

competitive results on the rest of the classiﬁcation

problems with the exception of the Lupus dataset.

FGE reaches similar performance as FCGP, 73% and

74% respectively, but PTTDE produced the best accu-

racy, 77%. FGE-L performs identically, ﬁnding 73%

accuracy.

FGE-L can be seen to ﬁnd substantially smaller

solutions than those found by FGE as shown in 4,

where SizeReduc denotes the reduction on the aver-

aged tree size achieved by FGE-L against FGE. Note

that an FPT containing just a leaf node would have

depth of 0.

Grammar-based Fuzzy Pattern Trees for Classiﬁcation Problems

Table 3: Classiﬁcation performance comparison of FGE versions against previous related work results, showing the classiﬁ-

cation error on the test data for the best solution found. Bold indicates the best performance.

Dataset FGE FGE-L FCGP SVM-L RF SVM-R PTTDE

Lupus 0.73 0.73 0.74 0.74 0.62 0.73 0.77

Haber 0.74 0.72 0.73 0.72 0.65 0.71 0.74

Law 0.96 0.94 0.93 0.99 0.97 0.96 0.94

Transf 0.76 0.77 0.76 0.76 0.70 0.73 0.77

Pima 0.74 0.74 0.72 0.77 0.77 0.71 0.76

Austr 0.86 0.86 0.85 0.86 0.79 0.85 0.85

Iris 0.96 0.96 0.95 0.96 0.95 0.95 0.95

Wine 0.83 0.83 0.90 0.98 0.98 0.98 0.98

Across all problems tested remarkably smaller

trees were found by FGE-L. In particular, the Haber,

Pima and Australian problems were all seen to reduce

in size by over 80%. Parsimony pressure does not

appear to affect the performance, however, with only

a decrease in accuracy seen in two problems: Haber

and Lawsuit. Strikingly, there was an increase in the

performance on the Transfusion problem by 1% . The

major reduction seen in the size of the ﬁnal solutions

found in every experiment may hint at bloat being a

problem in FGE. A pressure of 1% of size was applied

in these experiments but tuning the pressure applied

is an avenue for future research. FGE-L was the best

performing classiﬁer on the Transfusion, Iris and Aus-

tralian problems. On the problems studied there ap-

pears to be very little, or sometimes none, trade off in

performance associated with evolving smaller trees. It

is possibly the case that the global optimums for these

problems were smaller trees, but this requires fur-

ther study, on larger, more complicated benchmarks.

These results do seem to strongly suggest that bloat

may be an issue in FGE.

The trees found using CGP are much smaller than

those found using FGE but larger than those using

FGE-L. When the search is biased towards smaller

sized individuals FGE-L ﬁnds smaller solutions in 7

problems. Due to these small sizes, FPTs found using

FGE-L should lead to very interpretable results.

Overall the best performing method was SVM-L,

achieving best performance on 5 of the the benchmark

problems. SVM-L does not allow any interpretabil-

ity of its solutions. FGE was best performing on 3

problems, FGE-L was best performing on 3 problems

and FCGP was not best on any. FGE beat or equalled

FCGP in 6/8 problems studied and FGE-L evolved the

smallest trees in all but one problem, Lupus, and was

able to beat FCGP in 5/8 problems.

The mean size of the ﬁnal trees found by FGE,

FGE-L with parsimony pressure and CGP are shown

in Table 4, best results are in bold.

Table 4: Average size comparison in terms of the tree depth

between fuzzy pattern trees approaches; FCGP, FGE, and

FGE-L. Best results are in bold. SizeReduc is the average

size reduction seen in FGE-L vs FGE.

Dataset FCGP FGE FGE-L SizeReduc

Lupus 1.65 7.84 2.38 70%

Haber 1.85 9.42 0.2 98%

Law 1.05 5.02 0.98 79%

Transf 2 6.76 1.54 77%

Pima 1 6.7 1 85%

Austr 1.5 5.12 0.92 82%

Iris 1.24 1.8 0.64 64%

Wine 1 2.47 0.68 72%

6 CONCLUSIONS

This paper proposes a new way of inducing Fuzzy

Pattern Trees using Grammatical Evolution as the

learning algorithm, FGE. FPT is a viable alternative

to the classic rules-based fuzzy models since their hi-

erarchical structure allows a more compact represen-

tation and a compromise between the accuracy and

the simplicity of the model. The experimental results

showed that FGE has a competitive performance in

the task of classiﬁcation with respect to some of the

best classiﬁers available. Crucially it also provides

an interpretable model, that is, the knowledge ob-

tained in the learning process can be extracted from

the model and presented to a user in comprehensible

terms.

A promising aspect of the present work is that sev-

eral future lines of research can be explored. The pro-

posed algorithms should be evaluated on other ma-

chine learning problems, such as unsupervised clus-

tering.

One interesting possibility is to try different ap-

proaches to reduce the tree size, including regulariza-

tion or encapsulation (Murphy and Ryan, 2020). Fur-

thermore, the use of different sets of grammar for GE

could be explored.

A ﬁnal avenue for future research is to empirically

ECTA 2020 - 12th International Conference on Evolutionary Computation Theory and Applications

examine if smaller tree size does offer more user in-

terpretability. It is possible that another metric, such

as the number of variables used or the presence of par-

ticular subtrees, may grant better interpretability and

must be investigated.

ACKNOWLEDGEMENTS

The authors thank the anonymous reviewers for their

time, comments and helpful suggestions. The au-

thors are supported by Research Grants 13/RC/2094

and 16/IA/4605 from the Science Foundation Ire-

land and by Lero, the Irish Software Engineering Re-

search Centre (www.lero.ie). The third and fourth

authors are partially ﬁnanced by the Coordenac¸

de Aperfeic¸oamento de Pessoal de N

ıvel Superior -

Brasil (CAPES) - Finance Code 001.

REFERENCES

Adadi, A. and Berrada, M. (2018). Peeking inside the black-

box: A survey on explainable artiﬁcial intelligence

(xai). IEEE Access, 6:52138–52160.

Ain, Q. U., Al-Sahaf, H., Xue, B., and Zhang, M. (2018).

A multi-tree genetic programming representation for

melanoma detection using local and global features.

In Mitrovic, T., Xue, B., and Li, X., editors, AI 2018:

Advances in Artiﬁcial Intelligence, pages 111–123,

Cham. Springer International Publishing.

Arrieta, A. B., D

ıaz-Rodr

ıguez, N., Ser, J. D., Bennetot,

A., Tabik, S., Barbado, A., Garcia, S., Gil-Lopez, S.,

Molina, D., Benjamins, R., Chatila, R., and Herrera, F.

(2020). Explainable artiﬁcial intelligence (xai): Con-

cepts, taxonomies, opportunities and challenges to-

ward responsible ai. Information Fusion, 58:82 – 115.

Azad, R. M. A. and Ryan, C. (2014). The best things don’t

always come in small packages: Constant creation

in grammatical evolution. In Nicolau, M., Krawiec,

K., Heywood, M. I., Castelli, M., Garc

ıa-S

anchez, P.,

Merelo, J. J., Rivas Santos, V. M., and Sim, K., ed-

itors, Genetic Programming, pages 186–197, Berlin,

Heidelberg. Springer Berlin Heidelberg.

Carvalho, D. V., Pereira, E. M., and Cardoso, J. S.

(2019). Machine Learning Interpretability: A Survey

on Methods and Metrics. Electronics, 8(8):832.

Cord

on, O. (2011). A historical review of evolutionary

learning methods for Mamdani-type fuzzy rule-based

systems: Designing interpretable genetic fuzzy sys-

tems. International journal of approximate reasoning,

52(6):894–913. Publisher: Elsevier.

silovi

c, F. K., Br

c, M., and Hlupi

c, N. (2018). Explain-

able artiﬁcial intelligence: A survey. In 2018 41st In-

ternational Convention on Information and Communi-

cation Technology, Electronics and Microelectronics

(MIPRO), pages 0210–0215.

dos Santos, A. R. (2014). S

ıntese de

Arvores de Padr

oes

Fuzzy atrav

es de Programac¸

ao Gen

etica Cartesiana.

PhD thesis, Dissertac¸

ao de mestrado, Universidade do

Estado do Rio de Janeiro.

dos Santos, A. R. and do Amaral, J. L. M. (2015). Synthesis

of Fuzzy Pattern Trees by Cartesian Genetic Program-

ming. Mathware & soft computing, 22(1):52–56.

dos Santos, A. R., do Amaral, J. L. M., Soares, C. A. R.,

and de Barros, A. V. (2018). Multi-objective fuzzy

pattern trees. In 2018 IEEE International Conference

on Fuzzy Systems (FUZZ-IEEE), pages 1–6.

Dua, D. and Graff, C. (2017). UCI machine learning repos-

itory.

Espejo, P. G., Ventura, S., and Herrera, F. (2009). A

survey on the application of genetic programming to

classiﬁcation. IEEE Transactions on Systems, Man,

and Cybernetics, Part C (Applications and Reviews),

40(2):121–144.

Fitzgerald, J. and Ryan, C. (2012). Exploring boundaries:

optimising individual class boundaries for binary clas-

siﬁcation problem. In Proceedings of the 14th annual

conference on Genetic and evolutionary computation,

pages 743–750.

Goldman, B. W. and Punch, W. F. (2014). Analysis of

cartesian genetic programming’s evolutionary mech-

anisms. IEEE Transactions on Evolutionary Compu-

tation, 19(3):359–373. Publisher: IEEE.

He, K., Zhang, X., Ren, S., and Sun, J. (2015).

Delving Deep into Rectiﬁers: Surpassing Human-

Level Performance on ImageNet Classiﬁcation.

arXiv:1502.01852 [cs]. arXiv: 1502.01852.

Herrera, F. (2008). Genetic fuzzy systems: taxonomy, cur-

rent research trends and prospects. Evolutionary In-

telligence, 1(1):27–46. Publisher: Springer.

ullermeier, E. (2005). Fuzzy methods in machine learning

and data mining: Status and prospects. Fuzzy Sets and

Systems, 156(3):387–406.

Huang, Z., Gedeon, T. D., and Nikravesh, M. (2008). Pat-

tern trees induction: A new machine learning method.

Trans. Fuz Sys., 16(4):958–970.

Karim, M. R. and Ryan, C. (2011a). Degeneracy reduction

or duplicate elimination? an analysis on the perfor-

mance of attributed grammatical evolution with looka-

head to solve the multiple knapsack problem. In Na-

ture Inspired Cooperative Strategies for Optimization,

NICSO 2011, Cluj-Napoca, Romania, October 20-22,

2011, pages 247–266.

Karim, M. R. and Ryan, C. (2011b). A new approach

to solving 0-1 multiconstraint knapsack problems us-

ing attribute grammar with lookahead. In Genetic

Programming - 14th European Conference, EuroGP

2011, Torino, Italy, April 27-29, 2011. Proceedings,

pages 250–261.

Karim, M. R. and Ryan, C. (2014). On improving gram-

matical evolution performance in symbolic regression

with attribute grammar. In Genetic and Evolution-

ary Computation Conference, GECCO ’14, Vancou-

ver, BC, Canada, July 12-16, 2014, Companion Mate-

rial Proceedings, pages 139–140.

Grammar-based Fuzzy Pattern Trees for Classiﬁcation Problems

Koza, J. R. (1992). Genetic Programming - On the pro-

gramming of Computers by Means of Natural Selec-

tion. Complex adaptive systems. MIT Press.

Lee, J.-H., Anaraki], J. R., Ahn, C. W., and An, J. (2015).

Efﬁcient classiﬁcation system based on fuzzy–rough

feature selection and multitree genetic programming

for intension pattern recognition using brain signal.

Expert Systems with Applications, 42(3):1644 – 1651.

Luke, S. and Panait, L. (2002). Lexicographic parsimony

pressure. In Proceedings of the 4th Annual Con-

ference on Genetic and Evolutionary Computation,

GECCO’02, page 829–836, San Francisco, CA, USA.

Morgan Kaufmann Publishers Inc.

Miller, J. F. (1999). An empirical study of the efﬁciency of

learning boolean functions using a cartesian genetic

programming approach. In Proceedings of the 1st An-

nual Conference on Genetic and Evolutionary Com-

putation - Volume 2, GECCO’99, page 1135–1142,

San Francisco, CA, USA. Morgan Kaufmann Publish-

ers Inc.

Murphy, A. and Ryan, C. (2020). Improving module iden-

tiﬁcation and use in grammatical evolution. In Jin, Y.,

editor, 2020 IEEE Congress on Evolutionary Compu-

tation, CEC 2020. IEEE Computational Intelligence

Society, IEEE Press.

Nyathi, T. and Pillay, N. (2018). Comparison of a genetic

algorithm to grammatical evolution for automated

design of genetic programming classiﬁcation algo-

rithms. Expert Systems with Applications, 104:213–

234.

O’Neill, M. and Ryan, C. (2001). Grammatical evolution.

IEEE Trans. Evolutionary Computation, 5(4):349–

358.

Patten, J. V. and Ryan, C. (2015). Attributed grammatical

evolution using shared memory spaces and dynami-

cally typed semantic function speciﬁcation. In Ge-

netic Programming - 18th European Conference, Eu-

roGP 2015, Copenhagen, Denmark, April 8-10, 2015,

Proceedings, pages 105–112.

Ryan, C. and Azad, R. M. A. (2003). Sensible initialisation

in grammatical evolution. In GECCO, pages 142–145.

AAAI.

Ryan, C., Collins, J. J., and O’Neill, M. (1998). Gram-

matical evolution: Evolving programs for an arbitrary

language. In Banzhaf, W., Poli, R., Schoenauer, M.,

and Fogarty, T. C., editors, EuroGP, volume 1391

of Lecture Notes in Computer Science, pages 83–96.

Springer.

Senge, R. and H

ullermeier, E. (2011). Top-down induction

of fuzzy pattern trees. IEEE Transactions on Fuzzy

Systems, 19(2):241–252.

StatLib (2020). Statlib – datasets archive.

Turner, A. J. and Miller, J. F. (2014). Cartesian genetic pro-

gramming: Why no bloat? In Nicolau, M., Krawiec,

K., Heywood, M. I., Castelli, M., Garc

ıa-S

anchez, P.,

Merelo, J. J., Rivas Santos, V. M., and Sim, K., ed-

itors, Genetic Programming, pages 222–233, Berlin,

Heidelberg. Springer Berlin Heidelberg.

Wilson, D. and Kaur, D. (2006). Fuzzy classiﬁcation us-

ing grammatical evolution for structure identiﬁcation.

pages 80 – 84.

Wilson, G. and Banzhaf, W. (2008). A comparison of carte-

sian genetic programming and linear genetic program-

ming. pages 182–193.

Yi, Y., Fober, T., and H

ullermeier, E. (2009). Fuzzy opera-

tor trees for modeling rating functions. International

Journal of Computational Intelligence and Applica-

tions, 8:413–428.

Zadeh, L. (1965). Fuzzy sets. Information and Control,

8(3):338 – 353.

Zhang, M. and Smart, W. (2004). Multiclass object clas-

siﬁcation using genetic programming. In Workshops

on Applications of Evolutionary Computation, pages

369–378. Springer.

ECTA 2020 - 12th International Conference on Evolutionary Computation Theory and Applications
