Behavioral Locality in Genetic Programming

Adam Kotaro Pindur

and Hitoshi Iba

Department of Information and Communication Engineering, Graduate School of Information Science and Technology,

University of Tokyo, Tokyo, Japan

Keywords:

Genetic Programming, Locality, Distance Metrics, Tree Edit Distance, Graph Kernel.

Abstract:

Locality is a key concept affecting exploration and exploitation in evolutionary computation systems. Geno-

type to phenotype mapping has locality if the neighborhood is preserved under that mapping. Unfortunately,

assessment of the locality in Genetic Programming is dependent on the distance metric used to compare pro-

gram trees. Furthermore, there is no distinction between genotype and phenotype in GP. As such the deﬁnition

of locality in GP was studied only in the context of genotype-ﬁtness mapping. In this work we propose a dif-

ferent family of similarity measures, graph kernels, as alternatives to the traditional family of distance metrics

in use, that is edit distance. Traditional tree edit distance is compared to the Weisfeiler-Lehman Subtree Ker-

nel, which is considered to be the state-of-the-art method in graph classiﬁcation. Additionally, we extend the

deﬁnition of the locality of GP, by studying the relationship between genotypes and behaviors. In this paper,

we consider a mutation-based GP system applied to two basic benchmark problems: artiﬁcial ant (multimodal

deceptive landscape) and even parity (highly neutral landscape).

1 INTRODUCTION

The most important question in Evolutionary Com-

putation (EC) ﬁeld is: ”How to characterize, study

and predict EC search?” Various approaches were em-

ployed to answer this question. These are Micro-

scopic Dynamical System Models, Component Anal-

ysis, Schema Theories, and Fitness Landscape.

Fitness Landscape is a metaphor used to visualize

problems and is also most commonly used to deﬁne

a problem difﬁculty. In the simplest form, a ﬁtness

landscape can be represented as a two-dimensional

plot of an individual against its ﬁtness. Furthermore,

if the genotype can be visualized in two dimensions,

the plot can be seen as a three-dimensional map with

peaks, valleys, hills, and plateaus. This representation

of a search space incorporates the concept of neigh-

bors (Langdon and Poli, 2013). To properly under-

stand the features of the landscape and exploit it, we

need to understand how a neighborhood of a point

looks like. Additionally, to understand how an evo-

lutionary algorithm explores and exploits such a land-

scape, it is necessary to understand the locality of rep-

resentations and operators used during the evolution-

ary process.

In an abstract sense, the locality of an operator (of

https://orcid.org/0000-0002-7980-265X

a mapping) refers to how well such an operator pre-

serves the neighborhood of a point. In the context of

evolutionary algorithms, small changes in genotype

space should correspond to small changes in pheno-

type space. The most extensive work on the topic of

locality in EC has been presented in (Rothlauf, 2006),

which has analyzed the importance of locality in per-

forming an effective search over a given landscape.

However, studies on locality in tree-based GP are still

very rare (Poli et al., 2008). A study of genotype

to ﬁtness mapping was proposed in (Galv

an-L

opez

et al., 2010b) as an alternative to standard genotype-

phenotype mapping, which cannot be simply used

for typical GP. That is, there is no distinction be-

tween genotypes and phenotypes in GP. However, it

is more natural to consider mapping from genotype

to some kind of phenotype, an intermediate form be-

tween genotype and its ﬁtness.

Therefore in this work, we are interested in inves-

tigating the locality of genotype-behavior mapping.

That is, we want to study the locality present in GP for

behaviors of evolved individuals. For this purpose, we

use three basic mutation operators (subtree, structural,

and one-point (Koza, 1992)), and study their behav-

ior using two distance measures deﬁned on tree struc-

tures. In addition to traditionally used Tree Edit Dis-

tance (TED), we also propose using a new family of

Pindur, A. and Iba, H.

Behavioral Locality in Genetic Programming.

DOI: 10.5220/0010113400810091

In Proceedings of the 12th International Joint Conference on Computational Intelligence (IJCCI 2020), pages 81-91

ISBN: 978-989-758-475-6

similarity measures, referred to as Graph Kernels. Lo-

calities of these operators are studied for artiﬁcial ant

problem (with multimodal landscape (Langdon et al.,

1998)) and even parity problem (with neutral land-

scape (Galvan-Lopez, 2009)).

2 PRELIMINARIES

2.1 Locality

The locality is an essential concept in EC, which

affects how an algorithm explores and exploits the

search space. In the sense of EC, a genotype to pheno-

type mapping has locality if the neighborhood is pre-

served under that mapping. The study of locality is

important for two reasons: (i) locality can be used as

an indicator of problem difﬁculty; (ii) to successfully

search the space, a small change in genotype should

result in a small change of ﬁtness.

In (Rothlauf, 2006) deﬁnition of locality assumes

that a distance measure exists on both genotype and

phenotype spaces. Additionally, it should be possi-

ble to deﬁne the neighborhood in terms of minimum

distance. There are two types of locality: low and

high. A representation is said to have a high locality

if neighboring genotypes correspond to neighboring

phenotypes. Conversely, in representation with a low

locality, neighboring genotypes do not correspond

to neighboring phenotypes. According to (Galv

an-

opez et al., 2010b), representations with high local-

ities are more efﬁcient at evolutionary search. That

is, any search operator has the same effect in both the

genotype and phenotype space. In this case, the prob-

lem difﬁculty is unchanged.

On the other hand when the locality is low, (Jones

et al., 1995) considers three categories:

1. easy, ﬁtness is positively correlated with the dis-

tance to the global optimum,

2. difﬁcult, there is no correlation between ﬁtness

and distance from the global optimum,

3. misleading, ﬁtness is negatively correlated with

the distance to the global optimum.

If a given problem is easy, then the low locality rep-

resentation will make it harder, that is, will convert

the problem type to difﬁcult. This is the result of the

uncorrelated ﬁtness landscape of the low locality rep-

resentations, which randomizes the search. If a prob-

lem is difﬁcult, then the difﬁculty is unchanged. In

rare cases, there are representations that can convert

a problem from difﬁcult to easy. Finally, if the prob-

lem is of the third category, a low locality representa-

tion will convert it to a difﬁcult problem. That is, the

problem becomes easier because the search is more

random.

In Genetic Programming, there is no distinction

between genotypes and phenotypes, therefore, the

locality in GP was studied in terms of genotype-

ﬁtness mapping instead (Galv

an-L

opez et al., 2010a;

Galv

an-L

opez et al., 2010b).

2.2 Distance Metrics

For evolutionary algorithms with simple genotypes,

such as genetic algorithms with binary representa-

tion, distance can be evaluated using Hamming dis-

tance (Belea et al., 2004). On the other hand, when

the genotype becomes more complex, e.g. trees in

GP, then more sophisticated methods are necessary.

The most commonly used dissimilarity measures in

EC belong to the family of edit distances (Gustafson

and Vanneschi, 2008).

Another set of methods that are used in evaluating

distance between trees are various tests for isomor-

phism. In (Burke et al., 2004), they are referred to as

pseudo-isomorphisms, which were found by deﬁning

a three-tuple of hterminals, non-terminals, depthi. Ap-

proaches, such as genetic markers (Burks and Punch,

2015) and hybrid methods (Kelly et al., 2019), belong

to this group of methods. In this setting, two trees

are the same if and only if their respective tuples are

the same. These methods are used because exact tests

for isomorphism were, and in some cases still are, too

computationally expensive.

Lastly, a new class of algorithms for graph com-

parisons have been proposed and improved over time.

These methods are referred to as graph kernels and

are widely used in ﬁelds such as chemoinformat-

ics, bioinformatics, and natural language processing

(Nikolentzos et al., 2019). While these methods were

developed for use with more complex graphs, they

can also be used for simpler structures. In this con-

text, GP syntax trees can be deﬁned as connected

acyclic graphs, therefore, graph kernels can be used

as a distance metric.

The following subsections provide a brief intro-

duction to the topics of (i) edit distance; (ii) kernel

methods; and (iii) graph kernel methods.

2.2.1 Edit Distance

Edit distance is a family of distance metrics deﬁned

on non-vectorial data, such as strings, trees, and

graphs. The Levenshtein distance is a well-known

edit distance method, which is used to measure the

distance between two sequences, for example, strings.

The distance between two strings is given by the min-

imum number of operations, insertion, deletion, or

ECTA 2020 - 12th International Conference on Evolutionary Computation Theory and Applications

substitution, required to transform one string to an-

other.

Generalization of the edit distance for more com-

plex data structures, namely trees, was introduced in

(Tai, 1979) and was later referred to as Tree Edit Dis-

tance (TED). Edit distance was introduced to the ﬁeld

of EC as a distance metric in (O’Reilly, 1997), to mea-

sure the degree of dissimilarity between two tree-like

structures. More formally, let G and G

be two rooted

trees where each vertex is assigned a label from al-

phabet Σ. The edit distance between these two trees

is the minimum cost of transforming G into G

using

a sequence of operations (single operation per node):

(i) substitution of a node v, that is, change its label;

(ii) deletion of the node v and resetting the children as

the children of v’s parent; and (iii) insertion of a node

v, as a reverse of the deletion operation.

2.2.2 Graph Kernel Methods

Classical learning algorithms use instances, e.g. x, x

in non-empty set X , through an inner product hx, x

This can be interpreted as a distance, or similarity be-

tween instances x and x

. The biggest advantage of

kernel methods is that they can operate on any type

of data. The input space X is not restricted to vector

space, and it can be applied to structured domains,

such as strings or graphs. Kernels can be used on

structured data as long as an appropriate mapping to

RKHS H can be found, that is φ : X → H . How-

ever, the structure of the graph is invariant to permu-

tations of its representations. That is, the ordering of

the nodes and edges does not change the structure of

the graph. Therefore, similarity measures also have

to take into account this property. Various paradigms

were proposed to evaluate similarity in such a way.

These methods can be roughly divided into follow-

ing subgroups: neighborhood aggregation methods,

assignment kernels, matching-based kernels, walks

and paths based kernels, and ﬁnally subgraph pattern-

based kernels (Kriege et al., 2020). The last paradigm

seems to be the most natural way to deﬁne kernel

methods on structured data. This class of functions

is based on the decomposition of the object into sub-

structures, e.g. subgraphs or vertices, which are then

compared by applying existing kernels. Such kernels

are referred to as R -convolution kernels.

2.2.3 Weisfeiler-Lehman Framework

The Weisfeiler-Lehman algorithm/framework was in-

spired by the Weisfeiler-Lehman’s graph isomor-

phism test, also known as ”naive vertex reﬁnement”.

This framework can be applied to any graph ker-

nel, such as the shortest path or subtree kernel (Sher-

vashidze et al., 2011). Among those, the Weisfeiler-

Lehman subtree kernel is considered to be the state-

of-the-art algorithm in graph classiﬁcation. The key

idea of this algorithm is to augment labels of each

node with so-called multiset label consisting of the

original label of the vertex and sorted labels of its

neighborhood. This newly created multiset is then

compressed, resulting in a new and short label (shown

in Figure 1). Relabeling procedure is repeated for h

iterations, and two nodes from different graphs will

match if and only if they have identical multiset la-

bels. Formally, the Weisfeiler-Lehman Framework

can be deﬁned as follows:

Deﬁnition 1. (Weisfeiler-Lehman Framework)

(Nikolentzos et al., 2019)

Let k be any kernel for graphs, that we will call

the base kernel. Then the Weisfeiler-Lehman kernel

with h iterations with the base kernel k between two

graphs G and G

is deﬁned as:

W L

(G, G

) = k(G

, G

) + k(G

, G

) + ·· · + k(G

, G

(1)

where h is the number of Weisfeiler-Lehman itera-

tions, and {G

, G

, . . . , G

} and {G

, G

, . . . , G

} are

the Weisfeiler-Lehman sequences of G and G

, respec-

tively.

The above deﬁnition states, that any graph kernel

which considers graphs with discrete node labels can

take advantage of the Weisfeiler-Lehman framework.

Furthermore, if the base kernel compares subtrees of

two graphs G and G

, then the method is referred to

as the Weisfeiler-Lehman Subtree Kernel. For further

information (on both theory and implementation), see

(Nikolentzos et al., 2019) and (Kriege et al., 2020).

3 EXPERIMENTAL SETUP

Many studies try to improve GP, by incorporating se-

mantic information during exploration and exploita-

tion of the search space (Vanneschi et al., 2014). Un-

fortunately, most studies are purely empirical with no

theoretical backing. Most of the works are based on

experience rather than mathematics. To solve this is-

sue, a lot of work was done to understand how the

locality of both representations and genetic operators

affect the problem difﬁculty. This approach, while be-

ing straightforward for simple structures used in GAs,

is troublesome when applied to tree-based GP. Geno-

type to phenotype mapping cannot be simply studied,

as there is no clear distinction between representation

(genotype) and solution (phenotype). Therefore, most

works consider genotype-ﬁtness mapping. However,

it is more natural to consider mapping from genotype

Behavioral Locality in Genetic Programming

−

0, 12

1,035

3,1 5,1

2,005

0,245

5,0 4,0

5,2

0,01

1,035

3,1 5,1

0,025

2,045

5,2 4,2

5,0

0,01 → 6 3,1 → 13

0,12 → 7 4,0 → 14

0,025 → 8 4, 2 → 15

0,245 → 9 5, 0 → 16

1,035 → 10 5, 1 → 17

2,005 → 11 5, 2 → 18

2,045 → 12

+ → 0

− → 1

· → 2

→ 3

→ 4

c → 5

3 5

1 4

3 5

1 4

13 17

16 14

13 17

18 15

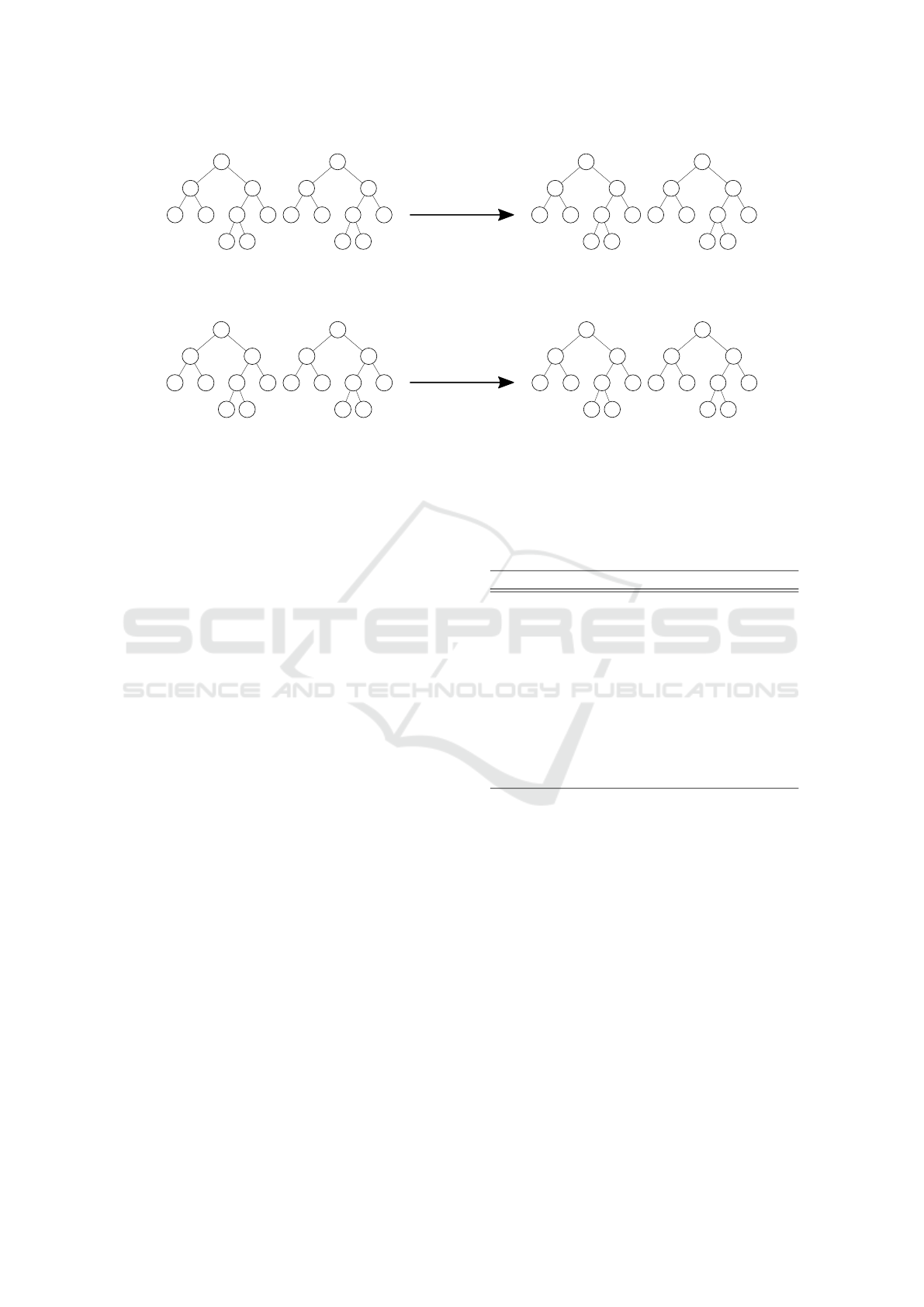

Figure 1: Illustration of the relabeling process used in the Weisfeiler-Lehman subtree kernel for h = 1 for two trees G and G

In the Genetic Programming setting, node labels are ﬁrst relabeled from mathematical operations into simpler representation,

e.g. integers (top). In the following step, node labels are augmented with multiset labels, which consist of the original label of

the node and sorted labels of its neighborhood (a tree with multiset labels is presented in the bottom left). Created multiset is

compressed by relabeling it with a new label, which did not exist in the original set of labels. Relabeling scheme is presented

in the bottom middle, and relabeled trees are shown in the bottom right.

to some intermediate form, such as the behavior of an

individual. In this work, we study the locality of geno-

type to behavior mapping for three basic mutation op-

erators: subtree, structural, and one-point. This is

examined for two benchmark problems: (i) Artiﬁcial

Ant; and (ii) Even-n-Parity.

Artiﬁcial Ant is often used as a GP benchmark

problem. It consists of ﬁnding a program that can

successfully navigate an artiﬁcial ant along a path

on a 32 × 32 toroidal grid. The most commonly

used trail (called Santa Fe trail) consists of 89 pel-

lets of food, and the number of pellets eaten by

an ant is its ﬁtness. Standard set of non-terminals

F = {IfFoodAhead, prog2, prog3} and terminals T =

{Move, Right, Left} is used. In this study we con-

sider the behavior of the artiﬁcial ant to be its se-

quence of moves and positions. That is, each indi-

vidual in population is associated with a vectors of

the form (x, y, dir), where x, y are positions in space

and dir is the direction faced by an ant with val-

ues: {north, east, south, west}. Program times-out af-

ter 600 steps, thus, behavioral differences between the

individuals can be determined by simply comparing

these vectors.

The goal of the boolean Even-n-Parity problem is

to evolve a function that returns true if an even num-

ber of the inputs evaluates to true, and false other-

wise. GP uses set of terminals (n = 6 inputs), and

non-terminals F = {NOT, OR, AND}. Fitness of a

program is the number of successfull parity evalua-

tions, thus, the maximum ﬁtness is 2

= 64. The be-

havior of a program can be deﬁned in terms of the out-

Table 1: Common GP parameters.

Parameters Values

Population size 500

Initialization Ramped half and half

Max depth 6

Selection Tournament

Size 7

Generations 50

Runs 50

Crossover rate 70%

Mutation rate 30%

Max depth 2

Static tree height limit 20

puts it produces. Outputs are recorded as sequences of

binary values for each of the test cases used during ﬁt-

ness evaluations. Behavioral differences between the

individuals can be calculated by comparing sequences

of outputs.

Parameters of the GP used to solve artiﬁcial ant

and even-6-parity problems are presented in Table 1.

Population size was set to 500 and was initialized with

ramped half and half method (Koza, 1992). The initial

population consists of trees with heights from 1 to 6.

Programs were evolved for 50 generations. Crossover

rate was set to 70% and parents were selected using

tournament selection of size 7. Additionally, individ-

uals were mutated with the probability of 30% us-

ing one of the three mutation operators: (i) subtree,

replaces a randomly selected subtree with randomly

created subtree; (ii) structural, either inﬂates or de-

ﬂates the individual; or (iii) one-point, replaces a sin-

ECTA 2020 - 12th International Conference on Evolutionary Computation Theory and Applications

gle node in the individual. Subtree mutation was re-

stricted to generating subtrees with a maximum height

of 2. To avoid excessive bloat of the trees, a static

height limit of 20 was set for a crossover operator.

That is, if crossover operation resulted in an offspring

with a height greater than 20, then the offspring was

replaced by one of the parents at random. However,

this limit does not affect mutation operators, as they

are limited in the growth of the trees. This GP run was

repeated 50 times to collect the appropriate amount of

statistical data. A set of experiments was conducted

to examine proposed approaches.

Before proceeding with investigating the behav-

ioral locality of mutation operators, we have to deter-

mine the differences between two distance measures

used in this study.

A conventional distance measure, Tree Edit Dis-

tance considers the distance between the trees to be

the minimum amount of edits needed to transform one

tree to another. Thus, it takes into account only lo-

cal properties. This approach provides us with a ﬁne-

grained distance (a measure of dissimilarity) between

the individuals, in the form of an integer with the

maximum distance being |G

| + |G

|, where |G

| and

| are the number of nodes of compared trees G

and G

. Zhang and Shasha’s dynamic programming

implementation of TED (Zhang and Shasha, 1989)

was applied in this study.

On the other hand, the Weisfeiler-Lehman Sub-

tree Kernel is a method of evaluating the similarity

between the trees. Similarly to TED, this method re-

turns an integer value. However, this value deﬁnes the

closeness of individuals. That is, the higher the value,

the more similarities are shared between individuals.

To compare this method to TED it is necessary to con-

vert similarity value to dissimilarity by ﬁrst normaliz-

ing similarity (

k(G,G

)

k(G,G)+k(G

)

), and then subtracting it

from 1.

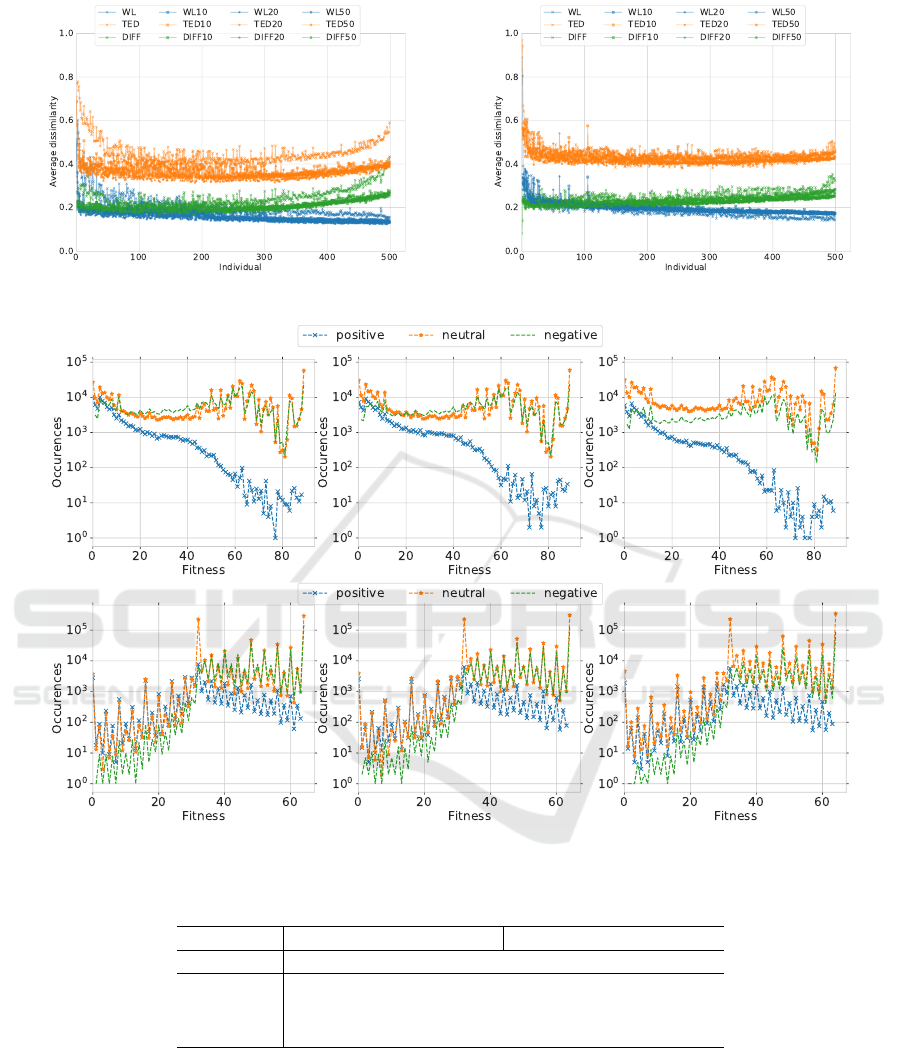

These methods were compared by calculating the

average dissimilarity of an individual to the rest of the

population. This is done by creating a matrix consist-

ing of pairwise distances, which is further summed

for one of the axes. A vector of values received in this

way represents the distribution of average dissimilar-

ities and is plotted against indices used to label indi-

viduals. This comparison was executed for the pop-

ulation in the last generation of GP run, which was

repeated 50 times, to examine an average difference

in behaviors of these two methods.

After the initial investigation of differences be-

tween distance measures, we proceeded with the in-

vestigation of the behavioral locality of mutation op-

erators. To have sufﬁcient statistical data, we have

created 1, 250, 000 individuals. This was achieved by

recording all individuals created during the evolution

of GP with parameters as deﬁned in the Table 1. All

three mutation operators were used in the evolution-

ary process, to avoid bias in data. Gathered individ-

uals were mutated using subtree, structural and one-

point mutations. Finally, data created in such a way

was divided into parts consisting of positive, neutral,

and negative mutations, that is, mutations which in-

creased, did not change, and decreased ﬁtness of an

individual, respectively.

In the ﬁrst set of results, this data was used to

present occurrences of individuals with positive, neu-

tral, and negative mutations for subtree, structural and

one-point mutations. These results are necessary to

determine what kind of distribution was created by

our experimental setup, thus, allowing us to directly

compare these results with past investigations.

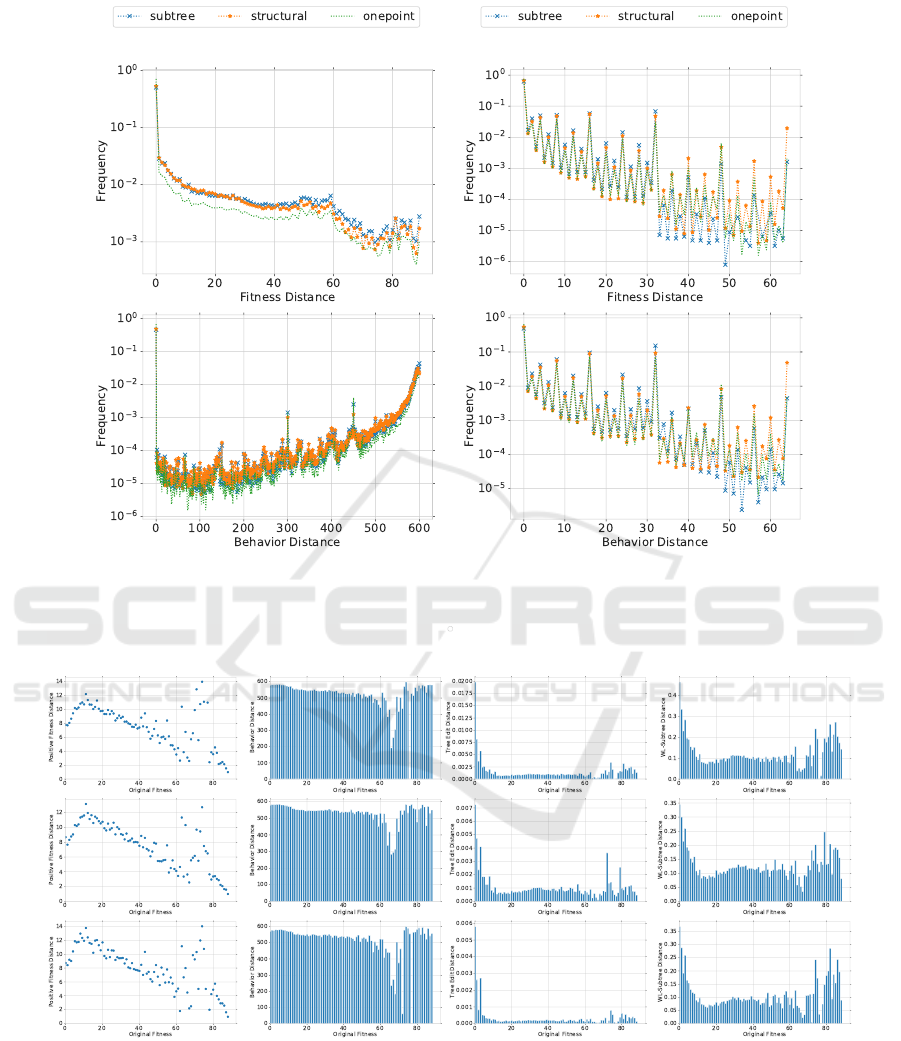

The second set of results present distributions of

ﬁtness and behavior distance with respect to the fre-

quency of such a mutation occurring. In this case, we

plotted an absolute ﬁtness distance, as it is not impor-

tant if the change was positive or negative. We are

interested in how often ﬁtness and behavior distance

of 1 occurred. That is, the most frequently occurring

mutation operator can be said to be of the highest lo-

cality.

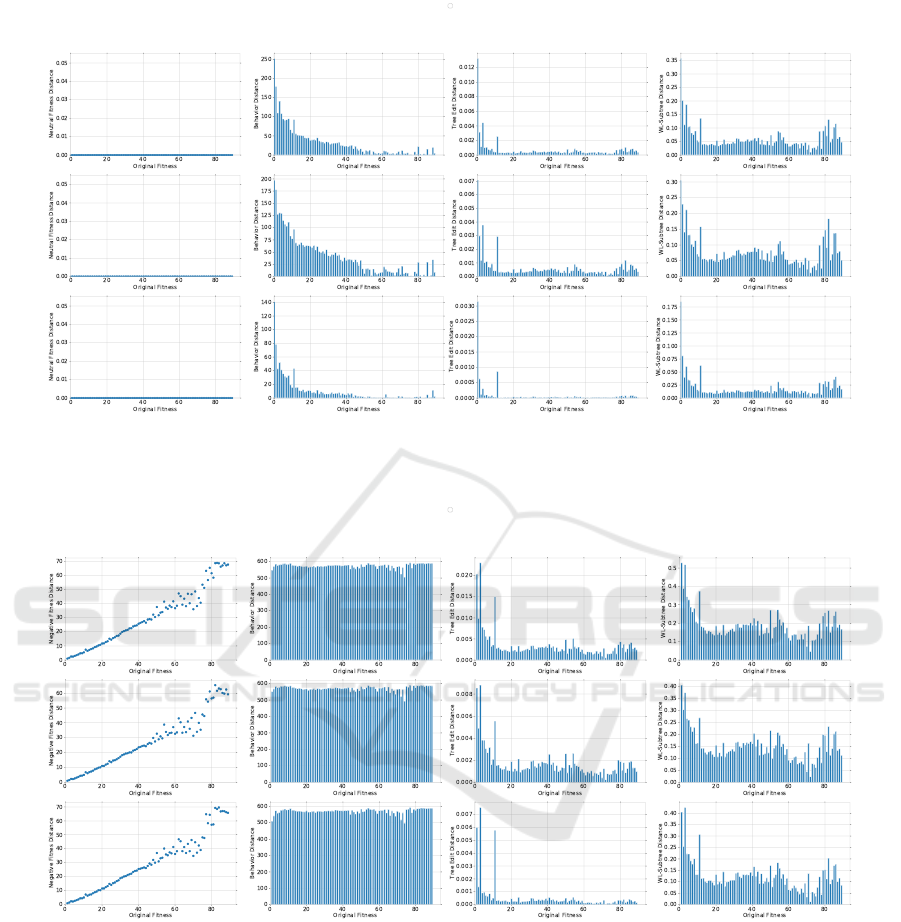

Finally, this work presents ﬁtness distance, behav-

ior distance, tree edit distance, and WL-Subtree Ker-

nel distance plotted against the ﬁtness of an individual

before mutation (referred to as original ﬁtness). This

subset of results is presented in the form of a 3 × 4

grid, with rows corresponding to mutation operators.

Three super-sets of results are presented for positive,

neutral, and negative mutations. Due to space restric-

tions, this result is shown only for an artiﬁcial ant

problem. This representation should allow us to see

an average structural change (in terms of TED and

WL-Subtree Kernel) introduced by mutation opera-

tors. At the same time, the use of the same x-axis

allows us to see how this structural change relates to

ﬁtness and behavioral changes.

4 RESULTS AND DISCUSSION

A comparison between TED and WL-Subtree Kernel

is presented in Figure 2. Individuals in the popula-

tion were sorted with respect to their sizes (number

of nodes in the tree). That is, individuals on the left

side (closer to 0) consist of fewer nodes than individ-

uals to the right (closer to 500). For all tested cases,

TED (depicted with orange lines) returns higher aver-

age distances than WL-Subtree Kernel (shown as blue

lines). On the other hand, differences between those

Behavioral Locality in Genetic Programming

Figure 2: Distribution of average dissimilarity vs label of an individual for artiﬁcial ant (left) and even-6-parity (right).

Figure 3: Occurrences of individuals after applying subtree (left), structural (middle), and one-point mutation (right). Results

for artiﬁcial ant problem (top) and even-6-parity (bottom).

Table 2: Frequencies of subtree, structural and one-point mutations leading to ﬁtness and behavior distance to be 1.

Artiﬁcial Ant Even-6-Parity

Fitness Behavior Fitness Behavior

Subtree 2.86 · 10

−2

6.17 · 10

−5

1.75 · 10

−2

9.06 · 10

−3

Structural 2.96 ·10

−2

4.25 · 10

−5

1.33 · 10

−2

7.10 · 10

−3

One-Point 1.65 · 10

−2

1.85 · 10

−5

1.19 · 10

−2

6.57 · 10

−3

two values are fairly stable (green line). This is the

difference in dissimilarity evaluation between TED,

which computes dissimilarity by considering only lo-

cal differences, and WL-Subtree kernel, which con-

siders both local and global properties of the trees.

WL-Subtree kernel calculates the similarity by taking

into account several feature vectors, created through

the relabeling procedure, as shown in Figure 1. As

an effect, it ”dilutes” small differences, thus consid-

ers trees to be more similar. This is more visible for

bigger individuals, where the difference between the

two methods is increasing (seen as a rise in values

presented by the green line).

Figure 3 shows the occurrences of individuals af-

ter applying three mutation operators. For artiﬁcial

ant problem, we can observe various peaks of neutral

ECTA 2020 - 12th International Conference on Evolutionary Computation Theory and Applications

Figure 4: Distribution of ﬁtness distance (top) and behavior distance (bottom) vs frequency. Results for the artiﬁcial ant

problem (left) and even-6-parity (right) using subtree, structural, and one-point mutation.

Figure 5: Results after applying subtree (top), structural (middle), and one-point mutation (bottom) for an artiﬁcial ant prob-

lem. Original ﬁtness vs positive ﬁtness (ﬁrst column), original ﬁtness vs behavior distance (second column), and structural

distance metrics using edit distance (third column) and Weisfeiler-Lehman Subtree Kernel (fourth column).

and negative mutations in the ﬁtness range. The ﬁrst

set of peaks can be observed for low ﬁtness values

(< 15). This is consistent with results given in (Lang-

don and Poli, 2013), where it was shown that the

number of individuals with low ﬁtnesses (regardless

of their size) is always high in artiﬁcial ant problem.

However, similarly high peaks can also be observed in

the ﬁtness range of [50, 70]. However, these peaks ap-

pear in the distribution of ﬁtness values in the search

space, thus are unique to the problem rather than to

Behavioral Locality in Genetic Programming

Figure 6: Results after applying subtree (top), structural (middle), and one-point mutation (bottom) for an artiﬁcial ant prob-

lem. Original ﬁtness vs neutral ﬁtness (ﬁrst column), original ﬁtness vs behavior distance (second column), and structural

distance metrics using edit distance (third column) and Weisfeiler-Lehman Subtree Kernel (fourth column).

Figure 7: Results after applying subtree (top), structural (middle), and one-point mutation (bottom) for an artiﬁcial ant prob-

lem. Original ﬁtness vs negative ﬁtness (ﬁrst column), original ﬁtness vs behavior distance (second column), and structural

distance metrics using edit distance (third column) and Weisfeiler-Lehman Subtree Kernel (fourth column).

the genetic operators (Galv

an-L

opez et al., 2010b). In

our case, there is also an additional peak for a ﬁtness

value of 89. This peak is the result of our static bloat

control, which simply discarded all offspring created

using crossover, which resulted in trees with heights

higher than 20. This resulted in the replication of

highly ﬁt (and possibly bloated) individuals in the lat-

ter stage of the evolutionary process, thus, it is the

result of our sampling method. It is interesting to see

that for subtree and structural mutations, neutral mu-

tations dominate in low ﬁtness range. This changes

above ﬁtness value of 20, where suddenly most of

the mutations have negative effects. In the latter ﬁt-

ness range, neutral and negative mutations occur at a

similar rate. On the other hand, when the one-point

mutation is applied, most of the mutations are neutral

for ﬁtness values lower than 45. Positive mutations

act similarly for all mutation operators. These occur

most frequently in low ﬁtness range and are very rare

for individuals with high ﬁtnesses.

ECTA 2020 - 12th International Conference on Evolutionary Computation Theory and Applications

Reversed behavior can be observed for even-6-

parity problems. In this case, most of the mutations

appear for programs with high ﬁtness values (above

half of the maximum ﬁtness, i.e. 32 for even-6-

parity). In this range, neutral and negative mutations

dominate and occur at similar rates. On the other

hand, positive mutations are as frequent as neutral

mutations in the lower half of ﬁtness values. Similar

results were reported in (Galv

an-L

opez et al., 2010b).

This means that bloat control, which changed the dis-

tribution of ﬁtness values for an artiﬁcial ant problem,

did not affect outcomes for even-6-parity problem.

The locality of mutation operators is shown in Fig-

ure 4. Let us start an analysis of the locality of a

mutation operator in a genotype-ﬁtness mapping (top

part of Figure 4). First of all the highest frequency

can be observed for neutral mutations (ﬁtness distance

of 0), regardless of mutation operator. For artiﬁcial

ant problem, we can see that it is substantially less

common for mutation operator to introduce big ﬁt-

ness change. This tendency can also be observed for

even parity problem. However, it is far more com-

mon for mutation operation to drastically change the

ﬁtness of the individual in even parity problem. This

is related to the neutral landscape of even parity prob-

lem, for which even small changes of the genotype

can be detrimental for the program.

The locality of mutation operators in genotype-

behavior mapping can be seen in the bottom part of

Figure 4. For even parity problem, the distribution

of behavior distance to the frequency of it occurring,

looks pretty much the same as the distribution of ﬁt-

ness distance. On the other hand, genotype-behavior

mapping presents a completely different view of an

artiﬁcial ant problem. Even in this picture, neutral

mutations are most common, however, small behav-

ioral differences are very rare (frequencies at the level

of 10

−5

). Conversely, big behavioral changes (behav-

ior distances close to 600) are very common (around

−2

). Frequencies, when ﬁtness distance and behav-

ior distance are 1, are presented in Table 2. Presented

values show that subtree mutation presents the high-

est locality, with the one-point mutation having the

lowest locality. This result is counter-intuitive. The

one-point mutation is the simplest mutation, which

replaces a single node of a tree, thus should have the

highest locality. On the other hand, subtree mutation

is capable of introducing drastic genotypic changes.

This ﬁnding is a little bit different from the results

reported in (Galv

an-L

opez et al., 2010b), in which

structural mutation is shown to have the highest lo-

cality.

Finally, we have to analyze the relation between

ﬁtness and behavior distance to genotypic change in-

troduced through mutations. Cases for positive, neu-

tral, and negative mutations are analysed separately,

and are shown in Figures 5, 6, and 7, respectively.

Due to space restrictions, only results for an artiﬁcial

ant problem are presented.

Let us ﬁrst focus on the results for positive mu-

tations (Figure 5). We can see that on average, the

biggest ﬁtness change is introduced to individuals

with original ﬁtness of around 10. After this point,

the average improvement of an individual’s ﬁtness de-

creases, thus becoming harder to improve programs.

The biggest change can be seen for original ﬁtness

values above 60, where suddenly the distribution be-

comes rugged. These are local optima, which can-

not be easily escaped. It is known that an artiﬁcial

ant problem has a highly multimodal landscape, with

many plateaus split by deep valleys (Langdon et al.,

1998). This means that bigger genotypic, as well as

behavioral changes, are required to escape such op-

tima. Similar ruggedness of the landscape can be ob-

served in the following plots for behavioral and struc-

tural distances. In the case of behavior, we can see

that overall behavioral changes (corresponding to ﬁt-

ness improvements) are high, but they also decrease

after the original ﬁtness of 10. This behavior is fairly

natural, that is, to improve individuals with high ﬁt-

nesses we have to optimize their behaviors. However,

when optimal solutions are found (ﬁtnesses > 60),

it is necessary to introduce big changes to the be-

havior (similar to ﬁtness and genotypic changes) to

improve an individual. Similar behavior can be ob-

served for structural changes, which are relatively low

for the whole spectrum of ﬁtness values. However,

this relation becomes rugged in the same region as

for ﬁtness and behavior changes. In the case of tree

edit distance, this relation is harder to see, because

it takes into account only how many edits are nec-

essary to change one tree into another. According

to TED, big behavioral changes are accompanied by

small genotypic changes (only a small subset of nodes

was changed). On the other hand, WL-Subtree kernel

claims that the introduced changes are far greater (on

par with changes introduced for individuals with low

ﬁtnesses).

For neutral mutations, we can observe that big

behavioral changes are recorded for individuals with

low ﬁtness values. These behavioral changes are ac-

companied by relatively high genotypic changes as

shown by both distance measures. On the other hand,

individuals with high original ﬁtnesses, experience

small or no behavioral changes, even for relatively

high genotypic mutations, as given by WL-Subtree

kernel. That is, a highly ﬁt individual cannot drasti-

cally change its behavior if it wants to keep its ﬁtness

Behavioral Locality in Genetic Programming

value unchanged. It is worth mentioning, that these

genotypic changes are smaller than the ones observed

for positive mutations (according to WL-Subtree ker-

nel: < 0.2 for neutral and > 0.2 for positive muta-

tions). That is, these changes are small enough not

to escape local optima, as well as, they are not big

enough to enter valleys.

Finally, in the case of negative mutations, we see

that the most detrimental changes can be observed for

individuals with high original ﬁtnesses (> 70). From

the behavioral perspective, all individuals experience

very high changes to their behaviors. This landscape

is stable in comparison to the behavior changes ob-

served for positive mutations. It is interesting to see

that for negative mutations, structural changes are

overall higher than the ones observed for neutral mu-

tations, but are lower than for positive mutations.

5 CONCLUSIONS

Two contributions of this paper are: (i) extending the

deﬁnition of GP by considering genotype to behav-

ior mapping; and (ii) proposed to use the family of

similarity measures, Graph Kernels, as a way to cal-

culate genotypic distance. Our proposals were tested

on two benchmark problems, artiﬁcial ant and even

parity problem.

First of all, traditionally used Tree Edit Distance

(TED) was compared to the Weisfeiler-Lehman Sub-

tree Kernel. This comparison showed that TED con-

siders trees to be signiﬁcantly more different than

WL-Subtree kernel. This is due to the way, the

dissimilarity between the trees is calculated, that is

WL-Subtree kernel considers both local (node level)

and global (neighborhoods) properties of trees. This

means that the WL-Subtree kernel uses both syntactic

(structural) and semantic (behavioral) information, to

evaluate dissimilarity.

Investigations on the locality of three basic muta-

tion operators: subtree, structural, and one-point mu-

tations, showed that subtree mutation has the highest

locality. This result is counter-intuitive because sub-

tree mutation changes subtrees (and possibly whole

tree). This result is common for both genotype to ﬁt-

ness and genotype to behavior mappings. However,

for the artiﬁcial ant problem, all three mutation oper-

ators have low locality in genotype to behavior map-

ping. That is, the frequency of a highly local change

to occur is much less common than a low locality

change to happen (frequencies at the level of 10

, respectively). In the case of even-6-parity, dis-

tributions of ﬁtness, and behavior distances were ap-

proximately the same.

Finally, our results showed that all mutations are

detrimental to the original behavior of an individual,

regardless of its original ﬁtness and the size of in-

troduced genotypic change. Three considered muta-

tion operators are of low behavioral locality, that is,

they rarely preserve behaviors of programs. There-

fore, even small changes in the genotype, drastically

change an individual’s behavior, thus resulting in

slight improvements or considerable deterioration of

the ﬁtness of an individual. Small behavioral changes

were also recorded, however, these did not change the

ﬁtness of programs.

This work can be extended in several ways. First

of all, it could be applied to a wider variety of prob-

lems, e.g. symbolic regression (both benchmark and

real-world problems), maze navigation, image pro-

cessing, and scheduling. Furthermore, this work ap-

plied the Weisfeiler-Lehman Subtree kernel as a dis-

similarity measure, however, various methods could

also be used, such as, Shortest Path, Random Walk,

Graphlet Sampling, and Laplacian kernels. Finally,

it may be worthwhile to investigate how different

reperesentations of intermediate phenotypes (e.g. bi-

nary decision diagrams) affect the ﬁtness landscape.

REFERENCES

Belea, R., Caraman, S., and Palade, V. (2004). Diagnos-

ing the population state in a genetic algorithm us-

ing hamming distance. In International Conference

on Knowledge-Based and Intelligent Information and

Engineering Systems, pages 246–255. Springer.

Burke, E. K., Gustafson, S., and Kendall, G. (2004). Diver-

sity in genetic programming: An analysis of measures

and correlation with ﬁtness. IEEE Transactions on

Evolutionary Computation, 8(1):47–62.

Burks, A. R. and Punch, W. F. (2015). An efﬁcient structural

diversity technique for genetic programming. In Pro-

ceedings of the 2015 Annual Conference on Genetic

and Evolutionary Computation, pages 991–998.

Galvan-Lopez, E. (2009). An analysis of the effects of

neutrality on problem hardness for evolutionary algo-

rithms. PhD thesis, University of Essex.

Galv

an-L

opez, E., McDermott, J., O’Neill, M., and

Brabazon, A. (2010a). Deﬁning locality in ge-

netic programming to predict performance. In IEEE

Congress on Evolutionary Computation, pages 1–8.

IEEE.

Galv

an-L

opez, E., McDermott, J., O’Neill, M., and

Brabazon, A. (2010b). Towards an understanding of

locality in genetic programming. In Proceedings of

the 12th annual conference on Genetic and evolution-

ary computation, pages 901–908.

Gustafson, S. and Vanneschi, L. (2008). Crossover-based

tree distance in genetic programming. IEEE Transac-

tions on Evolutionary Computation, 12(4):506–524.

ECTA 2020 - 12th International Conference on Evolutionary Computation Theory and Applications

Jones, T. et al. (1995). Evolutionary algorithms, ﬁtness

landscapes and search. PhD thesis, Citeseer.

Kelly, J., Hemberg, E., and O’Reilly, U.-M. (2019). Im-

proving genetic programming with novel exploration-

exploitation control. In European Conference on Ge-

netic Programming, pages 64–80. Springer.

Koza, J. R. (1992). Genetic programming: on the program-

ming of computers by means of natural selection, vol-

ume 1. MIT press.

Kriege, N. M., Johansson, F. D., and Morris, C. (2020). A

survey on graph kernels. Applied Network Science,

5(1):1–42.

Langdon, W. B. and Poli, R. (2013). Foundations of genetic

programming. Springer Science & Business Media.

Langdon, W. B., Poli, R., et al. (1998). Why ants are hard.

Nikolentzos, G., Siglidis, G., and Vazirgiannis, M.

(2019). Graph kernels: A survey. arXiv preprint

arXiv:1904.12218.

O’Reilly, U.-M. (1997). Using a distance metric on genetic

programs to understand genetic operators. In 1997

IEEE International Conference on Systems, Man, and

Cybernetics. Computational Cybernetics and Simula-

tion, volume 5, pages 4092–4097. IEEE.

Poli, R., Langdon, W. B., McPhee, N. F., and Koza, J. R.

(2008). A ﬁeld guide to genetic programming. Lulu.

com.

Rothlauf, F. (2006). Representations for genetic and evo-

lutionary algorithms. In Representations for Genetic

and Evolutionary Algorithms, pages 9–32. Springer.

Shervashidze, N., Schweitzer, P., Leeuwen, E. J. v.,

Mehlhorn, K., and Borgwardt, K. M. (2011).

Weisfeiler-lehman graph kernels. Journal of Machine

Learning Research, 12(Sep):2539–2561.

Tai, K.-C. (1979). The tree-to-tree correction problem.

Journal of the ACM (JACM), 26(3):422–433.

Vanneschi, L., Castelli, M., and Silva, S. (2014). A survey

of semantic methods in genetic programming. Genetic

Programming and Evolvable Machines, 15(2):195–

214.

Zhang, K. and Shasha, D. (1989). Simple fast algorithms for

the editing distance between trees and related prob-

lems. SIAM journal on computing, 18(6):1245–1262.

Behavioral Locality in Genetic Programming
