A Survey of Sensor Modalities for Human Activity Recognition

Bruce X. B. Yu

, Yan Liu

and Keith C. C. Chan

Department of Computing, The Hong Kong Polytechnic University, Hong Kong, China

Keywords: IoT, Human Activity Recognition, Sensors.

Abstract: Human Activity Recognition (HAR) has been attempted by various sensor modalities like vision sensors,

ambient sensors, and wearable sensors. These heterogeneous sensors are usually used independently to

conduct HAR. However, there are few comprehensive studies in the previous literature that investigate the

HAR capability of various sensors and examine the gap between the existing HAR methods and their potential

application domains. To fill in such a research gap, this survey unfastens the motivation behind HAR and

compares the capability of various sensors for HAR by presenting their corresponding datasets and main

algorithmic status. To do so, we first introduce HAR sensors from three categories: vision, ambient and

wearable by elaborating their available tools and representative benchmark datasets. Then we analyze the

HAR capability of various sensors regarding the levels of activities that we defined for indicating the activity

complexity or resolution. With a comprehensive understanding of the different sensors, we review HAR

algorithms from perspectives of single modal to multimodal methods. According to the investigated

algorithms, we direct the future research on multimodal HAR solutions. This survey provides a panorama

view of HAR sensors, human activity characteristics and HAR algorithms, which will serve as a source of

references for developing sensor-based HAR systems and applications.

1 INTRODUCTION

HAR research has been revitalized in recent years

with plenty of emerging big data technologies that

involve various Internet of Thing (IoT) sensors. HAR

is a broad field of study concerned with identifying

the specific movement or action of a person based on

sensor data. HAR could have a plenty of application

domains like healthcare, assisted living, surveillance

and computational behavioral science, etc. For

instance, the concept of cashier-free supermarket has

been emerged in recent years since the announcement

of Amazon Go and the release of its patents (Dilip,

2015; Gianna, 2015). Sensor technologies such as

Radio Frequency IDentification (RFID), computer

vision, and sensor fusion have been collectively

attempted by companies for no-check stores to detect

activities of customers, but none of those

technologies has been popularized to mass production

due to their high implementation cost and intrinsic

limitations. Another important application domain of

https://orcid.org/0000-0001-9905-8154

https://orcid.org/0000-0003-4242-4840

https://orcid.org/0000-0003-1709-2637

HAR is healthcare where Applied Behavioral

Analysis (ABA) has been empirically verified as

effective treatment or prevention therapy for Autism

kids (Chouhan & Sharma, 2017). Besides, it could

also be applied to early screening of dementia

symptoms for the elderly to take effective prevention

therapies (Petersen et al., 2001).

In these application domains, HAR requires

varied levels of activity recognition resolutions to

tackle their specific core problems. If activities in a

grocery store or at a patient’s home could be detected

at a high resolution that supports advanced behavior

understanding, we could believe that it will breed

realistic benefits to our daily life. However, it remains

lack of studies examining the characteristics of

human activity and the required level of HAR for

landing them to those application domains. The

existing research of HAR usually focus on a single

sensor modality such as inertial sensor (Avci et al.,

2010; Bulling et al., 2014), vision sensor (Presti & La

Cascia, 2016), or WSN (Alemdar & Ersoy, 2010).

Although the use of single sensor modality has

282

Yu, B., Liu, Y. and Chan, K.

A Survey of Sensor Modalities for Human Activity Recognition.

DOI: 10.5220/0010145202820294

In Proceedings of the 12th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2020) - Volume 1: KDIR, pages 282-294

ISBN: 978-989-758-474-9

achieved some progresses on a few public datasets, it

might impede the potential progress of HAR area

since the real-world data source of HAR is

heterogeneously multimodal. To our best knowledge,

the effective data fusion strategies for multimodal

HAR solutions have not been thoroughly explored in

previous literatures. To identify the potential research

gaps, this survey disentangles HAR from three

aspects: activities, sensors and algorithms.

This survey is one of the first attempts to examine

the complexity levels of human activity and the state-

of-the-art levels of HAR achieved by different

sensors. Unlike most existing literatures of survey

that focus on a specific sensor modality, this paper

provides a systematic review of various IoT sensors

and their HAR capabilities. Main contributions of this

survey are threefold. First, it collectively compares

advantages and disadvantages of different sensors,

which can serve as a guidance to choose proper sensor

modalities for developing applicable holistic real-

world applications. Second, it provides a definition of

activity levels and a categorization scheme of HAR

that are used to analyze the HAR capability of

different sensor modalities. Third, it reviews

multimodal algorithms from both perspectives of

traditional and Deep Learning (DL) methods, and

direct the future research of HAR.

Regarding the structure of this survey, we start

with introducing different sensors in Section 2. We

then define the levels of human activity and analyze

the HAR capability of different sensors by using the

sample activities of a breakfast preparation activity

routine in Section 3. In Section 4, we explore the

future direction of HAR by reviewing data fusion and

processing methods of both single modal and

multimodal HARs. In Section 5, we draw a

conclusion and direct the future work.

2 IoT SENSORS FOR HAR

Regarding IoT sensors used for HAR, some

researches classify them into two rough categories:

ambient sensors and wearable sensors (Acampora et

al., 2013; Chen, Hoey, et al., 2012). Ambient sensors

refer to sensors connected as a wireless mesh/dense

network that monitor the whole indoor environment

as well as human subjects. Wearable sensors are

attached to clothing and body, or even implanted

under the human skin. It is also common to classify

HAR sensors to three categories: vision, ambient and

wearable (Palumbo et al., 2014). Plenty of vision-

based behavior analysis technologies and

applications have immerged in recent years, among

which depth sensors remarkably attracts the interest

of researchers. Ambient sensors like RFID, pressure

sensor and inferred have been attempted but not as

popular as vision sensors. Wearable sensors like

accelerometer and gyroscope are popularly adopted

in both industrial and academic solutions. In the

remaining of this section, we extensively introduce

representative IoT sensors from three sensor

categories: vision, ambient and wearable sensors.

2.1 Vision Sensor

Vision sensors could be further grouped to two types:

representations based on local features (Gasparrini et

al., 2014; Elangovan et al., 2012) and body skeleton

(Wang, Liu, et al., 2012; Shahroudy, Liu, et al.,

2016). HAR methods based on local features are

independent to the choice of sensors as they only use

raw depth data and more robust to occlusion as depth

sensors are usually installed on ceiling. In (Gasparrini

et al., 2014), approaches using local features could be

capable for recognizing simple activities like fall and

hand gestures. Another approach (Elangovan et al.)

used local features to recognize three types of

interactions: human to human, human to object, and

human to vehicle, which is at a rough level and has

low generalization ability as the local features are

fixed. Although local feature-based methods could

not provide applicable fine-grained HAR solutions,

the performance of a DL method (Haque et al., 2017)

proposed to monitor hand hygiene compliance in a

hospital outperforms human accuracy.

Comparing with local feature-based approaches,

with a skeleton retrieval step, skeleton representation

of human activity data could significantly alleviate

the complexity of HAR. Vision sensors that allow 2D

or 3D skeleton retrieval including:

 Motion Captures (MoCap): MoCaps can

provide very accurate skeletal data, but

suffered from high price and low flexibility for

general usage purpose;

 Depth cameras: some off-the-shelf commercial

depth cameras like Microsoft Kinect v1/v2 and

Intel RealSense can retrieve skeleton data in a

significantly affordable way with acceptable

accuracy for HAR;

 RGB cameras: 2D skeleton data could be

retrieved from RGB video data (Cao et al.,

2016) and even 3D skeleton data (Moreno-

Noguer, 2017; Pavlakos et al., 2017), which

requires more computational cost and

challenging for real-time detection. Detecting

2D skeleton from RGB image resembles the

COCO Keypoint Challenge (Lin et al., 2014).

A Survey of Sensor Modalities for Human Activity Recognition

283

With the capability of collecting skeleton data,

Kinect sensors dominate the area of vision-based

HAR. According to the list of public benchmark

datasets in (Han, Reily, Hoff, & Zhang, 2017), there

were 29 out of 41 datasets being collected by Kinect

sensors. Mocap ranked the second popular approach

in (Han et al., 2017). Other depth sensors like Xtion

Live Pro and Leap Motion have seldom been used for

data collection (Marin et al., 2014). Representative

big HAR datasets collected by Kinect sensors are

listed in Table 1. Currently, NTU RGB+D 120 (Liu,

Shahroudy, Perez, et al., 2019) has the largest number

of activities (NA) and subjects (NS) involved, which

is grouped into three categories: daily actions,

medicals actions and mutual actions.

Table 1: Benchmark datasets for vision-based HAR.

Dataset Sensor NS NA

(Wang et al., 2012) Kinect v1 10 16

(Wei et al., 2013) Kinect v1 8 8

(Rahmani et al., 2014) Kinect v1 10 30

(Shahroudy et al., 2016) Kinect v2 40 60

(Liu, Hu, et al., 2017) Kinect v2 66 51

(Liu, Shahroudy, Perez, et

al., 2019)

Kinect v2 106 120

2.2 Ambient Sensor

From the best of our knowledge, there are mainly four

types of ambient sensors as shown in Figure 1. Wi-Fi

and RFID tags have been claimed to be used for both

coarse-grained and fine-grained activity recognition

in (Wang, Zhang, et al., 2015) and (Patterson et al.,

2005), respectively. While state change sensors are

usually only capable for coarse-grained activity

recognition. There are also few attempts using audio

data for HAR, which is an area separated from speech

recognition.

Figure 1: An IMU sensor with 6 degrees of freedom.

2.2.1 State Change Sensors

Various types of state change sensors could be used

for collecting ambient state changes of objects like

furniture, bathroom sanitary ware, kitchen utensils,

and electrical appliance. Figure 1(a) gives three

example of commonly used state sensors namely

pressure sensor, mercury contact and reed sensor.

These state sensors are binary and wireless and can

indicate binary states like switch on or off, and open

or closed through a Wireless Sensor Network (WSN).

For data driven HAR model development and

evaluation purposes, self-reporting and camera

monitoring are two main methods of data annotation.

The HAR method proposed in (Van Kasteren, 2011)

used a wireless sensor network kits called RFM DM

1810 to connect various state change sensors includes

reed switch, pressure mat, and mercury contact

sensor, etc. Except RFM DM 1810, there are other

open-source hardware platforms, Udoo and

Raspberry Pi which are popular among researchers

for their low-cost and highly scalable in terms of both

the type and number of sensors. It is concluded in

(Maksimović et al., 2014) that the expensive Udoo

could achieve the best performance among other IoT

hardware platforms including Arduino Uno,

BeagleBone Black, Phidgets and Raspberry Pi.

2.2.2 RFID

RFID is a technology for reading information from a

distance from RFID-tags. RFID technology can be

subdivided into three categories: passive, semi-

passive, and active. Depending upon the application,

near-field RFID tags come in many form factors as

shown in Figure 1(b) (Chawla & Ha, 2007). RFID

technology is combined with data-mining techniques

and an inferencing engine to recognize activities

based on the objects used by people. (Patterson et al.,

2005) introduced a fine-grained HAR approach by

tagging 60 activity related objects for a morning

household routine. A user needs to take a RFID glove

as a reader in their approach. A similar job was

conducted earlier by (Philipose et al., 2004) for

inferring activities of elderlies and ADL collection.

RFID technology needs to attach tags to objects and

reader devices to users. It is suitable to tag some

movable objects as Patterson and Ma did. Meanwhile,

it could also be used together with wearable sensors

together (Hong et al., 2010; Stikic et al., 2008). The

data stream of this approach is similar with state

change sensors. In contrast to state change sensors, it

is easier to equip small objects, such as a toothbrush

or a dinner plate, with a sensing node. State sensors

in WSN can therefore only sense activities at

relatively limited granularities.

2.2.3 Wi-Fi

Since human bodies are good reflectors of wireless

signals, human activities can be recognized by

monitoring changes in Wi-Fi signals (Ma et al.,

KDIR 2020 - 12th International Conference on Knowledge Discovery and Information Retrieval

284

2016). Recent Wi-Fi-based HAR uses the Channel

State Information (CSI) of commercial Wi-Fi systems

(Guo, 2017). To extract CSI, Intel Wi-Fi Wireless

Link 5300 is a frequently used Wi-Fi Network

Interface Card (NIC) which supports IEEE 802.11n

enabled by modulation methods of OFDM

(orthogonal frequency division multiplexing) and

MIMO (multiple input multiple output) (Halperin et

al., 2011). The movement of the human body parts

cause variations in the Wi-Fi signal reflections, which

results in changes in CSIs. By analyzing the data

streams of CSIs of different activities and comparing

them against stored models, human behavior can be

recognized. This is done by extracting features from

CSI data streams and using machine learning

techniques to build models and classifiers. One

challenge of this approach is how to make a system

robust to environment change. Common device set up

is illustrated in Figure 2, which studies the impact of

environment differences in (Guo, 2017). Another

challenge is multi-user activity recognition, which

remains an open question and few solutions have

been attempted (Wang, Liu, et al., 2015). With the

advantages of low deployment cost, non-intrusive

sensing nature, wide coverage range (approximate

70m indoor and 250m outdoor), Wi-Fi based activity

recognition has become an emerging and promising

research area with the abilities of traverse through

wall for HAR and localization of static human

subjects and metallic objects (Adib & Katabi, 2013;

Pu et al., 2013; Huang, et al., 2014).

Figure 2: Wi-Fi and PC setups in experimental scenarios.

2.2.4 Sound

In parallel to other ambient sensors, sound produced

by objects, human, or human-object interactions

convey rich cognitive information about the ongoing

context, events, and conversations. Stork et al. (Stork

et al., 2012) attempted to recognize activities from

audio data by using the Mel Frequency Cepstral

Coefficient (MFCC) feature to build a Soundbook for

all activities. Stork created the Freiburg dataset as in

Table 2. Audio-based HAR is a rarely attempted area

separated from speech recognition, hence, there are

very few public datasets available. Another relevant

dataset is ESC-US Dataset (Piczak, 2015) which has

some labelled subsets like ESC-10 and ESC-50.

Representative public datasets for ambient sensor

based HAR are listed in Table 2. RFID sensors could

be used for fall action only. State-change sensors

could be used for some coarse-grained activities,

while Wi-Fi and audio signals have the ability for

inferring relatively more fine-grained activities.

Table 2: Datasets of ambient sensor-based HAR.

Dataset Sensor NS NA

(Van et al., 2008) State change 1 8

(Torres et al., 2013;

Wickramasinghe, Ranasinghe,

et al., 2017)

RFID 14 2

(Wickramasinghe, Torres, et

al., 2017)

RFID 13 2

(Guo et al., 2018) Wi-Fi 10 16

(Stork et al., 2012) Audio NA 22

2.3 Wearable Sensor

Wearable inertial sensors like accelerometer and

gyroscope have achieved popularity with their

advantage of long-term monitoring system (Li, Xu, et

al., 2016; Liu, Yen, et al., 2017). (Mukhopadhyay,

2015) introduced the sensors for human activity

monitoring could be body temperature, heart rate,

accelerometer, and Electrocardiogram (ECG). Except

inertial sensors, other physiological condition sensors

are more relates to various diseases directly instead of

HAR. For example, body temperature and heart rate

sensors could be used for detecting health problems

like stroke, heart attack and shock. (Parkka et al.,

2006) concluded that the accelerometer is the most

effective and accurate sensor for HAR. Besides,

comparing with accelerometer, the measurement of

those physiological condition data is not very relevant

to the task of HAR as proved by (Parkka et al., 2006).

Figure 3: An IMU sensor with 6 degrees of freedom.

An IMU is a Micro-Electro-Mechanical System

(MEMS) electronics module and is typically

comprised of 3 accelerometers, 3 gyroscopes, and

A Survey of Sensor Modalities for Human Activity Recognition

285

optionally 3 magnetometers. An accelerometer

measures changes in velocity and changes in position.

A gyroscope measures either changes in orientation

or changes in angular velocity. Magnetometers is

useful to determine absolute orientation of the sensor.

As Figure 3 shows, IMUs with 3 axis accelerometers

and 3 axis gyroscopes are commonly referred to as 6

degrees of freedom (DOF) IMU sensors. The

inclusion of a 3-axis magnetometer is sometimes

referred to as 9 DOF IMU sensors although

technically magnetometer should not be referred to as

inertial sensor. Table 3 provides some wearable

sensor based HAR datasets that use varied IMU

sensors from using 3-DOF IMUs to 9-DOF IMUs. All

of them are for coarse-grained HAR due to the

intrinsic characteristic of IMUs as it could not provide

sufficient information like appearance features in the

vision sensors.

Table 3: Datasets of wearable sensor-based HAR.

Dataset Sensor NS NA

(Reiss & Stricker, 2012) 3 3-DOF IMUs 9 18

(M. Zhang & Sawchuk,

2012)

6-DOF IMU 14 12

(Anguita, Ghio, Oneto,

Parra, & Reyes-Ortiz,

2013)

3-DOF IMU 30 12

(Baños et al., 2012) 9-DOF IMUs 17 33

2.4 Multiple Sensors

Although skeleton-based methods achieved

outstanding performances in HAR, common data

modalities like color, depth, face, and sound from

real-world scenarios have seldom been collectively

considered in existing HAR methods. (Chahuara et

al., 2016) attempted to fuse sound data with other

ambient sensor to recognized human activities in

smart homes. For some activities like talking, use

mobile phone, typing and eating, audio data might

provide some information which is independent with

other modalities yet informative for activity

recognition. As far as we know, this data modality

also has never been attempted together with vision

sensor. Given the complementary properties of these

signals, multimodal HAR attracts increasing research

attention in recent years. Intuitively, multimodal

HAR on one hand is more complex to process, on the

other hand it contributes the HAR accuracy as diverse

sensors can mutually compensate the shortcomings of

each other. Table 4 shows some representative

multimodal HAR datasets. According to the datasets

in Table 4, multimodal methods usually could lead to

better activity recognition performance. Hence, to

pursue more accurate and higher resolution HAR,

multimodal approaches that make use of the

complementary advantage of multiple data modalities

is the direction of future HAR.

Table 4: Datasets of multimodal HAR.

Dataset Sensor NS NA

(Hodgins & Macey,

2009)

Video, audio, Mocap,

9 IMUs, RFIDs

18 5

(Sagha et al., 2011) IMUs, 72 sensors of

10 modalities

12 21

(Ofli et al., 2013) Mocap, Kinect v1,

camera, acc, audio

12 11

(Chen, Jafari, et al.,

2015)

Kinect v1, 6-DOF

IMUs

8 27

3 HAR CAPABILITY OF SENSOR

In this section, we analyze the HAR capability of

various IoT sensors by proposing a definition scheme

of activity complexity.

3.1 Human Activity Characteristics

From the activity perspective, a clear definition of a

human activity complexity is crucial for evaluating

the HAR capabilities of different sensors. Human

activities vary in terms of many structural

characteristics like hierarchical structure, activity

duration, location, and the involved number of people

or objects. Previous research defined activity

complexity by considering the time span only (Bruce

& Chan, 2017), which is not adequate to reflect the

levels of activity complexity. Low-level activities

such as tracking and body posture analysis has been

surveyed by (Aggarwal & Cai, 1999). Considering

three aspects: object, time, and location, we come up

with a human activity categorization scheme as

shown in Figure 4.

Figure 4: Our human activity categorization scheme that

groups activity levels into a hierarchical structure by

considering three main activity characteristics include

human-object interactions, durations, and locations.

KDIR 2020 - 12th International Conference on Knowledge Discovery and Information Retrieval

286

Figure 5: The HAR capability of different IoT sensor-based methods with corresponding to the hierarchical activity categories

labeled from 1 to 10. The activity category labels are spread out to the different IoT sensors on the left part of the figure.

3.2 Sensor Capability

Based on the reviewed popular datasets from each

IoT sensor category, the HAR capability of different

sensors are summarized in Figure 5 with the vision

sensor capable for all activity categories (from

categories 1 to 10). The activities highlighted with red

color and italic font on the right side of Figure 5 are

taking the activity examples of a breakfast

preparation routine in the job of (Lukowicz et al.,

2010). Ambient sensors like the RFID technology

used by (Torres et al., 2013; Wickramasinghe,

Ranasinghe, et al., 2017; Wickramasinghe, Torres, et

al., 2017) needs to install RFID tags on the entire floor

of a user’s living environment to detect if the user is

near the bed or not. RFID is also affected by noise

signals if two objects are very closely located. While

the use of state change sensors also needs to install a

quite number of sensors to all the related locations

and objects, but it could only do some coarse-grained

HAR. Wi-Fi CSI is emerged as a novel approach

which has the advantage of cross wall sensing ability,

but it remains lack of theoretical foundation that

proves the measurement accuracy for developing

reliable HAR method.

Comparing with ambient sensors, wearable

devices could be an appropriate choice for outdoor

activity recognition. Given that each sensor modality

has its own limitations, it has been surveyed that

fusing vision and inertial data improves the accuracy

of HAR (Chen, Jafari, et al., 2017). However, the

inertial sensor modality does not provide any context

information for fine-grained HAR that involves

human-object interactions. Besides, due to the

intrinsic battery limitation, it is intrusive for users to

wear sensor devices do long-term monitoring. One

recent trend for multimodal HAR is fusing inertial

sensor with vision sensor as reviewed in Section 2.4.

However, according to various modality combination

results of experiments on Berkeley MHAD, the

improvement of the performance by adding more data

modalities is very limited (from around 98% to

100%) (Ofli et al., 2013). Sometimes, adding extra

modality will even lower the HAR accuracy, which

renders the extra modality in vain. The increased

problem complexity and affected usability also make

multimodal HAR hard to be popularized among end

users as well as other stakeholders.

According to the surveyed datasets in Section 2. it

is noticeable that NTU RGB+D 120 (Jun Liu,

Shahroudy, Perez, et al., 2019) is by far the largest

one from perspectives like subjects involved, number

of activity classes, and number of viewpoints. Many

succeeding jobs have been emerged based on NTU

RGB+D 120. Some model activities with a spatial and

temporal networks by using CNN and LSTM

algorithms (Liu, Shahroudy, Xu, et al., 2016; Song et

al., 2017). While some attempt to model the most

informative joints in the skeleton data using the

context-aware LSTM algorithm (Liu, Wang, et al.,

2017) or remove the noise of the skeleton data for

view invariant recognition (Zhang et al., 2017; Liu,

Liu, et al., 2017). Another potential method is using

the contextual information to improve the HAR

accuracy by modeling human-object interaction (Wei

et al., 2017), which has not been attempted on large

datasets like NTU RGB-D 120 or PKU-MMD (Liu,

C., et al., 2017).

Given the above comparison, we believe vision

sensor could achieve the task of nonintrusive fine-

Active

Passive

HAR

Wearable

Ambient

Vision

Local feature

Skeleton

Inertial

Fine-grained

Small activities

Coarse-grained

Wi-Fi

State sensor

RFID

Daily activities

Existence

Detail of

Coarse-

raine

Atomic

Combine

Walking,

standing,

sitting,

runnin

Eating,

cooking,

sleeping

Kitchen,

bedroom

Take spoon, reach drawer, move

drawer, release drawer, reach

food, take food, take water

Open drawer,

fetch bread,

drinkin

Locomotion

Desk, bed, sofa

Walking speed,

stand position,

Sleep time,

Identification

Inter activities relationship

Activity category

li hi

Sensor category relationship

Resolution

level

Emotion

Gesture

2 3

A Survey of Sensor Modalities for Human Activity Recognition

287

grained HAR. The most controversial concern of

privacy could be avoided by using technologies like

blurring. Off-the-shelf sensors like RealSense and

Kinect could work even in poor illumination

condition, which makes them capable for 24-hour

activity monitoring. However, for vision sensors

being applied to healthcare, it remains some gaps to

be conquered as following:

 As surveyed in Section 2, existing algorithm-

oriented and performance-oriented jobs usually

verify their models’ accuracy on benchmark

datasets with the activity duration limited to

seconds. This means that existing methods has

not been applied to applications domains.

 For high resolution HAR, multimodal sensor

fusion methods need to be developed to

recognize more fine-grained activities that

reflect more details of the human behavior.

 For common application domains like

healthcare and surveillance, it requires domain

experts to validate the feasibility and reliability

of the HAR resolution.

4 HAR ALGORITHMS

In the last decade, HAR methods based on single

sensor modality have experienced great progress

from version-based HAR (Poppe, 2010) to skeleton-

based methods (Presti & La Cascia, 2016), and from

ambient sensors (Rashidi & Mihailidis, 2013) to

wearable sensors (Lara & Labrador, 2013). Since the

data stream of sensor-based HAR has sequential

features, traditional algorithms like Dynamic Time

Warping (DTW) (Gavrila & Davis, 1995), Hidden

Markov Model (HMM) (Oliver, Horvitz, & Garg,

2002), and Support Vector Machine (SVM)

(Lublinerman et al., 2006) have been commonly used

(Aggarwal & Ryoo, 2011), which is recently

dominated by DL algorithms (Wang, Chen, et al.,

2017). Algorithms for multimodal HAR share a

similar trend of using DL models to extract latent

features. When it comes to multimodal HAR, sensor

fusion is the key issue that needs to be tackled.

According to (Elmenreich, 2002), there are three

main levels of sensor fusion approaches namely: 1)

data-level fusion, 2) feature-level fusion, and 3)

decision-level fusion, which is illustrated in Figure 6.

Multimodal methods have been attempted by both

traditional methods with a feature extraction step and

DL methods with end-to-end training manners. In this

section, we introduce both the traditional and DL

models form perspectives of single modal and

multimodal methods.

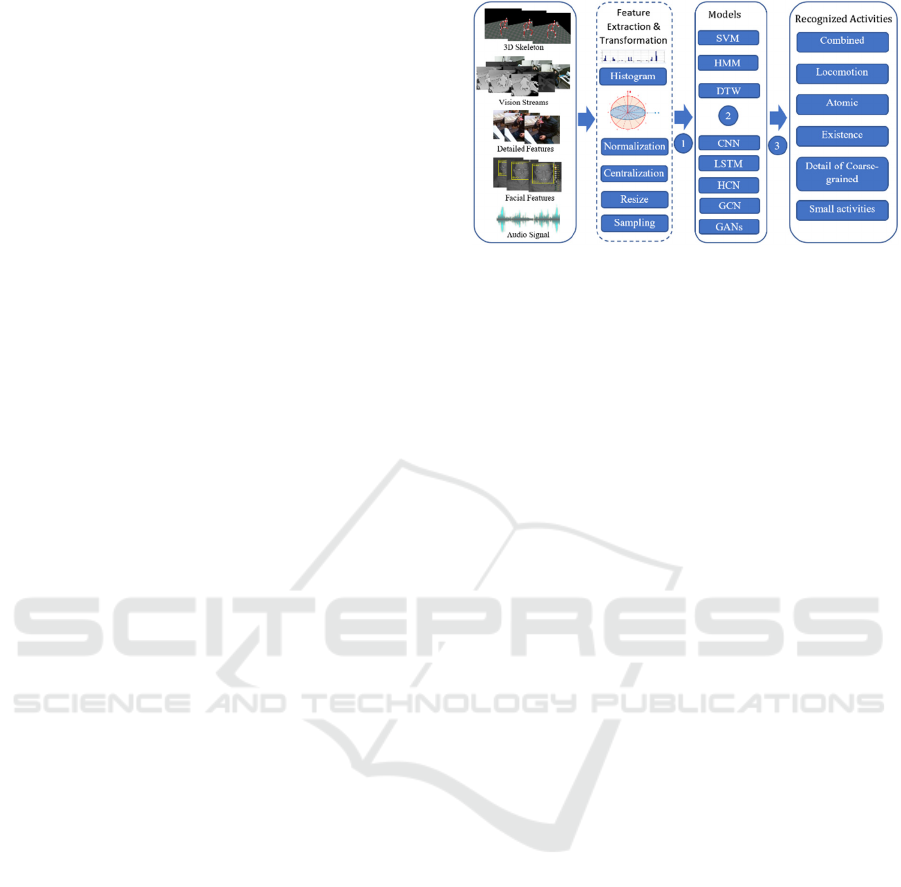

Figure 6: Common workflow of sensor-based HAR. Three

sensor fusion methods data-level fusion, feature-level

fusion, and decision-level fusion are labeled as 1, 2 and 3,

respectively.

4.1 Traditional HAR Algorithms

Since input data types are intrinsically heterogeneous,

sensor fusion at data-level has seldom been attempted

by researchers. Sensor fusion conducted at feature-

level calculates popular features from input data and

further combines them into a fused feature vector for

inferring activity classes. For example, (Liu, Yang, et

al., 2010) fused quantized vocabulary of local spatial-

temporal volumes (cuboids and 2-D SIFT) and the

higher-order statistical models of interest points for

activity recognition using a hyper-sphere multi-class

SVM. Decision-level fusion uses multiple classifiers

for corresponding multiple features and makes the

classification by considering the complementary

results among classifiers. For instance, (Tran et al.,

2010) proposed a baseline approach using disparate

spatial features as an input vector to train multiple

HMM models within a fusion framework. Similar

fusion approach also used in skeleton-based method

by (Xia et al., 2012) that leans an HMM model for

each activity.

Traditional machine learning algorithms like

SVM, kernel machines, discriminant analysis, and

spectral clustering, concatenate all multiple views

into a single view to fit their learning settings.

However, this concatenation is not physically

meaningful as each view has specific statistical

properties and usually causes overfitting in case of

small dataset size. In contrast, multi-view learning as

another paradigm which uses one function to model a

particular view and simultaneously optimizes all the

functions to exploit the redundant views of the same

input data and improve the learning performance.

According to the categorization in (Xu et al., 2013),

multi-view learning is categorized into three main

types namely co-training, Multiple Kernel Learning

(MKL), and subspace learning.

KDIR 2020 - 12th International Conference on Knowledge Discovery and Information Retrieval

288

Co-training was originally proposed for the

problem of semi-supervised learning, in which there

is access to labelled as well as unlabelled data. It

considers a setting in which each example can be

partitioned into two distinct views and makes three

main assumptions for its success: sufficiency,

compatibility, and conditional independence. The

original co-training job described experiments using

co-training to classify web pages into "academic

course home page" or not (Blum & Mitchell, 1998).

The classifier correctly categorized 95% of 788 web

pages with only 12 labelled web pages as training

data. Co-training is famous for its capability for

automatically learning two independent and

sufficient representations from data when only small

amounts of labelled data and large amounts of

unlabelled data are available. From the best of our

knowledge, seldom existing HAR tasks using the

semi-supervised co-training method. MKL has been

used by (Althloothi et al., 2014) and (Ofli et al.,

2013). MKL method fuses at kernel level to select

useful features based on weights. (Althloothi et al.,

2014) uses motion features and shape features of

skeleton and depth image to train multiclass-SVM

based classifiers for activity recognition. Another

popular MKL algorithm is Adaptive Boosting

(AdaBoost) (Lv & Nevatia, 2006), which relies on

constructing effective geometric features for

improving the HAR accuracy.

Subspace learning-based approaches aim to

obtain a latent subspace shared by multiple views by

assuming that the input views are generated from this

subspace. The well know subspace learning-based

approach is Canonical Correlation Analysis (CCA)

(Hardoon et al., 2004) and KCCA (Lai & Fyfe, 2000),

which gives the correlated form of input modalities as

a robust representation of multimodal data through

linear projections. The purpose of Correlation-

Independence Analysis (CIA) is to identify the

strength of respective modalities through teasing out

their common and independent components and to

utilize them for improving the classification accuracy

of human activities.

4.2 Deep Learning Approaches

4.2.1 Single Modal Approach

Recently, the advance of DL makes it possible to

perform automatic high-level feature extraction thus

achieves promising performance in many areas. Since

then, DL based methods have been widely adopted

for various sensor-based HAR tasks. (Wang et al.,

2017) reviewed DL models for HAR tasks, which

includes Deep neural network (DNN), Convolutional

Neural Network (ConvNets, or CNN), Stacked

autoencoder (SAE) etc. Representative DL models

are listed in Table 5. (Hammerla et al., 2016)

investigated the performance of DNN, CNN and

RNN through 4,000 experiments on some public

HAR datasets with a conclusion that RNN and LSTM

are recommended to recognize short activities that

have natural order while CNN is better at inferring

long term repetitive activities. The reason is that RNN

could make use of the time-order relationship

between sensor readings, and CNN is more capable

of learning deep features contained in recursive

patterns. (Zheng et al., 2014) summarized that CNN

is better for multimodal signals.

Table 5: Deep Learning models for HAR tasks.

DL Model Description

DNN Deep fully connected network, artificial

neural network with deep layers.

CNN Convolutional neural network, multiple

convolution operations for feature

extraction.

RNN Recurrent neural network, network with

time correlations and LSTM.

DBN/RBM Deep belief network and restricted

Boltzmann machine.

SAE Stacked autoencoder, feature learning by

decoding-encoding autoencoder.

HCN Hierarchical cooccurrence network.

GCN Graph Convolutional Network.

Hybrid Combination of some deep models.

Concerning the popularity and capability of vision

sensor, we further examine the algorithms of vision-

based approaches. Existing researches of vision-

based HAR methods mainly focus on three directions

for the improvement of single modality HAR. The

first direction focuses on data pre-processing and data

cleaning. For example, (Liu, M., et al., 2017)

proposed a method that remove the noise data in

skeleton activity representations by learning a model

that reconstructs more accurate skeleton data. An

approach with this motivation has also been proposed

by (Zhang et al., 2017).

The second approach improves the HAR

benchmarks by proposing novel learning or

representing models. (Liu, Wang, et al., 2017)

proposed a context aware LSTM model that could

learn which part of joints contribute the HAR. (Yan

et al., 2018) introduced a Spatial Temporal-Graph

Convolutional Network (ST-GCN) that learns both

the spatial and temporal patterns from skeleton-based

activity data. Many enhanced versions of GCN

models has been proposed that improve the ST-GCN

A Survey of Sensor Modalities for Human Activity Recognition

289

by considering other physical prior knowledge. For

example, (Shi et al., 2018) proposed a non-local GCN

that leans the graph structure individually for

different layers and samples and achieved improved

performance than the manually designed

convolutional operation of ST-GCN. Another GCN

method proposed by (Li et al., 2019) tries to model

discriminative features from actional and structural

links of the skeleton graph. Except GCN, motivated

by cooccurrence learning, (Li et al., 2018) proposed

the hierarchical cooccurrence network (HCN) that

learns point-level features aggregated to

cooccurrence features with a hierarchical

methodology. The co-occurrence features refer to the

interactions and combinations of some subsets of

skeleton joints that characterizes an action (Zhu et al.,

2016). Considering both the graph and cooccurrence

characteristics, (Si et al., 2019) proposed an Attention

Enhanced Graph Convolutional LSTM Network

(AGC-LSTM) that achieved high accuracy on the

NTU-RGB-D dataset. However, the Directed Graph

Network (DGN) (Shi et al., 2019a) and achieved

higher accuracy than AGC-LSTM on the NTU-RGB-

D dataset with a small margin.

The third method is data augmentation that leans

data generation models to produce more training data

for the purpose of feeding more fuel to deep learning

models. (Barsoum et al., 2017) developed a sequence-

to-sequence model for probabilistic human motion

prediction, which predicts multiple plausible future

human poses from the same input. However, it has not

yet been evaluated if the generated data could be used

for improving the generalization power or accuracy

of HAR tasks. Focusing on the improvement of

accuracy on benchmark datasets might neglect the

improvement of HAR itself and its application

domains that needs higher activity resolution.

Another neglected issue of existing methods is

segmentation as deploying HAR methods to domain

applications needs simultaneously performing both

tasks of segmentation and classification.

4.2.2 Multimodal Approach

From the confusion matrix comparison of (Si et al.,

2019), skeleton modality cannot provide sufficient

information to discriminate action pairs that include

human-object interactions like “reading” and

“writing”, “writing” and “typing on a keyboard”,

“pointing to something with finger” and “pat on back

of other person”, which is due to the similar skeleton

motion patterns shared by those activity pairs.

Similarly, for activities that include interaction with

items in the PKU-MMD, skeleton modality might not

be capable to provide sufficient features from the

interacted items. Intuitively, these difficult activity

pairs have higher resolution than the well classified

ones, which might need more detailed contextual or

semantic features from other data modalities like

RGB and depth channels of the datasets like PKU-

MMD and NTU RGB-D.

The multimodal fusion analysis of (Ordóñez &

Roggen, 2016) on the Opportunity dataset (Sagha et

al., 2011) indicates that feeding more data channels to

its model called DeepConvLSTM would get

performance improvement. Similarly, experimental

results of (Jun Liu, Shahroudy, Perez, et al., 2019) on

NTU RGB+D 120 also indicates that extra data

modalities contribute the classification accuracy.

Hence, it is commonly accepted that multimodal

HAR approaches have the potential to improve the

activity resolution and recognize difficult activities.

Existing multimodal HAR methods could be roughly

categorized to two classes: vision-based multimodal

(Wei et al., 2017; Shahroudy, Ng, et al., 2017; Wu et

al., 2016) and vision-wearable based multimodal

(Sagha et al., 2011; Chen, Jafari, et al., 2015);

(Ordóñez & Roggen, 2016). The 4DHOI model

proposed by (Wei et al., 2017) attempts to represent

both 3D human poses and contextual objects in events

by using a hierarchical spatial temporal graph. The

fusion concept of (Wu et al.) has two approaches

namely late fusion and intermediate fusion. The late

approach simply combines the emission probabilities

from two modalities. In the intermediate fusion

scheme, each modality (skeleton and RGB-D) is first

pretrained separately, and their high-level

representation are concatenated to generate a shared

representation. The HAR tasks in (Wei et al., 2017)

include segmentation, recognition, and object

localization, which is not just recognition as what is

doing by most of the latest skeleton-based solutions

(Li, Chen, et al., 2019; Si et al., 2019; Shi et al.,

2019a; Liang et al., 2019) and (Shi et al., 2019b).

With segmentation, the solution might be capable of

doing HAR in an online mode. Another online

skeleton-based HAR solution was proposed by (Liu,

Shahroudy, Wang, et al., 2019).

5 CONCLUSIONS

This survey investigated IoT sensors for HAR that

could be applied to application domains like habit

perception, intervention performance evaluation,

disease prediction, and adaptive (automatic) smart

home. It provides a systematic view of the HAR

domain by disentangling the IoT sensors utilized and

KDIR 2020 - 12th International Conference on Knowledge Discovery and Information Retrieval

290

their corresponding status in terms of their datasets

and algorithms. By reviewing the datasets of each

sensor modality and proposing a human activity

categorization scheme that groups human activities

based on their levels of complexity, we analyzed the

HAR capability of different IoT sensors and

concluded that vision sensors are relatively more

capable for HAR tasks. For HAR algorithms, we

investigated both traditional algorithms and DL

models. It is worth to note that the hard cases in the

NTU-RGB+D dataset could not be well recognized

by the skeleton modality only. Multimodal method

has the potential of recognizing more fine-grained

activities, but existing algorithms remain uncapable

to tackle multimodal data well.

For future jobs, as we summarized research gaps

in Section 3, although increasingly larger datasets

were collected, higher resolution HAR methods need

to be developed for landing domain applications like

healthcare, assistive technologies, and surveillance.

To do so, multimodal methods being capable of

higher resolution HAR need to be developed in the

future. Besides, the involvement of domain experts is

essential to validate the feasibility and reliability of

future HAR methods and applications.

REFERENCES

Acampora, G., Cook, D. J., Rashidi, P., & Vasilakos, A. V.

(2013). A survey on ambient intelligence in healthcare.

Proceedings of the IEEE, 101(12), 2470-2494.

Adib, F., & Katabi, D. (2013). See through walls with WiFi!

(Vol. 43): ACM.

Aggarwal, J. K., & Cai, Q. (1999). Human motion analysis:

A review. Computer Vision and Image Understanding,

73(3), 428-440.

Aggarwal, J. K., & Ryoo, M. S. (2011). Human activity

analysis: A review. ACM Computing Surveys (CSUR),

43(3), 16.

Alemdar, H., & Ersoy, C. (2010). Wireless sensor networks

for healthcare: A survey. Computer networks, 54(15),

2688-2710.

Althloothi, S., Mahoor, M. H., Zhang, X., & Voyles, R. M.

(2014). Human activity recognition using multi-

features and multiple kernel learning. Pattern

Recognition, 47(5), 1800-1812.

Anguita, D., Ghio, A., Oneto, L., Parra, X., & Reyes-Ortiz,

J. L. (2013). A Public Domain Dataset for Human

Activity Recognition using Smartphones. Paper

presented at the ESANN.

Avci, A., Bosch, S., Marin-Perianu, M., Marin-Perianu, R.,

& Havinga, P. (2010). Activity recognition using

inertial sensing for healthcare, wellbeing and sports

applications: A survey. Paper presented at the

Architecture of computing systems (ARCS), 2010 23rd

international conference on.

Baños, O., Damas, M., Pomares, H., Rojas, I., Tóth, M. A.,

& Amft, O. (2012). A benchmark dataset to evaluate

sensor displacement in activity recognition. Paper

presented at the Proceedings of the 2012 ACM

Conference on Ubiquitous Computing.

Barsoum, E., Kender, J., & Liu, Z. (2017). HP-GAN:

Probabilistic 3D human motion prediction via GAN.

arXiv preprint arXiv:1711.09561.

Blum, A., & Mitchell, T. (1998). Combining labeled and

unlabeled data with co-training. Paper presented at the

Proceedings of the eleventh annual conference on

Computational learning theory.

Bruce, X., & Chan, K. C. (2017). Discovering Knowledge

by Behavioral Analytics for Elderly Care. Paper

presented at the Big Knowledge (ICBK), 2017 IEEE

International Conference on.

Bulling, A., Blanke, U., & Schiele, B. (2014). A tutorial on

human activity recognition using body-worn inertial

sensors. ACM Computing Surveys (CSUR), 46(3), 33.

Cao, Z., Simon, T., Wei, S.-E., & Sheikh, Y. (2016).

Realtime Multi-Person 2D Pose Estimation using Part

Affinity Fields. arXiv preprint arXiv:1611.08050.

Chahuara, P., Fleury, A., Portet, F., & Vacher, M. (2016).

On-line human activity recognition from audio and

home automation sensors: Comparison of sequential

and non-sequential models in realistic Smart Homes 1.

Journal of ambient intelligence and smart environments,

8(4), 399-422.

Chawla, V., & Ha, D. S. (2007). An overview of passive

RFID. IEEE Communications Magazine, 45(9).

Chen, C., Jafari, R., & Kehtarnavaz, N. (2015). Utd-mhad:

A multimodal dataset for human action recognition

utilizing a depth camera and a wearable inertial sensor.

Paper presented at the Image Processing (ICIP), 2015

IEEE International Conference on.

Chen, C., Jafari, R., & Kehtarnavaz, N. (2017). A survey of

depth and inertial sensor fusion for human action

recognition. Multimedia Tools and Applications, 76(3),

4405-4425.

Chen, L., Hoey, J., Nugent, C. D., Cook, D. J., & Yu, Z.

(2012). Sensor-based activity recognition. IEEE

Transactions on Systems, Man, and Cybernetics, Part

C (Applications and Reviews), 42(6), 790-808.

Chouhan, V. L., & Sharma, P. (2017). Behavioral

Interventions in Autism.

Dilip Kumar, S., WA (US); Elie Micah Kornield, Seattle,

WA (US); Alexander Clark Prater, Seattle, WA (US);

Sridhar Boyapati, Sammamish, WA (U S); Xiaofeng

Ren, Sammamish, WA (US); Chang Yuan, Seattle, WA

(Us). (2015). United States Patent No. US

20150019391A1. Patent Application Publication.

Elangovan, V., Bandaru, V. K., & Shirkhodaie, A (2012).

Team activity analysis and recognition based on Kinect

depth map and optical imagery techniques, Proceedings

Volume 8392, Signal Processing, Sensor Fusion, and

Target Recognition XXI; 83920W

Elmenreich, W. (2002). An Introduction to Sensor Fusion.

Vienna University of Technology, Austria.

A Survey of Sensor Modalities for Human Activity Recognition

291

Gasparrini, S., Cippitelli, E., Spinsante, S., & Gambi, E.

(2014). A depth-based fall detection system using a

Kinect® sensor. Sensors, 14(2), 2756-2775.

Gavrila, D. M., & Davis, L. S. (1995). Towards 3-d model-

based tracking and recognition of human movement: a

multi-view approach. Paper presented at the

International workshop on automatic face-and gesture-

recognition.

Gianna Lise Puerini, B., WA (US); Dilip Kumar, Seattle,

WA (US); Steven Kessel, Seattle, WA (US). (2015).

United States Patent No. US 20150012396A1. Patent

Application Publication.

Guo, L., Wang, L., Liu, J., Zhou, W., & Lu, B. (2018). HuAc:

Human Activity Recognition Using Crowdsourced

WiFi Signals and Skeleton Data. Wireless

Communications and Mobile Computing, 2018.

Halperin, D., Hu, W., Sheth, A., & Wetherall, D. (2011).

Tool release: Gathering 802.11 n traces with channel

state information. ACM SIGCOMM Computer

Communication Review, 41(1), 53-53.

Hammerla, N. Y., Halloran, S., & Ploetz, T. (2016). Deep,

convolutional, and recurrent models for human activity

recognition using wearables. arXiv preprint

arXiv:1604.08880.

Han, F., Reily, B., Hoff, W., & Zhang, H. (2017). Space-

time representation of people based on 3D skeletal data:

A review. Computer Vision and Image Understanding,

158, 85-105.

Haque, A., Guo, M., Alahi, A., Yeung, S., Luo, Z., Rege,

A., . . . Singh, A. (2017). Towards Vision-Based Smart

Hospitals: A System for Tracking and Monitoring Hand

Hygiene Compliance. arXiv preprint arXiv:1708.00163.

Hardoon, D. R., Szedmak, S., & Shawe-Taylor, J. (2004).

Canonical correlation analysis: An overview with

application to learning methods. Neural computation,

16(12), 2639-2664.

Hodgins, F., & Macey, J. (2009). Guide to the carnegie

mellon university multimodal activity (cmu-mmac)

database. CMU-RI-TR-08-22.

Hong, Y.-J., Kim, I.-J., Ahn, S. C., & Kim, H.-G. (2010).

Mobile health monitoring system based on activity

recognition using accelerometer. Simulation Modelling

Practice and Theory, 18(4), 446-455.

Huang, D., Nandakumar, R., & Gollakota, S. (2014).

Feasibility and limits of wi-fi imaging. Paper presented

at the Proceedings of the 12th ACM Conference on

Embedded Network Sensor Systems.

Lai, P. L., & Fyfe, C. (2000). Kernel and nonlinear

canonical correlation analysis. International Journal of

Neural Systems, 10(05), 365-377.

Lara, O. D., & Labrador, M. A. (2013). A survey on human

activity recognition using wearable sensors. IEEE

Communications Surveys and Tutorials, 15(3), 1192-

1209.

Li, C., Zhong, Q., Xie, D., & Pu, S. (2018). Co-occurrence

feature learning from skeleton data for action

recognition and detection with hierarchical aggregation.

arXiv preprint arXiv:1804.06055.

Li, M., Chen, S., Chen, X., Zhang, Y., Wang, Y., & Tian, Q.

(2019). Actional-Structural Graph Convolutional

Networks for Skeleton-based Action Recognition. Paper

presented at the Proceedings of the IEEE Conference on

Computer Vision and Pattern Recognition.

Li, X., Xu, H., & Cheung, J. T. (2016). Gait-force model

and inertial measurement unit-based measurements: A

new approach for gait analysis and balance monitoring.

Journal of Exercise Science & Fitness, 14(2), 60-66.

Liang, D., Fan, G., Lin, G., Chen, W., Pan, X., & Zhu, H.

(2019). Three-Stream Convolutional Neural Network

With Multi-Task and Ensemble Learning for 3D Action

Recognition. Paper presented at the Proceedings of the

IEEE Conference on Computer Vision and Pattern

Recognition Workshops.

Lin, T.-Y., Maire, M., Belongie, S., Hays, J., Perona, P.,

Ramanan, D., . . . Zitnick, C. L. (2014). Microsoft coco:

Common objects in context. Paper presented at the

European conference on computer vision.

Linlin Guo, L. W., Jialin Liu, Wei Zhou, Bingxian Lu, Tao

Liu, Guangxu Li, Chen Li. (2017). A novel benchmark

on human activity recognition using WiFi signals. Paper

presented at the 2017 IEEE 19th International

Conference on e-Health Networking, Applications and

Services (Healthcom), Dalian, China.

Liu, C., Hu, Y., Li, Y., Song, S., & Liu, J. (2017). PKU-

MMD: A Large Scale Benchmark for Skeleton-Based

Human Action Understanding. Paper presented at the

Proceedings of the Workshop on Visual Analysis in

Smart and Connected Communities.

Liu, J., Shahroudy, A., Perez, M. L., Wang, G., Duan, L.-Y.,

& Chichung, A. K. (2019). NTU RGB+ D 120: A

Large-Scale Benchmark for 3D Human Activity

Understanding. IEEE transactions on pattern analysis

and machine intelligence.

Liu, J., Shahroudy, A., Wang, G., Duan, L.-Y., & Chichung,

A. K. (2019). Skeleton-Based Online Action Prediction

Using Scale Selection Network. IEEE transactions on

pattern analysis and machine intelligence.

Liu, J., Shahroudy, A., Xu, D., & Wang, G. (2016). Spatio-

temporal lstm with trust gates for 3d human action

recognition. Paper presented at the European

Conference on Computer Vision.

Liu, J., Wang, G., Hu, P., Duan, L.-Y., & Kot, A. C. (2017).

Global context-aware attention lstm networks for 3d

action recognition. Paper presented at the CVPR.

Liu, J., Yang, J., Zhang, Y., & He, X. (2010). Action

recognition by multiple features and hyper-sphere

multi-class svm. Paper presented at the Pattern

Recognition (ICPR), 2010 20th International

Conference on.

Liu, K.-C., Yen, C.-Y., Chang, L.-H., Hsieh, C.-Y., & Chan,

C.-T. (2017). Wearable sensor-based activity

recognition for housekeeping task. Paper presented at

the Wearable and Implantable Body Sensor Networks

(BSN), 2017 IEEE 14th International Conference on.

Liu, M., Liu, H., & Chen, C. (2017). Enhanced skeleton

visualization for view invariant human action

recognition. Pattern Recognition, 68, 346-362.

Lublinerman, R., Ozay, N., Zarpalas, D., & Camps, O.

(2006). Activity recognition from silhouettes using

linear systems and model (in) validation techniques.

KDIR 2020 - 12th International Conference on Knowledge Discovery and Information Retrieval

292

Paper presented at the 18th International Conference on

Pattern Recognition (ICPR'06).

Lukowicz, P., Pirkl, G., Bannach, D., Wagner, F., Calatroni,

A., Förster, K., . . . Tröster, G. (2010). Recording a

complex, multi modal activity data set for context

recognition. Paper presented at the Architecture of

Computing Systems (ARCS), 2010 23rd International

Conference on.

Lv, F., & Nevatia, R. (2006). Recognition and segmentation

of 3-d human action using hmm and multi-class

adaboost. Paper presented at the European conference

on computer vision.

Ma, J., Wang, H., Zhang, D., Wang, Y., & Wang, Y. (2016).

A Survey on Wi-Fi Based Contactless Activity

Recognition. Paper presented at the Ubiquitous

Intelligence & Computing, Advanced and Trusted

Computing, Scalable Computing and Communications,

Cloud and Big Data Computing, Internet of People, and

Smart World Congress

(UIC/ATC/ScalCom/CBDCom/IoP/SmartWorld), 2016

Intl IEEE Conferences.

Maksimović, M., Vujović, V., Davidović, N., Milošević, V.,

& Perišić, B. (2014). Raspberry Pi as Internet of things

hardware: performances and constraints. design issues,

3, 8.

Marin, G., Dominio, F., & Zanuttigh, P. (2014). Hand

gesture recognition with leap motion and kinect devices.

Paper presented at the Image Processing (ICIP), 2014

IEEE International Conference on.

Moreno-Noguer, F. (2017). 3d human pose estimation from

a single image via distance matrix regression. Paper

presented at the 2017 IEEE Conference on Computer

Vision and Pattern Recognition (CVPR).

Mukhopadhyay, S. C. (2015). Wearable sensors for human

activity monitoring: A review. IEEE sensors journal,

15(3), 1321-1330.

Ofli, F., Chaudhry, R., Kurillo, G., Vidal, R., & Bajcsy, R.

(2013). Berkeley MHAD: A comprehensive multimodal

human action database. Paper presented at the

Applications of Computer Vision (WACV), 2013 IEEE

Workshop on.

Oliver, N., Horvitz, E., & Garg, A. (2002). Layered

representations for human activity recognition. Paper

presented at the Proceedings. Fourth IEEE International

Conference on Multimodal Interfaces.

Ordóñez, F. J., & Roggen, D. (2016). Deep convolutional

and lstm recurrent neural networks for multimodal

wearable activity recognition. Sensors, 16(1), 115.

Palumbo, F., Ullberg, J., Štimec, A., Furfari, F., Karlsson,

L., & Coradeschi, S. (2014). Sensor network

infrastructure for a home care monitoring system.

Sensors, 14(3), 3833-3860.

Parkka, J., Ermes, M., Korpipaa, P., Mantyjarvi, J., Peltola,

J., & Korhonen, I. (2006). Activity classification using

realistic data from wearable sensors. IEEE Transactions

on information technology in biomedicine, 10(1), 119-

128.

Patterson, D. J., Fox, D., Kautz, H., & Philipose, M. (2005).

Fine-grained activity recognition by aggregating

abstract object usage.

Paper presented at the Wearable

Computers, 2005. Proceedings. Ninth IEEE

International Symposium on.

Pavlakos, G., Zhou, X., Derpanis, K. G., & Daniilidis, K.

(2017). Coarse-to-fine volumetric prediction for single-

image 3D human pose. Paper presented at the Computer

Vision and Pattern Recognition (CVPR), 2017 IEEE

Conference on.

Petersen, R. C., Stevens, J. C., Ganguli, M., Tangalos, E. G.,

Cummings, J., & DeKosky, S. (2001). Practice

parameter: Early detection of dementia: Mild cognitive

impairment (an evidence-based review) Report of the

Quality Standards Subcommittee of the American

Academy of Neurology. Neurology, 56(9), 1133-1142.

Philipose, M., Fishkin, K. P., Perkowitz, M., Patterson, D.

J., Fox, D., Kautz, H., & Hahnel, D. (2004). Inferring

activities from interactions with objects. IEEE

Pervasive Computing, 3(4), 50-57.

Piczak, K. J. (2015). ESC: Dataset for environmental sound

classification. Paper presented at the Proceedings of the

23rd ACM international conference on Multimedia.

Poppe, R. (2010). A survey on vision-based human action

recognition. Image and vision computing, 28(6), 976-990.

Presti, L. L., & La Cascia, M. (2016). 3D skeleton-based

human action classification: A survey. Pattern

Recognition, 53, 130-147.

Pu, Q., Gupta, S., Gollakota, S., & Patel, S. (2013). Whole-

home gesture recognition using wireless signals. Paper

presented at the Proceedings of the 19th annual

international conference on Mobile computing &

networking.

Rahmani, H., Mahmood, A., Huynh, D. Q., & Mian, A.

(2014). HOPC: Histogram of oriented principal

components of 3D pointclouds for action recognition.

Paper presented at the European Conference on

Computer Vision.

Rashidi, P., & Mihailidis, A. (2013). A survey on ambient-

assisted living tools for older adults. IEEE journal of

biomedical and health informatics, 17(3), 579-590.

Reiss, A., & Stricker, D. (2012). Creating and

benchmarking a new dataset for physical activity

monitoring. Paper presented at the Proceedings of the

5th International Conference on PErvasive

Technologies Related to Assistive Environments.

Sagha, H., Digumarti, S. T., Millán, J. d. R., Chavarriaga,

R., Calatroni, A., Roggen, D., & Tröster, G. (2011).

Benchmarking classification techniques using the

Opportunity human activity dataset. Paper presented at

the Systems, Man, and Cybernetics (SMC), 2011 IEEE

International Conference on.

Shahroudy, A., Liu, J., Ng, T.-T., & Wang, G. (2016). NTU

RGB+ D: A large scale dataset for 3D human activity

analysis. Paper presented at the Proceedings of the

IEEE Conference on Computer Vision and Pattern

Recognition.

Shahroudy, A., Ng, T.-T., Gong, Y., & Wang, G. (2017).

Deep multimodal feature analysis for action recognition

in rgb+ d videos. IEEE transactions on pattern analysis

and machine intelligence.

Shi, L., Zhang, Y., Cheng, J., & Lu, H. (2018). Adaptive

Spectral Graph Convolutional Networks for Skeleton-

A Survey of Sensor Modalities for Human Activity Recognition

293

Based Action Recognition. arXiv preprint

arXiv:1805.07694.

Shi, L., Zhang, Y., Cheng, J., & Lu, H. (2019a). Skeleton-

Based Action Recognition With Directed Graph Neural

Networks. Paper presented at the Proceedings of the

IEEE Conference on Computer Vision and Pattern

Recognition.

Shi, L., Zhang, Y., Cheng, J., & Lu, H. (2019b). Two-Stream

Adaptive Graph Convolutional Networks for Skeleton-

Based Action Recognition. Paper presented at the

Proceedings of the IEEE Conference on Computer

Vision and Pattern Recognition.

Si, C., Chen, W., Wang, W., Wang, L., & Tan, T. (2019). An

Attention Enhanced Graph Convolutional LSTM

Network for Skeleton-Based Action Recognition. arXiv

preprint arXiv:1902.09130.

Song, S., Lan, C., Xing, J., Zeng, W., & Liu, J. (2017). An

End-to-End Spatio-Temporal Attention Model for

Human Action Recognition from Skeleton Data. Paper

presented at the AAAI.

Stikic, M., Huynh, T., Van Laerhoven, K., & Schiele, B.

(2008). ADL recognition based on the combination of

RFID and accelerometer sensing. Paper presented at

the Pervasive Computing Technologies for Healthcare,

2008. PervasiveHealth 2008. Second International

Conference on.

Stork, J. A., Spinello, L., Silva, J., & Arras, K. O. (2012).

Audio-based human activity recognition using non-

markovian ensemble voting. Paper presented at the RO-

MAN, 2012 IEEE.

Torres, R. L. S., Ranasinghe, D. C., Shi, Q., & Sample, A.

P. (2013). Sensor enabled wearable RFID technology

for mitigating the risk of falls near beds. Paper

presented at the RFID (RFID), 2013 IEEE International

Conference on.

Tran, K., Kakadiaris, I. A., & Shah, S. K. (2010). Fusion of

human posture features for continuous action

recognition. Paper presented at the European

Conference on Computer Vision.

Van Kasteren, T., Noulas, A., Englebienne, G., & Kröse, B.

(2008). Accurate activity recognition in a home setting.

Paper presented at the Proceedings of the 10th

international conference on Ubiquitous computing.

Van Kasteren, T. L. M. (2011). Activity recognition for

health monitoring elderly using temporal probabilistic

models.

Wang, J., Chen, Y., Hao, S., Peng, X., & Hu, L. (2017).

Deep Learning for Sensor-based Activity Recognition:

A Survey. arXiv preprint arXiv:1707.03502.

Wang, J., Liu, Z., Wu, Y., & Yuan, J. (2012). Mining actionlet

ensemble for action recognition with depth cameras.

Paper presented at the Computer Vision and Pattern

Recognition (CVPR), 2012 IEEE Conference on.

Wang, T., Zhang, D., Wang, Z., Jia, J., Ni, H., & Zhou, X.

(2015). Recognizing gait pattern of Parkinson's disease

patients based on fine-grained movement function

features. Paper presented at the Ubiquitous Intelligence

and Computing and 2015 IEEE 12th Intl Conf on

Autonomic and Trusted Computing and 2015 IEEE

15th Intl Conf on Scalable Computing and

Communications and Its Associated Workshops (UIC-

ATC-ScalCom), 2015 IEEE 12th Intl Conf on.

Wang, W., Liu, A. X., Shahzad, M., Ling, K., & Lu, S.

(2015).

Understanding and modeling of wifi signal

based human activity recognition. Paper presented at

the Proceedings of the 21st annual international

conference on mobile computing and networking.

Wei, P., Zhao, Y., Zheng, N., & Zhu, S.-C. (2013). Modeling

4d human-object interactions for event and object

recognition. Paper presented at the Proceedings of the

IEEE International Conference on Computer Vision.

Wei, P., Zhao, Y., Zheng, N., & Zhu, S.-C. (2017). Modeling

4D human-object interactions for joint event

segmentation, recognition, and object localization.

IEEE transactions on pattern analysis and machine

intelligence, 39(6), 1165-1179.

Wickramasinghe, A., Ranasinghe, D. C., Fumeaux, C., Hill,

K. D., & Visvanathan, R. (2017). Sequence learning

with passive RFID sensors for real-time bed-egress

recognition in older people. IEEE journal of biomedical

and health informatics, 21(4), 917-929.

Wickramasinghe, A., Torres, R. L. S., & Ranasinghe, D. C.

(2017). Recognition of falls using dense sensing in an

ambient assisted living environment. Pervasive and

mobile computing, 34, 14-24.

Wu, D., Pigou, L., Kindermans, P.-J., Le, N. D.-H., Shao,

L., Dambre, J., & Odobez, J.-M. (2016). Deep dynamic

neural networks for multimodal gesture segmentation

and recognition. IEEE transactions on pattern analysis

and machine intelligence, 38(8), 1583-1597.

Xia, L., Chen, C.-C., & Aggarwal, J. K. (2012). View

invariant human action recognition using histograms of

3d joints. Paper presented at the 2012 IEEE Computer

Society Conference on Computer Vision and Pattern

Recognition Workshops.

Xu, C., Tao, D., & Xu, C. (2013). A survey on multi-view

learning. arXiv preprint arXiv:1304.5634.

Yan, S., Xiong, Y., & Lin, D. (2018). Spatial temporal graph

convolutional networks for skeleton-based action

recognition. arXiv preprint arXiv:1801.07455.

Zhang, M., & Sawchuk, A. A. (2012). USC-HAD: a daily

activity dataset for ubiquitous activity recognition using

wearable sensors. Paper presented at the Proceedings

of the 2012 ACM Conference on Ubiquitous

Computing.

Zhang, P., Lan, C., Xing, J., Zeng, W., Xue, J., & Zheng, N.

(2017). View adaptive recurrent neural networks for

high performance human action recognition from

skeleton data. arXiv, no. Mar.

Zheng, Y., Liu, Q., Chen, E., Ge, Y., & Zhao, J. L. (2014).

Time series classification using multi-channels deep

convolutional neural networks. Paper presented at the

International Conference on Web-Age Information

Management.

Zhu, W., Lan, C., Xing, J., Zeng, W., Li, Y., Shen, L., & Xie,

X. (2016). Co-occurrence feature learning for skeleton

based action recognition using regularized deep LSTM

networks. Paper presented at the 30th AAAI

Conference on Artificial Intelligence.

KDIR 2020 - 12th International Conference on Knowledge Discovery and Information Retrieval

294
