Automated DEMO Action Model Implementation using Blockchain

Smart Contracts

Marta Apar

ıcio

1,2

, S

ergio Guerreiro

1,2

and Pedro Sousa

1,2,3

Instituto Superior T

ecnico, University of Lisbon, Av. Rovisco Pais 1, 1049-001 Lisbon, Portugal

INESC-ID, Rua Alves Redol 9, 1000-029 Lisbon, Portugal

Link Consulting SA, Av. Duque de Avila 23, 1000-138 Lisbon, Portugal

Keywords:

Blockchain, DEMO, DEMO Action Model, Ethereum, Smart Contract.

Abstract:

Enterprise Ontology theory describes a well-founded method to model the essence of an organization in a co-

herent, comprehensive, consistent, and concise way. Enterprise Ontology can offer advantages in understand-

ing the essence of an organization and in using organization models as a starting point for building software

supporting organizations. The availability of ontological models that express the essence of an organization

becomes the fundamental element to support the correct implementation of Smart Contracts in the Blockchain

of that same organization. In this context, it is intended to automatically extract from the DEMO Action Model

the knowledge necessary to produce Smart Contracts in Blockchain. The advantage to be obtained is the reuse

of the modeling done ontologically in line with a correct implementation of the Smart Contracts. This research

feasibility is demonstrated through the well-known Rent-A-Car case.

1 INTRODUCTION

According to (Dietz and Hoogervorst, 2007) two dif-

ferent system notions exist, the teleological and the

ontological system notion. The teleological system

notion is about the function and the behavior of a

system. This notion can be visualized with a black-

box model. The ontological system notion, on the

other side, is about the construction and operation of

a system and can be modeled with a white-box model.

Both the teleological and the ontological system no-

tions are relevant for designing a system.

The starting point in designing a system is the us-

ing system (US). From the construction (white-box

model) of the US it can be determined the require-

ments for the object system (OS). These requirements

are, by nature, about the function and behavior of the

OS, thus in terms of the black-box model of the OS

(Dietz and Hoogervorst, 2007). If the design pro-

cessed by the system design process is speciﬁed as

an ontology, the process of engineering a system is

like the one shown in Figure 1. An ontology model

of a system is fully independent of the implementa-

tion, it only shows the essential features. A good ex-

ample of such ontology is the DEMO (Design & En-

gineering Methodology for Organizations) approach

to enterprise ontology, considering enterprises also as

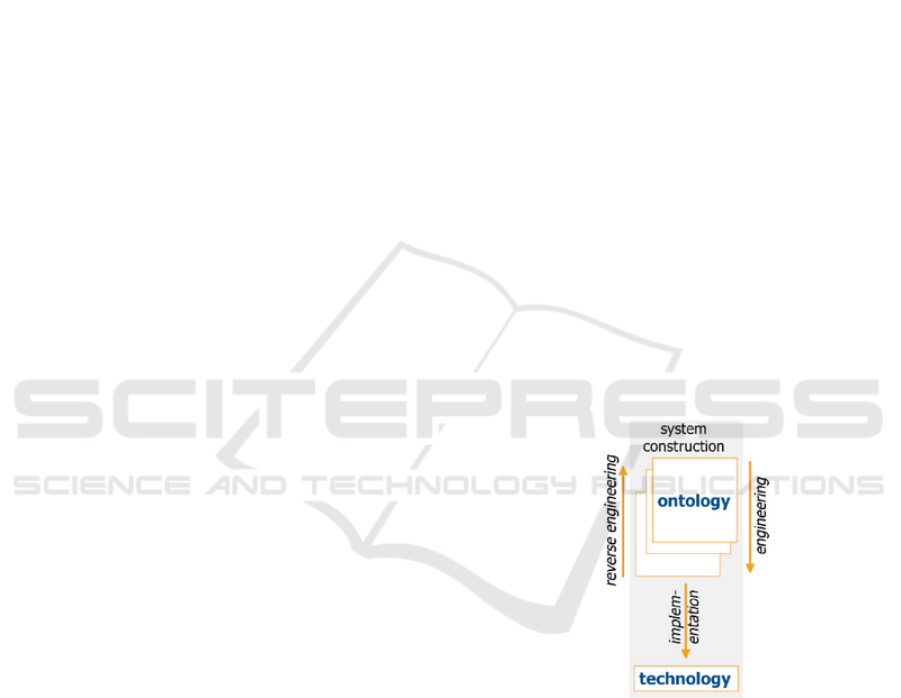

Figure 1: The process of engineering a system (Dietz and

Hoogervorst, 2007).

systems (Dietz, 2006). The implementation model,

also known as Action Model, can straightforwardly

be implemented on the available technological plat-

form (Dietz and Hoogervorst, 2007). In software de-

velopment this model often is the source code in a

programming language like Solidity. Smart Contract

(SC) is an application of the Blockchain (BC) tech-

nology to create an independently veriﬁable, secure,

permanent, and fault-tolerant agreement designed for

satisfying common contractual conditions. Enterprise

organizations need to establish a level of trust among

their users purchasing products or services. That can

Aparício, M., Guerreiro, S. and Sousa, P.

Automated DEMO Action Model Implementation using Blockchain Smart Contracts.

DOI: 10.5220/0010147602830290

In Proceedings of the 12th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2020) - Volume 2: KEOD, pages 283-290

ISBN: 978-989-758-474-9

283

be accomplished via a SC agreement. The availabil-

ity of ontological models that express the essence of

an organization becomes the fundamental element to

support the correct implementation of SCs in the BC

of that same organization. In this context, it is in-

tended to automatically extract from the DEMO Ac-

tion Model the knowledge necessary to produce SCs

in BC. The advantage to be obtained is the reuse of

the modeling done ontologically in line with a correct

implementation of the SCs.

There are some works that relate ontology and

BC, such as Understanding the BC Using Enter-

prise Ontology (de Kruijff and Weigand, 2017), and

Exploring a Role of BC SCs in Enterprise Engi-

neering (Horn

ckov

a et al., 2019). The intersec-

tion between SCs and Ontology, is seen as a great

opportunity since an ontology-based BC will have

an enhanced interpretability, when compared with a

more traditional way of development and manage-

ment (Kim and Laskowski, 2016). However, there

is no clear mapping between Enterprise Ontology

and BC. These statements lead to the following re-

search questions: What is the correspondence be-

tween Blockchain Smart Contracts and DEMO Action

Model? and How can we generate DEMO Action

Model from Blockchain Smart Contracts?

2 BACKGROUND

2.1 Demo Theory

Dietz uses the ψ −theory to construct a methodology

providing an ontological model of an organization,

i.e. a model that is coherent, comprehensive, consis-

tent, and concise, and that only shows the essence of

the operation of an organization model. This method-

ology is called Design and Engineering Methodology

for Organizations (DEMO). DEMO has been widely

accepted in both scientiﬁc research and practical ap-

pliance (Andrade et al., 2018). In DEMO, an enter-

prise is seen as a system of people and their relations,

authority and responsibility. The usage of a strongly

simpliﬁed models that focus on people forms the ba-

sis of DEMO. By using a language that is common in

the enterprise, the understanding of such models are

guaranteed, even though they’re abstract and have a

conceptual nature. The core concept of DEMO is a

transaction, fully based on the ψ −theory.

According to ψ − theory, in the standard pattern

of a business transaction exists two actor roles, the

initiator and the executor. The obtained fact when

performing a business transaction, is originated by

the collaboration of production and coordination acts.

These acts contain three phases each one with speciﬁc

steps. (1) The Order phase that contains the request

(rq); promise (pm); decline (dc); quit (qt) steps. (2)

The Execution phase that contains only the execution

(ex) step. (3) The Result phase that contains the states

(st); reject (rj); accept (ac) steps. The following four

steps are present in every transaction and represent the

happy ﬂow: request, promise, state, accept.

2.2 Blockchain

(Nakamoto, 2009) described BC as an architecture

that gives participants the ability to perform electronic

transactions without relying on trust. What makes this

possible it that, each block contains some data, the

hash of the block and the hash of the previous block.

The data that is stored inside a block depends on the

type of BC, but normally stores the details of mul-

tiple transactions, each with an identiﬁcation for the

sender, the receiver and the asset. A block also has a

hash that identiﬁes its content and it’s always unique.

If something is changed inside a block, that would

cause the hash to change. That’s why hashes are very

useful to detect changes in blocks. The hash of the

previous block effectively creates a chain of blocks

and it’s this technique that makes a BC so secure.

However, the hashing technique is not enough,

with the high computational capacity that exists today,

where a computer as the capacity of calculate hun-

dreds of thousands of hashes, per second (Apar

ıcio.

et al., 2020). To mitigate this problem, BC has a con-

sensus mechanism called Proof-of-Work. This mech-

anism slows down the creation of new blocks since, if

a block is tempered the Proof-of-Work of all the pre-

vious blocks has to be recalculated. So, the security

of BC comes from its creative use of hashing and a

Proof-of-Work mechanism. As long as a majority of

CPU power is controlled by nodes that are not cooper-

ating to attack the network, they’ll outpace attackers.

Of course, its distributive nature also adds a level of

security, since instead of using a central entity to man-

age the chain, BC uses a peer-to-peer network where

anyone can join. Information is broadcast on a best ef-

fort basis, and nodes can leave and rejoin the network

at will, accepting the longest Proof-of-Work chain as

proof of what happened while they were gone.

2.3 Smart Contracts

In the context of BC, in particular second-generation

BC, SCs are just like contracts in the real world. The

only difference is that they are completely digital, in

the sense that they are both deﬁned by software code

and executed or enforced by the code itself automat-

KEOD 2020 - 12th International Conference on Knowledge Engineering and Ontology Development

284

ically without discretion. The trust issue is also ad-

dressed, once Smart Contrats are stored on a BC, they

inherit some interesting properties: immutable and

distributed. Being immutable means that once a SC

is created, it can never be changed again. So, it isn’t

possible to tamper the code of the contract. Being dis-

tributed means that the output of the contract is vali-

dated by every node on the network. So, a single node

cannot force the behavior of the contract since it is de-

pendent of the other nodes. Like all algorithms SCs

may require input values, and only act if certain pre-

deﬁned conditions are met. When a particular value

is reached the SC changes its state and executes the

functions, that are programmatically predeﬁned algo-

rithms, automatically triggering an event on the BC.

If false data is inputed to the system, then false results

will be outputed (Bahga and Madisetti, 2016).

3 RELATED WORK

There have been attempts at raising the level of ab-

straction from code-centric to model-centric SCs de-

velopment. The different approaches tried so far, can

be divided into three: the Agent-Based Approach,

the State Machine Approach and the Process-Based

Approach. The Agent-Based Approach described by

(Frantz and Nowostawski, 2016) proposes a modeling

approach that supports the semi-automated translation

of human-readable contract representations into com-

putational equivalents in order to enable the codiﬁca-

tion of laws into veriﬁable and enforceable computa-

tional structures that reside within a public BC. They

identify SC components that correspond to real world

institutions, and propose a mapping using a domain-

speciﬁc language in order to support the contract

modeling process. The concept Grammar of Institu-

tions (Crawford and Ostrom, 1995) is used to decom-

pose institutions into rule-based statements. These

statements are then compiled in a structured formal-

ization. In this case, the statements are constructed

from ﬁve components, abbreviated to ADICO. The

Attributes describing an actor’s characteristics or at-

tributes. The Deontic describing the nature of the

statement as an obligation, permission or prohibi-

tion. The AIm describing the action or outcome that

this statement regulates. The Conditions describing

the contextual conditions under which this statement

holds. And the Or else describing consequences as-

sociated with non-conformance. Using these com-

ponents, statements on the execution of the SC are

made. The statements are then linked by the structure

of Nested ADICO (Boella et al., 2013), a variant of

ADICO in which the institutional functions are linked

by the operators AND, OR, and XOR to create a sim-

ple set of prescriptions. The set of prescriptions is

then transformed into a contract skeleton which has

to be ﬁnished manually. Furthermore, it is argued

that the Grammar of Institutions invites non-technical

people to the SC development process.

The State Machine Approach is based on the ob-

servation that SCs act as state machines. A SC is in

an initial state and a transaction transitions the con-

tract from one state to the next. The possibility of

SCs as state machines is also described in the Solid-

ity speciﬁcation. (Mavridou and Laszka, 2018) show

that the transformation of the Finit State Machine to

Solidity is partly automated, since to ensure Solidity

code quality, some manual coding might be necessary

or added though plugins.

For Process-Based Approaches, both DEMO and

Business Process Model and Notation (BPMN) are

well established for modelling business processes.

(Weber et al., 2016), describes a proposal to sup-

port inter-organizational processes through BC tech-

nology. Captured in BPMN, large parts of the control

ﬂow and business logic of inter-organizational busi-

ness processes can be compiled from process mod-

els into SCs that ensure that the joint process is cor-

rectly executed. So-called trigger components allow

the connection of these inter-organizational process

implementations to Web services and internal process

implementations. These triggers serve as a bridge be-

tween the BC and enterprise applications. Basically,

Weber et al. developed a technique to integrate BC

into the choreography of processes in order to main-

tain trust. The BC enabled to store the status of pro-

cess execution across all involved participants, as well

as to coordinate the collaborative business process ex-

ecution. Validation was made against the ability to

distinguish between conforming and non-conforming

traces. (Garc

ıa-Ba

nuelos et al., 2017) presents an op-

timization for (Weber et al., 2016). In this work, to

compile BPMN models into a SC in Solidity Lan-

guage, the BPMN model is ﬁrst translated into a re-

duced Petri Net. Only after this ﬁrst step, the re-

duced Petri is compiled into a Solidity SC. Compared

to (Weber et al., 2016) this work (Garc

ıa-Ba

nuelos

et al., 2017) managed to decrease the amount paid

of resources and achive a higher throughput. Cater-

pillar, ﬁrst presented in (Pintado, 2017) and further

discussed in (Pintado et al., 2018), is an open-source

Business Process Management System (BPMS) that

runs on top of the Ethereum BC. Like any BPMS,

Caterpillar supports the creation of instances of a pro-

cess model (captured in BPMN) and allows users

to track the state of process instances and to exe-

cute tasks thereof. The speciﬁcity of Caterpillar is

Automated DEMO Action Model Implementation using Blockchain Smart Contracts

285

that the state of each process instance is maintained

on the Ethereum BC, and the workﬂow routing is

performed by SCs generated by a BPMN-to-Solidity

compiler. Caterpillar implements a comprehensive

mapping from BPMN to Solidity. Given a BPMN

model (in standard XML format), it generates a SC

(in Solidity), which encapsulates the workﬂow rout-

ing logic of the process model. Speciﬁcally, the SC

contains variables to encode the state of a process in-

stance, and scripts to update this state whenever a task

completes or an event occurs. Caterpillar supports not

only basic BPMN control ﬂow elements (i.e. tasks

and gateways), but also includes advanced ones, such

as sub-processes, multi-instances and event handling.

Lorikeet (Tran et al., 2018), on other hand can au-

tomatically create well-tested SC code from speciﬁ-

cations that are encoded in the business process and

data registry models based on the implemented model

transformations. The BPMN translator can automat-

ically generate SCs in Solidity from BPMN models

while the registry generator creates Solidity SC based

on the registry models. The BPMN translator takes an

existing BPMN business process model as input and

outputs a SC. This output includes the information

to call registry functions and to instantiate and exe-

cute the process model. The registry generator takes

data structure information and registry type as ﬁelds,

and basic and advanced operations as methods, from

which it generates the registry SC. Users can then de-

ploy the SCs on BC. This work builds up on already

seen works, such as (Garc

ıa-Ba

nuelos et al., 2017)

(Weber et al., 2016), for the BPMN translation algo-

rithms.

4 PROPOSED SOLUTION

As explained by Alex Norta in (Norta, 2017), refer-

encing a crowdfunding project that was hacked as it

contained security ﬂaws, resulting in a considerable

monetary loss. “The incident shows it is not enough to

merely equip the protocol layer on top of a Blockchain

with a Turing-complete language such as Solidity to

realize smart-contract management. Instead, we pro-

pose in this keynote paper that is crucial to address

a gap for secure smart-contract management pertain-

ing to the currently ignored application-layer devel-

opment”. A solution to this referred problem would

be to generate SCs automatically, which would add a

level of security.

4.1 Solution Hypotheses

The concept of data independence designates the

techniques that allow data to be changed without

affecting the applications that process it (Markov,

2008). It is the ability to modify a scheme deﬁnition

in one level without affecting a scheme deﬁnition in a

higher level. It is believe that a similar separation is

highly needed for SCs, in order to achieve the goals

set in this work. DEMO is based on explicit speciﬁed

axioms characterized by a rigid modeling methodol-

ogy, and is focused on the construction and operation

of a system rather than the functional behavior. It

emphasizes the importance of choosing the most ef-

fective level of abstraction during information system

development, in order to establish a clear separation

of concerns. The adoption of the Distinction Axiom

of Enterprise Ontology, presented in section 2.1, is

proposed as an ontological basis for this separation.

In a ﬁrst approach to the problem, it is believed

that, for the Datalogical Layer a SC can be deﬁned as

a piece of code contained on a node of the BC. For

the Infological layer a SC is enforced by a set of rules

implemented on the BC through code. And lastly, for

the Essential layer, the SC is a contract in which the

commitment fulﬁllment is completely or partially per-

formed automatically in BC. This step allows to de-

fend Ontology, and in particular DEMO, as a good

way towards a model-driven approach in regards to

the automatic generation of software artifacts.

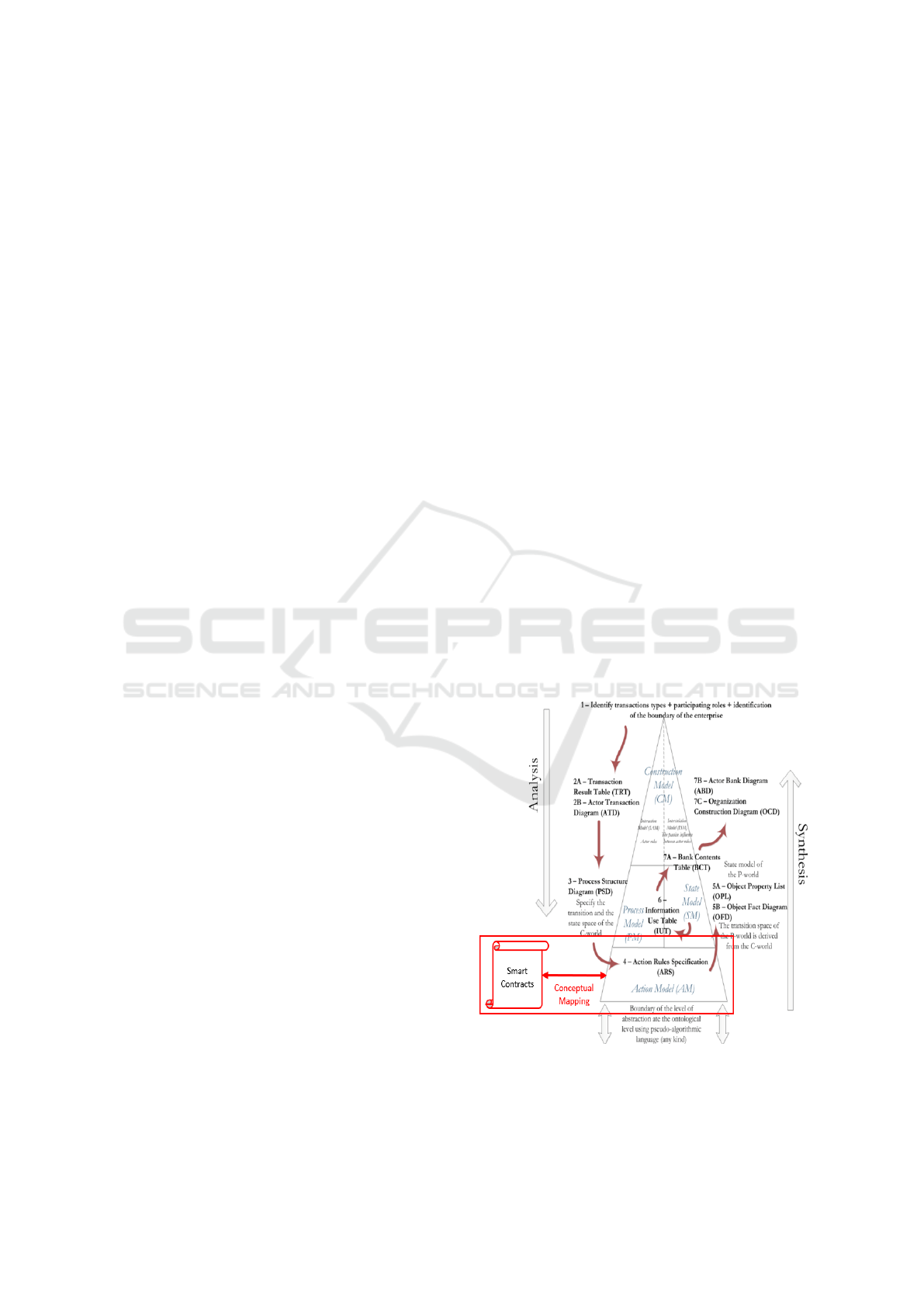

Figure 2: Proposed Solution Architecture, original ﬁgure

from (Guerreiro, 2012).

KEOD 2020 - 12th International Conference on Knowledge Engineering and Ontology Development

286

4.2 Solution Architecture

This work start with a believe that a DEMO transac-

tion is represented as a contract in a BC. The contract

has its own address, internal storage, attributes, meth-

ods and it is callable by either an external actor or

another contract, as mentioned in section 2.3. This is

the functionality needed to represent a DEMO trans-

action. They implemented the execution of DEMO

transactions according to the DEMO Machine (Skot-

nica et al., 2017) and associated theories. Now, this

present work argues that the SCs automated genera-

tion could be done directly form the Action Model

with no need for the generation of the remaining

DEMO models. It believes that the structure and con-

tent of a SC can be directly mapped to each action

rule. Since that by creating the action rules it is also

being created the logic on which the SCs operate.

In fact, the action rules contain all the decomposed

detail of the above models, the basis of the DEMO

methodology is exactly the Action Model, as can be

seen in Figure 2. The Construction Model speci-

ﬁes the construction of the organization, speciﬁes the

identiﬁed transaction types and the associated actor

roles, as well as the information links between the ac-

tor roles and the information banks. By occupying the

top of the triangle it is suggested that is the most con-

cise model. The Process Model contains, for every

transaction type in the Construction Model, the spe-

ciﬁc transaction pattern of the transaction type. And,

also contains the causal and conditional relationships

between transactions. The Process Model is put just

below the Construction Model in the triangle because

it is the ﬁrst level of detailing of the Construction

Model, namely, the detailing of the identiﬁed trans-

action types. The Action Model speciﬁes the action

rules that serve as guidelines for the actors in dealing

with their agenda. The Action Model is put just be-

low the Process Model in the triangle because it is the

second level of detailing of the Construction Model,

namely, the detailing of the identiﬁed steps in the Pro-

cess Model of the transaction types in the Construc-

tion Model. At the ontological level of abstraction

there is nothing below the Action Model. The Fact

Model is put on top of the Action Model in ﬁgure 2

because it is directly based on the Action Model; it

speciﬁes all object classes, fact types, and ontologi-

cal coexistence rules that are contained in the Action

Model.The Action Model is in a very literal sense the

basis of the other aspect models since it contains all

information that is (also) contained in the Construc-

tion Model, Process Model, and Fact Model; but in

a different way. These models have as if a zoom in

(Action Model) zoom out (Construction Model ) rela-

tionship between each other. The Action Model is the

most detailed and comprehensive aspect model.

4.3 Generate DEMO Action Model

from Blockchain Smart Contracts

In this section, the implementation of the Action

Rules of the Action Model is proposed by means of

SCs. This is enabled by the ability of SCs within

the scope of BC technology to describe complex al-

gorithms by using the Turing-complete programming

language.

Solidity is a high-level programming language to

implement SCs specially design for the Ethereum Vir-

tual Machine (EVM). Solidity was chosen because it

is developed under Ethereum and it is the most used

language for SCs for EVM. The building block in So-

lidity is a contract which is similar to class in object-

oriented programming. Contract contains persistent

data in state variables, functions to operate on this

data and it also supports inheritance. Contract can

further contain function modiﬁers, events, struct types

and other structures to allow implementation of com-

plex contracts and full usage of EVM and BC capa-

bilities. A SC written in Solidity can be created ei-

ther through an Ethereum transaction or by another

already running contract, just like an instance of a

class would be create. Either way the contract code

is than compiled to the EVM bytecode, new transac-

tion is created holding the code and deployed to BC,

returning the address of the contract for further inter-

action.

The proposed mapping not only takes advantage

of the intrinsic properties of BC technology but also

takes advantage of some design patterns for SCs in

the Ethereum Ecosystem (W

ohrer and Zdun, 2018).

Contracts often act as a state machine, which

means that they have certain stages in which they be-

have differently or in which different functions can be

called. A function call often ends a stage and tran-

sitions the contract into the next stage, this is known

as the State Machine common pattern. Through the

DEMO theory, it is known that actors interact by

means of creating and dealing with C-facts. Since

these contracts will model interactions it seems ﬁt to

model C-facts into stages, this stages are implemened

as Enums. Enums are a way to create a user-deﬁned

type in Solidity, for this particular application seven

stages, coresponding to the coordination facts: Ini-

tal; Requested; Promissed; Declined; Declared; Ac-

cepted; Rejected. The initial stage was created with

the assumption that the deployment of a contract by

someone doesn’t mean they want to immediately start

the transactions. Function Modiﬁers can automati-

Automated DEMO Action Model Implementation using Blockchain Smart Contracts

287

cally check a condition prior to executing a function.

So to guard against incorrect usage of the contract

functions a dedicated function modiﬁer will check if

a certain function can be called in a certain stage. The

DEMO theory deﬁnes C-acts as acts in a business

conversation, so these will be modeled as functions

that can only be called by a certain address in a certain

stage of the contract. To implement the guard of ac-

cess to the functions the Restricting Access common

pattern was implemented, through function modiﬁers

once again. The P-act by the same logic is imple-

mented through a function modiﬁer that is only called

in functions that represent the coordination act de-

clare. The function modiﬁer that represents the P-act

will emit an event corresponding to the P-fact, as a

production fact is the result of performing a produc-

tion act. To summarize, Table 1 shows the proposed

correspondence.

Table 1: Correspondence between Solidity SCs and DEMO

AM concepts.

DEMO component Solidity

C-act Enum

C-fact Funtion

P-act Funtion Modiﬁer

C-fact Event

5 CASE STUDY: RENT-A-CAR

In this section, the implementation of the Action

Model of a well-known case in the enterprise ontol-

ogy is attempted. The case Rent-A-Car is an exercise

in producing the essential model of an enterprise that

offers the usufruct of tangible things: Rent-A-Car is a

company that rents cars to customers. At (Dietz and

Mulder, 2020) all four aspect models (CM, AM, PM,

and FM) are presented. Together they constitute a co-

herent whole that offers full insight into and overview

over the essence of car rental companies. The pro-

duced action rules can directly be transformed into

executable computer code.

As a starting point a generic Transaction contract

was created, from which all other transactions derive.

contract Transaction {

enum C_facts {

Inital,

Requested,

Promissed,

Declined,

Declared,

Accepted,

Rejected}

C_facts public c_fact = C_facts.Inital;

address payable public initiator;

address payable public executor;

event p_fact(address _from, bytes32 _hash);

modifier p_act(){

bytes32 hash =

keccak256(abi.encodePacked(now));

emit p_fact(msg.sender, hash);

_;}

modifier atCFact(C_facts _c_fact) {

require(

c_fact == _c_fact,

"Function cannot be called

at this time.");

_;}

modifier onlyBy(address _account) {

require(

msg.sender == _account,

"Sender not authorized.");

_;} }

As discussed in Section 4.3 the c-facts are repre-

sented through an enum, with the seven stages con-

sidered as the coordination facts. The initiator and

executioner are represented through each of their ad-

dresses. The p-act() is represented by a function mod-

iﬁer that emits the p-fact event. At last, the atCFact()

and onlyBy(), are respectively modiﬁers of the com-

mon patterns State Machine and Restricting Access.

After deﬁning the parent contract, for each of the

transaction kinds of the Rent-A-Car case a contract is

created. The idea would be for the client to deploy the

RentalCompleting SC into the BC, after that he would

be able to request that same transaction.

contract RentalCompleting is Transaction{

struct Rental {

uint256 stratingDate;

uint256 endingDate;

uint256 maxRentalDuration;

uint256 drivingLicenseExpirationDay;

...}

//other defined facts

Rental public rental;

//other declared facts

constructor() public{

initiator = 0x5c80...; //rentACar

executor = msg.sender; //client

rental.maxRentalDuration = 10;

//other initialized facts

}

...

At the requestRentalCompleting the truth division

of the assess part of ARS-1 is implemented through

the build-in function require(). After all the re-

quired check and initializations the state of the re-

KEOD 2020 - 12th International Conference on Knowledge Engineering and Ontology Development

288

questRentalCompleting contract is changed to Re-

quested.

function requestRentalCompleting

(uint256 _startingDate,

uint256 _endingDate,

uint256 _drivingLicenseExpirationDay)

public

atCFact(C_facts.Inital)

onlyBy(executor) {

require(_endingDate

>= _startingDate);

//checks of truth division

...

c_fact = C_facts.Requested; }

At the promiseRentalCompleting the contract De-

positPaying is created. The DepositPaying contract

must be deployed at the returned address. Note that in

this particular case at the end of the function the state

is not updated to Promissed as this will only be done

at the acceptInvoicePaying funtion of the InvoicePay-

ing contract as showed in the PSD at (Dietz and Mul-

der, 2020).

function promiseRentalCompleting() public

atCFact(C_facts.Requested)

onlyBy(initiator)

returns (address) {

DepositPaying depositPaying =

new DepositPaying(address(this));

return address(depositPaying); }

Only at the requestDepositPaying the With clause

of the action clause of the response part of ARS-1 is

implemented through the build-in require() function.

contract DepositPaying is Transaction {

RentalCompleting rentalCompleting;

//constructor

function requestDepositPaying

(uint256 _rq_depositAmount) public

atCFact(C_facts.Inital)

onlyBy(executor) {

RentalCompleting.CarGroup memory cG

= rentalCompleting.rental();

require(_rq_depositAmount

== cG.standardDepositAmount);

c_fact = C_facts.Requested; }

After the promiseDepositAmount, the declareDe-

positAmount implements once again a common pat-

tern in solidity, the Withdrawal from Contracts as

this is the recommended method of sending funds.

Only the declareDepositAmount and declareInvoice-

Paying implement this pattern. Also note that this

must be a payable function and p-act() modiﬁer must

be present.

For a better understanding of the sequence sys-

tematization table 2 is presented.0

Table 2: Sequence systematization of Rental-A-Car case.

RentalCompleting

rq with clause of event part (ARS-1)

DepositPaying

rq with clause of response part (ARS-1)

ac truth division of assess part (ARS-2)

CarTaking

rq with clause of response part (ARS-3)

ac truth division of assess part (ARS-4)

...

InvoicePaying

rq with clause of response part (ARS-7)

ac truth division of response part (ARS-8)

RentalCompleting

6 CONCLUSIONS

The research presented in this paper is both timely

and relevant as (van Wingerde and Weigand, 2020) re-

search conﬁrms an apparent synergy between artifact-

centric process modeling and SCs. SCs essentially

consist of two elements, programmable logic and data

storage. With these two elements, organizations may

model business logic and data models of their shared

processes. One of BC’ main objectives is to handle

this massive amount of complex contractual agree-

ments and transactions that are nowadays created.

Also, intends to free parties that are dependent upon

third parties to manage and enforce those contractual

agreements. However, non-technical people, that do

not comprehend software code are once again depen-

dent on a third party to write them contracts. The low

level of semantics of software code makes it challeng-

ing to have a high level of comprehension and rea-

soning, which makes it more prone to errors. There

are already some research towards raising the level

of abstraction from code-centric to model-centric SCs

development. To address this problem we propose a

conceptual mapping between Solidity Concepts and

DEMO Action Model concepts, this proposition can

be seen as a way to implement DEMO Action Model.

However this work didn’t considered optimization as

an issue to resolve, for that reason this must be consid-

ered as a future work. Although this work presents a

Automated DEMO Action Model Implementation using Blockchain Smart Contracts

289

veriﬁcation of the research presented though the Rent-

A-Car case a future work to consider would be re-

lated to its validation. Besides testing the mapping

proposed in a more sizable sample of Action Models

would be of great importance.

ACKNOWLEDGEMENTS

This work was supported by the European Com-

mission program H2020 under the grant agreement

822404 (project QualiChain) and by national funds

through Fundac¸

ao para a Ci

encia e a Tecnologia

(FCT) with reference UIDB/50021/2020 (INESC-

ID).

REFERENCES

Andrade, M., Aveiro, D., and Pinto, D. (2018). Demo based

dynamic information system modeller and executer.

pages 383–390.

Apar

ıcio., M., Guerreiro., S., and Sousa., P. (2020). To-

wards an automated demo action model implementa-

tion using blockchain smart contracts. In Proceedings

of the 22nd International Conference on Enterprise

Information Systems - Volume 2: ICEIS,, pages 762–

769. INSTICC, SciTePress.

Bahga, A. and Madisetti, V. (2016). Blockchain platform

for industrial internet of things. Journal of Software

Engineering and Applications, 09:533–546.

Boella, G., Elkind, E., Savarimuthu, B. T. R., Dignum, F.,

and Purvis, M. K. (2013). Prima 2013: Principles and

practice of multi-agent systems. In Lecture Notes in

Computer Science.

Crawford, S. E. S. and Ostrom, E. (1995). A grammar

of institutions. American Political Science Review,

89(3):582–600.

de Kruijff, J. and Weigand, H. (2017). Understanding the

blockchain using enterprise ontology.

Dietz, J. (2006). Enterprise Ontology—Theory and Method-

ology.

Dietz, J. and Hoogervorst, J. (2007). Enterprise ontology

and enterprise architecture–how to let them evolve

into effective complementary notions. GEAO Journal

of Enterprise Architecture, 2(1):121–149.

Dietz, J. L. and Mulder, H. B. (2020). Enterprise Ontol-

ogy: A Human-Centric Approach to Understanding

the Essence of Organisation. Springer Nature.

Frantz, C. K. and Nowostawski, M. (2016). From in-

stitutions to code: Towards automated generation of

smart contracts. In 2016 IEEE 1st International Work-

shops on Foundations and Applications of Self* Sys-

tems (FAS*W), pages 210–215.

Garc

ıa-Ba

nuelos, L., Ponomarev, A., Dumas, M., and We-

ber, I. (2017). Optimized execution of business pro-

cesses on blockchain.

Guerreiro, S. (2012). Enterprise dynamic systems control

enforcement of run-time business transactions using

demo: principles of design and implementation. Insti-

tuto Superior T

ecnico-Universidade T

ecnica de Lis-

boa, Lisboa.

Horn

ckov

a, B., Skotnica, M., and Pergl, R. (2019). Explor-

ing a role of blockchain smart contracts in enterprise

engineering. In Aveiro, D., Guizzardi, G., Guerreiro,

S., and Gu

edria, W., editors, Advances in Enterprise

Engineering XII, pages 113–127, Cham. Springer In-

ternational Publishing.

Kim, H. and Laskowski, M. (2016). Towards an ontology-

driven blockchain design for supply chain provenance.

Markov, K. (2008). Data independence in the multi-

dimensional numbered information spaces.

Mavridou, A. and Laszka, A. (2018). Designing Secure

Ethereum Smart Contracts: A Finite State Machine

Based Approach, pages 523–540.

Nakamoto, S. (2009). Bitcoin: A peer-to-peer elec-

tronic cash system. Cryptography Mailing list at

https://metzdowd.com.

Norta, A. (2017). Designing a smart-contract application

layer for transacting decentralized autonomous orga-

nizations. In Singh, M., Gupta, P., Tyagi, V., Sharma,

A.,

Oren, T., and Grosky, W., editors, Advances in

Computing and Data Sciences, pages 595–604, Sin-

gapore. Springer Singapore.

Pintado, O. (2017). Caterpillar: A blockchain-based busi-

ness process management system.

Pintado, O., Garc

ıa-Ba

nuelos, L., Dumas, M., Weber, I.,

and Ponomarev, A. (2018). Caterpillar: A business

process execution engine on the ethereum blockchain.

Skotnica, M., van Kervel, S. J. H., and Pergl, R. (2017).

A demo machine - a formal foundation for execution

of demo models. In Aveiro, D., Pergl, R., Guizzardi,

G., Almeida, J. P., Magalh

aes, R., and Lekkerkerk, H.,

editors, Advances in Enterprise Engineering XI, pages

18–32, Cham. Springer International Publishing.

Tran, A. B., Lu, Q., and Weber, I. (2018). Lorikeet: A

model-driven engineering tool for blockchain-based

business process execution and asset management. In

BPM.

van Wingerde, M. E. M. and Weigand, H. (2020). An onto-

logical analysis of artifact-centric business processes

managed by smart contracts. In 2020 IEEE 22nd

Conference on Business Informatics (CBI), volume 1,

pages 231–240.

Weber, I., Xu, X., Riveret, R., Governatori, G., Ponomarev,

A., and Mendling, J. (2016). Untrusted business pro-

cess monitoring and execution using blockchain. In

La Rosa, M., Loos, P., and Pastor, O., editors, Busi-

ness Process Management, pages 329–347, Cham.

Springer International Publishing.

ohrer, M. and Zdun, U. (2018). Design patterns for

smart contracts in the ethereum ecosystem. In 2018

IEEE International Conference on Internet of Things

(iThings) and IEEE Green Computing and Commu-

nications (GreenCom) and IEEE Cyber, Physical and

Social Computing (CPSCom) and IEEE Smart Data

(SmartData), pages 1513–1520.

KEOD 2020 - 12th International Conference on Knowledge Engineering and Ontology Development

290
