Method of Semantic Refinement for Enterprise Search

Alexey Pismak

, Serge Klimenkov

, Eugeny Tsopa

, Alexandr Yarkeev

Vladimir Nikolaev

and Anton Gavrilov

ITMO University, Kronverksky pr 49, Saint-Petersburg, Russia

Keywords: Semantic Networks, Translingual Data, Apache Lucene, Semantic Queries, Semantic Search, Pertinence of

Search Results, Ontologies.

Abstract: In this paper, we propose an approach of using the semantic refinement of the input search query for the

enterprise search systems. The problem of enterprise search is actual because of the amount of processed data.

Even with a good organization of documents, the process of searching for specific documents or specific data

in these documents is very laborious. But even more significant problem is that the required content may have

the matching meaning, but expressed with different words in the different languages, which prevents it from

appearing in the search result. The proposed approach uses semantic refinement of the search query. First,

the concepts are extracted from the semantic network based on translingual lexemes of the user query string,

allowing to perform the search based on the senses rather than word forms. In addition, several rules are

applied to the query in order to include or exclude senses which can affect the relevance and the pertinence

of the search result.

1 INTRODUCTION

Search systems are the mandatory component of any

digital environment of a modern enterprise.

Generally, the search in document databases is

carried out by methods of grammatical full-text

search. This variant of work with the database of

documents has high relevance of the search results,

but at the same time, the value of the pertinence is still

quite low. In order to increase relevance, some

authors propose full-stack linguistic analysis based on

production rules (Ogarok, 2020). This approach

shows positive results in a question-based search

system, but it mainly uses the prepared subset of

search queries.

This problem is important because of the amount

of information required to be processed. It is

especially actual in enterprise search tasks which can

be characterized by the following set of features:

1. Domain homogeneity. In the most cases the

individual data elements in the enterprise system data

https://orcid.org/0000-0001-7459-1622

https://orcid.org/0000-0001-5496-6765

https://orcid.org/0000-0002-7473-3368

https://orcid.org/0000-0001-9682-7253

https://orcid.org/0000-0003-1889-3137

https://orcid.org/0000-0002-9917-6609

set are closely related to each other and they usually

belong to a common domain.

2. Large number of documents. Typical

enterprise system stores a large set (from thousands

to millions) of different documents in various

formats.

Even a relatively small enterprise has a set of

accounts, various acts, price lists, tax documents,

employee documents, and internal documentation of

the company. Even with a good organization of all

documents, the process of search of specific data in

these documents is very resource consuming.

However, the domain-specific search systems show

their effectiveness, especially when the specific

ontology is used (Formica et al., 2020).

The usage of semantic tags to guide the navigation

during the search was proposed (Solskinnsbakk and

Gulla, 2011), however, this method doesn’t solve the

problem of sense disambiguation. The problem is that

the required content may have similar meanings, but

at the same time may have different representations

(expressed in other words or in another language). All

Pismak, A., Klimenkov, S., Tsopa, E., Yarkeev, A., Nikolaev, V. and Gavrilov, A.

Method of Semantic Reﬁnement for Enterprise Search.

DOI: 10.5220/0010159703070312

In Proceedings of the 12th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2020) - Volume 2: KEOD, pages 307-312

ISBN: 978-989-758-474-9

307

questions concerning the semantic processing of texts

in the natural language require the formulation of a

narrow range of problems to be solved and further

research on the possibility of their resolution. An

example of such a range of problems is the semantic

search (Rashid and Nisar, 2016).

Theoretically, the semantic approach to text

processing is designed to solve the main problem of

lexical search that is huge number of errors during the

incorrect resolution of the polysemy of search query

lexemes.

The possible way of eliminating such errors is the

usage of the ontology-based semantic graph to keep

the knowledge needed to improve the search quality

(Modoni et al. 2014). In their article, the authors offer

the general architecture that has several advantages

regarding the quality of results and the usability to

formulate the queries, but their main focus is on the

data mining needed to collect and fill the knowledge

base. Another way of resolving word-sense

disambiguation is based on the usage of entity linking

in queries following by choice between supervised

and unsupervised alternatives (Hasibi et al, 2016).

As a part of this work, we propose a method for

implementing enterprise search based on the semantic

data retrieved from the ontological network. Using

the semantics of the search query we can significantly

increase the pertinence of the response, and therefore

the proposed method is based on using the semantic

relations of the ontological network, the lexical

information of semantic values and the translingual

data.

2 SEMANTIC NETWORKS AND

LEXICAL INFORMATION

Semantic networks are graph structures with nodes

that store semantic values (senses that represent

concepts), and the edges between nodes indicate the

relative semantic affiliation of one concept with

respect to another. Examples of such relations can be

synonymy, hyponymy, meronymy, and their reverse

relations: antonymy, hypernymy, and holonymy

(Stern D., 2015). These elementary semantic relations

between senses can be used to construct more

complex relations, such as cohyponyms, converses,

and others.

It is important to note that the semantic network

described in this paper doesn’t conform to the LMF

(Lexical Markup Framework) (Francopoulo G.,

2013) or UBY-LMF (Eckle-Kohler J. et al, 2015)

standards, because of some limitations imposed by

the object-oriented model. Instead, we used the

semantic representation based on a labeled oriented

graph structure, where nodes correspond to senses of

several types, and edges provide links between nodes

(Klimenkov et al, 2020). In addition, each node

corresponding to a sense is connected to all possible

lexemes used to represent the sense in different

languages. The ontology is formed from several semi-

structural sources (Pismak et al, 2019) and the

translingual lexemes are collected during the process

of sense-to-sense relation reconstruction (Osika et al,

2017). Such a graph structure allows us to eliminate

the needs for word-sense disambiguation due to usage

of reverse sense-to-lexeme relations while providing

the possibility for a quick search of sense nodes by

lexemes (Pokid et al, 2017). This lexico-semantic

structure contains the following types of nodes:

A semantic node is the type of node for storing

data about semantic values. In its general form it is an

abstract node that does not store specific information

about the meaning of the sense, but only positions it

with respect to other concepts in the semantic

network;

A lexical node is the type of node for storing a

certain lexeme. Lexical nodes are always associated

with a sematic node representing a sense which can

be expressed with a given lexeme. It is important that

lexical nodes also contain information about the

language. It is used for applying the translingual

functions of the semantic search.

The types of relationships are determined by the

set of permissible combinations of node types and can

take the following values:

1. Sense-to-sense-synonymy;

2. Sense-to-sense-antonymy;

3. Sense-to-sense-hyponymy;

4. Sense-to-sense-hypernymy;

5. Sense-to-sense-holonymy;

6. Sense-to-sense-meronymy;

7. Sense-to-lexeme.

One of the advantages of such a lexical-semantic

structure is the elimination of ambiguity resolving.

While working with semantic nodes we use all word

forms that express associated senses. Another benefit

is that sense-to-sense relations can be taken into

account, which makes it possible to refine the

particular concept for a given semantic meaning. And

the last but not the least advantage is the using of

sense-to-lexeme relations to provide translingual

search due to keeping word forms in different

languages.

KEOD 2020 - 12th International Conference on Knowledge Engineering and Ontology Development

308

3 SEARCH ALGORITHM

3.1 General Description

The idea of the proposed approach is that a user

formulates a search query with knowledge of required

sense. Given this fact, we can force him generate the

search query from semantic value identifiers instead

of lexemes. Taking the semantic identifiers as the

initial data, we can obtain corresponding senses from

the semantic network, and then operate with lexical

nodes that express required senses. The method of

accepting the user feedback and providing the user

the adjusted queries to choose from has been

proposed by some authors (Bi et al, 2019), but in that

case the search is performed in two stages, which is

not always the preferred way of user interaction.

In the first stage of the algorithm, we make a

selection of the necessary semantic values and

associated lexical data. Then it is necessary to form a

search query from existing lexical units and submit it

as an input data to an existing search system, such as

Apache Lucene (Apache, 2011-2020) or Sphinx

(Sphinx, 2001-2020).

In the current approach, we propose to use several

rules for the retrieval of semantic nodes and related

lexical units. The rules are used to form the sets that

encompass all user provided senses and to eliminate

documents which can reduce the pertinence of the

search result.

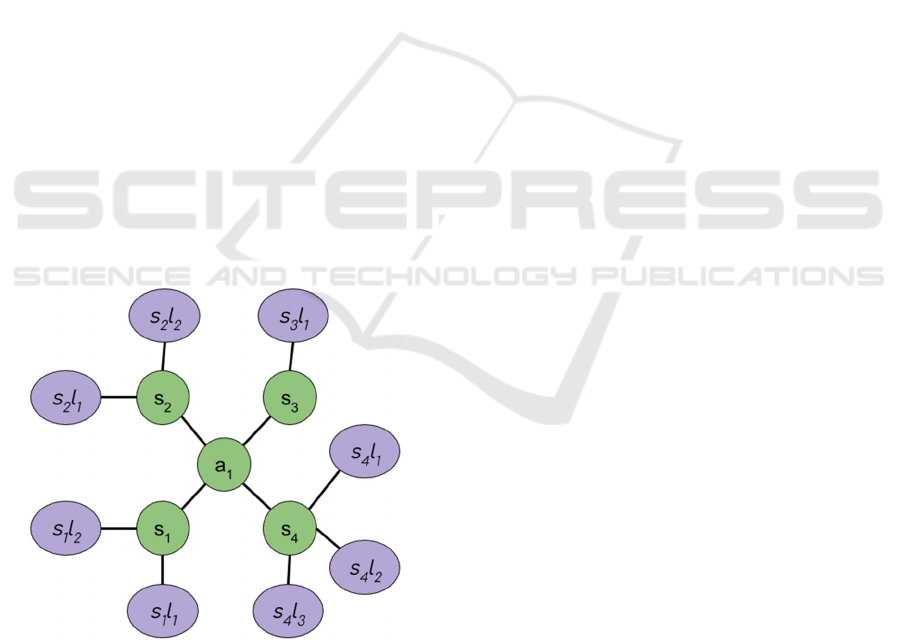

Figure 1: Fragment of the semantic network.

Let’s look at the application of the rules to the

fragment of the semantic network presented in Figure

1. The semantic nodes are green and the lexical nodes

are purple.

Let’s introduce several functions to operate on the

value sets in the semantic network. To obtain a set of

lexemes expressing the semantic meaning s, we

introduce the function lex(s). For example, according

to Figure 1, the function lex(s1) will evaluate to the

following result:

lex(s

) = { s

, s

}

(1)

To obtain the set of lexemes that can express

semantic values of the set S {s

, s

, ... s

}, let’s

introduce the function slex(S):

slex(S) = lex(s

)

∪

lex(s

)

∪

...

∪

lex(s

)

(2)

The result of this function contains a set of

lexemes that includes translingual data. It is a great

advantage to use translingual data since the user can

specify abstract semantic concepts in the search

query, and the search process will use lexical units in

all languages available in the semantic network.

Using these functions we introduce rules for the

construction of a search query.

3.2 Hyponyms Rule

Sometimes the user performing the search specifies

more general senses in the query assuming that all

concrete senses will be included in the search query

as well. For example, if the sense car is included in

the search, the user expects that the occurrences of the

specific car brands will also match the query.

Traditional search queries require significant user

efforts to achieve the result.

For the automatic selection and use of concrete

senses in the enterprise search query let’s introduce

the function hyp(s). This function returns the set of

semantic hyponyms of argument s. Then having the

subset of all concrete sense values of the argument,

we can use the function slex to select all word forms

of this subset:

Ls = slex( hyp(a) )

(3)

The result of this function (3) is the set of lexemes

Ls used for the construction of the search query.

Query result is passed to the search engine system.

However, before we proceed to the phase of

constructing such a query, we should introduce two

new rules that will help us to refine the set of lexemes

corresponding to the required semantic senses.

Method of Semantic Reﬁnement for Enterprise Search

309

3.3 Synonyms Rule

Having the semantic node a as an input parameter, in

the second step it is necessary to expand the set of

appropriate senses by synonyms. Let semantic nodes

(Figure 2) be synonyms with respect to the node a.

Then we introduce the function syn(s) that returns the

synset for the semantic value a. For example, for а

this function returns the following value:

syn ( а

) = { s

, s

} (4)

Given the synonymous senses, let’s introduce the

function that selects a set of lexemes for the required

semantic node with all hyponyms and associated with

them synonymous values. The resulted function will

look like:

= slex(

⋃



∈

)

(5)

As can be seen from the formulas, we select for

each hyponym its synonyms and the resulting set of

senses are passed as a parameter for the function slex.

As a result, we get the set of lexemes that can be used

to build the required search query.

3.4 Antonyms Rule

However, the search of all lexemes acquired on the

previous step yields a large number of erroneous

results that reduce the pertinence of the resulting set

of found documents. To solve this problem authors

propose to make an adjustment to the algorithm of

lexemes selection. The main idea is that while

selecting senses in the search query user does not

expect to get as result documents that contain

antonymous values to the specified argument. To

implement it we propose to truncate required

wordforms at the query level. The general form of the

query Q can be defined as the set difference:

Q = L

\ L

(6)

In this case, L

is a set of lexemes that can be

obtained with the function:

= slex (ant(a) ) (7)

, ant(a) is a function that extracts all antonyms of

the argument of sense a.

Thus, having the sets L

(5) and L

(7)), let’s look

at the principle of query construction using the

example with the Apache Lucene search tool.

3.5 Building and Execution of Queries

In this paper, the authors propose the implementation

of the described method for semantic search using the

Apache Lucene platform.

The general architecture of the proposed

implementation and the mapping of sets, extracted

from the semantic network to Apache Lucene, are

presented in Figure 2.

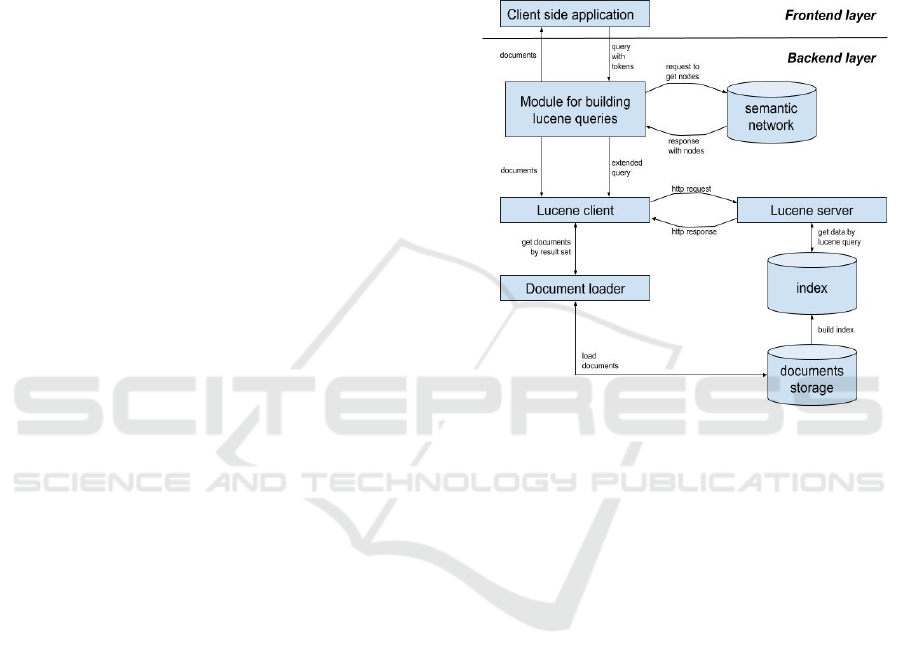

Figure 2: The general architecture for Lucene.

There are two layers of implementation:

Frontend - web interface that has the field for the

input of required senses with the autocomplete

function for possible senses;

Backend - applications integrated into a common

infrastructure: application that implements the

construction of queries in the Lucene language based

on data of the semantic query; database with

documents that are used for search; the semantic

network in the form of a graph database.

The translation into the query for Apache Lucene

is based on three simple rules:

 To intersect sets of lexemes use the AND operator

 To combine lexemes and their sets use the OR

operator

 To calculate the difference of sets apply the NOT

operator

4 RESULTS

Mainly in the existing search engines relevance and

pertinence are used for the result evaluation (Omri,

KEOD 2020 - 12th International Conference on Knowledge Engineering and Ontology Development

310

2012). Many search systems in global networks use

their own algorithms for the evaluation of results of

the search, in particular the method based on user

actions mentioned earlier.

The evaluation of the developed approach is based

on the pertinence. This value is assumed to be within

the range from zero to one. If all found documents

correspond to the expectations of the user, we assume

that the pertinence is equal to one. In case if all results

were "useless" in terms of user expectations, we

assume that the pertinence is equal to zero.

We conducted the experiment to evaluate the

pertinence of the results for the following cases:

1. Grammatical (Lucene standard) search

without the use of semantic network.

2. Semantic search without any rules.

3. Semantic search with synset rule applied.

4. Semantic search with synset and hyponym

rules applied.

5. Semantic search with additional selection of

translingual lexemes.

The experiment was done on a prepared document

database including about 1000 files. The file set

consisted of various documentation about the

household and machine equipment, for example,

price lists, user manuals, and other documents.

The value of the pertinence was calculated based

on its average value for the set of queries to the

system with different configurations. The

configuration was used to change the algorithm in

order to reveal the value of pertinence while using

different features of the semantic network.

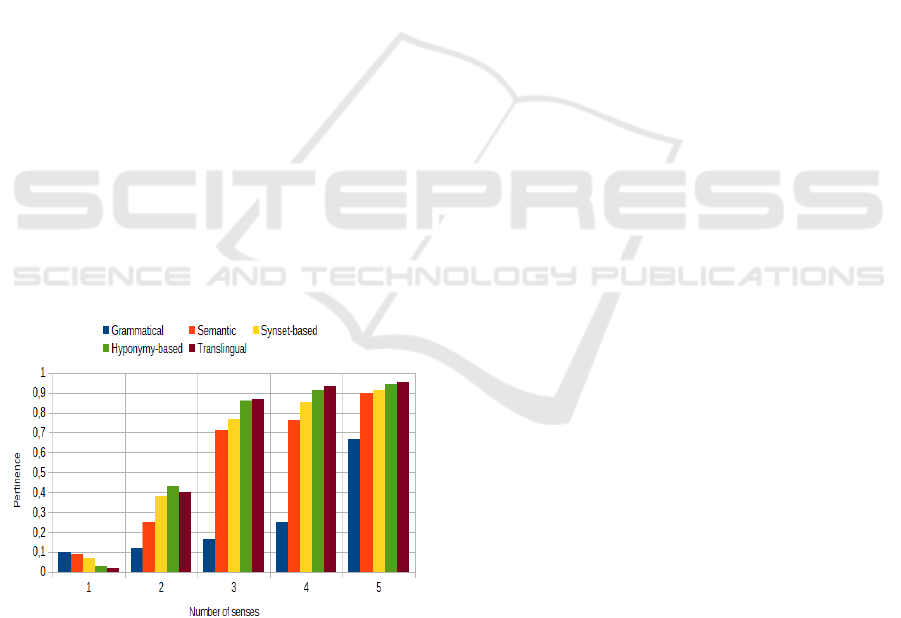

Figure 3: Experimental results.

For example, the maximum value of pertinence is

reached while specifying five senses. At the same

time, this category (five senses) shows maximum

results while using all features of the semantic

network, and without the usage of translingual

information. However, this property relates to

specific features of the database of documents, which

contains data mainly on the same language. The

results are shown in Figure 3.

5 CONCLUSIONS

The proposed approach is based on ideas that have

many directions for development. In particular, one

direction is to search texts for semantic constructions

that could describe whole situations.

Also, each of the drawbacks of this approach

specifies a vector for further development of this

approach as a mechanism for natural language

processing. Among the revealed disadvantages there

are the following:

1. The user spends more time to prepare the

query.

2. The performance is lower for semantic

networks with high coherence.

3. For semantic networks with low coherence,

the probability of search errors is higher.

REFERENCES

Apache Software Foundation, 2011-2020, Apache Lucene

- Welcome to Apache Lucene, lucene.apache.org/

Bi, K., Ai, Q., Croft, W. B., 2019. Iterative relevance feed-

back for answer passage retrieval with passage-level se-

mantic match. In ECIR’19. 558–572.

Eckle-Kohler, J., McCrae, J. P., Chiarcos, C., 2015, Lem-

onUby–A large, interlinked, syntactically-rich lexical

resource for ontologies. Semantic Web 6 (4), 371–378

Formica, A., Pourabbas, E., Taglino, F., 2020. Semantic

Search Enhanced with Rating Scores. Future Internet.

12. 67.

Francopoulo, G. (ed.), 2013. LMF Lexical Markup Frame-

work. ISTE Ltd and John Wiley & Sons, Inc., London,

Hoboken.

Hasibi, F., Balog, K., Bratsberg, S., 2016. Exploiting entity

linking in queries for entity retrieval. ACM SIGIR In-

ternational Conference on the Theory of Information

Retrieval (ICTIR '16). 209-

Klimenkov S. V., Nikolaev V. V., Kharitonova A. E., Gav-

rilov A. V., Pismak A. E., Pokid A. V., 2020. Using the

semantic network for storing semi-structured data. En-

gineering Journal of Don 2(62), 27-47 (in Russian)

Modoni, G., Sacco, M., Terkaj, W., 2014. A semantic

framework for graph-based enterprise search. Applied

Computer Science. 10. 66–74

Ogarok, A., 2020. Method of semantic search and analysis

of information. Informatization and communication

2020(1). 75-80 (in Russian).

Method of Semantic Reﬁnement for Enterprise Search

311

Omri, M. N., 2012. Relevance Feedback for Goal's Extrac-

tion from Fuzzy Semantic Networks. Asian Journal of

Information Technology. 3. 434-440.

Osika, V., Klimenkov, S., Tsopa, E., Pismak, A., Nikolaev,

V., Yarkeev, A., 2017. Method of Reconstruction of Se-

mantic Relations using Translingual Information. Pro-

ceedings of 9th International Conference on

Knowledge Engineering and Ontology Development,

239-245.

Pismak, A. E., Klimenkov, S., Tsopa, E., Slobodkin, A.

Yu., Nikolaev, V. V., 2019. Merging of semantic net-

works based on equivalence of topologies. Izvestiâ

vysših učebnyh zavedenij. Priborostroenie. 62. 50-55.

(In Russian)

Pokid А. V., Klimenkov S. V., Tsopa Е. А., Zhmylev S. А.,

Tkeshelashvili N.М., 2017 Quick search method for

nodes of a semantic network by exact word forms

matching. Journal of Instrument Engineering. Vol. 60,

N 10. P. 932—939 (in Russian).

Rashid, J., Nisar, M., 2016. A study on semantic searching,

semantic search engines and technologies used for se-

mantic search engines. International Journal of Infor-

mation Technology and Computer Science (IJITCS).

10. 82-89

Solskinnsbakk, G., Gulla, J., 2011. Contextual search navi-

gation using semantic tag signatures. ACM Interna-

tional Conference Proceeding Series. 34.

Sphinx Technologies Inc. “Open Source Search Engine.”

Sphinx, 2001-2020, sphinxsearch.com/.

Stern, D., 2015. Making Search More Meaningful: Action

Values, Linked Data, and Semantic Relationships.

Online Searcher 39 (5), 55-58 (September/October

2015).

KEOD 2020 - 12th International Conference on Knowledge Engineering and Ontology Development

312
