The Ray Tracing based Tool for Generation Artificial Images and

Neural Network Training

Alexey Kolker

, Sofia Oshchepkova

, Zhanna Pershina

, Lubomir Dimitrov

, Vladislav Ivanov

Aquib Rashid

and Mohamad Bdiwi

Faculty of Automation, Novosibirsk State Technical University, Novosibirsk, Russia

Department for Machine Elements and Non-Metallic Constructions, Technical University of Sofia, Sofia, Bulgaria

Robot System Department, Fraunhofer Institute for Machine Tools and Forming Technology, Chemnitz, Germany

vvi@tu-sofia.bg, aquib.rashid@iwu.fraunhofer.de, Mohamad.Bdiwi@iwu.fraunhofer.de

Keywords: POV-Ray, Ray Tracing, COCO-style Annotation, Instance Segmentation, Convolutional Neural Network,

Robotics, Computer Vision.

Abstract: Creating quality-annotated dataset is one of the main tasks in the field of deep learning technologies for pattern

recognition. However, in the real world, collecting a sufficient number of detailed images of an object is

difficult and time-consuming. The article considers an approach to creating synthetic datasets based on the

ray tracing method. This paper also presents the results of success tests of real object image segmentation by

convolutional neural networks, trained entirely on synthetic data and data of different nature.

1 INTRODUCTION

The success of deep learning depends to a large extent

on the quality of the data on which the training was

conducted. Getting the necessary amount of

qualitatively marked data for training is quite difficult

and not always possible. Computer graphics allows to

create realistic images of objects based on textures of

sufficiently high quality. Unfortunately, creating

realistic images by using only textures and vertex-

based lighting has some limitations. In computer

graphic technologies the method of creating images

using ray tracing is becoming more popular (Eric

Haines and Tomas Akenine-Möller, 2019). Ray

tracing yields realistic images that are closest to real

ones due to a detailed study of light, shadows, and

textures. High-quality images are created through the

following properties of the method:

1. Possibility of qualitative representation of

smooth surfaces without their polygonal

approximations;

2. Ability to render smooth objects without

approximating them with polygonal surfaces;

3. Ability to process complex scenes;

4. Possibility of high algorithmic parallelizing;

5. Small dependence of the computational

difficulties of the method on the complexity of

the scene;

6. Correct handling of invisible scenes and

reflections from parts and surface;

7. Correct processing of complex shapes;

8. Correct treatment of translucent and refractive

materials.

The main disadvantage of the method is that a

sufficiently large amount of required calculations for

scene processing can be overcome using hardware

solutions of graphic processors with support for ray

tracing (for example, Nvidia Turing technology with

RTX support).

The article considers the approach to creating

datasets for training from pre-defined CAD object

models and ray tracing technology. The approach is

implemented in the form of a software module written

in programming language Python.

The approach and developed tool could be used

for ray-tracing based generation of high-quality

COCO-style (Common Objects in Context) artificial

dataset for convolutional neural networks training.

The learned convolutional neural networks as was

shown could be successfully used for real image

processing.

Kolker, A., Oshchepkova, S., Pershina, Z., Dimitrov, L., Ivanov, V., Rashid, A. and Bdiwi, M.

The Ray Tracing based Tool for Generation Artiﬁcial Images and Neural Network Training.

DOI: 10.5220/0010168102570264

In Proceedings of the 12th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2020) - Volume 3: KMIS, pages 257-264

ISBN: 978-989-758-474-9

257

2 RELATED WORK

Generating data for training different models of

convolutional neural networks is a rather actual topic.

Therefore, various teams of researchers are

developing algorithms for creating synthetic datasets.

The topic of creating synthetic data is discussed in

some resources:

a) The paper which considers the benefits of

synthetic data generation for СNN training (The

Ultimate Guide to Synthetic Data in 2020);

b) The research on using ray tracers to create

training databases (John B. McCormac, 2018).

There are some tools which are able to make

synthetic data for СNN learning.

a) A simple GUI-based COCO-style JSON

Polygon masks' annotation tool to facilitate the quick

and efficient crowd-sourced generation of annotation

masks and bounding boxes. Optionally, one could

choose to use a pre-trained Mask RCNN model to

come up with initial segmentations. This tool could

be used for hand-made annotation of existing images

(Hans Krupakar, 2018).

b) This project is a development of the project

mentioned in the previous paragraph, the

development of this tool is continued by the team of

programmers, who are interested in this field. The

original functionality has been saved and refined

(Hans Krupakar, 2018).

However, a tool that could create high-quality

annotated sets of multiple overlapped objects has not

been implemented yet.

c) Nvidia Deep learning Dataset Synthesizer

(NDDS) a UE4 plugin from Nvidia (J. Tremblay, T.

To, A. Molchanov, S. Tyree, J. Kautz, S. Birchfield,

2018) (J. Tremblay, T. To, S. Birchfield, 2018) to

empower computer vision researchers to export high-

quality synthetic images with metadata. NDDS

supports images, segmentation, depth, object pose,

bounding box, key points, and custom stencils. In

addition to the exporter, the plugin includes different

components for generating highly randomized

images. This randomization includes lighting,

objects, camera position, poses, textures, and

distractors, as well as camera path following, etc.

Together, these components make it possible for

researchers to easily create randomized scenes for

training deep neural networks.

The strong features of the Nvidia tool are:

 Ability of using a physical engine;

 Flexibility of GUI-based basic scene

configuring;

 Possibility of using colored meshes and RGB-D

point clouds.

The main weak features of the Nvidia tool are as

follows:

 UE4 dependence ( CUDA and graphics need);

 Batch mode is problematic;

 External scene configuration is complicated for

realization.

3 PROPOSED METHOD

We would like to present an approach and the tool,

which is able to generate a synthetic dataset for a

batch of mesh- defined objects in an automatic mode

based on ray-tracing.

Ray-tracing is a process of modelling the real

physical process of light reflection and consumption.

The approach allows us to generate realistic images

and therefore could be able to present high-quality

training datasets based on artificial images only.

This tool is based on POV-Ray physical core

(POV-Ray – The Persistence of Vision Raytracer).

The main target of the current project is developing a

python based tool for making artificial images from

mesh models which could be easily implemented into

a self-learning process. All instances should be easily

configured by using text-based config files. The tool

could be used without long packet dependencies.

3.1 Process of Image Creation

Images are generated by using the Ray Tracer —

POV-Ray. The Persistence of Vision Raytracer

(POV-Ray: Download) is a high-quality, Free

Software tool for creating stunning three-dimensional

graphics (POV-Ray: Hall of Fame). The source code

is available for those wanting to do their own

research.

Creating realistic images significantly depends on

the configuration of the lighting sources.

Image generation uses one primary point white

light source for general lighting: RGB intensity =

(1.0,1.0,1.0). The light source is used with a common

brightness factor 1.0, and also has the ability to set the

rotation angle relative to the camera located at a

distance equal to the removal of the camera and four

additional fixed spot light sources of low intensity

(intensity - [0.4.0.4.0.4]) spaced from the Z-axis by

angles (75,0,0) (-75,0,0) (0,75,0) (0, -75.0) without

the possibility of changing its position from the

configuration file. The primary light illuminates the

geometry of the part, highlighting its features.

Additional lighting sources compensate for "rigidity"

and provide backlight for shaded areas of details.

KMIS 2020 - 12th International Conference on Knowledge Management and Information Systems

258

The distance from the parts to the camera is

calculated as the maximum size along any axis of the

largest object, increased by 1.7. This distance varies

for each set of parts with a random additive term,

which ranges from -1/6 to 1/2 from the calculated

base distance.

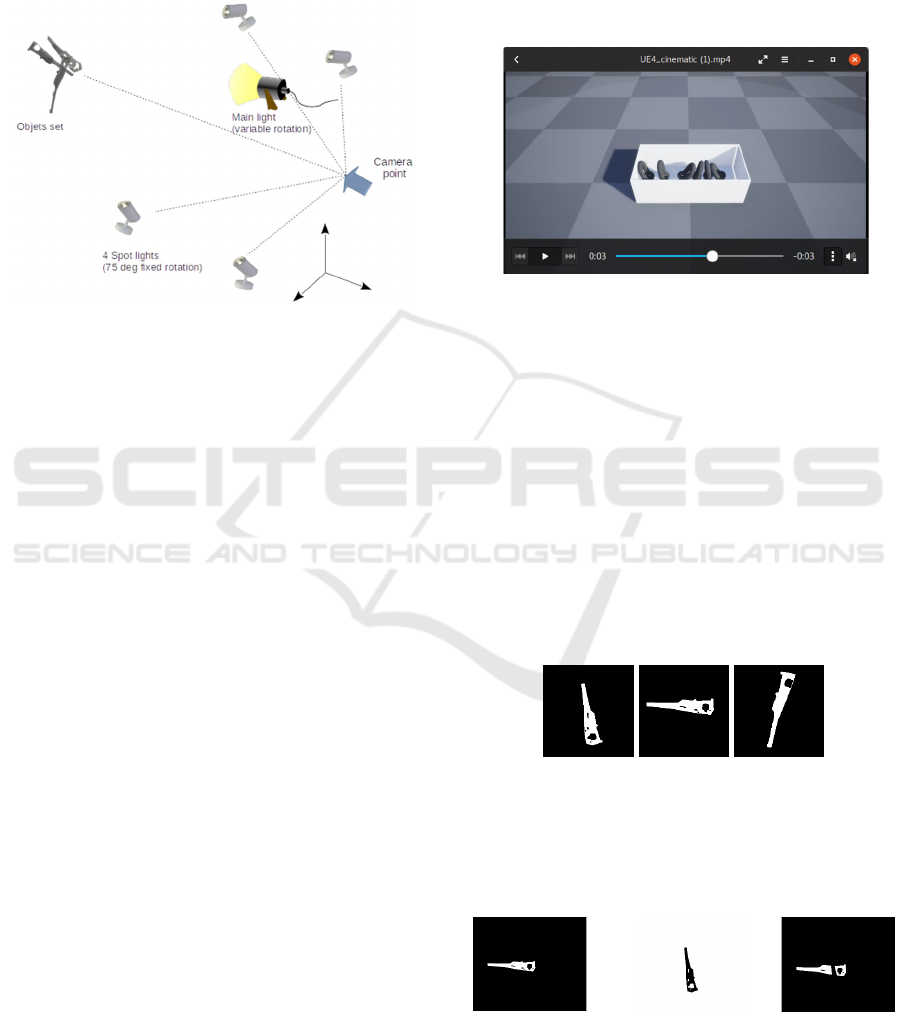

Figure 1: Lighting and camera position scheme.

The Ray Tracer – POV-Ray requires a description

of the scene geometry that is automatically generated

using the jinja stencil. The fixed template is used as

the base material (which corresponds to the material

of the parts for the assembly plant in the target

project) corresponding to the white matte metal of

coarse processing (base colour < 0.64.0.687.0.71 > -

zinc, aluminium, finishing - coarse tool, anodization

with characteristics (POV-Ray meta file)

{F_MetalD} normal {agate 0.1 scale 0.1}}).

The main part is generated from the description of

a three-dimensional object in the [.obj] mesh format.

Conversion the objects into a description language of

the ray tracer – POV-Ray doing with centring the

object in the middle of its bounding box.

The initial stable position of the part is set by

fixed values of the rotation parameters, then objects

are randomized by random law without the possibility

of overlapping objects. The rotation and slope are

randomized.

In the case of solving the bin-packing problem,

the interposition of parts can be obtained by a virtual

physical experiment by using physical engines (the

engines PyBullet and Unreal4 were studied in the

work). During the simulation process, the box with

objects was "thrown" from a given height. The details

occupied a steady position under gravity force, and

the resulting 6dof coordinates of the objects could be

loaded into the ray trace module as initial values for

the trace simulation. It should be noted that physical

simulation significantly increases the number of

necessary computational operations and could be

replaced to Euler angles randomisation with

overlapping control.

In the process of image generation, each object

receives a random shift relative to its initial position

(steady position) by a distance corresponding to the

dimension of the bounding box along the x, y axes. A

fixed shift is made along the Z-axis according to the

size of the bounding box.

Figure 2: Bin-packing task physical engine example.

During the process of creating a training dataset,

the set of details is rotated by random pitch and tilt

angles, which provides different viewing angles for

the objects.

The generation of the training sample is carried

out in three stages. At the first stage, each image of

the detail is generated by the ray tracer individually

with maximum illumination. The maximum

illumination (hard light - one source with the

maximum possible intensity, illuminating an

absolutely black object without reflection) allows us

to obtain visible outlines and a detail’s mask,

regardless of the fall of the shadows of the light

source and re-reflection.

Figure 3: Details masks obtained.

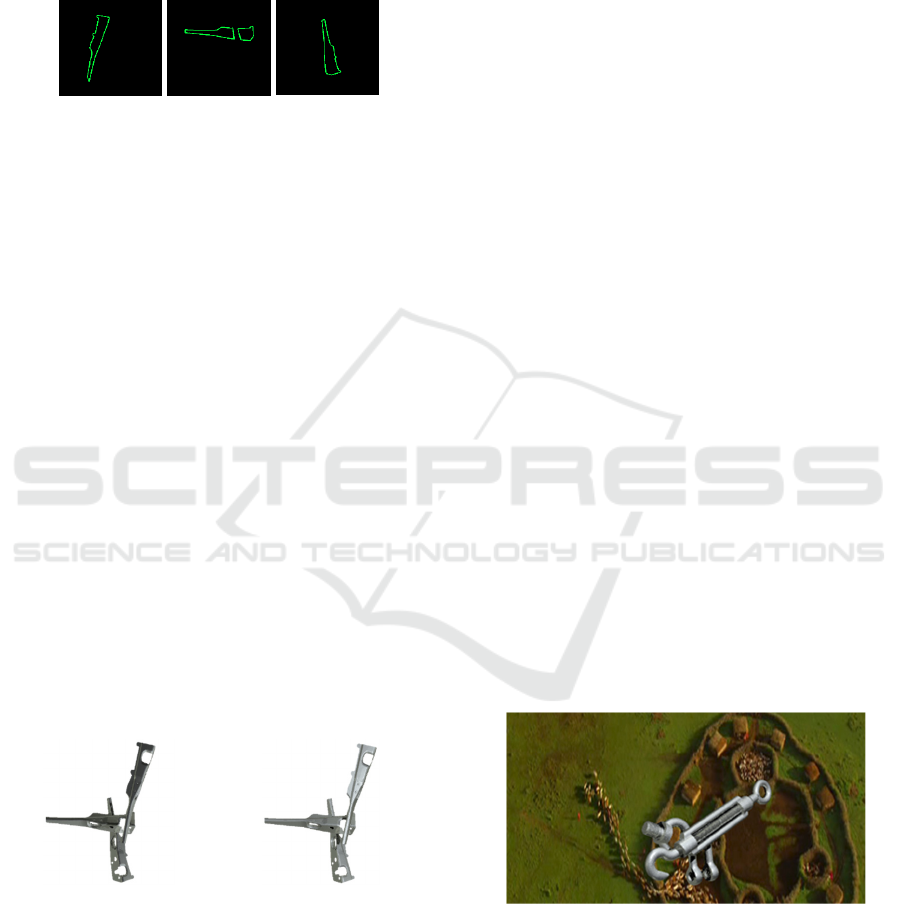

The outlines are collected by masks depending on

the position of the object in the stack (masks are

subtracted) - hidden (hidden by other parts) fragments

of the outline are masked.

Figure 4: Detail batch processing.

Using the standard outline highlighting OpenCV

The Ray Tracing based Tool for Generation Artiﬁcial Images and Neural Network Training

259

approach an outline description and its bitmask are

constructed for each detail, which will then be

converted to a COCO-style (T.-Y. Lin, M. Maire, S.

Belongie, J. Hays, P. Perona, D. Ramanan, P. Dollar,

and C. L. Zitnick, 2014) (COCO – Common Objects

in Context) mask description format.

Figure 5: Detail segmentation polygons.

The description of the contours depends only on

the rotation of the details and does not depend

significantly on the position of the main light source

and is performed only once for each data set

(reflection variations).

In the second step, a total stack of objects with an

operating light intensity is collected for all specified

(from the configuration file) positions of the light

source. A stack of objects is assembled on a

transparent background with various positions of the

main illumination source. The list is set as the angle

of deviation from the camera position by enumeration

in the configuration file.

The experiments have shown that it is sufficient

to use five positions of the light source to obtain

acceptable segmentation quality results. Using the

position of the light rotated relative to the camera by

the following angles round axis: LIGHT = [[0, 0, 0],

[0, 30, 0], [0, 30, 0], [-30, -30, 0], [30, 30, 0]].

The different position of the light source allows

diversifying the picture of light and shadows as close

as possible to real images in real lighting conditions

and save computational resources for the re-

generation of the scene. Here the relative arrangement

of the parts is shown figure 7.

Figure 6: The same scene with different position of the main

light.

Therefore:

Parts will receive a random relative position

within their bounding boxes (rectangles) in x, y, and

a fixed distance z so as to avoid overlapping.

Parts will receive random rotation respecting the z-

axis (the x-axis is horizontal, the y-axis is vertical, the

z-axis is from the camera to the observer. Scene will

receive some illumination profiles. The generated set

of images is stored in the buffer directory.

After generating a set of objects and their

description, they are merged into the resulting Json-

file with COCO-style format.

In the final step, the stack of details over the

transparent background is merged with randomly

selected background images.

During the generation process, the parts will be

created with a transparent background and located in

the image directory. Random frames from arbitrary

video or specialized image storages could be used as

a random background source. We used “Home” 2009

film as the source of the video due to open access

“Home” is a 2009 documentary film by Yann Arthus-

Bertrand. It shows the diversity of life on Earth and

how humanity is threatening the ecological balance of

the planet. This film has no copyright (Yann Arthus-

Bertrand: A wide-angle view of fragile Earth | TED

Talk). Using this video is especially symbolic.

Convolutional neural networks are currently gaining

an increasingly prominent role in our lives. At the

same time, Neural Network (NN) processing is still a

very energy-consuming process. Researchers who are

working in this area have to go a long way to the

moment when these mathematical algorithms become

effective.

Based on this approach the Python-based tool has

been developed. The tool is able to generate synthetic

data sets for a batch of objects in automatic mode.

The main target of the tool presented is making

artificial images from mesh models which could be

easily implemented into a self-learning process. The

tool could be used without smart packet

dependencies.

Figure 7: Background substitution example.

The current version does not include the results of

the physical engine to estimate the position of objects

in accordance with physics and gravity. The

connection-gate with physics could be made as to the

initial position of details (zero position). Also, the

current version of the software implements the

KMIS 2020 - 12th International Conference on Knowledge Management and Information Systems

260

generation of metal objects with a matt zinc-aluminium

surface. The material could be changed in a POV-Ray

template file if it is necessary. The options of material

used will be extended in further work.

The output image size is fixed and equal to 704

by 704 pixels (octave size). Based on this resolution,

the camera position will automatically be calculated.

Parts will sequentially overlap on the images (the part

with index 0 is the lowest, the part with the highest

index is the highest).

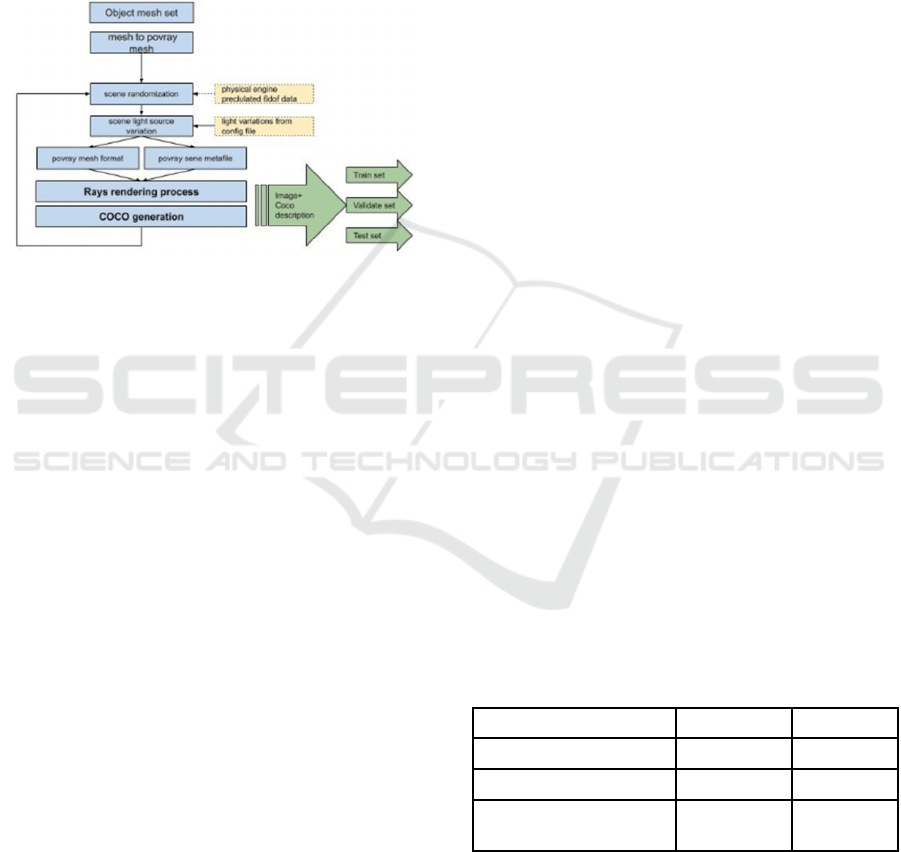

Figure 8: Blocks flowchart.

As a result of the program running a user can get:

 Annotations as separate JSON files. Each

contour and mask of the part corresponds to one

file in the directory.

 Images with a transparent background;

 Images with a substituted random background;

 Joint COCO JSON annotation which refers to

image files. The set could be directly used for

NN training.

After generating a given number of cases, the

training sample is automatically integrated into a

single COCO-style description file.

4 EXPERIMENT AND TESTING

During the experiment, images with COCO-style

annotation data were used for СNN training.

Developed software for automatic generation of

synthetic images allows getting a dataset of annotated

images in the COCO (Common Objects in Context)

format. This format was chosen because it is one of

the most popular data formats for creating training

datasets and a lot of developers use it, too.

The Mask R-CNN (Kaiming He, Georgia

Gkioxari, P. Dollár, Ross B. Girshick, 2017) model

was used for our study. Pre-trained weights of COCO

(mask_rcnn_balloon.h5) were used as an initial state

of scales. Weights were received from the releases

page: (Mask R-CNN 2.1).

The synthetic images generated by the ray-tracing

tools were formed into training, test and validate sets.

Model training was conducted on GPU: GeForce

GTX 1080 Ti major: 6 minor: 1

memoryClockRate(GHz): 1.645. The following

model configuration was used in the computational

experiment. The training was conducted in two stages

consisting of 40 and 60 epochs with different learning

speed factors (learning rate), with different number of

network layers.

After training, we had the model on three different

datasets:

1. Exclusively using synthetic sample;

2. Exclusively on real frames;

3. On a combined sample from synthetic and real

data as a training dataset.

Three groups of weights were obtained. With

using the obtained weights the objects were detected

on new frames that did not participate in model

training.

5 ASSESSMENT OF QUALITY OF

SEGMENTATION

The result of any algorithm must be evaluated,

segmentation algorithms are not an exception.

Unfortunately, there is no hard standard on how to

estimate the quality of segmentation. But, there are

various metrics for measuring the success of the

segmentation by using the model, the work of which

is based on neural networks. We prefer to use the two

most popular methods to evaluate the work of our

model: Metric IoU (Intersection over Union)

(Rezatofighi, H., Tsoi, N., Gwak, J.Y., 2019) and

mAP (mean Average Precision) (Zhu, Mu. Recall,

2004). The results of the computational experiments

are shown in the tables below.

Table 1: Description of datasets.

Training Validation

Trained on synthetic data 1365 430

Trained on real data 200 108

Trained on mixed data

1502

137 - real data

490

60 - real data

During the computational experiment, there were

two sets of test data consisting of real shots with a

different number of frames in each set. Both datasets

for different weights were used to eliminate the

probability of getting into the test sample of frames

involved in model training.

The Ray Tracing based Tool for Generation Artiﬁcial Images and Neural Network Training

261

Table 2: Results of tests (metrics results).

Synthetic data Real data

Trained on

synthetic data

mAP: 0.1966

IoU: 0.8953

(108 frames)

mAP: 0.5914

IoU: 0.5460

(126 frames)

mAP: 0.507

IoU: 0.5178

Trained on real

data

mAP: 0.1664

IoU: 0.6921

(126 frames)

IoU: 0.6054

mAP: 0.8439

Trained on mixed

synthetic and real

data

mAP: 0.1960

IoU: 0.8929

(108 frames)

mAP: 0.4058

IoU: 0.6761

For weights obtained by training the model on

completely synthetic data, a test sample consisting

only of synthetic data was formed. Gaussian, Median,

and convolutional matrix-based filters with different

steps were applied to the test dataset. The target of the

filter based experiment was to test the stability of

detection and to estimate the role of thick details in

source data during the detection process. We

intended to test the stability of the segmentation

algorithm under various conditions, such as image

distortion, change in sharpness and contrast. An

annotation file of the original segmented test sample

was used in the experiment. The results are shown in

Table.

Gauss filtering is used to reduce noise in images,

and, also, blurs the boundaries of objects in the image.

The e median filter saves boundaries and raises

impulse noce. This image transformation makes it

possible to investigate the stability of the work of

segmentation algorithms under conditions of

obtaining a distorted image of lower quality.

Table 3: Effect of smoothing filters on detection testing on

real data.

Filter (window

size)

Trained on real

data

Trained on

synthetic data

Original image

mAP: 0.8440

IoU: 0.6055

mAP: 0.5071

IoU: 0.5178

Gaussian

smoothing(3, 3)

mAP: 0.8136

IoU: 0.5903

mAP: 0.3105

IoU: 0.4727

Gaussian

smoothing(5, 5)

mAP: 0.7660

IoU: 0.5568

mAP: 0.1819

IoU: 0.3996

Gaussian

smoothing(7, 7)

mAP: 0.6732

IoU: 0.4932

mAP: 0.1118

IoU: 0.3981

Median

smoothing(3,3)

mAP: 0.8186

IoU: 0.5963

mAP: 0.3743

IoU: 0.4890

Median

smoothing(5,5)

mAP: 0.7948

IoU: 0.5736

mAP: 0.2153

IoU: 0.4581

Median

smoothing(7,7)

mAP: 0.6697

IoU: 0.4914

mAP: 0.1366

IoU: 0.4112

An experiment was conducted to identify the

effect of filtration on the operation of segmentation

algorithms with weights obtained by training the

model on real images and on a mixed data set.

The influence of brightness, contrast and

sharpness of the image was also investigated in order

to verify the operability of the segmentation

algorithm work with using different technical devices

with various optical indicators.

Table 4: The experiment is a change in brightness with

training on real data.

Conditions

Weights trained on

real data

Weights trained

on synthetic

data

Brightness:0.8

mAP: 0.8343

IoU: 0.5965

mAP: 0.4268

IoU: 0.5251

Brightness:0.9

mAP: 0.8466

IoU: 0.5977

mAP: 0.4848

IoU: 0.5087

Brightness:1

(original)

mAP: 0.8439

IoU: 0.6055

mAP: 0.5071

IoU: 0.5178

Brightness:1.1

mAP: 0.8500

IoU: 0.6049

mAP: 0.5132

IoU: 0.5082

Brightness:1.2

mAP: 0.8491

IoU: 0.5875

mAP: 0.4905

IoU: 0.5121

CLAHE (Contrast

Limited Adaptive

Histogram

Equalization)

mAP: 0.8006

IoU: 0.5754

mAP: 0.3889

IoU: 0.4985

SHARPEIN

[0, -1, 0],

[-1, 5, -1],

[0, -1, 0]

mAP: 0.7863

IoU: 0.5732

mAP: 0.3933

IoU: 0.4439

SHARPEIN

[-1, -1, -1],

[-1, 9, -1],

[-1, -1, -1]

mAP: 0.5615

IoU: 0.4586

mAP: 0.1599

IoU: 0.2652

6 TARGET SYSTEM

APPLICATION

The target project is an experimental set that is

equipped by the KUKA robot (configured and

programmed by the participants from IWU

Fraunhofer Chemnitz), smart flexible gripper

(developed by the Technical University of Sofia) and

Intel RealSense D415 camera on the gripper body.

The system is located in the experimental library

IWU Fraunhofer Chemnitz.

One of the goals of this project is the development

of a method for making a decision on the optimal way

to grasp the object and move it. To solve this problem,

algorithms have been developed that allow

KMIS 2020 - 12th International Conference on Knowledge Management and Information Systems

262

recognizing and localizing an object in a three-

dimensional space and evaluating 6DoF objects.

Object recognition in the observed scene is based

on a convolutional neural network, which allows

semantic segmentation of objects in the image.

The convolutional neural network was trained

using 1000 artificial made images in train set and 430,

360 for validation and test as well.

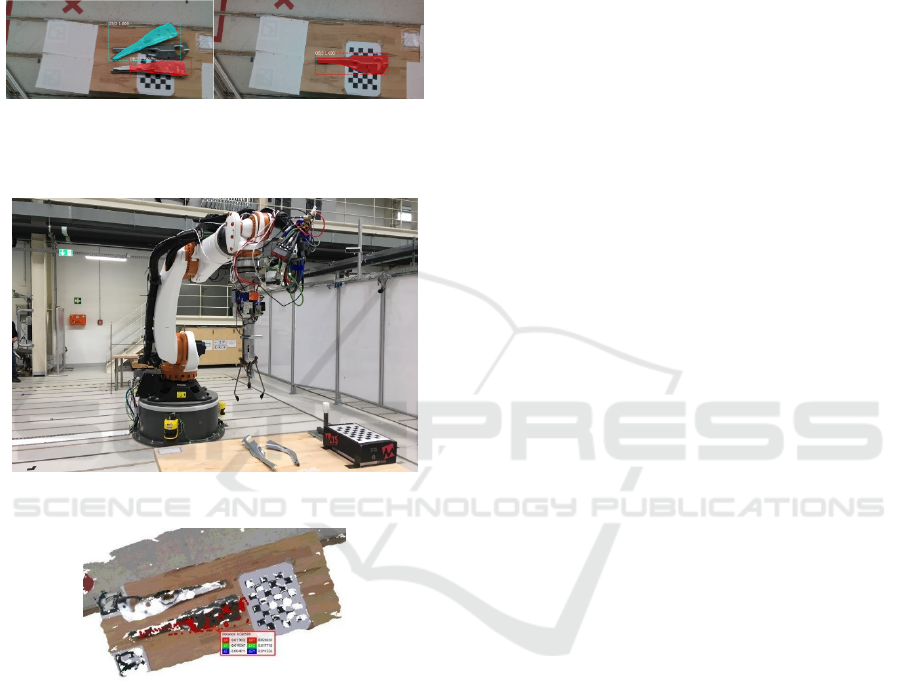

Figure 9: Real image semantic segmentation example

during integration experiment (camera is mounted on the

robot gripper body).

Figure 10: Kuka based experimental set.

Figure 11: Example of the results of 6DoF.

When the results of the objects’ segmentation in

the image are obtained, a 3D semantic objects’

segmentation in the scene is performed. Thus, the

general 3D cloud of scene points of a three-

dimensional points set of recognized objects is

selected.

This reduces the size of the 3D point cloud, which

in turn leads to an increase in the performance of the

6DoF object estimation algorithm.

The 6DoF estimation procedure has been made by

the method proposed in the work of Bertram Drost

and Slobodan Ilic (Drost, Bertram, and Slobodan Ilic,

2012).

We have got the 0.75 success of the final step -

6DoF estimation (with an accuracy of +/- 5 degrees -

the requirement for the target task: successful

grasping) during the preliminary experiment. The

6dof experiment was carried out using the parts of the

target set (parts for car assembly) at IWU Fraunhofer

laboratory bench consisting of KUKA manipulator,

universal grip, IntelRealsense D415 camera mounted

on the robot arm. Fig. shows an example of the results

of 6DOF.

The gripper is designed to provide maximum

grasping flexibility regarding the geometry of the

objects and their relative position. The flexibility is

achieved by the separate or joint action of two

systems – mechanical and pneumatic. The

mechanical one consists of two fingers which are

mechanically actuated and equipped with fingertips

allowing for a safely grasping of a wide range of

objects. The pneumatic system provides a vacuum

based grasping in case of convex or concave surfaces.

7 CONCLUSIONS

Using exclusively synthetic data (obtained by

developed algorithms and by using created software

modules) for training allows us to ensure acceptable

quality of segmentation real data frames in the range

of 50-60%. In joint batch segmentation (processing a

scene from different angles by obtaining data from a

video camera attached to a robot arm), the success of

segmentation can be greatly increased. The metrics in

this mode will be refined in the next step during the

calculation experiment at IWU Fraunhofer.

The mAP metric does not adequately reflect

segmentation results and should be excluded from

consideration.

Studies of stability (influence of digital filters on

initial images) of developed algorithms have been

carried out. Results of research of the use of digital

filters (linear - convolution, nonlinear - work with

histograms, median filtration), show stability (limit of

stability) of procedures of segmentation. The physical

interpretation of these results consists of the "not

ideal" recording of data in the conditions of operation

of the robotic stand (blurring and distortion of the

picture as a result of the movement of objects and

camera, a variation of illumination). Segmentation

technologies showed low sensitivity to brightness

variation within gamma correction 0.8 - 1.2 (IoU

deviation was about 4%), which confirms the

accuracy of solutions for the generation of training

samples listed in items 1.2 of the main report.

The Ray Tracing based Tool for Generation Artiﬁcial Images and Neural Network Training

263

The system showed significant sensitivity to

smoothing filters (for the Gauss 3x3 filter, the IoU

drop was 9% further for the 5x5 by another 14%). The

fact of stabilization IoU with a further increase of

smoothing is interesting, which suggests that the

contribution of thin details of images gives an

increase of segmentation quality by a quarter).

Applying median filters to the original image does not

win as a segmentation.

The tool developed could be used for making

fully synthetic trained databases for CAD-described

objects instead of real images.

8 THE FURTHER WORK

Unknown objects issue. The algorithms developed

could be extended to unknown (the information about

the model of object and material made are

unavailable). The problem: the depth sensor used

(Intel Realsense I415 family) is not able to take the

data cloud like a 3d scanner. Possible solution is: the

system should be equipped with a 3d scanning sensor

which is able to take the right PointCloud picture.

The current realization of the artificial image

generation tool is possible with aluminium, zincum,

and steel details made of one material. It is necessary

to extend its use to other materials (POV-Ray

material library could be used).

The tool developed generates mask-based

annotation together with polygonal annotation.

During experiments presented the second only type

used for training.

ACKNOWLEDGEMENTS

This work has been accomplished with financial

support by RFBR project No 18-58-76003 in frames

of European program ERA.Net RUS PLUS 2017-

294.

REFERENCES

Eric Haines and Tomas Akenine-Möller, 2019. Ray Tracing

Gems High-Quality and Real-Time Rendering with

DXR and Other APIs

[Online] The Ultimate Guide to Synthetic Data in 2020

Available: https://blog.aimultiple.com/synthetic-data/

John B. McCormac, 2018. “SLAM and Deep Learning for

3DIndoor Scene Understanding”

Hans Krupakar, 2018. COCO-Style-Dataset-Generator-

GUI [Source code]: https://github.com/andytung2019/

COCO-Style-Dataset-Generator-GUI

Hans Krupakar, 2018. COCO-Style-Dataset-Generator-

GUI [Source code]: https://github.com/hanskrupakar/

COCO-Style-Dataset-Generator-GUI

J. Tremblay, T. To, A. Molchanov, S. Tyree, J. Kautz, S.

Birchfield, 2018. Synthetically Trained Neural

Networks for Learning Human-Readable Plans from

Real-World Demonstrations. In International

Conference on Robotics and Automation (ICRA)

J. Tremblay, T. To, S. Birchfield, 2018. Falling Things: A

Synthetic Dataset for 3D Object Detection and Pose

Estimation. CVPR Workshop on Real World

Challenges and New Benchmarks for Deep Learning in

Robotic Vision

[Online] POV-Ray – The Persistence of Vision Raytracer

Available: http://www.povray.org/

[Online] POV-Ray: Download Available:

http://www.povray.org/download/

[Online] POV-Ray: Hall of Fame, Available:

http://hof.povray.org/

T.-Y. Lin, M. Maire, S. Belongie, J. Hays, P. Perona, D.

Ramanan, P. Dollar, and C. L. Zitnick, 2014. Microsoft

COCO: Common Objects in Context in ECCV

[Online] COCO – Common Objects in Context, Available:

https://cocodataset.org/#format-data

[Online] Yann Arthus-Bertrand: A wide-angle view of

fragile Earth | TED Talk, Available:

https://www.ted.com/talks/yann_arthus_bertrand_a_wi

de_angle_view_of_fragile_earth#t-4732

Kaiming He, Georgia Gkioxari, P. Dollár, Ross B. Girshick,

2017. Mask R-CNN in ICCV

Waleed, 2018. Mask R-CNN 2.1 [Source code]

https://github.com/matterport/Mask_RCNN/releases/ta

g/v2.1

Rezatofighi, H., Tsoi, N., Gwak, J. Y., 2019. et al.:

Generalized intersection over union: a metric and a

loss for bounding box regression, arXiv preprint

Zhu, Mu. Recall, 2004. Precision and average precision

Drost, Bertram, and Slobodan Ilic, 2012. 3d object

detection and localization using multimodal point pair

features, 2012 Second International Conference on 3D

Imaging, Modeling, Processing, Visualization &

Transmission, IEEE

KMIS 2020 - 12th International Conference on Knowledge Management and Information Systems

264
