Secure Data Flow Messaging on Web Socket using Rivest Code 6

Ika Oktavia Suzanti

, Yoga Dwitya Pramudita

, Husnul Atho’ Mubarok

and Dwi Kuswanto

Departement of Informatics Engineering, University of Trunojoyo Madura, Bangkalan, Indonesia

Keywords: Realtime System, Data Security, Cryptography.

Abstract: Websocket is a two-way real-time system communication protocol for web and mobile applications. By

utilizing full-duplex communication, WebSocket is very effective in applications that require fast response

times such as instant messaging, real-time gaming and multimedia data communication. Data security issues

are important especially when it comes to financial, health to personal data of many people, but WebSocket

technology does not provide security mechanisms such as connection authentication or message encryption,

making it very vulnerable to passive attacks such as packet monitoring or sniffing by unauthorized parties.

To solve these problems, can be applied an encryption method in data flow on communication lines used.

Rivest Code 6 (RC6) is a cryptographic algorithm with a good avalanche effect of plaintext and keys, and a

fast time in encryption and decryption process. This research aims to apply RC6 encryption method on

websocket communication channel to better maintain confidentiality and authenticity of sent messages.

Speed performance test results show that Rivest Code 6 (RC6) has an avalanche effect of 28.29% changes

in plaintext and 52.28% changes in keys.

1 INTRODUCTION

Websocket is a real-time protocol communication

that are often considered as an alternative method

because it has advantages over request-response

communication as common as Hyper Text Transfer

Protocol (HTTP). These advantages include using a

full duplex transmission model that makes

communication between client and server can be

done simultaneously, reducing delay rate in sending

messages from sender to recipient (Latency) and

easy to use API (Park et al., 2014) (Pimentel and

Nickerson, 2012) (Tsai et al., 2019). Websocket can

be implemented on a web browser, web server or on

Android instant messaging application (Erkkilä,

2012).

On HTTP protocol communication between web

browser (client) and web server (server) will only

occur when there is a request from client, but when

using websocket, it is allows the server to push latest

information to client without prior requests (Tsai et

al., 2019). By utilizing full-duplex communication,

WebSocket is very effective in applications that

require fast response times such as instant

messaging, realtime gaming and multimedia data

communication (Joshi, 2012). Some of websocket

implementations are e-learning (Arora et al., 2016)

portofolio response (Tsai et al., 2019) smarthome

application (Soewitoa et al., 2019), medical

application (Kubov et al., 2019) email address

verifier (Weizhen et al., 2012) and real-time sharing

screen (Darmawan et al., 2019).

Data security issues are important especially

when it comes to financial, health to personal data of

many people (Namasudra and Gandomi, 2020).

Some public facilities often require personal data for

authentication even though they also cannot

guarantee the security of data that has been given

(Dinesha and Kb, 2016). In its development, the

challenge that must be faced when using websocket

in an application is a security problem because focus

of this technology is only on client server

connectivity (Enghardt et al., 2019). WebSocket

technology does not provide security mechanisms

such as connection authentication or message

encryption, so it is very vulnerable to passive attacks

such as packet monitoring or sniffing by

unauthorized parties. To solve these problems, can

be applied an encryption method in a data stream on

communications line used (Mishra and J, 2013) such

as sent message from an instant messaging

application.

Rivest Code 6 (RC6) is a cryptographic

algorithm with a good avalanche effect of plaintext

and key (Liu et al., 2017) and fast time in the

Suzanti, I., Pramudita, Y., Mubarok, H. and Kuswanto, D.

Secure Data Flow Messaging on Web Socket using Rivest Code 6.

DOI: 10.5220/0010305400003051

In Proceedings of the International Conference on Culture Her itage, Education, Sustainable Tourism, and Innovation Technologies (CESIT 2020), pages 151-157

ISBN: 978-989-758-501-2

151

encryption and decryption process (Aggarwal,

2015). RC6 has been used for encryption in wireless

communications (Mahidhar and Raut, 2016) image

protection (Naeem et al., 2016) or data transfer in

cloud computing (Bhardwaja et al., 2016). The RC6

algorithm adopts three primitive operations used in

RC5, also using a 32-bit multiplication operation

that can already be implemented on today's modern

processors. This primitive operation is very effective

to produce a "diffusion" effect or a more efficient

distribution effect, operation results in RC6

algorithm being safer than RC5, multiplication

operation is used to count number of bits rotated so

that concept of data-dependent rotations can be

implemented with more perfect by RC6 algorithm

(Rivest et al., 1998) This research is aim to

implementing RC6 encryption method, it is expected

that data flow on websocket communication path

used will be more secure in confidentiality and

authenticity of messages sent.

2 METHOD

2.1 Encrypted Communication Design

In this research, encrypted communication was

developed by implementing RC6 method as an

algorithm for encoding messages carried out by

exploiting frames in websocket packages. To be able

to communicate with encrypted communication, all

parties involved in communication must have the

same type of encryption from both client and

websocket server. Before the message is sent,

encryption process will first be carried out. There are

two main parts of encrypted communication system

design on a websocket, namely:

1. Client A will be party sending the message

and client B who will be the recipient of

encrypted message.

2. Server applications that play a role in routing

message delivery from client to client.

Users who act as senders can send information in

the form of files or text, while users who act as

recipients will receive the information sent. Message

sending is done during websocket communication.

The whole system works are:

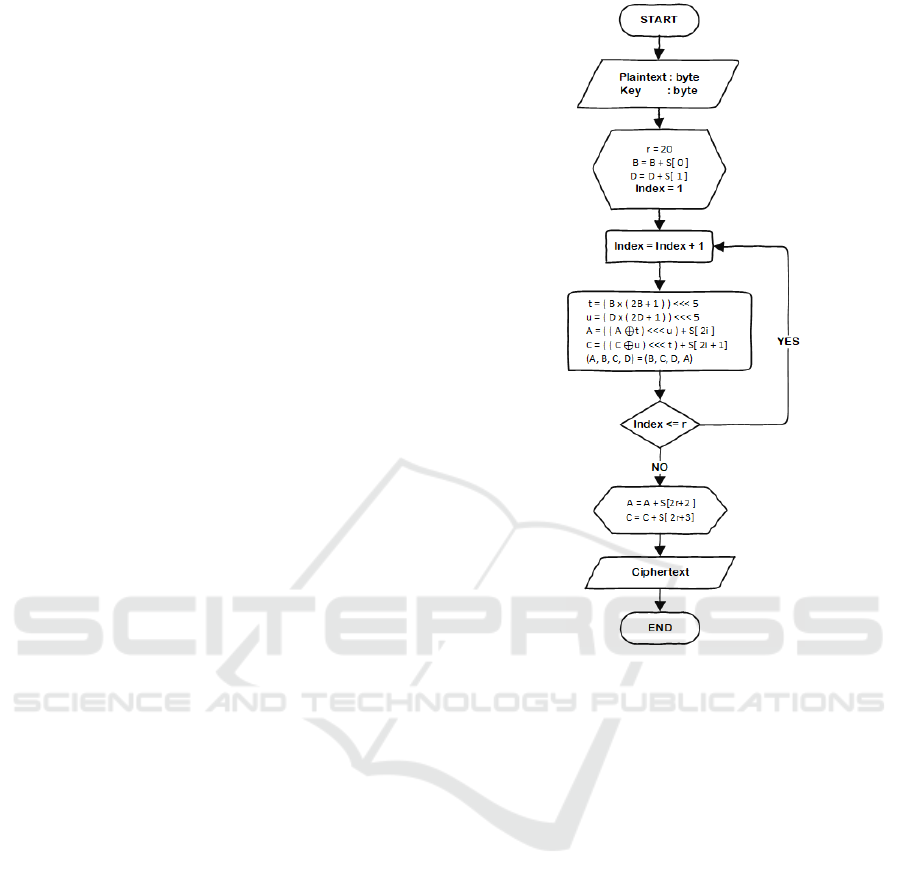

Figure 1. RC6 Algorithm Encryption Process

1. Encrypted communication process starts from

client sending encrypted messages. All types

of secret messages both files and text are first

converted into bytes. After message is

successfully converted to byte format,

message encryption process is carried out.

2. Encryption key is determined as soon as

websocket implementation built both from

client server and port number of each

connection is added. After key is added with

port number, it changed to a byte. In

experiments conducted by, client and server

are on the same local network so that port

numbers used are also the same. If client and

server are on different networks, then a static

key should be used so that it can be encrypted

by all connecting devices from sender to

receiver.

3. The encryption process RC6 algorithm asks

for two inputs of a plaintext and a byte type

key. Details secret message encoding process

is shown in Figure 1. After plaintext and key

received, encryption process is then performed

by :

CESIT 2020 - International Conference on Culture Heritage, Education, Sustainable Tourism, and Innovation Technologies

152

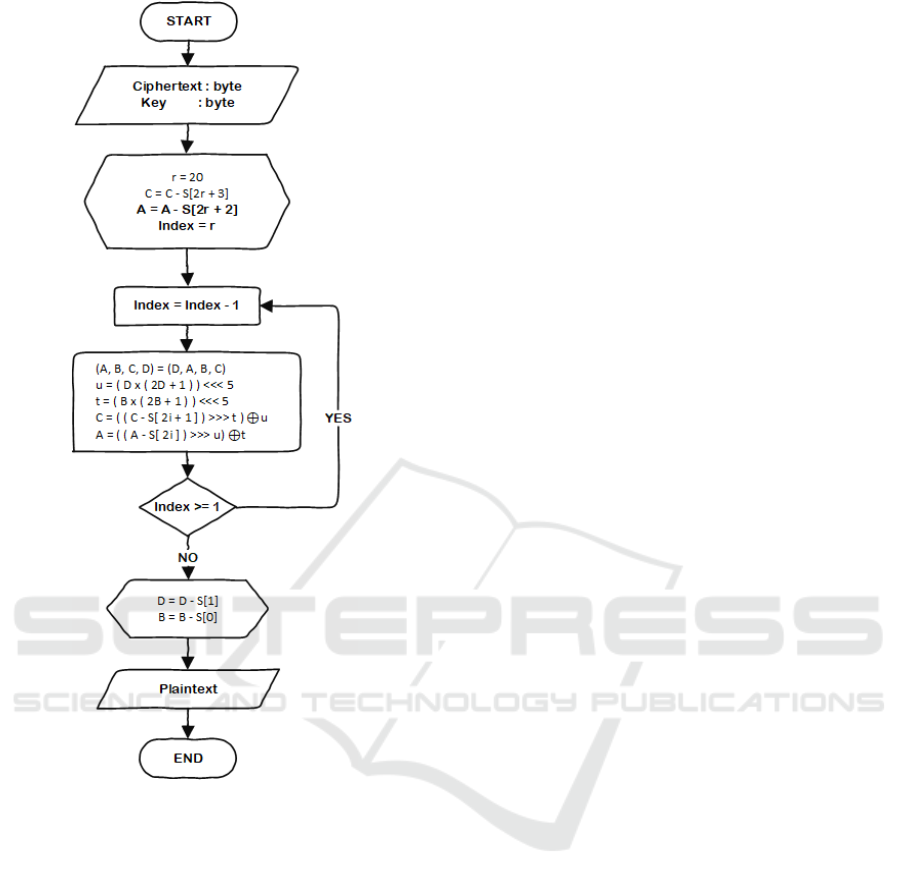

Figure 2. RC6 Algorithm Decryption Process

1. Plaintext input and encryption key are in byte.

2. Variable initialization

a. Initialization variable r with a value of 20.

Variable r is number of repetitions during

encryption process.

b. Initialize variable B by summing value of

variable B with internal key S index 0.

Variable B is part of four register blocks A, B,

C, and D.

c. Initializing variable D by adding up the value

of variable D with the internal key S index 1.

d. Initialize index variable with a value of 1 as an

iteration indicator.

3. The number of r repetitions, with r value is 20

turns.

4. The encryption process for RC6 algorithm.

Each repetition in this algorithm follows the

following rules, value of B is inserted into

function f, which is defined as follows f (X) =

X (2X + 1), then rotated left as far as 2log(w)

or 5 bits. The results of this process are

assumed to be t. The value of t is then XOR

with value of A and result will be value A.

The value of t is also used as a reference for C

to rotate value to the left. Likewise for value

of u is also used as a reference for value of A

to do the leftist spinning process.

5. Check the number of repetitions that have

been done.

6. After the looping process is finished, then

value of variable A is carried out with key

value S to 2r + 2 and value of C with key S to

2r + 3.

7. Ciphertext encryption results.

4. Furthermore, after encryption process at

sending client is completed, encrypted

message (ciphertext) will be sent to server.

5. When server receives an encrypted message

(ciphertext) then message will be decrypted to

find out information from message.

Information needed by server is about

message recipient. Details decryption process

is shown in Figure 2. In message decryption

process two inputs are required, which are

encrypted messages (ciphertext) and

encryption key then each of it will converted

to a byte. At decryption process that occurs

are :

1. Input ciphertext and encryption key in byte.

2. Variable initialization

a. Initialization variable r with a value of 20.

Variable r is number of repetitions during

encryption process.

b. Initialize variable C by summing value of

variable C with internal key S index 0.

Variable C is part of four register blocks A, B,

C, and D.

c. Initializing variable A by adding up the value

of variable A with the internal key S index 1.

d. Initialize index variable with a value of 1 as an

iteration indicator.

3. The number of r repetitions, with r value is 20

turns.

4. The decryption process for RC6 algorithm.

Each repetition in this algorithm follows the

following rules, value of D is inserted into

function f, which is defined as follows f (x) =

x (2x + 1), then rotated left as far as 2log(w)

or 5 bits. The results of this process are

assumed to be t. The value of t is then XOR

with value of D and result will be value D.

The value of t is also used as a reference for C

Secure Data Flow Messaging on Web Socket using Rivest Code 6

153

to rotate value to the right. Likewise for value

of u is also used as a reference for value of A

to do right playback process.

5. Check the number of repetitions that have

been done.

6. After the looping process is finished, then

value of variable D is carried out with key

value S to 2r + 2 and value of B with key S to

2r + 3.

7. Plaintext encryption process results.

6. After recipient's information is known by

server, message will be back to encryption

process and then encrypted message will be

sent to receiving client.

7. Client receives an encrypted message from

server then message will be decrypted to find

out information sent by message sender.

2.2 Testing Scenario

2.2.1 Speed Performance Test

SERVER

APPLICATION

DUMMYNET

WIFIHOSTPOT

ClientAApp

(Sender)

ClientBApp

(Destination)

Datastream Datastream

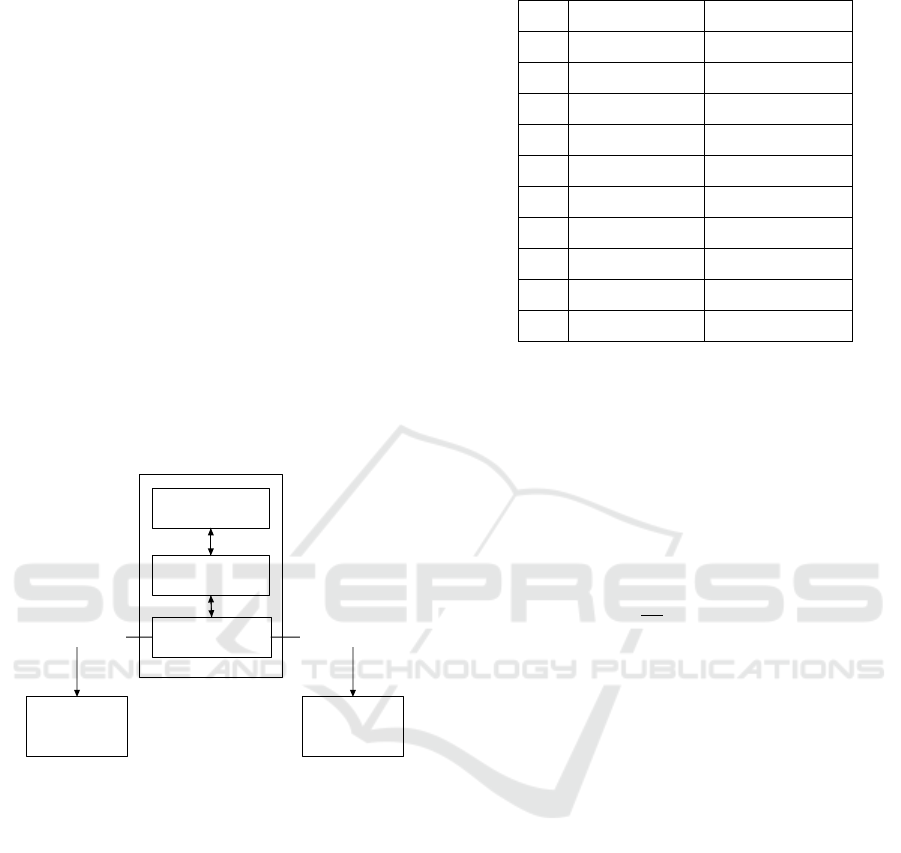

Figure 3. Speed performance test scenario.

Speed performance test is done by comparing

time usage difference in message sending process,

using Transport Layer Security (TLS) with

certificate format “PKCS12” and Rivest Code 6

(RC6) encryption. Testing process is carried out

using text and binary data with different sizes so that

average value of overall test results will be obtained.

In the speed performance test, Dummynet is used as

a network simulator to simulate packet loss. Test

scenario can be seen in Figure 3.

Message sending speed performance tests are

carried out from sender to destination applications.

Speed performance test has 5 packet loss scenarios,

namely 0%, 3%, 6%, 9% and 12%. As well as 2

types of data that are 5 text and 5 binary data which

has a different size. Table 1 shows types and sizes of

data used in the process.

Table 1. Types and size of data test

No Data types size (byte)

1 Text 141

2 Text 325

3 Text 379

4 Text 612

5 Text 1320

6 Binary 732808

7 Binary 972524

8 Binary 1034296

9 Binary 1051521

10 Binary 2958132

2.2.2 Security Test

Security testing was carried out on RC6 and TLS

algorithm by calculating avalanche effect of

ciphertext. This test is done by changing for example

one bit randomly from plaintext and making changes

to one bit in encryption key. In this test, avalanche

effect formula will be used to calculate complexity

of encryption algorithm. The formula for calculating

avalanche effect can be seen in equation 1

𝐴𝐸 

𝑁



𝑁



𝑥100% 1

AE is the Avalanche Effect value. If encryption

is performed on plaintext or key, Nc is number of

bits of ciphertext change and Nt is total number of

bits of ciphertext. In this test encryption algorithm is

said to be good if value of avalanche effect is

around 45% - 60% or about half of total ciphertext.

3 RESULT AND DISCUSSION

3.1 Websocket Library Modifications

The web source source code library was obtained

from Github site shared by Nathan Rajlich . After

source code for websocket library is obtained,

websocket library is modified. A modification was

made to existing websocket program code to add

RC6 algorithm program code as a data encryption

method. There are two main programs that will be

modified in WebsocketImpl.java and

DefaultExtension.java files. Modifications made to

source code of WebsocketImpl.java file are to add

program code to generate keys based on initial key

that was determined at the time of websocket's

implementation . The key then added to port

CESIT 2020 - International Conference on Culture Heritage, Education, Sustainable Tourism, and Innovation Technologies

154

number of each client connection, for example initial

key is "AripasolA" and connected port number is

"13579" so generated key will be

"AripasolA13579". Adding port number to key is

done so that when there is one message being sent to

different client connections it will produce a

different ciphertext. The following is a source code

added to modified WebsocketImpl.java file.

private String

getEncryptionKey(){

String key = "AripasolA-";

if (this.role == Role.CLIENT) {

key +=

getLocalSocketAddress().getPort();

return key;

}else{

key+=

getRemoteSocketAddress().getPort();

return key;

}}

Code Program 1. WebsocketImpl Code

Next is to modify the DefaultExtension.java file.

Modification is done on this files by adding

encryption and decryption on definition decode and

encode. Encryption process is added to encode

method while decryption process is added to decode

method. The encode method is used when

websocket will send a message and decode method

is used when websocket receives message from both

server and client side. In implementing RC6

algorithm, it will be divided into functions based on

their respective uses.

Encrypt function is used to arrange plaintext in

array of bytes which has length n into plaintext

blocks with array length 16. And if it turns out that

plaintext length is not multiple of 16, then it will be

padded so that it will eventually become a multiple

of 16. Here is source code encrypt function:

public static byte[]

encrypt(byte[] data, byte[] key){

if (data.length < 1 || key.length

< 16) return new byte[0];

byte[] bloc = new byte[16];

S = generteSubkeys(key);

int lenght = 16 - data.length

% 16;

byte[] padding = new

byte[lenght];

for (int i = 0; i < lenght;

i++)

padding[i] = 0;

int count = 0;

byte[]tmp= new

byte[data.length+lenght];

int i;

for(i = 0; i <

data.length+lenght; i++){

if (i > 0 && i % 16 == 0)

{

bloc = encryptBloc(bloc);

System.arraycopy(bloc, 0, tmp,

i-16, bloc.length);}

if (i < data.length) {

bloc[i % 16] =

data[i];}else{

bloc[i % 16] =

padding[count];

count++;

if(count > lenght +

1) count = 1;}}

bloc = encryptBloc(bloc);

System.arraycopy(bloc, 0,

tmp, i - 16, bloc.length);

return tmp;}

Code Program 2. Encrypt Code

Decrypt function is used to compile ciphertext in

array of bytes which has length n into ciphertext

blocks with array length 16. At the end of the

decrypt function process will call deletePadding

function to delete padding that was previously done

during encryption process. Here is the source code

function decript.

public static byte[]

decrypt(byte[] data, byte[] key){

if (data.length < 1 ||

key.length < 16) return new

byte[0];

byte[] tmp = new

byte[data.length];

byte[] bloc = new byte[16];

S = generteSubkeys(key);

int i;

for(i = 0; i < data.length;

i++){

if (i > 0 && i % 16 == 0)

{

bloc =

decryptBloc(bloc);

System.arraycopy(bloc, 0, tmp, i -

16, bloc.length);}

if(i < data.length)

bloc[i % 16] =

data[i];}

bloc = decryptBloc(bloc);

Secure Data Flow Messaging on Web Socket using Rivest Code 6

155

System.arraycopy(bloc, 0,

tmp, i - 16, bloc.length);

tmp = deletePadding(tmp);

return tmp;}

Code Program 3. Decrypt Code

3.2 Testing Result

3.2.1 Speed Performance Test Result

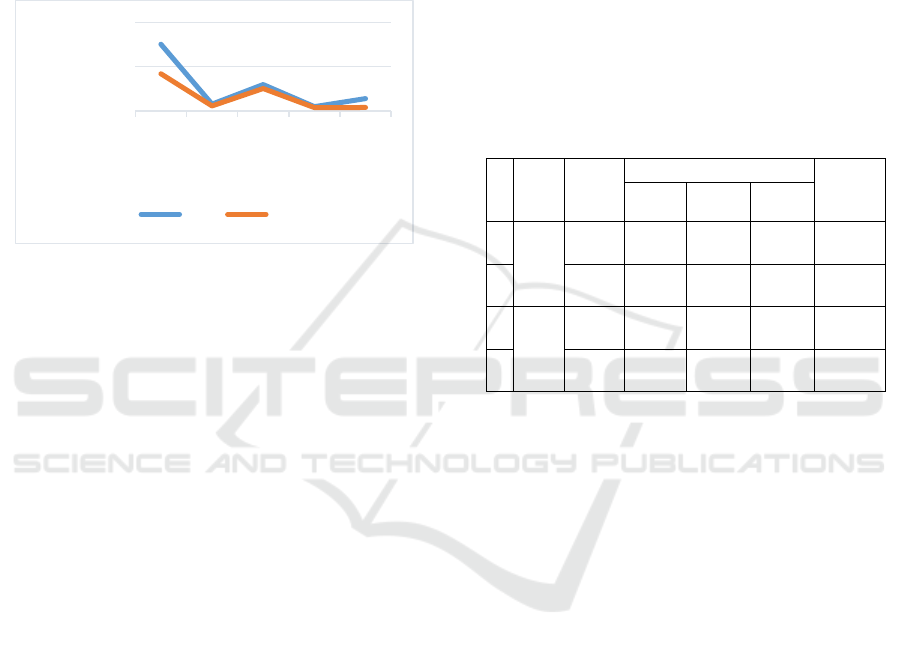

Figure 4. Speed performance test result

The results of time comparison test that have

been obtained then analysed for each additional

number of packet loss to time required in each

message sending process both RC6 and TLS

algorithm. From figure 4 shows that testing with a

packet loss of 3% has decreased due to addition of

packet loss which is bigger than the previous 0% so

that packet delivery process becomes slower,

because it requires repetition process of sending lost

packages. Meanwhile, the 6% packet loss

experienced an increase due to device condition

which experienced an increase in speed performance

and end of processes running on testing device or

network traffic level which was not too dense at the

test time. In testing with packet loss of 9% and 12%

with the device and network conditions returning to

normal, there was a decrease in performance due to

the large number of packets lost.

The test results comparing of average messages

delivery time (1/x) taken from client A (sender) to

client B (destination) between RC6 and TLS

algorithm displayed in graphical form as seen in

Figure 4. The graph shows test results using 0%,

3%, 6%, 9% and 12% packet loss of each

experiment so that comparison of message delivery

times can be seen. From each experiment, average

values (x) were 1327, 12569, 3343, 19441 and 7118

for RC6 and 2373, 16855, 3939, 24926 and 23961

for TLS. It can be concluded that RC6 algorithm has

a better performance compared to TLS.

3.2.2 Security Test Result

The result of avalanche effect test on RC6 and TLS

algorithms have been obtained by two test scenarios,

based on plaintext and based on encryption key. In

table 2 shows that avalanche effect test which is

carried out by changing plaintext for RC6 algorithm,

the average value is 28.29% and for TLS average

value is amounted to 42.50%. Furthermore, the

results of avalanche effect test with changes based

on key, for RC6 algorithm obtained an average value

of 52.28% and for TLS an average value was

53.19%. From these results it can be concluded that

TLS is safer than RC6 algorithm.

Table 2. Analysis results calculation of avalanche effect

RC6 and TLS algorithm

Cha

nge

Algo

rith

Testing Avg

1 2 3

1Plai

text

RC6 25,20

28,61

31,95

28,29

2 TLS 37,57

38,59

51,36

42,50

3Ke

RC6 47,17

46,97

62,70

52,28

4 TLS 49,46

53,26

56,86

53,19

4 CONCLUSIONS

From the implementation and result that has been

done, several conclusions can be drawn as follows:

1. The speed performance test results of sending

messages from client A (sender) to client B

(destination) is about average 8757

milliseconds for RC6 and 14411 milliseconds

for TLS. From these results it can be

concluded that RC6 algorithm has better

performance compared to TLS.

2. The avalanche effect calculation results for

RC6 algorithm obtained an average value of

28.29% based on plaintext and 52.28% based

on keys. Meanwhile for TLS, average value

was 42.50% based on plaintext and 53.19%

based on keys. From these results it can be

concluded that TLS is safer than RC6

algorithm.

0,00075

0,00007

0,00029

0,00005

0,00014

0,00042

0,00005

0,00025

0,00004

0,0000

0,0005

0,0010

036912

timeinsecond(1/ms)

PacketLoss(%)

RC6 TLS

CESIT 2020 - International Conference on Culture Heritage, Education, Sustainable Tourism, and Innovation Technologies

156

REFERENCES

AGGARWAL, K. Comparison of RC6, Modified RC6 &

Enhancement of RC6. 2015 International Conference

on Advances in Computer Engineering and

Applications,, 2015 Ghaziabad, India.

ARORA, S., MAINI, J., MALLICK, P., GOEL, P. &

RASTOGI, R. Efficient E-learning management

system through web socket. 3rd International

Conference on Computing for Sustainable Global

Development (INDIACom), 2016 New Delhi, India.

BHARDWAJA, A., SUBRAHMANYAM, G., AVASTHI,

V. & SASTRY, H. Security Algorithms for Cloud

Computing. International Conference on

Computational Modeling and Security (CMS 2016),

2016 Bengaluru, India.

DARMAWAN, I., RAHMATULLOH, A. &

GUNAWAN, R. Real-time Screen Sharing Using Web

Socket for Presenting Without Projector. 2019 7th

International Conference on Information and

Communication Technology (ICoICT), 2019 Kuala

Lumpur, Malaysia, Malaysia.

DINESHA, A. & KB, E. B. Computations on Cipher

Speech for Secure Biometrics. 6th International

Conference On Advances In Computing &

Communications, 2016 Cochin, India.

ENGHARDT, T., TIESEL, P. S., ZINNER, T. & A.

FELDMANN. Informed Access Network Selection:

The Benefitsof Socket Intents for Web Performance.

15th International Conference on Network and Service

Management (CNSM), 2019 Halifax, NS, Canada,

Canada, .

ERKKILÄ, J.-P. WebSocket Security Analysis. Seminar

on Network Securi, 2012 Aalto University T-110.5291

JOSHI, B. 2012. HTML5 Programming for ASP.NET

Developers. New York :apress.

KUBOV, V., DYMYTROV, Y. & KUBOVA, R. Wireless

Devices HTML-interface for Medical Applications.

8th Mediterranean Conference on Embedded

Computing (MECO), 2019 Budva, Montenegro,

Monten.

LIU, N., CAI, J., ZENG, X., LIN, G. & CHEN, J.

Cryptographic Performance for Rijndael and

RC6Block Ciphers. 11th IEEE International

Conference on Anti-counterfeiting, Security, and

Identification (ASID), 2017 Xiamen, China.

MAHIDHAR, R. & RAUT, A. A Survey On Scheduling

Schemes With Security In Wireless Sensor Networks,.

International Conference on Information Security &

Privacy (ICISP2015), 2016 Nagpur, INDIA.

MISHRA, P. & J, J. 2013. Application Research and

Penetration Testing on WebSocket Technology.

International Journal of Science and Research (IJSR),

, 4.

NAEEM, E. A., ELNABY, M. M. A., EL-SAYED, H.,

EL-SAMIE, F. E. A. & FARAGALLAH, O. S. 2016.

Wavelet fusion foren crypting image swith a few

details. Computers and Electrical Engineering, 54,

450-470.

NAMASUDRA, S. & GANDOMI, G. C. D. P. J. M. H. A.

H. 2020. The Revolution of Blockchain: State of the

Art and Research Challenges. Archives of

Computational Methods in Engineering.

PARK, J.-T., H.-S. HWANG, YUN, J.-S. & MOON, I.-Y.

2014. Study of HTML5 WebSocket for a Multimedia

Communication. International Journal of Multimedia

and Ubiquitous Engineering, 9, 61-72.

PIMENTEL, V. & NICKERSON, B. G. 2012.

Communicating and Displaying Real-Time Data with

WebSocket. IEEE Computer Society, 16, 340-361.

RIVEST, R. L., M.J.B. ROBSHAW, R.SIDNEY & YIN,

Y. L. 1998. The RC6 Block Cipher.

SOEWITOA, B., CHRISTIANA, GUNAWAN, F. E.,

DIANAA & KUSUMA, I. G. P. Websocket to

Support Real Time Smart Home Applications. 4th

International Conference on Computer Science and

Computational Intelligence 2019(ICCSCI), 2019

Yogyakarta, Indonesia.

TSAI, H., CHANG, C., HOU, X., YONG, Y., CHIOU, K.

& YU, P. 2019. Interactive student response system

with iBeacon and web socket for flipped classroom

learning. Journal of Computing in Higher Education,

31, 3430-361.

WEIZHEN, S., YUTONG, F. & LIMING, L. 2012. A

Hybrid Design and Implementation of Socket Directly

and Web Browser Online Email Address Verifier.

Affective Computing and Intelligent Interaction,, 137,

11-19.

Secure Data Flow Messaging on Web Socket using Rivest Code 6

157
