Exploring the Merit of Collaboration in Classification and

Compression of Epilepsy EEG Signal

Rushda Basir Ahmad and Nadeem Ahmad Khan

Department of Electrical Engineering, Lahore University of Management Sciences, Lahore, Pakistan

Keywords: Compression, Binary Encoding, Epilepsy, EEG.

Abstract: Ambulatory electroencephalogram (EEG), allows collection of patients data over extended periods of time.

However, as a small recording requires large memory for storage, and this makes EEG data storage an arduous

task. Moreover, classification of EEG for extraction of relevant information is relatively challenging, and

selective data retrieval depends on task at hand. Consequently, EEG data storage and classification need to be

computationally efficient. This paper presents a combined scheme, for the simultaneous compression and

classification of EEG data, which not only decreases the overall computational effort, but also allows selective

archiving and retrieval of data. Huffman and Arithmetic coding techniques are employed on CHB-MIT scalp

EEG database and the results are presented in form of compression ratio (CR) and percentage root mean

square distortion (PDR). For classification, Intelligent Neurologist Support System (INSS), has been used.

The classifier output apart from being stored as data, is also used for intelligent data reduction, when only

specific information is required, resulting in increased CR and decreased PDR, which is desired. Hence, the

results show intelligent compression and reduction of data results in efficient management of EEG data. The

signal undergoes state-of-the-art compression such that on reconstruction it almost maintains the same

classification accuracy as the original one.

1 INTRODUCTION

Epilepsy is a common neurological disorder that

affects approximately 1% of the world’s population,

characterized by spontaneous seizures (Neligan,

2001). Electroencephalogram (EEG), is extensively

used for diagnosis of epilepsy, as it can detect

aberrant neuronal activity including seizures. Modern

neurologist support systems include facility for

automatic marking of seizure EEG as aid to

neurologists. In present ambulatory systems,

wearable and implantable EEG devices are being

researched at or available in market for diagnosis,

prediction of the occurrence of seizures and also

stimulation in effected part for suppression of

seizures. The data is transmittable wirelessly from

portable or implantable devices to a central unit and

allows for the regular monitoring of the patient or

storage.

With increasing availability of EEG data with the

neurologist, efficient ways of classification of EEG

and its intelligent reduction and compression are

becoming important. Efficiency in storage and energy

required for transmission of EEG can be maximized

if the data is reduced and compressed such that most

important events are preserved and no significant

artifacts are introduced by compression in EEG that

can change the actual nature of the events. Separate

approaches have been extensively reported in

literature for reduction and compression; but utilizing

them separately for these tasks does not ensure energy

efficiency and avoidance of compression artifacts at

increasing compression. This can create ambiguity

about the event identities. A synergy in the two

approaches is therefore desirable. One such approach

is presented in this paper and is shown to be efficient

for both tasks at the same time: Classification and

compression (along with reduction).

This paper presents a joint intelligent compression

and data reduction methodology by extending the

Intelligent Neurologist Support System (INSS)

designed earlier in the same group. (Anas, 2015)

Introduced a tool for classification of epilepsy EEG

into epileptic and non-epileptic epochs whereas the

present study combines the task of classification of

epileptic epochs with reduction and compression of

EEG signal to handle large amount of ambulatory

data. Earlier the approaches presented in (Casson,

2009) and (Chiang, 2013) focused on using very

Ahmad, R. and Khan, N.

Exploring the Merit of Collaboration in Classiﬁcation and Compression of Epilepsy EEG Signal.

DOI: 10.5220/0008853700230029

In Proceedings of the 13th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2020) - Volume 4: BIOSIGNALS, pages 23-29

ISBN: 978-989-758-398-8; ISSN: 2184-4305

simple methods of classification and compression

respectively whose efficiency was limited. We have

exploited wavelet transform and show its efficacy

simultaneously for both tasks.

The rest of the paper is organized as follows.

Section 2 discusses the proposed approach; Section 3

describes the processing scheme used, Section 4

presents the test cases for the experimentation and the

results obtained. Section 5 concludes the paper.

2 PROPOSED APPROACH

This paper presents the methodology for efficient

storage or transmission of labelled EEG data in

compressed

form after automatic labelling of

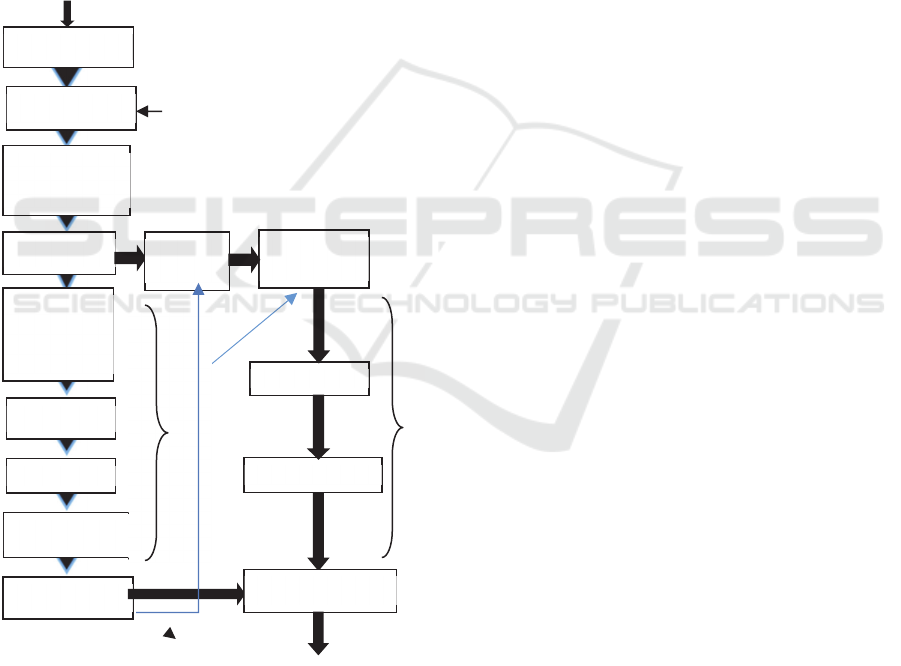

Figure 1: Block diagram for EEG classification and

compression.

epileptic and non-epileptic epochs by the classifier of

the INSS system explained in (Anas, 2015).The

compressed EEG signals, depending on neurologist’s

requirement, may consist of either all or selected

signal intervals at desired quantization levels using

the labels provided by INSS classifier. Thus, the

system also allows archiving of EEG data containing

just the events of epileptic seizures, which are the one

that are of actual interest to neurologist. Non-epileptic

epochs may be either left out or included at a coarser

resolution as per neurologist’s requirements based on

INSS classification.

The novelty of our proposed method is that it

stores the classification information output from the

SVM classifier along with the compression of EEG

data. It is brought about by the use of transform &

binary encoding techniques, which works on the same

pre-processed wavelet data as used by the classifier.

In this work we have shown how using the similar

techniques for classification and compression

provides the advantage. This advantage can be seen

in terms of reduction of overall computational effort

and better-structured storage of data as required by

the neurologists. This is coupled with almost no

impact of loss during compression on classification

performance. Loss in compression generally

compromises accurate classification. Furthermore,

we have demonstrated that the achieved compression

performance is still equivalent to the state-of-the art

methods.

3 PROCESSING SCHEME

The block diagram of the complete extended scheme

is given in Fig. 1. Each channel of a file is processed

separately. The scheme shows both the classification

and compression branches and their co-operation in

joint processing. DWT coefficients calculated for

epochs extracted from each channel are fed in to

compression and classification branches. Classifier

provides the classification labels for epileptic and

non-epileptic epochs, which are both used for storing,

selective retrieval as well as in compression of the

data.

The general steps of the processing scheme are

explained in detail as follows:

3.1 Epoch Size

Epoch is a small chunk of a signal with respect to

time. In our scheme we have extracted epochs of one

second in length, as proposed in (Anas, 2015).The

epochs extracted are non-overlapping, contiguous in

nature.

Full Compressed

file with labels

User I/P

SVM

Select EEG file

Select

Extracting

epochs of 1 sec

DWT

Mean, Power,

Standard

Deviation

PCA

Z-score

SVM Classifier

Adaptive

Thresholding

Quantization

Binary Encoding

Data

Selection

Label

Full Syntax Signal

User

BIOSIGNALS 2020 - 13th International Conference on Bio-inspired Systems and Signal Processing

3.2 Discrete Wavelet Transform

Discrete Wavelet transform (DWT), is an extensively

employed feature extraction technique, which

involves signal segmentation in to orthogonal sets of

wavelets. In our method, multi-level DWT is applied

on each epoch with Daubechies-4 (db4) as mother

wavelet. The detailed coefficients levels of the DWT

are determined with respect to sampling frequency.

The detailed levels are adjusted on the run according

to the sampling frequency such as that we may get if

not exact then at least the closest separate frequency

bands i.e. Delta(δ: 0.4 – 4 Hz), Theta (θ:4-8 Hz),

Alpha (α:8-12 Hz) and Beta (β:12-30 Hz) component

of the signal. Any detailed coefficients that does not

contain frequency component from a frequency range

of 0-30 Hz were discarded.

3.3 Classification Branch

3.3.1 Statistical Features

Instead of using all of the detailed coefficients we

took the mean, standard deviation and power of each

epoch’s selected DWT coefficients as suggested by

(Subasi, 2010). Z-score standardization is then

applied on these 21 statistical features (Khan, 2013).

3.3.2 Principal Component Analysis

Principal Component Analysis is an effective

dimensionality reduction technique, maintaining data

which presents maximum variance. PCA is applied

using built in Matlab function, on obtained features

from the last stage to reduce them in order to avoid

redundant or noisy data. Those components which

projected 93 % of the total variance were used. This

resulted in reduction of statistical features from 21 to

3.4 Classifier

The performance of a classifier is affected by a

number of parameters which include the number of

features, weight of features and time for performing

classification. Support Vector Machine (SVM) gives

good performance in the above constraints. It is a

supervised learning algorithm that constructs a

hyperplane with the largest distance to the nearest

training-data point of any class to minimize the

generalization error (

Mahmood, 2017). SVM is widely

used for different purposes in EEG signal processing

including identification of epileptic seizures.

In our approach, reduced features obtained

through PCA, were fed to the SVM classifier. These

features perform the initial training of the classifier.

We found linear to be the best performing kernel with

box constraint set as 50.

3.5 Compression Branch

3.5.1 Data Selection

Here the same DWT coefficients of each epoch which

were used for classification are selected on the basis

of the results of classification (labels) classified in to

epileptic or non-epileptic labels. These are used in

different test cases discussed in detail in section 4.

3.5.2 Quantization and Thresholding

The selected DWT coefficients are thresholded

adaptively. Values below a certain threshold are set to

zero. The greater the number of coefficients with the

same value, Huffman and arithmetic coder can more

efficiently encode them. This helps in achieving a

greater compression ratio (CR). By varying the level

of threshold to be set, we can increase or decrease the

number of wavelet coefficients being discarded and

consequently can control the accuracy of the

reconstructed signal. The classification labels are

utilized to make this step adaptive. For example, in

our third test case epileptic epochs and non-epileptic

epochs obtained through classification are

thresholded separately. Epileptic epochs are

thresholded on a lower threshold i.e. 0 wheras non-

epileptic epochs are thresholded at a higher threshold

i.e. 4. The thresholded coefficients are then quantized

for binary encoding.

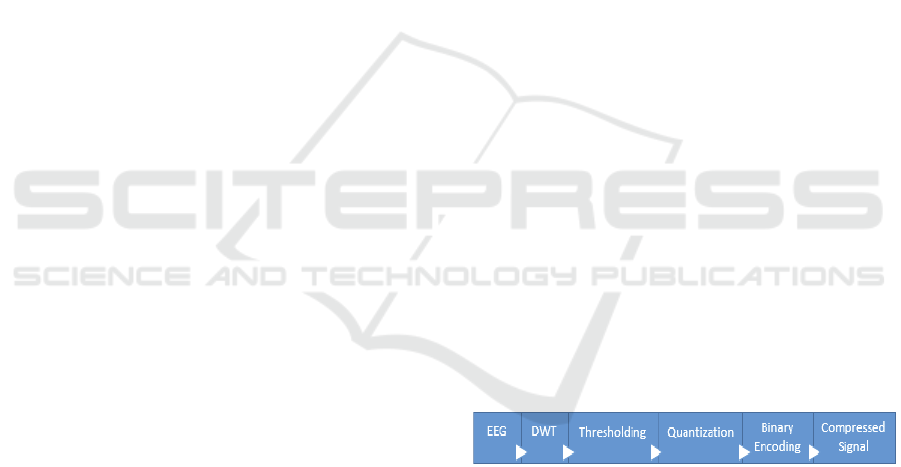

Figure 2: Raw EEG compression Scheme.

3.5.3 Binary Encoding

In this step the selected epochs as per the test case i.e

epileptic, non-epileptic or both, are fed to the binary

encoder which then compresses, resulting in selective

storage of the data. We are using Huffman and

Arithmetic encoder separately in this step. The binary

coding is done using predefined functions of Matlab

library.

Exploring the Merit of Collaboration in Classiﬁcation and Compression of Epilepsy EEG Signal

4 RESULTS AND DISCUSSIONS

4.1 Experimental Paradigm and Data

Acquisition

In this paper, the data from Children's Hospital

Boston database (CHB-MIT database) is used. The

database comprises of EEG recordings from

paediatric subjects with unmanageable seizures.

These recordings of 23 cases were gathered from 22

subjects (5 males, ages 3-22; and 17 females, ages 15-

19). The recording were sampled at 256 Hz. The

International 10-20 electrode placement was used for

recording EEG using 23 channels.

4.2 Classification Results

As reported in (Anas, 2015) iNSS, SVM classifier

was trained using 10-Fold cross validation method.

The results for classification were computed on

complete CHB-MIT data. 60% of the data was used

as training data while the rest 40 % was used for

classification. For CHB-MIT database, iNSS was

able achieve an average accuracy of 96.3 %, an

average specificity of 97.4% and average sensitivity

of 93.5%. As discussed in (Anas, 2015) the

classification performance of iNSS is state-of-the-art.

An accuracy of 97.98% accounts for best case

classification result. The classification results

reported for thresholded decompressed data in terms

of average accuracy, average sensitivity and average

specificity computed across all seizure files was

found comparable to the classification results

obtained for raw EEG. The similarity index between

the raw EEG classification labels and decompressed

thresholded EEG labels is reported in Table 4 and

approaches 100%.

This indicates that the artifacts and noise in the

reconstructed signal does not significantly deteriorate

the signal quality, it retains useful information even

after the compression. Similarity index between

original and reconstructed EEG is determined by

dividing the number of classification labels of

reconstructed signal similar to labels determined for

original data by total number of classification labels

given by (1)

SI= 𝑁𝑢𝑚𝑏𝑒𝑟 𝑜𝑓 𝑠𝑖𝑚𝑖𝑙𝑎𝑟 𝑙𝑎𝑏𝑒𝑙𝑠 (1)

𝑇𝑜𝑡𝑎𝑙 𝑛𝑢𝑚𝑏𝑒𝑟 𝑜𝑓 𝑙𝑎𝑏𝑒𝑙𝑠

4.3 Performance Metrics for

Compression

The Performance measures used are Compression

Ratio (CR) and Percentage Root Mean Square

Distortion (PRD). CR is defined as the ratio of the

size of original data to that of the compressed data.

CR=LO/LC (2)

where LO and LC denotes the EEG signal size in

bytes before compression and after compression,

respectively.

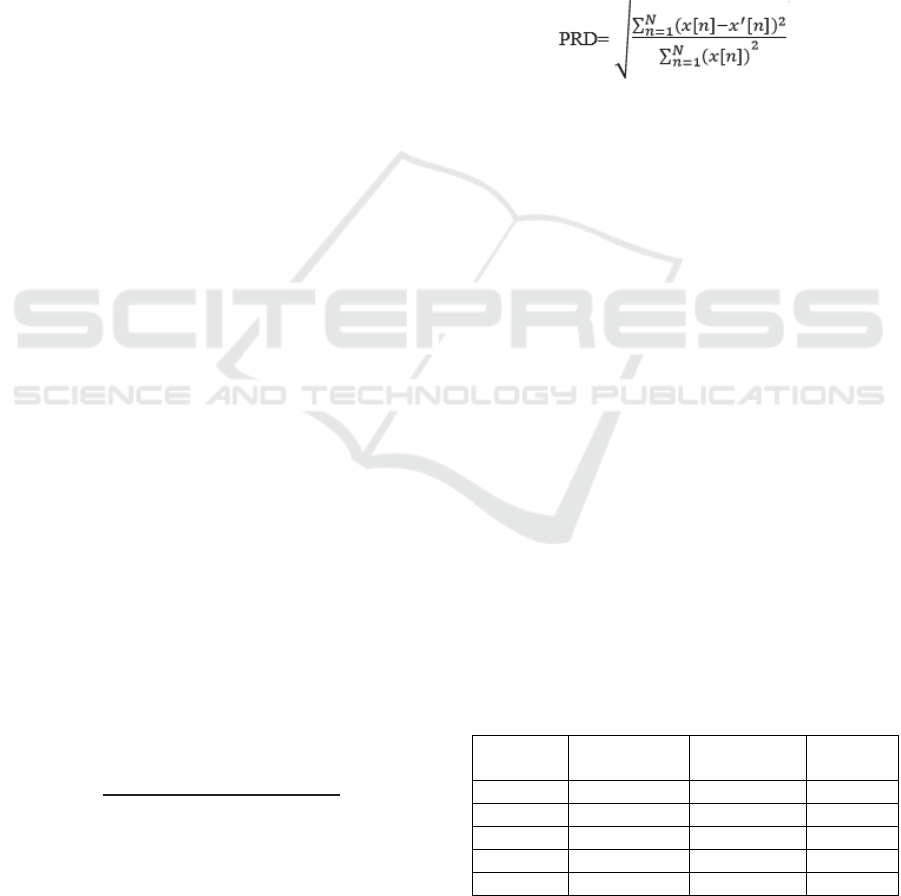

PRD is the standard measure to

determine distortion between two signals

(3)

Here x[n] represents the original EEG signal; x’[n]

represents the compressed signal and N represents the

numbers of samples.

4.4 Test Cases Regarding Compression

and Data Reduction

The co-operation of classification with compressions

opens door for different possible ways of

compressing the EEG as per Neurologists

requirement. The results discussed in this section

have been computed on seizure files only. The

compression metrics used are CR and PRD values.

Some of the cases are discussed as follows:

4.4.1 Raw EEG Compression

In this case we are applying our proposed scheme

mentioned in Figure 2 and reporting the results

obtained. Level 8 DWT coefficients are calculated

prior to thresholding. Following tables show the

average CR and average PRD obtained through

Huffman and Arithmetic coding applied on CHB-

MIT dataset, along with the average classification

accuracy for decompressed data thresholded at

different levels respectively.

Table 1: Huffman results.

Serial No

Threshold

Level

Average

PRD (%)

1 0 3.5864 5.5457

2 1 3.9593 7.2480

3 2 4.3395 8.8164

4 3 4.7095 10.2214

5 4 5.0553 11.4991

BIOSIGNALS 2020 - 13th International Conference on Bio-inspired Systems and Signal Processing

Table 2: Arithmetic results.

Serial No

Threshold

Level

Average

PRD (%)

1 0 3.7086 5.5460

2 1 4.1101 7.2484

3 2 4.5304 8.8164

4 3 4.9119 10.2214

5 4 5.2794 11.4991

Table 1 and 2, shows the compression ratio and

PRD for both the Huffman and Arithmetic encoding.

As expected Arithmetic coded results have higher

compression ratio than Huffman. Table 3 shows the

results of prior works on compressions along with

their used techniques on the same CHB-MIT

database. It can be noted that our results are

comparable to previous results, which indicates that

the compression is also not compromised. Fig. 3

presents the signal waveform of original EEG signal

and its reconstructed EEG. Both are also very close

visually. The EEG is of channel FP1 of file chb01_03

of CHBMIT database, with a signal representation of

original and 0 thresholded waveform for a time

interval of 0.0625 second.

Table 3: Comparison results.

Ref Technique CR

PRD

(%)

[1] JPEG 2000 5 10

[2]

JPEG2000; arithmetic

code

5 7

[3]

Biorthogonal 4.4 DWT;

SPIHT

5 7

[4] SPIHT 6 7

[5]

Biorthogonal 4.4 DWT;

SPIHT

7 10

[6] CDF 9/7 DWT 8 10

Table 4: Similarity index.

No Threshold

Average

Similarity %

Max Similarity

1 0 99.54 99.94

2 1 99.50 99.92

3 2 99.46 99.91

4 3 99.41 99.88

5 4 99.19 99.85

4.4.2 Summarization and Compression

In this case we are summarizing the epileptic events

by discarding non epileptic epoch and compressing

only those epochs which are epileptic. This is helpful

in those cases where the neurologist only wants to see

the epileptic data and wants to discard the non-

epileptic data. In this case Data Reduction (DR) is

measured by (4) given as follows:

DR= 𝑁𝑢𝑚𝑏𝑒𝑟 𝑜𝑓 𝑜𝑟𝑖𝑔𝑖𝑛𝑎𝑙 𝑒𝑝𝑜𝑐ℎ𝑠 (4)

𝑁𝑢𝑚𝑏𝑒𝑟 𝑜𝑓 𝑟𝑒𝑚𝑎𝑖𝑛𝑖𝑛𝑔 𝑒𝑝𝑜𝑐ℎ𝑠

Table 5: Data reduction ratio.

Serial No DR

1 6.2

2 6.5

3 7.1

4 7.6

Data obtained after discarding non- epileptic

epochs can then be compressed, and the CR and PRD

values obtained are similar to values given in Table 1

and Table 2. Compression after selective data

reduction effectively reduces the overall file size as

compared to the raw EEG compression file.

Moreover, re-classification of decompressed data

generate singular classification labels which are

indicate all epileptic epochs, hence compression does

not affect signal quality.

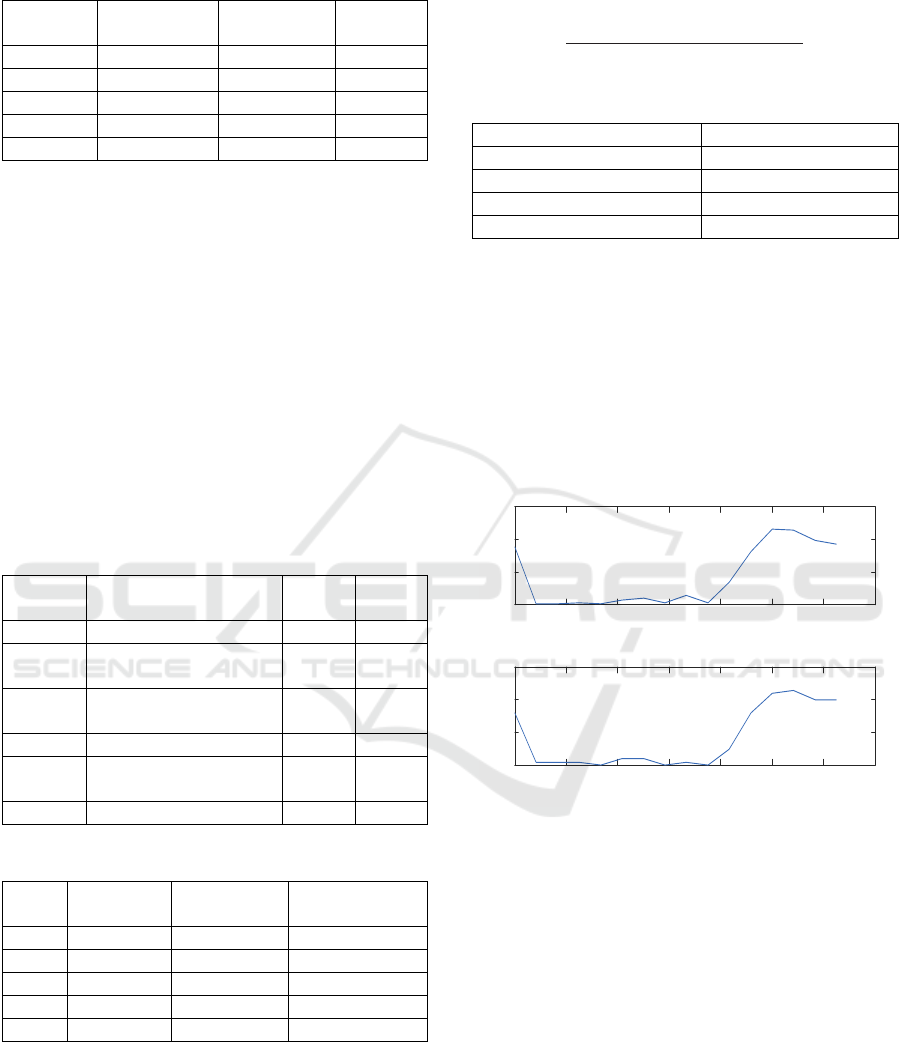

Figure 3: Signal waveform of original and reconstructed

EEG of channel Fp1 of chb01_03.

4.4.3 Adaptive Compression of EEG on

Prepared Summary

In this case we compress different intervals of the

EEG signal selectively. Multiple options can be

considered. Here we will discuss one example for

conciseness. The INSS branch classifies the epochs

as epileptic or non-epileptic. The epileptic epochs are

compressed at a lowest threshold of 0 to maintain

highest quality while the non-epileptic epochs are

compressed at a threshold of 4 corresponding to

highest CR. The idea is keep quality adaptive to the

importance of the signal to suit the requirement of the

neurologists. Following tables show the results for

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

Raw EEG

Tim e (s)

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

Voltag e (uV )

Decompressed EEG

Exploring the Merit of Collaboration in Classiﬁcation and Compression of Epilepsy EEG Signal

Huffman and Arithmetic coding as applied across all

seizure files of CHBMIT database. While the overall

average compression ratio is on the higher side when

compared to Table 2 and Table 3 results, the epileptic

epochs are still maintained at an acceptable PRD

which minimizes any adverse effect on the

neurologists’ decision. Training the classifier such

that no positive case of epileptic event is missed is

recommendable because false positives can be

eliminated by the Neurologists himself and storing it

at good quality does not incur much cost.

Table 6: Huffman results for adaptive compression.

Mean Max Min

CR 5.042 5.842 3.953

PRD (%) 10.72 19.92 6.256

PRD epileptic

epochs only

(%)

5.6054 7.8447 3.4437

PRD

non-epileptic

epochs only

(%)

11.3604 19.2689 6.7594

Classification

Accuracy (%)

90.295 90.566 87.130

Table 7: Arithmetic results for adaptive compression.

Mean Max Min

CR 5.208 6.123 4.072

PRD (%) 10.77 19.93 6.256

PRD epileptic

epochs only

(%)

5.6319 7.8447 3.4437

PRD

non-epileptic

epochs only

(%)

11.3323 19.2689 94.697

Classification

Accuracy (%)

90.346 94.697 86.928

Here it can be seen that that classification results

obtained for the reconstructed signals, reported in

Table 6 and 7 are similar to that of raw EEG

classification. This clearly indicates, that while

adaptive thresholding and compression does not

deteriorate signal quality to a significant extent and

retains useful information, it is more efficient as

compared to simple compression. This is evident

from the statistics presented in Table 6 and 7,

showing an increase in CR and decrease in the value

of PRD in comparison to results in Table 1 and 2.

5 CONCLUSION

This paper explores the synergy between

classification and compression of epileptic EEG data.

It successfully eliminates the need of taking DWT

twice on the same data as would be required for

separate compression and classification task. The

INSS incorporated in our framework performed dual

task. Firstly, it helped in intelligent compression of

data by providing classification labels for epileptic

and non-epileptic data. We used Arithmetic and

Huffman for encoding purpose. It was found that by

using the labels for classification from INSS we can

improve our compression results. For example, when

we used the labels for epochs and compressed the

epileptic epochs at low and non-epileptic epochs at

high threshold, we observed an increase in CR along

with a decrease in PRD, which is desired. The

improvement in PRD indicates that reconstructed

signal after compression, still retained useful

information. This reinforces that we can efficiently

use the classification result to reduce and compress

the data. Secondly, it provides us with classified data

that allows selective data storage, as deemed

significant by the user. Moreover, classification

performed on decompressed signals yield nearly

same results as of the classification of raw EEG

signals. This implies that artifacts produced in the

signal due to compression do not affect signal quality.

The novel unification scheme employed; in which

classification and compression of EEG data

simultaneously takes place, results in decrease in

computational complexity and increase in efficacy of

the system. Comparing the results obtained using the

two distinct encoding schemes, it is observed that

Arithmetic coding outperforms Huffman.

REFERENCES

G. Higgins, S. Faul, R. P. McEvoy, B. McGinley, M.

Glavin, W. P. Marnane, et al., "EEG compression using

JPEG2000: How much loss is too much?," in

Engineering in Medicine and Biology Society (EMBC),

2010 Annual International Conference of the IEEE,

2010, pp. 614-617.

G. Higgins, B. McGinley, E. Jones, and M. Glavin,

"Efficient EEG compression using JPEG2000 with

coefficient thresholding," in Signals and Systems

Conference (ISSC 2010), IET Irish, 2010, pp. 59-64.

H. Daou and F. Labeau, "Pre-Processing of multi-channel

EEG for improved compression performance using

SPIHT," in Engineering in Medicine and Biology

Society (EMBC), 2012 Annual International

Conference of the IEEE, 2012, pp. 2232-2235.

BIOSIGNALS 2020 - 13th International Conference on Bio-inspired Systems and Signal Processing

G. H. Higgins, B. McGinley, E. Jones, and M. Glavin, "An

evaluation of the effects of wavelet coefficient

quantisation in transform based EEG compression,"

Computers in Biology and Medicine, vol. 43, p. 661, Jul

2013.

D. Hoda and F. Labeau, "Dynamic dictionary for combined

EEG compression and seizure detection," IEEE Journal

of Biomedical and Health Informatics, vol. 18, pp. 247-

256, 2014.

G. Higgins, B. McGinley, M. Glavin, and E. Jones, "Low

power compression of EEG signals using JPEG2000,"

in PervasiveHealth'10, 2010, pp. 1-4.

Malik Anas Ahmad, Yasar Ayaz, Mohsin Jamil, Syed Omer

Gillani, Muhammad Babar Rasheed, Muhammad

Imran, Nadeem Ahmed Khan, Waqas Majeed

and Nadeem Javaid, “Comparative Analysis of

Classifiers for Developing an Adaptive Computer-

Assisted EEG Analysis System for Diagnosing

Epilepsy”, BioMed Research International, Volume

2015 (2015), Article ID 638036, 14 pages, Jan 2015.

A. Subasi and M. I. Gursoy, "EEG signal classification

using PCA, ICA, LDA and support vector machines,"

Expert Systems with Applications, vol. 37, no. 12, p.

86598666, December 2010.

Z. A. Khan, S. b. Mansoor, M. A. Ahmad and M. M. Malik,

"Input devices for virtual surgical simulations: A

comparative study," in Proceedings of the 16th

International Multi Topic Conference (INMIC),

Lahore, 2013.

A. Neligan and L. Sander, The incidence and prevalence of

epilepsy, January 2001

Goldberger AL, Amaral LAN, Glass L, Hausdorff JM,

Ivanov PCh, Mark RG, Mietus JE, Moody GB, Peng C-

K, Stanley HE. PhysioBank, PhysioToolkit, and

PhysioNet: Components of a New Research Resource

for Complex Physiologic Signals. Circulation

101(23):e215-e220 [Circulation Electronic

Pages; http://circ.ahajournals.org/cgi/content/full/101/

23/e215

Mahmood A, Zainab R, Ahmad RA, Saeed M, Kamboh

AM. “Classification of multi-class motor imagery EEG

using four band common spatial pattern”, in

Engineering in Medicine and Biology Society (EMBC),

39th Annual International Conference of the IEEE,

2017, pp. 1034- 1037.

Casson AJ, Villegas ER, “ Toward Online Data Reduction

for Portable Electroencephalography Systems in

Epilepsy” in IEEE Transactions on Biomedical

Engineering vol. 56. no. 12, December 2009.

Chiang J, Ward R, “ Data Reduction for Wireless Seizure

Detection Systems” in 6th Annual International IEEE

EMBS Conferece on Nueral Engineering, San Deigo,

California, 6-8 November, 2013.

Exploring the Merit of Collaboration in Classiﬁcation and Compression of Epilepsy EEG Signal
