Adoption of Sparse 3D Textures for Voxel Cone Tracing in Real Time

Global Illumination

Igor Aherne, Richard Davison, Gary Ushaw and Graham Morgan

School of Computing, Newcastle University, Newcastle upon Tyne, U.K.

Keywords:

Global Illumination, Voxels, Real-time Rendering, Lighting.

Abstract:

The enhancement of 3D scenes using indirect illumination brings increased realism. As indirect illumination

is computationally expensive, signiﬁcant research effort has been made in lowering resource requirements

while maintaining ﬁdelity. State-of-the-art approaches, such as voxel cone tracing, exploit the parallel nature

of the GPU to achieve real-time solutions. However, such approaches require bespoke GPU code which is

not tightly aligned to the graphics pipeline in hardware. This results in a reduced ability to leverage the latest

dedicated GPU hardware graphics techniques. In this paper we present a solution that utilises GPU supported

sparse 3D texture maps. In doing so we provide an engineered solution that is more integrated with the latest

GPU hardware than existing approaches to indirect illumination. We demonstrate that our approach not only

provides a more optimal solution, but will beneﬁt from the planned future enhancements of sparse 3D texture

support expected in GPU development.

1 INTRODUCTION

The realism of a rendered scene is greatly enhanced

by indirect illumination - i.e. the reﬂection of light

from one surface in the scene to another. Achiev-

ing believable looking indirect illumination in real-

time remains a challenging prospect, as each rendered

fragment of a surface must integrate light that has

fallen on it from any direction, and that light may have

already been reﬂected from other surfaces within the

environment. In turn, the light reﬂected from those

secondary surfaces must also have been integrated

from the light arriving from multiple directions to the

secondary surface. Clearly the computational com-

plexity of the problem rises exponentially with the

number of light bounces considered. Further to this,

light that has been reﬂected from surfaces which are

outside the viewing frustum can still affect rendered

fragments. Consequently a technique for indirect il-

lumination must combine knowledge of the fragments

to be rendered to the screen with a model of the 3D

environment for determining visibility between arbi-

trary points in the scene.

A recently adopted approach to real-time indirect

lighting is the use of voxel cone tracing (Crassin et al.,

2011). The approach has received a lot of atten-

tion and commercial usage in high-end video game

engines (Mittring, 2012) as it computes two light-

bounces with minimal reliance on the speciﬁcs of the

original 3D mesh in the calculations (thus achieving

desirable frame-rates almost independent of the com-

plexity of the scene). The approach entails represent-

ing the scene as a hierarchical voxel structure and

storing it, on the GPU, in a dynamic sparse octree.

The octree is constructed for the scene on initialisa-

tion, and is then modiﬁed as the dynamic parts of the

scene move. The voxel cone tracing technique is then

used to estimate visibility of scene elements for cal-

culation of indirect illumination.

Sparse 3D texture mapping offers an alternative

approach for storing the hierarchical voxel representa-

tion of the scene. Sparse 3D textures provide a struc-

ture which is more suitable to the random accesses

required by the dynamic hierarchical voxel represen-

tation than that provided by a sparse octree structure.

Hardware interpolation is also available for highly ef-

ﬁcient trilinear and bilinear interpolation of lighting

values stored in the voxelised texture at minimal soft-

ware cost. Further to this, a 3D texture may allow for

a larger scene to be represented, as it is not as con-

strained by GPU memory requirements as the sparse

octree. However, as the octree can be stored on the

GPU, access is very fast. Current graphics hardware

and SDKs are increasingly incorporating efﬁcient 3D

texture support into their design, so the speed of ac-

cess is improving with each generation of graphics

Aherne, I., Davison, R., Ushaw, G. and Morgan, G.

Adoption of Sparse 3D Textures for Voxel Cone Tracing in Real Time Global Illumination.

DOI: 10.5220/0008874502010209

In Proceedings of the 15th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 1: GRAPP, pages

201-209

ISBN: 978-989-758-402-2; ISSN: 2184-4321

201

pipeline.

In this paper we present an implementation of

voxel cone tracing for global illumination which

utilises a sparse 3D texture to store the hierarchical

voxel representation of the scene. We also incorpo-

rate some further performance enhancements used in

our engineered solution, including the use of com-

pute shaders to create the mip-chain. We present

performance ﬁgures and rendered imagery which are

favourably comparable to the reference solution. We

further argue that, as graphics hardware focuses more

on utilising 3D textures, the advantages of random ac-

cess to such a structure over a sparse octree, coupled

with the potential for representation of larger scenes,

and further utility of hardware-implemented interpo-

lation, will see this approach increasingly adopted.

2 BACKGROUND AND RELATED

WORK

2.1 Real Time Global illumination

While techniques for real-time rendering are improv-

ing rapidly, they inevitably lag behind the realism

and complexity of graphical ﬁdelity that is achievable

through off-line computation. Interactive media such

as video gaming allow the user to control the camera

in the 3D scene so calculation of the light that reaches

the camera must occur dynamically, often with the

aim of achieving 60fps on relatively low power hard-

ware. Off-line techniques for convincing indirect il-

lumination, such as ray-tracing (Kajiya, 1986) and

photon-mapping (Jensen, 2001), are well established,

and widely used in the ﬁlm industry etc.

The use of reﬂective shadow maps (RSM) was an

early solution to modelling indirect illumination of

surfaces (Dachsbacher and Stamminger, 2005). Each

light source is allocated a shadow map, which deter-

mines the parts of the scene that are illuminated by the

light (i.e. can be seen by the light). A depth value is

stored relative to the light source, and is then used to

determine whether a rendered point in the ﬁnal frus-

tum was part of the shadow map allocated to each

light source. The computation cost and the memory

required for shadow map textures increases with each

additional light source, and only single bounce illu-

mination is provided.

Increased efﬁciency in lighting calculation can

be achieved through the application of algorithms in

screen-space (Nichols et al., 2009). After the pixels

that are displayed in the frustum are determined, a

post-processing stage performs further lighting cal-

culations based only on the information contained

within those rendered pixels. The obvious disadvan-

tage here is that any light reﬂected from surfaces out-

side the frustum is discarded. Such algorithms trade

this inaccuracy off against the computational savings

afforded by the post-processing step only considering

those pixels that will deﬁnitely be rendered (Ritschel

et al., 2012). Screen space techniques have been suc-

cessfully adopted on relatively low power games con-

soles for simpliﬁed indirect illumination in the form

of screen-space ambient occlusion (Goulding et al.,

2012).

Layered global illumination (Hachisuka, 2005)

simpliﬁes the visible geometry to be considered for

lighting calculation by introducing a series of depth-

peeled layers, extending from a number of ﬁxed view-

points, and rendered orthographically. The ﬁxed

points form a spherical distribution to afford better

coverage of global illumination. As the environment

is rendered orthographically, consecutive layers along

a particular direction can be used to represent the tran-

sition of light between one layer and the next. Since

each layer is a two-dimensional image, rasterisation is

readily employed, taking advantage of the parallel na-

ture of GPU computation. A computational expense

of the layered global illumination approach is the re-

quirement to project all the visible pixels onto each

layer every time it is created. Furthermore the size

of the texture required to store the layered projections

scales with the size of the environment, as the whole

entity has to be rasterised at an appropriate resolution

for each layer and from various viewing directions.

The technique results in a single bounce of light; fur-

ther light bounces requiring the entire procedure to be

repeated.

Scalable solutions to real-time illumination from

multiple light sources are described in (Dachsbacher

et al., 2014). Scalability is a key factor here with

results trading off visual ﬁdelity against computation

time, ranging from almost real-time to tens of minutes

per rendered frame. Cascaded light propagation vol-

umes (Kaplanyan and Dachsbacher, 2010) have also

been utilised to provide a scalable solution to indirect

illumination. The approach uses lattices and spherical

harmonics to represent the spatial and angular distri-

bution of light in the rendered scene. The initial work

showed viable performance for single bounce illumi-

nation. The efﬁciency for multiple bounces has been

addressed with solutions including selective light up-

dates (Sund

en and Ropinski, 2015), and partial pre-

computation (Jendersie et al., 2016).

GRAPP 2020 - 15th International Conference on Computer Graphics Theory and Applications

202

2.2 Voxel Cone Tracing

A technique for calculating indirect illumination must

rely on knowledge of the spacial relationship between

surfaces in the proximity of the viewing frustum.

Voxelisation has been employed successfully to rep-

resent this three-dimensional spatial information. The

voxel cone tracing technique described in (Crassin

et al., 2011) is the basis for the work presented in this

paper and provides our reference solution.

The geometry of the scene is rasterized into vox-

els, being stored in a data structure containing colours

and normals in the form of a sparse octree (Laine and

Karras, 2011). The scene’s illumination is then in-

jected into the resulting voxels and is stored in a sec-

ond structure which contains the lighting information,

particularly the incoming radiance. If the implemen-

tation stores the reﬂected light value instead (for sim-

pler computations, but losing specular highlights), it

is referred to as the diffuse. The lighting is then ﬁl-

tered upwards within the structure (equivalent to mip-

mapping of a texture). Coherence within the nearby

environment is maintained via the 3D structures. Any

voxel in such a dataset can access the information

about any other voxels, including those outside the

viewing frustum or obstructed by other voxels.

The secondary lighting is then computed. For any

voxel in the data structure, the light arrives from the

hemisphere of directions around the surface normal.

The approach in (Crassin et al., 2011) estimates this

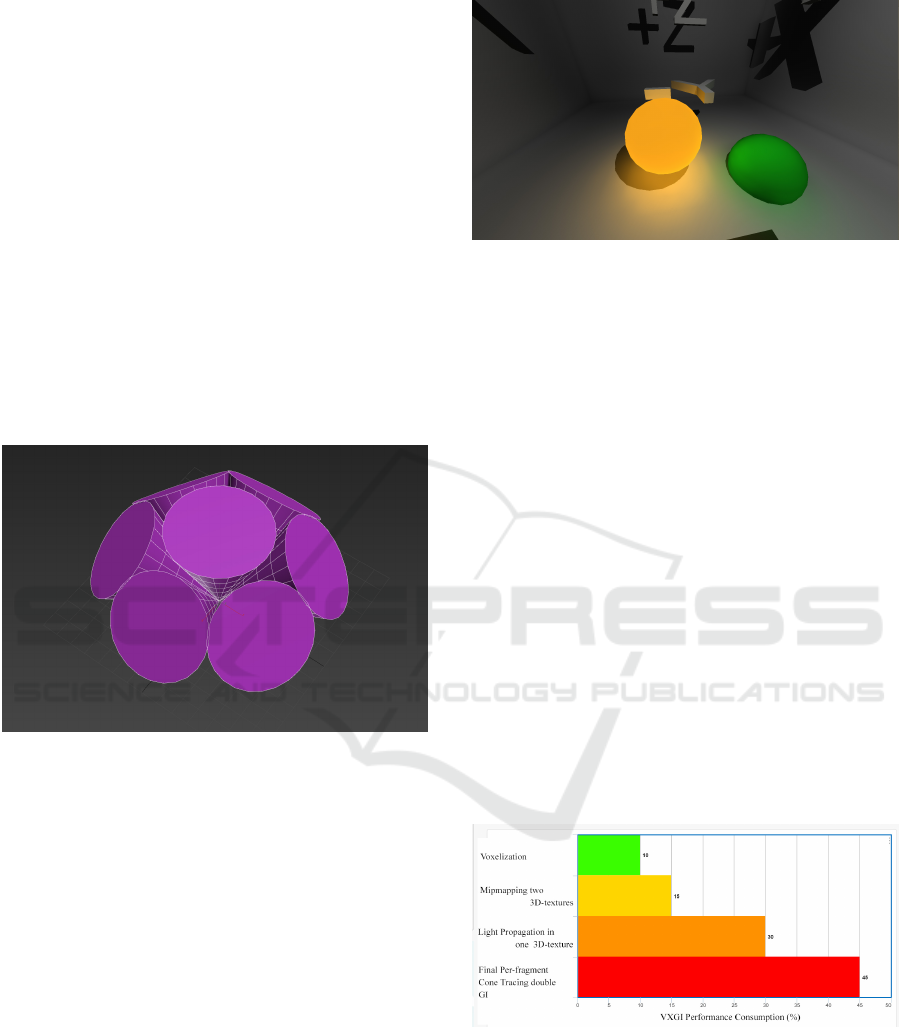

volume with a number of cones. Each cone can be

thought of as a number of cubes stacked one after an-

other with increasing size. As each cube carries in-

formation (eg colour), the parameter at any point in

the cone volume can be approximated by linear in-

terpolation between the two nearest voxels. To ac-

cumulate the incoming light for each of the voxels,

the algorithm marches along each of the cones, sam-

pling the corresponding voxels in each one. As the

distance travelled along the direction increases, the

lower-resolution data structure is sampled. The sec-

ondary light is computed for all the voxels within the

structure, resulting in a single-bounce global illumi-

nation.

When all the light is ﬁltered and the ﬁrst bounce

is calculated, any ﬁnal fragment at the end of the de-

ferred rendering pipeline can be located within the

data structure and assigned its own corresponding, al-

ready existing, voxel. Rather than directly assuming

the contents of that voxel, the fragment carries out an-

other round of voxel cone tracing, gathering informa-

tion from the previously computed output, acquiring

indirect illumination in a further bounce.

The voxel data is stored in a sparse octree struc-

ture, which resides on the GPU in a linear buffer, and

is updated when required. A highly compact version

of an octree is utilised, which uses one pointer per

node, pointing to a cluster of all children nodes. If the

octree is small enough then it beneﬁts signiﬁcantly

from GPU caching.

Some work has recently introduced a cascaded

volume to represent the voxelised environment

(McLaren and Yang, 2015). The work focuses on

computational overhead for viability on the Playsta-

tion4 console, using a set of 3D texture volume cas-

cades.

2.3 Sparse 3D Textures

With OpenGL 4.3 the concept of sparse textures was

introduced. The desire for increased resolution and

scale of readily available texture data has grown to the

point where the amount of available graphics memory

is the limiting factor. The default solution had previ-

ously been to page the texture memory (signiﬁcantly

decreasing performance) (Weiler et al., 2000). The

introduction of sparse textures separated the address

space of the graphics processor from the physical

graphics memory, provisioning a partial virtualisation

of the texture memory mapping and non-contiguous

access to texture data.

Sparse texture access is also available for three di-

mensional textures. Efﬁciently creating sparse tex-

tures while preserving the ﬁdelity of the source im-

age is an ongoing research topic (Peyr

e, 2009). Ap-

proaches typically entail the identiﬁcation of afﬁne

regions within the texture (Lazebnik et al., 2005)

and contour identiﬁcation for image segregation (Gao

et al., 2013). As sparse texturing support is further

incorporated into the rendering hardware pipeline it

will become increasingly efﬁcient and accessible to

the graphics programmer.

Interpolation between samples of sparse texture

data occurs in the hardware (as with bilinear and tri-

linear sampling of texture data for the fragment shader

stage) (Shreiner et al., 2013). This provisions a highly

efﬁcient method for interpolating between sampled

values in the sparse texture, and removes the neces-

sity for the creation of bespoke software to achieve

the required interpolation from data saved in a less

hardware efﬁcient manner.

3 IMPLEMENTATION

In this section the implementation details which are

speciﬁc to the adoption of 3D sparse textures for the

voxelisation of the scene are described. The broader

Adoption of Sparse 3D Textures for Voxel Cone Tracing in Real Time Global Illumination

203

global illumination approach of voxel cone tracing is

well-established (Crassin et al., 2011). The section

starts with a justiﬁcation for the use of 3D textures in

this context, before detailing the implementation, and

describing some optimisations.

3.1 Applicability of Sparse 3D Textures

A sparse 3D texture was selected for the hierarchical

voxelisation of the scene, rather than the previously

used octree. Sparse texture maps reduce the memory

footprint of images with areas of unused space, so ap-

pear to be well suited to a hierarchical voxel structure.

The contents of a sparse texture are loaded in chunks,

only if they contain non-null data. If used to repre-

sent a voxelised space, chunks will only be uploaded

if they contain a non-uniform space.

While there is potential for a reduced memory

footprint, there is a caveat. Each chunk must be at

least 64kb in size (this constraint is likely to change

as hardware evolves). In the voxel environment this

means at least 26x26x26 blocks of volume sent each

time (for an 8-bit RGBA texture). Even if there is a

single stored entry and the rest of the voxels are null,

the entire chunk has to be sent to the GPU. Conse-

quently the viability of the approach will vary depend-

ing on the scene’s geometry.

An additional beneﬁt of using 3D textures is the

availability of efﬁcient hardware trilinear interpola-

tion. This technique calculates the value within a cube

volume, based on eight control values. To obtain the

ﬁnal result, two values are obtained via the two bilin-

ear interpolations for the top and bottom plane, fol-

lowed by computing the value in between them, with

another linear interpolation. In the case of a dynam-

ically changing octree laid-out linearly in the GPU

memory, this would be hard to achieve, and would

require bespoke code rather than have hardware sup-

port. Furthermore, estimating the values between the

voxel volumes is achieved via quadrilinear interpola-

tion (a further linear interpolation based on the pair of

trilinear values fetched from each voxel).

As graphics hardware evolves, support for 3D tex-

tures is likely to increase, providing faster access to

the texture data, more efﬁcient hardware interpola-

tion, scattered texture writing and larger high-speed

memory space. Conversely, the sparse octree ap-

proach is likely to continue to require bespoke code

tailored to the constraints of general GPU computing.

3.2 Voxelisation in Sparse 3D Textures

Scattered texture writing is a relatively recent addi-

tion to graphics SDKs (eg OpenGL 4.3 onwards).

The technique enables a fragment shader to write to

an arbitrary texel in a texture. Ordinarily, the use

of frame-buffers entails binding each fragment to a

target texel, with the correspondence of fragment to

texel pre-determined before the fragment shader is

run. Programmable texel access allows us to write

voxel details dynamically to the 3D texture map.

Without scattered texture writes the program

would have to select a single layer of the texture vol-

ume into which a fragment will be rasterized. In our

implementation layers are ordered along the z-axis,

hence if a triangle extends along the z-axis, many du-

plicates may be generated during the geometry shader

stage. A unique layer would then be selected for each

generated triangle. However there is a limit to how

many vertices can be generated from any incoming

primitive during the geometry shader stage. In addi-

tion, the more information that is associated to a ver-

tex and has to be carried into the fragment stage, the

less the number of new vertices that can be created.

The approach was worthwhile only with relatively

small triangle pieces that could extend to twenty lay-

ers in the worst case scenario (meaning an additional

60 vertices to be generated). Due to the varying lim-

itations of graphics cards, this technique would be

heavily hardware dependent. Therefore, we chose to

employ scattered texture writes, giving the ability of

writing into an arbitrary number of fragments within

the texture volume.

A triangle should be rasterized to the single plane

where its projection onto that plane results in the

greatest surface area. This requirement is met when

a triangle is projected onto the plane that is most per-

pendicular to the triangle’s normal. In order to avoid

dynamic branching, all three projection matrices were

constructed in advance, and a simple interpolation

technique was used to select the appropriate matrix

during the geometry shader stage.

It is essential to store fragment data to be used in

further lighting calculations, however 4-channel tex-

tures can only store four ﬂoating point numbers per

texel. Thus, it was necessary to work with multiple

images, which made it important to group some in-

formation and re-use it where possible. Simply ded-

icating a new texture for any data-type when desired

would consume a lot of memory, so numbers were

packed into a single ﬂoat value as much as possi-

ble. Every voxel had to contain a normal, base ma-

terial colour (raw colour of the unlit surface) and

the transparency. During the voxelisation stage, each

voxel block had to determine the shading coming

from the light sources in the scene. The block’s cen-

tre was compared to the existing value in the shadow

map, determining whether it was in the shadow. This

GRAPP 2020 - 15th International Conference on Computer Graphics Theory and Applications

204

was combined with the squared fall-off attenuation to

make voxels dimmer the further they were from the

light source, as well as its colour. This information

was stored to a third 3D-texture, referred to as Dif-

fuse.

3.3 Light Propagation

The voxel cone tracing (VCT) technique is now ad-

dressed with particular reference to how it is adapted

to use 3D textures. When several voxel cones are

combined, they can approximate a hemisphere, rep-

resenting all the light incoming from nearby objects.

This approach relies on increasingly averaging the

sampled content from the textures, the further a ray

gets from the starting position of a cone. Thus, it

was necessary to mipmap the 3D textures, combin-

ing the colours of nearby voxels into higher-level ver-

sions of the texture. Originally the default function-

ality provided by OpenGL (generateMipmaps()) was

used. However this turned out to be unproductive, as

the mipmaps were built on the client side, via CPU

and only then uploaded to the GPU. Each call to this

function stalled the program for three hundred mil-

liseconds, so a custom solution had to be devised.

The solution entailed the use of OpenGL compute

shaders to spawn a kernel per each yet-to-be-made

mip level of a texture. The compute shaders work

in parallel to build the entire mip-chain. The process

required sampling eight texels from a higher level, to

be interpolated and stored in the desired part of the

current mip level. The hardware provides this func-

tionality through linear ﬁltering, so it was only nec-

essary to perform a single sample, in the middle of

the eight texels. The hardware performs interpolation

and the resulting value can be directly stored at the

needed position in the mipmap (the octree approach

of the reference solution can not take advantage of

this hardware interpolation).

As multiple layers of textures are generated in this

manner, it is possible to use VCT to achieve a ﬁrst

bounce of global illumination. Because of the way

the cones are represented, their volume is estimated

by a series of successive cube-shaped texture sam-

ples. Each cube is sampled from a higher mipmap

level where the texel size corresponds to the size of

the current sample within that cone. It is possible to

estimate the size of such a cube (and therefore the

corresponding mipmap level) based on the distance

travelled from the cone’s origin and the tangent func-

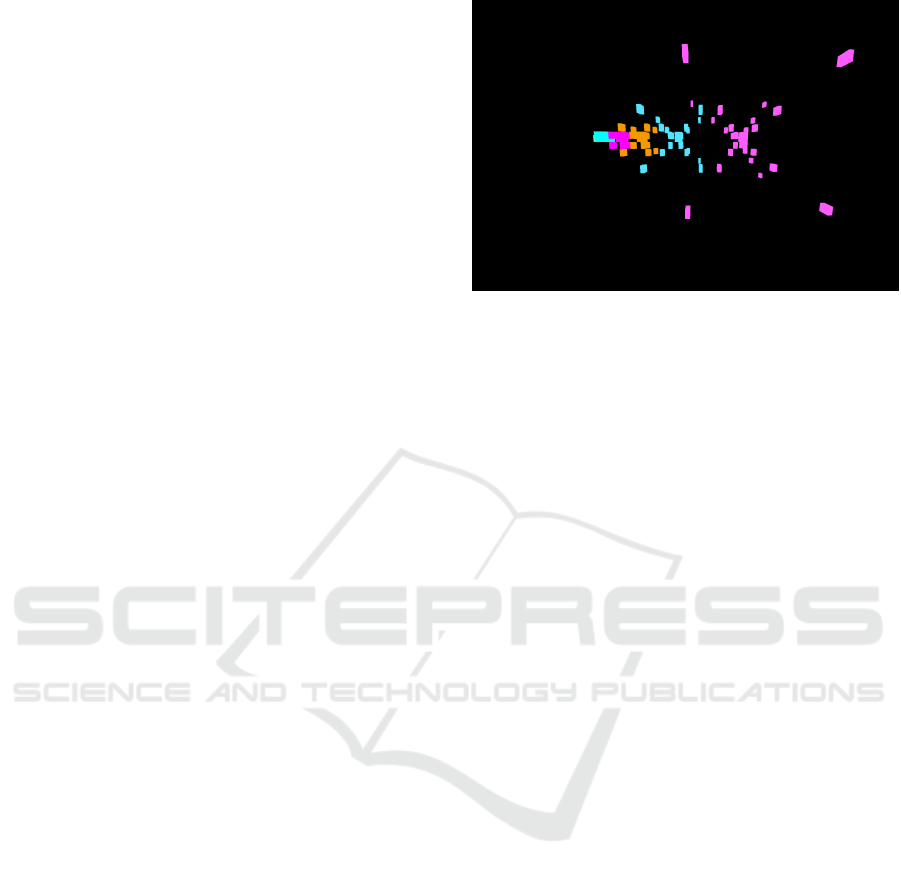

tion. Figure 1 shows a voxelised cone across a range

of mip-map levels in the space.

Because the sample-size may not exactly corre-

spond to the dimensions of a mipmap’s texel, trilin-

Figure 1: A 45 degree cone within the voxel volume ex-

panding rightwards. Each colour change represents transi-

tion to a higher level mipmap. An X shape is centred in

each layer.

ear ﬁltering was required. This removed occurrences

of hard transits along the mip-chain, interpolating be-

tween the two closest 3d-texture mip-levels. As the

hemisphere is represented by 7 cones of 45 degrees

each, a limit is needed on the number of steps each

cone can carry out before termination. Implementing

the texture volumes with 128 cubed resolution, a max-

imum of seven steps sufﬁced - each new cone samples

from a higher mipmap, of which there were seven in

total.

RGB and Alpha channels get averaged as the mip-

chain is computed. When Alpha represents trans-

parency it is possible to compute the accumulated

opacity sampled by the cone. Using this information,

it can be determined when a calculation of the incom-

ing light from a particular direction can be stopped,

meaning that enough opaque objects were encoun-

tered on the way and the search should be terminated.

When few wide cones are used to estimate the hemi-

sphere, the transparency might take longer to be gath-

ered, resulting in extra colours that may come from

the obstructed objects. Such a phenomenon is re-

ferred to as light leaking. Due to the increasing inter-

vals, this problem might still occur with narrow cones,

where a geometry voxel is simply missed by the sam-

ples, resulting in other surfaces located behind being

sampled. This can be mitigated to an extent by avoid-

ing using narrow geometry, and combining the illumi-

nation with the post-processing Screen-Space Ambi-

ent Occlusion (SSAO) effect. As hardware computing

power increases, shorter intervals can be employed,

rectifying the core of the issue.

Additionally, two thin planes located close to each

other might occupy two neighbouring voxels. During

the mipmapping process, their data will be averaged

into a lower-resolution variant of the textures, lead-

ing to a further cause of light leaking. To reduce this,

Adoption of Sparse 3D Textures for Voxel Cone Tracing in Real Time Global Illumination

205

anisotropic ﬁltering should be used, where the con-

tents of the grid vary based on the viewing direction.

This however, requires more sampling of the textures

which would lead to increased processing times.

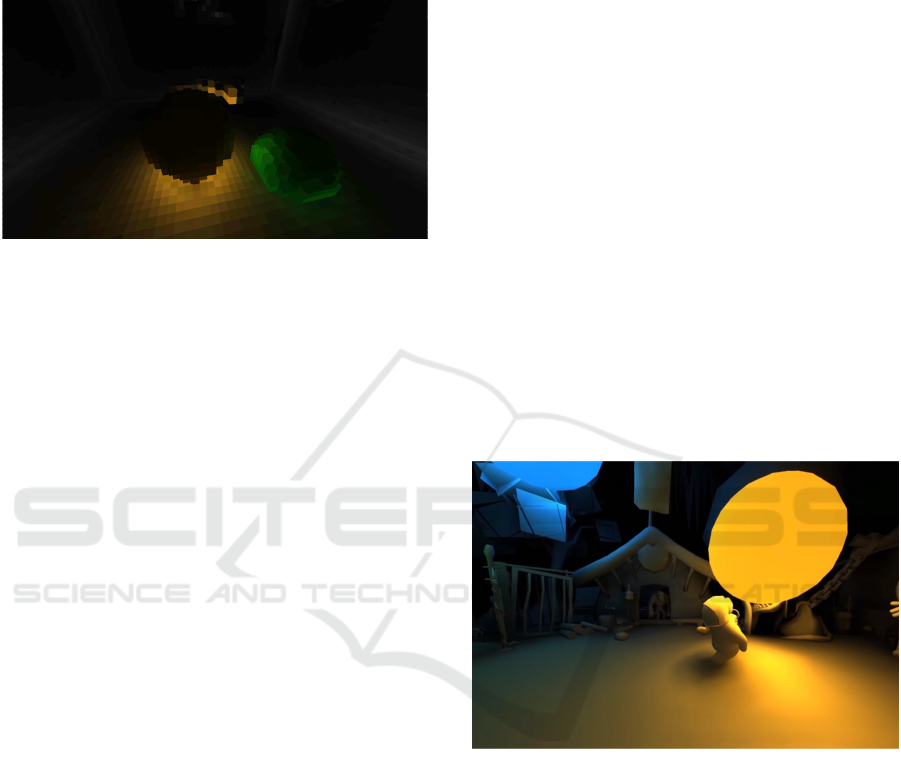

Figure 2: Single bounce illumination volume. This is used

as the input to the second light bounce calculation. The ﬁnal

image is shown in Figure 5.

Assembly of the ﬁnal image requires restoration

of each fragment’s world position and normal, using

the deferred pipeline results. That is followed by per-

forming cone tracing for each fragment, similar to

how it was done for the 3D textures. Because the

diffuse and ﬁrst-bounce volumes are available, they

are used to gather single and double-bounce pixel-

lighting. This operation has to be performed uniquely

for each fragment, otherwise the image will contain

the voxel grid contents on the surfaces of objects.

3.3.1 Multiple Bounce Complexity

The voxel cone technique entails a linear increase

in computational cost as a higher number of light

bounces are introduced. This is in contrast to other

ray-casting techniques which see an exponential rise

(as each ray generates multiple further ray casts from

each bounce). To achieve a double bounce, the dif-

fuse information is mipmapped and used for the ﬁrst-

bounce, as shown in Figure 2. This ﬁrst bounce light-

ing information is then again mipmapped and used to

calculate the second bounce in the same manner, and

so on.

Memory cost also increases linearly, as the addi-

tional requirement is simply a new mipmapped tex-

ture, constituting another stage of light transfer. How-

ever since we are dealing with a three-dimensional

volume of texels, any increase in resolution (or space

size) must obey the “power of two” rule (each tex-

ture size must be a power of two in all dimensions).

This implies that each further growth in resolution

will consume eight times the previous data-structure

memory. Additionally,memory must be allocated for

the mipmapping chain, that is an extra thirty-three

percent of the memory for the chained textures.

3.4 Emissive Surfaces

Emissive entities were also added to our solution (Fig-

ure 3). Each object, as well as a base RGB colour, and

Alpha for transparency, is able to glow, discarding any

effect from the nearby light sources (such as lambert,

attenuation or shadowing) due to being luminous on

its own. The amount of glow and adherence to the ex-

ternal shadowing was controlled by a brightness pa-

rameter. The diffuse lighting values of an emissive

surface could be modulated linearly, from 100% to

0% for brightness values below 0.5. For higher val-

ues, the entity is made unresponsive to illumination

effects and only emits its pure, base colour onto the

surrounding objects. Higher values simply meaning

the object emits a stronger colour.

Some adaptations were made to implement the

self-illumination technique. During the construction

of the diffuse texture any shadowing has to be re-

duced, depending on the brightness parameter of the

triangle primitive being voxelised. The ﬁnal value in

the diffuse output will then contain the diffuse colour,

as well as the base-colour of the voxelised surfaces if

the triangle is emissive.

Figure 3: Emissive orange and blue spheres illuminate the

white-surface character producing soft shadows.

Clearly, it is important to retain the brightness in a

texture that will be mipmapped, as it is an important

coefﬁcient during all the cone-tracing stages. The ﬁ-

nal step of transmitting the glow onto the nearby ob-

jects is to carry out the standard ﬁrst-bounce gath-

ering, which picks up emissiveness by default. The

emissive illumination affects the surroundings due

to the brightness coefﬁcient sampled by the cones,

unlike when sampling standard, non-glowing neigh-

bouring voxels. As the viewpoint moves towards

the emissive surface, the resulting illumination pro-

duces soft, life-like shadows with umbra and penum-

bra, their quality depends on the resolution of the data

structure.

GRAPP 2020 - 15th International Conference on Computer Graphics Theory and Applications

206

3.4.1 Voxel Cone Orientation

During the voxel cone tracing, an array of cone direc-

tions had to be re-oriented via multiplication of the

Tangent-Binormal-Normal (TBN) matrix for a given

fragment shader invocation. As a result, the entire

bouquet of such vectors was modiﬁed to face in the

direction of the voxel normal. Because the matrix

had to be constructed at runtime from the normal, it

was not possible to supply it as a pre-computed uni-

form value. Similarly, the array of cone directions

had to be multiplied by the matrix, thereby consum-

ing some processing power. The situation was im-

proved by ensuring the array is supplied with vec-

tors of pre-normalized directions, although this en-

hancement was minor. A bouquet of seven cones was

used, each one being forty-ﬁve degrees wide, yielding

a relatively-homogeneous hemisphere representation

(Figure 4).

Figure 4: The bouquet of seven 45

◦

voxel cones used in the

tracing algorithm.

It was also necessary to spin the entire bouquet

around the voxel normal after it was aligned in that di-

rection. Without this improvement, cones dispatched

from the voxels of walls and the ﬂoor could light up in

mild, yet visible, ellipsoidal patterns that grew larger

as the spherical emissive objects approached those

surfaces. Spinning the bouquet eliminated the pres-

ence of inevitable gaps between cone volumes and

yielded more plausible visual results (as also reported

in the reference solution (Crassin et al., 2011).

4 RESULTS AND EVALUATION

Implementation of voxel cone tracing using sparse 3D

textures to simulate double-bounce indirect lighting

resulted in a 1920x1080 resolution image locked at 60

frames per second on a GTX980 graphics card. The

data structure contained 128

texels. Two mipmapped

Figure 5: Final image with diffuse and double bounce indi-

rect illumination.

textures were used along with the base-colour and

normals texture (which did not require a mip-chain).

The interpolation scheme employed in the generation

of reﬂective shadow maps (Dachsbacher and Stam-

minger, 2005) was used to reduce the number of com-

puted pixels and achieve high-quality frame rates, up-

scaling one third of the original resolution to the full

screen and yielding an additional 8 frames improve-

ment. An image from the resulting render is shown in

Figure 5.

The relative computational expense of each step

in the process is presented in Figure 6. The ﬁnal per-

fragment cone-tracing step remains the most compu-

tationally expensive. The computational efﬁciency af-

forded by the direct hardware access to the 3D sparse

texture data, and the interpolation step between sam-

pled voxel values, is evident in the relatively low com-

putation costs of the voxelisation and light propaga-

tion steps. These results compare favourably with

those presented in the reference work (Crassin et al.,

2011) where a lower frame-rate is achieved for a

1024x768 image using the sparse octree approach.

Figure 6: Relative computational expense of the four stages

of voxel cone tracing technique for two-bounce indirect il-

lumination using sparse 3D textures.

Table 1 shows the computational timing for

achieving double bounce indirect illumination using

sparse 3D textures on our test environment at three

different screen resolutions (1920x1080, 1600x900

and 1024x768). In each case timings are averaged

across 1000 iterations of rendering the scene. Com-

Adoption of Sparse 3D Textures for Voxel Cone Tracing in Real Time Global Illumination

207

Table 1: Computation timings (in milliseconds) for stages of double bounce voxel cone tracing using sparse textures at

different screen resolutions. All timings averaged over 1000 iterations.

Screen resolution 1920x1080 1600x900 1024x768

ms %age ms %age ms %age

Voxelisation 0.74163 4.02 0.6672 4.24 0.656725 5.23

Generate mipmap 1 1.383379 7.5 1.312604 8.35 1.281829 10.2

First bounce (voxel space) 5.590338 30.31 5.596479 35.59 5.577985 44.4

Generate mipmap 2 1.194863 6.48 1.184982 7.54 1.168038 9.3

Second bounce (screen space) 9.531563 51.68 6.963091 44.28 3.878667 30.87

Total 18.441773 15.724356 12.563244

paring the required computation time for the ﬁrst

bounce (in voxel space) and the second bounce (in

screen space) shows that, as expected, the most sig-

niﬁcant cost of increasing the screen resolution is on

calculation of the second bounce, as the calculation

takes place in screen space.

The two mipmapping steps, and the voxelisation

of the scene, are not the most computationally expen-

sive aspects of the process. Further optimisations in

these steps would therefore have less of an effect. The

mipmapping stages in particular could be further op-

timised through the use of automated mipmap gener-

ation extensions such as OpenGL’s SGIS.

Some further savings in computation time can be

considered, although they have a trade-off in poten-

tial degradation of image ﬁdelity. Partial computa-

tion of the update of the mipmap textures (a fraction

of texture volume per frame) can speed up perfor-

mance signiﬁcantly when coupled with the interpo-

lations discussed previously. This optimisation how-

ever must be approached with caution, as deferred re-

computation can result in voxels lagging behind their

respective fragments, an effect which will become

more pronounced with increasingly dynamic scene el-

ements. The adoption of an axis-aligned bounding

box (AABB) for voxelisation, would result in an up-

date only occurring for the texels captured by the box.

Similarly, lighting computations can be carried out

partially, for a portion of the illuminated 3D textures.

5 CONCLUSIONS

Voxel Cone Tracing has been successfully employed

for indirect illumination in real-time rendering of

scenes, as the technique allows for the calculation of

multiple light bounces with only a linear additional

cost in computation. To date, the voxelised scene has

been stored in the form of a sparse octree, taking ad-

vantage of GPU caching for high speed access to the

Figure 7: Image from ﬁnal render with double bounce indi-

rect lighting combined with shadow-mapping.

scene’s spatial information. An alternative structure

for storing the 3D scene information to be used in the

calculation of indirect illumination is the 3D texture,

as it provides the required hierarchical data structure

(through mip-mapping) and can be stored in a hierar-

chically sparse manner (through sparse texturing).

In this paper we have presented an implementa-

tion of voxel cone tracing for global illumination util-

ising sparse 3D textures for the storage of the 3D spa-

tial information of the rendered scene. The perfor-

mance and ﬁdelity of our implementation has been

shown to be of comparable quality to the reference

solution. Utilising 3D textures allows us to take ad-

vantage of hardware interpolation when sampling the

mip-mapped textures which represent the voxelised

scene. This provides very efﬁcient bilinear and tri-

linear interpolation, with little software overhead, so

that the estimation of lighting parameters between the

voxelised points is highly efﬁcient.

As GPU and graphics card technology evolves,

the integration of 3D texture access into the hardware

is likely to increase. This will make the adoption of

3D textures in the context of voxel representation of

a scene for lighting an increasingly attractive propo-

sition, as both access times and high-speed memory

GRAPP 2020 - 15th International Conference on Computer Graphics Theory and Applications

208

devoted to 3D textures are likely to signiﬁcantly im-

prove with the hardware.

REFERENCES

Crassin, C., Neyret, F., Sainz, M., Green, S., and Eise-

mann, E. (2011). Interactive indirect illumination us-

ing voxel cone tracing. In Computer Graphics Forum,

volume 30, pages 1921–1930. Wiley Online Library.

Dachsbacher, C., K

riv

anek, J., Ha

san, M., Arbree, A., Wal-

ter, B., and Nov

ak, J. (2014). Scalable realistic render-

ing with many-light methods. In Computer Graphics

Forum, volume 33, pages 88–104. Wiley Online Li-

brary.

Dachsbacher, C. and Stamminger, M. (2005). Reﬂective

shadow maps. In Proceedings of the 2005 symposium

on Interactive 3D graphics and games, pages 203–

231. ACM.

Gao, Y., Bouix, S., Shenton, M., and Tannenbaum, A.

(2013). Sparse texture active contour. IEEE Trans-

actions on Image Processing, 22(10):3866–3878.

Goulding, D., Smith, R., Clark, L., Ushaw, G., and Mor-

gan, G. (2012). Real-time ambient occlusion on the

playstation3. In GRAPP/IVAPP, pages 295–298.

Hachisuka, T. (2005). High-quality global illumination ren-

dering using rasterization. GPU gems, 2:615–633.

Jendersie, J., Kuri, D., and Grosch, T. (2016). Precomputed

illuminance composition for real-time global illumi-

nation. In Proceedings of the 20th ACM SIGGRAPH

Symposium on Interactive 3D Graphics and Games,

pages 129–137. ACM.

Jensen, H. W. (2001). Realistic image synthesis using pho-

ton mapping, volume 364. Ak Peters Natick.

Kajiya, J. T. (1986). The rendering equation. In ACM

Siggraph Computer Graphics, volume 20, pages 143–

150. ACM.

Kaplanyan, A. and Dachsbacher, C. (2010). Cascaded light

propagation volumes for real-time indirect illumina-

tion. In Proceedings of the 2010 ACM SIGGRAPH

symposium on Interactive 3D Graphics and Games,

pages 99–107. ACM.

Laine, S. and Karras, T. (2011). Efﬁcient sparse voxel oc-

trees. IEEE Transactions on Visualization and Com-

puter Graphics, 17(8):1048–1059.

Lazebnik, S., Schmid, C., and Ponce, J. (2005). A sparse

texture representation using local afﬁne regions. IEEE

Transactions on Pattern Analysis and Machine Intel-

ligence, 27(8):1265–1278.

McLaren, J. and Yang, T. (2015). The tomorrow children:

lighting and mining with voxels. In ACM SIGGRAPH

2015 Talks, page 67. ACM.

Mittring, M. (2012). The technology behind the unreal en-

gine 4 elemental demo. part of “Advances in Real-

Time Rendering in 3D Graphics and Games,” SIG-

GRAPH.

Nichols, G., Shopf, J., and Wyman, C. (2009). Hierarchical

image-space radiosity for interactive global illumina-

tion. In Computer Graphics Forum, volume 28, pages

1141–1149. Wiley Online Library.

Peyr

e, G. (2009). Sparse modeling of textures. Journal of

Mathematical Imaging and Vision, 34(1):17–31.

Ritschel, T., Dachsbacher, C., Grosch, T., and Kautz, J.

(2012). The state of the art in interactive global illu-

mination. In Computer Graphics Forum, volume 31,

pages 160–188. Wiley Online Library.

Shreiner, D., Sellers, G., Kessenich, J. M., and Licea-Kane,

B. (2013). OpenGL programming guide: The Ofﬁ-

cial guide to learning OpenGL, version 4.3. Addison-

Wesley.

Sund

en, E. and Ropinski, T. (2015). Efﬁcient volume illu-

mination with multiple light sources through selective

light updates. In 2015 IEEE Paciﬁc Visualization Sym-

posium (PaciﬁcVis), pages 231–238. IEEE.

Weiler, M., Westermann, R., Hansen, C., Zimmermann, K.,

and Ertl, T. (2000). Level-of-detail volume rendering

via 3d textures. In Proceedings of the 2000 IEEE sym-

posium on Volume visualization, pages 7–13. ACM.

Adoption of Sparse 3D Textures for Voxel Cone Tracing in Real Time Global Illumination

209
