Towards Deep People Detection using CNNs Trained on Synthetic Images

Roberto Mart

ın-L

opez, David Fuentes-Jim

enez

, Sara Luengo-S

anchez,

Cristina Losada-Guti

errez

, Marta Marr

on-Romera

and Carlos Luna

Department of Electronics. University of Alcal

a, Politechnics School, Campus Universitario S/N, Alcal

a de Henares, Spain

Keywords:

People Detection, Synthetic images, Convolutional Neural Networks, Depth Images.

Abstract:

In this work, we propose a people detection system that uses only depth information, provided by an RGB-D

camera in frontal position. The proposed solution is based on a Convolutional Neural Network (CNN) with

an encoder-decoder architecture, formed by ResNet residual layers, that have been widely used in detection

and classiﬁcation tasks. The system takes a depth map as input, generated by a time-of-ﬂight or a structured-

light based sensor. Its output is a probability map (with the same size of the input) where each detection is

represented as a Gaussian function, whose mean is the position of the person’s head. Once this probability map

is generated, some reﬁnement techniques are applied in order to improve the detection precision. During the

system training process, there have only been used synthetic images generated by the software Blender, thus

avoiding the need to acquire and label large image datasets. The described system has been evaluated using

both, synthetic and real images acquired using a Microsoft Kinect II camera. In addition, we have compared

the obtained results with those from other works of the state-of-the-art, proving that the results are similar in

spite of not having used real data during the training procedure.

1 INTRODUCTION

People detection has earned increasing importance in

different research ﬁelds due to its application in multi-

ple areas like video surveillance, security, access con-

trol, etc. In most of the previous works (Ramanan

et al., 2006; Jeong et al., 2013) detection is performed

using RGB images. In (Ramanan et al., 2006) a sys-

tem that learns people’s appearance models is pro-

posed, while the work (Jeong et al., 2013) is based

on the classiﬁcation of interest points.

Systems that use color information may cause

problems related to privacy since the information

available in an image makes it possible to recognize

the identity of people appearing on it. As an al-

ternative in order to solve these problems, different

proposals have appeared in the literature. Some of

them (Bevilacqua et al., 2006; Zhang et al., 2012;

Stahlschmidt et al., 2013; Luna et al., 2017), as

the one described in this paper, use depth sensors

(2.5D) (Lange and Seitz, 2001; Sell and O’Connor,

2014). Depth images provide information about the

distance from each scene point to the camera. They

https://orcid.org/0000-0001-6424-4782

https://orcid.org/0000-0001-9545-327X

https://orcid.org/0000-0001-7723-2262

then allow detecting people, but not identifying them

(since it is not possible to recognize their identities).

The use of systems based on Deep Learning has in-

creased signiﬁcantly in recent times, using both RGB

and RGB-D (combination of depth and color) images.

Other works, like (Wang and Zhao, 2017; Zhao et al.,

2017) base the detection only on depth information,

as the system presented herein.

It is important to emphasize that most of the pre-

vious works use these depth sensors located in an

overhead position, thus avoiding the problem of oc-

clusions but covering an area that may result in too

small in many applications. In order to increase the

area of study, this work proposes an elevated frontal

position of the camera. Figure 4 shows the perspec-

tive of the images with this elevated frontal position

of the camera. One of the main problems to solve

with the chosen perspective is the occlusions, which

must be absorbed by the algorithm to provide a robust

detection.

This work proposes a detection system that uses

a convolutional neural network (CNN) for the robust

detection of multiple people in depth images with el-

evated frontal location of the camera. The system

has been trained end-to-end using synthetic data, and

the corresponding outputs have been labeled automat-

Martín-López, R., Fuentes-Jiménez, D., Luengo-Sánchez, S., Losada-Gutiérrez, C., Marrón-Romera, M. and Luna, C.

Towards Deep People Detection using CNNs Trained on Synthetic Images.

DOI: 10.5220/0008879102250232

In Proceedings of the 15th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 5: VISAPP, pages

225-232

ISBN: 978-989-758-402-2; ISSN: 2184-4321

225

ically, with a Gaussian function whose mean is the

position of each person’s head. Figure 1 shows an

example of a synthetic image used as input and the

corresponding labeled output. To evaluate and vali-

date the system synthetic data have been used in the

ﬁrst place, followed by real data. Besides, real data

results have been compared with the results of other

state-of-the-art proposals.

4000

4500

5000

5500

6000

6500

7000

7500

Figure 1: Input image (where depth values in millimeters

are shown using a colormap) and labeled output image.

The rest of this paper is organized as follows: sec-

tion 2 explains the architecture of the proposed Deep

Neural Network (DNN), then section 3 presents the

training procedure using synthetic data. Section 4 de-

scribes the main results. Finally, section 5 includes

the main conclusions and future work.

2 CNN ARCHITECTURE

As has already been mentioned in the introduction,

we propose a system for people detection based on

CNNs. The system processes the input depth images

and delivers a likelihood map at the output that must

contain as many detections as the number of people in

the image. This likelihood map has the same dimen-

sions as the input image (240 × 320 pixels) and its

appearance is shown in ﬁgure 1, where it can be seen

how each detection is indicated in the output likeli-

hood map as a Gaussian function around the 2D po-

sition of each detected person head. It is worth to

highlight that an output likelihood map with the same

size as the input depth image allows better accuracy

in the detections, and immunizes the system in terms

of speed inﬂuenced by the number of detections in the

image, as it does not depend on the number of people

detected.

With a focus from the outside to the inside of the

proposed network, the ﬁrst step is to deﬁne and ex-

plain the two main blocks that form the system, shown

in ﬁgure 2: the Main Block (MB) and the Hypothesis

Reinforcement Block (HRB).

Both Blocks are based in an encoder-decoder

structure that is described in detail below. The input

image is processed by the MB, which generates the

ﬁrst likelihood map. Then, this likelihood map and

the input image are concatenated, creating a matrix

with dimensions 240 × 320 × 2 that is processed by

the HRB. The likelihood map generated by the HRB

is the ﬁnal output of the system. The HRB improves

the detection of the MB, creating a reﬁned likelihood

map with better distinguishable Gaussians and reduc-

ing the number of False Positives (FP) that the MB

generates.

The MB has an encoder-decoder structure, based

on ResNet (He et al., 2016) that uses separable layers

based on the ones proposed in (Chollet, 2016). This

kind of convolutional layer has been chosen because

they are much faster than the conventional convolu-

tional layers, maintaining its accuracy.

Main Block (MB)

Hypothesis Reinforcement Block (HRB)

Encoder

Decoder

Encoder

Decoder

UpSampling

Batch Normalization

Decoding Convolutional Block

Encoding Convolutional Block

ReLU Activation

Max Pooling

Sigmoidal Activation

Separable Convolution

Input

Output

Figure 2: Architecture of the proposed CNN for people de-

tection.

Table 1 summarizes all layers included in the MB,

indicating the output dimensions as well as the differ-

ent parameters involved. Parameters a, b and c of the

Encoding Convolutional Blocks (ECB) and Decoding

Convolutional Blocks (DCB) represent the number of

ﬁlters for each internal convolutional layer.

First of all, a separable convolutional layer con-

sisting of 64 kernels of 7 × 7 and a stride of 2 × 2 is

used. After that, there are applied a Batch Normaliza-

tion (BN) layer (Ioffe and Szegedy, 2015), followed

by a Rectiﬁed Linear Unit (ReLU) activation one and

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

226

ﬁnally a Max Pooling one of 3 × 3. Then, there are

included three ECB and three DCB. These blocks are

based in ResNet (He et al., 2016), and they are ex-

plained below. Finally, the MB contains some layers

of Cropping, ZeroPadding and UpSampling to adjust

the output size, followed by two Separable Convo-

lutional Layers. The former is followed by a Batch

Normalization and a ReLU activation and the latter

by a Sigmoid one.

Table 1: Detailed architecture of the Main Block (MB).

Main Block (MB)

Layer Output size Parameters

Input 240 × 320 × 1 -

Convolution 120 × 160 × 64 kernel=(7, 7) / strides=(2, 2)

BN -

Activation ReLU

Max Pooling 40 × 53 × 64 size=(3, 3)

CBE 40 × 53 × 256

kernel=(3, 3) / strides=(1, 1)

(a=64, b=64, c=256)

CBE 20 × 27 × 512

kernel=(3, 3) / strides=(2, 2)

(a=128, b=128, c=512)

CBE 10 × 14 × 1024

kernel=(3, 3) / strides=(2, 2)

(a=256, b=256, c=1024)

CBD 10 × 14 × 256

kernel=(3, 3) / strides=(1, 1)

(a=1024, b=1024, c=256)

CBD 20 × 28 × 128

kernel=(3, 3) / strides=(2, 2)

(a=512, b=512, c=128)

CBD 40 × 56 × 64

kernel=(3, 3) / strides=(2, 2)

(a=256, b=256, c=64)

Cropping 40 × 54 × 64 cropping=[(0, 0) (1, 1)]

Up Sampling 120 × 162 × 64 size=(3, 3)

Convolution 240 × 324 × 64 kernel=(7, 7) / strides=(2, 2)

Cropping 240 × 320 × 64 cropping=[(0, 0) (2, 2)]

BN -

Activation ReLU

Convolution 240 × 320 × 1 kernel=(3, 3) / strides=(1, 1)

Activation Sigmoid

Output 240 × 320 × 1 -

The HRB structure is similar to the one of MB

previously described, but it incorporates a few modi-

ﬁcations that change its ﬁnal size, as shown in Table 2,

that describes all the layers of the HRB, deﬁning out-

put parameters and dimensions. The ﬁrst layers are

identical to the ones in the MB: Separable Convolu-

tion layer, Batch Normalization, ReLU activation, and

Max Pooling. The number of ECB and DCB layers is

reduced to two blocks per type. The output stage is

also similar to the one of the MB: two convolutional

layers, followed by BN, a ReLu activation and a ﬁnal

Sigmoid activation one. ZeroPadding, Cropping and

UpSampling layers are different in terms of parame-

ters to adjust the ﬁnal output size.

The ECB and DCB have a similar structure,

formed by two unbalanced bonds, the ﬁrst one has

three convolutional layers, while the second has only

one convolutional layer. The output of the bonds

is added and normalized to create the output of the

block. The main difference between the ECB and

Table 2: Detailed architecture of the Hypothesis Reinforce-

ment Block (HRB).

Hypothesis Reinforcement Block (HRB)

Layer Output size Parameters

Input 240 × 320 × 2 -

Convolution 120 × 160 × 64 kernel=(7, 7) / strides=(2, 2)

BN -

Activation ReLU

Max Pooling 40 × 53 × 64 size=(3, 3)

CBE 40 × 53 × 256

kernel=(3, 3) / strides=(1, 1)

(a=64, b=64, c=256)

CBE 20 × 27 × 512

kernel=(3, 3) / strides=(2, 2)

(a=128, b=128, c=512)

CBD 40 × 54 × 128

kernel=(3, 3) / strides=(2, 2)

(a=512, b=512, c=128)

CBD 80 × 108 × 64

kernel=(3, 3) / strides=(2, 2)

(a=256, b=256, c=64)

Up Sampling 240 × 324 × 64 size=(3, 3)

Cropping 240 × 320 × 64 cropping=[(0, 0) (2, 2)]

Convolution 240 × 320 × 64 kernel=(3, 3) / strides=(1, 1)

BN -

Activation ReLU

Convolution 240 × 320 × 1 kernel=(3, 3) / strides=(1, 1)

Activation Sigmoidal

Output 240 × 320 × 1 -

DCB is that the former uses convolutions whereas the

latter uses transposed convolutions as an approxima-

tion of deconvolutions.

Figure 3 shows the structure of a ECB and a DCB

blocks, where the parameters a, b and c are the depth

of the layer or the number of ﬁlters of the correspond-

ing layer.

Convolution

Batch Normalization

Transposed Convolution

ReLU activation

Decoding Convolutional Block (DCB)

Encoding Convolutional Block (ECB)

Figure 3: ECB and DCB architecture.

As it can be observed in ﬁgure 3, the number of

ﬁlters of the third convolution in the bottom line has

Towards Deep People Detection using CNNs Trained on Synthetic Images

227

to be equal to the number of ﬁlters in the top line (c

parameter). Parameters a, b y c of tables 1 and 2 and

in ﬁgure 3 have the same meaning.

3 TRAINING

As it has been explained in the introduction, the pro-

posed CNN has been trained using only synthetic

images. To do that, it has been used the GEIN-

TRA Synthetic Depth People Detection (GESDPD)

dataset (GESDPD, 2019), created by the authors, and

made available to the scientiﬁc community

. The

main characteristics of the GESDPD dataset are de-

scribed below. The use of synthetic depth images has

allowed the automatic labeling of the images, avoid-

ing the need for manual labeling.

3.1 The GESDPD Dataset

The GESDPD dataset (GESDPD, 2019) contains

22000 depth images, that simulate to have been taken

with a sensor in an elevated front position, in an in-

door working environment, generated using the sim-

ulation software Blender (Roosendaal et al., 2007).

The simulated scene shows a room with different

people walking in different directions. The camera

perspective is not stationary, as it rotates and moves

along the dataset, which avoids a constant background

that could be learned by CNN in the training, as

can be seen in ﬁgure 4, that shows different perspec-

tives of the synthetic room in the simulation software

Blender (Blender Online Community, ). Using dif-

ferent backgrounds around the synthetic room allows

the CNN to see the background as noise and focus

the training in the people that come along the image,

immunizing the network to the change of camera per-

spective and assembly conditions.

The generated images have a resolution of 240 ×

320 pixels codiﬁed in 16 bits. Some examples of

the synthetic images are shown in ﬁgure 5, the im-

ages correspond to three different perspectives, and

the depth values are represented using a colormap.

Regarding the labeling, there have been placed

Gaussian functions over the centroid of the head of

each person in the scene, so that the centroid corre-

sponds to the center of the head 2D position and has

a normalized value of one. The standard deviation

(eq. 1) is constant for all the Gaussians, regardless of

the size of each head and the distance from the head to

the camera. Its value has been calculated based on an

Available online http://www.geintra-uah.org/datasets/

gesdpd

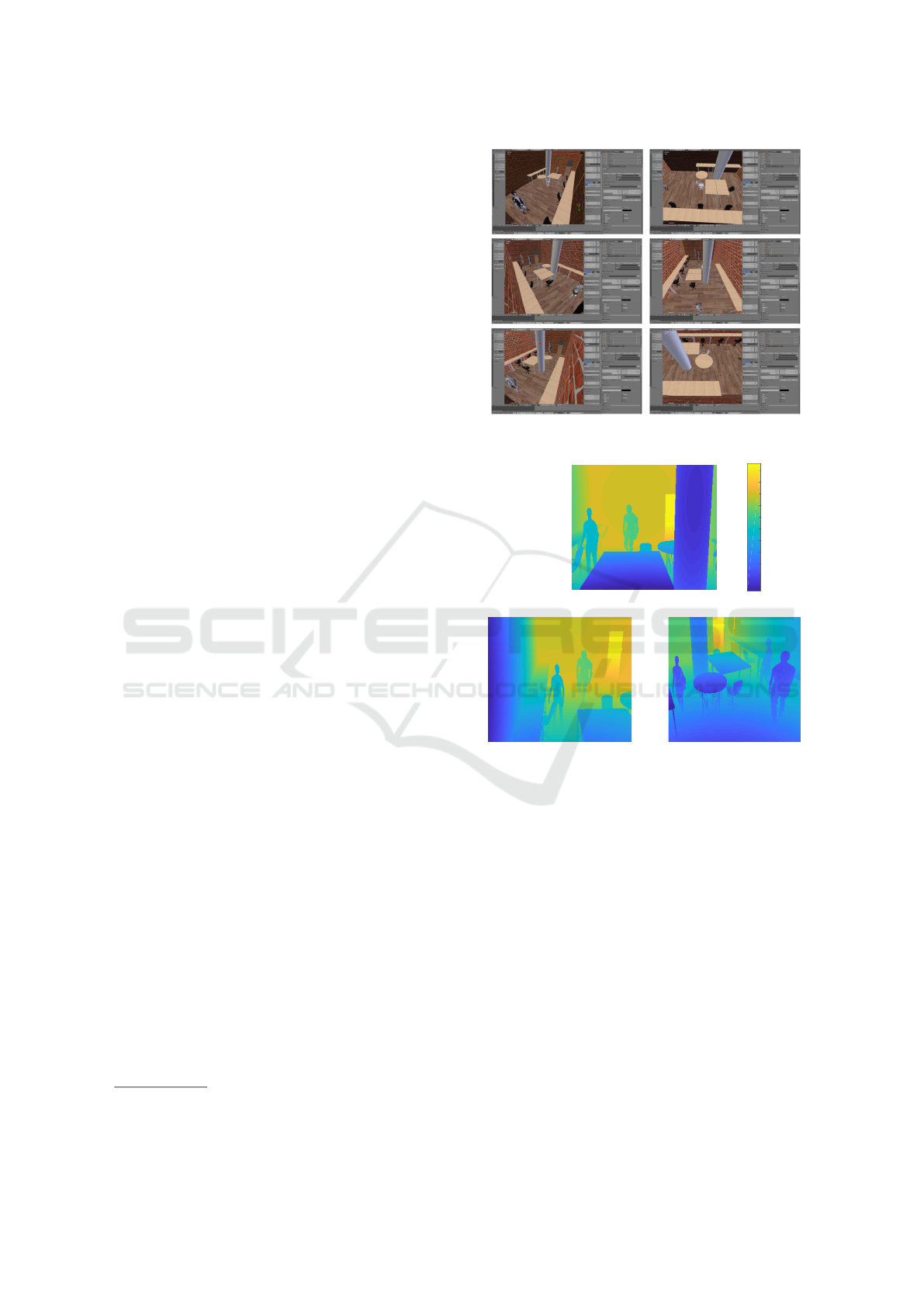

Figure 4: Blender simulated room with different perspec-

tives.

2500

3000

3500

4000

4500

5000

5500

6000

6500

7000

7500

Figure 5: Examples of synthetic depth images belonging to

the GESDPD dataset.

estimated value of the average diameter of a person’s

head, taking into account anthropocentric considera-

tions. Under these considerations, the chosen value is

15 pixels.

σ = D/2.5 = 15/2.5 = 6 (1)

Another important point related to labeling is the

overlap of different Gaussians. When two heads are

very close or overlapping with each other, the labeled

Gaussians do not add each other, instead of that, the

maximum value of them prevail, as shown in ﬁgure 6.

That modiﬁcation provides a set of Gaussians that are

always separated, so that the CNN can learn to gener-

ate that separation between Gaussians in its output, fa-

cilitating the subsequent individual detection of peo-

ple in the scene.

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

228

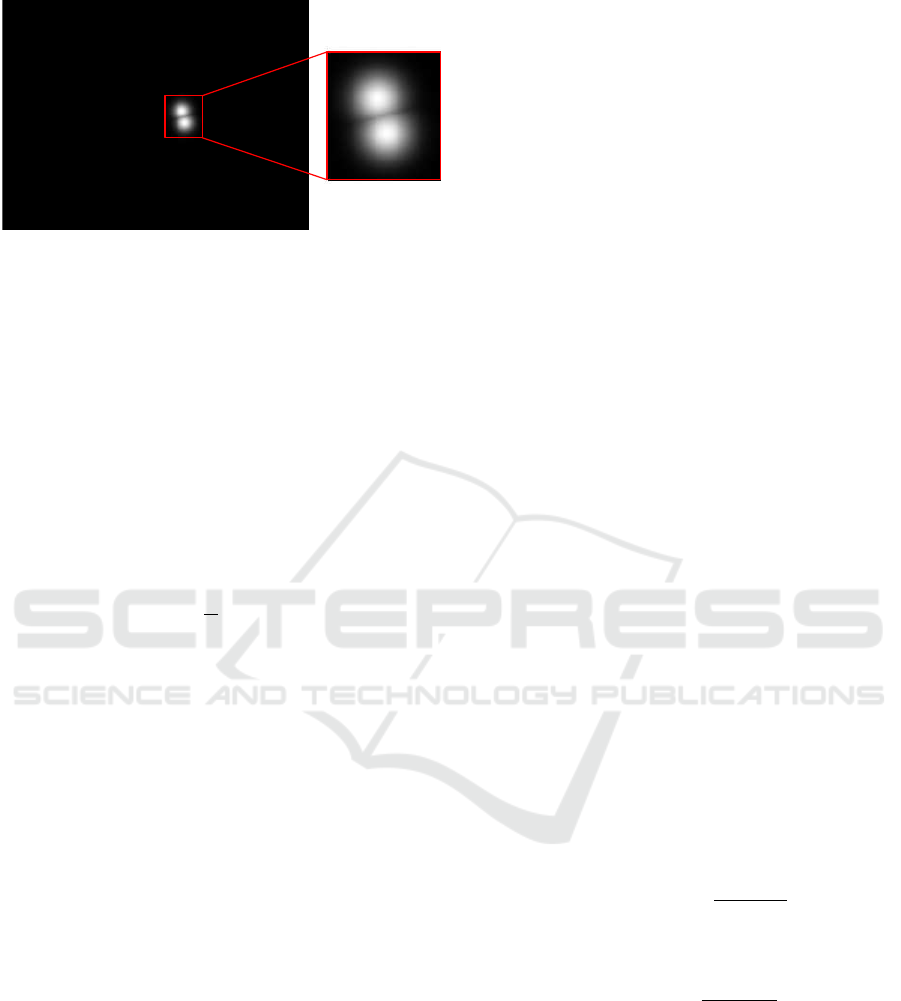

Figure 6: Labeled Gaussians detail.

3.2 Training Parameters

The 22000 available synthetic depth images have

been split into two groups: 19800 images (90%) are

used to train the CNN, whereas the remaining 2200

images (10%) are used for testing.

Regarding the parameters conﬁgured for the CNN

training, the loss function used is the Mean Square

Error between the ground-truth and the CNN output,

as it can be seen in the equation 2, where L repre-

sents the loss function, q

the network output and ˆq

the ground-truth.

L (q

, ˆq

) =

∑

i=1

( ˆq

− q

)

(2)

The chosen optimizer is Adam (Kingma and Ba,

2014), with a initial learning rate of 0.001 and early

stopping to avoid overﬁtting. Early Stopping allows

saving the best epoch weights of the CNN training

session, so the saved weights are the best of all the

training.

4 RESULTS

This section presents the main results obtained in this

work. As it has been said before, there have been used

2200 synthetic images (a 10% of the original dataset)

for the system evaluation. None of these images have

been used in the training stage. In a second test, there

have been obtained some results using real data from

the RGB-D Pedestrian Dataset (Bagautdinov, 2015;

Bagautdinov et al., 2015). In particular, there have

been used the EPFL-LAB scenes since it includes

people in a room at a distance and perspective similar

to the ones in the training dataset. However, both the

image sizes and camera locations are different from

the ones considered in the synthetic dataset.

To obtain the results, the same algorithm is used

for both tests, with the synthetic dataset and with the

real one. The only difference between them is the

variation of the region of interest (ROI), the area in

the image in which people are detected, which is ad-

justed depending on the characteristics of the dataset.

For each frame, there is a point array in the

ground-truth and another point array obtained by a bi-

narization (with a threshold of 0.6) of the conﬁdence

map generated at the output of the HRB. Then, the

points from the ground-truth and the points gener-

ated by the CNN are associated, connecting between

them the closest ones, only if they are nearer than 37.5

pixels (that corresponds to the value of 2.5 times the

estimated average head diameter used in the expres-

sion 1). This limit must not be too restrictive be-

cause the ground-truth of the images in EPFL-LAB

dataset (Bagautdinov et al., 2015) is in bounding-box

format, so the estimated position of the head centroid

is not very precise.

The points in the ground-truth which are not con-

nected to any detection are considered as False Neg-

atives (FN) since the detection is not carried out. On

the other hand, the detections of the CNN which are

not connected to any point in the ground-truth are

False Positives (FP) since it is a wrong detection. Fi-

nally, the errors (FN or FP) outside the ROI are dis-

carded. It is worth highlighting that the ROI is deﬁned

in 3 dimensions: the ﬁrst two are a rectangle over the

image plane and the third one is a value of maximum

distance (depth). The number of FP and FN is shown

in absolute value and percentage respect to the total

number of points inside the ROI in the ground-truth.

To evaluate the people detection, there have also

been used the following metrics:

• Error: The total error represents the sum of False

Negatives (FN) plus False Positives (FP).

Error = FP + FN (3)

• Precision: represents the probability that a detec-

tion will be made correctly.

Precision =

T P

T P + FP

(4)

• Recall: represents probability that a person will

be detected.

Recall =

T P

T P + FN

(5)

4.1 Results with Synthetic Data

During the evaluation with synthetic data, the ROI

comprehends the whole image since there is no noise,

so there is no need to discard points in the ground-

truth or detections in the edges of the image. More-

over, the synthetic data does not present the prob-

lem of maximum valid distance so all points have

Towards Deep People Detection using CNNs Trained on Synthetic Images

229

been taken into account (both, for the ground-truth

and the detections), regardless of its distance. Table

3 presents the results obtained during the evaluation

with synthetic data.

Table 3: Results with synthetic data.

Region of interest (ROI) [(0, 0), (320, 240), inf]

Number of frames 2200

Points in the ground-truth 3176

False Negatives (FN) 212 (6.68%)

False Positives (FP) 3 (0.09%)

Error 215 (6.77%)

Precision 99.89%

Recall 93.32%

As it can be seen in table 3, the system barely

makes wrong detections. However, there is a 6.68%

of people in the ground-truth who are not detected.

Going deeper into this fact, it has been observed

that the errors occur at moments when several peo-

ple are very close and occlusions appear. It must

be taken into account that the dataset has been la-

beled automatically by the Blender simulation soft-

ware (Roosendaal et al., 2007), which labels people

even when total occlusions happen. In these cases, it

is impossible for the CNN to detect the person.

4.2 Results with Real Data

The system has also been evaluated using real data.

To do that, there have been carried out several exper-

imental tests using the EPFL-LAB dataset (available

in (Bagautdinov, 2015)), which includes 950 RGB-

D images, with a resolution of 512 × 424 pixels, that

are coded into 16-bit unsigned integers. To adapt

the images to the input layer, they have been scaled

to 320 × 240 pixels. In addition, the points with a

null value, which correspond to an erroneous distance

measurement have been replaced by the maximum

depth value in the dataset, because otherwise the net-

work process these values as points of zero distance

instead of errors. The EPFL-LAB images show a

room, similar to the one simulated in the synthetic

data, where it can appear up to 4 people. The cam-

era is in an elevated frontal position, within a slope

similar to the one in the training dataset. Figure 7

shows some examples of the images from the EPFL-

LAB dataset.

In these experiments, the ROI does not include the

edges of the scene where people does not appear com-

plete. Moreover, the maximum distance used for eval-

uation has been set to 3.5 meters as distance measure-

ments worsen signiﬁcantly at greater distances. Table

4 shows the obtained results.

1000

2000

3000

4000

5000

6000

7000

8000

Figure 7: Images from the EPFL-LAB dataset.

Table 4: Results with real data.

Region of interest (ROI) [(20, 55), (300, 205), 3500]

Number of frames 950

Points in the ground-truth 1959

False Negatives (FN) 474 (24.07%)

False Positives (FP) 3 (0.15%)

Error 477 (24.35%)

Precision 99.80%

Recall 75.80%

Similarly to results in the case of synthetic data,

table 4 manifests that the system does not generate

wrong detections since there is not a signiﬁcant num-

ber of FP. On the other hand, FN are more frequent

and they appear mainly when there exist important

occlusions in the scene.

The obtained results are also compared to other

methods in the state-of-the-art which use the same

dataset. These methods are DPOM, proposed in

(Bagautdinov et al., 2015), which use depth infor-

mation; ACF, detector of (Doll

ar, ) which uses color

information; PCL-MUNARO, proposed in (Munaro

and Menegatti, 2014) and based in RGB-D informa-

tion; and, ﬁnally, Kinect II with the results obtained

by Kinect for Windows SDK 2.0 (Microsoft, 2014)

which uses RGB-D information.

Figure 8 shows the results presented in (Bagaut-

dinov et al., 2015) for the mentioned algorithms.

The results of the proposed system (identiﬁed as

CNN) are also presented for two values of maximum

distance: 3.5 meters, used in the proposed evaluation,

and 4.5 meters, used in (Bagautdinov et al., 2015).

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

230

0 0.2 0.4 0.6 0.8 1

Precision

0.2

0.4

0.6

0.8

Recall

DPOM (D)

ACF (RGB)

PCL-MUNARO (RGB-D)

KINECT2 (RGB-D)

CNN (D) (maximum distance 3.5 m)

CNN (D) (maximum distance 4.5 m)

Figure 8: Comparison of the proposal with other ap-

proaches for people detection.

The proposals whose results are displayed with a

curve (DPOM, ACF, PCL-MUNARO) apply a thresh-

old in the detection algorithm that allows obtaining

different values for the Precision-Recall point. Our

system and Kinect II, only display the results with one

Precision-Recall point since the threshold to vary the

Precision-Recall point is not applied in the detection.

The numerical values of the Precision-Recall point

are shown in Table 5.

Table 5: Precision and recall results.

Region of interest (ROI) [(20, 55), (300, 205), 3500]

Precision 0.99

Recall 0.76

Region of interest (ROI) [(20, 55), (300, 205), 4500]

Precision 0.99

Recall 0.66

As it can be seen in ﬁgure 8 and Table 5, the pro-

posed system based on CNNs obtains close to a 100%

of accuracy since it does not generate FP, so the de-

tections are very precise. The recall values obtained

(0.66 and 0.76) indicate that the system generates FN

and the number of them increases with the maximum

distance of evaluation. It can be easily demonstrated

that people partially occluded, which are in the fur-

thest position of the scene, produce those FN. How-

ever, the system performs in a similar way or even bet-

ter than some of the state-of-the-art proposals shown

in ﬁgure 8, especially taking into account that the

training is performed using only synthetic data.

4.3 Timing Results

The average frame rate of the system is 42 FPS

(frames per second), benchmarked on a conventional

Linux desktop PC, with a Processor Intel

Core(TM)

i7-6700K CPU @ 4.00 GHz with 64 GB of RAM, and

an NVIDIA GTX-1080 TI GPU.

5 CONCLUSIONS

This work describes a system for people detection in

real-time from depth images, which allows preserving

people’s privacy since it is not possible to recognize

their identity from these images. The system is based

on a CNN, composed of two main stages: the main

block and the hypothesis reﬁnement block, both of

them based on residual blocks. Moreover, the CNN

has been trained using only synthetic data, created and

labeled automatically by the Blender simulator. This

allows training the system with a high amount of data

without having to acquire and label them manually.

For the evaluation of the system there have been

used both, synthetic and real data, obtaining an accu-

racy close to the 100%, since it does not generate false

detections. In addition, these results have been com-

pared with those of other state-of-the-art alternatives

evaluated on the same dataset, determining that the re-

sults are similar, despite the fact that the training has

been carried out using only synthetic depth images.

In order to improve the robustness of the proposed

system, the main line of future work is to retrain the

system with real depth images. This training could

be carried out with a reduced number of data, as it is

based on a pre-trained network. In this way it is pos-

sible to train a system in two stages: ﬁrst, with a large

number of synthetic data that do not need manual la-

beling, and then with a reduced number of real data,

avoiding the cost of manual acquisition and labeling

of a large dataset.

ACKNOWLEDGEMENTS

This work has been supported by the Spanish Min-

istry of Economy and Competitiveness under projects

HEIMDAL-UAH (TIN2016-75982-C2-1-R) and

ARTEMISA (TIN2016-80939-R), and by the Univer-

sity of Alcal

a under projects JANO CCGP2017/EXP-

025) and ACERCA (CCG2018/EXP-029).

REFERENCES

Bagautdinov, T. (2015). Rgb-d pedestrian dataset. https:

//cvlab.epﬂ.ch/data/data-rgbd-pedestrian/.

Bagautdinov, T., Fleuret, F., and Fua, P. (2015). Probabil-

ity occupancy maps for occluded depth images. In

The IEEE Conference on Computer Vision and Pat-

tern Recognition (CVPR).

Bevilacqua, A., Di Stefano, L., and Azzari, P. (2006). Peo-

ple tracking using a time-of-ﬂight depth sensor. In

Video and Signal Based Surveillance, 2006. AVSS ’06.

IEEE International Conference on, pages 89–89.

Towards Deep People Detection using CNNs Trained on Synthetic Images

231

Blender Online Community. Blender a 3d modelling pack-

age.

Chollet, F. (2016). Xception: Deep learning with depthwise

separable convolutions. cite arxiv:1610.02357.

Doll

ar, P. Piotr’s Computer Vision Matlab Toolbox (PMT).

https://github.com/pdollar/toolbox.

GESDPD (2019). The GEINTRA Synthetic Depth Peo-

ple Detection (GESDPD) database. Available on-

line http://www.geintra-uah.org/datasets/gesdpd. (ac-

cessed July 2019).

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 770–778.

Ioffe, S. and Szegedy, C. (2015). Batch normalization: Ac-

celerating deep network training by reducing internal

covariate shift. arXiv preprint arXiv:1502.03167.

Jeong, C. Y., Choi, S., and Han, S. W. (2013). A method

for counting moving and stationary people by interest

point classiﬁcation. In Image Processing (ICIP), 2013

20th IEEE International Conference on, pages 4545–

4548.

Kingma, D. P. and Ba, J. (2014). Adam: A

method for stochastic optimization. arXiv preprint

arXiv:1412.6980.

Lange, R. and Seitz, P. (2001). Solid-state time-of-ﬂight

range camera. Quantum Electronics, IEEE Journal

of, 37(3):390–397.

Luna, C. A., Losada-Gutierrez, C., Fuentes-Jimenez,

D., Fernandez-Rincon, A., Mazo, M., and Macias-

Guarasa, J. (2017). Robust people detection using

depth information from an overhead time-of-ﬂight

camera. Expert Systems with Applications, 71:240–

256.

Microsoft (2014). Kinect for windows sdk 2.0.

Munaro, M. and Menegatti, E. (2014). Fast rgb-d people

tracking for service robots. Auton. Robots, 37(3):227–

242.

Ramanan, D., Forsyth, D. A., and Zisserman, A. (2006).

Tracking People by Learning Their Appearance. Pat-

tern Analysis and Machine Intelligence, IEEE Trans-

actions on, 29(1):65–81.

Roosendaal, T., Hess, R., and Foundation, B. (2007). The

Essential Blender: Guide to 3D Creation with the

Open Source Suite Blender. No Starch Press Series.

No Starch Press.

Sell, J. and O’Connor, P. (2014). The Xbox one system on

a chip and Kinect sensor. Micro, IEEE, 34(2):44–53.

Stahlschmidt, C., Gavriilidis, A., Velten, J., and Kummert,

A. (2013). People detection and tracking from a

top-view position using a time-of-ﬂight camera. In

Dziech, A. and Czyazwski, A., editors, Multimedia

Communications, Services and Security, volume 368

of Communications in Computer and Information Sci-

ence, pages 213–223. Springer Berlin Heidelberg.

Wang, C. and Zhao, Y. (2017). Multi-layer proposal net-

work for people counting in crowded scene. In Intel-

ligent Computation Technology and Automation (ICI-

CTA), 2017 10th International Conference on, pages

148–151. IEEE.

Zhang, X., Yan, J., Feng, S., Lei, Z., Yi, D., and Li, S.

(2012). Water ﬁlling: Unsupervised people counting

via vertical Kinect sensor. In Advanced Video and

Signal-Based Surveillance (AVSS), 2012 IEEE Ninth

International Conference on, pages 215–220.

Zhao, J., Zhang, G., Tian, L., and Chen, Y. Q. (2017). Real-

time human detection with depth camera via a phys-

ical radius-depth detector and a cnn descriptor. In

2017 IEEE International Conference on Multimedia

and Expo (ICME), pages 1536–1541.

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

232
