Systematic Comparison of ORB-SLAM2 and LDSO based on Varying

Simulated Environmental Factors

Adam Kalisz

, Tong Ling

, Florian Particke

, Christian Hofmann

and Jörn Thielecke

Department of Electrical, Electronic and Communication Engineering, Information Technology (LIKE),

Friedrich-Alexander-Universität Erlangen-Nürnberg, Am Wolfsmantel 33, Erlangen, Germany

Keywords:

Visual, Simultaneous, Localization, And, Mapping, SLAM, ORB, LDSO, DSO, Comparison.

Abstract:

Although the number of outstanding but highly complex Visual SLAM systems which are published as open

source has increased in recent years, they often lack a systematic evaluation of their weaknesses and failure

cases. This work systematically discusses the key differences of two state-of-the-art Visual SLAM algorithms,

the indirect ORB-SLAM2 and the direct LDSO, by extensive experiments in varying environments. The

evaluation is principally focused to the trajectory accuracy and robustness of the algorithms in speciﬁc situ-

ations. However, details about individual components used for the estimation of trajectories in both systems

are presented. In order to investigate crucial aspects, a custom dataset was created in a 3D modeling software,

Blender, to acquire the data for all experiments. The experimental results demonstrate the strengths and weak-

nesses of the systems. In particular, this research contributes insight into: 1. The inﬂuence of moving objects

in a usually static scene. 2. How both systems react on periodicly changing scene lighting, both local and

global. 3. The role of initialization on the resistance to dynamic changes in the scene.

1 INTRODUCTION

A robust localization and mapping in unknown envi-

ronments is a highly desirable ability of autonomous

robots. Visual Simultaneous Localization And Map-

ping (SLAM), as a realization using only cameras,

gains increasing attention due to its simple conﬁgu-

ration and low cost. Visual SLAM (VSLAM) can be

classiﬁed into monocular, stereo, and RGB-D SLAM

based on the type of camera used. At each time step,

a monocular camera provides only a single frame, a

stereo camera two frames from different lenses, and a

RGB-D camera usually can capture a RGB image and

a depth image. It is worth mentioning that a monoc-

ular SLAM, though with the simplest hardware con-

ﬁguration, should be performed more carefully due to

the scale ambiguity (i.e., it can only retrieve the cam-

era pose and the environment to an unknown scale).

A well designed sensor fusion approach is able to

solve some of the fundamental problems of monoc-

ular VSLAM. For example, it can cooperate with

https://orcid.org/0000-0001-5428-5433

https://orcid.org/0000-0002-9110-9890

https://orcid.org/0000-0003-2761-2616

https://orcid.org/0000-0003-1720-6948

https://orcid.org/0000-0001-6671-6341

Global Positioning System (GPS) in an autonomous

car or robot to provide a more accurate localization or

with other sensors in a GPS-denied area (Schleicher

et al., 2009)(Shi et al., 2013).

However, the requirement on the accuracy of es-

timations in VSLAM’s varies depending upon appli-

cations. Even though there has been a remarkable de-

velopment over the last 30 years and many existing

SLAM systems have already achieved fulﬁlling accu-

racy, studies such as (Cadena et al., 2016), (Huang

and Dissanayake, 2016), and (Taketomi et al., 2017)

have pointed out that there are still challenges and

possible improvement directions.

Comparing the current development of VSLAM

can provide a guide for speciﬁc future improvements

which can be useful for any VSLAM system. In this

work, we systematically analyze two state-of-the-art

SLAM systems, Oriented FAST and rotated BRIEF

(ORB)-SLAM2 (Mur-Artal and Tardós, 2017) and

Direct Sparse Odometry with Loop Closure (LDSO)

(Gao et al., 2018). ORB-SLAM2 is a newer ver-

sion of ORB-SLAM (Mur-Artal et al., 2015) with im-

proved feature extraction and a global optimization

as well as new interfaces for stereo and RGB-D in-

put. LDSO is extended based on DSO (Engel et al.,

2018) by modifying feature extraction and adding a

Kalisz, A., Ling, T., Particke, F., Hofmann, C. and Thielecke, J.

Systematic Comparison of ORB-SLAM2 and LDSO based on Varying Simulated Environmental Factors.

DOI: 10.5220/0008879401730180

In Proceedings of the 15th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 4: VISAPP, pages

173-180

ISBN: 978-989-758-402-2; ISSN: 2184-4321

173

loop closure functionality. There are three reasons

for choosing these two systems. Firstly, their core

ideas are different. ORB-SLAM2 is a feature-based

(indirect) method, while LDSO is a direct method.

Through the comparison, insight into these mecha-

nisms is expected to be obtained, which beneﬁts the

future development in the two directions or a hybrid

one. Secondly, they are both sparse and real-time ca-

pable methods, ensuring a fair comparison. Thirdly,

both algorithms have achieved high accuracy on sev-

eral benchmark datasets. Despite many kinds of im-

provement proposed for these two systems so far, they

still represent the current state of monocular Visual

SLAM and deserve a more systematic analysis. To

the best of our knowledge, there is still no systematic

analysis of ORB-SLAM2 and LDSO for a monocular

camera.

Throughout this article we are investigating their

robustness and accuracy in challenging environments

which we can fully control. Due to the fact that LDSO

only accepts monocular frames, our work is limited to

the case with a monocular camera.

2 RELATED WORK

In the past work, the experimental comparison was

usually based on the benchmark datasets such as

TUM-monoVO (Engel et al., 2016), TUM RGB-D

(Sturm et al., 2012), EuRoC MAV (Burri et al., 2016),

and KITTI (Geiger et al., 2013) as well as ICL-NUIM

(Handa et al., 2014).

Earlier research compared version one of ORB-

SLAM with other existing algorithms (Huletski et al.,

2015)(Li et al., 2016). In addition to the experimen-

tal comparison, a theoretical comparison of numer-

ous monocular VSLAMs was made in (Younes et al.,

2017).

This was extended by a quantitative comparison

of the former versions of both methods ORB-SLAM

with DSO in (Engel et al., 2018). Engel et al. ran

DSO and ORB-SLAM on the TUM-monoVO, the

EuRoC MAV and the synthetic ICL-NUIM dataset.

In the experiments with TUM-monoVO and ICL-

NUIM, DSO outperformed ORB-SLAM regarding

the trajectory accuracy and robustness. In the other

experiments, ORB-SLAM achieved a better accu-

racy but showed worse robustness. Besides, they

also studied the tracking accuracy on the TUM-

monoVO dataset with artiﬁcial geometric and photo-

metric noise. As expected, ORB-SLAM is more ro-

bust to the geometric noise and DSO is more robust

to the photometric noise.

(Yang et al., 2018) investigated special aspects of

ORB-SLAM and DSO including photometric calibra-

tion, motion bias and rolling shutter effect. DSO has

proven to be more sensitive to the photometric cali-

bration and the rolling shutter effect. Besides, both

methods showed a large performance bias when run-

ning forward and backward on a dataset.

The ﬁrst comparison of LDSO with ORB-SLAM2

was made by (Gao et al., 2018). In their work, LDSO

and ORB-SLAM2 have achieved comparable trajec-

tory accuracy on the KITTI dataset. While running

on the EuRoC MAV, ORB-SLAM2 showed better ac-

curacy and LDSO better robustness.

Finally, we would like to note, that this work is the

extension of our own open source evaluation pipeline.

A brief investigation of DSO using synthetic data was

performed by the authors in (Particke et al., 2018)

and the datasets in this work have been generated us-

ing the B-SLAM-SIM framework from (Kalisz et al.,

2019).

3 SYSTEM OVERVIEW OF

ORB-SLAM2 AND LDSO

This section theoretically compares ORB-SLAM2

and LDSO from the overall system overview to their

individual strategies in each module.

Generally, they consist of three parts: Firstly, the

tracking to predict the current camera pose and de-

cide if a new keyframe is necessary. Secondly, the

mapping to optimize several but not all keyframes and

map points, and eliminate some of them when nec-

essary. Thirdly, the loop closing to correct drift of

the camera pose by loop detection and pose graph op-

timization. Accurate trajectories and maps are only

possible after a careful initialization, which is intro-

duced speciﬁcally when discussed. Two special tech-

niques in ORB-SLAM2 are the relocalization, namely

recognizing a place where the camera was, and the

global bundle adjustment to optimize the whole tra-

jectory and map. The relocalization occurs after the

tracking is lost, while the global BA is only performed

if the initialization or loop closure is ﬁnished. The key

differences in their architecture and design ideas are

summarized brieﬂy in Table 1.

In contrast to ORB-SLAM2 computing the ge-

ometric error, LDSO takes the geometric error into

account only when closing loops, and calculates the

photometric error in its tracking and mapping parts.

Instead of directly computing the intensity difference,

LDSO attempts to compute the irradiance (the energy

falling onto a small patch of the imaging sensor) dif-

ference. In order to convert between a brightness in-

tensity and an irradiance value, LDSO expects a pho-

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

174

Table 1: Overview about the main differences in both SLAM systems.

Component ORB-SLAM2 LDSO

Point

Management

Image pyramid

Uniform Grid

FAST detector

ORB descriptor

Triangulation

Survival of the ﬁttest

Uniform Grid

Large gradients

Shi-Tomasi score

Inverse depth

Status label

KeyFrame

Management

Covisibility graph

Survival of the ﬁttest

Observation test

Sliding window

Optical ﬂow

Camera translation

Exposure time

Initialization Homography

Fundamental matrix

First frame is ﬁxed

Photometric error

Converged optimization

Tracking Indirect

Constant velocity

Relocalization (BoW)

Direct

83 motion hypotheses

Photometric error

Mapping Local bundle adjustment Sliding window bundle adjustment

tometric calibration of images, and builds a photomet-

ric model as explained in (Engel et al., 2016). The pa-

rameters of this model will also join in optimization

processes. The purpose of this photometric model is

to enhance the robustness of the system, because the

irradiance constancy, as compared to the brightness

constancy, more easily holds in the real world consid-

ering the automatic exposure changes and non-linear

response functions in modern off-the-shelf cameras.

If the images are not photometrically calibrated previ-

ously, predeﬁned parameters will be used. Generally,

ORB-SLAM2 can be considered as a fully feature-

based method, whereas LDSO is basically a direct

method.

As an indirect method, ORB-SLAM2 can handle

large baseline motions thanks to the feature matching.

Due to the implementations, ORB-SLAM2 can main-

tain a global consistency of the trajectory by relocal-

ization and loop closure, and speeds up the bundle ad-

justment and pose graph optimization by means of the

innovative covisibility graph and essential graph. Fur-

thermore, ORB-SLAM2 builds two geometric mod-

els, the homography and fundamental matrix, to en-

sure an accurate and robust initialization. Neverthe-

less, these two models still require a sufﬁcient par-

allax to reduce the uncertainty and some degenerate

cases are still not avoidable, e.g. degenerate homog-

raphy happens when one of the camera center lies in

the world plane. Also, this feature-based method-

ology demands an environment with prominent fea-

tures. Although LDSO also extracts features from

images, it can better cope with a texture-less environ-

ment due to an adaptive threshold for high-gradient

pixel detection. Because of the trait of the direct

approach, LDSO can achieve a sub-pixel accuracy.

However, the deﬁciency in the relocalization function

limits the global localization capability of LDSO in

spite of integrating the loop closure function. Despite

a coarse-to-ﬁne tracking, LDSO is still less efﬁcient

at handling large camera motions than ORB-SLAM2.

4 EXPERIMENTAL SETUP

This chapter describes the preparation for a system-

atic evaluation in order to make this process transpar-

ent to the reader.

For a systematic evaluation, datasets used should

cover as many cases as possible. Two difﬁculties

arise here, namely, how to keep control variables con-

stant and how to obtain the ground truth trajectory.

Many existing real-world datasets such as KITTI were

recorded in a dynamic environment and have trans-

lational and rotational motion, sometimes even mo-

tion blur, which makes a systematic evaluation in-

tractable. Other synthetic datasets such as ICL-NUIM

were recorded in static scenes, but they only cover

limited cases. Based on these limitations, we decided

to create new datasets to benchmark ORB-SLAM2

and LDSO using the open source software Blender

https://www.blender.org/

Systematic Comparison of ORB-SLAM2 and LDSO based on Varying Simulated Environmental Factors

175

Visual SLAM usually creates a world coordinate

system with the ﬁrst tracked frame as its origin, where

camera poses are expressed relative to it. However,

the ground truth trajectory is usually extracted from

a different coordinate system. In order to quantita-

tively compare the estimated path with the ground

truth, we ﬁrst align both trajectories with support for

the collinear case as discussed in (Barfoot, 2017).

After trajectory alignment, appropriate error met-

rics should be used to evaluate the difference between

the estimated trajectory and ground truth. Two fre-

quently applied metrics are the Absolute Trajectory

Error (ATE) and Relative Pose Error (RPE). Advan-

tages and disadvantages of ATE and RPE are already

discussed in (Kümmerle et al., 2009), (Sturm et al.,

2012), and (Zhang and Scaramuzza, 2018). The fol-

lowing evaluations use ATE as the error metric.

5 RESULTS AND EVALUATION

This chapter describes experiments and evaluation

with respect to different factors. The results of run-

ning ORB-SLAM2 and LDSO on an ideal synthetic

dataset is the reference for the investigation of dif-

ferent aspects including dynamic environments with

moving objects as well as the change of image bright-

ness. It is noteworthy that both SLAM systems run on

each dataset 100 times to mitigate the impact of ran-

domness, which arises from non-deterministic algo-

rithms such as RANSAC (Fischler and Bolles, 1981)

used to reject outliers in the pose prediction stage. Re-

sults are primarily represented in the form of cumu-

lative plots, where the x-axes depict the percentage

of tracked frames, root mean square translational er-

ror, and root mean square rotational error respectively,

while y-axes denote the number of runs, in which a

value, less than or equal to a certain x-value, was ob-

tained. Ultimately, all observations and indications

from the research are summarized.

5.1 Static Scene

We evaluate both algorithms on an environment called

Polygon World which is built from blob, corner and

edge features. It contains 81 polygons with no texture

but the same solid color. The environment is designed

to be static, which means there are no moving objects

and no illumination change. It is deliberately kept as

simple as possible, which however makes it only suit-

able to generate image sequences with camera move-

ments in a small area.

From Polygon World, a reference sequence of 250

frames was generated as illustrated in Figure 1. The

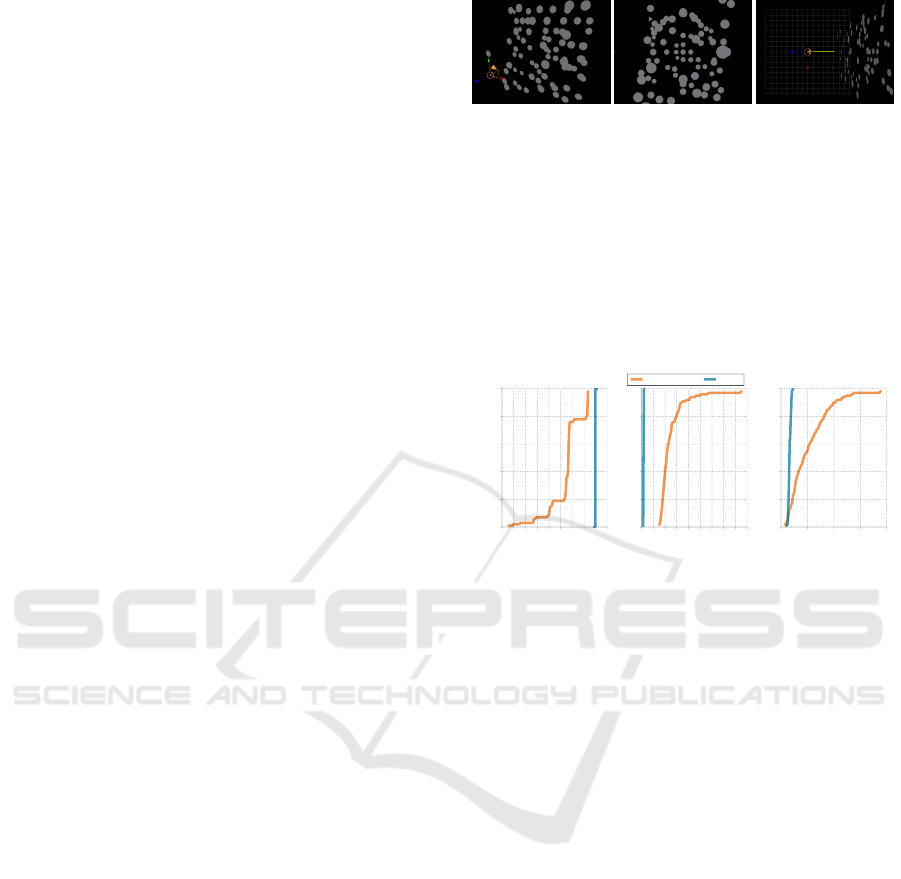

(a) Polygon World. (b) Camera view. (c) Top view.

Figure 1: An illustration of the reference sequence from the

synthetic world named Polygon World. It contains 81 dif-

ferent polygons ranging from 3 to 83 vertices. The camera

is highlighted in the various perspective views and the top

view shows a yellow line which represents the ground truth

trajectory in the evaluation.

camera moves straightforward with a constant veloc-

ity towards polygons and captures 20 frames per sec-

ond. In total, the camera moves a distance of 5 m.

55 60 65 70 75 80 85 90 95 100

tracked frames [%]

100

number of runs

0 10 20 30 40 50 60 70 80 90

ATE

trans

[mm]

100

number of runs

0.0 0.5 1.0 1.5 2.0

ATE

rot

[°]

100

number of runs

ORB-SLAM2 LDSO

Figure 2: Results on the reference dataset from Polygon

World. In the total 100 runs, ORB-SLAM2 failed once, in

which it did not initialize. Due to no detected loops, the

sliding-window-related trajectory of LDSO is evaluated.

Figure 2 demonstrates the results of 100 runs on

the reference dataset from Polygon World. It can be

observed that with this sequence, LDSO outperforms

ORB-SLAM2 regarding the root mean square transla-

tional and rotational error. In addition, LDSO shows

much less randomness as opposed to ORB-SLAM2.

The reason for these is the initialization. As dis-

cussed before, an accurate initialization is vital for the

subsequent tracking. To initialize, ORB-SLAM2 ap-

plies the RANSAC algorithm to select detected fea-

ture correspondences for the computation of a homog-

raphy or a fundamental matrix, while LDSO performs

a joint optimization, which is more deterministic.

In this sequence, although the camera views dif-

ferent polygons, it does not mean the detected corners

have distinct feature descriptors. Due to the inherent

descriptor computation algorithm and the resolution

of the images, numerous features are seen similar to

each other. As a result, ORB-SLAM2 cannot discard

incorrect correspondences between frames (see Fig-

ure 3). If the erroneous correspondences are picked

for the initialization, there can be two consequences:

On the one hand, ORB-SLAM2 is very likely to ob-

tain an invalid homography or fundamental matrix

and needs to iterate the picking process, causing a

slow initialization and further fewer tracked frames.

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

176

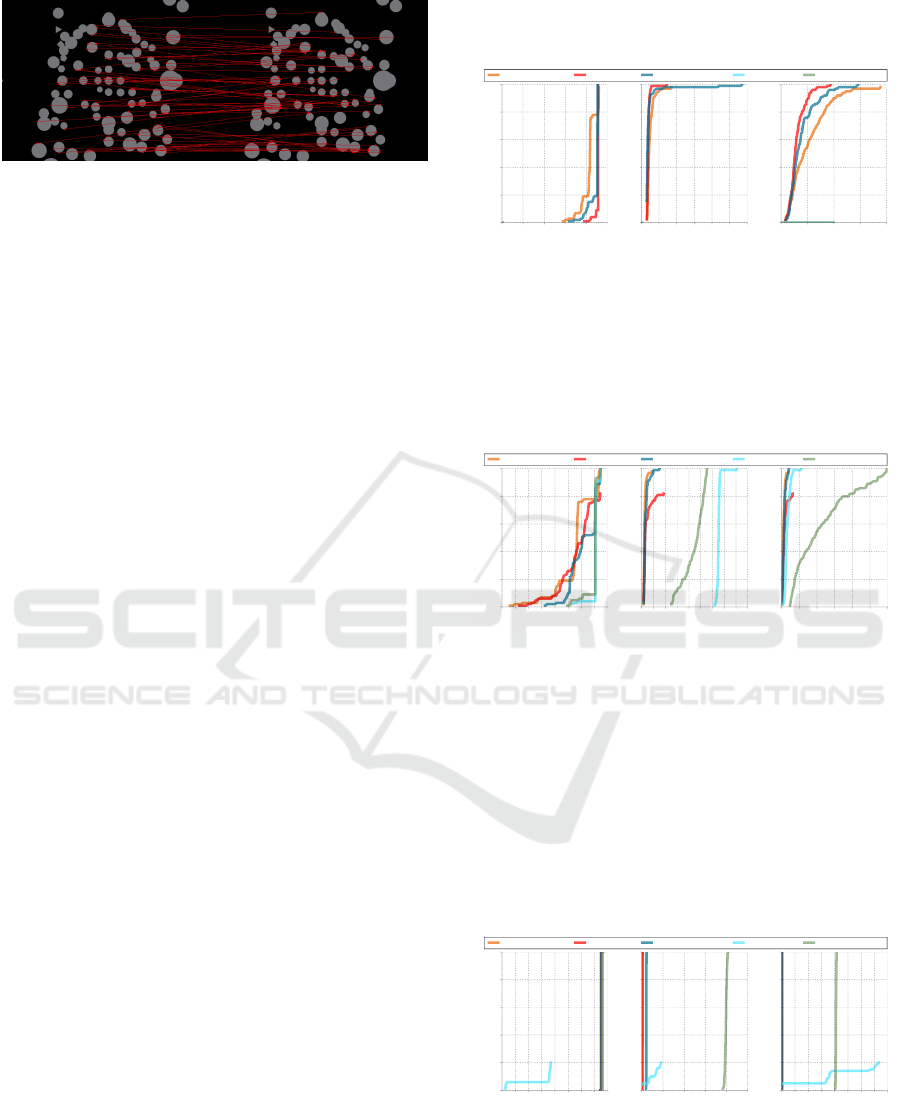

Figure 3: Erroneous correspondences detected by ORB-

SLAM2. The ﬁgure is the concatenation of frame 1 (left)

and 2 (right). A red dot is a detected feature and a red

line linking two features represents an incorrect match-

ing, which is empirically detected by checking if a feature

moves more than 10 pixels between two frames. The num-

ber of erroneous matches takes up 14 percent of the total

matches.

On the other hand, ORB-SLAM2 happens to initial-

ize, but the recovered relative pose is probably inac-

curate, leading to a larger error in the estimated tra-

jectory.

Additionally, ORB-SLAM2 suffers from pixel

discretization artifacts as mentioned in (Yang et al.,

2018). That is, features’ locations are represented by

integers. This kind of representation is inexact and

could severely affect the estimate’s accuracy.

Furthermore, the camera moves very slowly in

this sequence, causing only small parallax between

adjacent frames. However, ORB-SLAM2 expects a

noticeable change in perspective when initializing.

Hence, ORB-SLAM2 waits for more frames until a

large parallax and thus tracks fewer frames.

5.2 Dynamic Environment

An ideal environment for ORB-SLAM2 and LDSO

should be static, which means no moving objects and

no brightness change. However, the real world is al-

ways dynamic. For example, a landmark could move

during the tracking, and the light intensity in the en-

vironment could change gradually resulting in a vari-

ation of the ﬁnal image brightness.

5.2.1 Moving Object

There are many factors related to dynamic objects

which can be delved into. We primarily focus on three

of them, the number of moving objects and their mov-

ing directions as well as the time they start to move.

The number of moving objects in our experiments is

1 or 40. The objects move forward with the same ve-

locity as the camera, or they move in the direction

which is perpendicular to the camera’s moving direc-

tion. We investigate either all objects starting to move

from the ﬁrst frame or after 125 frames separately to

evalute the inﬂuence of the initialization process in

each SLAM system.

0 20 40 60 80 100

tracked frames [%]

100

number of runs

0 50 100 150 200 250 300

ATE

trans

[mm]

100

number of runs

0.0 0.5 1.0 1.5 2.0

ATE

rot

[°]

100

number of runs

Reference (static) 1 (forward) 1 (perpendicularly) 40 (forward) 40 (perpendicularly)

Figure 4: Results of ORB-SLAM2 where dynamic objects

all start to move from the ﬁrst frame.

Figure 4 depicts that ORB-SLAM2 cannot initial-

ize when there are 40 objects moving from the begin-

ning as the respective graph remains tiny. One mov-

ing object has only slight inﬂuence on the trajectory

accuracy.

55 60 65 70 75 80 85 90 95

tracked frames [%]

100

number of runs

0 100 200 300 400 500 600 700 800 900

ATE

trans

[mm]

100

number of runs

0 5 10 15 20 25 30

ATE

rot

[°]

100

number of runs

Reference (static) 1 (forward) 1 (perpendicularly) 40 (forward) 40 (perpendicularly)

Figure 5: Results of ORB-SLAM2 where the dynamic ob-

jects all start to move after 125 frames.

If objects start to move after the system is initial-

ized, ORB-SLAM2 can still track as depicted in Fig-

ure 5. However, the moving objects affect the trajec-

tory accuracy. Compared with a single moving object,

more moving objects lead to a less accurate trajectory.

Furthermore, if the objects move together perpendic-

ularly to the camera, the rotational error will increase

signiﬁcantly. Objects that are moving in the same di-

rection as the camera inﬂuence the translational error

of the camera.

20 30 40 50 60 70 80 90 100

tracked frames [%]

100

number of runs

0 50 100 150 200 250

ATE

trans

[mm]

100

number of runs

0 10 20 30 40 50 60 70 80

ATE

rot

[°]

100

number of runs

Reference (static) 1 (forward) 1 (perpendicularly) 40 (forward) 40 (perpendicularly)

Figure 6: Results of LDSO where the dynamic objects all

start to move from the ﬁrst frame.

Similar conclusions can also be drawn from the re-

sults of LDSO depicted in Figures 6 and 7. One differ-

ence from ORB-SLAM2 is that LDSO was also able

Systematic Comparison of ORB-SLAM2 and LDSO based on Varying Simulated Environmental Factors

177

94.2 94.4 94.6 94.8 95.0 95.2 95.4

tracked frames [%]

100

number of runs

0 100 200 300 400 500 600 700

ATE

trans

[mm]

100

number of runs

0 5 10 15 20 25 30

ATE

rot

[°]

100

number of runs

Reference (static) 1 (forward) 1 (perpendicularly) 40 (forward) 40 (perpendicularly)

Figure 7: Results of LDSO where the dynamic objects all

start to move after 125 frames.

to initialize when 40 objects started to move at the

beginning, but the estimation contains larger transla-

tional and rotational errors.

5.2.2 Illumination Change

Regarding the illumination change, two situations

should be considered, namely local and global vari-

ation. These variations in the real world lead to

pixel intensity changes in images. Therefore, new

sequences were generated directly by modifying the

pixel intensities in the reference dataset from Poly-

gon World. Like in the last section, the illumina-

tion change can also happen from the beginning or

after a successful initialization. Based on the pre-

vious results, we assume ORB-SLAM2 and LDSO

must have initialized in the ﬁrst 125 frames of the ref-

erence dataset.

(a) t = 1. (b) t = 2. (c) t = 3. (d) t = 4. (e) t = 5.

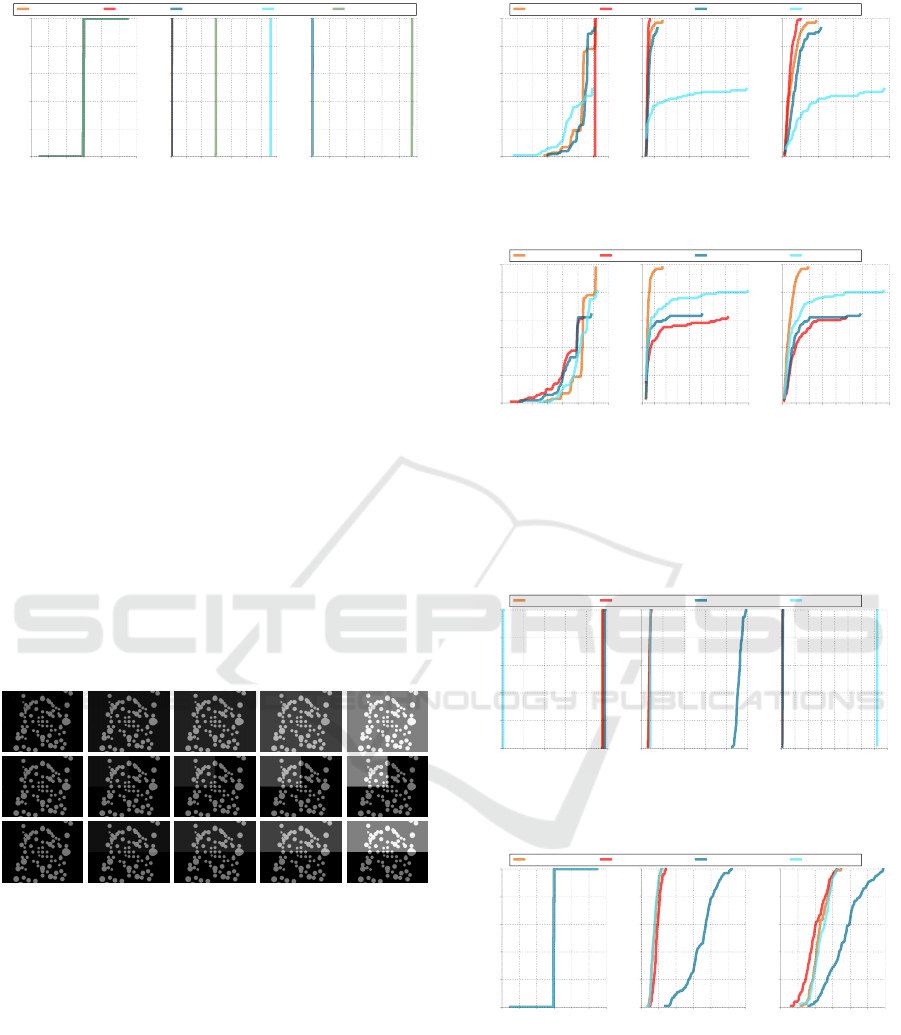

Figure 8: An illustration of global (top row), 1/4 local (mid-

dle row) and 1/2 local (bottom row) illumination variation.

To model a global variation, the pixel intensity

values in an image were added with 0, 16, 32, 64,

128 periodically across the whole image, whereas for

a local variation only a quater or half of the image was

altered as demonstrated in each row of Figure 8. The

results of ORB-SLAM2 are demonstrated in Figures

9 and 10. For comparison, LDSO is summarized in

Figures 11 and 12.

As can be seen in Figure 9, ORB-SLAM2’s ini-

tialization and trajectory accuracy are not highly af-

fected by the local illumination change starting from

the beginning, but a global variation could lead to an

30 40 50 60 70 80 90 100

tracked frames [%]

100

number of runs

0 50 100 150 200 250 300 350 400 450

ATE

trans

[mm]

100

number of runs

0 1 2 3 4 5 6

ATE

rot

[°]

100

number of runs

Reference (static) Local variation (1/4) Local variation (1/2) Global variation

Figure 9: Results of ORB-SLAM2 when the illumination

starts to change from the beginning.

30 40 50 60 70 80 90 100

tracked frames [%]

100

number of runs

0 50 100 150 200 250 300 350 400 450

ATE

trans

[mm]

100

number of runs

0 1 2 3 4 5 6 7 8

ATE

rot

[°]

100

number of runs

Reference (static) Local variation (1/4) Local variation (1/2) Global variation

Figure 10: Results of ORB-SLAM2 when the illumination

starts to change after 125 frames.

estimated trajectory with a large error. If the intensity

starts to vary after 125 frames, ORB-SLAM2 is more

likely to estimate an inaccurate trajectory.

0 20 40 60 80 100

tracked frames [%]

100

number of runs

0 5 10 15 20 25

ATE

trans

[mm]

100

number of runs

0 5 10 15 20 25 30 35 40

ATE

rot

[°]

100

number of runs

Reference (static) Local variation (1/4) Local variation (1/2) Global variation

Figure 11: Results of LDSO when the illumination starts to

change from the beginning.

94.2 94.4 94.6 94.8 95.0 95.2 95.4

tracked frames [%]

100

number of runs

1 2 3 4 5 6 7

ATE

trans

[mm]

100

number of runs

0.05 0.10 0.15 0.20 0.25 0.30 0.35

ATE

rot

[°]

100

number of runs

Reference (static) Local variation (1/4) Local variation (1/2) Global variation

Figure 12: Results of LDSO when the illumination starts to

change after 125 frames.

Compared to ORB-SLAM2, LDSO is more sen-

sitive to illumination change. It failed very soon af-

ter the initialization in all runs on the sequence with

global variation starting from the beginning. Addi-

tionally, a local variation in the half of images in-

creases the position error considerably.

One unanticipated ﬁnding was that if the local

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

178

(a) Frame 107. (b) Frame 133.

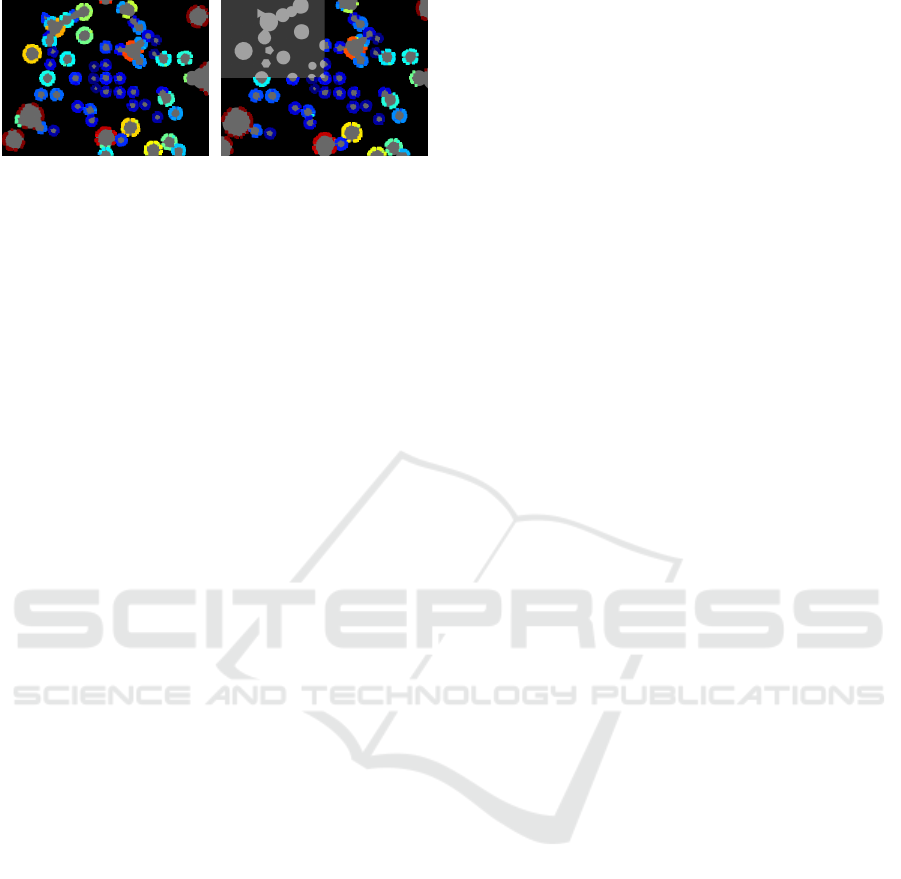

Figure 13: Examples of depth maps estimated by LDSO.

These are color-coded (near: dark red, far: dark blue) depth

maps on two keyframes, which are used for the pose pre-

diction of next frames. It can be seen that those features

whose intensity values have changed greatly were discarded

by LDSO.

variation happens only in one quarter of an image,

LDSO is barely affected, which indicates LDSO still

has resistance to the brightness change to some extent.

A reason for this resistance is that LDSO can identify

the pixels with strong variation as outliers and neglect

them while tracking (see Figure 13).

6 CONCLUSIONS

Generally, a distinct feature is crucial in both systems.

Although ORB, which is utilized in ORB-SLAM2,

may outperform other existing features (Tareen and

Saleem, 2018), it was not as robust as expected in the

experiments. There were always inevitable erroneous

correspondences of features. Besides, the features’

locations are not exact due to discretization artifact.

These are important reasons for ORB-SLAM2’s ran-

domness and less accurate estimate. An improvement

in the future could be developing a more robust fea-

ture with sub-pixel accuracy. Another suggestion is

that a smoothing method should be performed as the

ﬁrst step when a new frame arrives, but with the cau-

tion that the details in the image should be retained.

In the experiments about dynamic environments,

we have found out:

1. It is quite challenging for ORB-SLAM2 and

LDSO to initialize in a dynamic environment. How-

ever, if the dynamic change happens after the initial-

ization, its inﬂuence will become much smaller.

2. If the change is not apparent enough (few mov-

ing objects or a small area with illumination change),

ORB-SLAM2 and LDSO are able to identify outliers

and neglect them during the estimation.

Regarding the initialization, the techniques used

are not perfect. There are two questions which need to

be answered. The ﬁrst question is which frame should

be used for the initialization. In ORB-SLAM2, two

frames are chosen according to the number of features

and correspondences. In LDSO, after the ﬁrst frame is

ﬁxed as the reference, the next frame will be directly

used for the image alignment. The second question

is how to initialize the system, namely, how to esti-

mate the relative pose and the landmarks’ positions.

ORB-SLAM2 makes use of the geometry information

to compute the relative pose and then triangulation. In

contrast, LDSO optimizes them together by providing

initial guesses, expecting a convergence of the values

in the photometric cost function. Despite the fact that

LDSO has initialized in more runs in the experiments,

the frames for the initialization should still be selected

based on certain criteria to mitigate the dependency

of the ﬁrst frame, and the model should be general for

all kinds of situations. An improvement may be using

more views as introduced in (Hartley and Zisserman,

2003).

In future work we aim to investigate the differ-

ences between both SLAM systems by comparing

their motion models and loop closure capabilities.

ACKNOWLEDGEMENTS

This work was supported by Siemens Mobility

GmbH, Erlangen, Germany.

REFERENCES

Barfoot, T. D. (2017). State Estimation for Robotics. Cam-

bridge University Press.

Burri, M., Nikolic, J., Gohl, P., Schneider, T., Rehder, J.,

Omari, S., Achtelik, M. W., and Siegwart, R. (2016).

The euroc micro aerial vehicle datasets. The Inter-

national Journal of Robotics Research, 35(10):1157–

1163.

Cadena, C., Carlone, L., Carrillo, H., Latif, Y., Scaramuzza,

D., Neira, J., Reid, I., and Leonard, J. J. (2016). Past,

present, and future of simultaneous localization and

mapping: Toward the robust-perception age. IEEE

Transactions on robotics, 32(6):1309–1332.

Engel, J., Koltun, V., and Cremers, D. (2018). Direct sparse

odometry. IEEE transactions on pattern analysis and

machine intelligence, 40(3):611–625.

Engel, J., Usenko, V., and Cremers, D. (2016). A photo-

metrically calibrated benchmark for monocular visual

odometry. arXiv preprint arXiv:1607.02555.

Fischler, M. A. and Bolles, R. C. (1981). Random sample

consensus: a paradigm for model ﬁtting with appli-

cations to image analysis and automated cartography.

Communications of the ACM, 24(6):381–395.

Gao, X., Wang, R., Demmel, N., and Cremers, D. (2018).

Ldso: Direct sparse odometry with loop closure. In

2018 IEEE/RSJ International Conference on Intelli-

gent Robots and Systems (IROS), pages 2198–2204.

IEEE.

Systematic Comparison of ORB-SLAM2 and LDSO based on Varying Simulated Environmental Factors

179

Geiger, A., Lenz, P., Stiller, C., and Urtasun, R. (2013).

Vision meets robotics: The kitti dataset. The Inter-

national Journal of Robotics Research, 32(11):1231–

1237.

Handa, A., Whelan, T., McDonald, J., and Davison, A. J.

(2014). A benchmark for rgb-d visual odometry, 3d

reconstruction and slam. In 2014 IEEE international

conference on Robotics and automation (ICRA), pages

1524–1531. IEEE.

Hartley, R. and Zisserman, A. (2003). Multiple view geom-

etry in computer vision. Cambridge university press.

Huang, S. and Dissanayake, G. (2016). A critique of current

developments in simultaneous localization and map-

ping. International Journal of Advanced Robotic Sys-

tems, 13(5):1729881416669482.

Huletski, A., Kartashov, D., and Krinkin, K. (2015). Eval-

uation of the modern visual slam methods. In 2015

Artiﬁcial Intelligence and Natural Language and In-

formation Extraction, Social Media and Web Search

FRUCT Conference (AINL-ISMW FRUCT), pages 19–

25. IEEE.

Kalisz, A., Particke, F., Penk, D., Hiller, M., and Thielecke,

J. (2019). B-slam-sim: A novel approach to evaluate

the fusion of visual slam and gps by example of direct

sparse odometry and blender. In VISIGRAPP.

Kümmerle, R., Steder, B., Dornhege, C., Ruhnke, M.,

Grisetti, G., Stachniss, C., and Kleiner, A. (2009).

On measuring the accuracy of slam algorithms. Au-

tonomous Robots, 27(4):387.

Li, A. Q., Coskun, A., Doherty, S. M., Ghasemlou, S., Jag-

tap, A. S., Modasshir, M., Rahman, S., Singh, A.,

Xanthidis, M., O’Kane, J. M., et al. (2016). Exper-

imental comparison of open source vision-based state

estimation algorithms. In International Symposium on

Experimental Robotics, pages 775–786. Springer.

Mur-Artal, R., Montiel, J. M. M., and Tardos, J. D. (2015).

Orb-slam: a versatile and accurate monocular slam

system. IEEE transactions on robotics, 31(5):1147–

1163.

Mur-Artal, R. and Tardós, J. D. (2017). Orb-slam2:

An open-source slam system for monocular, stereo,

and rgb-d cameras. IEEE Transactions on Robotics,

33(5):1255–1262.

Particke, F., Kalisz, A., Hofmann, C., Hiller, M., Bey, H.,

and Thielecke, J. (2018). Systematic analysis of di-

rect sparse odometry. In 2018 Digital Image Com-

puting: Techniques and Applications (DICTA), pages

1–6. IEEE.

Schleicher, D., Bergasa, L. M., Ocana, M., Barea, R., and

Lopez, M. E. (2009). Real-time hierarchical outdoor

slam based on stereovision and gps fusion. IEEE

Transactions on Intelligent Transportation Systems,

10(3):440–452.

Shi, Y., Ji, S., Shi, Z., Duan, Y., and Shibasaki, R. (2013).

Gps-supported visual slam with a rigorous sensor

model for a panoramic camera in outdoor environ-

ments. Sensors, 13(1):119–136.

Sturm, J., Engelhard, N., Endres, F., Burgard, W., and Cre-

mers, D. (2012). A benchmark for the evaluation of

rgb-d slam systems. In 2012 IEEE/RSJ International

Conference on Intelligent Robots and Systems, pages

573–580. IEEE.

Taketomi, T., Uchiyama, H., and Ikeda, S. (2017). Visual

slam algorithms: A survey from 2010 to 2016. IPSJ

Transactions on Computer Vision and Applications,

9(1):16.

Tareen, S. A. K. and Saleem, Z. (2018). A comparative anal-

ysis of sift, surf, kaze, akaze, orb, and brisk. In 2018

International Conference on Computing, Mathemat-

ics and Engineering Technologies (iCoMET), pages

1–10. IEEE.

Yang, N., Wang, R., Gao, X., and Cremers, D. (2018).

Challenges in monocular visual odometry: Photomet-

ric calibration, motion bias, and rolling shutter effect.

IEEE Robotics and Automation Letters, 3(4):2878–

2885.

Younes, G., Asmar, D., Shammas, E., and Zelek, J. (2017).

Keyframe-based monocular slam: design, survey, and

future directions. Robotics and Autonomous Systems,

98:67–88.

Zhang, Z. and Scaramuzza, D. (2018). A tutorial on quanti-

tative trajectory evaluation for visual (-inertial) odom-

etry. In 2018 IEEE/RSJ International Conference on

Intelligent Robots and Systems (IROS), pages 7244–

7251. IEEE.

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

180
