Resources and End-to-End Neural Network Models for Arabic Image

Captioning

Obeida ElJundi

, Mohamad Dhaybi

, Kotaiba Mokadam

, Hazem Hajj

and Daniel Asmar

American University of Beirut, Electrical and Computer Engineering Department, Lebanon

American University of Beirut, Civil and Environmental Engineering Department, Lebanon

American University of Beirut, Mechanical Engineering Department, Lebanon

Keywords:

Deep Learning, Computer Vision, Natural Language Processing, Image Captioning, Arabic.

Abstract:

Image Captioning (IC) is the process of automatically augmenting an image with semantically-laden descrip-

tive text. While English IC has made remarkable strides forward in the past decade, very little work exists on

IC for other languages. One possible solution to this problem is to boostrap off of existing English IC systems

for image understanding, and then translate the outcome to the required language. Unfortunately, as this paper

will show, translated IC is lacking due to the error accumulation of the two tasks; IC and translation. In this

paper, we address the problem of image captioning in Arabic. We propose an end-to-end model that directly

transcribes images into Arabic text. Due to the lack of Arabic resources, we develop an annotated dataset for

Arabic image captioning (AIC). We also develop a base model for AIC that relies on text translation from En-

glish image captions. The two models are evaluated with the new dataset, and the results show the superiority

of our end-to-end model.

1 INTRODUCTION

The internet and social media have facilitated the way

we communicate and visualize the world. Since the

internet appeared, the online visual data generated by

users has been growing exponentially. For instance,

each day, around 300 million photos are uploaded to

Facebook (Inc., 2018). Although understanding the

content of image appears to be a simple task, even

for children, yet it is quite challenging for comput-

ers. Image captioning refers to the ability of automat-

ically generating a syntactically plausible and seman-

tically meaningful sentence that describes the content

of an image. Enabling machines to describe the vi-

sual world would result in many advantages, such as

improved information retrieval, early childhood edu-

cation, an aid for visually impaired persons, for social

media, and so on (Bai and An, 2018).

Image captioning requires extracting meaningful

information about the content of the image and ex-

presses the extracted information in a human-readable

sentence. As a result, image captioning models need

to achieve several objectives including object detec-

tion, extraction of relationships among objects, in-

ference of the pragmatic information within the im-

age, transcribing the information into coherent tex-

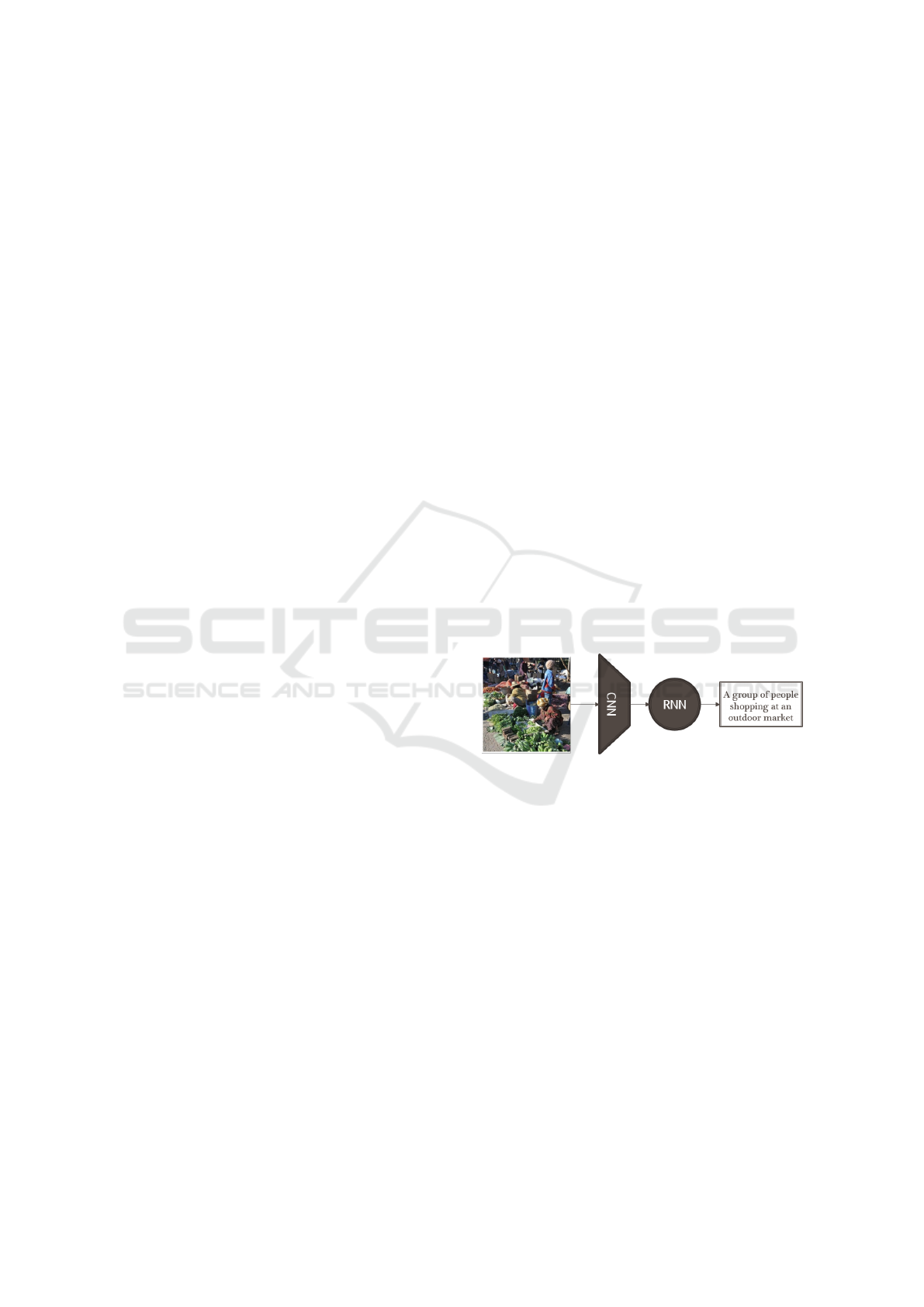

Figure 1: Sequence-to-Sequence image captioning model

(encoder: CNN, decoder: RNN).

tual forms with correct syntactical and semantic struc-

tures.

Despite these signiﬁcant challenges with image

captioning, tremendous achievements have been ac-

complished recently with deep neural networks. In-

spired by recent advances in neural machine transla-

tion (Cho et al., 2014) (Kalchbrenner and Blunsom,

2013) (Sutskever et al., 2014), the encoder-decoder

approach has been adopted in several proposed image

captioning methods (Vinyals et al., 2015) (Jia et al.,

2015) (Donahue et al., 2015). The intuition is that im-

age captioning can be thought of as translation from

a set of image pixels to a natural sentence. In ma-

chine translation, typically, both the encoder and the

decoder include Recurrent Neural Networks (RNN),

or one of its variations (e.g., LSTM or GRU). As il-

lustrated in Fig. 1, instead of RNN, the encoder in

image captioning is a Convolution Neural Network

ElJundi, O., Dhaybi, M., Mokadam, K., Hajj, H. and Asmar, D.

Resources and End-to-End Neural Network Models for Arabic Image Captioning.

DOI: 10.5220/0008881202330241

In Proceedings of the 15th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 5: VISAPP, pages

233-241

ISBN: 978-989-758-402-2; ISSN: 2184-4321

233

(CNN) (LeCun et al., 1998), which is considered the

ideal solution when dealing with unstructured, spatial

data such as images. Modern deep learning models

attempt to apply the visual attention mechanism of

humans inspired by cognitive psychology (Rensink,

2000) (Spratling and Johnson, 2004) to look at the

most important part of the image (Xu et al., 2015)

(You et al., 2016) (Yang et al., 2016).

In addition to the image captioning challenges

mentioned above, the models for text transcription of

image content needs to comprehend the semantics of

the target language in the text. As a result, while there

has been signiﬁcant advances in models for image

captioning for English, those models can not be ap-

plied directly to other languages such as Arabic. As a

consequence, the progress in Arabic Image Caption-

ing (AIC) is still lagging. Consideration for the Ara-

bic language is important since it is spoken by more

than 422 million people in the Arab world, and it is

the native language in 22 countries. Arabic is also

ranked the fourth mostly used language on the web.

Moreover, during the last ﬁve years, it is the fastest

growing language with a growth rate of 6091.9% in

the number of Internet users (Boudad et al., 2017).

In this work, we address the challenge of image

captioning in Arabic including the lack of Arabic re-

sources. We develop a new AIC dataset and pro-

pose two separate models for the evaluation of AIC.

The ﬁrst model uses English image captioning mod-

els then translates the English text to Arabic. The

second model is an end-to-end model that directly

transcribes Arabic text from images. The models are

compared using our AIC dataset, and the results show

the superiority of our end-to-end AIC model. The

dataset and code are made publicly available: https:

//github.com/aub-mind/Arabic-Image-Captioning.

The rest of the paper is organized as follows. Sec-

tion 2 summarizes the literature of English and Arabic

image captioning. We describe our dataset and end-

to-end system in section 3. Our experiments and re-

sults are demonstrated in section 4. Finally, section 5

concludes the paper.

2 RELATED WORK

In this section, we review the recent progress on both

English and Arabic image captioning.

2.1 Deep Learning for English Image

Captioning

Unlike traditional approaches, recent deep learning

models tackle the task as an end-to-end problem,

where parameters for both image understanding and

language generation are learned jointly.

Neural Machine Translation (NMT) has achieved

signiﬁcant progress recently, thanks to the Sequence-

to-Sequence encoder-decoder framework (Cho et al.,

2014) (Kalchbrenner and Blunsom, 2013) (Sutskever

et al., 2014). Inspired by that, image captioning can

be formulated as a translation task, where an image

is translated into natural language. Several meth-

ods adopted the encoder-decoder framework for im-

age captioning (Vinyals et al., 2015) (Jia et al., 2015)

(Donahue et al., 2015). Google’s Neural Image Cap-

tioning (NIC) (Vinyals et al., 2015) model, “show and

Tell”, is based on a CNN encoder and an RNN de-

coder. The CNN extracts relevant features form an

image and encodes them into a vector; on the other

hand, the RNN aims to decode the encoded vector

into a sentence. Jia et al. (Jia et al., 2015) proposed

Guided LSTM (gLSTM) to help the decoder not drift

away or lose track of the original image content.

The encoder-decoder approach lacks interpretabil-

ity since the language model (e.g., LSTM) is fed with

an encoded representation of the entire scene, and

does not account for the spatial aspects of the im-

age that is relevant to the parts of the image cap-

tions. Inspired by the human cognitive visual system

(Rensink, 2000) (Spratling and Johnson, 2004), the

attention mechanism was adopted to focus on salient

regions of the image while generating words (Xu

et al., 2015) (Wu and Cohen, 2016) (Jin et al., 2015)

(Pedersoli et al., 2016) (Lu et al., 2017) (Liu et al.,

2017) (Chen et al., 2017) (Tavakoliy et al., 2017) (An-

derson et al., 2017) (Chunseong Park et al., 2017)

(Sugano and Bulling, 2016). Xu et al. (Xu et al.,

2015) was the ﬁrst to adopt attention by proposing a

model called Show, Attend and Tell based on the sem-

inal Google NIC model, Show and Tell (Vinyals et al.,

2015). Lu et al. (Lu et al., 2017) proposed adaptive

attention to help the decoder predict when to attend

to the image (and if so, to which regions). The adap-

tive attention mechanism improved the overall perfor-

mance by allowing the decoder to ignore looking at

the image while generating non-visual words such as

‘of’, ‘the’, and ‘a’.

One description might not be enough to com-

pletely describe the entire visual scene. Dense cap-

tioning models generate several captions to describe

many regions of an image (Johnson et al., 2016)

(Yang et al., 2017). (Johnson et al., 2016) proposed

DenseCap, which can localize salient regions inside

an image using a CNN, and generate descriptions for

those regions. More advanced challenges, such as the

target region overlapping, were addressed by (Yang

et al., 2017).

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

234

Table 1: Previous work results on 3 benchmark datasets. B1:BLEU 1, B2:BLEU 2, B3:BLEU 3, B4:BLEU 4, M:METEOR.

Encoder-Decoder With Attention

Google NIC gLSTM Attend and Tell Adaptive

(Vinyals et al., 2015) (Jia et al., 2015) (Xu et al., 2015) (Lu et al., 2017)

Flickr8k

B1 63 64.7 67 -

B2 41 45.9 45.7 -

B3 27 31.8 31.4 -

B4 - 21.6 21.3 -

M - 20.6 20.3 -

Flickr30k

B1 66.3 64.6 66.9 67.7

B2 42.3 44.6 43.9 49.4

B3 27.7 30.5 29.6 35.4

B4 18.3 20.6 19.9 25.1

M - 18.6 18.5 20.4

MS COCO

B1 66.6 67 71.8 74.2

B2 46.1 49.1 50.4 58

B3 32.9 35.8 35.7 43.9

B4 24.6 26.4 25 33.2

M - 23.3 23.9 26.6

Compositional approaches were proposed where,

in contrast to the end-to-end framework, indepen-

dent building blocks are combined to generate cap-

tions (Fang et al., 2015) (Tran et al., 2016) (Fu et al.,

2017) (Ma and Han, 2016) (Oruganti et al., 2016)

(Wang et al., 2016). The ﬁrst block extracts seman-

tic visual concepts (e.g., attributes) using a CNN, and

the second block utilizes extracted concepts to gen-

erate captions using a language model (e.g., LSTM).

Generated captioned are re-ranked based on similarity

methods.

Generative adversarial networks (GAN) are re-

cent architectures, well-known by their ability to learn

deep features from unlabeled data (Goodfellow et al.,

2014). Dai et al. (Dai et al., 2017) and Shetty el al.

(Shetty et al., 2017) utilized Conditional Generative

Adversarial Networks (CGAN) to improve the nat-

uralness and diversity of the generated captions and

achieved remarkable results.

In Reinforcement Learning (RL), instead of learn-

ing from labeled data, agents learn by receiving re-

wards based on actions they perform. Ren et al. (Ren

et al., 2017) proposed a novel RL based image cap-

tioning that consists of two networks: the policy net-

work predicts the next word based on the current state,

and the value network guides the policy network by

evaluating its reward. Rennie et al. (Rennie et al.,

2017) developed a new optimization approach named

self-critical sequence training (SCST) and achieved

good results.

Table 1 illustrates some of the previous work and

their results in terms of BLEU and METEOR on three

benchmark datasets: Flickr8k (Hodosh et al., 2013),

Flickr30k (Young et al., 2014), and MS COCO (Chen

et al., 2015).

2.2 Deep Learning for Arabic Image

Captioning

Mualla and Alkheir (Mualla and Alkheir, ) built an

Arabic Description Model (ADM) that generates a

full image description in Arabic by taking as input

image features obtained from a CNN, and a JSON ﬁle

containing image descriptions in English. The En-

glish JSON description ﬁle is translated to Arabic, and

fed to an LSTM network along with the feature vec-

tor generated by the CNN. Authors reported that it is

a bad idea to just translate the recognized captions in

English to Arabic because the poor structure of the

resulting Arabic sentences.

Jindal (Jindal, 2018) leveraged the heavy inﬂu-

ence of root words in Arabic to generate root words

from images instead of from captions. Using a CNN,

root words instead of actual sentence are extracted

from images; the roots are then translated to morpho-

logical inﬂections, and ﬁnally, a dependency tree is

used to verify the ordering of words in sentences. The

results show that generating Arabic captions directly

in one stage, produced superior results to a two stage

English caption→Arabic translation process.

Using Crowd-Flower Crowdsourcing

(https://www.ﬁgure eight.com/, ), Al-Muzaini et

al. (Al-Muzaini et al., 2018) built an Arabic dataset

based on two English benchmark datasets, Flickr8k

(Hodosh et al., 2013) and MS COCO (Chen et al.,

2015). Moreover, a merge model was developed

Resources and End-to-End Neural Network Models for Arabic Image Captioning

235

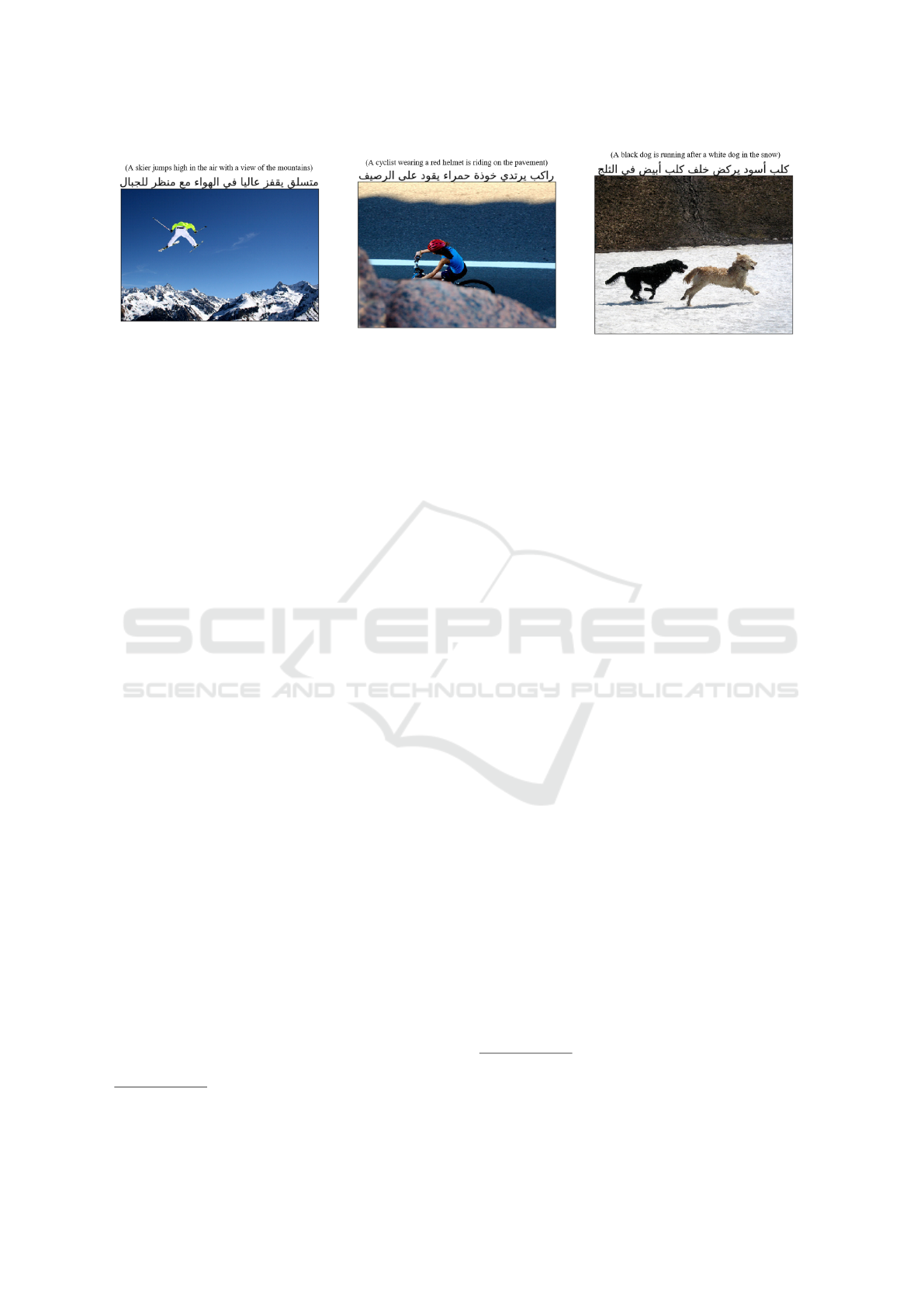

Figure 2: Sample from our translated dataset.

based on LSTM and CNN to achieve excellent

results.

The contributions of this paper include the follow-

ing:

• First, although previous Arabic captioning

datasets do exist, to the best of our knowledge,

none of them is public. In this paper, we provide

public access to the ﬁrst large Arabic captioning

dataset.

• Second, most previous work on AIC used small

datasets for training, which risk over-ﬁtting. For

example, Al-Muzaini et al. (Al-Muzaini et al.,

2018) trained their network on only 2400 samples.

We are proposing training on a considerably larger

dataset, consisting of 8092 images, each having 3

captions.

• Third, the merge model is the most common deep

learning model in AIC literature. To the best of

our knowledge, we are the ﬁrst to propose ap-

proaching AIC using the sequence-to-sequence

encoder-decoder framework.

3 METHODOLOGY

In this section, we ﬁrst describe the Arabic cap-

tioning dataset we are releasing. Next, we review

the sequence-to-sequence encoder-decoder frame-

work for Neural Machine Translation (NMT). Finally,

inspired by NMT, we describe our proposed Arabic

image captioning model.

3.1 Proposed Arabic Captioned Dataset

The proposed Arabic captioning dataset is built by

translating the Flickr8K (Hodosh et al., 2013) dataset,

containing 8000 images, each captioned ﬁve times by

https://github.com/aub-mind/

Arabic-Image-Captioning

humans. Images are extracted from ﬂickr

and mainly

contain humans and animals. Translation to Arabic is

performed in two steps: ﬁrst, all English captions are

translated using the Google Translate API

; the pro-

cess is automated using a python client of the API

During a second stage, all translated captions are

edited and validated by a professional Arabic trans-

lator. This is necessary because of the many contex-

tual errors Google Translate performs. Fig. 2 shows

examples of some of the Arabic captioned images.

Translation from or to Arabic has not yet achieved

desired results and still suffers from Arabic speciﬁc

issues. For example, few translated captions contain

a word that was translated literally and out of context,

which makes the entire Arabic sentence incoherent.

Therefore, translated captions were then veriﬁed by

choosing the best three translated captions out of ﬁve,

and modifying some captions if needed.

3.2 End-to-End Model for Arabic

Image Captioning

The Recurrent Neural Network (RNN) (Elman, 1990)

is specialized for sequence data, such as time se-

ries and text. RNNs process a sequence of in-

puts (x

, ..., x

) and produce a sequence of outputs

, ..., y

) by iterating the following equation:

= f (W

t−1

+ b

)

= f (W

+ b

where x

is the current input vector, h

is the current

hidden state vector, y

is the current output vector, f

is a non-linear activation function such as sigmoid σ,

and W , U, and b are parameters to be learnt.

RNNs suffers from two main issues: ﬁrst, RNN

input and output sequences are expected to have the

https://www.ﬂickr.com/

https://cloud.google.com/translate

https://googleapis.github.io/google-cloud-python/

latest/translate

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

236

(a)

(b)

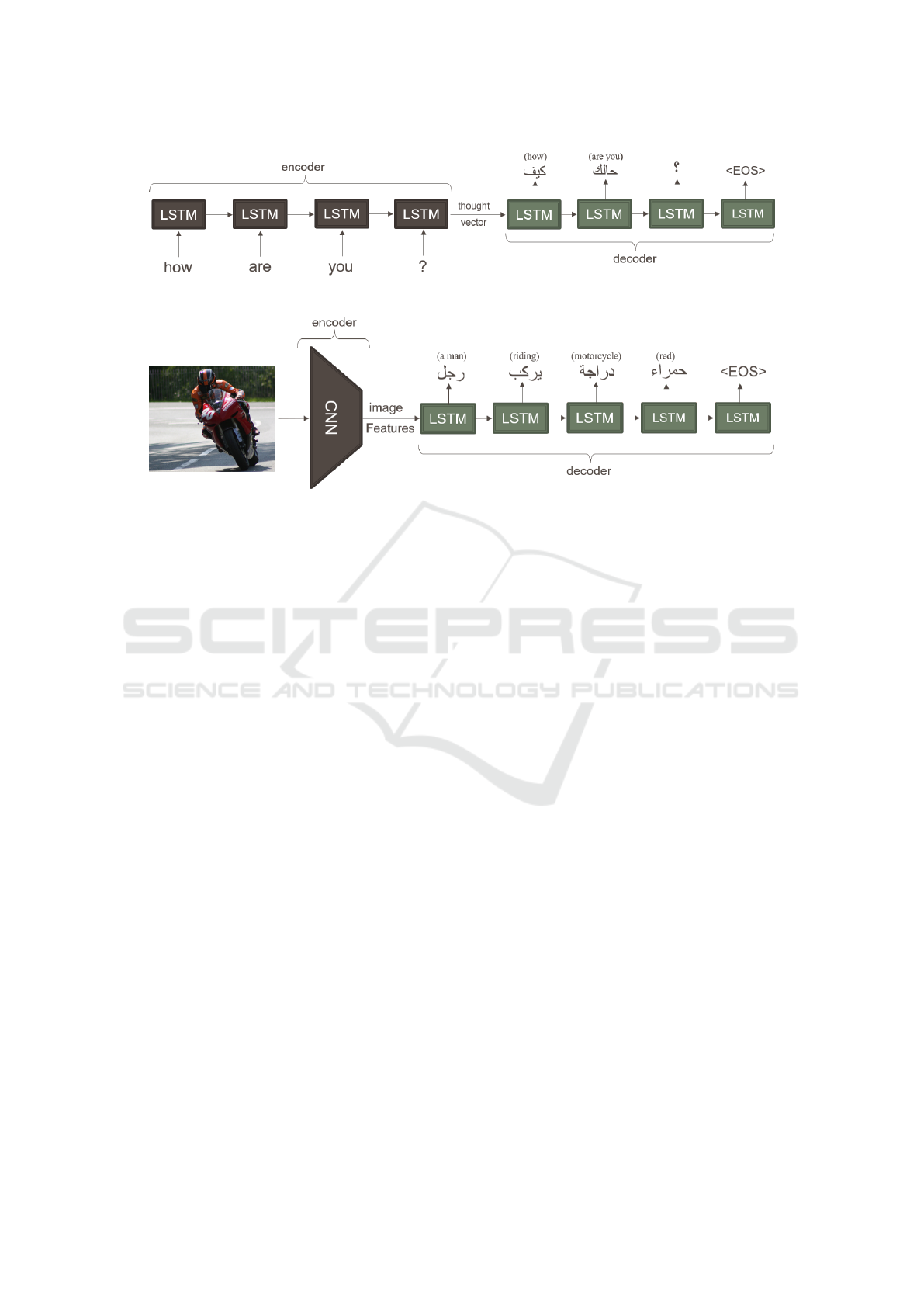

Figure 3: Sequence-to-Sequence Encoder-Decoder framework for NMT (a) and for for Arabic Image Captioning (b).

same length, which is not the case in natural lan-

guage translation, where the word count for the source

and destination languages may differ. A simple strat-

egy around this issue is to encode the input se-

quence into a ﬁxed-sized vector (usually referred to

as thought vector) using one RNN, and then to de-

code the vector to the target sequence with another

RNN, as shown in Figure 3. Thus, the decoder RNN

can keep generating outputs until it ends with a spe-

cial end-of-sentence symbol “<EOS>”. This well-

known framework is called a Sequence-to-Sequence

Encoder-Decoder framework.

Second, in a standard RNN the gradient tends

to vanish during training due to its inability to han-

dle long-term dependencies (Bengio et al., 1994)

(Hochreiter et al., 2001). To mitigate this issue,

standard RNN cells are replaced by Long Short-

Term Memory (LSTM) (Hochreiter and Schmidhu-

ber, 1997) cells because of their superiority in learn-

ing long-range temporal dependencies. The afore-

mentioned Sequence-to-Sequence Encoder-Decoder

framework can be utilized for image captioning by en-

coding the input image into a feature vector, and then

decoding that feature vector into an Arabic sentence.

The only difference between an NMT and the image

captioning framework is that a CNN is used for input

encoding instead of an RNN, as illustrated in Figure

Given any input image and its corresponding Ara-

bic caption, the Arabic image captioning encoder-

decoder model maximizes the following loss func-

tion: argmax

∑

(I,y)

log p(y|I;θ), where I is the in-

put image, θ are parameters to be learned, and y =

, ..., y

is the corresponding Arabic caption.

During Arabic captioning, each image is fed to

a CNN to generate its visual representation (or im-

age features), represented as x

−1

= CNN(I), which is

the ﬁrst input of the upcoming LSTM. Subsequent in-

puts at different time stamps are now represented by

word embeddings, which are vectors of numbers that

reﬂect semantics; words with similar meaning have

close embeddings. The embedding for each word is

calculated as x

= W

f or t = 0, ..., N, where W

is a 300X|V | word embedding matrix, meaning each

word will be represented by a vector of length 300.

|V | denotes the vocabulary length, which is the num-

ber of unique words in our dataset. S

is a |V |X1 one

hot vector representing word i. Each hidden state of

the LSTM emits a prediction for the next word in the

sentence, denoted by p

t+1

LST M(x

Transfer Learning. Instead of initializing our de-

coder CNN weights randomly and train from scratch,

we will use the weights of a pre-trained CNN. This

is known as transfer learning, which refers to the

situation where what has been learned in one set-

ting (task) is exploited to learn another setting (task).

Transfer learning is used a lot in the literature to im-

prove model generalization and speed up training. For

our CNN, we use VGG16 (Simonyan and Zisserman,

2014), one of the state-of-the-art models for object de-

tection. VGG16 contains thirteen convolution layers

Resources and End-to-End Neural Network Models for Arabic Image Captioning

237

and three fully connected layers, and is able to detect

approximately one thousand different objects.

3.3 English Captions Translation

To demonstrate the necessity of our end-to-end

AIC system, we develop and train an English im-

age captioning (EIC) system similar to our Ara-

bic IC described in section 3.2 using the original

Flicker8K dataset. We then translate the generated

English captions to Arabic using a pre-trained NMT

model, namely Google Translate, which is based

on the sequence-to-sequence encoder-decoder frame-

work (Sutskever et al., 2014). The translated Arabic

captions are evaluated and compared with our end-

to-end Arabic IC output. A high level comparison of

AIC against translated EIC is illustrated in Figure 4.

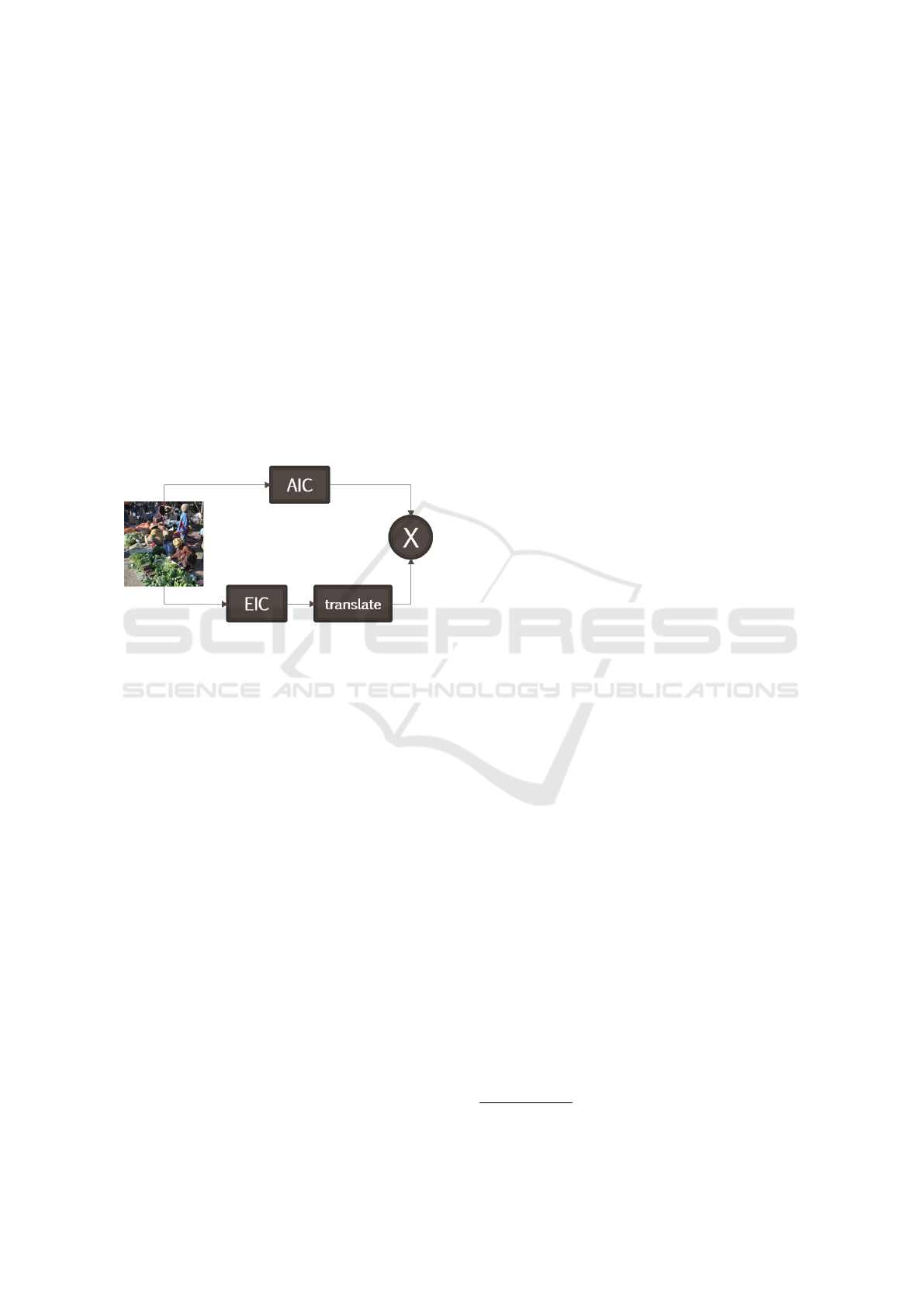

Figure 4: AIC against translated EIC.

4 EXPERIMENTS AND RESULTS

To validate the efﬁciency of our proposed Arabic im-

age captioning system, we perform experiments on

our dataset of 8092 images, the last 800 samples are

used for testing, while the rest are utilized for training.

4.1 Preprocessing

Datasets contain raw text, which may include useless

textual information. It is crucial to clean and prepro-

cess our data before feeding it to any model because

‘garbage in, garbage out’. We followed Arabic pre-

processing techniques recommended by (Shoukry and

Rafea, 2012): Diacritics were removed, the ‘hamza’

on characters was normalized, in addition to normal-

izing some word ending characters such as the ‘t mar-

bouta’ and ‘ya’ maqsoura’. Moreover, we got rid of

punctuation as well as non Arabic letters. Finally, a

special start and end token were added at the begin-

ning and the end of each caption to mark the starting

and the ending point of each caption. Short captions

were padded with a special padding token to ensure

having captions of the same length.

4.2 Evaluation of AIC End-to-End

Model

The complete model was implemented in Python

us-

ing the latest version of Keras (Chollet et al., 2015), a

deep learning framework built on top of TensorFlow

(Abadi et al., 2015). Training was done on a local PC

utilizing NVIDIA GTX 1080 GPU (8GB vRAM) and

32GB RAM.

For the image model, a pre-trained VGG16, ex-

cluding the last later, was used to map images to em-

beddings, a vector of length 4096. The image embed-

dings vector was then mapped to a vector of 256 by

a fully connected layer with tanh activation function

to force the output values to be between -1 and 1. For

the language model, a single hidden LSTM layer with

256 memory units was deﬁned. The initial state of the

LSTM was set to be the image embeddings, in order

to ensure generating captions related to a speciﬁc im-

age. The loss function was Softmax Cross Entropy.

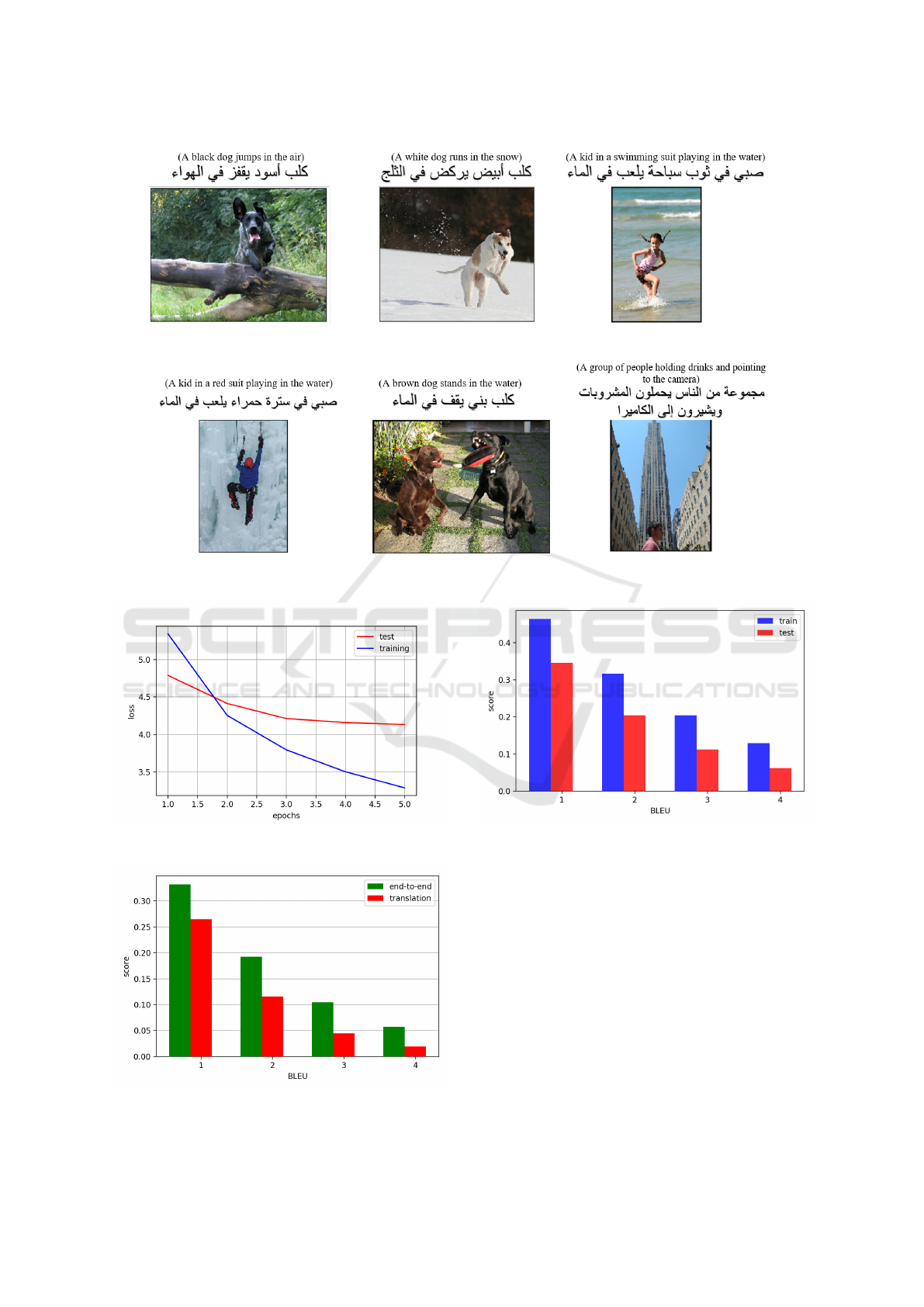

Figure 7 shows the error rate (loss) of our model af-

ter each epoch during training. The optimization was

done with mini batch Gradient Descent with Adam

optimizer and batch size of 1024. The total number of

epochs was 5. We consider an epoch as a single pass

of the complete training dataset through the training

process. Each epoch took around 25 seconds.

Some examples of accurate and inaccurate results

of our encoder-decoder model are shown in Figures 5

and 6, respectively.

Following previous works, the model was eval-

uated on the BLEU-1,2,3,4 (Papineni et al., 2002),

which assesses a candidate sentence by measuring the

fraction of n-grams that appear in a set of references.

BLEU scores for our training and testing are illus-

trated in Figure 8.

The results obtained for Arabic captioning are

inferior to those of English captioning. We attribute

this to two reasons: ﬁrst, the Arabic language is by

nature more complex than English; discarding the

vocalization of letters during training has negatively

impacted the accuracy of the captioning network.

Second, the dataset used for English captioning is

larger than that of Arabic; increasing the dataset size

in the future will most likely increase the perfor-

mance of the Arabic captioning network.

https://www.python.org/

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

238

Figure 5: Accurate results generated by our AIC model.

Figure 6: Inaccurate results generated by our AIC model.

Figure 7: Model loss after each epoch.

Figure 9: BLEU scores of end-to-end AIC vs translating

English captions.

Figure 8: BLEU scores for our AIC model.

An end-to-end approach of directly generating

Arabic captions outperformed translating English

generated captions (See Fig. 9). One possible ex-

planation is that using a deep learning model for En-

glish captioning followed by a second deep learning

model for English-to-Arabic translation may accumu-

late both models errors and uncertainties.

5 CONCLUSION

This paper investigated the problem of Arabic image

captioning. We prepared a large dataset of Arabic-

captioned images, and will make it publicly avail-

Resources and End-to-End Neural Network Models for Arabic Image Captioning

239

able. To validate this work, we trained and tested

a Encoder-Decoder Network on this dataset, and al-

though the results are not at par with state of-the-

art English captioning systems, they are considerably

superior to the English-captioning →English-Arabic-

translate. Our current work includes adding vocaliza-

tion to the Arabic training set, as well as increasing

the size of the dataset.

REFERENCES

Abadi, M., Agarwal, A., Barham, P., Brevdo, E., Chen, Z.,

Citro, C., Corrado, G. S., Davis, A., Dean, J., Devin,

M., Ghemawat, S., Goodfellow, I., Harp, A., Irving,

G., Isard, M., Jia, Y., Jozefowicz, R., Kaiser, L., Kud-

lur, M., Levenberg, J., Mané, D., Monga, R., Moore,

S., Murray, D., Olah, C., Schuster, M., Shlens, J.,

Steiner, B., Sutskever, I., Talwar, K., Tucker, P., Van-

houcke, V., Vasudevan, V., Viégas, F., Vinyals, O.,

Warden, P., Wattenberg, M., Wicke, M., Yu, Y., and

Zheng, X. (2015). TensorFlow: Large-scale machine

learning on heterogeneous systems. Software avail-

able from tensorﬂow.org.

Al-Muzaini, H. A., Al-Yahya, T. N., and Benhidour, H.

(2018). Automatic arabic image captioning using rnn-

lstm-based language model and cnn. International

Journal of Advanced Computer Science and Applica-

tions, 9(6):67–73.

Anderson, P., He, X., Buehler, C., Teney, D., Johnson, M.,

Gould, S., and Zhang, L. (2017). Bottom-up and top-

down attention for image captioning and vqa. arXiv

preprint arXiv:1707.07998, 2(4):8.

Bai, S. and An, S. (2018). A survey on automatic image

caption generation. Neurocomputing.

Bengio, Y., Simard, P., and Frasconi, P. (1994). Learning

long-term dependencies with gradient descent is difﬁ-

cult. IEEE transactions on neural networks, 5(2):157–

166.

Boudad, N., Faizi, R., Thami, R. O. H., and Chiheb, R.

(2017). Sentiment analysis in arabic: A review of the

literature. Ain Shams Engineering Journal.

Chen, L., Zhang, H., Xiao, J., Nie, L., Shao, J., Liu, W., and

Chua, T.-S. (2017). Sca-cnn: Spatial and channel-wise

attention in convolutional networks for image caption-

ing. In 2017 IEEE Conference on Computer Vision

and Pattern Recognition (CVPR), pages 6298–6306.

IEEE.

Chen, X., Fang, H., Lin, T.-Y., Vedantam, R., Gupta, S.,

Dollár, P., and Zitnick, C. L. (2015). Microsoft coco

captions: Data collection and evaluation server. arXiv

preprint arXiv:1504.00325.

Cho, K., Van Merriënboer, B., Gulcehre, C., Bahdanau, D.,

Bougares, F., Schwenk, H., and Bengio, Y. (2014).

Learning phrase representations using rnn encoder-

decoder for statistical machine translation. arXiv

preprint arXiv:1406.1078.

Chollet, F. et al. (2015). Keras. https://keras.io.

Chunseong Park, C., Kim, B., and Kim, G. (2017). At-

tend to you: Personalized image captioning with con-

text sequence memory networks. In Proceedings of

the IEEE Conference on Computer Vision and Pattern

Recognition, pages 895–903.

Dai, B., Fidler, S., Urtasun, R., and Lin, D. (2017). Towards

diverse and natural image descriptions via a condi-

tional gan. arXiv preprint arXiv:1703.06029.

Donahue, J., Anne Hendricks, L., Guadarrama, S.,

Rohrbach, M., Venugopalan, S., Saenko, K., and Dar-

rell, T. (2015). Long-term recurrent convolutional net-

works for visual recognition and description. In Pro-

ceedings of the IEEE conference on computer vision

and pattern recognition, pages 2625–2634.

Elman, J. L. (1990). Finding structure in time. Cognitive

science, 14(2):179–211.

Fang, H., Gupta, S., Iandola, F., Srivastava, R. K., Deng,

L., Dollár, P., Gao, J., He, X., Mitchell, M., Platt,

J. C., et al. (2015). From captions to visual concepts

and back. In Proceedings of the IEEE conference on

computer vision and pattern recognition, pages 1473–

1482.

Fu, K., Jin, J., Cui, R., Sha, F., and Zhang, C. (2017).

Aligning where to see and what to tell: Image cap-

tioning with region-based attention and scene-speciﬁc

contexts. IEEE transactions on pattern analysis and

machine intelligence, 39(12):2321–2334.

Goodfellow, I., Pouget-Abadie, J., Mirza, M., Xu, B.,

Warde-Farley, D., Ozair, S., Courville, A., and Ben-

gio, Y. (2014). Generative adversarial nets. In

Advances in neural information processing systems,

pages 2672–2680.

Hochreiter, S., Bengio, Y., Frasconi, P., Schmidhuber, J.,

et al. (2001). Gradient ﬂow in recurrent nets: the dif-

ﬁculty of learning long-term dependencies.

Hochreiter, S. and Schmidhuber, J. (1997). Long short-term

memory. Neural computation, 9(8):1735–1780.

Hodosh, M., Young, P., and Hockenmaier, J. (2013). Fram-

ing image description as a ranking task: Data, models

and evaluation metrics. Journal of Artiﬁcial Intelli-

gence Research, 47:853–899.

https://www.ﬁgure eight.com/. Figure eight. High Quality

Training Data Platform for ML Models.

Inc., Z. (2018). Top 20 facebook statistics - up-

dated september 2018. https://zephoria.com/top-15-

valuable-facebook-statistics/.

Jia, X., Gavves, E., Fernando, B., and Tuytelaars, T. (2015).

Guiding the long-short term memory model for im-

age caption generation. In Proceedings of the IEEE

International Conference on Computer Vision, pages

2407–2415.

Jin, J., Fu, K., Cui, R., Sha, F., and Zhang, C. (2015). Align-

ing where to see and what to tell: image caption with

region-based attention and scene factorization. arXiv

preprint arXiv:1506.06272.

Jindal, V. (2018). Generating image captions in arabic using

root-word based recurrent neural networks and deep

neural networks. In Proceedings of the 2018 Confer-

ence of the North American Chapter of the Associa-

tion for Computational Linguistics: Student Research

Workshop, pages 144–151.

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

240

Johnson, J., Karpathy, A., and Fei-Fei, L. (2016). Densecap:

Fully convolutional localization networks for dense

captioning. In Proceedings of the IEEE Conference

on Computer Vision and Pattern Recognition, pages

4565–4574.

Kalchbrenner, N. and Blunsom, P. (2013). Recurrent con-

tinuous translation models. In Proceedings of the 2013

Conference on Empirical Methods in Natural Lan-

guage Processing, pages 1700–1709.

LeCun, Y., Bottou, L., Bengio, Y., and Haffner, P. (1998).

Gradient-based learning applied to document recogni-

tion. Proceedings of the IEEE, 86(11):2278–2324.

Liu, C., Mao, J., Sha, F., and Yuille, A. L. (2017). Atten-

tion correctness in neural image captioning. In AAAI,

pages 4176–4182.

Lu, J., Xiong, C., Parikh, D., and Socher, R. (2017). Know-

ing when to look: Adaptive attention via a visual sen-

tinel for image captioning. In Proceedings of the IEEE

Conference on Computer Vision and Pattern Recogni-

tion (CVPR), volume 6, page 2.

Ma, S. and Han, Y. (2016). Describing images by feed-

ing lstm with structural words. In Multimedia and

Expo (ICME), 2016 IEEE International Conference

on, pages 1–6. IEEE.

Mualla, R. and Alkheir, J. Development of an arabic image

description system.

Oruganti, R. M., Sah, S., Pillai, S., and Ptucha, R. (2016).

Image description through fusion based recurrent

multi-modal learning. In Image Processing (ICIP),

2016 IEEE International Conference on, pages 3613–

3617. IEEE.

Papineni, K., Roukos, S., Ward, T., and Zhu, W.-J. (2002).

Bleu: a method for automatic evaluation of machine

translation. In Proceedings of the 40th annual meeting

on association for computational linguistics, pages

311–318. Association for Computational Linguistics.

Pedersoli, M., Lucas, T., Schmid, C., and Verbeek, J.

(2016). Areas of attention for image captioning. arXiv

preprint arXiv:1612.01033.

Ren, Z., Wang, X., Zhang, N., Lv, X., and Li, L.-J.

(2017). Deep reinforcement learning-based image

captioning with embedding reward. arXiv preprint

arXiv:1704.03899.

Rennie, S. J., Marcheret, E., Mroueh, Y., Ross, J., and Goel,

V. (2017). Self-critical sequence training for image

captioning. In CVPR, volume 1, page 3.

Rensink, R. A. (2000). The dynamic representation of

scenes. Visual cognition, 7(1-3):17–42.

Shetty, R., Rohrbach, M., Hendricks, L. A., Fritz, M., and

Schiele, B. (2017). Speaking the same language:

Matching machine to human captions by adversarial

training. In Proceedings of the IEEE International

Conference on Computer Vision (ICCV).

Shoukry, A. and Rafea, A. (2012). Preprocessing egyptian

dialect tweets for sentiment mining. In The Fourth

Workshop on Computational Approaches to Arabic

Script-based Languages, page 47.

Simonyan, K. and Zisserman, A. (2014). Very deep con-

volutional networks for large-scale image recognition.

arXiv preprint arXiv:1409.1556.

Spratling, M. W. and Johnson, M. H. (2004). A feedback

model of visual attention. Journal of cognitive neuro-

science, 16(2):219–237.

Sugano, Y. and Bulling, A. (2016). Seeing with humans:

Gaze-assisted neural image captioning. arXiv preprint

arXiv:1608.05203.

Sutskever, I., Vinyals, O., and Le, Q. V. (2014). Se-

quence to sequence learning with neural networks. In

Advances in neural information processing systems,

pages 3104–3112.

Tavakoliy, H. R., Shetty, R., Borji, A., and Laaksonen,

J. (2017). Paying attention to descriptions gener-

ated by image captioning models. In Computer Vi-

sion (ICCV), 2017 IEEE International Conference on,

pages 2506–2515. IEEE.

Tran, K., He, X., Zhang, L., Sun, J., Carapcea, C., Thrasher,

C., Buehler, C., and Sienkiewicz, C. (2016). Rich im-

age captioning in the wild. In Proceedings of the IEEE

Conference on Computer Vision and Pattern Recogni-

tion Workshops, pages 49–56.

Vinyals, O., Toshev, A., Bengio, S., and Erhan, D. (2015).

Show and tell: A neural image caption generator. In

Proceedings of the IEEE conference on computer vi-

sion and pattern recognition, pages 3156–3164.

Wang, M., Song, L., Yang, X., and Luo, C. (2016). A

parallel-fusion rnn-lstm architecture for image cap-

tion generation. In Image Processing (ICIP), 2016

IEEE International Conference on, pages 4448–4452.

IEEE.

Wu, Z. Y. Y. Y. Y. and Cohen, R. S. W. W. (2016). En-

code, review, and decode: Reviewer module for cap-

tion generation. arXiv preprint arXiv:1605.07912.

Xu, K., Ba, J., Kiros, R., Cho, K., Courville, A., Salakhudi-

nov, R., Zemel, R., and Bengio, Y. (2015). Show, at-

tend and tell: Neural image caption generation with

visual attention. In International conference on ma-

chine learning, pages 2048–2057.

Yang, L., Tang, K. D., Yang, J., and Li, L.-J. (2017). Dense

captioning with joint inference and visual context. In

CVPR, pages 1978–1987.

Yang, Z., Yuan, Y., Wu, Y., Cohen, W. W., and Salakhutdi-

nov, R. R. (2016). Review networks for caption gener-

ation. In Advances in Neural Information Processing

Systems, pages 2361–2369.

You, Q., Jin, H., Wang, Z., Fang, C., and Luo, J. (2016). Im-

age captioning with semantic attention. In Proceed-

ings of the IEEE conference on computer vision and

pattern recognition, pages 4651–4659.

Young, P., Lai, A., Hodosh, M., and Hockenmaier, J.

(2014). From image descriptions to visual denota-

tions: New similarity metrics for semantic inference

over event descriptions. Transactions of the Associa-

tion for Computational Linguistics, 2:67–78.

Resources and End-to-End Neural Network Models for Arabic Image Captioning

241
