Evaluation of a New Functional near Infrared Spectroscopy (fNIRS)

Sensor, the fNIRS Explorer™, and Software to Assess Cognitive

Workload during Ecologically Valid Tasks

Bethany K. Bracken

, Colette Houssan

John Broach

, Andrew Milsten

, Calvin Leather

Sean Tobyne

, Aaron Winder

and Mike Farry

Charles River Analytics, 625 Mount Auburn St, Cambridge, MA, U.S.A.

University of Massachusetts Medical School, 55 N Lake Ave, Worcester, MA, U.S.A.

{john.broach, andrew.milsten}@umassmemorial.org

Keywords: Cognitive Workload, Functional Near Infrared Spectroscopy (fNIRS), Medical Simulation, Training,

Ecologically Valid, Real World, Disaster Medicine Training.

Abstract: Medical personnel and first responders are often deployed to dangerous environments where their success at

saving lives depends on their ability to act quickly and effectively. During training, non-invasive measurement

of cognitive performance can provide trainers with insight into medical students’ skill mastery. Functional

Near-Infrared Spectroscopy (fNIRS) is a direct and quantitative method to measure ongoing changes in brain

blood oxygenation (HbO) in response to a person’s evolving cognitive state (i.e., cognitive workload or mental

effort) that has only recently received significant attention for use in the real world. The work presented here

includes data collection with a new, more portable, rugged design of an fNIRS sensor to test the functionality

of this new sensor design and our ability to measure cognitive workload in a medical simulation training

environment. To assess sensor and model accuracy, during breaks from the training, participants completed a

gold-standard, laboratory task and during training in a medical simulation environment. Linear mixed model

ANOVA showed that when we accounted for fixed effects of intercept and slope in our model, there was a

significant difference in the HbR Ch1 model for n-back load (coef=0.009, p=0.034), intercept (coef=0.96,

p=1.21e-07***), and load (slope) (coef=-0.09, p=0.03). Future work will present data collected across all

disaster response medical trainings.

1 INTRODUCTION

Medical personnel are often deployed to a wide range

of environments (e.g., sites of earthquakes,

hurricanes, and other disasters) where their success at

saving lives depends on their ability to act quickly and

effectively. They are required to put to use the skills

they have learned in the classroom and simulated

trainings in some of the most stressful situations

imaginable. To be truly effective, personnel must

train to ensure skills transfer to environments that are

chaotic and require performance over multiple days

of sub-standard conditions (e.g., long working hours,

sleep deprivation, abnormal food habits). In the field,

personnel who experience cognitive overload due to

inexperience or lack of skill may hesitate, make

judgment errors, or fail to attend to critical situational

details. Skills that are not mastered to the point of

automatic response will not transfer optimally to

these situations, putting patients at risk. Realistic

training simulations ranging from classroom to

simulated disaster scenarios provide medical teams

with the opportunity to efficiently practice and hone

medical skills; however, even the most rigorous

training cannot ensure that personnel will perform

effectively when faced with the aftermath of a

disaster. Currently, trainers must infer trainees’

competence through behavioural observation alone.

This is a challenging task as even highly experienced

trainers cannot always reliably determine which

trainees have mastered a task to the desired point of

automatic response, or whether task execution still

requires significant individual cognitive resources

that will be exhausted in operational environments.

Non-invasive measurement of cognitive

performance can provide trainers with insight into

Bracken, B., Houssan, C., Broach, J., Milsten, A., Leather, C., Tobyne, S., Winder, A. and Farry, M.

Evaluation of a New Functional near Infrared Spectroscopy (fNIRS) Sensor, the fNIRS Explorer

, and Software to Assess Cognitive Workload during Ecologically Valid Tasks.

DOI: 10.5220/0008902701790186

In Proceedings of the 13th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2020) - Volume 4: BIOSIGNALS, pages 179-186

ISBN: 978-989-758-398-8; ISSN: 2184-4305

179

trainee skill mastery without overloading trainers

with additional tasks, and support assessment of

cognitive measures such as attention and cognitive

workload. Objective information on attention and

cognitive workload can help trainers understand the

skill level of trainees and can provide insight into how

much cognitive effort is required for trainees to

accomplish certain tasks. (i.e., whether applying a

new junctional tourniquet correctly was done

effortlessly or still required significant attentional

resources). A comprehensive understanding of

trainee knowledge acquisition and skill application

will both improve educational assessment techniques

and increase the cost-effectiveness of current training

practices by enabling trainers to focus on areas where

trainees and teams require the most improvement.

Non-invasive sensors can be used to supplement

methods already used by trainers without significant

extra effort and without further encumbering trainees

(physically or cognitively). However, the majority of

sensors commonly used to assess cognitive measures

(e.g., electroencephalography (EEG)) are not

designed for real world training environments, are

sensitive to motion artifacts (Kerick, Oie, &

McDowell, 2009), suffer from large variability across

individuals (Mathan, Whitlow, Dorneich, Ververs, &

Davis, 2007), and typically require post-hoc

processing, preventing trainers from applying the

resulting knowledge during training. Many sensors

require significant training to learn how to correctly

set up, use, and interpret and their measures are

difficult to translate into a form that is easily

understandable by the trainer (e.g., event-related

potentials from EEG experiments). They also do not

indicate to trainers which events (e.g., the entry of the

casualty, or the application of a new tourniquet)

resulted in the highest cognitive workload. These

sensor systems are therefore unsuitable for use during

live training exercises.

Functional Near-Infrared Spectroscopy (fNIRS)

is a quantitative method to measure ongoing changes

in brain blood oxygenation (HbO) in response to a

person’s evolving cognitive state (i.e., cognitive

workload or mental effort) (Boas, Elwell, Ferrari, &

Taga, 2014; Ferrari & Quaresima, 2012) that has only

recently received significant attention for use in the

real world. When cognitive workload increases, there

is a corresponding increase in prefrontal blood flow

that correlates with increased task engagement. Once

the task becomes too difficult, there is a decrease in

blood flow that correlates with disengagement from

the task and decreased performance (Ayaz et al.,

2012; Bunce et al., 2011). Assessing cognitive

workload with fNIRS when individuals are seated is

well established. However, fNIRS sensor devices that

can be used to assess cognitive workload during

normal activities (e.g., combat medic training) are

only recently emerging.

One analogous study used fNIRS during real

world navigation where participants had to navigate

the Drexel University campus using either Google

Glass or a handheld smartphone (McKendrick et al.,

2016). A secondary task was conducted concurrently

to assess cognitive workload (an auditory version of

the n-back). The n-back working memory task

(Kirchner, 1958) is a gold-standard working memory

task. The participants are presented with one stimulus

at a time, and must respond “yes” if the current

stimulus matches the one presented “n” items back.

For the 1-back condition, this refers to the stimulus

presented immediately before it. For the 2-back

condition, this refers to the stimulus presented two

items previously. Researchers found a decrease in

hemodynamic response in right lateral prefrontal

cortex (the location in which our fNIRS sensor is

positioned) during correct responses.

Standard sensors are large (e.g., full-head),

expensive (~$10K), and require heavy equipment

(e.g., batteries, laptops). To address this gap, we have

designed and developed two new sensors that are

smaller and more cost-effective, and is designed to be

used outside the laboratory. We previously validated

these sensors against other, larger and more

expensive systems that in other environments

(Bracken, Festa, Sun, Leather, & Strangman, 2019;

Bracken, Elkin-Frankston, Palmon, Farry, &

Frederick, 2017; Bracken, Palmon, Elkin-Frankston,

& Silva, 2018). This paper presents our work to

validate one of our fNIRS sensors and our software

system to process and model data into estimates of

cognitive workload, with a focus on medical student

trainers during high-tempo training simulations in

order to assist trainers in optimizing learning. The

work presented here includes data collection with our

next generation of portable, rugged fNIRS sensor to

test both the functionality of this new sensor design

and our ability to measure cognitive workload in a

real-world medical training environment.

2 METHODS

All methods were approved by both the University of

Massachusetts Institutional Review Board (IRB) and

the United States Department of Defense Human

Research Protections Office (HRPO). All participants

were fully informed of all elements of the study and

completed informed consent forms. We used a

BIOSIGNALS 2020 - 13th International Conference on Bio-inspired Systems and Signal Processing

180

rugged, portable, fNIRS sensor, the fNIRS

Explorer™, shown in Figure 1. When compared to

our previously-developed sensor, the fNIRS

Pioneer™, the Explorer is smaller, consists of only

one piece of hardware, is more comfortable due to

including an adjustable headband, is more rugged

with no charging ports or wired connects that could

wear out or allow entry of sand, water, or dust.

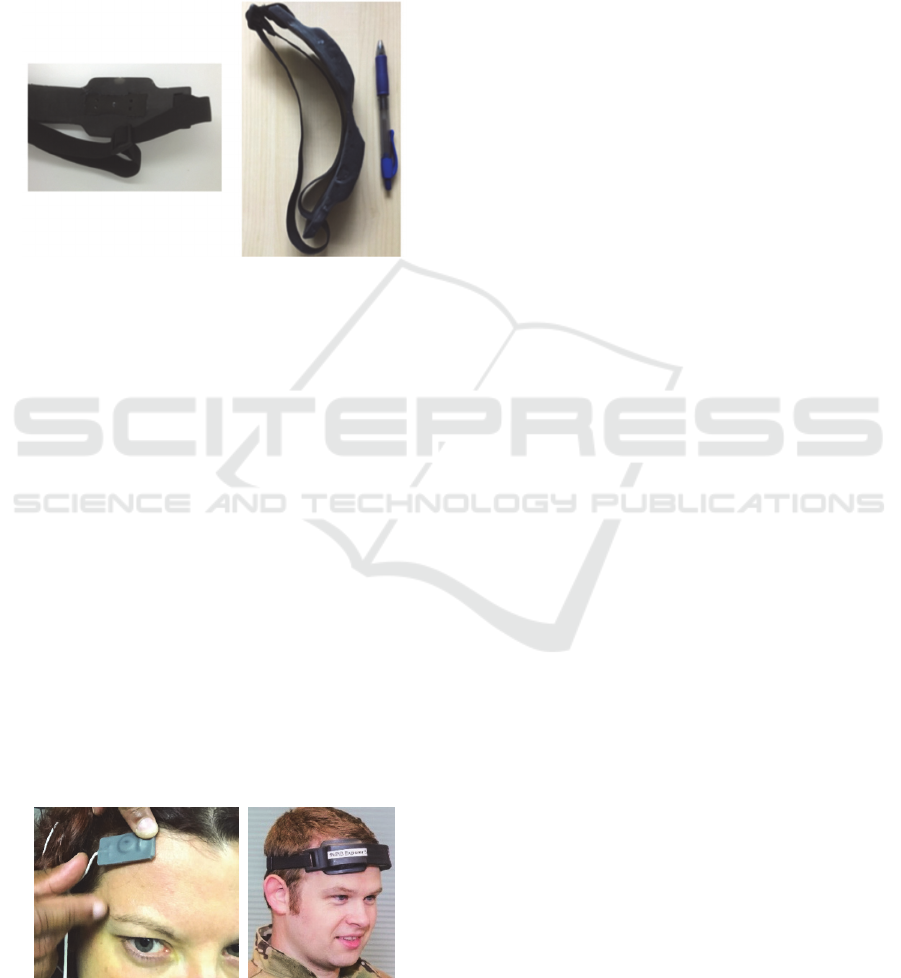

Figure 1: fNIRS Explorer sensor, bottom view of sensor

that gets placed against the person’s forehead (left), and

side view of the sensor with a pen shown for scale (right).

When cognitive workload increases, there is a

corresponding increase in prefrontal blood flow that

correlates with increased task engagement. Once the

task becomes too difficult, there is a decrease in blood

flow that correlates with disengagement from the task

and decreased performance (Ayaz et al., 2013, 2012;

Bunce et al., 2011). However, sensor location

matters. Because we are not using an EEG cap, and

because our participants have different hair lines, we

decided on the sensor placement in this picture with

the optical density sensor (the square on the forehead-

facing side of the sensor) positioned ~2 inches above

the outside edge of the eyebrow and the two light

emitting diodes (the two small circles) positioned

medially. Figure 2 shows the preferred positioning of

our fNIRS sensors. The Pioneer is shown on the left

to demonstrate more clearly position on the forehead.

The Explorer is shown on the right as it was

positioned for this study.

Figure 2: fNIRS Pioneer sensor to demonstrate clear

position on the forehead (left) and fNIRS Explorer as it was

positioned for this study (right).

To assess cognitive workload, we are focusing on

dorsolateral prefrontal cortex (dlPFC). We acquired

data from participants taking part in a Basic Disaster

Life Support (BDLS), Advanced Disaster Life Support

(ADLS), and/or Disaster Pre-deployment trainings

which occur across multiple training environments

ranging from in-classroom trainings (lecture format

and interactive table-tops sessions) to high-tempo, live-

action role-playing simulated disaster events.

Each course allowed time for us to collect data

from each student during three levels of the n-back

working memory task (Kirchner, 1958) to allow us to

optimize accuracy of our cognitive workload models.

We added this into the protocol based on results of our

data modeling during our related efforts that found that

we could increase model accuracy by collecting

ground truth data using a well-validated cognitive task

in order to train models to account for individual

differences (Bracken et al., 2019). Participants

completed the n-back on a tablet within the simulation

environment during breaks from training.

Although we only present data from the final

training, we present the full set of trainings here so

that the reader understands the training history of

participants, and the full structure of the course. The

first training included several classroom-based

lectures. This is a full day and covered multiple

topics. The second training included a lecture at the

beginning of the day followed by splitting students

into groups that move through four stations spread

across multiple rooms including high-fidelity

simulation labs. Each station lasted about an hour and

topics included triage, basic life-saving skills (e.g.,

tourniquet application, airway), mass casualty triage

(multiple simulated casualties in a room), donning

and doffing personal protective equipment (PPE), and

how to manage patient surge and patient flow

(including logistics of handling a large surge in

patients such as where there are open beds). The third,

“pre-deployment”, course is spread over several large

rooms near the Emergency Department. For the pre-

deployment course each station is 60-90 minutes. We

planned to concentrate on two of the skills covered

across all four types of training: triage and handling

patient surges (similar to the mass casualty trainings),

and to follow as many students across all three types

of trainings as possible.

Here, we will present the results of the second

training. Eighteen people attended the second course

on May 21-22 2019, and participated in research (9

female; mean age 35, range 27-62). Participants were

all recorded during three sessions – a series of lectures

followed by interactive group table-top session.

Recording sessions were randomized except for the

Evaluation of a New Functional near Infrared Spectroscopy (fNIRS) Sensor, the fNIRS Explorer

, and Software to Assess Cognitive

Workload during Ecologically Valid Tasks

181

nine people we followed for the triage and surge

activities. All 18 completed a baseline assessment (1-

, 2-, and 3-back versions of the n-back) on day one.

The enrollment protocol was built based on the

expected number of participants and the number of

available sessions to record subjects for trainings and

n-back testing. We had five time points to record n-

backs (registration, break1, lunch, break 2, and break

3) and 14 segments from the four sessions. We

assigned four people to each training segment in order;

each with a separate Explorer sensor. The Casualty

Triage and Public Health & Population Health/Q&A

were used for the 10 people who were followed across

trainings since their lessons correlated to the lectures

and interactive session presented in ADLS and the pre-

deployment classes. The scenarios were pre-built into

the MEDIC software so that the research assistants

managing the training could press record when the

subjects had their sensor placed on their heads. The

scenarios for n-back were built as groups and before

each set of subjects (3-4 at a time) took their n-back we

added the subject number and which sensor was

associated with each subject before we started

collecting data. N-backs were completed on four

laptops and the start of each n-back was recorded. As

people checked in they completed their demographic

survey, and a post-training session survey as soon as

we collected the sensor from them.

3 RESULTS

To assess sensor and model accuracy, during breaks

from the training, participants completed a gold-

standard, laboratory task and during training in a

medical simulation environment. In this paper, we

present only the data from that gold-standard task, the

n-back. In future papers, we will publish results of the

training simulation scenarios.

We started by visually inspecting the data from

the n-back task and the trainings (see Figure 7), and

running data through our standard processing pipeline

developed to handle data collected in non-laboratory

conditions (e.g., when participants are not instructed

to remain still, and data are collected on mobile

devices (e.g., tablets) or moving around their

environment taking part in realistic activities). This

processing procedure applies advanced motion

correction algorithms including wavelet filtering,

movement artifact removal algorithm (MARA), and

acceleration-based movement artifact reduction

algorithm (AMARA) (Metz, Wolf, Achermann, &

Scholkmann, 2015; Molavi & Dumont, 2012;

Scholkmann, Spichtig, Muehlemann, & Wolf, 2010).

analysing n-back data, pooling data across all

participants. Figure 3 shows n-back response

accuracy (correct responses) versus n-back level

(load). There was a statistically significant decrease

as determined by a one-way ANOVA (F(2,24)=4.27,

p=0.03). A Tukey posthoc test with corrections for

multiple comparisons revealed that accuracy

significantly decreased between the 1-back and 3-

back condition (t=-2.913; p=0.02). We did not find a

relationship between response time with load (one-

way ANOVA; F(2,24)=0.10, p=0.90).

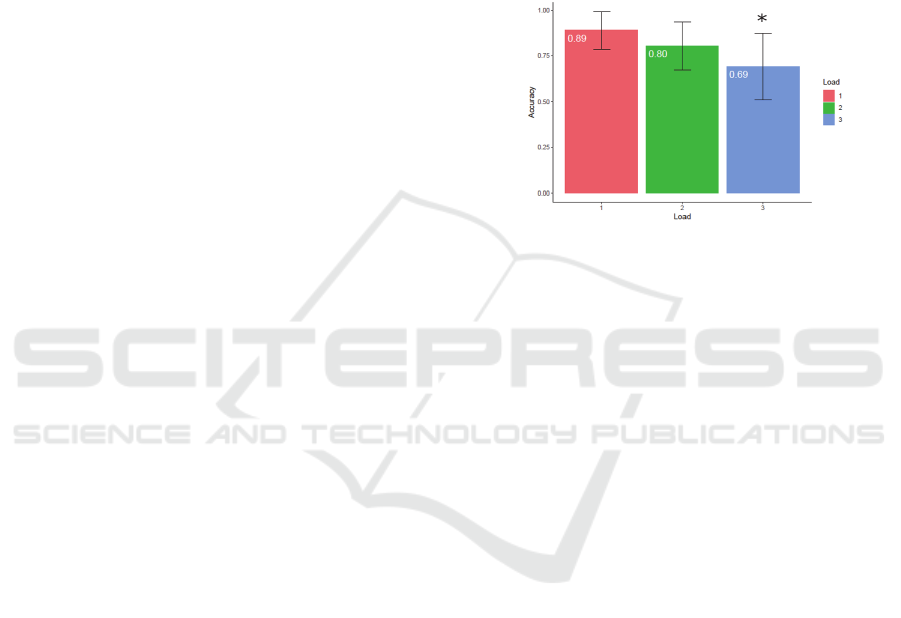

Figure 3: N-back performance—accuracy versus n-back

load. There was a decrease with load (a one-way ANOVA

(F (2,24)=4.27, p=0.03)). Tukey posthoc test revealed that

accuracy decreased between 1-back and 3-back; no

difference between 1-back and 2-back. Error bars are

standard deviation.

We next compared blood oxygenation changes

across n-back load conditions. The Explorer sensor

collects data at two locations, so there are four

variables to consider: oxygenated blood signal (HbO)

and deoxygenated blood signal (HbR) from channel 1

(the location of assessment that is more lateral) and

HbO and HbR from channel 2 (the location of

assessment that is more medial). Figure 4 shows

blood oxygenation versus n-back load. Oxygenated

blood signal from Explorer channel 1 is shown in

salmon (HbO Ch1); oxygenated blood signal from

Explorer channel 2 is shown in green (HbO Ch2);

deoxygenated blood signal from Explorer channel 1

is shown in blue (HbR Ch1); and deoxygenated blood

signal from Explorer channel 2 is shown in purple

(HbR Ch2). We saw no significant difference when

we pooled data across participants (four separate one-

way ANOVAs; all p>0.41).

Based on our previous results showing large inter-

individual differences in both performance and blood

oxygenation on both the standard working memory

task, the n-back (Kirchner, 1958), and on a more

complex task, the multi-attribute task battery

(MATB; (Bracken et al., 2019; Comstock &

Arnegard, 1992; Santiago-Espada, Myer, Latorella,

& Comstock Jr, 2011)), a multi-task battery designed

BIOSIGNALS 2020 - 13th International Conference on Bio-inspired Systems and Signal Processing

182

by NASA. We next broke out the data to examine

each individual subject. This is shown in Figure 5.

These data are indicative of the high degree of

variability in performance we have previously noted

in working memory tasks. We have found that

incorporating this variability is beneficial to

modelling efforts.

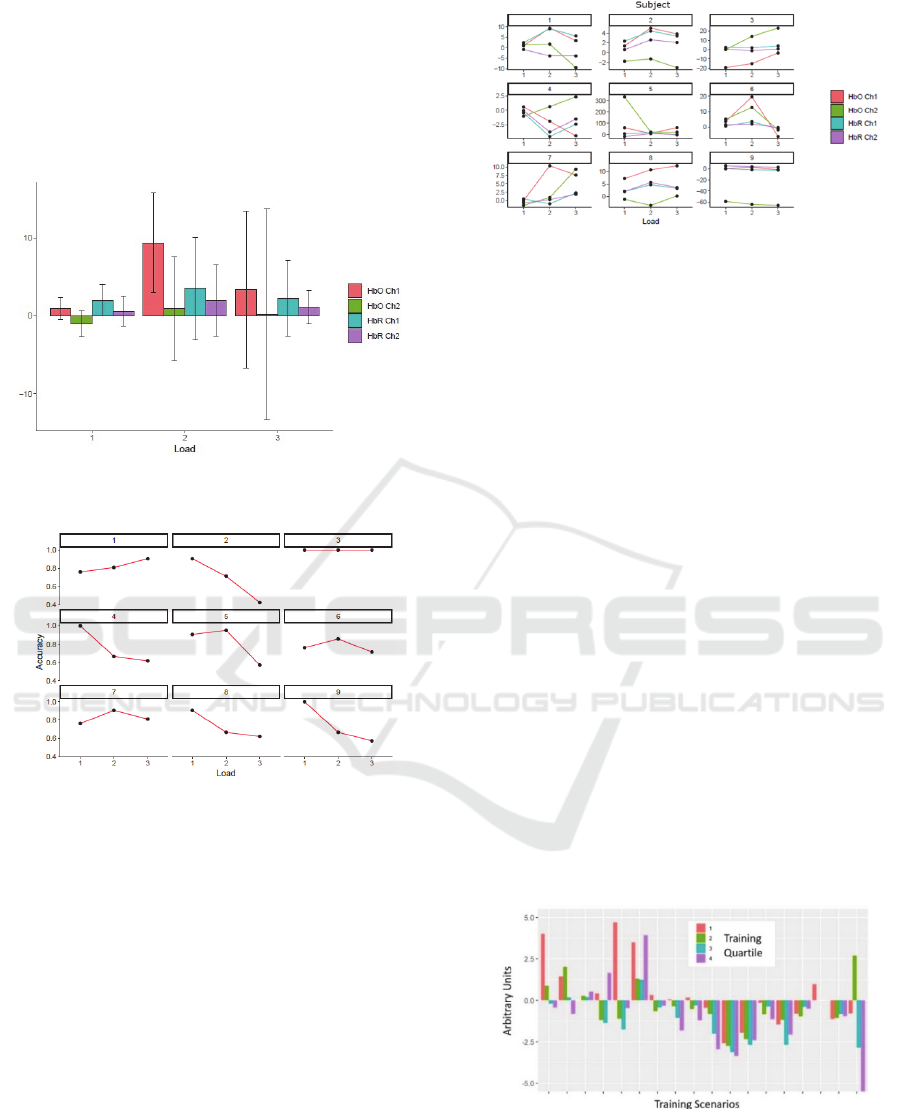

Figure 4: Blood oxygenation versus n-back load: no

significant difference on pooled data.

Figure 5: N-back accuracy versus load broken out by

individual subject.

Figure 6 shows changes in blood oxygenation

versus load broken out by individual subject. As

previously noted, the individual subject variability in

performance and hemodynamics means any

modelling efforts must incorporate this complexity.

To this end, we turned to linear mixed effect models

for our efforts to predict accuracy as a function of

brain oxygenation and workload by incorporating a

fixed effect of slope and intercept by subject. There

was a significant difference in the HbR Ch1 model for

n-back load (coef=0.009, p=0.034), intercept

(coef=0.96, p=1.21e-07***), and load (slope) (coef=-

0.09, p=0.03). Model variants incorporating different

blood oxygenation variables (HbO Ch1, HbO Ch2,

HbR Ch2) also included significant intercept and load

coefficients but not relationship between blood

oxygenation and accuracy (i.e., cognitive workload).

Figure 6: Changes in blood oxygenation versus load broken

out by individual subject. Linear mixed model ANOVA

showed that when we accounted for fixed effects of

intercept and slope in our model, there was a significant

difference in the HbR Ch1 model for n-back load

(coef=0.009, p=0.034), intercept (coef=0.96, p=1.21e-

07***), and load (slope) (coef=-0.09, p=0.03).

We next analyzed the medical curriculum training

data. Each separate training focus (e.g., triage) was

saved as a separate data file. However, the UMass

experimenters only indicated the beginning of each

training session, and did not annotate the data as to

when the session ended. So we first visualized the

data to decide if we should exclude some of the data

collected during the session (e.g., if the last 25% of

the data was a large outlier in terms of blood

oxygenation, accelerometry, or any of our quality

control (QC) variables that it seemed likely that it was

collected after the termination of the course

curriculum). In fact, this QC process was designed

specifically for exploring issues of data quality.

Figure 7 shows the corresponding data for HbR Ch1.

This shows that data could not reliably be excluded

from any particular quartile as there was not a

characteristic difference in data split with this method

(e.g., the first quartile is reliably different due to a

difference in the experience of the participant such as

donning of removing the sensor during this period).

Figure 7: HbR Ch1 data collected during training scenarios

binned by time within scenario (first 25% in pink, second

25% in green, third 25% in blue, last 25% in purple).

We will next visualize accelerometry data and QC

variables in the same manner to determine which

Evaluation of a New Functional near Infrared Spectroscopy (fNIRS) Sensor, the fNIRS Explorer

, and Software to Assess Cognitive

Workload during Ecologically Valid Tasks

183

chunk of the data we should exclude, if any. We

began by asking whether the first or last quartile of

each dataset contained significantly more artefacts

than the middle portions of the dataset, and whether a

heuristic could be used to remove portions of the data

that consisted primarily of noise (e.g., by removing

the last quartile of data for all subjects). We first

plotted each individual subjects’ accelerometer data.

We discovered that signal artefacts were primarily at

the end of the data time series, rather than at the

beginning of the time series, likely corresponding to

the removal of the sensor from the subject’s head

before the sensor was shut off or recording was

terminated (see Figure 8).

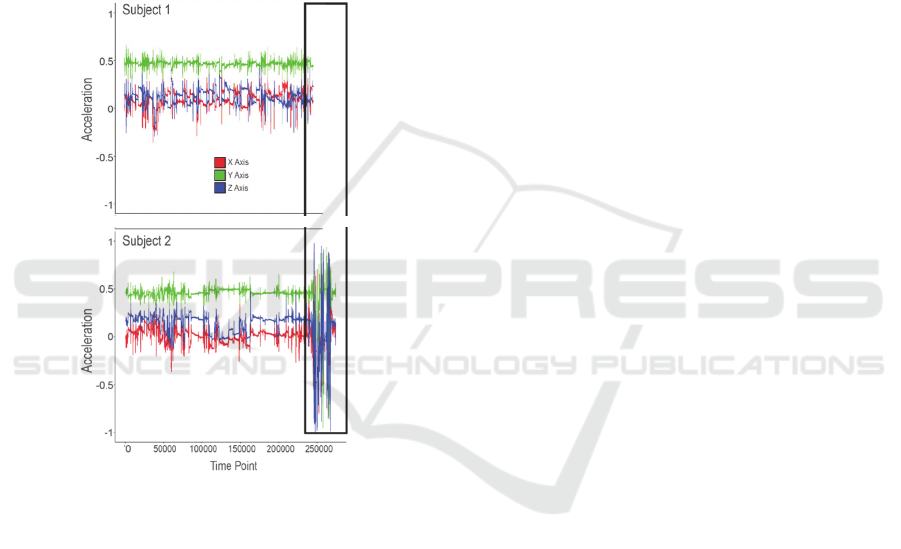

Figure 8: Accelerometry data from two subjects showing

large motion artefact at the end of the session, likely

corresponding to removal of the sensor. The x-axis is shown

in red, y-axis is shown in green, and z-axis shown in blue.

We also discovered that we could not reliably

remove a percentage of the data (e.g., the last quartile)

as the length of the time series differed between

subjects within the same training due to differences in

how the subject progressed through the training or

how quickly the research assistants were able to

attend to the sensors once the training was completed.

In order to perform the necessary scrubbing of non-

training data from the end of the time series, we used

the accelerometer data as an indicator of end-of-

session sensory removal (see section indicated by

black box for Subject 2 in Figure 8 for example) and

manually clipped these times from each individual

subject’s dataset. In order to facilitate comparison of

individual datasets with slightly different end-of-

session motion profiles we clipped all subject’s

datasets within an individual training to the same time

point (compare panels A and B in Figure 8). For

example, both subjects in Figure 8 participated in the

same training (“Triage for Disaster and Public Health

Emergencies”) and displayed similar levels of motion

across the training. Subject 2’s time series is longer

than that of Subject 1, and the extra time contains a

significant amount of motion. This likely corresponds

to the removal of the sensor for Subject 2 without

immediately turning the sensor off or stopping

recording on the tablet. The accelerometer then

continues to register movement which, due to the lack

of annotations in the data, cannot be distinguished

without manually inspecting the dataset. For the two

subjects in question in Figure 8, no data was clipped

from Subject 1 due to signal artefacts, while several

thousand data points were clipped from Subject 2 to

account for the erroneous data captured while the

sensor was not placed on the subject.

This gave us confidence to trim the data using this

protocol. We visualized accelerometer data from all

training scenarios together and evaluated each

subject’s time series for motion. If motion was

present, we determined an approximate point at

which the aberrant motion started and then removed

that data from the time series. When possible, subject

time series’ from the same training were clipped at

the same point to facilitate a fair comparison across

subjects. Figure 9 displays the raw (left) and

AMARA-filtered (right) signal for a single subject

before (top) and after (bottom) the clipping

procedure. It is clear that the clipping procedure does

not alter the characteristics of the signal in any way

as it is performed after all online pre-processing is

performed. In addition to verifying that the data are

not altered in some way by clipping out the aberrant

signal at the end of the time series, we also noted that

the initial transient at the beginning of the time series,

likely due to the initial online sensor calibration, is

still present in the data. We might not have been

aware of this if we were not evaluating each dataset

individually. We will add an automated procedure to

our existing processing pipeline to find and remove

large transient in the first few sample of the time

series. We will also pursue automated measures of

detecting aberrant signal at the end of the time series

based on the accelerometer data.

Analysis of the training data began with

determination of difficulty levels for the different

trainings. No performance measures are available for

these trainings, as is often the case for real-world,

ecologically valid tasks, so we relied on the subjects

BIOSIGNALS 2020 - 13th International Conference on Bio-inspired Systems and Signal Processing

184

self-report level of difficulty experienced during the

training as reported via an after-action survey

administered through REDCap (https://www.project-

redcap.org/software/). Figure 9 displays stacked bars

of the difficulty ratings per training, with the median

difficulty marked by a black point. The range of

difficulty spanned only 1 (“Not challenging at all”) to

3 (“Somewhat challenging”), with the median overall

perceived difficulty across trainings equal to 2.

Overall, this meant that subjects may not have

experienced the level of difficulty seen in the 2-back

version of the n-back, which is typically reported as a

very challenging test of attention and working

memory.

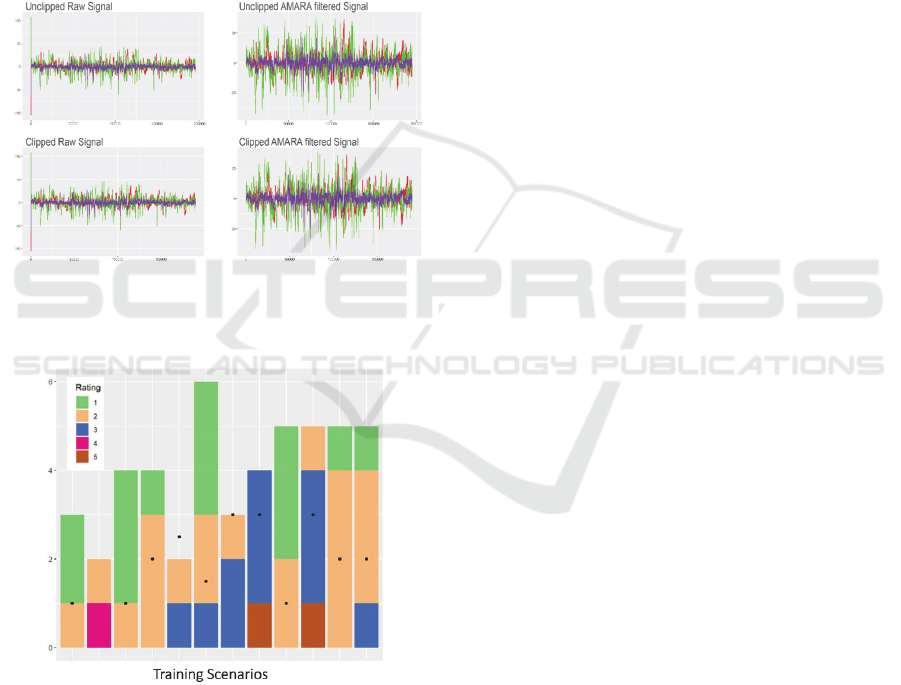

Figure 9: Raw (left) and AMARA-filtered (right) signal for

a single subject before (top) and after (bottom) the clipping

procedure.

Figure 10: Self-reported difficulty ratings for each training.

Median difficulty for each training is indicated by a black

point.

In addition to limited variability in the self-

reported difficulty rating, analysis of the training data

was further complicated by the mismatch between n-

back data and training data. Not all subjects who

completed the medical trainings possessed n-back

dataset required for adapting modelling procedures to

each subject. This limited the number of subjects

available for a full analysis. As was done with the n-

back modelling, we attempted to model the training

data according to level of experienced difficulty (i.e.,

performance), here indicated by the self-reported

difficulty measure, using mixed effects models. We

used standard mixed effects analysis with a random

intercept. Unlike our n-back analysis, we could not

include a random effect of slope as all subjects did not

participate in trainings of all difficulties. As we have

shown in the past, without the ability to model the

subject specific baseline, we were unable to predict

subject difficulty reported in the REDCap survey with

any fNIRS-derived blood oxygenation metrics. In

addition to mixed effects modelling, we also

attempted to predict self-report difficulty using

multinomial logistic regression and ordered logistic

regression and found no relationship between fNIRS

and difficulty.

4 DISCUSSION

The results of our n-back data analysis have validated

that this new form factor of the sensor collects reliable

data and that we are able to quantify cognitive

workload. Our blood oxygenation data changed as

expected with effort level on the task. However, we did

not see significant changes until we had accounted for

individual differences in performance on the task,

which fits with our previously-published results.

Unfortunately, the problems with dropped signals,

unannotated data files, and device malfunction during

acquisition of the medical training simulation data

meant that we did not have adequate parity between n-

back data and training data on individual subjects.

Therefore, we are unable to add individual

performance on the n-back into the model.

Here we primarily present pooled data, whereas

all of our previous results have shown that large

individual differences are likely present (e.g., an

increase in HbR with increase mental effort for some

subjects and a decrease in HbR with increased mental

effort for others) (Bracken et al., 2019).

Our future work is focusing on additional adding

an individualization parameter to our model by

adding information on each individual’s change in

blood oxygenation during the n-back task to assess

changes in cognitive workload during the medical

simulation training data. Our prior work shows that

this level of individualization of the model is required

for adequate characterization of cognitive workload.

We plan to automate the individualization procedure

in future data acquisition and modelling efforts.

Evaluation of a New Functional near Infrared Spectroscopy (fNIRS) Sensor, the fNIRS Explorer

, and Software to Assess Cognitive

Workload during Ecologically Valid Tasks

185

An objective, accurate, real-time capability to

inform trainers of the level of cognitive workload

experienced during training would enabe trainers

effectively tailor trainings to maximize impact and

decrease cost associated with over-training particular

skills or trainees. Additional studies must be

conducted to further validate our sensors and data

analysis and modelling software to prove validity of

such a system.

ACKNOWLEDGEMENTS

This work was supported by United States Army

Medical Research and Materiel Command under

Contract Nos. W81XWH-14-C-0018 and W81XWH-

17-C-0205. Any opinions, findings and conclusions or

recommendations expressed in this material are those

of the author(s) and do not necessarily reflect the views

of the United States Army Medical Research and

Materiel Command. In the conduct of research where

humans are the participants, the investigators adhered

to the policies regarding the protection of human

participants as prescribed by Code of Federal

Regulations (CFR) Title 45, Volume 1, Part 46; Title

32, Chapter 1, Part 219; and Title 21, Chapter 1, Part

50 (Protection of Human Participants).

REFERENCES

Ayaz, H., Onaral, B., Izzetoglu, K., Shewokis, P. A.,

McKendrick, R., & Parasuraman, R. (2013).

Continuous monitoring of brain dynamics with

functional near infrared spectroscopy as a tool for

neuroergonomic research: Empirical examples and a

technological development. Frontiers in Human

Neuroscience, 7, 871. https://doi.org/10.3389/fnhum.

2013.00871

Ayaz, H., Shewokis, P. A., Bunce, S., Izzetoglu, K.,

Willems, B., & Onaral, B. (2012). Optical brain

monitoring for operator training and mental workload

assessment. NeuroImage, 59(1), 36–47. https://doi.org/

10.1016/j.neuroimage.2011.06.023

Boas, D. A., Elwell, C. E., Ferrari, M., & Taga, G. (2014).

Twenty years of functional near-infrared spectroscopy:

Introduction for the special issue. NeuroImage, 85, 1–

5. https://doi.org/10.1016/j.neuroimage.2013.11.033

Bracken, B., Festa, E., Sun, H.-M., Leather, C., &

Strangman, G. (2019). Validation of the fNIRS

Pioneer

, a Portable, Durable, Rugged Functional

Near-Infrared Spectroscopy (fNIRS) Device. In

Biomedical Engineering Systems and Technologies:

12th International Joint Conference, BIOSTEC 2019,

Prague, Czech Republic, February 22–24, 2019.

Springer.

Bracken, B. K., Elkin-Frankston, S., Palmon, N., Farry, M.,

& de B Frederick, B. (2017). A System to Monitor

Cognitive Workload in Naturalistic High-Motion

Environments.

Bracken, B. K., Palmon, N., Elkin-Frankston, S., & Silva,

F. (2018). Portable, Durable, Rugged, Functional

Near-Infrared Spectroscpy (fNIRS) Sensor.

Bunce, S. C., Izzetoglu, K., Ayaz, H., Shewokis, P.,

Izzetoglu, M., Pourrezaei, K., & Onaral, B. (2011).

Implementation of fNIRS for Monitoring Levels of

Expertise and Mental Workload. In D. D. Schmorrow

& C. M. Fidopiastis (Eds.), Foundations of Augmented

Cognition. Directing the Future of Adaptive Systems

(Vol. 6780, pp. 13–22). https://doi.org/10.1007/978-3-

642-21852-1_2

Comstock, J. R., & Arnegard, R. J. (1992). MAT: Multi-

Attribute Task Battery for Human Operator Workload

and Strategic Behavior Research. NASA Technical

Memorandum, (January).

Ferrari, M., & Quaresima, V. (2012). A brief review on the

history of human functional near-infrared spectroscopy

(fNIRS) development and fields of application.

NeuroImage, 63(2), 921–935. https://doi.org/10.1016/j.

neuroimage.2012.03.049

Kerick, S. E., Oie, K. S., & McDowell, K. (2009). Assessment

of EEG signal quality in motion environments. Army

Research Lab Aberdeen Proving Ground MD Human

Research and Engineering Directorate.

Kirchner, W. K. (1958). Age differences in short-term

retention of rapidly changing information. Journal of

Experimental Psychology, 55(4), 352.

Mathan, S., Whitlow, S., Dorneich, M., Ververs, P., & Davis,

G. (2007). Neurophysiological estimation of

interruptibility: Demonstrating feasibility in a field

context. In Proceedings of the 4th International

Conference of the Augmented Cognition Society, 51–58.

McKendrick, R., Parasuraman, R., Murtza, R., Formwalt, A.,

Baccus, W., Paczynski, M., & Ayaz, H. (2016). Into the

wild: Neuroergonomic differentiation of hand-held and

augmented reality wearable displays during outdoor

navigation with functional near infrared spectroscopy.

Frontiers in Human Neuroscience, 10, 216.

Metz, A. J., Wolf, M., Achermann, P., & Scholkmann, F.

(2015). A new approach for automatic removal of

movement artifacts in near-infrared spectroscopy time

series by means of acceleration data. Algorithms, 8(4),

1052–1075.

Molavi, B., & Dumont, G. A. (2012). Wavelet-based

motion artifact removal for functional near-infrared

spectroscopy. Physiological Measurement, 33(2), 259.

Santiago-Espada, Y., Myer, R. R., Latorella, K. A., &

Comstock Jr, J. R. (2011). The multi-attribute task

battery ii (matb-ii) software for human performance

and workload research: A user’s guide.

Scholkmann, F., Spichtig, S., Muehlemann, T., & Wolf, M.

(2010). How to detect and reduce movement artifacts in

near-infrared imaging using moving standard deviation

and spline interpolation. Physiological Measurement,

31(5), 649–662. https://doi.org/10.1088/0967-3334/31/

5/004

BIOSIGNALS 2020 - 13th International Conference on Bio-inspired Systems and Signal Processing

186
