Expanded Virtual Puppeteering

Luiz Velho

and Bernard Lupiac

IMPA - Instituto de Matematica Pura e Aplicada, Brazil

PUC-Rio - Universidade Catolica Rio de Janeiro, Brazil

Keywords:

Virtual Reality, Digital Puppetry, Artistic Performance, Animation.

Abstract:

This work proposes a framework for digital puppeteering performances, using solely the performer’s bare

hands. The framework relies on Unity as a base, and hand information is captured from a Leap Motion device.

The performer employs a gesture interaction system and precise hand movements to manipulate the puppet in

a number of different manners. It is then possible for the audience to view the puppet directly in a big screen,

or using virtual or augmented reality headsets, which allows rich interactions.

1 CONTEXT AND MOTIVATION

New Media is a phenomenon where recent develop-

ments in technology are integrated with traditional

types of media. There is a range of mediums con-

cerned by it, like for example books, movies, mu-

seum exhibits and plays. These past few years,

new paradigms of interaction and visualization have

emerged, with the resurgence of virtual and aug-

mented reality, and markerless hand and body inter-

action. Since their emergence is very recent, there is

still much to explore about them and the possibilities

they will bring.

This work proposes a framework for digital pup-

peteering performances, where the performer uses

only his or her bare hands. The program uses the

Unity framework, and hand related information is

captured with a Leap Motion device. The aim of this

work is to preserve the expressiveness and know-how

of classic puppeteering, while at the same time, to

look at it in a different perspective with the help of

the aforementioned advances in technology.

The paper is structured in the following manner:

Section 2 will give a brief history of the development

of digital puppetry in academia and in the show and

ﬁlm business. Following it, section 3 will give an

overview of all the different ways in which the pup-

pet can be moved and the reasons why they will or

won’t be used in our work. Afterwards, section 4

will describe in a detailed manner all the modules im-

plemented in this framework. Then, section 5 will

explain the necessary process to generalize this pro-

gram, so it can be used in many different contexts.

Thereafter, Section 6 shows the different types of pos-

sible visualizations. Finally, Section 7 gives an exam-

ple where this framework is used by artists to do a

small performance.

2 BACKGROUND, HISTORY AND

RELATED WORKS

Digital puppetry isn’t a new concept by any means.

In the early sixties, Lee Harrison III used body suits

with potentiometers, animating a 3D model in a CRT

screen.

A few decades later, around 1988, digital pup-

peteering gained the attention of the general public

with the help of two projects: Waldo C. Graphic and

Mike Normal.

Waldo C. Graphic is a character on the Muppet’s

show The Jim Henson Hour. Waldo is an entirely

computer generated puppet, controlled by a single

puppeteer with a big contraption.

Mike Normal, created by Brad DeGraf, was un-

veiled at the 1988 SIGGRAPH conference, and was

the ﬁrst live performance of a digital character. It al-

lowed a performer to control many parameters on its

face, with real-time interpolation between them.

In 1994, in Charleville-M

ezi

eres, a signiﬁcant

event also took place: e-Motion Capture. It united

researchers in the ﬁeld of Computer Graphics and per-

formers from around the world to experiment the dif-

ferent technologies developed for virtual puppeteer-

ing up to that date.

Velho, L. and Lupiac, B.

Expanded Virtual Puppeteering.

DOI: 10.5220/0008917700610070

In Proceedings of the 15th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 1: GRAPP, pages

61-70

ISBN: 978-989-758-402-2; ISSN: 2184-4321

A small number of other digital puppets were de-

veloped in the next few years. Among them are Mat

the Ghost, who appeared daily on French national

television for years, and Moxy, part of a Cartoon Net-

works show, created by Brad DeGraf.

In the same way there wasn’t much advancement

from the early sixties until late eighties, this ﬁeld

wasn’t very active from mid nineties until mid 2010s.

This resurgence was caused by recent advances in

technology that allowed to overcome longstanding

problems in the ﬁeld.

However, there were still attempts to adapt 2000s

technology to digital puppeteering. The main devices

used during that time were the dataglove, a very un-

wieldy and expensive device. Some attempts were

also made to use accelerators, with the controllers

provided with the Wii video-game console(Shiratori

and Hodgins, 2008).

What made the current developments in this ﬁeld

possible were advancements in computer vision and

the vulgarization of depth-ﬁnding cameras, in prod-

ucts like Microsoft’s Kinect, the Leap Motion and

eventually smartphones.

In Seth Hunter’s and Pattie Maes’ work(Hunter

and Maes, 2013), a number of methods for perform-

ing digital puppeteering using green screens and com-

puter vision are described. Lins’ and Marroquin’s

work(Souza et al., 2015) proposes a way to control

a puppet’s walking motion by using the Kinect and

trackers at the tip of two ﬁngers. More recently, An-

deregg et al. present a way to manipulate a puppet in

an augmented reality environment by using a smart-

phone’s sensors and screen(Anderegg et al., 2018).

Around that period, some commercial products

were developed for digital puppeteering. Puppet Pa-

rade uses the Kinect to allow manipulating multiple

puppets and let the audience interact with them at the

same time. Marionette Zoo (Botond G

abor et al.,

2014) lets users control a set of puppets using the

Leap Motion and a physics-based system with strings.

Some research involving puppet manipulation

using the Leap Motion already exists. Oshita

et al.(Oshita et al., 2013) propose a manipulation

scheme inspired from a real puppet manipulation

crossbar. It allows a user to manipulate arms, legs

and trunk simultaneously by using both hands’ posi-

tions, rotations and the stretching of ﬁngers. Other

approaches, such as (Ciccone et al., 2017), have also

used Leap devices for puppet animation.

Leite’s and Orvalho’s work(Leite and Orvalho,

2017) describe three separate puppet manipulation

modes: a ﬁrst one that manipulates many different

facial features of a puppet’s head, such as eyes, eye-

brows and mouth. A second that moves the puppet

with physics, where the performer’s hand position and

rotation corresponds to the puppet’s head position and

rotation. The last mode is a junction of the ﬁrst two:

one hand controls the puppet’s head position and fa-

cial features while the rest of its body is moved by the

physics system. In addition to that, the remaining free

hand is used to manipulate one of the puppet’s own

hands.

Our work proposes a framework that uses a new

approach to puppet manipulation. Instead of hav-

ing all possible movements mapped to different parts

of the hand, we use a gesture-based system that al-

lows switching between different contexts in run-

time, where each context corresponds to a different

type of movement. This results in more straightfor-

ward and precise controls, since the whole range of

both hands’ movement is available to every type of

movement. Other important advantages this system

brings is the ability to support an extensive amount of

movement types simultaneously, and the lack of difﬁ-

culty associated with developing a new one. In addi-

tion to this, our framework addresses other challenges

associated with puppeteering performances, such as

a way for a director to control different cameras and

visualization by the audience in a screen, virtual or

augmented reality.

3 PUPPET MOVEMENT

PARADIGMS

This section shows all the explored forms of move-

ment that can be used to manipulate the puppet. It

then explains their advantages and disadvantages for

the purpose of this work. Based on that, the overall

suitability of each one is evaluated.

The fundamentals of our puppet movement con-

trol rely on three aspects: i) blended animations; ii)

inverse kinematics; and iii) physically-based simu-

lation. All these three features are fully supported

by modern game engines such as Unreal and Unity,

which we have chosen for the implementation of our

system.

3.1 Animations

Animations are pre-recorded sets of movement that

are applied to a model over a ﬁnite amount of time.

They can either record the position of every vertex

or bone in every frame, or just keep a few sets of

recorded positions (called keyframes) and interpolate

between them.

Movements using animations are very well inte-

grated in Unity because of their widespread use in

GRAPP 2020 - 15th International Conference on Computer Graphics Theory and Applications

video-games. It also means that there are many open

license animations available to test and develop, espe-

cially for humanoid models.

With animations, it is possible to perform many

complex and varied types of movements very eas-

ily. With a simple gesture, the puppet can perform

a dance, make a basketball move or climb a wall.

On the other hand, because of their repetitive na-

ture, animations can end up limiting the amount of

expression a performer can infuse into a marionette.

However, this is a problem that can be avoided by us-

ing methods like blending between two animations, or

by using Unity’s Blendtree system (that blends more

than two animations by using different variables). In

this way, the performer will be able to control a hand-

ful of parameters that will allow him to determine, for

example, how high the puppet will jump or how bad

he will fall after jumping.

Animations have been integrated as one of the

movement types used for the puppets. The loco-

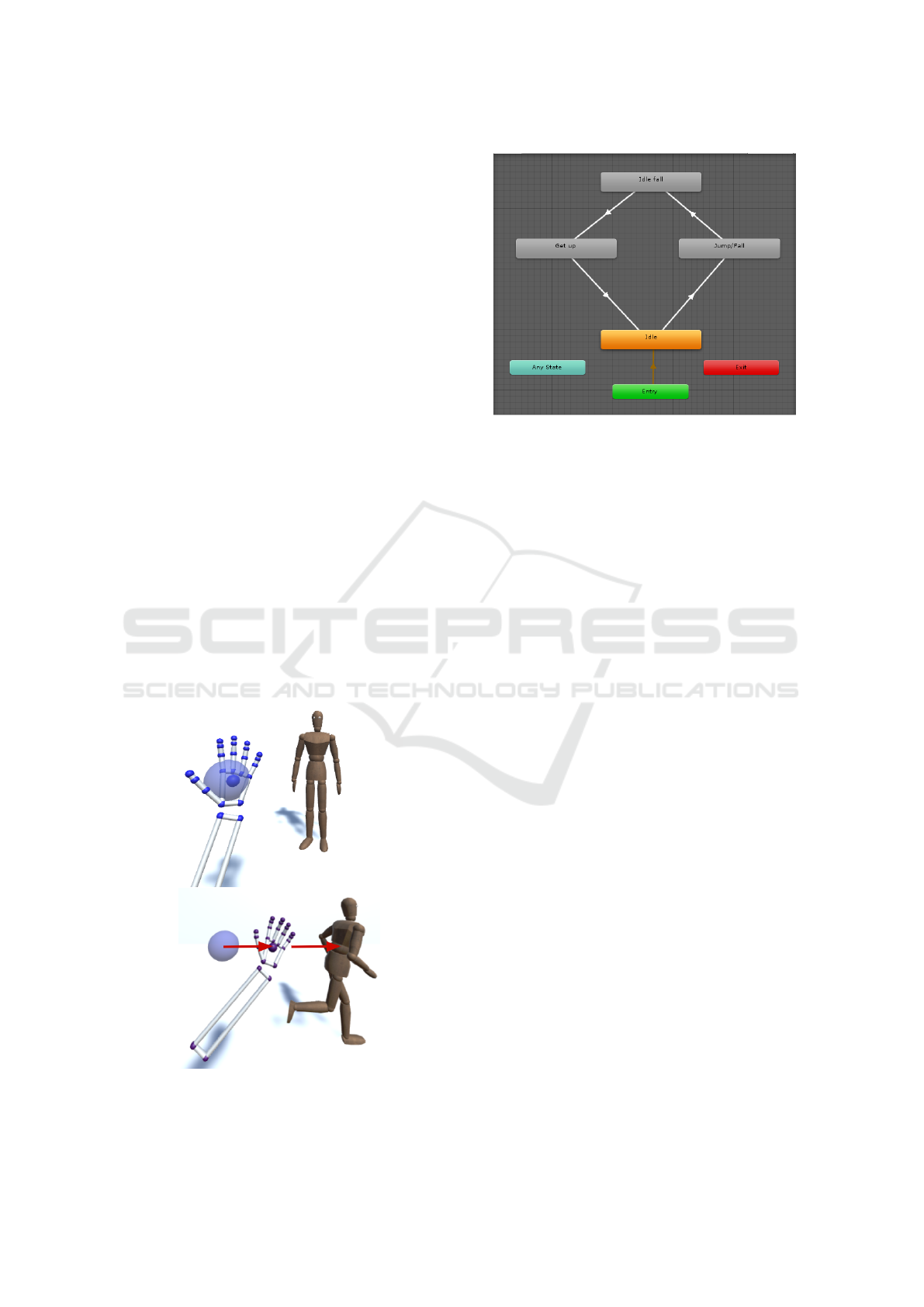

motion movement mode explained in Section 4.2.4,

for example, uses a Blendtree to interpolate between

walking, running and turning. The jump movement

mode detailed in Section 4.2.5 uses simple animations

played in sequence.

3.2 Inverse Kinematics

Inverse Kinematics (IK) is a process that receives a

few simple inputs, and determines the position and

rotation of a set of bones. It will, for example, receive

the position and the rotation of the wrist of a charac-

ter, and in turn determine the positions and rotation

of the forearm and upper arm bones. An extensive

survey of this technology is presented by Aristidou et

al.(Aristidou et al., 2018).

By allowing the performer to do a range of addi-

tional movements with precision, Inverse Kinematics

adds a layer of ﬂexibility and expressiveness to the

puppet. On top of that, they can be used in conjunc-

tion with classic animation, by using masks. With this

feature, it is possible to choose which bones will use

the animation and which will use Inverse Kinematics.

Our program uses Unity’s Inverse Kinematics sys-

tem to perform its head and arm movements. As ex-

plained in Section 3, IK is used rotate the head in the

direction we want while respecting constraints that

make this movement look natural. The arms move-

ment mode, described in Section 4.2.3, uses the palm

position and wrist rotation given by the Leap Motion

to determine the conﬁguration of all other bones in

the arm.

3.3 Physically based Animation

Physically based animation makes an object perform

realistic movement by using physics simulation. Sim-

ulating physics with mathematical equations has been

a topic of research for centuries, and because of that,

most of the theory behind what we need for this work

has been around for a while. Yet to perform these

simulations in real-time in a stable and aesthetic fash-

ion is a whole different matter. It is still possible with

a lot of loose simpliﬁcations, but it can still behave

unexpectedly.

Theoretically, physically-based animations would

let a puppeteer perform any and every movement he

desires. It would also allow very interesting interac-

tions with the scenario, like making the puppet stum-

ble on a rock or be blown away by the wind. However,

trying to use this type of movement with in practice

reveals a lot of challenges (Bousquet, 2015).

Physics systems can be very unstable, especially

when many bones and ropes are being used. This hap-

pens because there is a considerable number of con-

straints that need to be satisﬁed, which increases the

likelihood that something unexpected occurs, given

the number of approximations made. This can be mit-

igated to a certain degree by ﬁne-tuning and conﬁgur-

ing the used model. However, this is a tiresome trial-

and-error procedure that also goes against the philos-

ophy of our work since it makes the framework less

agnostic to the model used.

In addition, the biggest disadvantage that comes

with this type of movement is the limitation of the

hand as a controller. It is a very difﬁcult task to make

complex movements with this system because of all

the degrees of freedom involved. Waiving is trivial for

example, but walking or jumping in a realistic manner

becomes almost impossible.

It is then no surprise that in real-life puppetry, con-

trols that consist of simply attaching strings to the

puppet’s limbs are almost non-existent. They most

commonly use a set of complex mechanisms that al-

low the performer to reproduce realistic movements

while pulling a few strings at a time.

With this in mind, we implemented two physi-

cal simulation systems as prototypes by using using

Unity’s rigid body simulation:

• One where strings were attached from the tips of

each ﬁnger to each different limb. It proved to be

very hard to perform complex movement this way

because of the difﬁculty of moving ﬁngers inde-

pendently, and their limited range of movement.

• The other resembles a classic method of pup-

peteering called the crossbar. All the strings are

attached to a plane, and the performer would then

Expanded Virtual Puppeteering

Figure 1: Gesture Set currently used with the gesture recognizer.

change the rotation of said plane with the hand.

Movements turned out to be more reliable and had

an increased range, but the inability to move limbs

independently still made this system limited.

Unfortunately, because of the disadvantages men-

tioned, these two prototypes were discarded.

Finally, we implemented physics simulation in our

system very succesfully by restricting it to collision

detection of the puppet with other objects in the scene

and reaction to external forces.

4 ARCHITECTURE

This section describes the main modules of the pro-

gram: the gesture recognizer, the movement manager

and the network component. It explains in detail how

each of them work and how they communicate with

each other.

4.1 Gesture Recognizer

4.1.1 Motivation

In this program, there is a need for other types of inter-

actions in addition to the manipulation of the puppet.

They are needed for controlling other aspects of the

program, such as changing the puppet’s manipulation

mode, adjusting conﬁguration parameters or resetting

the program.

Because of this, there should be a system in place

that allows the performer to change contexts and send

commands. The most natural way to do this is by

using the performer’s hands since they are being con-

tinually captured by the Leap Motion. To make this

possible, a gesture-based interaction system has been

set up using a gesture recognizer.

A Support-Vector Machine (SVM) has been cho-

sen to implement this gesture recognizer, so it can be

ﬂexible with the gesture it uses while still being accu-

rate.

4.1.2 Implementation

There is a vast literature on the subject of gesture rec-

ognizers for the Leap Motion. This implementation is

based on works from Guilio et al.(Giulio et al., 2014)

and Youchen et al.(Youchen et al., 2017), because of

the level of detail given for feature extraction and the

settings used for the SVM respectively.

From the papers mentioned above, the features

used in this implementation for the classiﬁcation are:

• The angle of each ﬁngertip relative to the palm.

• Distance of each ﬁnger from the center of the

palm.

• Distance of each ﬁngertip from the plane created

by the palm.

• Matrix of distances of all ﬁngertips.

The SVM was implemented using Ac-

cord.NET(Souza et al., 2014), which is a C#

library for machine learning. The settings of the

machine are very similar to the ones described in

Section 5 of Youchen et al.(Youchen et al., 2017). In

short, it is a multi-class SVM, that uses grid-search

to ﬁnd hyper-parameters C and γ. (See Figure 1 with

the current gesture set used in our system.)

4.1.3 Learning

The different types of gestures the recognizer can

learn aren’t hardcoded in any way. By redoing the

learning routine, any hand gesture can be used in the

program (given the limitations of the Leap Motion as

a sensor).

GRAPP 2020 - 15th International Conference on Computer Graphics Theory and Applications

The learning routine consists of capturing the

hand in the desired positions many different times to

build a learning database. Afterwards, all these exam-

ples will be used to determine the SVM.

After the machine is set up, it is serialized and

saved to a ﬁle that will be reused by the program from

that point on. Since a ﬁle is generated, it is possible to

make backups of previous SVMs and to easily switch

between them.

4.1.4 Result

Once the machine is conﬁgured, it is very easy to use.

It works as a function: its only inputs are the features

described in Section 4.1.2, extracted from a hand. The

output is the prediction made by the machine: the ID

of the gesture the machine has recognized, in addition

to some metadata, like the reliability of the prediction.

4.2 Movement Modes

There are four distinct basic movement modes and an

additional idle mode. Each of them allow the per-

former to move the puppet in a different manner. To

navigate between them, it is necessary to use gestures.

(See an example in Fig. 2)

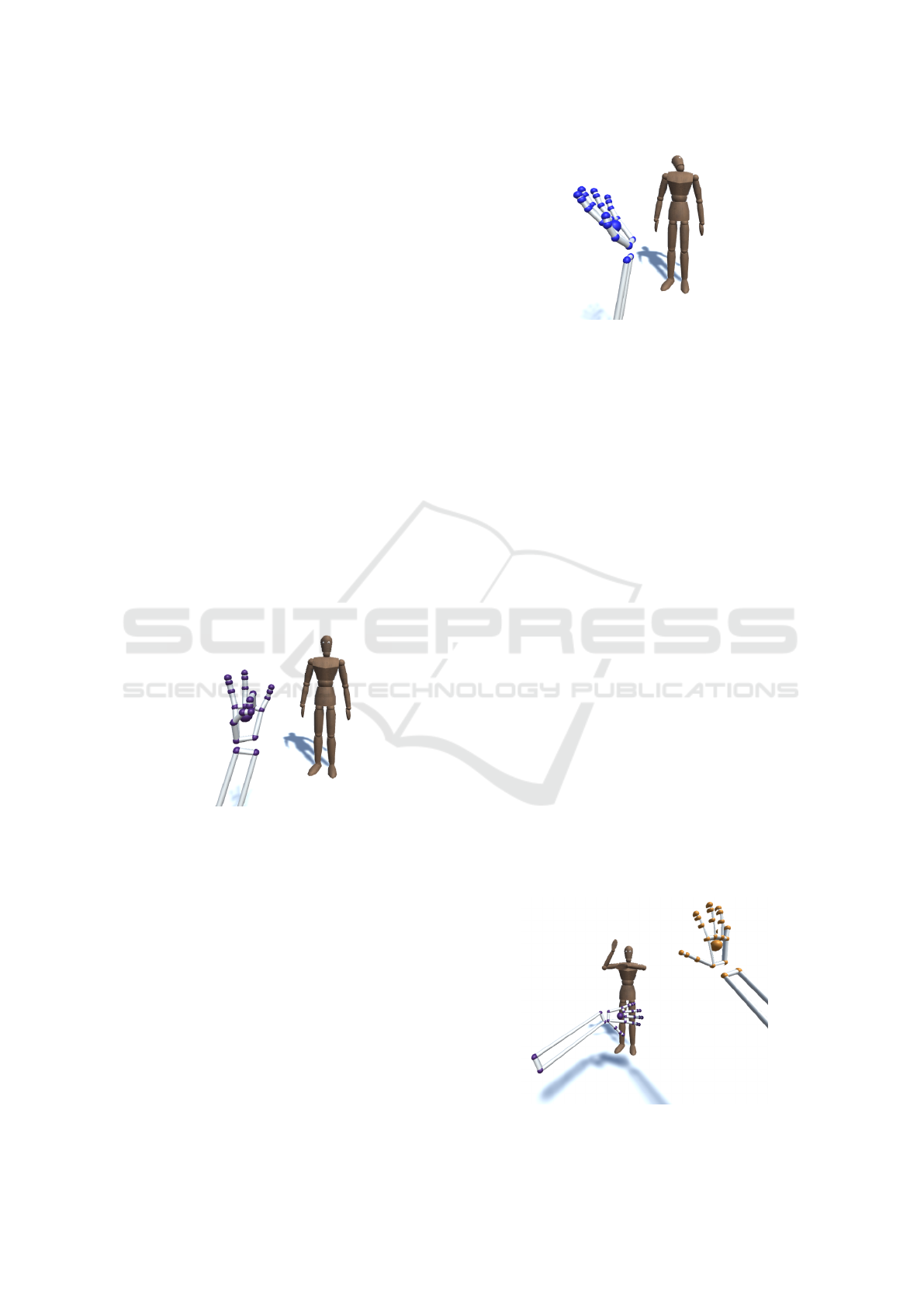

Figure 2: A gesture made with the Leap Motion.

4.2.1 Idle Mode

The program starts in a “neutral mode”, where the

marionette doesn’t move. To enter in any of the move-

ment modes mentioned below, it is necessary to make

the same speciﬁc gesture with both hands at the same

time. Finally, if there is any need to reset the mari-

onette or its position, there is also a reset gesture.

4.2.2 Head Movement

The movement of the head is done using Unity’s in-

verse kinematics (IK) system. The marionette will

look in the same direction as the direction of the palm

detected by Leap Motion. For example, if the palm is

Figure 3: Movement of the marionette’s head.

facing up, the marionette’s head will be looking at the

ceiling. (See Figure 3.)

Since it isn’t always possible to rotate our hands in

every possible direction, a feature was added to allow

to change the default “front” direction of the hand. It

can be used by making a gesture with the right hand

and putting the left hand in the direction that corre-

sponds to its new default.

4.2.3 Arm Movement

It is very straightforward to control the marionette’s

arms: they will move in the same way as the per-

former’s. The arms’ movement also uses Unity’s IK

system, but in a more complex manner. Each arm

has two targets: hand position and rotation. The IK

system will then calculate the marionette’s arm bones

conﬁguration that satisfy the targets given. (See Fig-

ure 4.)

There were experiments made by adding Leap

Motion’s elbow positions to the IK targets. However,

since the Leap Motion doesn’t directly capture the el-

bow positions and instead only estimates them, they

can end up being unstable.

To increase the accuracy of the movement, it is

also necessary to calibrate the length of the arm ac-

cording to the user’s.

During the arm’s movement mode, the head will

either look at the middle point between both hands if

they are approximately at the same height or at the

Figure 4: Arm movements.

Expanded Virtual Puppeteering

hand who is raised highest. This adjustment has been

made in order to make the movement more expressive

because it was a bit off-putting for the arms to move

while the head was motionless.

4.2.4 Locomotion

The walking and running controls were subject to

many iterations. The last iteration up to this point is

stable and intuitive.

It works in a similar manner as a joystick in a

video-game. However, instead of receiving x and y

coordinates from an analog stick, it receives the same

information from the Leap Motion.

Upon entering the locomotion mode, a sphere will

appear on the position of the hand that will control

the marionette. It stays in the same position, but if

needed, it can be moved by using a gesture with the

other hand.

The sphere acts as a dead-spot for the movement.

While the center of the palm is inside it, the received

x and y inputs will be 0 and the puppet won’t move.

(See Figure 5.)

The sphere also acts as a reference because its cen-

ter is very important to determine the direction and

speed of the movement. They will be calculated using

a vector that starts in the center of the sphere and goes

in the direction of the center of the palm. The vector

is then projected on the xy plane. Its direction deter-

mines the direction of the movement, and its length

determines the intensity of the movement.

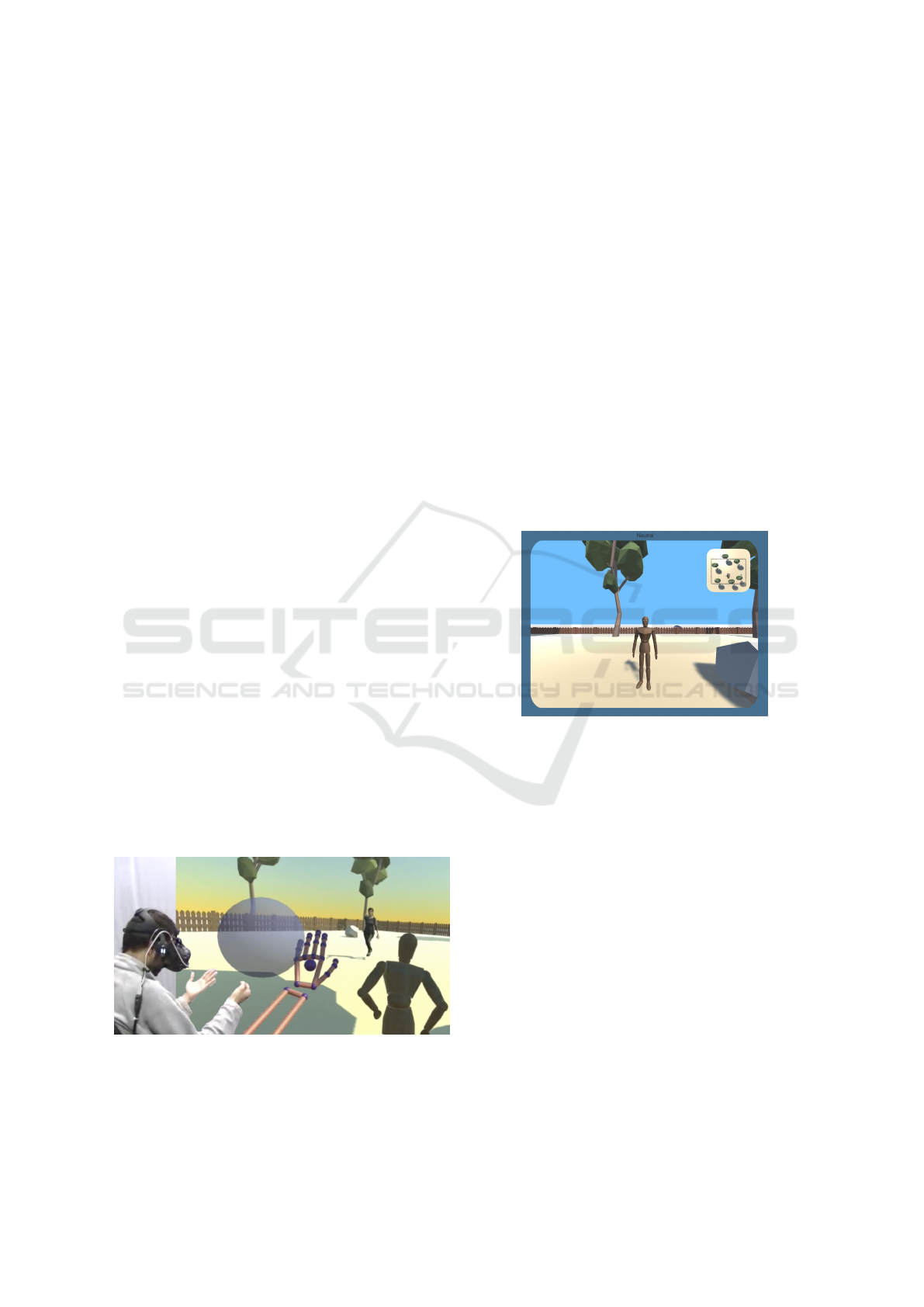

Figure 5: The movement mode.

Figure 6: Animation controller used for the jump mode.

4.2.5 Jump

Out of all the movement modes, the jumping mode

is the simplest. It just cycles between three anima-

tions. First, if the speed of the hand in the y direc-

tion is above a threshold (i.e. when the hand is raised

quickly), the jump animation is triggered. Then, the

puppet will stay on the ground, looping an idle anima-

tion. Finally, when the palm is facing up, another an-

imation will be triggered, where the puppet will stand

up and return to its default idle animation. (See Fig-

ure 6.)

4.2.6 Other Movement Types

The movement modes presented above are just a few

examples of what can be done by the puppet. Given

the implementation, adding other movement modes

isn’t a hard task.

4.3 Presentation and Network

There were many reasons that compelled us to sepa-

rate this program into client and host. As discussed in

Section 6, there needs to be at least two instances run-

ning: one for the performer and one for the audience

(or more in the case of Augmented or Virtual Real-

ity), and optionally another one for the director. They

all have different needs and types of interaction, and

putting them all in the same program would make it

unnecessarily cluttered.

4.3.1 Holojam

To perform the networking part of the program, we

used the Holojam SDK (Velho et al., 2017). It meets

all the needs of our program: it can synchronize users

GRAPP 2020 - 15th International Conference on Computer Graphics Theory and Applications

Manipulator instance

Host

Movement

Processing

Leap XR

Service

Provider

(external)

Host Hand

States

Leap

Gesture

Recognizer

Holojam Server

Targets IK

Mannequin

Controller

Mannequin

Controller

Movement

Manager

Animator

Puppet

Master

(external)

Hand

Getter

Server

Any instance with

a Mannequin

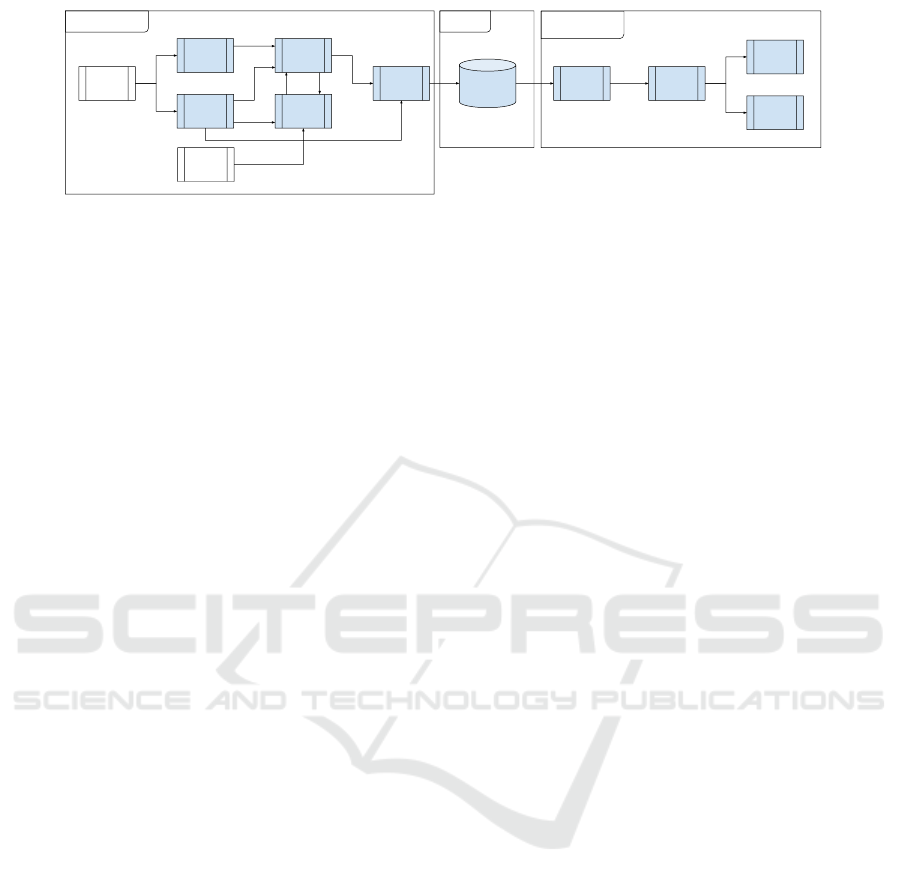

Figure 7: Diagram illustrating class interactions.

positions and their movements in VR, while also al-

lowing other types of data to be sent using Synchro-

nizable Objects.

4.3.2 Synchronizable Objects

In the Holojam SDK, Synchronizable Object are ob-

jects that are constantly broadcast from the host to all

clients in the network. It is possible to send integers,

ﬂoats and bits by having a host and a client class.

Our objective is to recreate the Leap’s hand class

from the host in the client. The host then sends all the

important information from its hand (i.e. position, ro-

tation and speed of the palm). With this information,

the client can then recreate a hand that is used by the

other components.

In addition to this, the host sends other informa-

tion, like the detected gesture of each hand. This way,

only the host needs to have gesture recognizer-related

code.

4.4 Class Interactions

All of the modules mentioned above need to have

some degree of communication in order to work. In

order to illustrate this, the diagram in Figure 7 shows

the most important classes in our program, and how

they interact with each other.

Each small rectangle represents a class and the

bigger rectangles containing small ones represent a

GameObjects that has those classes as components.

GameObjects are the base class of Unity’s system.

The single-headed arrow means one class uses an-

other, and a double-headed arrow means both classes

use one another.

As we can see, there are three important GameOb-

jects in this program, HandHost, HandClient and

Mannequin. Because of the networking component, a

HandHost doesn’t necessarily have to be in the same

instance or computer as the other two, as long as both

are still connected to the Holojam server.

5 MEDIA PROJECT AUTHORING

Our framework is an authoring tool for media

projects. In this sense, it was designed with adapta-

tion in mind. Many parts of it can be changed and

customized to make it ﬁt another project with little to

no programming. Those parts are the gesture set from

the recognizer, the puppet’s model and all its anima-

tions.

5.1 Gesture Sets

Because it is implemented with a Support Vector Ma-

chine, the Gesture Recognizer can accept many dif-

ferent Gesture Sets. Gesture Sets have 10 gestures by

default, although there is no hard-coded assumption

about the number of gestures.

To have a reliable accuracy however, there are

some precautions that need to be taken. The ﬁrst one

is that the gesture needs to be clearly visible by the

Leap Motion. This means that gestures where the

ﬁngers are occluded from the Leap Motion perform

poorly, for example. Another important precaution is

to make sure that gestures in the same Gesture Set

aren’t similar to one another. For reference, the Ges-

ture Set we are currently using is quite reliable and

robust. It can be seen in Figure 1.

5.2 Humanoid Puppets

Unity’s framework is very friendly to humanoid mod-

els. Having a humanoid model with correctly conﬁg-

ured bones practically guarantees that it will work as

expected. In Unity’s animation system, an animation

made for any type of humanoid can be used in an-

other humanoid. Because of this, it is very likely that

two humanoid puppets with different models will be-

have very similarly. This also means that there is an

enormous pool of animations that can be quickly in-

tegrated into the program since humanoid animations

are very popular in video-games.

Expanded Virtual Puppeteering

5.3 Other Puppets

While not as easy and direct as humanoid models, it is

still possible to add other types of puppets. Of course,

a lot of additional work would be needed, as well as

the help of a technical artist, which wasn’t necessary

until now. First, the model would have to have valid

bones. Unfortunately, none of the current movement

modes were made to work with non-humanoid pup-

pets, so they would have to be made from scratch.

For new movement modes similar to the old ones, a

possibility would be to blend between two or more an-

imations, while leaving the blend parameter in control

of the performer. For this to work, of course, custom

animation for the speciﬁc puppet would also have to

be made.

6 VISUALIZATION TYPES

There are many different kinds of end-users in this

program. The types of interactions they have with

it are also very distinct. Because of this, a need for

separate types of visualization became evident very

quickly.

6.1 Visualization for Performers

The ﬁrst type of user is the performer. He or she will

use the program with the Leap Motion to directly ma-

nipulate the puppet. The Leap Motion is attached to

the user’s forehead, using its Head Mounted mode.

In this way, the visualization can be made either on a

monitor, or with a Head Mounted Device, using vir-

tual or augmented reality. Figure 8 shows the per-

former controlling the puppet in VR mode. In this

case, the puppeteer is litteraly immersed in the scene

and visualizes the puppet in a 3rd person mode.

Figure 8: Third person visualization in VR mode.

An UI element has been added to the performer’s

screen because it was not obvious what manipulation

mode the puppet was in at any given time. In order

to give this information to the performer without dis-

tracting him from the puppet, a “bezel” was chosen.

This bezel has the color associated with the current

mode, and a text ﬁeld where the mode’s name is dis-

played – in VR mode, the color of the hands are also

changed accordingly (See Figure 9.)

Concerning visualization during runtime, manipu-

lation modes also need different camera setups. Head

and arm manipulation mode’s cameras needs to be

up close and always facing the puppet. On the other

hand, move and jump’s need to stay a bit far away

and to avoid excessive rotation, in order to prevent

disorienting the performer and helping him navigate

the scenario.

In addition to this, a small map of the scenario

has been added to one corner of the screen (most

commonly referred to as a minimap). It shows the

puppet’s current location and the direction it is fac-

ing. This element helps the performer know exactly

in what part of the scenario the puppet is, and its ori-

entation. (See Figure 9.)

Figure 9: Small map used for orientation is shown on the

top-left corner of the screen.

6.2 Visualization for the Audience

Of course, the audience will need a completely dif-

ferent kind of visualization than the performer. Three

types of visualization have been set up for them:

• Big screen:

The most traditional type of visualization, where

the scene is rendered to a single screen. Since

there are many cameras to render from, we have

implemented two ways to choose the correct cam-

era. The ﬁrst one is automatic: each move-

ment mode has a camera associated with it, and

switching to a different movement mode always

switches to its associated camera. The second one

is manual, and requires the presence of a direc-

tor actively switching between cameras as a scene

unfolds (see below).

• Virtual Reality:

In virtual reality, the audience can navigate in the

GRAPP 2020 - 15th International Conference on Computer Graphics Theory and Applications

environment and choose the elements they will

focus on and interact with. This mode uses the

HTC Vive Head Mounted Device, and its SDK

for Unity. It allows performances in a small scale

because of both the high price of the Vive headset

and the bandwidth used by each instance of the

program.

• Augmented Reality:

It is also possible for someone to see the perfor-

mance in AR, by using the Meta II headset. How-

ever, it is not straightforward to make the puppet

interact with the environment and the spectator in

Meta’s SDK . Without these elements, we felt that

augmented reality didn’t contribute to the experi-

ence, so it currently isn’t the focus of the program.

As mentioned above, visualization for the audi-

ence also brings along another kind of user: the direc-

tor. This person will be responsible for choosing what

camera will be recorded or shown in the main screen

and modifying their parameters. To make that pos-

sible, Unity’s Cinemachine system was used to im-

plement and manage different cameras. This mode of

control was inspired in the work of Velho, et al. (Velho

et al., 2018a).

The cameras available represent classic cameras

angles, such as close up shot, full body shot or over

the shoulder. Then, each camera is bound to a key

on the keypad to make switching easier. Zoom-in and

zoom-out are also possible with three distinct speeds.

6.3 Possible Interactions

Since in the Holojam framework every user is aware

of each other, it allows for interactions between per-

formers and with the audience. A performer could for

example notice a spectator looking at an object in the

scenario and react accordingly. It is also possible to

have puppets and fully motion-captured actors shar-

ing the same environment, as in (Velho et al., 2018b).

The puppet can also interact with the scenario

since it is aware of its surroundings. The inverse is

also possible: by adding triggers and colliders, we can

execute behaviors whenever the puppet enters or leave

an area or does a speciﬁc movement next to an object.

7 THE FRAMEWORK IN ACTION

As seen in Section 2, development in this ﬁeld is

closely tied to entertainment, professionals of the

show business and artists. With that in mind, a collab-

oration with a professional puppeteer and a play di-

rector was made. The goal of this collaboration was to

evaluate how the framework would satisfy the needs

of the project, and to improve it.

The objective of the collaboration was to make a

short performance with the puppet, to test its expres-

siveness, and the usability of the program. The name

of this performance is “O Boneco” (The Puppet).

7.1 Development Methodology

Once the project had started, an Agile development

method was set up. There were weekly meetings

where a performer and a director would meet the de-

veloper. Centered around that meeting, our iterative

work-ﬂow functions in the following way:

1. Meeting with users:

The users test the new iteration of the program.

They ﬁrst see every new change, and then try to

make a short performance using the program.

They give feedback on the improvements made,

and on their experience as a whole. From this

feedback, a list of development tasks is elabo-

rated, where each task has an associated difﬁculty,

risk, priority and estimated completion time.

2. Improvement:

During the rest of the week, the tasks are then im-

plemented. In general, tasks are done in order of

priority, regardless of difﬁculty.

Once all the weekly tasks are done, implementa-

tion of backlog features begins. The backlog usu-

ally contains tasks that are more oriented towards

medium and long-term goals in the road-map.

7.2 Learning Process

As in most cases, direct user feedback proved to be

invaluable to improve the program. It is very hard for

a developer to think like a performer, or for a person

who uses this program daily to imagine how someone

using it for the ﬁrst time will behave.

This feedback made us implement many impor-

tant features, like the bezel around the screen and the

small map mentioned in Section 6.1.

7.3 Results

This collaboration was very fruitful, each week the

recorded performances made signiﬁcant improve-

ments. The performer managed to adapt very quickly

to the way the program works, and the puppet’s ex-

pressiveness also showed a clear progression in con-

sequence.

Now that our framework has proven itself and is

reaching a mature state, we are already engaged in a

Expanded Virtual Puppeteering

complete project that is exploiting all the capabilities

we have created in order to further develop it as an

artistic tool.

8 CONCLUSIONS AND FUTURE

WORKS

We proposed a novel framework for digital puppeteer-

ing that uses a performer’s bare hands. We explained

how it is structured, the modules needed to reproduce

it and the rationale behind the decisions taken dur-

ing the development. The results obtained in Section

7 were very satisfactory, and conﬁrm that the frame-

work allows stable and reliable manipulation of the

puppet while also allowing it to be very expressive.

As for future developments, there are many paths

this framework could follow:

• By using Unity packages such as FinalIK and

PuppetMaster, it is possible to use physics to

make the puppet react to his surroundings in more

complex ways, and enhance existing manipulation

modes. This would further increase the range of

possible interactions between a puppet and its en-

vironment.

• While it is theoretically feasible with the Holo-

jam platform with multiple players, there needs

to be more serious testing of performances featur-

ing many performers simultaneously. Either many

performers, each controlling a different puppet,

a mix of motion captured actors and puppets, or

even many performers controlling a single puppet

(as is the case for more complex puppets in tradi-

tional performances, similar to Boyle’s and Fos-

ter’s work(Boyle and Foster, 2011)).

• Making the creation of new movement modes a

more streamlined process would greatly decrease

the need for direct intervention in the code.

ACKNOWLEDGMENTS

Support by grants from INCTMat and FAPERJ.

REFERENCES

Anderegg, R., Ciccone, L., and Sumner, R. W. (2018). Pup-

petphone: Puppeteering virtual characters using as-

martphone.

Aristidou, A., Lasenby, J., Chrysanthou, Y., and Shamir,

A. (2018). Inverse kinematics techniques in com-

puter graphics: A survey. Computer Graphics Forum,

37:35–58.

Botond G

abor, B., G

asp

ar, H., Kriszti

an, K., Tam

as, L.,

Tam

as, M., G

abor, P., Zolt

an, C.-K., and D

aniel, B.

(2014). Marionette zoo.

Bousquet, M. (2015). Physics for animators.

Boyle, C. and Foster, A. (2011). We be monsters.

Ciccone, L., Guay, M., Nitti, M., and Sumner, R. W. (2017).

Authoring motion cycles. In Proceedings of the ACM

SIGGRAPH / Eurographics Symposium on Computer

Animation, SCA ’17, pages 8:1–8:9, New York, NY,

USA. ACM.

Giulio, M., Fabio, D., and Pietro, Z. (2014). Hand gesture

recognition with leap motion and kinect devices.

Hunter, S. and Maes, P. (2013). Designing digital puppetry

systems: Guidelines and best practices. In CHI ’13

Extended Abstracts on Human Factors in Computing

Systems, CHI EA ’13, pages 2821–2822, New York,

NY, USA. ACM.

Leite, L. and Orvalho, V. (2017). Mani-pull-action: Hand-

based digital puppetry. Proc. ACM Hum.-Comput. In-

teract., 1(EICS):2:1–2:16.

Oshita, M., Senju, Y., and Morishige, S. (2013). Charac-

ter motion control interface with hand manipulation-

inspired by puppet mechanism.

Shiratori, T. and Hodgins, J. K. (2008). Accelerometer-

based user interfaces for the control of a phys-

ically simulated character. ACM Trans. Graph.,

27(5):123:1–123:9.

Souza, A. L. e. L., Marroquim, R., and Velho, L. (2015).

Sketches on natural interactions with virtual scenes.

Souza, C., Kirillov, A., Catalano, M. D., and contributors,

A. (2014). The accord.net framework.

Velho, L., Carvalho, L., and Lucio, D. (2017). In-situ vir-

tual reality. Technical Report TR-03-2017, VISGRAF

Laboratory - IMPA.

Velho, L., Carvalho, L., and Lucio, D. (2018a). Live prob-

abilistic editing for virtual cinematography. In En-

tertainment Computing, number 11112 in LNCS pro-

ceedings. Springer Verlag.

Velho, L., Carvalho, L., and Lucio, D. (2018b). Vr

kino+theater: from the ancient greeks into the future

of media. In Proceedings of ACM SIGGRAPH / Euro-

graphics Symposium on Computer Animation.

Youchen, D., Shenglan, L., Lin, F., Menghui, C., and Jie, W.

(2017). Hand gesture recognition with leap motion.

GRAPP 2020 - 15th International Conference on Computer Graphics Theory and Applications
