Med2Meta: Learning Representations of Medical Concepts with

Meta-embeddings

Shaika Chowdhury

, Chenwei Zhang

, Philip S. Yu

and Yuan Luo

Department of Computer Science, University of Illinois at Chicago, Chicago, Illinois, U.S.A.

Amazon, Seattle, Washington, U.S.A.

Department of Preventive Medicine, Northwestern University, Chicago, Illinois, U.S.A.

Keywords:

Representation Learning, Electronic Health Records, Meta-embeddings, Graph Neural Networks.

Abstract:

Distributed representations of medical concepts have been used to support downstream clinical tasks recently.

Electronic Health Records (EHR) capture different aspects of patients’ hospital encounters and serve as a rich

source for augmenting clinical decision making by learning robust medical concept embeddings. However,

the same medical concept can be recorded in different modalities (e.g., clinical notes, lab results) — with each

capturing salient information unique to that modality — and a holistic representation calls for relevant feature

ensemble from all information sources. We hypothesize that representations learned from heterogeneous data

types would lead to performance enhancement on various clinical informatics and predictive modeling tasks.

To this end, our proposed approach makes use of meta-embeddings, embeddings aggregated from learned

embeddings. Firstly, modality-speciﬁc embeddings for each medical concept is learned with graph auto-

encoders. The ensemble of all the embeddings is then modeled as a meta-embedding learning problem to

incorporate their correlating and complementary information through a joint reconstruction. Empirical results

of our model on both quantitative and qualitative clinical evaluations have shown improvements over state-of-

the-art embedding models, thus validating our hypothesis.

1 INTRODUCTION

With the increase in healthcare efﬁciency and im-

provement in patient care that comes with archiving

medical information digitally, more healthcare facili-

ties have started adopting Electronic Health Records

(EHRs) (Shickel et al., 2018; Knake et al., 2016;

Charles et al., 2013). EHRs store a wide range of

heterogeneous patient data (e.g., demographic infor-

mation, unstructured clinical notes, numeric labora-

tory results, structured codes for diagnosis, medica-

tions and procedures) as a summary of the patient’s

entire hospital stay. As a result of the richness of med-

ical content that can be mined from EHR, its use in

predictive modeling tasks in the medical domain has

become ubiquitous.

How good a machine learning algorithm performs

is dependant on the representations of the data that

it is able to learn (Bengio et al., 2013). However, the

high dimensionality, diversity of data and complex as-

sociations between clinical variables in EHR means

the intermediate data representation learning task is

not trivial. Feature engineering with the help of a do-

main expert was prevalent in earlier works to specify

which clinical variables from the EHR to consider as

the input features (Jensen et al., 2012). Although the

features could be more precise as hand-picked with

domain knowledge, the manual effort, scalability is-

sues and inability to generalize render such approach

undesirable (Miotto et al., 2016).

Distributed representations of words, known as

word embeddings, have brought immense success in

numerous Natural Language Processing (NLP) tasks

(Goldberg, 2016). Recent works in deep learning ap-

plications for EHR (Choi et al., 2016c; Choi et al.,

2016b; Tran et al., 2015; Choi et al., 2016a; Choi

et al., 2017) emulated the concept of word embed-

ding as learning vector representations of medical

concepts. They focused on learning the embeddings

from predominantly one modality (e.g., unstructured

notes or structured clinical events) that excludes rel-

evant information about medical concepts found in

other modalities. For example, a patient’s symptoms

for a disease can be mentioned in physician notes but

could be missing from their structured clinical event

data of clinical codes. However, trying to fuse infor-

Chowdhury, S., Zhang, C., Yu, P. and Luo, Y.

Med2Meta: Learning Representations of Medical Concepts with Meta-embeddings.

DOI: 10.5220/0008934403690376

In Proceedings of the 13th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2020) - Volume 5: HEALTHINF, pages 369-376

ISBN: 978-989-758-398-8; ISSN: 2184-4305

369

mation from different modalities in EHR presents the

following obstacles for representation learning,

1. Inconsistency in Medical Concept Terminol-

ogy. In structured clinical events, the medical con-

cept is represented with ICD-9/ICD-10 clinical code.

While in unstructured clinical notes, it is either men-

tioned with a formal medical term for the concept or

an informal analogous term/phrase implicitly. It is

difﬁcult to consistently detect the presence of a medi-

cal concept across different modalities.

2. Varying Contexts. Prediction based embed-

ding approaches (Choi et al., 2016b; Choi et al.,

2016a) work well on structured modality where each

patient can be represented as a sequence of visits of

codes, and can consider context in terms of the other

neighboring codes within the same visit. However, for

unstructured clinical notes, the context can be noisy

due to the presence of text describing all aspects of a

patient’s admission (e.g., past medical history).

3. Feature Associations Complexity. Other

types of patient information such as demographics

and laboratory results are possibly important signals

in prediction tasks. However, modeling their non-

linear and complex relations with the medical con-

cepts is not straightforward.

4. Interpretability. The resulting learned em-

bedding should be understandable as clinicians want

to know the underlying reasons for predictive results,

that should also comply with medical knowledge.

To address these obstacles our proposed approach,

Med2Meta, is formulated as a meta-embedding learn-

ing problem. Meta-embeddings are embeddings ob-

tained from the ensemble of existing embeddings. As

embeddings vary in terms of the corpus they are cre-

ated from and the approach used to learn them, (Chen

et al., 2013; Yin and Sch

utze, 2015) have found that

they capture different semantic characteristics. Meta-

embedding learning exploits this idea and combines

the semantic strengths of different types of embed-

dings, which has been shown to outperform single

embedding on tasks such as word similarity and anal-

ogy (Yin and Sch

utze, 2015). Med2Meta differs from

traditional meta-embedding learning in that it does

not combine existing pre-trained embeddings to ob-

tain the new embedding for each medical concept, as

most of these models are designed for one data modal-

ity. Rather, feature-speciﬁc embedding for each med-

ical concept in the EHR is ﬁrst learned with graph

auto-encoder by considering each heterogeneous data

type as a different view. Using graph auto-encoder

for learning embeddings gives us the beneﬁt of being

able to model the relations between different types of

medical concepts through the graph’s structure and,

at the same time, infuse relevant feature information

for each medical concept collected from a particu-

lar modality. In particular, with each medical con-

cept modeled as a node in the graph and edges be-

tween two nodes signifying corresponding relation-

ship found in EHR data w.r.t a modality, embeddings

are learned by considering features extracted from

that modality as a separate view. Med2Meta consid-

ers three different heterogeneous data types in EHR

as separate views — demographic information (dem),

laboratory results (lab) and clinical notes (notes).

Each graph is constructed with a novel graph con-

struction approach, where unique medical concepts

from structured clinical events are extracted to serve

as the nodes of the graph.

The embeddings learned from each view are then

considered as input sources for the meta-embedding

process, which are fused together using Dual Meta-

Embedding Autoencoders (Dual-MEAE). The en-

coders in Dual-MEAE are inspired by the idea in

(Roweis and Saul, 2000), where each data point and

its neighbors can be expected to lie on or close to a

locally linear patch of the manifold, where similar in-

stances should result in similar positions in the em-

bedding space. Therefore in Dual-MEAE, a pair of

encoders are allocated for each view — one for the

source embedding and the other for the average em-

bedding of the most similar medical concepts based

on that view —- in order to project different modal-

ities to a common meta-embedding space. That is,

the embedding of a medical concept can be expected

to be semantically similar to that of its most similar

medical concepts and, hence, should also lie nearby

in the meta-embedding space. To enable this, a sin-

gle decoder jointly tries to reconstruct the original in-

put source and the average embedding from the latent

meta-embedding representation. By minimizing the

reconstruction errors across all the views in an uniﬁed

manner, the intermediate meta-embedding represen-

tation is able to retain correlating information among

medical concepts within the same view, as well as

capture complementary information across different

views, hence learning a holistic vector representation

for each medical concept. In general, Med2Meta’s

contributions are threefold,

• Learns holistic embeddings of medical concepts

that fuses information from heterogeneous data types

in EHR through a meta-embedding process.

• Modality-speciﬁc embeddings capture the se-

mantic features of each EHR data type and are gen-

erated using Graph Auto-Encoders.

• Outperforms current state-of-the-art models in

both qualitative and quantitative experiments for a

publicly available EHR dataset.

HEALTHINF 2020 - 13th International Conference on Health Informatics

370

Figure 1: Proposed Dual-MEAE Model: Fuses embeddings

from different views with dual encoders for each view and

a single decoder to reconstruct jointly across all views.

2 META-EMBEDDING PROBLEM

DEFINITION

Let S

∈ R

×d

represent the i-th source medical con-

cept embedding, where i ∈ {1, ... k}, for total k = 3

source embeddings representing the three different

views in our case. Here V

is the medical concept

vocabulary covered by the i-th source embedding. In

our case, V

for all three sources i ∈ {1, .. . k} are the

same as the total number of unique medical concepts,

V, used to create each modality-speciﬁc graph is the

same, and hence we consider V

= V. The dimen-

sion of medical concept embedding for the respective

source is denoted by d

, where we set all d

to be of

the same dimension, d. The meta-embedding learn-

ing problem is then deﬁned as learning an embedding

m(c) ∈ R

of dimension b in the meta-embedding

space for each medical concept c ∈ V .

3 Med2Meta ARCHITECTURE

Our proposed approach comprises two steps: 1) ob-

taining modality-speciﬁc embeddings and 2) meta-

embedding learning. In step 1, Graph Auto-Encoder

is trained on each modality features in turn to gen-

erate feature-speciﬁc embeddings to be considered as

input sources into step 2. While in step 2, all the in-

put source embeddings are ensembled through meta-

embedding learning to obtain the new embedding for

each medical concept.

3.1 Generating Modality-speciﬁc

Embeddings

The embedding learned for each medical concept

should holistically capture relevant features from each

data modality in EHR, as patient information cover-

age is not the same across all the modalities. For in-

stance, information regarding symptoms experienced

during a disease, its severity and other important ob-

servations made by physicians/ nurses are probably

only found in clinical notes. Hence, learning the

embeddings only from structured clinical records is

a sub-optimal approach. We use the same Graph

Auto-Encoder technique as used in (Chowdhury et al.,

2019), however, in this work graph for each view is

constructed using EHR information collected from all

the patients.

3.2 Fusion through Meta-embedding

Learning

The three types of modality-speciﬁc embeddings ob-

tained through graph auto-encoder exist in different

vector spaces and capture semantic relations of the

respective view. In order to learn an embedding

that collectively reﬂects semantic associations across

different modalities in EHR for each medical con-

cept, semantic knowledge from all the feature-speciﬁc

embeddings need to be integrated. Performing the

fusion by casting it as a meta-embedding problem

through autoencoding is meaningful as we intend to

learn the ensembled embedding as a meta-embedding

by reconstructing the modality-speciﬁc embeddings

jointly. The projection to a common meta-embedding

space would therefore lead to coherent enforcement

of mutual and correlative information present in the

embeddings. The proposed Dual-MEAE model is de-

picted in Figure 1.

We consider each modality speciﬁc embedding,

extracted from a view in step 1, as an input source

embedding, S

, into Dual-MEAE. In each source em-

bedding space, medical concepts that are semantically

similar in that view would exist geometrically closer

and thus can be expected to have similar distributed

vectors. So, our proposed approach reconstructs each

medical concept jointly from both the source embed-

ding and average embedding of its most similar med-

ical concepts.

Each component of our meta-embedding model,

Dual-MEAE, is discussed in detail in the following

sub-sections.

3.2.1 Encoder

On the encoder side, a set of dual encoders, Enc

src

and Enc

avg

, is set aside for each view i from i ∈

{dem, lab, notes}. For each medical concept c, its

learned source embedding with respect to view i and

the average of the source embeddings of most simi-

lar medical concepts to c in that view are fed as in-

Med2Meta: Learning Representations of Medical Concepts with Meta-embeddings

371

puts, I

src

and I

avg

, into Enc

src

and

Enc

avg

respectively. That is, the output feature ma-

trix Z

∈ R

V ×d

obtained for each view from step 1

is considered as the respective source embedding, S

for that view. Henceforth, Z

[c,:], which is the c-th

row of Z

for c ∈ V and represents the GAE-generated

distributed embedding vector of c-th medical concept,

is fed as input I

src

for the respective

view. From our preliminary results, we found that

projecting the output feature matrix from dimension

N × d → V × d

where d

< d through principal com-

ponent analysis (PCA) (Wold et al., 1987) improves

performance; so we feed embedding vector extracted

from the PCA output matrix Z

instead.

On the other hand, the accumulation of the source

embeddings of the most similar medical concepts to

c with respect to view i is computed as their aver-

age, avg

(c), and is considered as the input, I

avg

(c),

to the second encoder, Enc

avg

. We speciﬁcally chose

to compute the average of the neighborhood embed-

dings as it has shown to perform well in recent stud-

ies (Coates and Bollegala, 2018). To ﬁnd the most

similar medical concepts of concept c, the top three

medical concepts sorted by highest values of dice co-

efﬁcient for that view computed in step 1 are selected.

Top three gave us best results based on hyperparame-

ter analysis on validation set.

The dual encoders encode their inputs I

src

and I

avg

so that latent attributes and their non-linear relation-

ships could be effectively learned. Let us call the en-

coded representations from the dual encoders for each

medical concept as their target embeddings, T

src

∈ R

and T

avg

∈ R

, deﬁned as

src

(c)) (1)

avg

(c)) (2)

Each encoder is implemented as a fully connected

neural network layer, with d

hidden units and ReLU

(Nair and Hinton, 2010) activation.

3.2.2 Meta-embedding Space

We ﬁrst concatenate the respective encoded input rep-

resentations as T

src

(c); T

avg

(c)] (3)

here [] denotes concatenation.

To get meta-embedding m(c) ∈ R

, each T

ﬁrst passed through one dense layer to model it to

respective intermediate representation, m

The concatenation of all m

meta-embedding m(c), deﬁned as,

m(c) = [m

(c)] (4)

for i ∈ {dem,lab,notes} and dimension b = 6d

As Dual-MEAE jointly encodes and decodes

across all the views, the meta-embedding is updated

with view-speciﬁc feature information in a meta-

embedding space. Thus, the meta-embedding space

will eventually be able to capture a holistic semantics

comprising of associations between medical concepts

within same as well as different views.

3.2.3 Decoder

In order to decode the semantically composite meta-

embedding representation, a single decoder Dec

maps the latent representation, m(c), from the meta-

embedding space back to corresponding source and

average embeddings across all views simultaneously.

The decoder is implemented as a neural network of

dense layers, each with d

hidden units and ReLu ac-

tivations. The output of the decoder is deﬁned as,

Dec(c) = Dec(m(c)). (5)

Dec(c) ∈ R

6×d

contains the reconstructed source

and average embeddings for the three views.

This joint decoding from the meta-representation

simultaneously across all the views drives Med2Meta

in embedding both mutually related and complemen-

tary information of heterogeneous data types into the

meta-embedding space.

3.2.4 Objective Function

The meta-representation, m(c), optimized through the

minimization of the reconstruction losses across all

the views is taken as the ﬁnal embedding for the cor-

responding medical concept. The overall objective

function for total k views and V medical concepts in

the training set is deﬁned as,

L =

∑

c∈V

∑

i∈k

(ω



src

avg

(c)



Dec(c)[i

src

,:] − T

src

(c)



Dec(c)[i

avg

,:] − T

avg

(c)



)

(6)

Dec(c)[i

avg

,:] and

Dec(c)[i

src

,:] refer to the de-

coded embeddings for the average and source embed-

dings respectively of view i for medical concept c.

The ﬁrst term in the loss is responsible for infusing

common associations between a medical concept and

other similar medical concepts, whereas, the second

and third try to preserve information essential locally

with respect to each view for each medical concept

HEALTHINF 2020 - 13th International Conference on Health Informatics

372

Table 1: Data Statistics Summary of MIMIC-III.

MIMIC-III

# of patients 7,499

# of visits 19,911

avg. # of visits per patient 2.66

# of unique ICD9 codes 4,893

avg. # of codes per visit 13.1

max # of codes per visit 39

during the respective reconstructions. Moreover, the

degree of these properties in the loss can be controlled

through the values of the coefﬁcients ω.

4 EXPERIMENTAL SETUP

4.1 Source of Data

We evaluate our model on the publicly available

MIMIC-III dataset (Johnson et al., 2016). This

database contains de-identiﬁed clinical records for

> 40K patients admitted to critical care units over

11 years. ICD-9 codes for diagnosis/procedures and

NDC codes for medications were extracted from pa-

tients with at least two visits to construct each graph.

Table 1 outlines other statistics about the data.

4.2 Evaluation Tasks and Metrics

The performance of Med2Meta embeddings is

demonstrated using both quantitative and qualitative

evaluations.

4.2.1 Quantitative

The embeddings are evaluated on the following three

medical tasks,

Semantic Similarity Measurement: The seman-

tic similarity between two medical concepts is calcu-

lated as the cosine similarity between their learned

embeddings and Spearman Correlation Coefﬁcient,

ρ, measured against manual rating based on whether

two concepts fall under same hierarchical grouping

of ICD-9 codes collected from clinical classiﬁcation

software (CCS) (Elixhauser and Palmer, 2015).

Relation Classiﬁcation: We consider two types

of relation, MAY-TREAT and MAY-PREVENT, from

the National Drug File Reference Terminology (NDF-

RT), which is an ontology containing sets of rela-

tions occurring between drugs and diseases. MAY-

TREAT relation holds for drug-disease pairs where

a drug may be used to treat a disease. While MAY-

PREVENT forms a relation between a drug and a

disease if the drug may be used to prevent the dis-

ease. A 2-nearest neighbor classiﬁer is trained on

relation tuples from triples (rel, c1, c2) where rel ∈

{MAY − T REAT,MAY − PREV ENT }. That is, for

each test tuple, the cosine similarity between the vec-

tor offset between the drug-disease embeddings in-

volved (i.e., m(c1) - m(c2)) and that of all the other tu-

ples in the dataset are ﬁrst computed. Then the cosine

similarities are ranked in descending order, and the

evaluation metrics (Accuracy, AUC-ROC and AUC-

PR) are measured. If any of the two top-ranked tuples

holds the same relation as the test tuple, it is consid-

ered as a correct match.

Outcome Prediction: This is a binary predic-

tion task that tries to predict whether the patient is

at risk of developing a disease in the future visit,

t+1

, trained on visit embedding sequence up to v

We focus on patients with heart failure (HF) disease.

Thereby, we examine only patients with at least two

visits and check if they contain an occurrence of heart

failure in their v

t+1

visit. These are considered as the

instances belonging to the positive class (HF). As av-

erage number of visits per patient is 2 in MIMIC-III,

t+1

in our case is 1. A binary logistic regression clas-

siﬁer is trained/tested to perform this prediction task.

The train/test/validation split for positive instances is

75%/12.5%/12.5% and the same split is applied to

equal number of total negative instances, where neg-

ative instances are formed with patients who do not

have HF code in their record up to the v

t+1

visit.

4.2.2 Qualitative

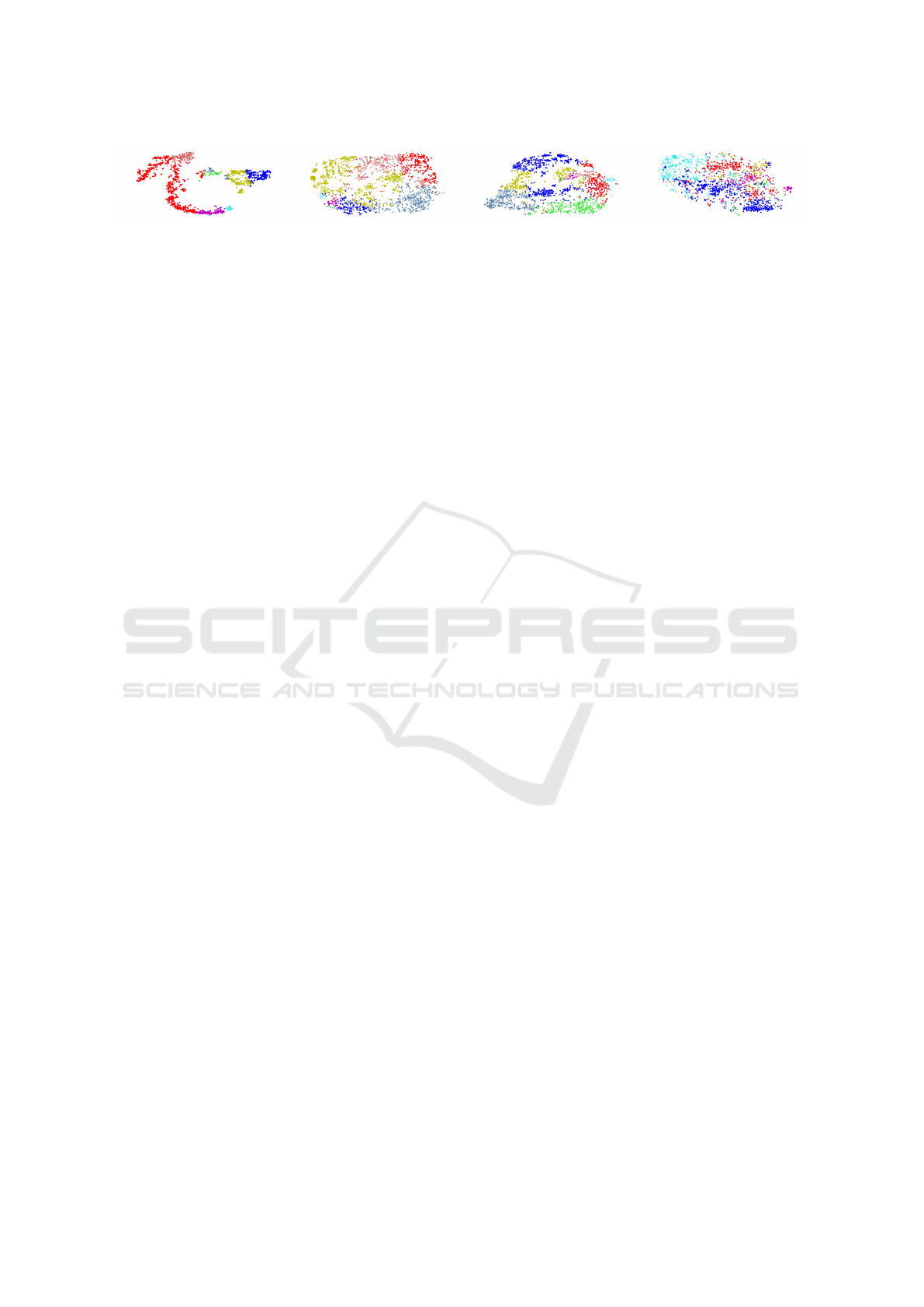

We use t-Distributed Stochastic Neighbor Embed-

ding (t-SNE) (Maaten and Hinton, 2008), which is

a visualization technique that maps data in a high-

dimensional space to two or three dimensions, to

examine if natural clusters of medical codes con-

tain similar diagnosis, medication and procedure con-

cepts.

4.3 Baseline Models

To show that the contribution of inclusion of hetero-

geneous data and meta-embedding learning approach

in Med2Meta leads to superior empirical results, we

compare against Med2Meta (M2M) trained on single

view as well as other vector ensemble methods which

include,

M2M d: Proposed approach with embeddings

learned from graph auto-encoder with only demo-

graphics features.

M2M l: Proposed approach with embeddings

learned from graph auto-encoder with only laboratory

test results features.

Med2Meta: Learning Representations of Medical Concepts with Meta-embeddings

373

Table 2: Performance of different embeddings on three different tasks.

Heart Failure (HF) Prediction Relation (Rel) Classiﬁcation Semantic (Sem)

Metrics AUC-ROC Accuracy AUC-PR AUC-ROC Accuracy AUC-PR Similarity ρ

M2M 0.685 0.638 0.674 0.833 0.950 0.967 0.650

M2M d 0.640 0.619 0.635 0.346 0.500 0.692 0.154

M2M l 0.627 0.618 0.629 0.354 0.880 0.923 0.577

M2M n 0.620 0.616 0.630 0.352 0.880 0.750 0.154

M2M s 0.657 0.628 0.632 0.481 0.227 0.385 0.154

CONC 0.666 0.626 0.673 0.481 0.500 0.692 0.154

AVG 0.639 0.627 0.634 0.370 0.700 0.846 0.327

SVD 0.679 0.605 0.673 0.574 0.550 0.615 0.154

Hot 0.520 0.587 0.587 0.426 0.570 0.077 0.119

GV 0.592 0.589 0.575 0.500 0.500 0.692 0.153

M2V 0.678 0.577 0.670 0.648 0.750 0.850 0.576

M2M n: Proposed approach with embeddings

learned from graph auto-encoder with only clinical

notes features.

M2M s: Proposed approach where on the encoder

side instead of dual encoders, only a single encoder is

considered for each view that takes as input the source

embedding, I

src

CONC: The source feature-speciﬁc embeddings

are simply concatenated to represent the ﬁnal em-

bedding of each medical concept. We `2 normalize

each source feature-speciﬁc embedding before con-

catenation to ensure that each embedding contributes

equally during the similarity computation.

AVG: The source feature-speciﬁc embeddings are

averaged to represent the ﬁnal embedding of each

medical concept. `2 normalization is performed on

each source feature-speciﬁc embedding before aver-

aging.

SVD: Consider a matrix C of dimension N ×d

svd

where d

svd

is dimension of the resulting embedding

from the concatenation of the `

normalized embed-

dings for each medical concept. Singular Value De-

composition (SVD) (Golub and Reinsch, 1970) is ap-

plied on C to get the decomposition C = USV

. For

each concept, the corresponding vector in U is con-

sidered as the SVD embedding.

We also compare against hot vector representation

and two state-of-the-art embedding models,

Hot: This is the one-hot vector representation of

a concept c, v

∈ {0, 1}

. Only the dimension corre-

sponding to the concept is set to 1.

GV: GloVe (Pennington et al., 2014) is an un-

supervised learning approach of word embeddings

based on word co-occurrence matrix.

M2V: Med2Vec (Choi et al., 2016a) is a two-layer

neural network for learning lower dimensional repre-

sentations for medical concepts.

5 EXPERIMENTAL RESULTS

5.1 Quantitative Analysis

Table 2 reports results of performance of embeddings

obtained with different models on heart failure (HF)

prediction, semantic similarity (Sem) between med-

ical concepts and relation classiﬁcation (Rel) tasks.

For heart failure prediction and relation classiﬁca-

tion tasks, the embeddings are evaluated in terms of

AUC-ROC, AUC-PR and Accuracy, and for semantic

similarity with Spearman Correlation Coefﬁcient (ρ).

We see that our multi-view, meta-learning approach

Med2Meta (M2M) outperforms the single view mod-

els M2M d, M2M l and M2M n on all the tasks.

This reinforces the contribution of learning embed-

dings from multi-modal data and means that differ-

ent types of embeddings contribute signiﬁcantly ac-

cording to their semantic strengths. Among the single

view models, surprisingly, M2M d is seen to perform

better than the other two in HF task. This could be

attributed to most HF patients having distinctive de-

mographics (e.g., older patients).

The beneﬁt of having dual encoders and recon-

structing jointly from the source embedding and av-

erage of most similar medical concepts for each view

can be seen when comparing M2M’s performance

against MSM s, which is ablated version of M2M

with a single encoder for each view. This indicates

that the dual encoder encourages the consolidated fea-

ture space to have locally linear patches for instances

with similar semantics.

Compared to the other types of fusion ap-

proaches, fusing the source embeddings through

meta-embedding learning in M2M leads to consid-

erable AUC-ROC gain on all tasks. AVG perform-

HEALTHINF 2020 - 13th International Conference on Health Informatics

374

(a) Med2Meta (b) CONC (c) AVG (d) SVD

Figure 2: The t-SNE plots of learned embedding spaces. The color of the dot in the Figure indicates the cluster the medical

concept has been assigned to by K-means Clustering.

ing at par with SVD and CONC, aligns with ﬁndings

in (Coates and Bollegala, 2018), which found AVG

to outperform them in several benchmark NLP tasks.

With regard to M2M’s superior performance gains,

we can conclude that the joint reconstruction of the

source embedding and its most similar concept em-

bedding aggregation across all the views is able to

integrate both local semantic information in terms of

the closest medical concepts and global semantic in-

formation in terms of multi-modality.

Rows 9-11 in Table 2 show that M2M outperforms

simple representation, one-hot vector, and state-of-

the-art embedding models, GloVe and Med2Vec, on

all the tasks. M2M performs comparably to Med2Vec

in heart failure prediction task and exceptionally by

29% and 13% increases for relation classiﬁcation

and semantic similarity tasks respectively. Although

Med2Vec also includes demographic information dur-

ing embedding learning, it does not learn from differ-

ent modalities (e.g., lab results, clinical notes) which

can contain salient information for predictive tasks -

as is conﬁrmed by better performance of M2M across

all the tasks.

5.2 Qualitative Analysis

Our embeddings are qualitatively assessed by visual-

izing their t-SNE plots in 2-D space shown in Figure

2a. All the medical concepts are ﬁrst grouped into

clusters using K-means Clustering. The color of the

dot in Figures 2a–2d indicates the cluster the medical

concept has been assigned to. For comparison, t-SNE

plots of embeddings obtained by the baselines CONC,

SVD and AVG are also shown in Figures 2b, 2c, 2d. It

is evident that Med2Meta has been able to learn med-

ically meaningful representations such that they have

been separated into distinct clusters compared to the

baseline plots.

6 RELATED WORKS

Meta-embedding Learning: Usefulness of meta-

embeddings in NLP tasks are realized in some very

recent works. (Yin and Sch

utze, 2015) is one of

the ﬁrst works in meta-embedding learning that pro-

posed a model, 1TON, that learns meta-embeddings

by projecting them to source embeddings using sep-

arate projection matrices. 1TON is then extended

to 1TON+ to account for out-of-vocabulary (OOV)

words by ﬁrst predicting their source embeddings. An

unsupervised locally-linear approach is used in (Bol-

legala et al., 2017) to learn meta-embedding of each

word based on its local neighborhood of word embed-

dings. Different variants of autoencoder are used in

(Bollegala and Bao, 2018) to learn meta-embeddings

from pre-trained word embeddings.

Some other works did not learn meta-embeddings,

but closely resemble its mechanism by demonstrat-

ing effectiveness of integration of different types of

embeddings. (Ma et al., 2018) learns similarities

between drugs by integrating embeddings learned

from a multi-view graph auto-encoder using attention

mechanism. A two-sided neural network is used in

(Luo et al., 2014) to learn embeddings from multiple

data sources.

7 CONCLUSION

Leveraging the heterogeneous data types in EHR can

be beneﬁcial to learning embeddings that holistically

reﬂect all semantic properties among different med-

ical concepts. Our proposed approach, Med2Meta,

learns feature-speciﬁc embeddings using a graph

auto-encoder by considering each data type as a sepa-

rate view. It then models integration of embeddings

as a meta-embedding learning problem so that la-

tent similarities and natural clusters between medical

concepts are captured in the meta-embedding space

through joint reconstruction across all the views. Em-

pirical results on three different tasks and visualiza-

tion with t-sne plots establish the superior perfor-

mance and efﬁcacy of Med2Meta over baselines.

REFERENCES

Bengio, Y., Courville, A., and Vincent, P. (2013). Represen-

tation learning: A review and new perspectives. IEEE

Med2Meta: Learning Representations of Medical Concepts with Meta-embeddings

375

transactions on pattern analysis and machine intelli-

gence, 35(8):1798–1828.

Bollegala, D. and Bao, C. (2018). Learning word meta-

embeddings by autoencoding. In Proceedings of the

27th International Conference on Computational Lin-

guistics, pages 1650–1661.

Bollegala, D., Hayashi, K., and Kawarabayashi, K.-i.

(2017). Think globally, embed locally—locally

linear meta-embedding of words. arXiv preprint

arXiv:1709.06671.

Charles, D., Gabriel, M., and Furukawa, M. F. (2013).

Adoption of electronic health record systems among

us non-federal acute care hospitals: 2008-2012. ONC

data brief, 9:1–9.

Chen, Y., Perozzi, B., Al-Rfou, R., and Skiena, S. (2013).

The expressive power of word embeddings. arXiv

preprint arXiv:1301.3226.

Choi, E., Bahadori, M. T., Searles, E., Coffey, C., Thomp-

son, M., Bost, J., Tejedor-Sojo, J., and Sun, J. (2016a).

Multi-layer representation learning for medical con-

cepts. In Proceedings of the 22nd ACM SIGKDD In-

ternational Conference on Knowledge Discovery and

Data Mining, pages 1495–1504. ACM.

Choi, E., Bahadori, M. T., Song, L., Stewart, W. F., and

Sun, J. (2017). Gram: graph-based attention model for

healthcare representation learning. In Proceedings of

the 23rd ACM SIGKDD International Conference on

Knowledge Discovery and Data Mining, pages 787–

795. ACM.

Choi, E., Schuetz, A., Stewart, W. F., and Sun, J. (2016b).

Medical concept representation learning from elec-

tronic health records and its application on heart fail-

ure prediction. arXiv preprint arXiv:1602.03686.

Choi, Y., Chiu, C. Y.-I., and Sontag, D. (2016c). Learning

low-dimensional representations of medical concepts.

AMIA Summits on Translational Science Proceedings,

2016:41.

Chowdhury, S., Zhang, C., Yu, P. S., and Luo, Y. (2019).

Mixed pooling multi-view attention autoencoder for

representation learning in healthcare. arXiv preprint

arXiv:1910.06456.

Coates, J. and Bollegala, D. (2018). Frustratingly easy

meta-embedding–computing meta-embeddings by av-

eraging source word embeddings. arXiv preprint

arXiv:1804.05262.

Elixhauser, A. and Palmer, L. (2015). Clinical classiﬁca-

tions software (ccs): Agency for healthcare research

and quality; 2014 [cited 2015].

Goldberg, Y. (2016). A primer on neural network models

for natural language processing. Journal of Artiﬁcial

Intelligence Research, 57:345–420.

Golub, G. H. and Reinsch, C. (1970). Singular value de-

composition and least squares solutions. Numerische

mathematik, 14(5):403–420.

Jensen, P. B., Jensen, L. J., and Brunak, S. (2012). Mining

electronic health records: towards better research ap-

plications and clinical care. Nature Reviews Genetics,

13(6):395.

Johnson, A. E., Pollard, T. J., Shen, L., Li-wei, H. L.,

Feng, M., Ghassemi, M., Moody, B., Szolovits, P.,

Celi, L. A., and Mark, R. G. (2016). Mimic-iii, a

freely accessible critical care database. Scientiﬁc data,

3:160035.

Knake, L. A., Ahuja, M., McDonald, E. L., Ryckman,

K. K., Weathers, N., Burstain, T., Dagle, J. M., Mur-

ray, J. C., and Nadkarni, P. (2016). Quality of ehr data

extractions for studies of preterm birth in a tertiary

care center: guidelines for obtaining reliable data.

BMC pediatrics, 16(1):59.

Luo, Y., Tang, J., Yan, J., Xu, C., and Chen, Z. (2014).

Pre-trained multi-view word embedding using two-

side neural network. In AAAI, pages 1982–1988.

Ma, T., Xiao, C., Zhou, J., and Wang, F. (2018). Drug sim-

ilarity integration through attentive multi-view graph

auto-encoders. arXiv preprint arXiv:1804.10850.

Maaten, L. v. d. and Hinton, G. (2008). Visualizing data

using t-sne. Journal of machine learning research,

9(Nov):2579–2605.

Miotto, R., Li, L., Kidd, B. A., and Dudley, J. T. (2016).

Deep patient: an unsupervised representation to pre-

dict the future of patients from the electronic health

records. Scientiﬁc reports, 6:26094.

Nair, V. and Hinton, G. E. (2010). Rectiﬁed linear units

improve restricted boltzmann machines. In Proceed-

ings of the 27th international conference on machine

learning (ICML-10), pages 807–814.

Pennington, J., Socher, R., and Manning, C. (2014). Glove:

Global vectors for word representation. In Proceed-

ings of the 2014 conference on empirical methods in

natural language processing (EMNLP), pages 1532–

1543.

Roweis, S. T. and Saul, L. K. (2000). Nonlinear dimension-

ality reduction by locally linear embedding. science,

290(5500):2323–2326.

Shickel, B., Tighe, P. J., Bihorac, A., and Rashidi, P. (2018).

Deep ehr: A survey of recent advances in deep learn-

ing techniques for electronic health record (ehr) anal-

ysis. IEEE journal of biomedical and health informat-

ics, 22(5):1589–1604.

Tran, T., Nguyen, T. D., Phung, D., and Venkatesh, S.

(2015). Learning vector representation of medical ob-

jects via emr-driven nonnegative restricted boltzmann

machines (enrbm). Journal of biomedical informatics,

54:96–105.

Wold, S., Esbensen, K., and Geladi, P. (1987). Principal

component analysis. Chemometrics and intelligent

laboratory systems, 2(1-3):37–52.

Yin, W. and Sch

utze, H. (2015). Learning meta-embeddings

by using ensembles of embedding sets. arXiv preprint

arXiv:1508.04257.

HEALTHINF 2020 - 13th International Conference on Health Informatics

376
