Deep Body-pose Estimation via Synthetic Depth Data:

A Case Study

Christopher Pramerdorfer

1,2

and Martin Kampel

Cogvis, Vienna, Austria

Computer Vision Lab, TU Wien, Vienna, Austria

Keywords:

Deep Learning, Synthetic Depth Data, Body-pose Estimation.

Abstract:

Computer Vision research is nowadays largely data-driven due to the prevalence of deep learning. This is one

reason why depth data have become less popular, as no datasets exist that are comparable to common color

datasets in terms of size and quality. However, depth data have advantages in practical applications that involve

people, in which case utilizing cameras raises privacy concerns. We consider one such application, namely

3D human pose estimation for a health care application, to study whether the lack of large depth datasets

that represent this problem can be overcome via synthetic data, which aspects must be considered to ensure

generalization, and how this compares to alternative approaches for obtaining training data. Furthermore, we

compare the pose estimation performance of our method on depth data to that of state-of-the-art methods for

color images and show that depth data is a suitable alternative to color images in this regard.

1 INTRODUCTION

Current research in Computer Vision is highly data-

driven due to the prevalence of deep learning, which

has enabled signiﬁcant performance gains in many

ﬁelds such as image classiﬁcation (He et al., 2016)

and human pose estimation in color images (Cao

et al., 2018). However, large datasets are required to

be able to fully utilize the potential of Deep Learning,

which are not always available.

This presumably is an important reason why depth

data have become less popular in Computer Vision re-

search after a surge in interest following the release of

the Kinect depth sensor (Shotton et al., 2011). This is

despite depth data having practical advantages over

color (or grayscale) images. This applies in particu-

lar to practical applications that involve people, where

utilizing video cameras raises privacy concerns and

the reluctance of users due to feeling monitored. In

some practical cases, this effectively precludes tech-

nology based on color images for this reason.

One such example that we focus on in this paper is

human pose estimation for identifying unhealthy sit-

ting positions at the workplace in order to promote the

long-term health of ofﬁce workers by raising aware-

ness. This task also naturally favors depth data as it

requires 3D pose estimation, which is more intuitive

in depth data than in color image data. However, there

are no large depth datasets available that closely rep-

resent this problem and acquiring such a dataset is

a considerable effort that involves recruiting a large

number of people. This is a common problem that

hinders progress in the corresponding research ﬁelds.

In this paper, we discuss and compare different ap-

proaches to address this problem by obtaining suitable

training data. One approach that is the focus of our

study is utilizing synthetic depth data created specif-

ically for this purpose. Depth data synthesis allows

creating datasets of virtually any size and with accu-

rate labels with comparatively little effort. This not

only applies to pose estimation but to most applica-

tions that involve human participation and depth data.

Yet despite these advantages there are only few syn-

thetic depth datasets and works that utilize such data,

particularly works based on deep learning. Whether

this is due to issues with generalization of trained

models to real data or for other reasons is unclear.

We aim to shed light on this matter by train-

ing Convolutional Neural Networks (CNNs) for hu-

man pose estimation on synthetic depth data and then

study their performance on synthetic validation data

as well as real test data. We compare the results

to alternative approaches for obtaining training data,

namely (i) acquiring a limited amount of real data

that reﬂect the problem, (ii) adapting an existing real

dataset for this purpose, and (iii) adapting an exist-

318

Pramerdorfer, C. and Kampel, M.

Deep Body-pose Estimation via Synthetic Depth Data: A Case Study.

DOI: 10.5220/0008941303180325

In Proceedings of the 15th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 5: VISAPP, pages

318-325

ISBN: 978-989-758-402-2; ISSN: 2184-4321

ing synthetic dataset. This enables us to investigate

the applicability of training CNNs on synthetic depth

data for solving practical problems in the context of

possible alternatives. Our work is based on (Pramer-

dorfer et al., 2019), which shows that utilizing syn-

thetic depth data for human pose estimation is feasible

but lacks studies on how this compares to other ap-

proaches, means necessary for generalization across

datasets, and the effect of sensor noise simulation.

Furthermore, we compare these results to the state

of the art in 2D body pose estimation in color data for

an indication of how depth-data-based human pose

estimation performs compared to the more popular

color-data-based methods. To the best of our knowl-

edge, this is the ﬁrst study of this kind.

The results show that utilizing synthetic training

data outperforms all other approaches in terms of

body pose estimation performance on a common re-

alistic test dataset. Acquiring a limited amount of re-

alistic training data, a popular alternative in practice,

performs signiﬁcantly worse despite transfer learning

to address the small dataset size. The comparison

with color-based methods indicates that pose estima-

tion in depth data is possible with similar accuracy.

The results underline that depth data are a viable al-

ternative to color data for human pose estimation and

that deep learning from suitable synthetic data can

outperform other data acquisition strategies.

This paper is structured as follows. Section 2 cov-

ers related works on human pose estimation and syn-

thetic depth data. In Section 3 we discuss the prob-

lem considered in this case study and the different ap-

proaches for acquiring training data in more detail.

Our pose estimation method is explained in Section 4

while Section 5 presents the experiments and results,

and Section 6 concludes the paper.

2 RELATED WORK

Human Pose Estimation. Human pose estimation in

color images via deep learning is a popular research

topic. A seminal work in this ﬁeld is (Toshev and

Szegedy, 2014), in which a CNN is trained for 2D

keypoint regression. More recent works such as (Cao

et al., 2018) and (Fang et al., 2017) perform dense

keypoint (heat-map) prediction for improved perfor-

mance. A limitation of these methods is that they pre-

dict 2D poses. 3D pose estimation from single im-

ages is more challenging than the 2D variant due to

the larger pose space and ambiguities caused by per-

spective projection. Methods that perform well at this

task have been proposed only recently. A popular ap-

proach is to ﬁrst predict 2D keypoints, which are then

mapped to 3D. In (Chen and Ramanan, 2017) this

mapping is accomplished using a similarity search in

a large dataset of pairs of 2D and 3D keypoints. The

authors of (Sun et al., 2018) present an extension of

CNN heat-map prediction that supports 3D poses.

In contrast, there are few recent works that utilize

depth data. Kinect’s pose estimation method (Shotton

et al., 2011) is perhaps the most well-known example

of utilizing synthetic depth data for this purpose but

its performance is no longer competitive (Haque et al.,

2016). Moreover the method is based on classiﬁcation

forests, which may generalize from synthetic data to

real data differently than CNNs. (Haque et al., 2016)

presents a patch-based method for 3D pose estimation

in depth data using a combination of a CNN and a re-

current neural network. Two more recent works are

(Guo et al., 2017) and (Moon et al., 2018). The for-

mer proposes a multi-stage network architecture for

3D pose estimation from depth maps while the lat-

ter both processes and predicts keypoints in 3D voxel

grids. We utilize a simpler network architecture that

processes depth map patches. The work that is most

closely related to ours is (Pramerdorfer et al., 2019),

which also covers upper-body pose estimation and

synthetic training data. However, the paper focuses

on pose classiﬁcation and lacks comparative studies.

Synthetic Depth Data. To our knowledge, (Shotton

et al., 2011) was the ﬁrst work to demonstrate the po-

tential of utilizing synthetic data for 3D pose estima-

tion in depth maps. The work is still one of only few

examples and, as mentioned before, not based on deep

learning. The most comprehensive public dataset that

includes depth maps of people is SURREAL (Varol

et al., 2017). We include this dataset in our studies for

comparison. (Pramerdorfer et al., 2019) is another ex-

ample where synthetic data are used successfully for

pose estimation purposes.

3 3D POSE ESTIMATION

We consider the task of estimating 3D coordinates of

six face and upper-body keypoints, namely the nasion

(intersection of the frontal bone and the two nasal

bones of the human skull), chin center, front of the

throat, manubrium, as well as the left and right shoul-

ders. All keypoints lie on the skin surface. These key-

points were found to be important for identifying un-

healthy sitting postures in (Pramerdorfer et al., 2019).

3.1 Test Dataset

We evaluate each training data approach using the

same test dataset, which was presented in (Pramer-

Deep Body-pose Estimation via Synthetic Depth Data: A Case Study

319

dorfer et al., 2019). This dataset consists of 1707

depth maps that were recorded using an Orbbec As-

tra depth sensor. In each sample, one of 31 people

was simulating one of 15 common healthy and un-

healthy sitting poses under supervision. Ground-truth

3D keypoint coordinates were obtained using a pro-

fessional motion capture system. Figure 1 shows a

sample from this dataset, highlighting missing and

noisy data around object borders and at steep angles.

Figure 1: Visualization of a sample from the test dataset.

Brighter pixels represent further distances.

3.2 Training Approaches and Datasets

We compare the following approaches to obtaining

training data in terms of their performance on the

common test set. This allows us to assess the suitabil-

ity of depth data synthesis for solving practical prob-

lems and to compare this approach to alternatives.

Data Synthesis. One approach is to generate syn-

thetic depth data that closely represent the task at

hand. This it allows creating datasets of an arbitrary

size with comparatively low effort and thus costs.

However the resulting depth maps are not realistic

in terms of sensor noise, clothing, and background

objects, which may impact the generalization perfor-

mance of trained models to real data.

We implement this approach using the synthetic

dataset presented in (Pramerdorfer et al., 2019). The

dataset comprises 50,000 depth maps with accurate

3D ground-truth coordinates for all keypoints consid-

ered. The depth maps were rendered from 3D models

of synthetic humans in various sitting poses. These

models were created using the Blender 3D modeling

software (15,000 models) and include hair and differ-

ent facial expressions but no clothing. For increased

realism, the depth maps also depict desks, chairs, and

a background object. Figure 2 shows an example.

We consider two versions of this dataset, one with-

out sensor noise and one with simulated noise using a

method based on (Xu and Cheng, 2013). This enables

us to study whether noise simulation can improve the

generalization performance.

Data Recording. Another approach is to record and

label an own dataset that represents the problem to

Figure 2: Visualization of a sample from the synthetic

dataset. Brighter pixels represent further distances.

solve. This represents the standard approach for solv-

ing a problem in a data-driven fashion. However, de-

pending on the problem and available resources, the

amount of data obtainable this way is limited. On the

other hand, the sample quality is higher than with data

synthesis as the depth maps are realistic.

To represent this approach in our case study, we

recorded 17 colleagues for a short period. During

this time, the people continued their work in front of

their computer screens. The sensor was an Orbbec

Astra that was placed on top of the computer screens.

450 random frames were extracted from the result-

ing recordings and the keypoint image coordinates

were marked with the help of color images that were

recorded along with the depth data and registered with

the depth maps. On this basis, ground-truth coordi-

nates were deﬁned based on depth map lookups at the

individual image coordinates. We refer to this dataset

as the ofﬁce dataset.

Adapting a Realistic Dataset. An alternative that

might be applicable depending on the task at hand is

to adapt an existing realistic dataset to one’s needs. In

the context of this study, this means taking an existing

body-pose estimation dataset and calculating missing

ground-truth keypoints based on other available key-

points if possible. This has the advantage of taking

less effort than recording and labeling a new dataset

and can result in larger amounts of data. On the other

hand, the resulting data might not reﬂect the task at

hand accurately as adapting the labels (inferring key-

points) is not always possible without errors.

We utilize the ITOP dataset (Haque et al., 2016)

to represent this approach, restricting to the subset of

frontal views (22,854 samples) as these samples rep-

resent the example problem more closely than the top

views. We chose this dataset because it is the largest

body pose estimation dataset available. The limita-

tions of this dataset in terms of adaptation to our prob-

lem are that it does not include labels for the nasion,

chin, and throat keypoints and these keypoints can-

not be inferred reliably from other existing keypoints.

We represent the nasion keypoint by ITOP’s head key-

point but ignore the chin and throat keypoints in the

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

320

experiments for this reason. The dataset also lacks

a manubrium keypoint but tests showed that its neck

keypoint agrees well with this keypoint (the paper

does not state how the keypoints are deﬁned exactly).

Adapting a Synthetic Dataset. The last approach we

consider is to adapt an existing synthetic dataset for

our purposes. This is less effort than creating an own

synthetic dataset but has the same disadvantages as

adapting existing realistic datasets.

We utilize the SURREAL dataset (Varol et al.,

2017) for this purpose, which is the largest synthetic

dataset available that includes depth maps. We ignore

all samples in which the person is depicted from the

side or behind according the the shoulder coordinates,

resulting in a dataset of 259,417 samples. The dataset

lacks nasion, chin, throat, and manubrium keypoints.

We thus estimate the throat from the upper and lower

neck keypoints and the manubrium from the left and

right collarbones. The nasion and chin keypoints are

not estimated from other keypoints as this is not pos-

sible without signiﬁcant errors.

4 METHODS

Our pose estimation method predicts 3D camera co-

ordinates for all keypoints considered. The core com-

ponent is a CNN that predicts image coordinates and

distances for all keypoints from depth map patches

that depict a person. These image coordinates are then

converted to camera coordinates by inverting the ge-

ometric transformations applied during patch extrac-

tion and using known camera intrinsics.

4.1 Patch Extraction

Given a depth map and a list of ground-truth keypoint

coordinates, we ﬁrst locate the face of the depicted

person. For this purpose we estimate the face bound-

ing box center and size based on the nasion and chin

keypoints. This bounding box is then extended by

a multiplicative factor to obtain a bounding box that

captures both the head and upper-body of the person.

Our method thus does not include automatic face

or person detection. This is to prevent face detec-

tion errors from affecting the pose estimation studies

that are the focus of this paper. It would be straight-

forward to extend our method accordingly though, by

replacing the face detection approach described in the

previous paragraph with any face detector.

We then compute the median distance in the face

region and threshold the depth map on this basis, set-

ting all pixels that differ by more than 75 cm from

this distance to zero. This is comparable to the cube-

based segmentation approach of (Guo et al., 2017)

and (Moon et al., 2018) and removes most back-

ground clutter. Finally the person region is extracted

and resized to a size of 100 × 100 pixels.

This procedure introduces consistency between

datasets, as shown in Figure 3. It also invalidates pro-

jective geometry in the sense that patches depicting

people that are further away from the camera are not

necessarily smaller. This in turn makes depth-scatter

data augmentation (covered below) intuitive.

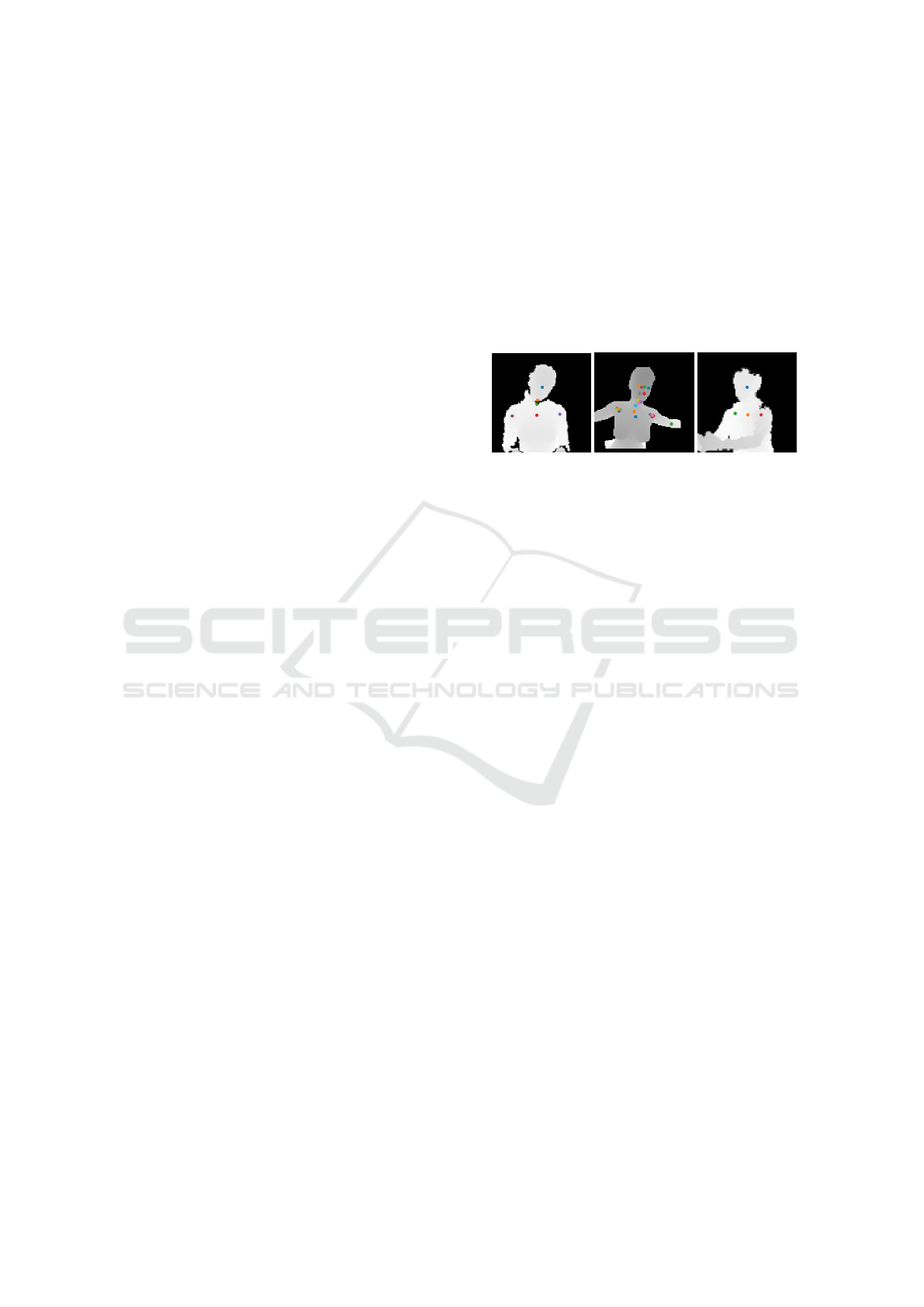

Figure 3: Visualizations of samples from the test (left), syn-

thetic (center), and ITOP (right) datasets after patch extrac-

tion. This results in a similar person scale and alignment

across datasets (cf. Figures 1 and 2).

4.2 Network Architecture

Our network architecture is based on ResNet-18 due

to its solid performance and efﬁciency (He et al.,

2016). We modify this architecture in two ways. First,

we prepend a custom layer that replicates the chan-

nels of single-channel inputs as many times as chan-

nels expected by the ﬁrst convolutional layer. This en-

ables compatibility with models that were pre-trained

on color images and thus facilitates transfer learning.

Second, we replace the ﬁnal global average-pooling

layer with concat-pooling (Howard and Ruder, 2018),

i.e. a combination of average- and max-pooling. The

network ends with a linear layer with 3k neurons, with

k being the number of keypoints.

The resulting architecture is simpler than those in

related works, which perform e.g. voxel-based (Moon

et al., 2018) or dense prediction of keypoint conﬁ-

dence maps (Cao et al., 2018). We choose a simpler

architecture as (i) our primary goal is to study rela-

tive performance gains rather than outperforming ex-

isting methods, and (ii) using a simpler architecture

might expose limitations in cross-dataset generaliza-

tion more than more complex architectures.

4.3 Training and Validation

As in (Pramerdorfer et al., 2019), we train this net-

work to predict keypoint image coordinates and dis-

tances as opposed to predicting camera coordinates.

This has the advantage of facilitating patch extraction

(which entails converting the ground-truth labels ac-

cordingly) as well as data augmentation (geometric

Deep Body-pose Estimation via Synthetic Depth Data: A Case Study

321

transformations such as random crops and image rota-

tions can be applied to image coordinate labels easily,

which is contrast to camera coordinates). Predicting

distances instead of inferring them from depth maps

based on the predicted image coordinates has the po-

tential advantage of allowing the model to become ro-

bust to occlusions by e.g. people’s arms.

Instead of training from scratch, we employ trans-

fer learning of a model that was trained on ImageNet

(Russakovsky et al., 2015), i.e. for classiﬁcation of

color images. This is for two reasons. First, it is a

best practice when training on small datasets, which

applies to the ofﬁce dataset. Second, this avoids per-

formance ﬂuctuations due to network parameters be-

ing initialized randomly during training, which is im-

portant to ensure comparability of the results.

The model was pre-trained on images whose pixel

values were mapped to [0, 1] via division by v = 255.

This must be replicated for the depth data, which re-

quires setting v carefully as in this cases pixel values

encode distances. One consideration is that we study

the cross-dataset performance and these datasets dif-

fer signiﬁcantly in terms of depicted people’s dis-

tances, as visible in Figure 4. One approach would

be to set v = 10 m, which covers all datasets consid-

ered. However this lowers the contrast unnecessarily

for datasets that do not cover the full distance range,

which is common. We thus instead set v based on the

distribution of the target datasets. Speciﬁcally, we set

v = max(l

, t

) + 1 m, with l

and t

denoting the

p% percentiles of the training and test dataset. This

ensures that all body parts of at least 99% of sam-

ples are mapped to [0, 1] while maximizing the pos-

sible contrast. Afterwards we normalize the samples

by subtracting the mean and dividing by the standard

deviation of ImageNet, as done during pre-training.

The loss function minimized during training is a

weighted sum of two Huber losses (Huber, 1992) that

penalize image coordinate and distance prediction er-

rors, respectively. The weights are set such that both

losses contribute roughly equally to the overall loss.

We minimize this loss using the Adam optimizer with

weight decay set as in (Loshchilov and Hutter, 2017).

4.4 Data Augmentation

Figure 4 shows the distance distributions of people ac-

cording to their ground-truth nasion keypoints for all

datasets, highlighting that these distributions are very

different and that there is little overlap. On this ba-

sis, we cannot expect models to generalize well across

datasets and particularly to the test set.

To overcome this problem, we put forward a

training data augmentation technique called depth-

0 2 4

·10

−3

nasion camera distance [m]

density

Test

Synth

Ofﬁce

ITOP

SURREAL

Figure 4: Person distance distributions of all datasets in

terms of the ground-truth nasion keypoint (head and throat

for ITOP and SURREAL, respectively).

scattering. During training and for each sample,

this technique samples a random scalar from [s

, s

which it adds to all non-zero inputs and ground-truth

distances. This ensures that the distances of samples

seen during training capture both the training (and

validation) set and the test set if s

and s

are set ac-

cordingly, thereby enabling the models to generalize

to the latter. We set s

and s

similarly to v, namely

= min(0, t

− l

) and s

= max(0, t

− l

In addition we augment the training data via ran-

dom crops to 88 × 88 pixels and random rotation at

angles up to ±10 degrees.

5 EXPERIMENTS

All models are trained twice and the reported results

are averages of both runs in order to limit the impact

of random data augmentation on the results.

5.1 Impact of Training Data

We ﬁrst study how the training data approach affects

the test performance, with a focus on how much the

performance decreases by transitioning from the dif-

ferent training sets to the common test dataset. The

datasets are abbreviated as follows: SY is the syn-

thetic dataset without simulated noise, SN is the same

dataset with simulated noise, OF is the ofﬁce dataset,

IT is the ITOP dataset, and SU is SURREAL.

We reiterate that the individual datasets do not de-

ﬁne keypoints identically, with some including no de-

tailed deﬁnitions as all. This leads to systematic er-

rors that cannot be avoided or corrected in a princi-

pled way. This is a compromise that often cannot be

avoided when adapting existing datasets to the task

at hand, as in this study. Heuristics such as subtract-

ing offset vectors based on validation data would also

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

322

mask systematic errors due to other causes, which is

why we do not apply them in this analysis.

Validation Performance. In order to establish base-

lines, we ﬁrst compare the results on the individual

validation sets and independently for each keypoint.

The results are reported as the median error when pre-

dicting 3D coordinates (Euclidean distances between

predictions and ground-truths) in cm.

Figure 5 visualizes these results. Missing entries

are due to some datasets missing certain keypoints.

The results on SY and SN are comparable, with dif-

ferences attributable to randomness during training.

Those on IT are better than on OF despite the former

dataset being more challenging, possibly due to the

small size of the latter. SU shows the worst perfor-

mance despite being a synthetic dataset and the largest

in size, suggesting that it is more challenging in terms

of poses. The shoulders are the hardest do predict ac-

curately, for all datasets considered.

NAS CHI THR MAN SHO

keypoint

error [cm]

SY SN OF IT SU

Figure 5: Validation error medians for all datasets and key-

points. NAS is the nasion, CHI the chin, THR the throat,

MAN the manubrium, and SHO are the shoulders.

Test Performance. Figure 6 shows the same perfor-

mance numbers for the test data, highlighting how

well models trained on each dataset perform on the

common test dataset. This in turn shows how suit-

able each approach for obtaining training data is in

the context of this study. Models trained on SY and

SN achieve the best overall performance on the test

set. This conﬁrms that training on synthetic depth

data that accurately represents the task at hand is su-

perior to the alternatives considered.

The models trained on SY perform consistently

better than those trained on SN, i.e. the same data but

with simulated sensor noise. This shows that noise

simulation was ineffective in this case, either because

the models are able to handle sensor noise themselves

or because the simulations did not reﬂect the actual

sensor noise characteristics well enough. We investi-

gate this matter in more detail below.

Training on a small but realistic dataset (OF), a

common approach if only limited data are available,

performs signiﬁcantly worse than utilizing synthetic

data apart from the manubrium keypoint. A possible

reason for this exception is inaccurate marker place-

ment, as detailed below.

Training on IT, and thus the approach of adapting

a larger existing dataset to the task at hand, results in

a performance between the two aforementioned ap-

proaches for the manubrium and shoulder keypoints.

On the other hand, the models trained on this data

are unable to predict the nasion reliably. This was

expected as the IT dataset has only a head keypoint,

which was used in approximation in this case, and

is an example for systematic errors due to limits in

adapting existing datasets to other tasks.

Models trained on SU perform the worst on the

test data for all keypoints available. This is again

due to differences in the keypoint deﬁnitions (internal

vs. surface points) but also due to prediction errors

that are also apparent in the validation results.

NAS CHI THR MAN SHO

keypoint

error [cm]

SY SN OF IT SU

Figure 6: Test error medians for all training datasets and

keypoints. NAS is the nasion, CHI the chin, THR the throat,

MAN the manubrium, and SHO are the shoulders.

Generalization Gap. Comparing Figures 5 and 6

shows that the performance loss on the test data varies

signiﬁcantly depending on the training set, with the

two synthetic datasets generalizing the best on aver-

age. This is unexpected as we assumed that tran-

sitioning from synthetic to real data would incur an

additional performance penalty. The version without

simulated noise (SY) generalizes consistently better

than the version with simulated noise (SN), which in-

dicates that the noise simulation method utilized does

not capture the sensor noise characteristics properly.

On both synthetic datasets, the generalization gap

for the manubrium and shoulder keypoints is much

larger than for the other keypoints. This is likely due

to a combination of the following reasons. First, re-

alistic conditions, namely clothing and sensor noise,

might affect these keypoints more than the others.

Second, a visual inspection indicates that the ground-

truth coordinates for these keypoints are not always

perfectly accurate. This is because the markers used

Deep Body-pose Estimation via Synthetic Depth Data: A Case Study

323

for obtaining these coordinates were glued to the skin

or clothing of the test subjects, which was harder to do

accurately for the manubrium and shoulder keypoints

than for the other keypoints. We will investigate this

circumstance more closely in the future.

In summary, the results show that using synthetic

depth data for training convolutional neural networks

is a promising alternative to the other approaches con-

sidered, namely to collecting a limited amount of real

training data as well as to adapt existing datasets that

do not closely reﬂect the task at hand.

5.2 Ablation Studies

We next assess the importance of simulating sensor

noise as well as depth-scattering in more detail.

Sensor Noise Simulation. The previous results sug-

gest that the method for simulating sensor noise is in-

effective as the test errors of models trained on SY

(without simulated noise) are lower than those trained

on SN (with noise). Figure 7 shows more detailed test

results in the form of average precisions at 3D error

thresholds up to 10 cm. Training on simulated noise

increases the test errors signiﬁcantly for the throat

and manubrium keypoints across the threshold range,

while the other changes are explainable by random-

ness in training. This conﬁrms our earlier ﬁndings.

0 2 4

8 10

0.2

0.4

0.6

0.8

error threshold t [cm]

fraction below t

nasion

chin

throat

manubrium

shoulders

Figure 7: Average 3D keypoint precisions of models trained

on SY (solid lines) and SN (dashed lines).

Depth-scattering. In order to assess the impact of

depth-scattering on the test errors, we retrain the mod-

els on the SY, OF, and IT datasets without this form

of data augmentation and compare mean 3D keypoint

prediction errors over all keypoints.

In case of SY, disabling depth-scattering has no

signiﬁcant effect on the errors while for OF and IT,

doing so increases the errors by over 500% in both

cases. This conﬁrms that depth-scattering is manda-

tory for generalization across datasets with different

distance ranges but is neither beneﬁcial nor detrimen-

tal otherwise (cf. Figure 4).

5.3 Color-based Methods

We next compare the keypoint image coordinate pre-

diction accuracy of our best models (trained on SY) to

state-of-the-art 2D pose estimators for color images,

namely OpenPose (Cao et al., 2018) and AlphaPose

(Fang et al., 2017). To do so, we run these detectors

at their default settings on the color frames of the test

set, which were recorded alongside the depth data.

The depth and color frames are registered, enabling us

to convert the available 3D ground-truth coordinates

to image coordinates for evaluation purposes. We

report PCKh scores (Andriluka et al., 2014), which

measure the fraction of predictions with an error be-

low t times the head size. The head size is estimated

as the distance between the nasion and manubrium,

and t is varied between 0 and 0.4.

For a fair comparison, the correct person is se-

lected manually if multiple persons are incorrectly

detected. Neither OpenPose nor AlphaPose locate

the nasion, which we calculate as the center between

both eye detections. OpenPose does not predict the

manubrium but tests showed that its neck keypoint

aligns closely with it. AlphaPose does not provide

either keypoint, so we estimate the manubrium as the

center between the shoulders. On this basis we re-

strict our comparison to the nasion, manubrium, and

shoulder keypoints as these are available in all cases

or can be estimated from other keypoints.

Figure 8 summarizes the results. OpenPose and

AlphaPose perform almost identically. This is in con-

trast to ﬁndings in the literature and might be because

the test dataset does not include particularly challeng-

ing poses. Our method outperforms both color-based

methods at predicting nasion and manubrium key-

points. For the manubrium, this may be in part due

to the keypoint estimation process. For the nasion,

this is not the case as the manubrium is deﬁned as the

region between the eyes, as used for estimation. On

the other hand, the color-based method achieve sig-

niﬁcantly higher scores for the shoulders.

0 0.1 0.2 0.3 0.4

0.2

0.4

0.6

0.8

error threshold t

fraction below t

nasion

manubrium

shoulders

Figure 8: Keypoint image coordinate prediction perfor-

mance on the test set of our method (solid lines) as well

as OpenPose (dashed lines) and AlphaPose (dotted lines).

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

324

In summary, these results indicate that 2D pose es-

timation in depth data is possible at an accuracy simi-

lar to 2D pose estimation in color images, suggesting

that depth data are suitable for this purpose in terms

of the achievable accuracy. However, given the di-

verging results and the limited number of keypoints

that are consistent across detectors, we aim to carry

out more studies in the future to conﬁrm this.

6 CONCLUSIONS

We have presented a case study on how utilizing syn-

thetic depth data for solving a practical problem via

deep learning, namely 3D human pose estimation

for health care applications, compares to alternative

means for acquiring training data. The results show

that synthetic training data are a promising alterna-

tive particularly to acquiring own realistic data if this

results in a dataset that is small by deep learning stan-

dards, despite using transfer learning. We presume

that this applies for related problems such as face and

person detection in depth data as well as these tasks

are similar in terms of data characteristics. For the

future we plan to verify this empirically and to inves-

tigate why the sensor noise simulation method em-

ployed did not lead to conclusive results. On this basis

we hope to be able to develop an improved noise sim-

ulation method that helps to further reduce the gener-

alization gap from synthetic to real data.

ACKNOWLEDGEMENTS

This work was supported by the Austrian Research

Promotion Agency (FFG-855696).

REFERENCES

Andriluka, M., Pishchulin, L., Gehler, P., and Schiele, B.

(2014). 2D Human Pose Estimation: New Benchmark

and State of the Art Analysis. In IEEE Conference

on Computer Vision and Pattern Recognition, pages

3686–3693.

Cao, Z., Hidalgo, G., Simon, T., Wei, S.-E., and Sheikh, Y.

(2018). OpenPose: Realtime Multi-Person 2D Pose

Estimation using Part Afﬁnity Fields. arXiv preprint

arXiv:1812.08008.

Chen, C.-H. and Ramanan, D. (2017). 3D Human Pose Es-

timation = 2D Pose Estimation + Matching. In IEEE

Conference on Computer Vision and Pattern Recogni-

tion, pages 7035–7043.

Fang, H.-S., Xie, S., Tai, Y.-W., and Lu, C. (2017). RMPE:

Regional Multi-Person Pose Estimation. In Interna-

tional Conference on Computer Vision.

Guo, H., Wang, G., Chen, X., and Zhang, C. (2017). To-

wards Good Practices for Deep 3D Hand Pose Esti-

mation. arXiv preprint arXiv:1707.07248.

Haque, A., Peng, B., Luo, Z., Alahi, A., Yeung, S., and

Fei-Fei, L. (2016). Towards Viewpoint Invariant 3D

Human Pose Estimation. In European Conference on

Computer Vision, pages 160–177.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep Resid-

ual Learning for Image Recognition. In IEEE Con-

ference on Computer Vision and Pattern Recognition,

pages 770–778.

Howard, J. and Ruder, S. (2018). Universal Language

Model Fine-Tuning for Text Classiﬁcation. arXiv

preprint arXiv:1801.06146.

Huber, P. J. (1992). Robust Estimation of a Location Param-

eter. In Breakthroughs in statistics, pages 492–518.

Springer.

Loshchilov, I. and Hutter, F. (2017). Fixing Weight Decay

Regularization in Adam. CoRR, abs/1711.05101.

Moon, G., Yong Chang, J., and Mu Lee, K. (2018). V2V-

PoseNet: Voxel-to-Voxel Prediction Network for Ac-

curate 3D Hand and Human Pose Estimation from a

Single Depth Map. In IEEE Conference on Computer

Vision and Pattern Recognition, pages 5079–5088.

Pramerdorfer, C., Kampel, M., and Heering, J. (2019). 3D

Upper-Body Pose Estimation and Classiﬁcation for

Detecting Unhealthy Sitting Postures at the Work-

place. In International Conference on Informatics and

Assistive Technologies for Health-Care, Medical Sup-

port and Wellbeing.

Russakovsky, O., Deng, J., Su, H., Krause, J., Satheesh, S.,

Ma, S., Huang, Z., Karpathy, A., Khosla, A., Bern-

stein, M., Berg, A. C., and Fei-Fei, L. (2015). Ima-

geNet Large Scale Visual Recognition Challenge. In-

ternational Journal of Computer Vision, 115(3):211–

252.

Shotton, J., Fitzgibbon, A., Cook, M., Sharp, T., Finocchio,

M., Moore, R., Kipman, A., and Blake, A. (2011).

Real-Time Human Pose Recognition in Parts from

Single Depth Images. In IEEE Conference on Com-

puter Vision and Pattern Recognition, pages 1297–

1304. Ieee.

Sun, X., Xiao, B., Wei, F., Liang, S., and Wei, Y. (2018).

Integral Human Pose Regression. In European Con-

ference on Computer Vision, pages 529–545.

Toshev, A. and Szegedy, C. (2014). DeepPose: Human Pose

Estimation via Deep Neural Networks. In IEEE Con-

ference on Computer Vision and Pattern Recognition,

pages 1653–1660.

Varol, G., Romero, J., Martin, X., Mahmood, N., Black,

M. J., Laptev, I., and Schmid, C. (2017). Learning

from Synthetic Humans. In IEEE Conference on Com-

puter Vision and Pattern Recognition, pages 109–117.

Xu, C. and Cheng, L. (2013). Efﬁcient Hand Pose Esti-

mation from a Single Depth Image. In International

Conference on Computer Vision, pages 3456–3462.

Deep Body-pose Estimation via Synthetic Depth Data: A Case Study

325
