PlanAR: Accurate and Stable 3D Positioning System

via Interactive Plane Reconstruction for Handheld Augmented Reality

Ami Miyake, Hideaki Uchiyama

, Atsushi Shimada and Rin-ichiro Taniguchi

Kyushu University, Fukuoka, Japan

Keywords:

3D Positioning, vSLAM, Handheld Augmented Reality, Interactive 3D Reconstruction.

Abstract:

This paper presents a ray-casting-based three-dimensional (3D) positioning system that interactively recon-

structs scene structures for handheld augmented reality. The proposed system employs visual simultaneous

localization and mapping (vSLAM) technology to acquire camera poses of a smartphone and sparse 3D fea-

ture points in an unknown scene. First, users specify a geometric shape region, such as a plane, in captured

images while capturing a scene. This is performed by manually selecting some of the feature points generated

by vSLAM in the region. Next, the system computes the shape parameter with the selected feature points so

that the scene structure is reconstructed densely. Subsequently, users select the pixel of a target point in the

scene at one camera view for 3D positioning. Finally, the system computes the intersection between the 3D

ray computed with the selected pixel and the reconstructed scene structure to determine the 3D coordinates

of the target point. Owing to the proposed interactive reconstruction, the scene structure can be estimated

accurately and stably; therefore, 3D positioning will be accurate. Because the geometric shape used for the

scene structure is a plane in this study, our system is referred to as PlanAR. In the evaluation, the performance

of our system is compared statistically with an existing 3D positioning system to demonstrate the accuracy

and stability of our system.

1 INTRODUCTION

Three-dimensional (3D) positioning refers to the

computation of the 3D coordinates of a target point

in a scene (Polvi et al., 2016). The applications

based on 3D positioning includes, but not lim-

ited to, placing 3D annotations in augmented real-

ity (AR) (Wither et al., 2009; Marchand et al., 2016),

manipulating 3D objects in virtual reality (VR) (Bail-

lot et al., 2001; Jung et al., 2002; Henrysson et al.,

2005), and distance measurement for surveying sys-

tems

. Compared with measuring-tape- or laser-

range-ﬁnder-based approaches (Amann et al., 2001),

visual–inertial methods are easy to use, reasonably

accurate, and practical in various situations because

they can be implemented on mobile devices (Polvi

et al., 2016; Tashiro et al., 2019). Furthermore, they

are used in a noncontact manner when keeping users

away from a target point.

As implemented in ARKit by Apple or ARCore

by Google for placing AR annotations via 3D posi-

https://orcid.org/0000-0002-6119-1184

https://orcid.org/0000-0002-2588-6894

http://armeasure.com/

tioning, one approach is to use ray casting (Hinck-

ley et al., 1994) derived from object manipulation in

VR (Baillot et al., 2001). To determine the 3D coordi-

nate of a target point in the scene, selecting its pixel at

one camera view is sufﬁcient if the scene structure is

completely known such as VR systems. For AR sys-

tems, the procedure is composed of three steps, as fol-

lows: With visual simultaneous localization and map-

ping (vSLAM) (Taketomi et al., 2017), sparse sets of

3D feature points are reconstructed in a scene while

estimating camera poses. Next, the feature points are

used to estimate geometric shapes such as planes and

spheres. This process is equivalent to generating a

complete scene structure. Subsequently, 3D position-

ing can be performed. When users select the pixel of

a target point at one camera view, the intersection be-

tween the 3D ray of the selected pixel and the scene

structure is computed to determine the target 3D co-

ordinate. The ﬁnal process is known as ray casting.

The drawback of the existing ray-casting-based

methods is that the results of 3D positioning is nei-

ther accurate nor stable owing to the inaccuracy of the

reconstructed scene structure. In other words, both

the accurate scene structure and pixel selection of a

Miyake, A., Uchiyama, H., Shimada, A. and Taniguchi, R.

PlanAR: Accurate and Stable 3D Positioning System via Interactive Plane Reconstruction for Handheld Augmented Reality.

DOI: 10.5220/0008942307830791

In Proceedings of the 15th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 5: VISAPP, pages

783-791

ISBN: 978-989-758-402-2; ISSN: 2184-4321

783

target point are necessary for accurate 3D position-

ing. When using automatic reconstruction methods,

several heuristic parameters should be set internally

to determine the structure size, neighborness of 3D

points, and tolerance to noise (Schnabel et al., 2007).

However, optimizing the aforementioned parameters

for various scene structures is difﬁcult in practice.

Since these parameters need to be determined in ad-

vance, the estimated scene structure is not always ac-

curate; i.e., one planar surface can be divided into two

planes, or a stepped surface can be detected as one

plane. This inaccuracy largely degrades the usability

of the existing systems.

We herein propose a simple but effective inter-

active reconstruction method for achieving accurate

and stable ray-casting-based 3D positioning systems.

The proposed system employs a vSLAM technology

to acquire camera poses of a smartphone and sparse

3D feature points in an unknown scene. First, users

specify a geometric shape region, such as a plane, in

a scene by selecting the pixels of the feature points

generated by vSLAM in the region. This can be per-

formed easily by running a ﬁngertip along the region

on the smartphone screen. Next, the system computes

the shape parameter with the selected points such that

the scene structure is reconstructed densely. Subse-

quently, users select the pixel of a target point at one

camera view for 3D positioning. Finally, the system

computes the intersection between the 3D ray com-

puted with the selected pixel and the scene structure

to determine the coordinate of the target point. Owing

to our user interaction-based reconstruction, the scene

structure can be estimated accurately and stably with

little user effort. This process is invaluable for achiev-

ing accurate and stable 3D positioning even though it

is simple and straightforward. As explained in Sec-

tion 3, our system is referred to as PlanAR because

we focus on generating planes as geometric shapes.

Nonetheless, we can easily incorporate other shapes,

such as spheres and cylinders, into our system. In

the evaluation, the performance of our system is com-

pared statistically with an existing system to demon-

strate the effectiveness of our system. It is notewor-

thy that we assumed that the scene contained some

textures to produce feature points for vSLAM.

2 RELATED WORK

Camera-based approaches for 3D positioning can be

divided into two categories. The ﬁrst approach is

to use ray casting against a densely reconstructed

scene structure, as explained in Section 1. By us-

ing dense point-cloud reconstruction (Whelan et al.,

2016; Fuhrmann et al., 2014) or geometric shape

reconstruction from sparse feature points (Roberto

et al., 2017), ray-casting-based 3D positioning at

one camera view can be performed (Nuernberger

et al., 2016; Lien et al., 2016). The drawback of

this approach is that the inaccuracy of automatic

scene reconstruction degrades the accuracy of 3D

positioning. This is generally caused by certain

heuristic parameters used in the plane reconstruction

method (Schnabel et al., 2007). Owing to inaccurate

scene structures, 3D positioning becomes inaccurate

consequently.

The second approach is to use triangulation with

multiple camera views (Polvi et al., 2016; Tashiro

et al., 2019). This approach is also based on a vS-

LAM technology. To compute the 3D coordinate of a

target point in a scene, the pixel selection of a target

point is required from at least two views such that the

triangulation technique can be applied (Hartley and

Sturm, 1997). To allow users to easily select pixels

at two camera views, Polvi et al. proposed the use of

an epipolar geometry (Zhang, 1998) to provide auxil-

iary visualization (Polvi et al., 2016). In this system,

users ﬁrst select the pixel of a target point at one cam-

era view and repeats it on the visualized epipolar line

at the other view. Tashiro et al. proposed an alter-

native system such that the users can select pixels at

any number of camera views to accommodate noisy

user inputs (Tashiro et al., 2019). In this system, tech-

niques on multiple view geometry are incorporated

to improve the accuracy and stability of 3D position-

ing (Rumpler et al., 2011; Hess-Flores et al., 2014; Yu

and Gallup, 2014). This approach is generally more

accurate than ray-casting-based approaches because

it does not depend on automatic structure reconstruc-

tion. However, it requires more operation time be-

cause selecting pixels at many camera views becomes

more stressful when the number of target points to be

measured is increased.

The comparison of the ﬁrst, second, and our pro-

posed approaches for 3D positioning is presented in

Table 1. To compute the 3D coordinate of one target

point in a scene, the number of required operations

varies according to the approaches. Our system is the

extension of the ﬁrst approach. Particularly, we focus

on achieving an accuracy similar to that of the sec-

ond approach while maintaining the operation time of

the ﬁrst approach. Because our proposed interactive

reconstruction is simple, it can be performed quickly.

Therefore, the operation time does not increase sig-

niﬁcantly while accuracy is maintained, as discussed

in Section 4.

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

784

Table 1: Comparison of approaches for 3D positioning.

Approach Accuracy Num. of operations

Ray casting with automatic reconstruction (ﬁrst approach) Not stable 1

Interactive triangulation with multiple views (second approach) Stable more than 2

Ray casting with interactive reconstruction (IR) (Proposed) Stable 1 after IR

3 PROPOSED SYSTEM

3.1 Overview

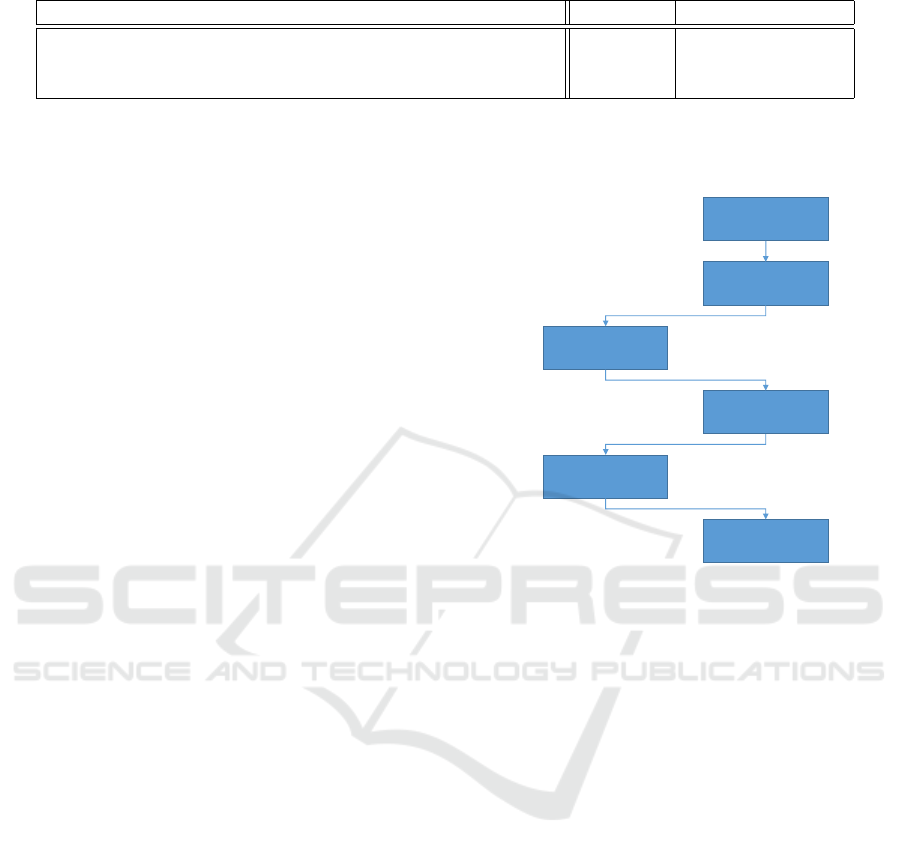

Figure 1 illustrates the ﬂow of our proposed system.

The processes are divided into user and system sides.

After starting the system, vSLAM is performed

consistently as a background process such that camera

poses and sparse 3D map points can be acquired con-

tinuously. We used ARCore as the vSLAM library.

First, map points generated by vSLAM are visualized

on the camera images. Next, users select a geomet-

ric shape region in the images to densely reconstruct

the scene structure. This is performed by selecting

the pixels of the map points detected in the region.

In this study, we focus on using planes. After pixel

selection, the plane parameter is estimated from the

selected map points. Users can reconstruct any num-

ber of small or large planes in the scene, if necessary.

Finally, users can select the pixels of target points on

the reconstructed planes for 3D positioning.

It is noteworthy that the 3D coordinates are es-

timated in the vSLAM coordinate system, which is

typically determined by vSLAM. This coordinate sys-

tem is sufﬁcient for AR annotation placement. How-

ever, the 3D coordinates are not comprehensive for

users because the vSLAM coordinate system is gen-

erally unknown. Therefore, our prototype system is

designed to measure the distance between two points,

as described in Section 4.

3.2 Visualization of Map Points

Recent visual-inertial SLAM can generate sparse 3D

map points for an accurate camera pose estima-

tion (Delmerico and Scaramuzza, 2018), as imple-

mented in ARCore. Since ARCore provides some

map points in the scene, we extract them from AR-

Core at every frame, and visualize them on the im-

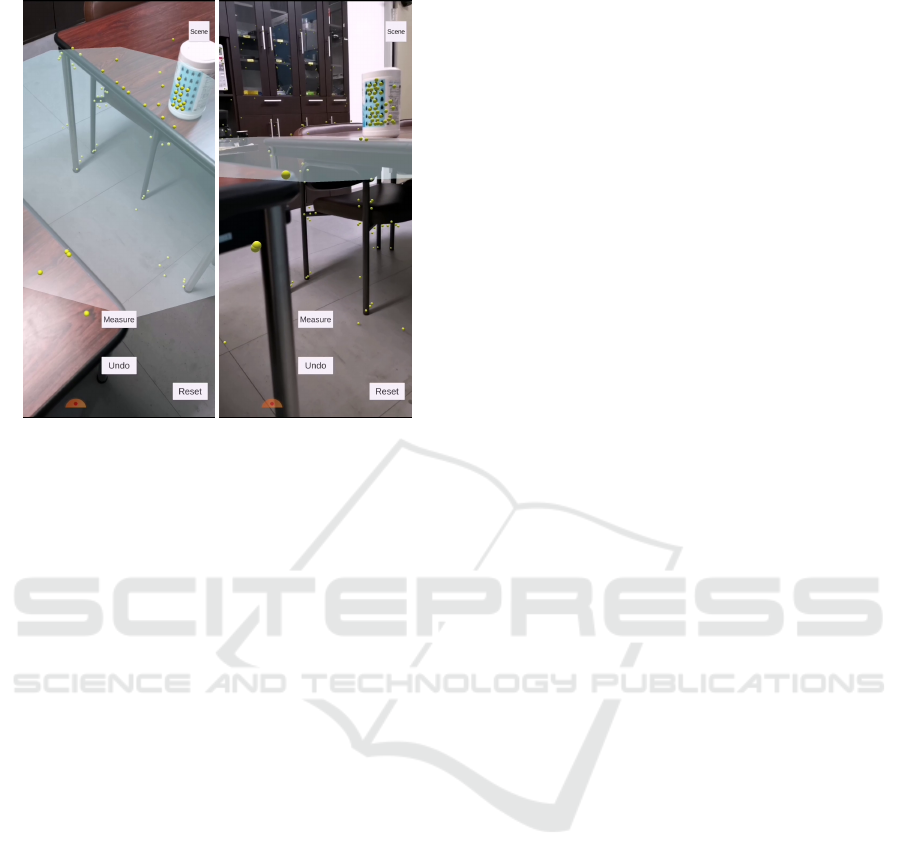

ages, as illustrated in Figure 2(a). To visualize them,

a ﬁxed size of a sphere, such as a radius of 1 cm, is

placed at each map point.

User

System

vSLAM

Visualization

of map points

Selection

of map points

Plane

reconstruction

Selection

of target points

3D positioning

Figure 1: Flow of our proposed system. The processes are

divided into user and system sides. Users select pixels for

the interactive reconstruction and 3D positioning of target

points. While executing vSLAM, the system reconstructs

the scene structure from the map points selected by users

and computes the 3D coordinates of the target points.

3.3 Selection of Map Points

To reconstruct the scene structure with a plane, users

are required to select the pixels of map points detected

on a plane. If users are required to precisely select the

point individually, this process would be laborious.

However, a few points are sufﬁcient to compute the

plane parameter; at least three points are necessary.

Therefore, this process can be performed easily if map

points are detected on plane regions.

In our system, users are asked to run a ﬁngertip

along the plane region, as illustrated in Figure 2(b).

In this ﬁgure, the user attempts to create a plane on

the top of two boxes, which height is same. The color

of the selected map points is blue, whereas that of un-

selected ones is yellow. To detect whether a map point

is selected, ray casting from a selected pixel to unse-

lected map points is performed. Even though users

may select the points that do not belong to a plane,

such points can be removed as outliers in the process

of robust estimator-based plane reconstruction, as ex-

plained in Section 3.4. Therefore, users can perform

PlanAR: Accurate and Stable 3D Positioning System via Interactive Plane Reconstruction for Handheld Augmented Reality

785

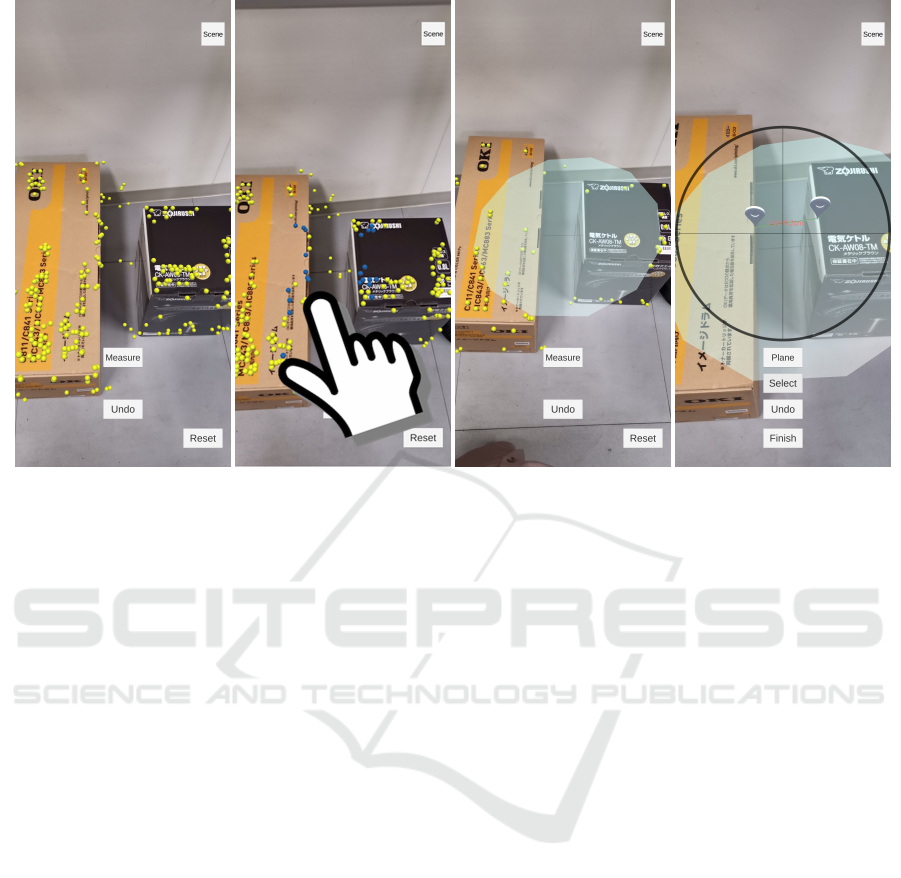

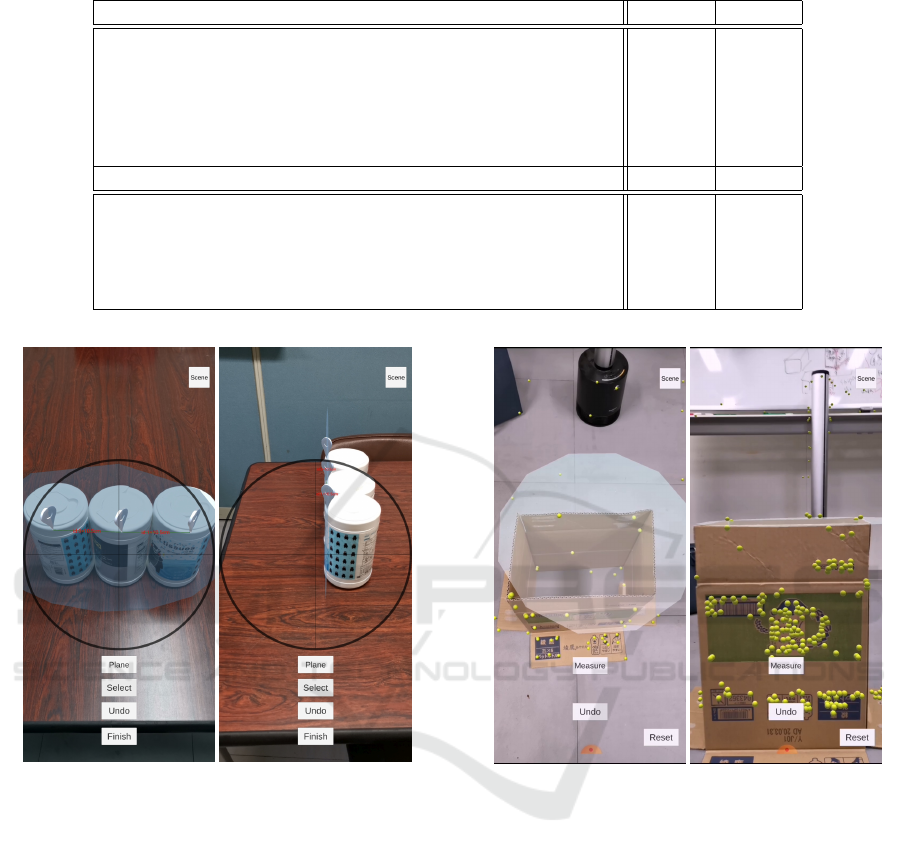

(a) Visualization of map points (b) Selection of map points (c) Plane reconstruction (d) Selection of target points

Figure 2: Each process in our proposed system. Map points from vSLAM are ﬁrst visualized and then selected by users

to reconstruct a plane. Subsequently, users select the pixels of the target points on the reconstructed plane to measure the

distance between two points.

this process in a friendly manner.

3.4 Plane Reconstruction

After users have selected the map points on a plane,

the plane parameter is computed using the points.

This process is based on principal component anal-

ysis (PCA). PCA can compute two axes on a plane

and one axis perpendicular to the plane using 3D map

points. To remove outliers, RANSAC is applied as a

robust estimator (Fischler and Bolles, 1981).

When using PCA, the direction of two axes on a

plane is determined according to the arrangement of

the map points. This means that it is difﬁcult to con-

sistently estimate the direction such that one axis al-

ways faces the same direction. Therefore, a plane is

visualized using a polygon or a circle, as illustrated

in Figure 2(c). The polygon center is located at the

center of the selected map points, and its radius is de-

termined from the center to the farthest point.

3.5 Selection of Target Points

For 3D positioning, users select the pixel of any target

point on the plane. The target point in this process is

not equivalent to a map point generated by vSLAM.

The process of computing the 3D coordinates of

a target point is as follows. From vSLAM, camera

poses are acquired when tracking is successful. When

users select the pixel of a target point in the image,

the 3D ray of the pixel is computed using a camera

pose and pixel location in the image, as well as VR

systems (Baillot et al., 2001). To support an accu-

rate pixel selection, we used a reticle marker, as im-

plemented in SnipAR (Tashiro et al., 2019)(see Fig-

ure 2(d)). Subsequently, ray casting is performed

from the pixel to the plane in the scene. Finally, the

intersection between the plane and 3D ray is com-

puted as the 3D coordinates of the target point.

4 EVALUATION

4.1 Evaluation Design

To evaluate the performance of our proposed system,

we developed an application to measure the distance

between two points in a scene, such as a commercial

AR ruler application. When using the application,

users are required to perform 3D positioning twice to

measure the distance. In this evaluation, the partici-

pants were asked to measure the size of some objects.

As illustrated in Figure 3, the target scene for the

evaluation comprised several objects that varied by

size and shape and placed on a mesh-type metal rack

board. Compared with simple environments used in

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

786

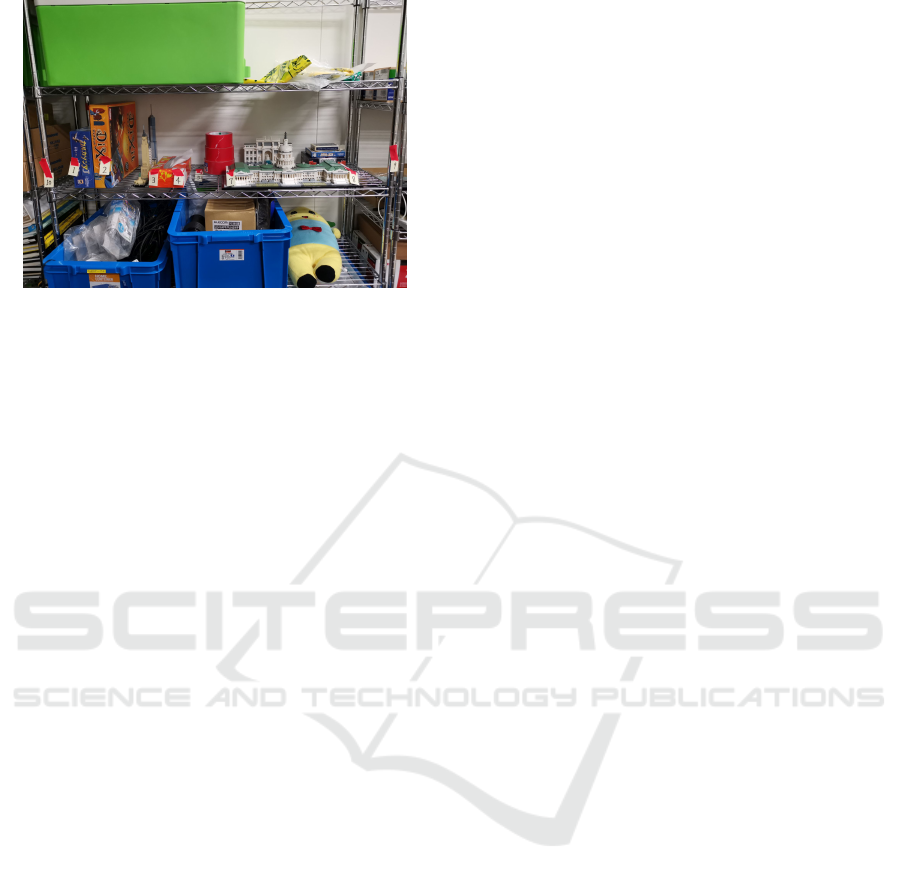

Figure 3: Evaluation scene in a storeroom. The task was to

measure the width of objects stored on a rack board.

other evaluations (Polvi et al., 2016; Tashiro et al.,

2019), we selected an actual environment in a store-

room because we focused on investigating the perfor-

mance in practical use.

In our preliminary experiments, we discovered

that ARcore could not reconstruct a plane on a rack

board even though it generated some map points. In

practical situations, automatic plane detection did not

work or failed. Our interactive plane reconstruction is

highly useful in such situations because the plane can

be stably reconstructed with map points selected by

users, as discussed in Section 5. As a benchmarking

method, we used SnipAR because its accuracy in 3D

positioning is better and it is also less time-intensive

than other methods (Tashiro et al., 2019).

4.2 Task

The task was to naively measure the distance between

two points using two systems: our proposed PlanAR

and SnipAR. Particularly, the participants were asked

to measure the width of ﬁve objects on a rack board.

In practice, this process is equivalent to quantitatively

measuring the occupancy on each rack board at a dis-

tance in a non-contact manner.

Before the evaluation, we provided detailed in-

structions of how each system is to be used and pro-

vided sufﬁcient time for trial use. The following in-

structions were provided.

1. Participants must measure the distances as accu-

rate as possible.

2. Participants assess whether to re-perform 3D po-

sitioning, at their own will.

3. Participants start the task 1 meter away from the

rack.

4. After the participants have started the task, they

can move freely.

5. Participants push the ﬁnish button when they are

satisﬁed with the measurement results.

6. For PlanAR, participants ﬁrst create a plane on a

rack board and then perform 3D positioning.

To clarify the order of the distance measurement for

the participants, the order was visualized with small-

numbered tags in the scene.

The evaluation procedure is as follows:

1. pre-questionnaires regarding participant back-

ground,

2. instructions of how to use each system with an

instruction movie and trial uses,

3. task of measuring the distances between ﬁve sets

of two points using each system,

4. and post-questionnaires for feedback regarding

the usability of each system.

For each participant, the order of the task for the two

systems was randomized to be counterbalanced. Each

participant required approximately 30 min to com-

plete all procedures.

4.3 Evaluation Criteria

The ﬁrst criterion was the operation time required for

the distance measurement. The time measurement

started when the participants pushed the start button.

This measurement time continued until the partici-

pants pushed the ﬁnish button. In parallel, the time

when each positioning was ﬁnished was measured.

This was used to clarify the number of points to be

measured were the boundary to make a signiﬁcant dif-

ference between the two systems.

The second criterion was the measurement accu-

racy of the distance between two points. The ground-

truth distance was measured manually using a mea-

suring tape. The absolute difference between the

ground truth and the estimated result was the error.

To compare the performances of the two systems,

we statistically analyzed the results of the operation

time and the measurement accuracy by t-test, imple-

mented on Microsoft Excel2016. A t-test can deter-

mine whether a signiﬁcant difference exists between

the averages of sample pairs. Additionally, outliers

can be excluded using the interquartile range. To vi-

sualize the results, we used a box-and-whisker plot.

4.4 Result

4.4.1 Participant Statistics

Ten students from a university participated in the

evaluation: 10 male; mean age, 22.6 years; age

PlanAR: Accurate and Stable 3D Positioning System via Interactive Plane Reconstruction for Handheld Augmented Reality

787

range, 21 to 25; mean height, 170.5 cm. At

the beginning of the evaluation, we used the pre-

questionnaires of other evaluations (Polvi et al., 2016;

Tashiro et al., 2019). The participants answered

their experiences on a 7-point Likert scale (1 =

not at all and 7 = very familiar). They estimated

their experiences for touchscreen (M=6.6, SD=0.49),

handheld devices (M=6.5, SD=0.50), AR (M=4.3,

SD=1.27), handheld AR (M=4.2,SD=1.47), and 3D

interface (M=3.8, SD=1.40). Compared with other

evaluations (Polvi et al., 2016; Tashiro et al., 2019),

the participants were familiar with not only the smart-

phone, but also AR and Handheld AR.

For the statistical analysis, 10 samples were used

for the operation time of each method, as 1 sample

was given by each participant. Also, 50 samples were

used for the measurement accuracy, as 5 samples were

given by each participant.

4.4.2 Operation Time

As illustrated in Figure 4, SnipAR required more time

than PlanAR to complete all the tasks. For PlanAR,

the participants spent the average of 83.4 s to create

a plane at the beginning. In our evaluation setup, we

selected a difﬁcult situation such that it was not trivial

to generate a plane on a rack board owing to occlu-

sions and few feature points generated by ARCore. In

other situations, less time is required if there were suf-

ﬁcient feature points that could facilitate plane gener-

ation. The average operation time required for one

3D positioning was 22.5 s and 7.6 s for SnipAR and

PlanAR, respectively. This is because the number of

operations for 3D positioning in PlanAR is less than

that of SnipAR.

Next, we investigated the number of points to be

measured on a plane were the boundary such that the

distance between the two systems is statistically sig-

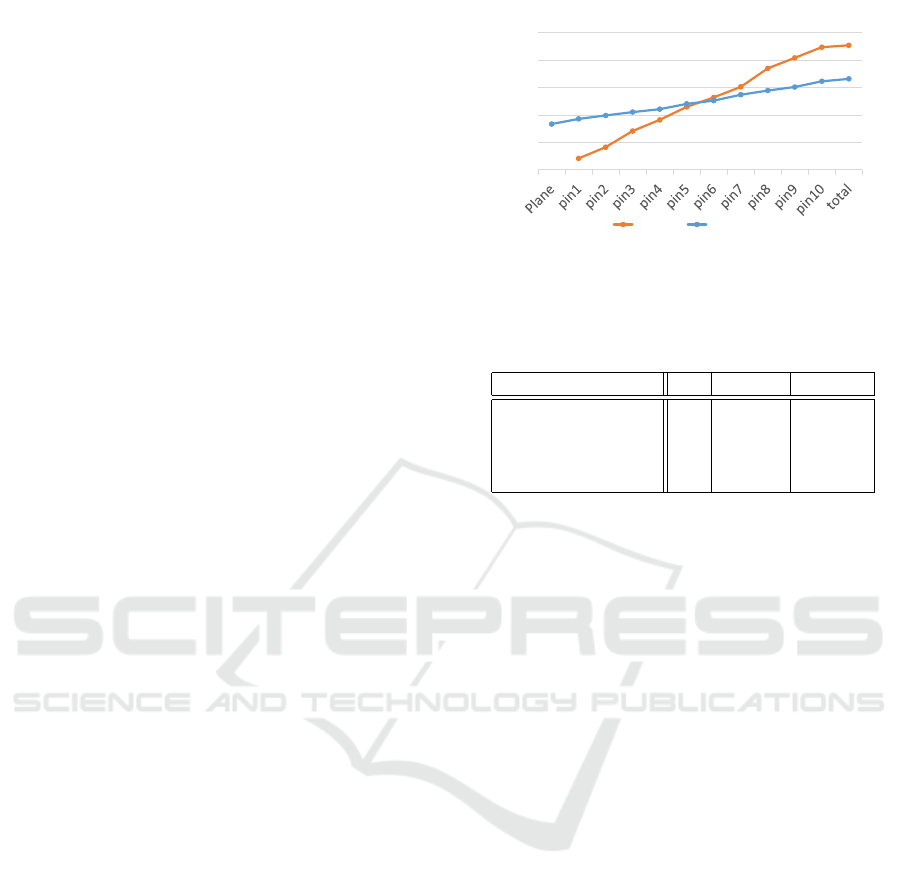

niﬁcant, as illustrated in Figure 5. When using the

total operation time at the 8-th positioning, a signiﬁ-

cant difference was discovered thorough the t-test, as

shown in Table 2. The label ”df” means the degree of

freedom. The p-value was computed with a two-sided

test. A signiﬁcant difference is implied if the p-value

was less than 0.05. Hence, our results show that Pla-

nAR is faster when approximately 8 target points are

distributed on a plane. This is equivalent to measur-

ing four distances of two points. Because the scene in

our daily life is composed of many planes, measuring

several distances on a plane is not a special situation.

Therefore, our interactive plane-reconstruction-based

approach can be useful in practice.

100

150

200

250

SnipAR PlanAR

[s]

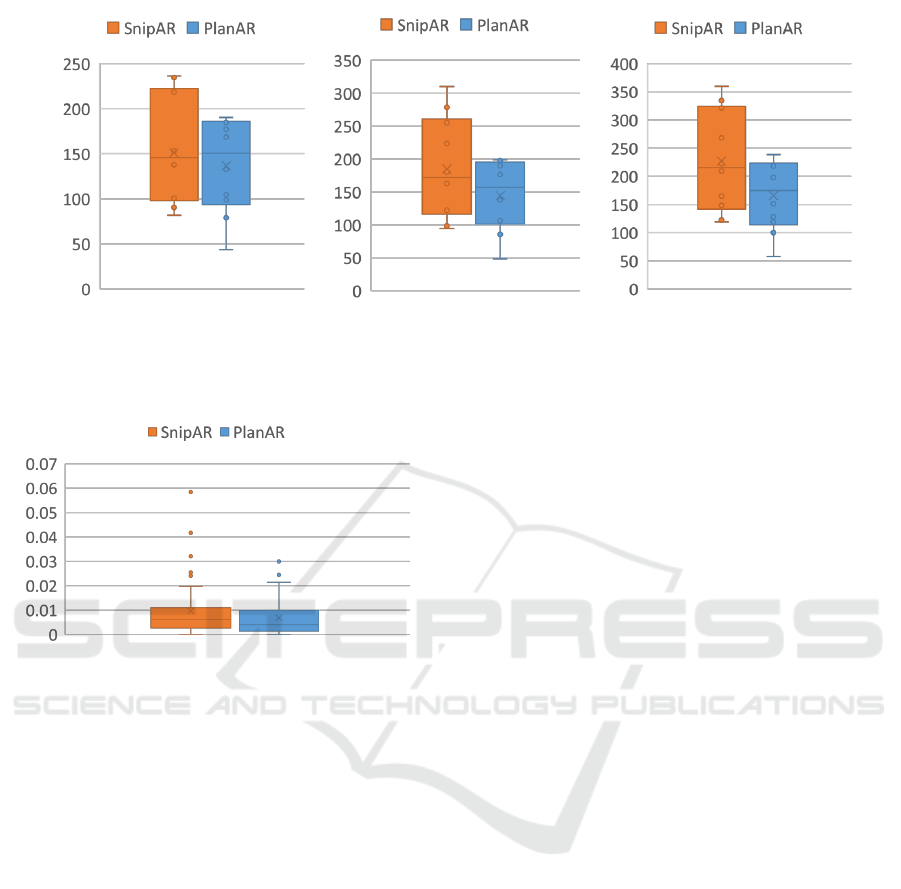

Figure 4: Operation times for PlanAR and SnipAR. The

plane in the horizontal axis represents the time required for

generating a plane. The digit in pin+digit represents the

order for 3D positioning.

Table 2: Result of t-test for each box whisker.

The ﬁgure number df t-value P-value

Figure 5(a) 9 0.927 0.378

Figure 5(b) 9 2.285 0.048

Figure 5(c) 9 3.302 0.009

Figure 6 45 1.753 0.086

4.4.3 Measurement Accuracy

Figure 6 illustrates the result of the t-test for the mea-

surement accuracy of distance between two points.

The dots in the ﬁgure represent outliers detected using

the interquartile range. The means of the error were

9.6 and 6.9 mm in SnipAR and PlanAR, respectively.

A signiﬁcant statistical difference was not observed in

the measurement accuracy, as shown in table 2.

It is noteworthy that four obvious outliers ap-

peared, in which the error was 10 times larger than

those of others in the results of SnipAR. This occurs

occasionally because of the instability of vSLAM in

ARCore. Such obvious outliers were manually re-

moved before the t-test; we used 46 samples in each

method for the evaluation.

4.4.4 Number of Repeated Operations

In addition to the operation time and measurement ac-

curacy, we investigated the number of repeated oper-

ations, which is related to the usability. The deﬁnition

of a repeated operation in the evaluation is to repeat

3D positioning for the same position.

The average number of repeated operations was

0.4 and 2 times in SnipAR and PlanAR, respectively.

This result is related to the required operations for

each method. With SnipAR, the participants must se-

lect pixels at least twice at different camera views. To

improve the accuracy, they are allowed to iterate the

pixel selections at more views to adjust the estimated

3D position, if they desire. This means that the par-

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

788

[s]

(a) Time at 7-th positioning

[s]

(b) Time at 8-th positioning

[s]

Figure 5: t-test for operation time at n-th positioning. At the 7-th positioning, a signiﬁcant difference was not observed. After

the 8-th positioning, a signiﬁcant difference was observed. The results of t-test with these data are shown in Table 2.

[m]

Figure 6: Measurement accuracy. Signiﬁcant difference be-

tween the two methods was not observed.

ticipants tend to iterate rather than repeat pixel selec-

tions.

Conversely, the participants can perform 3D po-

sitioning with only one operation in PlanAR. If cam-

era shake occurs when they are performing 3D posi-

tioning, it is hard to accurately select the target point.

Therefore, the participants tend to repeat the opera-

tions. However, the operation time was not signif-

icantly affected by repeating operations because the

operation for 3D positioning in PlanAR is simple.

4.4.5 Post-questionnaires

We followed the post-questionnaires used in other

evaluations (Polvi et al., 2016; Tashiro et al., 2019).

The results are summarized in Table 3. Overall, the

scores of PlanAR were higher than those of SnipAR.

In particular, PlanAR required less effort both physi-

cally and mentally than SnipAR. In terms of operation

simplicity, the score of SnipAR was higher. This may

be because PlanAR required the operation for creat-

ing planes before 3D positioning. Regarding screen

ﬂickering, the score of PlanAR was higher because

the feature points were updated and displayed at ev-

ery frame. Regarding information displayed on the

screen, the results were almost the same. This is be-

cause the user interface for each system such as the

button shape, color, number, and arrangement was

uniﬁed maximally.

Considering the aforementioned results, SnipAR

was useful in simple tasks such as 3D positioning for

a few target points because of its simple manipulation.

Meanwhile, PlanAR was suitable when the number

of target points was increased because less time and

effort required.

5 EXAMPLES OF PLANE

RECONSTRUCTION

The signiﬁcant property of our proposed system is

that users can generate the geometric shape as they

wish when map points from vSLAM are available. In

other words, it is easy to generate a plane that is not

easily reconstructed using automatic methods. In Fig-

ure 7, the tangent plane shared by several cylinders

can be generated by selecting points on cylindrical

bus bars. In Figure 8, the box shape can be computed

from an opened box. In Figure 9, one plane can be

generated between discontinuous planes by selecting

points on both planes.

In our current system, only plane reconstruction

is supported. It is easy to incorporate other geomet-

ric reconstruction methods for spheres, cylinders, and

spline surfaces. The scene reconstruction with geo-

metric shapes can suppress the error of noisy map

points from vSLAM by averaging the error. There-

fore, the accuracy of 3D positioning can be improved

compared with meshes simply generated from map

points. If the object shape in the scene is comprehen-

PlanAR: Accurate and Stable 3D Positioning System via Interactive Plane Reconstruction for Handheld Augmented Reality

789

Table 3: Questionnaire and results (lower is better from 1 to 4, 7, and 8; higher is better from 5,6 and 9 to 11).

Question regarding manipulability SnipAR PlanAR

1. The interaction required signiﬁcant body muscle effort 5.8 4.9

2. My arms and hands became tired 4.4 2.9

3. The device was difﬁcult to hold 2.4 2.1

4. I lost grip or dropped the device 1.1 1.0

5. The manipulation was simple 5.2 4.7

6. The manipulation was easy to control 4.7 4.8

Question regarding Comprehensibility SnipAR PlanAR

7. The interaction required considerable mental effort 4.2 3.0

8. The display was not ﬂickering considerably 2.1 2.9

9. The information displayed on the screen was sufﬁciently fast 5.9 6.0

10. The information displayed on the screen was appropriate 5.7 5.7

11. The information displayed on the screen was consistent 5.8 5.9

(a) Front view (b) Side view

Figure 7: Tangent plane reconstruction. Users select points

on different cylinder surfaces to generate the tangent plane.

sive for users, it would be extremely helpful for the

system to obtain support from users to reconstruct the

scene. If the user interaction is designed simply, the

system usability can be improved with minimum user

effort.

6 CONCLUSIONS

We proposed a 3D positioning system with plane

reconstruction and developed the method ”PlanAR”

for this system, which was better than ”SnipAR” in

terms of the measurement time when many annota-

tions were placed. We herein focused on planes; how-

ever, this system can be utilized for other structures.

(a) Front view (b) Side view

Figure 8: Reconstruction from contour. Users select points

on the contour.

Furthermore, we attempted plane reconstruction

when no plane existed. Under the circumstances, our

method could generate planes in scenes that could not

be detected by ARCore. Hence, this system can be

applied widely.

ACKNOWLEDGEMENTS

A part of this work was supported by JSPS KAK-

ENHI, Grant Number JP18H04125 and JP18H04117.

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

790

(a) Front view (b) Side view

Figure 9: Reconstruction for discontinuous planes at the

same height. Users select points on each plane to create

a plane.

REFERENCES

Amann, M.-C., Bosch, T. M., Lescure, M., Myllylae, R. A.,

and Rioux, M. (2001). Laser ranging: a critical re-

view of unusual techniques for distance measurement.

Optical engineering, 40(1):10–20.

Baillot, Y., Brown, D., and Julier, S. (2001). Authoring of

physical models using mobile computers. In 5th Inter-

national Symposium on Wearable Computers, pages

39–46. IEEE.

Delmerico, J. and Scaramuzza, D. (2018). A benchmark

comparison of monocular visual-inertial odometry al-

gorithms for ﬂying robots. In IEEE International

Conference on Robotics and Automation, pages 2502–

2509. IEEE.

Fischler, M. A. and Bolles, R. C. (1981). Random sample

consensus: a paradigm for model ﬁtting with appli-

cations to image analysis and automated cartography.

Communications of the ACM, 24(6):381–395.

Fuhrmann, S., Langguth, F., and Goesele, M. (2014). Mve-

a multi-view reconstruction environment. In GCH,

pages 11–18.

Hartley, R. I. and Sturm, P. (1997). Triangulation. Computer

vision and image understanding, 68(2):146–157.

Henrysson, A., Billinghurst, M., and Ollila, M. (2005). Vir-

tual object manipulation using a mobile phone. In In-

ternational conference on Augmented tele-existence,

pages 164–171. ACM.

Hess-Flores, M., Recker, S., and Joy, K. I. (2014). Uncer-

tainty, baseline, and noise analysis for l1 error-based

multi-view triangulation. In International Conference

on Pattern Recognition, pages 4074–4079. IEEE.

Hinckley, K., Pausch, R., Goble, J. C., and Kassell, N. F.

(1994). A survey of design issues in spatial input. In

7th annual ACM symposium on User interface soft-

ware and technology, pages 213–222. ACM.

Jung, T., Gross, M. D., and Do, E. Y.-L. (2002). Annotat-

ing and sketching on 3d web models. In 7th Interna-

tional Conference on Intelligent User Interfaces, IUI

’02, pages 95–102, New York, NY, USA. ACM.

Lien, K.-C., Nuernberger, B., H

ollerer, T., and Turk, M.

(2016). Ppv: Pixel-point-volume segmentation for

object referencing in collaborative augmented reality.

In IEEE International Symposium on Mixed and Aug-

mented Reality, pages 77–83. IEEE.

Marchand, E., Uchiyama, H., and Spindler, F. (2016). Pose

estimation for augmented reality: a hands-on sur-

vey. IEEE transactions on visualization and computer

graphics, 22(12):2633–2651.

Nuernberger, B., Lien, K.-C., H

ollerer, T., and Turk, M.

(2016). Interpreting 2d gesture annotations in 3d aug-

mented reality. In IEEE Symposium on 3D User Inter-

faces, pages 149–158. IEEE.

Polvi, J., Taketomi, T., Yamamoto, G., Dey, A., Sandor, C.,

and Kato, H. (2016). Slidar: A 3d positioning method

for slam-based handheld augmented reality. Comput-

ers & Graphics, 55:33–43.

Roberto, R. A., Uchiyama, H., Lima, J. P. S., Nagahara, H.,

Taniguchi, R.-i., and Teichrieb, V. (2017). Incremental

structural modeling on sparse visual slam. IPSJ Trans-

actions on Computer Vision and Applications, 9(1):5.

Rumpler, M., Irschara, A., and Bischof, H. (2011). Multi-

view stereo: Redundancy beneﬁts for 3d reconstruc-

tion. In 35th Workshop of the Austrian Association for

Pattern Recognition, volume 4, pages 1–8.

Schnabel, R., Wahl, R., and Klein, R. (2007). Efﬁcient

ransac for point-cloud shape detection. In Computer

graphics forum, volume 26, pages 214–226. Wiley

Online Library.

Taketomi, T., Uchiyama, H., and Ikeda, S. (2017). Visual

slam algorithms: a survey from 2010 to 2016. IPSJ

Transactions on Computer Vision and Applications,

9(1):16.

Tashiro, S., Uchiyama, H., Thomas, D., and Taniguchi, R.-

i. (2019). 3d positioning system based on one-handed

thumb interactions for 3d annotation placement. In

IEEE Conference on Virtual Reality and 3D User In-

terfaces, pages 1181–1182. IEEE.

Whelan, T., Salas-Moreno, R. F., Glocker, B., Davi-

son, A. J., and Leutenegger, S. (2016). Elasticfu-

sion: Real-time dense slam and light source estima-

tion. The International Journal of Robotics Research,

35(14):1697–1716.

Wither, J., DiVerdi, S., and H

ollerer, T. (2009). Annotation

in outdoor augmented reality. Computers & Graphics,

33(6):679–689.

Yu, F. and Gallup, D. (2014). 3d reconstruction from ac-

cidental motion. In IEEE Conference on Computer

Vision and Pattern Recognition, pages 3986–3993.

Zhang, Z. (1998). Determining the epipolar geometry and

its uncertainty: A review. International journal of

computer vision, 27(2):161–195.

PlanAR: Accurate and Stable 3D Positioning System via Interactive Plane Reconstruction for Handheld Augmented Reality

791
