Curriculum Deep Reinforcement Learning with Different Exploration

Strategies: A Feasibility Study on Cardiac Landmark Detection

Patricio Astudillo

1 a

, Peter Mortier

, Matthieu De Beule

and Francis Wyffels

2 b

FEops, Technologiepark 122, Zwijnaarde 9052, Belgium

Department of Electronics and Information Systems, UGent - imec, Technologiepark 126, Zwijnaarde 9052, Belgium

Keywords:

Biomedical Informatics, Cardiography, Medical Information Systems, Semi-supervised Learning.

Abstract:

Transcatheter aortic valve implantation (TAVI) is associated with conduction abnormalities and the mechanical

interaction between the prosthesis and the atrioventricular (AV) conduction path cause these life-threatening

arrhythmias. Pre-operative assessment of the location of the AV conduction path can help to understand the

risk of post-TAVI conduction abnormalities. As the AV conduction path is not visible on cardiac CT, the

inferior border of the membranous septum can be used as an anatomical landmark. Detecting this border

automatically, accurately and efﬁciently would save operator time and thus beneﬁt pre-operative planning.

This preliminary study was performed to identify the feasibility of 3D landmark detection in cardiac CT

images with curriculum deep Q-learning. In this study, curriculum learning was used to gradually teach an

artiﬁcial agent to detect this anatomical landmark from cardiac CT. This agent was equipped with a small

ﬁeld of view and burdened with a large action-space. Moreover, we introduced two novel action-selection

strategies: α-decay and action-dropout. We compared these two strategies to the already established ε-decay

strategy and observed that α-decay yielded the most accurate results. Limited computational resources were

used to ensure reproducibility. In order to maximize the amount of patient data, the method was cross-validated

with k-folding for all three action-selection strategies. An inter-operator variability study was conducted to

assess the accuracy of the method.

1 INTRODUCTION

Transcatheter aortic valve implantation (TAVI) has

become the preferred treatment for patients with aor-

tic stenosis at high risk for surgical aortic valve re-

placement (SAVR) (Smith et al., 2011). Recently,

studies concluded that TAVI was similar to SAVR

for intermediate-risk patients concerning the primary

end-point of death or disabling stroke (Leon et al.,

2016; Reardon et al., 2017). Very recent clinical data

showed that TAVI is at least as good as SAVR in low-

risk patients (Popma et al., 2019; Mack et al., 2019).

Although TAVI is less-invasive than SAVR, it is as-

sociated with an increased incidence of higher grade

atrioventricular (AV) block that requires permanent

pacemaker implantation (Reardon et al., 2017). The

conduction abnormalities are due to the mechanical

interaction between the prosthesis and the AV con-

duction path located near the aortic valve. Pre-

https://orcid.org/0000-0002-5503-6217

https://orcid.org/0000-0002-5491-8349

operative assessment of the location of the AV con-

duction path and the expected contact pressure in

this region can help to understand the risk of post-

TAVI conduction abnormalities (Hamdan et al., 2015;

Rocatello et al., 2018). As the AV conduction path

itself is not visible on the cardiac CT images, the in-

ferior border of the membranous septum can be used

as an anatomical landmark. Detecting the inferior

border of the membranous septum can be a difﬁcult

task that dependents on operator experience, image

quality, and the patient’s anatomy. Detecting these

points in an automatic, accurate, and efﬁcient man-

ner would save operator time and thus beneﬁt pre-

operative planning.

Advancements in deep learning have shown that

there are supervised methods that can detect land-

marks in medical images (Zheng et al., 2012; Zheng

et al., 2015; Payer et al., 2016; Zhang et al., 2017;

Litjens et al., 2017; O’Neil et al., 2018; Al et al.,

2018). These methods analyse a delimited region of

interest and thus share the same limitation because

they require a region of interest annotation. In this

Astudillo, P., Mortier, P., De Beule, M. and Wyffels, F.

Curriculum Deep Reinforcement Learning with Different Exploration Strategies: A Feasibility Study on Cardiac Landmark Detection.

DOI: 10.5220/0008948900370045

In Proceedings of the 13th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2020) - Volume 2: BIOIMAGING, pages 37-45

ISBN: 978-989-758-398-8; ISSN: 2184-4305

study, we wished to overcome this limitation and ana-

lyse medical images that range from region-speciﬁc

to full-body scans.

Recent studies have shown that deep reinforce-

ment learning can be used to detect landmarks in

medical images regardless of their dimensions (Ghesu

et al., 2016; Ghesu et al., 2017a; Ghesu et al., 2017b;

Alansary et al., 2019; Sahiner et al., 2019). In these

studies, accurate results were obtained using a cluster

of computational resources. However, the follow-

ing difﬁculties may arise when exploring their meth-

ods. Deep reinforcement learning introduces novel

hyper-parameters on top of the already existing hyper-

parameters speciﬁc to deep learning and machine

learning. When a cluster of computational resources

is unavailable, the hyper-parameter search may re-

quire a considerable amount of time. Moreover, since

deep reinforcement learning is still developing, it is

essential to look into mechanisms that require addi-

tional research, e.g. the authors in two relevant stud-

ies (Ghesu et al., 2017b; Alansary et al., 2019) had a

different opinion on the deﬁnition of the halting sig-

nal for the artiﬁcial agent. Therefore, novel strategies

should be studied and evaluated in a reproducible

manner.

In this preliminary study, we aimed to identify the

feasibility of 3D landmark detection in cardiac CT

images with curriculum deep Q-learning. This novel

method of learning allowed us to use limited com-

putational resources and tune the hyper-parameters

accordingly. It also enabled us to evaluate three

strategies that drive the exploring character of the ar-

tiﬁcial agent: the already established ε-decay strategy

and two novel strategies α-decay and action-dropout.

Additionally, the agent was equipped with a larger

action-space and smaller state-space when compared

to the state-of-the-art. Each strategy was validated

with k-folding; a cross-validation method that allows

the usage of the entire dataset for validation while

maintaining a strict separation between the training

and validation dataset. An inter-operator variability

study was conducted to assess the accuracy of the

method.

2 MATERIALS AND METHODS

2.1 Patient and Imaging Data

This retrospective study used the anonymised data of

278 patients from multiple centers. The mean age of

this cohort was 80.7 ± 6.6 years, and 56% of the pa-

tients were female. The patient data consisted of volu-

metric cardiac CT images, which were acquired dur-

ing the pre-operative planning of a TAVI procedure.

Therefore, all CT images were contrast-enhanced and

contained a certain degree of aortic stenosis. The di-

mensions of the images ranged from regional scans,

centered around the aortic valve, to scans of the entire

body.

An expert analysed all images and identiﬁed the

inferior border of the membranous septum. Three

3D points deﬁned this inferior border: MS1, MS2

and MS3 and were considered the ground truth in our

study (Figure 1).

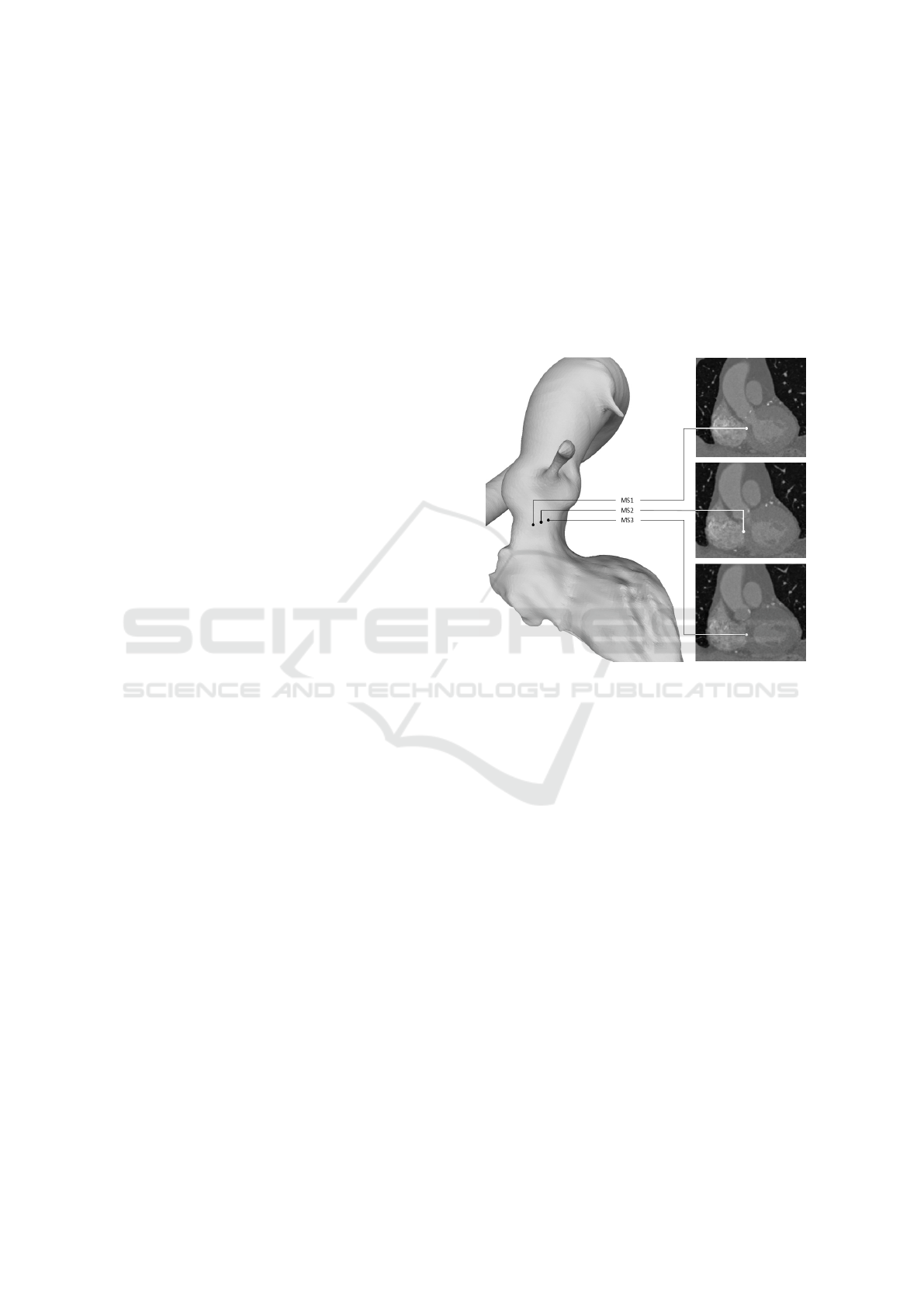

Figure 1: The 3D view (left) and the coronal view (right)

of the aortic valve with the annotated ground truth points:

MS1, MS2 and MS3.

The volumetric CT images were preprocessed in

the following manner: ﬁrst, they were resampled to

obtain a homogenous dataset after which they were

interpolated to isotropic resolutions of 1.0, 2.0, 3.0

and 5.0 mm using cubic spline interpolation. Finally,

all images were normalised.

2.2 Landmark Detection with

Reinforcement Learning

The task of detecting landmarks in medical images

with reinforcement learning can be described as fol-

lows. An artiﬁcial agent is positioned in an environ-

ment (an image) where it can walk around in search

of the target landmark. From its current position,

the agent has a limited ﬁeld of view, causing it to

see only a small image patch (the state). Based on

its current state s, the agent needs to choose an ac-

tion a, which will move him closer towards the tar-

get landmark. After performing that action, the agent

will be at a new position in the image and thus have

BIOIMAGING 2020 - 7th International Conference on Bioimaging

a new state s’. The reward r for choosing an action

is the delta between the Euclidean distance from the

previous- and current position to the target landmark.

The agent’s experience is deﬁned as s, a, s’ and r and

needs to be stored (Figure 2).

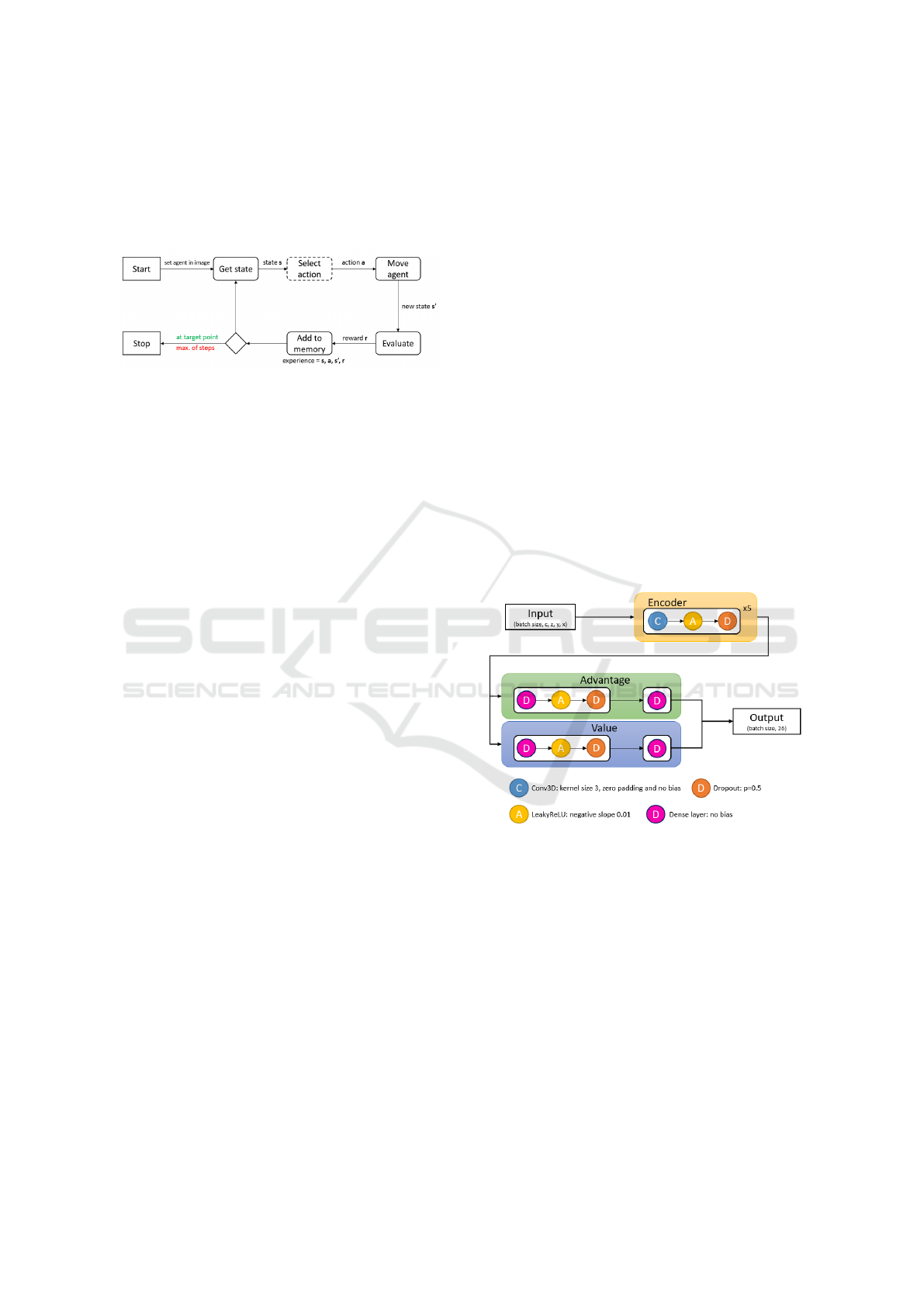

Figure 2: Overview of landmark detection in a medical im-

age using reinforcement learning. The agent will stop after

a maximum number of steps or when it has found the target

landmark. The ‘select action’ box in the ﬁgure is annotated

with a dashed line because this is where the action-selection

strategies will occur.

In this study, the environment was a cardiac CT

image with multiple resolutions (1.0, 2.0, 3.0 and

5.0 mm). The agent walked around in the CT im-

age with resolution 1.0 mm because the reward was

computed in this resolution. The states in the other

resolutions were obtained by translating the current

position to those resolutions. By using multiple res-

olutions, the agent had additional information about

its current position while preserving the dimensions

of the agent’s state (an 8

voxel cube). Addition-

ally, the agent could choose from 26 actions. This

action-space covered all the possible single-step dir-

ections in a 3D grid (except standing still). Other

studies, described an action-space of six actions and

state sizes of 25

voxels and 45

voxels (Ghesu et al.,

2017b; Alansary et al., 2019). After each move, the

experience of the agent was stored in prioritized ex-

perience replay memory (Schaul et al., 2015). This

type of memory enabled the optimization process to

train with experiences which had a higher priority (or

learning value) and resulted in faster convergence.

When the agent selects an action, it needs to know

which action will maximize the cumulative reward

over time or, to put it in other terms; the agent needs

to know policy π. This policy deﬁnes the agent’s be-

haviour and maps state to actions. The optimal policy

knows for every state which action to choose in order

to maximize the cumulative reward.

2.3 Landmark Detection with Deep

Q-Learning

Since it is not possible to map all possible states from

cardiac CT to actions, a function approximator is re-

quired. In our study, we used a convolutional neural

network (CNN) to approach the optimal policy by

learning the action-value function Q(s, a) (Mnih et al.,

2015). This has already been performed in studies

where a deep CNN or deep Q-network (DQN) was

trained with the experiences of the agent in order to

learn this action-value function (Ghesu et al., 2017b;

Alansary et al., 2019).

In our work, a double duelling DQN method was

used to learn this Q function. Two identical mod-

els were used to reduce the overestimation of the Q-

values. Before each training session, the weights of

the ﬁrst model were randomly initialized (Saxe et al.,

2013) and copied to the second model. During each

training session, the ﬁrst DQN model was used to re-

trieve the actions of the current observations and a

second (frozen) DQN model yielded Q-values during

the optimization process (Van Hasselt et al., 2016).

The weights of the ﬁrst DQN were transferred to the

frozen DQN after a variable number of iterations (τ).

An advantage- and a value module were intro-

duced in the architecture (Figure 3). It was shown

that these modules enable the model to learn which

states contained a higher learning value regardless of

the effect of the action (Wang et al., 2015).

Figure 3: The architecture of the DQN model. The input

has the dimensions of the state. The output of the encoder

continues to an advantage- and value module. The output

of the model is the combination of the advantage- and value

output signals. The channel dimension c of the model stores

the multiple resolutions of the state at position x, y and z.

Teaching a DQN to learn this Q function with the

experiences of the agent requires iterative trial-and-

error. Based on its current state, the agent chooses

an action, which yields a new state, and the action is

evaluated by measuring the reward. Next, the DQN

is updated by using the Bellman equation (Bellman

et al., 1954). This equation returns the Q-value or

the maximum future reward, which is the immediate

reward for a given state and action and the maximum

future reward for the next state.

Curriculum Deep Reinforcement Learning with Different Exploration Strategies: A Feasibility Study on Cardiac Landmark Detection

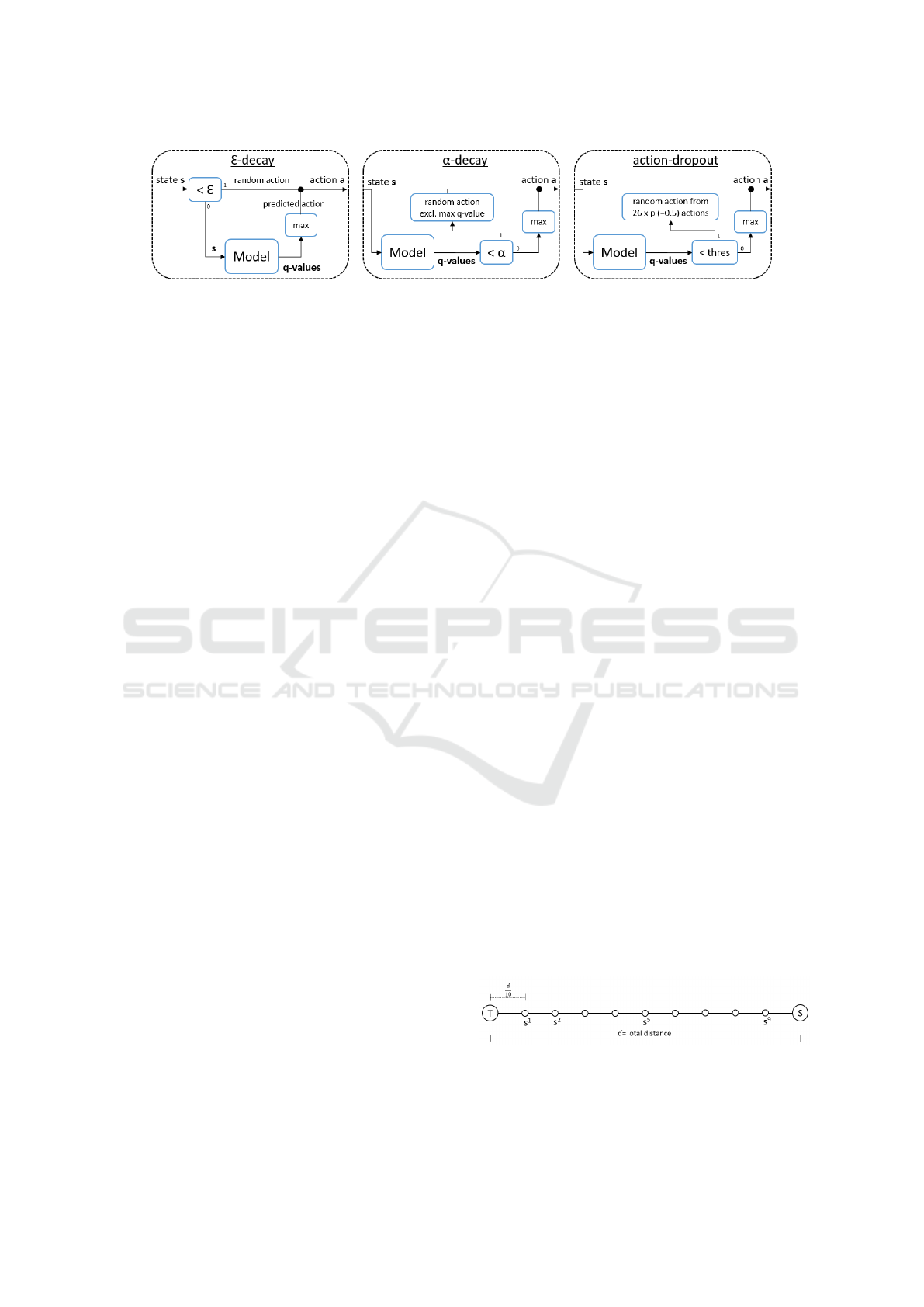

Figure 4: Overview of the three action-selection strategies: ε-decay, α-decay and action-dropout.

The model’s output yields the Q-values for each

action for the current state. The size of the output

of the DQN model, therefore, equals the size of the

action-space. In order to select the right action for

the current state, the index of the highest Q-value is

selected, which yields the maximum future reward for

the agent.

Initially, random actions are selected by the agent,

but this randomness needs to be reduced over time.

This process is usually guided by the established ε-

decay strategy; however, other strategies were ex-

plored in this work.

2.4 The Exploring Agent

To learn the pathway towards the target point, the

agent needs to explore and exploit paths. The explora-

tion is required at the beginning of the training to dis-

cover new directions towards the target point. The ex-

ploitation is required near the end of the training to es-

tablish discovered routes. In this study, we compared

three strategies to balance exploration and exploit-

ation: the established exponential ε-decay and two

novel strategies: α-decay and action-dropout (Figure

4).

Exponential ε-decay uses a value ε that drives the

decision for predicting an action or randomly select-

ing an action. An ε value needs to be decayed from

0.999 to 0.05 during training. When a random value

is smaller than the current ε value, random action is

chosen. Otherwise, the model predicts the Q-values

from the current state and the action with the highest

Q-value is selected as the predicted action.

Linear α-decay always uses the model to predict

the Q-values from the current state of the agent. An

α value needs to be linearly decayed from 1.0 to 0.0

during training. If a random value is smaller than the

current α value, the action with the highest Q-value

is ignored, and a random action between the remain-

ing 25 actions is selected. When applied, this strategy

ignores the highest Q-value on purpose, causing the

agent to ﬁnd other routes to the target landmark. Oth-

erwise, the action with the highest Q-value is selected

as the predicted action.

Similar to α-decay, action-dropout always uses

the model to predict the Q-values from the current

state of the agent. A threshold value needs to be

linearly decayed from 1.0 to 0.0 during training. If

a random value is smaller than the current threshold

value, action-dropout is applied, which implies that a

percentage (p=0.5) of actions are removed from the

action-space, and a random action is selected from

the reduced action-space. If action-dropout is not ap-

plied, the action with the highest Q-value is selected.

In this study, we aimed to train a DQN model

with a larger action-space, a smaller state-space and

less computational resources than the state-of-the-art.

In order to overcome these challenges, we used cur-

riculum learning.

2.5 Landmark Detection with

Curriculum Deep Q-Learning

Curriculum learning (Bengio et al., 2009) is inspired

by the human education system, where students

start with a straightforward concept before learning

more advanced concepts. This multiple-concept ap-

proach was already applied to object detection, where

straightforward networks were trained ﬁrst (Zhang

et al., 2016). In this study, curriculum learning was

applied to the linear distance between starting point

S (the center of the aortic root) and target point T

(one of the three landmarks: MS1, MS2 or MS3).

The distance between these points was split into ten

sub-starting points. The ﬁrst and most straightforward

concept was deﬁned as the path from the closest sub-

starting point s

to T. When the agent had learned this

path, the next starting points were processed until the

model had learned the longest path from S to T (Fig-

ure 5).

Figure 5: Graphical representation of the curriculum learn-

ing approach. The ﬁnal goal was to learn an entire pathway

from the starting point S to the target point T.

BIOIMAGING 2020 - 7th International Conference on Bioimaging

2.6 Training

In order to train the models, the optimizer Adam

(Kingma and Ba, 2014) was used with a learning rate

of 0.5e-5. This optimizer was chosen to include ad-

aptive learning rates for different parameters. Since

the initial learning rate was set to a small value, no

learning rate decay was used.

Each time the agent was positioned at a starting

position, random uniform noise was added to this co-

ordinate which introduced a certain degree of posi-

tional variation and prevented overﬁtting.

2.7 Validation

The cohort size was relatively small (278 patients),

and k-folding cross-validation was used to validate

the method. K-folding (k=4) divides the entire dataset

randomly (with a ﬁxed seed) into four sub-sets, and

the training and validation process is repeated four

times or folds. Each fold uses a different sub-set as

the validation dataset, and the remaining three subsets

are used as the training dataset. K-folding enables the

usage of the entire dataset as the validation dataset

while preserving the separation between training and

validation dataset.

The validation process was similar to the training

process except that the threshold value (used in the

action-selection strategy) was set to -1. This value

forced the agent to use the model to predict the action

from the current state.

2.8 Statistical Analysis

The accuracy of the landmark detection was assessed

by measuring the Euclidean distance from the pre-

dicted landmark to the ground truth landmark. All

variables were reported as median [lower quartile

(LQ) - upper quartile (UQ)]. The agreement between

ground truth and predicted landmarks were evaluated

using the non-parametric signed Wilcoxon test (with

a signiﬁcant p-value <0.05).

2.9 Implementation

All the computational work was performed on a

multi-core computer with a Titan X GPU (NVIDIA

Corporation, Los Alamitos, CA). The models and

deep learning pipeline were developed with PyTorch

v0.4.1 (Paszke et al., 2017).

3 RESULTS

In this section, we discuss the results of the valida-

tion process, which were obtained by using the trained

models to analyse previously unseen data. The valid-

ation process was applied to all three action-selection

strategies. Cross-validation was applied to train and

validate the method for all three target landmarks:

MS1, MS2 and MS3. We obtained 278 validated

patients per target landmark as a result of using k-

folding. The action-selection strategies were com-

pared to each other by grouping the results of the

three target landmarks into 834 validated patients per

strategy. A total of 24 models were trained in this

study (each training session used two models), and 12

trained models were used to validate the three action-

selection strategies.

At the end of the curriculum learning algorithm,

the ﬁnal path from starting point S to target point T

was learned. The Euclidean distance from the agent’s

ﬁnal position to the target point was measured and

was considered the predicted landmark of the method.

The ε-decay and action-dropout strategy yielded sim-

ilar results, whereas the α-decay strategy was slightly

more accurate than the other strategies. The predic-

tion time of the full path for a single patient was below

1 second (Table 1).

Table 1: A summary of the Euclidean distances from the

predicted landmark to the target landmark for all three

action-selection strategies. Distances are reported as me-

dian [LQ - UQ].

Distance from target landmark [mm]

ε-decay α-decay action-dropout

MS1 2.4 [0.0-4.9] 1.2 [0.0-4.2] 2.3 [0.0-4.5]

MS2 3.0 [0.0-4.7] 0.0 [0.0-4.6] 2.0 [0.0-4.2]

MS3 2.2 [0.0-4.5] 1.4 [0.0-4.3] 1.0 [0.0-4.2]

All 2.4 [0.0-4.6] 0.0 [0.0-4.4] 2.0 [0.0-4.4]

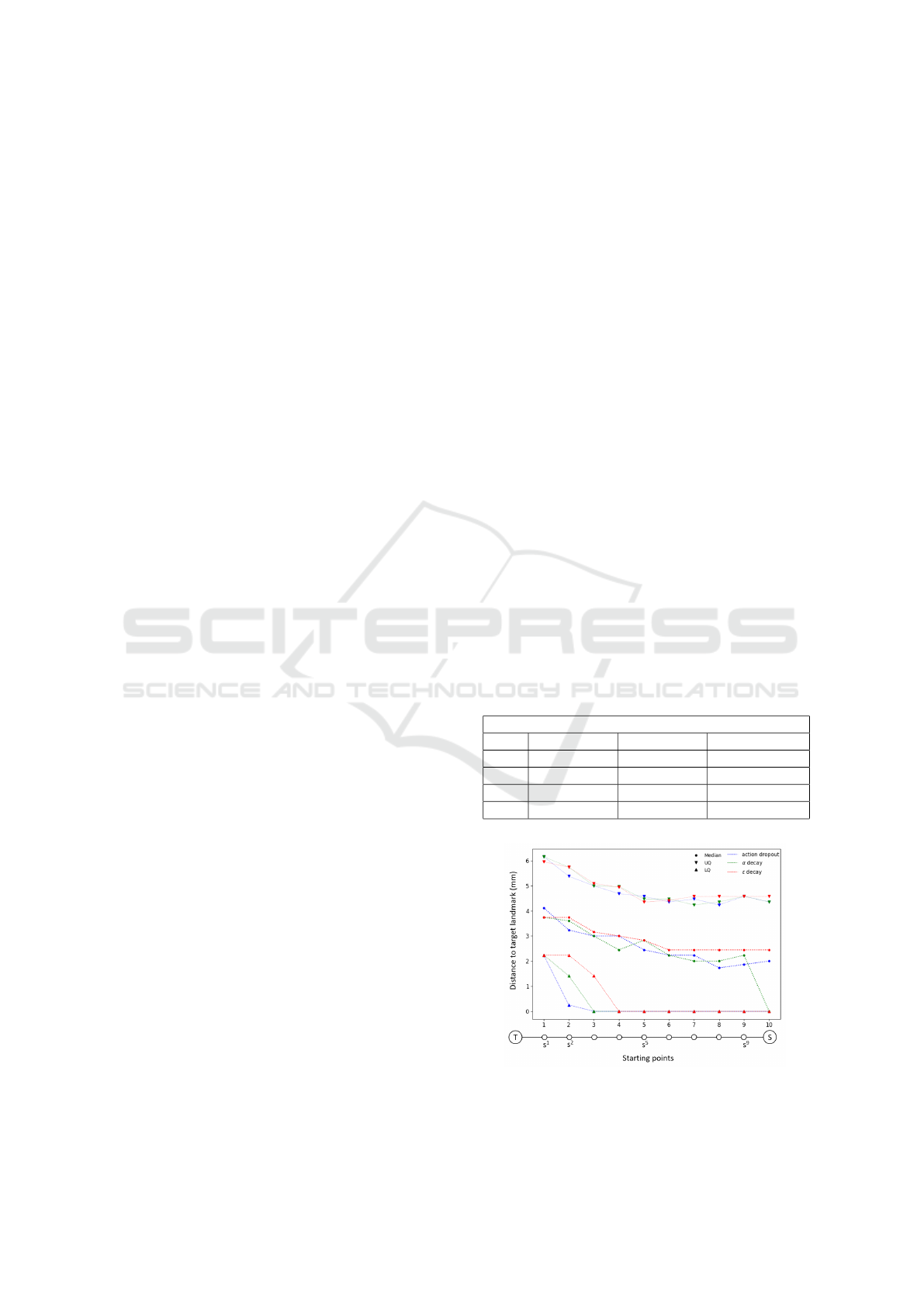

Figure 6: The evolution of the distances to the target

landmarks for each sub-starting point for all three action-

selection strategies.

Curriculum Deep Reinforcement Learning with Different Exploration Strategies: A Feasibility Study on Cardiac Landmark Detection

Table 2: Comparison of the Euclidean distances between the predicted and target landmarks (d

), and the target points

identiﬁed by the two observers (d

Distance from target landmark [mm]

α-decay vs observer 1 (d

) [mm] Observer 1 vs observer 2 (d

) [mm] Paired diff. (d

− d

) p

MS1 2.7 [0.0-5.1] 3.8 [2.8-5.6] 0.2 ± 7.9 0.1

MS2 0.0 [0.0-4.5] 3.4 [1.8-4.4] -1.3 ± 2.1 0.01

MS3 3.0 [0.0-4.3] 2.3 [1.4-4.8] -0.1 ± 3.0 1.0

All 2.6 [0.0-4.5] 3.1 [1.6-4.9] -0.4 ± 5.1 0.4

The agent’s performance during the curriculum

learning process was measured by validating the mod-

els before moving to the next sub-starting point. This

inter-algorithmic-validation resulted in Euclidean dis-

tances between the predicted points and T for each

of the ten sub-starting points. In order to com-

pare action-selection strategies, the distances for each

starting point were grouped per strategy. The dis-

tances to the target landmarks reduced overtime for

all three strategies. The α-decay strategy is similar

to the other strategies until the ﬁnal starting point S,

where the median distance to the target landmark was

zero (Figure 6).

An inter-observer variability study was conducted

on 20 patients to assess the accuracy of the method.

The Euclidean distances between the landmarks an-

notated by the two observers were used as the dif-

ference between both observers. These differences

were compared to the predicted landmarks of the α-

decay strategy of the same 20 patients. The differ-

ences between the predictions of the model and the

ﬁrst observer were overall lower than the differences

between both observers (Table 2).

3.1 Q-Landscapes

In order to provide additional insight into the agent’s

world view, we plotted Q-landscapes which show the

highest Q-values for the entire image (Figure 7).

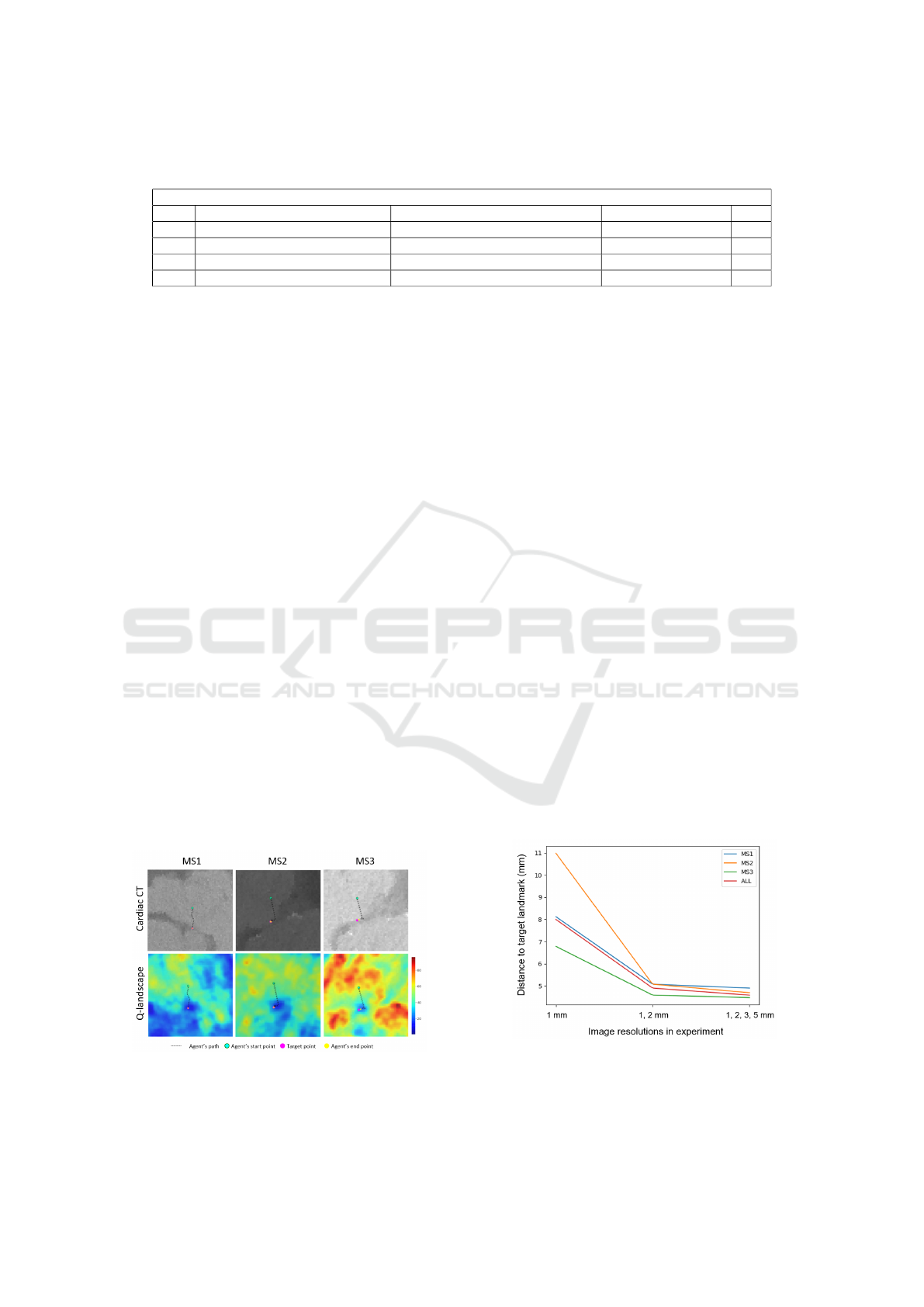

Figure 7: The path of the agent in the cardiac CT image

(top) and the Q-landscape (bottom) for each of the target

landmarks: MS1, MS2 and MS3. The Q-values are depicted

as a heatmap (red are high and blue are low values).

The Q-landscapes were generated by convolving

a state-sized cube over the entire image and select-

ing the highest Q-value. This operation produced a

volumetric Q-landscape where each voxel represen-

ted the highest Q-value of that particular position. In

order to depict the 3D path of the agent, the path was

projected on a plane. This plane was deﬁned by the

starting point, the target point and the center of those

two. Low Q-values can be observed around the target

landmarks.

3.2 Multiple Resolutions

The effect of using multiple resolutions was measured

on the ε-decay strategy. This strategy was chosen be-

cause it is an already established strategy. In order

to measure the effect, three experiments were con-

ducted, each time repeating the entire cross-validation

process. The ﬁrst experiment contained only one res-

olution (1.0 mm), the second experiment contained

two resolutions (1.0 and 2.0 mm), and the ﬁnal ex-

periment contained all available resolutions. The dis-

tances from the predicted landmarks to the target

landmarks are summarised in Figure 8. From this

plot, it is clear that the ﬁrst experiment is the least ac-

curate and that the accuracy improves when the num-

ber of resolutions increases. This trend clearly shows

that the usage of multiple resolutions improves the ac-

curacy of the method.

Figure 8: Comparison of the Euclidean distances between

the predicted and target landmarks of experiments with dif-

ferent resolutions. Only the upper quartile values are plotted

for brevity reasons.

BIOIMAGING 2020 - 7th International Conference on Bioimaging

4 DISCUSSION

In this feasibility study, a curriculum deep Q-learning

method was proposed to detect the inferior border of

the membranous septum. We compared three action-

selection strategies: ε-decay, α-decay and action-

dropout, and it was shown that α-decay yielded

slightly more accurate results. The decaying nature

of this strategy can explain this: α-decay, when ap-

plied, deliberately omits the best action and chooses a

random action from the remaining action-space. The

other strategies, when applied, choose a random ac-

tion from the (reduced) action-space, which may in-

clude the best action. Our method was efﬁcient since

the prediction time per patient was below 1 second,

and an inter-observer variability study conﬁrmed the

accuracy.

Previous studies (Ghesu et al., 2016; Ghesu et al.,

2017b; Alansary et al., 2019) presented accurate and

efﬁcient landmark detection methods from medical

images using deep Q-learning. The authors used

clusters of computational resources. In this study,

the computational resources were limited to a single

graphics processing unit (GPU). Additionally, these

studies used a larger state-space and a smaller action-

space. In this study, a state size of 8

voxels and 26

actions were used, which is, to the best of our know-

ledge, the ﬁrst time such a small state-space and large

action-space was used to detect landmarks from volu-

metric (medical) images. We expected that a smaller

state-space and a larger action-space would prolong

or hamper the convergence of the models, but this was

not the case. It is our opinion that the incremental

character of curriculum learning was responsible for

the successful convergence.

Although this preliminary study has proven to be

promising, there are a few limitations to be noted.

First, the model only learns the path from the center

of the aortic annular plane (with small random oscilla-

tions) to the target landmarks. When the agent enters

areas outside the trained area or discovers image arte-

facts, it can get lost. This limitation will be handled

in future work, wherein the agent will be put on the

surface of a sphere around the target landmark with a

gradually increasing radius. Next, the cohort size was

relatively small, which prevented the introduction of

an independent test-dataset. Adding more patients to

the cohort can overcome this limitation and will in-

crease the robustness of the method. This limitation

can partially be addressed by applying a proper data-

augmentation strategy.

There are a couple of recommendations for fu-

ture work. First, a halting signal should be included.

This mechanism can be obtained by adding a stop-

ping action or measure oscillations in Q-values (as

described in (Ghesu et al., 2017b; Alansary et al.,

2019)). Next, searching for landmarks by using

multiple agents/workers could be considered ((Mnih

et al., 2016; Espeholt et al., 2018)). Finally, the task of

detecting landmarks with curriculum deep Q-learning

in volumetric images is computationally cheap yet

difﬁcult enough to serve as a baseline to experiment

with novel deep reinforcement learning techniques.

5 CONCLUSIONS

Curriculum deep Q-learning was applied to detect

the inferior border of the membranous septum. The

output of this study is four-fold: ﬁrst, the pre-

dicted landmarks were detected accurately and efﬁ-

ciently. Next, we have proposed and validated two

novel action-selection strategies: α-decay and action-

dropout, and compared it to the already established ε-

decay strategy. Thirdly, the agent was equipped with

a small state-space and burdened with a large action-

space yet still managed to detect landmarks accur-

ately. Finally, the incremental character of curriculum

learning enabled the research into novel mechanisms

and strategies in the domain of deep reinforcement

learning.

ACKNOWLEDGEMENTS

The authors would like to thank both operators that

detected the landmarks from cardiac CT for both

ground truth and inter-operator data. All computa-

tional work was performed on NVIDIA GPUs from

the NVIDIA GPU Grant Program. This work was

supported by the European Commission within the

Horizon 2020 Framework through the MSCA-ITN-

ETN European Training Networks (project number

642458).

REFERENCES

Al, W. A., Jung, H. Y., Yun, I. D., Jang, Y., Park, H.-B., and

Chang, H.-J. (2018). Automatic aortic valve landmark

localization in coronary ct angiography using colonial

walk. PloS one, 13(7):e0200317.

Alansary, A., Oktay, O., Li, Y., Le Folgoc, L., Hou, B.,

Vaillant, G., Kamnitsas, K., Vlontzos, A., Glocker,

B., Kainz, B., et al. (2019). Evaluating reinforce-

ment learning agents for anatomical landmark detec-

tion. Medical image analysis, 53:156–164.

Curriculum Deep Reinforcement Learning with Different Exploration Strategies: A Feasibility Study on Cardiac Landmark Detection

Bellman, R. et al. (1954). The theory of dynamic program-

ming. Bulletin of the American Mathematical Society,

60(6):503–515.

Bengio, Y., Louradour, J., Collobert, R., and Weston, J.

(2009). Curriculum learning. In Proceedings of

the 26th annual international conference on machine

learning, pages 41–48. ACM.

Espeholt, L., Soyer, H., Munos, R., Simonyan, K., Mnih, V.,

Ward, T., Doron, Y., Firoiu, V., Harley, T., Dunning,

I., et al. (2018). Impala: Scalable distributed deep-rl

with importance weighted actor-learner architectures.

arXiv preprint arXiv:1802.01561.

Ghesu, F. C., Georgescu, B., Grbic, S., Maier, A. K.,

Hornegger, J., and Comaniciu, D. (2017a). Robust

multi-scale anatomical landmark detection in incom-

plete 3d-ct data. In International Conference on Med-

ical Image Computing and Computer-Assisted Inter-

vention, pages 194–202. Springer.

Ghesu, F. C., Georgescu, B., Mansi, T., Neumann, D.,

Hornegger, J., and Comaniciu, D. (2016). An artiﬁcial

agent for anatomical landmark detection in medical

images. In International Conference on Medical Im-

age Computing and Computer-Assisted Intervention,

pages 229–237. Springer.

Ghesu, F.-C., Georgescu, B., Zheng, Y., Grbic, S., Maier,

A., Hornegger, J., and Comaniciu, D. (2017b). Multi-

scale deep reinforcement learning for real-time 3d-

landmark detection in ct scans. IEEE transactions on

pattern analysis and machine intelligence, 41(1):176–

189.

Hamdan, A., Guetta, V., Klempfner, R., Konen, E.,

Raanani, E., Glikson, M., Goitein, O., Segev, A., Bar-

bash, I., Fefer, P., et al. (2015). Inverse relationship

between membranous septal length and the risk of at-

rioventricular block in patients undergoing transcath-

eter aortic valve implantation. JACC: Cardiovascular

Interventions, 8(9):1218–1228.

Kingma, D. P. and Ba, J. (2014). Adam: A

method for stochastic optimization. arXiv preprint

arXiv:1412.6980.

Leon, M. B., Smith, C. R., Mack, M. J., Makkar, R. R.,

Svensson, L. G., Kodali, S. K., Thourani, V. H.,

Tuzcu, E. M., Miller, D. C., Herrmann, H. C., et al.

(2016). Transcatheter or surgical aortic-valve re-

placement in intermediate-risk patients. New England

Journal of Medicine, 374(17):1609–1620.

Litjens, G., Kooi, T., Bejnordi, B. E., Setio, A. A. A.,

Ciompi, F., Ghafoorian, M., Van Der Laak, J. A.,

Van Ginneken, B., and S

anchez, C. I. (2017). A survey

on deep learning in medical image analysis. Medical

image analysis, 42:60–88.

Mack, M. J., Leon, M. B., Thourani, V. H., Makkar, R.,

Kodali, S. K., Russo, M., Kapadia, S. R., Malaisrie,

S. C., Cohen, D. J., Pibarot, P., et al. (2019). Tran-

scatheter aortic-valve replacement with a balloon-

expandable valve in low-risk patients. New England

Journal of Medicine, 380(18):1695–1705.

Mnih, V., Badia, A. P., Mirza, M., Graves, A., Lillicrap, T.,

Harley, T., Silver, D., and Kavukcuoglu, K. (2016).

Asynchronous methods for deep reinforcement learn-

ing. In International conference on machine learning,

pages 1928–1937.

Mnih, V., Kavukcuoglu, K., Silver, D., Rusu, A. A., Veness,

J., Bellemare, M. G., Graves, A., Riedmiller, M., Fid-

jeland, A. K., Ostrovski, G., et al. (2015). Human-

level control through deep reinforcement learning.

Nature, 518(7540):529.

O’Neil, A. Q., Kascenas, A., Henry, J., Wyeth, D., Shep-

herd, M., Beveridge, E., Clunie, L., Sansom, C., Se-

duikyte Keith Muir, E., and Poole, I. (2018). Attaining

human-level performance with atlas location autocon-

text for anatomical landmark detection in 3d ct data.

In Proceedings of the European Conference on Com-

puter Vision (ECCV), pages 0–0.

Paszke, A., Gross, S., Chintala, S., Chanan, G., Yang, E.,

DeVito, Z., Lin, Z., Desmaison, A., Antiga, L., and

Lerer, A. (2017). Automatic differentiation in pytorch.

Payer, C.,

Stern, D., Bischof, H., and Urschler, M. (2016).

Regressing heatmaps for multiple landmark localiza-

tion using cnns. In International Conference on Med-

ical Image Computing and Computer-Assisted Inter-

vention, pages 230–238. Springer.

Popma, J. J., Deeb, G. M., Yakubov, S. J., Mumtaz, M.,

Gada, H., O’Hair, D., Bajwa, T., Heiser, J. C., Merhi,

W., Kleiman, N. S., et al. (2019). Transcatheter aortic-

valve replacement with a self-expanding valve in low-

risk patients. New England Journal of Medicine,

380(18):1706–1715.

Reardon, M. J., Van Mieghem, N. M., Popma, J. J., Klei-

man, N. S., Søndergaard, L., Mumtaz, M., Adams,

D. H., Deeb, G. M., Maini, B., Gada, H., et al. (2017).

Surgical or transcatheter aortic-valve replacement in

intermediate-risk patients. New England journal of

medicine, 376(14):1321–1331.

Rocatello, G., El Faquir, N., De Santis, G., Iannaccone, F.,

Bosmans, J., De Backer, O., Sondergaard, L., Segers,

P., De Beule, M., de Jaegere, P., et al. (2018). Patient-

speciﬁc computer simulation to elucidate the role of

contact pressure in the development of new conduc-

tion abnormalities after catheter-based implantation of

a self-expanding aortic valve. Circulation: Cardiovas-

cular Interventions, 11(2):e005344.

Sahiner, B., Pezeshk, A., Hadjiiski, L. M., Wang, X., Druk-

ker, K., Cha, K. H., Summers, R. M., and Giger, M. L.

(2019). Deep learning in medical imaging and radi-

ation therapy. Medical physics, 46(1):e1–e36.

Saxe, A. M., McClelland, J. L., and Ganguli, S. (2013).

Exact solutions to the nonlinear dynamics of learn-

ing in deep linear neural networks. arXiv preprint

arXiv:1312.6120.

Schaul, T., Quan, J., Antonoglou, I., and Silver, D.

(2015). Prioritized experience replay. arXiv preprint

arXiv:1511.05952.

Smith, C. R., Leon, M. B., Mack, M. J., Miller, D. C.,

Moses, J. W., Svensson, L. G., Tuzcu, E. M., Webb,

J. G., Fontana, G. P., Makkar, R. R., et al. (2011).

Transcatheter versus surgical aortic-valve replacement

in high-risk patients. New England Journal of Medi-

cine, 364(23):2187–2198.

BIOIMAGING 2020 - 7th International Conference on Bioimaging

Van Hasselt, H., Guez, A., and Silver, D. (2016). Deep re-

inforcement learning with double q-learning. In Thir-

tieth AAAI conference on artiﬁcial intelligence.

Wang, Z., Schaul, T., Hessel, M., Van Hasselt, H., Lanc-

tot, M., and De Freitas, N. (2015). Dueling network

architectures for deep reinforcement learning. arXiv

preprint arXiv:1511.06581.

Zhang, J., Liu, M., and Shen, D. (2017). Detecting

anatomical landmarks from limited medical imaging

data using two-stage task-oriented deep neural net-

works. IEEE Transactions on Image Processing,

26(10):4753–4764.

Zhang, K., Zhang, Z., Li, Z., and Qiao, Y. (2016). Joint

face detection and alignment using multitask cascaded

convolutional networks. IEEE Signal Processing Let-

ters, 23(10):1499–1503.

Zheng, Y., John, M., Liao, R., Nottling, A., Boese, J., Kem-

pfert, J., Walther, T., Brockmann, G., and Comaniciu,

D. (2012). Automatic aorta segmentation and valve

landmark detection in c-arm ct for transcatheter aor-

tic valve implantation. IEEE transactions on medical

imaging, 31(12):2307–2321.

Zheng, Y., Liu, D., Georgescu, B., Nguyen, H., and Coman-

iciu, D. (2015). 3d deep learning for efﬁcient and

robust landmark detection in volumetric data. In In-

ternational Conference on Medical Image Computing

and Computer-Assisted Intervention, pages 565–572.

Springer.

APPENDIX

Algorithmic Details

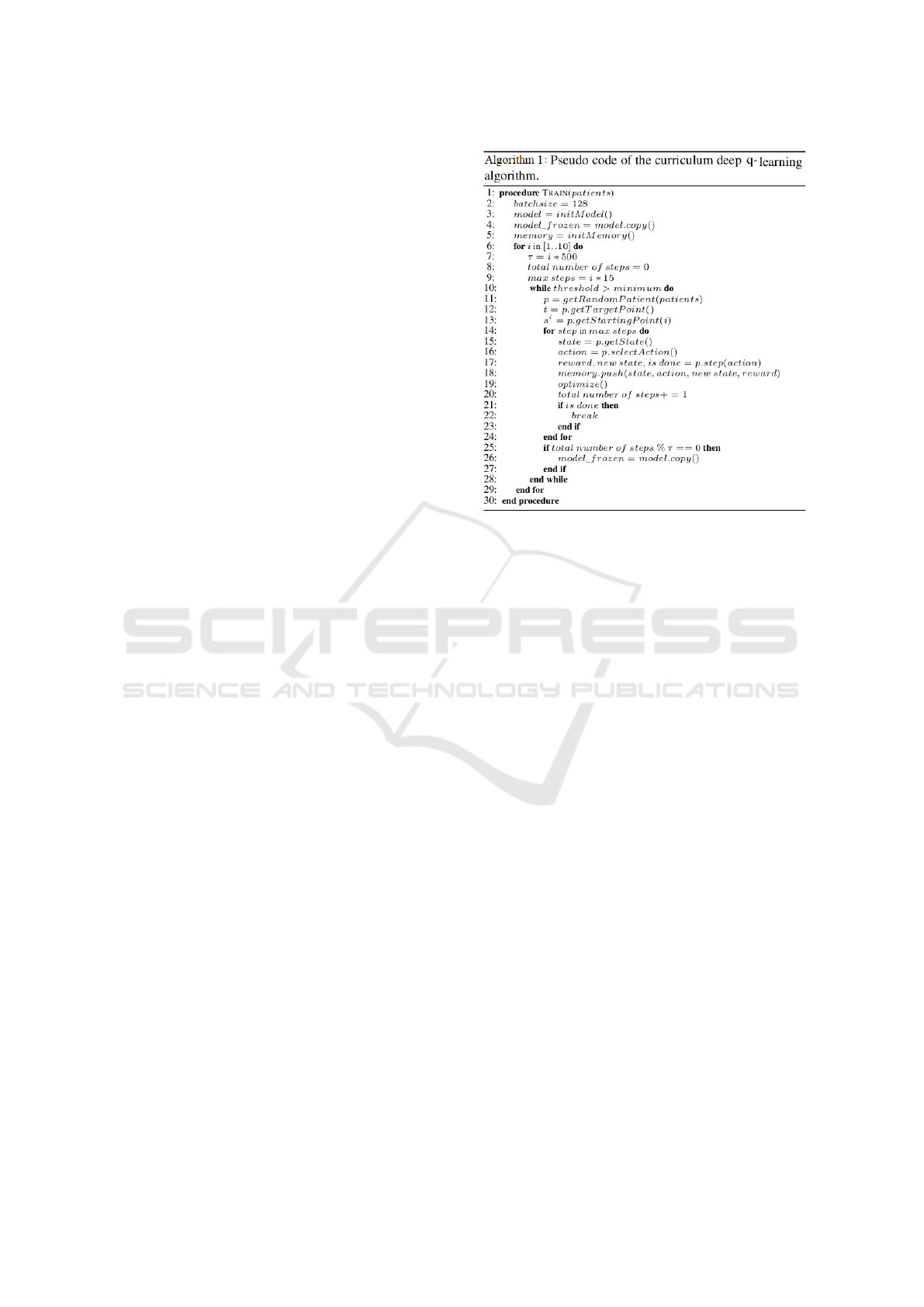

The pseudo-code of the used curriculum deep Q-

learning algorithm is presented in Algorithm 1.

The model learns the paths from starting point s

to s

or S. In this section; we explain a few para-

meters. The maximum number of steps that the agent

could make was initially set to 15 to avoid the agent

getting lost at the beginning of the algorithm. The al-

gorithm gradually increased the maximum number of

steps to ensure that the agent had enough time to reach

the target point. The number of iterations τ triggered

the weight transfer from the ﬁrst DQN to the frozen

DQN and was initially set to a small value. There-

fore, numerous patients would pass before the weight

transfer. We observed that transferring the weights

too quickly resulted in models which were not able

to ﬁnd the target point. The algorithm increased the

parameter τ when the starting points were set further

away from the target points.

Curriculum Deep Reinforcement Learning with Different Exploration Strategies: A Feasibility Study on Cardiac Landmark Detection
