Automated 3D Labelling of Fibroblasts and Endothelial Cells in

SEM-Imaged Placenta using Deep Learning

Benita S. Mackay

, Sophie Blundell

, Olivia Etter

, Yunhui Xie

, Michael D. T. McDonnel

Matthew Praeger

, James Grant-Jacob

, Robert Eason

, Rohan Lewis

and Ben Mills

Optoelectronics Research Centre, University of Southampton, Southampton, U.K.

Faculty of Engineering and Physical Sciences, University of Southampton, Southampton, U.K.

Faculty of Medicine, University of Southampton, Southampton, U.K.

Keywords: 3D Image Processing, Deep Learning, SBFSEM Images, Placenta.

Abstract: Analysis of fibroblasts within placenta is necessary for research into placental growth-factors, which are

linked to lifelong health and chronic disease risk. 2D analysis of fibroblasts can be challenging due to the

variation and complexity of their structure. 3D imaging can provide important visualisation, but the images

produced are extremely labour intensive to construct because of the extensive manual processing required.

Machine learning can be used to automate the labelling process for faster 3D analysis. Here, a deep neural

network is trained to label a fibroblast from serial block face scanning electron microscopy (SBFSEM)

placental imaging.

1 INTRODUCTION

The placenta is the interface between the mother and

the fetus mediating the transfer of nutrients while

acting as a barrier to the transfer of toxic molecules.

Poor placental function can impair foetal growth and

development and affect an individual’s health across

the life course (Palaiologou, et al., 2019). Serial

block-face scanning electron microscopy (SBFSEM)

has emerged as an important tool revealing the

nanoscale structure of the placenta in three-

dimensions. While this technique is revealing novel

structures, as well as the spatial relationships between

cells, it is limited by the time it takes to manually label

the structures of interest in hundreds of serial

sections. Developing a machine learning-based

approach would dramatically speed up this process

and enable more quantitative analytical approaches.

Here, a deep neural network is trained on stacks

of unlabelled, and their associated labelled, images of

a fibroblast within placental tissue. The neural

network is subsequently used to generate labels on

https://orcid.org/0000-0003-2050-8912

https://orcid.org/0000-0002-4270-4247

https://orcid.org/0000-0001-9704-2204

https://orcid.org/0000-0003-4044-9104

https://orcid.org/0000-0002-1784-1012

unlabelled images that were not used during training.

Visual comparison between the automated labelling

achieved via the neural network and manual labelling

of the fibroblast shows excellent agreement, with

quantitative analysis showing high pixel-to-pixel

comparison accuracy. This machine learning

approach also enables the labelling of different

structures, in this case endothelial cells within the

placenta, with the future possibility of other cell and

tissue types, such as osteoblasts within bone.

2 BACKGROUND

The study of fibroblasts in the placenta is necessary

for research in placental growth and development.

Fibroblasts can be found alongside mesenchymal and

mesenchymal-derived cells within the placenta

villous core stroma, between trophoblasts and fetal

vessels. Fibroblasts maintain the extracellular matrix,

the scaffold on which the blood vessels grow and on

which the trophoblast barrier lives. Trophoblast

Mackay, B., Blundell, S., Etter, O., Xie, Y., McDonnel, M., Praeger, M., Grant-Jacob, J., Eason, R., Lewis, R. and Mills, B.

Automated 3D Labelling of Fibroblasts and Endothelial Cells in SEM-Imaged Placenta using Deep Learning.

DOI: 10.5220/0008949700460053

In Proceedings of the 13th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2020) - Volume 2: BIOIMAGING, pages 46-53

ISBN: 978-989-758-398-8; ISSN: 2184-4305

number and function affects placental development

and function over the course of pregnancy,

influencing lifelong health and risk of chronic disease

in later life (Wang & Zhao, 2010) (Lewis, Cleal, &

Hanson, 2012).

3D images of placentas with nanoscale resolution

can be obtained through labelling of serial block face

scanning electron microscopy (SBFSEM) images

(Denk & Horstmann, 2004). Due to the number of

programmatical rules that would be required,

alongside limited contrast achievable in SBFSEM

imaging of placenta villi and multiple contextual

parameters, simple computer automation of labelling

has not yet been achieved, and all 2D images that

make up the larger 3D block must be manually

labelled. Conventional image segmentation for 3D

medical image data and techniques such as fuzzy

binarization can be combined to extract important

details from images and reconstruct into 3D models,

yet these approaches require intensive data

processing and a contrast/distinction in features,

which can be difficult to obtain in SBFSEM images

of tissue, and data loss from, for example,

binarization techniques can result in lower resolution

(Zachow, Zilske, & Hege, 2007) (Pugin &

Zhiznyakov, 2007). As the z-spacing between 2D

images represent the z-axis resolution in 3D, typically

30-100 nm, a typical 3D dataset will include hundreds

to thousands of individual images. In general, the

complexity of the labelling process and the pure

number of pixels (~109 pixels for this dataset) can

lead to a dedicated expert requiring weeks to months

to label an entire stack of 2D images.

However, as shown here, this challenge can be

solved via a neural network that is trained to

automatically label fibroblasts in SBFSEM images of

placentas.

We have recently shown that neural networks can

be effective at a wide variety of image processing and

image labelling processes for enhancing microscopy

resolution (Grant-Jacob, et al., 2019). The versatility

of deep learning has also resulted in computer-aided

diagnosis in the thorax and colon (Suzuki, 2013), the

liver (Chen, et al., 2013), the breast (Shan, Kaisar

Alam, Garra, Zhang, & Ahmed, 2016) and for

diseases such as Alzheimer’s (Yamashita, et al.,

2013). Here, we apply this technique, for the

automated labelling of fibroblasts in SBFSEM

images of placentas.

As shown in Figure 1, the purpose of this work is

to automate the labelling of fibroblasts across all 2D

SEM images in a 3D stack (943 in total). Automation

requires training a neural network to label the z-stack

images

without

human

involvement,

such

that

the

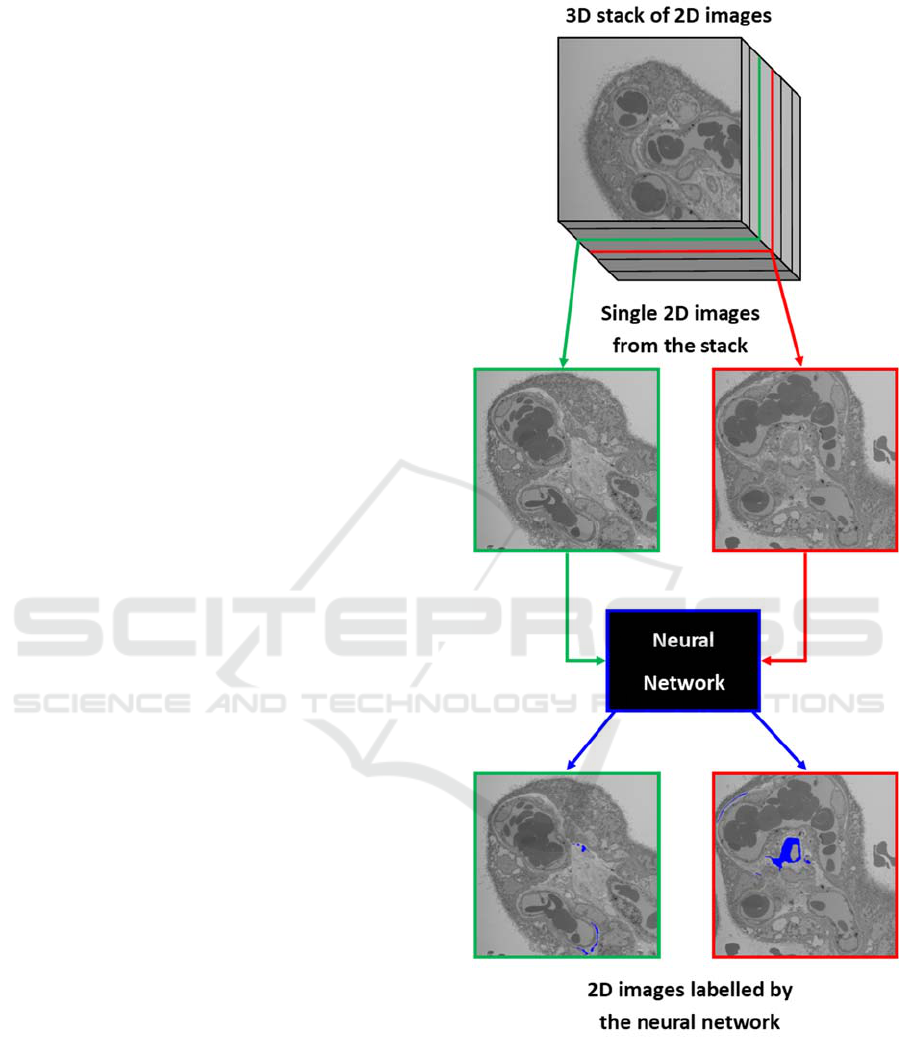

Figure 1: A 3D image consists of a stack of multiple 2D

SEM images, which can then be automatically labelled by

a neural network, which saves months of dedicated time in

manual labelling.

labels can then be isolated and converted using

standard imaging software into 3D projections

without requiring months of image processing.

Automated 3D Labelling of Fibroblasts and Endothelial Cells in SEM-Imaged Placenta using Deep Learning

3 METHOD

SBFSEM produces a series of high-resolution images

taken at sequentially deeper depths into a sample

which allow its internal structure to be revealed in

three-dimensions. This is achieved by placing an

ultramicrotome inside a scanning electron

microscope. The microscope creates an image of the

top of the sample (the block face), and the microtome

then cuts a thin layer (typically 50 nm) off the surface

of the sample allowing the next image to be taken

further into the tissue. This process is then repeated to

create hundreds or thousands of aligned images.

The deep neural network architecture for

transforming a 2D SEM image into a labelled image

is a variant designed specifically for image-to-image

translation and henceforth referred to as the network

(Isola, Zhue, Zhou, & Efros, 2018). The 3D image

consists of 943 images recorded at different z-

positions, which are named 001-943. All even

numbered images are extracted, not used for training

the network, and are instead used for testing the

effectiveness of the network for the labelling of

unseen images.

The network operates at a resolution of 256 by

256 pixels, so images are reduced via randomised

cropping from 2000 by 2000 to 512 by 512 before

being resized to 256 by 256. It is trained for 100

epochs (where one epoch is defined as training on all

training images exactly once, and one iteration is

defined as training on a single image) with a learning

rate of 0.001 and a batch size of 1, which takes

approximately 6 hours. The network is based on an

encoder-decoder architecture, with 17 layers, and

stride of 2, a 4 by 4 kernel size, and uses rectified

linear unit activation functions. This results in image

size decreasing from 256 by 256 down to 1 by 1, then

increasing back up to 256 by 256, as seen in Figure 2.

The encoder-decoder is based on a U-net structure

(Ronneberger, Fischer, & Brox, 2015), with skip

connections between the mirrored layers. The

discriminator is formed of 4 layers of convolutional

processes with stride of 2, taking the image size from

256 by 256 down to 32 by 32, leading to a single

output, via a sigmoid activation function that labelled

realistic or unrealistic. This architecture was chosen

instead of a simpler convolutional neural network,

typically used for image processing, as it can produce

high resolution output images and train on relatively

small datasets (Heath, et al., 2018).

After a training iteration, outputs from the

network are compared to real labelled images, leading

to network improvements achieved via

backpropagation. Figure 3 is an example of the whole

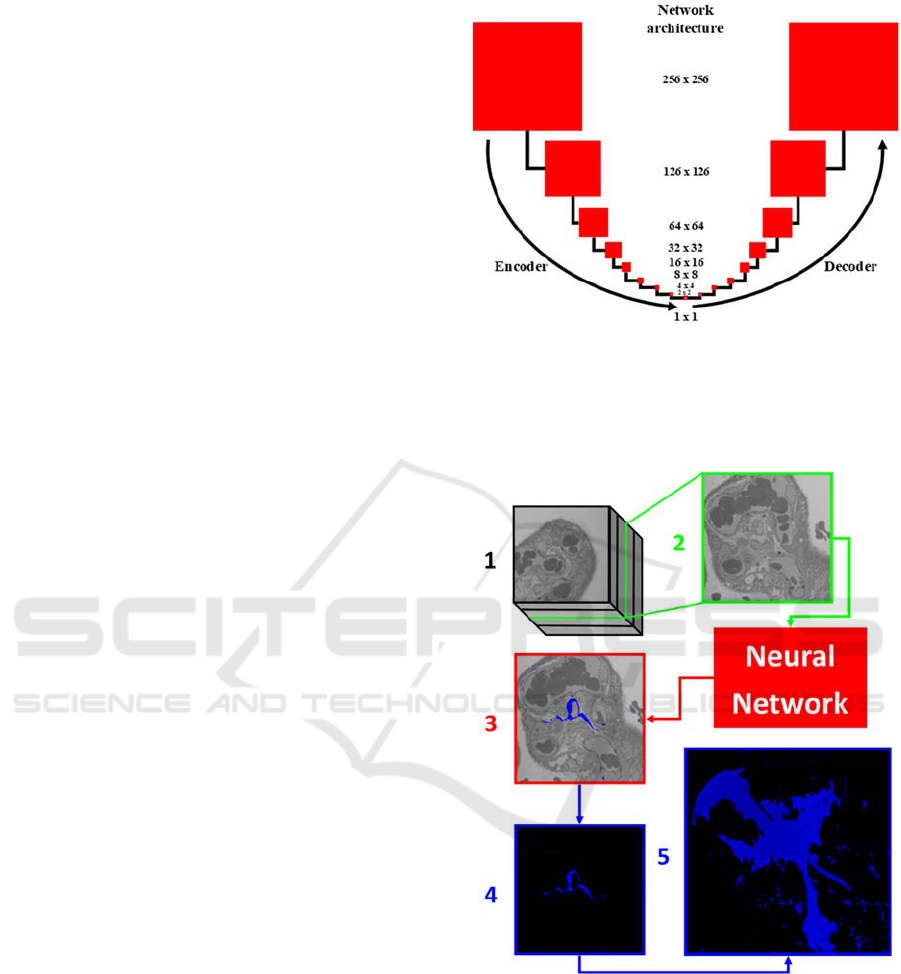

Figure 2: A block diagram of the network architecture used

for labelling SBFSEM images. Based on a U-Net encoder-

decoder framework, the image is downsized through

convolutional layers until it is 1 x 1 before being resized to

the original 256 x 256 input dimensions.

Figure 3: The automation process from stack image to 3D

projection. From the 3D stack (1), an unlabelled 2D SEM

image of the placenta (2) is input into the network. These

2D images are then labelled by the network (3). Here, an

image from the near the middle of the stack, 452, is labelled

blue where a fibroblast is present. The label is then

extracted from the rest of the image (4) so that all labels can

be collectively z-projected into a 3D image of a whole

fibroblast, where the z-axis is perpendicular to the page (5).

automation process. The input image, 2, is a 2D

section of the larger 3D stack, 3 is an automated

BIOIMAGING 2020 - 7th International Conference on Bioimaging

labelled image and 4 is the extracted label without

surrounding tissue imaged. This extracted label

image, alongside all others in the z-stack, is then

collectively computationally projected with readily-

available software (ImageJ) to produce a full 3D

model of the labelled fibroblast structure.

4 RESULTS

After the network is trained on odd numbered images,

the extracted unseen even numbered images are used

for testing the network. For error calculation, a pixel

is considered correct if the value in each position of

the network output image exactly matches the pixel

value in the corresponding position of the real

labelled image. A pixel difference of only ±1 (or

greater) in any of the three colour channels, out of a

standard 0-255 value range, is considered incorrect.

This is because a pixel is extracted as a label if it has

the exact value [0,0,255] at any position in the three

channel image, the blue colour seen in 4 and 5 of

Figure 5. The images used in analysis are sixteen 256

by 256 network output images combined to form a

single 1000 by 1000 image, where resolution is

limited by the GPU size available.

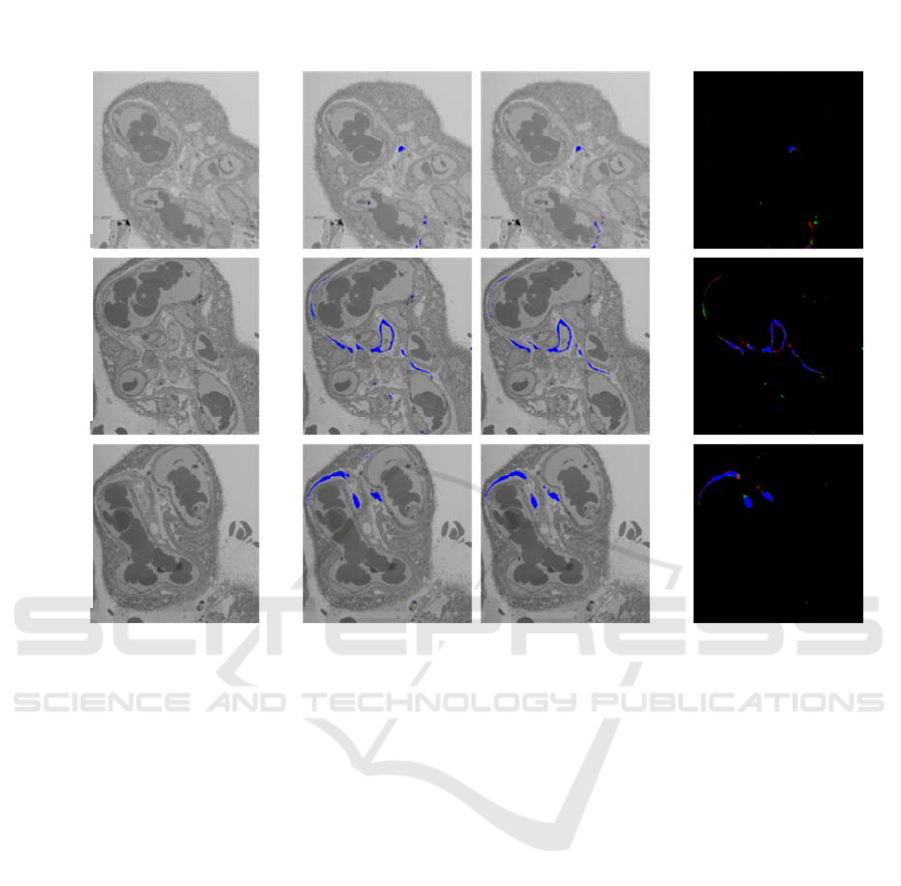

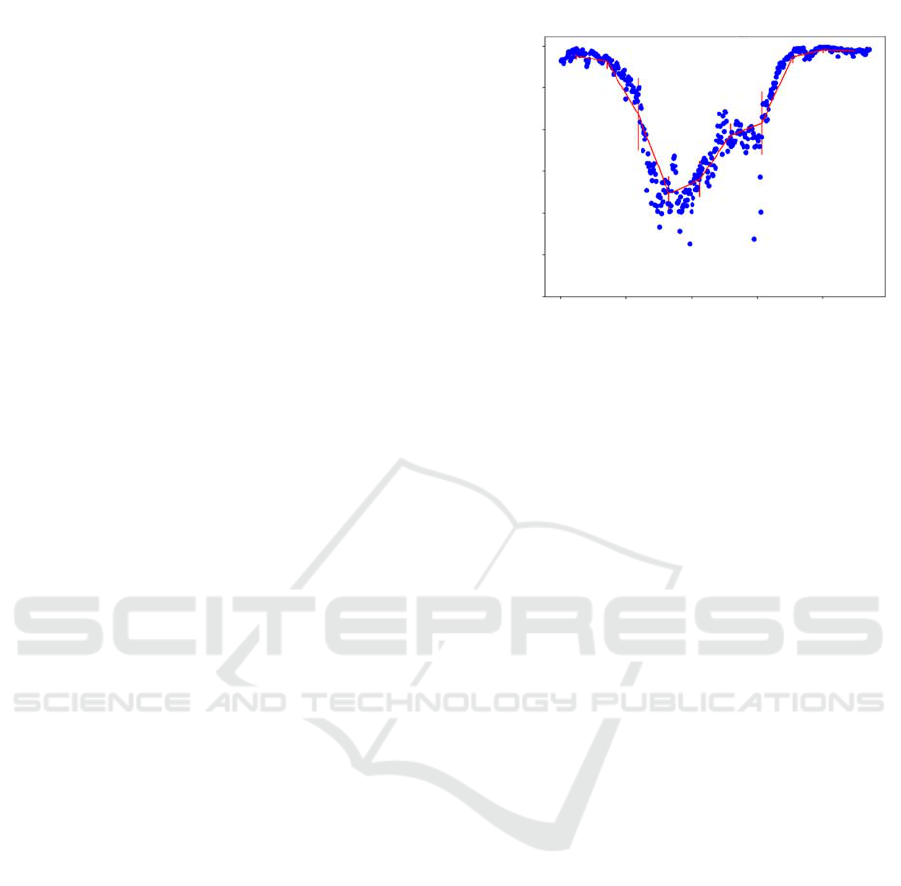

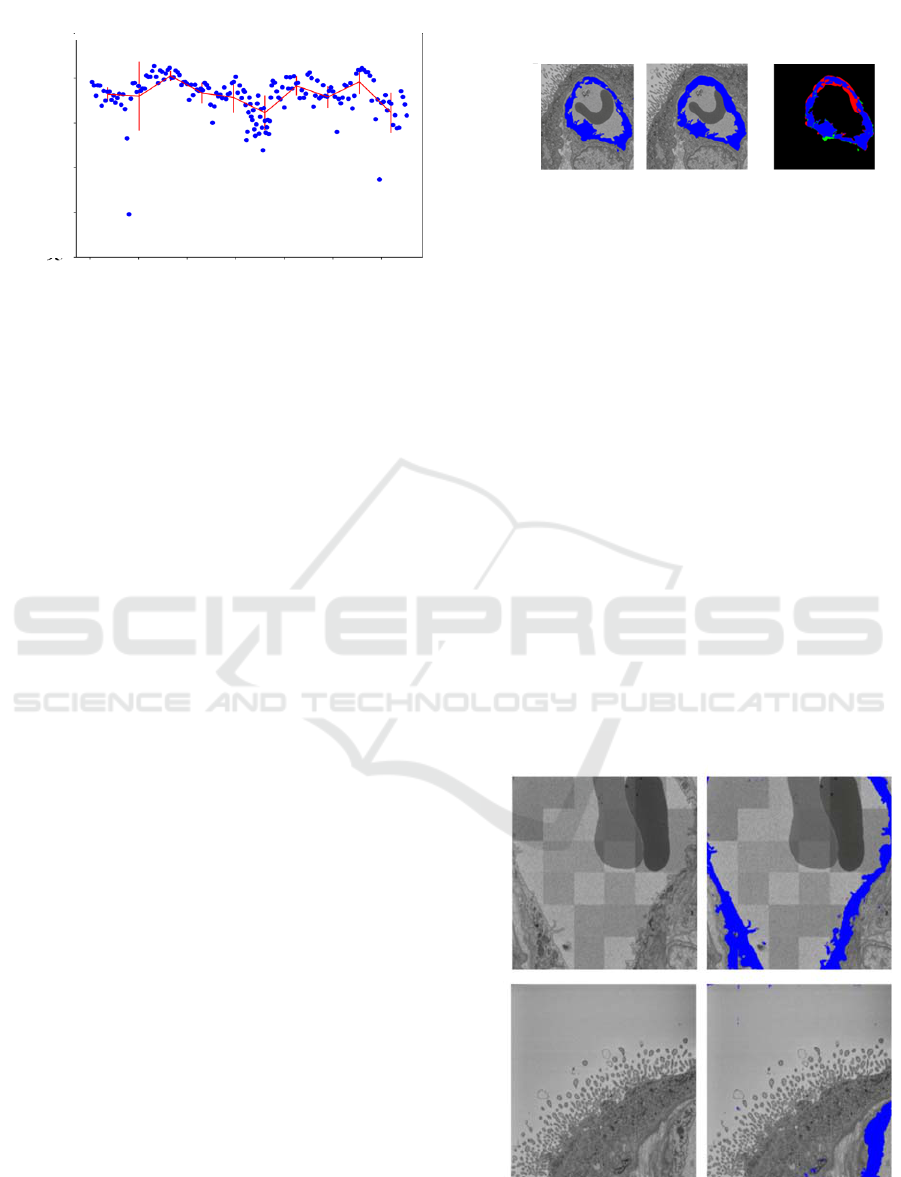

The error is graphically depicted as a percentage,

seen in Figure 4, and displayed visually, as seen in

Figure 5. In regions close to the beginning and end of

the stack, roughly positions up to 100 and then those

over 700, the error is less than 0.1%. This is due to

there being no labelled fibroblast in this region, which

is easier for the network to determine. This explains

why the error is largest in the central region around

position 300, where the labelled section is at its

largest. There is a larger boarder region around larger

labelled areas, and it is in this region where there is

most error. This is due to slight imperfections in the

training data, where manual labelling has been less

accurate around the edges of the fibroblast. This is

due to the amount of time manual labelling takes,

accuracy has been sacrificed in return for speed, and

also the limitations of human labelling; the human

eye cannot manage to contrast individual pixels at a

standard screen resolution, nor easily label at this

resolution with a standard computer mouse.

However, this does not result in areas with no

fibroblast to label being perfectly unlabelled by the

network. While there are areas of 0% error, there are

small fluctuations. This is due to there being only one

labelled fibroblast in the training data, yet more than

one fibroblast in the 3D stack. This conflicting data

leads to confusion within the network and therefore

amount of error is unavoidable. While the

Figure 4: Blue markers show the percentage of correct

pixels, where a pixel value of the network labelled image

matches the pixel value of the real labelled image, at the

position of the 2D image within the 3D stack for each tested

image. The red line is the mean and standard deviation

across every 10% of images.

percentage of incorrectly labelled pixels is never

greater than 1%, showing the promise of this labelling

technique, this confusion is easier seen when the two

types of errors, falsely not labelling where the

network should have labelled (false negative) and

falsely labelling where it should not have labelled

(false positive), are seperated.

The vast majority of errors come from fasle

negatives. In contrast, false positives occur in roughly

less than 0.2% of unlabelled pixels. The central

region has the lowerst percentage of false negatives

as the changes of other fibroblasts being in this region

dominated by the labelled fibroblast are smaller.

Even though a value of [0,0,254] would not be

distinguishable from [0,0,255] to the human eye, only

pixels with the value [0,0,255] are extracted as labels.

To more easily visualise the pixel error in labelling, a

coloured error image is created for each of the tested

z-stack images, seen in Figure 4. Blue pixels show the

correctly labelled pixels, red pixels show false

negatives (the network incorrectly did not label a

pixel), green pixels show false positives (the network

incorrectly labelled a pixel), and black pixels show

correctly unlabelled areas.

Differences between column 2 and 3 are difficult

to see clearly, and the vast majority of column 4

pixels are blue and black, which are the colours for no

error. The large amount of black, correct negative,

pixels is the reason that the overall error for the

network is so low (less than 1% error). The majority

of green pixels, false positives, are in regions

surrounding labelled fibroblast, which could be down

uncertainty in the network and inaccuracies in

100

99.9

99.8

99.7

99.6

99.5

0 200 400 600 800

Error in Testin

Data

Total Correct Pixels

(

)

Automated 3D Labelling of Fibroblasts and Endothelial Cells in SEM-Imaged Placenta using Deep Learning

Figure 5: A visual error analysis for three positions within the stack, where A is frame 200, B is frame 400 and C is frame

600. The first column is the input for the network, an unlabelled z-stack image; the second is the output from the network, a

network labelled fibroblast; the third is the manually labelled fibroblast and the fourth column is a comparison between

columns 2 and 3, where black is correctly negative, blue is correctly positive, red pixels are falsely negative and green are

false positives.

human labelling. The red pixels, false negatives, are

similarly placed. This shows that, with the network

matching 99% of manual labelling, the correct shape

of the fibroblast is being labelled and provides the

vital information required for a 3D model.

5 ALTERNATIVE CELL TYPE

AND ALTERNATIVE SAMPLE

The labelling of endothelial cells requires a very

small adaption to the fibroblast labelling. A similar

network is used for endothelial labelling, which is

also based on an encoder-decoder architecture, with a

stride of 2, a 4 by 4 kernel size, and it uses rectified

linear unit activation functions. However, it has

double the number of layers, with 34 in total. This

results in image size decreasing from 256 by 256

down to 1 by 1, then increasing back up to 256 by

256, and then this resizing process is repeated.

Increasing the number of layers improves the

accuracy of the network labelling and the ability to

apply labelling to unseen samples. Unlike increasing

filter numbers, this did not present an increase in

necessary GPU size requirements in comparison to

previous network architecture.

The labelled endothelial data is also split in a

similar way to the previous fibroblast data. Odd

images within the range 001-327 are used for training

the network and even images in the same range are

used for testing. However, the range 328-367, both

odd and even, is also extracted for additional testing,

to make sure the network could extrapolate in areas

of the stack beyond that which it has already seen.

The images used in analysis are thirty-six 256 by

256 network output images combined to form a single

1500 by 1500 image, where resolution is once limited

by the GPU size available. By using a larger number

of 256 by 256 images, the resolution can be increased

without larger GPUs being required.

Input Ima

Network

Generated

Manuall

Generated

Visual

Com

arison

BIOIMAGING 2020 - 7th International Conference on Bioimaging

Figure 6: A graph of correct pixels as a percentage of total

pixels within the images vs the position of each image

within the stack. Blue markers show the percentage of

correct pixels, where a pixel value of the network labelled

image matches the pixel value of the real labelled image, at

the position of the 2D image within the 3D stack for each

tested image. The red line is the mean and standard

deviation across every 10% of images.

The network is trained on this stack for 50 epochs

before initial testing. Initial results for the automated

labelling of endothelial cells by a neural network are

extremely promising, with an accuracy of above 95%

for all unseen even numbered test images and images

within the range 158-187, which were also extracted

from the training data, as seen in Figure 6.

The mean pixel accuracy is between 98% and

99% for all images across the stack, with a slight dip

in the centre and towards the end of the stack. A drop

in accuracy towards the end of the stack (mean

accuracy of 98%) is due to the increase in labelled

areas compared to unlabelled areas and, as with

fibroblast labelling, the majority of error is in these

regions due to, for example, manual labelling error.

The central drop (mean accuracy of 98%) matches the

region of extracted images, 158-187. This dense

extraction of images provides an area where the

network has not seen similarly labelled images, as the

closest similar image is ± 15 images either side. The

mean error dropped by less than 1% for this region

compared to surrounding regions, showing that

labelling only every 1 in 15 images, rather than 1 in

2, would not impact the training and accuracy of the

network severely. New stacks introduced to the

training data in the future will therefore start at 1 in

every 10 images, as this will not overly impair chances

of correctly labelling the new stack. When the image

with the largest error of 4%, frame 40, is visually

analysed, as seen in Figure 7, it appears that the

network has incorrectly missed a large section of

labelled area, which is seen by the large area of red in

column 3. However, the network has correctly labelled

Figure 7: A visual comparison of automated labelling error

in frame 40, the frame with the highest error among the test

frames of this stack. Column 1 is the labelled output from

the network, column 2 is the manually labelled image and

column 3 is the difference between column 1 and 2, where

black pixels are correctly unlabelled, blue pixels are

correctly labelled, red pixels are falsely unlabelled and

green pixels are falsely labelled areas.

the endothelial cells and the manual labelling has

been rough and inaccurate in that region: automation

has outperformed manual labelling. As the network is

trained from manually labelled data, the maximum

prediction accuracy is therefore only limited by the

average accuracy of manually labelled training data.

To see how well the network can label data more

varied from the training data, an unlabelled image 40

frames away from the last seen training image

position (the last image in the stack) and a frame from

a completely unseen stack have been input to the

network, as seen in Figure 8. The labelling produced

by the network can be seen in. This is a manually

unlabelled area of the previously seen stack and a

different

unlabelled stack, so no comparison is

Figure 8: The output of and unseen region and an unseen

stack from the network. The first column is the input to the

network, while the second is the labelled output.

100

0 50 100 150 200 250 300

Error in Testing Data

Total Correct Pixels

(

)

Network

Generate

Manually

Generate

Visual

Comparison

Input Image

Network

Unseen Region

Unseen Stack

Automated 3D Labelling of Fibroblasts and Endothelial Cells in SEM-Imaged Placenta using Deep Learning

available for this figure. The blockish appearance of

frame 367, input and output, shows the versatility of

the automated process, as brightness and contrast may

vary from stack to stack and this is not a limiting

factor for successful labelling. It means many stacks

can be stitched together post-labelling to create larger

3D images without the need for retraining a new

neural network. The image from the new stack is very

different in appearance from previous stack images.

While there are some patches of incorrectly labelled

pixels, these are relatively small and the introduction

of a few manually labelled images from this stack into

the training data should provide enough information

to the network to prevent these from occurring in

future models. Importantly, the endothelial cell

section in the bottom right is correctly fully labelled

by the network, showing that the network can

successfully apply automated labelling to stacks

without the need for repeated extensive manual

labelling for training.

Recent advances in region-of-interest labelling,

including arrow detection (Santosh & Roy, 2018), in

medical images could be combined with this neural

network labelling approach to both improve the mean

accuracy of automated labelling and to increase the

range of features which could be extracted, with the

aim of a single manual arrow on a feature of interest

leading to an accurate and complete labelled stack.

6 CONCLUSIONS

With an error of typically less than 2% across both

fibroblast and endothelial labelling, this study

demonstrates how deep neural networks can be used

for the labelling of complex structures from SBFSEM

stacks, allowing for accurate 3D projections with a

significant reduction of up to several months of

dedicated time required for image processing,

therefore overcoming a current drawback to efficient

3D imaging of micro and nanoscale cell structures.

With necessary GPU size, alongside use of

cropping instead of scaling to maximise the output

resolution for the GPU, data and resolution need not

be lost with this network labelling method. The use of

this method to label endothelial cells as well as

fibroblasts shows the possible scope of using neural

networks in 3D image processing. Inclusion of

region-of-interest labelling in future work could

provide consistent maximum accuracy labelling with

minimal manual data processing.

REFERENCES

Chen, Y., Luo, J., Han, X., Tateyama, T., Furukawa, A., &

Kanasaki, S. (2013). Computer-Aided Diagnosis and

Quantification of Cirrhotic Livers Based on

Morphological Analysis and Machine Learning.

Computational and Mathematical Methods in

Medicine, 2013, 264809.

Denk, W., & Horstmann, H. (2004). Serial block-face

scanning electron microscopy to reconstruct three-

dimensional tissue nanostructure. PLoS Biology, 2,

e329.

Grant-Jacob, J., Mackay, B. S., Xie, Y., Heath, D. J.,

Loxham, M., Eason, R., & Mills, B. (2019). A nerual

lens for super-resolution biological imaging. Jurnal of

Physics Communications.

Heath, D. J., Grant-Jacob, J. A., Xie, Y., Mackay, B. S.,

Baker, J. A., Eason, R. W., & Mills, B. (2018). Machine

learning for 3D simulated visualisation of laser

machining. Optics Express, 26(17), 21574-21584.

Isola, P., Zhue, J., Zhou, T., & Efros, A. A. (2018). Image-

to-Image Translation with Conditional Adversarial

Networks. arXiv, arXiv1611.07004v3.

Lewis, R., Cleal, J., & Hanson, M. (2012). Review:

Placenta, evolution and lifelong health. Placenta, 33,

s28-s32.

Palaiologou, E., Etter, O., Goggin, P., Chatelet, D. S.,

Johnston, D. A., Lofthouse, E. M., . . . Lewis, R. M.

(2019). Human placental villi contain stromal

macrovesicles associated with networks of stellate

cells. J Anat.

Pugin, E., & Zhiznyakov, A. (2007). Histogram method of

image binarization based on fuzzy pixel representation.

2017 Dynamics of Systems, Mechanisms and Machines

(Dynamics) (p. 17467698). Omsk: IEEE.

Ronneberger, O., Fischer, P., & Brox, T. (2015). U-Net:

Convolutional Networks for Biomedical Image

Segmentation. In H. J. Navab N., Medical Image

Computing and Computer-Assisted Intervention –

MICCAI 2015 (Vol. 9351, pp. 234-241). MICCAI

2015. : Springer, Cham.

Santosh, K. C., & Roy, P. P. (2018). Arrow detection in

biomedical images using sequential classifier.

International Journal of Machine Learning and

Cybernetics, 993–1006.

Shan, J., Kaisar Alam, S., Garra, B., Zhang, Y., & Ahmed,

T. (2016). Computer-aided dianosis for breast

ultrasound using computerised bi-rads features and

machine learning methods. Ultrasound in Med. &&

Biol., 42(2), 980-988.

Suzuki, K. (2013). Machine Learning in Computer-Aided

Diagnosis of the Thorax and Colon in CT: A Survey.

IEICE Trans. Inf. & Sys., E96-D(4), 772-783.

Wang, Y., & Zhao, S. (2010). In Vascular biology of the

placenta (p. Chapter 4). San Rafael (CA): Morgan &

Claypool.

Yamashita, Y., Arimura, H., Yoshiura, T., Tokunaga, C.,

Tomoyuki, O., Kobayashi, K., . . . Toyofuku, F. (2013).

Computer-aided differential diagnosis system for

Alzheimer’s disease based on machine learning with

BIOIMAGING 2020 - 7th International Conference on Bioimaging

functional and morphological image features in

magnetic resonance imaging. J. Biomedical Science

and Engineering, 6, 1090-1098.

Zachow, S., Zilske, M., & Hege, H. (2007). 3D

reconstruction of individual anatomy from medical

image data: Segmentation and geometry processing.

Berlin: Konrad-Zuse-Zentrum für Informationstechnik

Berlin.

Automated 3D Labelling of Fibroblasts and Endothelial Cells in SEM-Imaged Placenta using Deep Learning
