Interactive 3D Visualization of Network Traffic in Time for Forensic

Analysis

Daniel Clark

and Benjamin Turnbull

School of Engineering and Information Technology, University of New South Wales, Canberra, Australia

Keywords: Cybersecurity, Visualization, Network Forensics.

Abstract: This paper outlines a novel approach to 3D visualization of network traffic. Existing approaches, which

present node-graphs in 3D space may not be making the best use of the advantages of 3D. By combining the

time component of network traffic data with nodal information and displaying these on separate planes it

should be possible to provide analysts with insights that go beyond just the nodal information. The goal of

allowing analysts to quickly form a mental map that corresponds with the network traffic ground truth may

be achieved with this approach. The visualization approach is demonstrated through development of a tool

which implements the approach and discusses its application to a recent network forensics challenge.

https://orcid.org/0000-0002-6456-3596

https://orcid.org/0000-0003-0440-5032

1 INTRODUCTION

Increases in network traffic and cyber-security threats

are outpacing the ability for analysts to defend against

them. The cyber security industry needs ways of

ingesting data faster and converting this data into

information in the collective minds of analysts,

thereby creating knowledge (Rowley, 2007) which

contributes to better decision making and responses.

Three-Dimensional (3D) visualization has been

used for data analysis in computer security and other

fields since as early as 1997 (Risch et al., 1997).

Computer generation of 3D-looking images goes

back to computer games of the 1980’s, such as

Battlezone (Rotberg, 1980), and since then the

gaming industry has driven significant advances in

the realism and immersive quality of 3D gaming. The

application of this technology to data analysis in the

cyber security domain is ongoing, but is yet to see

significant traction (Goodall, 2009, Staheli et al.,

2014).

Advances in the use of interactive 3D models in

the field of medicine (Tanagho et al., 2012,

Czauderna et al., 2018), archaeology (Sommer et al.,

2017) and chemistry (Müller et al., 2018) suggest that

there is utility in this type of display over traditional

tabular or 2D graphical representations. While there

have been attempts to display computer network

traffic in a 3D setting, either as an immersive

abstraction (Bass et al., 2017), or as a 3D

representation on a 2D screen, the efforts have not

being widely adopted by industry, which suggests

they have not demonstrated significant advantages

over existing 2D approaches.

This research proposes an approach to display of

raw network traffic data that seeks to improve

conversion of data into knowledge about a network.

In 2002 Dwyer and Eades proposed an approach

(Dwyer and Eades, 2002) presenting time in the third

dimension and applied it to movement of fund

managers within the stock market. This work

extended work by Koike in 1993 applying the concept

of a third data axis to power control and robotic

systems (Koike, 1993).

The approach to visualization of network traffic

proposed here is unique in the use of time-based

information as a display axis combined with a

computer network topology in a single, interactive

model of the network traffic data. The novelty of this

work comes from this alternate perspective; instead of

forcing an analyst to concentrate over time to interpret

replayed instances of communication between

systems, the information is presented statically.

This paper is structured as follows. Related work

in 3D representation of computer security information

is presented in Section 2. Section 3 describes the

Clark, D. and Turnbull, B.

Interactive 3D Visualization of Network Trafﬁc in Time for Forensic Analysis.

DOI: 10.5220/0008950601770184

In Proceedings of the 15th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 3: IVAPP, pages

177-184

ISBN: 978-989-758-402-2; ISSN: 2184-4321

177

proposed visualization approach and its

implementation. Section 4 outlines the application of

the approach to a network forensics challenge and

Section 5 discusses results and Section 5 outlines

future work.

2 RELATED WORK

A visual display showing network traffic at the instant

it is occurring would require constant attention from

an analyst and be of little use from a security or post-

event analysis point of view. For this reason, most

efforts in visualization have relied on some

mechanism to capture behavior over time and present

it in a single display or set of displays (Cappers et al.,

2018, Arendt et al., 2016, Leichtnam et al., 2017).

Plotting data against a time axis is an established

approach to data visualization (Aigner et al., 2011).

Fingerprinting of malicious behavior through simple

2D graphs was presented to VizSEC in 2004 (Conti

and Abdullah, 2004) and again in 2005 (Krasser et al.,

2005). This research was based on the idea that

specific types of malicious behavior could be

identified visually, provided the right data processing

could be conducted to produce useful visual

representations. Several implementations, such as

CLIQUE, Traffic Circle and VACS(Best et al., 2010,

Fischer and Keim, 2013), expanded on this concept.

Bass et al (Bass et al., 2017) used the approach of

converting network information into 3D spaces

showing nodal connections to achieve this effect. A

similar approach based on event information was

implemented in STARLORD (Leichtnam et al.,

2017). The concept of presenting network data in 3D

is not new, with the “Spinning Cube of Potential

Doom” being one of the first attempts to do this,

described by Stephen Lau in 2004 (Lau, 2004).

There exist real-time tools that provide

visualization of attacks, but they are mostly based on

sensors flagging known malicious traffic and plotting

it globally (Baykara et al., 2018). Although these

tools are visually interesting, they are not well suited

to identifying anomalous traffic from within a

complex network. The human capacity to remain

alert, combined with the speed and complexity of

network data exchange and the added difficulty

differentiating malicious from benign traffic combine

to make this a challenging task (Bliss et al., 1995,

Stubler and O'Hara, 1996). Human-System Interfaces

(Stubler and O'Hara, 1996) research in the control

domain has highlighted that the disparity between the

mental model of a system held by an analyst

compared to the ground truth can be a cause for error.

This principle also applies to visual abstractions of

network traffic. The effectiveness of 3D abstractions

in assisting with fast development of accurate mental

models was a key component of Koike’s work in

1993(Koike, 1993).

Based on examination of published work to date,

there are no other projects using the combination of

force directed nodegraphs (Harary et al., 1965) with

time-series information in a single 3D visualization

for the purpose of allowing cyber security analysts to

quickly develop knowledge of a network.

3 VISUALIZATION APPROACH

AND IMPLEMENTATION

Given the assumption that real-time visual detection

by human analysts is not practical, the design goal

selected for this research was to present a segment of

historical traffic data to an analyst in a way that

allows insights which might not be possible when

looking at the data in other formats, such as tabular

packet analysis tools like Wireshark (Combs, 1998).

The approach also avoids signature-based Intrusion

Detection Systems (IDS), as this field is already quite

mature (Wanda and Jin Jie, 2018). The goal of the

visualization approach is to provide a security analyst

with a means to do in-depth analysis of a segment of

network traffic, likely prompted by alerts from an

IDS.

Early iterations of the Scanmap3D (Clark, 2013)

software, first released in 2003, utilized a grid layout

to show connections between hosts based on port

number. Packets were shown through animation with

an adjustable replay speed. One key drawback of this

approach was that the analyst had to watch the

activity progress, rather than view the overall scenario

using a single static display. It was difficult to make

correlations between packets across time using a

replay-based approach.

The second key drawback was that the

visualization was still essentially a 2D display with

minor excursion into the 3rd dimension to show

different ports associated with each host (an approach

often referred to as 2.5D (Cockburn and McKenzie,

2002). This resulted in significant problems with

occlusion and edge crossing (Jianu et al., 2009),

making it difficult to interpret the display when

density of nodes exceeds the resolution and size of the

display. These problems can limit the utility of 3D

visualization. Lessons from the initial design were

used in the development of the new iteration of the

software.

IVAPP 2020 - 11th International Conference on Information Visualization Theory and Applications

178

3.1 Visualization Approach

Based on the challenges outlined above a new

approach to the visualization of packet information

was developed. The underlying approach to this has

been twofold; to highlight time, and to create an

effective immersive network visualization. The

former of these concerns the approach to position,

colour and size of glyphs, and the latter overcomes

some of the known limitations with 2.5D approaches

through providing multiple layout styles and easy

manipulation of orientation of the viewer and the

dataset.

The approach is based on network node data

displayed in a 2D plane using cylindrical host

symbols combined with a representation of time-

series packet information in the third dimension.

Layout of host nodes in the 2D plan can be cycled

through circular, spiral-grid or a force directed graph

layout, based on the GraphStream

(GraphStreamDevelopers, 2018) library.

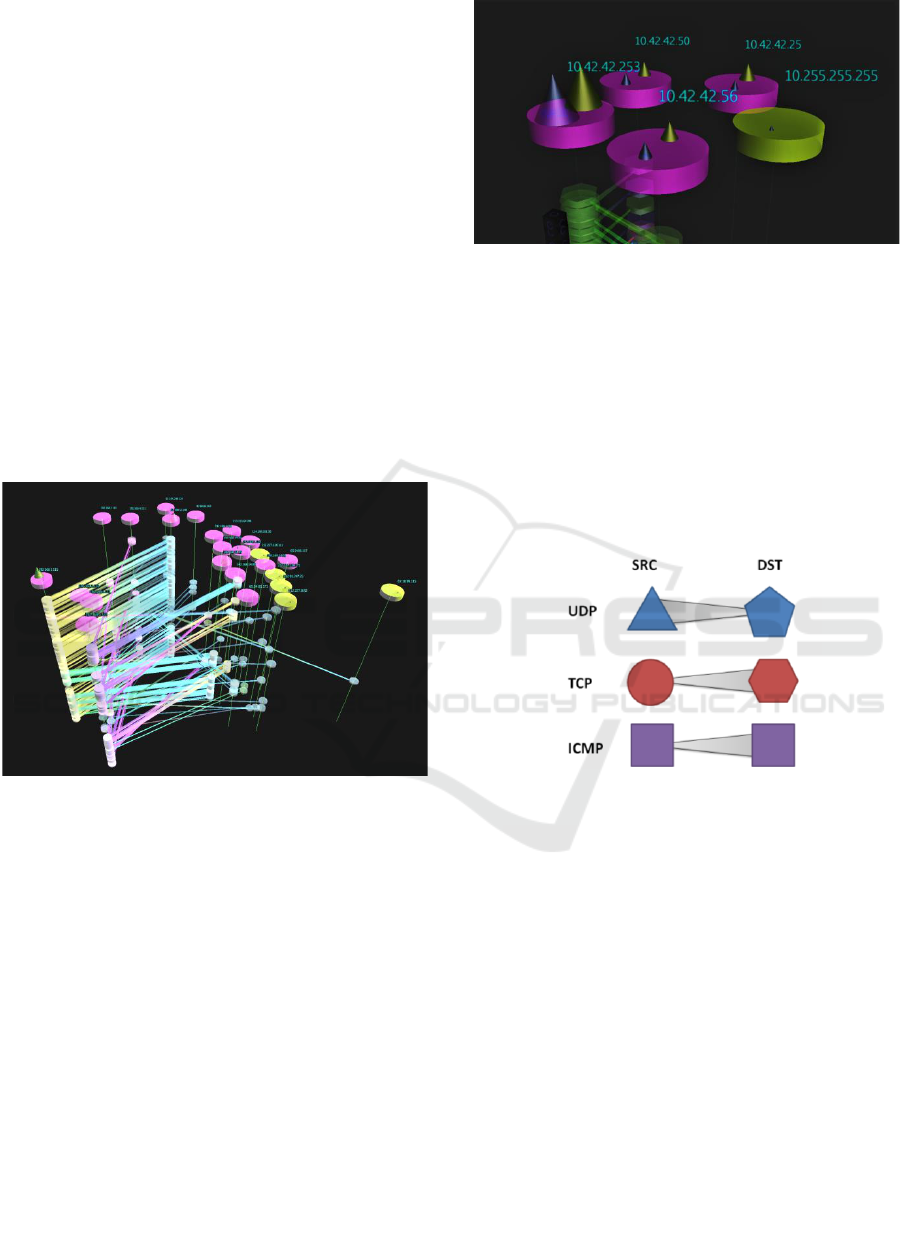

Figure 1: Scanmap3D v4.1.

Figure 1 shows the graph view with hosts

represented by cylindrical icons (including two cones

showing the relative number of packets and size of

data as the height and base for traffic as source and

destination (Detail in Figure 2). Host objects are

colored based on their role in the traffic capture as

source, destination or both.

The vertical axis is used to show the time

sequence of individual packets. Raw PCAP (Saavedra

and Yu, 2017) files from the IDS dataset published by

the University of New Brunswick (Shiravi et al.,

2012) and the Network Forensics Puzzle Contest

(Davidoff, 2019) were used to initially test the tool.

While the visualization could have focused on a

dataset of flow data or individual alert information,

raw packets were chosen as a good foundation data

set with clear node-to-node attributes. Future

iterations could be expanded to use any nodal data.

Figure 2: Host Symbols.

Individual packets appear on the vertical axis as a

quad mesh between host locations in the horizontal

plane (representing a point in time or single entry in

the packet capture) with specific shapes (glyphs) at

the source and destination depending on the IP

Protocol (Postel, 1990) in use. UDP packets are

shows as a triangular prism for the source and

pentagonal prism for the destination, while TCP

packets have a cylinder for the source and a

hexagonal prism for the destination. ICMP packets

are square prisms. Glyphs are showing in Figure 3.

Figure 3: Traffic Glyphs.

The analyst can cycle the vertical arrangement of

packets as either a sequential distribution over the

whole timeframe of the packet capture (which is

scalable), a cyclic/round robin of the packets over a

specific time frame (hourly or daily) or a stack of all

packets in the order they appear in the capture.

It is expected that a degree of pre-processing

would occur on raw packet captures prior to viewing

them with this tool, however, a limited filtering

capability has been included which allows the analyst

to select several host objects and then filter the

display to only show traffic and hosts connected to

the selected objects.

3.2 Implementation Technical Detail

The example implementation of the visualization

approach was developed using the jMonkeyEngine

Interactive 3D Visualization of Network Trafﬁc in Time for Forensic Analysis

179

(jMonkeyDevelopers, 2017) including community

supported libraries for PCAP processing (jNetPcap)

and nodegraph layout (GraphStreamDevelopers,

2018). Full source code for the project is provided at

SourceForge.

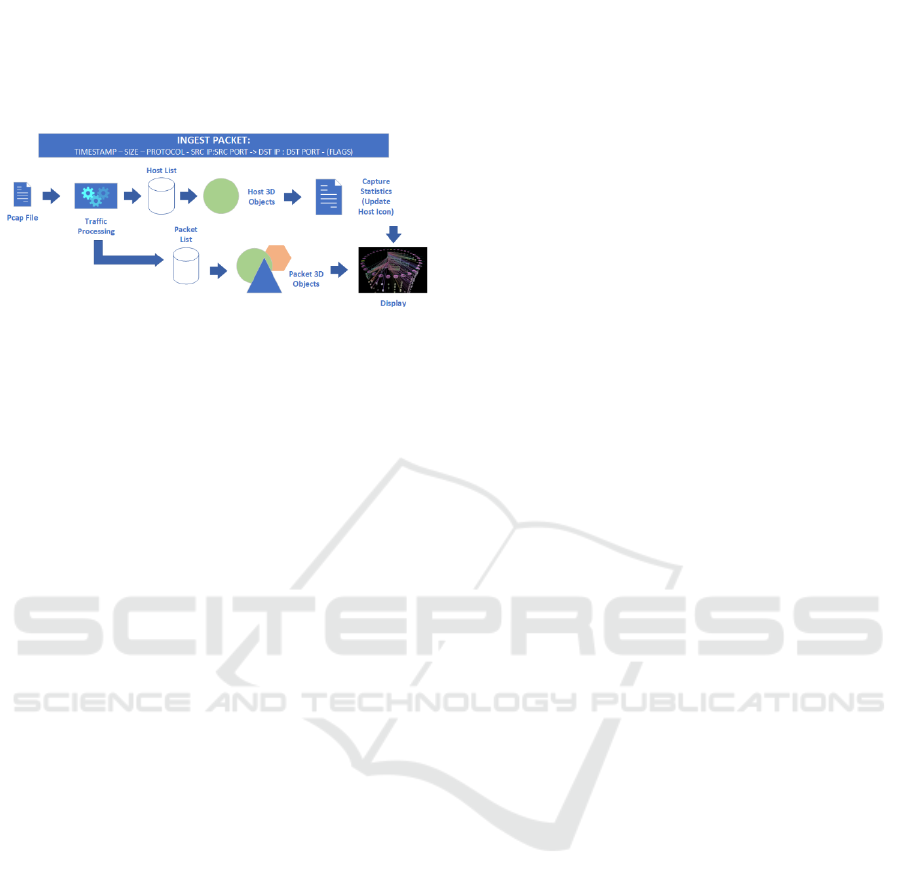

Figure 4: Packet Processing Model.

The packet processing model for the example

implementation is shown in Figure 4. The raw PCAP

file is iterated through based on either the full file or a

user selected number of packets. The current

implementation is limited to processing ICMP, UDP

and TCP packets. As each packet is processed, a list

of hosts and packets is developed, along with a 3D

shape relating to each object. Per-host statistics across

the whole capture are built-up during the processing

phase and used to adjust the appearance of each host

icon and form the edge weighting for the nodegraph.

Once the initial 3D mesh has been constructed,

the operator can pan, zoom, rotate and translate the

resulting model. Filtering has been implemented to

allow a set of hosts to be selected and only the related

traffic and hosts displayed.

The detail for each packet is available as a text

overlay when the mouse is hovered over the line

representing a packet. This approach follows

Schneiderman’s Overview, Zoom, Filter, Details-on-

Demand task model (Shneiderman, 2003). It is

expected that an analyst would initially adjust the

layout and spacing of the visualization to show an

overview then zoom to an area of interest, filter

irrelevant traffic and then look at packet detail.

Display of the packet detail in the default view would

make the scene cluttered and decrease legibility.

Providing additional information when hovering

allows the analyst to stay within the visualization

while accessing additional information about a

component of the visualization.

Two mechanism are utilized to visually queue the

analyst to the direction of traffic flow, the quad mesh

between the send and receive port prisms is tapered

from the send to the receive glyphs and a common

glyph is used for the send port in TCP/UDP. A

gradual color change from source port to destination

port is applied. As it is not possible to display 64435

unique colors, colors that are as far apart as possible

are generated using the Golden Ratio (Livio, 2008) in

the Hue color space method described by Martin

Ankerl (Ankerl, 2019).

4 APPLICATION TO NETWORK

FORENSICS

In order to conduct preliminary assessment of the

approach, prior to engaging the network forensics

community in a more structured assessment, the tool

was trialed on a published network forensics problem

from 2010. Noting the age of this data, the same

approach was also taken with an example challenge

from 2018 to confirm that the dataset was still

relevant (outside the scope of this paper).

The dataset from the 2010 network forensics

challenge was selected because the task aligns with

the expected utility of the visualization tool. For the

selected challenge, the raw packets, questions, ideal

solution and a range of participant approaches are all

published.

4.1 Network Forensics Puzzle

LMG Security conduct a regular Network Forensics

Puzzle Contest (Davidoff, 2010) which includes

PCAP files and published user solutions. The 2010

challenge included a 1MB evidence file with the

associated task of identifying a network

reconnaissance actor on the network. This challenge

was used to test the tool, as it had the following

characteristics:

• A filtered set of data suited for an analyst to work

with

• Several questions commensurate with questions

that would be posed to a network security

professional or analyst

• A suitable ground-truth and responses against

which the visual approach could be validated.

Within the challenge the summarized questions

posed relating to the packet capture were:

1. What was the IP address of Mr. X’s scanner?

2. For the FIRST port scan that Mr. X conducted,

what type of port scan was it?

3. What were the IP addresses of the targets Mr. X

discovered?

4. What was the MAC address of the Apple system he

found?

5. What was the IP address of the Windows system he

found?

IVAPP 2020 - 11th International Conference on Information Visualization Theory and Applications

180

6. What TCP ports were open on the Windows

system?

The questions in the challenge represent a

reasonable set of generalized information goals that a

network forensics analyst may have when provided

with a packet capture. The existence of several

worked solutions to the puzzle allowed for easy

comparison with the information that can be gathered

from the visualization. The packet capture was first

analyzed with the visualization tool then several

published example answers were compared with the

results from the visual approach.

It is acknowledged that the data in this puzzle is

old, the capture size is trivial by current standards and

that a port scan is a very simple attack type, however,

the purpose of the testing was to make an initial

observation of the use of a time-based 3D view in a

known problem space. Issues of scalability for large

packet captures and observation of more complex

attack types is planned for future research. The

verification that the data set is still relevant to current

tasks was confirmed using a 2018 network forensics

challenge.

4.2 Visualization Applied to the Puzzle

The Scanmap3D application ingested the 13,625

packets in the capture and produced the initial view

shown in Figure 5. Fourteen packets were not

processed, possibly due to failed checksums or a

protocol other than TCP/ICMP/UDP.

Figure 5: View of hosts.

The initial view of the hosts layer shows several

machines on the 10.42.42.0/24 network. From the

size of the source/destination cones on the

10.42.42.253 host we can see that this is the most

active node on the network.

By looking more closely at the traffic symbols we

see that most of the initial traffic consists of TCP

[SYN] packets from .253 being sent to three other

nodes, .50, .56 and .25. These are mostly responded to

with TCP [RST, ACK], indicating no listening

service on the requested ports. Hovering over each

connection request and responding rejection, it can be

seen that common service ports are being targeted

(22:SSH, 139:Netbios and 80:HTTP).

With this information visible within minutes of

generating the visualization it is possible to answer

questions 1, 2 and 3 from the forensics challenge.

1. What was the IP address of Mr. X’s scanner?

Answer: 10.42.42.253

2. For the FIRST port scan that Mr. X conducted,

what type of port scan was it?

Answer: SYN Portscan (TCP Connect)

3. What were the IP addresses of the targets Mr. X

discovered?

Answer: 10.42.42.50, 56 and 25.

A feature added to the application during the

testing was the highlighting of [SYN, ACK] packets,

indicating a connection response from an active host

(or possibly a scan using the [SYN, ACK] flags),

shown in Figure 6.

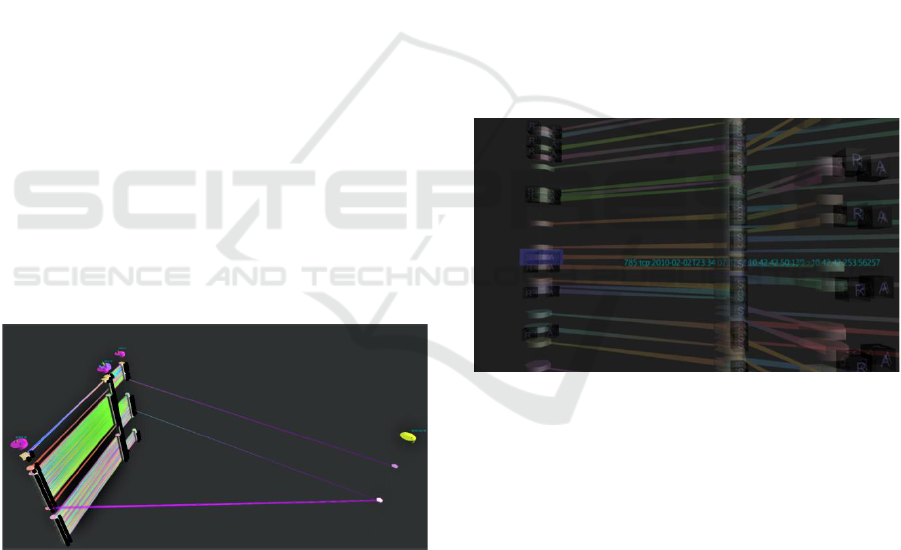

Figure 6: Connect Highlight.

By scrolling down the stack of traffic, like floors

in a high-rise building, it was possible to quickly by-

pass traffic from failed scan packets and identify

where a listening service had replied to the probes.

Host .50 replies on port 139, showing a NetBIOS

service listening on this host, and most likely an

indicator of a Windows machine. This information

answers questions 5 and 6, or at least provides a

trigger to look more closely at this traffic exchange

within Wireshark.

Further into the scan an additional successful

connection is made to .50 on port 135, mostly likely a

Remote Procedure Call service on the suspected

Windows machine.

5. What was the IP address of the Windows system he

found?

Interactive 3D Visualization of Network Trafﬁc in Time for Forensic Analysis

181

Answer: 10.42.42.50

6. What TCP ports were open on the Windows system?

Answer: Ports 139 and 135

Scans to host .25 stand out because of the absence

of a [RST, ACK] response, indicating some filtering

of ports on the host.

Towards the very end of the capture, the

suspected scanner pings each of the hosts and

receives a response. There is then two-way UDP

traffic from each of the hosts on non-service ports

(>1024).

Finally, there is a series of packets sent from .253

to .56 with a range of flags set to port 1. This possibly

suggests an attempt at OS fingerprinting.

Question 4. related to identifying an Apple system

based on the MAC Address of the host. As the

visualization tool does not currently ingest MAC data,

it was not possible to answer this question. With a

reference list of network device manufacturers, it

would be possible to indicate on the host symbol

which manufacturer is indicated by the MAC

Address.

4.3 Comparison to Other Answers

LMG has published the worked solutions of the

winner and the four finalists for the Mr X challenge.

Without replicating the full content of the

submissions, some general comments about the

approaches will be made. One of the finalists was not

included as the response provided only answers and

no description of the analysis process. Full text of the

submissions and access to generated tools are

available at the LMG site (Davidoff, 2019).

4.3.1 Winning Response –

Argus/Pyscanxtract

The winning response, by Sebastien Damaye

(Damaye, 2010), began with a sequence of script-

based statistical analysis of the packet capture,

showing the breakdown of protocols and the unique

hosts that appear in the PCAP. Damaye relied mostly

on Argus (QoSient, 2015) for this phase of analysis.

Once the raw PCAP is analyzed by Argus, there are

several steps used to show different statistical

information about the capture, including a list of all

hosts seen, and then hosts sorted by the number of

packets associated with each host pair. The address of

the scanner is assumed based on the most active host

within the capture.

Damaye uses the pyScanXtract tool written for the

challenge (available at the submission reference). The

tool generates statistical graphs and reports based on

detected scan types.

A question answered by Damaye, which was not

answerable using the current iteration of the

Scanmap3D tool was Question 4, regarding the MAC

address of the Apple system. Network device vendors

can be identified by the first 3 octets of the MAC

Address. Of course, MAC addresses can be modified

in software, and it would be necessary to validate the

assumption using OS matching at the

Network/Transport layers.

4.3.2 Adam Bray – SQL Approach

One of the top four responses was from Adam Bray

(Bray, 2010). All the analysis was conducted by

loading the packet capture into an SQL database.

Analysis was conducted by direct SQL queries using

grouping, sorting and filtering of the primary data to

answer the puzzle questions. In cases where packet

content needed to be inspected, the SQL query results

were used as a cue to go back to the original PCAP

file and extract a specific subset of packets. This

method relied on a significant amount of experience

and prior knowledge of how to structure SQL queries

to get the desired results.

4.3.3 Eric Kollman – Bespoke Tool

Like Damaye, Kollman (Kollmann, 2010) wrote a

bespoke scan analysis tool specifically for the

challenge. The tool conducts statistical analysis of the

PCAP file based on known characteristics of network

scans.

4.3.4 Eugenio Delfa – Bespoke Tool

Delfa (Delfa, 2010) also write a bespoke Python

script to collate statistical data from the PCAP file.

Existing tools were then used to fingerprint the

operating system (p0f) and an IDS rule to characterize

the specific scans (Snort).

There are several key common features that the top

responses had:

• Multiple returns to the dataset to extract new

pieces of information.

• Iterative branching approach to discovery of the

desired information.

• Use of several specialist tools, or single tools with

specialist sub-functions used in isolation.

This approach, while reaching the desired answer,

has potential to be greatly improved using automated,

visual based, statistics generation.

IVAPP 2020 - 11th International Conference on Information Visualization Theory and Applications

182

5 RESULTS AND DISCUSSION

The application of the Scanmap3D tool to a published

network forensics problem demonstrated that the

approach is effective in this specific instance.

Information which was gathered through several

iterations in the top published responses was

immediately available visually in the 3D tool.

The use of multiple bespoke tools for analysis of

PCAP data by the puzzle respondents could be easily

incorporated into the visualization, for example, the

output of OS fingerprinting could be visually shown

with a symbol on each host.

None of the respondents generated a topology of

the network represented by the PCAP. The value of

such a map to the process of network forensics would

need to be tested. The ability to see the scans and

responses as a sequential time-series allowed for a

faster assimilation of the sequence of events.

Only in the winning response, from Sebastien

Damaye, was a 2D graph used to show the time series

visually. The limitation of a 2D graph in only

showing the activity from a whole of network

perspective, rather than a host to host perspective was

clearly a contrast to the ability of Scanmap3D to show

both the topology and time series.

6 CONCLUSION AND FUTURE

WORK

While the broader commercial cyber security

community is yet to embrace 3D display as a key

component of cyber security operations, there are

researchers continuing to demonstrate the ways that

these tools can be effective additions to the set of

tools used in post-event network forensics and in

network intrusion detection.

The ability to turn raw traffic capture files into

rich visualizations using inexpensive hardware should

be an area attracting investment both in terms of

academic research and commercial development.

These visualizations have the capability to rapidly

move from raw data to shared knowledge amongst

analysts, provided effective mechanism for conveying the

data can be found.

This paper outlined the development of a 3D

visualization approach focused on the unique idea of

combining network topology in one plane, with the time

series network traffic in a third axis.

The approach was applied to a published network

forensics challenge and the results compared to the top

responses to the challenge using more traditional statistical

and 2D graphical analysis approaches. More structured

testing with a diverse range of network forensics specialists

on recent network forensics challenges needs to be

undertaken.

REFERENCES

Aigner, W., Miksch, S., Schumann, H. & Tominski, C.

2011. Visualization of time-oriented data, Springer

Science & Business Media.

Ankerl, M. 2019. How to Generate Random Colors

Programmatically. Martin Ankerl [Online]. Available

from: https://martin.ankerl.com/2009/12/09/how-to-

create-random-colors-programmatically/ 2019].

Arendt, D., Best, D., Burtner, R. & Paul, C. L. CyberPetri at

CDX 2016: Real-time network situation awareness.

2016 IEEE Symposium on Visualization for Cyber

Security (VizSec), 2016. IEEE, 1-4.

Bass, T., Zuech, R. & Gutzwiller, R. 2017. Virtualized

Cyberspace - Visualizing Patterns & Anomalies for

Cognitive Cyber Situational Awareness.

Baykara, M., Gurturk, U. & Das, R. 2018. An overview of

monitoring tools for real-time cyber-attacks. 6th

International Symposium on Digital Forensic and

Security (ISDFS). Antalya, Turkey: IEEE.

Best, D. M., Bohn, S., Love, D., Wynne, A. & Pike, W. A.

2010. Real-time visualization of network behaviors for

situational awareness. Proceedings of the Seventh

International Symposium on Visualization for Cyber

Security. Ottawa, Ontario, Canada: ACM.

Bliss, J. P., Gilson, R. D. & Deaton, J. E. 1995. Human

probability matching behaviour in response to alarms of

varying reliability. Ergonomics, 38, 2300-2312.

Bray, A. 2010. Forensic Puzzle Contest #4 - Submission.

Cappers, B., Van Wijk, J., Etalle, S. & Meessen, P.

Eventpad: Rapid Malware Analysis and Reverse

Engineering using Visual Analytics. IEEE Symposium

on Visualization for Cyber Security, 2018.

Clark, D. 2013. Scanmap3D [Online]. Available:

http://sourceforge.net/projects/scanmap3d/ [Accessed

30 July 2019 2019].

Cockburn, A. & Mckenzie, B. 2002. Evaluating the

effectiveness of spatial memory in 2D and 3D physical

and virtual environments. Proceedings of the SIGCHI

Conference on Human Factors in Computing Systems.

Minneapolis, Minnesota, USA: ACM.

Combs, G. 1998. Wireshark Website [Online]. Available:

https://www.wireshark.org/ [Accessed 2 Apr 2018

2018].

Conti, G. & Abdullah, K. 2004. Passive visual

fingerprinting of network attack tools. Proceedings of

the 2004 ACM workshop on Visualization and data

mining for computer security. Washington DC, USA:

ACM.

Czauderna, T., Haga, J., Kim, J., Klapperstück, M., Klein,

K., Kuhlen, T., Oeltze-Jafra, S., Sommer, B. &

Schreiber, F. 2018. Immersive Analytics Applications

in Life and Health Sciences. In: MARRIOTT, K.,

Schreiber, F., Dwyer, T., Klein, K., Riche, N. H., Itoh,

Interactive 3D Visualization of Network Trafﬁc in Time for Forensic Analysis

183

T., Stuerzlinger, W. & Thomas, B. H. (eds.) Immersive

Analytics. Cham: Springer International Publishing.

Damaye, S. 2010. Forensic Puzzle Contest #4 - Submission.

Davidoff, S. H., Jonathan; Rice, Randi; Fretheim, Scott;

Harrison, David. 2010. Network Forensics Puzzle

Contest: The Curious Mr X [Online]. LMG Security.

Available: http://forensicscontest.com [Accessed 8 May

2019 2019].

Davidoff, S. H., Jonathan; Rice, Randi; Fretheim, Scott;

Harrison, David. 2019. Network Forensics Puzzle

Contest [Online]. LMG Security. Available:

http://forensicscontest.com [Accessed 8 May 2019

2019].

Delfa, E. 2010. Forensic Puzzle Contest #4 - Submission.

Dfrws. 2019. DFRWS Forensic Challenge [Online]. Digital

Forensics Research WorkShop. Available:

https://www.dfrws.org/dfrws-forensic-challenge

[Accessed 2019].

Dwyer, T. & EADES, P. Visualising a fund manager flow

graph with columns and worms. Proceedings Sixth

International Conference on Information Visualisation,

10-12 July 2002 2002. 147-152.

Fischer, F. & Keim, D. Vacs: Visual analytics suite for

cyber security-visual exploration of cyber security

datasets. IEEE VIS, 2013.

Goodall, J. R. Visualization is better! A comparative

evaluation. Visualization for Cyber Security, 2009.

VizSec 2009. 6th International Workshop on, 11-11 Oct.

2009 2009. 57-68.

Graphstreamdevelopers 2018. GraphStream. GraphStream

Devlopers.

Harary, F., Norman, R. Z. & Cartwright, D. 1965.

Structural models: an introduction to the theory of

directed graphs, Wiley.

Jianu, R., Rusu, A., Fabian, A. & Laidlaw, D. 2009. A

Coloring Solution to the Edge Crossing Problem. 13th

International Conference Information Visualisation.

Barcelona, Spain: IEEE.

Jmonkeydevelopers 2017. jMonkeyEngine. jMonkeyEngine

Developers.

Koike, H. 1993. The role of another spatial dimension in

software visualization. ACM Trans. Inf. Syst., 11, 266-

286.

Kollmann, E. 2010. Forensic Puzzle Contest #4 -

Submission.

Krasser, S., CONTI, G., GRIZZARD, J., GRIBSCHAW, J.

& OWEN, H. 2005. Real-Time and Forensic Network

Data Analysis Using Animated and Coordinated

Visualization. 2005 IEEE Workshop on Information

Assurance and Security. United States Military

Academy, West Point, NY.

Lau, S. 2004. The Spinning Cube of Potential Doom.

Commun. ACM, 47, 25-26.

Leichtnam, L., Totel, E., Prigent, N. & MÉ, L. Starlord:

Linked security data exploration in a 3D graph. 2017

IEEE Symposium on Visualization for Cyber Security

(VizSec), 2017. IEEE, 1-4.

Livio, M. 2008. The Golden Ratio: The Story of PHI, the

World's Most Astonishing Number, Crown/Archetype.

Müller, C., Krone, M., Huber, M., Biener, V., Herr, D.,

Koch, S., Reina, G., Weiskopf, D. & ERTL, T. 2018.

Interactive Molecular Graphics for Augmented Reality

Using HoloLens. Journal of Integrative Bioinformatics.

Postel, J. 1990. RFC 791: Internet Protocol, September

1981. Darpa Internet Protocol Specification.

Qosient 2015. Argus. QoSient.

Risch, J. S., Rex, D. B., Dowson, S. T., Walters, T. B., May,

R. A. & MOON, B. D. 1997. The Starlight information

visualization system. Information Visualization, IEEE.

London.

Rotberg, E. 1980. Battlezone. Atari.

Rowley, J. 2007. The wisdom hierarchy: representations of

the DIKW hierarchy. Journal of Information Science,

33, 163-180.

Saavedra, M. & YU, W. 2017. A Comparison between Text,

Parquet, and PCAP Formats for Use in Distributed

Network Flow Analysis on Hadoop. Journal of

Advances in Computer Networks, 5, 59-64.

Shiravi, A., Shiravi, H., Tavallaee, M. & Ghorbani, A. A.

2012. Toward developing a systematic approach to

generate benchmark datasets for intrusion detection.

Computers & Security, 31, 357-374.

Shneiderman, B. 2003. The eyes have it: A task by data type

taxonomy for information visualizations. The craft of

information visualization. Elsevier.

Sommer, B., Barnes, D. G., Boyd, S., Chandler, T., Cordeil,

M., Czauderna, T., Klapperstück, M., Klein, K.,

Nguyen, T. D., Nim, H., Stephens, K., Vohl, D., Wang,

S., Wilson, E., Zhu, Y., LI, J., Mccormack, J., Mariott,

K. & Schreiber, F. 2017. 3D-Stereoscopic Immersive

Analytics Projects at Monash University and University

of Konstanz. Electronic Imaging, 2017, 179-187.

Staheli, D., YU, T., Crouser, R. J., Damodaran, S., Nam, K.,

O'gwynn, D., Mckenna, S. & Harrison, L. 2014.

Visualization evaluation for cyber security: trends and

future directions. Proceedings of the Eleventh

Workshop on Visualization for Cyber Security. Paris,

France: ACM.

Stubler, W. F. & O'hara, J. M. 1996. Human Factors

Challenges for Advanced Process Control. Proceedings

of the Human Factors and Ergonomics Society Annual

Meeting, 40, 992-996.

Tanagho, Y. S., Andriole, G. L., Paradis, A. G., Madison, K.

M., Sandhu, G. S., Varela, J. E. & Benway, B. M. 2012.

2D versus 3D visualization: impact on laparoscopic

proficiency using the fundamentals of laparoscopic

surgery skill set. J Laparoendosc Adv Surg Tech A, 22,

865-70.

WANDA, P. & JIN JIE, H. 2018. A Survey of Intrusion

Detection System, Researchgate.

IVAPP 2020 - 11th International Conference on Information Visualization Theory and Applications

184
