Explaining Spatial Relation Detection

using Layerwise Relevance Propagation

Gabriel Farrugia and Adrian Muscat

University of Malta, Msida MSD 2080, Malta

Keywords:

Spatial Relation Detection, Layerwise Relevance Propagation, Neural Networks, XAI.

Abstract:

In computer vision, learning to detect relationships between objects is an important way to thoroughly understand

images. Machine Learning models have been developed in this area. However, in critical scenarios where a

simple decision is not enough, reasons to back up each decision are required and reliability comes into play. We

investigate the role that geometric, language and depth features play in the task of predicting Spatial Relations by

generating feature relevance measures using Layerwise Relevance Propagation. We carry out the evaluation of feature

contributions on a per-class basis.

1 INTRODUCTION

Visual Relationship Detection (

VRD

) is a challenging

problem which has been found to be useful in the

generation of image descriptions. Spatial Relation

Detection (

SRD

) is a subproblem of

VRD

which limits

the relationships to Spatial Relations (

s).

s are used

to convey relative positions and describe the interaction

between two objects. A number of approaches have

been used in the vision and language domain to extract

the most applicable

for a given pair of objects,

namely manual and Machine Learning (

) approaches.

However, there is a tradeoff between model accuracy and

explainability or interpretability of the results. For certain

applications such as education or medical diagnosis,

the need for accountability and reliability demands an

explainable decision. This makes it much harder to

obtain a classifier which is both accurate and for which

we are able to provide an explanation. Here we carry

out a study of feature importance on an

classifier,

selecting the features which are the most useful for the

model to discriminate between classes. We then attempt

to use these as human-interpretable explanations.

Manual approaches are usually more interpretable as

each

is defined starting from a human-interpretable

domain. One such technique is the Visual Dependency

Grammar (Elliott and Keller, 2013), which defines rules

for relations between pairs of annotated regions using cen-

troids, areas and angles.

approaches aim to produce

data-driven models which are able to classify instances

https://orcid.org/0000-0002-9157-2818

based on a certain set of features. As shown by (Belz

et al., 2015),

approaches usually outperform rule-

based techniques as more complex rules can be captured

by the models. However, this comes at the cost of ex-

plainability. With Deep Relational Networks (Dai et al.,

2017), an input image is passed through a whole pipeline

of processes involving feature detection, extraction, trans-

formation and classification. Although the results quoted

seem promising, reverse-engineering the model output is

an involving problem due to the increasing complexity of

features as they pass through the pipeline. Similarly, the

relationship prediction module used in Deep Structured

Learning (Zhu and Jiang, 2018) involves the use of spatial

features learnt by a Convolutional Neural Network, which

are not easily interpretable.

Another experiment (Lu et al., 2016) set in the

VRD

domain involved the use of language features in order to

finetune the likelihood of a relationship. The use of prior

language knowledge is a recurring theme in most

VRD

models and is also adopted by (Dai et al., 2017; Zhu and

Jiang, 2018) due to the prediction accuracy improvements

achieved when taking into account statistical dependen-

cies. (Belz et al., 2015) use models based on label priors

and geometric features computed from bounding box data.

The use of geometric and language features is again seen

in (Ramisa et al., 2015), together with image features

extracted from the final layer of a Convolutional Neural

Network as representations of entity instances.

We choose the

approach for this experiment on

the basis of model performance. Since the goal is to gener-

ate feature importance measures, the features themselves

378

Farrugia, G. and Muscat, A.

Explaining Spatial Relation Detection using Layerwise Relevance Propagation.

DOI: 10.5220/0008964003780385

In Proceedings of the 15th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 5: VISAPP, pages

378-385

ISBN: 978-989-758-402-2; ISSN: 2184-4321

should be human-interpretable. Hence, geometric fea-

tures are the main focus of the study. The SpatialVOC2K

dataset (Belz et al., 2018) was used for this purpose. It con-

sists of images annotated with

s in between object pairs.

The available features were originally computed from the

images or the object annotations themselves. It includes a

set of 13 geometric features to which we added 18 features

(some of which are harder to interpret), one-hot encoded

language features for the trajector and landmark type

and depth features for comparison of relative depth of the

objects in the image. The geometric features are described

in Table 1. In total we have 17 labels (

s), with each

instance in the dataset having one or more labels.

From cognitive science literature we know that

are not just a function of geometric or spatial features, but

also of functional and perceptual features (Coventry et al.,

2001; Dobnik and Kelleher, 2015; Dobnik et al., 2018).

An example of a perceptual feature is occlusion (e.g. pic-

ture on a wall). Usually in computer vision research the

language is used as a proxy to the functional aspect and

therefore both language and geometric features are used.

Previous work using the SpatialVOC2K dataset

was carried out using a variety of different

models

(Muscat and Belz, 2017), comparing the performance

of all models for the single-label classification problem.

Here, we take a new approach and use a neural network

cast as a multi-label classification model. An artificial

neural network is a supervised learning model consisting

of an organised structure of layers of neurons. An

artificial neuron is a unit which computes the weighted

sum of its inputs, passes this through an activation

function and produces a single output value. Each

neuron has its own set of weights and bias (these are

input-invariant once training is completed).

2 FEATURE IMPORTANCE

FOR FEEDFORWARD

NEURAL NETWORKS (FFNNs)

There are a number of techniques which were proposed

in an attempt to better understand machine learning

models. Sensitivity analysis (Hashem, 1992) measures

the sensitivity of the output with respect to changes

in the input features. Although sensitivity may be

roughly translated to feature importance, it is not an

accurate definition since it refers to alterations in the

input rather than the input itself. There are also a number

of heuristic or architecture-specific techniques (Gevrey

et al., 2003) for determining variable contributions in

a neural network. Ideally, the method of explanation

should not impose many restrictions on the model

architecture. (Ribeiro et al., 2016) discussed the

importance of a model-agnostic mentality and reviewed

the technique they had previously developed - Local

Interpretable Model-agnostic Explanations (

LIME

) - for

generating an explanatory model that is locally faithful

and interpretable. Since the goal of this project is to

explain neural networks (specifically Feedforward Neural

Networks (

FFNN

s)), we can use other techniques. (Bach

et al., 2015) developed a framework called Layerwise

Relevance Propagation (

LRP

), for decomposing a neural

network’s output into pixel-wise relevance measures.

This concept of relevance measures for individual pixels

can be extended to virtually any input and was ultimately

chosen as the main technique to be used for deriving

feature relevance scores.

(Muscat and Belz, 2017) use a greedy backward

feature elimination procedure to rank features by

importance, where the least significant feature is removed

at each iteration in order to generate an ordering over

features. However, this technique does not capture feature

interactions. In this case we will attempt to quantify

feature importance in a more direct manner by using

LRP

Table 1: Geometric features in the dataset.

ID Feature Description

F0..F3 Area of Obj

and Obj

normalized

by Image, Union area, where Obj

denotes the subject (trajector), Obj

denotes the object (landmark).

F4..F7 Area of objects overlap normalized by Image, Minimum, Total and Union, area.

F8, F9 Aspect ratio of Obj

and Obj

F10..F12

Distance between bounding box centroids normalized by Image diagonal, Union Bounding Box and Union diagonal.

F13 Distance to size ratio with respect to bounding boxes

F14, F15 Euclidian distance between bounding boxes normalized by Union and Image.

F16..F19 Ratio of objects limits, (l

−l

)/(r

−l

), (r

−l

)/(r

−l

), (t

−t

)/(b

−t

), (b

−t

)/(b

−t

where l and r denote distance from left image edge to left or right object edge, t and b denote distance

from top image edge to top or bottom object edge and subscripts 1 and 2 denote the first and second bounding box.

F20..F21 Ratio of bounding box areas, (Maximum to Minimum) and (Trajector to Landmark)

F22 Trajector centroid position relative to Landmark centroid, categorical (4-levels)

F23, F24 Trajector position relative to Landmark as Unit Euclidian vector

F25..F30 Trajector centroid position relative to Landmark centroid , vector and unit-vector normalised by Union)

Explaining Spatial Relation Detection using Layerwise Relevance Propagation

379

Table 2: Relevance redistribution rules for different neuron input domains. These relevance flow rules allow us to define how weights

and activations of individual neurons affect the redistribution procedure. Repeatedly applying the rules (according to the appropriate

input domain) to each neuron, layer by layer, we eventually end up with the input layer relevance measures.

RULE INPUT DOMAIN NAME

∑

i j

∑

i j

+εsign(

∑

i j

)

Any LRP ε-rule (Bach et al., 2015)

∑



i j

∑

i j

−β

−

i j

∑

−

i j



Any (α−β=1, α>0) LRP αβ-rule (Bach et al., 2015)

∑

i j

∑

i j

ReLU activations (a

≥0) z

-rule (Montavon et al., 2017)

∑

i j

∑

i j

Real inputs (x

∈R) w

-rule (Montavon et al., 2017)

Symbols in the table can be linked to the previously defined terminology as follows: z

i j

= a

i j

(unbiased), a

b= a

(l)

, w

i j

b= w

(l)

i,j

, R

b= R

(l)

, R

b= R

(l+1)

, ()

and ()

−

denote the positive and negative parts, respectively, sign is a function that returns the sign of its argument and ε is a small term to prevent divisions by zero.

3 LRP

LRP

(Bach et al., 2015) is defined as a set of constraints

required for producing decompositions of neural network

outputs into input relevance scores. The first constraint

is conservation of relevance, i.e. total relevance must be

conserved at each layer of the decomposition such that the

output is completely decomposed and redistributed to the

input layer. Let the relevance

(l)

be the relevance score of

neuron

at layer

. Conservation of relevance is defined as

∑

(1)

∑

(2)

=···=

∑

(L)

= f (x) (1)

where

is the number of layers in the network and

f (x)

is the output of a classifier

. The goal is to find a suitable

redistribution strategy such that

f (x)

can be decomposed

into the input layer relevances

(1)

. For example, consider

a neural network with three layers: an input layer, a

single hidden layer and an output layer as illustrated in

Figure 1. Let

(l,l+1)

i←j

denote the flow of relevance from

neuron j in layer l+1 to neuron i in layer l.

(1)

(2)

(3)

= f(x)

(1,2)

1←1

(2,3)

1←1

(1,2)

2←3

(2,3)

3←1

(2,3)

2←1

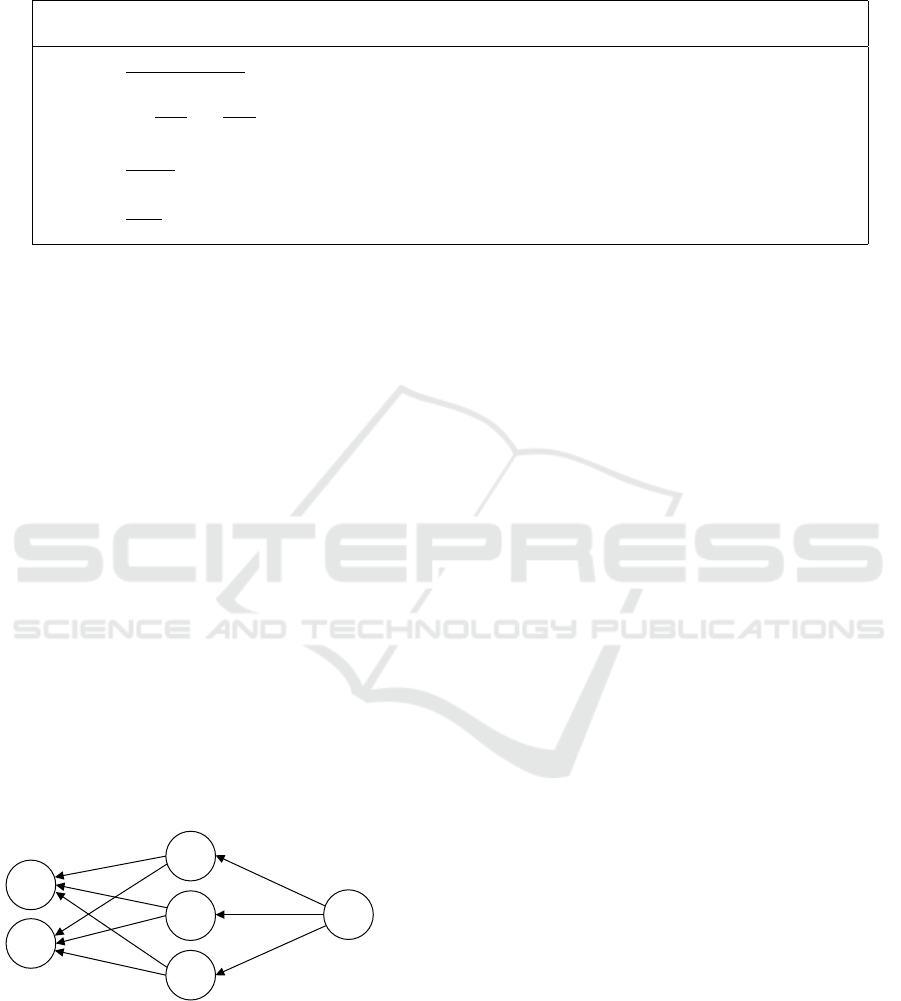

Figure 1: Relevance flow across a neural network.

(3)

(i.e. the

relevance of the first neuron in the third layer) is equal to the

last layer output f (x).

Since relevance is fully redistributed,

(l)

∑

(l−1,l)

i←j

(2)

and

(l)

∑

(l,l+1)

i←j

(3)

i.e. the sum of the relevance flow from a single neuron

is equal to its relevance score (2) and the relevance score

at a neuron is equal to the sum of relevance flowing to

it (3). Since (1) can be derived using (2) and (3),

LRP

was defined using these two constraints (Bach et al.,

2015). Relevance flow rules determine how relevance

is redistributed among inputs.

By redistributing relevance scores backwards

according to the weighted activation proportions, the

output is broken down at each layer into the individual

contributions of each neuron. Since relevance is

conserved at each layer, the output can be completely

broken down into contribution ratios for the input features.

This gives us a measure of input feature importance, as

needed. Table 2 shows a number of rules collated from

(Bach et al., 2015; Montavon et al., 2017).

The

LRP

rules can simply be applied layer by layer to

produce the necessary relevance measures, as determined

by the input domain. The parameters

and

are to be

chosen before redistribution and are explained here. For

LRP

, relevance is split according to activation strength,

with the

parameter used as a stablization term to prevent

divisions by 0.

LRP

αβ

considers positive and negative

activations separately and assigns a weighting to each.

The weighting can be controlled via the

parameter (

forced to be 1 less due to the relevance conservation rule),

which determines the amount of negative relevance that

should be factored into feature importance. For the LRP

-rule, the trade-off between numerical stability and re-

laxation of the conservation rule is considered acceptable.

The

-rule only takes into account the positive elements

from each layer. The

-rule ignores input values and

redistributes relevance according to the weights assigned.

Large numbers of input relevances (due to the size

of the input domain) may be pooled together to coarsen

the explanation. Relevance may even be filtered at any

point in the network to restrict the flow and zoom in on

a specific component of an explanation.

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

380

4 EXPERIMENTS

4.1 Dataset and General Considerations

As explained in Section 1, we use the SpatialVOC2K

dataset (Belz et al., 2018), which consists of 5317

multi-labelled instances. We compute 31 geometric

features from the bounding boxes (Table 1) and code the

object labels into one-hot vectors. The dataset is split into

three sets: a training set, a validation set and a test set. All

three sets have similar class distributions which are repre-

sentative of the dataset’s class distribution. Ideally, class

distributions should be approximately uniform so the

model may generalize well across all classes in the dataset.

In this case, the label distribution is highly skewed, with

SRs like pres de (near) occurring frequently.

Since the dataset presents a multi-label classification

problem (each input can have a number of labels), binary

cross-entropy loss (log loss) is used. The activation

functions in the hidden layers were restricted to unbiased

ReLU activations so as to be able to compare different

explanation methods on a single model. Continuous input

features were standardized before the training phase.

4.2 Multi-label Evaluation Metrics

Most multi-label classification metrics are defined in

terms of True Positives (

), False Positives (

), True

Negatives (

) and False Negatives (

). Here, we

use the micro-averaged recall, precision and F

scores

since we have an imbalanced dataset. We also use a

per-instance accuracy definition, defined as

accuracy=

∑

i=1

∩

∪

(4)

where

is the set of true labels for instance

the set

of predicted labels for instance

and

is the number of

instances.

4.3 Optimizing Model Performance

The dataset provided was already pre-processed to some

extent and had already been split into five folds with

similarly distributed label sets. Three folds are used as

the training set, one fold as the validation set and the last

fold as a test set. For this experiment we organize four

feature sets in order to generate different models:

• geometric features,

• geometric and depth features,

• geometric and language features,

• geometric, depth and language features.

For each feature set, a model is trained and optimized

based on validation accuracy scores. A number of hidden

layer structures are shortlisted for each feature set and a

grid search is used to optimize the hyper parameters. The

number of neurons in the hidden layers is set to be in the

range

[16,300]

as larger layers would end up memorizing

the training set and smaller layers might not be able to

learn a function of the required complexity. For each

model, an Adam optimizer is used with learning rate

α∈

{0.01, 0.001, 0.0001}

and L2 regularization is applied

with a regularization constant

λ ∈ {0.0001, 0.00001,

0.000001, 0 }

, as determined by the Hyperparameter

Optimization (

HPO

). Early stopping is also used during

the

HPO

stage to further lower the chances of overfitting

the training set (this is especially useful for the larger

networks). Once we obtain the training and validation

accuracies for each model, the best models are chosen

based on the validation accuracy and size of the network

(smaller networks preferable), also taking into account

the divergence between training and validation accuracy

(to make sure the model has not overfitted the training

data). This process leaves us with four trained models

(one per feature set).

4.4 Generating SR Explanations

For each feature set, the respective trained model is

used to generate relevance charts. Figure 2 shows the

redistribution procedure for a model with two hidden

layers. Here, an input is first fed into the neural network

and propagated forward, storing the activations at each

stage. Once all layer activations are obtained, relevance is

redistributed according to one of the

LRP

rules described

in Table 2. The choice of rule depends on the input

domain. Here, we use four rule sets:

LRP

(with

set to 1e-7),

LRP

and deep Taylor

decompositions utilizing the

-rule for hidden layer

(ReLU) activations and the w

-rule for the input layer.

Charts are generated both globally (over all labels) as

well as on a per-label basis to explore the different decom-

positions and the quality of the explanations. Instance

decompositions are aggregated to produce a single more

generalized explanation (discussed further in Section 4.5).

4.5 Practical Considerations

Since each instance would be decomposed into a seperate

set of relevance measures, a method for systematically

aggregating relevance measures across instances was

required. For multi-label problems, each model output

is independent of the other outputs. Since we are using

sigmoid activations at the output layer, we know that

each output should be in the range

(0,1)

, with higher

values denoting a higher probability of the label being

present. By filtering relevance for a single label (i.e.

decomposing a single output by treating all other outputs

Explaining Spatial Relation Detection using Layerwise Relevance Propagation

381

input

explanation

output

scores

(2)

(3)

(2)

output layer

input layer

hidden layers

(2)

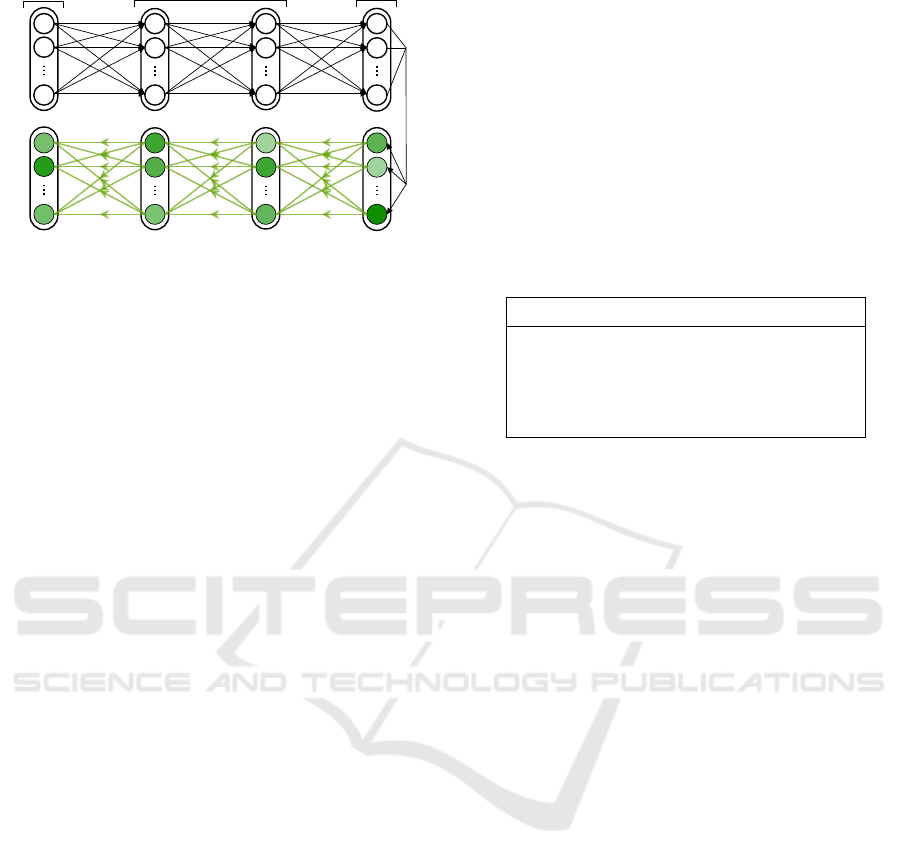

Figure 2: The redistribution process for a sample network.

Given a neural network and an input, the input is first

propagated forward through the network, storing the activations

at each layer for use in the next step. The last layer activations

(the output scores), are set as the relevance scores for the last

layer, and used as the base for relevance redistribution. Using

the redistribution rules, relevance is redistributed back along the

network, layer by layer, until the input layer relevance scores

are obtained. This is treated as our explanation.

as zeros), we can obtain the label relevance for that

instance. Due to relevance conservation, we know that

the sum of the input relevances is equal to the output

value for that label. We also know that larger values at

the output indicate a higher chance of a good prediction

and should therefore bear more weight compared to

smaller outputs. So, knowing that each instance’s input

relevance measures are implicitly weighted by the model

output, summing these up should present a weighted total

relevance measure for a given label. Normalizing this

weighted total relevance such that each class explanation

sums to one gives us a quantitative way to directly

compare relevance measures between classes.

This technique for aggregating relevance across

instances was used to generate relevance charts represen-

tative of all (true) positive predictions for a given label.

It was noted that the relevance charts for different labels

were still quite similar for certain classes. When pooling

language feature relevance measures, the large number

of features being pooled ends up saturating the relevance

such that most of the relevance is allocated to the pooled

feature. Hence, a weighted normalized mean explanation

common to all classes was created by summing up all the

relevance redistributions of all classes and instances (i.e.

before normalization) and then normalizing the sums. By

centering each label’s weighted total relevance according

to the weighted normalized mean relevance, we get more

informative explanations which take into account the

pooling bias. This technique was tested on a synthetic

dataset with a one-to-one correspondence between each

feature and each output class in order to verify that

explanations produced would be of a better quality.

5 RESULTS

5.1 Model Metrics

Table 3 shows the model metric scores for the best models

obtained by the

HPO

procedure, when evaluated over the

unseen test set. There are many possible justifications

as to why model accuracy did not exceed 0.6 for any of

our models. It could be that the architecture used here

Table 3: Model metric scores for the test set (per-instance accu-

racy and micro-averaged F

, precision and recall - higher is bet-

ter), for each feature set combination (G denotes geometric fea-

tures, D denotes depth features and L denotes language features).

Features Acc. F

Prec. Rec.

G 0.457 0.595 0.651 0.549

G+D 0.540 0.660 0.694 0.630

G+L 0.525 0.640 0.684 0.601

G+L+D 0.554 0.673 0.728 0.626

is not complex enough to represent the required function.

It could also be the imbalance in the dataset or that the

dataset is not large enough for the models to learn and

generalize.

The addition of depth features to the model had the

largest relative increase in accuracy. The inclusion of geo-

metric, language and depth features together did not have

a very significant increase in accuracy over the geometric

and depth features model performance. This may be

indicative of the fact that language and depth features may

provide redundant information for certain labels (individ-

ually, both are useful when added to the base geometric

features but, when combined together, the improvement

over the individual scenarios is less prominent). The gen-

eral trend with regards to precision and recall is that about

70% of the models’ positive predictions are correct and

the models manage to recall about 60% of positive labels.

5.2 Explaining Model Decisions

Despite the low accuracy scores, we can still generate

explanations by selecting only inputs from the test set

which produced true positive predictions for a given

label. Furthermore, by filtering relevance to only allow

relevance from that label to flow through, we get less

noisier (more consistent) explanations. Since the model

incorporating geometric, language and depth features has

the best performance, as well as a larger array of features

which may be useful for differentiating between

s, the

main results shown here will be for this model.

To illustrate the differences between the four

decomposition techniques, a single

was decomposed

using each of them. Figure 3 shows these decompositions

side by side for comparison. It is immediately visible

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

382

Features Features

Relevance Relevance

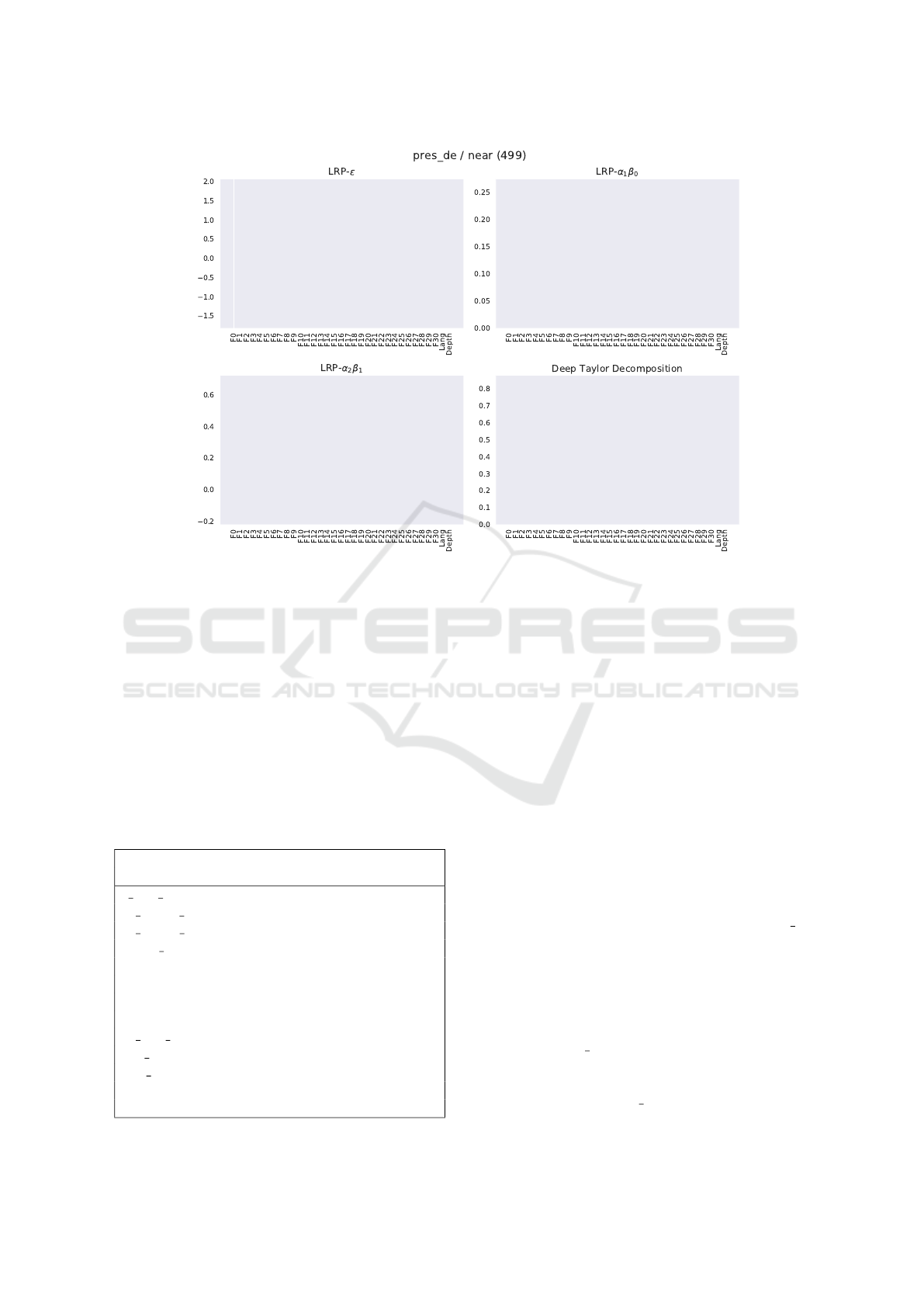

Figure 3: Different explanations for the same preposition (near) using the geometric, language and depth features model, aggregated

over all positive instances. Comparing the outputs we see that the language features are chosen as highly relevant by all redistribution

techniques. However, the explanation produced by LRP-ε differs from the other explanations.

that the language features (which have been pooled into a

single measure) are usually dominant over other features.

This is the case for most labels as the pooling effect ends

up gathering a large portion of the relevance scores into

Table 4: Most relevant features when

LRP

is used for

decompositions, for each Spatial Relation, ranked by relevance

(top 3 shown). # refers to the number of classified instances

for that Spatial Relation. L denotes language features, D

denotes depth features and F0-F30 denote geometric features.

The results for derriere (behind) and devant (in front), which

both involve depth, show that

LRP

produces some promising

explanations.

Rank

Spatial Relation # 1 2 3

a cote de (beside) 242 F3

F15 F27

au dessus de (above) 2

F19 F12 F18

au niveau de (at the level of) 146 F5

F20 F15

autour de (around) 2 F1 F0 L

contre (against) 26 F5

F11 F12

dans (in) 5

F19

F30

derriere (behind) 159 D

F18 F28

devant (in front) 150 D

F30 F28

en face de (opposite) 2 D

F12 F10

loin de (far from) 52 D

F18 F13

pres de (near) 499 L

F23 F22

sous (under) 69 L F1

F11

sur (on) 68

F11 F30

one feature. To mitigate this, the centered weighted total

relevance (centered by the weighted normalized mean

relevance) will be used.

Preliminary results show that

LRP

is littered with

negative relevance.

LRP

also contains some

negative relevance, but only to a point where it does not

outweigh the positive elements in the explanation. As

expected,

LRP

and deep Taylor decompositions

contain only positive relevance measures. When center-

ing the weighted normalized mean explanation, a more

specific description of each class is obtained. As can be

seen in Figure 4, language and depth features are now less

prominent (since we’re taking into account the pooling

bias introduced in their favor). Table 4 summarizes the

results shown in Figure 4 by displaying the top three

relevant features for each class (after centering).

Looking at the most relevant features for pres de

(near), we see that the language features are ranked first.

Since the dataset contains a number of images of people

and in most images people are photographed with other

people (21.9% of the dataset contains persons as both

the trajector and landmark), a bias is present toward

that combination when at least one person is present.

Furthermore, pres de is marked as a true label for 66.4%

of the instances where two persons are present. This

means that the language features are probably being

marked as relevant for pres de due to this pattern.

Explaining Spatial Relation Detection using Layerwise Relevance Propagation

383

Features

Relevance

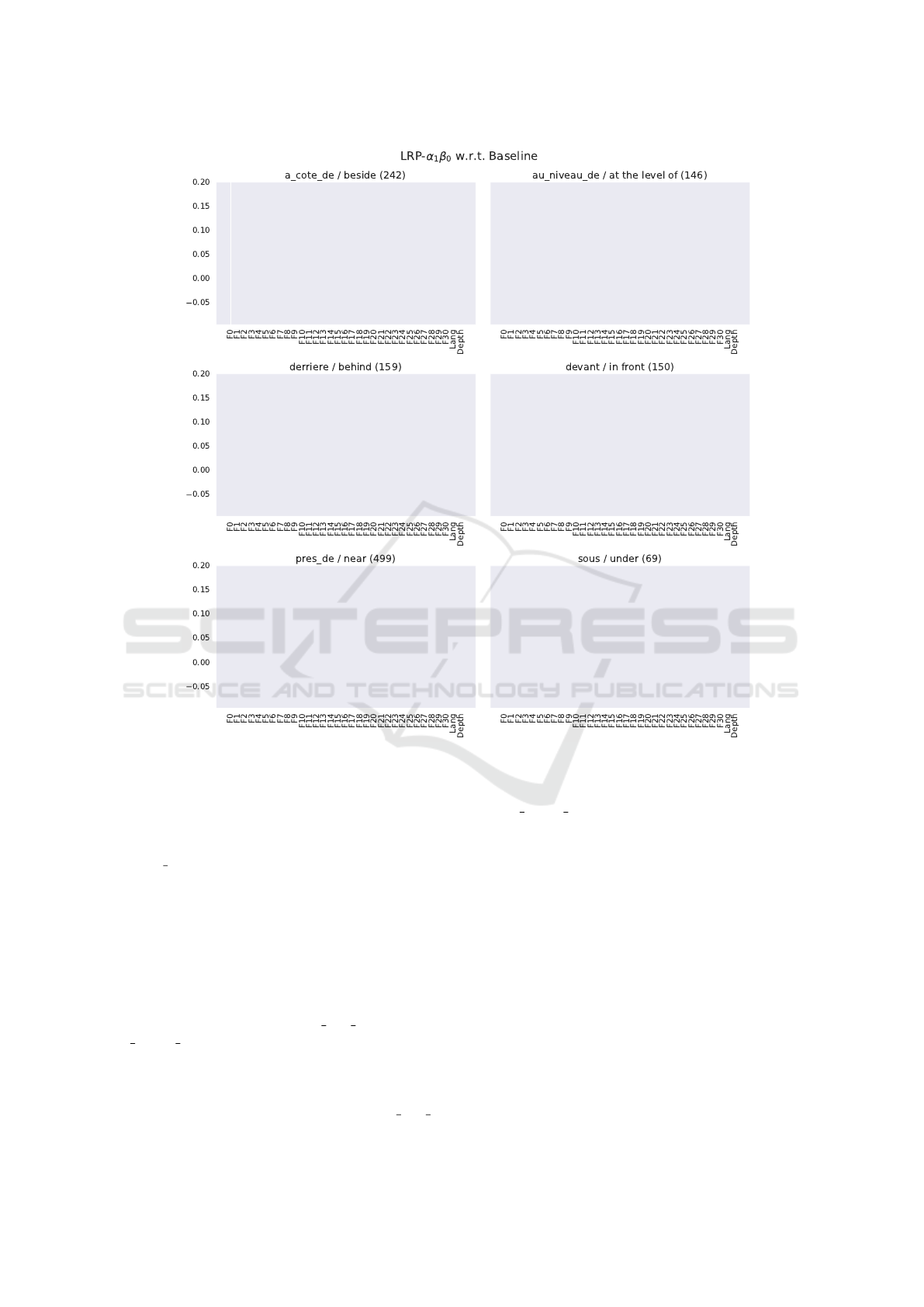

Figure 4: Difference of

LRP

explanations from the weighted normalized mean explanation, for the most frequently predicted

prepositions. Note the relevance attributed to depth for derriere and devant, as well as the importance of language in predicting pres de.

Similarly, for sous (under), 71.5% of landmarks are

people and for sur (on), 79.4% of trajectors are peo-

ple. Compared with spatials such as derriere, devant

and loin de where the proportions of trajectors and land-

marks which are people are significantly smaller (37.7%

and 36.5%, respectively, at most), we can see that the

language features are only relevant for relations which

involve an exploitable pattern influenced by the nature of

the objects themselves.

Looking at the most relevant features as chosen by

deep Taylor decomposition (Table 5), we now see that

language features, depth features or both are chosen as

relevant in all but three cases. For a cote de (beside) and

au niveau de (at the level of), F18 (an indicator of dif-

ference in upper edge height between the two objects) is

chosen as the most relevant feature. This could be viewed

as a requirement for the two objects to have an aligned up-

per edge. F3 and F20 are also common among a cote de

and au niveau de but are harder to make sense of as they

all describe areas of some form. It is clear that intuitive

explanations can be extracted for some features but other

features appear to be less directly related with the concepts

for which they are relevant. With that being said, for the

purposes of extracting even more intuitive explanations

it might be a good idea to restrict the set of geometric fea-

tures to more basic features, primitives, which can be im-

mediately made sense of. Having knowledge of which fea-

tures the neural network is paying attention to in the pre-

diction of

s facilitates the process of comparing human

decisions with those of machine learnt models, thus ad-

vancing both automation as well as artificial intelligence.

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

384

Table 5: Most relevant features using deep Taylor decompo-

sition, for each Spatial Relation, ranked by relevance (top 3

shown). # refers to the number of classified instances for that

Spatial Relation. L denotes language features, D denotes depth

features and F0-F30 denote geometric features.

Rank

Spatial Relation # 1 2 3

a cote de (beside) 242

F18

F20

au dessus de (above) 2

F12

L F1

au niveau de (at the level of) 146

F18

F20

autour de (around) 2 L F0

F23

contre (against) 26 F5

F23 F14

dans (in) 5 L

F30 F23

derriere (behind) 159 D L

F21

devant (in front) 150 D

F30

en face de (opposite) 2 D L

F30

loin de (far from) 52 D

F30 F28

pres de (near) 499 L

F13 F12

sous (under) 69 L D

F24

sur (on) 68 L D

F30

6 CONCLUSIONS

We can conclude that

LRP

is useful for generating human-

interpretable explanations. This is partly due to the fact

that some of the geometric features lend themselves

to human-understandable terms, for example distance

between objects, whereas others, although they are not

terms used by human beings, are one step away from be-

ing so. For example, area overlap of bounding boxes can

act as a proxy to occlusion and to a lesser extent to depth.

The results show that language is important for

some prepositions but not for others, which concur with

observations from the cognitive linguistics literature

(Dobnik et al., 2018). On the other hand, it’s hard to

isolate a single feature as the most relevant, since feature

relevance was seen to be class-dependent. By employing

the centering approach a feature ordering in terms of

relevance was defined for each class. Applying the

relevance redistribution techniques described here to a

SRD

problem is a process which has not been carried out

before and allowed us to study the importance of features

per-class rather than globally. Additionally, we confirm

that depth features are important for some

s and it

is therefore useful to have access to depth features in

addition to bounding boxes. In the future we plan to ex-

tend this study to more varied datasets and to analyze the

quality of explanations quantitatively, for example using

feature removal or inversion as in (Bach et al., 2015).

REFERENCES

Bach, S., Binder, A., Montavon, G., Klauschen, F., M

uller,

K.-R., and Samek, W. (2015). On pixel-wise explanations

for non-linear classifier decisions by layer-wise relevance

propagation. PLoS One.

Belz, A., Muscat, A., Aberton, M., and Benjelloun, S. (2015).

Describing Spatial Relationships between Objects

in Images in English and French. pages 104–113.

Association for Computational Linguistics.

Belz, A., Muscat, A., Anguill, P., Sow, M., Vincent, G., and

Zinessabah, Y. (2018). SpatialVOC2K: A Multilingual

Dataset of Images with Annotations and Features for

Spatial Relations between Objects. Technical report.

Coventry, K. R., Prat-Sala, M., and Richards, L. (2001).

The Interplay between Geometry and Function in the

Comprehension of Over, Under, Above, and Below. J.

Mem. Lang.

Dai, B., Zhang, Y., and Lin, D. (2017). Detecting visual

relationships with deep relational networks. In Proc. -

30th IEEE Conf. Comput. Vis. Pattern Recognition, CVPR

2017, volume 2017-Janua, pages 3298–3308.

Dobnik, S., Ghanimifard, M., and Kelleher, J. (2018). Exploring

the Functional and Geometric Bias of Spatial Relations

Using Neural Language Models.

Dobnik, S. and Kelleher, J. (2015). Exploration of functional

semantics of prepositions from corpora of descriptions

of visual scenes.

Elliott, D. and Keller, F. (2013). Image Description using Visual

Dependency Representations. Technical report.

Gevrey, M., Dimopoulos, I., and Lek, S. (2003). Review and

comparison of methods to study the contribution of vari-

ables in artificial neural network models. In Ecol. Modell.

Hashem, S. (1992). Sensitivity analysis for feedforward

artificial neural networks with differentiable activation

functions. In Proc. 1992 Int. Jt. Conf. Neural Networks.

Lu, C., Krishna, R., Bernstein, M., and Fei-Fei, L. (2016).

Visual relationship detection with language priors. In

Lect. Notes Comput. Sci. (including Subser. Lect. Notes

Artif. Intell. Lect. Notes Bioinformatics), volume 9905

LNCS, pages 852–869.

Montavon, G., Lapuschkin, S., Binder, A., Samek, W., and

uller, K.-R. (2017). Explaining nonlinear classification

decisions with deep Taylor decomposition. Pattern

Recognit.

Muscat, A. and Belz, A. (2017). Learning to Generate Descrip-

tions of Visual Data Anchored in Spatial Relations. IEEE

Comput. Intell. Mag., 12(3).

Ramisa, A., Wang, J., Lu, Y., Dellandrea, E., Moreno-Noguer,

F., and Gaizauskas, R. (2015). Combining geometric,

textual and visual features for predicting prepositions in

image descriptions. In Conf. Proc. - EMNLP 2015 Conf.

Empir. Methods Nat. Lang. Process., pages 214–220.

Association for Computational Linguistics.

Ribeiro, M. T., Singh, S., and Guestrin, C. (2016). Model-

Agnostic Interpretability of Machine Learning.

Zhu, Y. and Jiang, S. (2018). Deep structured learning for

visual relationship detection. In 32nd AAAI Conf. Artif.

Intell. AAAI 2018, pages 7623–7630.

Explaining Spatial Relation Detection using Layerwise Relevance Propagation

385
