AnnoXplorer: A Scalable, Integrated Approach

for the Visual Analysis of Text Annotations

Martin Baumann

1 a

, Harutyun Minasyan

2 b

, Steffen Koch

1 c

, Kuno Kurzhals

3 d

and Thomas Ertl

1 e

Institute for Visualization and Interactive Systems, University of Stuttgart, Stuttgart, Germany

Department of Computer Science, University of T

ubingen, T

ubingen, Germany

Institute of Cartography and Geoinformation, ETH Z

urich, Z

urich, Switzerland

Keywords:

Visual Annotation Analysis, Visual Text Analysis.

Abstract:

Text annotation data in terms of a series of tagged text segments can pose scalability challenges within the

dimensions of quantity (long texts bearing many annotations), conﬁguration (overlapping annotations or an-

notations with multiple tags), or source (annotations by multiple annotators). Accordingly, exploration tasks

such as navigating within a long annotated text, recognizing patterns in the annotation data or assessing dif-

ferences between annotators can be demanding. Our approach of an annotation browser deals with all of these

data and task challenges simultaneously by providing a continuous range of views on large amounts of com-

plex annotation data from multiple sources. We achieve this by using a combined geometric/semantic zooming

mechanism that operates on an abstract representation of the sequence of a text’s tokens and the annotations

thereupon, which is interlinked with a view on the text itself. The approach was developed in the context of

a joint project with researchers from ﬁelds concerned with textual sources. We derive our approach’s require-

ments from a series of tasks that are typical in natural language processing and digital humanities, show how

it supports these tasks, and discuss it in the light of the feedback we got from our domain experts.

1 INTRODUCTION

The analysis of text annotations is a ubiquitous ac-

tivity in many disciplines dealing with text analysis,

such as natural language processing or digital human-

ities. We understand a text annotation as a piece of

meta information that links a list of labels or tags,

chosen from a small tag set, to a segment of text, that

is to say a sequence of words or tokens. Such text

annotation data can pose severe scaling challenges

within multiple complexity dimensions. First, the an-

notated texts can be long, up to hundreds of thou-

sands of tokens, and bear annotations in similar or-

ders of magnitude – this dimension we denote by the

term quantity. Second, there may be multiple annota-

tors, human or algorithmic, who may disagree in their

assessment – this dimension we denote by the term

https://orcid.org/0000-0001-7584-5938

https://orcid.org/0000-0002-8297-9122

https://orcid.org/0000-0002-8123-8330

https://orcid.org/0000-0003-4919-4582

https://orcid.org/0000-0003-4019-2505

source. And third, the annotations themselves can be

complex, they may contain multiple tags, their seg-

ments may overlap or be of greatly varying length –

this dimension we denote by the term conﬁguration.

To support users in exploring annotations in a scalable

way, we propose a novel visual interactive approach.

A typical task in an annotation project is to ana-

lyze the disagreement between the contributing anno-

tators in order to reﬁne and disambiguate the team’s

annotation guidelines. A related task is to compile a

“gold standard” from these disagreeing contributions.

Such a gold standard of an annotated text can then be

used to train and test a machine learning algorithm for

the automatic generation of annotations. In turn, the

annotations generated this way on further texts can

be compared to the annotations generated by com-

peting algorithms in order to assess systematic differ-

ences. Analysts may also appreciate the annotators’

disagreement as an indication of textual complexity

that warrants further investigations regarding possi-

ble patterns in the annotation data set and how these

patterns may relate to the source text. Common to

these tasks is that they involve a comparison of possi-

Baumann, M., Minasyan, H., Koch, S., Kurzhals, K. and Ertl, T.

AnnoXplorer: A Scalable, Integrated Approach for the Visual Analysis of Text Annotations.

DOI: 10.5220/0008965400620075

In Proceedings of the 15th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 3: IVAPP, pages 62-75

ISBN: 978-989-758-402-2; ISSN: 2184-4321

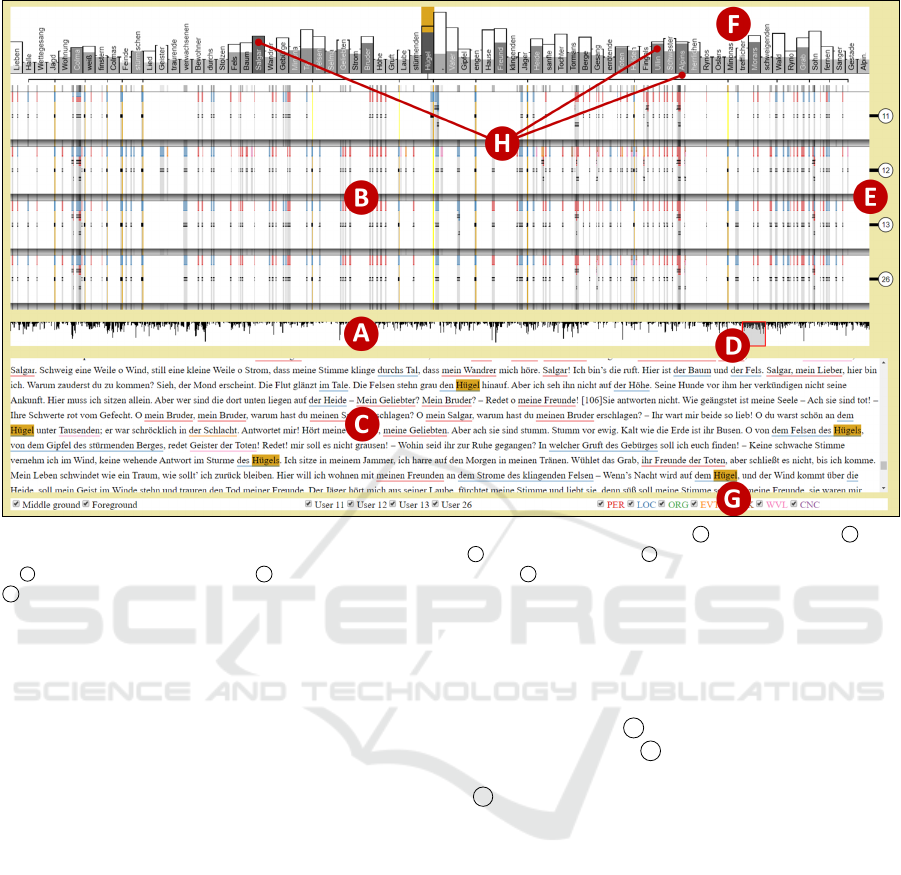

Figure 1: AnnoXplorer with Goethe’s Die Leiden des jungen Werthers. The overview window A with the brush at D . The

annotation window in transit mode with four annotator bands at B , the annotator IDs at E , the annotated type’s distribution

at F , and a series of name types at H (see Section 5). The text window C with underlined annotations. The ﬁlter controls at

G . Interaction: Hovering on the type bar “H

ugel” highlights the respective tokens in the annotation and text windows.

bly complex annotation constellations (conﬁguration)

across annotators (source) and/or across the sequence

of the text’s tokens (quantity).

The data set that we use in the following to ex-

emplify our approach was created by a group of hu-

manities researchers in the context of a joint research

project (see Section 3) with partners from several text-

related humanities disciplines and from natural lan-

guage processing. The data set (see Section 5) con-

tains about 6500 annotations of text entities such as

characters or locations. It was crafted by four human

annotators on a text of about 42 000 tokens. The anno-

tation guidelines allowed for multiple tags and over-

lapping segments. While this source text is quite short

and annotations are rather sparse, the process of gen-

erating it manually was already challenging and ex-

pensive. However, by means of combining these ba-

sic annotations, one may now be able to operational-

ize complex text phenomena. Hence, as Fort (2016)

remarks, the relevance of such a data set can outlive

the context – together with its speciﬁc questions – in

which it was originally created. Therefore, its value

often exceeds the cost of its creation, and methods to

explore such text annotation data and to simultane-

ously analyze as many of their facets as possible help

to exploit this value.

Our contribution to deal with data sets and analy-

sis tasks like those sketched above is an approach to

visually and interactively browse text annotations. As

it can be seen in Figure 1, our browsing approach

consists of three interconnected views: an overview

of the whole text A , a view upon a portion of the

marked text strings C , and an abstract representa-

tion of the annotation data in any granularity desired

B . The latter constitutes the main component, and

it shows the data simultaneously in two dimensions:

vertically across all contributing annotators and hori-

zontally across the whole token sequence of a freely

selected passage of the underlying text. Our approach

is novel in that it transcends the current state of the art

with respect to the following qualities. It is:

Scalable with respect to the data type’s complex-

ity dimensions of quantity, conﬁguration, and source.

The core concept we employ here is a combined geo-

metric/semantic zooming mechanism that governs all

other aspects of representation and interaction.

Integrated in that it deals with all of these complex-

ity dimensions simultaneously. While existing ap-

proaches do consider some of these dimensions, none

of them encompasses all of them at the same time.

After our literature review in Section 2, where we

situate our approach in the context of current re-

search, we conduct a task- and requirement analysis

AnnoXplorer: A Scalable, Integrated Approach for the Visual Analysis of Text Annotations

in Section 3. Based on this analysis, we expound

in Section 4 the decisions we took in order to design

the visual representations and interaction facilities of

our approach. We then demonstrate in Section 5 its

versatility by sketching some paths of usage dealing

with the tasks laid out before and the data set provided

by our project partners. These partners accompanied

the development of the approach in a series of work-

shops, and their feedback is discussed, together with

our own observations, in Section 6. Based on this dis-

cussion, we make a series of suggestions for future

work in Section 7. Here, we also point to the generic

nature of our approach: While we do assume in this

paper, that the sequentially arranged things that are

annotated are a text’s tokens, the approach has the po-

tential to be applied to structurally similar data types

such as annotated gene or event sequences.

2 RELATED WORK

Today, visual text analysis can be seen as an es-

tablished subﬁeld of research in information visual-

ization and visual analytics as recent surveys docu-

ment (Kucher and Kerren, 2015; Liu et al., 2019).

Many of the approaches in this area were developed

with the goal to abstract texts and document sets by

either summarizing their content, or by aggregating

available meta data or bibliographic information and

combinations thereof. Without a doubt, this is a good

general direction in order to support “overview ﬁrst”-

approaches (Shneiderman, 1996) in the context of re-

trieval and text mining tasks, which are important

enough to support them with visual exploration tech-

niques, such as (Wise et al., 1995; Choo et al., 2013;

Alexander et al., 2014; Strobelt et al., 2018).

With very few exceptions, such as (Wattenberg

and Vi

egas, 2008; Culy and Lyding, 2010; Abdul-

Rahman et al., 2017; Geng et al., 2013; Albers Szaﬁr

et al., 2016; Alexander et al., 2014), most text visual-

ization approaches have in common that they do not

represent the sequential nature of larger segments of a

text at higher levels of visual abstraction. This is due

to the fact that either tasks for document sets are sup-

ported or the sequential representation of text would

require too much screen space to be effectively inte-

grated into respective visualization concepts. As soon

as tasks are to be supported that involve the analysis

of textual properties in the context of the text itself,

however, using representations of the sequential char-

acteristic of textual data is essential.

Of course, sequential data can be compressed as

well if common characteristics within a text should

be made explicit. Oelke et al. (2012) present pixel-

based visualization techniques called “Literature Fin-

gerprinting” (Keim and Oelke, 2007), which fall into

this category and have been applied to readability

analysis. The main idea here is to bin sequences of

text tokens and to represent characteristics for these

sequences – such as the occurrence of named enti-

ties or a readability measurement – as colored pixels.

With our approach, we support more ﬁne-granular

drill down possibilities to understand patterns of an-

notations on levels of abstraction that lie in-between

visual binning and plain text views. However, we also

make use of visual binning (Jerding and Stasko, 1998)

as soon as zooming out requires the subpixel repre-

sentation of annotations.

There are also a number of works that address vi-

sualization goals similar to ours in terms of show-

ing and exploring annotations at different abstrac-

tion levels. Correll et al. (2011) present an approach

that supports scholars in exploring densely annotated

texts. They enhance the scalability by employing a

focus+context approach to minimize contexts of less

importance with respect to the chosen focus and by

allowing to ﬁlter dense occurrences of interesting an-

notations by means of a line chart based abstraction.

In the NEREx approach, El-Assady et al. (2017) ana-

lyze named entities by combining a text with annota-

tion highlights, an abstraction of the texts sentences as

lines together with the annotated entities as sequences

of glyphs, and a series of node link diagrams that

encode relational aspects of the entities. Gold et al.

(2015) combine a distant view upon higher-level the-

matic structures with close views upon the text itself.

They visualize lexical episodes as colored bars next

to a text view that allows for semantic zooming. The

VarifocalReader approach (Koch et al., 2014) is close

to ours in that smooth transitional interactions be-

tween overview and detail views are supported. How-

ever, VarifocalReader does not aim at preserving a

consistent representation over different levels of ab-

straction, which we see as an important beneﬁt of our

approach for the depicted tasks. Chandrasegaran et al.

(2017) present in their visual analytics approach for

the support of open coding of natural language texts a

series of interconnected views, that closely resemble

some of the views we will present: a text view with

highlights on tokens, a series of overviews showing

meta data in the whole text and an interactive word

cloud. They also use similar means of view coordina-

tion, allowing the synchronization of positional and

pattern information across views. However, they nei-

ther offer a continuous range of granularities for the

annotation abstractions, nor visual support for the dis-

play of multiple annotators.

In the following, we discuss a few fully ﬂedged

IVAPP 2020 - 11th International Conference on Information Visualization Theory and Applications

text annotation tools which, of course, can also be

used to browse previously made annotations. We con-

sider them under the aspect to what extent they sup-

port, by visual and interactive means, the analysis of

annotation data in the three complexity dimensions

of quantity, conﬁguration and source. The CATMA

annotation tool uses stacked, colored underlines to

encode annotations within the running text (Meister

et al., 2016). Its line spacing can be stretched in order

to make room for overlapping annotations or anno-

tations with multiple tags whose segments can even

be discontinuous. The Glozz annotation tool, like

most of its competitors, uses highlights on the text

to encode annotations (Widl

ocher and Mathet, 2012).

Overlapping segments are shown as overlapping high-

lights – an approach that does not scale as well as

CATMA’s stacked underlines. An uncommon feature

is the aligner view of Glozz. Here, different annota-

tors are arranged in a series of rows, and their anno-

tations are strung as colored bars on a line that repre-

sents the text. Quite a unique idea for the encoding of

annotations is followed by the design study of Kley-

mann et al. (2018). Besides using an underlined text,

they encode each annotation as a glyph consisting of a

vertical bar (representing the text), and a colored hor-

izontal bar (representing the tag, the segment length

and the position of the annotation). These glyphs can

be arranged freely on a canvas, and upon hovering,

a tooltip shows the immediate surrounding text. Fur-

ther examples of annotation tools employing similar

means would be ANALEC (Landragin et al., 2012), or

WebAnno (Eckart de Castilho et al., 2016).

Table 1: Feature comparison of annotation approaches.

# = unsupported, G# = partially supported, = supported.

Column labels: Range = continuous range of granularities,

Annot. = comparison of multiple annotators, Conﬁg. = seg-

ment overlap or multiple tags, Text = interconnected text

view, Token = distribution of annotated tokens, Edit = cre-

ate and change annotations.

Range

Annot.

Conﬁg.

Text

Token

Edit

Correll 2011 G# # # # #

Glozz 2012 G# G# G#

Landragin 2012 # # G#

Varifocal Rd. 2014 G# # # G#

CATMA 2016 # #

WebAnno 2016 # G# G# #

Chandraseg. 2017 G# # # G#

NEREx 2017 G# # # G#

Kleymann 2018 G# # # # #

AnnoXplorer 2020 #

Next, let us mention a few examples dealing with

the display of annotation data on sequences other than

natural language text. Quite closely related are ap-

proaches concerned with formal languages, such as

the early software statistics visualization approach

Seesoft (Eick et al., 1992). Genome data is dealt

with by the LayerCake tool by Correll et al. (2015)

or the Sequence Surveyor by Albers et al. (2011). An

approach dealing with event sequences is EventFlow

by Monroe et al. (2013). Finally, time series are one

of the data types that the “stack zooming” approach

by Javed and Elmqvist (2013) can cope with.

In Table 1, we list those of the approaches above

that deal with natural language annotations and that

support tasks similar to those laid out in Section 3.

We compare them in terms of how well they support

these tasks by a few but essential visualization fea-

tures. Furthermore, we would like to point out that

parts of our approach were presented as a conference

poster (Baumann et al., 2018).

3 TASKS AND REQUIREMENTS

As mentioned in the introduction, our approach was

built in the context of an interdisciplinary research

project with partners from several text-related ﬁelds.

This project, situated at the University of Stuttgart,

is called CRETA, Center for Reﬂected Text Analyt-

ics (Kuhn, 2019). The participating scholars manually

annotated texts of different types and from different

domains. For example, a group of medievalists an-

notated characters and places in medieval epics, phi-

losophy scholars annotated concepts in contemporary

philosophical texts, social scientists annotated named

entities of different types in a corpus of political de-

bates, and literature scholars did the same for 18th

century novels. Common to these projects was that

an annotation typically consisted of a short segment

of text (not more than around ﬁve tokens) that were

marked with possibly multiple tags from a small tag

set (at most seven) by multiple annotators. In a se-

ries of joint workshops, we collected a set of analy-

sis tasks that our partners would like to perform on

their data. For a demonstration of our approach on

this data/task-set see Section 5. We augmented this

set further with tasks that we deem users in a similar

project setting presumably may want to perform and

that could be supported by a visual browser.

We would like to stress the fact that, at its present

development stage, AnnoXplorer is not a tool to cre-

ate or alter annotations (like some of the fully-ﬂedged

annotation tools presented in Section 2), but that it is a

visual browser that helps to explore complex annota-

AnnoXplorer: A Scalable, Integrated Approach for the Visual Analysis of Text Annotations

tion data. AnnoXplorer allows this exploration simul-

taneously across all contributing annotators as well as

across the whole token sequence of a freely selected

passage of the underlying text, with the goal to tackle

the following series of tasks:

T1 Gain a Quick Overview: Who (which annotator)

annotated how (which tags), what (which text seg-

ment), and where (in which passage)? Quickly iden-

tify passages that are sparsely or densely annotated.

T2 Compare Annotators: Spot passages where

there is a strong (dis-)agreement among the different

annotators. Identify inconsistencies between annota-

tors that hint at insufﬁcient or ambiguous speciﬁca-

tions in the annotation guidelines or at systematic dif-

ferences between annotation algorithms.

T3 Analyze Annotation Patterns: Identify patterns

with respect to the annotations’ extensions or tags,

per annotator or across multiple annotators, over the

course of the text’s token sequence. Explore struc-

tures that emerge from the interplay of annotations of

different length and/or with different tags.

T4 Analyze Tokens and Context: Analyze the

frequency- and position distributions of the most an-

notated tokens in selected passages and compare them

to the respective global values. Consider annotations

within the surrounding text of their segments.

In order to construct a visual browser that supports

these analytical tasks and that forms a sound basis

for further development, we suggest the following list

of design requirements. For certain tasks, certain re-

quirements are indispensable – like, as shown below,

R5 for T2 or R6 for T4. However, since we want to

be able to deal with annotation data that show all of

the complexities mentioned in the introduction simul-

taneously, all of these requirements play together to

carry out each of the above tasks. The requirements

are organized according to the complexity dimension

that they target predominantly: R1, R2, and R3 deal

mainly with quantity, R4, R5 and R6 deal mainly with

conﬁguration, and R7 deals mainly with source com-

plexity. The decisions we made in order to design

and implement an approach that fulﬁlls these require-

ments will be explicated in Section 4.

R1 Scalable Views: The approach should allow for

an aggregated view on a text of arbitrary length with-

out the need for scrolling as well as for a detailed view

upon a short selection of the text, where overlapping

chains of annotations and annotations with multiple

tags can be inspected. Furthermore, the user should

be able to display the data on any desired level of

granularity in between these poles.

R2 Continuity and Orientation during Zooming:

It should be possible to drill down through all of

these levels of granularity smoothly and swiftly, and

it should always be clear to the users which portion of

the data they are looking at and on which level.

R3 Maximality Principle and Filtering: On each

level of granularity, the approach should encode as

much information as possible on this level but with

the possibility to ﬁlter out data that is currently not of

interest. If elements need to be aggregated, it should

happen with the ﬁnest resolution at hand.

R4 Annotation Discrimination: In the detailed

view, users should be able to discriminate between

two series of annotations, all containing identical tags,

that cover the same range of tokens respectively, but

which split this range differently into single annota-

tions. Likewise, they should also be able to discrim-

inate between two sets of annotations with multiple

tags, all with the same token extension, that contain

the same set of tags, but which distribute this set dif-

ferently among the respective annotations.

R5 Overlap and Visual Weight: When annotations

overlap, users should be able to discern their text seg-

ments and tags for as large “chunks” of overlapping

annotations as possible – for a detailed description of

this concept see Subsection 4.3. The visual weight of

an annotation should be independent of the length of

the tokens that form its text segment, rather it should

depend only on the number of tokens involved.

R6 Token Distribution and Text View: The text

string, frequency and position of the annotated to-

kens should be shown, either directly (in close views)

or aggregated (in distant views). The annotated text

should always be at hand and be synchronized with

the current viewing position across all views.

R7 Multiple Annotators: It should be possible to

show the data of multiple annotators simultaneously.

Annotations by different annotators should be laid out

on a grid of tokens that is uniform across annotators,

such that they are immediately visually comparable.

4 APPROACH DESCRIPTION

To facilitate the exchange with our project partners,

we implemented the approach as a web-based appli-

cation using the D3 library (Bostock, 2019).

4.1 Basic Structure and Interaction

The approach combines an overview+detail technique

with a zooming technique in the sense of Cock-

burn et al. (2009). The combined semantic/geometric

zoom will be described in Subsection 4.2. The views

IVAPP 2020 - 11th International Conference on Information Visualization Theory and Applications

are distributed among three windows (see Figure 1):

the overview window in the middle A , above it the

annotation window B , and below it the text win-

dow C . We placed the overview window in the mid-

dle because the selection made here governs the rep-

resentation in the adjacent windows.

The overview window contains a bar chart repre-

senting the whole text. The units that are represented

by one of the one pixel wide bars are bins of tokens,

and the heights of these bars indicate how many of

such a bin’s tokens are part of an annotation segment.

Users can brush over these bars (see the red rectangle

at D ) to select a region of the text which will then

be displayed in the annotation window and focused

in the text window. A brush of a certain size always

corresponds to the same number of bins and roughly

to the same number of tokens. Besides pulling open

a new brush, users can also resize an existing brush

or center it around a new position by clicking on an

unbrushed spot in the overview window.

The annotation window contains a collection of

words and geometric objects (mostly rectangles)

which represent the selected tokens and the annota-

tions thereupon. As mentioned above, this selection

corresponds to the brush of the overview window,

but it can also be altered directly within the annota-

tion window by actions of zooming (using the mouse

wheel) and panning. The exact representation of the

annotation information depends on the amount of text

that is selected this way, as will be discussed in the

following sections. But there are a few structural as-

pects of this representation that are not dependent on

the extension of the selection:

• We can differentiate between vertical objects on

the one hand – elongated shapes which mainly

correspond to aspects of the text’s tokens and form

the basic grid of the window – and horizontal ob-

jects on the other hand – shapes spanning over

a range of vertical objects, which mainly corre-

spond to annotation segments (R5, R7).

• These objects are organized within three layers;

they can be seen in Figure 2, where the upper lay-

ers are partially hidden in order to better show the

lower layers. We call them background A , mid-

dle ground B and foreground C .

• The (vertical) objects of the background and mid-

dle ground layers are concerned with counting an-

notations and they encode this information as val-

ues along a gray scale, whereas the (horizontal)

objects of the foreground are concerned with dis-

playing the segment extensions and tags of anno-

tations and employ a color encoding in doing so –

but this is only a rough characterization that will

be clariﬁed in Subsection 4.3.

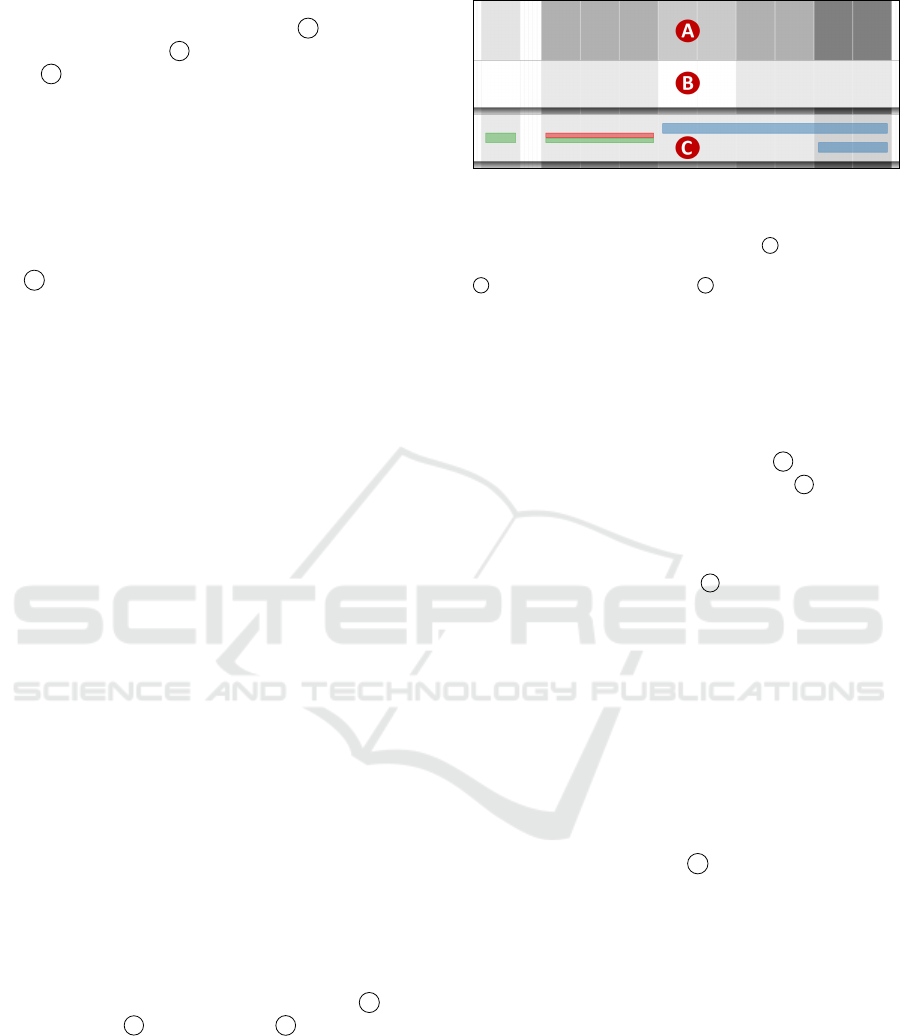

Figure 2: Cut-out of the annotation window with three an-

notators. The complete band of the ﬁrst annotator (middle

ground and foreground layers) is hidden, such that only the

common background layer is shown at A . Also hidden is

the foreground layer in the band of the second annotator at

B . For the third annotator at C , four annotations can be

seen in the foreground layer.

• The objects in the middle ground and foreground

layers together represent the annotations of the re-

spective contributing annotators (human or algo-

rithmic) and are separated from the background

layer as a series of horizontal bands with a drop-

shadow effect (see also Figure 1 B ). The anno-

tators are identiﬁed by their IDs at E , and their

respective bands can be rearranged vertically by

dragging these IDs (R7).

• Embedded into the background layer and above

the annotators’ bands at F , there is a representa-

tion of the text’s words, which we will describe

in Subsection 4.4 (R6).

The text window contains the whole annotated

text. The passage that corresponds to the overview

brush is marked by not being grayed out and by con-

taining marks for the annotations, as we will discuss

in Subsection 4.5. The text and annotation windows

are interlinked in both directions by means of mouse

hover actions, and the highlights generated in this way

can be frozen.

Below the text window, there is a bar containing

the controls for ﬁltering at G . Here, the user may se-

lect which annotators and tags should be shown and

whether to show the bands’ middle ground and fore-

ground (R3).

4.2 Zooming Modes

There are three major modes of representation with

respect to the number of tokens selected by the brush,

or, equivalently, the state of zooming (R1); hence-

forth, we call them atomic, transit and aggregated

mode (see Figure 3 for a juxtaposition of the modes).

• In atomic mode (see Figure 3a), the vertical grid

objects of the back- and middle ground represent

tokens. This case applies when the selection brush

is small enough such that all token rectangles con-

tained within it can be displayed with a minimal

AnnoXplorer: A Scalable, Integrated Approach for the Visual Analysis of Text Annotations

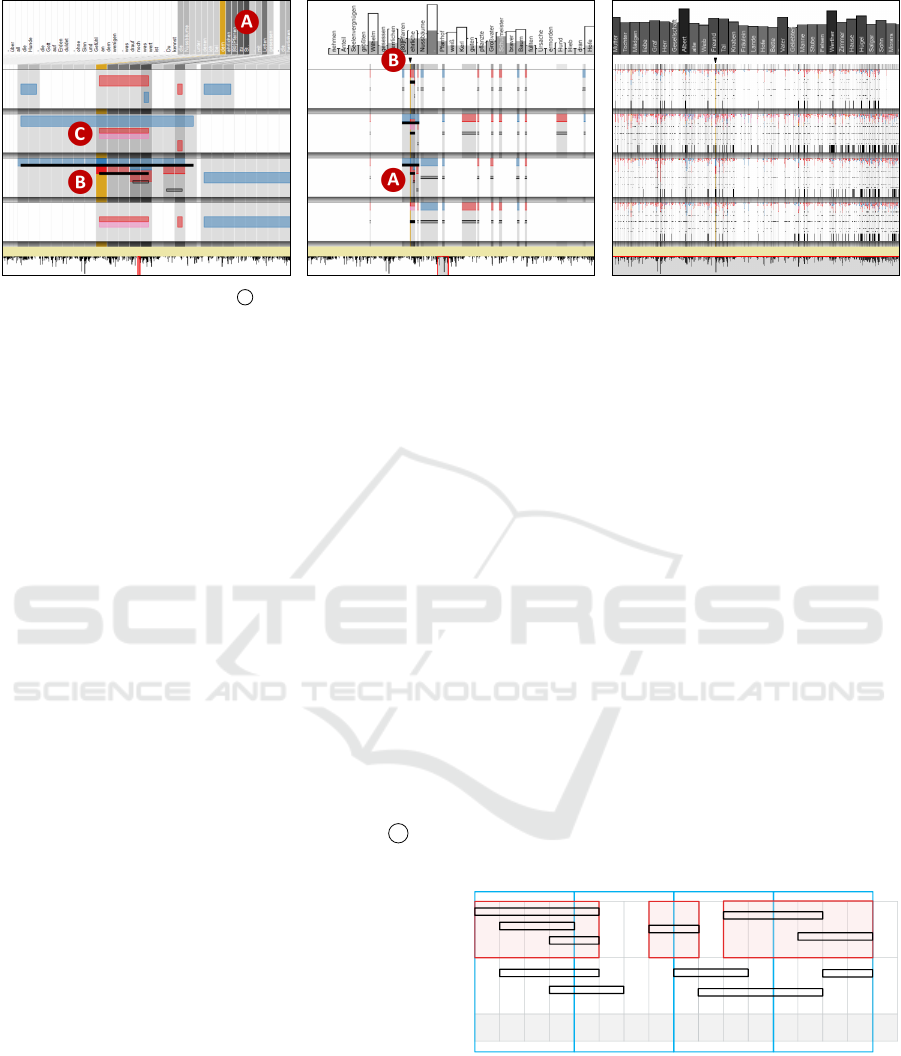

(a) Atomic mode. Hover at B

(b) Transit mode. Hover in text.

Figure 3: Zooming out. A text passage containing the token “dem” (at yellow highlight / triangle) in the three zooming modes.

width – a threshold chosen such that the token

texts above are still legible (see Subsection 4.4). If

users zoom in even closer, tokens that are part of

an annotation get allocated more space than those

which are not.

• When users zoom out, there comes a point where

the width of a token falls below a legibility thresh-

old, and now transit mode applies (see Figure 3b).

Here, the displayed vertical objects still repre-

sent tokens, but notwithstanding whether they are

part of an annotation or not, they are of a uni-

form width between the threshold and one pixel.

Because of this potentially small width, the to-

ken rectangles are not framed anymore as in the

atomic mode and hence can no longer be dis-

cerned as discrete units. This also applies to the

bin rectangles in the aggregated mode described

below. To alleviate the recognition of very small

or thin objects like these token rectangles, users

can activate a geometric lens when they are in

transit or aggregated mode (see Figure 11 at B ).

• Finally, when users zoom out even more (namely

when more tokens are brushed than the tool

window’s width contains pixels), the aggregated

mode applies (see Figure 3c). Now the one pixel

wide rectangles in all of the three layers no longer

represent tokens but bins of tokens, whose sizes

(i.e. the numbers of items they contain) depend

upon the number of brushed tokens. These bins

are, in general, not identical to the bins displayed

in the overview window, but are of smaller size:

Every time the user changes the brush width, the

tokens contained in the selected bins are rear-

ranged in a sequence of new bins that are then

displayed in the annotation window (R3). In case

that the allocation of tokens to bins does not work

out evenly, the positions of those bins that contain

an extra token are distributed randomly following

a uniform distribution.

Within each mode, zooming/panning/brushing is

a continuous experience since only the selection and

size of the elements changes but not their mode of rep-

resentation (geometric zoom). The task we set our-

selves was how to design the representation of the

annotation information in the three modes such that

when users cross a mode border (semantic zoom), this

continuity would only be disrupted as little as possi-

ble, while at the same time making the modes clearly

distinguishable (R2), and encoding a maximum of in-

formation according to the speciﬁc requirements of

the respective mode (R3).

4.3 Annotation Representation

In this section, we will describe, layer for layer, how

the annotation data is encoded as the aforementioned

horizontal and vertical objects in each of the three

zooming modes. Most of the objects of the higher

layers are translucent such that they appear darker in

regions of high activity.

0 1 1 2

3 531

1 2 2 3 12 0 0

2 1

4 1 0 1

0 0

8/3

4/2

3 222

2 3 2 2

1 101

1 2 1 1

2 121

1 1 1 1

3/3 3/2

5/2

3/3

6/2

4/2

Annotator

Figure 4: Schematic example for two annotators (upper and

middle row). Chunks for annotator 1 (red highlights); bins

framed in blue. Annotation counts given per token (black

ﬁgures) and per bin (blue ﬁgures: annotation count/cut an-

notations). Lower row: counts for the background layer.

As mentioned in the previous section, in the

background and middle ground layers of the anno-

tation window, the vertical units represent tokens

IVAPP 2020 - 11th International Conference on Information Visualization Theory and Applications

(atomic and transit mode) or bins of tokens (aggre-

gated mode), and in their gray-scale values we encode

an annotation count. The mode of counting laid out

in the following is exempliﬁed schematically in Fig-

ure 4. We say that a token carries (for example) ﬁve

annotations if this token is contained in the extension

of ﬁve annotations’ segments – they could be over-

lapping annotations by one annotator or annotations

by different annotators or a combination thereof. An-

notations with multiple tags contribute only once to

such a count. Now for the middle ground layer in the

atomic and transit mode, we count for each annotated

token how many (overlapping) annotations by the re-

spective annotator it carries; for the background layer,

these ﬁgures are summed up vertically over all users.

For a bin in aggregated mode, this procedure is done

for each of the bin’s tokens and then summed up hor-

izontally to get to the counts for the middle ground

(per user) and the background (total). All of these

counts are normalized and mapped to a gray scale.

In the foreground layer of the annotation win-

dow, the annotations’ main aspects are displayed. The

closer the user zooms in, the more details about these

aspects are shown. For the atomic and transit mode,

we show an annotation’s extension and tags, whereas

for the aggregated mode, where the token bins can cut

across annotation segments, we show, besides tag in-

formation, a count of these cut annotations.

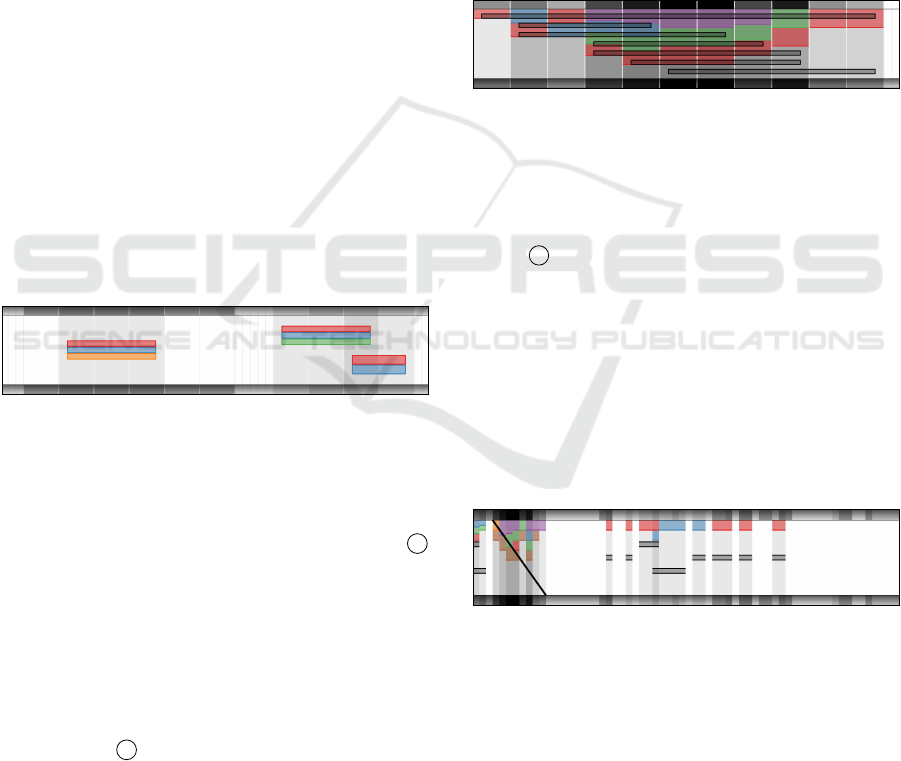

Figure 5: Cut-out in atomic mode. Two chunks: the one on

the left with one annotation with three tags; the one on the

right with two annotations with ﬁve tags in total.

If there is ample space, that is if we are in atomic

mode and there is little overlap of annotation seg-

ments – such as shown in Figure 5 and Figure 3a at C

– an annotation is encoded as a horizontally stretched

rectangle spanning the vertical rectangles of the anno-

tation segment’s tokens. This rectangle is subdivided

into a series of vertically stacked sub-rectangles that

are colored according to the annotation’s tags. The

tag colors are chosen with colorbrewer (Harrower and

Brewer, 2003), using conﬁguration “9-class Set1”.

They show up again in the text window highlights

(see Figure 1 C ), while the usage of colors for ele-

ments other than tags is kept to a minimum in order

to facilitate the visual detection of tag related phe-

nomena. There is a small gap between an annotation

rectangle’s left and right hand borders and the borders

of the respective token rectangles in order to be able

to differentiate between adjacent annotations with the

same tags (R4).

Now, for the problem of annotation overlap, we

introduce a new concept besides tokens and annota-

tions that we call chunks. A chunk shall be a chain

of annotations by a speciﬁc annotator that are linked

through their overlap (see Figure 4). Chunks cut

across the conceptual dichotomy between the verti-

cal token rectangles (that know about all annotators

and all overlapping annotations but only at their posi-

tion in the grid) and the horizontal annotation rectan-

gles (that know about all tokens within their segment

but nothing about other annotations). Within a chunk,

all annotation segments are ordered according to their

beginning and ending tokens and then their respective

rectangles are stacked according to this ordering.

Figure 6: Cut-out in atomic mode. One chunk consisting of

seven annotations; four kinds of tags were assigned.

When a chunk is too large for the whole stack of

annotation rectangles to be displayed in the available

band height in the manner described above, the repre-

sentation of annotations is split (see Figure 6 and Fig-

ure 3a B ): Vertical colored bars, one on each token,

encode in their height the tokens’ respective annota-

tion count for this annotator. Furthermore, each of

these bars is subdivided uniformly into as many seg-

ments as there are tags involved in the annotations that

the respective token carries, and the segments are col-

ored accordingly. Above these bars, thin gray rectan-

gles (black, if hovered) indicate the annotations’ ex-

tensions. However, when the chunk is also too large

for the display of this stack of rectangles, it is repre-

sented by a diagonal line over the token bars.

Figure 7: Cut-out in transit mode. Nine chunks, with the

second too large for the display of the annotation stack.

Now, in transit mode (see Figure 7 and Figure 3b),

there are two differences with respect to the repre-

sentation of annotations in the foreground layer. For

one thing, the gap between the annotation- and the

token border is omitted for want of horizontal space.

For another thing, we apply only the split and more

compressed variant of the representations described

above, even in cases when the vertical space would

sufﬁce to apply the other. While this decision results

in a slight loss of information, we made it for three

AnnoXplorer: A Scalable, Integrated Approach for the Visual Analysis of Text Annotations

reasons. First, the short width of the tokens in tran-

sit mode can lead to very short annotation rectangles,

and therefore we delegate the display of the tag- and

the extension information to two different objects lo-

cated at different parts of an annotator’s band instead

of cramming both into a very small area. Second,

this decision helps to more clearly visually distin-

guish between the atomic and the transit mode (R2).

And third, the intermixing of visual features from the

atomic and the aggregated mode (see below) within

the relatively short transit mode contributes to the

desideratum of visual continuity between the modes

(R2).

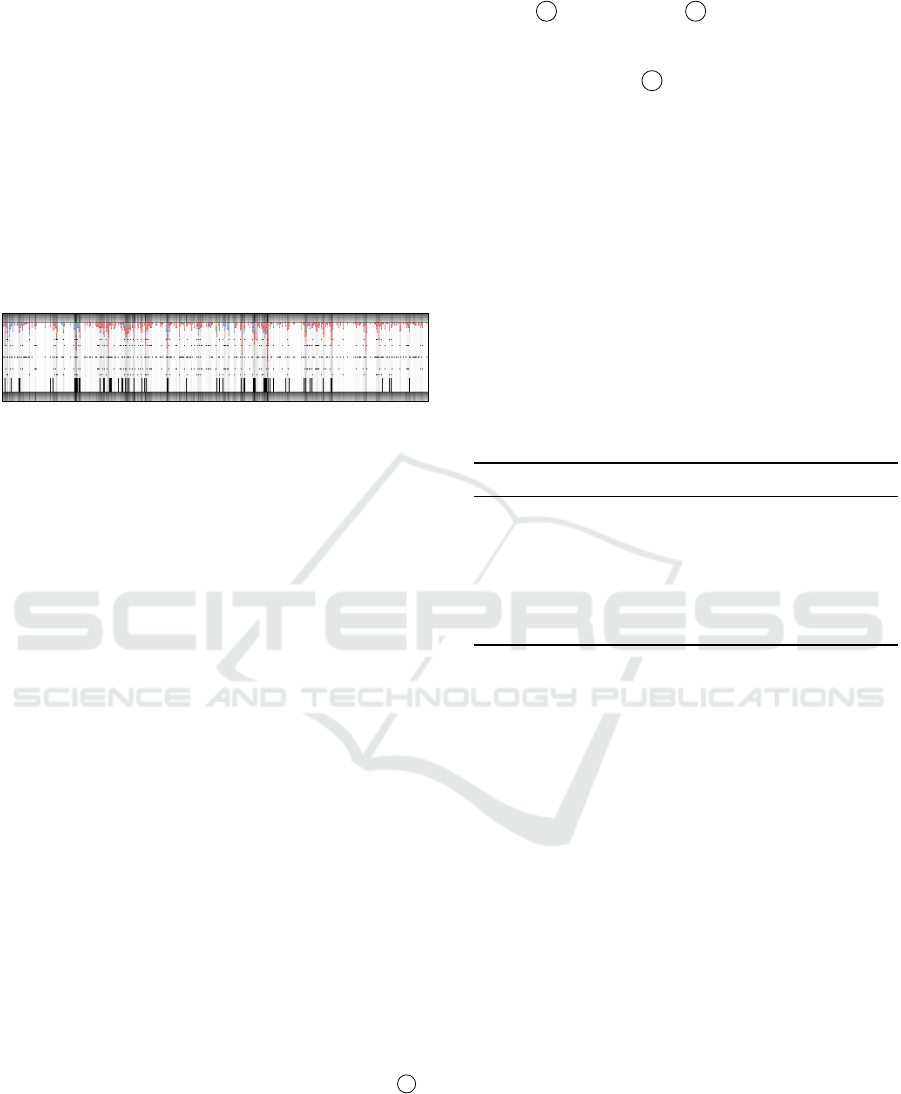

Figure 8: Cut-out in aggregated mode. The counting thresh-

old is four cut annotations.

Finally, in the aggregated mode (see Figure 8

and Figure 3c), we again ﬁnd the colored bars of the

compressed representation variant in the foreground

layer, but now they indicate how many annotations

any of a bin’s tokens took part in and which tags were

involved. Above them, we encode the information

of how many annotation segments (up to a certain

threshold) cut the respective bin as a number of black

dots. Exceeding the counting threshold is indicated

by a black bar over the respective bin in the lower

part of an annotator’s band. Hence, instead of rep-

resenting a chunk’s overlapping annotation segments

– as the top-most, vertical rectangles did in the non-

aggregated modes – the black dots on top now rep-

resent a per-bin information. The information pro-

vided by the colored bars – that is the “amount of ink”

used in annotating within the respective bin (which,

even if substantial, may result from very few but long

annotation-segments) – can thus be compared with

the information provided by the black dots – that is

the local number of annotations (independent of their

respective length).

4.4 Tokens and Types

In the top part of the annotation window, we show the

words of the selected text passage (see Figure 1 F ).

To be more accurate: In the atomic mode, we show

its tokens in the succession that they appear in the

text, and in the transit and aggregated modes, we

show those of its types that are most frequently an-

notated and place them at positions that correlate to

the respective annotations. These tokens and types

react upon hovering (see the yellow highlights at Fig-

ure 3a A and Figure 9 A ), but this highlighting

mechanism will only be described in Subsection 4.5.

First, let us consider the situation in the atomic

mode (see Figure 10 A ). Here, as mentioned in Sub-

section 4.2, the small cardinality of the token selec-

tion allows for displaying all of these tokens’ strings

in a legible font size. They are placed vertically above

the annotators’ bands as part of the background layer.

The string rectangles are of equal width, and since

the width of the token rectangles below depends on

whether the token is part of an annotation segment

or not, the two parts are connected with a trapezoid.

As they are part of the background layer, the string

rectangles’ and the trapezoids’ lightness reﬂect the ac-

cording annotation count (see Subsection 4.3).

Table 2: The types’ data and representation. Row labels:

GT = global tokens, LT/B = local tokens/bins, ITP = ideal

type position, GTC = global type count, LTC = local type

count, TS = type string.

Data Representation

GT Token array (full text)

LT/B Token/bin array (sel.) Indicator ticks

ITP Med. local token-pos.

GTC An. counts (full text) Bar frame height

LTC An. counts (selection) Bar height & color

TS Lemma (Shortened) string

Second, in transit and aggregated mode (see Fig-

ure 9), the selected token range is too large for show-

ing each token’s string. Therefore, on the set of all to-

kens that are part of some annotation (and that are not

stop words), we create a partition by subsuming all

tokens that share a common lemma under this term,

generating a global type based on its array of global

tokens. (See Table 2 for an overview of these data

features and their representations.) For each type, we

then sum up the annotation counts of each of its to-

kens (global type count), and for each type that con-

tains tokens in the current token selection (a local type

and its sub-array of local tokens), we sum up the an-

notation counts of all of its local tokens (local type

count). In the aggregated mode, we furthermore com-

pute the local bins as those bins, that contain at least

one local token. Next, we sort the local types accord-

ing to ﬁrst their local and second their global type

count and select from the top a number of types to

be displayed. This number is chosen such that the

type’s strings within the bars are of legible height.

The ideal middle position of the type bars is com-

puted as the median of the middle positions of all of

its local tokens or bins. We now go through the sorted

selection of types to be displayed and place each type

bar as closely as possible to its ideal position. The

IVAPP 2020 - 11th International Conference on Information Visualization Theory and Applications

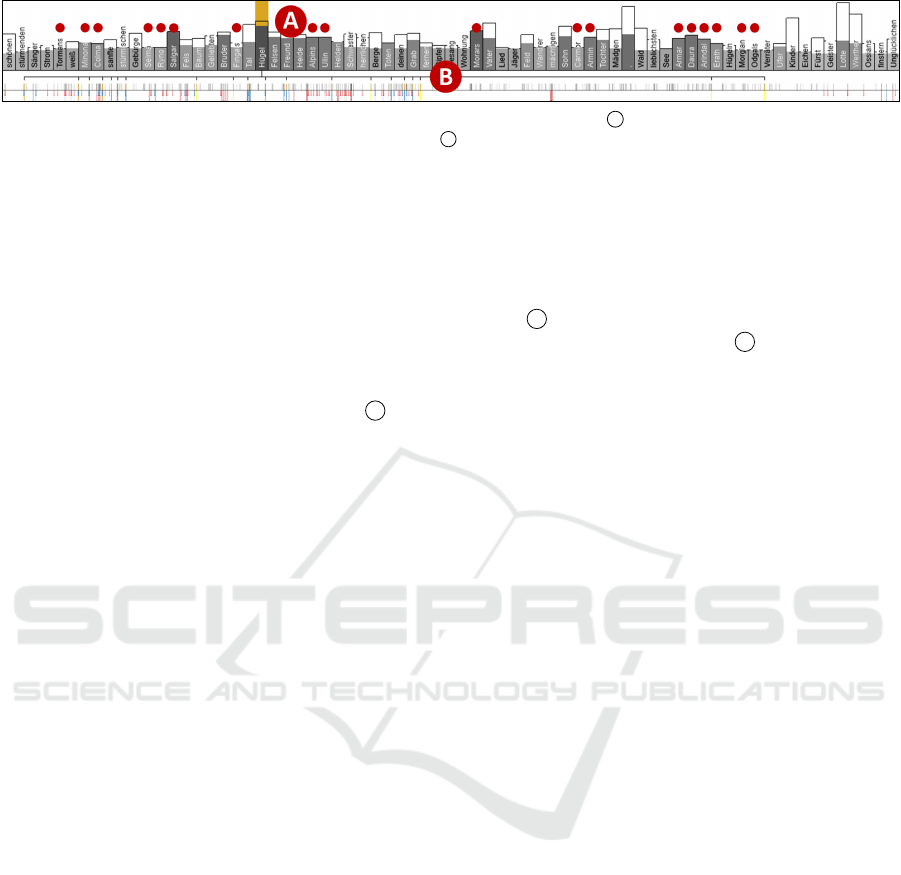

Figure 9: Types in aggregated mode. Interaction: Hover on “H

ugel” to the left of A highlights the type bar and shows 20

local bin positions in the current text selection (tick marks at B ). Red dots (added for reference) mark names (see Section 5).

bars themselves are comprised of three elements: The

gray portion of the bar encodes in its height and in

its lightness the local type count. The black frame

(which contains a gap for long type strings) encodes

in its height the global type count. And ﬁnally, the

type string, which is shortened to an ellipsis for long

strings, is shown in a manner to provide maximal con-

trast: black on the white background and black or

white on the bar, depending on its gray value. (Hence,

white font indicates a local type count above some

threshold.) Finally, below the type bars at B , and

hence in the region where in the atomic mode the

trapezoids connect token string- and background rect-

angles, this task of connecting is now delegated to a

series of tick marks that indicate the number and po-

sition of a type’s local tokens or bins. These ticks,

together with their connecting bar, also appear only

upon the highlighting via mouse hover, that will be

laid out in the following section.

4.5 Text Window and Highlighting

In the text window, the text is shown together with

basic annotation marks. The portion currently not

selected is grayed out. To connect the text window

with the overview and annotation windows, we pro-

vide three basic mechanisms that we discuss in the

following: scrolling, highlighting and freezing.

The text window can be scrolled manually, but af-

ter altering the brush selection in one of the two win-

dows above, the most relevant portion of the text is

scrolled into view automatically.

The highlighting mechanism has, on the one hand,

a static part, namely the basic annotation marks on

the text tokens. Such a mark consists of an under-

line colored either according to the annotations’ tags

(if there is a unique tag) or black if there are multi-

ple tags in the annotations that this token carries. The

extension and borders of such an underline are de-

ﬁned by the union of all annotators’ chunks’ exten-

sions. On the other hand, for the dynamic part of the

highlighting mechanism, there are a handful of means

we apply: All type-, token- or bin-based units can

be highlighted in a bright or dark yellow color (de-

pending whether they carry annotations or not), and in

the foreground layer, tag-colored units are highlighted

by making them fully opaque (or black). Similarly,

the tag-colors are used to highlight annotations in the

text, and the text underlines discussed above can be

extended to a frame in order to mark a chunk of anno-

tations. Finally, marks are used below the type band

in order to indicate where the current text position can

be found in the annotation window (triangle at Fig-

ure 3b B ), and where a type’s local tokens or bins can

be found (tick marks at Figure 9 B ).

Now as for the way these means are applied via

mouse hover, we can differentiate between doing so

on elements that are assigned to a speciﬁc annotator

and on elements that are not. For the latter, such as

the tokens in the text window, the token and types

in the annotator window, and the background layer

elements, all corresponding elements of all annota-

tors are highlighted. For the former, especially the

middle- and foreground elements in the atomic and

transit modes, we can discriminate the elements more

precisely, which allows for a drill down movement:

While hovering on a background rectangle highlights

all annotations of all users that this token carries

and only marks the respective text token as anno-

tated, hovering on a middle ground rectangle high-

lights only all annotations of one user that the token

carries and marks the token as well as the chunk in

the text, and ﬁnally, hovering on a foreground rectan-

gle (representing an annotation) highlights only this

single annotation and marks in the text the chunk as

well as the annotation (see Figure 10 and Figure 3a).

The last mechanism, which we call freezing, helps

with preserving highlights when switching interac-

tions. Say you read in the text window, come across

an interesting sequence of tokens and want to study

the passage more closely (zooming in) or in a larger

context (zooming out) without loosing this position.

Or say you see a term with a high local type count

and hovering reveals all respective local tokens, and

now you want to zoom in or out without loosing all of

these highlights. By clicking anywhere in the anno-

tation or text window, the currently highlighted ele-

ments are frozen in their current state. Hovering over

other elements may add further highlights. This state

is not lost by changing the selection or even by en-

tering into a different zooming mode. Only a second

click releases this frozen state again. An example for

this highlighting and freezing is given in Figure 10.

AnnoXplorer: A Scalable, Integrated Approach for the Visual Analysis of Text Annotations

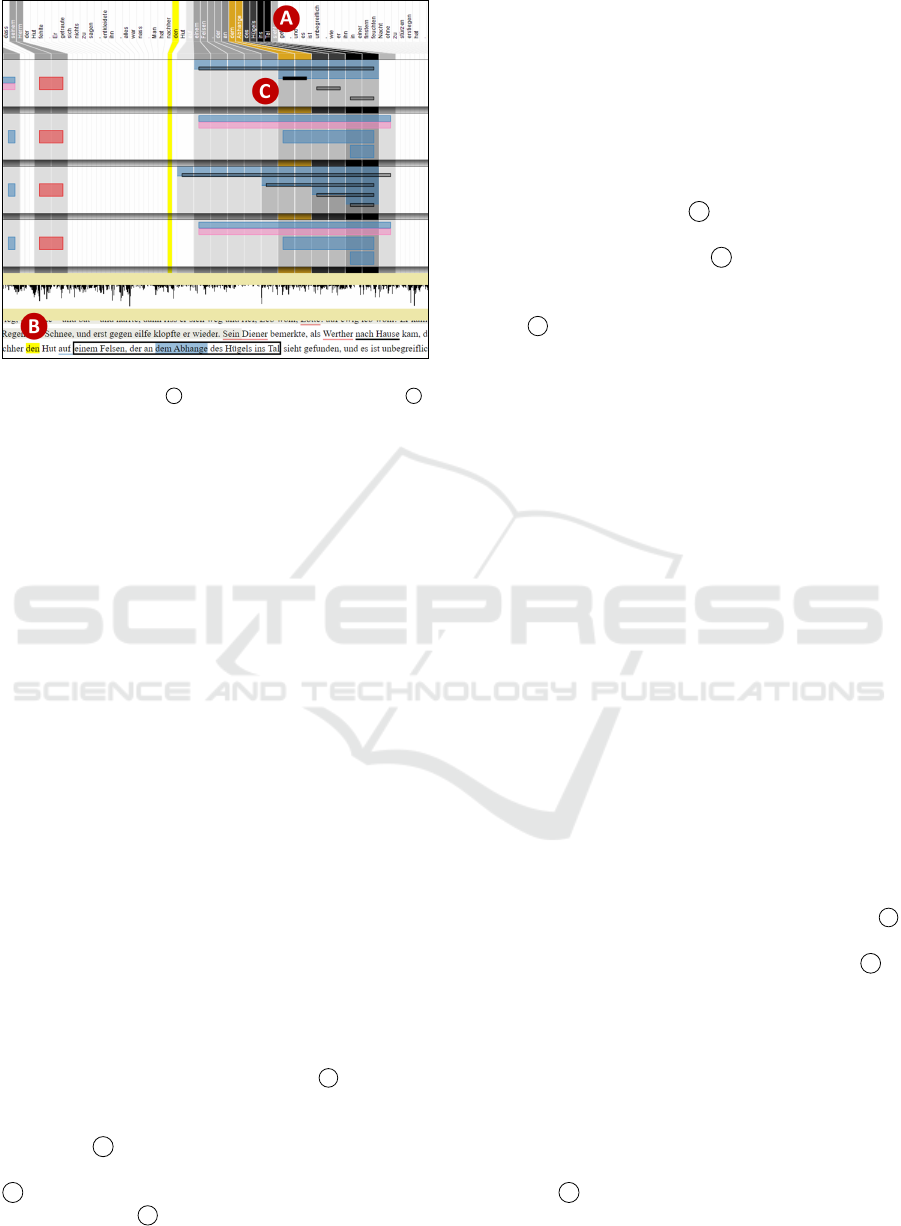

Figure 10: Highlighting and freezing interaction. Hover and

click the annotation at C , then hover the token “den” at B .

5 USAGE SCENARIOS

In order to demonstrate the advantages of our ap-

proach with a real-world example, we investigate the

data set mentioned in the introduction. The source

text is the 18th century novel Die Leiden des jun-

gen Werthers by Johann Wolfgang von Goethe. On

this, our project partners annotated textual entities

in the categories of “person”, “location”, “organiza-

tion”, “event”, “work”, and “concept”. While there

are automatic solutions to the detection of named en-

tities, their accuracy is often insufﬁcient for the needs

of our project partners, especially when the text is

written in an older language variety than the corpora

that the algorithms were trained on. Hence, the man-

ual annotation and gold standard creation is also a

contribution to develop more accurate algorithms for

similar texts.

Annotator Comparison and Pattern Analysis:

First, we consider mainly the annotations’ tags and

extensions across different annotators. Looking at the

whole data set in aggregated mode (see Figure 11), we

immediately can see that mainly red (meaning “per-

son” or character) entities were annotated, an obser-

vation that coincides with the fact that the largest type

bars contain the names of the three main characters

“Lotte”, “Albert”, and “Werther” (see E ). Further-

more, it appears that annotator no. 11 annotated more

sparsely than the others, especially in the passage to

the left of A (T1). We also can see that there are

a few passages with very dense annotations (e.g. at

D ). By quickly inspecting them with the lens (by

right-clicking at B ), we identify those passages that

we want to have a closer look at and zoom in. Two

passages identiﬁed in this way are shown in atomic

mode in Figure 3a and Figure 10. In Figure 3a, be-

sides red character annotations there are blue “loca-

tion” annotations in a constellation with quite some

overlap and disagreement. In Figure 10, the annota-

tors disagree in their assessment of a series of nested

locations. The pink tags mark annotations for resub-

mission that annotators were unsure about while cre-

ating them. In Figure 3a, we can see from the dark

color in the background at A , that the location token

“St.” is the most annotated and hence most deeply

nested token. In Figure 10 at A , the same holds true

for the tokens “ins Tal” (“into+the valley”). In the

cases with a chunk size larger than three (e.g. at Fig-

ure 3a B ), we can hover over the reduced annotation

rectangles to show the respective tags as highlights in

the text, which disambiguates the allocation of tags.

Without going into further details about the annotated

text, we can see that there are some commonalities

between the two passages: In both, annotators no. 12

and 26 seem to more or less agree in their assess-

ment, and furthermore, they tagged annotations for

resubmission. In both, annotator no. 13 nested more

strongly, whereas annotator no. 11 opted to anno-

tate the entities more separatingly (T2, T3). These

ﬁndings can be summarized to formulate a hypothe-

sis about the annotators’ preferences, with the ﬁnal

goal to further reﬁne the project’s annotation guide-

lines. This hypothesis can be further supported by

ﬁrst rearranging the annotator bands to bring annota-

tors no. 12 and 26 into immediate adjacency and then

sliding the brush through the overview window at dif-

ferent zoom levels, while keeping a close eye on the

respective passages in the text window.

Analysis of Annotated Token Distribution: Sec-

ond, we consider mainly the annotated tokens and

types and their context. We start with an overview

of the text in aggregated mode (see Figure 11). Hov-

ering over the largest type bars, we can see that for the

top three of them – the main characters’ names at E

– the annotations are spread all over the text; for the

fourth, however – the type “H

ugel” (“hill”) at C –

the annotations are concentrated in a small region to-

wards the end, as the tick marks and yellow highlights

indicate (T1). We freeze these highlights by clicking

and zoom into a passage large enough to encompass

all “H

ugel” occurrences except for a few outliers; it is

shown in transit mode in Figure 1. We can see here

that some of the most annotated types in this passage

are character names that appear almost exclusively in

annotations in this passage, like “Salgar”, “Alpin”, or

“Ullin” at H . Reading the respective passage in the

text window shows that it is part of a short embed-

ded narrative. We enlarge the brush slightly in the

IVAPP 2020 - 11th International Conference on Information Visualization Theory and Applications

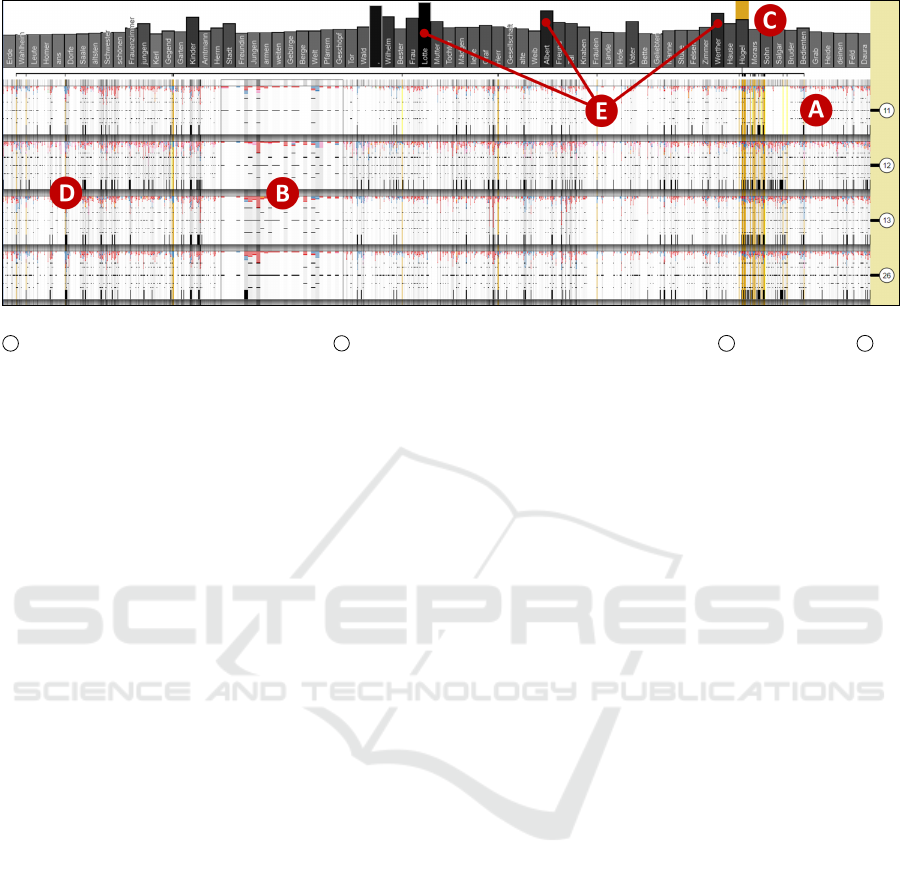

Figure 11: The Werther data set. Fully zoomed out annotation window in aggregated mode. Interaction: The type “H

ugel” at

C is hovered and the highlights are frozen; at B , the lens is brought up. Sparse region to the left of A , dense region at D .

overview window, such that it contains the embedded

narrative, and can see in the corresponding type bars

a series of further character names, that were almost

exclusively annotated in this short passage, while the

main characters’ names do not show up at all (see red

dots in Figure 9). Furthermore, “H

ugel” is still the

most annotated type here (T4). Based on these ﬁnd-

ings, it is now an interesting task for an analyst to

consider the role that a hill or hills play in this em-

bedded narrative and how the remaining references to

hills in the rest of the text relate to that.

6 EXPERT FEEDBACK AND

DISCUSSION

As mentioned in Section 3, we developed our ap-

proach within the frame of an interdisciplinary re-

search project. In a series of workshops we got feed-

back from our domain experts about their needs re-

lating to their annotation tasks and could continually

incorporate respective features. The approach was as-

sessed favorably and our partners showed great inter-

est in deploying our tool within their annotation cam-

paigns. During a ﬁnal workshop, a mixed group of

ten experts from several text-related ﬁelds – PhD stu-

dents, post doctorands, and professors – assessed the

tool, and we will sum up and discuss the most impor-

tant beneﬁts, drawbacks and wishes they formulated.

As far as the negative feedback is concerned, our

partners remarked that an inexperienced user may ﬁnd

it difﬁcult to gather all information needed to get an

idea of the situation at hand. For some annotation

tasks with the need for many tags, we would run out of

tag colors quickly. Furthermore, it was remarked that

the way that the types feature is implemented – with

the bar position at the median of the local token/bin

positions – the bars may jump around upon moving

the brush, which makes it difﬁcult to follow its evolu-

tion, for example with respect to the local type count.

Now, while we could mitigate this problem by apply-

ing animated transitions, the basic impression of some

turmoil and abruptness would remain, since it has its

cause in the general way that the type bars are posi-

tioned. This positioning, however, has its beneﬁts for

the analysis, and they shine up during the inspection

of the static views. The decision to update the view

continuously during a brush move – instead of only

once after the brush end event – has consequences

also for other parts of the view. While it makes the

interaction more computationally expensive, it allows

the user to directly follow the evolution of annota-

tion aspects over the course of the text. The question

whether it would be better overall to offer a succes-

sion of discrete, static views (with respect to selection

actions) instead of continuous updates, would have to

be further investigated by means of a user study.

One of the most asked for features by the experts

was to be able to ﬁlter the displayed annotations for

tags or for agreement. In the version presented here,

this wish could at least be fulﬁlled with respect to the

tag ﬁlters. Another wish was to display structural fea-

tures of the text, such as chapter segments or lines for

poetic texts, also in the overview and/or annotation

window. Finally, they would also like to see the num-

bers computed, such as the local type count, not only

in a visual encoding but also explicitly via tooltips.

What the experts liked was for example how the

automatic scrolling feature of the text view facilitates

the navigation during their analysis tasks. Further-

more, they remarked that the visualization of overlap-

ping annotations would be well suited for displaying

nested structures like narrative levels.

Let us now discuss a few additional points of gen-

eral interest. A design feature that bears many con-

AnnoXplorer: A Scalable, Integrated Approach for the Visual Analysis of Text Annotations

sequences and warrants a critical review is the re-

binning in aggregated mode. As described in Sub-

section 4.2, we compute the bins anew each time the

brush selection is altered. While in doing so we ad-

here to our maximality principle (R4), we introduce

problems with the tool’s performance (some things

cannot be precomputed) and with global comparison

(there are no bins “outside” of the current selection).

Another problem arises with very long texts.

Namely we can run into the situation that the bins’

size in the overview window is larger than the thresh-

old below which we would enter atomic mode. Since

the overview’s brush rectangle cannot get smaller than

one pixel, we would be unable to reach the atomic

mode at all. This needs to be dealt with, and a remedy

might use ideas similar to the ones laid out in (Koch

et al., 2014) and (Javed and Elmqvist, 2013).

Finally, a fundamental decision is whether to show

the overview and annotation windows in landscape

mode, as it is now, or rotated by 90 degrees in por-

trait mode. While the latter would have the advantage

that the token and types would not have to be read

with a twisted neck and that the aspect ratio of the

text window would be more comfortable for reading,

the advantage of landscape mode is that the tokens are

arranged in a grid from left to right instead of top to

bottom – which seems like a more natural succession

for a western text’s words and allows for a parallel

movement in the text and annotation windows.

7 CONCLUSION AND FUTURE

WORK

We presented in this paper an approach to analyze text

annotation data that show complexities along multi-

ple dimensions. It is built around the core concept

of a combined geometric/semantic zooming mecha-

nism. We argued that our design decisions are de-

rived from a requirement and task analysis, and initial

user feedback indicates the general appropriateness of

these decisions. We believe that the approach can be

intuitively understood and supports a wide range of

tasks. However, longitudinal studies are to be under-

taken to substantiate this hypothesis. In order to fur-

ther develop our approach into a fully ﬂedged annota-

tion tool more features will be added.

In this respect, the ability to generate and edit an-

notations directly within the tool seems vital. But also

further analytical features such as pattern recognition,

automatic sorting mechanisms, inter-annotator agree-

ment measures, automatic alignment mechanisms, or

ﬁlter and search facilities should be added.

With respect to the annotation data, we would like

to support the analysis of annotations that may be

discontinuous, that encompass long extensions, that

contain fuzzy borders or other kinds of uncertainty,

or that are related among each other. We would like

to open the tool also for further types of sequential

source signals other than natural language text, such

as genome data or event sequences.

Finally, we would like to increase the tool’s scal-

ability also with respect to the number of annotators

and with respect to the number and structure of tags,

like with a hierarchical tag set.

ACKNOWLEDGEMENTS

This work has been funded by the German Federal

Ministry of Education and Research (BMBF) as part

of the CRETA project. The annotation data set we pre-

sented was created by Sandra Murr, Institute of Liter-

ary Studies, University of Stuttgart, and her team of

annotators. We would like to thank the four anony-

mous reviewers for their helpful comments and sug-

gestions.

REFERENCES

Abdul-Rahman, A., Roe, G., Olsen, M., Gladstone, C.,

Whaling, R., Cronk, N., Morrissey, R., and Chen, M.

(2017). Constructive Visual Analytics for Text Simi-

larity Detection. Comput. Graph. Forum, 36(1):237–

248.

Albers, D., Dewey, C., and Gleicher, M. (2011). Se-

quence Surveyor: Leveraging Overview for Scalable

Genomic Alignment Visualization. IEEE Trans. Vis.

Comput. Graph., 17(12):2392–2401.

Albers Szaﬁr, D., Stuffer, D., Sohail, Y., and Gleicher,

M. (2016). TextDNA: Visualizing Word Usage with

Conﬁgurable Colorﬁelds. Comput. Graph. Forum,

35(3):421–430.

Alexander, E., Kohlmann, J., Valenza, R., Witmore, M., and

Gleicher, M. (2014). Serendip: Topic Model-Driven

Visual Exploration of Text Corpora. In Proc. IEEE

Conf. Vis. Anal. Sci. Technol. (VAST), pages 173–182.

Baumann, M., Koch, S., Minasyan, H., and Ertl, T. (2018).

Zooming on Tokens: Seamless Display Modes for

Annotation Analysis. In IEEE VIS 2018 Posters.

Bostock, M. (2019). D3: Data-Driven Documents. https:

//d3js.org/. 10.09.2019.

Chandrasegaran, S., Badam, S. K., Kisselburgh, L., Ra-

mani, K., and Elmqvist, N. (2017). Integrating Vi-

sual Analytics Support for Grounded Theory Practice

in Qualitative Text Analysis. Comput. Graph. Forum,

36(3):201–212.

Choo, J., Lee, C., Reddy, C. K., and Park, H. (2013).

UTOPIAN: User-Driven Topic Modeling Based on

IVAPP 2020 - 11th International Conference on Information Visualization Theory and Applications

Interactive Nonnegative Matrix Factorization. IEEE

Trans. Vis. Comput. Graph., 19(12):1992–2001.

Cockburn, A., Karlson, A., and Bederson, B. B. (2009).

A Review of Overview+Detail, Zooming, and Fo-

cus+Context Interfaces. ACM Comput. Surv., 41(1):1–

31.

Correll, M., Bailey, A. L., Sarikaya, A., O’Connor, D. H.,

and Gleicher, M. (2015). LayerCake: A Tool for the

Visual Comparison of Viral Deep Sequencing Data.

Bioinformatics, 31(21):3522–3528.

Correll, M., Witmore, M., and Gleicher, M. (2011). Explor-

ing Collections of Tagged Text for Literary Scholar-

ship. Comput. Graph. Forum, 30(3):731–740.

Culy, C. and Lyding, V. (2010). Double Tree: An Advanced

KWIC Visualization for Expert Users. In Proc. 14th

Int. Conf. Inf. Vis. (IV), pages 98–103.

Eckart de Castilho, R., Biemann, C., Frank, A., Gurevych,

I., Hartmann, S., Mujdricza-Maydt, E., and Yimam,

S. M. (2016). A Web-based Tool for the Integrated

Annotation of Semantic and Syntactic Structures. In

Proc. Workshop Lang. Technol. Resour. and Tools for

Digit. Humanities (LT4DH), pages 76–84.

Eick, S. G., Steffen, J. L., and Sumner, Jr., E. E. (1992).

Seesoft: A Tool For Visualizing Line Oriented Soft-

ware Statistics. IEEE Trans. Softw. Eng., 18(11):957–

968.

El-Assady, M., Sevastjanova, R., Gipp, B., Keim, D. A.,

and Collins, C. (2017). NEREx: Named-Entity Re-

lationship Exploration in Multi-Party Conversations.

Comput. Graph. Forum, 36(3):213–225.

Fort, K. (2016). Collaborative Annotation for Reliable Nat-

ural Language Processing: Technical and Sociologi-

cal Aspects. Focus Series. Wiley, London, UK.

Geng, Z., Cheesman, T., Laramee, R. S., Flanagan, K.,

and Thiel, S. (2013). ShakerVis: Visual Analysis of

Segment Variation of German Translations of Shake-

speare’s Othello. Inf. Vis., 14(4):273–288.

Gold, V., Rohrdantz, C. T., and El-Assady, M. (2015). Ex-

ploratory Text Analysis using Lexical Episode Plots.

In Eurographics Conf. Vis. (EuroVis) - Short Papers,

pages 85–89.

Harrower, M. and Brewer, C. A. (2003). ColorBrewer.org:

An Online Tool for Selecting Colour Schemes for

Maps. Cartogr. J., 40(1):27–37.

Javed, W. and Elmqvist, N. (2013). Stack Zooming for Mul-

tifocus Interaction in Skewed-Aspect Visual Spaces.

IEEE Trans. Vis. Comput. Graph., 19(8):1362–1374.

Jerding, D. F. and Stasko, J. T. (1998). The Information

Mural: A Technique for Displaying and Navigating

Large Information Spaces. IEEE Trans. Vis. Comput.

Graph., 4(3):257–271.

Keim, D. A. and Oelke, D. (2007). Literature Fingerprint-

ing: A New Method for Visual Literary Analysis. In

Proc. IEEE Symp. Vis. Anal. Sci. Technol. (VAST),

pages 115–122.

Kleymann, R., Meister, J. C., and Stange, J.-E. (2018). Per-

spektiven kritischer Interfaces f

ur die Digital Human-

ities im 3DH-Projekt. In Proc. 5th DHd, pages 279–

283.

Koch, S., John, M., W

orner, M., M

uller, A., and Ertl, T.

(2014). VarifocalReader: In-Depth Visual Analysis

of Large Text Documents. IEEE Trans. Vis. Comput.

Graph., 20(12):1723–1732.

Kucher, K. and Kerren, A. (2015). Text Visualization Tech-

niques: Taxonomy, Visual Survey, and Community

Insights. In Proc. IEEE Pac. Vis. Symp. (PaciﬁcVis),

pages 117–121.

Kuhn, J. (2019). CRETA: Center for Reﬂected Text Analyt-

ics. https://www.creta.uni-stuttgart.de/. 09.12.2019.

Landragin, F., Poibeau, T., and Victorri, B. (2012).

ANALEC: A New Tool for the Dynamic Annotation

of Textual Data. In Proc. 8th Int. Conf. Lang. Resour.

and Eval. (LREC), pages 357–362.

Liu, S., Wang, X., Collins, C., Dou, W., Ouyang, F.,

El-Assady, M., Jiang, L., and Keim, D. A. (2019).

Bridging Text Visualization and Mining: A Task-

Driven Survey. IEEE Trans. Vis. Comput. Graph.,

25(7):2482–2504.

Meister, J. C., Petris, M., Gius, E., and Jacke, J. (2016).

CATMA 5.0: Software for Text Annotation and Anal-

ysis. http://catma.de/. 15.03.2019.

Monroe, M., Lan, R., Lee, H., Plaisant, C., and Shneider-

man, B. (2013). Temporal Event Sequence Simpliﬁca-

tion. IEEE Trans. Vis. Comput. Graph., 19(12):2227–

2236.

Oelke, D., Spretke, D., Stoffel, A., and Keim, D. A. (2012).

Visual Readability Analysis: How to Make Your Writ-

ings Easier to Read. IEEE Trans. Vis. Comput. Graph.,

18(5):662–674.

Shneiderman, B. (1996). The Eyes Have It: A Task by

Data Type Taxonomy for Information Visualizations.

In Proc. IEEE Symp. Vis. Lang. (VL), pages 336–343.

Strobelt, H., Gehrmann, S., Pﬁster, H., and Rush, A. M.

(2018). LSTMVis: A Tool for Visual Analysis of Hid-

den State Dynamics in Recurrent Neural Networks.

IEEE Trans. Vis. Comput. Graph., 24(1):667–676.

Wattenberg, M. and Vi

egas, F. B. (2008). The Word Tree,

an Interactive Visual Concordance. IEEE Trans. Vis.

Comput. Graph., 14(6):1221–1228.

Widl

ocher, A. and Mathet, Y. (2012). The Glozz Platform:

A Corpus Annotation and Mining Tool. In Proc. ACM

Symp. Doc. Eng. (DocEng), pages 171–180.

Wise, J. A., Thomas, J. J., Pennock, K., Lantrip, D., Pottier,

M., Schur, A., and Crow, V. (1995). Visualizing the

Non-Visual: Spatial Analysis and Interaction with In-

formation from Text Documents. In Proc. IEEE Symp.

Inf. Vis. (InfoVis), pages 51–58.

AnnoXplorer: A Scalable, Integrated Approach for the Visual Analysis of Text Annotations
