Vague Visualizations to Reduce Quantiﬁcation Bias in Shared Medical

Decision Making

Michela Assale, Silvia Bordogna and Federico Cabitza

Universita degli Studi di Milano-Bicocca, Viale Sarca 336, 20126, Milano, Italy

Keywords:

Uncertainty Visualization, Medical Decision Making, Visual Metaphor.

Abstract:

This paper aims to contribute to the research focusing on how to render properly uncertainty in decision

making, especially in regard to classiﬁcation (like in medical diagnosis) or risk prediction (like in medical

prognosis). Information visualizations leverage perception to convey information on data in ways that make

their interpretation easier. Unfortunately, many visualizations omit uncertainty or communicate it less than

effectively. We devised a novel way, which we call vague visualization, to render uncertainty without convert-

ing it in any numerical or symbolic form, and tested the usability and task ﬁtness of these alternative solutions

in a user study that involved a panel of lay people (as proxies of potential patients). In so doing, we aimed

to understand whether our solutions facilitate (or at least do not hinder) communication and understanding

of probabilistic estimates in a medical context, and if one solution is more effective than the others. We ob-

served that three different vague visualizations convey the right sense of risk with respect to chance (50%) of

percentage shown, and inspire an interpretation of the magnitude of the percentages that replicates the typi-

cal response of decision making under uncertainty condition. We then claim that these methods are effective

because they allow for data interpretations that are uncertain (vague), and yet correct and compatible with

appropriate decisions and actions.

1 INTRODUCTION

This paper aims to contribute to the research focusing

on how to render and present uncertainty to the de-

cision makers in proper ways, especially in regard to

classiﬁcation (like in medical diagnosis) or risk pre-

diction (like in medical prognosis).

One could rightly observe that deﬁning a “proper

way” here is not a trivial task. If decisions can be as-

sessed as being either right or wrong (even a posteri-

ori), then a proper way is the way that helps decision

makers increase or maintain an acceptable accuracy.

However, there many decisions that cannot be traced

back to a matter of “right or wrong”. For instance, in

medicine (that is our reference domain), when uncer-

tainty regards an estimate of the probability of reach-

ing a speciﬁc condition after a treatment, one could

compare different ways to present the odds and risk

of a set of options and focus on their role in suggest-

ing the option that helps get the best health outcome,

or helps predict the effects of the intended course of

action.

https://orcid.org/0000-0002-4065-3415

This approach can be denoted as consequential-

ist (as it focuses on the consequences of a decision)

and purposely disregards whether the decision mak-

ers have “understood” the extent estimate of proba-

bility on risk. Although this is probably the sound-

est approach, it is difﬁcult to pursue. Similarly to

other researches (e.g., (Kosara et al., 2001; Finger and

Bisantz, 2002; MacEachren et al., 2005; Kinkeldey

et al., 2014)), we also equate the “proper way” in

terms of the accuracy of those who reads the visu-

alization to reconstruct the quantitative estimates be-

hind it: the more effective is the visualization (of un-

certain estimates), the easier to get the uncertain quan-

tities therein represented (Mackinlay, 1986).

However, we would argue that effectiveness

should not be optimized, but rather the embodied un-

derstanding of the uncertainty involved. Failing to

achieve this understanding could be the main reason

why “many visualization authors choose not to visu-

alize uncertainty” (Hullman, 2019). In this paper we

investigate purposely uneffective methods to convey

a perception of uncertainty that not necessarily must

be translated into quantitative numbers.

This contributes to the research on the role

Assale, M., Bordogna, S. and Cabitza, F.

Vague Visualizations to Reduce Quantiﬁcation Bias in Shared Medical Decision Making.

DOI: 10.5220/0008969802090216

In Proceedings of the 15th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 3: IVAPP, pages

209-216

ISBN: 978-989-758-402-2; ISSN: 2184-4321

209

of quantiﬁcation in modern society (Porter, 1996),

where it is generally critically reﬂected on the ways

in which the hard sciences tend to quantify uncer-

tainty, for instance in terms of probabilities or con-

ﬁdence scores, i.e., as real numbers between 0 and 1

(or, equivalently, in terms of percentages). This way

to present uncertainty is appealing, especially for its

role in making decision makers get an intellectual, ab-

stract, symbolic comprehension of the probabilities

involved, but it can also lead to what is called quan-

tiﬁcation bias, to denote both a sort of “overestima-

tion of the importance of quantiﬁcation in deﬁning the

concept of risk” (Boholm, 2019) and an over-reliance

on quantiﬁed thresholds to make a decision. For in-

stance, if a treatment is associated with a probability

of positive outcome of .78, it is considered more likely

to be effective than an alternative treatment that is as-

sociated with a probability of .75 even if the margin

of error is 5%; another common case of quantiﬁcation

bias occurs in statistical analysis, whenever only ﬁnd-

ings associated to an observed conﬁdence level (or P

value) lower than .05 are considered “signiﬁcant”

However, it is a truism that many aspects in med-

ical observations, which can lead to probability es-

timates, cannot be quantiﬁed: quantifying those as-

pects is convenient and sometimes acts as an effective

approximation for any practical aim, but it is still a

recognized fallacy in medical reasoning and decision

making (O’Mahony, 2017): render signs or symptoms

in terms of numbers on ordinal scales, or clear-cut cat-

egories, does not make them more objective or free

from noise, error and uncertainty.

According to this approach to uncertainty, data vi-

sualizations usually render the quantities related to

probabilistic estimates in visual forms that allow their

users to derive numerical values quite straightfor-

wardly; and purposely so: for instance, in terms of

position along graduated scales; or segments of spe-

ciﬁc length in a Cartesian plane; or, less frequently,

as angles, areas and color shading. In fact, a oft-cited

paper (Cleveland and McGill, 1984) ranks these dif-

ferent methods according to the accuracy of the com-

parisons that they enable, suggesting to avoid the lat-

ter encodings (like areas and shading) as too vague for

the human perceptual systems.

In this study we purposely pursue vagueness as a

way to provide decision makers with a less cognitive

and more immediate, concrete feeling of the uncer-

In more sophisticated settings, also the conﬁdence in-

tervals can be computed and presented, but this does not

change the main evaluation process: if the lower band of an

interval estimate is higher than the upper band of the other

one, then the two quantities are considered different to any

practical aim.

tainty that affects a speciﬁc condition, or prospect. To

this aim, we devised some alternative vague visual-

izations (VV). A VV is a pictorial image to which a

visual effect is applied proportionally to the amount of

uncertainty that we want to convey with the VV (see

Figure 2 for some examples).

We consider VV as an “extreme” way to render

uncertainty, to some extent even more extreme and

difﬁcult to decode than areas and color shading; their

purpose is to represent uncertainty by means of a per-

ceptual analogous that could hinder, rather than facil-

itate, the comprehension of the underlying numerical

estimation, as this is how uncertainty works!

In this paper we report about the ﬁrst user study on

the use of VV. In particular, we simulated the use of

VV in shared decision making (Barry and Edgman-

Levitan, 2012), that is a situation in which both doc-

tors and patients have to consider the odds of a series

of treatments to understand which one to undertake.

This study is a preliminary step before we can sug-

gest the adoption of VV in the real world and their in-

tegration in computational decision support systems.

We wanted to test their capability to challenge the

users without mislead them, and assess the extent our

different methods could trigger the right interpreta-

tion of the underlying probabilities. In particular, in

this user study we considered two related research

questions, which we will consider in Section 3: in

short whether VV allow to ascertain relative differ-

ences between quantities, and their absolute magni-

tude, at least coarsely. We achieved signiﬁcant ﬁnd-

ings on these aspects, which we will discuss in Sec-

tion 5.

2 RELATED WORK

2.1 Visualization of Uncertainty

Visualization can be an important means to help peo-

ple understand the complex concept of uncertainty.

Although a wide variety of visualizations have been

created to communicate uncertainty, there is limited

empirical and widespread evidence of how alterna-

tive formats affect human understanding and deci-

sion making and why one solution is better than an-

others. There are several reasons why it is not yet

well established which are the best formats to use,

but both hue and color have been observed to be the

preferred channel to convey a sense of uncertainty in

readers (Hullman et al., 2018).

A comparative study (MacEachren et al., 2012)

has assessed the best visual variables to communicate

uncertainty through a system of symbols involving

IVAPP 2020 - 11th International Conference on Information Visualization Theory and Applications

210

color value, color hue, size, color saturation, location,

orientation, grain, arrangement, shape, fuzziness and

transparency (Figure 1). Among these means, fuzzi-

ness and location were associated with the best results

in terms of intuitiveness, followed by color value, ar-

rangement, size and transparency. On the contrary,

saturation, which is commonly considered to be re-

lated to uncertainty, was ranked low. MacEachren and

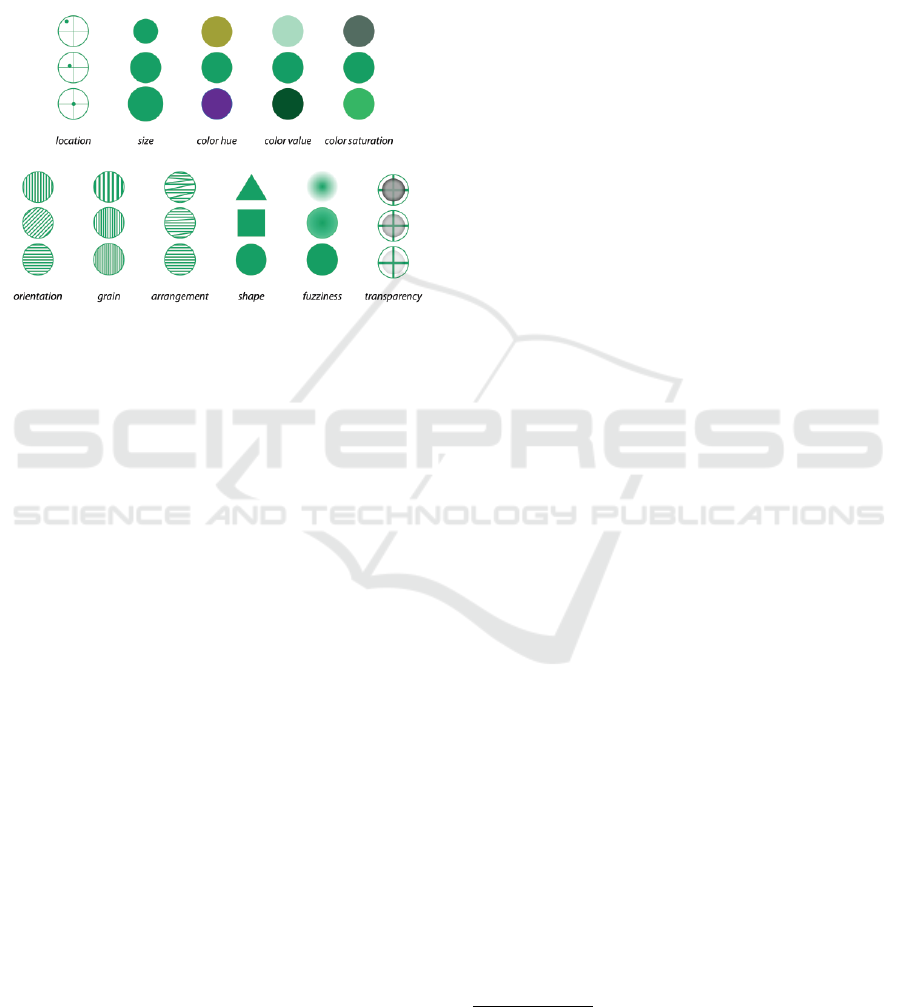

Figure 1: Visual variables taken from (MacEachren et al.,

2012).

colleagues conﬁrmed that abstract sign-vehicles can

lead to quicker, though possibly less accurate, judg-

ments. An important concept to consider is the role

of the visual metaphor, by which fog and blur are

metaphors for the lack of clear vision and therefore

could be interpreted more quickly as signs of uncer-

tainty (Kinkeldey et al., 2014). Resolution variation

was tested in a study (Finger and Bisantz, 2002) in

which the authors use resolution to represent uncer-

tainty (with coarser resolution associated with higher

uncertainty) and found that users can adequately un-

derstand the message.

Some researchers (Slocum et al., 2003) evaluated

the effectiveness of intrinsic vs. extrinsic visualiza-

tion techniques. They compared colour coding, trans-

parency and line glyphs. In their user study, they

found that those with a scientiﬁc background pre-

ferred glyphs, while less experienced users preferred

color coding and transparency. This conﬁrms that the

most appropriate technique also depends on the pur-

pose and capabilities of the target audience.

3 METHOD

In this section, we illustrate the empirical study that

we aimed at the evaluation of the use of Vague Visu-

alizations (VVs) to understand probability estimates

and risk scores. In particular, we assessed the repre-

sentational effectiveness of three image effects: blur,

transparency and noise in rendering a probability

value (in what follows we use this expression as

equivalent to risk score). With representational ef-

fectiveness we mean the extent a solution allows for

accurate answers, that is it does not mislead the user

in the interpretation of a probability value. In fact, as

we wrote in Section 1, the proposal of VVs in med-

ical interfaces is aimed at reducing the users’ over-

reliance on quantitative representations and having

them avoid the quantiﬁcation fallacy and bias. How-

ever, VV must not hinder comprehension to the point

of misleading interpreters of medical facts, like, e.g.,

if a dichotomous outcome is more likely than mere

chance, or the odds for recovery are more than 1 (i.e.,

in both cases, above the 50% probability threshold).

Thus, we can formulate the following two re-

search questions that we will address in the rest of

the study.

1. Do VVs support (or hinder) the comprehension of

probability estimations?

We relate this question

to an effectiveness analysis of the VVs involved.

2. In case the former question has a positive answer,

is there any effect that is better (i.e., more efﬁ-

cient/more effective/less misleading) than the oth-

ers? We relate this question to a comparative anal-

ysis among alternative VVs.

Finding a positive answer for the former question

would allow to demonstrate the feasibility of our pro-

posal. Finding a positive answer for the second ques-

tion would give recommendations for the adoption of

a speciﬁc effect in medical applications.

3.1 Context

The domain of this application is the medical one, in

particular the interpretation of medical results com-

ing from decision support systems and probabilistic

models. Many statistical models can yield a proba-

bility score associated with a given classiﬁcation or

the likelihood of a certain event to happen. Instead of

representing the uncertainty related to this conﬁdence

or estimated likelihood with a parameter and related

conﬁdence interval we want to express probabilis-

tic uncertainty by means of visual uncertainty (i.e.,

vagueness, indistinctness, fuzziness) to make physi-

cians interpret the results not on the basis of a deﬁned

number but rather on a visual impression.

The quantiﬁcation of a probability in a very spe-

ciﬁc number seems counterproductive in that it can

make us overconﬁdent about machine predictions,

A related question would be: do VVs support the com-

prehension of the uncertainty that is intrinsic to probability

estimation? We do not address this further question here.

Vague Visualizations to Reduce Quantiﬁcation Bias in Shared Medical Decision Making

211

blind to anomalies in data, or wary of intuition,

which nevertheless may have human decision mak-

ers consider clues that the algorithm could not in-

clude (Cukier and Mayer-Sch

onberger, 2013).

Our experiment is based on the conjecture that vi-

sual metaphors make the interpretation of the mes-

sage more intuitive, if not more accurate, and that in-

tuition can be more important of accuracy in many in-

stances of naturalistic decision making (Klein, 2008).

In particular, we focused on three metaphors, or ef-

fects, with which to create a VV: blur, noise and trans-

parency, deﬁned as follows:

1. Blur: the effect that makes contours less deﬁned

creating an out of focus effect;

2. Noise: the random substitution of image pixels

with blank pixel;

3. Transparency: the overlapping of the image with

the background color;

3.2 User Test Design

To test our research questions, we developed a sim-

ple Web-based tool to create VVs

. This tool accepts

any raster picture as input, all together with a proba-

bility value (in percent terms) as parameter; as output

it yields the same picture affected by one of the above

image effects proportionally to the percentage indi-

cated: 100% was associated with the original image

(no effect: 100% purity

); while 0% was associated

with a highly distorting effect (see Figure 2) and max-

imum uncertainty. In doing so, we generated a set of

6 VVs, corresponding to different effect percentages,

that is almost nil, ﬁrst quartile, close to 50%, third

quartile, and almost 100%, respectively: 10, 25, 40,

60, 75, 90.

We then developed an online questionnaire that

could display the above VVs to a number of respon-

dents, mostly bachelor students and acquaintances

whom we invited during class and by email. Respon-

dents participated voluntarily, with no incentives. In

this questionnaire, participants were invited to asso-

ciate each of six different VVs (for each image ef-

fect, 2 VVs randomly chosen from the above gener-

This simple tool, and its code, are available at the

following addresses: https://github.com/PinkLaura/

pixel-e-percentuali and https://pinklaura.github.io/

pixel-e-percentuali/, respectively.

In the pilot test we observed as the respondents found

more natural to cope with the concept of image purity rather

than with the (complementary) concept of image fuzziness

(as a proxy for uncertainty). Thus, we decided that the purer

an image could be perceived, the lower the associated level

of uncertainty, and the higher the probability or risk score

that the user should try to guess by looking at the image.

ated ones), in two tasks of increasing difﬁculty. For

both tasks, we showed a three-VV reference set that

indicated a 0%, 50% and 100% value, respectively.

In the ﬁrst task, the respondents were invited to

select whether the VV, with respect to the reference

set, represented a value either clearly higher, perhaps

higher, perhaps lower or clearly lower than 50% (i.e,

the threshold for purely random decisions). We called

this the relative accuracy (RA) task (in that it regards

accuracy with respect to the random threshold).

In the second task, the respondents were invited

to indicate the exact underlying probability value that

the VV was expressing, by means of a slider ranging

from 0 to 100. We denoted the second task as the

absolute accuracy (AA) task.

Thus, each respondent had to perform two RA

tasks and two AA tasks for each effect, for a total

number of 12 tasks. In particular, for the RA tasks,

we deﬁned 2 measures of accuracy (or VV effective-

ness): the rate of adequately accurate responses (ade-

quate accuracy); and the rate of approximately accu-

rate responses (approximate accuracy). The former

accuracy was deﬁned for the different percent values

differently: the ratio between the total number of re-

sponses and the number of the respondents who an-

swered clearly higher, perhaps higher, perhaps lower

and clearly lower for, respectively, the 90%-, 60%-,

40%- and 10%-VV, and any type of higher-than-50%

(and respectively, lower-than-50%) attribute for the

75%-VV (and 25%-VV). For these two latter VVs we

did not deﬁne the approximate accuracy, which was

deﬁned for the 90%-, 60%-VV (and 40%- and 10%-

VV) in terms of the number of higher-than-50% (and

respectively, lower-than-50%) responses.

We expected two possible sources of bias that

could affect our analysis: the order of the questions

(i.e., order bias), and the value of percentage shown

(i.e., sampling bias). In order to mitigate the for-

mer kind of bias, the online questionnaire was imple-

mented to present the 3 different effects to the respon-

dents in random order.

4 RESULTS

More than 100 respondents participated in the user

study, in the age range 19-30. Since the sample en-

compassed only bachelor or master students aged be-

tween 19 and 30, we did not stratify the respondents

on the basis of age or education level. We decided

to remove from the sample the respondents who did

not conclude the questionnaire, considering this evi-

dence of low commitment in task execution. The size

of the ﬁnal sample, after cleaning it from partial an-

IVAPP 2020 - 11th International Conference on Information Visualization Theory and Applications

212

Figure 2: Effects applied on image to render 25%, 50% and 75% risk. T, B and N are, respectively the effect of Transparency,

Blur and Noise.

swers, was 88 users. The number of tasks concluded

for each combination of image effect, task type and

percentage value was between 25 and 32.

As said in the previous section, the goal of the

study is to understand if VVs are a proper means to

convey probability and risk. To this aim, we tested

the accuracy of the answers through statistical tests.

Accuracy was measured in various ways: for the RA

tasks in terms of adequate and approximate accuracy

(see Section 3): a good performance for a type of VV

is deﬁned according to the extent the corresponding

accuracy rates are signiﬁcantly above the 50% thresh-

old of chance effect; when assessing the AA task, ac-

curacy was determined in terms of the difference be-

tween the estimated value and the real values: a good

performance was then associated with a hypothesis

test failing to reject the null hypothesis that the above

average difference is null.

We have decided to rely both on conﬁdence in-

tervals and non-parametric hypothesis tests (the Chi-

Square and the Binomial tests): these latter tests were

adopted either because the data were ordinal in na-

ture, or as in case of the AA task, their variance was

skewed. This choice makes our conclusions more

conservative and therefore more reliable in terms of

reproducibility in real-world settings but also more

prone to fail to detect small effects, also due to the

relatively small size of the sample.

4.1 Relative Effectiveness Tasks

For the RA task, the results are indicated in Figure 3

and Figure 4 for the approximate accuracy and ade-

quately accuracy constructs deﬁned in Section 3, re-

spectively.

4.2 Effect Comparison

In this subsection we want to verify if there is any

difference in accuracy comparing the three methods

used to create VVs.

To this aim, we performed a chi-square test of

goodness of ﬁt to determine whether there was any

better effect among those tested. We checked for any

difference in each percentage level and then in the cu-

mulative case. Thus, we observed that for all of the

cases the distribution of errors for the three effects

was not signiﬁcantly different from the uniform one,

and no signiﬁcant difference was detected among the

three effects, neither with respect to single percentage

levels nor across all the considered effects.

The greatest difference among the three effects

Vague Visualizations to Reduce Quantiﬁcation Bias in Shared Medical Decision Making

213

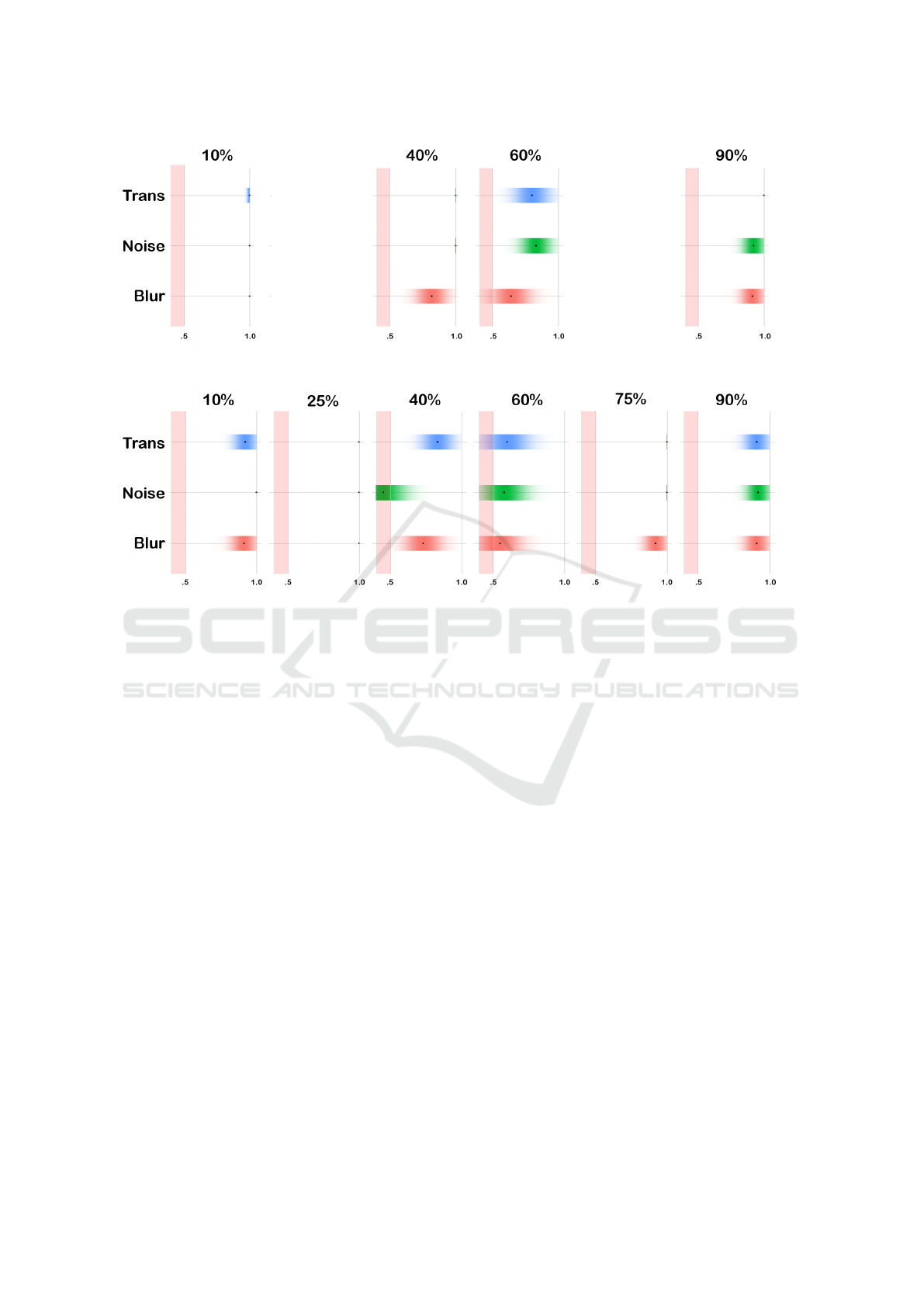

Figure 3: Success rate in regard to approximate accuracy for the probability levels where this construct is deﬁned.

Figure 4: Success rate in regard to adequate accuracy for the probability levels where this construct is deﬁned.

can be observed in the case of the 40% level (ade-

quately correct) which corresponds to a p-value of .19

(χ

(2, N = 68) = 3.31). In this case, the difference be-

tween the Noise effect and the Transparency effect is

statistically signiﬁcant (p=.034), being this latter one

signiﬁcantly more effective (χ

(1, N = 32) = 4.5). In-

stead, the case of the smallest difference among the

methods occurred in the case of the 75% level (ade-

quately correct), with a corresponding p-value equal

to .99 (χ

(2, N = 68) = 0).

4.3 Absolute Accuracy Tasks

In this section we explore if the effectiveness of the

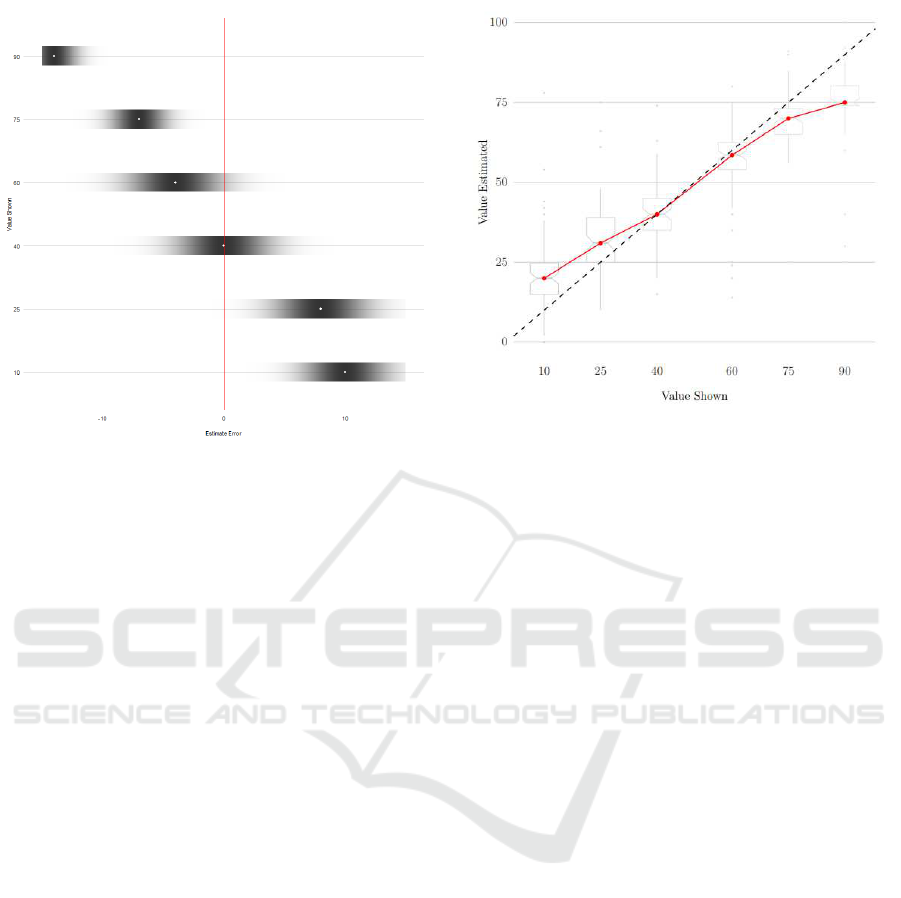

effects varies with the level of percentage rendered as

VV. Through exploratory analysis it seems that small

percentage values were overestimated, while the op-

posite is observed for high values. The effect is de-

tectable, at descriptive level, for each of the three

methods.

To test this idea we used a non-parametric test,

the Mann Whitney U, to verify whether the true value

of median of errors is lower/greater than 0. We ob-

tained a p-value equal 3.12 ∗ 10

−11

for the VVs at

risk level 10%: we can then reject the null hypoth-

esis that median of the difference between answers

and real value is zero and accept the alternative one.

Considering that the conﬁdence interval is between

+8.00 and +12.49, we can also say that the inﬂation

of the estimate is statistically signiﬁcant. With the

same test we have evaluated risk level 25%, p-value

is 3.48 ∗ 10

−8

and even in this case we reject the null

hypothesis. The estimation coming from this method

does not have a distribution with median equal 0.

With a conﬁdence level of 95% we can say that con-

veying a risk/probability level through blur, noise or

transparency effects, have users overestimate the true

value. In 95% of the responses, the real median value

is included in the related conﬁdence interval, that, in

this case, is between +5.00 and +10.00. P-value at

level 40% is instead equal to 0.9. As suggested by

the descriptive analysis, in this case it is reasonable to

believe that the distribution of the answers has a me-

dian in 0. Once crossed the 50% the effect reverses:

in fact we notice an underestimation of the real value;

p-value at level 60% is equal to 0.01, and, for 75%

and 90%, percentage shown p-value is near 0.

Results are reported in Figure 5. We can see that

some conﬁdence intervals (indicated by the boxes’

notches) overlap, in particular at 60% the median

could be very similar to the one at 75%, but it could

also be confused with 40%. In the same way 25% and

10% are not clearly different.

IVAPP 2020 - 11th International Conference on Information Visualization Theory and Applications

214

Figure 5: CI of median of distribution of error at conﬁdence

level 95%, obtained through Mann-Whitney test. Low per-

centage values (e.g. 10%) are overestimated while higher

values (e.g. 90%) are underestimated.

5 DISCUSSION

To summarize the results obtained through the two

tasks of the user test, we can conclude that:

• The blur, noise and transparency effects are effec-

tive in conveying the idea whether probability is

different from chance and risk is lower or greater

than chance (50%), with error rate almost nil.

• There is an overestimation/underestimation at the

boundaries of the value range, which has had

an impact on the error rate of the AA task (i.e.,

the task where users had to guess the accurate

risk/probability level).

Depending on the purpose of the visualization, the

proposed methods can be of varying effectiveness. If

the goal is to convey an idea of the relationship be-

tween different estimates (e.g., with respect to the 0%,

50% or 100% levels) the VV method was proved ef-

fective; otherwise, if the intention is to communicate

probability estimates accurately, a bias similar to re-

gression to the mean will distort the perception of the

original percentage.

The distortion in perception of proportions is not

a new concept in decision making under uncertainty

condition. A similar s-shaped line has already been

observed (Tversky and Kahneman, 1992) during the

studies to develop prospect theory, which describes

how individuals assess in an asymmetric manner their

loss and gain perspectives.

Figure 6: For each of the six percentage values shown, the

box-plot of the answers is given. Combining the medians

(red dots) we can draw a s-shaped line. The dashed line

represents the ideal case in which the value estimated is ex-

actly the same as the value shown.

Moreover, we could not detect signiﬁcant differ-

ences between the three methods; however, the small

size of the sample prevented us to verify if, at a spe-

ciﬁc percentage levels, estimates are different. For ex-

ample, the overestimation of lower risk values could

be more or less emphasised using one method versus

another, but only a greater sample could allow to get

signiﬁcant results, if any.

6 CONCLUSIONS

This work aims to contribute to the research ﬁeld fo-

cusing on novel and effective visualization methods to

communicate the uncertainty underlying a numerical

and probabilistic estimation of risk, with a particular

interest in the domain of doctor-patient communica-

tion.

We performed an agile review of the state of the

art that allowed us to understand why communicating

uncertainty is a crucial step in the process of extract-

ing information from data to make better decisions in

real-life situations.

The main aim of the study was to verify whether

avoiding to rely on objective percentages or numbers

to render uncertainty and, instead, using a “paradox-

ical” visual metaphor (in particular the blur, trans-

parency and noise effect on pictorial images) can al-

low to communicate communication effectively. In

particular, we tried to verify if vague visualizations

are a valid way to convey probability, and if there is

any vague visualization method that is better among

Vague Visualizations to Reduce Quantiﬁcation Bias in Shared Medical Decision Making

215

the proposed ones.

All the three effects we employed to build a vague

visualization convey the idea whether risks are greater

or lower than chance of the percentages effectively

(i.e., a percentage lower than 50% is correctly per-

ceived so, as well as those greater than 50%). We also

observed that vague visualizations are a valid means

to communicate intermediate values, while we have

observed a regression to mean when extreme values

are shown. Finally we have not found any method to

be better than the others.

We will soon undertake further experiments in

controlled, as well in real-world settings, to see

whether the decisions made by physicians are differ-

ent when they are supported by a risk prediction that is

rendered in terms of clear-cut quantities, or conveyed

through a vague visualization and if they are equally

satisﬁed of their decision support.

ACKNOWLEDGEMENTS

The authors are grateful to Laura Nesossi who, during

her bachelor project work, developed the tool used to

create the VVs used in this study and for her bachelor

thesis helped the authors collect the responses of the

online questionnaire.

REFERENCES

Barry, M. J. and Edgman-Levitan, S. (2012). Shared deci-

sion making – the pinnacle of patient-centered care.

New England Journal of Medicine, 366(9):780–781.

Boholm, M. (2019). Risk and quantiﬁcation: A linguistic

study. Risk Analysis.

Cleveland, W. S. and McGill, R. (1984). Graphical per-

ception: Theory, experimentation, and application to

the development of graphical methods. Journal of the

American statistical association, 79(387):531–554.

Cukier, K. and Mayer-Sch

onberger, V. (2013). The dicta-

torship of data. MIT Technology Review.

Finger, R. and Bisantz, A. M. (2002). Utilizing graph-

ical formats to convey uncertainty in a decision-

making task. Theoretical Issues in Ergonomics Sci-

ence, 3(1):1–25.

Hullman, J. (2019). Why authors don’t visualize uncer-

tainty. IEEE transactions on visualization and com-

puter graphics.

Hullman, J., Qiao, X., Correll, M., Kale, A., and Kay, M.

(2018). In pursuit of error: A survey of uncertainty

visualization evaluation. IEEE transactions on visual-

ization and computer graphics, 25(1):903–913.

Kinkeldey, C., MacEachren, A. M., and Schiewe, J. (2014).

How to assess visual communication of uncertainty?

a systematic review of geospatial uncertainty visu-

alisation user studies. The Cartographic Journal,

51(4):372–386.

Klein, G. (2008). Naturalistic decision making. Human

factors, 50(3):456–460.

Kosara, R., Miksch, S., Hauser, H., et al. (2001). Semantic

depth of ﬁeld. In infovis, volume 1, pages 97–104.

MacEachren, A. M., Robinson, A., Hopper, S., Gardner,

S., Murray, R., Gahegan, M., and Hetzler, E. (2005).

Visualizing geospatial information uncertainty: What

we know and what we need to know. Cartography and

Geographic Information Science, 32(3):139–160.

MacEachren, A. M., Roth, R. E., O’Brien, J., Li, B., Swing-

ley, D., and Gahegan, M. (2012). Visual semiotics &

uncertainty visualization: An empirical study. IEEE

Transactions on Visualization and Computer Graph-

ics, 18(12):2496–2505.

Mackinlay, J. (1986). Automating the design of graphical

presentations of relational information. Acm Transac-

tions On Graphics (Tog), 5(2):110–141.

O’Mahony, S. (2017). Medicine and the mcnamara fallacy.

The journal of the Royal College of Physicians of Ed-

inburgh, 47(3):281–287.

Porter, T. M. (1996). Trust in numbers: The pursuit of ob-

jectivity in science and public life. Princeton Univer-

sity Press.

Slocum, T. A., Cliburn, D. C., Feddema, J. J., and Miller,

J. R. (2003). Evaluating the usability of a tool for

visualizing the uncertainty of the future global water

balance. Cartography and Geographic Information

Science, 30(4):299–317.

Tversky, A. and Kahneman, D. (1992). Advances in

prospect theory: Cumulative representation of uncer-

tainty. Journal of Risk and uncertainty, 5(4):297–323.

IVAPP 2020 - 11th International Conference on Information Visualization Theory and Applications

216
