A Machine Learning-based Approach for the Categorization of

MicroRNAs to Their Species of Origin

Luise Odenthal

, Jens Allmer

and Malik Yousef

3,4 c

Department of Machine Learning, Bielefeld University, Bielefeld, Germany

Medical Informatics and Bioinformatics, Hochschule Ruhr West, University of Applied Sciences, Mülheim adR., Germany

Department of Information Systems, Zefat Academic College, Zefat, 13206, Israel

Galilee Digital Health Research Center (GDH), Zefat Academic College, Israel

Keywords: MicroRNA, miRNA, Machine Learning, Bioinformatics, Categorization.

Abstract: Many diseases are driven by dysregulated gene expression. MicroRNAs are key players for post-

transcriptional gene regulation. miRBase contains microRNAs (miRNAs) from about 200 species organized

into about 70 clades. It has been shown that not all miRNAs collected in the database are likely to be real and,

therefore, novel routes to delineate between correct and false miRNAs should be explored. Here, a novel

approach allowing the assignment of an unknown miRNA to its most likely clade/species of origin is

presented. A simple way to filter new data would be to ensure that the novel miRNA categorizes closely to

the species it is said to originate from. The approach presented here automatically assigns a miRNA sample

to its clade/species of origin. For that, an ensemble classifier of multiple two class random forest was designed,

where each random forest was trained on one species/clade pair. The approach was tested with different

sampling methods on a dataset that was taken from miRBase and it was evaluated using a hierarchical f-

measure. The approach predicted 81% to 94% of the test data correctly, depending on the sampling method.

This is the first classifier that can classify miRNAs to their species of origin.

1 INTRODUCTION

Gene regulation is of utmost importance for cell

homeostasis and MicroRNAs (miRNA) with key

players in post-transcriptional gene regulation.

Mature miRNAs are non-coding single-stranded

RNA molecules with a length of 18-24 nucleotides

(nt). These mature miRNAs takes part in post-

transcriptional gene regulation by facilitating the

recognition of their target mRNAs as a part of the

RISC complex. Due to their influence on gene

expression and, therefore, their involvement in

different cellular processes (Bartel, 2009), they have

been implicated in diseases such as cancer

(Takamizawa et al., 2004; Fiscon, et al., 2019).

Changes in the endogenetic balances of miRNAs are

often associated with the occurrence of diseases,

which is not surprising considering that a third of all

human genes are affected by them (Hammond, 2015).

https://orcid.org/0000-0001-8858-8651

https://orcid.org/0000-0002-2164-7335

https://orcid.org/0000-0001-8780-6303

Apart from diseases, it has been estimated that

miRNAs are involved in virtually all human gene

regulatory pathways (Hamzeiy et al., 2017).

MicroRNAs are transcribed like other RNAs, but

they are not translated into protein. Instead, they are

involved in the regulation of protein expression. A

special characteristic of miRNAs is that they fold and

form hairpin like structures. These hairpin structures

are processed by multiple enzymes resulting in a

single stranded mature miRNA. The mature miRNA

can bind to its target mRNA to regulate gene

translation.

Many miRNAs are well conserved between

species (Zhang et al., 2006). MiRNAs can be

categorized into miRNA families, where every family

is assumed to have derived from the same gene

(Rodriguez, 2004). Therefore, the presence of a

specific miRNA provides taxonomic information

(Sempere et al., 2006) Most miRNA families have

150

Odenthal, L., Allmer, J. and Yousef, M.

A Machine Learning-based Approach for the Categorization of MicroRNAs to Their Species of Origin.

DOI: 10.5220/0008975001500157

In Proceedings of the 13th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2020) - Volume 3: BIOINFORMATICS, pages 150-157

ISBN: 978-989-758-398-8; ISSN: 2184-4305

only a few members, which makes it easy to

understand their evolutionary history. However, there

are miRNA families that are large and complex like

the mir-17 family. It contains 15 members that belong

to three distantly related taxonomic families (Tanzer

& Stadler, 2004).

To keep track of all miRNAs and to provide a

consistent naming scheme, databases such as

miRBase (Kozomara & Griffiths-Jones, 2011), which

serves as the current reference database, have been

established. With the continued discoveries of

different miRNAs, databases become ever more

essential. However, some reasonable doubt on the

data quality in miRBase has been raised. Studies

showed that at least some miRNAs may be

contaminants (Meng et al., 2012; Saçar, Hamzeiy, &

Allmer, 2013). A likely case of contaminant miRNAs

was uncovered by Bağci and Allmer (Bağcı &

Allmer, 2016). A prior study believed that plant

miRNAs, found in human body’s fluids were

absorbed with food. Bağci and Allmer showed, using

the same data, that the assigned source is highly

unlikely, as many plant miRNAs found in body’s

fluids do not occur in food sources and that the set of

shared transcripts among samples (inter and intra

species) was highly correlated, which raised more

suspicion. Therefore, Bağci and Allmer assigned

those plant miRNAs to be a result of contamination.

MicroRNAs exist in many species ranging from

sponges, and mammals, to plants. While miRNA

structure seems to be quite conserved even between

plants and human (Demirci, Baumbach, & Allmer,

2017) they can still be distinguished using sequence

features. This latter shown by (Yousef et al., 2017;

Yousef et al., 2017; Yousef, 2019; Yousef & Allmer,

2019). They trained random forest classifiers on k-

mer frequencies, where each classifier could assign a

miRNA into one of two possible species (classes).

This work can be used towards contamination

detection if extended to a multi-class classifier. If a

miRNA, analyzed with this classifier, differs above a

threshold between target and predicted clade (group

of organisms that consist of a common ancestor and

all its descendants) it may be a contamination and

needs manual scrutiny. To our knowledge, there

exists no tool, which automates this task. As it

appears to be impossible to find contaminations with

traditional methods, there is a clear need for such a

tool. We therefore propose a machine learning

approach to engage this problem which is based on

Yousef et al’s previous work (Yousef et al., 2017;

Yousef et al., 2017). The core of our novel approach

is an ensemble classifier that consists of multiple

random forest models. It can categorize a miRNA to

its clade of origin. To rule out contamination the

target and predicted clade are compared using various

distance metrics. If the two clades are too distantly

related in taxonomy, the miRNA is probably the

result of contamination. Apart from contamination

detection, this approach provides new angles to

investigate miRNA evolution. One key advantage of

this approach over most miRNA detection algorithms

is its independence of arbitrary pseudo negative data.

2 MATERIALS AND METHODS

2.1 Data

Datasets to train the ensemble classifier were

retrieved from mirBase version 21 (Kozomara &

Griffiths-Jones, 2011). Initially, all 28,645 hairpins of

this version were downloaded. 3,553 hairpins were

later removed during the cleaning process (section

2.2). The final dataset contained 25,092 miRNA

examples from 126 clades. For every pair of clades in

the set, one random forest classifier was trained using

one clade as the positive and the other as the negative

class. In essence, this achieves independence from

arbitrary pseudo negative data which miRNA

classification often depends on (Saçar & Allmer,

2014). The dataset was hierarchically clustered

according to the taxonomic tree so that each clade of

the data made up one clade of the taxonomic tree.

This resulted in a hierarchical dataset, embedding

each clade within its ancestor’s clade.

2.2 Data Cleaning

We used USEARCH (Edgar, 2010) to remove

duplicates and very similar hairpins from each clade,

we also rejected clades containing less than 100

miRNA examples. USEARCH uses the UCLUST

algorithm to cluster sequences by their similarity.

Two sequences are assigned to the same cluster if

they have a minimum similarity. Here we set the

similarity threshold to 0.9, where 1.0 refers to

complete equality and zero to no similarity. The

resulting clusters of similar sequences are represented

by their cluster medoids. Thus, the medoids are

dissimilar sequence, which were used to in the

cleaned dataset. In total 25,092 different miRNAs

remained after cleaning.

2.3 Model Construction

We extended the work of Yousef et al. to be able to

distinguish between all 126 clades in our dataset. For

A Machine Learning-based Approach for the Categorization of MicroRNAs to Their Species of Origin

151

this we trained one random forest (RF) classifier (Tin

Kam Ho, 1995) for each unique clade pair.

Accordingly, for 126 clades, 126 x 125 / 2 = 7,875

distinct RF models were created.

To obtain the species of origin for a specific

sample, the sample is processed with a pipeline that

consists of several steps (Figure 1). The first step is to

score the sample with every trained RF. The results

of all RFs are concatenated to a 7875 dimensional

feature vector. Where each dimension represents a

probability for the sample to belong to the associated

clade. Since we trained 126 RFs for every clade, 126

different probabilities are associated with the same

clade. Therefore, in the second step we combined

these 126 scores to a single number. To combine the

scores a probability density function is fitted to them

and the most likely score is chosen as the final

representative for the clade. This is done for every

clade, which resulted in a vector with 126

dimensions, representing the probability of

membership for each clade of a particular miRNA. In

the following, we refer to this output vector which

contains the membership probabilities (MP-values)

as the membership probability vector (MP-vector). In

the final step the clades are scored and the closest

clades can be obtained.

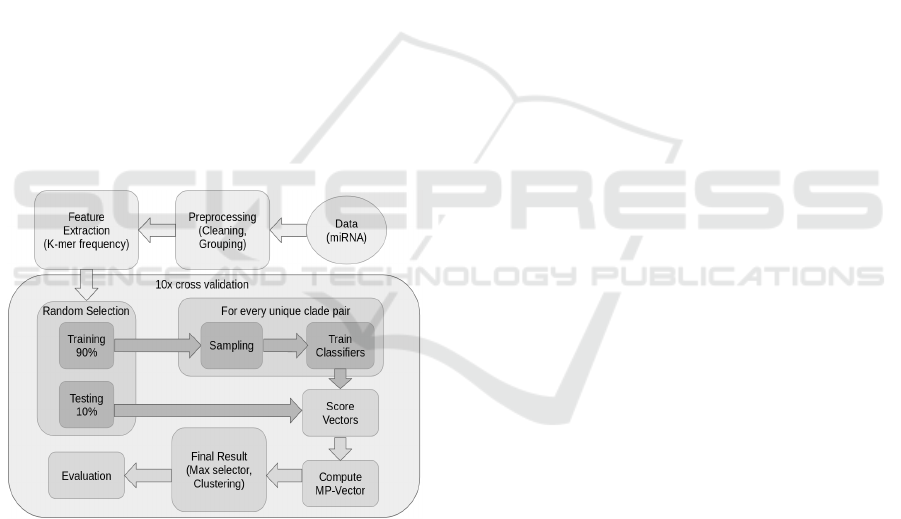

Figure 1: schematic overview on our ensemble classifier

and its steps. First, a pre-processing step is performed to

clean and group the data, afterwards the k-mer frequencies

are computed. Then the data is split into training and test

set. Afterwards for every unique clade pair in the training

set, one random forest classifier is trained. The whole test

set is classified by all trained classifiers, which results in its

score vectors. As each score vector contains multiple scores

for the same clade, this vector is compressed to a MP-vector

that contains one probability for each clade. To obtain the

final result different methods are tried out. The highest

accuracy was obtained by the maximum selector. Finally

the results are evaluated.

Our first idea was to utilize hierarchical clustering

to cluster the MP-vectors of a training set, since our

data has an inherent hierarchical structure. For this,

we used a supervised hierarchical clustering method

that clusters the MP-vectors hierarchically according

to their target clade. However, preliminary results

showed that this method did not achieve a

performance sufficient for the purpose of

categorizing miRNAs. Therefore, we transitioned to

a maximum selector when using random sampling

and a weak maximum selector when using SMOTE

(Chawla et al., 2002). The maximum selector simply

chooses the clade with the highest membership

probability. The weak maximum selector essentially

identifies all clades that have a score that is at least as

big as a threshold. Here the threshold was chosen to

be the biggest score - 0.05:

Threshold = max(MP-value) – 0.05 (1)

From all the clades that are greater than the threshold

the one on the lowest taxonomic layer is chosen as the

likely clade/species of the miRNA.

2.4 Sampling Methods

Because the clades were of different size, the

resulting positive and negative examples were

imbalanced which presents a problem for

classification. Therefore, two sampling methods:

random and SMOTE (Chawla et al., 2002) were

employed to equalize the data for the RF models.

Since we achieved better results with SMOTE, we

will briefly explain it here: SMOTE is an over-

sampling method. For randomly selected samples in

the minor class the k-nearest neighbors of the same

class are computed. SMOTE’s default for k is 5. The

k-nearest neighbors of these points are used to

interpolate between them and to generate a new

sample. In this way, the problem of overfitting is

avoided.

2.5 Features

In many studies k-mer frequencies (Kurtz et al., 2008)

are used to classify miRNAs. k-mers are counts of

subsequences that have a specific pattern and are of

length k. For example a k-mer over the alphabet {A,

C, T, U} can produce subsequences A, C, T and U. A

2-mer can produce the subsequences AA, AC, AT...

UU. To obtain the frequency of a k-mer in a sequence

one simply counts how often that k-mer appears in the

sequence and divides it by the total number of k-mers.

As they show taxonomic relation by conservation,

we chose k-mer frequencies for input features for the

BIOINFORMATICS 2020 - 11th International Conference on Bioinformatics Models, Methods and Algorithms

152

random forest in this project. We used up to 3-mers,

resulting in an 84 dimensional input vector.

2.6 Training

We used 10 fold Monte Carlo cross validation (Xu &

Liang, 2001) to train the ensemble classifier. In every

fold 10% of the dataset was selected as the test set.

The test and training sets were selected by a custom

made stratified random selection method that makes

sure all clades are represented in the same ratio as in

the original dataset.

2.7 Implementation

The training and testing pipeline was implemented

with the Konstanz Information Miner or short:

KNIME (Berthold et al., 2008). KNIME is an open

source data analytics platform that includes many

machine learning methods and provides access to

WEKA and other tools. For our ensemble classifier

we used KNIME’s WEKA implementation of the

random forest as well as KNIME’s SMOTE

implementation. The other sampling methods as well

as all other parts of the ensemble classifier and the

evaluation were custom implementation leveraging

KNIME’s python node.

2.8 Model Parameters

For the random forests, we used the default values set

by KNIME for all parameters except for the number

of trees, which we set to 50. We elected to use 50 trees

as a compromise between runtime and performance

because the performance increased with the number

of trees but so did the run time needed to train the RF

models. It took 69 seconds to train the random forest

model using 50 trees and 143 seconds for 100 trees.

As we had to train 7875 such trees, we chose a

runtime of 151 hours over 320. Additionally, the

overall process had to be repeated several times so

that the longer runtime would be a limiting factor.

2.9 Evaluation

There are many common evaluation measures in

machine learning, here we used TP, TN, FP, FN,

accuracy, precision, recall, and the f-measure.

However as we are dealing with hierarchical and

imbalanced data we needed to adapt those measures

and considered others.

One measure that can be used for imbalanced

classes was introduced by (Fernández et al., 2013). It

is the average true positive rate which calculates the

true positive rate per class and uses the average of all

rates as the final evaluation measure. Mathematical it

is defined as:



 











(2)

Where C is the number of classes and TPR i is the true

positive rate of class i. This way every class is

weighted equally in the computation of the overall

accuracy measurement.

To obtain an accurate evaluation measure that can

deal with hierarchical data, we adapted the common

measures like the true positive rate. Otherwise we

would miss many results in higher layers of the

taxonomic tree. For example if a gorilla is classified

correctly, it is also classified correctly to all the other

clades it belongs to on a higher hierarchical layers

(hominidae, primates, etc.).

To adapt these measures, for each clade in every

hierarchical layer TP, FP, TN, and FN were computed

with a one-vs-rest scheme. Then those values were

used to compute the hierarchical TP rate, etc.

A sample was classified as TP if it was correctly

identified into a clade and as a TN if it was correctly

rejected for a clade. Also we used the hierarchical f

measure (hF) proposed by (Kiritchenko et al., 2006),

that takes into account that predictions which are

taxonomically closer related to the target are better

than predictions that are distantly related to the target.

For example if a gorilla was identified as a hominidae

but not as a primate, it would be worse than if it was

identified as a primate. To calculate the hF measure,

first the hierarchical precision and recall need to be

computed. The precision and recall are defined as

following: for any sample d

that belongs to class C

and is predicted as class D

, the sets C

and D

are

extended with their corresponding ancestors: C’

∈

Ancestors ( C

) , D’

= U

∈

Ancestors (d

Then the (micro-average) hP (hierarchical precision)

and hR (hierarchical recall) are calculated as:

 

∑|

′



∩′







∑|

′







(3)

 

∑|

′



∩′







∑|

′







(4)

Those measures are then used to calculate the hF

measure (hierarchical F-measure) with β set to 1.













1



∙∙





∙

,∈



0,∞



(5)

A Machine Learning-based Approach for the Categorization of MicroRNAs to Their Species of Origin

153

3 RESULTS

All experiments were run on a Lenovo ThinkPad with

an Intel core i7 and 3 GB RAM. Two datasets were

considered. The first dataset was taken from

mirRBase version 21 and cleaned as described above

(miRBase). Afterwards the data was divided into 90%

training and 10% testing using 10 fold cross

validation. The second dataset consists of all samples

that were newly introduced in miRBase version 22

and that remained after the cleaning process

(newMiRBase). This dataset was used only as a

testing set. An overview on the results can be seen in

Table 1.

3.1 Sampling

We used two different sampling methodologies

(random and SMOTE, see above) to account for

differences in class size which are due to different

numbers of miRNAs which have been discovered for

the species in miRBase. In almost all cases (except

for the average TPR for

newMiRBase) using SMOTE

results in a higher accuracy (Table 1). To understand

why this is the case, the correlation of the class size,

the number of subclasses and the hF value was

calculated. There is a medium correlation between the

number of subclasses and the hF value as well as the

class size and the hF value when using random

sampling. In contrast, there is no such correlation

when using SMOTE sampling.

To compare the MP-values (clade membership

probability) for related species to get more insides on

the taxonomic relationships, the average MP-value

for the target class, its ancestors, descendants,

siblings and unrelated clades (according to the

taxonomy tree) were calculated. When using SMOTE

the ancestor had on average a higher MP-value than

the target clade, the descendants and siblings a lower

MP-value (but still higher than 0.5) and unrelated

species had on average a MP-value of 0.5. With

random sampling, the average values were similar for

siblings and unrelated clades, but the ancestor clades

had lower values that were similar to sibling’s. In

summary, SMOTE sampling outperformed random

sampling in this study and only when using SMOTE

sampling categorization of miRNAs into their species

of origin could be achieved with decent accuracy.

4 DISCUSSION

4.1 Hierarchical Clustering

The intention behind the hierarchical clustering

method was that when using hierarchical data with

ward distance, the hierarchical relationship of the

clades would be represented in the MP-vectors, so

they can be used for hierarchical clustering. The idea

was that samples of the same clade would have MP-

vectors that have similar values on all dimensions,

thus they would be very similar. Furthermore, it was

hypothesized that closely related species would have

similar patterns. So that a clustering approach would

cluster the MP-vectors of the same species in the

same cluster and MP-vectors of similar species in

clusters that are close to each other and thus, have a

short inter cluster distance. That would have meant

that clusters that represent two species with a

common ancestor could be clustered together in a

higher hierarchical layer to obtain the cluster of their

ancestor. However, preliminary results show that this

Table 1: Results of different evaluation measures (see header) for different Datasets, sampling methods and species selectors.

TPR: True positive rate; hP: hierarchical Precision; hR: hierarchical Recall; Avg: Average; SMOTE: Synthetic minority over-

sampling technique.

Dataset Avg TPR hP hR hF Avg hP Avg hR Avg hF Sampling

miRBase 0.72 0.84 0.78 0.81 0.86 0.84 0.87 Random

miRBase 0.83 0.97 0.90 0.94 0.96 0.91 0.94 SMOTE

newMiRBase 0.31 0.53 0.56 0.54 0.63 0.61 0.63 Random

newMiRBase 0.30 0.74 0.61 0.67 0.77 0.63 0.70 SMOTE

miRBase 0.27 0.63 0.55 0.59 0.57 0.56 0.56 Hierarchical clustering

miRBase 0.83 0.83 0.83 0.83 0.82 0.83 0.83 BLAST

BIOINFORMATICS 2020 - 11th International Conference on Bioinformatics Models, Methods and Algorithms

154

is not the case (data not shown). In order not to waste

our computational resources, we first used a subset of

the data (clustering the complete dataset would need

huge amounts of RAM) to test whether the clustering

approach would work in principle. For that we used a

supervised version of the hierarchical clustering

approach (Gordon, 1987), which clusters the MP-

vectors hierarchically using their target clade

information. The weak results of this clustering

approach might be due to how the MP-vector is

obtained.

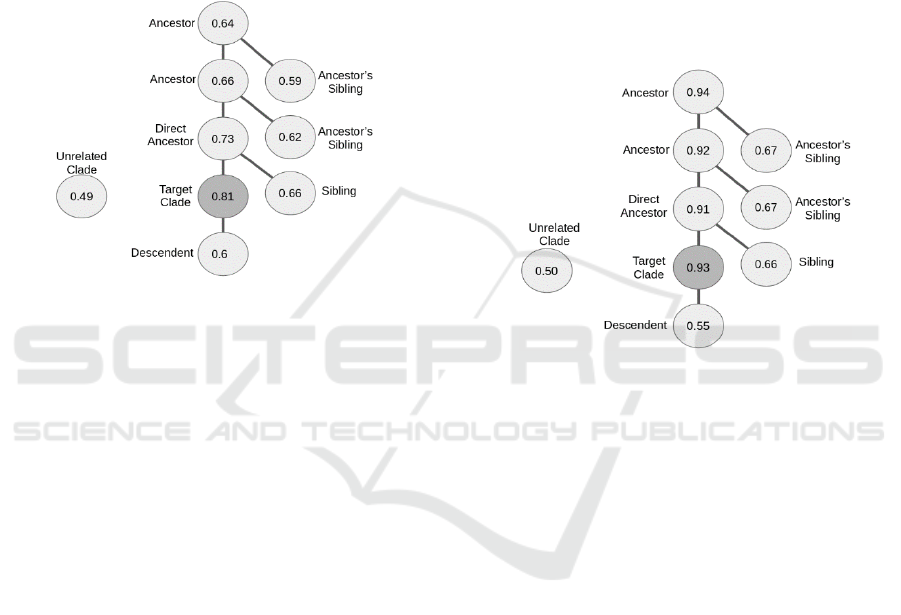

Figure 2: Tree representing the average MP-value for the

target clade (dark gray node) and taxonomic relatives. The

tree structure and labels of the nodes represents the

taxonomic relation. In this case, random sampling was

used.

Every dimension represents the membership

probability to a clade. That means only the random

forest classifiers that were trained on that particular

clade will influence this dimension. If the sample

originates from that clade, a high score is expected.

However, the scores of the dimensions that represent

a clade the sample does not belong to, are obtained by

classifiers that have never been trained using this

clade. This lead to random guessing (when leaving

taxonomic relatedness aside). Therefore, most

dimensions of the MP-vectors have random values.

This made clustering unsuccessful.

4.2 Random vs SMOTE Sampling

Even though the random sampling methods showed

good performances, with an hF measure of about 0.81

(Figure 2) there was a correlation between the hF

measure of the clades and their size (r = -0.7). That

indicated a classification problem as larger classes

had a worse hF score than smaller ones. This problem

probably resulted from under-sampling the larger

clade, so that not enough training samples for that

class were available. Also, one would expect that the

average MP-value of related species (especially

ancestors) would be higher than the obtained values.

This also indicates a methodological problem (Figure

2). When using SMOTE sampling, no such

correlation between clade size and hF measure could

be observed (data not shown), which indicates that

with this sampling method the class imbalance

problem has been overcome. Additionally, there

seems to be a taxonomic influence between predicted

and target species, because the average MP-values of

related species was higher than for unrelated species.

This would be expected especially for the ancestors,

as the target clade is always a member of the ancestor

clade (Figure 3).

Figure 3: Tree representing the average MP-value for the

target clade (dark gray node) and taxonomic relatives. The

tree structure and labels of the nodes represents the

taxonomic relation. In this case, SMOTE sampling was

used.

4.3 NewMIRBase Dataset

The performance on the newMiRBase dataset is

significantly poorer than on the MirBase dataset. This

difference in performance is partly due to many

sequences from unseen clades during training.

However, removing these sequences, the

performance still remains comparably poor. This is

likely caused by the origin of many of the sequences,

which are from species with few known members.

Therefore, the respective models have not seen

sufficient training data. These species are often only

present in clades of higher taxonomic layers.

Therefore, less RFs have been trained on the clade, so

that it is more difficult to obtain a reliable MP-value.

This also explains the discrepancy between the

AvgTPR rate and the hF measure in the newMiRBase

dataset.

A Machine Learning-based Approach for the Categorization of MicroRNAs to Their Species of Origin

155

4.4 Comparative Performance

Our approach performs better than BLAST on the

first mirBase dataset. -this holds for random and

SMOTE sampling. A comparison to other machine

learning approaches was not possible as this is the

first approach to address multi class species

categorization of miRNAs. However a comparison of

different two class classifiers (as a replacement for

the RFs) was performed only on homo sapiens

miRNAs (data not shown) with the best result being

obtained by the RF. This was confirmed by (Saçar &

Allmer, 2017), who trained different two class

classifiers on miRBase data for pre-miRNA

detection. However, in the future, it would be

interesting to train a common multi-class algorithm

like a SVM on the task for comparison. Interesting

would also be comparison with classifiers that where

designed for similar tasks (e.g. classification of

miRNA families).

5 CONCLUSIONS

MicroRNAs are regulators of gene expression and as

such important in cellular regulation and disease

(Tüfekci et al., 2014). Therefore, they are used for

investigating the molecular level of disease.

Experimental strategies must fail at detecting all

possible miRNA-mRNA interactions which is why

computational methods are used abundantly

(Demirci, Yousef & Allmer, 2019). Many

computational tools depend on data from online

resources such as miRBase. Unfortunately, databases

are not completely reliable, including miRNA

repositories. Some strategies associating miRNAs

with molecular events lead to questionable results

which is in part due to the smallness of miRNAs and

to the similarity among miRNAs exacerbated by

imperfect sequencing methods (Bağcı & Allmer,

2016). Additionally, miRNA evolution is not

completely unraveled and additional tools for its

investigation may be beneficial. We have succeed to

develop a machine learning approach that

successfully works on the microRNA species

categorization task. This approach tackles the three

issues outlined above. To the best of our knowledge

this is the only approach allowing for categorization

of miRNAs into their species of origin based only on

k-mer representation of the hairpin sequence. The

approach shall be used to assign a novel miRNA

sequence to the most closely clade to confirm that the

discovery is not a contamination. We also anticipate

that our approach could be used for the validation of

computational miRNA predictions by other tools.

Finally, the approach may be useful for further

investigation in miRNA evolution. However future

improvements need to address the introduction of

new or underrepresented species.

ACKNOWLEDGEMENTS

LO would like to thank Barbara Hammer,

Department of Machine Learning, University

Bielefeld for financial support. MY would like to

acknowledge Zefat Academic College for financial

support.

REFERENCES

Bağcı, C., & Allmer, J. (2016). One Step Forward, Two

Steps Back; Xeno-MicroRNAs Reported in Breast Milk

Are Artifacts. PLOS ONE, 11(1), e0145065.

https://doi.org/10.1371/journal.pone.0145065.

Bartel, D. P. (2009). MicroRNAs: target recognition and

regulatory functions. Cell, 136(2), 215–233.

https://doi.org/10.1016/j.cell.2009.01.002.

Berthold, M. R., Cebron, N., Dill, F., Gabriel, T. R., Kötter,

T., Meinl, T., … Wiswedel, B. (2008). KNIME: The

Konstanz Information Miner. In C. Preisach, H.

Burkhardt, L. Schmidt-Thime, & R. Decker (Eds.),

Data Analysis, Machine Learning and Applications

(pp. 319–326). Berlin, Heidelberg: Springer.

https://doi.org/10.1007/978-3-540-78246-9_38.

Chawla, N. V., Bowyer, K. W., Hall, L. O., & Kegelmeyer,

W. P. (2002). SMOTE: Synthetic Minority Over-

sampling Technique. Journal of Artificial Intelligence

Research, 16, 321–357. https://doi.org/10.1613/

jair.953.

Demirci, M. D. S., Yousef, M., & Allmer, J. (2019).

Computational Prediction of Functional MicroRNA–

mRNA Interactions. In Computational Biology of Non-

Coding RNA (pp. 175-196). Humana Press, New York,

NY.

Edgar, R. C. (2010). Search and clustering orders of

magnitude faster than BLAST. Bioinformatics, 26(19),

2460–2461. https://doi.org/10.1093/bioinformatics/

btq461

Fernández, A., López, V., Galar, M., del Jesus, M. J., &

Herrera, F. (2013). Analysing the classification of

imbalanced data-sets with multiple classes:

Binarization techniques and ad-hoc approaches.

Knowledge-Based Systems, 42, 97–110.

https://doi.org/10.1016/j.knosys.2013.01.018

Fiscon, G., Conte, F., Farina, L., Pellegrini, M., Russo, F.,

& Paci, P. (2019). Identification of Disease–miRNA

Networks Across Different Cancer Types Using

SWIM. In MicroRNA Target Identification (pp. 169-

181). Humana Press, New York, NY.

BIOINFORMATICS 2020 - 11th International Conference on Bioinformatics Models, Methods and Algorithms

156

Gordon, A. D. (1987). A review of hierarchical

classification. Journal of the Royal Statistical Society:

Series A (General), 150(2), 119-137.

Hammond, S. M. (2015). An overview of microRNAs.

Advanced Drug Delivery Reviews, 87, 3–14.

https://doi.org/10.1016/j.addr.2015.05.001

Hamzeiy, H., Suluyayla, R., Brinkrolf, C., Janowski, S. J.,

Hofestaedt, R., & Allmer, J. (2017). Visualization and

Analysis of MicroRNAs within KEGG Pathways using

VANESA. Journal of Integrative Bioinformatics,

14(1). https://doi.org/10.1515/jib-2016-0004

Kiritchenko, S., Matwin, S., Nock, R., & Famili, A. F.

(2006). Learning and Evaluation in the Presence of

Class Hierarchies: Application to Text Categorization.

In L. Lamontagne & M. Marchand (Eds.), Advances in

Artificial Intelligence (pp. 395–406). Springer Berlin /

Heidelberg.

Kozomara, A., & Griffiths-Jones, S. (2011). miRBase:

integrating microRNA annotation and deep-sequencing

data. Nucleic Acids Research, 39 (Database issue),

D152-7. https://doi.org/10.1093/nar/gkq1027

Kurtz, S., Narechania, A., Stein, J. C., & Ware, D. (2008).

A new method to compute K-mer frequencies and its

application to annotate large repetitive plant genomes.

BMC Genomics, 9(1), 517. https://doi.org/10.1186/

1471-2164-9-517

Meng, Y., Shao, C., Wang, H., & Chen, M. (2012). Are all

the miRBase-registered microRNAs true? A structure-

and expression-based re-examination in plants. RNA

Biology, 9(3), 249–253. https://doi.org/10.4161/

rna.19230

Rodriguez, A. (2004). Identification of Mammalian

microRNA Host Genes and Transcription Units.

Genome Research, 14(10a), 1902–1910. Retrieved

from http://www.ncbi.nlm.nih.gov/pubmed/15364901

Saçar Demirci, M. D., Baumbach, J., & Allmer, J. (2017).

On the performance of pre-microRNA detection

algorithms. Nature Communications, 8(1), 330.

https://doi.org/10.1038/s41467-017-00403-z

Saçar, M. D., & Allmer, J. (2014). Machine learning

methods for microRNA gene prediction. Methods in

Molecular Biology (Clifton, N.J.). https://doi.org/

10.1007/978-1-62703-748-8_10

Saçar, M. D., Hamzeiy, H., & Allmer, J. (2013). Can

MiRBase provide positive data for machine learning for

the detection of MiRNA hairpins? Journal of

Integrative Bioinformatics, 10(2), 215.

https://doi.org/10.2390/biecoll-jib-2013-215

Sempere, L. F., Cole, C. N., Mcpeek, M. A., & Peterson, K.

J. (2006). The phylogenetic distribution of metazoan

microRNAs: insights into evolutionary complexity and

constraint. Journal of Experimental Zoology Part B:

Molecular and Developmental Evolution, 306B

(6),

575–588. https://doi.org/10.1002/jez.b.21118

Takamizawa, J., Konishi, H., Yanagisawa, K., Tomida, S.,

Osada, H., Endoh, H., … Takahashi, T. (2004).

Reduced expression of the let-7 microRNAs in human

lung cancers in association with shortened

postoperative survival. Cancer Res, 64(11), 3753–

3756. https://doi.org/10.1158/0008-5472.CAN-04-

0637

Tanzer, A., & Stadler, P. F. (2004). Molecular evolution of

a microRNA cluster. Journal of Molecular Biology,

339(2), 327–335. https://doi.org/10.1016/j.jmb.2004.

03.065

Tin Kam Ho. (1995). Random decision forests. In

Proceedings of 3rd International Conference on

Document Analysis and Recognition (Vol. 1, pp. 278–

282). Montreal, Canada: IEEE Comput. Soc. Press.

https://doi.org/10.1109/ICDAR.1995.598994

Tüfekci, K. U., Oner, M. G., Meuwissen, R. L. J., & Genç,

S. (2014). The role of microRNAs in human diseases.

Methods in Molecular Biology (Clifton, N.J.), 1107,

33–50. https://doi.org/10.1007/978-1-62703-748-8_3

Xu, Q.-S., & Liang, Y.-Z. (2001). Monte Carlo cross

validation. Chemometrics and Intelligent Laboratory

Systems, 56(1), 1–11.

Yousef, M., Khalifa, W., Acar, E., & Allmer, J. (2017).

MicroRNA categorization using sequence motifs and k-

mers. BMC Bioinformatics, 18(1). https://doi.org/

10.1186/s12859-017-1584-1

Yousef, M., Nigatu, D., Levy, D., Allmer, J., & Henkel, W.

(2017). Categorization of species based on their

microRNAs employing sequence motifs, information-

theoretic sequence feature extraction, and k-mers.

Eurasip Journal on Advances in Signal Processing,

2017(1). https://doi.org/10.1186/s13634-017-0506-8

Yousef, Malik. (2019). Hamming Distance and K-mer

Features for Classification of Pre-cursor microRNAs

from Different Species. In C. Benavente-Peces, S. Ben

Slama, & B. Zafar (Eds.), Proceedings of the 1st

International Conference on Smart Innovation,

Ergonomics and Applied Human Factors (SEAHF) (pp.

180–189). Cham: Springer International Publishing.

Yousef, Malik, & Allmer, J. (2019). Classification of Pre-

cursor microRNAs from Different Species Using a New

Set of Features BT - Database and Expert Systems

Applications. In G. Anderst-Kotsis, A. M. Tjoa, & I.

Khalil (Eds.) (pp. 15–20). Cham: Springer International

Publishing.

Zhang, B., Pan, X., Cannon, C. H., Cobb, G. P., &

Anderson, T. A. (2006). Conservation and divergence

of plant microRNA genes. The Plant Journal, 46(2),

243–259.

A Machine Learning-based Approach for the Categorization of MicroRNAs to Their Species of Origin

157
