A Timeline Metaphor for Analyzing the Relationships between

Musical Instruments and Musical Pieces

J. Kusnick

, R. Khulusi

, J. Focht

and S. J

anicke

Image and Signal Processing Group, Institute for Computer Science, Leipzig University, Leipzig, Germany

Music Instrument Museum, Institute for Musicology, Leipzig University, Leipzig, Germany

Department of Mathematics and Computer Science, University of Southern Denmark, Odense, Denmark

Keywords:

Music Visualization, Timeline Visualization, Geovisualization, Visual Design.

Abstract:

Digitization projects make cultural heritage data sustainably available. However, while digital libraries may

capture various aspects, relations across different sources often remain unobserved. In our project, musicol-

ogists aimed to relate musical instruments with historical performances of musical pieces, both contained in

different sources. We deﬁned a similarity measure taking instrumentation, temporal as well as geospatial

metadata into account, with which we were able to hypothesize potential relations. We propose a novel time-

line design that offers a speciﬁc semantic zoom metaphor enabling the collaborating musicologists to observe

and evaluate the results of our similarity analysis. The value of our system for research in musicology is

documented in three case studies.

1 INTRODUCTION

In musical instrument museums, we encounter histor-

ical musical instruments or musical instruments from

around the world (Dawe, 2012). Instruments are typi-

cally arranged in glass showcases or separate subdivi-

sions, only a few instruments can be played in sound

laboratories or heard during performances. In rather

modern, global collections, as offered by the Musi-

cal Instrument Museum (MIM)

in Phoenix, Arizona

(United States), the exhibition is further enriched with

video and sound material from performances convey-

ing sound and functionality of instruments. However,

in historical collections, such enrichments can hardly

be offered. This is caused by most instruments not

having recording data and the instruments not being

in a playable condition without risking to damage or

destroy the rare or unique items. Further, even musi-

cologists sometimes wonder in which particular com-

position’s performances a historical music instrument

was used. The musicological term auralization de-

scribes this research interest of framing an instrument

with related compositions in order to picture its ca-

reer and to facilitate forming “a mental impression of

a sound not yet heard” (Summers, 2008).

Past digitization endeavors provide exhaustive

https://mim.org

digital collections of musical instruments and perfor-

mances alike. On the one hand, the “Musical In-

struments Museum Online” (MIMO)

provides struc-

tured information about around 65,000 music instru-

ments, while, on the other hand, the “R

epertoire In-

ternational des Sources Musicales” (RISM)

holds a

database with information about more than 1,100,000

musical pieces. By matching instrument types, tak-

ing geospatial as well as temporal constraints into

account, we combined both data sources that pre-

pared the ground to support generating hypotheses

for the auralization of music instruments by quantita-

tive, computational means. This paper outlines our in-

terdisciplinary collaboration involving both visualiza-

tion scholars and musicologists for the development

of an interactive visual timeline environment support-

ing the musicologists’ auralization task. In summary,

our contributions to the visualization community are:

• Assigning Compositions to Instruments: For

various geospatial, temporal and descriptive at-

tributes of instruments and performances, we de-

signed similarity measures that reﬂect the likeli-

ness of a composition being played with an instru-

ment in accordance to musicological conceptions.

https://www.mimo-international.com/MIMO/

https://opac.rism.info/

240

Kusnick, J., Khulusi, R., Focht, J. and Jänicke, S.

A Timeline Metaphor for Analyzing the Relationships between Musical Instruments and Musical Pieces.

DOI: 10.5220/0008990502400251

In Proceedings of the 15th Inter national Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 3: IVAPP, pages

240-251

ISBN: 978-989-758-402-2; ISSN: 2184-4321

• Auralization System: We designed a visual an-

alytics system that is used by musicologists to

interactively evaluate hypothesized matchings of

compositions and instruments, supporting to grad-

ually form the aura of a particular instrument or

instrument types.

• A Novel Timeline Metaphor: We propose a

timeline metaphor for the explorative analysis of

instrument/performance matches that are exposed

in a historical frame. Additional views can be

consulted to foster or refute automatized match-

ing suggestions.

• Visual Encoding for Uncertainty: Within the

timeline view, we reﬂect temporal uncertainties

for instrument datings as well as the likeliness of a

detected match visually, preventing the user from

drawing false conclusions.

• Semantic Zoom: We propose a customized se-

mantic zoom approach that satisﬁes quantitative

(distant reading) and qualitative (close reading)

research interests alike.

We emphasize the utility of our visual matching sys-

tem for musicologists by providing various usage sce-

narios. In a storytelling style, each scenario exempli-

ﬁes how our system can be used for generating hy-

potheses on the auralization of an instrument or in-

strument type. Additionally, we report experiences

gained during our project, which includes the iterative

evaluation of our auralization system with musicolo-

gists, limitations due to the nature of humanities data

and future prospects.

2 RELATED WORK

Schlegel and L

udtke (Schlegel et al., 2011) arrange

instruments — Lutes and lute-like instruments —

on a timeline to convey developments in instrument

making. Annotated with descriptive metadata and

related compositions for those instruments, the de-

velopment of this instrument type can be explored

visually. In opposite to the printed form, interac-

tive timeline visualizations have been proven valu-

able for related research inquiries in digital human-

ities applications, typically directed towards person

groups (Andr

e et al., 2007; Daniels, 2014; Khulusi

et al., 2019; Khulusi et al., 2020a; Miller et al., 2012;

Zhao et al., 2012). Similar to time periods inﬂuencing

a person’s life, the development of instrument types

is likely inﬂuenced. Much research has been done

concerning time-oriented data visualization. Exam-

ples are given by Aigner et al. (Aigner et al., 2011)

and Brehmer et al. (Brehmer et al., 2016). Both in-

clude different timeline visualizations, and the latter

one proposes a taxonomy for timeline visualization in

particular. These works highlight different visualiza-

tion strategies for temporal data, like parallel lines or

theme rivers (Bunout, 2016; Havre et al., 2002) and

their ability to help in analyzing trends.

The time-dependent inspection of the instrument’s

careers visualization is as of now under-represented

in literature. Typically, visualizations of instruments

focus on structural aspects of instruments, often ob-

tained through X-ray or computed-tomography (Bor-

man and Stoel, 2009; Kirsch, 2019; Hopfner, 2018).

Further, functional analysis of how an instrument

generates sound is visualized (Berthaut et al., 2013;

Bou

enard et al., 2008).

The static visualization by Schlegel et

al. (Schlegel et al., 2011) is our motivation, but

we propose an interactive visualization, making

use of the timeline metaphor and digital interac-

tion methods to help musicologists getting insight

into the careers of instruments. A similar system

is Continuum (Andr

e et al., 2007) that utilizes a

semantic zoom functionality for a timeline but does

not consider human career information. Another

comparable approach is MusikerProﬁling, which

performs a similarity analysis for musicians based on

their biographical data (J

anicke et al., 2016). This

work also addresses the visualization of uncertain

temporal data, which has also been discussed in other

works (Khulusi et al., 2020b; Mchedlidze, 2019).

Communicating such uncertainties is also subject to

our work to prevent misinterpretations.

3 DESIGN

In close collaboration with musicologists, we de-

signed the system in an iterative and user-centered

process to maximize the usability of our approach.

Two musicologists specialized in organology and

restoration were mainly involved in the development.

This section reports on the project following the

nested model by Munzner (Munzner, 2009).

3.1 Domain Situation

Musicologists focusing on organology know much

about the history and properties of inspected instru-

ments. When instruments seemed outdated, they were

restored, repaired or modiﬁed to get them ready for

next performances. As it is mostly not easy to state

which musical pieces were performed on a histori-

cal instrument, this work is motivated by musicolo-

A Timeline Metaphor for Analyzing the Relationships between Musical Instruments and Musical Pieces

241

gists who strive to picture an instrument’s career with

possible musical works (or genres) performed with it,

creating an instrument’s “aura”. With traditional, ana-

log means this task is near to impossible to be done.

Due to various branches of musicology like compo-

sition analysis and organology, different methods and

conventions of musical terminology exist. This makes

it difﬁcult to ﬁnd exact matches among repositories

listing musical instruments and compositions. We

support generating hypotheses for the task of match-

ing the instrument to musical pieces by digital means

and a tailored matching algorithm considering instru-

mentation, time and location, to create hypothetically

matches for further investigations. The two digital

repositories on which our analysis is based on are ex-

plained in the next subsection. We further propose an

interactive timeline visualization that helps to analyze

the hypothesized matching pairs. All in all, we pro-

pose a system that supports musicologists investigat-

ing the research question Which musical pieces have

been performed on a particular instrument? with an

interactive tool outlined below.

3.2 Data & Task Abstraction

The data was harvested from different online sources

and then transformed and cleaned to make them com-

patible with each other. Information on instruments

are extracted from MIMO, a project for the standard-

ized description and archiving of digital and multi-

media information about around 65,000 music instru-

ments in a database. The records include keywords

and classiﬁcations, for the type of the instrument,

as well as images and detailed events with different

types. An instrument is deﬁned with properties as de-

scribed below:

(

titles

, set of instrument titles

E(I

), set of instrument events of I

(1)

Where an event is described by its type, date and

location (place name and coordinates).

Information on musical works are listed in RISM,

an international online documentation of more than

1,100,000 musical sources. Information like title and

scoring were harvested for each source. Many mu-

sical works are annotated with related performance

events, for which provided location and date are used

for the matching task. Musical sources are described

as:

(

title

, title of musical source

E(P

), set of performances of P

(2)

After extracting and cleaning the data sets for the fur-

ther processing, the resulting numbers were:

• 6,670 musical instruments I

, . . . , I

– with 6,826

events E(I) and

• 24,760 musical pieces P

, . . . , P

– with 29,192

performance events E(P).

Due to the geocoding during the cleaning process

some place names could not be resolved and got lost

and so some extracted events were discarded. Thus,

the amount of completely described instruments and

sources was minorly decreased.

3.2.1 Similarity between Instruments and

Sources

The matching between instruments and sources is de-

termined on the basis of locations, dates, and instru-

ment type of the corresponding events. Only events

with all those information were taken into account.

For musical sources, the instrumentation is given, and

an instrument is labeled with terms for its type. For

a matching task, one musical instrument or a group

of musical instruments can be selected and matching

scores for all possible pairs of instruments and musi-

cal pieces are determined dependent on three similar-

ity scores. The similarity S



e(I

), e(P

)



between an

instrument event e(I

) ∈ E(I

) and a musical perfor-

mance event e(P

) ∈ E(P

) is determined as



e(I

), e(P

)



= w

inst

· S

inst



e(I

), e(P

)



time

· S

time



e(I

), e(P

)



geo

· S

geo



e(I

), e(P

)



(3)

where w

is the weight of the corresponding similar-

ity measure S

. The weights can be adjusted by the

users during the matching process to modify search

results. The combined similarity score is used to gen-

erate a result set of pairings. A limited number of t

best matches for each instrument is taken into account

for processing the visual output. Each similarity mea-

sure is described in the following.

3.2.2 Instrumentation Similarity S

inst

Matching instrument and the musical piece is only

possible if the instrument type is part of the com-

position. Therefore, we check if the labels of an in-

strument appear in the list of considered instruments

for the musical piece. As the terminologies used in

both repositories are not coherent, they needed to be

mapped to each other. Each instrument is tagged with

a set of titles, to describe what type of instrument it is.

These could be special types of instruments, classes,

and families of them. On the other side, the musi-

cal sources are equipped with information for what

IVAPP 2020 - 11th International Conference on Information Visualization Theory and Applications

242

instrumentation the work is intended. The instrumen-

tal scoring of a RISM source is given by a list of ab-

breviations for each instrument playing parts of the

musical piece, e.g. “vl, t-fag”. “vl” corresponds to

“violin” and “t-fag” to “tenor bassoon”. Both title

sets are available in different languages (e.g., English,

German, French, Italian), which further complicated

the matching task. An instrument is a possible candi-

date according to the titles, if one of its terms, or its

translation, is included in the instrumentation of the

source. S

inst

is ranging from 0.0 to 1.0 depending on if

it is an exact match, a substring match or none within

the extended title set out of translations and overlying

classes:

inst











1.0, exact match,

0.5, substring match,

0.0, no match

(4)

While an instrument with the title “violin” matches

with score 1 due to the exact match, the instrument

“bassoon” results in a score of 0.5 because of a sub-

string match with the full RISM name “tenor bas-

soon”. This rather simple approach is used as the

underlying repositories do not use uniform terminol-

ogy. Instrumentation of a musical source from RISM

is only given as a list of abbreviations. On the other

hand, the available amount of information about the

MIMO instruments ranges from names for the in-

strument, instrument families and partially concepts

out of the Hornbostel Sachs classiﬁcation (Von Horn-

bostel and Sachs, 1961), but these classiﬁcation is

missing in RISM. The collaborating musicologists

pointed out that terms for historic instruments are in-

herently ambiguous and that there is not a comprehen-

sive classiﬁcation for instruments, especially not for

such between different groups. Thus, a string match-

ing based approach was best suited to determine in-

strumentation similarity.

3.2.3 Temporal Similarity S

time

The temporal similarity score S

time

between two

events depends on the difference between the corre-

sponding dates ∆

in years and the maximally allowed

temporal distance y

max

and is deﬁned as:

time

= 1 −

∆

max

(5)

This maximally allowed temporal distance with a de-

fault value of 25 years is user-conﬁgurable. By ad-

justing this value, the user is enabled to customize the

matching process, depending on the research question

at hand.

Due to the textual tradition of information, the granu-

larity of temporal data ranges from exact dates to pe-

riods like years or centuries. Both sources comprise

such temporal uncertainties. Annotations like “ﬁrst

half of 18th century” were translated into timestamps

for the earliest and latest possible dates. In the case

of a period for a given event, it is mapped to a sin-

gle day (the mean day between the upper and lower

border of the period) to be used for comparison. Fur-

thermore, the temporal similarity is decreased by sub-

tracting the period length in years ∆

span

proportion-

ally to the maximum temporal distance y

max

. This is

caused by the uncertainty of the exact event dating

within the given period. So, the result strongly de-

pends on the maximum temporal distance chosen by

the user in combination with temporal uncertainties.

In the case of temporal distances and in consideration

of the mean day the maximum distance could be the

worst case of 0.5 · ∆

span

time

= 1 −

∆

max

− 0.5 ·

∆

span

max

(6)

So, a given event in 1805 matches an event annotated

with 1807 with a similarity around 0.866, with a max-

imal possible time difference of 15 years. Whereas an

event in the period of 1800-1810 would match to 1807

with a value of around 0.533, even if the difference

in years to the mean day is the same, due to its un-

certainty. The temporal similarity is also deﬁned be-

tween 0.0 and 1.0, so in cases of S

time

(e(I

), e(P

)) < 0

we set S

time

(e(I

), e(P

)) = 0.0.

3.2.4 Geographical Similarity S

geo

The score for geographical similarity S

geo

refers to

the actual geographical distance between two places

, y

) and p

, y

) that is computed with the

great circle formula delivering the distance in kilome-

ters (Head, 2003):

G = 6378 · arccos



sin(y

) · sin(y

) + . . .

+cos(y

) · cos(y

) · cos(x

− x

)



(7)

With the user-conﬁgurable maximum permitted dis-

tance between the places of two events G

max

(default

value is 50 kilometers), S

geo

is then deﬁned as

geo

= 1 −

max

(8)

3.3 Task Abstraction

The outcomes of our algorithm are hypothetical

matches between an instrument and a performance

event. But the numerical results are hard to evaluate

A Timeline Metaphor for Analyzing the Relationships between Musical Instruments and Musical Pieces

243

by the musicologists, they require interactive visual

access in order to be able to regard a result in the mu-

sicological context to assess its reliability. To describe

user requirements of the system, we utilized the task

taxonomy by Munzner (Munzner, 2014):

• Analyze: At the beginning of our project, the mu-

sicologists outlined their needs and wishes for the

system in their application ﬁeld. Most of all they

wanted to see and discover interesting new pat-

terns or anomalies in the combination of the two

data sets to generate and verify hypotheses for

possible new research questions. In comparison to

the numerical, algorithmic results, visualizations

make it much easier to detect such groupings and

patterns. Also, the communication of uncertain-

ties beneﬁts from visual encoding. With further

qualitative investigation, they are able to derive

new knowledge about the correlations of musical

instruments and musical pieces. New and already

known relationships have to be presentable for the

discussion between musicologists as well. Also,

an enjoyable use of the visualization is focused,

e.g. with a poster depicting all the modiﬁcation

states of a special musical instrument, enhanced

through appropriate music, besides its presenta-

tion in a museum for visitors.

• Search: To interact with the underlying reposi-

tories, the users require to search the data sets in

manifold ways. The musicologists need to lookup

already known correlations for hypothesis veriﬁ-

cation. The search interface enables them to lo-

cate object identiﬁers and special instrument ti-

tles of interest. The visualizations and even the

search interface encourages to browse and explore

through the results and data sets by ﬁltering for ar-

eas in temporal or geographical space.

• Query: Further tasks supported by the system are

query, identify, compare and summarize.

4 VISUAL ENCODING &

INTERACTION IDIOM

The presented visualization aim to display the results

by focusing on temporal and geographical similarity

and show them in separate, but linked views. To en-

able the user to inspect the results in an interactive

way and to create hypotheses for further investiga-

tions, we created a comprehensive metaphor and vi-

sual encoding. To do so, we utilized a consistent

color coding for the two entity classes, which are

symbolized with two color schemes inspired by Col-

orBrewer (Harrower and Brewer, 2003). Instrument

events are colored in different discrete colors with a

high red component, depending on the type of the

event. Whereas musical piece performances are col-

ored in green with different saturation from a continu-

ous color scale, to visually encode the similarity score

of the matching between the two entity classes. The

overall legend can be seen in Figure 1. Also visible

there is the choice of different shapes to symbolize

instrument events as ellipses and matching piece per-

formances as rectangles.

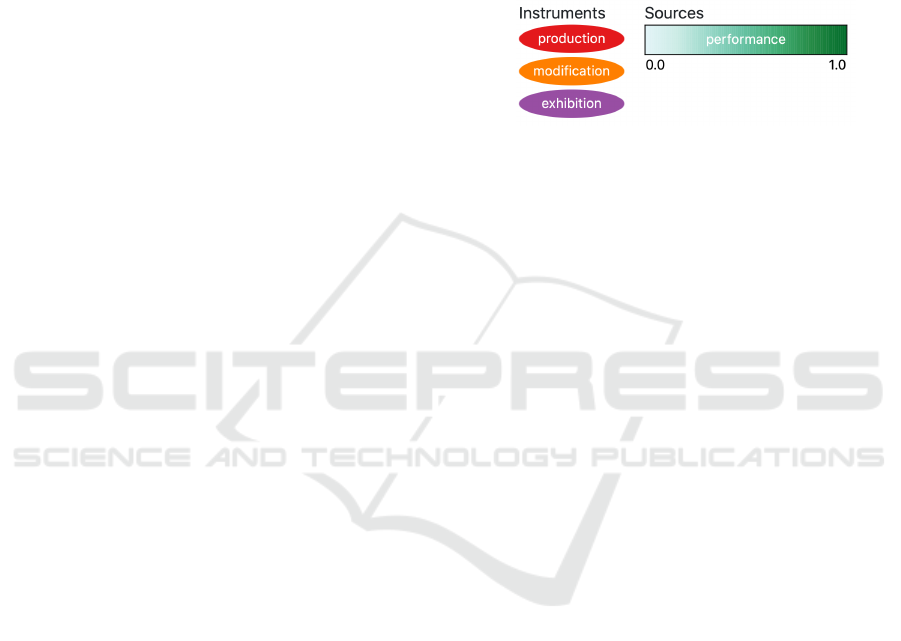

Figure 1: Overall color coding, with two color schemes for

the different entity classes. The color scale over the satura-

tion of green encodes similarity of one piece performance

to a instrument event.

4.1 Timeline

We use a timeline to visualize the resulting matches

in dependence of the temporal dimension (S

time

). To

minimize the visual clutter, we group the result set

entries by single instruments. So every matched in-

strument I

∈ I

. . . I

is symbolized by one row on

the y-axis, started by an eventual image of the instru-

ment to offer the ﬁrst view of it. If no image could

be found for the instrument, the place at the begin-

ning of the row stays blank. The x-axis represents

the time, so the temporal located instrument’s career

events e

. . . e

∈ E(I

) are placed along with the row’s

horizontal extension. These events are enhanced by

the matched musical pieces P(e) with e ∈ E(I

) to

show their relation.

4.1.1 Uncertainties

In the case of uncertainty, the inaccuracy is communi-

cated by an out fading border and width of the event’s

glyph, as visible in Figure 2. The height of each row

) is given by the maximum amount of matches from

P(E(I

)) in it.

One upcoming challenge was the fact, that large

objects draw more attention than smaller ones. Due

to the uncertainties and the focused similarity mea-

sures, lower (more unlikely) matches are getting more

screen space on a timeline or map than exact matches

in temporal and geographical consideration, because

of their higher distances. Equally in calculating and

visualizing the result sets, closeness is the signiﬁcant

property to describe likeness. To encounter that, we

implemented the continuous color scale and with it,

IVAPP 2020 - 11th International Conference on Information Visualization Theory and Applications

244

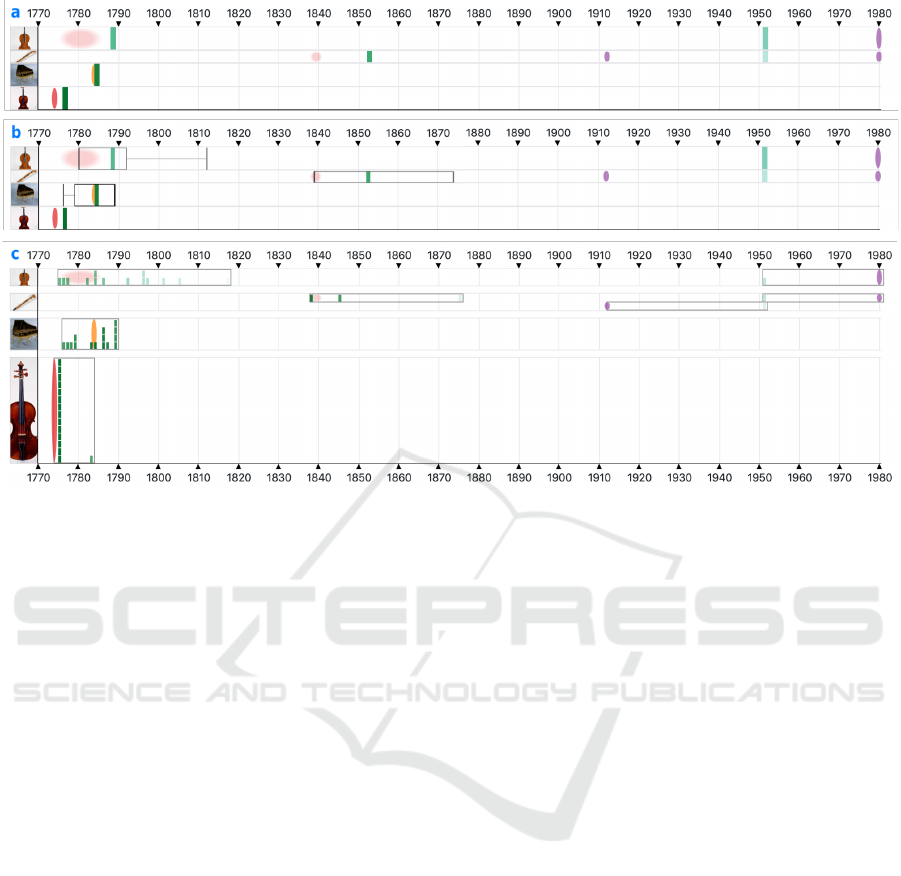

Figure 2: The different semantic zoom levels enable distant reading of distributions of matched results (a,b), as well as the

close reading of all results in detail. In the highest zoom level (c) the musical piece performances are stacked on each other,

creating a bar chart and encode the quantities and qualities for each instrument event.

in combination with transparency, the lower matches

are fading out towards the borders of the maximally

allowed distances.

4.1.2 Semantic Zoom

Following the Visual Information-Seeking Mantra

from Shneiderman (Shneiderman, 1996), the user can

browse through different semantic zoom levels.

The ﬁrst zoom level of the timeline shows a ﬁrst

overview of the matched instruments and their events.

All possible similar pieces P(e) of each instrument

event e

. . . e

∈ E(I

) are summarized in one glyph

at this level. This glyph is a rectangle with a width

of one year on the timeline, positioned on the average

year of all summarized performance events. The color

is given by the sum of scores for the temporal similar-

ity of all binned matches. With this view, it is possible

to get a ﬁrst overview of the temporal distribution of

the matched events in a distant reading manner. Like

on a classical heatmap, whole areas of interest or spe-

cial outliers could be derived and picked for further

investigation. The overview of some matched instru-

ments is visible in Figure 2a.

The second zoom level extends the rectangle

glyphs to box plots, to uncover the distribution of the

matched performances. The previously drawn rectan-

gles remain as medians and get surrounded by their

quartiles. Additionally, whiskers indicate the mini-

mum and maximum extension of the quartiles over

time, but outliers were ignored. An example of box

plots could be seen in Figure 2b.

On the last zoom level, the box plots become bar

charts to reveal all underlying performance matches.

Each matched musical piece is symbolized by its

small rectangle at the year of its performance. We

stack multiple performances in the same year on top

of each other so that they are creating a bar chart like

glyph for the distribution of all matches for one in-

strument event e ∈ E(I

). To clarify the connections of

the bars, all matched P(e) are framed by a thin border

from earliest to latest performance. This time frame

could be expanded via one checkbox to show the min-

imum and maximum possible year (y

max

), to show if

there would be more room for further sources. Peri-

ods around the instrument’s events are stacked on top

of each other too and margins between the rows are

growing, to maintain the separation of the instrument

rows as visible in Figure 2c.

4.1.3 Shape of Similarity

Although the shapes of piece performances are chang-

ing over zoom levels, an overall shape of all matches

to an instrument is recognizable. Width, height,

and saturation are indicating inaccuracy, destination,

amount and quality of the underlying matches. A thin,

high and saturated shape of e.g. a bar chart shows

A Timeline Metaphor for Analyzing the Relationships between Musical Instruments and Musical Pieces

245

much more certainty and quantity than a broad and

ﬂat shaped frame around the bars. These are patterns

to search for during the analysis, as well as the visual

encoding for uncertainty.

4.1.4 Interactions

To explore the result set of matches a variety of in-

teractions were applied to the visual elements. First

of all the interactive search form with its text ﬁelds,

buttons and easy to use ﬁlter bar “VisualSearch”

enables visual analytics and is visible in Figure 4.

Additionally to the dynamic adaption to different

research questions and changing search results via

search form, the user could change the sorting algo-

rithm of the instrument rows in the timeline. The de-

fault is the chronological sorting, where the instru-

ments are sorted by the dates of their matches. Other

sorting methods are the average or the sum of all

matches of one instrument, to get a ranking by quality

and quantity of resulting instrument/piece pairs. With

them, it is possible to encounter the demands of dif-

ferent research questions, like the penalty of the set of

matches through low similarity scores via the average.

For a closer look at one single instrument and its

matches, it is possible to click on the instrument im-

ages or their event glyphs, to ﬁlter the whole result

set. There, due the small number of elements, the ele-

ments are able to become larger. Some information

about the matched events are accessible via mouse

hover over their drawn glyphs, like seen in Figure 3.

Both, timeline and map, are connected through the

hover effects, to bring geographical and temporal di-

mension into context.

4.1.5 Map

Analogous to the timeline, the map is focusing on the

geographical similarity of the different events. Also

the most visual metaphors are the same. Shape, size,

and color are indicating entity class, amount of sum-

marized entries and type, respectively the geographi-

cal similarity score. Because of the different dimen-

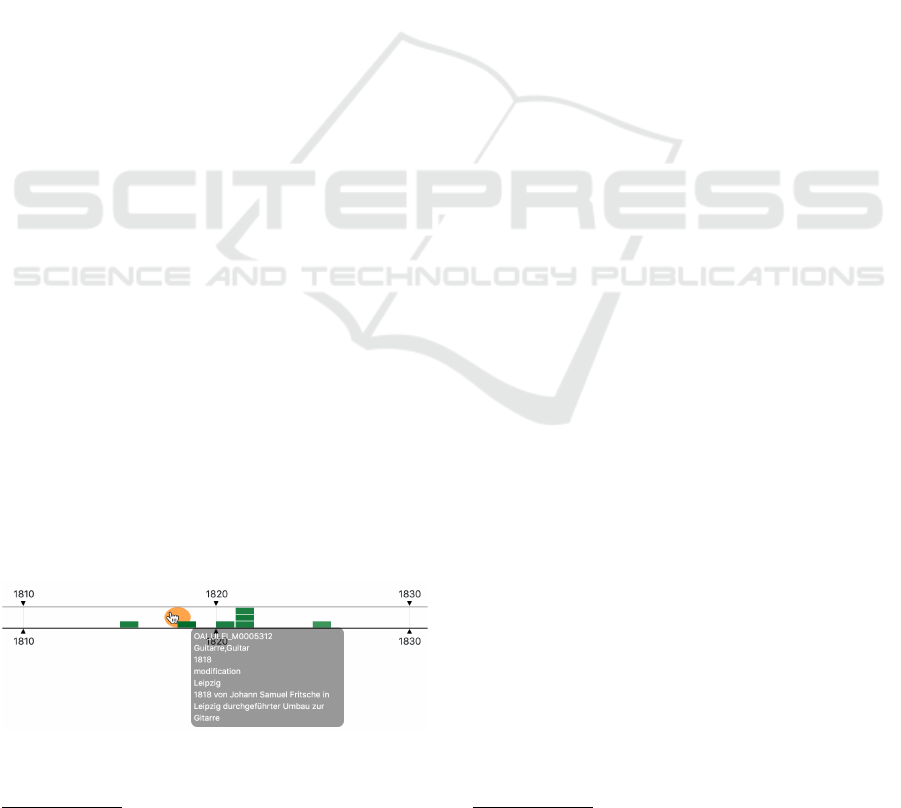

Figure 3: The tooltip uncovers, that this lute was converted

into a guitar by Johann Samuel Fritsche in 1818 in Leipzig,

Germany.

https://documentcloud.github.io/visualsearch/

sions, and thus overlapping of events, it is not possible

to group the result set after instruments in the same

way as at the timeline, but overlapping data points

get clustered. The clusters are divided into separate

glyphs for summarized instruments and piece perfor-

mance events in that cluster, as seen in Figure 6. If

multiple types of instrument events are clustered to-

gether, they are symbolized by a pie chart in the men-

tioned color map. When zooming into the map, clus-

ters of less than eight items of one entity class are

split into single features, placed around the ﬁrst fea-

ture in the center on a circular path. It is possible to

show a circle around the single instrument events to

display the maximum allowed distance between the

matched items, analogous to the time frames around

the timeline’s bar charts. To highlight the connections

between the entities, lines could be drawn, which con-

nect instrument events with their matched piece per-

formance events, as visible in Figure 5. We waive to

draw the detailed connections between split single el-

ements, because of the visual cluttering.

5 USE CASES

In discussion with four musicologists, we observed

multiple use cases during their use of the system,

which underline the work with the visualizations and

the system and point out possible improvements as

well.

5.1 The Protestant Trombone

The ﬁrst is the case that an object is exhibited in a

display case e.g. in a museum. With the knowl-

edge about all of its conversions and stations, its life

could be enriched by possible musical piece perfor-

mances. For a trombone of the Music Instrument Mu-

seum of Leipzig University (Germany)

, they chose

to set G

max

= 200 km and y

max

= 50 years. Inspect-

ing the timeline from Figure 4a, the musicologists

saw two distinct red production events of it, in each

case with a given period of 10 years, indicated by

the stretched and out fading ellipses. When hovering

over the events, they noticed that the production of

the whole instrument is divided into the manufactur-

ing of the lower part around 1740 and the upper part

around 1785. When zooming in (b of Figure 4), the

glyphs get enhanced by the box plots around them,

uncovering the distribution of matched performances.

A ﬁrst glance shows, that the left box plot has a longer

range of whiskers than the other one. On the next

https://mfm.uni-leipzig.de

IVAPP 2020 - 11th International Conference on Information Visualization Theory and Applications

246

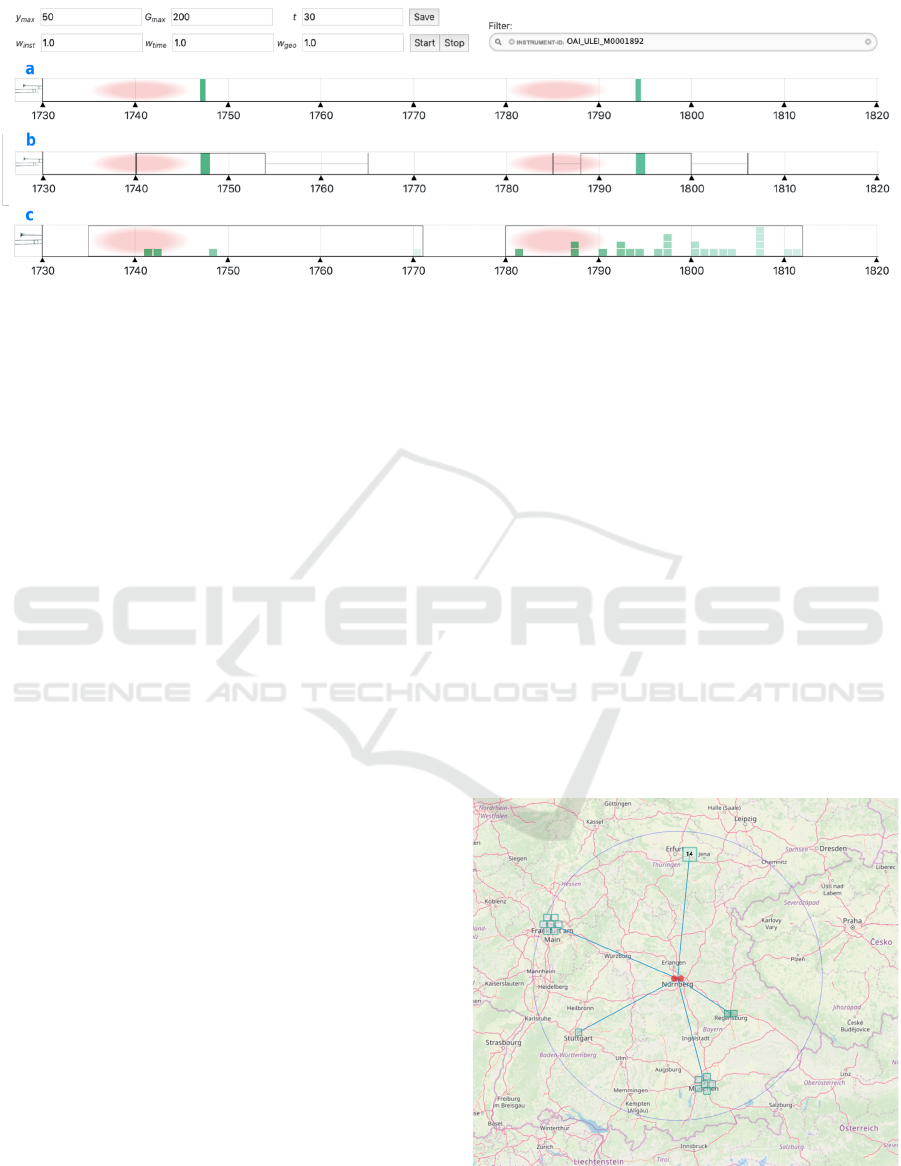

Figure 4: The timeline of a trombone from the Music Instrument Museum of Leipzig University in its different zoom level

states.

zoom level (c of Figure 4) the single matched per-

formances become visible. To assess the quality of

the recommendations the musicologists wanted to get

insights into the ﬁrst matched performances for each

instrument event. Without question, the ﬁrst half of

the trombone is not playable without its other half.

Nevertheless, a closer inspection of the ﬁrst musical

pieces by hovering revealed, that some of them are

different parts of an opera. Also striking is, that many

of the matched musical pieces are sacred songs. That

leads the users to the geographical similarity of the

result set. Both parts of the trombone were manu-

factured in Nuremberg (Germany) and the musical

pieces were performed in cities around that place in

the radius of G

max

, as displayed in Figure 5. With

the additional knowledge of the musicologists, it turns

out, that all cities have been Protestant, except for

Munich, which was Catholic. So considering the high

amount of Protestant pieces, from Protestant com-

posers, in the result set, e.g. Frankfurt am Main is cul-

turally closer to the instrument from Nuremberg, than

Munich, although Munich is geographically nearer.

Despite everything, for users it is at least possible to

get an insight into the music e.g. operatic arias com-

posed for trombones in Southern Germany around the

late 18th century.

5.2 The Playlist for a Violin

Another possible use case is the generation of a

“playlist” around a special instrument or a group of

it. For example an imagined chamber orchestra with

multiple concertmasters, who play Italian violins.

With the system now it is possible to easily gener-

ate a playlist of matching musical pieces for a themed

concert or the production of recordings around an-

cient violins. The musicologists started with the ﬁrst

look on all of the available violins in the data set

and their best matches. Selected settings here were

max

= 25 years and G

max

= 50 km. Noticeable at

ﬁrst glance was the clear gap between matches around

1850 and 1870. Looking at the map showed, that most

of the instruments were located in Germany and just

circa 10 percent of them in Italy. Focusing on the

seven violins from Italy with matches within a dis-

tance of 30 years and 75 kilometers, the timeline is

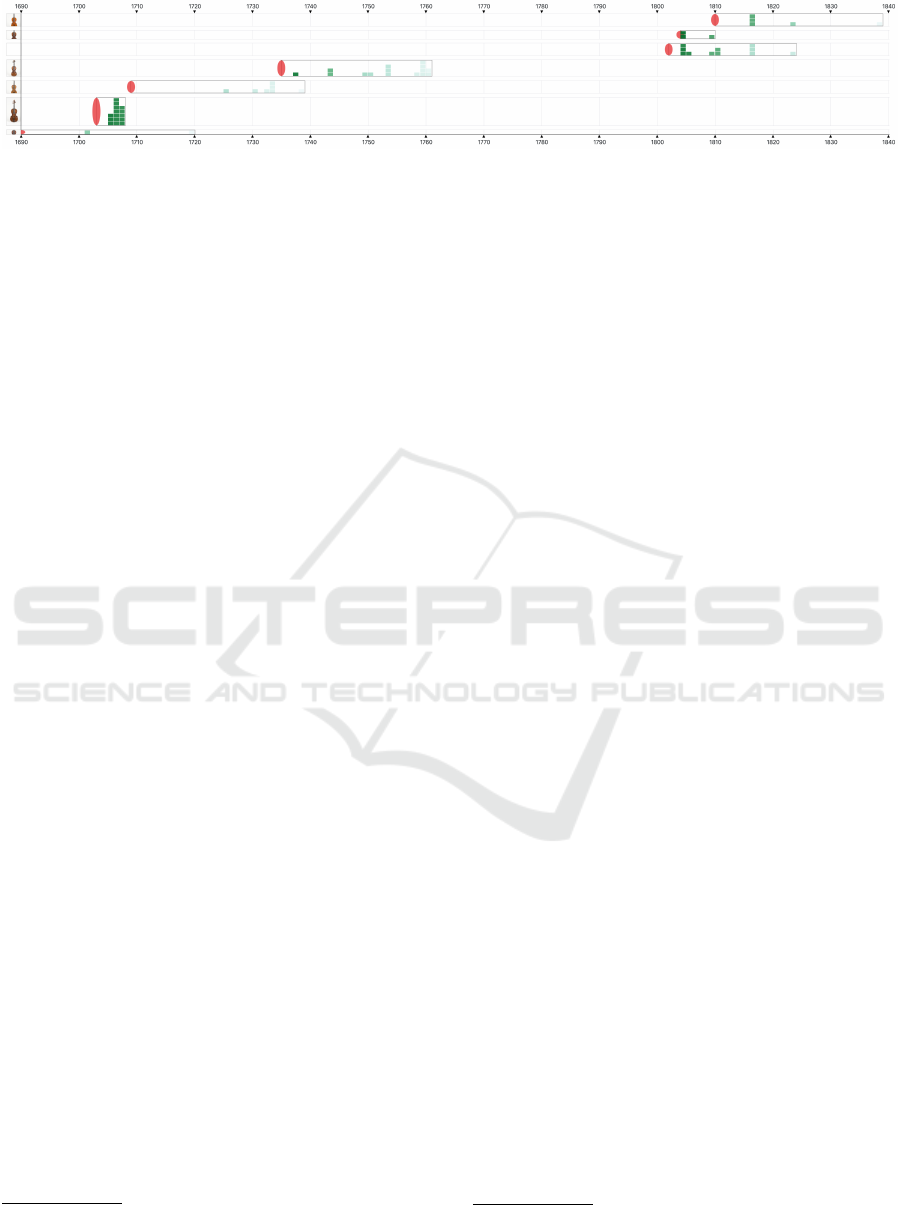

changing to Figure 6. With such a condensed set of

instruments and nevertheless a manifold variation of

possible musical pieces, the musicologists suggested

“A foray through the Italian baroque for the violin”

as one name for the playlist, where stations could be

Rome around 1710, Cremona around 1750 and Parma

around 1810. Matching pieces are from composers

like Antonio Vivaldi or Andrea Bernasconi and pri-

mary operatic arias. Interesting to see is the already

mentioned gap after 1820 in Italy and the raising vi-

olins and performances on the north side of the Alps.

Also noticeable by further investigations, is that Ital-

Figure 5: The map for a trombone from the Music Instru-

ment Museum of Leipzig University, produced in Nurem-

berg (Germany), surrounded by its matched piece perfor-

mances.

A Timeline Metaphor for Analyzing the Relationships between Musical Instruments and Musical Pieces

247

Figure 6: All Italian violins with their piece performance matches within a distance of 30 years and 75 kilometers.

ian music was not just played in Italy. For example

the source “Didone abbandonata”

made its way from

Milan (1738) over Venice (1741) to Munich (1756).

5.3 The Conversion of Lutes

The lute instruments are an ancient plucked string in-

strument family. Due to their high value the lutes,

some particular instruments experienced multiple de-

velopments and changes over the time from classical

lutes over mandolins and theorbos to guitars, pictur-

ing the passed trends. The search for such instrument

families in the presented system creates the timeline

and map view from Figure 7.

Apparently, the timeline is divided into three dif-

ferent characteristic epochs. The ﬁrst episode is for

the renaissance and baroque european lutes like the

one in the row d in Figure 7. Unfortunately, musi-

cal pieces for lutes from RISM are very rare (a search

on RISM for lute as instrumentation gives 38 results).

After that period, the music culture was changing and

with it, performance practices. The lute was dis-

placed from the established ensembles because it had

no place in the rising orchestras.

The many exact datings of instrument productions

in the second epoch (1770 - 1860) may come from

the high amount of good logged contract manufac-

turing for the courtly culture, the analyzing musicol-

ogists assumed. Most of the instruments in that pe-

riod are mandolins and ﬁrst guitars. The data of the

lute-guitar in row c of Figure 7 is manually enhanced

and corrected by a musicologist specialized on lutes.

In MIMO the instrument is tagged as lute-guitar with

two production events. The information, that the in-

strument was manufactured as a classical lute (ﬁrst

half of the 17th century) is only available in the tex-

tual metadata of the events. As well as the conver-

sion of the instrument into a lute-guitar in 1818 is

written down, but not easily automatically processi-

ble, as seen in Figure 3. Such example shows the real

value of the system to visualize and auralize a partic-

ular instrument career, cause of the musical changes

of matched piece performances to its station.

https://opac.rism.info/metaopac/search?View

rism&id=

450014602&View

rism

The last episode is dominated by uncertain pro-

duction dates of guitars. Due to that the amount and

quality of matches are decreased. The musicologists

working with the system assumed the more industrial

production of instruments. These instruments were

produced on stock and not for a speciﬁc customer who

made an order. This might be the reason for the uncer-

tain manufacturing records. Besides, the lutes experi-

enced a revival through the conversion to lute-guitars

or bass lutes, like the one in row b of Figure 7, which

were used in operas e.g. the hypothetically matched

“Meistersinger von N

urnberg”

by Richard Wagner.

5.4 The Historical Performance

Practice

Even the other way, ﬁnding matches to one selected

musical piece, is conceivable. Imagined a given mu-

sic manuscript, with its past performance dates and

maybe additional knowledge about the work e.g. the

composition event. With such information, feasible

historic instruments come into consideration by the

use of the system, to perform the musical piece in a

way of historically informed performance practices,

with appropriate instruments.

6 RESULTS

6.1 Discussion

While evaluating the system through the work with

musicologists, we observed the following effects.

Different close and distant reading research questions

are supported by the system. For resilient results, fur-

ther close reading is still necessary, but the system is

capable of revealing so far unseen correlations, now

possible with a digital humanities approach to mu-

sicological data. The different levels of the seman-

tic zoom create a smooth transition between temporal

granularities. Even if the matching results are not ex-

act matches in the real world, at least we receive in-

https://opac.rism.info/metaopac/search?View=rism&id

=270000986&View=rism

IVAPP 2020 - 11th International Conference on Information Visualization Theory and Applications

248

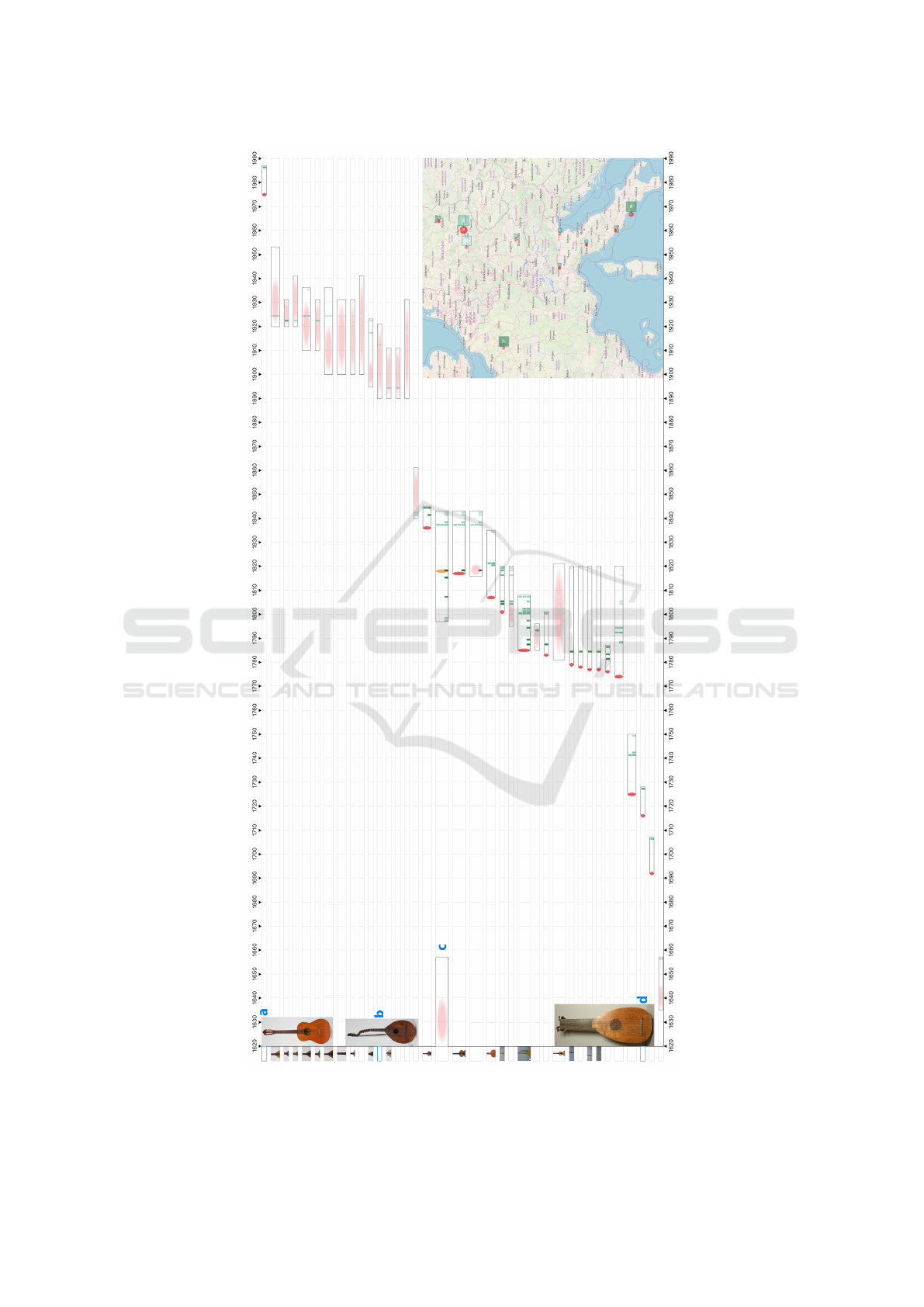

Figure 7: All lutes and its similar instrument families with their piece performance matches within a distance of 50 years

and 100 kilometers. Visual striking and interesting are the three distinct episodes and the differences between the certainties

inside of them.

A Timeline Metaphor for Analyzing the Relationships between Musical Instruments and Musical Pieces

249

dications about how the music was intended to sound

at the dedicated lifetime events of one instrument or

their instrument family.

One advantage could be the research and education in

organology, instrument careers and socio-cultural de-

velopments over the centuries of music. Indirectly the

system creates a similarity measure for instruments

through the analysis of similar events and shared pos-

sible performances. The use cases show that available

databases and the post-processing of data sets have

yet to be improved in order to increase the quality

of results of the recommendation system. For exam-

ple, detailed information about tuning and tones are

missing for a better instrumentation similarity analy-

sis. But for now, the system satisﬁes the intention of

creating hypotheses of joint appearance, which can be

veriﬁed or falsiﬁed by further inspections of musicol-

ogists.

6.2 Limitations

In general the amount of displayable items is not lim-

ited. All instruments in the timeline are stacked atop

each other so the scrollable height is growing with

each new entry. However, the number of instrument

rows and related events is limited by the amount that

is humanly processible. We observed a result set with

150 oboes from one museum with the same produc-

tion event date and location and the same matched

musical pieces were stacked on each other, using a

lot of screen space. This output requires the screen’s

height three times (depending on resolution and used

minimum of instrument rows height) but is also neg-

ligible by the user who is aware of the general quality

of the data. Also, the system is not meant to review,

but rather to direct towards new hypotheses. Such re-

view, especially veriﬁcation of suggested facts, has

to be performed intellectual with additional knowl-

edge. Nevertheless, the falsiﬁcation is easily possi-

ble by using the visualizations, but this use case un-

derlines again the dependence of calculated and dis-

played statements on the quality and quantity of the

used data points.

6.3 Future Work

The measurement of similarity will be improved e.g.

by the consideration of geopolitical information like

provinces and countries. Therefore, the aggregation

of information from other repositories and a better

alignment of the different existing vocabularies is

necessary. Also, the derivation of new information

out of existing is possible. For example, the database

of the musiXplora (Khulusi et al., 2020a) contains

over 32.000 persons in the musical context with a va-

riety of information about them, e.g., the denomina-

tion of musicians. Hypotheses like the denomination

of cities (as mentioned in the ﬁrst use case in Sec-

tion 5) could be derived from the denominations of all

locally born persons. Further, the system is expand-

able by e.g. a force-directed graph for the results of

the recommendation system. Therefore instruments

or musical pieces could be grouped depending on the

demand of research questions. A box plot glyph could

be evolved to a bean plot (Kampstra et al., 2008) for

the better creation of shapes for the matched results.

Furthermore, we want to increase the linkage of the

different attributes and views e.g. by implementing a

time slider for the map, to see the geospatial trends of

the two entity classes over time.

7 CONCLUSION

Due to the increasing amount of digital cultural her-

itage resources, user interfaces that support aggrega-

tion, mapping and linkage gain more and more im-

portance. Our project aimed to ﬁnd relations between

musical instruments and historical performances of

musical pieces. To encounter this, we cooperated

with musicologists, aggregated and linked two digital

repositories. In addition, we deﬁned a multi-faceted

similarity measure for the likeness of two matching

events. To achieve the ability of qualitative close

reading and quantitative distant reading of the results,

we designed a new timeline metaphor with semantic

zoom levels accompanied with a map to review results

in a temporal as well as a geographical context. The

presented use cases indicate the value of our approach

to support new research questions in musicology.

REFERENCES

Aigner, W., Miksch, S., Schumann, H., and Tominski, C.

(2011). Visualization of time-oriented data. Springer

Science & Business Media.

Andr

e, P., Wilson, M. L., Russell, A., Smith, D. A., Owens,

A., and Schraefel, M. (2007). Continuum: Designing

Timelines for Hierarchies, Relationships and Scale. In

Proceedings of the 20th Annual ACM Symposium on

User Interface Software and Technology, UIST ’07,

pages 101–110, New York, NY, USA. ACM.

Berthaut, F., Marshall, M., Subramanian, S., and Hachet,

M. (2013). Rouages: Revealing the mechanisms of

digital musical instruments to the audience. In NIME:

Proceedings of the International Conference on New

Interfaces for Musical Expression (pp. 165-169).

IVAPP 2020 - 11th International Conference on Information Visualization Theory and Applications

250

Borman, T. and Stoel, B. (2009). Review of the uses of com-

puted tomography for analyzing instruments of the vi-

olin family with a focus on the future. J Violin Soc

Am: VSA Papers, 22(1):1–12.

Bou

enard, A., Gibet, S., and Wanderley, M. M. (2008).

Enhancing the visualization of percussion gestures by

virtual character animation. In NIME, pages 38–43.

Brehmer, M., Lee, B., Bach, B., Riche, N. H., and Mun-

zner, T. (2016). Timelines revisited: A design space

and considerations for expressive storytelling. IEEE

transactions on visualization and computer graphics,

23(9):2151–2164.

Bunout, E. (2016). Visualisation of the prosopography of

polish and german experts on eastern europe: Are

non-computed data useable for visualisation? In DH

Benelux conference 2016.

Daniels, M. (2014). The largest vocabulary in hip

hop. https://pudding.cool/projects/vocabulary/ (Ac-

cessed 2019-06-24).

Dawe, K. (2012). The cultural study of musical instruments.

In The Cultural Study of Music, pages 217–227. Rout-

ledge.

Harrower, M. and Brewer, C. A. (2003). Colorbrewer.org:

An online tool for selecting colour schemes for maps.

The Cartographic Journal, 40(1):27–37.

Havre, S., Hetzler, E., Whitney, P., and Nowell, L. (2002).

Themeriver: Visualizing thematic changes in large

document collections. IEEE transactions on visual-

ization and computer graphics, 8(1):9–20.

Head, K. (2003). Gravity for beginners. University of

British Columbia, 2053.

Hopfner, R. (2018). Violinforensic. http://www.violinforen

sic.com (Accessed 2019-06-24).

anicke, S., Focht, J., and Scheuermann, G. (2016). Interac-

tive visual proﬁling of musicians. IEEE transactions

on visualization and computer graphics, 22(1):200–

209.

Kampstra, P. et al. (2008). Beanplot: A boxplot alternative

for visual comparison of distributions.

Khulusi, R., J

anicke, S., Kusnick, J., and Focht, J. (2019).

An Interactive Chart of Biography. Paciﬁc Visualiza-

tion Symposium (PaciﬁcVis), 2019 IEEE.

Khulusi, R., Kusnick, J., Focht, J., and J

anicke, S. (2020a).

musiXplora: Visual Analysis of Musicological Data.

In Proceedings of the 11th International Conference

on Information Visualization Theory and Applications

(IVAPP).

Khulusi, R., Kusnick, J., Meinecke, C., Gillmann, C.,

Focht, J., and J

anicke, S. (2020b). A survey on visual-

izations for musical data. Computer Graphics Forum.

Kirsch, S. (2019). Computed tomography as a tool

for archiving ethnomusicological objects. In Com-

putational Phonogram Archiving, pages 305–319.

Springer.

Mchedlidze, T. e. a. (2019). Network visualization chal-

lenges and opportunities in digital humanities. Jour-

nal of Historical Network Research (to be published).

Miller, M., Walloch, J., and Pattuelli, M. C. (2012). Visual-

izing linked jazz: A web-based tool for social network

analysis and exploration. Proceedings of the Ameri-

can Society for Information Science and Technology,

49(1):1–3.

Munzner, T. (2009). A nested model for visualization de-

sign and validation. IEEE transactions on visualiza-

tion and computer graphics, 15(6):921–928.

Munzner, T. (2014). Visualization Analysis and Design.

CRC press.

Schlegel, A., L

udtke, J., and Cabral, P. C. (2011). Die Laute

in Europa 2: Lauten, Gitarren, Mandolinen und Cis-

tern. Lute Corner.

Shneiderman, B. (1996). The Eyes Have It: A Task by Data

Type Taxonomy for Information Visualizations. In

Proceedings., IEEE Symposium on Visual Languages,

pages 336–343. IEEE.

Summers, J. E. (2008). What exactly is meant by the term

“auralization?”. The Journal of the Acoustical Society

of America, 124(2).

Von Hornbostel, E. M. and Sachs, C. (1961). Classiﬁcation

of musical instruments: Translated from the original

german by anthony baines and klaus p. wachsmann.

The Galpin Society Journal, pages 3–29.

Zhao, J., Drucker, S. M., Fisher, D., and Brinkman, D.

(2012). Timeslice: Interactive faceted browsing of

timeline data. In Proceedings of the International

Working Conference on Advanced Visual Interfaces,

pages 433–436. ACM.

A Timeline Metaphor for Analyzing the Relationships between Musical Instruments and Musical Pieces

251
