Development of HIV-1 Coreceptor Tropism Classifiers: An Approach

to Improve X4 and R5X4 Viruses Prediction

José Fernando dos Anjos Rodrigues

, Letícia Martins Raposo

1,2 b

and Flavio Fonseca Nobre

Programa de Engenharia Biomédica, Universidade Federal do Rio de Janeiro, Av. Horácio Macedo,

2030, Rio de Janeiro, Brazil

Departamento de Métodos Quantitativos, Universidade Federal do Estado do Rio de Janeiro, Av. Pasteur,

458, Rio de Janeiro, Brazil

Keywords: Clinical Applications, HIV, Viral Tropism, Genotypic Classifiers.

Abstract: The pathway of human immunodeficiency virus (HIV) infection depends on the composition of a 35-amino

acid variable region in its envelope, known as the V3 loop. Since this discovery, many tools have been

developed to diagnose and predict viral tropism, from biochemical tests to various computational algorithms.

To date, the biggest developmental difficulty is the correct prediction of X4 or R5X4-tropism virions. In this

study, we evaluated some of these recommended criteria and proposed a random forest-based approach for

better prediction of X4-capable (i.e., either X4-only, or R5X4-dual/mixed capability). All methods achieved

a specificity higher than 87%, with geno2pheno 2.5% showing the best performance (98.2%). Nevertheless,

the sensitivity (73.3%) was lower compared to the other approaches. The highest sensitivity was attained by

our Complete Model with an undersampling strategy (90.1%). The accuracy of all approaches ranged from

87.4% to 93.0%. Complete Model with oversampling and Reduced Model with no balancing showed the

highest MCC value (both with 0.796 score). Considering error rates and the number of explanatory variables,

our main objective of increasing the ability to predict viral specimens with X4-tropism was achieved.

1 INTRODUCTION

The Human Immunodeficiency Virus (HIV) is the

etiologic agent of the Acquired Immunodeficiency

Syndrome (AIDS) (Barré-Sinoussi et al., 1983; Gallo

et al., 1983). The virus is known to use the CD4

receptor to infect its host cell as well as a co-receptor,

which might be a CCR5 or CXCR4 receptor

(Clapham & McKnight, 2001).

The management of which coreceptor will be

utilized by HIV in cell infection depends on the

composition of a hyper-variable loop region within

the gp120 protein receptor on the surface of HIV-1

virions called V3 loop. The chemical properties of

amino acids can create an affinity for the chosen

receptor. This affinity is also known as viral tropism

(Schneider-Schaulies, 2000).

HIV tropism is split into three groups: R5

(specimens with CCR5–receptor tropism), X4 (with

https://orcid.org/0000-0003-0287-4345

https://orcid.org/0000-0003-0613-5582

https://orcid.org/0000-0003-4261-8258

CXCR4 tropism), and R5X4 (specimens whose

tropism cannot be determined or have hybrid tropism)

(Berger et al., 1998). Establishing HIV tropism is

crucial to addressing anti-HIV treatment with more

efficient and less harmful strategies. For instance,

Maraviroc is a CCR5-specific inhibitor with mild side

effects (Woollard & Kanmogne, 2015).

Based on this information, many tests have been

developed to determine HIV tropism. The most

accurate is Trofile®, a phenotypical biological

method to identify the tropism of a patient's HIV

(Whitcomb et al., 2007). Unfortunately, this test is

expensive and very time-consuming for clinical

analysis. Still, researchers rely on their findings to

create HIV databases (Poveda et al., 2010).

Other procedures were developed, taking

advantage of genomic sequencing technology and the

increasing use of computational methods in

healthcare. These procedures utilize advanced

Rodrigues, J., Raposo, L. and Nobre, F.

Development of HIV-1 Coreceptor Tropism Classiﬁers: An Approach to Improve X4 and R5X4 Viruses Prediction.

DOI: 10.5220/0009096101830187

In Proceedings of the 13th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2020) - Volume 3: BIOINFORMATICS, pages 183-187

ISBN: 978-989-758-398-8; ISSN: 2184-4305

183

statistical tools and classification algorithms. Some

genotypic prediction servers are well known, such as

geno2pheno

[coreceptor]

(Lengauer et al., 2007),

WebPSSM (Jensen et al., 2003) and T-CUP (Heider

et al., 2014). However, because of the lack of

available data, these algorithms struggle to predict

X4-capable group correctly. Since most of the

sequences obtained from these viral samples are in

the R5 group, services are better suited to predict

these specimens, resulting in an overfitting issue

(Dietterich, 1995).

In this study, we evaluated some of these

established predictors and proposed a random forest-

based approach to achieve better performing models.

2 MATERIALS AND METHODS

2.1 Data

For this study, we utilized 1622 amino acid sequences

corresponding to the V3 region of HIV-1, subtype B.

1284 samples had R5-tropism and 338 had X4 or

R5X4-tropism (both groups were merged as NR5-

tropism). All sequence information, as well as viral

tropism and subtype, were obtained from the Los

Alamos National Laboratory database

(http://www.hiv.lanl.gov/).

These sequences were converted from the single-

letter amino acid code to numeric representation

using the Engelman’s hydrophobicity scale through

the

peptides R package (Osorio, Rondón-Villarreal,

& Torres, 2015). This scale was used because each

amino acid has a distinct number to represent them

(Engelman, Steitz, & Goldman, 1986).

2.2 Modelling

The sequences were divided into two groups at a ratio

of 70:30, using the

caret package (Kuhn, 2016).

1136 sequences (899 R5 and 237 NR5) were

allocated to the training set and 486 sequences (385

R5 and 101 NR5) to the test group. The same test set

was used to evaluate the models and all the other

predictors involved in this study.

The random forest algorithm (Breiman, 2001) was

employed to build the predictors using the

randomForest R package (Liaw & Wiener, 2002).

To verify if the unbalanced data could influence the

model performance, we also developed models with

oversampling and undersampling strategies.

Oversampling randomly increases the number of

records in the minority class, while undersampling

randomly discards the majority class samples in order

to modify the class distribution.

We also tested if the removal of explanatory

variables with low variance could affect the

performance of the models. Hence, a training set with

all 35 positions of the V3 sequence (henceforth

Complete Model) was used, as well as a training set

without positions with low variability. In this sense,

we used the

nearZeroVar function form caret R

package to remove variables with low variance

(henceforth Reduced Model). Seventeen variables

were removed for the construction of the Reduced

Model. The positions were: 1, 3, 4, 6, 7, 8, 9, 15, 16,

17, 23, 24, 28, 30, 31, 33 and 35. These positions

showed at least 95% conservation among all the

sequences used in this study.

Altogether, six random forest models were

created to predict HIV-1 tropism.

2.3 Genotypic Predictors Comparison

We compared our approach with the following tools:

T-CUP 2.0, geno2pheno

[coreceptor]

and WebPSSM. For

WebPSSM, we used the scoring matrix x4r5, T-CUP

2.0 was used with standard settings and, for

geno2pheno

[coreceptor]

, we used false positive rate

(FPR) cut-off at 2.5%, 5%, and 10%.

2.4 Performance Measures

For the assessment of performance of all tested

algorithms, we calculated the sensitivity, specificity,

accuracy and Matthews Correlation Coefficient

(MCC). The MCC value ‘1’ points to the perfect

prediction, whereas ‘0’ corresponds to a completely

random prediction. The measures are defined as

following:

  







 100

(1)

  







 100

(2)

  

  















 100

(3)

 







  



  



  



  



(4)

as TP stands for the count of true positives, TN true

negatives, FP false positives and FN false negatives.

The NR5 group was stated as the positive class.

The area under receiver operating characteristic

curve (AUC) was also used to evaluate the random

forest model performance. The

pROC R package was

used (Robin et al., 2011). All analyses were

BIOINFORMATICS 2020 - 11th International Conference on Bioinformatics Models, Methods and Algorithms

184

developed in R programming environment, version

3.6.0 (R Development Core Team, 2019).

3 RESULTS

To assess the overall performance of our classifiers,

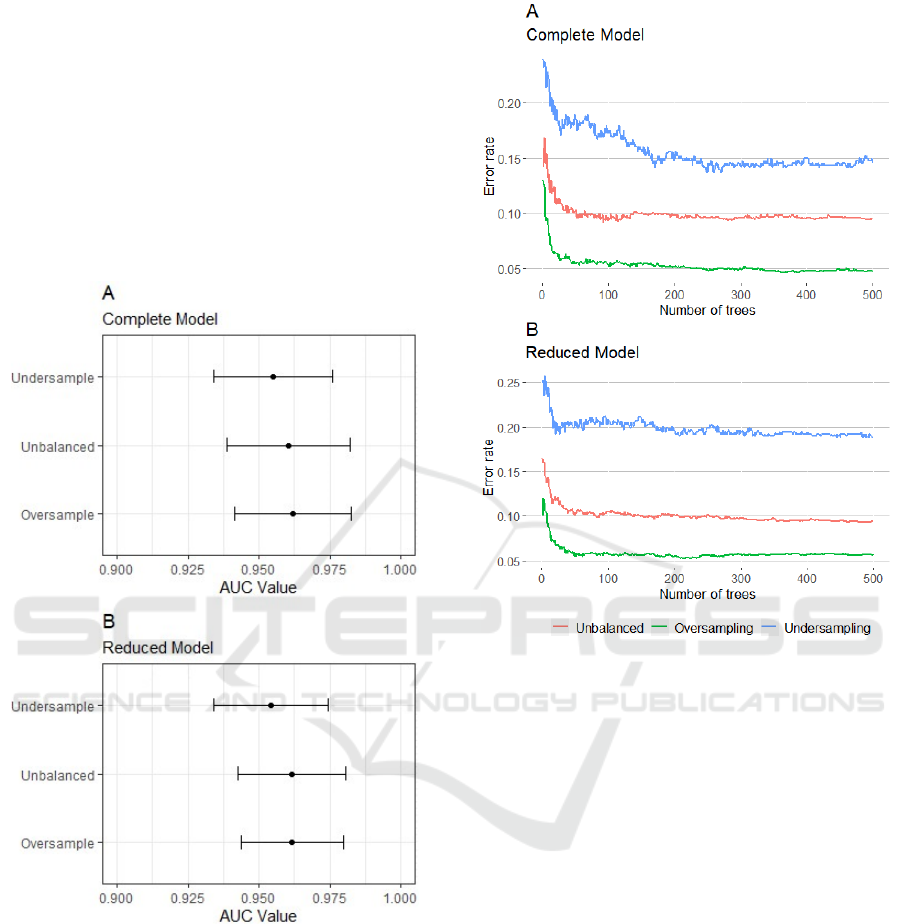

we calculated the AUC. Figure 1 shows the 95%

confidence interval for AUC for each one of the six

models. Both Complete and Reduced models exhibit

very similar performance.

Figure 1: 95% confidence interval for AUC for both

Complete (A) and Reduced (B) models.

The error rate along the construction of decision

trees was also evaluated. In Figure 2, it is possible to

observe that, from 200 trees, the error rates of the

models stabilize. The models built with the

undersampling approach presented higher

fluctuations, while the oversampling model presented

the lowest error rate, both for the Complete and

Reduced models.

We additionally tested our proposed models and

three other methods using an independent test set.

Table 1 shows the performance results of the different

Figure 2: Error rate during the construction of forests for

both Complete (A) and Reduced (B) models.

algorithms. All methods achieved a specificity higher

than 87%, with geno2pheno 2.5% showing the best

performance (98.2%). Nevertheless, the sensitivity

(73.3%) was lower compared to the other approaches.

Our Complete Model with an undersampling strategy

(90.1%) attained the highest sensitivity. The accuracy

of all approaches ranged from 87.4% to 93.0%.

Complete Model with oversampling and Reduced

model with no balancing showed the highest MCC

value (both with 0.796 score).

By comparing the two approaches that use the

random forest algorithms (our models and T-CUP

2.0) it is possible to observe that our classifiers

(Complete with oversampling, Reduced with

oversampling and Reduced with undersampling)

presented a higher performance for the three

evaluated measures.

4 DISCUSSION

In the current study, we developed random forest-

based

approaches for predicting HIV-1 coreceptor

Development of HIV-1 Coreceptor Tropism Classiﬁers: An Approach to Improve X4 and R5X4 Viruses Prediction

185

Table 1: Performance comparison of different prediction

methods. Highest values for each measure are marked in

bold.

Model Se Sp Acc MCC

Comp Unb 90.1

91.4 91.2 0.759

Comp Over

84.2 94.0 92.0

0.796

Comp Under

88.1 92.5 91.6 0.709

Red Unb

88.1 92.7 91.8

0.796

Red Over

87.1 94.3 92.8 0.753

Red Under

84.2 93.8 91.8 0.722

g2p 10%

86.1 87.8 87.4 0.671

g2p 5%

79.2 93.8 90.7 0.721

g2p 2.5%

73.3

98.2 93.0

0.778

WebPSSM

68.3 93.5 88.3 0.635

T-CUP 2.0

82.2 93.2 90.9 0.733

usage. We used two strategies to enhance our model

performance: methods for balancing training data and

zero or near-zero variance predictors removal. In

total, six approaches were evaluated.

The proposed models performed very similarly to

each other. This information corroborates previous

studies that showed the strength of the random forest

algorithm, even with unbalanced training data

(Dittman, Khoshgoftaar, & Napolitano, 2015).

However, the error rate of the models suggests that

the oversampling approach was more adequate for

this type of problem.

T-CUP 2.0 uses random forest algorithm, like our

model. However, the data preparation for our model

showed influence in its performance. Perhaps, the

choice of Engelman hydrophobicity scale, instead of

Kyte-Doolittle scale (Kyte & Doolittle, 1982), used

for T-CUP 2.0. Therefore, the evaluation of

numerical conversion of amino acids should be

considered as an important factor for the development

of genotypic models.

Regarding the number of explanatory variables in

the model, it was possible to observe that both

approaches (Complete and Reduced models) had

comparable performance, suggesting that there is no

great difference between these models. However, on

behalf of parsimony, it is preferable to have a model

with minimal explanatory variables. Therefore, the

Reduced Model is more suitable to our objective.

The charts also showed that the models barely

change their error rate after 200-250 trees in the

forest, except for the undersampled models. Thus, the

model can perform optimally with a smaller number

of trees, streamlining the process of prediction.

It is very significant that our model has achieved

the highest sensitivity values. Although geno2pheno

algorithm achieved the best performance in

specificity and accuracy, our models showed best

values of MCC, a robust parameter for evaluation of

any prediction method. Our main goal in this study

was to enhance the ability of algorithms to predict

viral specimens with X4 tropism. The Complete

Model with no balancing showed sensitivity and

specificity above 90%, which suit our model into the

European guidelines on the clinical management of

HIV-1 tropism testing (Vandekerckhove et al., 2011).

Therefore, our studies are very promising to achieve

a new and more accurate genotypic predictor.

REFERENCES

Barré-Sinoussi, F., Chermann, J. C., Rey, F., Nugeyre, M.

T., Chamaret, S., Gruest, J., … Montagnier, L. (1983).

Isolation of a T-lymphotropic retrovirus from a patient

at risk for acquired immune deficiency syndrome

(AIDS). Science (New York, N.Y.), 220(4599), 868–

871. https://doi.org/DOI:10.1126/science.6189183

Berger, E. A., Doms, R. W., Fenyö, E.-M. M., Korber, B.

T. M., Littman, D. R., Moore, J. P., … Weiss, R. A.

(1998). A new classification for HIV-1. Nature,

391(6664), 240. https://doi.org/10.1038/34571

Breiman, L. (2001). Random forests. Machine Learning.

https://doi.org/10.1023/A:1010933404324

Clapham, P. R., & McKnight, Á. (2001). HIV-1 receptors

and cell tropism. British Medical Bulletin, 58, 43–59.

https://doi.org/10.1093/bmb/58.1.43

Dietterich, T. (1995). Overfitting and Undercomputing in

Machine Learning. ACM Computing Surveys (CSUR),

27(3), 326–327. https://doi.org/10.1145/212094.212114

Dittman, D. J., Khoshgoftaar, T. M., & Napolitano, A.

(2015). The Effect of Data Sampling When Using

Random Forest on Imbalanced Bioinformatics Data. In

Proceedings - 2015 IEEE 16th International

Conference on Information Reuse and Integration, IRI

2015. https://doi.org/10.1109/IRI.2015.76

Engelman, D. M., Steitz, T. A., & Goldman, A. (1986).

Identifying nonpolar transbilayer helices in amino acid

sequences of membrane proteins. Annual Review of

Biophysics and Biophysical Chemistry.

https://doi.org/10.1146/annurev.bb.15.060186.001541

Gallo, R. C., Sarin, P. S., Gelmann, E. P., Robert-Guroff,

M., Richardson, E., Kalyanaraman, V. S., … Popovic,

M. (1983). Isolation of human T-cell leukemia virus in

acquired immune deficiency syndrome (AIDS).

Science. https://doi.org/10.1126/science.6601823

Heider, D., Dybowski, J. N., Wilms, C., & Hoffmann, D.

(2014). A simple structure-based model for the

prediction of HIV-1 co-receptor tropism. BioData

Mining, 7, 14. https://doi.org/10.1186/1756-0381-7-14

Jensen, M. A., Li, F.-S., van ’t Wout, A. B., Nickle, D. C.,

Shriner, D., He, H.-X., … Mullins, J. I. (2003).

BIOINFORMATICS 2020 - 11th International Conference on Bioinformatics Models, Methods and Algorithms

186

Improved Coreceptor Usage Prediction and Genotypic

Monitoring of R5-to-X4 Transition by Motif Analysis

of Human Immunodeficiency Virus Type 1 env V3

Loop Sequences. Journal of Virology.

https://doi.org/10.1128/jvi.77.24.13376-13388.2003

Kuhn, M. (2016). Package ‘caret.’ Retrieved February 20,

2017, from ftp://cran.r-project.org/pub/R/web/

packages/caret/caret.pdf

Kyte, J., & Doolittle, R. F. (1982). A simple method for

displaying the hydropathic character of a protein.

Journal of Molecular Biology. https://doi.org/10.1016/

0022-2836(82)90515-0

Lengauer, T., Sander, O., Sierra, S., Thielen, A., & Kaiser,

R. (2007). Bioinformatics prediction of HIV coreceptor

usage. Nature Biotechnology, 25(12), 1407–1410.

https://doi.org/10.1038/nbt1371

Liaw, A., & Wiener, M. (2002). Classification and

Regression by randomForest. R News.

Osorio, D., Rondón-Villarreal, P., & Torres, R. (2015).

Peptides: A package for data mining of antimicrobial

peptides. R Journal. https://doi.org/10.32614/rj-2015-

001

Poveda, E., Alcami, J., Paredes, R., Córdoba, J., Gutiérrez,

F., Llibre, J. M., … García, F. (2010). Genotypic

determination of HIV tropism - Clinical and

methodological recommendations to guide the

therapeutic use of CCR5 antagonists. AIDS Reviews.

R Development Core Team. (2019). R Software. R: A

Language and Environment for Statistical Computing.

Robin, X., Turck, N., Hainard, A., Tiberti, N., Lisacek, F.,

Sanchez, J.-C., & Müller, M. (2011). pROC: an open-

source package for R and S+ to analyze and compare

ROC curves. BMC Bioinformatics, 12(1), 77.

https://doi.org/10.1186/1471-2105-12-77

Schneider-Schaulies, J. (2000). Cellular receptors for

viruses: Links to tropism and pathogenesis. Journal of

General Virology. https://doi.org/10.1099/0022-1317-

81-6-1413

Vandekerckhove, L. P. R., Wensing, A. M. J., Kaiser, R.,

Brun-Vézinet, F., Clotet, B., De Luca, A., … Boucher,

C. A. B. (2011). European guidelines on the clinical

management of HIV-1 tropism testing. The Lancet

Infectious Diseases. https://doi.org/10.1016/S1473-

3099(10)70319-4

Whitcomb, J. M., Huang, W., Fransen, S., Limoli, K.,

Toma, J., Wrin, T., … Petropoulos, C. J. (2007).

Development and characterization of a novel single-

cycle recombinant-virus assay to determine human

immunodeficiency virus type 1 coreceptor tropism.

Antimicrobial Agents and Chemotherapy.

https://doi.org/10.1128/AAC.00853-06

Woollard, S. M., & Kanmogne, G. D. (2015). Maraviroc: A

review of its use in hivinfection and beyond. Drug

Design, Development and Therapy.

https://doi.org/10.2147/DDDT.S90580

Development of HIV-1 Coreceptor Tropism Classiﬁers: An Approach to Improve X4 and R5X4 Viruses Prediction

187
