Open Problems in 3D Model and Data Management

Ren

e Berndt

, Carl Tuemmler

, Christian Kehl

, Mario Aehnelt

, Tim Grasser

, Andreas Franek

and Torsten Ullrich

Fraunhofer Austria Research GmbH, Graz, Austria

Fraunhofer IGD, Visual Computing System Technologies, Darmstadt, Germany

Fraunhofer IGD, Visual Assistance Technologies, Rostock, Germany

Fraunhofer IGD, Interactive Engineering Technologies, Darmstadt, Germany

Fraunhofer IGD, Virtual and Augmented Reality, Darmstadt, Germany

Keywords:

Computer Graphics, 3D Data, Collaboration, Data Management, Dependency Management.

Abstract:

In interdisciplinary, cooperative projects that involve different representations of 3D models (such as CAD

data and simulation data), a version problem can occur: different representations and parts have to be merged

to form a holistic view of all relevant aspects. The individual partial models may be exported by and modiﬁed

in different software environments. These modiﬁcations are a recurring activity and may be carried out again

and again during the progress of the project.

This position paper investigates the version problem; furthermore, this contribution is intended to stimulate

discussion on how the problem can be solved.

1 INTRODUCTION

Recently the combination of software development

and information-technology operations (DevOps) has

become the main-stream solution that is adopted by

the software development industry, being able to re-

duce the time-to-market and costs while improving

quality and ensuring extendibility and adaptability

of the resulting software architecture (Capizzi et al.,

2019).

In-a-nutshell, DevOps is a combination of (ag-

ile) mindsets, best practices and tools to reduce time

and complexity when providing applications and ser-

vices (Leite et al., 2020). The core of DevOps is to

overcome the (usually strict) separation between de-

velopment and operation. The main advantages of the

DevOps culture are:

• rapid deployment,

• fast delivery of results to the customer,

• short innovation and product release cycles,

• reliability, and

• scalability.

While the advantages of DevOps are widely con-

ﬁrmed by a large number of success stories in real

applications, the handling of 3D data still provides a

show-stopper. In this article, we collect and discuss

the missing pieces for a successful DevOps process-

ing when 3D data is part of a software project, e.g., the

creation of a virtual reality (VR) application for vir-

tual planning based on computer-aided design (CAD)

data.

In such an interdisciplinary, cooperative scenario,

different 3D models have to be merged to form an

overall model with a holistic view of all relevant as-

pects. The individual parts may be exported by and

modiﬁed in different software environments. A non-

exhaustive list of modiﬁcations includes:

• the repositioning of a submodel in a global coor-

dinate system,

• the reduction of a detailed, partial model to the

relevant aspects in the overall view,

• the creation of different resolutions for interactive

environments,

• the replacement of geometry; e.g., static 3D ge-

ometry may be replaced by animated elements,

• the enrichment of geometry; e.g., addition of con-

text according to the application purpose,

• the adaptation of lighting to different lighting

models, and

• the change of the materials.

Berndt, R., Tuemmler, C., Kehl, C., Aehnelt, M., Grasser, T., Franek, A. and Ullrich, T.

Open Problems in 3D Model and Data Management.

DOI: 10.5220/0009106403470354

In Proceedings of the 15th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 1: GRAPP, pages

347-354

ISBN: 978-989-758-402-2; ISSN: 2184-4321

347

In particular, the modiﬁcation of materials involves

many of the previously mentioned geometric prob-

lems in a similar form:

• exchange of materials; e.g., transparent materials

may be replaced by corresponding glass shaders,

• supplement materials; e.g., CAD software may

focus on functional aspects and does not always

deﬁne and export (renderable) materials,

• modiﬁcation of materials; e.g., in the context of

geometry simpliﬁcation, normal maps are created,

among other things.

These modiﬁcations transform a reference model into

a derived model that can be inserted into an overall

model. Within a 3D software project, the reference

model may constantly be developed, expanded and

changed. If the 3D model is a so-called reference

model, each update on the reference model has to be

applied on the derived models as well. During the

complete 3D life cycle, these modiﬁcations have to

be iteratively repeated for changing reference models.

With these transformations, even a simple process be-

comes complex as illustrated in Figure 1.

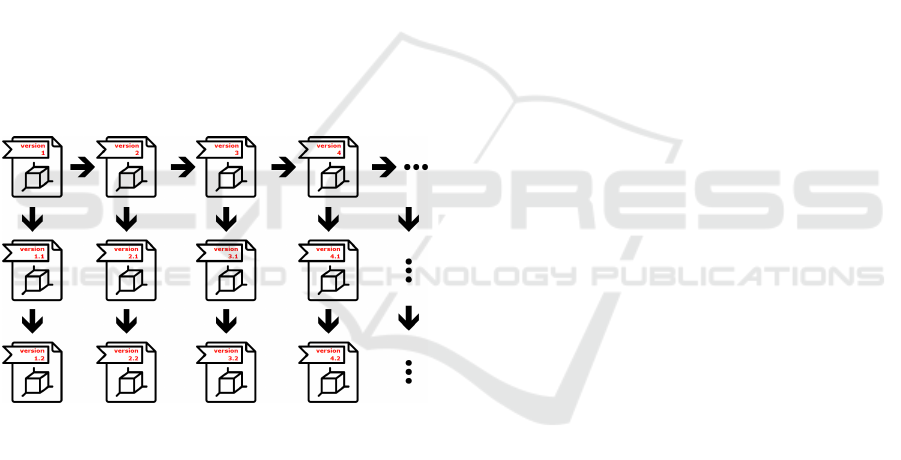

Figure 1: If the 3D model (and all its versions) is a reference

for derived models, then all modiﬁcations on the reference

lead to necessary updates on the derived versions.

These manual update processes on 3D data can be ex-

perienced in many contexts.

In the collaborative environment of an architec-

tural ofﬁce several partners and departments are in-

volved in the planning of a building. The differ-

ent planning aspects (from urban planning and trafﬁc

planning to statics and building services engineering)

are implemented in different software environments,

so that 3D/CAD/BIM/. . . data have to be merged to

form an overall view. In detail, for architectural de-

sign and energy planning, a derived energetic simula-

tion model is created and updated parallel to the BIM

reference model.

Another example is product design: the visually

appealing processing of data always requires the addi-

tion of elements that are not contained in the original

plan, e.g., people in an architectural visualization or a

show room around a car, etc. Despite the addition of

geometry, the opposite requirement is also a frequent

necessity. For the representation in VR environments,

on smartphones, etc. it is often necessary to reduce

the models.

These two exemplary examples serve the purpose

of illustration and stand for many similar situations in

which the versioning problem occurs.

2 RELATED WORK

Digital cross-organizational and cross-border col-

laboration are emerging research issues. Signiﬁ-

cant drivers of this development are collaboration-

related information systems (Madlberger and Roz-

tocki, 2009).

2.1 Collaboration on Text-based Data

The processing of pure text is the most advanced

in respect of cooperation. The handling of text has

evolved through librarianship: Indexing, markup and

retrieval characterize the functional aspects of a li-

brary. These tasks can be considered as practically

solved. Research on metrics and similarity mea-

sures (Gomaa and Fahmy, 2013), on distributed syn-

chronization (Attiya et al., 2016), and on natural lan-

guage processing (Volkart et al., 2018) has made sig-

niﬁcant progress in recent years. Since source code

is usually text-based, the same techniques can also be

used in software development.

2.2 Synchronization Tools for

Relational Databases

Databases typically undergo several schema changes

during their life cycle due to performance and

maintainability reasons. Research on how to sup-

port schema evaluation and migration within the

DevOps culture has made signiﬁcant progress re-

cently (de Jong et al., 2017). Especially with the trend

to cloud-based micro services, different tool chains

exist for supporting continuous database deployment,

e.g., Microsoft’s Entity Framework Migration.

2.3 Collaboration on 3D Data

Since many 3D ﬁle formats and representa-

tions (Schinko et al., 2017) exist that are based

on simple text ﬁles, one could naively assume that

GRAPP 2020 - 15th International Conference on Computer Graphics Theory and Applications

348

the text-based approaches mentioned above are also

possible for 3D data. Unfortunately, this is not

possible for several reasons.

• The 3D structure is often represented by a (scene)

graph. Different serializations of the same graph

may result in ﬁles with different node order; i.e. a

simple load-and-save-as action without any mod-

iﬁcation may result in two ﬁles, whose equality

cannot be seen with a text-based diff tool.

• The equality problem is also reﬂected within

the individual nodes of a scene graph: a non-

uniformal rational B-spline (NURBS) data struc-

ture can also represent B

ezier and B-Spline data

(without data loss); for this reason some appli-

cations do not implement separate B

ezier and

B-Spline data structures. Once converted to

NURBS, most programs can not recognize that a

patch may “only” be a B

ezier or B-Spline patch.

• If a geometric structure cannot be represented in

an equivalent data structure, many programs per-

form a tessellation, which is not reversible.

• The equality problem also exists on the “low-

est” level: ﬂoating-point numbers can be repre-

sented in different formats (float/double) and

are not always unique even within one represen-

tation (0.0 vs. -0.0).

These problems and also the distributed synchroniza-

tion problem (Sun and Chen, 2002), (Fuh and Li,

2005) can be solved as long as all participants work

with the same, centralized system. In reality, however,

it is very rare to work with only one application suite,

so that ﬁle conversions (with intentional and uninten-

tional geometric modiﬁcations) are on the agenda.

3 PROBLEM CLASSIFICATION

3.1 File Formats

Already in 2007 Havemann & Fellner addressed the

absence of a single, commonly accepted, comprehen-

sive 3D ﬁle format (Havemann and Fellner, 2007).

With the (still growing) zoo of different ﬁle formats

for 3D data, the common denominator is often to use

the most basic ones (e.g., OBJ – although interpre-

tations of MTLs may vary, STL, PLY), while more

mature exchange standards such as STEP (the Inter-

national Standard for the Exchange of Product Model

Data) and IGES (the Initial Graphics Exchange Speci-

ﬁcation) are so comprehensive and elaborate that for a

software company to support them (to some degree) is

a predicate of excellence in itself. The vendors of the

most popular 3D tools, which generally use their own

proprietary ﬁle formats, have included and developed

various tools and services to support the “complete”

3D processing pipeline in order to keep users within

their ecosystem. The open question here is, how to

encourage these vendors to support and implement a

new ﬁle format? In the context of building informa-

tion management (BIM) this was enforced by the re-

quirement of using BIM in open formats (by Indus-

try Foundation Classes, IFC) for all projects of pub-

lic clients. An overview of BIM policies and legal

requirements in the different countries of the EU is

listed in the “European Construction Sector Observa-

tory – Trend Paper – Building Information Modelling

in the EU construction sector (March 2019)”.

A different approach for data exchange is de-

scribed by (Berinstein et al., 2014): “There are also

cases where it makes sense to use a speciﬁc 3D pack-

age format if you need speciﬁc features not available

in exported ﬁle formats. There is, however, a consid-

erable amount of work required to support those ﬁle

formats, and we do not recommend them at all. If you

really want to work directly with 3ds Max or Maya,

use the built-in scripting abilities and export exactly

what you need in your own format.”

This gives the consuming application the ability to

use all features the tools offer in order to get the in-

formation needed for the further processing. One ex-

ample is MeshlabXML, which extends Meshlab with

a Python scripting interface. The caveats of the API

approach are that (i) you need the software in order

to process your requests, i.e. you may need additional

licenses and/or hardware, and (ii) it transfers the prob-

lem of supporting many different ﬁle formats to sup-

porting many different APIs.

3.2 Different Semantic Interpretations

Although BIM and IFC were previously mentioned as

positive examples, they also illustrate the problem’s

complexity: a building’s design, planning, construc-

tion, operation and deconstruction involves a large

number of crafts, and thus an even larger number of

software environments that have to communicate with

each other. The mere exchange of data from the over-

all model to the energy model is an ongoing research

issue (Chen et al., 2018). The question of data han-

dling of information that is only required by one as-

pect is still open. Should this data be included in

a holistic model, or should a persistent reference be

used? Both approaches lead to new problems; i.e.,

the supplementary information problem and the per-

sistent naming problem.

Open Problems in 3D Model and Data Management

349

3.3 Context-based Supplementary

Information

In the domain of physical simulations, the physical

parameters, such as Young’s modulus, stress tensors

for stress-load simulation, distributions of external

forces and afﬁliation of vertices to vertex groups for

multi-point constraints, are the required contextual in-

formation. Those change considerably for each vertex

position of the geometry in each new simulation case.

On the other hand, for the purpose of comparability,

the geometric structure commonly stays ﬁxed for sim-

ulations within the same series.

In the realm of augmented reality applications, the

geometrically-derived tracking information are vital

for the working of the system. How those tracking

information are represented depends majorly on the

tracking algorithm. As an example, feature point-

based tracking requires the selection of prominent

vertices within the geometry that are unambiguous

in their view projection and, thus, are stable track-

ing candidates. In image-based tracking approaches,

the scene components that are the tracking focal tar-

get need to be selected to reduce the loss of tracking

paths and speed-up convergence. In either case, the

geometric and tracking information need to be kept

up-to-date on changes of the base geometry.

For the visualization and digital design of engi-

neering products, ranging from manufactured goods

over vehicles to production plants, the data itself usu-

ally contains so-called Product Manufacturing Infor-

mation (PMI) data. This additional data helps visual-

ize important measurements from deﬁned views, for

example, see Figure 2. A data set can deﬁne many

such measurements and associate these with deﬁned

views, allowing users to switch between the views to

only see relevant information for each view.

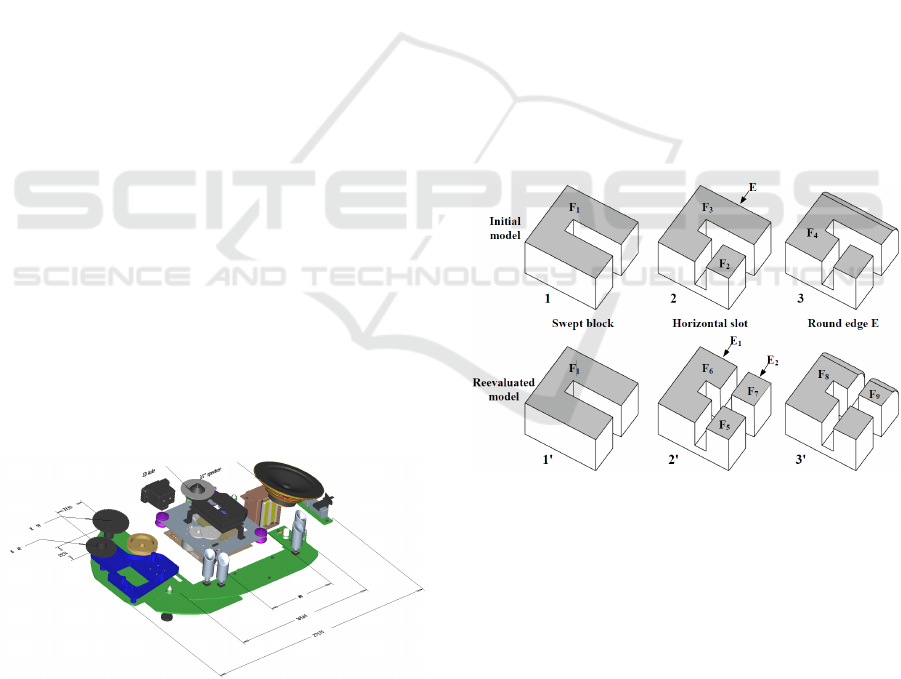

Figure 2: A dataset may have product manufacturing in-

formation (PMI) associated to and only visible in certain

views.

The interoperability between different 3D data pro-

ducer and consumer systems, such as tools for CAD

modeling, geometric (post-)processing, physical sim-

ulation and visualization, is affected by the way con-

text information are stored and exchanged. Many

graphics systems are organized in a graph structure,

in which additional data can be stored in nodes. Al-

ternatively, they are organized in so-called “fat” data

structures – often encountered in volumetric simu-

lations – where all supplementary information, e.g.,

color, physical attributes, group adherence, etc. is at-

tached to each individual geometric element (face, tri-

angle, polyhedron, . . . ). Irrespective of the data struc-

ture used, however, it shall be possible to manage any

additional data sensibly. As long as programs simply

discard or ignore unknown data and attributes, this in-

formation gap is not closed and the problems in pre-

serving the coherence of context information across

multiple processing systems is not solved.

3.4 Persistent Naming Problem

An important problem in computer-aided design is

the persistent naming problem (Marcheix and Pierra,

2002). The problem occurs in the context of para-

metric and generative modeling (Krispel et al., 2016),

namely whenever entities are referenced that are the

result of an algorithmic evaluation.

Figure 3: In this example an initial model is designed by

means of a parametric speciﬁcation containing four succes-

sive constructive steps. The fourth one consists of rounding

edge e. During re-evaluation at step 3’, the edge e has been

split into two edges e

and e

. As a consequence, at step 4’

the problem is to determine which edge or edges have to be

rounded. The problem is to identify, i.e. to match, edge e

with edges e

and e

despite topology changes.

Image source: (Marcheix and Pierra, 2002).

Referenced entities must then be named in a persistent

way in order to be able to re-evaluate the model in a

consistent manner. Figure 3 illustrates the problem.

GRAPP 2020 - 15th International Conference on Computer Graphics Theory and Applications

350

3.5 Different Geometry Representations

In simpliﬁed terms, CAD representations are well

suited for modelling; tessellations are used for visual

representations; and volumetric models are needed

for simulation purposes (Schinko et al., 2017). Hence,

in a cooperative, interdisciplinary project, conver-

sions are inevitable. Since model transformation is

a challenging task, a wide range of algorithms and

implementations have been developed. They can be

parametrized according to

• the resulting element quality and

• the input resolution adequate to the given prob-

lem,

• the interpretation of the input geometry, and ac-

cording to

• parameters speciﬁc to the given conversion algo-

rithm.

Due to these dependencies, a fully automatic conver-

sion is usually not possible. Because of the time con-

suming challenge of choosing the best parameters, a

full documentation of the process is required in order

to allow for efﬁcient adaptations of the generated ge-

ometry. A documentation of the process may include

the used algorithm and the version of its implemen-

tation, the speciﬁed parameters and in some cases in-

formation about required modiﬁcations to the given

input object. A non-automated solution therefore re-

quires not only the effort that would be replaced by

automation, but also additional documentation effort.

3.6 Third-party Software Limitations

In addition to the purely technical problems, other

problems occur when one sets up an automatic pro-

cessing pipeline:

• When using an external library, software engi-

neering problems, such as poor documentation,

limited code readability, source code maintain-

ability issues, etc., are recognized more inten-

sively than with one’s own code.

• A multitude of software licenses and different

licensing models (from public domain via non-

protective licenses and protective licenses to pro-

prietary licenses) pose legal hurdles that can make

it impossible to combine different libraries.

4 APPROACHES

There are currently no generally accepted solutions

for the problems mentioned, but only solution strate-

gies and approaches.

4.1 Continuous Integration

In the context of 3D data pipelines, continuous inte-

gration can be used to reapply a given pipeline when

the ground truth changes, e.g., every time the original

ﬁle is updated. This ensures that any derived repre-

sentation always reﬂects the current state of the orig-

inal dataset. Using this workﬂow in practice requires

a tight coupling with the data source. Either the data

source triggers the pipeline to run, or the pipeline re-

sults need be abstracted in such a way that it can be

rerun, if required, on access. One way to implement

this approach is a service-oriented architecture. In a

serviced environment, accessing a result always trig-

gers a check against the original dataset before pro-

viding the results. This ensures that consumers of the

service always receive the latest representation.

A real-world example of this workﬂow in the do-

main of 3D data is instant3Dhub. It provides data

visualization in a web browser, allowing many data

formats to be used. When the system is asked to vi-

sualize a dataset, it transparently converts it to a web-

optimized format. In order to ensure the converted

data is never out of date, every access performs a

check against the data source, and transparently re-

converts it, if the source has changed. As a visual-

ization system, however, this solution is a data sink

in principle, i.e. it represents only the last links in a

processing chain.

4.2 Feedback Loops

An ad-hoc solution to the problem of managing

changes in 3D data is to deﬁne project-speciﬁc data

and communication standards with collaborators. In

detail, this means that, for example, everyone agrees

on ﬁle names with preﬁxes, that the function of a ge-

ometric group is encoded in its name, etc. As an ex-

ample; to identify parts of the 3D data that should be

enhanced with information that enables visual track-

ing, their node tags could be required to satisfy a reg-

ular expression. In this manner different tracking en-

vironments can be represented, too. The tree structure

could be used to express which parts of the model

should be assumed to occlude parts that are to be

tracked visually. This process can be time consum-

ing, especially if the collaborating parties are not col-

located, communication is time intensive or the data

has to be checked manually.

4.3 Reusability in Software Engineering

How must software be designed so that it can be

reused in new contexts and that it can be used for pur-

Open Problems in 3D Model and Data Management

351

poses that were not known during the software devel-

opment phase? Some answers to this question are as

follows:

• Open-source. If the source code of all programs

in a processing pipeline were openly accessible,

the pipeline could achieve any degree of integra-

tion. But even open-source programs cannot al-

ways be integrated if the effort is not justiﬁable.

• C-/REST-interface. Via well-deﬁned interfaces,

programs, libraries and services can be integrated

into a processing pipeline – directly or via wrap-

pers. In most cases, the complexity of such a so-

lution correlates with the complexity of the data

structures to be exchanged.

• Plugins. In contrast to “low-level” interfaces like

C or REST, plugin mechanisms offer the possibil-

ity to exchange even complex information; how-

ever, this information exchange is more tied to the

platform (language, environment, etc.) and it is

less ﬂexible. Nevertheless, they are useful, like

the Datasmith plugin for the Unreal Engine to im-

print CAD geometry.

• Scripting. In reality, an increasing number of

integration approaches are used as the length of

the processing pipeline advances. Since, in such

cases, not only the models are often subject to

change, but also the pipeline is being altered, ﬂex-

ibility is of paramount importance. Scripting lan-

guages achieve this ﬂexibility. As a consequence,

more and more libraries and geometry kernels

(CGAL, Open CASCADE, etc.) offer a Python

interface.

For an evaluation of which solution (for future li-

braries to be developed) achieves the highest degree

of reusability, the data basis is currently lacking.

4.4 Persistent Toolbox Environment

Next to plain-scripting, plain-plugin and plain-

wrapper approaches, some systems have chosen an

alternative solution to interface their system’s func-

tionality for external use:

• GraalVM is a universal virtual machine for run-

ning applications written in JavaScript, Python,

Ruby, R, JVM-based languages like Java, Scala,

Groovy, Kotlin, Clojure, and LLVM-based lan-

guages such as C and C++. It removes the isola-

tion between programming languages and enables

interoperability in a shared runtime.

• Complex toolboxes, such as MeshLab (Cignoni

et al., 2008), MatLab and Octave run their own,

shelled runtime environments. A well-know, es-

tablished expression of this context is MatLab’s

MEX environment, which are runtime-interpreted

function commands for MatLab operations for

transparent lower-level programming interfaces to

C, C++ or FORTRAN. Conversely, the execution

of MatLab’s M-ﬁles allows to run MatLab-native

functions from anywhere within the application

context and workspace environment.

• Recently, the concept of system-wide M-ﬁle re-

mote procedure calls (RPC) has been expanded

in Octave’s Python interface Oct2Py, which ex-

poses the full Octave functionality during runtime

system-wide to active Python interfaces. The sys-

tem works as shown in Figure 4: The user re-

quests executing a given Octave function within a

Python environment. The Oct2Py wrapper trans-

forms the data and stores them as temporary ﬁles

within the operating system. Then, the Octave in-

struction is invoked in a running Octave instance,

which stores the results on disk after execution.

The Oct2Py Python wrapper picks up the results

and returns them as valid Python data to the user.

In terms of robustness and proﬁciency, this tool

and architecture has already been used in various

projects, such as the processing and segmenta-

tion of spectral CT scans of airport luggage (Kehl

et al., 2018).

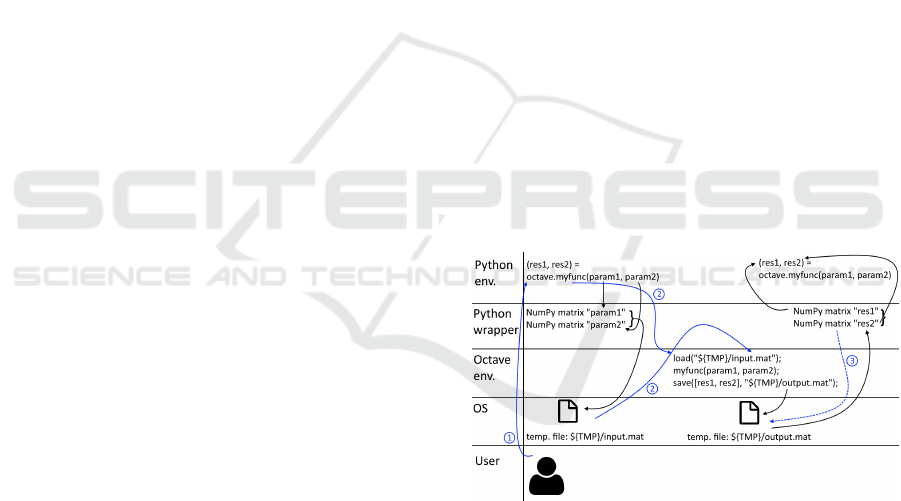

Figure 4: Illustration of the working principle of Oct2Py.

These software architectures can be exploited and ex-

panded for interfacing other persistent-environment

subsystems and third-party toolboxes, such as Mat-

Lab, Blender, or the JT Open Toolkit. These ap-

proaches are a possible way to transfer knowledge and

best-practices across research groups.

5 SUMMARY

A solution for the described problem would have a

huge impact on 3D data processing. Optimizations in

GRAPP 2020 - 15th International Conference on Computer Graphics Theory and Applications

352

the 3D modeling pipeline enable fast iteration cycles

in the planning and development phase. A complete

automation, i.e. the automatic generation of all de-

rived models, offers many possibilities: the current

planning status would be always visible for a coop-

erative VR meeting – without delay due to manual,

time-consuming model preparation, which means that

the current planning status is never used, but the status

from a few days ago.

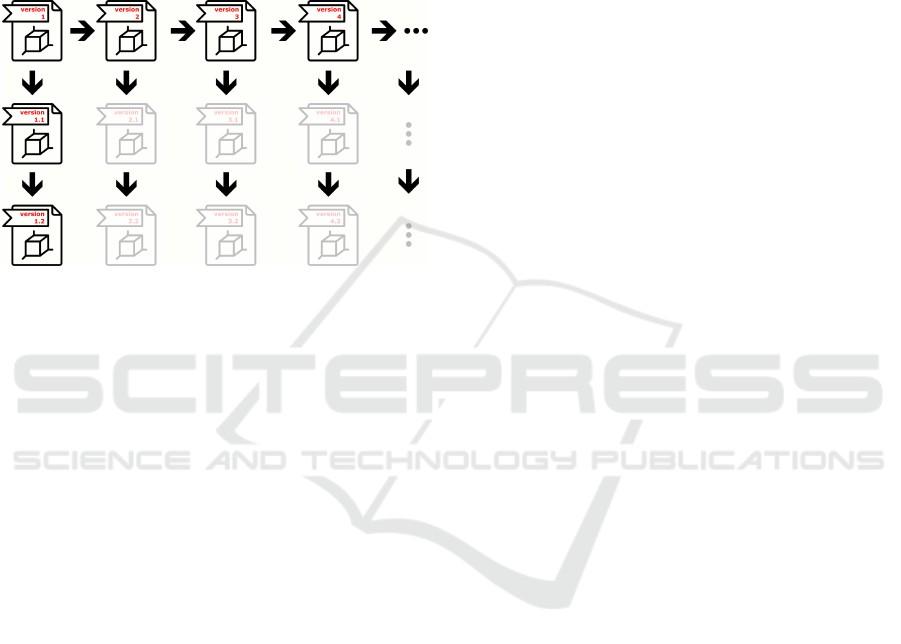

Figure 5: The 3D model (and all its derived versions) have

already been shown in Figure 1. This Figure illustrates

the impact of an automatic solution to generate the derived

models. If the grey ﬁles can be generated automatically,

even in this toy example the workload can be reduced by

50%.

Figure 5 illustrates the amount of work that may not

be necessary any more. In a non-representative, ad-

hoc survey among project partners, the savings po-

tential was estimated at 25% of the research project

costs in the ﬁeld of visual computing. The total mar-

ket potential (in Germany) for a functioning solution

can be guessed using the study of (Astor et al., 2013)

which lists around 2 500 enterprises within the value

chain of 3D data processing.

As a consequence, this position paper should

therefore encourage a solution-oriented discussion.

ACKNOWLEDGEMENTS

This work is part of the strategic project “COntinuous

Model Integration Chain (COMIC)” funded by

Fraunhofer.

Furthermore, the authors acknowledge the gen-

erous support of the Carinthian Government and

the City of Klagenfurt within the innovation center

KI4Life.

REFERENCES

Astor, M., Glo

ockner, U., Klose, G., Plume, A.-M., Schnei-

denbach, T., von Lukas, U., Bechtold, I., Ruth, T.,

Jarowinsky, M., and Bartels, H.-J. (2013). Markt-

perspektiven von 3D in industriellen Anwendungen.

Prognos AG, Fraunhofer IGD, MC Marketing Con-

sulting on behalf of the German Federal Ministry of

Economics and Technology.

Attiya, H., Burckhardt, S., Gotsman, A., Morrison, A.,

Yang, H., and Zawirski, M. (2016). Speciﬁcation

and Complexity of Collaborative Text Editing. ACM

Symposium on Principles of Distributed Computing,

31:259–268.

Berinstein, P., Arnaud, R., Ardolino, A., Franco, S.,

Herubel, A., McCutchan, J., Nedelcu, N., Nitschke,

B., Olmstead, D., Robinet, F., Ronchi, C., Turkowski,

R., Walter, R., and Samour, G. (2014). Game Devel-

opment Tool Essentials. Apress.

Capizzi, A., Distefano, S., and Mazzara, M. (2019). From

DevOps to DevDataOps: Data Management in De-

vOps Processes. The Computing Research Repository,

10:1910.03066.

Chen, S., Jin, R., and Alam, M. (2018). Investigation of

Interoperability between Building Information Mod-

elling (BIM) and Building Energy Simulation (BES).

International Review of Applied Sciences and Engi-

neering, 9:137–144.

Cignoni, P., Callieri, M., Corsini, M., Dellepiane, M.,

Ganovelli, F., and Ranzuglia, G. (2008). Meshlab:

an Open-Source Mesh Processing Tool. Eurograph-

ics Italian Chapter Conference, 3:129–136.

de Jong, M., van Deursen, A., and Cleve, A. (2017). Zero-

downtime SQL Database Schema Evolution for Con-

tinuous Deployment. International Conference on

Software Engineering: Software Engineering in Prac-

tice, 39:143–152.

Fuh, J. Y. H. and Li, W. D. (2005). Advances in Collab-

orative CAD: the-State-of-the-Art. Computer-Aided

Design, 37:571–581.

Gomaa, W. H. and Fahmy, A. A. (2013). A Survey of Text

Similarity Approaches. International Journal of Com-

puter Applications, 68:13–18.

Havemann, S. and Fellner, D. W. (2007). Seven Research

Challenges of Generalized 3D Documents. IEEE

Computer Graphics and Applications, 27:70–76.

Kehl, C., Mustafa, W., Kehres, J., Dahl, A. B., and

Olsen, U. L. (2018). Multi-Spectral Imaging via

Computed Tomography (MUSIC)-Comparing Unsu-

pervised Spectral Segmentations for Material Differ-

entiation. arXiv preprint arXiv:1810.11823.

Krispel, U., Schinko, C., and Ullrich, T. (2016). A Survey

of Algorithmic Shapes. Remote Sensed Data and Pro-

cessing Methodologies for 3D Virtual Reconstruction

and Visualization of Complex Architectures, 219:498–

529.

Leite, L., Rocha, C., Kon, F., Milojicic, D., and Meirelles,

P. (2020). A Survey of DevOps Concepts and Chal-

lenges. ACM Computing Surveys, accepted.

Madlberger, M. and Roztocki, N. (2009). Digital Cross-

Organizational and Cross-Border Collaboration: A

Open Problems in 3D Model and Data Management

353

Scientometric Study. International Conference on

System Sciences, 42:1–10.

Marcheix, D. and Pierra, G. (2002). A Survey of the Per-

sistent Naming Problem. ACM Symposium on Solid

Modeling and Applications, 7:13–22.

Schinko, C., Riffnaller-Schiefer, A., Krispel, U., Eggeling,

E., and Ullrich, T. (2017). State-of-the-Art Overview

on 3D Model Representations and Transformations in

the Context of Computer-Aided Design. International

Journal On Advances in Software, 10:446–458.

Sun, C. and Chen, D. (2002). Consistency Maintenance in

Real-Time Collaborative Graphics Editing Systems.

ACM Transactions on Computer-Human Interaction,

9:1–41.

Volkart, L., Bouillon, P., and Girletti, S. (2018). Statisti-

cal vs. Neural Machine Translation: A Comparison of

MTH and DeepL at Swiss Post’s Language Service.

Translating and the Computer, 40:145–150.

GRAPP 2020 - 15th International Conference on Computer Graphics Theory and Applications

354
