Using the Toulmin Model of Argumentation to Explore the

Differences in Human and Automated Hiring Decisions

Hebah Bubakr and Chris Baber

The Department of Electronic, Electrical and Systems Engineering, University of Birmingham, Birmingham, U.K.

Keywords: Toulmin Model of Argumentation, Artificial Intelligence, Human Computer Interaction.

Abstract: Amazon developed an experimental hiring tool, using AI to review job applicants’ résumés, with the goal of

automating the search for the best talent. However, the team found that their software was biased against

women because the models were trained on résumés submitted to the company for the previous 10 years and

most of these were submitted by men, reflecting male dominance in the tech business. As a result, the models

learned that males were preferable, and it excluded résumés that could be inferred to come from female

applicants. Gender bias was not the only issue. As well rejecting plausible candidates, problems with the data

lead the models to recommend unqualified candidates for jobs. To understand the conflict in this, and similar

examples, we apply Toulmin model of argumentation. By considering how arguments are constructed by a

human and how a contrasting argument might be constructed by AI, we can conduct pre-mortems of potential

conflict in system operation.

1 INTRODUCTION

Argumentation technology can help Artificial

intelligence (AI) agents enhance human reasoning

(Lawrence et al, 2017; Oguego et al, 2018; Modgil

and Prakken, 2013). In this context, an ‘argument’

has a ‘scheme’ (which relates to a specific form of

reasoning, often inspired by human behaviour) in

which there is a structure to how information leads to

a conclusion; a ‘format’ (which encodes the

information); and a ‘representation’ (which visualises

the scheme) and for which diagrams are commonly

used (Reed, Walton and Macagno, 2007).

Information in an argument diagram can be either a

proposition or an inference (Bench-Capon and

Dunne, 2007; Freeman, 1991). Toulmin diagrams are

a well-known form of argument representation

(Bench-Capon and Dunne, 2007). In this paper,

Toulmin diagrams represent arguments to consider

bias in hiring decisions.

For jobs with many applicants, an initial sift of

résumés could be performed to reduce the number of

applications to consider. However, there is a risk that

such a sift could be subject to bias. Bertrand and

Mullainathan (2004) sent five thousand fake résumés

for different job adverts in the Boston Globe and

Chicago Tribune newspapers. The adverts were

covered different occupational categories and with

each category the quality of the fake résumés was

either high and low. Identity was assigned to each

résumés using a personal name to suggest the race of

the applicant, for example, Emily, Anne and Brad

suggested white names; Kenya, Lakisha and Jamal

suggested African-American names. There was a

statistically significant difference in call-backs

(Bertrand and Mullainathan, 2004): résumés for

‘white’ applicants received 50% more call-backs than

those applicants with African American names (even

though the content of the résumés was identical).

Further, the call-back rate for ‘white’ applicants with

a high-quality résumé was 27% higher than for

‘white’ applicants with low quality résumés. In

contrast, call-back for résumés with African-

American names with high quality résumés was only

8% higher than for low quality résumés.

O’Neil (2016) suggests that the desire to bring

analytical science to human resources is to make

selection fairer (by removing potential for human

bias) but are increasingly being used to filter

applicants. This raises the question of whether they

are optimised for the objective for selection (to aid

picking the most appropriate person for the role) or

rejecting applicants (to aid in filtering applications

down to a manageable set). We propose that these

objectives represent different forms of argumentation

Bubakr, H. and Baber, C.

Using the Toulmin Model of Argumentation to Explore the Differences in Human and Automated Hiring Decisions.

DOI: 10.5220/0009129102110216

In Proceedings of the 15th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 2: HUCAPP, pages

211-216

ISBN: 978-989-758-402-2; ISSN: 2184-4321

211

that place emphasis on different aspects of the resume

and test scores.

The main purpose of using an automatic system is

to ensure efficiency and fairness, and to cut the

thousand applications to a reasonable number for HR

employees to take to the interviewing process.

Moreover, the machine ought to remain unaffected by

bias or prejudices, and each applicant should be

judged by the criteria outlined in the job specification.

However, AI systems can be trained using records of

employment data from many years which could mean

that bias has been institutionalized in favour of

specific employee groups. Gender bias is an issue in

jobs that reflect a male dominance like the tech

business for example. Amazon developed an

experimental hiring tool, using AI to review job

applicants’ résumés, with the goal of automating the

search for the best talent. This would give candidates

a ranking from one to five stars. However, the team

found that their software was biased against women

because the models were trained on résumés

submitted to the company for the previous 10 years

and most of these were submitted by men. As a result,

the models learned that males were preferable, and it

excluded résumés that appeared to come from female

applicants.

Gender bias was not the only issue.

As well

rejecting plausible candidates, problems with the data

lead the models to recommend unqualified candidates

for jobs.

In this paper, we ask whether representing an

argument in the form of a diagram could help

diagnose possible problems or biases in the output of

an algorithm. The main concern in this paper is to

understand the reason why a machine produces such

unacceptable results. Whether the problem was a

mistake, biased data, or an unethical developer, it will

be always be unacceptable to reject applicants for

these reasons. Thus, people’s beliefs and cultural

values affect how we interact with AI system and

accept its results. Users of the system will have

expectations based on their prior knowledge. This

knowledge is formed by the beliefs and the values of

the users. For instance, the HR department might

expect the AI systems to choose applicants with

higher education and length of experience for

administrative positions. Therefore, when a hiring

system eliminate suitable candidates because of their

name, gender or zip-code, the results will be

prejudicial to them because these outputs conflict

with people’s ethical values and do not match the

expectation they had of the system. Seeking to

understand how the system works and what are the

beliefs, values and expectations of stakeholders we

apply Toulmin’s model of argumentation. We note,

at this point, that other argumentation representations

could be equally appropriate to this aim.

2 MOTIVATING EXAMPLE

Kareem Bader, a student who was looking for a

minimum-wage job, applied for a part time at super-

market chain store after his friend recommended him.

Kareem had a history of having bipolar disorder but

at the time of sending the application he was a

productive, high-achieving student and healthy

enough to practise any type of work. However,

Kareem was not called for an interview and when he

asked, he was told that he failed the personality test

he answered during the application. The most

commonly used personality test is the Five Factor

Model (Lundgren, Kroon, & Poell, 2017), and this is

the one which Kareem took. Kareem gave honest

answers to mental health questions and real

information about his personal background, and this

led to him being rejected.

3 TOULMIN MODEL OF

ARGUMENTATION

This paper will use Toulmin model of argumentation

(Toulmin, 1958). Toulmin provides an argumentation

technique to show that there are other arguments than

formal ones, which offers more logic and further

explanation. His argumentation model distinguished

six different kinds of elements: Data, Claim,

Qualifier, Warrant, Backing, and Rebuttal (Verheij,

2009). The example below illustrates Toulmin’s

classic example of Harry, who may or may not, be a

British subject.

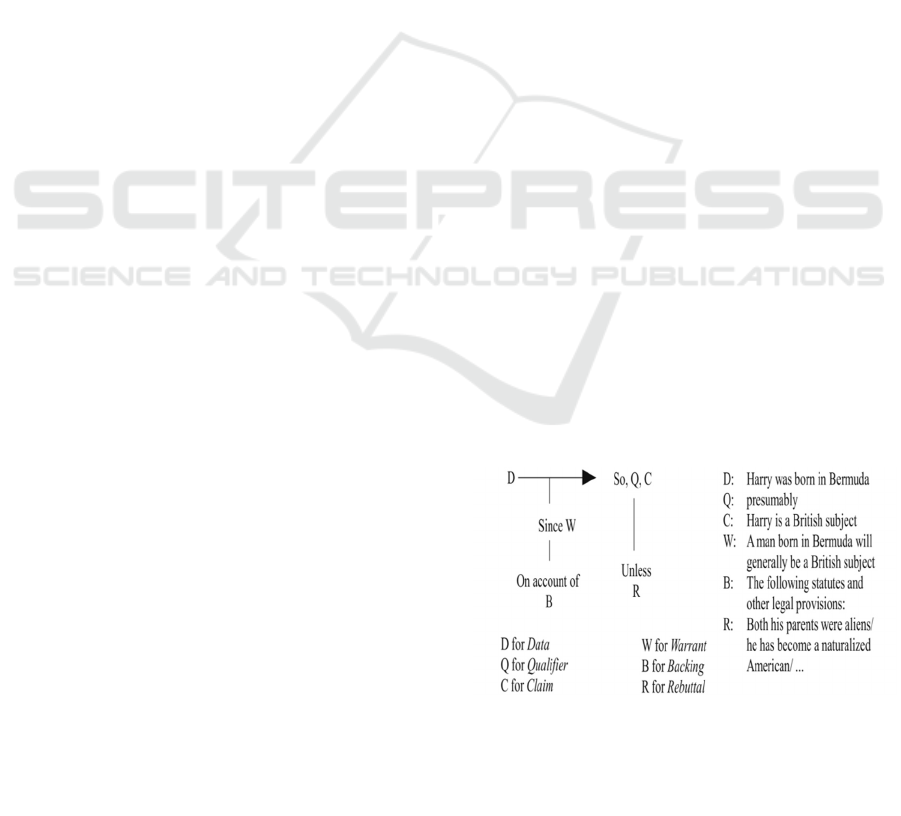

Figure 1: Toulmin’s layout of arguments with an example

(Toulmin 1958, p104, 105).

In Figure 1, D represents the datum “Harry was

born in Bermuda" which is held to be the foundation

HUCAPP 2020 - 4th International Conference on Human Computer Interaction Theory and Applications

212

of the claim "Harry is a British subject". What does this

claim stand on? We need to use a warrant; in our

example, this is 'A man born in Bermuda will generally

be a British subject.' A point to keep in mind is that the

warrant is not universal. We are saying that a man born

in Bermuda will more likely be a British subject. The

warrant serves as a hypothetical statement which acts

as a bridge between the Ground (Data that provide

facts) and the Conclusion of an argument (claim). The

warrant can be considered as an inference, and can be

challenged. As a result, a claim needs to be qualified

(Verheij, 2009). In our example, the qualifier is to

presume that Harry is a British Subject. As the

elements in this argument became more explicit, the

Warrant needs further support so that it can provide the

connection between the data and the claim. In

Toulmin’s example this is called the backing and refers

to statutes and other legal provisions without the need

to define them. For this paper, this idea of ‘backing’

helps to illustrate the hidden values and beliefs that

might inform models. The final element, in Toulmin’s

example, is the Rebuttal which indicates any

arguments against the claim or any exceptions to it.

According to Toulmin (2003), the rebuttal indicates

‘circumstances in which the general authority of the

warrant would have to be set aside’ or ‘exceptional

circumstances which might be capable of defeating or

rebutting the warranted conclusion’.

Table 1: Translate the example text to Toulmin elements.

Toulmin element

Text from Motivating

example

Datum

Kareem gave honest

answers to mental health

questions.

Productive, high-achieving

student. Healthy enough to

ractise an

pe of work.

Claim

Kareem Baderis suitable for

this

Warrant

Productive, high-achieving,

Health

, was recommende

Backing

Minimum-wage job which

is part time at super-market,

usually does not have hard

to meet criteria.

Rebuttal Unless he is not suitable

Applying this model to the processing of hiring

which include selecting and filtering applicant

depending on their resumes and test results, we can

construct the argumentation scheme shown below.

First to apply Toulmin model of argumentation on the

motivation example we need to interpret the terms. We

convert the text from the example into Toulmin

element’s term as shown in table1.

Using table 1, we consider the applicant’s

argumentation. When a job seeker applies for a

specific job they will have some expectation

regarding their suitability. When an applicant claims

to be suitable for the job, we out to ask why? Their

answers will be based on their educational

background, skills, heath condition and other

information that support their claim. In the Toulmin

model, that supportive information represents the

datum. However, to claim suitability for the job,

providing simple facts is not enough. The Warrant, in

the Toulmin model, bridges between data and claim.

In figure 2, the warrant states that if applicant met the

requirement, they probably will be suitable. That rule

is supported by the backing which is the job criteria

generated from the employers’ job specification.

Rebuttal happens when the rule is not met or does not

apply to the data. So, when Kareem claims he was

suitable for the job, he did not understand why his

suitability got challenged.

Figure 2: Applicant’s argumentation.

Automated systems help HR department hire, fire,

and promote employees efficiently. The hiring system

might be used when there are too many people

applying for the job, and the HR department can only

interview a certain number of applicants. Hence,

when the number of applicants is too high (Claim) the

system must reduce the number by filtering

application. The warrant is the limited time for

interviewing. This rule is supported by (Backing)

which states that this filtering process will save the

HR time and effort. However, in the filtering process

the system might use a model based on current

profiles of employees, job criteria, to judge the

applicants’ resumes and forms. An exception to this

claim is when the system filters good and qualified

people.

Using the Toulmin Model of Argumentation to Explore the Differences in Human and Automated Hiring Decisions

213

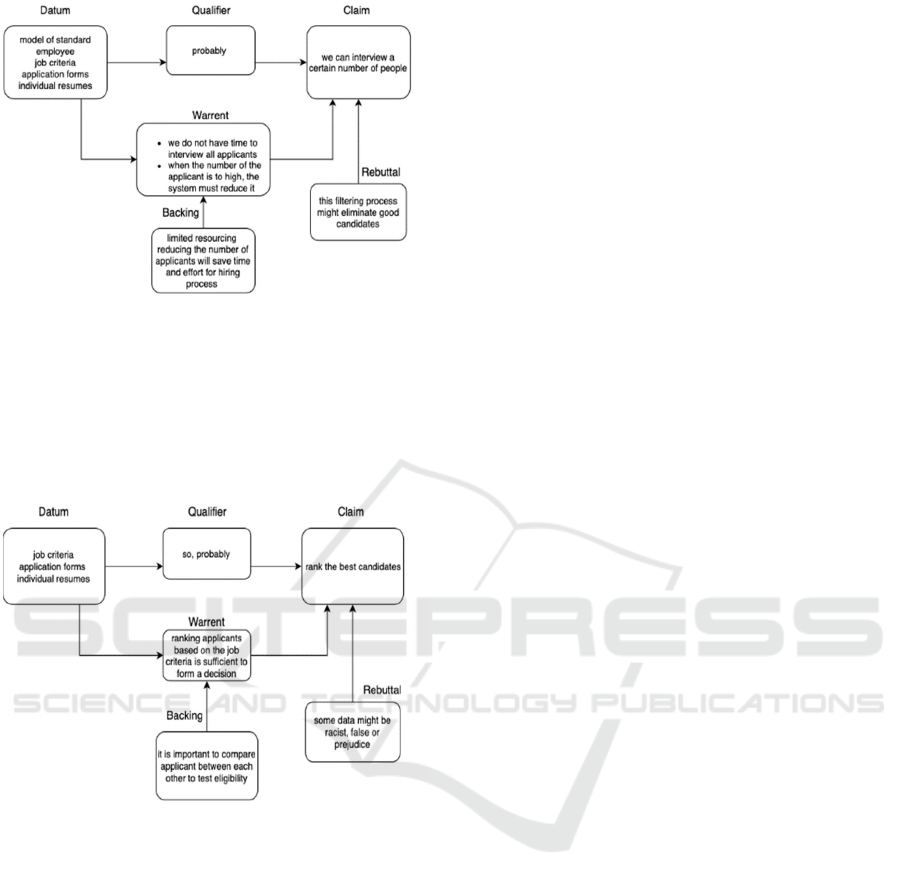

Figure 3: Filtering argumentation.

After reducing the number of applicants to a

reasonable amount, the system could select a set of

best candidates among the applicants by matching the

job criteria with the individual resumes and forms for

the applicants then ranking them based on their match

to the ‘model of employees’, see figure 4.

Figure 4: Selection argumentation.

The last stage in the hiring process is in the HR

department’s hands. As figure 4 shows, the system,

which the HR uses to ensure the filtering efficiency,

will provide a number of ‘best candidates’ for the HR

to select from. The HR will define the best applicant

after reviewing each résumé. This information is

supported by the belief that the system is reliable

enough to trust its results.

The HR department assumes that this process

ensures equality and diversity in its hiring process. It

depends on data from the hiring system and specific

equality criteria applied to all candidates. However, if

the model is inherently biased, e.g., because it is

derived from a homogeneous employee population

that does not reflect diversity, then the process will

have prejudice embedded in it.

As we can see, from figures 2-4, there are

conflicts between different claims in different

situations from different stakeholders. Each claim

represents the values and beliefs of its own claimant.

Moreover, each claim was formed on the available

data in that situation and carries no authorization to

interfere with other claims. Even though the filtering

and selecting processes are dependent on each other,

each had their own criteria. For instance, in the

applicant suitability diagram, figure 2, Kareem

claimed that he was suitable for the job which was

supported by the data and the warrant that he was

good enough for the job. In both filtering and

selecting argumentation’s diagrams, figures 3 and 4,

the system claimed that Kyle was not suitable because

he failed one on the essential tests in his application

form. Therefore, his application was not transferred

to the selecting process nor to the HR department

which claimed nothing about Kareem’s stability,

except that his name was not listed as a possible

candidate. So based on the data, warrant and backing,

he was not defined as a suitable employee. Now,

whether Kareem was filtered from the start or not

selected at the end, the system clearly did not see him

as fit for the position which shows conflict between

values and beliefs’ of the applicant and the system.

This example illustrates that each argumentation has

its own elements that do not interact with elements in

other argumentations. So, the claim that was formed

by the system cannot use the data from either the

applicant or the HR argumentation. Moreover, the

same data were treated differently in the filtering and

selecting stages. From this example, we conclude that

representing argumentation is a way of illustrating

how different criteria support an argument can lead to

a bias decision.

So far, the argumentation has been hand-crafted

and applies Toulmin’s criteria. This is presented as a

‘pre-mortem’ of the process as way of explaining

potential bias and conflict. The question is how this

could be automatic?

4 ARGUMENT INTERCHANGE

FORMAT

Argumentation technology can be supported by

computational models. Argument interchange format

(AIF) supports representation and exchange of data

between argumentation tools (Chesnevar et al. 2006).

As shown in figure 5, AIF uses an argument network

(AN) which contains two types of nodes, information

nodes (I-nodes) and scheme nodes (S-nodes). I-nodes

HUCAPP 2020 - 4th International Conference on Human Computer Interaction Theory and Applications

214

represent the contents like data and claims, and S-

nodes represent the applications of schemes like rules

of inference. There are three different types of

scheme-nodes, a rule of inference application node

(RA-node), a preference called a preference

application node (PA-node), and a conflict

application node (CA-node) (Chesnevar et al. 2006).

Moreover, AN has two types of edge, scheme edges

and data edges. Scheme edges originate from S-nodes

and are meant to support conclusions. These

conclusions may either be I-nodes or S-nodes. Data

edges originate from I-nodes, and they must end in S-

nodes, and supply data or information to scheme

applications. I-to-I edges are not an option because I-

nodes needs always an explanation to be attached. I-

nodes can have zero incoming edges, but S-nodes link

two or more elements, i.e., "for RA-nodes, at least one

antecedent is used to support at least one conclusion;

for PA-nodes, at least one alternative is preferred to

at least one other; and for CA-nodes, at least one

claim is in conflict with at least one other" (Chesnevar

et al. 2006).

Using AIF, our Toulmin models can be expressed

in a standard XML-based syntax. Chesnevar et al.

(2006) show how Toulmin elements can be expressed

as I-Nodes: claim, data, backing, rebuttal, and

qualifier (figure 5). The warrant was presented in this

diagram as (S-Node) specifically RA-Node, as it

holds both data nodes and the claim together.

Likewise, an RA-node links rebuttal nodes to claims,

and Qualifier-Application nodes link qualifier nodes

to claims. The result of his ontology is represented in

Figure 5.

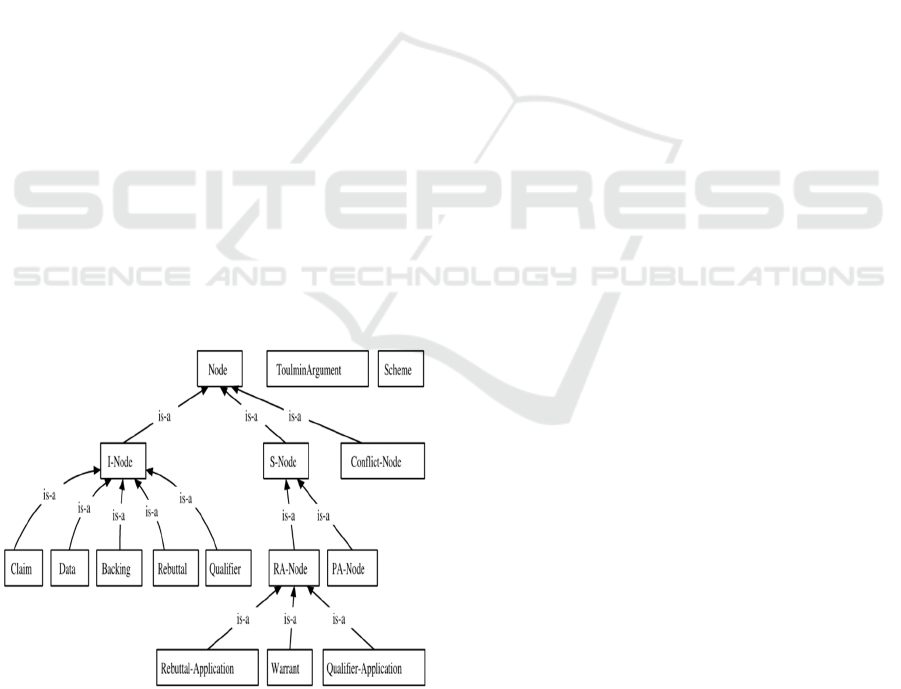

Figure 5: Toulmin argument class hierarchy in RDFS

(Chesnevar et al. 2006. P312).

The mark-up language can provide a formalisable

definition of Toulmin’s elements, but this is not

different than what table 1 provides. Indeed, defining

and managing mark-up for argumentation could still

involve a high degree of human intervention

(because, unlike other forms of Natural Language

Processing, it is not always obvious whether a given

word of phrase is being expressed as data, or claim,

or warrant). Hence, an abiding question is how to

automatically generate the argument labels from the

text.

5 CONCLUSIONS

If Kareem was not filtered, does that mean he was

suitable for the job? Not necessarily, because the

system decision could be right. The main issue

concerns the way the system formed its conclusion.

In the above example, when the system is facing a

huge number of applicants, an obvious problem in the

filtering process is the choice of parameter and use of

evidence to accept one of these parameters. A

solution is to conduct sensitivity tests of these

parameters. i.e., remove some parameters and explore

the impact of the resulting decision or consider how

the parameter interacts with be personality test, name,

gender, age etc. of applicants. For example, in the

filtering process all the parameter should be about

skills, education and experience not about name, age,

gender and mental health. O’Neil (2016) advises to,

“…build a digital version of a blind audition

eliminating proxies such as geography, gender, race,

or name to focus only on data relevant to the job

position. The key is to analyse the skills each

candidate brings to the company, not to judge him or

her by comparison with people who seem and

whether or not the output of these systems make sense

to them or not similar.” (p.177)

We conclude by asking whether it is wrong for job

applicants who understand what the system is looking

for to craft their application with these features in

mind, or provide answers to trick the software which

can reduce the chance of early filtering. If we allow

people to challenge the AI hiring systems, how do we

know that they are not going to provide false

information to manipulating it?

Even if we ensure that people are honest and

responsible when they are dealing with the AI, we

cannot ensure the AI is honest and responsible when

dealing people. This manipulation also violates the

High-Level Expert Group on Artificial Intelligence

(2019) that states “AI systems can contribute to

achieving a fair society, by helping to increase

citizens’ health and well-being in ways that foster

Using the Toulmin Model of Argumentation to Explore the Differences in Human and Automated Hiring Decisions

215

equality in the distribution of economic, social and

political opportunity”.

REFERENCES

Allport, G.W. (1961), Pattern and Growth in Personality,

Holt, Rinehart & Winston, New York, NY.

Bench-Capon, T.J. and Dunne, P.E., 2007. Argumentation

in artificial intelligence. Artificial intelligence, 171(10-

15), pp.619-641.

Barrick, M.R., Mount, M.K. and Judge, T.A. (2001),

“Personality and performance at the beginning of the

new millennium: what do we know and where do we go

next?”, International Journal of Selection and

Assessment, Vol. 9 Nos 1/2, pp. 9-30.

Bertrand, M. and Mullainathan, S., 2004. Are Emily and

Greg more employable than Lakisha and Jamal? A field

experiment on labor market discrimination. American

economic review, 94(4), pp.991-1013.

Bex, F., Modgil, S., Prakken, H. and Reed, C., 2013. On

logical specifications of the argument interchange

format. Journal of Logic and Computation, 23(5),

pp.951-989.

Chesnevar, C., Modgil, S., Rahwan, I., Reed, C., Simari, G.,

South, M., Vreeswijk, G. and Willmott, S., 2006.

Towards an argument interchange format. The

knowledge engineering review, 21(4), pp.293-316.

Dastin, J., 2018. Amazon scraps secret AI recruiting tool

that showed bias against women. San Fransico, CA:

Reuters. Retrieved on October, 9, p.2018.

Drucker, K., 2016. Avoiding Discrimination and Filtering

of Qualified Candidates by ATS Software.

High-Level Expert Group on Artificial Intelligence (2019)

‘High-Level Expert Group on Artificial Intelligence Set

Up By the European Commission Ethics Guidelines for

Trustworthy Ai’, European Commission. Available at:

https://ec.europa.eu/digital.

Kirschner, PA et al. (eds.), 2003, Visualizing

Argumentation: Software Tools for Collaborative and

Educational Sense-Making. Berlin: Springer.

Lawrence, J., Snaith, M., Konat, B., Budzynska, K. and

Reed, C., 2017. Debating technology for dialogical

argument: Sensemaking, engagement, and

analytics. ACM Transactions on Internet Technology

(TOIT), 17(3), p.24.

Lundgren, H., Kroon, B. and Poell, R.F., 2017. Personality

testing and workplace training: Exploring stakeholders,

products and purpose in Western Europe. European

Journal of Training and Development, 41(3), pp.198-

221.

Militello, L., Lipshitz, R. and Schraagen, J.M., 2017.

Making Sense of Human Behavior: Explaining How

Police Ofﬁcers Assess Danger During Trafﬁc Stops. In

Naturalistic Decision Making and Macrocognition (pp.

147-166). CRC Press.

Modgil, S. and Prakken, H., 2013. A general account of

argumentation with preferences. Artificial

Intelligence, 195, pp.361-397.

Oguego, C. L., Augusto, J. C., Muñoz, A., & Springett, M.

(2018). Using argumentation to manage users’

preferences. Future Generation Computer Systems, 81,

235-243.

O’Neil, C. (2016) Weapons of Math Destruction. First edit.

New York.

Prakken, H., 2010. An abstract framework for

argumentation with structured arguments. Argument

and Computation, 1(2), pp.93-124.

Rahwan, I. and McBurney, P., 2007. Argumentation

technology. IEEE Intelligent Systems, 22(6), pp.21-23.

Reed, C. and Rowe, G., 2004. Araucaria: Software for

argument analysis, diagramming and

representation. International Journal on Artificial

Intelligence Tools, 13(04), pp.961-979.

Reed, C., Walton, D. and Macagno, F., 2007. Argument

diagramming in logic, law and artificial

intelligence. The Knowledge Engineering

Review, 22(1), pp.87-109.

Thomas, J.B., Clark, S.M. and Gioia, D.A., 1993. Strategic

sensemaking and organizational performance:

Linkages among scanning, interpretation, action, and

outcomes. Academy of Management journal, 36(2),

pp.239-270.

Verheij, B. (2009) ‘The Toulmin Argument Model in

Artificial Intelligence Or : how semi-formal , defeasible

argumentation schemes creep into logic’, pp. 219–238.

doi: 10.1007/978-0-387-98197-0.

Toulmin, S.E., 1958. The use of argument. Cambridge

University Press.

Toulmin, S.E., 2003. The uses of argument. Cambridge

university press.

Weber, L. and Dwoskin, E., 2014. Are workplace

personality tests fair. Wall Street Journal, (September

29)

HUCAPP 2020 - 4th International Conference on Human Computer Interaction Theory and Applications

216
