Surgery Recording without Occlusions by Multi-view Surgical Videos

Tomohiro Shimizu

, Kei Oishi

, Ryo Hachiuma

1 a

, Hiroki Kajita

, Yoshihumi Takatsume

and Hideo Saito

1 b

Faculty of Science and Technology, Keio University, Yokohama, Kanagawa, Japan

School of Medicine, Keio University, Shinanomachi, Tokyo, Japan

Keywords:

Camera Scheduling, Dijkstra’s Algorithm, Multi-viewpoint Camera.

Abstract:

Recording surgery is important for sharing various operating techniques. In most surgical rooms, ﬁxed surgical

cameras are already installed, but it is almost impossible to capture the surgical ﬁeld because of occlusion by

the surgeon’s head and body. In order to capture the surgical ﬁeld, we propose the installation of multiple

cameras in a surgical lamp system, so that at least one camera can capture the surgical ﬁeld even when the

surgeon’s head and body occlude other cameras. In this paper, we present a method for automatic viewpoint

switching from multi-view surgical videos, so that the surgical ﬁeld can always be recorded. We employ a

method for learning-based object detection from videos for automatic evaluation of the surgical ﬁeld from

multi-view surgical videos. In general, frequent camera switching degrades the video quality of view (QoV).

Therefore, we apply Dijkstra’s algorithm, widely used in the shortest path problem, as an optimization method

for this problem. Our camera scheduling method works so that camera switching is not performed for the

minimum frame we speciﬁed, and therefore the surgical ﬁeld observed in the entire video is maximized.

1 INTRODUCTION

Figure 1: The current surgery room.

Recording surgery is an indispensable task for a va-

riety of reasons, such as education, sharing surgery

technologies/techniques performing case studies of

diseases, and evaluation of the medical treatment, etc.

Video recording is one of the most important ways of

recording surgery, so a number of cameras have been

https://orcid.org/0000-0001-8274-3710

https://orcid.org/0000-0002-2421-9862

used for recording surgery.

The most important target of video recording is

the surgical ﬁeld to which medical doctors operate

with medical tools and their hands, such as an abdom-

inal operation and an orthopedic surgery. However,

as shown in Figure 1, recording the surgical ﬁeld with

the camera is often difﬁcult because there are usually

several medical doctors around the surgical ﬁeld.

We may be able to use cameras mounted on the

medical doctors head, but the videos captured with

such cameras are always affected by motion blur be-

cause of fast and wide head movements, so the video

is not always useful for recording purposes. It is as-

sumed that camera installed right above the surgical

ﬁeld is suitable to record it. Therefore we might be

able to put a camera at the best position to capture

the target surgery ﬁeld, but such cameras will pre-

vent the operation of medical doctor and cannot ac-

tually be installed since a surgical lamp is installed

right above the most surgical ﬁeld. After all, there is

almost no position where such recording cameras can

be placed for the recording surgery target area in most

of surgery.

Even in such difﬁcult situations regarding the

placement of recording cameras, we turn our attention

to surgical lighting systems, which have multiple light

Shimizu, T., Oishi, K., Hachiuma, R., Kajita, H., Takatsume, Y. and Saito, H.

Surgery Recording without Occlusions by Multi-view Surgical Videos.

DOI: 10.5220/0009158908370844

In Proceedings of the 15th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 5: VISAPP, pages

837-844

ISBN: 978-989-758-402-2; ISSN: 2184-4321

837

bulbs for illuminating the surgical ﬁeld from multiple

directions, so that shadows are reduced. This implies

that at least one of the multiple light will always il-

luminate the surgical ﬁeld. Therefore, in this study,

we ﬁrst create a surgical lamp with a camera in which

multiple cameras are attached to the surgical lamp. At

that time, by attaching one camera to the light unit of

the surgical lamp, it is guaranteed that any camera al-

ways captures the surgical ﬁeld as long as the surgical

ﬁeld is illuminated. The created surgical lamp had

ﬁve light units, so ﬁve cameras were attached to the

surgical lamp.

We propose a method to automatically switch the

surgical video of multiple viewpoints taken using the

created surgical lamp. At that time, it is known that

frequent switching of the camera video will reduce

the quality of view (QoV) of the video. Switching

video creation is divided into two processes: scoring

and scheduling.

First, in scoring, segmentation of the surgical ﬁeld

was performed using the method of Li et al.(Li and

Kitani, 2013) and the ratio of the area other than the

surgical ﬁeld of each frame was used as the frame

score. After that, in scheduling, we used a graph for

selecting best view, and Dijkstra’s algorithm, usually

used in the shortest path problem, was applied. In the

graph generation for scheduling, each frame is a node,

and we changed the edge connection between when

the camera sequence was switched and when it was

not switched. The obtained score was used as the edge

weight. By optimizing this graph using Dijkstra’s al-

gorithm, camera switching is not performed for the

minimum frame we speciﬁed, and camera scheduling

is performed to maximize the area of the surgical ﬁeld

observed in the entire video.

In the experiment, the effectiveness of the pro-

posed method is veriﬁed by automatic switching

of multiple cameras. This system was installed at

Keio University School of Medicine and surgery was

recorded. A camera switching video was created from

the captured video and it is conﬁrmed that the surgical

ﬁeld can be observed throughout the surgery. After

that, we conducted a questionnaire on viewing qual-

ity to 14 active doctors using camera switching videos

and video shot with one camera, and veriﬁed the mini-

mum number of frames with the highest viewing qual-

ity.

Our contributions are as follows:

1. We present a novel surgery recording system in

which multiple cameras are attached to the surgi-

cal lamp.

2. We propose a method which switches multi-view

videos considering QoV using Dijkstra’ algo-

rithm.

3. Qualitative evaluation shows that the video cre-

ated by our method does not select the occluded

frame while keeping the QoV. Moreover, the user

test of the doctors on the quality of the switching

video quantitatively verify the effectiveness of our

proposed method.

The rest of the paper is organized as follows: we

ﬁrst present related work in Section 2. Next, we

present details of surgical recording systems in Sec-

tion 3 and our proposed method in Section 4. We then

conduct experiments on creating switching video to

validate our method. At the School of Medicine in our

university, we recorded multi-view surgical videos

with multiple cameras mounted on the surgical lamp.

Then, we presented our experiment, results and dis-

cussions in Section 5. Last, we conclude this paper in

Section 6.

2 RELATED WORK

In this paper, we present a new surgery recording sys-

tem using multiple cameras attached to the surgical

lamp. In Section 2.1, we introduce the conventional

surgical recording systems. In addition, we proposed

a novel camera switching method to automatically se-

lect the best view. In Section 2.2, we introduce the

conventional camera switching method to clarify the

novelty of the proposed method.

2.1 Surgical Recording Systems

As doctors have a duty to teach their surgical skills

to future generations, it is important to record the

surgery and generate video for trainees. Moreover,

the usefulness of surgery recording has been recog-

nized in terms of reviewing. The surgery, such as la-

paroscopic surgery, which is performed through the

endoscope camera can be easily recorded. However,

the surgery that the doctor directly sees, such as the

surgery that involves dissection, it is difﬁcult to record

due to the presence of the surgeon and spatial restric-

tions.

Kumar et al.(Kumar and Pal, 2004) designed a

camera arm system with a camera mounted on the arm

to record the surgery. The camera arm is set to the po-

sition that does not get occluded by the doctor and is

often set to the position far from the surgical ﬁeld. In

addition, it is troublesome to position the camera ac-

cording to the surgical situation and the environment.

Therefore, Byrd et al.(Byrd et al., 2003) presented a

system of mounting a camera on the surgical lamp.

However, the view is occluded by the doctor’s head

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

838

or body and it is difﬁcult to observe the surgical ﬁeld

with a single camera constantly.

Other attempts have also been made to record

surgery with a surgical ﬁeld camera placed between

the eyes of a doctor. The camera of such recording

systems were not high resolution and did not pro-

duce good video quality (Matsumoto et al., 2013;

Murala et al., 2010) because of the limited hardware

system. In addition, doctors had to perform surgery

with interference by the surgical camera itself and

its code. Nair et al.(Nair et al., 2015) recorded the

surgery by putting a high-resolution camera (GoPro

Hero 4) on the doctor’s head. The doctor’s head

moves greatly during the surgery, and camera cannot

always shoot the surgical ﬁelds, and video is always

shaking. Therefore, video recorded by it can be of-

fending for viewers.

In our proposed system, multiple cameras are at-

tached to multiple lights mounted the surgical lamp,

and the surgery is recorded by them. While one of the

lights illuminates the surgical ﬁeld, we assume that

the surgical ﬁeld can be observed one of the attached

cameras. Therefore, the surgical ﬁeld is recorded

without disturbing the surgery.

2.2 Multiple Camera Switching

In recent years, multiple cameras are introduced in

any place, such as ofﬁce environments, sports stadi-

ums, and downtown areas. Instead of its convenience,

it is difﬁcult to extract only the necessary information

from the huge amount of video sequences from a lot

of cameras. Therefore, camera self-control technol-

ogy, such as the automatic viewpoint switching video

generation, and highlight video generation technol-

ogy, are regarded as important issues (Chen and Carr,

2014).

Liu et al.(Liu et al., 2001) interviewed pro editors

to gain knowledge of video editing, and implemented

the camera switching rules. Based on the rules, they

switched the viewpoint of three cameras shooting the

speaker, the audience, and the entire in conference

video. Doubek et al.(Doubek et al., 2004) observed

moving objects using multiple ﬁxed cameras in an

ofﬁce environment. Selection of a camera was per-

formed based on the score of each camera, and the re-

sistance coefﬁcient was introduced so that the switch-

ing of a camera may be performed only when the

score changed signiﬁcantly. However, such camera

switching strategies may occur frequently if cameras

with competing scores existed, which may reduce the

overall QoV.

In order to suppress camera switching frequency,

Jiang et al.(Jiang et al., 2008) proposed a cost func-

tion calculated based on the size, posture, orientation,

etc. of the target, and controlled the frequency of the

camera switching while considering QoV. Daniyal et

al.(Daniyal and Cavallaro, 2011) calculated the visi-

bility score of an object using a multivariate Gaussian

distribution model, and used the partial observation

Markov decision process for the camera switching to

maximize the visibility score while suppressing the

camera switching frequency. Although these methods

selected the optimal view using past sequential infor-

mation, the switching should be conducted using not

only past but also future information. Compared to

the conventional switching method, our method uses

both past and future frames to switch cameras so that

a higher QoV can be generated.

Also, QoV and user-speciﬁed weights for camera

switching may change depending on the target scene,

because they detected the event for calculating QoV.

For that reason, the hyper-parameter of the method

which determines camera switching depends on the

surgical scene, and it is difﬁcult for non experts to de-

termine. On the other hand, in the proposed method,

since the minimum frame during that camera switch-

ing does not perform is speciﬁed and optimization is

performed for the entire frame, the camera switching

frequency does not change depending on the target

surgery scene.

3 MULTI-CAMERA RECORDING

As shown in Figure 2, we attached multiple cam-

eras to multiple lights mounted the surgical lamp.

Thereby, as long as the surgical ﬁeld is illuminated

by one of the lights, our proposed camera recording

system shoots the surgical ﬁeld. Compared to the

previous camera recording system (Matsumoto et al.,

2013) which attached cameras to the doctor’s head,

our system does not bother the doctors during surgery

while maintaining visibility of the surgical ﬁeld.

4 PROPOSED METHOD

Figure 3 shows the overview of the proposed method

which consists of two components: camera scoring

and camera switching. The multiple surgical videos

are captured from the our capturing system (Section

3). To switch between camera sequences to generate

the best video quality, the frame in each sequence has

to be scored. The score represents how the surgical

ﬁeld can be seen in the image. In our methods, ﬁrst,

the score is estimated against each frame in each se-

quence. Next, the frame is selected sequentially using

the score.

Surgery Recording without Occlusions by Multi-view Surgical Videos

839

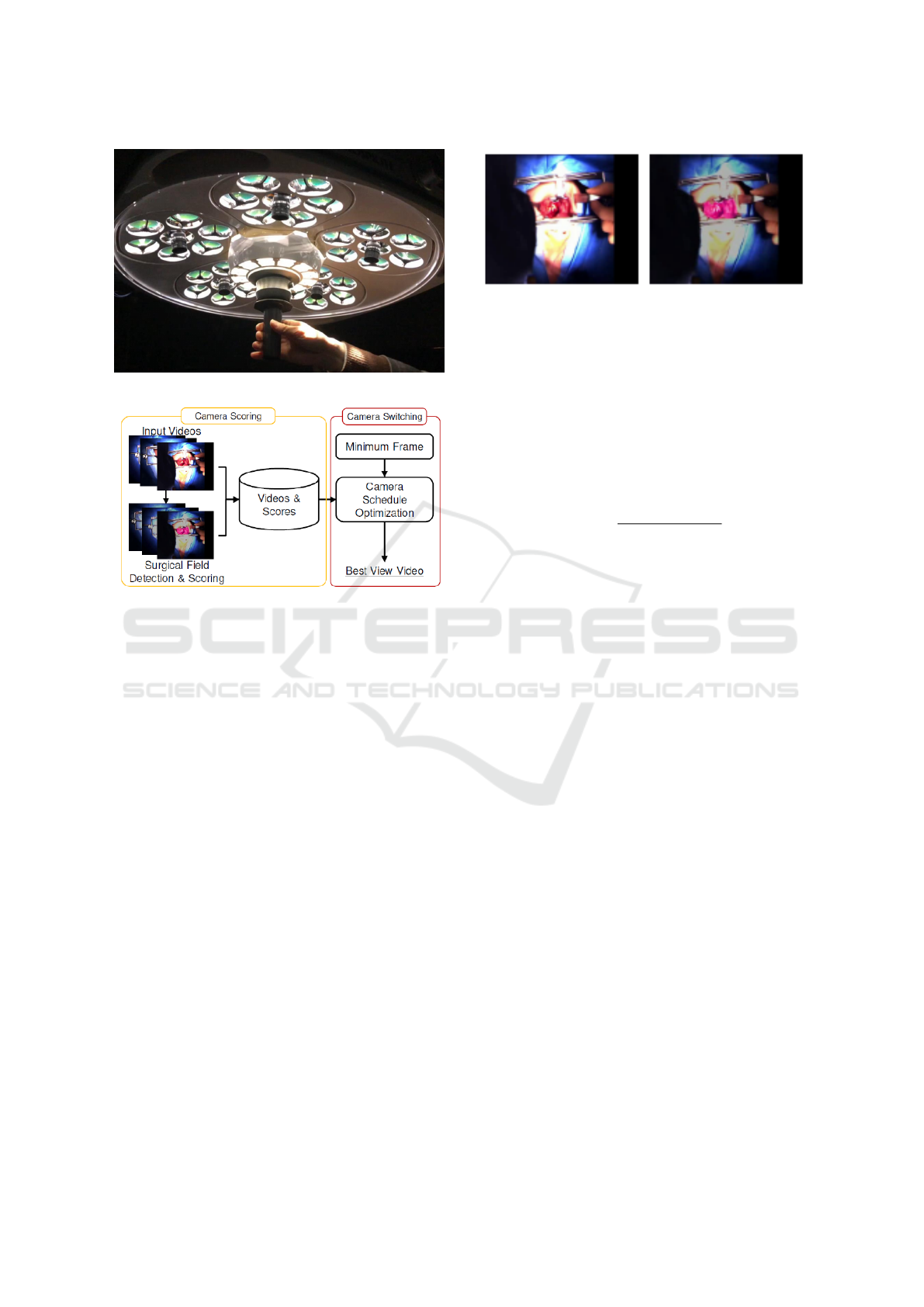

Figure 2: Multiple cameras mounted the surgical lamp.

Figure 3: The overview of the proposed method.

4.1 Camera Scoring

To generate a single video from videos recorded by

multiple cameras, the frame captured from each cam-

era sequence is scored which represents how the sur-

gical ﬁeld can be seen. The score is used as the

switching criterion. In the proposed method, after

segmenting the surgical ﬁeld, the camera is scored

based on the number of pixels of the segmentation

mask. The segmentator F that performs segmentation

of the surgical ﬁeld is deﬁned as follows:

F(I(i, j)) =

(

1 surgical f ield

0 otherwise

(1)

Here, I denotes the input RGB image, and (i, j) is the

pixel coordinate in I.

In this paper, we chose the method proposed by Li

et al.(Li and Kitani, 2013) as the segmentator F. They

used hand color and texture information for learning,

and performed hand segmentation from the learning

model. The surgical ﬁeld changes shape over time,

and it is difﬁcult to keep detecting it. However, the

area other than the surgical ﬁeld is covered with cloth

and the color contrast between the surgical ﬁeld and

other parts is large. Moreover, although their method

is often difﬁcult to detect the target due to environ-

mental changes and high contrast shadows, the sur-

Figure 4: The segmentation result of the surgical ﬁeld;

(left): input; (right): output.

gical ﬁeld is always illuminated, and the surgery is

always performed in the surgical room. Therefore,

their method, which was performed only from color

and texture information, is well suited to detect surgi-

cal ﬁelds. Figure 4 shows the segmentation result of

the surgical ﬁeld.

In the proposed method, the score is a ratio of

non segmented pixels in the image I. A score s

timestep t of a camera c is deﬁned as follows:

= 1 −

∑

F(I

(i, j))

, (2)

where w and h are the width and height of the image

. The point is, the larger the area of the surgical ﬁeld

is, the smaller the score is.

4.2 Camera Switching

The simple approach to achieve camera switching is

taking the minimum score at every timestep. How-

ever, this approach does not consider the scores at the

previous/next frames so that the selected camera may

change over and over during the sequence; the QoV

of video will be decreased.

Hence, the camera switching should be considered

using previous/next frames. In the proposed method,

the scores of all camera sequence were calculated in

advance. Then, the switching video is generated so

that the sum of the scores of the selected sequences

was minimized. However, as above, frequent cam-

era switching occurs in this approach. For this rea-

son, video sequence is selected by using a graph so

that camera switching is suppressed. We changed the

edge connection between when the camera sequence

was switched and when it was not switched. Then, by

optimizing so that the score is minimized throughout

the graph, we created the video sequence in which

camera switching is suppressed. Therefore, we pro-

pose a combined optimization method that applies to

Dijkstra’s algorithm (Ahuja et al., 1990).

4.2.1 Graph Generation

In the proposed method, the edge connection was

changed between when the camera sequences was

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

840

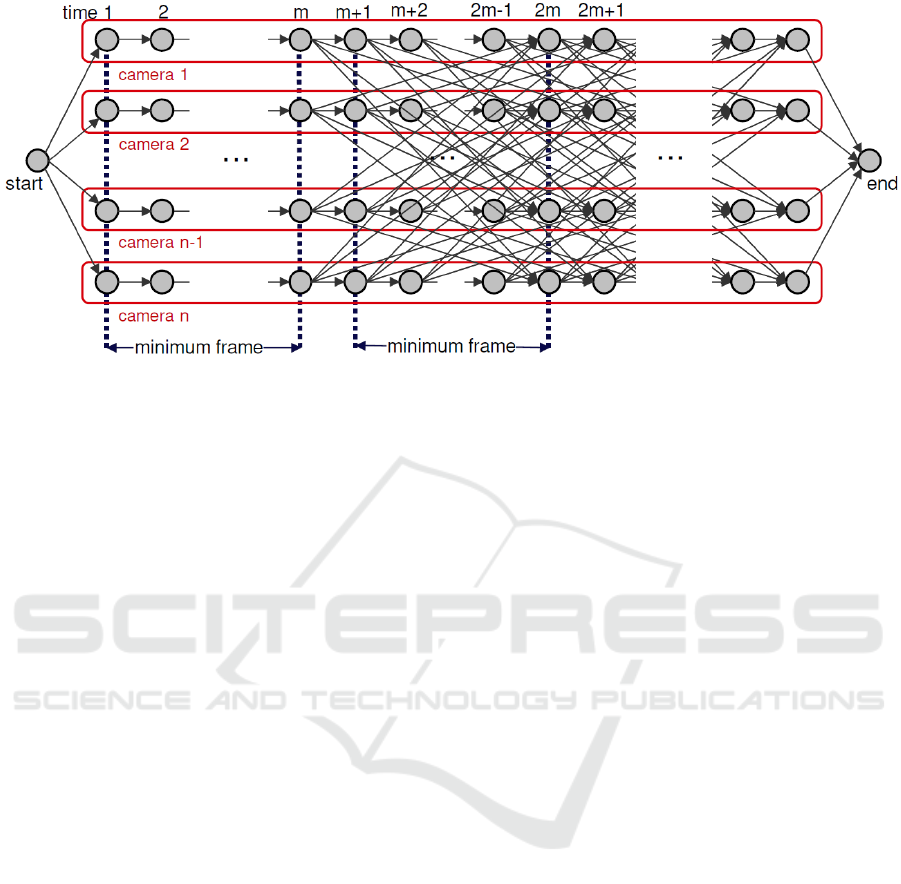

Figure 5: The expected result of generating graph.

switched and when it was not switched. Figure 5

shows the expected graph generation results. Each

node V

c,t

has information on camera number c and

the timestep t. It determines whether or not to con-

nect edges between nodes, and its weight. Between

each node, if the edge E is connected to the node of

the same camera sequence, it is connected to the next

node. On the other hand, if it is connected to the node

of the different camera sequence, it is connected to the

node ahead of the minimum number of frames. Each

edge E is deﬁned as follows:

E(V

c1,t1

, V

c2,t2

) =











1 (V

c1,t1

= start)

∪((c

= c

) ∩ (t

+ 1 = t

))

∪((c

6= c

) ∩ (t

+ m = t

)

∩(t

≤ 2m))

∪(V

c2,t2

= end)

0 otherwise

(3)

m is the minimum number of frames speciﬁed by

the user, and E(V

c1,t1

, V

c2,t2

) denotes the edge that

connects between node V

c1,t1

and node V

c1,t1

. Edges

are connected when E = 1.

At this time, the weight W of edge E is deﬁned as

follows:

W (E(V

c1,t1

, V

c2,t2

)) =











1 (V

c1,t1

= start)

∪((c

= c

)

∩((t

+ 1 = t

)

∑

i=t

((c

6= c

) ∩ (t

+ m = t

)

∪(t

≤ 2m))

0 V

c2,t2

= end

(4)

4.2.2 Optimization

We apply Dijkstra’s algorithm to the graph generated

in Section 4.2.1. Dijkstra’s algorithm is the search

algorithm for solving the single-source shortest path

problem when the weight of the edge in graph is non-

negative.

In the proposed method, the camera number ar-

ray is obtained by acquiring the information of the

nodes, excluding the start and end nodes, after op-

timization by Dijkstra’s algorithm. However, since

there are edges connected to the node ahead of the

minimum number of frames, the array is smaller than

the number of frames of the actual video. Therefore,

at the position where the camera number in the array

has changed, the skipped camera number is added to

the array.

5 EXPERIMENTS

In this section, we describe the details of the experi-

ments we conducted to verify the effectiveness of the

proposed method. At the School of Medicine in our

university, we veriﬁed the effectiveness of the pro-

posed method using multi-view surgical videos shot

with multiple cameras mounted on the surgical lamp.

We introduced our surgical lamp system in the actual

surgery of jaws, and we recorded surgery by using it.

5.1 Example Result of Automatic

Camera Switching

We set ﬁve cameras on the surgical lamp and per-

formed experiments using a surgical image of the jaw.

The images are shown in Figure 6. Each row shows

Surgery Recording without Occlusions by Multi-view Surgical Videos

841

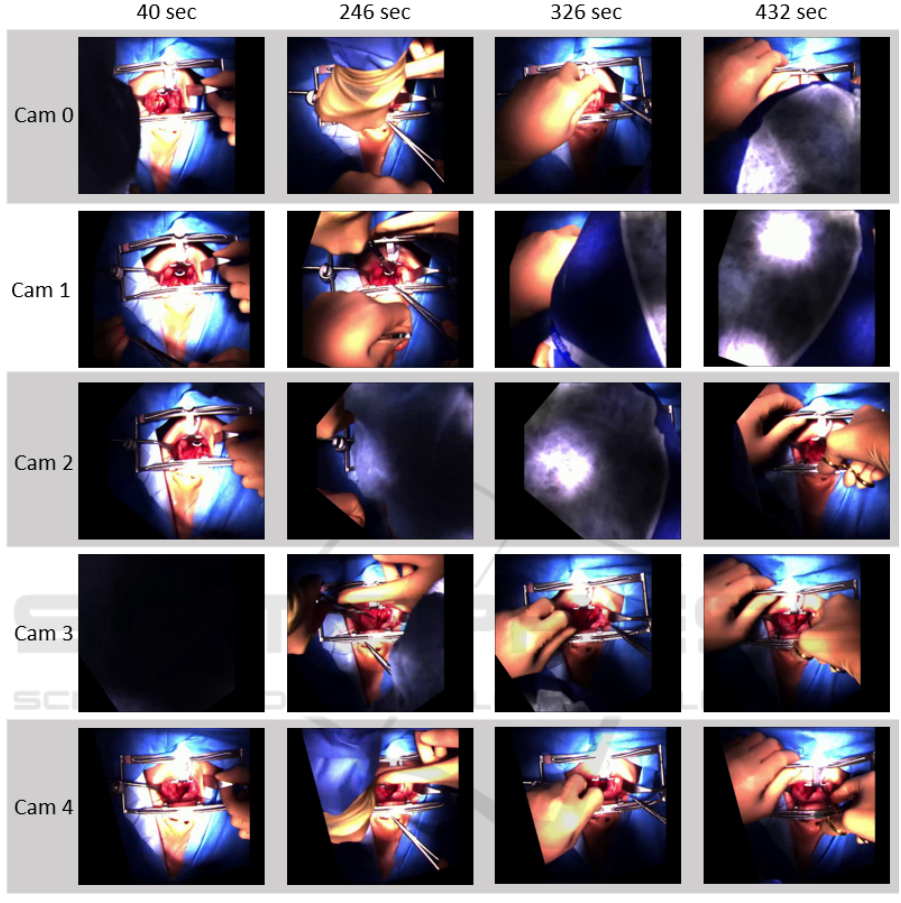

Figure 6: Images recorded by the multiple cameras mounted the surgical lamp.

the images captured by each camera, each column

shows the timestamp.

In Figure 6, it can be seen that at least one cam-

era always captures the surgical ﬁeld. The segmen-

tator was trained using about 100 images randomly

extracted from the videos. We manually annotate the

surgical ﬁeld. In the experiment, we set the minimum

frame to one second.

The generated videos are shown in Figure 7. In

Figure 7 (a), the surgical ﬁeld cannot be observed due

to the occlusion of the head, etc., in the image ob-

tained from one camera. On the other hand, in Figure

7 (b), the video created by our proposed method was

the video with diminishing occlusion.

As seen from the upper graph in Figure 8, when

the camera switching is not scheduled, it is frequently

performed. However, when the proposed method is

applied, it can be seen that the camera switching is

suppressed.

As shown in the lower graph, even when cam-

era switching is suppressed, the score of the selected

camera is almost the same as before the suppression.

Therefore, we can say that QoV was improved while

the observation of the surgery was maintained.

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

842

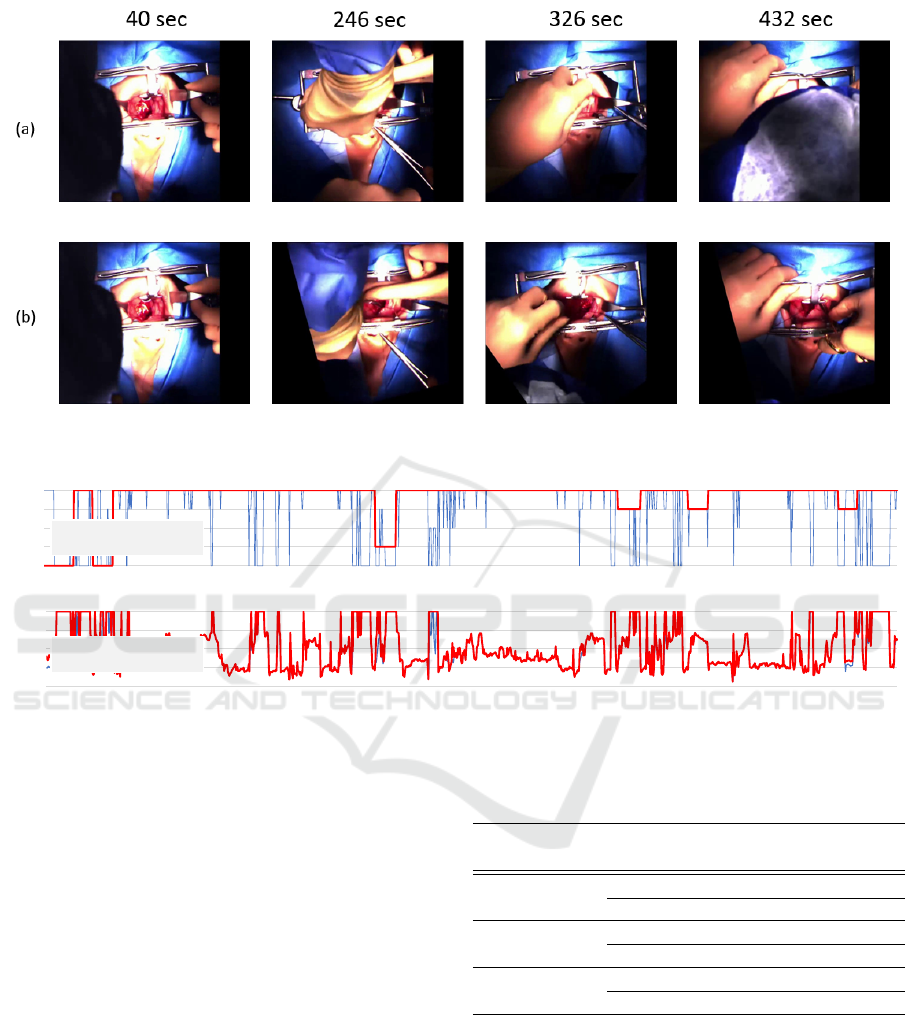

Figure 7: Comparison between a video taken with one camera and a video created by the proposed method; a: images of each

time of the video taken with one camera; b: images of each time of the video created by the proposed method.

0.96

0.97

0.98

0.99

236 240 243 246 250 253 256 260 263 266 270 273 276 280

Negative Region

time [sec]

236 240 243 246 250 253 256 260 263 266 270 273 276 280

camera num

time [sec]

- No scheduling

- Minimum time 1 sec

- No scheduling

- Minimum time 1 sec

Figure 8: Camera switching and scoring results; (upper graph): the result of the camera switching; (lower graph): the result

of camera scoring.

5.2 Assessment of Switching Video by

Medical Doctors

We asked 13 doctors about the usefulness of the cre-

ated video. Three videos of one camera, no schedule,

and the proposed method were shown, and we asked

two questions (Q1: whether switching cameras is not

bothersome, Q2: whether it is possible to recognize

the surgical operation.). Their responses were col-

lected on a ﬁve-stage scale. (1: Strongly disagree, 2:

Disagree, 3: Neither agree nor disagree, 4: Agree, 5:

Strongly agree). Responses of Q1 and Q2 are shown

in Table 1.

As a result, it can be seen that the recognition rate

of the surgical operation is improved compared to us-

ing one camera from the result of Q2, and the QoV is

improved compared to the video without scheduling

from the result of Q1.

In addition to the assessment by doctors, we eval-

uated the performance of the automatic switching

Table 1: The result of questionnaire.

video question average

standard

deviation

one camera

Q1 4.23 0.80

Q2 1.69 0.91

without

scheduling

Q1 1.38 0.49

Q2 3.08 1.00

proposed

method

Q1 3.77 0.80

Q2 4.15 0.77

video by checking if each selected frame captures the

target surgery region or not by actually watching the

video. According to the visual examination, we have

conﬁrmed that the ratio of missing the target region is

less than 5 %.

Surgery Recording without Occlusions by Multi-view Surgical Videos

843

6 CONCLUSION

In the proposed method, multiple cameras were in-

stalled corresponding to the multiple light sources

provided for the surgical lamp, and it became possi-

ble to switch the camera and record the operation au-

tomatically while diminishing the doctor’s head and

body. As a result, doctors can record surgery with-

out being aware of the presence of a camera during

surgery. In addition, we experimented with the pro-

posed method and evaluated its usefulness. In the fu-

ture, we would like to switch the multi-view videos

without determining the minimum frame manually,

and to generate camera switching video more in ac-

cordance with the preference of the doctor.

ACKNOWLEDGEMENT

This research was funded by AMED research

expenses (task number JP18he1902002h0001),

JSTCREST (JPMJCR14E1, JPMJCR14E3), and

Saitama Prefecture Leading-edge Industry Design

Project.

REFERENCES

Ahuja, R. K., Mehlhorn, K., Orlin, J., and Tarjan, R. E.

(1990). Faster algorithms for the shortest path prob-

lem. Journal of the ACM (JACM), 37(2):213–223.

Byrd, R. J., Ujjin, V. M., Kongchan, S. S., and Reed, H. D.

(2003). Surgical lighting system with integrated digi-

tal video camera. US Patent 6,633,328.

Chen, J. and Carr, P. (2014). Autonomous camera systems:

A survey. In Workshops at the Twenty-Eighth AAAI

Conference on Artiﬁcial Intelligence.

Daniyal, F. and Cavallaro, A. (2011). Multi-camera

scheduling for video production. In 2011 Conference

for Visual Media Production, pages 11–20. IEEE.

Doubek, P., Geys, I., Svoboda, T., and Van Gool, L.

(2004). Cinematographic rules applied to a camera

network. In Omnivis2004: The ﬁfth Workshop on

Omnidirectional Vision, Camera Networks and Non-

Classical Cameras, pages 17–29. Prague, Czech Re-

public: Czech Technical University.

Jiang, H., Fels, S., and Little, J. J. (2008). Optimizing mul-

tiple object tracking and best view video synthesis.

IEEE Transactions on Multimedia, 10(6):997–1012.

Kumar, A. S. and Pal, H. (2004). Digital video recording of

cardiac surgical procedures. The Annals of thoracic

surgery, 77(3):1063–1065.

Li, C. and Kitani, K. M. (2013). Pixel-level hand detec-

tion in ego-centric videos. In Proceedings of the IEEE

Conference on Computer Vision and Pattern Recogni-

tion, pages 3570–3577.

Liu, Q., Rui, Y., Gupta, A., and Cadiz, J. J. (2001). Au-

tomating camera management for lecture room envi-

ronments. In Proceedings of the SIGCHI conference

on Human factors in computing systems, pages 442–

449. ACM.

Matsumoto, S., Sekine, K., Yamazaki, M., Funabiki, T.,

Orita, T., Shimizu, M., and Kitano, M. (2013). Digital

video recording in trauma surgery using commercially

available equipment. Scandinavian journal of trauma,

resuscitation and emergency medicine, 21(1):27.

Murala, J. S., Singappuli, K., Swain, S. K., and Nunn, G. R.

(2010). Digital video recording of congenital heart

operations with surgical eye. The Annals of thoracic

surgery, 90(4):1377–1378.

Nair, A. G., Kamal, S., Dave, T. V., Mishra, K., Reddy,

H. S., Della Rocca, D., Della Rocca, R. C., Andron,

A., and Jain, V. (2015). Surgeon point-of-view record-

ing: using a high-deﬁnition head-mounted video cam-

era in the operating room. Indian journal of ophthal-

mology, 63(10):771.

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

844
